Transcript

  1. Exadata Fleet Update 概要、設定⽅法 ⽇本オラクル株式会社 テクノロジー事業戦略統括部 データベースソリューション部 2024/2/16 Takeshi Maruyama

  2. メンテナンスの課題 2 Copyright © 2024, Oracle and/or its affiliates |

    ⼤規模なフリート環境では画⾯からメンテナンス作業 を実⾏する場合、数⼗から数百のステップが必要 スクリプトを指定する必要がある スクリプト化されていない場合、 ⼀度に1つのターゲットにしか実⾏できない スケジュール機能が無い

  3. • Exadata Database Service on Dedicated Infrastructure、 Exadata Database Service

    on Cloud@Customer での ⼤規模なデータベース・デプロイメント環境のメンテナンス操作を⾃動化 • データベースとグリッド・インフラストラクチャのグループを 単⼀のメンテナンス・スケジュールとメンテナンス・サイクルで更新可能 • ネイティブOCIサービス • クラウドでサポートされているすべての Oracle Database バージョンに対応 • Exadata Database Service on Dedicated Infrastructure、 Exadata Database Service on Cloud@Customer に含まれるサービス Exadata Fleet Update *とは︖ Copyright © 2024, Oracle and/or its affiliates | 3

  4. Exadata Fleet Update で解決できる問題 メンテナンスの簡素化 管理にかかる時間の短縮化 4 Copyright © 2024,

    Oracle and/or its affiliates |

  5. Fleet Patching & Provisioning パッチ適⽤をシンプルに 5 • Fleet Patching &

    Provisioning (FPP)は、⼤規模な Oracle Database環境に対して、標準化されたアウトオ ブプレース・パッチ適⽤⼿法について、繰返し可能な⾃動 化を提供 • Fleet Patching & Provisioning (FPP)の機能 • ゴールドイメージベースのドリフト検出 • 統合されたジョブ・スケジューリング • 拡張性のためのユーザー・アクション • 包括的なExadataパッチ適⽤ • 常に最新のMAAベスト・プラクティスに準拠 • Oracle Database 23cは、FPPを簡素化および強化し て最新のRAC機能を活⽤し、フルスタックのExadataパッ チ適⽤の拡張機能を提供 Copyright © 2023, Oracle and/or its affiliates.

  6. FPPはアウトオブプレース・パッチ適⽤を使⽤ 標準化とローリング・パッチ適⽤への道のり Copyright © 2024, Oracle and/or its affiliates |

    6 UP UP UP UP DOWN DOWN DOWN DOWN UP UP UP UP STOP ALL SERVICES UP PATCH BINARIES PATCH DBs インプレース・パッチ適⽤: • 簡単なロールバックは無い • ⻑いダウンタイム • 複雑なプロセス • エラー発⽣ • 標準は適⽤されない UP UP UP UP DOWN DOWN DOWN DOWN UP UP UP UP INSTALL NEW BINARIES STOP, MOVE, PATCH ONE BY ONE アウトオブプレース・パッチ適⽤ • ロールバックが簡単 • ダウンタイムが短縮 • バイナリを1回構築してあらゆる 場所で使⽤ • 計画が容易 • 組み込まれた標準化 ORACLE 推奨

  7. Fleet Patching and Provisioning の機能の歴史 Copyright © 2024, Oracle and/or

    its affiliates | 7 RHP 12.1.0.2 RHP 12.2 RHP 18 FPP 19 FPP 21 •First release of Rapid Home Provisioning (RHP) as part of Grid Infrastructure •DB Home Provisioning •Database Patching • Grid Infrastructure Support (deployment, patching, upgrade) • Database Major Upgrades (with DBUA) • Zero Downtime Upgrade • REST APIs • Exadata Support • Dry-run evaluation • Drift Reporting • Authentication Plugins • Command Scheduler • Local Mode (DB patching and GI patching) • Renamed to FPP (Fleet Patching and Provisioning) • Zero Downtime Oracle Grid Infrastructure Patching • PDB Patching and Relocation • Oracle Restart Support • Automated Session Draining for GI rolling maintenance • Server Peering • Integration with Autoupgrade

  8. Exadata Fleet Update フリートを維持する最も簡単な⽅法 8 Copyright © 2024, Oracle and/or

    its affiliates |

  9. Exadata Fleet Update の仕組み Copyright © 2024, Oracle and/or its

    affiliates | 9 OCIリージョン ExaDB-D ExaDB-D Grid Infrastructure Collection ExaDB-C@C ExaDB-C@C Database Collection Grid Infrastructure Collection Database Collection Collection を 作成 (設定は⼀度) 1 2 2 1 Maintenance Cycle を定義

  10. Grid Infrastructure Oracle Database Collection の作成⽅法 Copyright © 2024, Oracle

    and/or its affiliates | 10 Major version コンパートメント RU Version/ Custom Image DB Name/ DB Unique name Oracle Home VM Cluster Exadata Infrastructure

  11. ターゲットの Collections へのグループ化 Copyright © 2024, Oracle and/or its affiliates

    | 11 ① ターゲット • Exadata Database Service • Database • Grid Infrastructure ② ターゲット • 同⼀ Oracle Exadata Cloud Service タイプの複数のインフラストラク チャにまたがることが可能 ③ 同じタイプのターゲットを Collection にグル ープ化可能 • Oracle Databases • Oracle Grid Infrastructure ④ Collectionは1つのリージョンで定義される。 複数のコンパートメントにまたがることが可能 ExaDB-C@C ExaDB-D 1 2 3 4 Region 2

  12. Maintenance Cycle とは Copyright © 2024, Oracle and/or its affiliates

    | 12 定義 ターゲット・バージョン Standard RU または Custom Image ローリング または ⾮ローリング・ メンテナンス Drain Timeout 無視可能なパッチ その他のオプション

  13. Maintenance Cycle の仕組み Copyright © 2024, Oracle and/or its affiliates

    | 13 Maintenance Actions 必須ステップ オプションの ステップ Stage software ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Apply update ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (apply) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (stage) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Cleanup ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ)

  14. Exadata Fleet Update インタフェース 希望の⽅法を利⽤可能 OCIコンソール OCIコマンドライン OCI API 14

    Copyright © 2024, Oracle and/or its affiliates |

  15. Exadata Fleet Update 機能 ネイティブ・フリート・ワイド・ パッチ適⽤ メンテナンス・アクションは、 個々のターゲットではなく、 グループに対して実⾏される 拡張(ローリング)パッチ・オプション

    • ⼀度に1つのノードへ適⽤ （ローリング、デフォルト） • 50/50 （ローリングで半分 づつに適⽤） • スマート・バッチ • ⾮ローリング • ドレイン・タイムアウトの指定 （デフォルト600秒） スケジュール メンテナンス処理を スケジュール可能 アウトオブプレースのパッチ適⽤ Standard Software Images または カスタム・データベース・ソフトウェ ア・イメージに基づいて 新しいホームがインストールされ る Copyright © 2024, Oracle and/or its affiliates | 15

  16. • Exadata Database Service の 更新の簡素化、標準化、および強化 • インターフェースの選択 • OCI

    コンソール • OCI API • OCI コマンドライン • 完全なネイティブOCIサービス • 無料 OCIリージョン ExaDB-D ExaDB-D まとめ ExaDB-D データベース Collection Grid Infrastructure Collection Copyright © 2024, Oracle and/or its affiliates | 16

  17. • マニュアル • Exadata Fleet Update Administrator's Guide • https://docs.oracle.com/en/engineered-systems/exadata-cloud-

    service/edsfu/index.html#Oracle%C2%AE-Exadata • Exadataフリート更新管理者ガイド • https://docs.oracle.com/cd/F56555_01/edsfu/index.html#Oracle%C2%AE-Exadata • ブログ • https://blogs.oracle.com/oracle4engineer/post/exadata-fleet-update-concepts-jp • デモビデオ • https://www.youtube.com/playlist?list=PLdtXkK5KBY56u9bIE2PkAtE5eYdA_82WK リソース Copyright © 2024, Oracle and/or its affiliates | 17

  18. Copyright © 2024, Oracle and/or its affiliates | 18 12.

    Exadata Fleet Update • Collections の管理（DB） • Maintenance Cycles の管理（DB） • Grid Infrastructure の場合の Collections、Maintenance Cycle の管理 • Topics、Rulesの設定

  19. Copyright © 2024, Oracle and/or its affiliates | 19 Exadata

    Fleet Update • Collections の管理（DB） • Maintenance Cycles の管理（DB） • Grid Infrastructure の場合の Collections、Maintenance Cycle の管理 • Topics、Rulesの設定

  20. Resource-Types • 集約リソース・タイプ • fleet-software-update-family • 個々のリソース・タイプ • fleet-software-update-discoveries •

    fleet-software-update-collections • fleet-software-update-cycles • fleet-software-update-actions • fleet-software-update-jobs • fleet-software-update-work-requests • fleet-software-update-images • fleet-software-update-homes Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 20

  21. Collection の管理 IAM Policies の設定 Dynamic Groups Exadata Fleet Update

    Copyright © 2024, Oracle and/or its affiliates | 21 作成済みの Dynamic Group を利⽤

  22. Collection の管理 IAM Policies の設定 Exadata Fleet Update Collection の管理に必要なポリシー

    allow dynamic-group project-exadatacloud_dynamic_group to manage fleet-software-update-discoveries in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to manage fleet-software-update-collections in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to read fleet-software-update-work-requests in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to inspect database-software-images in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to inspect db-homes in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to inspect databases in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to inspect cloud-exadata-infrastructures in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to inspect db-nodes in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use cloud-vmclusters in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use vcns in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use subnets in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use vnics in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use private-ips in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use network-security-groups in compartment exadatacloud Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 22

  23. Collection の管理 IAM Policies の設定 Exadata Fleet Update Collection の管理に必要なポリシー

    ポリシーの作成 Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 23 Identity > Policies Create Policy

  24. Collection の管理 IAM Policies の設定 Exadata Fleet Update Collection の管理に必要なポリシー

    ポリシーの作成 Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 24 manual editor Policy を記載

  25. Collection の管理 IAM Policies の設定 Exadata Fleet Update Collection の管理に必要なポリシー

    ポリシーの作成 Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 25 作成された Policies

  26. Collection の管理 必要なネットワーク設定 Exadata Fleet Update Copyright © 2024, Oracle

    and/or its affiliates | 26 Security List > Ingress Rules Add Ingress Rules 利⽤しているVCN

  27. Collection の管理 必要なネットワーク設定 Exadata Fleet Update Copyright © 2024, Oracle

    and/or its affiliates | 27 Stateless: No (all rules must be stateful) Source Type: CIDR Source CIDR: Client subnet's CIDR IP Protocol: TCP Source Port Range: All Destination Port Range: 7085

  28. Collection の管理 必要なネットワーク設定 Exadata Fleet Update Copyright © 2024, Oracle

    and/or its affiliates | 28 作成された Security List

  29. Collection の管理 Collection の作成 Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 29 Oracle Database Exadata Fleet Update

  30. Collection の管理 Collection の作成 Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 30 Collections Create collection

  31. Collection の管理 Collection の作成 Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 31 Collection type: Database Grid Infrastructure どちらか選択 （今回は Database） Cloud service: Oracle Exadata Database Service on Cloud@Customer (ExaDB- C@C) Oracle Exadata Database Service on Dedicated Infrastructure (ExaDB-D) どちらか選択 Current major version: コレクション内のターゲットは 同じバージョンである必要が あるが、異なるパッチ・レベル にすることが可能） Next

  32. Collection の管理 Collection の作成 Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 32 Edit search criteria 対象のデータベースの検 索基準 Database name: アスタリスク利⽤可能 Apply Add targets Edit search criteria

  33. Collection の管理 Collection の作成 Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 33 検索結果の候補 Next

  34. Collection の管理 Collection の作成 Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 34 Review Create collection

  35. Collection の管理 Collection の作成 Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 35 Collection 作成中

  36. Collection の管理 Collection の作成 Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 36 Collection 作成完了 Targets

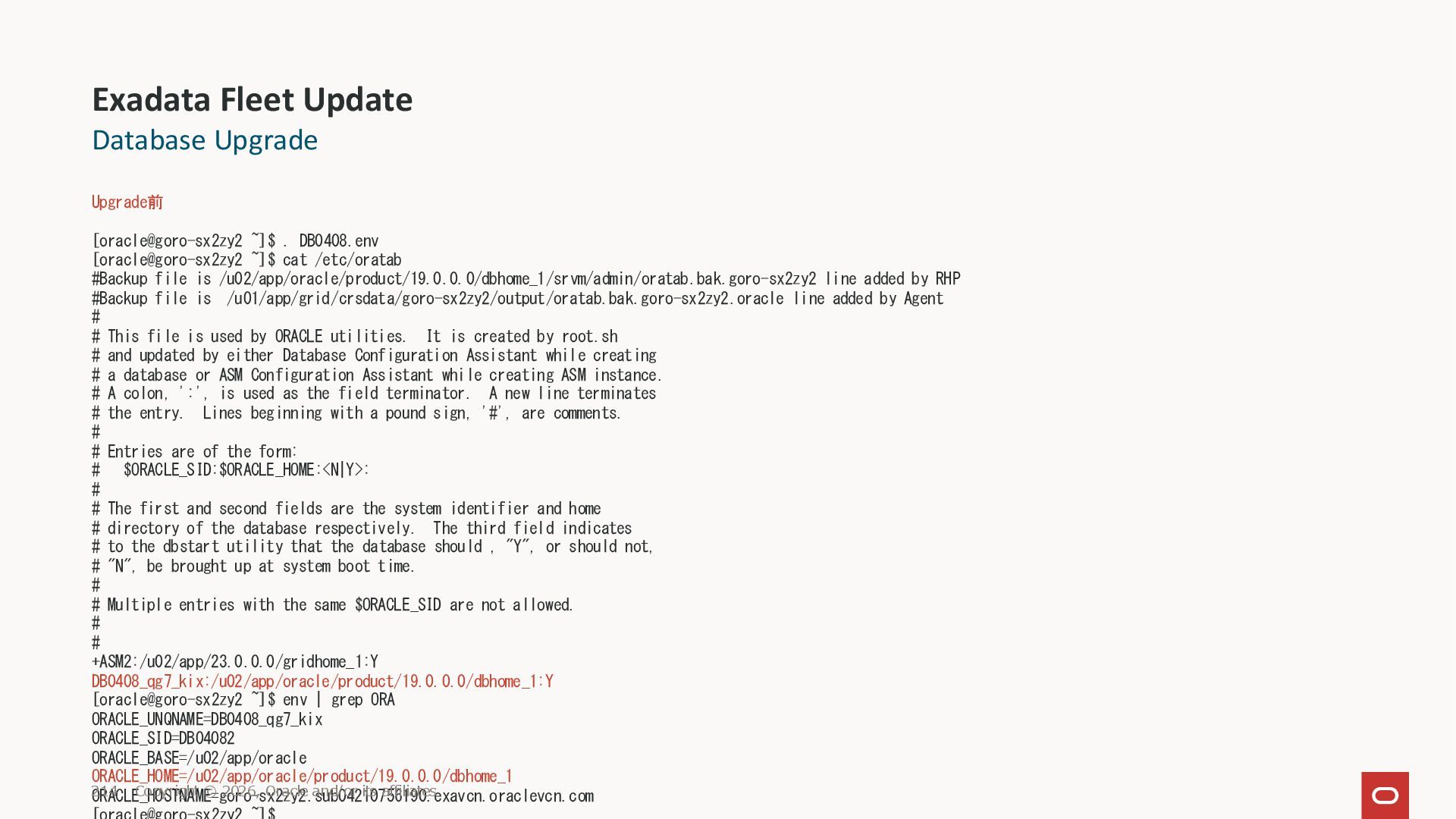

  37. Collection の管理 Collection の作成 現在の ORACLE_HOME、DBRU、opatch のバージョン確認 [oracle@kara-vpvao1 ~]$ env

    | grep ORA ORACLE_UNQNAME=DB1106_552_kix ORACLE_SID=DB11061 ORACLE_BASE=/u02/app/oracle ORACLE_HOSTNAME=kara-vpvao1.sub04210756190.exavcn.oraclevcn.com ORACLE_HOME=/u02/app/oracle/product/19.0.0.0/dbhome_4 [oracle@kara-vpvao1 ~]$ which opatch /u02/app/oracle/product/19.0.0.0/dbhome_4/OPatch/opatch [oracle@kara-vpvao1 ~]$ opatch version OPatch Version: 12.2.0.1.36 OPatch succeeded. [oracle@kara-vpvao1 ~]$ opatch lspatches 34835593;REFERENCE BUG 34792490 - SCHEDULER LAYER CHANGES TO AVOID CYCLIC DEPENDENCY ON DBMS_AQADM_SYS PACKAGE 34792490;FADBRWT STRESS FA ORA-00060 DEADLOCK DETECTED DURING DATAPATCH 34699616;DSTV40 UPDATE - TZDATA2022E - NEED OJVM FIX 34777391;JDK BUNDLE PATCH 19.0.0.0.230117 34786990;OJVM RELEASE UPDATE: 19.18.0.0.230117 (34786990) 34768559;OCW RELEASE UPDATE 19.18.0.0.0 (34768559) 34765931;DATABASE RELEASE UPDATE : 19.18.0.0.230117 (REL-JAN230131) (34765931) OPatch succeeded. [oracle@kara-vpvao1 ~]$ [oracle@kara-vpvao1 ~]$ opatch version OPatch Version: 12.2.0.1.36 OPatch succeeded. [oracle@kara-vpvao1 ~]$ Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 37

  38. Collection の管理 Collection の作成 現在の ORACLE_HOME、DBRU のバージョン確認 [oracle@kara-vpvao1 ~]$ .

    DB11062.env [oracle@kara-vpvao1 ~]$ env | grep ORA ORACLE_UNQNAME=DB11062_sxh_kix ORACLE_SID=DB110621 ORACLE_BASE=/u02/app/oracle ORACLE_HOSTNAME=kara-vpvao1.sub04210756190.exavcn.oraclevcn.com ORACLE_HOME=/u02/app/oracle/product/19.0.0.0/dbhome_5 [oracle@kara-vpvao1 ~]$ opatch lspatches 35556847;MERGE ON DATABASE RU 19.18.0.0.0 OF 35527937 35412607 35471762;KZTDE KZTSMTKI ENCRYPTION WALLET LOCATION MESSAGES FLOODING ALERT LOG POST 19.18 35386601;MERGE ON DATABASE RU 19.18.0.0.0 OF 34997479 35242133 35320424;MRP INTERMITTENT HANG ON TWO STANDBY DATABASES REGR_FIX 35246710;HIGH DIRECT PATH READ AFTER 19.18 DBRU PATCHING 35213579;MERGE ON DATABASE RU 19.18.0.0.0 OF 35037877 35046819 35162446;NEED BEHAVIOR CHANGE TO BE SWITCHED OFF 35160800;GG IE FAILS WITH ORA-14400 AT SYSTEM.LOGMNRC_USER AFTER ORACLE DB UPGRADE TO 19.18DBRU 35156936;ORA-7445 [KFFBNEW()+351] AFTER CONVERT TO ASM FLEX DISKGROUP 34988484;ORA-600 [KTUGETTEMPRSP NO TSO] EVEN WITH PATCH 34615905 APPLIED 34879016;ALL SESSIONS HANG DUE TO INST_RCV BUFFER IS NOT GETTING WRITE PERMISSION 34861493;RESYNC CATALOG FAILED IN ZDLRA CATALOG AFTER PROTECTED DATABASE PATCHED TO 19.17 34847038;ORA-16856 TRANSPORT LAG COULD NOT BE DETERMINED | TRANSPORT LAG (UNKNOWN) | NO LAG | 19.16.0.0 34832725;ORA-4031 KSU STATS_FREELIST AND KGLSESHTTABLE ERRORS IN 19C 34810252;SPIN OFF FOR BUG 34808861 [ORA-00600 INTERNAL ERROR CODE, ARGUMENTS [KFDS_GETSEGREUSEENQ01] TERMINATED ALL DB INSTANCES 34809715;SQL WITH CASE EXPRESSION MAY FAIL WITH ORA-00932 IN 19.17 AND ABOVE 34793099;STRESS FA CDB CREATION FAILS ON 19.17 WITH THE ORA-00704 BOOTSTRAP PROCESS FAILURE WHILE OPENING PDB$SEED 34783802;PARALLEL QUERY ON PARTITIONED TABLE RETURNS WRONG RESULT 34632426;FADBRWT STRESS FA HITTING MULTIPLE INCIDENTS OF ORA-12850 IN ALERT LOG EVEN WITHOUT EXPLICITLY SETTING 12850 ERROR EVENT IN 19.17RU 34557500;CTWR CAUSED MULTIPLE INSTANCES IN HUNG STATE ON THE RAC STANDBY DATABASE 34340632;AQAH SMART MONITORING & RESILIENCY IN QUEUE KGL MEMORY USAGE 33973908;DBWR NOT PICKING UP WRITES FOR SOME TIME 32727143;TRANSACTION-LEVEL CONTENT ISOLATION FOR TRANSACTION-DURATION GLOBAL TEMPORARY TABLES 31222103;STRESS RAC ATPD FAN EVENTS ARE NOT GETTING PROCESSED WITH 21C GI AND 19.4 DB 34835593;REFERENCE BUG 34792490 - SCHEDULER LAYER CHANGES TO AVOID CYCLIC DEPENDENCY ON DBMS_AQADM_SYS PACKAGE 34792490;FADBRWT STRESS FA ORA-00060 DEADLOCK DETECTED DURING DATAPATCH 34699616;DSTV40 UPDATE - TZDATA2022E - NEED OJVM FIX 34777391;JDK BUNDLE PATCH 19.0.0.0.230117 34786990;OJVM RELEASE UPDATE: 19.18.0.0.230117 (34786990) 34768559;OCW RELEASE UPDATE 19.18.0.0.0 (34768559) 34765931;DATABASE RELEASE UPDATE : 19.18.0.0.230117 (REL-JAN230131) (34765931) OPatch succeeded. Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 38

  39. Copyright © 2024, Oracle and/or its affiliates | 39 Exadata

    Fleet Update • Collections の管理（DB） • Maintenance Cycle の管理（DB） • Grid Infrastructure の場合の Collections、Maintenance Cycle の管理 • Topics、Rulesの設定 Stage software ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) Apply update ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) Precheck (apply) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) Precheck (stage) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) Cleanup ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ) ジョブ(ター ゲットごとに 1つ)

  40. Maintenance Cycle の管理 IAM Policies の設定 Maintenance Cycle の管理に必要なポリシー allow

    dynamic-group project-exadatacloud_dynamic_group to read db-nodes in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use database-software-images in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to manage db-homes in compartment exadatacloud where any {request.permission='DB_HOME_CREATE', request.permission='DB_HOME_UPDATE', request.permission='DB_HOME_INSPECT'} allow dynamic-group project-exadatacloud_dynamic_group to manage databases in compartment exadatacloud where any {request.permission='DATABASE_CREATE', request.permission='DATABASE_UPDATE', request.permission='DATABASE_INSPECT'} allow dynamic-group project-exadatacloud_dynamic_group to use cloud-vmclusters in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use vcns in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use subnets in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use vnics in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to use private-ips in compartment exadatacloud allow service fppcsprod to use cloud-vmclusters in compartment exadatacloud Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 40

  41. Maintenance Cycle の管理 IAM Policies の設定 Maintenance Cycle の管理に必要なポリシー Exadata

    Fleet Update Copyright © 2024, Oracle and/or its affiliates | 41

  42. Maintenance Cycle の管理 IAM Policies の設定 Maintenance Cycle の管理に必要なポリシー Exadata

    Fleet Update Copyright © 2024, Oracle and/or its affiliates | 42

  43. Maintenance Cycle の管理 IAM Policies の設定 Maintenance Cycle のCleanupに必要なポリシー allow

    dynamic-group project-exadatacloud_dynamic_group to manage db-homes in compartment exadatacloud where request.permission='DB_HOME_DELETE' allow dynamic-group project-exadatacloud_dynamic_group to manage databases in compartment exadatacloud where request.permission='DATABASE_DELETE’ マニュアルを読み飛ばしがちなので注意！ Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 43

  44. Maintenance Cycle の管理 IAM Policies の設定 Maintenance Cycle のCleanupに必要なポリシー Exadata

    Fleet Update Copyright © 2024, Oracle and/or its affiliates | 44 Create Policy Policy

  45. Maintenance Cycle の管理 IAM Policies の設定 Maintenance Cycle のCleanupに必要なポリシー Exadata

    Fleet Update Copyright © 2024, Oracle and/or its affiliates | 45 Create Policy Policy

  46. Maintenance Cycle の管理 IAM Policies の設定 Maintenance Cycle、アクションリソースの付与 allow dynamic-group

    project-exadatacloud_dynamic_group to use fleet-software-update-collections in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to manage fleet-software-update-cycles in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to manage fleet-software-update-actions in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to manage fleet-software-update-jobs in compartment exadatacloud allow dynamic-group project-exadatacloud_dynamic_group to manage fleet-software-update-work-requests in compartment exadatacloud allow group project-exadatacloud_dynamic_group to use database-software-images in compartment exadatacloud allow group project-exadatacloud_dynamic_group to manage db-homes in compartment exadatacloud allow group project-exadatacloud_dynamic_group to use cloud-vmclusters in compartment exadatacloud allow group project-exadatacloud_dynamic_group to manage databases in compartment exadatacloud where any {request.permission='DATABASE_CREATE', request.permission='DATABASE_UPDATE', request.permission='DATABASE_INSPECT'} allow group project-exadatacloud_dynamic_group to use vmclusters in compartment exadatacloud allow group project-exadatacloud_dynamic_group to inspect exadata-infrastructures in compartment exadatacloud Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 46

  47. Maintenance Cycle の管理 IAM Policies の設定 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 47 Create Policy Policy

  48. Maintenance Cycle の管理 IAM Policies の設定 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 48 Policy

  49. Maintenance Cycle の管理 Maintenance Cycle の作成 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 49 Maintenance cycle Create Maintenance cycle Collections exadbupdate

  50. Maintenance Cycle の管理 Maintenance Cycle の作成 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 50 Target database image Change database software image: ターゲットのバージョン選択

  51. Maintenance Cycle の管理 Maintenance Cycle の作成 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 51 Select a Database Software Image patch適⽤のバージョンを選 択

  52. Maintenance Cycle の管理 Maintenance Cycle の作成 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 52 Target database image: 適⽤後のバージョン Maintenance Method 適⽤⽅式 • One node at a time (rolling): (Default) • 50/50 (rolling): • VMの半分にあるデータベース・イン スタンスは、1つのバッチで更新され、 残りの半分は別のバッチで更新され る。 2つのバッチは、データベース・ サービスの構成によって決まります。 これにより、すべてのサービスが使⽤ 可能になる • Enable one batch at a time: • ⼀度に1つのバッチに更新を適⽤ するには、このチェック・ボックスを 選択します。適⽤アクションでは、 1つ⽬のバッチの更新を適⽤する と、2つ⽬のバッチを開始する前 に、続⾏が待機される • Non-rolling: • Smart batch (rolling): • データベース・インスタンスは、⼀度に 1つ以上のVMで更新されます。 VMは、構成されたデータベース・ サービスに基づいてバッチされる。 こ れにより、必要なバッチの合計数を 最⼩限に抑えながら、複数のノード にすべてのサービスを構成しているか ぎり、すべてのサービスが使⽤可能 になる Database home Create new home 新しいDBHOMEを作成 Use existing home 選択したイメージの既存のホー ムがターゲット・データベースの VMクラスタに⾒つからない場合 は、新しいDBHOMEが作成さ れる。 選択したイメージの複数の既存 のホームが⾒つかった場合は、 データベース数が最も少ない DBHOMEが使⽤される。 複数のホームにデータベース数 が最も少ない場合、DBHOME はランダムに選択される。

  53. Maintenance Cycle の管理 Maintenance Cycle の作成 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 53 Show advanced options 次ページ Stage software start time: オプションで開始時間を設 定

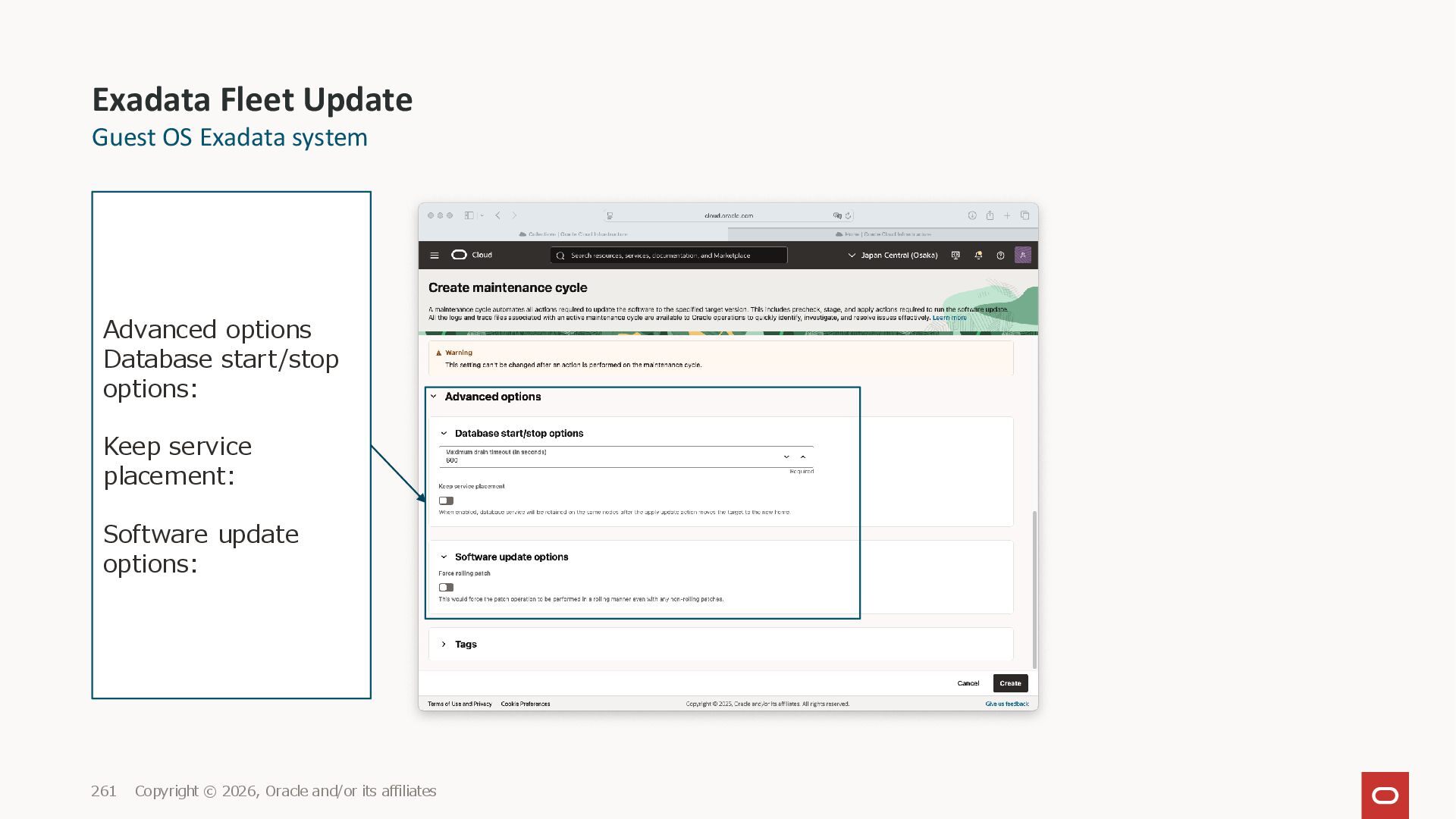

  54. Maintenance Cycle の管理 Maintenance Cycle の作成 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 54 Database start/stop options: Maximum drain timeout (in seconds): ノード間のドレイン・タイムアウトを秒 単位で指定。 これは、ローリング更 新中に使⽤され、データベース接続 の再配置の時間を提供する。 使⽤ されるドレイン・タイムアウトは、この 値の最⼤値、または特定のインスタ ンスで実⾏されているサービスの最 ⼤構成ドレイン・タイムアウトになる。 デフォルトは600。 Keep service placement: 有効にすると、データベース・サービス は、更新を適⽤アクションの前に配 置にリストアされる

  55. Maintenance Cycle の管理 Maintenance Cycle の作成 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 55 Software update options: Ignore missing patches （マニュアルはIgnore missing bug fixes） ソースのDBHOMEに存在する バグ修正に対するパッチが、 ターゲットのDBHOMEに無い 場合でも、ソフトウェア更新の ⼀部としてmoveを実⾏する 場合は、このチェック・ボックスを 選択

  56. Maintenance Cycle の管理 Maintenance Cycle の作成 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 56 Ignore missing patches （マニュアルはIgnore missing bug fixes） 選択すると Bug numbers to ignore: オプションで、無視するバグ番 号を⼊⼒します。（カンマ区切 り） バグ番号を指定しない場合、 ソースで修正されているがター ゲットにないバグは無視されま す。 Create Maintenance Cycle

  57. Maintenance Cycle の管理 Maintenance Cycle の作成 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 57 Maintenance Cycle 作成された Maintenance Cycle

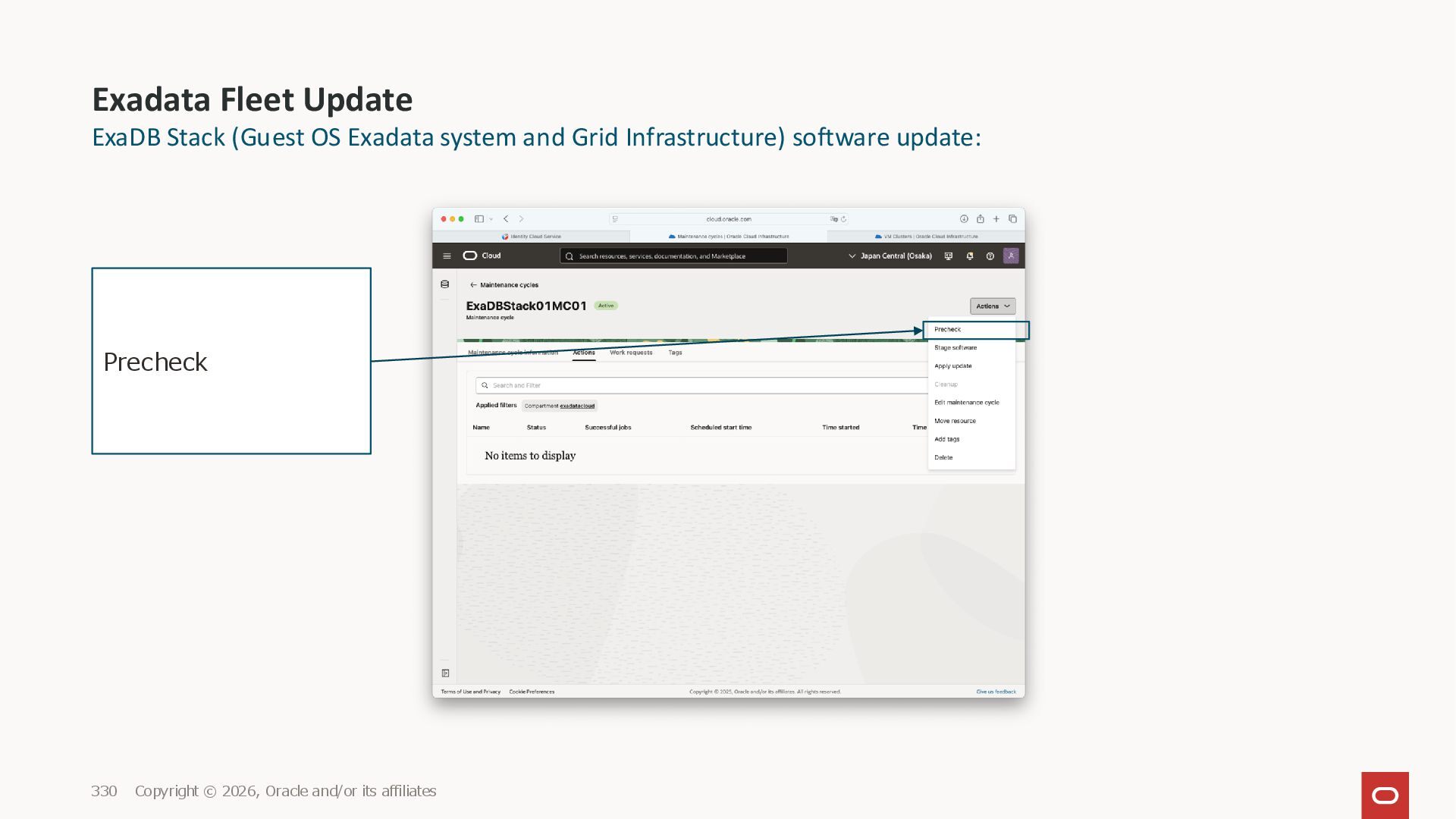

  58. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 58 Maintenance Cycle Precheck Stage software ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Apply update ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (apply) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (stage) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Cleanup ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ)

  59. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 59 Precheck prior to staging software Run precheck

  60. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) 失敗例 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 60 Download failed job logs

  61. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) 失敗例 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 61 Download log

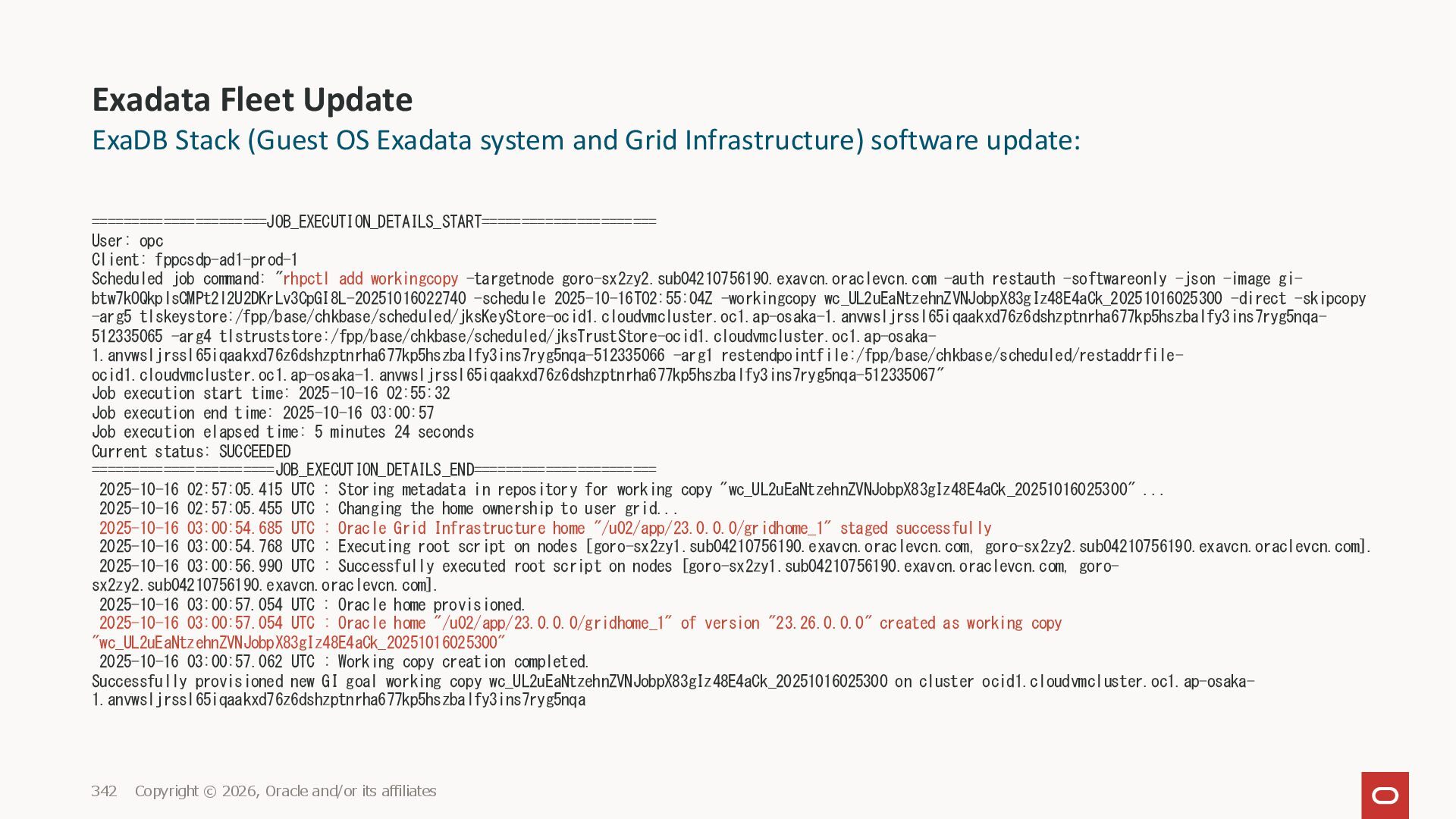

  62. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) 失敗例 Starting Collection check of

    DB targets. ======================JOB_EXECUTION_DETAILS_START====================== User: opc Client: fppcsdp-ad1-prod-1 Scheduled job command: "rhpctl manageTargetInCollection" Job execution start time: 2023-11-22 03:58:56 Job execution end time: 2023-11-22 03:59:26 Current status: FAILED =======================JOB_EXECUTION_DETAILS_END======================= failed to establish connectivity to target DbNodes Error returned by Unknown operation operation in Unknown service service.(404, NotAuthorizedOrNotFound, false) Authorization failed or requested resource not found. (opc-request-id: 3C583AC8747D437A82067B0AE4364876/F5B24EFB33B09CC44454D082EB9967B1/AE21567BDA4A015B2EB8A74C3C942494) Timestamp: 2023-11-22T03:59:24.944Z Client version: Oracle-JavaSDK/2.66.0 Request Endpoint: Unknown request endpoint Troubleshooting Tips: See https://docs.oracle.com/en-us/iaas/Content/API/References/apierrors.htm#apierrors_404__404_notauthorizedornotfound for more information about resolving this error Also see Unknown API reference link for details on this operation's requirements. To get more info on the failing request, you can enable debug level logs as mentioned in `Using SLF4J for Logging section` in https://docs.oracle.com/en- us/iaas/Content/API/SDKDocs/javasdkconfig.htm. If you are unable to resolve this Unknown service issue, please contact Oracle support and provide them this full error message. Error returned by Unknown operation operation in Unknown service service.(404, NotAuthorizedOrNotFound, false) Authorization failed or requested resource not found. (opc-request-id: 3C583AC8747D437A82067B0AE4364876/F5B24EFB33B09CC44454D082EB9967B1/AE21567BDA4A015B2EB8A74C3C942494) Timestamp: 2023-11-22T03:59:24.945Z Client version: Oracle-JavaSDK/2.66.0 Request Endpoint: Unknown request endpoint Troubleshooting Tips: See https://docs.oracle.com/en-us/iaas/Content/API/References/apierrors.htm#apierrors_404__404_notauthorizedornotfound for more information about resolving this error Also see Unknown API reference link for details on this operation's requirements. To get more info on the failing request, you can enable debug level logs as mentioned in `Using SLF4J for Logging section` in https://docs.oracle.com/en- us/iaas/Content/API/SDKDocs/javasdkconfig.htm. If you are unable to resolve this Unknown service issue, please contact Oracle support and provide them this full error message. Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 62

  63. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) 失敗例 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 63 この設定が抜けていた 改めて設定

  64. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 64 再び precheck

  65. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 65 Precheck(stage) の内容を確認したいとき Precheck Succeeded

  66. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 66 Precheck(stage) Precheck Succeeded した job の内容

  67. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 67 成功したときのログを⾒た いとき View log

  68. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 68

  69. Maintenance Cycle の管理 アクションの実⾏ Precheck(stage) precheck成功時のログ Starting Collection check of

    DB targets. Cycle plan for action 'ocid1.fsuaction.oc1.ap-osaka-1.amaaaaaassl65iqagdwqvgmzu4gqvwyd5n7qm6lefw5maw5rxmsyjcvpcvhq' is successfully validated ======================JOB_EXECUTION_DETAILS_START====================== User: opc Client: fppcsdp-ad1-prod-1 Scheduled job command: "rhpctl add workingcopy -eval -targetnode kara-vpvao1.sub04210756190.exavcn.oraclevcn.com -skipclone -user oracle -image db-4pXuw7BFBu4EzE48TzCHAsKseUsrJpEZ-20231122050946 -schedule 2023- 11-22T05:12:26Z -workingcopy wc_XQdpyUVOKPyTqByvWCffD3h4bFJ6m1Ux_20231122050946 -direct -skipcopy -auth restauth -oraclebase /u02/app/oracle -groups OSDBA=dba,OSOPER=racoper,OSBACKUP=dba,OSDG=dba,OSKM=dba,OSRAC=dba -json -path /u02/app/oracle/product/19.0.0.0/dbhome_4 -arg5 tlskeystore:/fpp/base/chkbase/scheduled/jksKeyStore-ocid1.cloudvmcluster.oc1.ap- osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-177201156 -arg4 tlstruststore:/fpp/base/chkbase/scheduled/jksTrustStore-ocid1.cloudvmcluster.oc1.ap-osaka- 1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-177201157 -arg1 restendpointfile:/fpp/base/chkbase/scheduled/restaddrfile-ocid1.cloudvmcluster.oc1.ap-osaka- 1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-177201158" Job execution start time: 2023-11-22 05:12:26 Job execution end time: 2023-11-22 05:12:49 Current status: SUCCEEDED =======================JOB_EXECUTION_DETAILS_END======================= 2023-11-22 05:12:26.496 UTC : Evaluation in progress for "add workingcopy" ... 2023-11-22 05:12:42.290 UTC : Option storagetype is set to the following default value: LOCAL. 2023-11-22 05:12:49.093 UTC : Evaluation finished successfully for "add workingcopy". Successfully provisioned new source working copy wc_XQdpyUVOKPyTqByvWCffD3h4bFJ6m1Ux_20231122050946 on cluster ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q in home ocid1.dbhome.oc1.ap-osaka-1.anvwsljrkrdj45ia4wqcka6m7ifzd7vbszpgkd327wlmuw556nz4tqgzjseq having path /u02/app/oracle/product/19.0.0.0/dbhome_4 ======================JOB_EXECUTION_DETAILS_START====================== User: opc Client: fppcsdp-ad1-prod-1 Scheduled job command: "rhpctl add workingcopy -eval -targetnode kara-vpvao1.sub04210756190.exavcn.oraclevcn.com -skipclone -user oracle -image db-xcA2cxrotUQeIkzlkMNiM6p6noNibGFR-20231122050918 -schedule 2023- 11-22T05:13:19Z -workingcopy wc_c61znITXbu1yvglqoOib8jQPIbDBsZvw_20231122050919 -direct -skipcopy -auth restauth -oraclebase /u02/app/oracle -groups OSDBA=dba,OSOPER=racoper,OSBACKUP=dba,OSDG=dba,OSKM=dba,OSRAC=dba -json -path /u02/app/oracle/product/ -arg5 tlskeystore:/fpp/base/chkbase/scheduled/jksKeyStore-ocid1.cloudvmcluster.oc1.ap-osaka- 1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-177148017 -arg4 tlstruststore:/fpp/base/chkbase/scheduled/jksTrustStore-ocid1.cloudvmcluster.oc1.ap-osaka- 1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-177148018 -arg1 restendpointfile:/fpp/base/chkbase/scheduled/restaddrfile-ocid1.cloudvmcluster.oc1.ap-osaka- 1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-177148019" Job execution start time: 2023-11-22 05:13:26 Job execution end time: 2023-11-22 05:13:52 Current status: SUCCEEDED =======================JOB_EXECUTION_DETAILS_END======================= 2023-11-22 05:13:26.492 UTC : Evaluation in progress for "add workingcopy" ... 2023-11-22 05:13:44.930 UTC : Option storagetype is set to the following default value: LOCAL. 2023-11-22 05:13:52.025 UTC : Evaluation finished successfully for "add workingcopy". Successfully provisioned new goal working copy wc_c61znITXbu1yvglqoOib8jQPIbDBsZvw_20231122050919 on cluster ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q in home ocid.dbhome.oc1..aaaaaaaakttteeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeest1 having path /u02/app/oracle/product/ Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 69

  70. Maintenance Cycle の管理 アクションの実⾏ Stage software Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 70 Maintenance Cycle Stage software Stage software ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Apply update ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (apply) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (stage) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Cleanup ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ)

  71. Maintenance Cycle の管理 アクションの実⾏ Stage software Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 71 Stage software

  72. Maintenance Cycle の管理 アクションの実⾏ Stage software Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 72 Stage software

  73. Maintenance Cycle の管理 アクションの実⾏ Stage software Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 73 Stage software Succeeded Stage software の Action の中⾝を確認

  74. Maintenance Cycle の管理 アクションの実⾏ Stage software Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 74 Stage software DB1106、DB11062 に stage_software のjob が実⾏されて Succeeded

  75. Maintenance Cycle の管理 アクションの実⾏ Stage software ステージング中にあらたに指定されたバージョンで DBHOME が作成される {

    "eventType" : "com.oraclecloud.databaseservice.createdbhome.end", "cloudEventsVersion" : "0.1", "eventTypeVersion" : "2.0", "source" : "DatabaseService", "eventTime" : "2023-11-24T03:01:54Z", "contentType" : "application/json", "data" : { "compartmentId" : "ocid1.compartment.oc1..aaaaaaaa5lyxq3znb3vnngfmlpkdcksqw4oxe5zzg3i37iydjpezoghgmh7a", "compartmentName" : "exadatacloud", "resourceName" : "fppcs_goalHome20231124025321", "resourceId" : "ocid1.dbhome.oc1.ap-osaka-1.anvwsljrkrdj45ia2k3grn2hzyvwxgdmjoe5m6zm5dgyxhewyo3ayf3m5naq", "availabilityDomain" : "TGjA:AP-OSAKA-1-AD-1", "additionalDetails" : { "lifecycleState" : "AVAILABLE", "recordVersion" : 4, "displayName" : "fppcs_goalHome20231124025321", "dbVersion" : "19.20.0.0", "timeUpdated" : "2023-11-24T03:01:54.185Z", "patchHistoryEntries" : "null", "timeCreated" : "2023-11-24T02:53:22.924Z", "dbSystemId" : "ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q" } }, "eventID" : "766e4650-775e-4f30-ac96-472d55f05a43", "extensions" : { "compartmentId" : "ocid1.compartment.oc1..aaaaaaaa5lyxq3znb3vnngfmlpkdcksqw4oxe5zzg3i37iydjpezoghgmh7a" } } Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 75

  76. Maintenance Cycle の管理 アクションの実⾏ Stage software 2つのDBHOMEが作成されている [root@kara-vpvao1 19.0.0.0]# ls

    -lart total 44 drwxr-xr-x 3 oracle oinstall 4096 Oct 18 05:05 .. drwxr-x--- 73 oracle oinstall 4096 Oct 18 05:25 dbhome_1 drwxr-xr-x 73 oracle oinstall 4096 Oct 31 04:55 dbhome_2 drwxr-xr-x 73 oracle oinstall 4096 Nov 2 06:18 dbhome_3 drwxr-xr-x 73 oracle oinstall 4096 Nov 6 07:54 dbhome_6 drwxr-x--- 73 oracle oinstall 4096 Nov 15 07:34 dbhome_7 drwxr-xr-x 73 oracle oinstall 4096 Nov 22 07:20 dbhome_5 drwxr-x--- 73 oracle oinstall 4096 Nov 22 07:20 dbhome_4 drwxr-xr-x 71 oracle oinstall 4096 Nov 24 02:56 dbhome_8 drwxr-xr-x 11 oracle oinstall 4096 Nov 24 03:02 . drwxr-xr-x 71 oracle oinstall 4096 Nov 24 03:05 dbhome_9 [root@kara-vpvao1 19.0.0.0]# date Fri Nov 24 05:18:42 UTC 2023 [root@kara-vpvao1 19.0.0.0]# pwd /u02/app/oracle/product/19.0.0.0 [root@kara-vpvao1 19.0.0.0]# Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 76

  77. Maintenance Cycle の管理 アクションの実⾏ Stage software Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 77 Database homes Fleet Update で19.20 の DBHOMEが作成され た Number of databases は 0 なので、 DBHOMEだけが作成

  78. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 78 Precheck(Apply) （ボタンが同じなので間違 えないように。。） Stage software ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Apply update ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (apply) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (stage) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Cleanup ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ)

  79. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 79 Precheck prior to applying software updates

  80. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 80 Precheck(apply) Failed

  81. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 81 Download failed job logs

  82. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) 失敗例 Target: ocid1.database.oc1.ap-osaka-1.anvwsljrssl65iqaync3eeabz5g4zdmkppl5rogbw5sq4ubdcjcwvks575ra, EfuJob: ocid1.fsujob.oc1.ap-osaka-

    1.amaaaaaassl65iqarx2avbq7v7jq6kwea6ovury5pco4aawhc2tggedjjlpq, WorkRequestId: ocid1.fsuworkrequest.oc1.ap-osaka- 1.amaaaaaassl65iqae3emjnahd6hqhloqf5puchw3iuqo7nu4lvzksngli3ya ---------------------------------------------- Starting Collection check of DB targets. No Data Guard Associations for target ocid1.database.oc1.ap-osaka-1.anvwsljrssl65iqaync3eeabz5g4zdmkppl5rogbw5sq4ubdcjcwvks575ra, nothing to check. Starting precheck apply for action ocid1.fsuaction.oc1.ap-osaka-1.amaaaaaassl65iqaqilqzsdgloj4u5zymcemujrj455l7afkzclkjmwxz6sa Cycle plan for action 'ocid1.fsuaction.oc1.ap-osaka-1.amaaaaaassl65iqaqilqzsdgloj4u5zymcemujrj455l7afkzclkjmwxz6sa' is successfully validated ======================JOB_EXECUTION_DETAILS_START====================== User: opc Client: cl-cet6m23q Scheduled job command: "rhpctl move database -eval -targetnode kara-vpvao1.sub04210756190.exavcn.oraclevcn.com -dbname DB11062_sxh_kix -sourcewc wc_I0G0L6HZBet4q3VnsvI7mJbKDWjL8akn_20231122062801 -schedule 2023-11-22T07:18:07Z -direct -patchedwc wc_jDRtDrknQu01bms3lSekFoSJx4rUOvzl_20231122062745 -auth restauth - drain_timeout 600 -json -arg5 tlskeystore:/fpp/base/chkbase/scheduled/jksKeyStore-ocid1.cloudvmcluster.oc1.ap-osaka- 1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-169660876 -arg4 tlstruststore:/fpp/base/chkbase/scheduled/jksTrustStore-ocid1.cloudvmcluster.oc1.ap- osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-169660877 -arg1 restendpointfile:/fpp/base/chkbase/scheduled/restaddrfile- ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-169660878" Job execution start time: 2023-11-22 07:18:27 Job execution end time: 2023-11-22 07:23:54 Current status: FAILED =======================JOB_EXECUTION_DETAILS_END======================= 2023-11-22 07:18:27.073 UTC : Evaluation in progress for "move database" ... 2023-11-22 07:23:34.271 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying versions of Oracle homes ... 2023-11-22 07:23:34.272 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying owners of Oracle homes ... 2023-11-22 07:23:34.273 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying groups of Oracle homes ... 2023-11-22 07:23:54.467 UTC : PRGO-1774 : The evaluation revealed potential failure for command "move database". PRGO-1571 : The move operation was rejected because the patched working copy "wc_jDRtDrknQu01bms3lSekFoSJx4rUOvzl_20231122062745" is missing the patches for bug numbers "34835593,34792490" which are present in the source working copy "wc_I0G0L6HZBet4q3VnsvI7mJbKDWjL8akn_20231122062801". ---------------------------------------------- 続く Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 82

  83. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) 失敗例 続き ---------------------------------------------- Target: ocid1.database.oc1.ap-osaka-1.anvwsljrssl65iqagtb5fv72idtr2gtdmtwbhs7v623beuz54nkms6lei7lq,

    EfuJob: ocid1.fsujob.oc1.ap-osaka- 1.amaaaaaassl65iqaj3qh44mrop7fvs5a6u6jfh7nbkrv3sblgwkmzpj7ddpq, WorkRequestId: ocid1.fsuworkrequest.oc1.ap-osaka- 1.amaaaaaassl65iqaeag5cbtwjijbvtw2dudj6wkug4ohz4igmabjcrxrs3kq ---------------------------------------------- Starting Collection check of DB targets. No Data Guard Associations for target ocid1.database.oc1.ap-osaka-1.anvwsljrssl65iqagtb5fv72idtr2gtdmtwbhs7v623beuz54nkms6lei7lq, nothing to check. Starting precheck apply for action ocid1.fsuaction.oc1.ap-osaka-1.amaaaaaassl65iqaqilqzsdgloj4u5zymcemujrj455l7afkzclkjmwxz6sa Cycle plan for action 'ocid1.fsuaction.oc1.ap-osaka-1.amaaaaaassl65iqaqilqzsdgloj4u5zymcemujrj455l7afkzclkjmwxz6sa' is successfully validated ======================JOB_EXECUTION_DETAILS_START====================== User: opc Client: cl-cet6m23q Scheduled job command: "rhpctl move database -eval -targetnode kara-vpvao1.sub04210756190.exavcn.oraclevcn.com -dbname DB1106_552_kix -sourcewc wc_zmR260FsODL7tQxiPxp5XjGGlWWkJTeE_20231122062801 -schedule 2023-11-22T07:18:23Z -direct -patchedwc wc_ZBFQ8bdKdmatjVHrenLnO3CIfgpFz50c_20231122062745 -auth restauth - drain_timeout 600 -json -arg5 tlskeystore:/fpp/base/chkbase/scheduled/jksKeyStore-ocid1.cloudvmcluster.oc1.ap-osaka- 1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-169644162 -arg4 tlstruststore:/fpp/base/chkbase/scheduled/jksTrustStore-ocid1.cloudvmcluster.oc1.ap- osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-169644163 -arg1 restendpointfile:/fpp/base/chkbase/scheduled/restaddrfile- ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-169644164" Job execution start time: 2023-11-22 07:18:27 Job execution end time: 2023-11-22 07:22:29 Current status: FAILED =======================JOB_EXECUTION_DETAILS_END======================= 2023-11-22 07:18:27.073 UTC : Evaluation in progress for "move database" ... 2023-11-22 07:22:08.930 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying versions of Oracle homes ... 2023-11-22 07:22:08.931 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying owners of Oracle homes ... 2023-11-22 07:22:08.931 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying groups of Oracle homes ... 2023-11-22 07:22:29.415 UTC : PRGO-1774 : The evaluation revealed potential failure for command "move database". PRGO-1571 : The move operation was rejected because the patched working copy "wc_ZBFQ8bdKdmatjVHrenLnO3CIfgpFz50c_20231122062745" is missing the patches for bug numbers "34835593,34792490" which are present in the source working copy "wc_zmR260FsODL7tQxiPxp5XjGGlWWkJTeE_20231122062801". ---------------------------------------------- Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 83

  84. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) 失敗例 PRGO-1571: パッチ適⽤済作業⽤コピー“{0}“にソース作業⽤コピー“{2}“に存在するバグ番号“{1}“のパッチがないため、 move操作は拒否されました。 原因:

    作業コピーに含まれていない⼀部のパッチが、ソースの作業コピーには含まれていました。 処置: 移動コマンドをʻ-ignorewcpatchesʼオプションで再実⾏するか、ソース作業コピーと少なくとも同じパッチが適⽤されたパッチ作業 コピーを指定してください https://docs.oracle.com/cd/F19136_01/errmg/PRGO-01003.html#GUID-A3079418-4270-4F64-87BA-F7BEF572A327 [oracle@kara-vpvao1 ~]$ . DB1106.env [oracle@kara-vpvao1 ~]$ opatch lspatches 34835593;REFERENCE BUG 34792490 - SCHEDULER LAYER CHANGES TO AVOID CYCLIC DEPENDENCY ON DBMS_AQADM_SYS PACKAGE 34792490;FADBRWT STRESS FA ORA-00060 DEADLOCK DETECTED DURING DATAPATCH 34699616;DSTV40 UPDATE - TZDATA2022E - NEED OJVM FIX 34777391;JDK BUNDLE PATCH 19.0.0.0.230117 34786990;OJVM RELEASE UPDATE: 19.18.0.0.230117 (34786990) 34768559;OCW RELEASE UPDATE 19.18.0.0.0 (34768559) 34765931;DATABASE RELEASE UPDATE : 19.18.0.0.230117 (REL-JAN230131) (34765931) OPatch succeeded. [oracle@kara-vpvao1 ~]$ Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 84

  85. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) 失敗例 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 85 More actions >Edit maintenance cycle （メンテナンスサイクル実 ⾏中しか変更できない） Show advanced options > Software update options Ø Ignore missing patches Ø Bug numbers to ignore Ø エラーで出⼒された bug番号を記載 Ø Save changes

  86. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) 失敗例 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 86 Update maintenance cycle Succeeded 再度 Precheck(apply)

  87. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 87 再び Precheck prior to applying software updates

  88. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 88 Precheck(apply) Succeeded

  89. Maintenance Cycle の管理 アクションの実⾏ Precheck(apply) Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 89 Precheck (apply) precheck_apply_soft ware

  90. Maintenance Cycle の管理 アクションの実⾏ Apply update Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 90 Apply update Stage software ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Apply update ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (apply) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (stage) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Cleanup ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ)

  91. Maintenance Cycle の管理 アクションの実⾏ Apply update Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 91 Apply software updates

  92. Maintenance Cycle の管理 アクションの実⾏ Apply update Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 92 Database homes Updating

  93. Maintenance Cycle の管理 アクションの実⾏ Apply update Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 93 Databases Updating DB1106 を確認

  94. Maintenance Cycle の管理 アクションの実⾏ Apply update Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 94 Database Home: Moving Database

  95. Maintenance Cycle の管理 アクションの実⾏ Apply update Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 95 Apply updates Succeeded

  96. Maintenance Cycle の管理 アクションの実⾏ Apply update env ファイル Maintenance Cycle

    前 [oracle@kara-vpvao1 ~]$ ls -lart total 56 -rw-r--r-- 1 oracle oinstall 231 Nov 23 2021 .bashrc -rw-r--r-- 1 oracle oinstall 18 Nov 23 2021 .bash_logout -rw-r--r-- 1 oracle oinstall 172 Aug 9 2022 .kshrc drwxr-xr-x 8 root root 91 Oct 17 10:53 .. -rw-r--r-- 1 oracle oinstall 169 Oct 17 11:06 .bash_profile drwx------ 2 oracle oinstall 108 Oct 17 11:07 .ssh -rw-r----- 1 oracle oinstall 0 Oct 18 05:25 DB1017.env2023-10-18_05:25:19 -rw-r----- 1 oracle oinstall 635 Oct 18 05:25 DB1017.env -rwxrwx--- 1 oracle oinstall 653 Oct 31 05:34 DB1032.env -rwxrwx--- 1 oracle oinstall 653 Nov 6 04:19 DB1106.env -rwxrwx--- 1 oracle oinstall 656 Nov 6 06:00 DB11062.env -rw-r----- 1 oracle oinstall 0 Nov 6 10:13 DB1033.env2023-11-06_10:13:08 drwxr-xr-x 2 oracle oinstall 4096 Nov 13 09:35 .sqlcl -rw-r----- 1 oracle oinstall 0 Nov 15 08:07 DB1033.env2023-11-15_08:07:01 -rw-r----- 1 oracle oinstall 635 Nov 15 08:07 DB1033.env drwx------ 5 oracle oinstall 4096 Nov 20 07:26 . drwxr-xr-x 3 oracle oinstall 66 Nov 20 07:26 patch -rw------- 1 oracle oinstall 9075 Nov 24 06:22 .bash_history Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 96

  97. Maintenance Cycle の管理 アクションの実⾏ Apply update env ファイル Maintenance Cycle

    後 更新されている [oracle@kara-vpvao1 ~]$ ls -lart total 56 -rw-r--r-- 1 oracle oinstall 231 Nov 23 2021 .bashrc -rw-r--r-- 1 oracle oinstall 18 Nov 23 2021 .bash_logout -rw-r--r-- 1 oracle oinstall 172 Aug 9 2022 .kshrc drwxr-xr-x 8 root root 91 Oct 17 10:53 .. -rw-r--r-- 1 oracle oinstall 169 Oct 17 11:06 .bash_profile drwx------ 2 oracle oinstall 108 Oct 17 11:07 .ssh -rw-r----- 1 oracle oinstall 0 Oct 18 05:25 DB1017.env2023-10-18_05:25:19 -rw-r----- 1 oracle oinstall 635 Oct 18 05:25 DB1017.env -rwxrwx--- 1 oracle oinstall 653 Oct 31 05:34 DB1032.env -rw-r----- 1 oracle oinstall 0 Nov 6 10:13 DB1033.env2023-11-06_10:13:08 drwxr-xr-x 2 oracle oinstall 4096 Nov 13 09:35 .sqlcl -rw-r----- 1 oracle oinstall 0 Nov 15 08:07 DB1033.env2023-11-15_08:07:01 -rw-r----- 1 oracle oinstall 635 Nov 15 08:07 DB1033.env drwxr-xr-x 3 oracle oinstall 66 Nov 20 07:26 patch -rw------- 1 oracle oinstall 9096 Nov 24 06:44 .bash_history lrwxrwxrwx 1 oracle oinstall 23 Nov 24 07:05 DB1106_552_kix.env -> /home/oracle/DB1106.env -rwxrwx--- 1 oracle oinstall 692 Nov 24 07:05 DB1106.env lrwxrwxrwx 1 oracle oinstall 24 Nov 24 07:08 DB11062_sxh_kix.env -> /home/oracle/DB11062.env drwx------ 5 oracle oinstall 4096 Nov 24 07:08 . -rwxrwx--- 1 oracle oinstall 695 Nov 24 07:08 DB11062.env [oracle@kara-vpvao1 ~]$ Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 97

  98. Maintenance Cycle の管理 アクションの実⾏ Apply update ORACLE_HOME が move されている

    [oracle@kara-vpvao1 ~]$ . DB1106.env [oracle@kara-vpvao1 ~]$ env | grep ORA ORACLE_UNQNAME=DB1106_552_kix ORACLE_SID=DB11061 ORACLE_BASE=/u02/app/oracle ORACLE_HOSTNAME=kara-vpvao1.sub04210756190.exavcn.oraclevcn.com ORACLE_HOME=/u02/app/oracle/product/19.0.0.0/dbhome_9 [oracle@kara-vpvao1 ~]$ opatch lspatches 34697081;NOT SHIPPING LIBAUTH_SDK_IAM.SO IN 23 SHIPHOME INSTALL 35116173;OCW Interim patch for 35116173 35336174;JDK BUNDLE PATCH 19.0.0.0.230718 35585502;Fix for Bug 35585502 35598272;TRACKING BUG FOR SQLCL CHANGES IN SQLDEVELOPER 21.4.10 35239280;DSTV42 UPDATE - TZDATA2023C - NEED OJVM FIX 35354406;OJVM RELEASE UPDATE: 19.20.0.0.230718 (35354406) 35320081;Database Release Update : 19.20.0.0.230718 (35320081) OPatch succeeded. opatch も新しいバージョンに置き換わる [oracle@kara-vpvao1 ~]$ opatch version OPatch Version: 12.2.0.1.39 OPatch succeeded. [oracle@kara-vpvao1 ~]$ Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 98

  99. Maintenance Cycle の管理 アクションの実⾏ Apply update Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 99 Database homes 作成された Database homes 上の Number of databases が 0 から 1 に変化した

  100. Maintenance Cycle の管理 アクションの実⾏ Apply update Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 100 Databases Database version 19.20になった

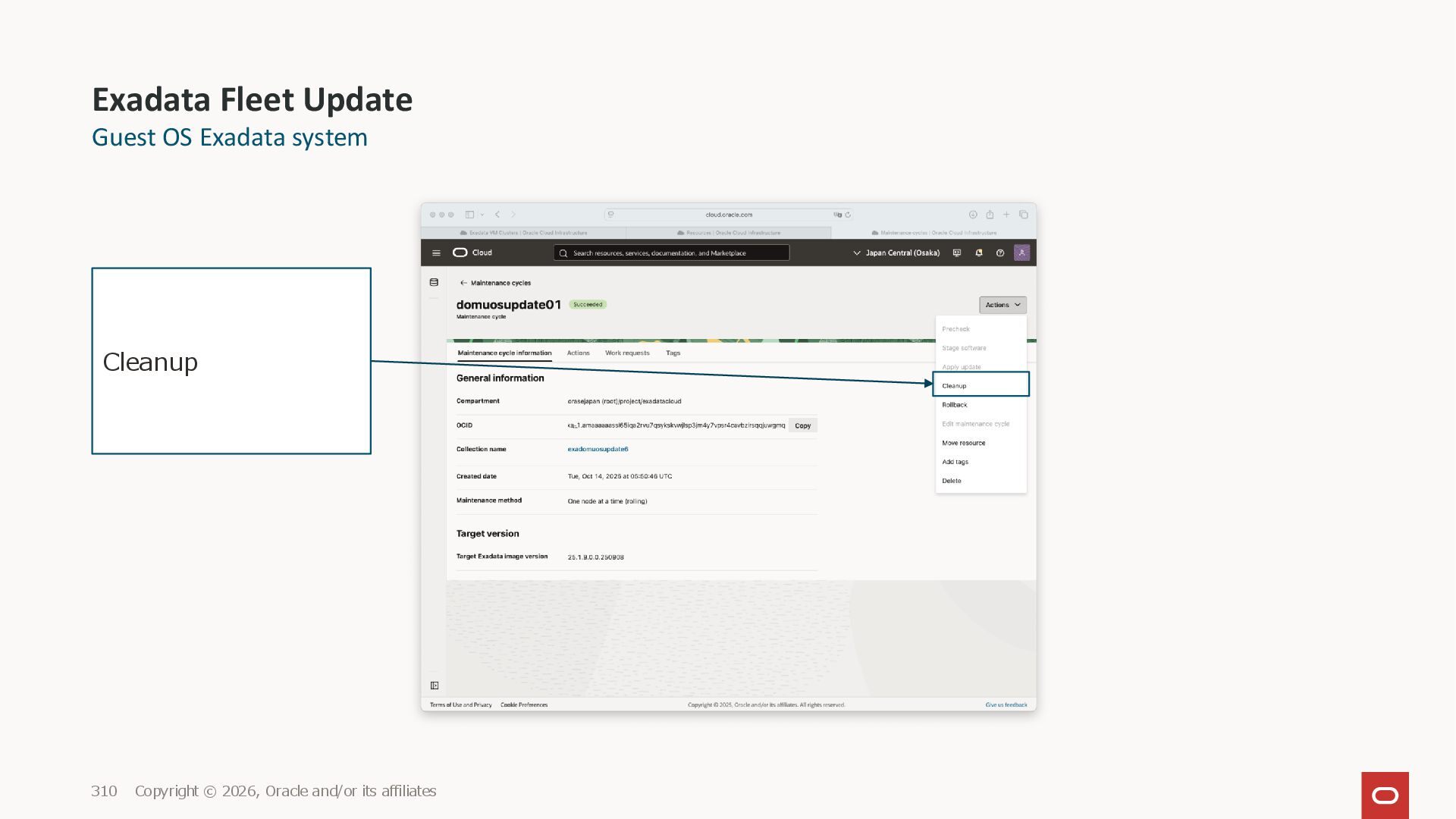

  101. Maintenance Cycle の管理 アクションの実⾏ Cleanup Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 101 Cleanup Apply update アクションが成 功すると、メンテナンス・サイクル は「Succeeded」状態に移⾏ し、Cleanup アクションが使⽤ 可能になります。Cleanup 処 理は、メンテナンス・サイクルで のオプションの処理です。 メンテ ナンス・サイクルが正常に完了 した後、Cleanup アクションを 実⾏して、メンテナンス・サイク ルのソースの DBHOME および Grid Infrastructure HOME を削除します。 すぐにクリーン アップを実⾏またはクリーンアッ プをスケジュール可能です Stage software ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Apply update ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (apply) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Precheck (stage) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) Cleanup ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ) ジョブ(ターゲッ トごとに1つ)

  102. Maintenance Cycle の管理 アクションの実⾏ Cleanup Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 102 Cleanup

  103. Maintenance Cycle の管理 アクションの実⾏ Cleanup Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 103 Cleanup

  104. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例1 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 104 Failed Download failed job logs DB1106: Need attention DB11062: Failed

  105. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例1 Target: ocid1.database.oc1.ap-osaka-1.anvwsljrssl65iqaync3eeabz5g4zdmkppl5rogbw5sq4ubdcjcwvks575ra, EfuJob: ocid1.fsujob.oc1.ap-osaka-

    1.amaaaaaassl65iqacx7cktppx7gpgrjydgob5kpwippwdv7v74qcmlwuqw3a, WorkRequestId: ocid1.fsuworkrequest.oc1.ap-osaka- 1.amaaaaaassl65iqaraelasadyodu3xfdkzzarsqdexgp7aea4y6ivdrkrkza ---------------------------------------------- Failed to delete Oracle Database Home 'ocid1.dbhome.oc1.ap-osaka-1.anvwsljrkrdj45iamv64qo7skptnbwqxtl2zwshywxc4fpsqlkh4kocrckwq' due to: Authorization failed or Not Found error on OCI Service call. ---------------------------------------------- よく分からない。。？ Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 105

  106. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例1 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 106 DB11062 Failed のジョブのアクション アイコンから View log

  107. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例1 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 107 先ほどと同じログ Failed to delete Oracle Database Home 'ocid1.dbhome.oc1.ap- osaka- 1.anvwsljrkrdj45iamv64 qo7skptnbwqxtl2zwshyw xc4fpsqlkh4kocrckwq' due to: Authorization failed or Not Found error on OCI Service call. 権限関連のエラー

  108. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例1 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 108 DB1106 Needs attention の View log

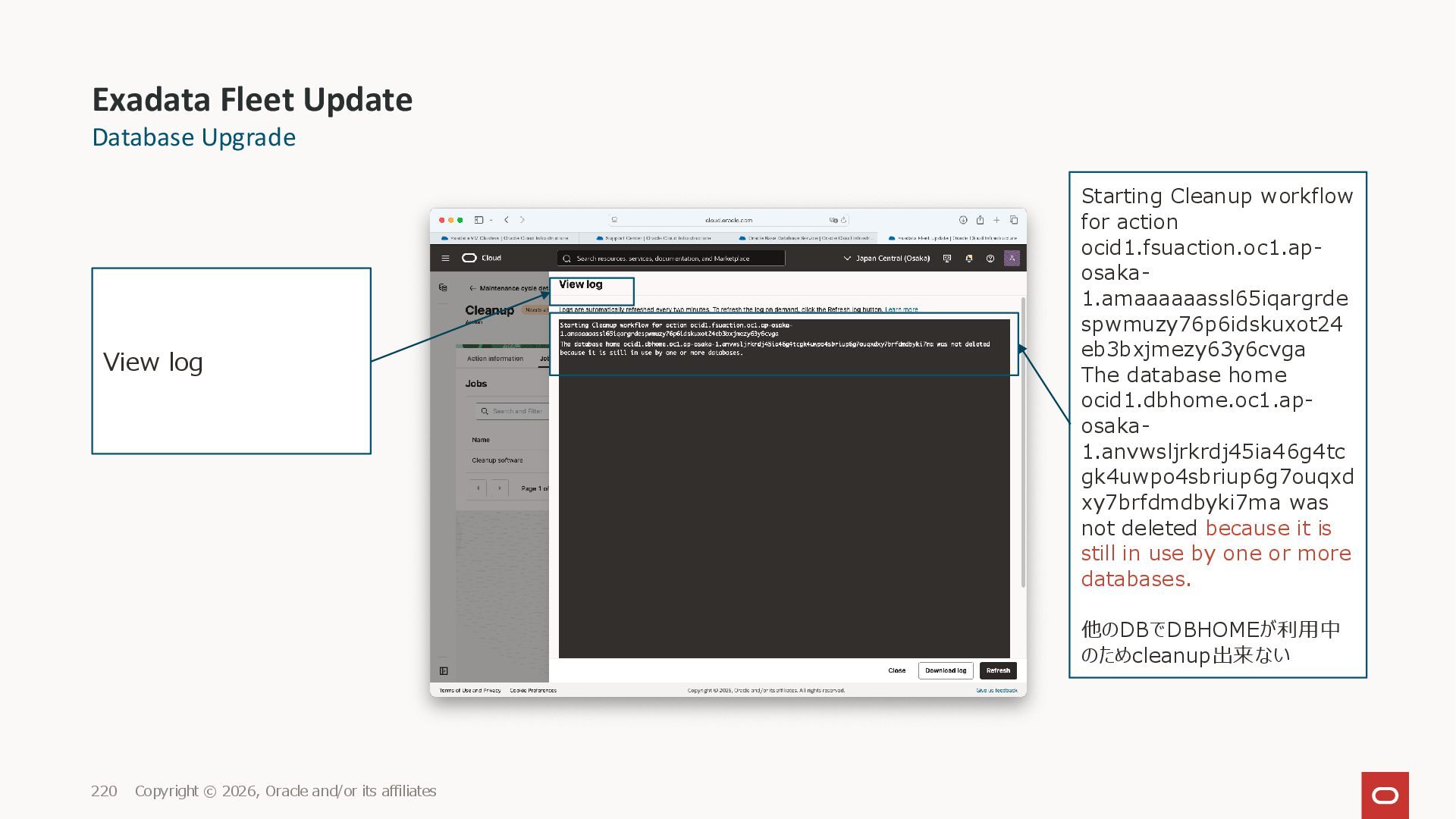

  109. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例1 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 109 他のDBで使われていると The database home ocid1.dbhome.oc1.a p-osaka- 1.anvwsljrkrdj45ia4 wqcka6m7ifzd7vbszp gkd327wlmuw556nz 4tqgzjseq was not deleted because it is still in use by one or more databases.

  110. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例1 allow dynamic-group project-exadatacloud_dynamic_group to

    manage db-homes in compartment exadatacloud where request.permission='DB_HOME_DELETE' allow dynamic-group project-exadatacloud_dynamic_group to manage databases in compartment exadatacloud where request.permission='DATABASE_DELETE’ マニュアルを読み飛ばして設定が漏れていたので再設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 110

  111. Maintenance Cycle の管理 アクションの実⾏ Cleanup Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 111 もう⼀度 Cleanup

  112. Maintenance Cycle の管理 アクションの実⾏ Cleanup Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 112 Cleanup

  113. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例2 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 113 Cleanup Needs attention Succeeded

  114. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例2 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 114 Cleanup DB11062 Succeeded DB1106 Needs attention

  115. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例2 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 115 Succeededの DB11062 の View log ====================== JOB_EXECUTION_DETAILS_START= ===================== User: opc Client: cl-cet6m23q Scheduled job command: "rhpctl delete workingcopy -metadataonly - force -json -schedule 2023-11- 29T07:52:48Z -workingcopy wc_I0G0L6HZBet4q3VnsvI7mJbKD WjL8akn_20231122062801" Job execution start time: 2023-11- 29 07:52:48 Job execution end time: 2023-11-29 07:52:48 Current status: SUCCEEDED ====================== =JOB_EXECUTION_DETAILS_END= ======================

  116. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例2 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 116 Need attention の DB1106 Starting Collection check of DB targets. Starting Cleanup workflow for action ocid1.fsuaction.oc1.ap- osaka- 1.amaaaaaassl65iqab3fmyymu wbfrqsexqqeq7h3h6d4teumeyi qz5yerlyea The database home ocid1.dbhome.oc1.ap-osaka- 1.anvwsljrkrdj45ia4wqcka6m7i fzd7vbszpgkd327wlmuw556nz 4tqgzjseq was not deleted because it is still in use by one or more databases.

  117. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例2 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 117 Database homes DB1106 のいた DBHOME Number of databases 1 もう⼀つDBがあるから DBHOMEを削除出来な い。。

  118. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例2 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 118 dbhome_4 別のDBがいた。。 dbhome_4

  119. Maintenance Cycle の管理 アクションの実⾏ Cleanup 失敗例2 Exadata Fleet Update Copyright

    © 2024, Oracle and/or its affiliates | 119 dbhome_5 DB11062のいた dbhome_5 はDBが以 内ので削除成功 dbhome_5

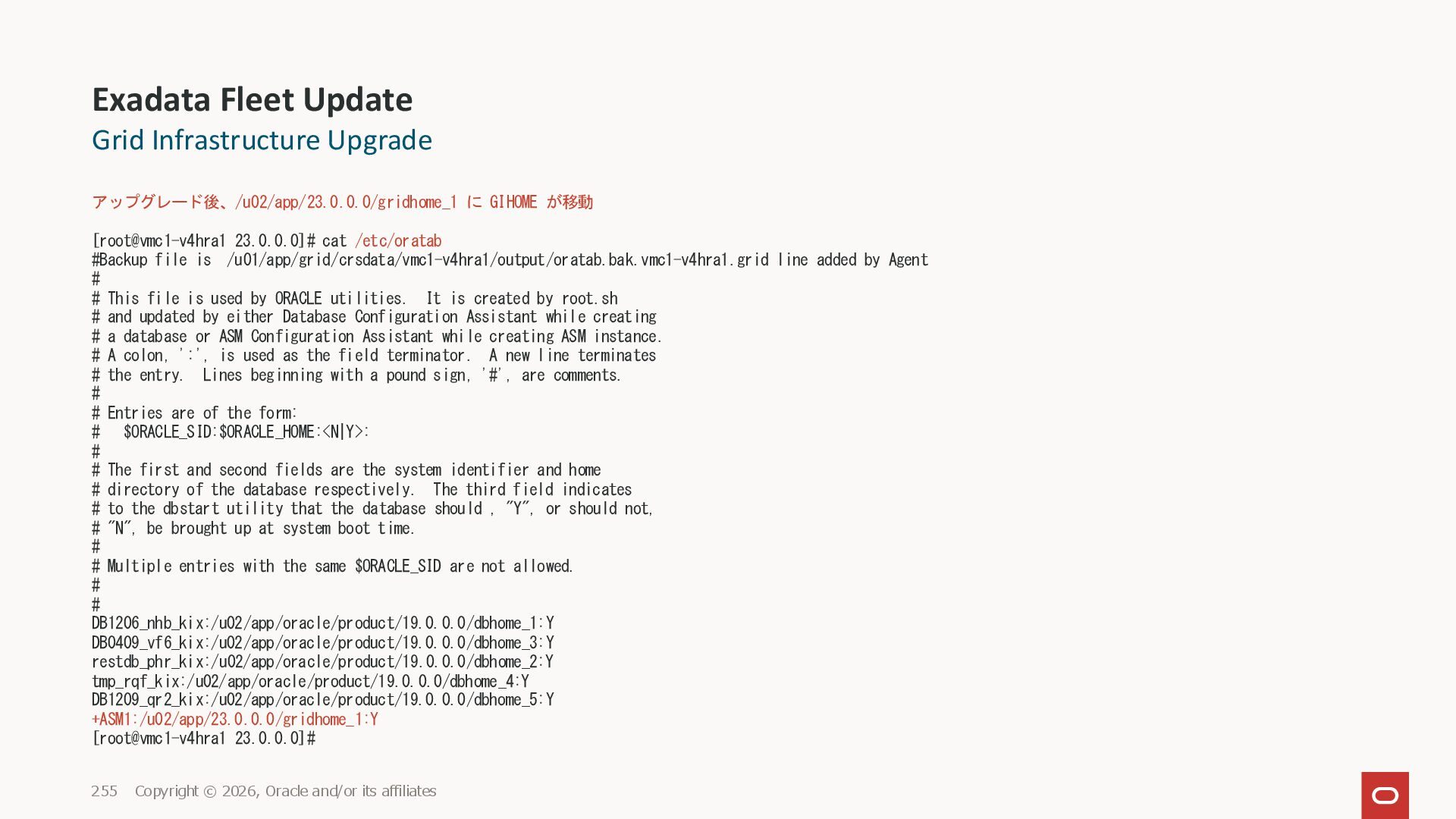

  120. Maintenance Cycle の管理 dbhome_5 が削除、DB11062 の DBHOME は dbhome_8. DB1106

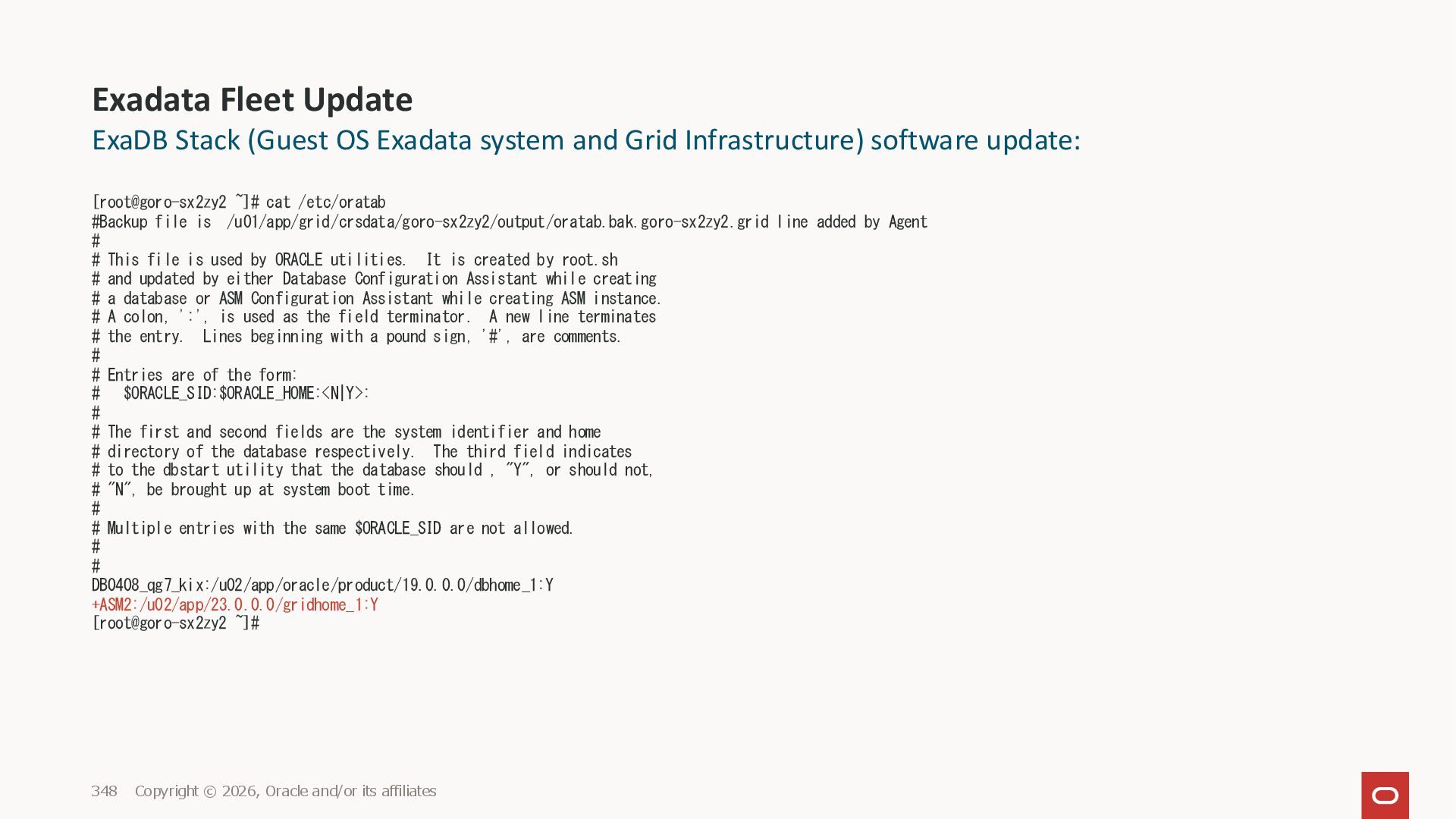

    の DBHOME は dbhome_9 に変わっている [root@kara-vpvao1 ~]# cat /etc/oratab #Backup file is /u01/app/grid/crsdata/kara-vpvao1/output/oratab.bak.kara-vpvao1.grid line added by Agent # # This file is used by ORACLE utilities. It is created by root.sh # and updated by either Database Configuration Assistant while creating # a database or ASM Configuration Assistant while creating ASM instance. # A colon, ':', is used as the field terminator. A new line terminates # the entry. Lines beginning with a pound sign, '#', are comments. # # Entries are of the form: # $ORACLE_SID:$ORACLE_HOME:<N|Y>: # # The first and second fields are the system identifier and home # directory of the database respectively. The third field indicates # to the dbstart utility that the database should , "Y", or should not, # "N", be brought up at system boot time. # # Multiple entries with the same $ORACLE_SID are not allowed. # # DB1017_9k6_kix:/u02/app/oracle/product/19.0.0.0/dbhome_1:N DB1032_c25_kix:/u02/app/oracle/product/19.0.0.0/dbhome_3:Y DB1033_vrr_kix:/u02/app/oracle/product/19.0.0.0/dbhome_4:N DB1106_552_kix:/u02/app/oracle/product/19.0.0.0/dbhome_9:Y DB11062_sxh_kix:/u02/app/oracle/product/19.0.0.0/dbhome_8:Y +ASM1:/u02/app/19.0.0.0/grid_1:Y [root@kara-vpvao1 ~]# ls -al /u02/app/oracle/product/19.0.0.0/ total 40 drwxr-xr-x 10 oracle oinstall 4096 Nov 29 07:48 . drwxr-xr-x 3 oracle oinstall 4096 Oct 18 05:05 .. drwxr-x--- 73 oracle oinstall 4096 Oct 18 05:25 dbhome_1 drwxr-xr-x 73 oracle oinstall 4096 Oct 31 04:55 dbhome_2 drwxr-xr-x 73 oracle oinstall 4096 Nov 2 06:18 dbhome_3 drwxr-x--- 73 oracle oinstall 4096 Nov 22 07:20 dbhome_4 drwxr-xr-x 73 oracle oinstall 4096 Nov 6 07:54 dbhome_6 drwxr-x--- 73 oracle oinstall 4096 Nov 15 07:34 dbhome_7 drwxr-xr-x 72 oracle oinstall 4096 Nov 24 06:51 dbhome_8 drwxr-xr-x 72 oracle oinstall 4096 Nov 24 06:47 dbhome_9 [root@kara-vpvao1 ~]# Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 120

  121. Copyright © 2024, Oracle and/or its affiliates | 121 Exadata

    Fleet Update • Collections の管理（DB） • Maintenance Cycles の管理（DB） • Grid Infrastructure の場合の Collections、Maintenance Cycle の管理 • Topics、Rulesの設定

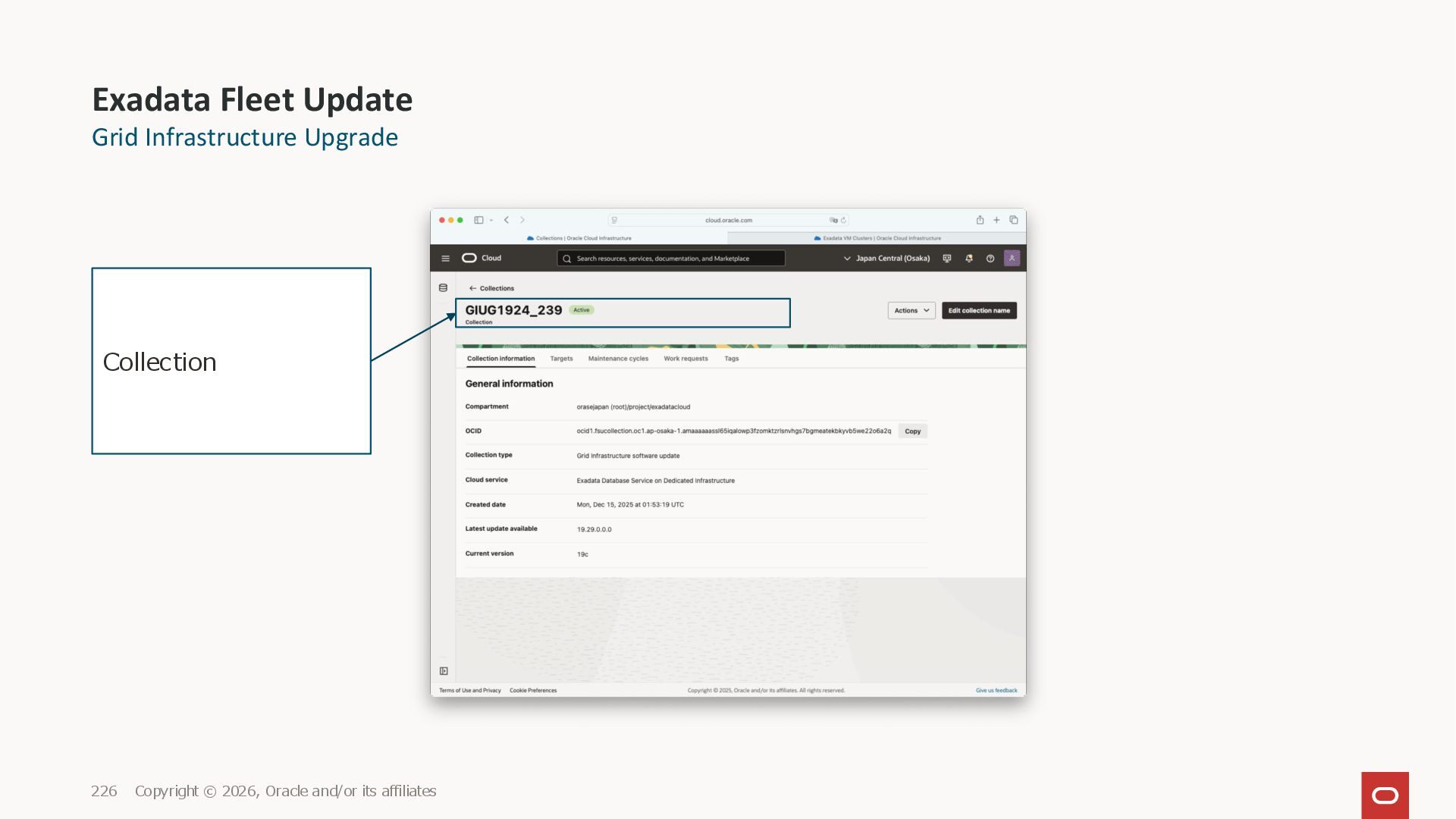

  122. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 122 Create collection

  123. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 123 Collection type Grid Infrastructure を 選択

  124. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 124 Grid infrastructure release update に表記が変わる

  125. Grid Infrastructureの場合のCollections, Maintenance Cycle 現在のバージョン [grid@kara-vpvao1 ~]$ opatch lspatches 34243634;AIM

    ORA-600 [ATBMMN 1] - ATBMMN_MAKE_MODV_NULLABLE 34697081;NOT SHIPPING LIBAUTH_SDK_IAM.SO IN 23 SHIPHOME INSTALL 35080170;APPLIANCE.MODE IS DEFAULTED TO FALSE WITH ASM DISKGROUPS ON X10 EF CELLS AND CANNOT BE CHANGED 34993018;CLSF NEEDS TO CHECK I/O OSS ERROR CODE 34975490;14 SECS BLACKOUT WITH GRACEFUL CELL SERVICES SHUTDOWN 34810987;CACHE ASM METADATA IOS INTO EXADATA FLASHCACHE 35309390;OCW Interim patch for 35309390 35099674;DSTV41 UPDATE - TZDATA2022G - NEED OJVM FIX 35004974;JDK BUNDLE PATCH 19.0.0.0.230418 35050341;OJVM RELEASE UPDATE: 19.19.0.0.230418 (35050341) 35107512;TOMCAT RELEASE UPDATE 19.0.0.0.0 (35107512) 35050325;ACFS RELEASE UPDATE 19.19.0.0.0 (35050325) 35042068;Database Release Update : 19.19.0.0.230418 (35042068) 33575402;DBWLM RELEASE UPDATE 19.0.0.0.0 (33575402) OPatch succeeded. [grid@kara-vpvao1 ~]$ opatch version OPatch Version: 12.2.0.1.37 OPatch succeeded. [grid@kara-vpvao1 ~]$ Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 125

  126. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 126 VMCluster-3が選択され ている

  127. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 127 Maintenance Cycle Create Maintenance Cycle 作成された Collection exagiupdate

  128. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 128 Target Grid Infrastructure Image 19.21

  129. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 129 Target Grid Infrastructure version: 19.21 Precheck

  130. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 130 Precheck prior to staging software

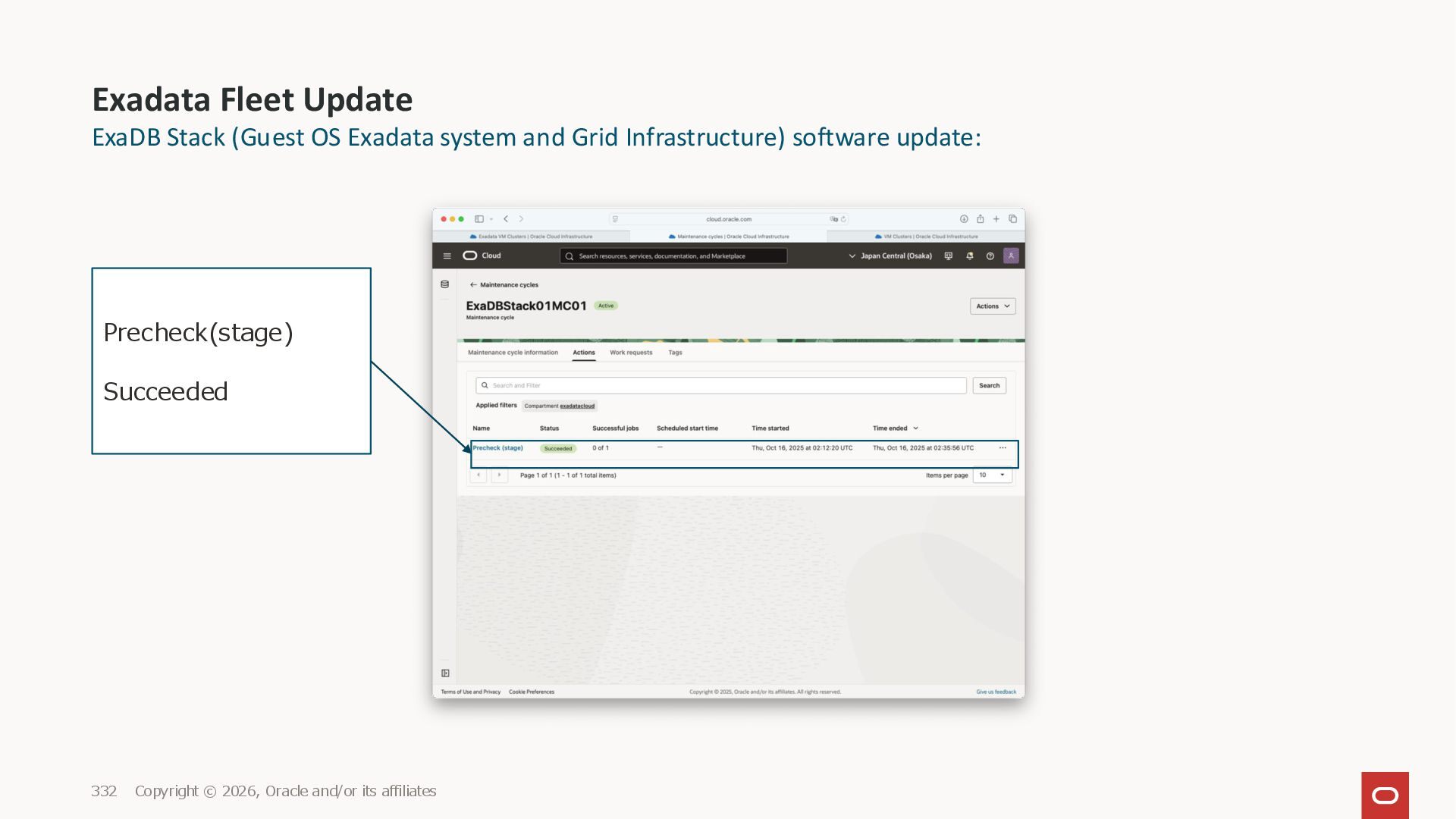

  131. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 131 Precheck(stage) Succeeded Stage software

  132. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

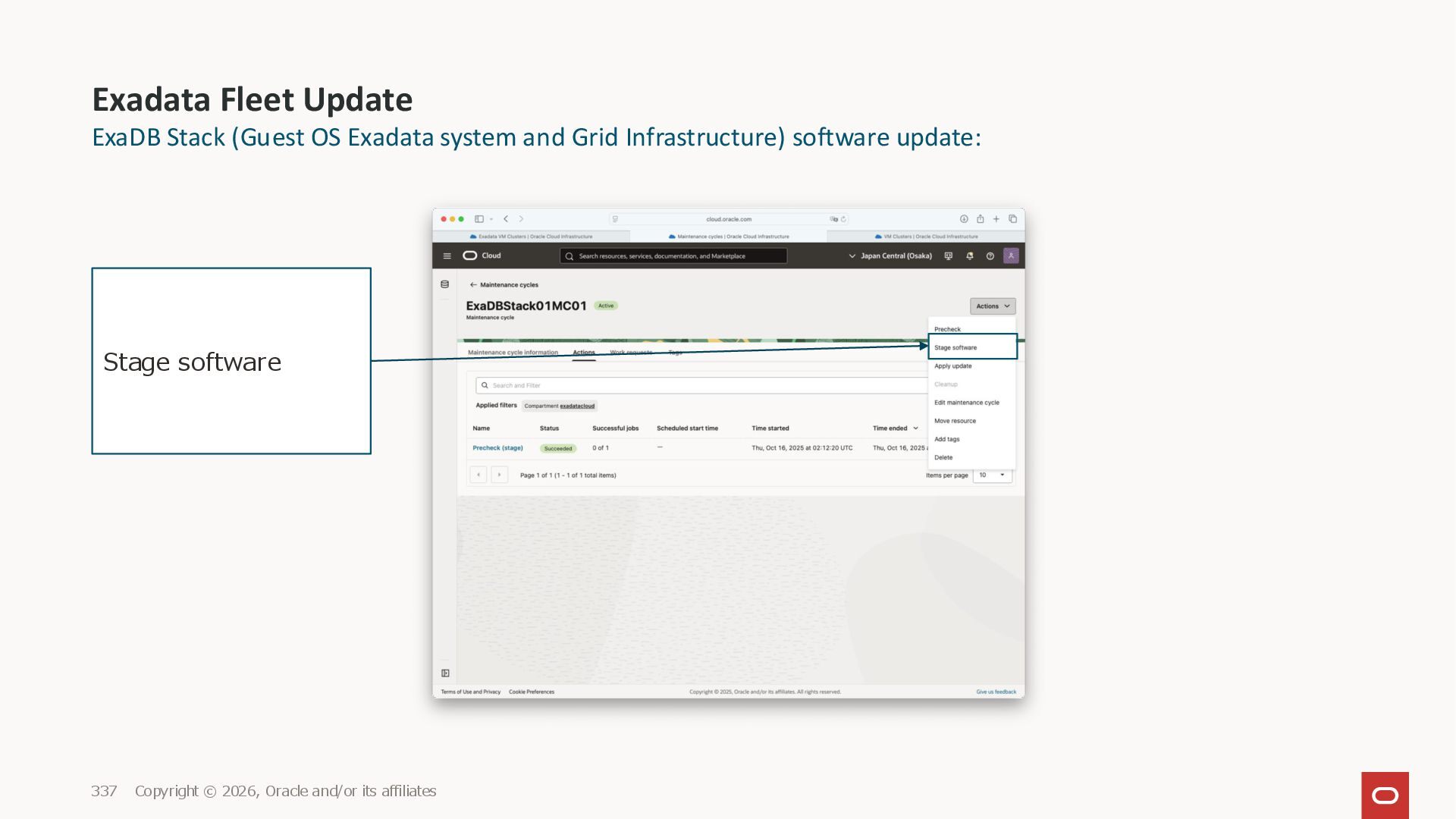

    Oracle and/or its affiliates | 132 Stage software

  133. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

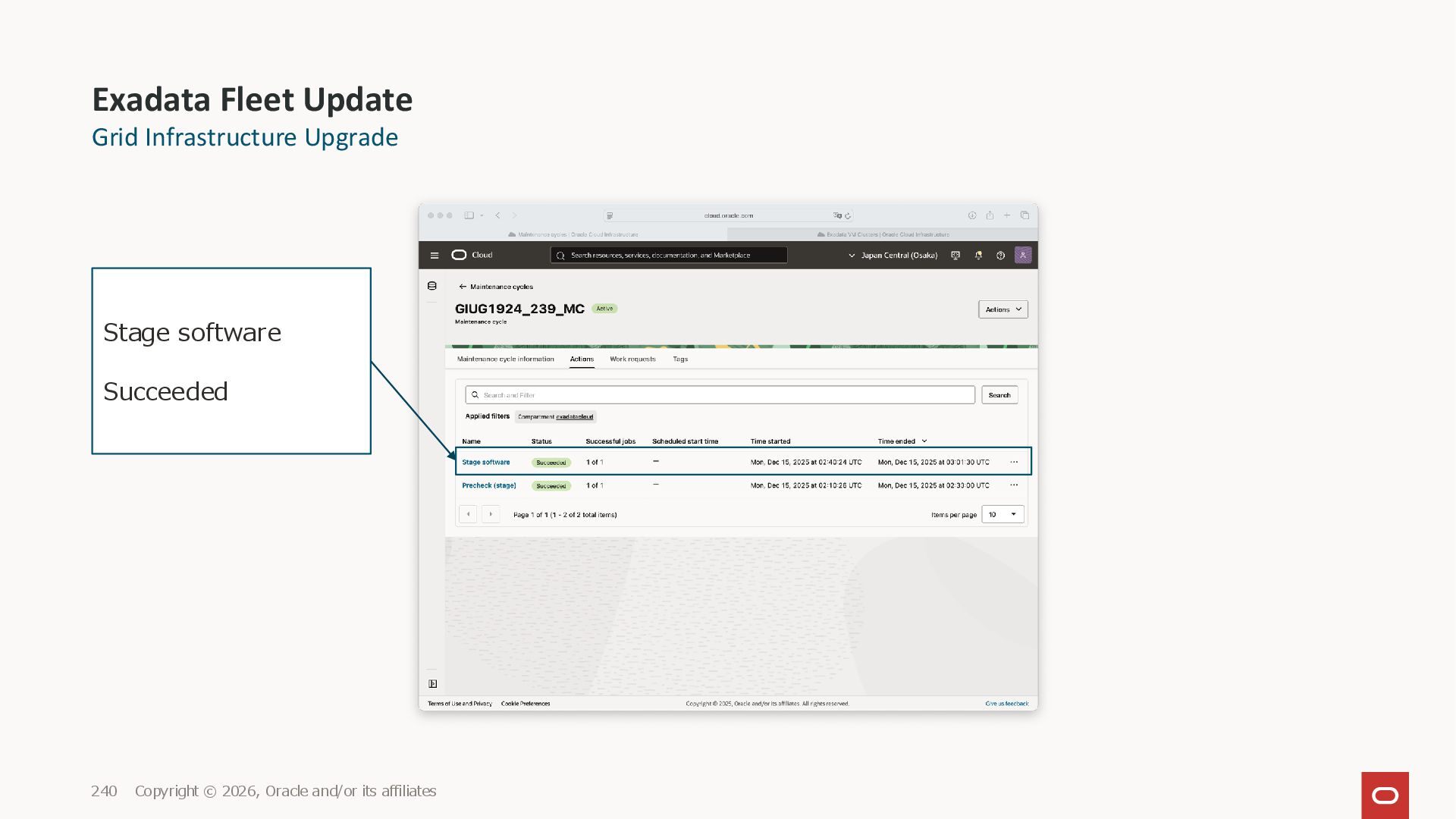

    Oracle and/or its affiliates | 133 Stage software Succeeded Precheck(Apply)

  134. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 134 Precheck prior to staging software （本来は Stage software: Succeeded のあとなので、 Precheck prior to applying software updates の表⽰になるべ き。

  135. Grid Infrastructureの場合のCollections, Maintenance Cycle 失敗例 Exadata Fleet Update Copyright ©

    2024, Oracle and/or its affiliates | 135 Failed Action icon View logs

  136. Grid Infrastructureの場合のCollections, Maintenance Cycle ログ Target: ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q, EfuJob: ocid1.fsujob.oc1.ap-osaka- 1.amaaaaaassl65iqauz4u4dg6qxbabetmubajhcsb5kzvc2zjg5ghdm76rvoa,

    WorkRequestId: ocid1.fsuworkrequest.oc1.ap-osaka-1.amaaaaaassl65iqahvxxgc35cezyhiz4j3qi53aig4nyqvdjzhskviwjc6eq ---------------------------------------------- Starting Collection check of DB targets. Related Fleet Software Collection ocid1.fsucollection.oc1.ap-osaka-1.amaaaaaassl65iqawfqpsriwdi7hygp4tpl7gk3kn53dhvekbzlnkz6qdpkq is of type GI, no Data Guard Association check is needed. Starting precheck apply for action ocid1.fsuaction.oc1.ap-osaka-1.amaaaaaassl65iqa6t7pvrpk5nrvjaw2ecn5pqm7dkhxvf6wsv3dni2poimq Cycle plan for action 'ocid1.fsuaction.oc1.ap-osaka-1.amaaaaaassl65iqa6t7pvrpk5nrvjaw2ecn5pqm7dkhxvf6wsv3dni2poimq' is successfully validated ======================JOB_EXECUTION_DETAILS_START====================== User: opc Client: cl-cet6m23q Scheduled job command: "rhpctl move gihome -eval -targetnode kara-vpvao1.sub04210756190.exavcn.oraclevcn.com -auth restauth -destwc wc_XYeOKPFGgYPByBB5LLC1PNPyZLqKgeup_20231127043106 - drain_timeout 600 -json -sourcewc wc_pfl09nheEeNiakfruURs86tINKxAN8eq_20231127025511 -schedule 2023-11-27T05:01:12Z -direct -arg5 tlskeystore:/fpp/base/chkbase/scheduled/jksKeyStore- ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-254124456 -arg4 tlstruststore:/fpp/base/chkbase/scheduled/jksTrustStore- ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-254124455 -arg1 restendpointfile:/fpp/base/chkbase/scheduled/restaddrfile- ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-254124454" Job execution start time: 2023-11-27 05:01:32 Job execution end time: 2023-11-27 05:03:12 Current status: FAILED =======================JOB_EXECUTION_DETAILS_END======================= 2023-11-27 05:01:32.224 UTC : Evaluation in progress for "move gihome" ... 2023-11-27 05:02:59.730 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying versions of Oracle homes ... 2023-11-27 05:02:59.731 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying owners of Oracle homes ... 2023-11-27 05:02:59.731 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying groups of Oracle homes ... 2023-11-27 05:03:12.433 UTC : PRGO-1774 : The evaluation revealed potential failure for command "move gihome". PRGO-1571 : The move operation was rejected because the patched working copy "wc_XYeOKPFGgYPByBB5LLC1PNPyZLqKgeup_20231127043106" is missing the patches for bug numbers "12565410,12949919,14112098,15897884,16799766,17443054,18759260,19397646,20875943,22037067,22873666,23614160,24701882,25173172,25881271,27015468,28127287,28852334,29997959,31335142,32327 208,33613833,34006650,34533150,34699616,35099674,29445548,29254623,29540327,29774362,30134746,30160625,30534662,29512125,29942275,30855101,31306261,31359215,30895577,29224710,26716835,31 668872,32165759,32069696,32032733,30889443,30674373,32167592,32523206,29415774,28777073,32124570,31247838,29540831,32892883,31776121,33223248,33563137,33184467,31844357,31727233,31494420 ,28209601,31311732,33805155,34149263,33872610,33822881,34473578,34450366,34461697,34346865,30408443,34604941,34786432,35021301,28674263,30796980,32587721" which are present in the source working copy "wc_pfl09nheEeNiakfruURs86tINKxAN8eq_20231127025511". ---------------------------------------------- Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 136

  137. Grid Infrastructureの場合のCollections, Maintenance Cycle 通知 { "eventType" : "com.oraclecloud.fsu.fsuaction.critical", "cloudEventsVersion"

    : "0.1", "eventTypeVersion" : "2.0", "source" : "FSU", "eventTime" : "2023-11-27T05:03:46Z", "contentType" : "application/json", "data" : { "compartmentId" : "ocid1.compartment.oc1..aaaaaaaa5lyxq3znb3vnngfmlpkdcksqw4oxe5zzg3i37iydjpezoghgmh7a", "compartmentName" : "exadatacloud", "resourceName" : "fsuaction-20231127045048", "resourceId" : "ocid1.fsuaction.oc1.ap-osaka-1.amaaaaaassl65iqa6t7pvrpk5nrvjaw2ecn5pqm7dkhxvf6wsv3dni2poimq", "availabilityDomain" : "ad1", "freeformTags" : { }, "definedTags" : { }, "additionalDetails" : { "fsuActionType" : "PRECHECK", "fsuActionOutput" : "======================JOB_EXECUTION_DETAILS_START======================¥nUser: opc¥nClient: cl-cet6m23q¥nScheduled job command: ¥"rhpctl move gihome -eval -targetnode kara- vpvao1.sub04210756190.exavcn.oraclevcn.com -auth restauth -destwc wc_XYeOKPFGgYPByBB5LLC1PNPyZLqKgeup_20231127043106 -drain_timeout 600 -json -sourcewc wc_pfl09nheEeNiakfruURs86tINKxAN8eq_20231127025511 - schedule 2023-11-27T05:01:12Z -direct -arg5 tlskeystore:/fpp/base/chkbase/scheduled/jksKeyStore-ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-254124456 -arg4 tlstruststore:/fpp/base/chkbase/scheduled/jksTrustStore-ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-254124455 -arg1 restendpointfile:/fpp/base/chkbase/scheduled/restaddrfile-ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-254124454¥"¥nJob execution start time: 2023-11-27 05:01:32¥nJob execution end time: 2023-11-27 05:03:12¥nCurrent status: FAILED¥n=======================JOB_EXECUTION_DETAILS_END=======================¥n¥n¥n 2023-11-27 05:01:32.224 UTC : Evaluation in progress for ¥"move gihome¥" ...¥n 2023-11-27 05:02:59.730 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying versions of Oracle homes ...¥n 2023-11-27 05:02:59.731 UTC : fppcsdp-ad1-prod- 1.dpapp1.fppcs.oraclevcn.com: verifying owners of Oracle homes ...¥n 2023-11-27 05:02:59.731 UTC : fppcsdp-ad1-prod-1.dpapp1.fppcs.oraclevcn.com: verifying groups of Oracle homes ...¥n 2023-11-27 05:03:12.433 UTC : PRGO-1774 : The evaluation revealed potential failure for command ¥"move gihome¥".¥nPRGO-1571 : The move operation was rejected because the patched working copy ¥"wc_XYeOKPFGgYPByBB5LLC1PNPyZLqKgeup_20231127043106¥" is missing the patches for bug numbers ¥"12565410,12949919,14112098,15897884,16799766,17443054,18759260,19397646,20875943,22037067,22873666,23614160,24701882,25173172,25881271,27015468,28127287,28852334,29997959,31335142,32327208,33613833,34006650,3 4533150,34699616,35099674,29445548,29254623,29540327,29774362,30134746,30160625,30534662,29512125,29942275,30855101,31306261,31359215,30895577,29224710,26716835,31668872,32165759,32069696,32032733,30889443,3067 4373,32167592,32523206,29415774,28777073,32124570,31247838,29540831,32892883,31776121,33223248,33563137,33184467,31844357,31727233,31494420,28209601,31311732,33805155,34149263,33872610,33822881,34473578,3445036 6,34461697,34346865,30408443,34604941,34786432,35021301,28674263,30796980,32587721¥" which are present in the source working copy ¥"wc_pfl09nheEeNiakfruURs86tINKxAN8eq_20231127025511¥".", "fsuCycleId" : "ocid1.fsucycle.oc1.ap-osaka-1.amaaaaaassl65iqaebcdfv56co4dg4vbz5wqzar53cdiokmhr6usrzm53fha", "description" : "FSU Action needs attention.", "fsuCollectionType" : "GI", "fsuCollectionServiceType" : "EXACS", "fsuCollectionId" : "ocid1.fsucollection.oc1.ap-osaka-1.amaaaaaassl65iqawfqpsriwdi7hygp4tpl7gk3kn53dhvekbzlnkz6qdpkq" } }, "eventID" : "4dfc4e39-09e8-469e-9554-1f83e9b7a29f", "extensions" : { "compartmentId" : "ocid1.compartment.oc1..aaaaaaaa5lyxq3znb3vnngfmlpkdcksqw4oxe5zzg3i37iydjpezoghgmh7a" } } Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 137

  138. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 138 Edit maintenance cycle 前ページのパッチ番号をカ ンマ区切りで記載

  139. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 139 Precheck Update maintenance cycle Succeeded

  140. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 140 Precheck prior to applying software updates 表⽰が直った︖

  141. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 141 Apply update Precheck(apply) Succeeded

  142. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 142 Apply software updates

  143. Grid Infrastructureの場合のCollections, Maintenance Cycle { "eventType" : "com.oraclecloud.databaseservice.updatecloudvmcluster.begin", "cloudEventsVersion" :

    "0.1", "eventTypeVersion" : "2.0", "source" : "DatabaseService", "eventTime" : "2023-11-27T05:50:00Z", "contentType" : "application/json", "data" : { "compartmentId" : "ocid1.compartment.oc1..aaaaaaaa5lyxq3znb3vnngfmlpkdcksqw4oxe5zzg3i37iydjpezoghgmh7a", "compartmentName" : "exadatacloud", "resourceName" : "VMCluster-3", "resourceId" : "ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q", "availabilityDomain" : "", "freeformTags" : { }, "definedTags" : { }, "additionalDetails" : { "timeCreated" : "2023-10-17T08:57:11Z", "timeUpdated" : "2023-11-27T05:50:00Z", "lifecycleState" : "UPDATING", "cloudExadataInfrastructureId" : "ocid1.cloudexadatainfrastructure.oc1.ap-osaka-1.anvwsljrssl65iqahnam65ke3dv23mokrqqphbimcnezxukfkx7uuhda4b3a", "cpuCoreCount" : 4, "ocpuCountFractional" : 4.0, "dataStorageSizeInTBs" : 0, "dataStorageSizeInGBs" : 0, "licenseType" : "LICENSE_INCLUDED", "giVersion" : "19.19.0.0.0", "dbNodeIds" : "[ocid1.dbnode.oc1.ap-osaka-1.anvwsljrssl65iqabg3qmqnunnnxtdsbcj27cttnxjnhtk6k52twwkmy7fjq, ocid1.dbnode.oc1.ap-osaka- 1.anvwsljrssl65iqaulcowr7eqg6tsq3vgqrjtvhlt6wl3s6u4nf4d7ab4ada]", "timeZone" : "UTC" } }, "eventID" : "164fffdc-99ad-4a02-b7f3-18f770e90a33", "extensions" : { "compartmentId" : "ocid1.compartment.oc1..aaaaaaaa5lyxq3znb3vnngfmlpkdcksqw4oxe5zzg3i37iydjpezoghgmh7a" } } Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 143

  144. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 144 Apply update: Succeeded このあと Cleanup が押せ るまではしばらく待つ必要 があるみたい

  145. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 145 Databases Updating

  146. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 146 Work requests Apply Cloud VM Cluster GI patch

  147. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 147 Grid infrastructure version: 19.21

  148. Grid Infrastructureの場合のCollections, Maintenance Cycle GIRU が適用され、opatch も新しくなる [grid@kara-vpvao1 ~]$ opatch

    lspatches 34697081;NOT SHIPPING LIBAUTH_SDK_IAM.SO IN 23 SHIPHOME INSTALL 35638318;JDK BUNDLE PATCH 19.0.0.0.231017 35762404;OCW Interim patch for 35762404 35763448;ENFORCE V2 CHECKS ONLY FOR CLIENT CLOUD MNEMONIC QUERIES 35652062;ACFS RELEASE UPDATE 19.21.0.0.0 (35652062) 35643107;Database Release Update : 19.21.0.0.231017 (35643107) 35553096;TOMCAT RELEASE UPDATE 19.0.0.0.0 (35553096) 33575402;DBWLM RELEASE UPDATE 19.0.0.0.0 (33575402) OPatch succeeded. [grid@kara-vpvao1 ~]$ opatch version OPatch Version: 12.2.0.1.40 OPatch succeeded. Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 148

  149. Grid Infrastructureの場合のCollections, Maintenance Cycle { "eventType" : "com.oraclecloud.databaseservice.updatecloudvmcluster.end", "cloudEventsVersion" :

    "0.1", "eventTypeVersion" : "2.0", "source" : "DatabaseService", "eventTime" : "2023-11-27T06:43:04Z", "contentType" : "application/json", "data" : { "compartmentId" : "ocid1.compartment.oc1..aaaaaaaa5lyxq3znb3vnngfmlpkdcksqw4oxe5zzg3i37iydjpezoghgmh7a", "compartmentName" : "exadatacloud", "resourceName" : "VMCluster-3", "resourceId" : "ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q", "availabilityDomain" : "", "freeformTags" : { }, "definedTags" : { }, "additionalDetails" : { "timeCreated" : "2023-10-17T08:57:11Z", "timeUpdated" : "2023-11-27T06:43:04Z", "lifecycleState" : "AVAILABLE", "cloudExadataInfrastructureId" : "ocid1.cloudexadatainfrastructure.oc1.ap-osaka-1.anvwsljrssl65iqahnam65ke3dv23mokrqqphbimcnezxukfkx7uuhda4b3a", "cpuCoreCount" : 4, "ocpuCountFractional" : 4.0, "dataStorageSizeInTBs" : 0, "dataStorageSizeInGBs" : 0, "licenseType" : "LICENSE_INCLUDED", "giVersion" : "19.21.0.0.0", "dbNodeIds" : "[ocid1.dbnode.oc1.ap-osaka-1.anvwsljrssl65iqabg3qmqnunnnxtdsbcj27cttnxjnhtk6k52twwkmy7fjq, ocid1.dbnode.oc1.ap-osaka- 1.anvwsljrssl65iqaulcowr7eqg6tsq3vgqrjtvhlt6wl3s6u4nf4d7ab4ada]", "timeZone" : "UTC" } }, "eventID" : "7682efd7-2caf-4f2f-b2f8-11c94d10385f", "extensions" : { "compartmentId" : "ocid1.compartment.oc1..aaaaaaaa5lyxq3znb3vnngfmlpkdcksqw4oxe5zzg3i37iydjpezoghgmh7a" } } Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 149

  150. Grid Infrastructureの場合のCollections, Maintenance Cycle GI も MOVE で ORACLE_HOME を移すので、/u02

    以下に移った [grid@kara-vpvao1 ~]$ env | grep ORA ORACLE_SID=+ASM1 ORACLE_HOSTNAME=kara-vpvao1 ORACLE_HOME=/u02/app/19.0.0.0/grid_1 [grid@kara-vpvao1 ~]$ env | grep HOME HOME=/home/grid ORACLE_HOME=/u02/app/19.0.0.0/grid_1 [grid@kara-vpvao1 ~]$ Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 150

  151. Grid Infrastructureの場合のCollections, Maintenance Cycle [root@kara-vpvao1 ~]# cat /etc/oratab #Backup file

    is /u01/app/grid/crsdata/kara-vpvao1/output/oratab.bak.kara-vpvao1.grid line added by Agent # # This file is used by ORACLE utilities. It is created by root.sh # and updated by either Database Configuration Assistant while creating # a database or ASM Configuration Assistant while creating ASM instance. # A colon, ':', is used as the field terminator. A new line terminates # the entry. Lines beginning with a pound sign, '#', are comments. # # Entries are of the form: # $ORACLE_SID:$ORACLE_HOME:<N|Y>: # # The first and second fields are the system identifier and home # directory of the database respectively. The third field indicates # to the dbstart utility that the database should , "Y", or should not, # "N", be brought up at system boot time. # # Multiple entries with the same $ORACLE_SID are not allowed. # # DB1017_9k6_kix:/u02/app/oracle/product/19.0.0.0/dbhome_1:N DB1032_c25_kix:/u02/app/oracle/product/19.0.0.0/dbhome_3:Y DB1033_vrr_kix:/u02/app/oracle/product/19.0.0.0/dbhome_4:N DB1106_552_kix:/u02/app/oracle/product/19.0.0.0/dbhome_9:Y DB11062_sxh_kix:/u02/app/oracle/product/19.0.0.0/dbhome_8:Y +ASM1:/u02/app/19.0.0.0/grid_1:Y [root@kara-vpvao1 ~]# [root@kara-vpvao1 ~]# cat /etc/oraInst.loc inventory_loc=/u01/app/oraInventory inst_group=oinstall [root@kara-vpvao1 ~]# ls -al /etc/oraInst.loc -rw-r--r-- 1 root root 56 Oct 17 11:08 /etc/oraInst.loc [root@kara-vpvao1 ~]# Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 151

  152. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 152 Cleanup が押せるように なった

  153. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 153 Cleanup

  154. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

    Oracle and/or its affiliates | 154 In progress

  155. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

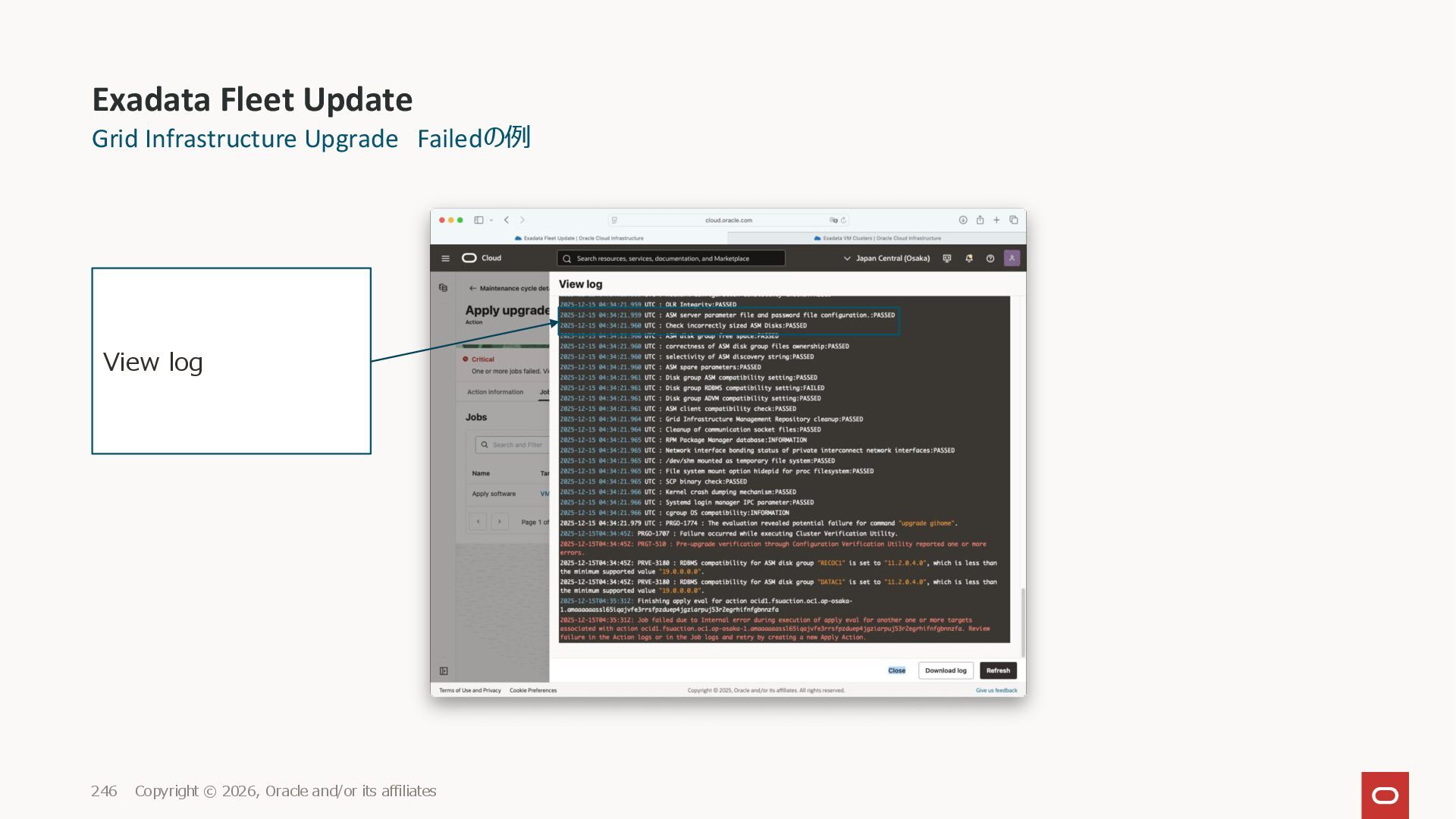

    Oracle and/or its affiliates | 155 Failed Action icon View logs

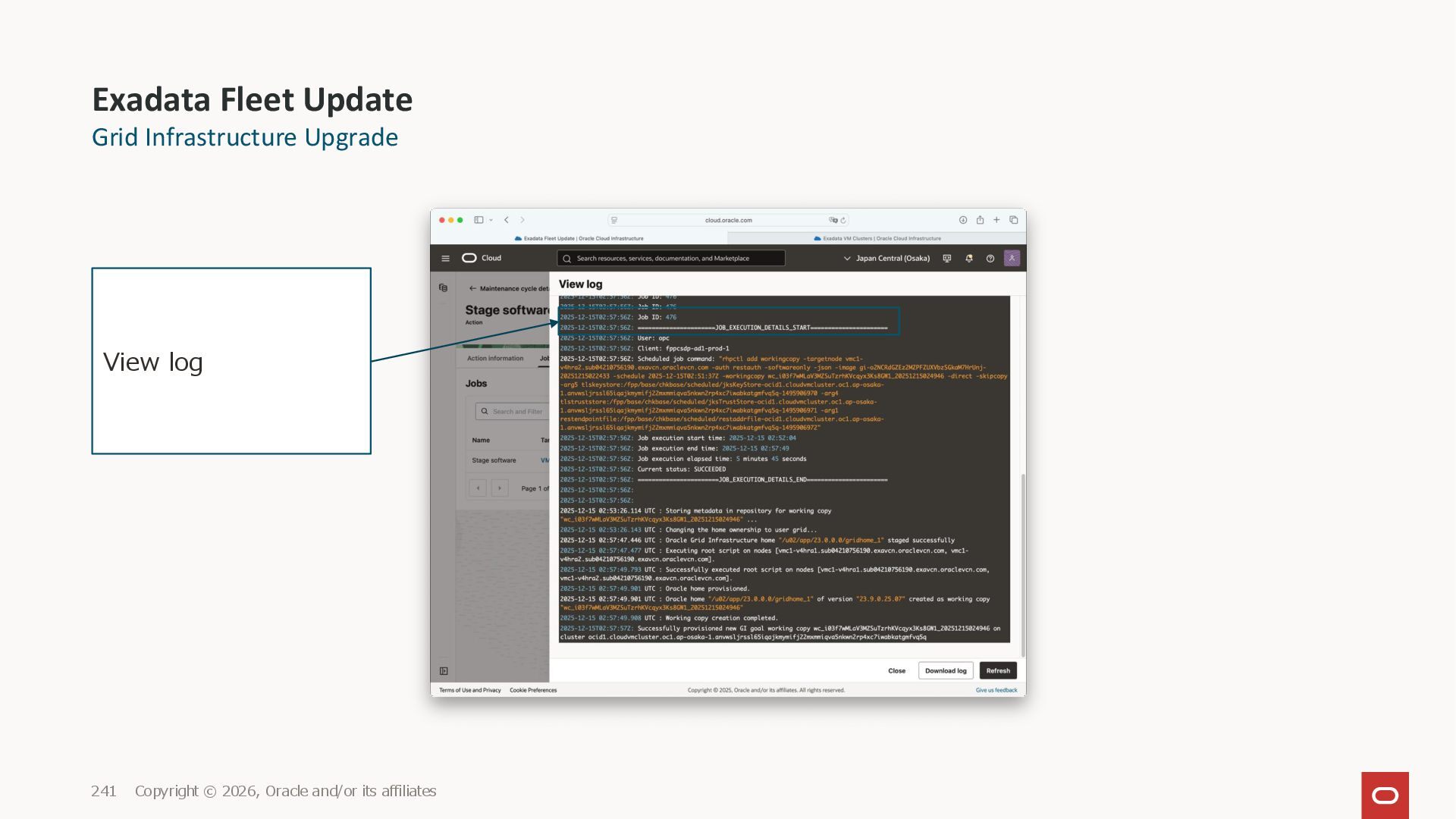

  156. Grid Infrastructureの場合のCollections, Maintenance Cycle Exadata Fleet Update Copyright © 2024,

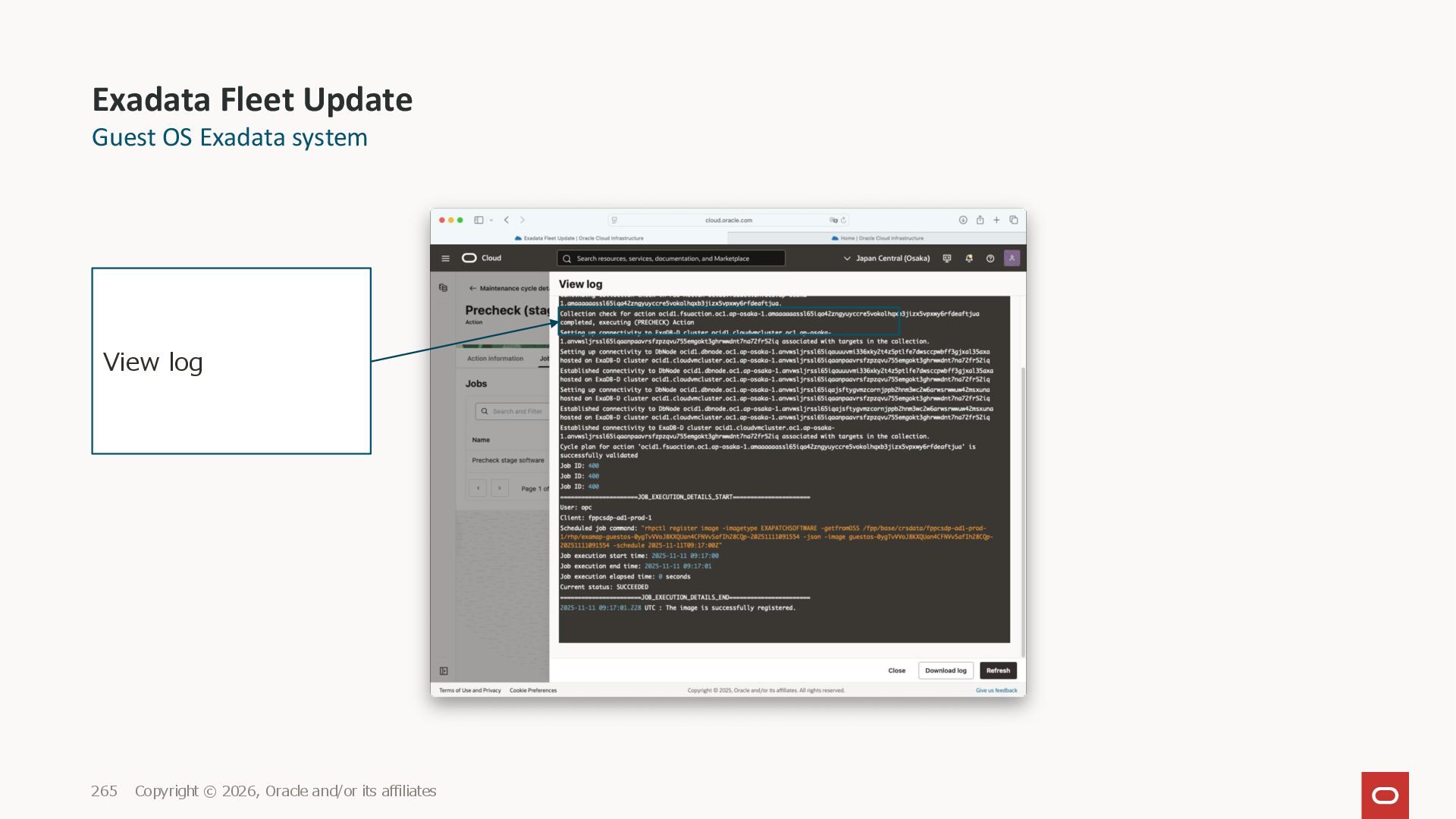

    Oracle and/or its affiliates | 156 View Log 次ページ

  157. Grid Infrastructureの場合のCollections, Maintenance Cycle Target: ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q, EfuJob: ocid1.fsujob.oc1.ap-osaka- 1.amaaaaaassl65iqa63f7eptfnclqbs3isu2ed4ynrgztw4qkov2xkmnv5lqq, WorkRequestId:

    ocid1.fsuworkrequest.oc1.ap-osaka- 1.amaaaaaassl65iqavnemc2tlj5vndw2o7a63k552sbvu3uh5ykjxyb4jhb4q ---------------------------------------------- Starting Collection check of DB targets. Starting Cleanup workflow for action ocid1.fsuaction.oc1.ap-osaka-1.amaaaaaassl65iqaluutyc6gs4uaij5g5l5w62i3r2frcubu7di3iefjyjfq ======================JOB_EXECUTION_DETAILS_START====================== User: opc Client: cl-cet6m23q Scheduled job command: "rhpctl delete workingcopy -targetnode kara-vpvao1.sub04210756190.exavcn.oraclevcn.com -auth restauth -json -schedule 2023-11- 29T09:16:28Z -workingcopy wc_pfl09nheEeNiakfruURs86tINKxAN8eq_20231127025511 -direct -arg5 tlskeystore:/fpp/base/chkbase/scheduled/jksKeyStore- ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-442240977 -arg4 tlstruststore:/fpp/base/chkbase/scheduled/jksTrustStore-ocid1.cloudvmcluster.oc1.ap-osaka-1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q- 442240976 -arg1 restendpointfile:/fpp/base/chkbase/scheduled/restaddrfile-ocid1.cloudvmcluster.oc1.ap-osaka- 1.anvwsljrssl65iqajtlichus76533umwtu5np7uuif472s54ib2pcet6m23q-442240975" Job execution start time: 2023-11-29 09:16:48 Job execution end time: 2023-11-29 09:17:07 Current status: FAILED =======================JOB_EXECUTION_DETAILS_END======================= PRGO-1664 : The specified source working copy "wc_pfl09nheEeNiakfruURs86tINKxAN8eq_20231127025511" is a software-only working copy. ---------------------------------------------- Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 157

  158. Grid Infrastructureの場合のCollections, Maintenance Cycle https://docs.oracle.com/cd/F19136_01/errmg/PRGO-01003.html#GUID-A3079418-4270-4F64-87BA-F7BEF572A327 PRGO-1664: 指定したソース作業⽤コピー“{0}“は、ソフトウェア専⽤の作業⽤コピーです。原因: Oracle Grid Infrastructure作業コピーを移動またはアップグレードしようとする試みは、⽰された

    作業コピーがソフトウェアのみの作業コピーであったため拒否されました。処置: アクティブな、構成済みのOracle Grid Infrastructureホームをソースとして指定して、操作を再試⾏してください。 Bug : 35039868 :OPC :ADB-D: GI PRECHECK ERROR ON RHP EVAL PRGO-1664 : THE SPECIFIED SOURCE WORKING COPY GI1916 IS A SOFTWARE-ONLY WORKING COPY. bug 修正済みのようなのだが。。これ以上は不明なので諦め Exadata Fleet Update Copyright © 2024, Oracle and/or its affiliates | 158

  159. Copyright © 2024, Oracle and/or its affiliates | 161 Exadata

    Fleet Update • Collections の管理（DB） • Maintenance Cycles の管理（DB） • Grid Infrastructure の場合の Collections、Maintenance Cycle の管理 • Topics、Rulesの設定

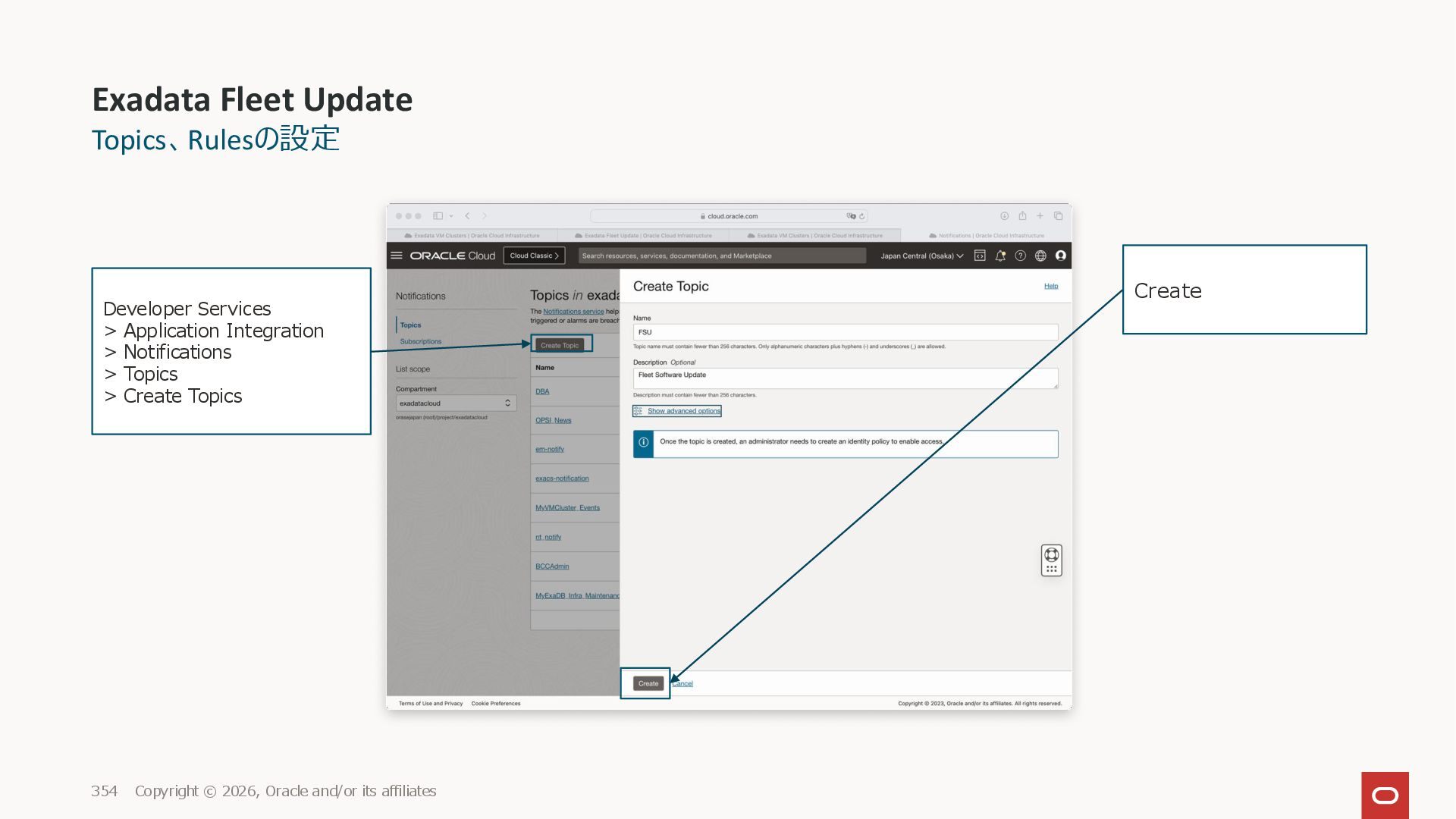

  160. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 162 Developer Services > Application Integration > Notifications > Topics > Create Topics Create

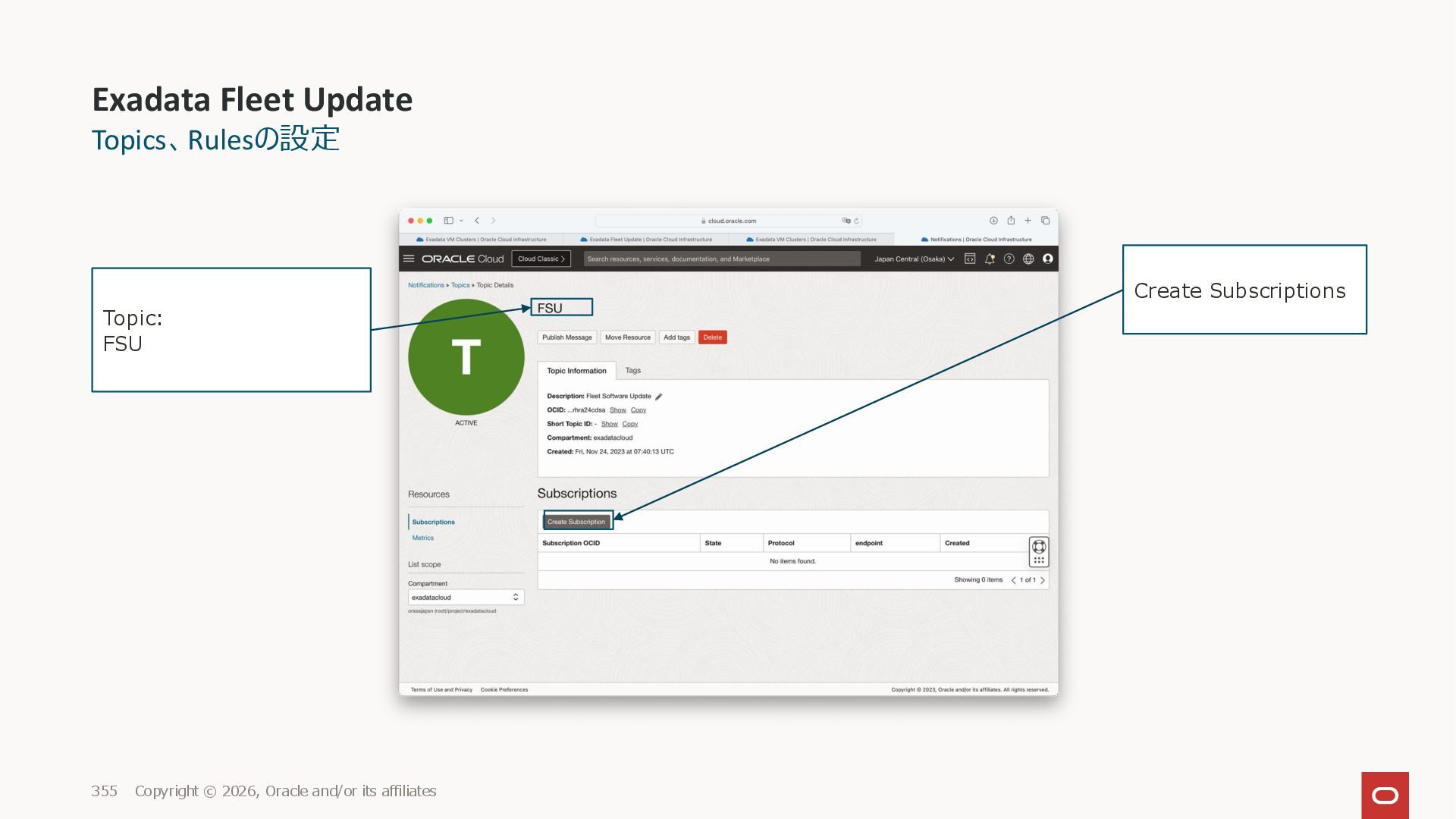

  161. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 163 Create Subscriptions Topic: FSU

  162. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 164 Configure Subscription Create

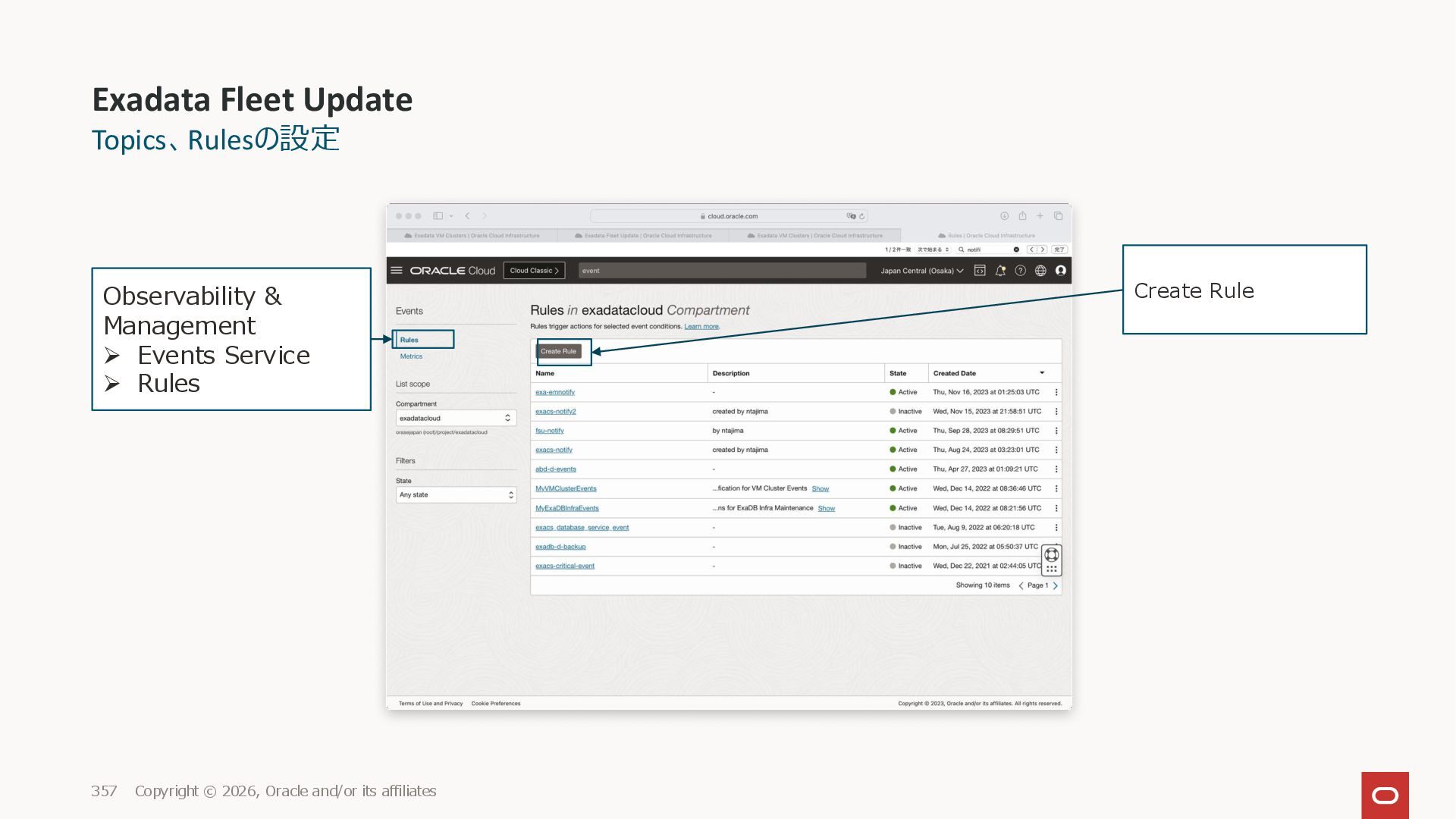

  163. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 165 Observability & Management Ø Events Service Ø Rules Create Rule

  164. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 166 Service Name: FSU To create rules, see Creating an Events Rule. Note that you must select FSU to filter Exadata Fleet Update service events. Event Type: Table 5-3 Exadata Fleet Update Event Types が⼀覧

  165. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 167 com.oraclecloud.fsu.create fsuaction.begin com.oraclecloud.fsu.create action.end com.oraclecloud.fsu.delete fsuaction.begin com.oraclecloud.fsu.delete action.end 等々 Table 5-3 Exadata Fleet Update Event Types 下へスクロール

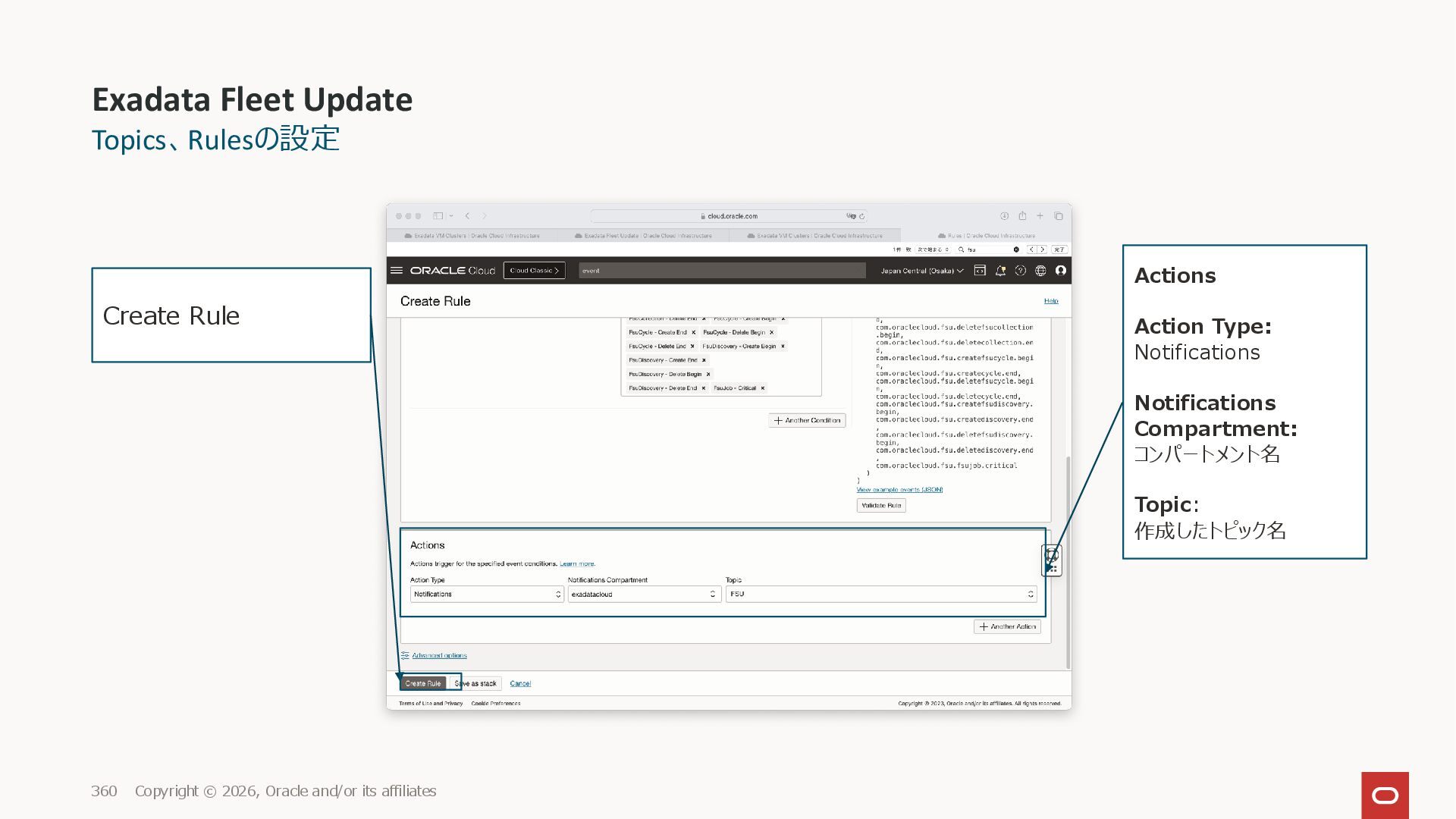

  166. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 168 Create Rule Actions Action Type: Notifications Notifications Compartment: コンパートメント名 Topic: 作成したトピック名

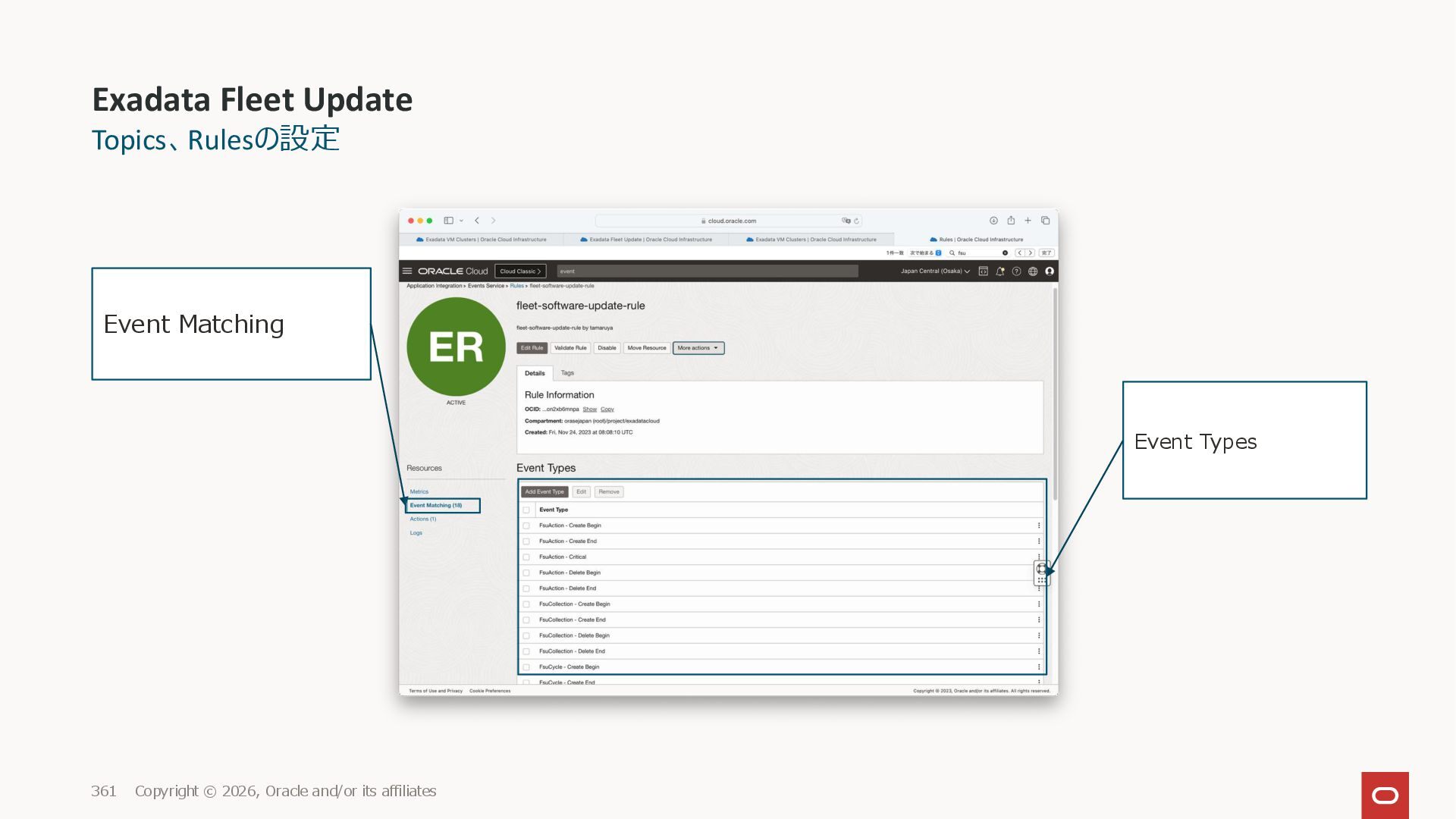

  167. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 169 Event Matching Event Types

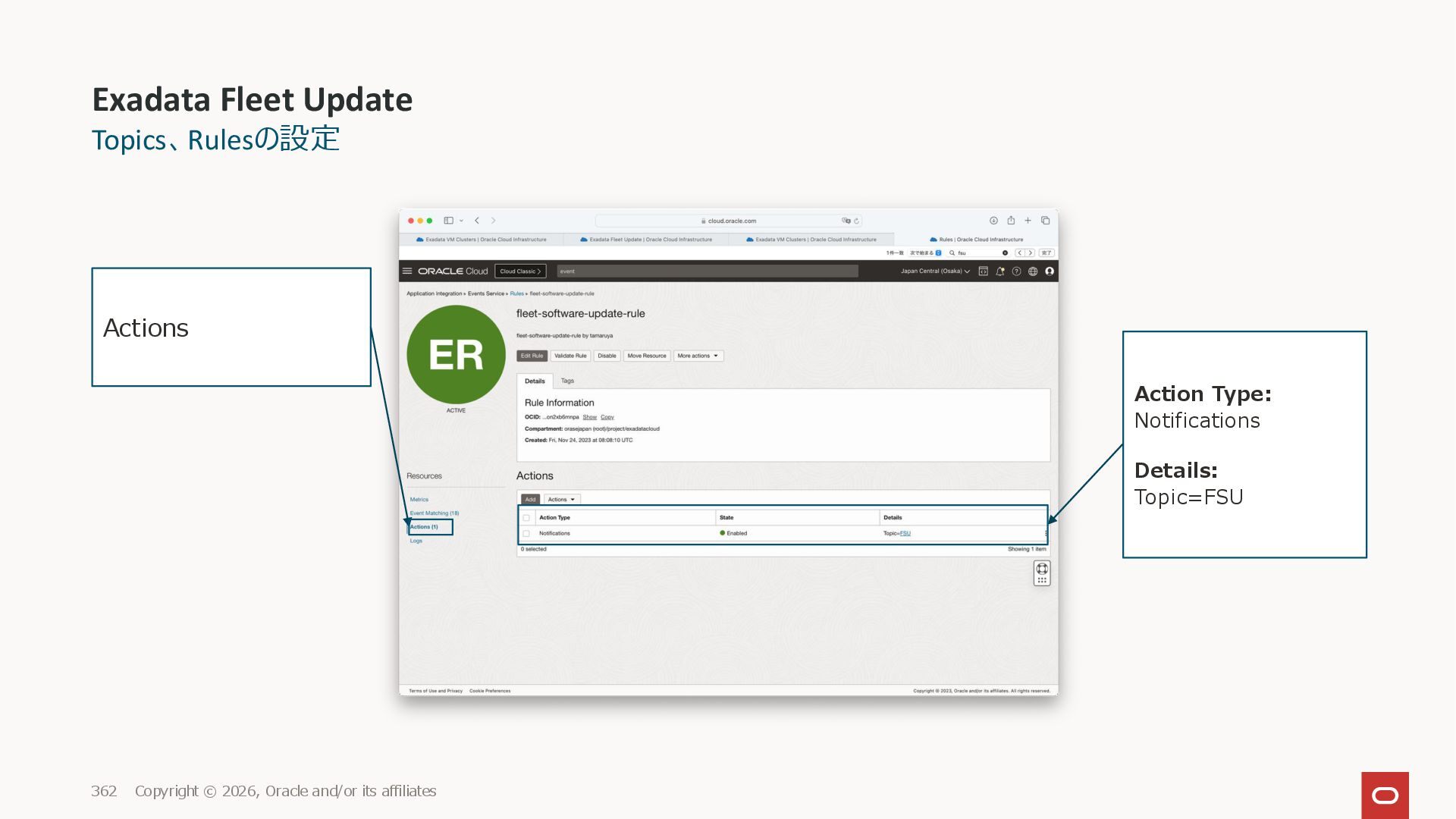

  168. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 170 Actions Action Type: Notifications Details: Topic=FSU

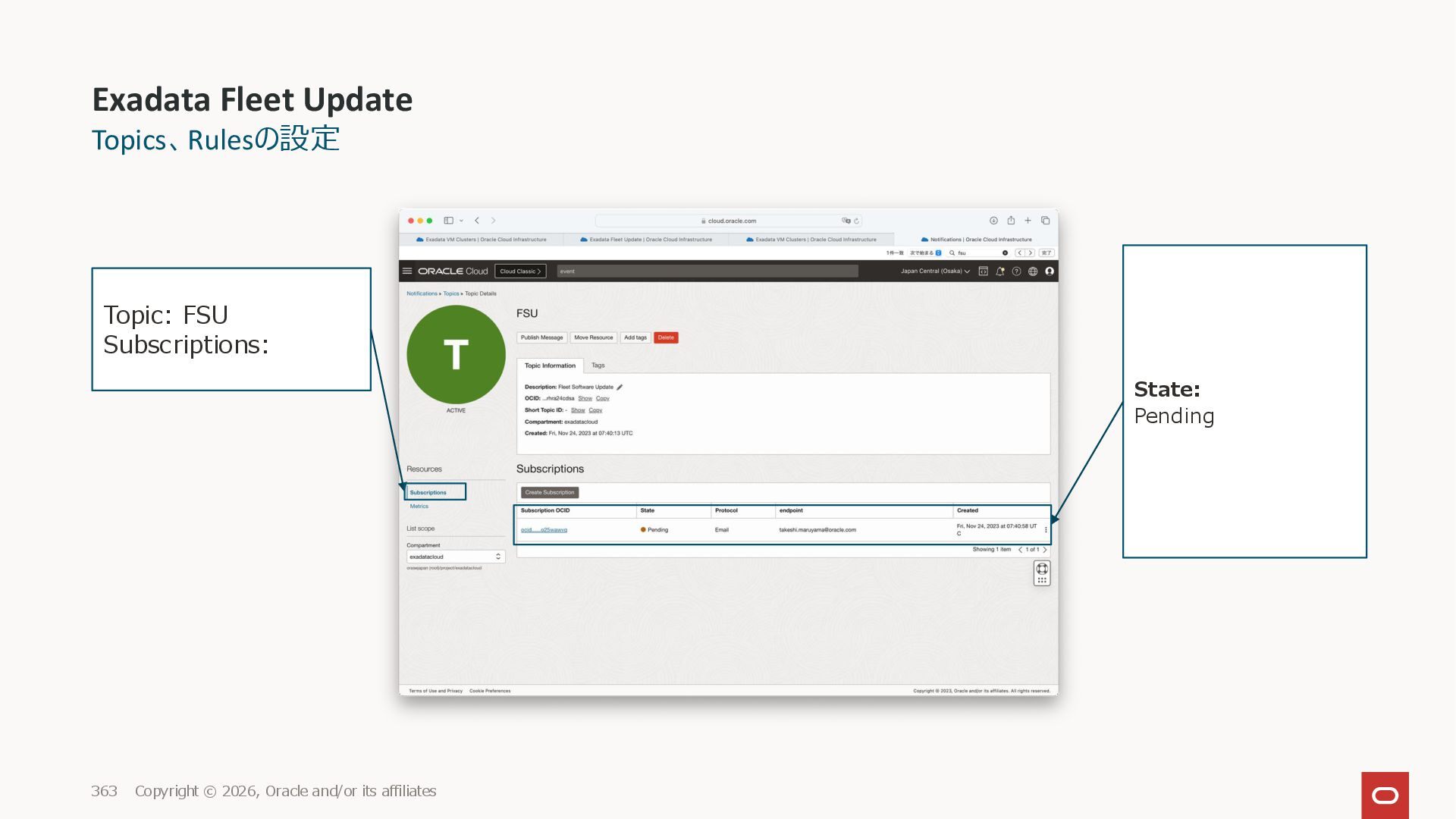

  169. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 171 Topic: FSU Subscriptions: State: Pending

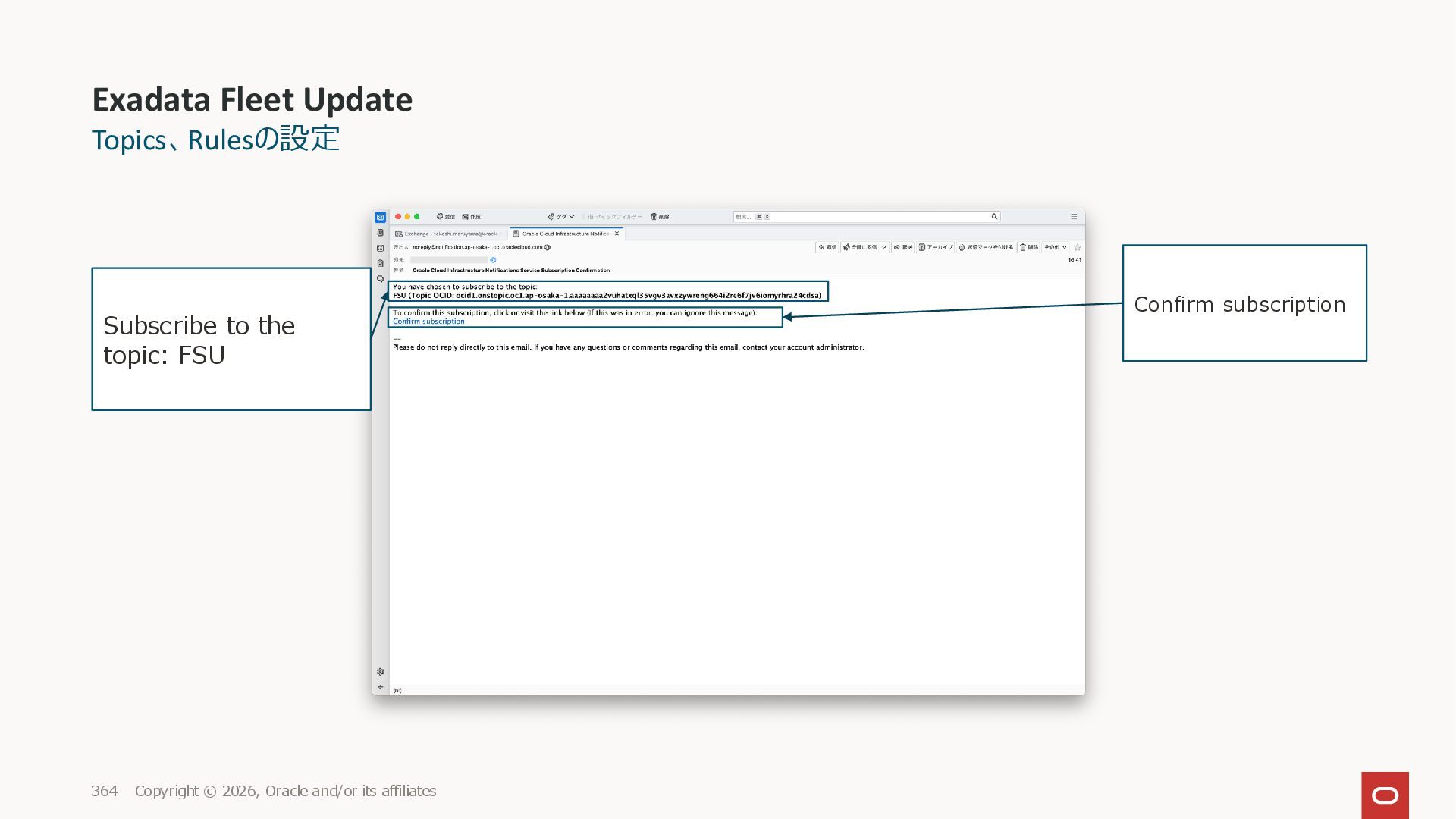

  170. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 172 Subscribe to the topic: FSU Confirm subscription

  171. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 173 Subscription confirmed

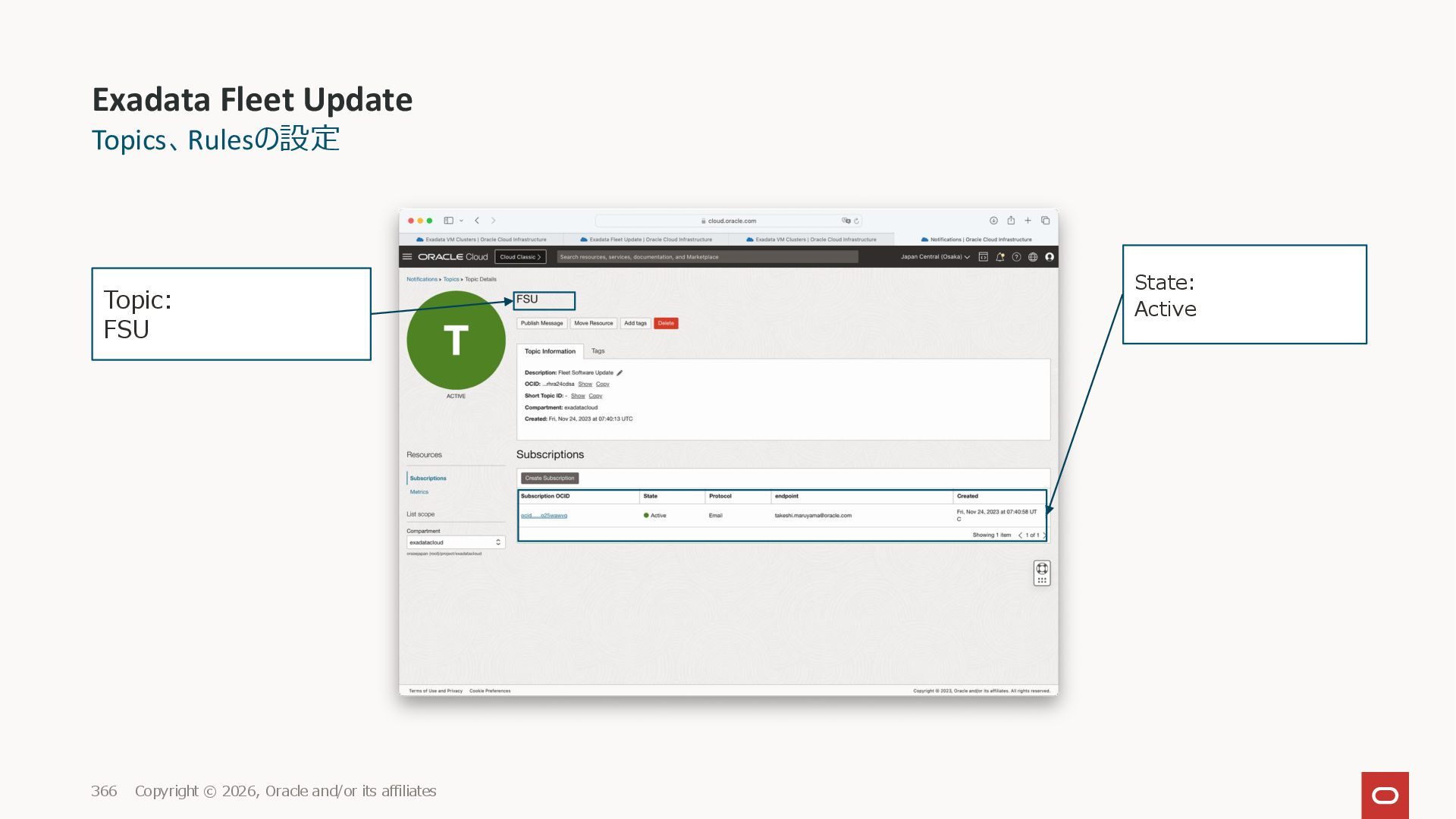

  172. Topics、Rulesの設定 Exadata Fleet Update Copyright © 2024, Oracle and/or its

    affiliates | 174 Topic: FSU State: Active

  173. 175 Copyright © 2024, Oracle and/or its affiliates |
