Droidcon Berlin 2016: Loving Lean Layouts

Huyen's talk from Droidcon Berlin discusses how performance issues can appear in layouts and how creating lean layouts can address these issues.

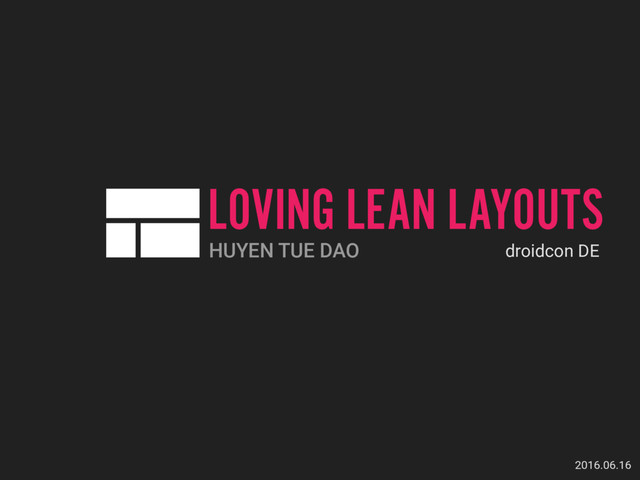

1. LOVING LEAN LAYOUTS HUYEN TUE DAO 2016.06.16 droidcon DE
2. LOVING LEAN LAYOUTS WHY LEAN LAYOUTS? FIND PROBLEMS FIX PROBLEMS GOOD PRACTICES
3. WHY LEAN LAYOUTS? • Complexity ∝ Resources (memory, CPU) • Complexity? • # of views • Depth of view hierarchy • (Really) # of measure() and layout() executions • Bad performance → UI/animations jank #PERFMATTERS
4. WHY LEAN LAYOUTS? • Complexity ∝ effort to maintain/refactor • Readability • Complex views are hard to parse • Too nested → too indented • Stability: a change to one part affects other part MAINTAINABILITY
5. HOW TO LAYOUT A VIEW HIERARCHY measure STEP 1 layout STEP 2 measure measure layout layout r
6. WHERE’S THE PROBLEM? (HINT: SEVERAL PLACES) r Change in size/position starts measure/layout starting at root. r r r r Some layouts need multiple measure/layout passes, e.g. RelativeLayout Lists make many copies of same layout Deep hierarchies increase complexity and dependency
7. STEP NO. 1 IN LOVING LEAN LAYOUTS FIND PROBLEMS
8. FIND PROBLEMS • SDK tool for visualizing view hierarchy • Android Device Monitor • Best: use on physical device running 4.1 up • Do not use runtime numbers given in Hierarchy Viewer; completely inaccurate HIERARCHY VIEWER :
11. FIND PROBLEMS • Tool inside the Android Monitor: AS 2.2 • Purpose: debug rendering of a layout • Also has high-level view of hierarchy useful to determining general depth/nested-ness • Similarly new Blueprint View LAYOUT INSPECTOR :
14. FIND PROBLEMS • systrace: system + application process execution data → interactive reports • Frame rendering → how much time measure/layout takes up • warns of frames that exceed 16.6ms needed for 60fps • dumpsys: collects and dumps “interesting information” about system services status • adb shell dumpsys gfxinfo <PACKAGE_NAME> → perf info related to frames of animation • adb shell dumpsys gfxinfo <PACKAGE_NAME> framestats → detailed frame timing info; on Marshmallow SYSTRACE + DUMPSYS :
15. FIND PROBLEMS • FrameMetricsListener API (Android N): measurement of interaction-level UI performance • Pub/Sub API → current app window • Equivalent to adb shell dumpsys gfxinfo <PACKAGE_NAME> framestats • Not limited to last 120 frames like framestats • Gather performance data and “catch regressions in UI performance” FRAMEMETRICSLISTENER :
16. STEP NO. 2 IN LOVING LEAN LAYOUTS FIX PROBLEMS
17. FIX PROBLEMS • Lint complains about things that are generally not good ideas. • Good candidates for things that you should fix first. • Don’t nest weights • Remove useless views • Don’t nest too much MAKE LINT HAPPY :
19. LINT: USELESS PARENTS 19
20. LINT: NESTED WEIGHTS → BAD PERFORMANCE 20
21. LINT: TOO MUCH NESTING 21
22. FIX PROBLEMS • Many different ways to do one thing: opt for simplest • Often attributes or other techniques can replace multiple views, e.g.: • TextView compound drawables • Spannable • Directly apply margins, padding, backgrounds, etc. • Placeholder/divider → View or Space. • Sometimes you just need to pick the right view/layout. • Less views, less levels, less nesting • ConstraintLayout SIMPLIFY AND REDUCE :
24. FIX PROBLEMS SIMPLIFY AND REDUCE : <LinearLayout…>

 <ImageView…/>

 <TextView…/>

 </LinearLayout> <TextView…
 android:drawablePadding=“…"
 android:drawableEnd=“…"/> → 3 VIEWS, 2 LEVELS 1 VIEW, 1 LEVEL
27. REDUCE VIEWS: SPANNABLES
28. FIX PROBLEMS SIMPLIFY AND REDUCE : <LinearLayout…>

 <TextView…
 style="@style/StyleA" />

 <TextView…
 style="@style/StyleB" />

 <TextView…
 style="@style/StyleA" />

 </LinearLayout> <TextView…/> + Spannables → 4 VIEWS, 2 LEVELS 1 VIEW, 1 LEVEL
31. FIX PROBLEMS SIMPLIFY AND REDUCE : <FrameLayout… android:padding=“…” android:background=“…“>

 <LinearLayout… />

 </FrameLayout> <LinearLayout… android:padding=“…” android:background=“…“/> → 2 VIEWS, 2 LEVELS 1 VIEW, 1 LEVEL
34. FIX PROBLEMS SIMPLIFY AND REDUCE : <LinearLayout… >

 <LinearLayout…>

 <TextView… />

 <TextView… />

 </LinearLayout>

 <TextView… />

 </LinearLayout>

 <ConstraintLayout…>

 <TextView… />

 <TextView… />

 <TextView… />

 </ConstraintLayout> → 5 VIEWS, 3 LEVELS 4 VIEWS, 2 LEVEL
36. FIX PROBLEMS • Sometimes best option = custom ViewGroup. • Total control over measure/layout logic. • Mitigate double-layout phases. • Also: totally custom Views (draw all the things). • Start out with simple, straightforward layouts. • Balance performance gains with development effort. GO CUSTOM :
37. STEP NO. 3 IN LOVING LEAN LAYOUTS GOOD PRACTICES
38. GOOD PRACTICES • Anticipate and develop good habits • Use simplest solutions where possible • “Don’t do too much stuff.” • Fewer/flatter Views and ViewGroups. • Don’t use RelativeLayout at the root! • Don’t let problems accumulate. • Balance performance gains with development effort.
