STRAT - A System-Centric Approach to Cyber Resilience

Given at the SANS CTI Summit 2025 with Chandler McClellan.

Transcript

1. Building Cyber Threat Resilience with STRAT A new Methodology for Cyber Threat Intelligence
2. Who We Are Chandler McClellan Scott J Roberts
3. Where We’re From
4. Where We’re From

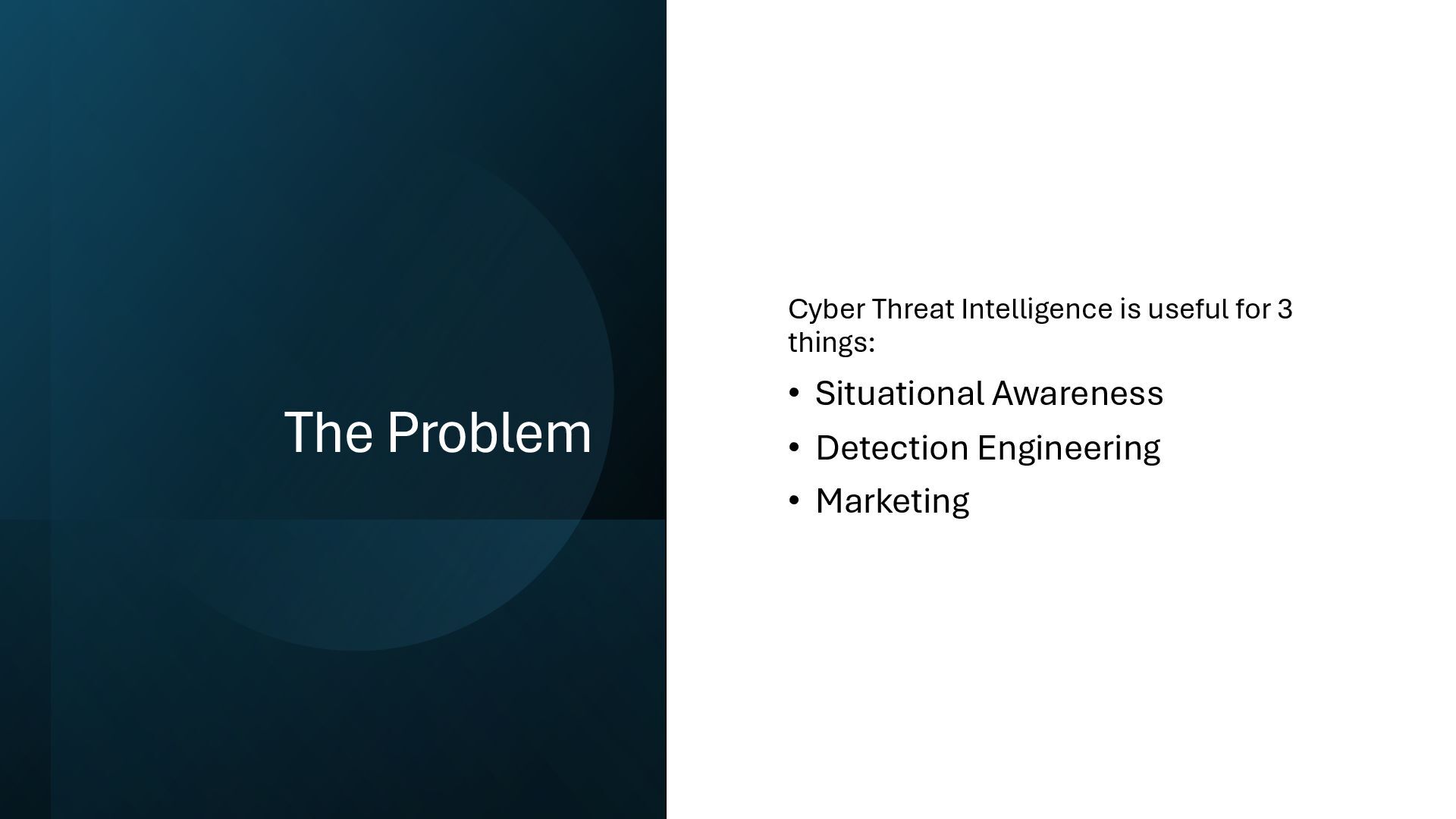

5. The Problem Cyber Threat Intelligence is useful for 3 things: • Situational Awareness • Detection Engineering • Marketing
6. Building Resilience Should be Next
7. Setting the Stage A BRIEF INTRODUCTION TO SYSTEMS THINKING A BRIEFER INTRODUCTION TO RESILIENCE APPLYING STRAT TO CYBER RESILIENCE

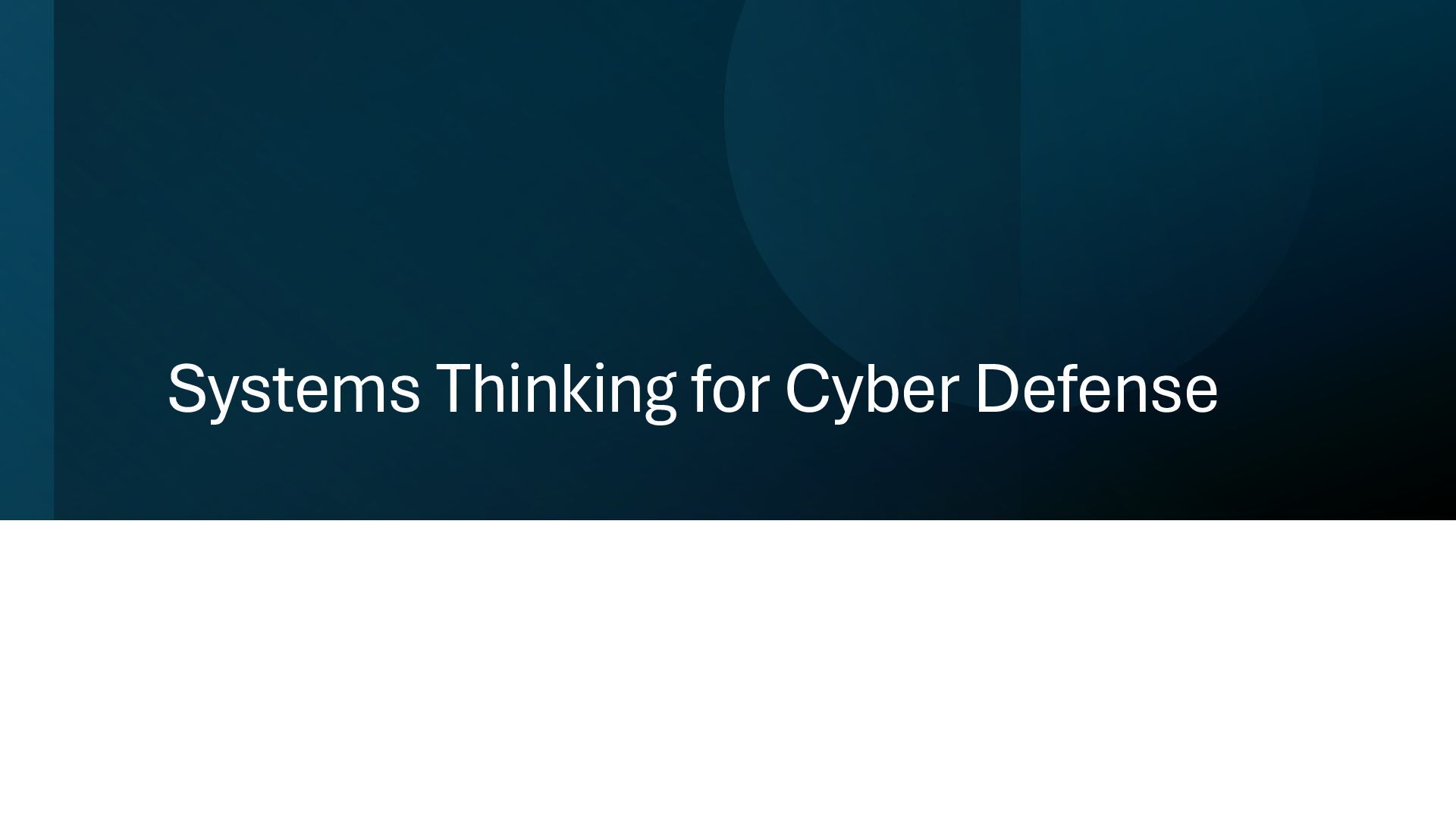

8. Systems Thinking for Cyber Defense

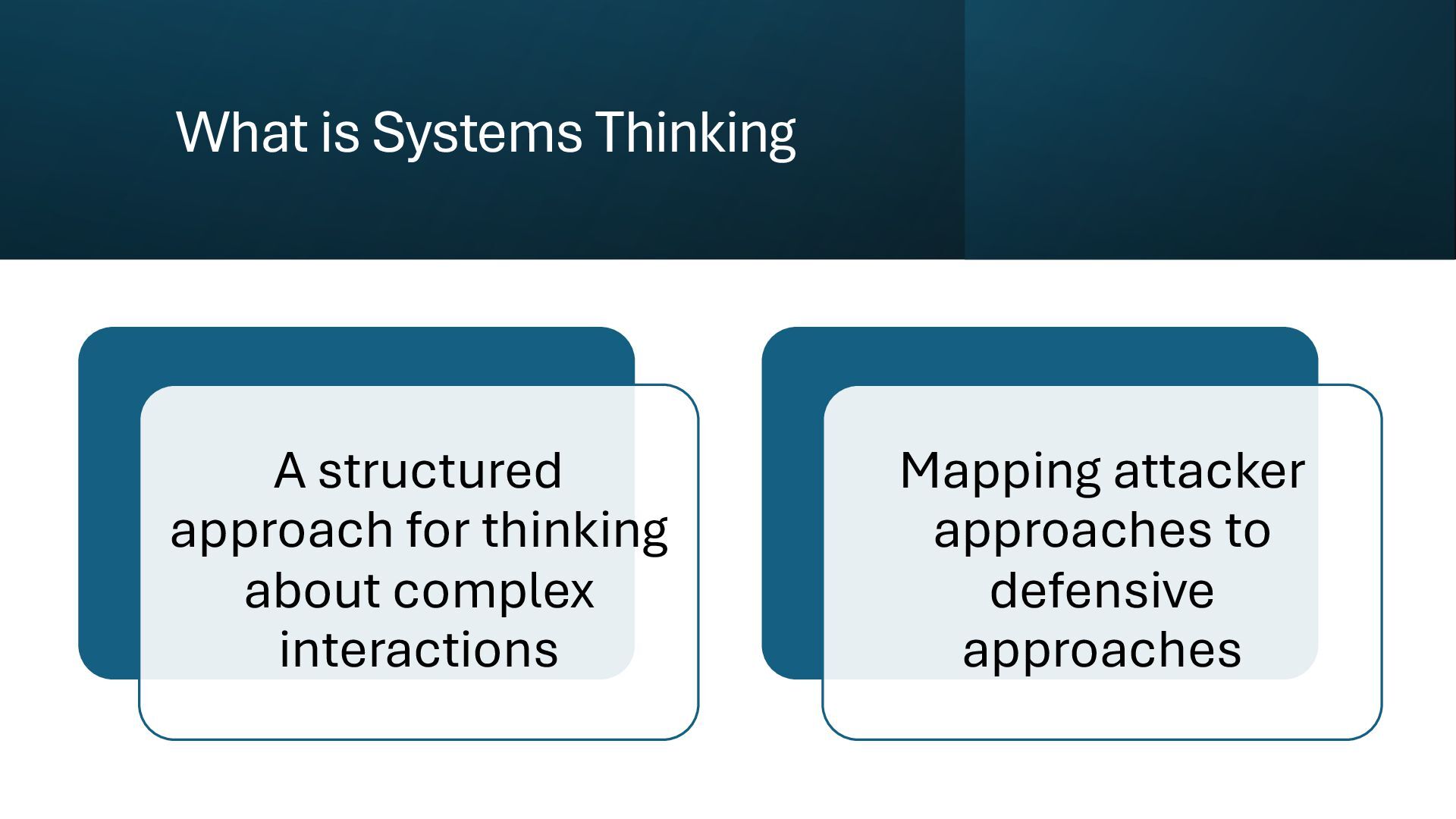

9. What is Systems Thinking A structured approach for thinking about complex interactions Mapping attacker approaches to defensive approaches
10. Why Think in Systems ANTICIPATING 2ND & 3RD ORDER EFFECTS INTEGRATES RISK MODELING, SYSTEM DESIGN, AND THREAT INTELLIGENCE TO IMPROVE RESILIENCE LAST OF ALL…

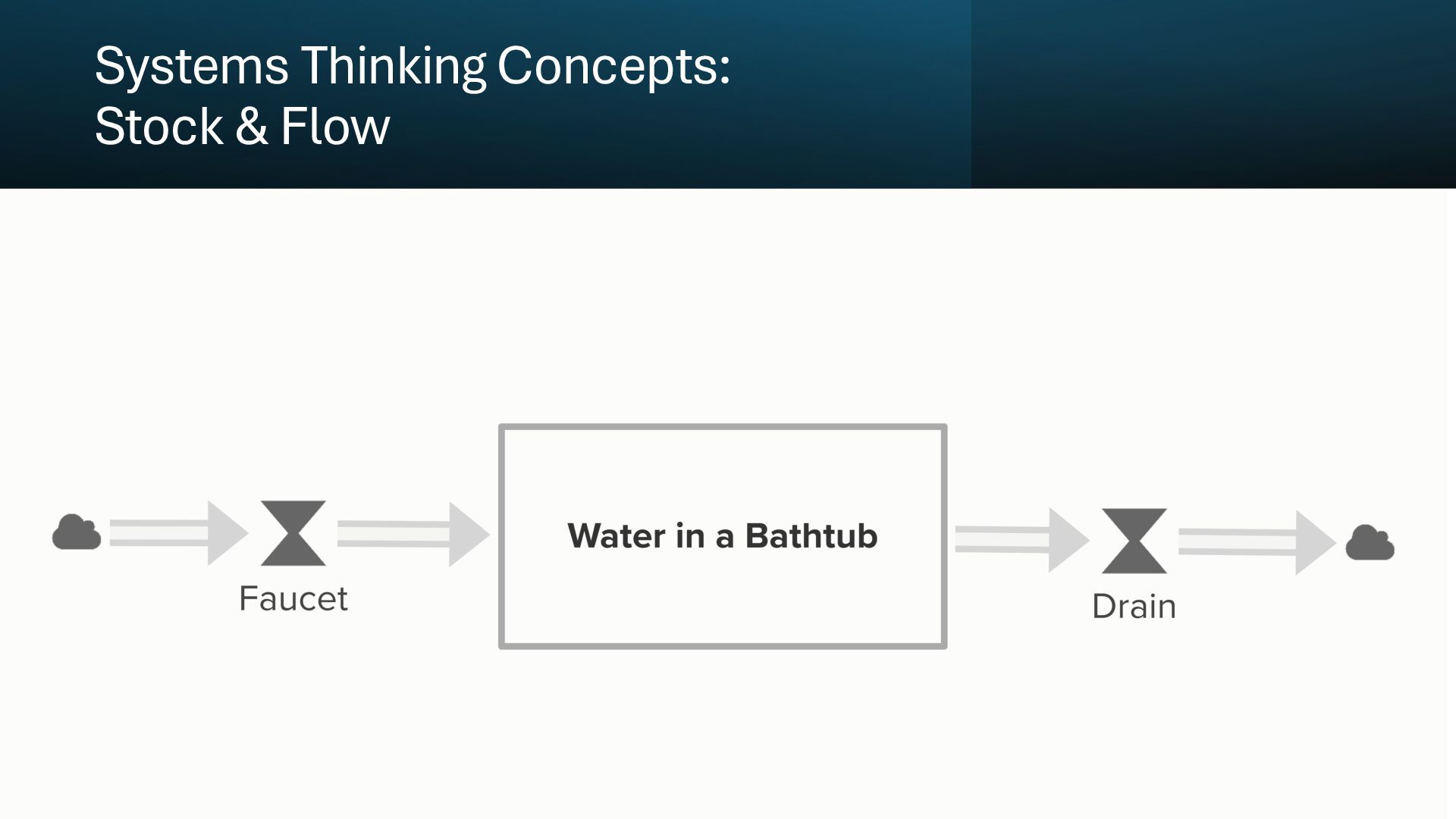

12. Systems Thinking Concepts: Stock & Flow

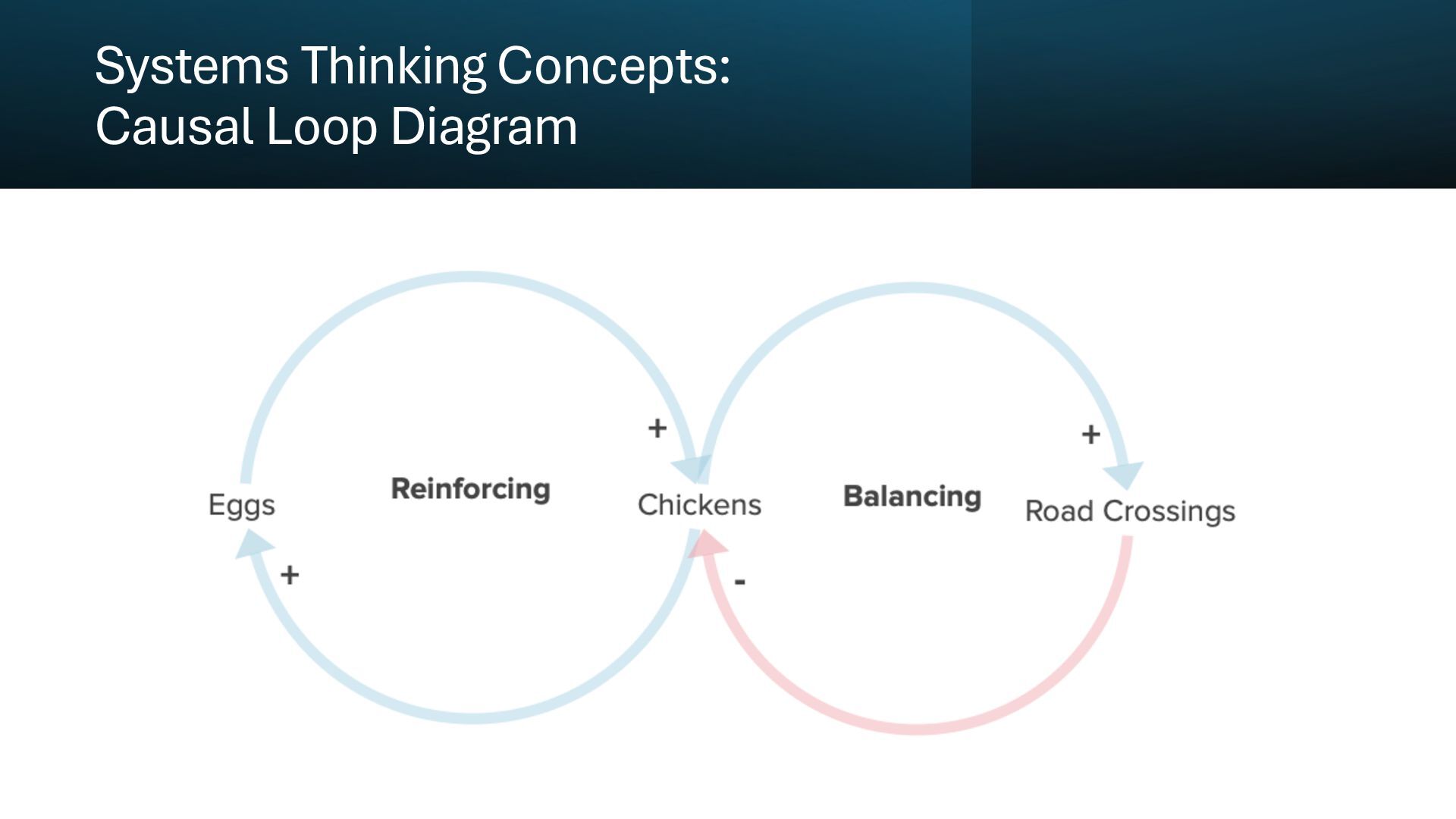

13. Systems Thinking Concepts: Causal Loop Diagram
14. Introduction to Resilience

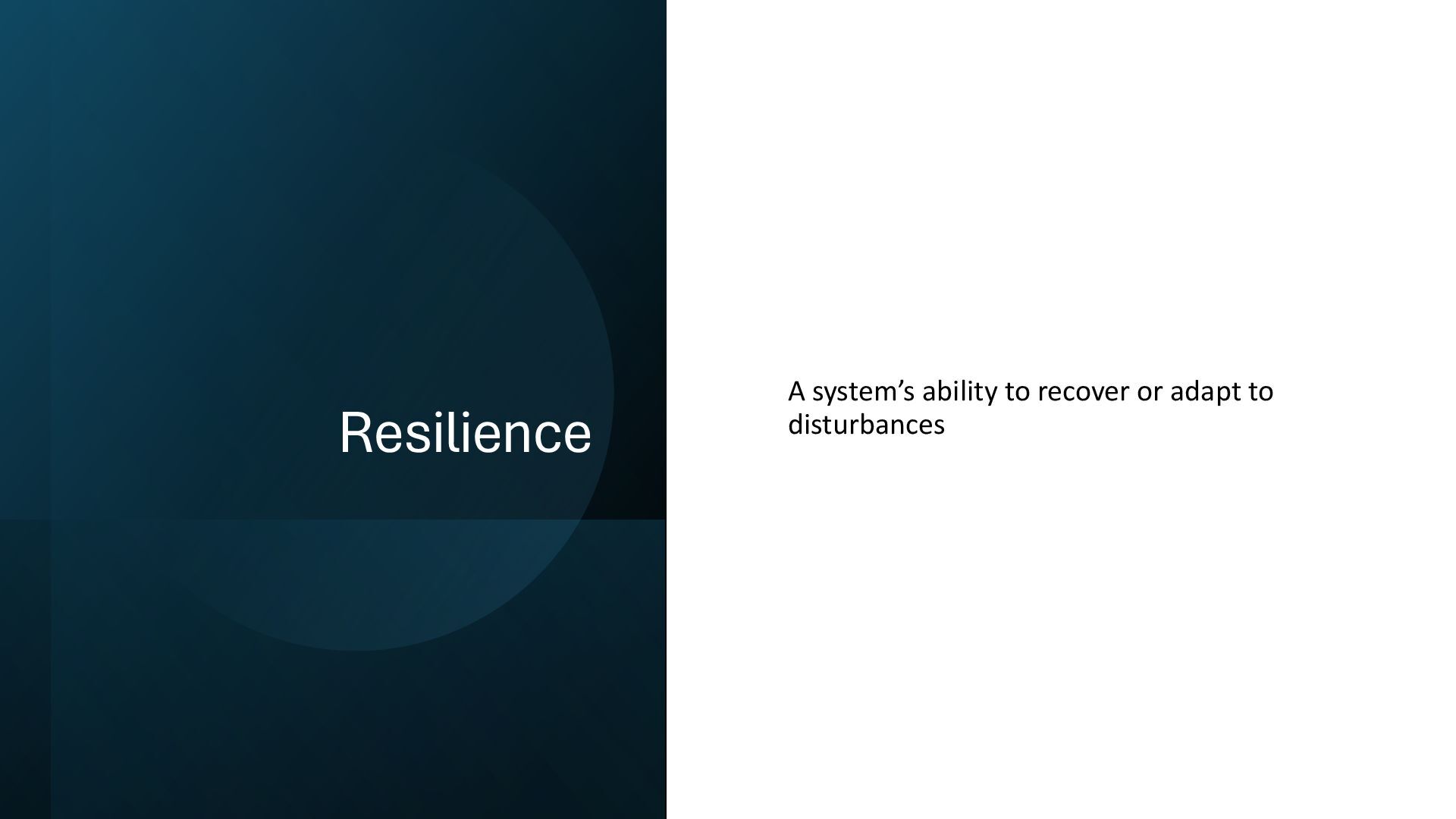

15. Resilience A system’s ability to recover or adapt to disturbances

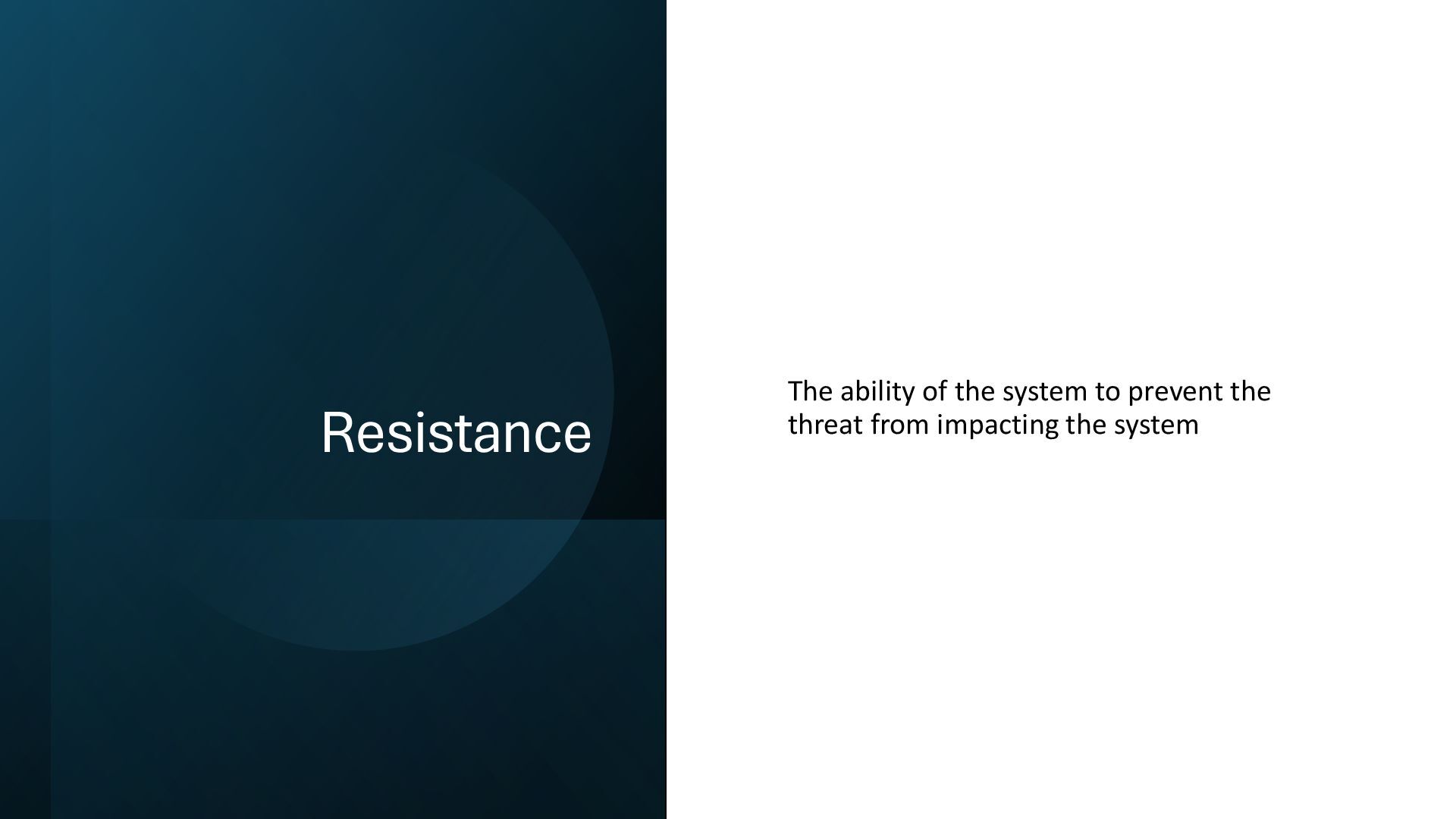

16. Resistance The ability of the system to prevent the threat from impacting the system
17. Retention The ability of the system to maintain its core function after being impacted by the threat

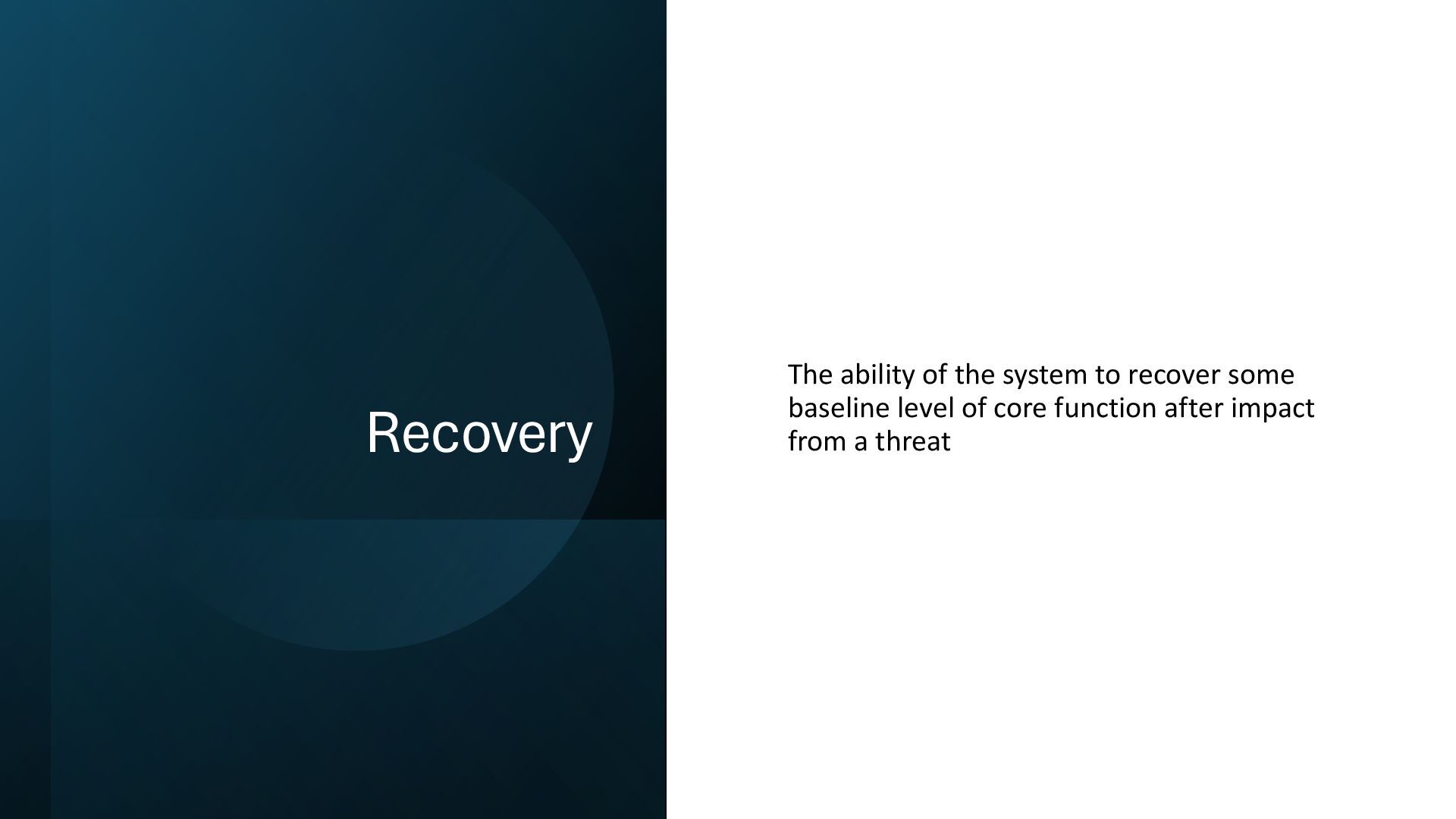

18. Recovery The ability of the system to recover some baseline level of core function after impact from a threat
19. Resurgence The system’s ability to improve after a threat
20. How do we build resilience? • Redundancy • Diversity • Centralization or Decentralization • Adaptability • Imaging • Alignment • Stakeholder engagement • Self-organization • Communication

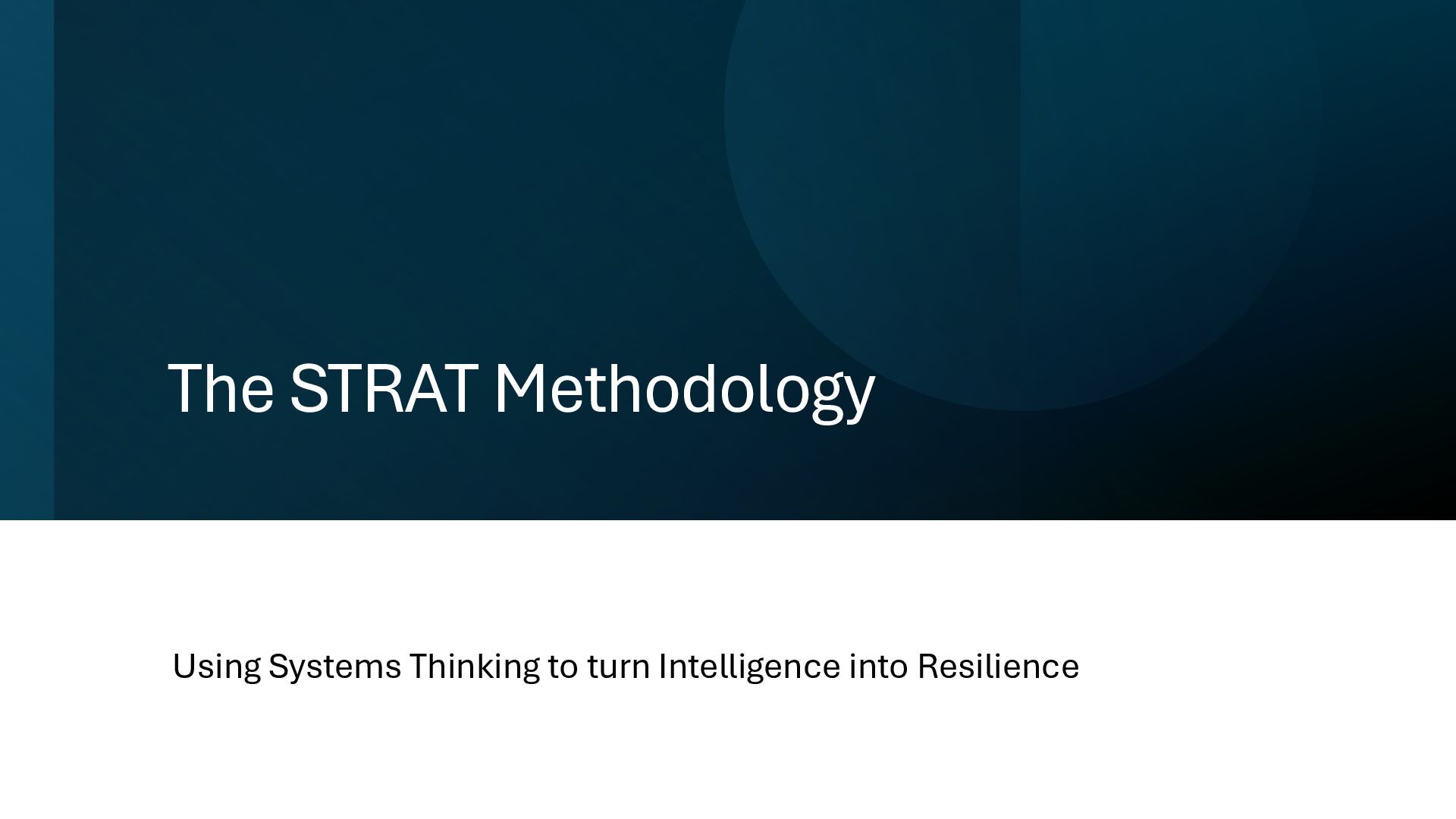

21. The STRAT Methodology Using Systems Thinking to turn Intelligence into Resilience
22. What is STRAT? • The System-Centric Threat and Resilience Assessment Tool (STRAT) is a methodology for practitioners across various fields to identify and build resilience in systems including both human and material components • Developed by Dr Jeannie Johnson and Briana Bowen • On-going Development & Active Research by Dr Jeffery Taylor at Utah State University for CAI5200 - Threats and Resilience in the Knowledge Century
23. The STRAT Method • Choose a system for study • Scatterplot potential threats across a Risk x Probability Matrix • Choose a group of threats for study • Map system properties • Identify resilience components of the system • Assess current resilience of the system to the identified threats • Provide recommendations to increase resilience
24. STRAT: Choose a system for study COMPLEXITY POTENTIAL VULNERABILITIES CRITICAL ASSETS STAKEHOLDER INTERESTS IMPACT ON OPERATIONS STRATEGIC OBJECTIVES

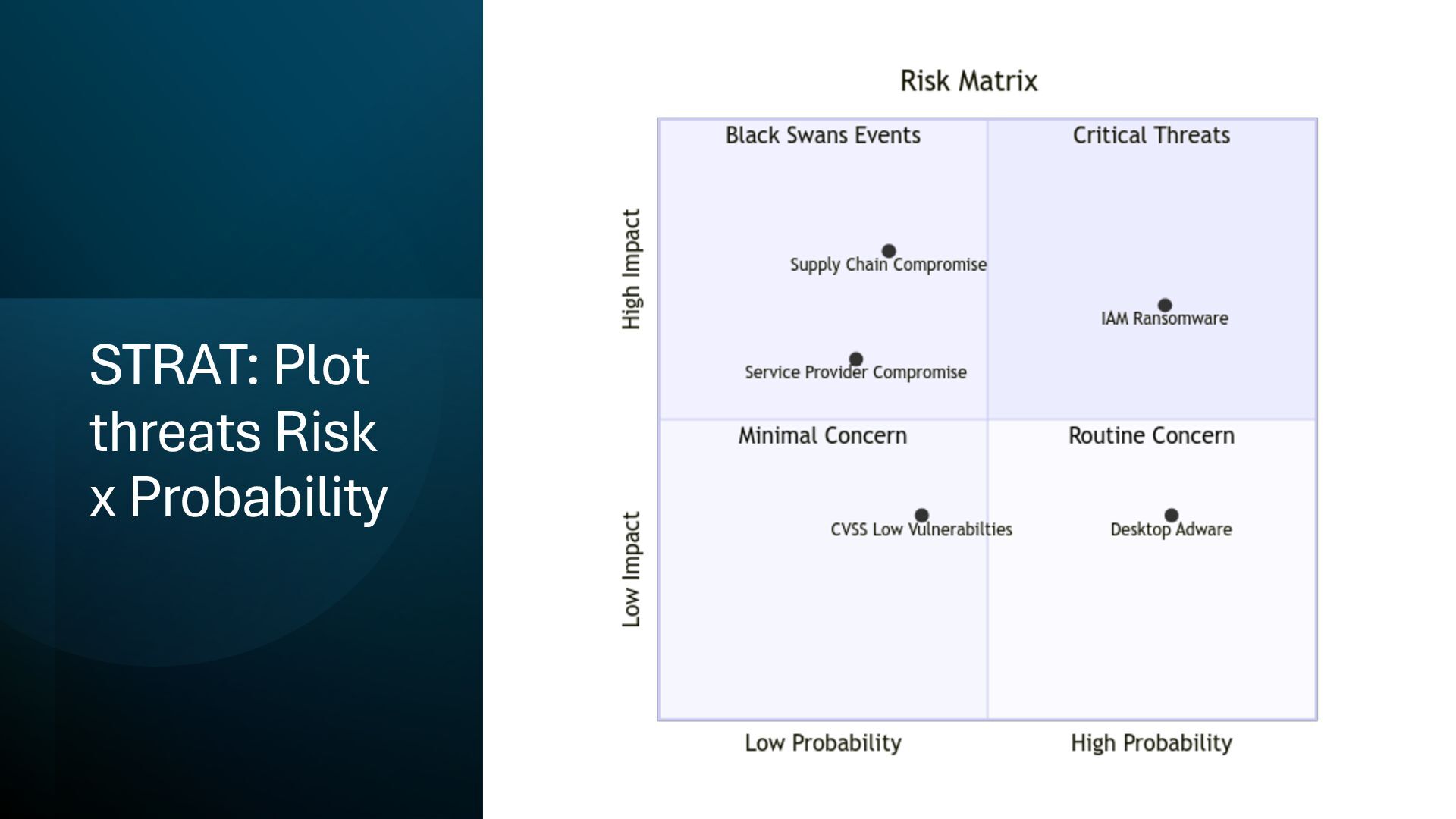

25. STRAT: Plot threats Risk x Probability

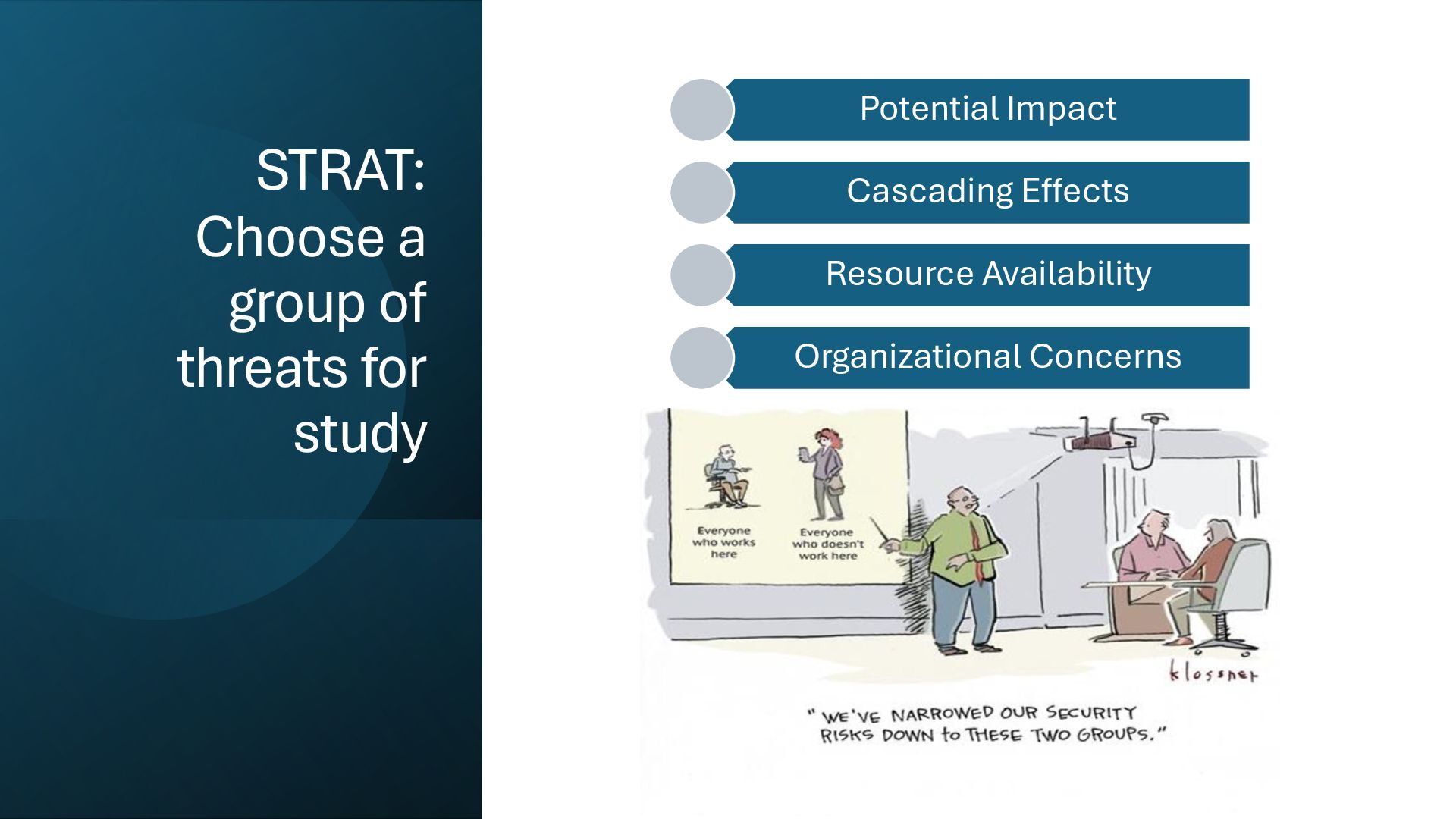

26. STRAT: Choose a group of threats for study Potential Impact Cascading Effects Resource Availability Organizational Concerns

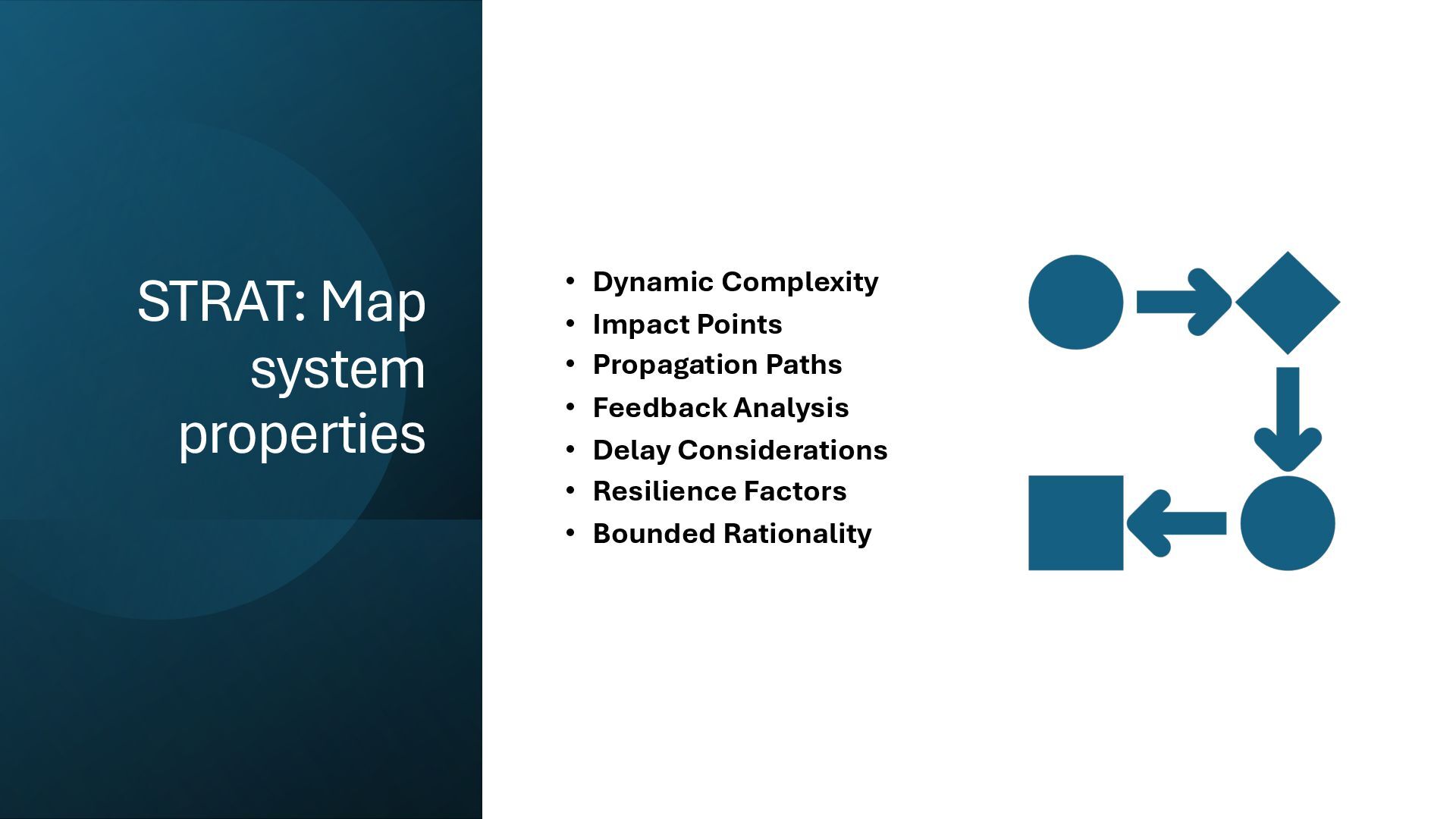

27. STRAT: Map system properties • Dynamic Complexity • Impact Points • Propagation Paths • Feedback Analysis • Delay Considerations • Resilience Factors • Bounded Rationality

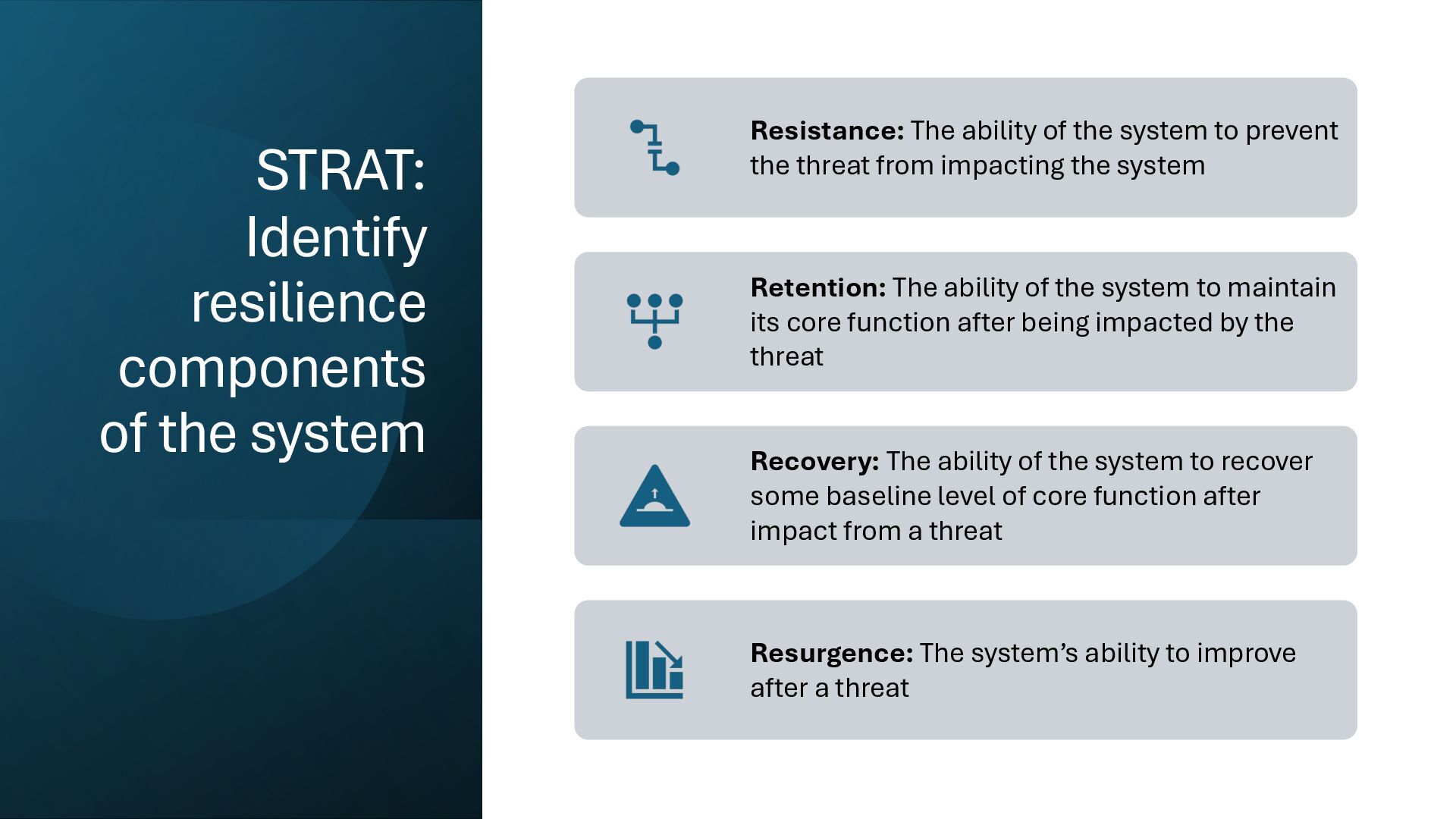

28. STRAT: Identify resilience components of the system Resistance: The ability of the system to prevent the threat from impacting the system Retention: The ability of the system to maintain its core function after being impacted by the threat Recovery: The ability of the system to recover some baseline level of core function after impact from a threat Resurgence: The system’s ability to improve after a threat

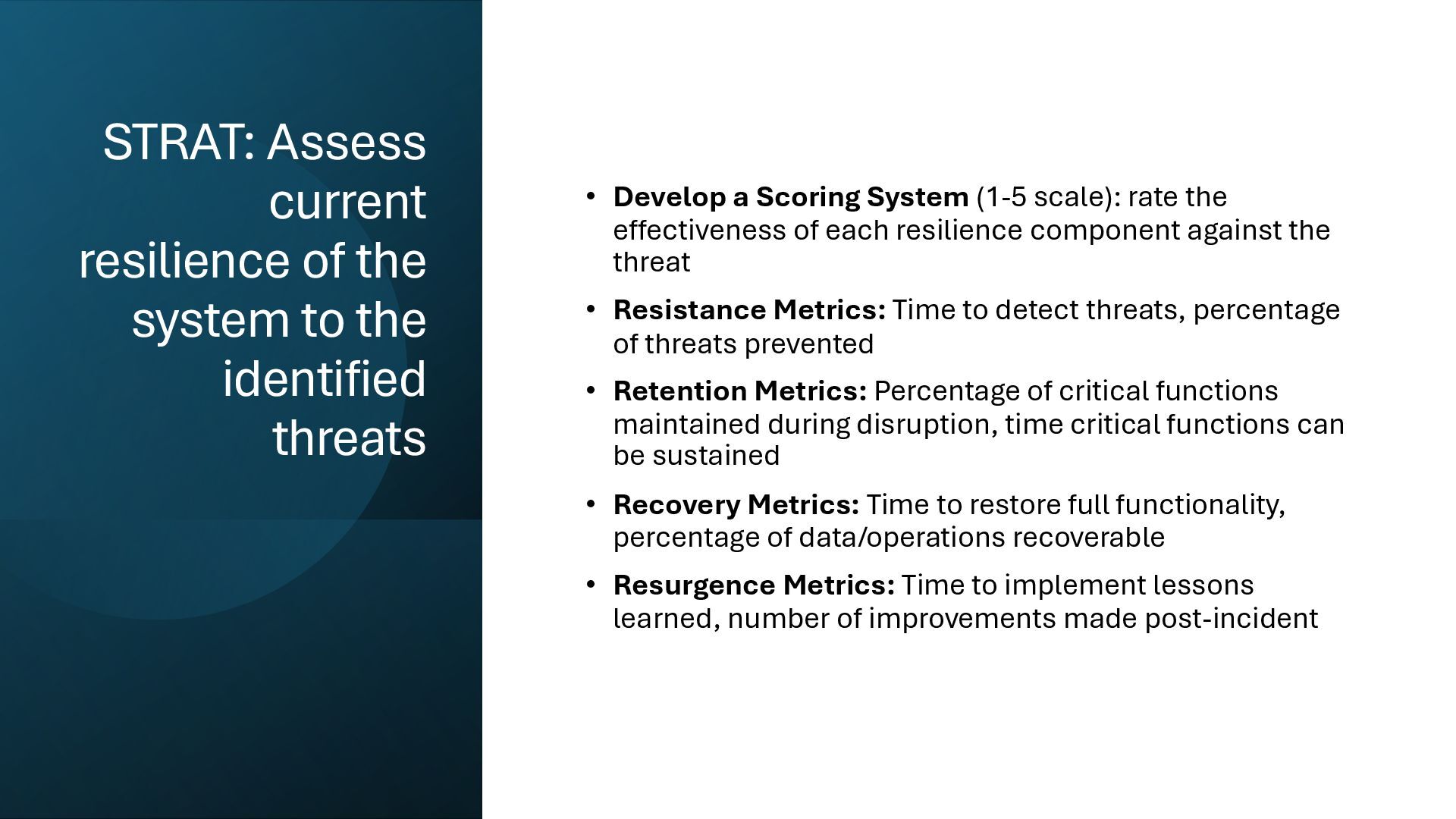

29. STRAT: Assess current resilience of the system to the identified threats • Develop a Scoring System (1-5 scale): rate the effectiveness of each resilience component against the threat • Resistance Metrics: Time to detect threats, percentage of threats prevented • Retention Metrics: Percentage of critical functions maintained during disruption, time critical functions can be sustained • Recovery Metrics: Time to restore full functionality, percentage of data/operations recoverable • Resurgence Metrics: Time to implement lessons learned, number of improvements made post-incident
30. STRAT: Provide recommendations to increase resilience TECHNOLOGICAL SOLUTIONS PROCESS IMPROVEMENTS ORGANIZATIONAL CHANGES TRAINING AND AWARENESS POLICY UPDATES PARTNERSHIP AND COLLABORATION
31. STRAT Case Study: MOVEit Application of the STRAT framework to CVE-2024-5806

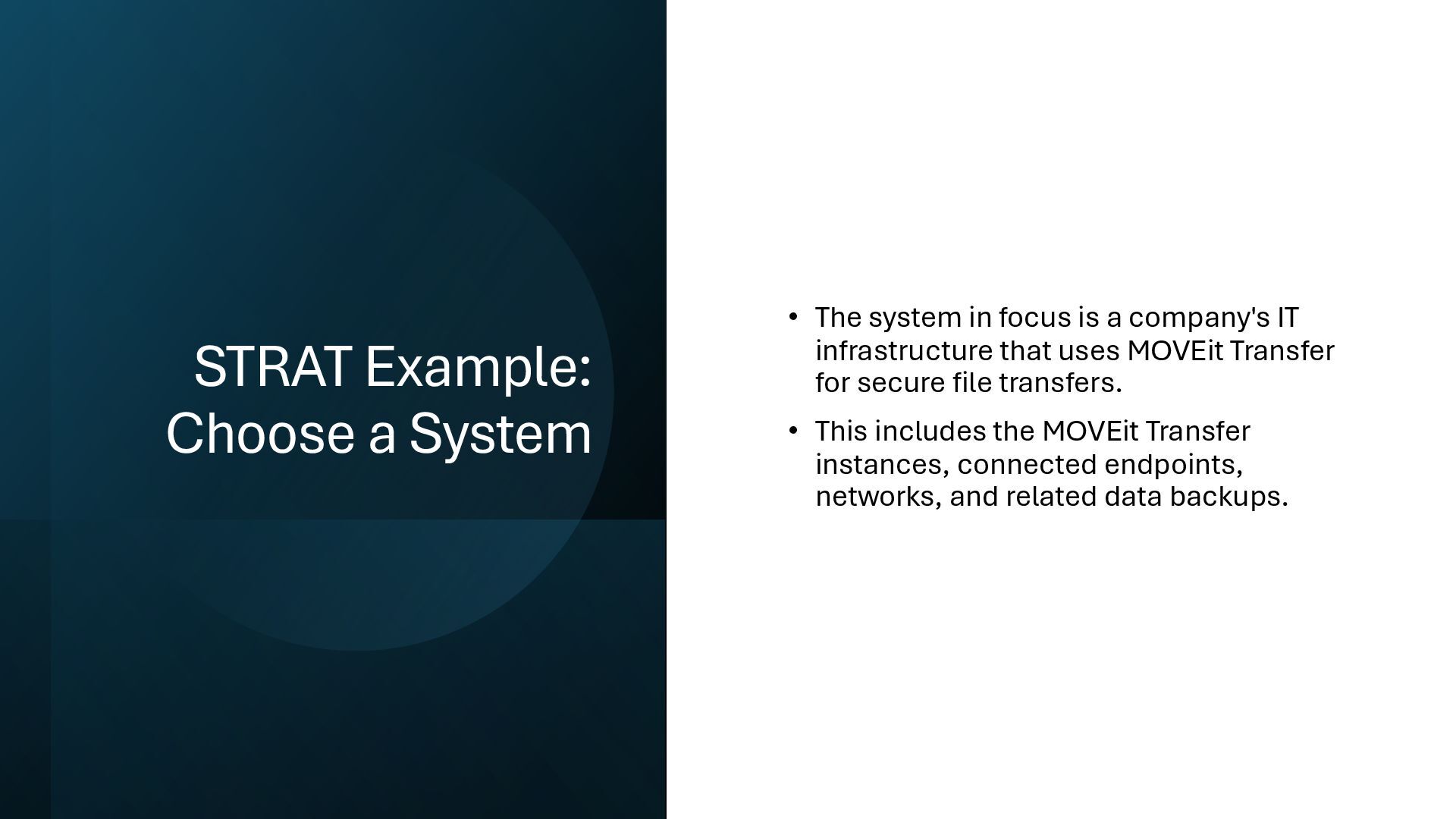

32. STRAT Example: Choose a System • The system in focus is a company's IT infrastructure that uses MOVEit Transfer for secure file transfers. • This includes the MOVEit Transfer instances, connected endpoints, networks, and related data backups.

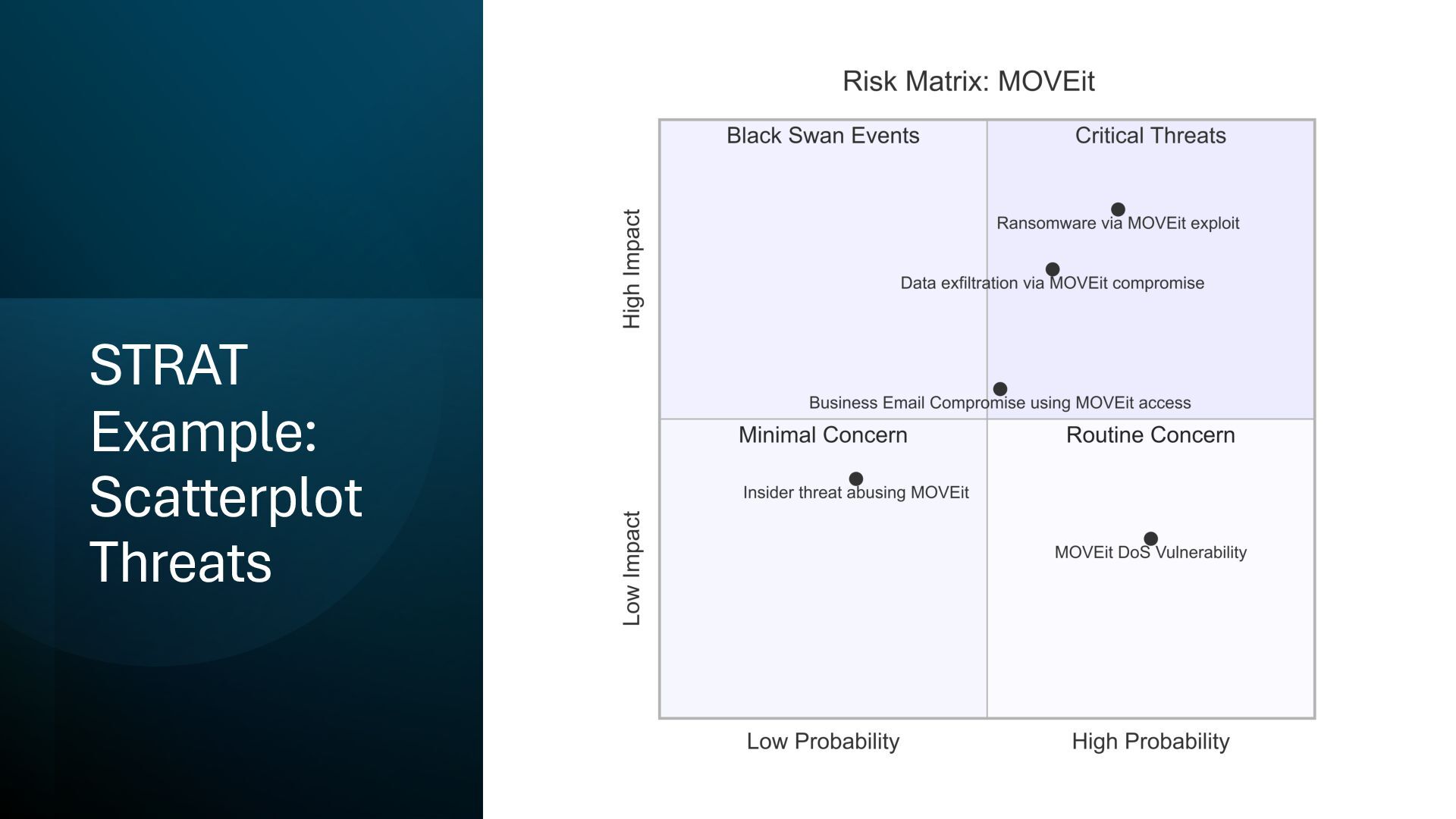

33. STRAT Example: Scatterplot Threats

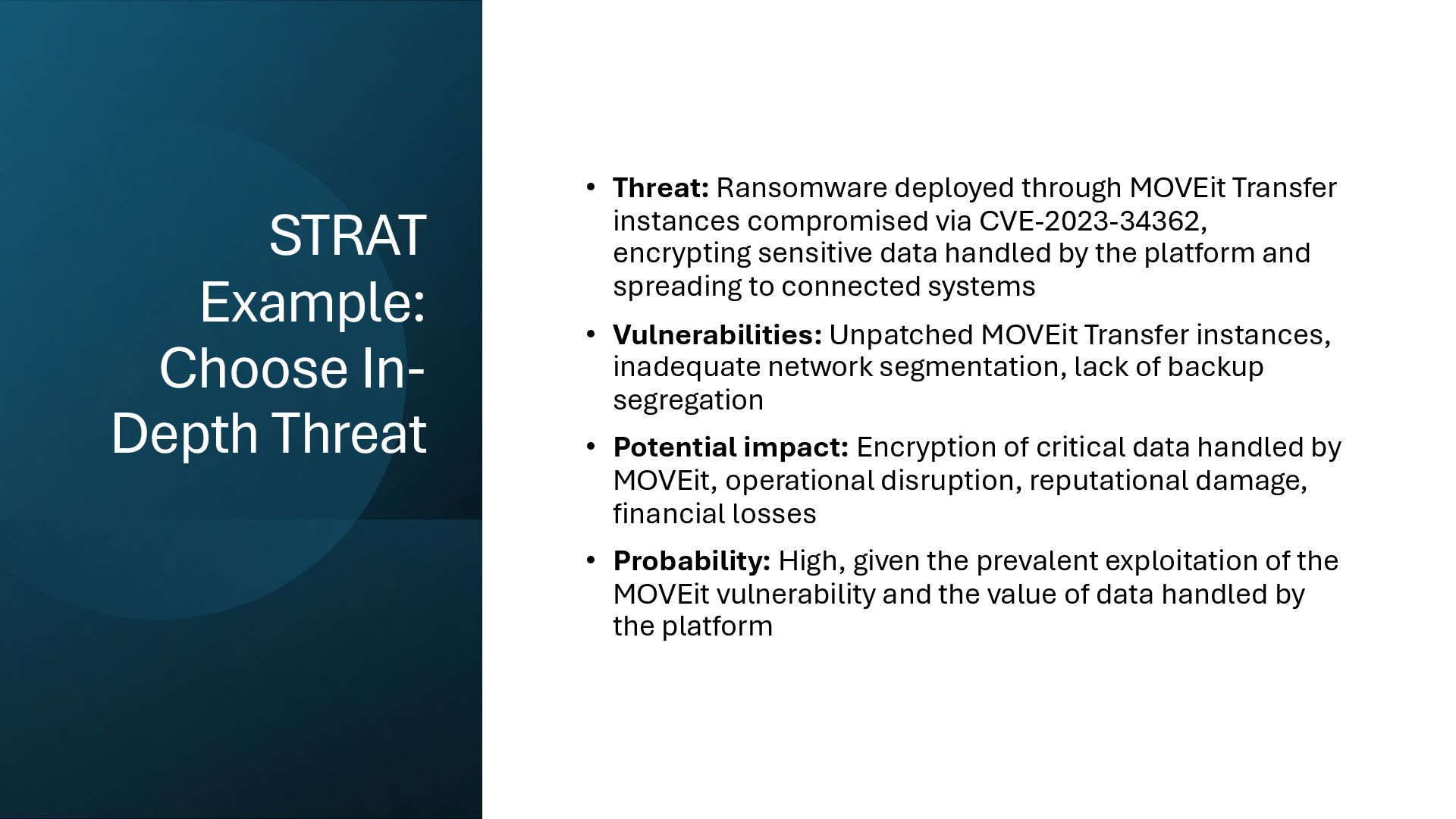

34. STRAT Example: Choose In- Depth Threat • Threat: Ransomware deployed through MOVEit Transfer instances compromised via CVE-2023-34362, encrypting sensitive data handled by the platform and spreading to connected systems • Vulnerabilities: Unpatched MOVEit Transfer instances, inadequate network segmentation, lack of backup segregation • Potential impact: Encryption of critical data handled by MOVEit, operational disruption, reputational damage, financial losses • Probability: High, given the prevalent exploitation of the MOVEit vulnerability and the value of data handled by the platform

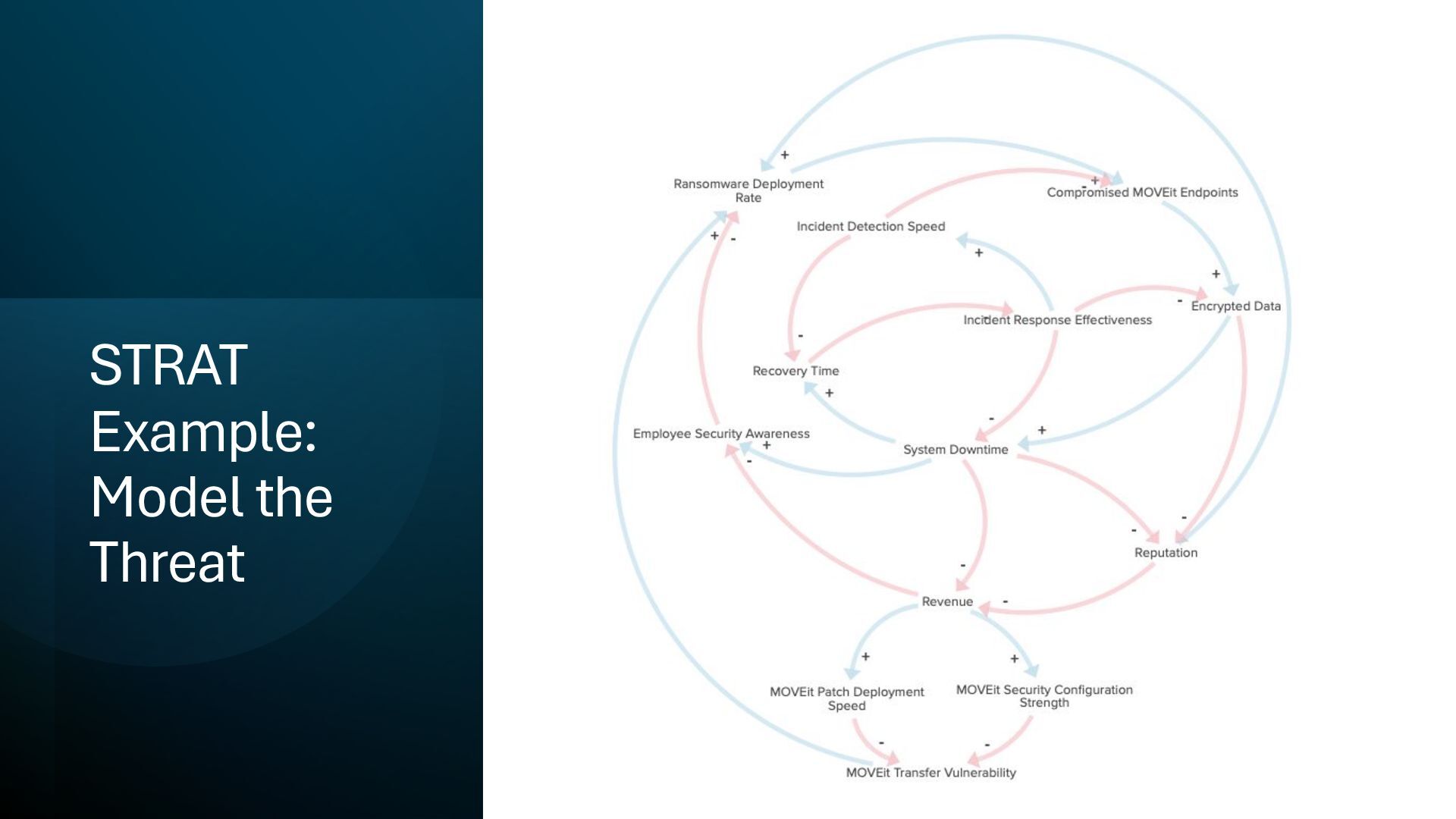

35. STRAT Example: Model the Threat
36. STRAT Example: Identify Resilience Comps Resistance: Network Security Retention: Access Controls Recovery: Backups, Incident Response Resurgence: Patching, After Action Report

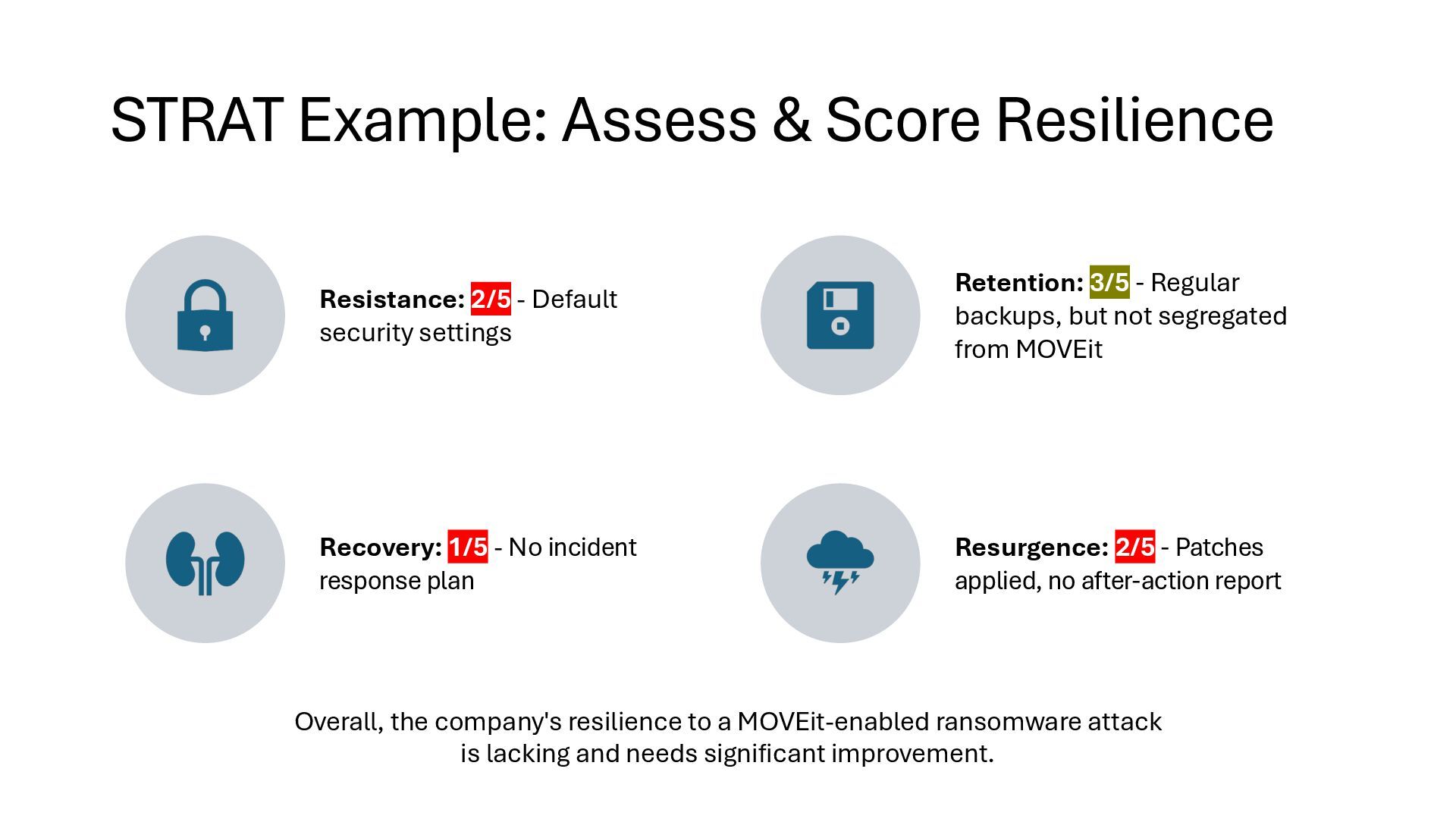

37. STRAT Example: Assess & Score Resilience Resistance: 2/5 - Default security settings Retention: 3/5 - Regular backups, but not segregated from MOVEit Recovery: 1/5 - No incident response plan Resurgence: 2/5 - Patches applied, no after-action report Overall, the company's resilience to a MOVEit-enabled ransomware attack is lacking and needs significant improvement.

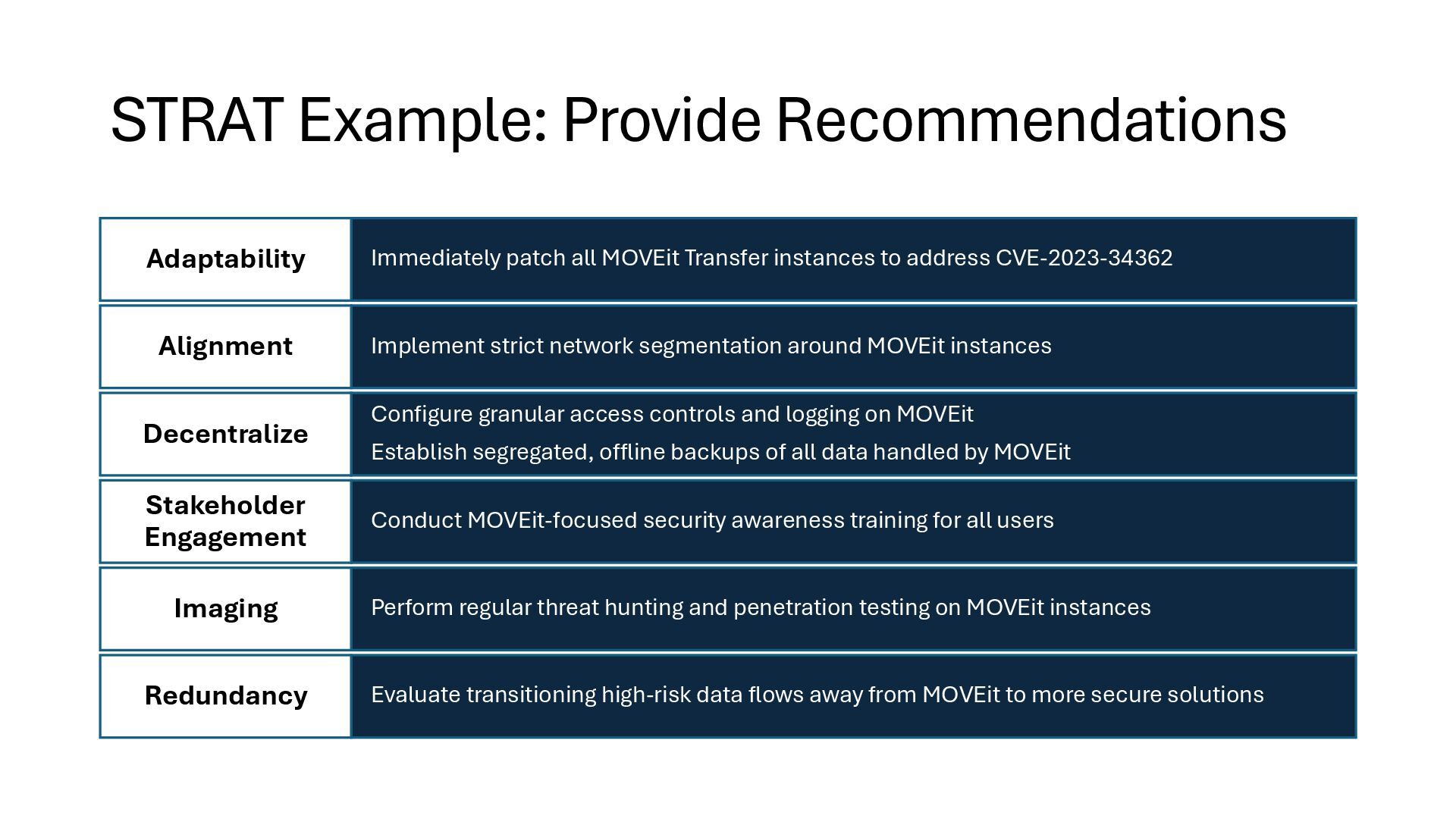

38. STRAT Example: Provide Recommendations Immediately patch all MOVEit Transfer instances to address CVE-2023-34362 Adaptability Implement strict network segmentation around MOVEit instances Alignment Configure granular access controls and logging on MOVEit Establish segregated, offline backups of all data handled by MOVEit Decentralize Conduct MOVEit-focused security awareness training for all users Stakeholder Engagement Perform regular threat hunting and penetration testing on MOVEit instances Imaging Evaluate transitioning high-risk data flows away from MOVEit to more secure solutions Redundancy
39. In Closing

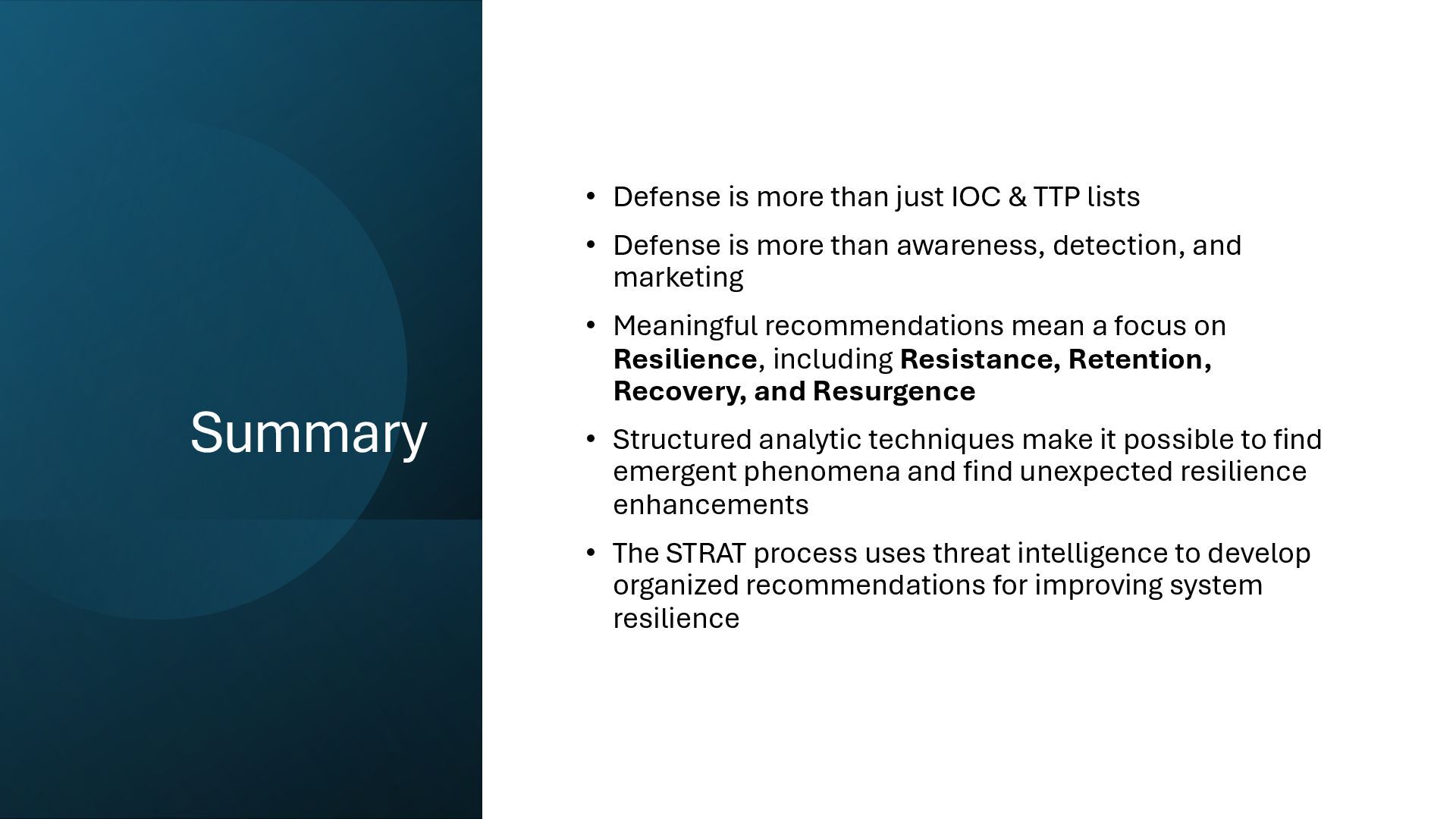

40. Summary • Defense is more than just IOC & TTP lists • Defense is more than awareness, detection, and marketing • Meaningful recommendations mean a focus on Resilience, including Resistance, Retention, Recovery, and Resurgence • Structured analytic techniques make it possible to find emergent phenomena and find unexpected resilience enhancements • The STRAT process uses threat intelligence to develop organized recommendations for improving system resilience

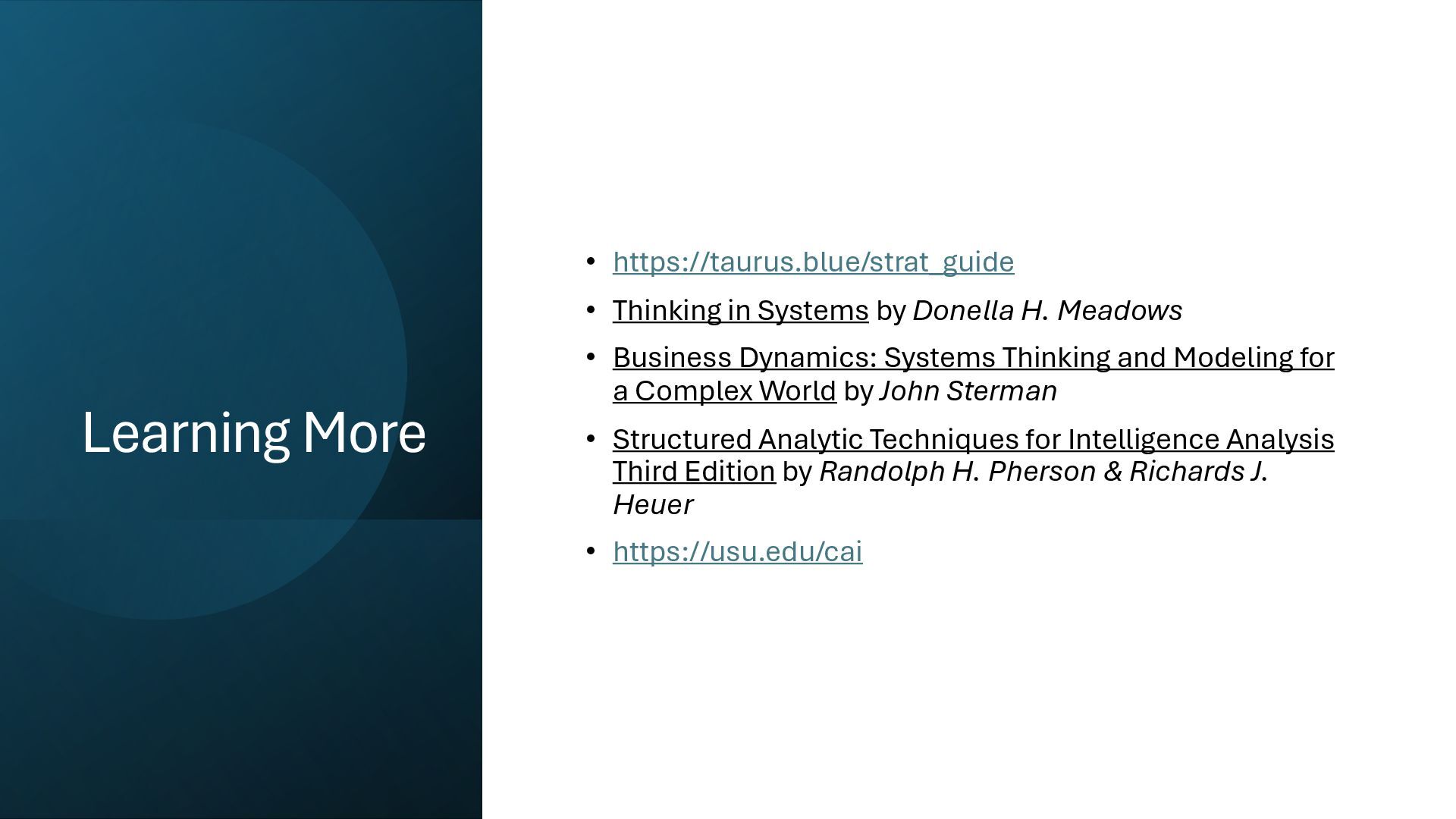

41. Learning More • https://taurus.blue/strat_guide • Thinking in Systems by Donella H. Meadows • Business Dynamics: Systems Thinking and Modeling for a Complex World by John Sterman • Structured Analytic Techniques for Intelligence Analysis Third Edition by Randolph H. Pherson & Richards J. Heuer • https://usu.edu/cai
42. Questions? Chandler McClellan Scott J Roberts
43. Thank you!!!
