Source Code Diff Revolution

SANER 2025 Keynote
Despite the tremendous impact of Large Language Models on facilitating many software engineering tasks, change comprehension still remains a very challenging task. Software developers spend a significant portion of the workday trying to understand and review their teammates’ code changes. Currently, most code reviewing and change comprehension is done using textual diff tools, such as the commit diff provided by GitHub or Gerrit. Such diff tools are insufficient, especially for complex changes, which move code within the same file or between different files. Abstract Syntax Tree (AST) diff tools brought several improvements in making easier the understanding of source code changes. However, they still have some constraints and limitations that affect negatively their accuracy. In this keynote, I will demonstrate these limitations using real case studies from open-source projects. At the same time, I will show how the AST diff generated by our tool addresses these limitations. Moreover, I will introduce a Benchmark we created based on commits from the Defects4J and Refactoring Oracle datasets and present the precision and recall of state-of-the-art AST diff tools on our benchmark. Finally, I will use examples from open-source projects showing that source code diff is extremely more challenging for test code and present our recent progress on documenting and detecting test-specific refactorings. I will conclude the keynote with some interesting future research directions. Vive la révolution!

Transcript

1. Source code diff revolution

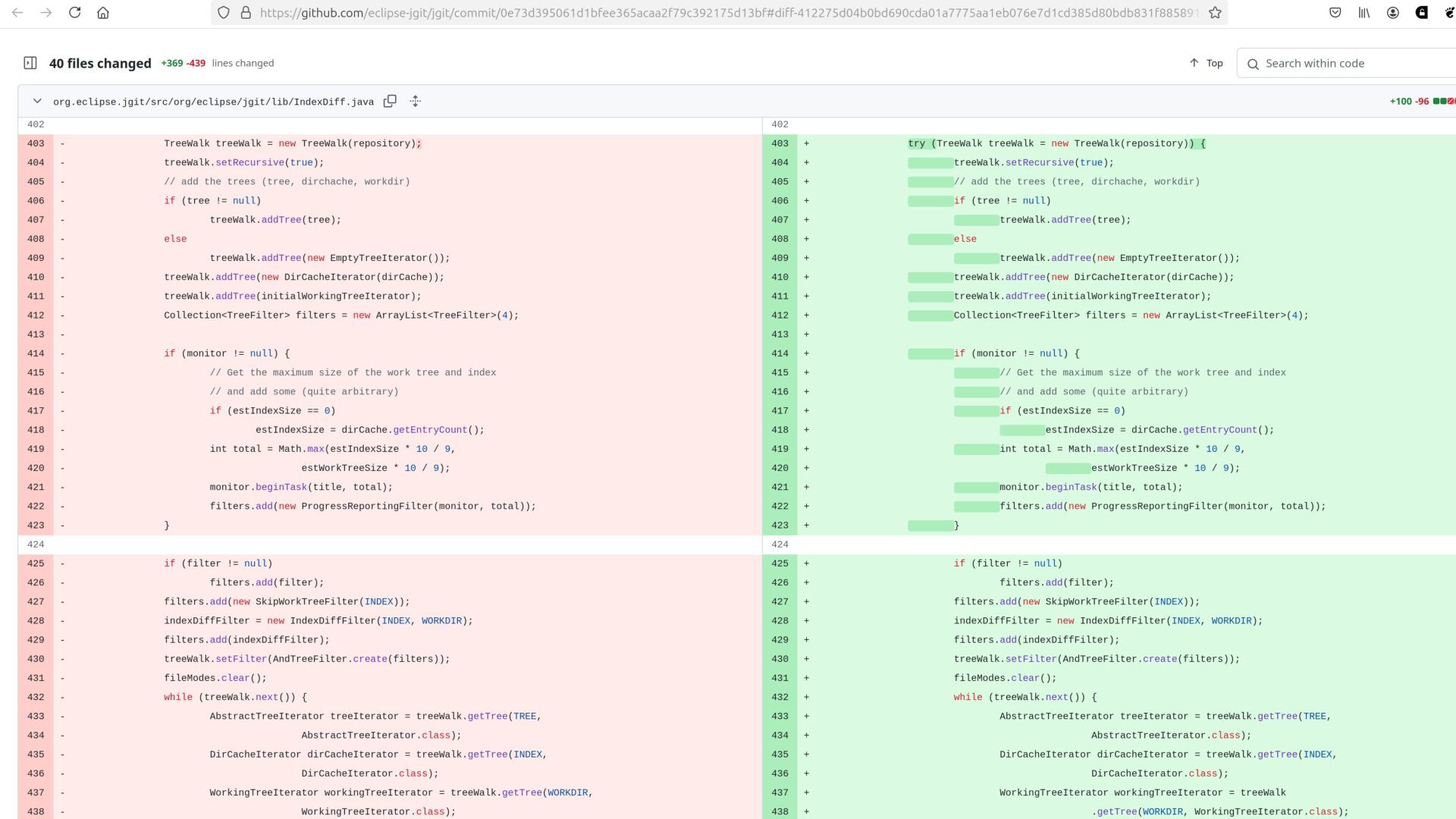

3. Encyclopedia 3000: The picture shows humans, known as “software engineers” using source code diff tools to perform a “code review” in the year 2025.
10. Why source code diff is so important in software engineering?

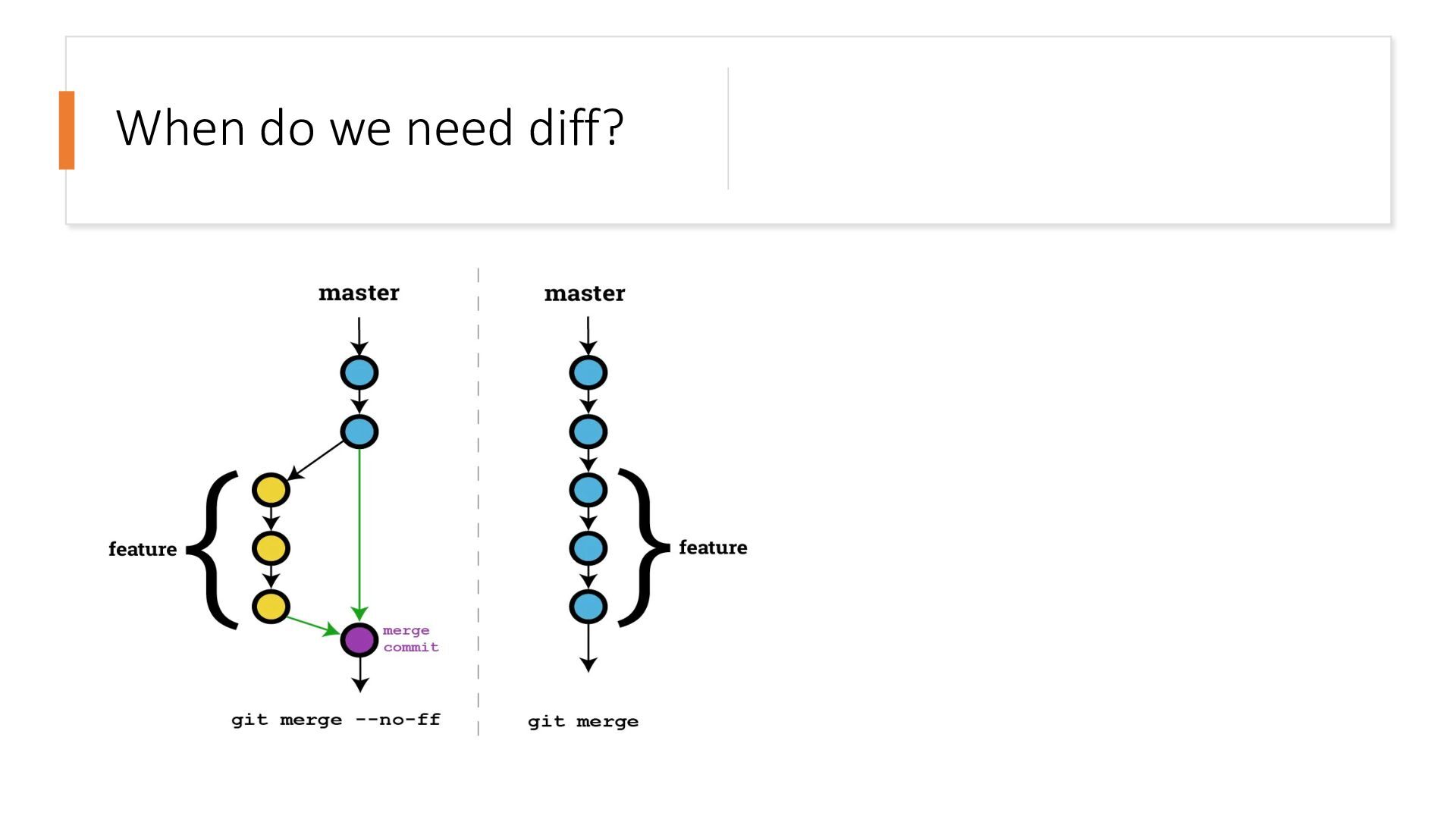

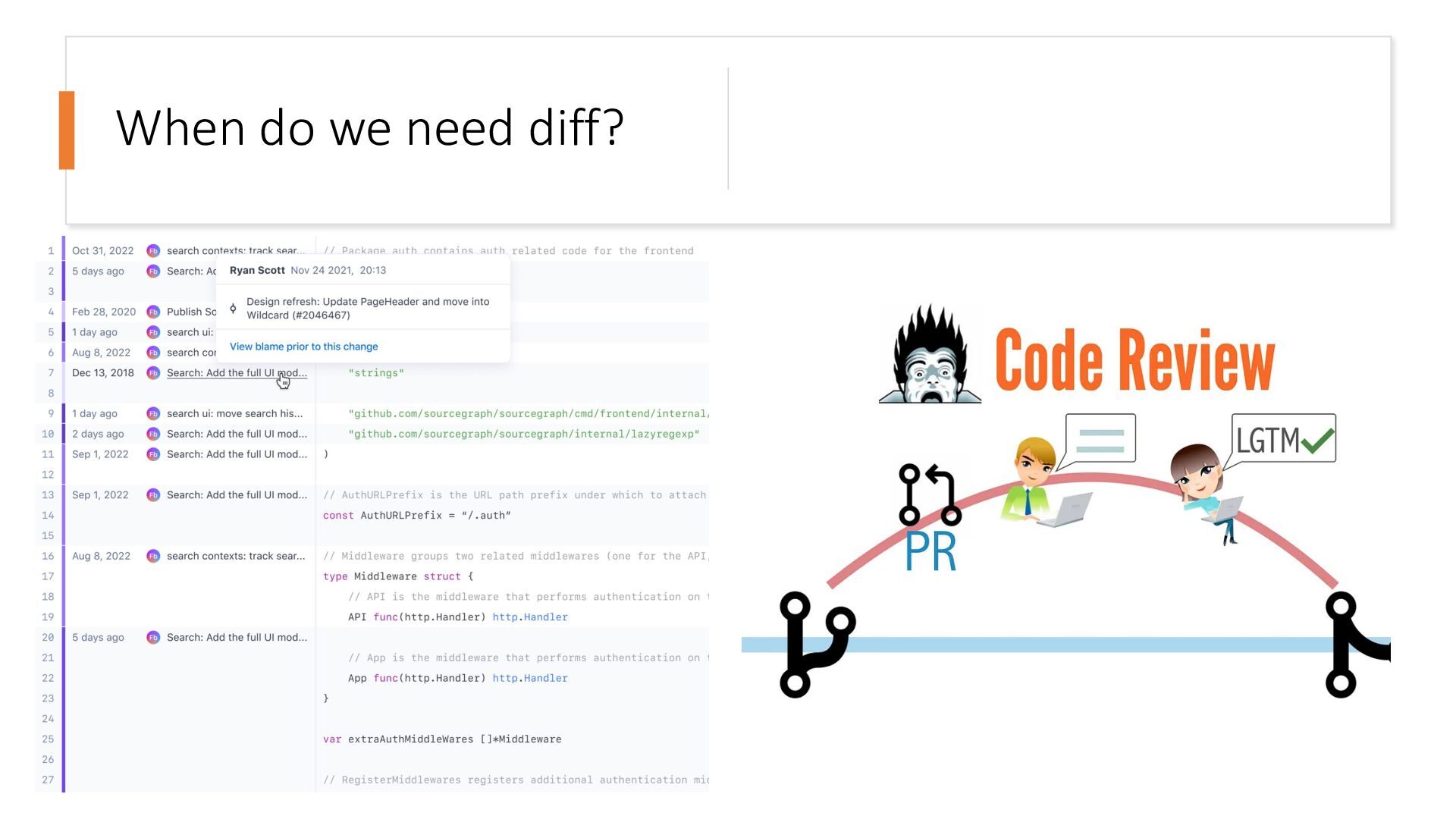

11. When do we need diff?
12. When do we need diff?

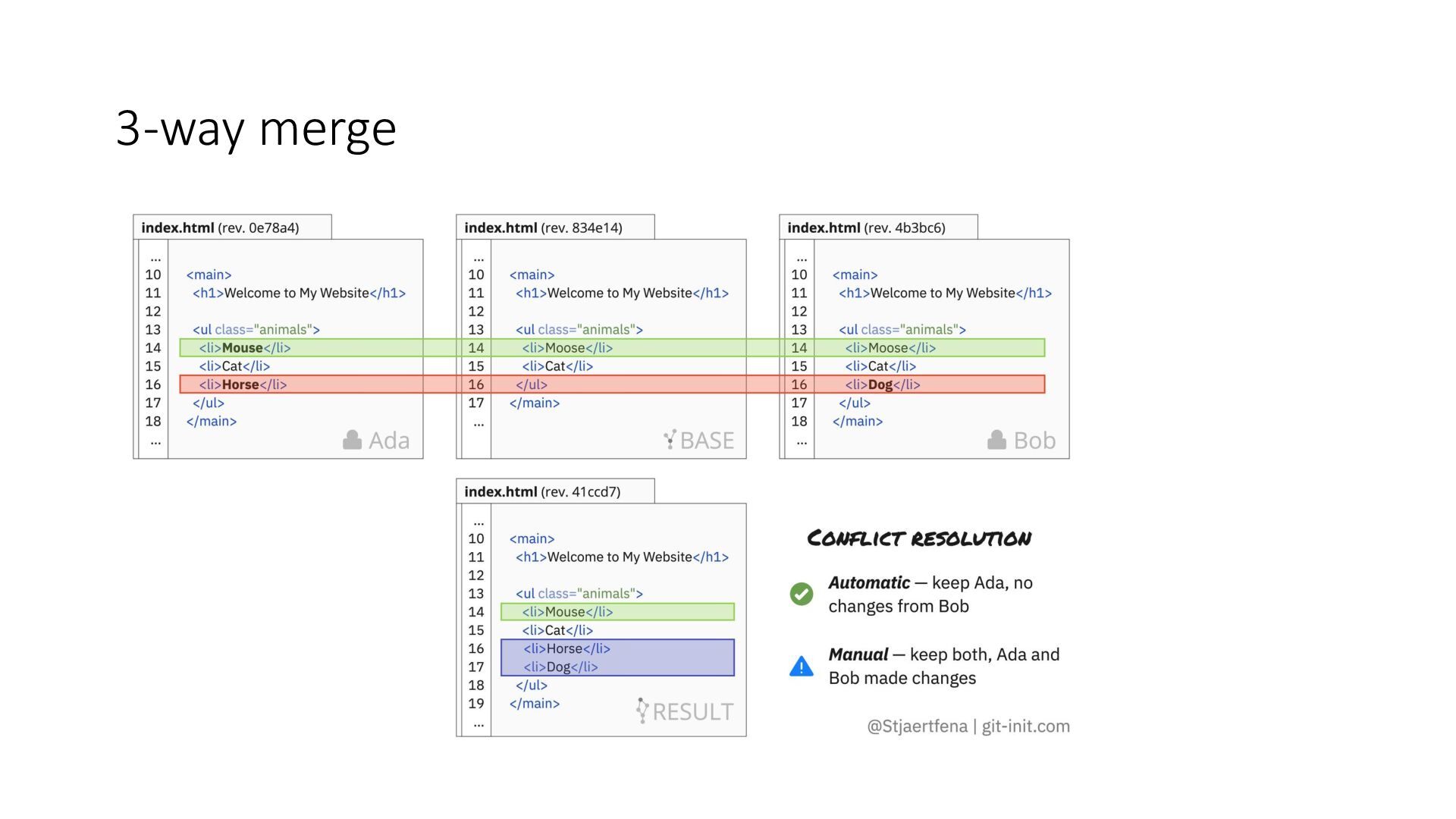

13. 3-way merge

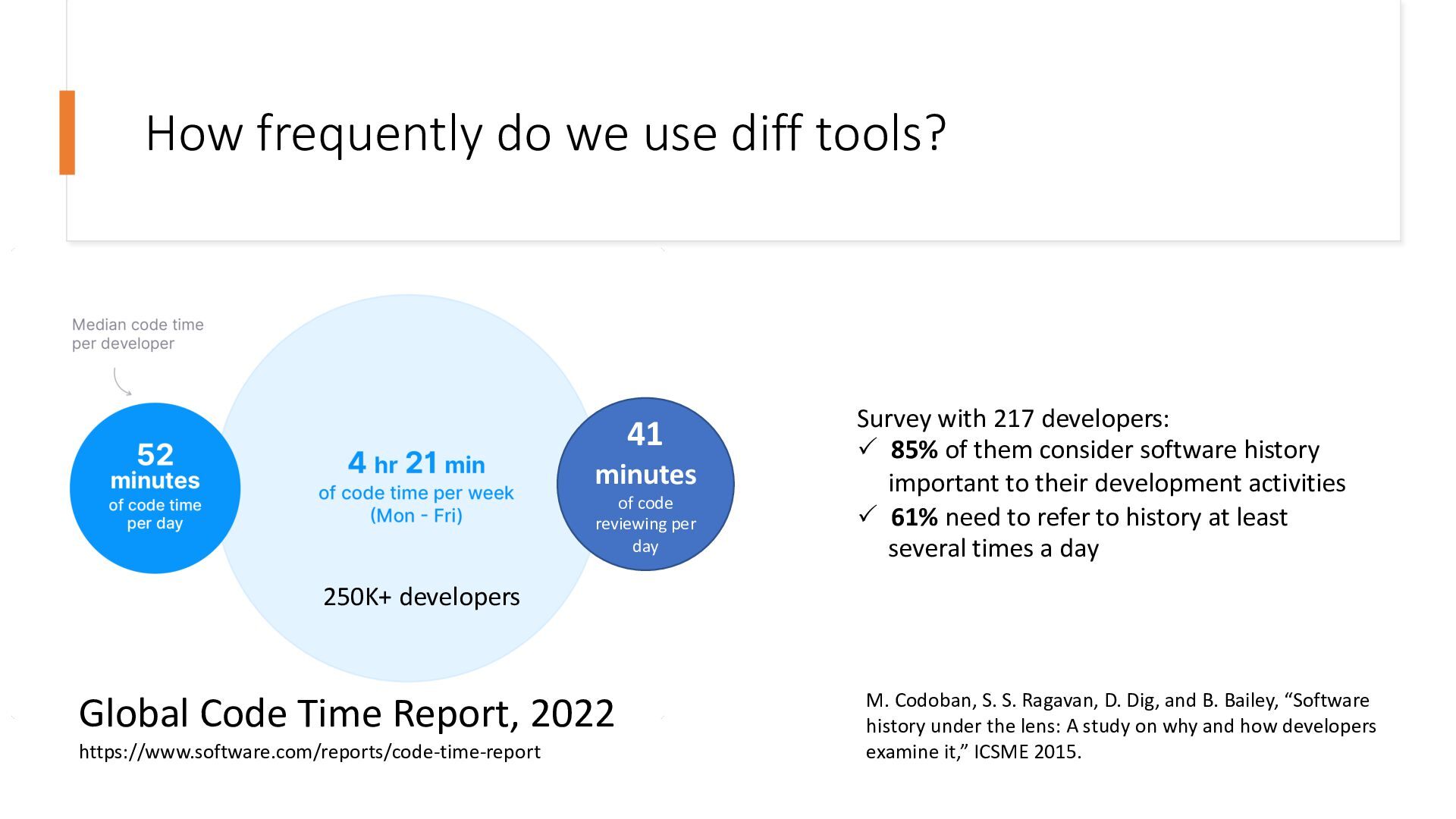

14. How frequently do we use diff tools? 41 minutes of code reviewing per day Global Code Time Report, 2022 https://www.software.com/reports/code-time-report 250K+ developers M. Codoban, S. S. Ragavan, D. Dig, and B. Bailey, “Software history under the lens: A study on why and how developers examine it,” ICSME 2015. Survey with 217 developers: P 85% of them consider software history important to their development activities P 61% need to refer to history at least several times a day

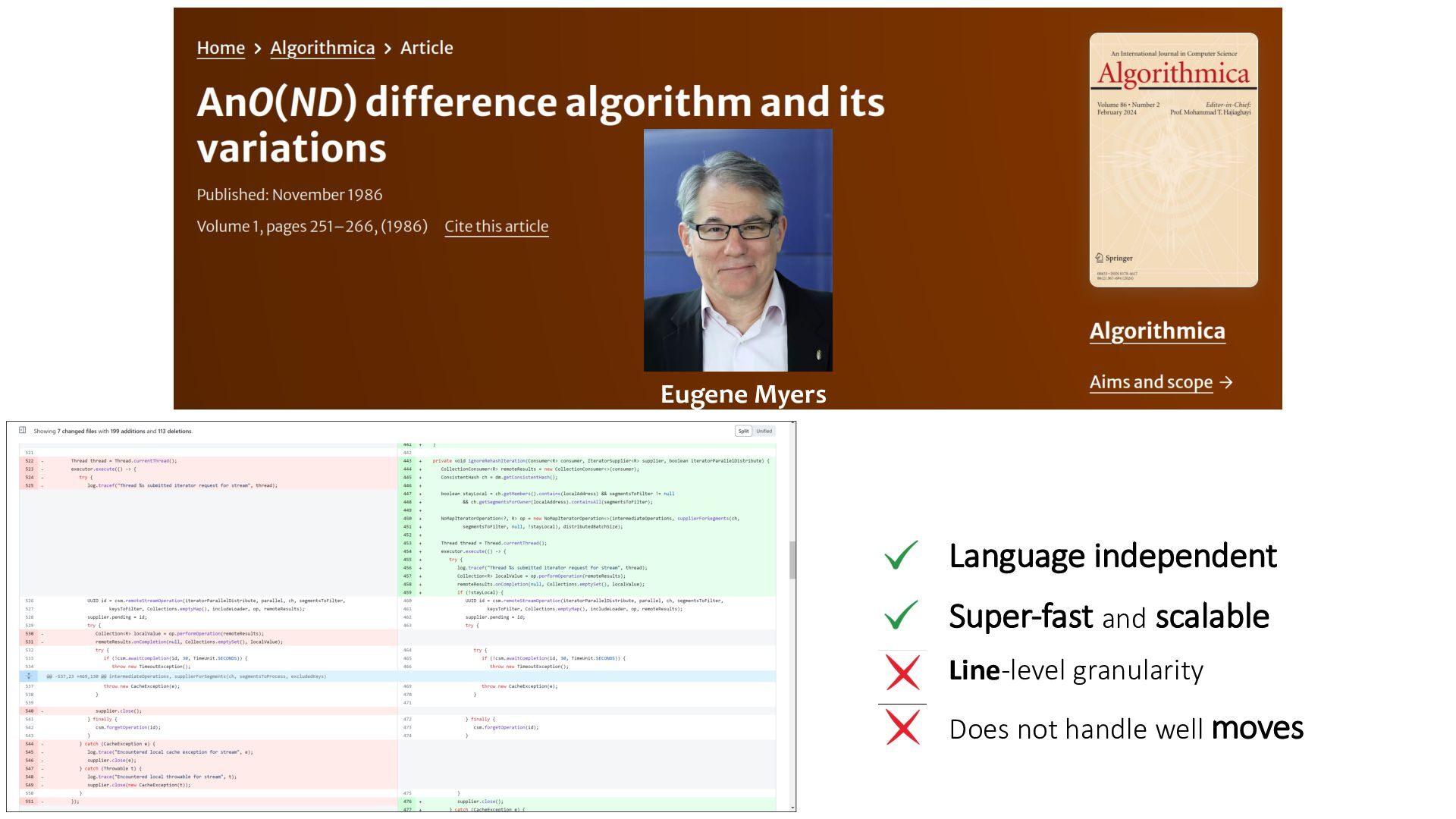

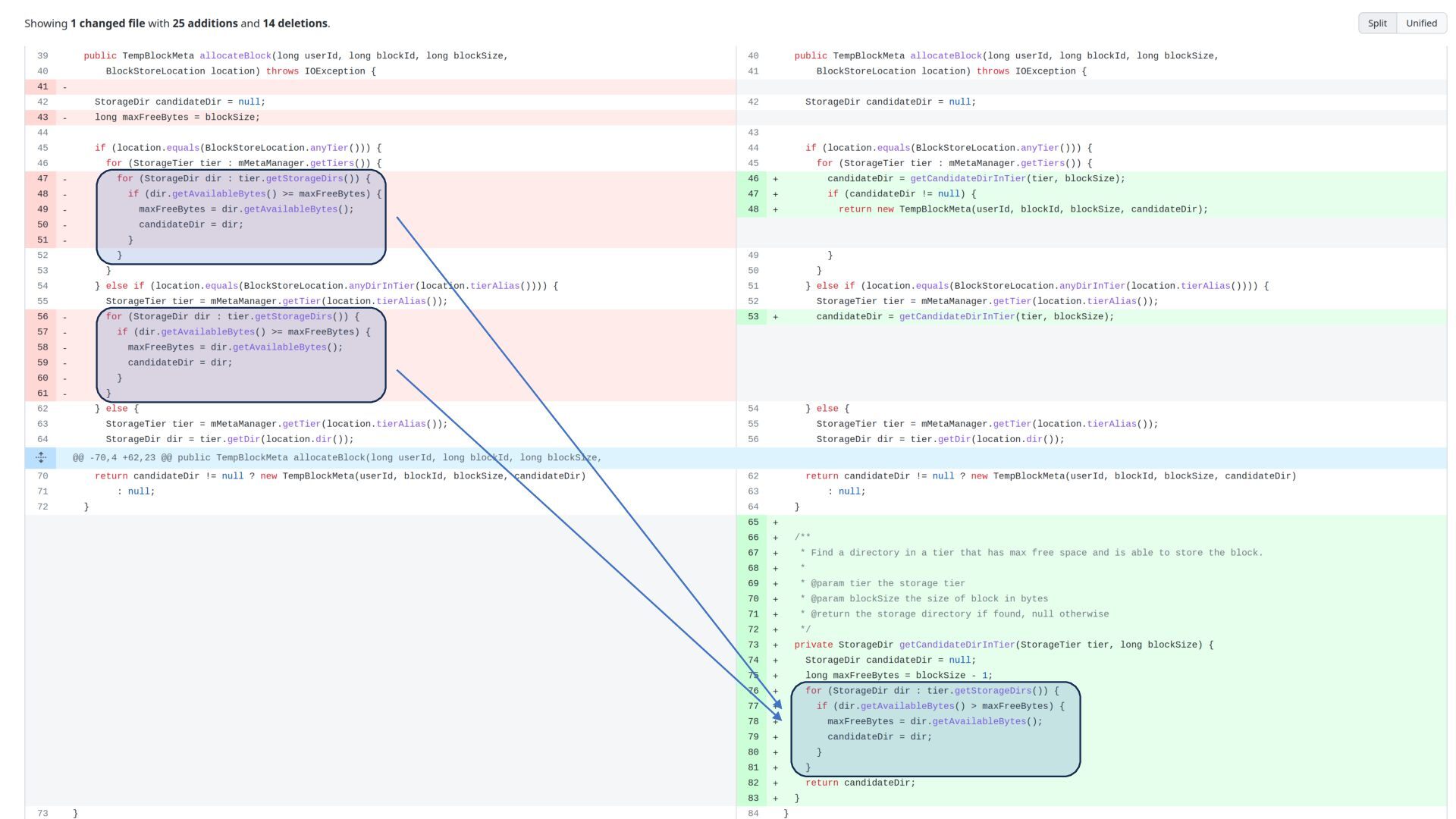

16. Eugene Myers Language independent Super-fast and scalable Line-level granularity Does not handle well moves

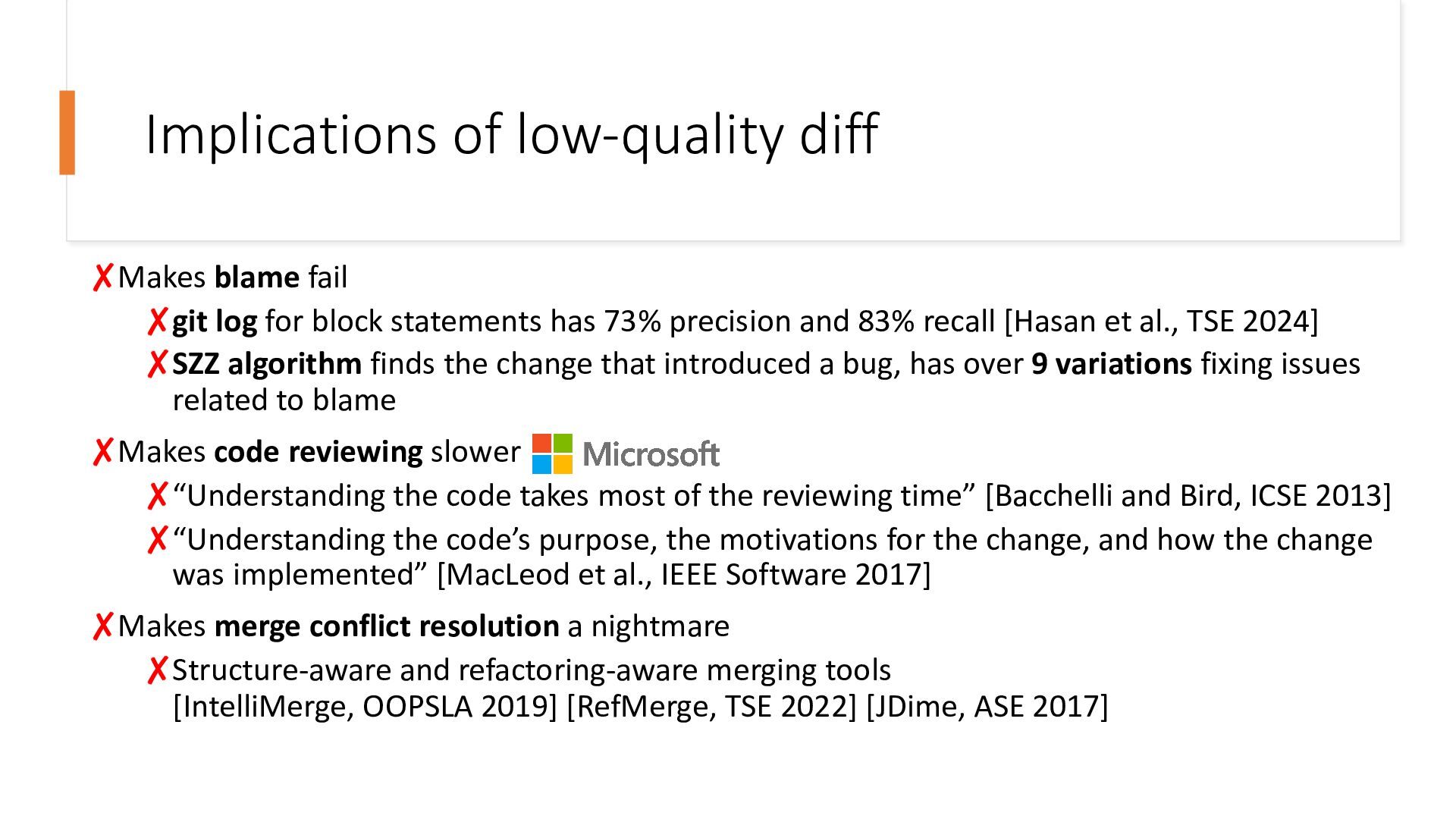

17. Implications of low-quality diff ✘Makes blame fail ✘git log for block statements has 73% precision and 83% recall [Hasan et al., TSE 2024] ✘SZZ algorithm finds the change that introduced a bug, has over 9 variations fixing issues related to blame ✘Makes code reviewing slower ✘“Understanding the code takes most of the reviewing time” [Bacchelli and Bird, ICSE 2013] ✘“Understanding the code’s purpose, the motivations for the change, and how the change was implemented” [MacLeod et al., IEEE Software 2017] ✘Makes merge conflict resolution a nightmare ✘Structure-aware and refactoring-aware merging tools [IntelliMerge, OOPSLA 2019] [RefMerge, TSE 2022] [JDime, ASE 2017]

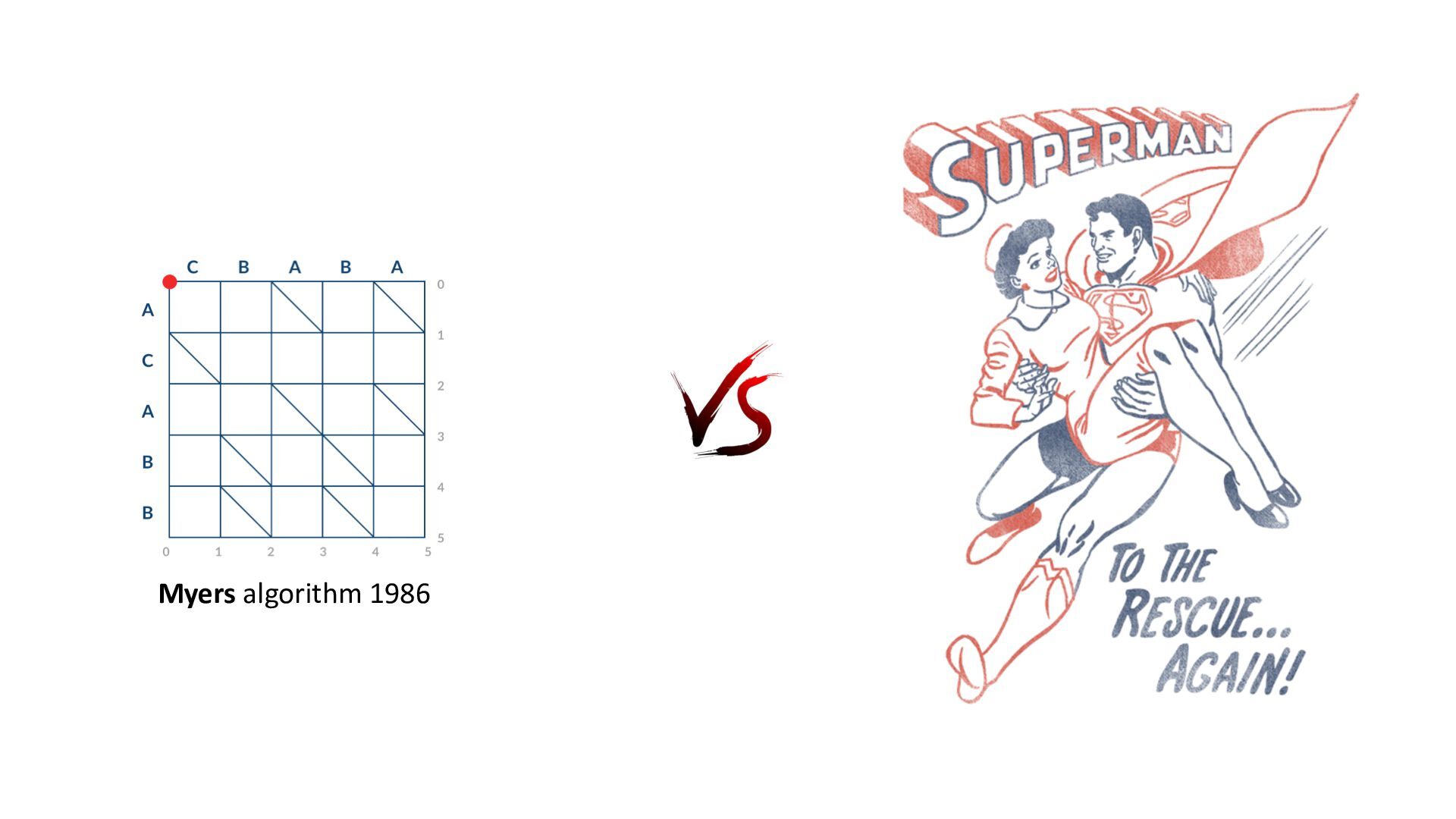

18. Myers algorithm 1986

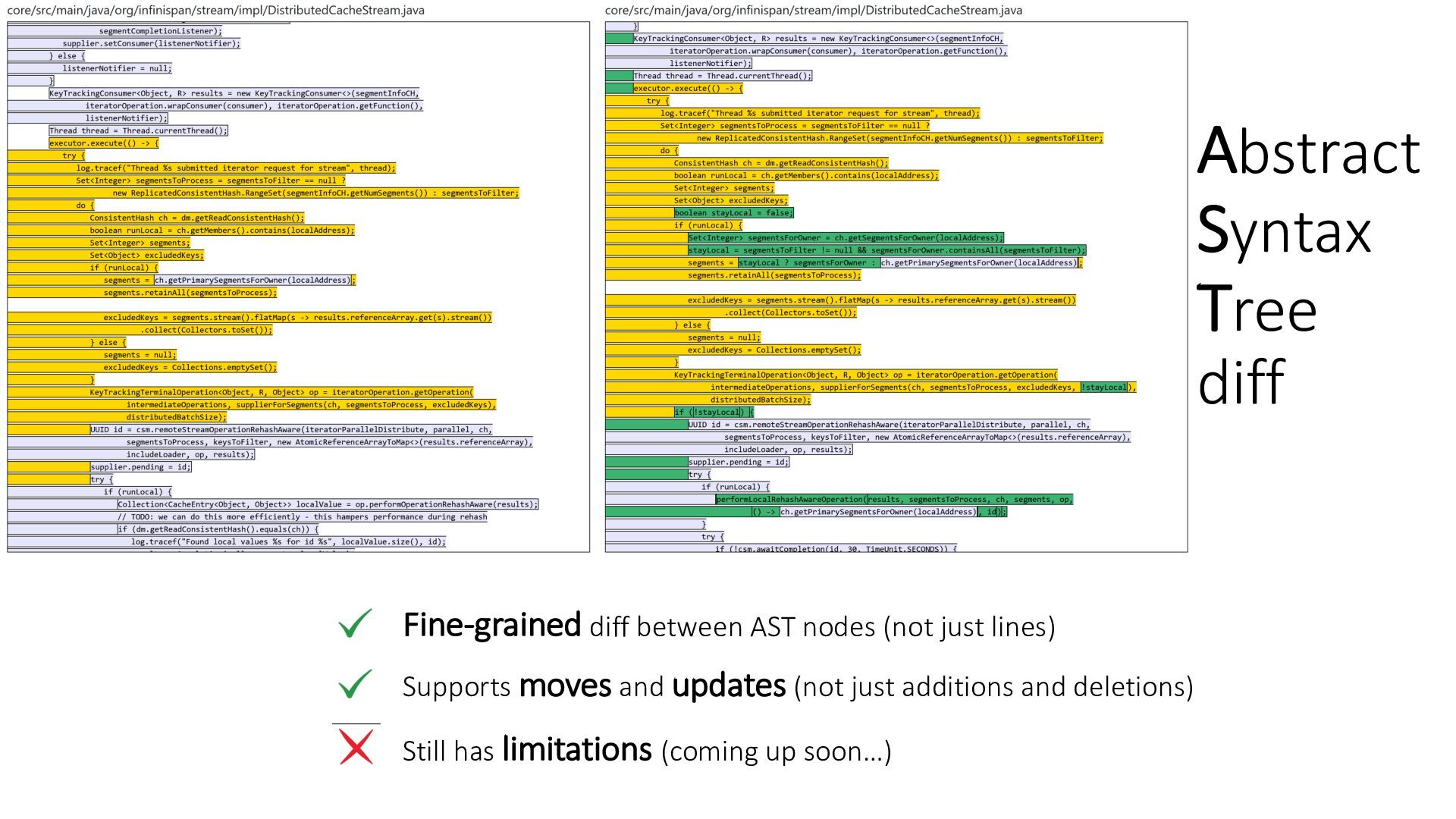

19. Abstract Syntax Tree diff Fine-grained diff between AST nodes (not just lines) Supports moves and updates (not just additions and deletions) Still has limitations (coming up soon…)

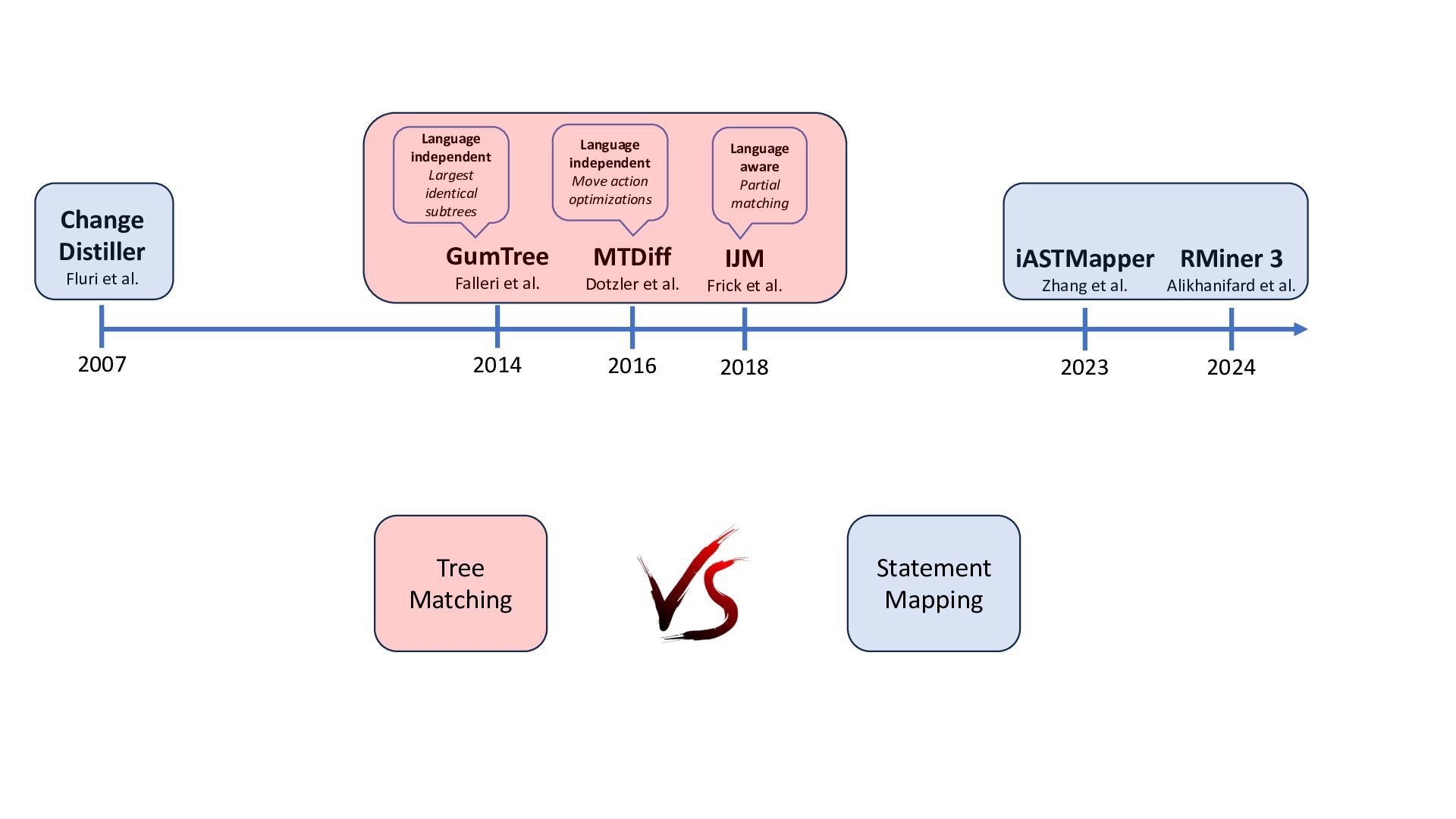

20. 2007 Change Distiller Fluri et al. 2014 GumTree Falleri et al. 2016 MTDiff Dotzler et al. 2018 IJM Frick et al. 2023 iASTMapper Zhang et al. 2024 RMiner 3 Alikhanifard et al. Language aware Partial matching Language independent Largest identical subtrees Language independent Move action optimizations Tree Matching Statement Mapping
21. AST diff is NOT perfect
22. No support for multi-mappings Limitation #1 “A given node can only belong to one mapping”

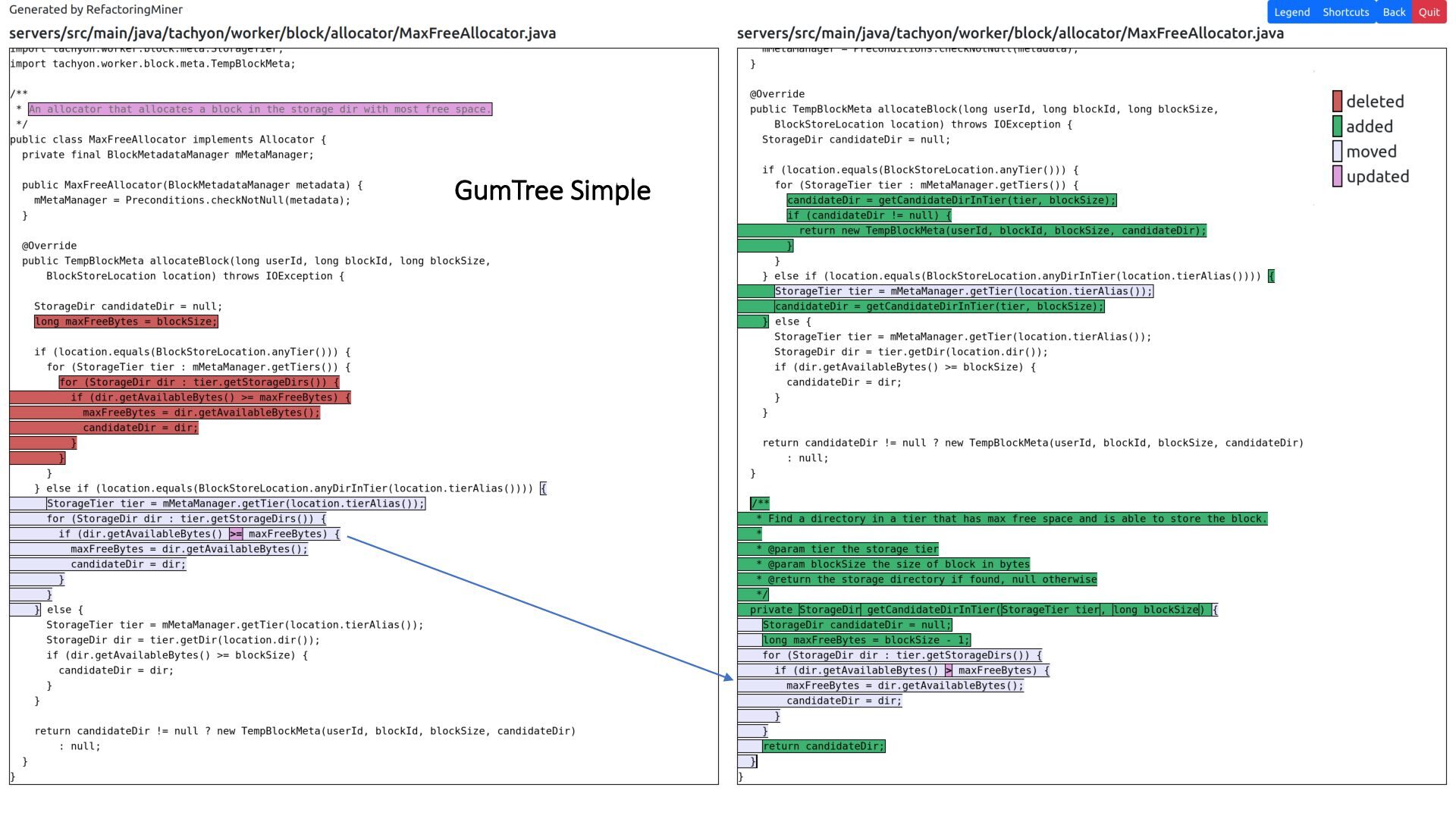

24. GumTree Simple
25. GumTree Greedy

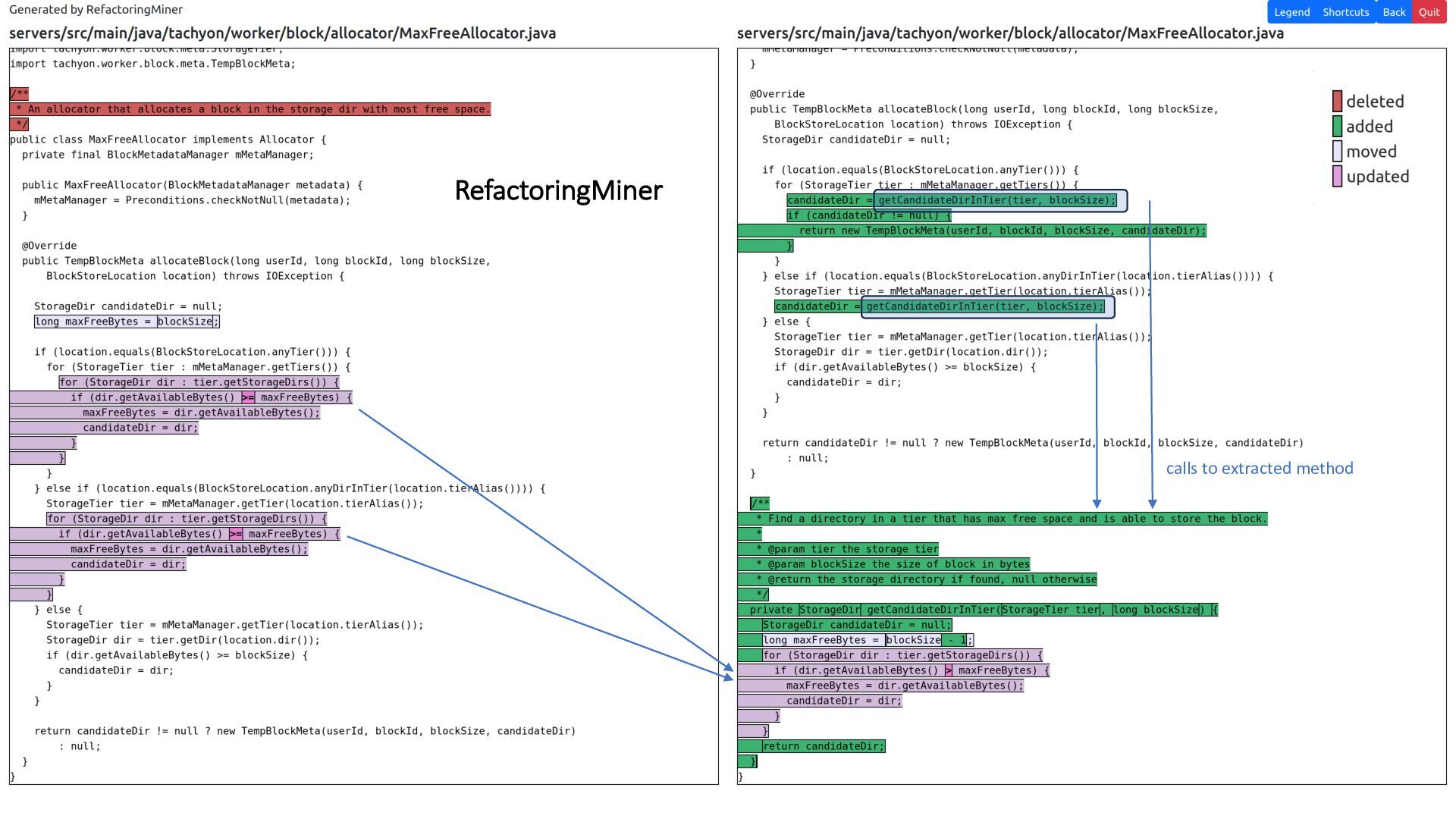

26. RefactoringMiner calls to extracted method
27. Incorrect matching of program declarations Limitation #2 “The algorithm is independent of any language specificity”

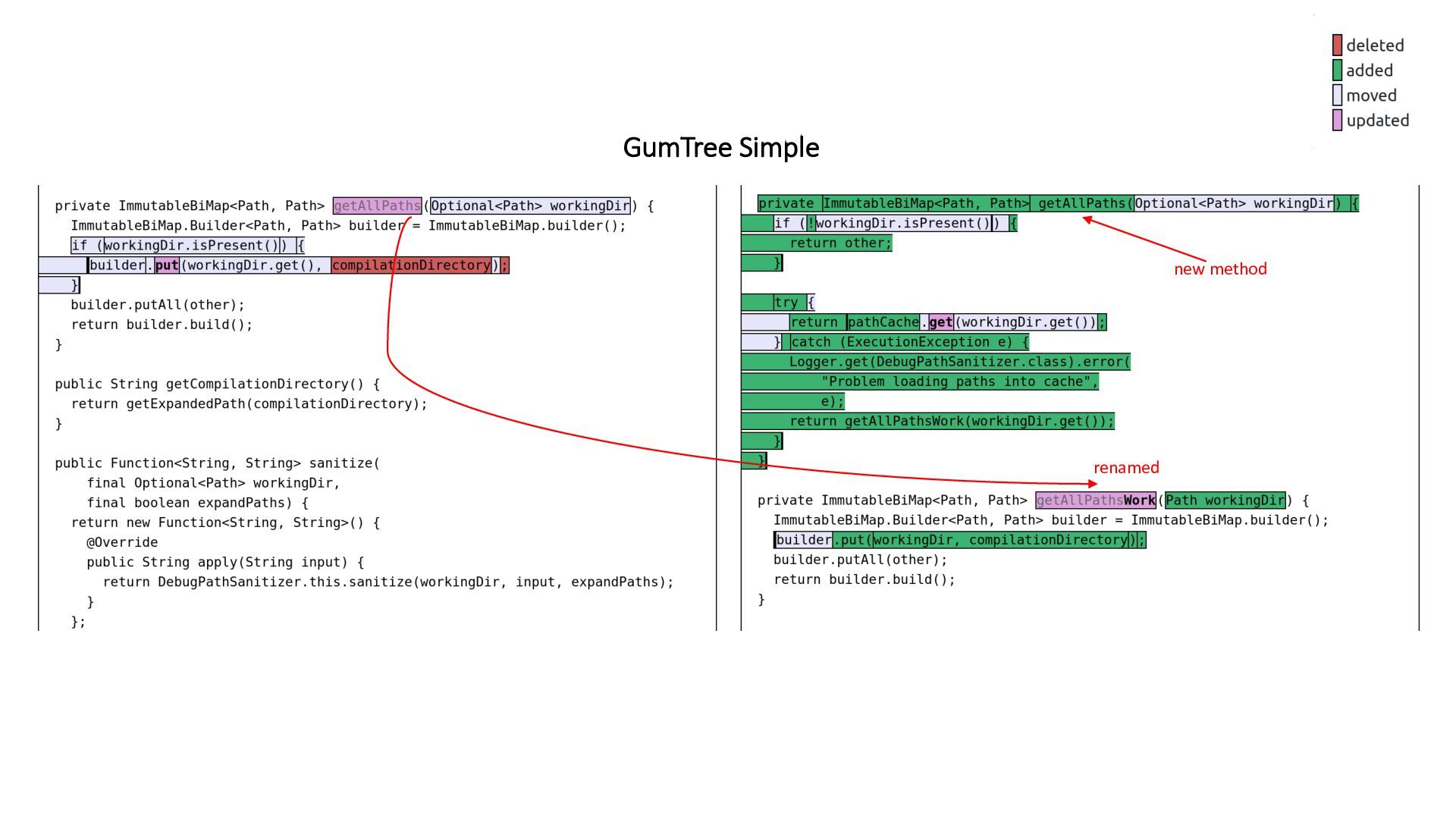

29. GumTree Simple renamed new method

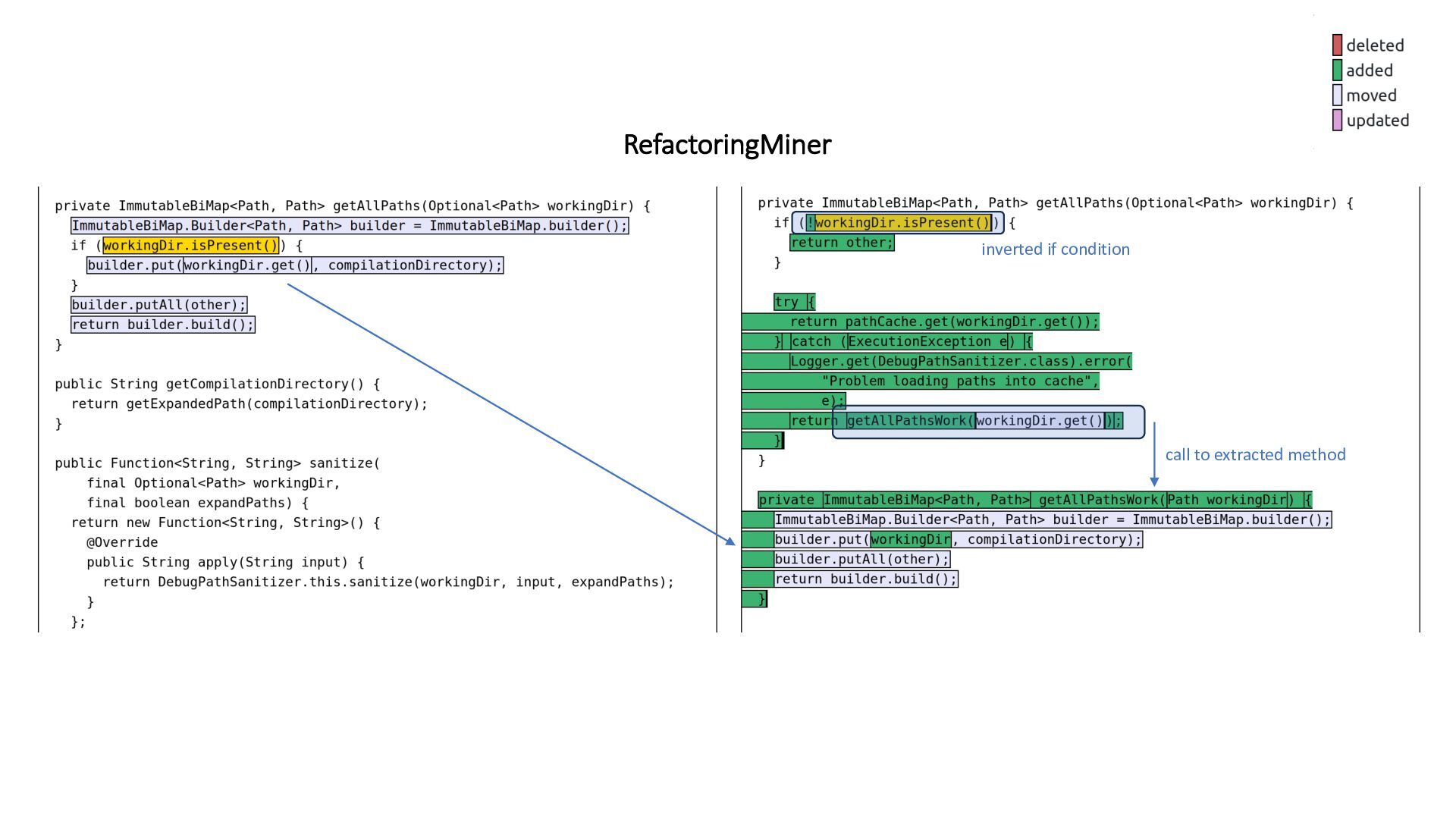

30. RefactoringMiner call to extracted method inverted if condition
31. Semantic ignorance Limitation #3 “Mappings involve two nodes with identical labels”

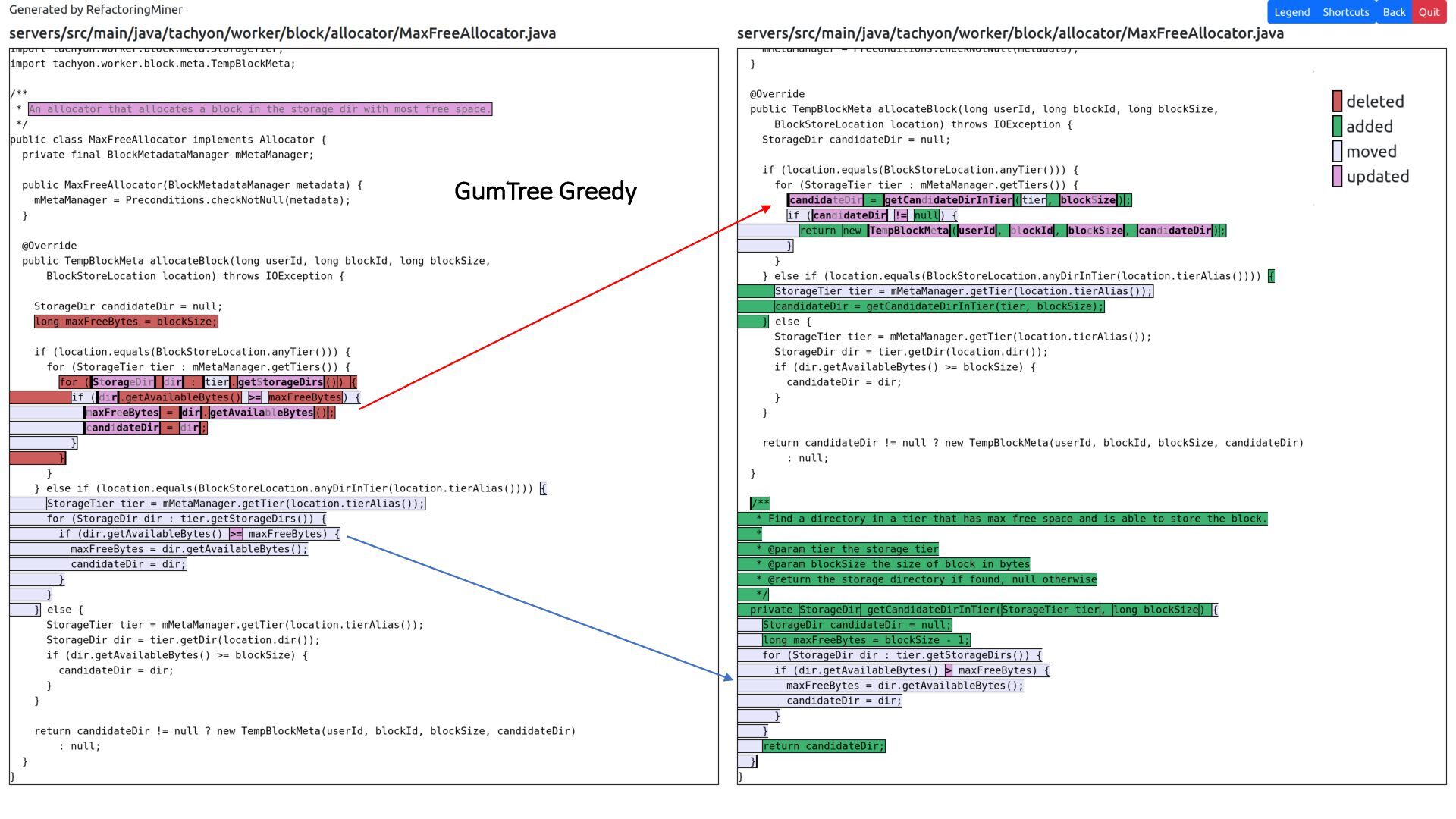

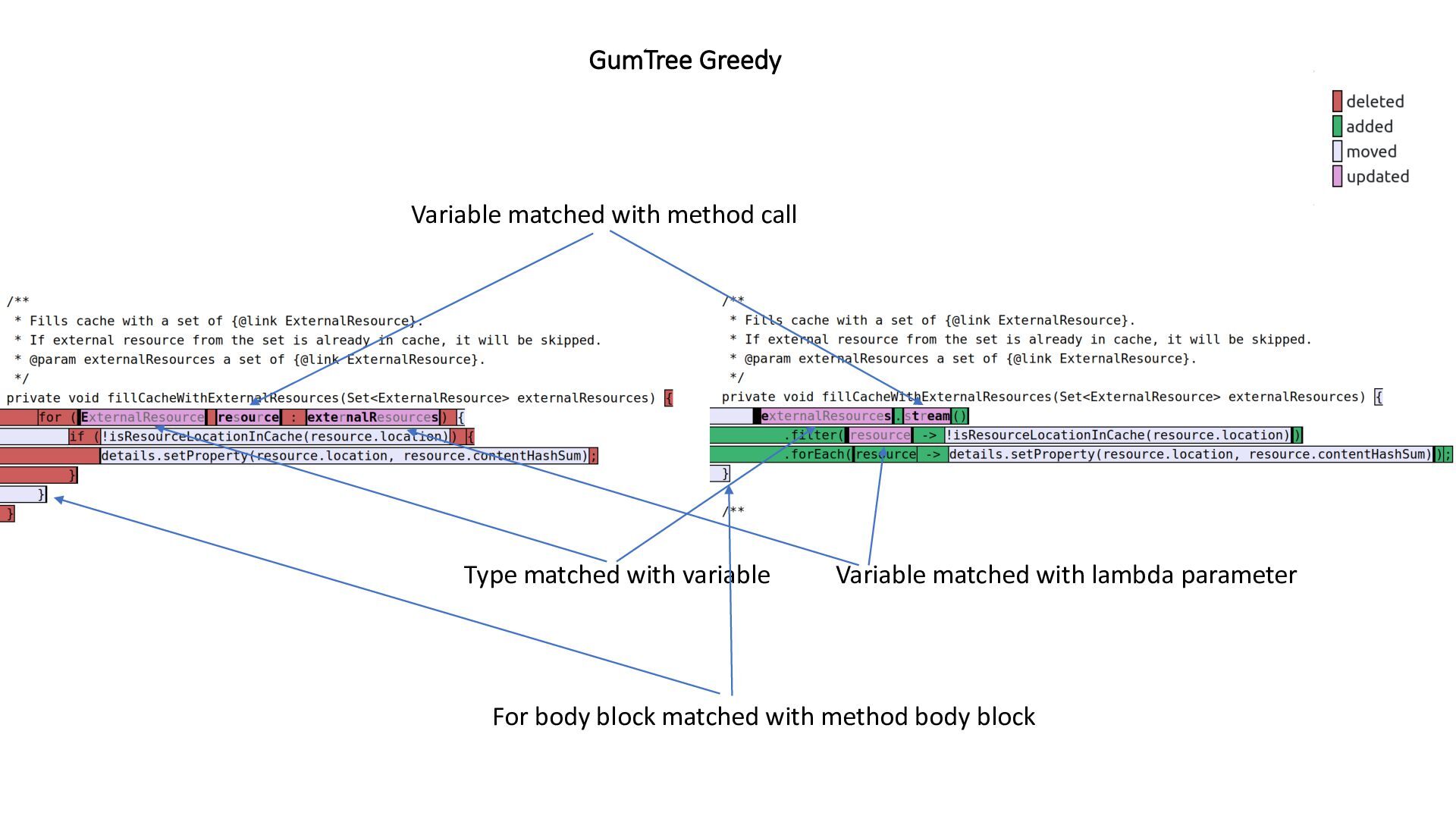

32. GumTree Greedy Type matched with variable Variable matched with method call Variable matched with lambda parameter For body block matched with method body block

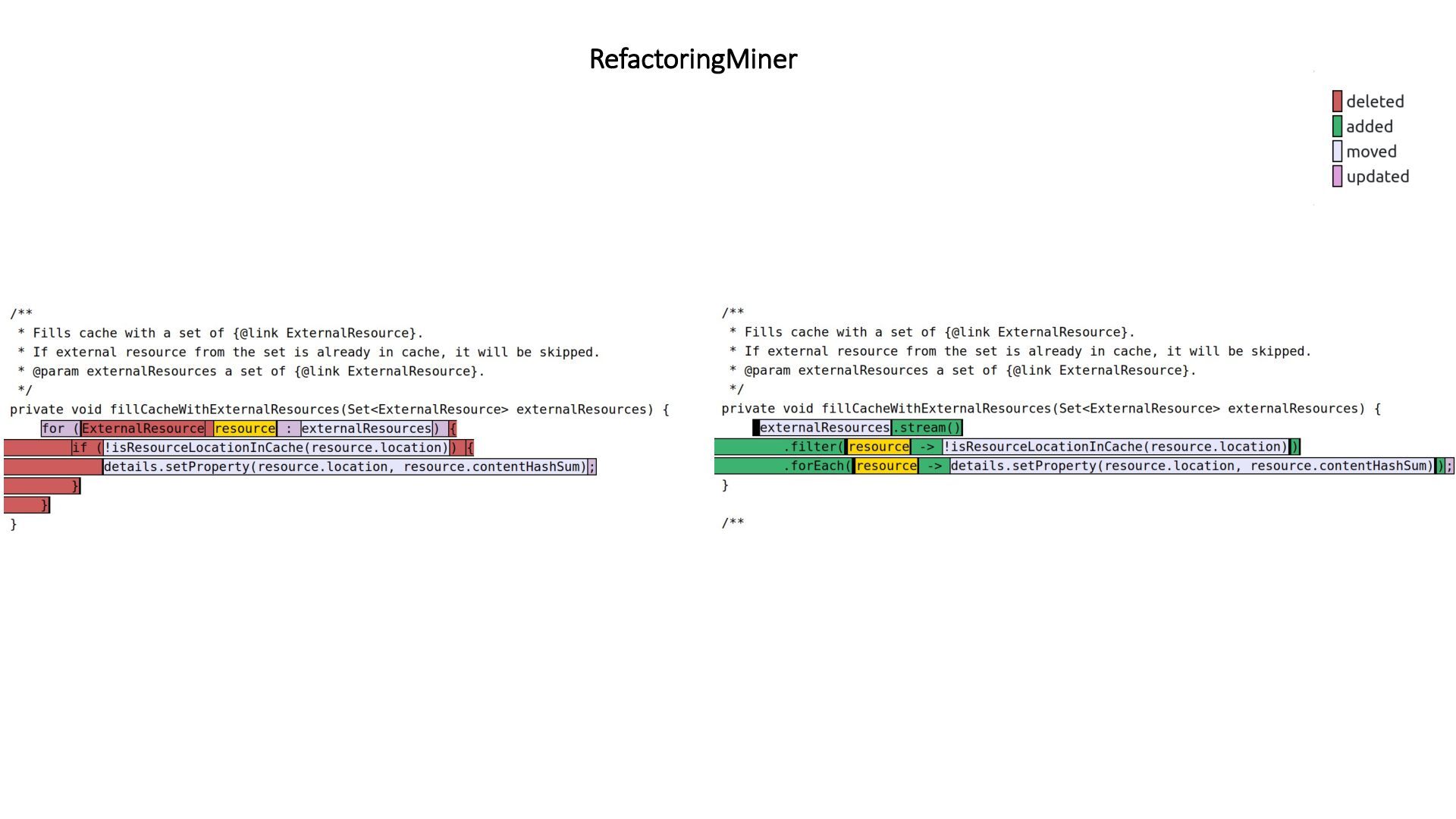

33. RefactoringMiner
34. Refactoring un-awareness Limitation #4

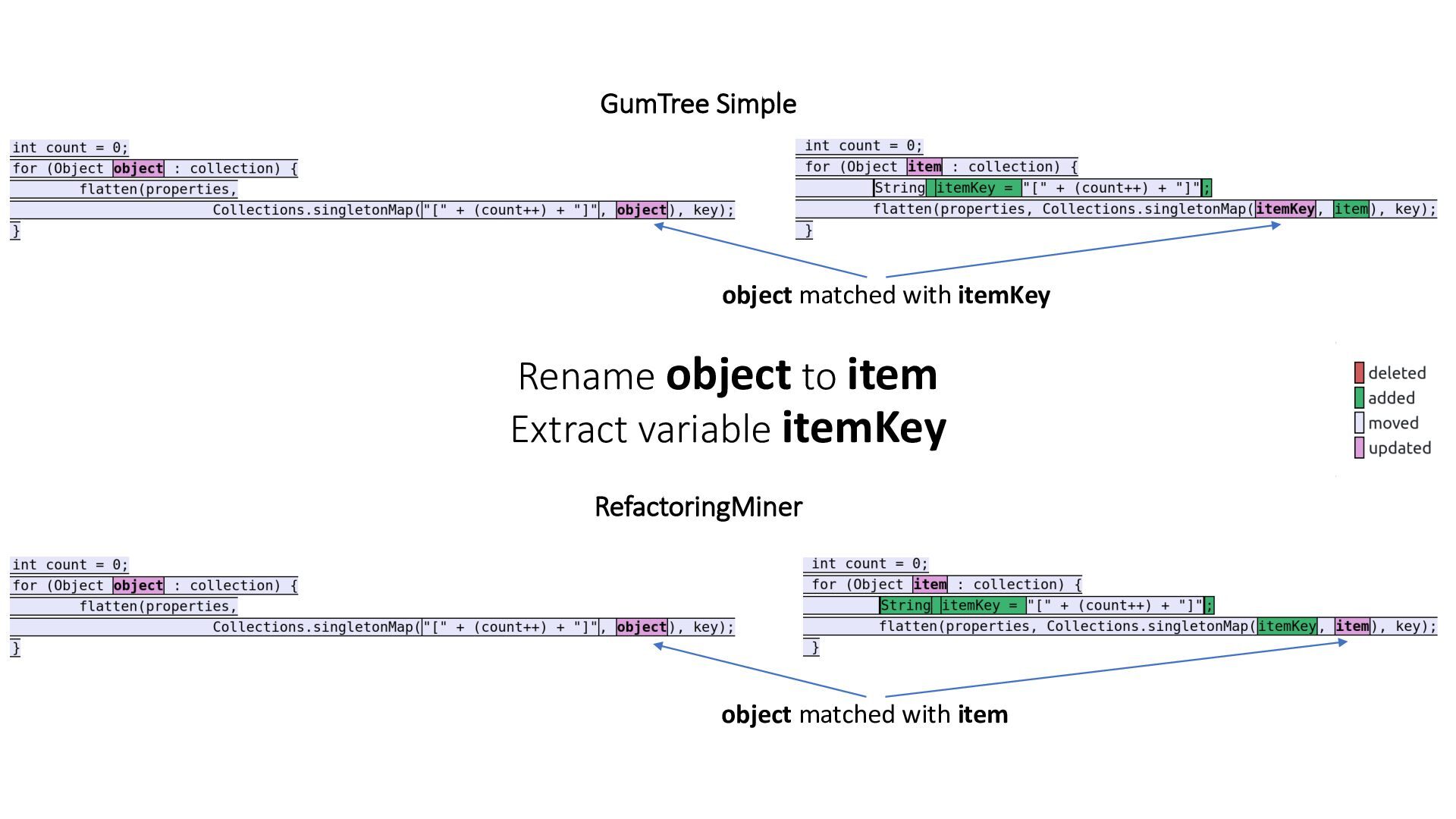

35. GumTree Simple RefactoringMiner Rename object to item Extract variable itemKey object matched with itemKey object matched with item
36. No support for commit-level analysis Limitation #5

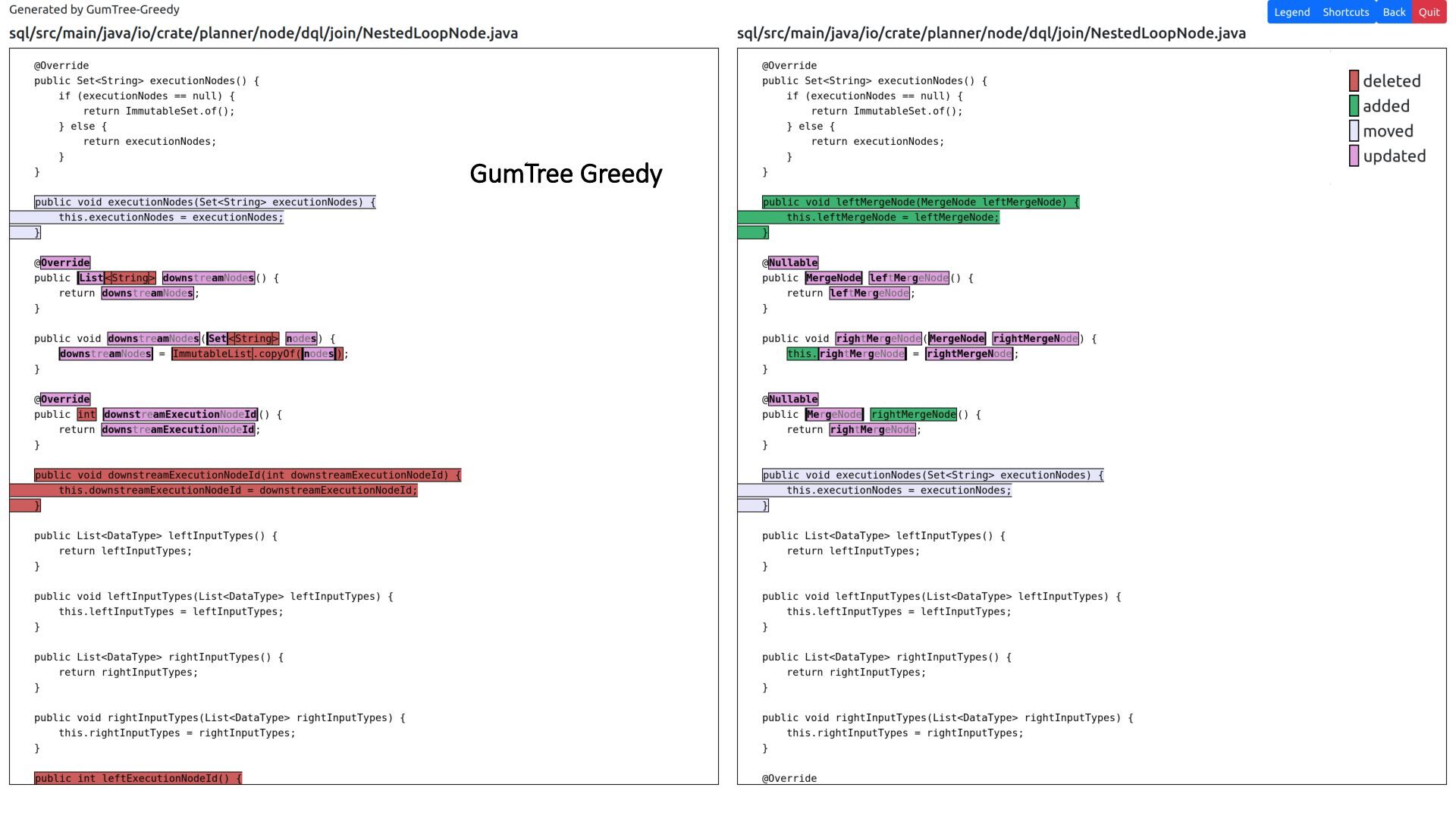

37. GumTree Greedy

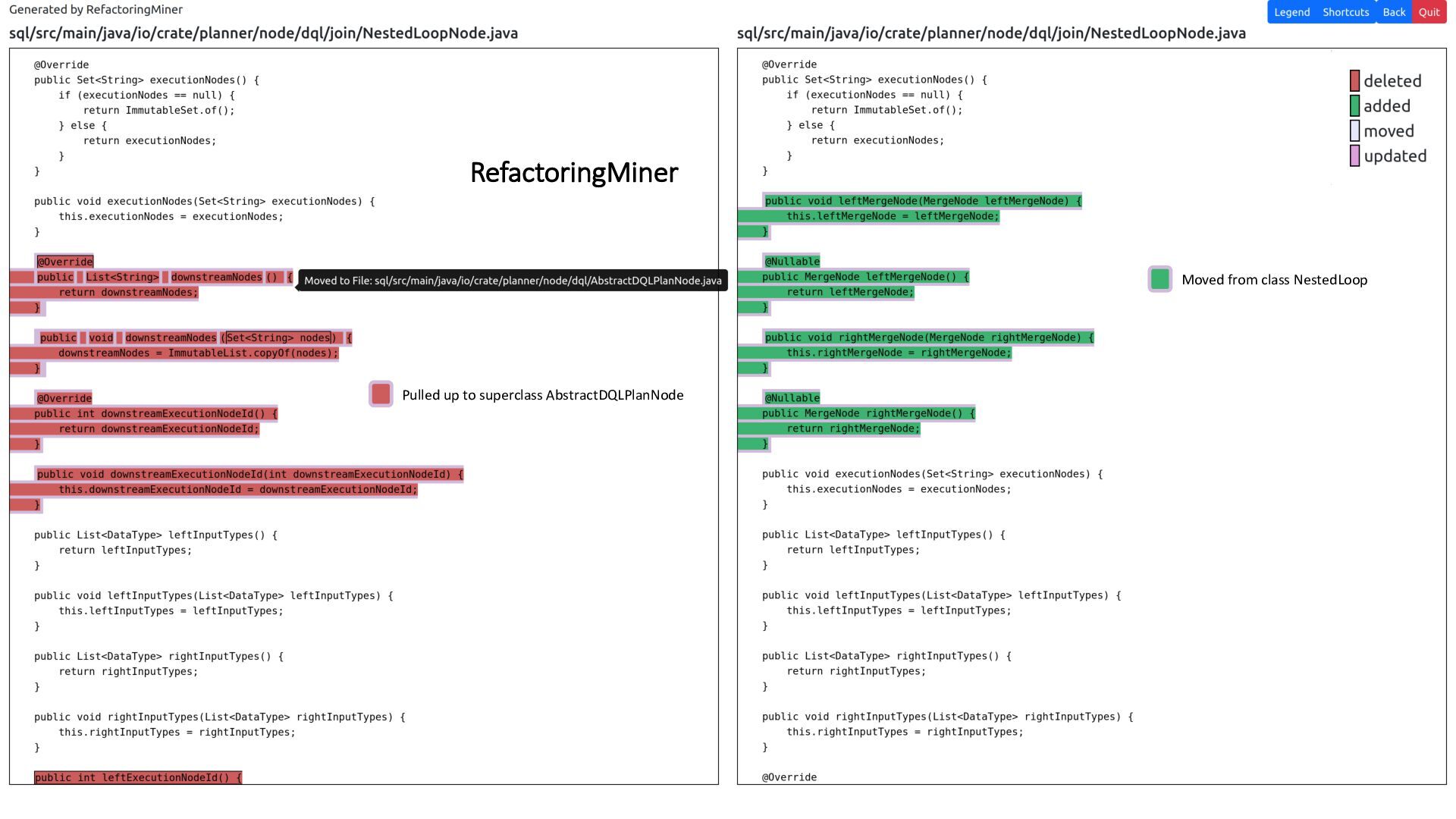

38. RefactoringMiner Pulled up to superclass AbstractDQLPlanNode Moved from class NestedLoop
39. Poor evaluation standards Limitation #6
40. Is shorter (edit script) better?
41. The path of Virtue or Vice Bench marks shorter edit script

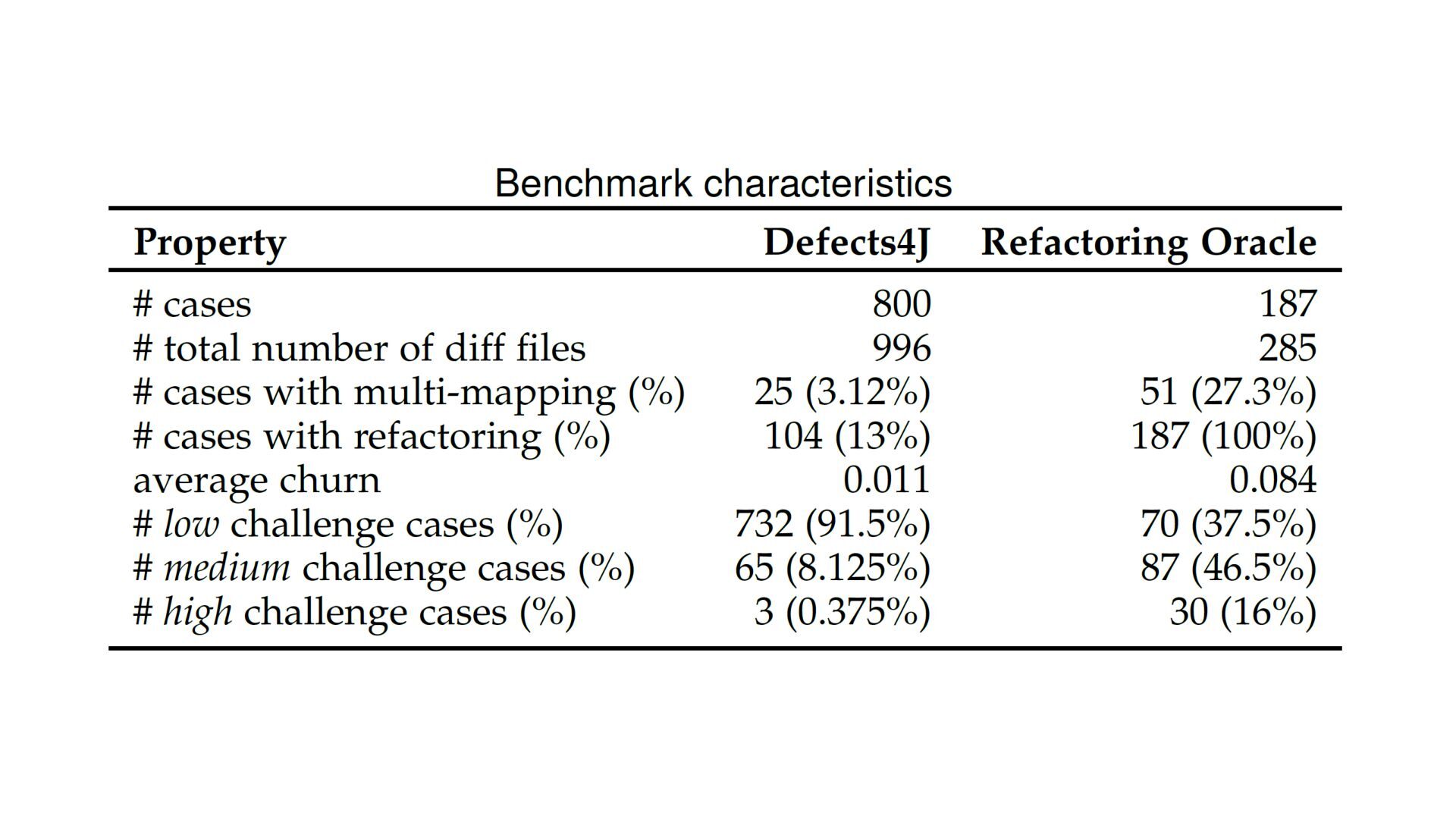

42. The first AST Diff benchmark • Process (6 months): 1. Run all ASTDiff tools (GumTree 3.0, GumTree 2.1, IJM, MTDiff, RMiner) 2. Manually validate the diffs 3. Construct the “perfect” diff • Datasets: • 800 bug fixing commits from Defects4J • 187 refactoring commits from Refactoring Oracle Pouria Alikhanifard
45. Approach

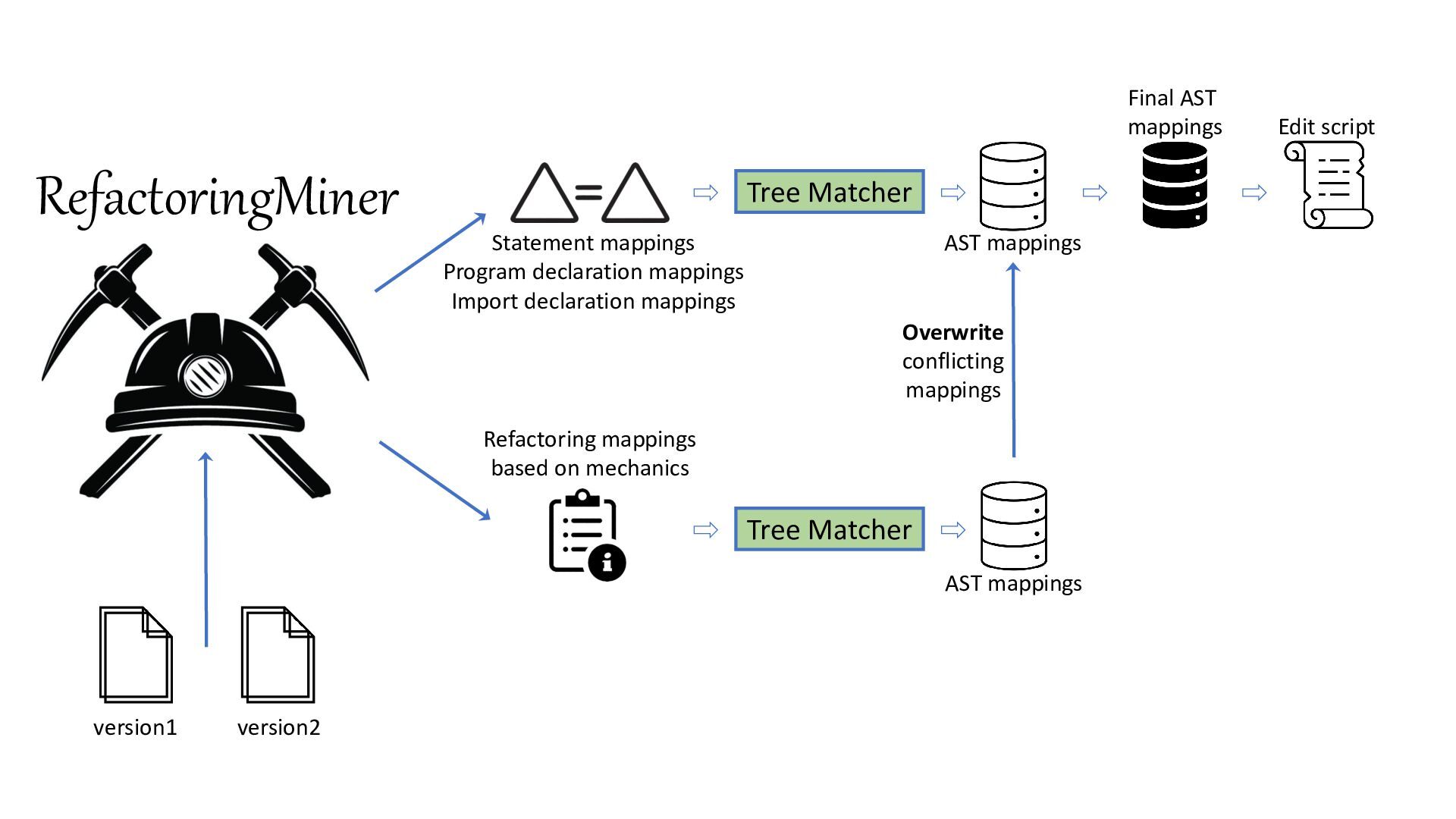

46. RefactoringMiner Statement mappings Program declaration mappings Import declaration mappings Refactoring mappings based on mechanics Tree Matcher Tree Matcher Overwrite conflicting mappings AST mappings AST mappings Final AST mappings Edit script version1 version2
47. Evaluation results

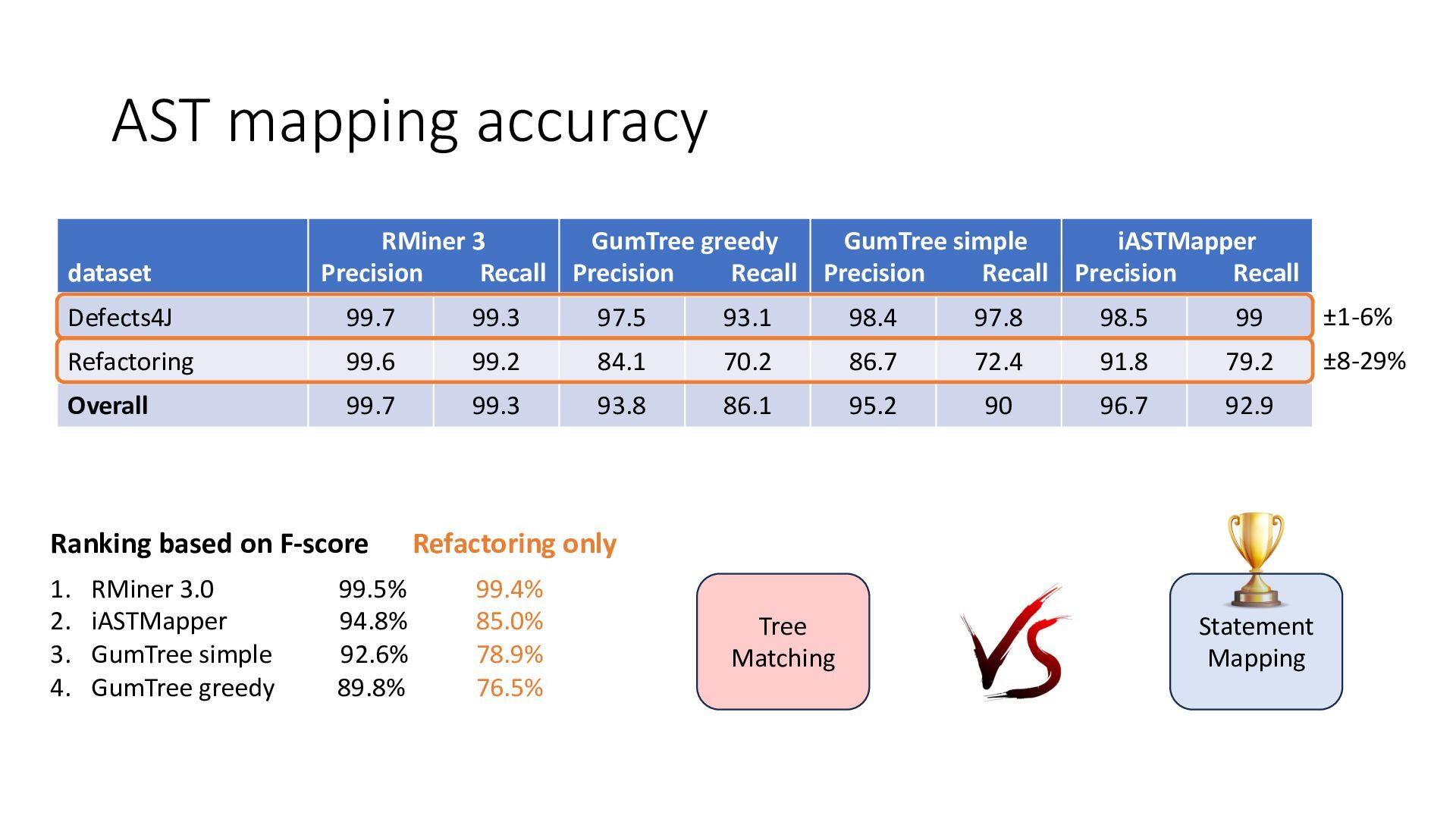

48. AST mapping accuracy dataset RMiner 3 Precision Recall GumTree greedy Precision Recall GumTree simple Precision Recall iASTMapper Precision Recall Defects4J 99.7 99.3 97.5 93.1 98.4 97.8 98.5 99 Refactoring 99.6 99.2 84.1 70.2 86.7 72.4 91.8 79.2 Overall 99.7 99.3 93.8 86.1 95.2 90 96.7 92.9 1. RMiner 3.0 99.5% 2. iASTMapper 94.8% 3. GumTree simple 92.6% 4. GumTree greedy 89.8% Tree Matching Statement Mapping Ranking based on F-score ±1-6% ±8-29% 99.4% 85.0% 78.9% 76.5% Refactoring only

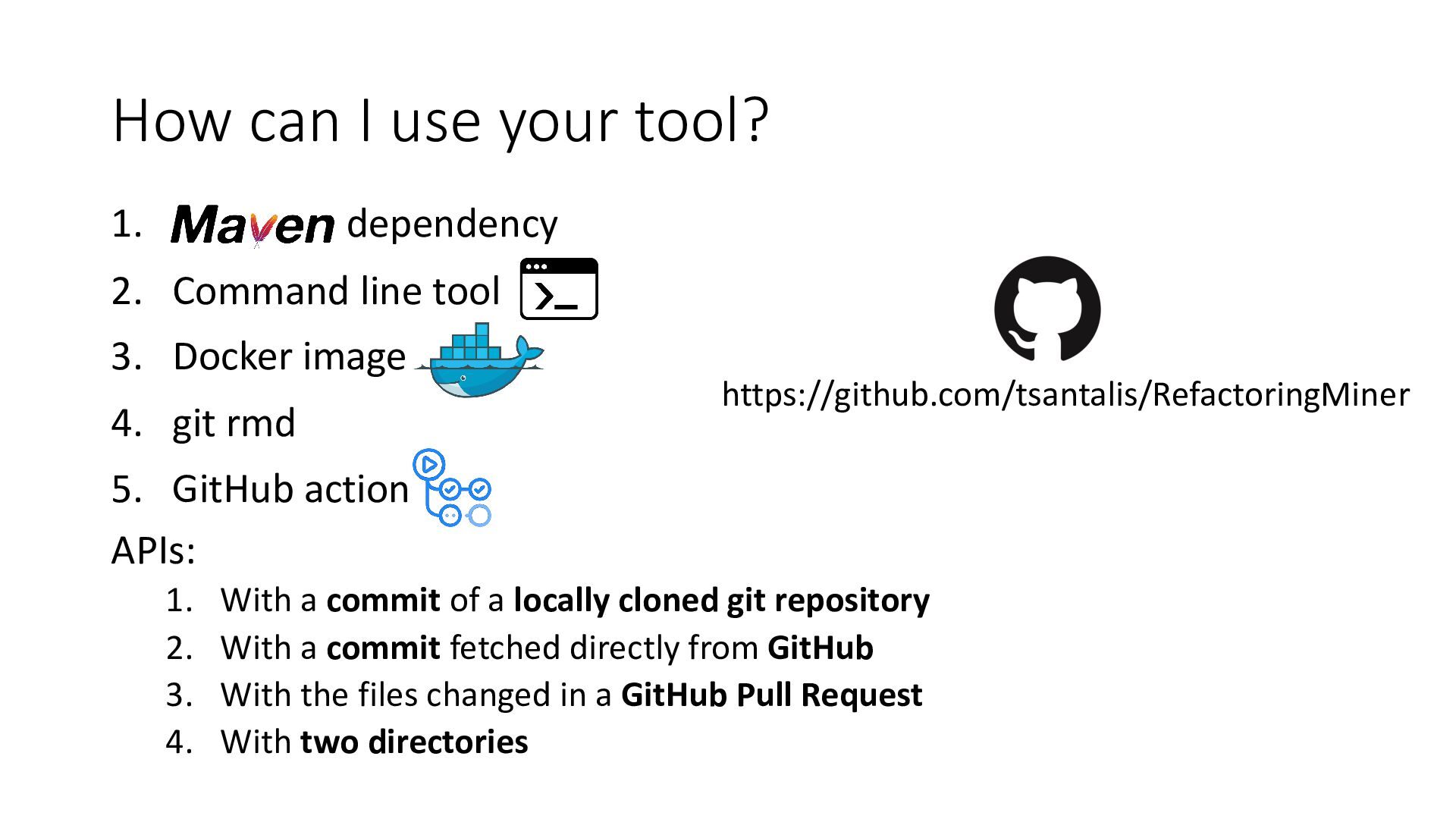

49. How can I use your tool? 1. dependency 2. Command line tool 3. Docker image 4. git rmd 5. GitHub action APIs: 1. With a commit of a locally cloned git repository 2. With a commit fetched directly from GitHub 3. With the files changed in a GitHub Pull Request 4. With two directories https://github.com/tsantalis/RefactoringMiner

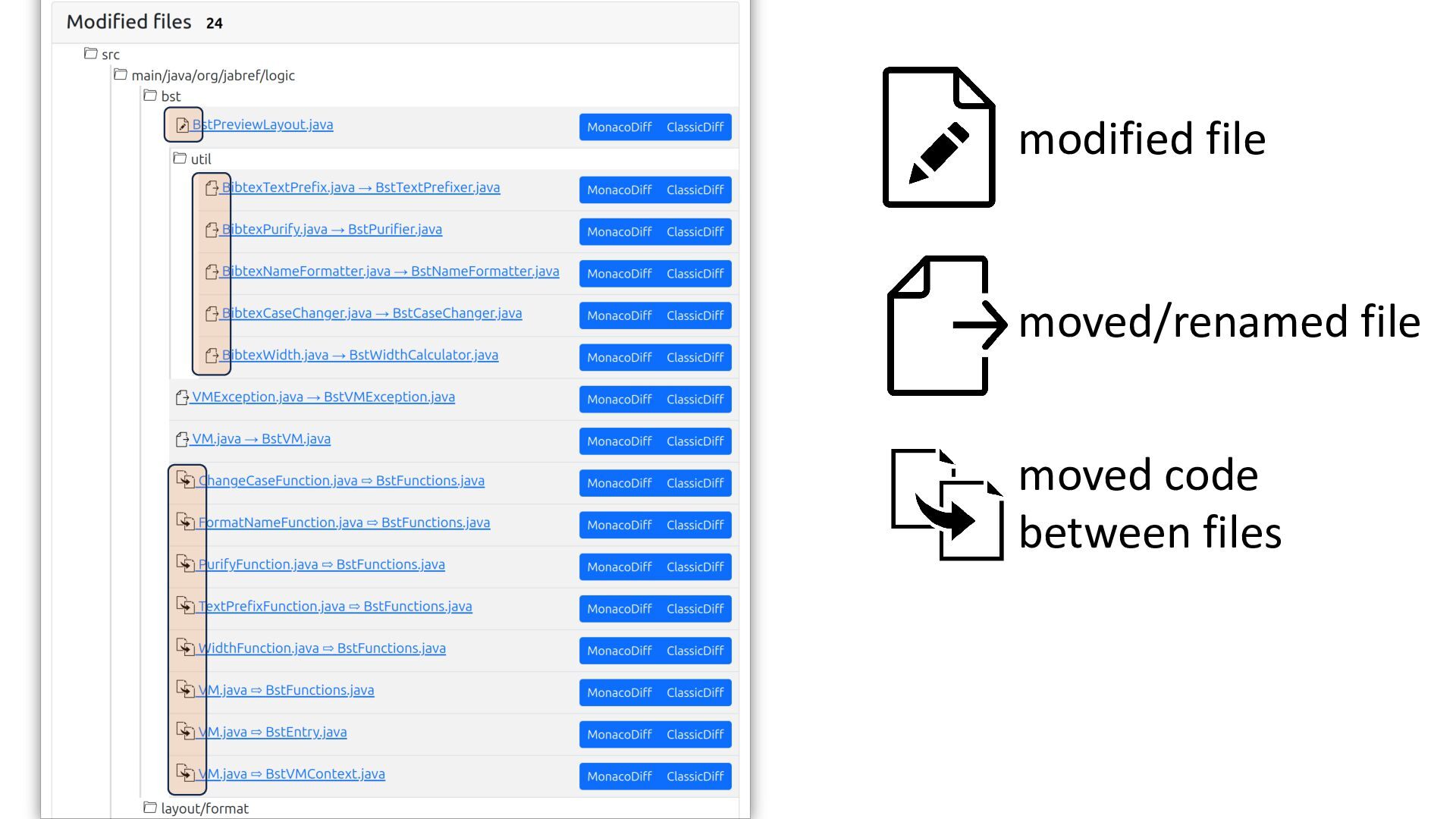

51. modified file moved/renamed file moved code between files

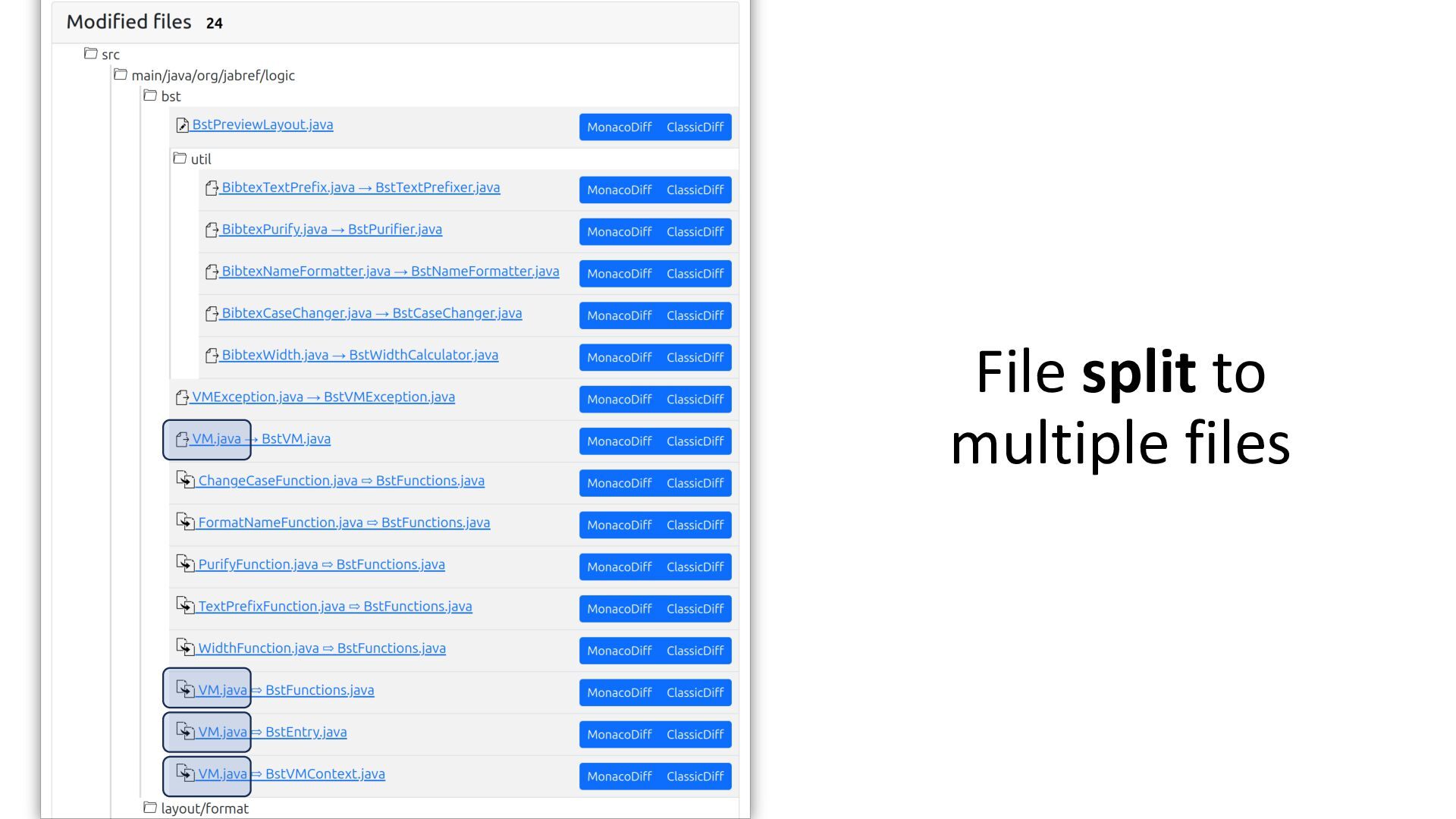

52. File split to multiple files

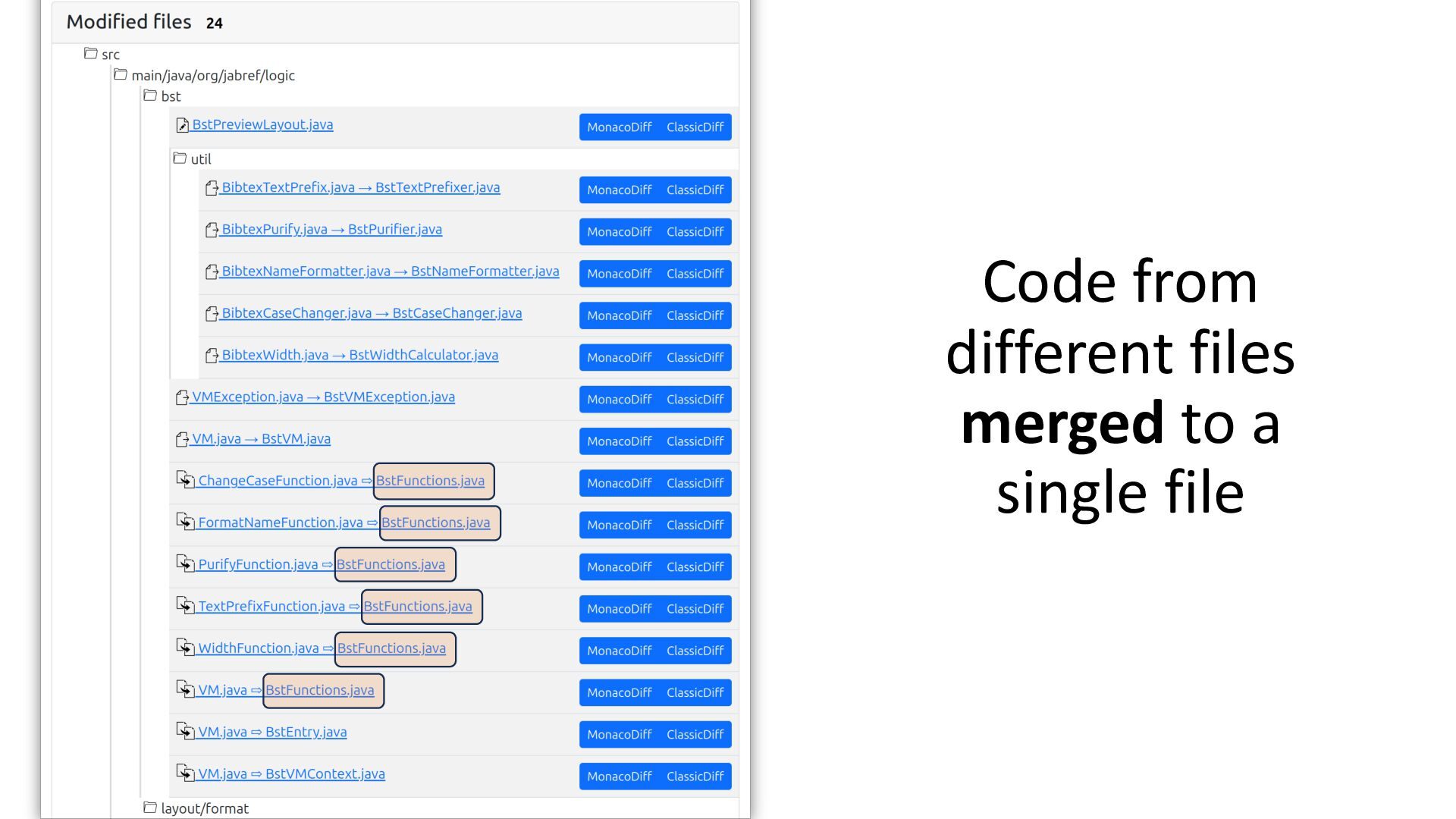

53. Code from different files merged to a single file

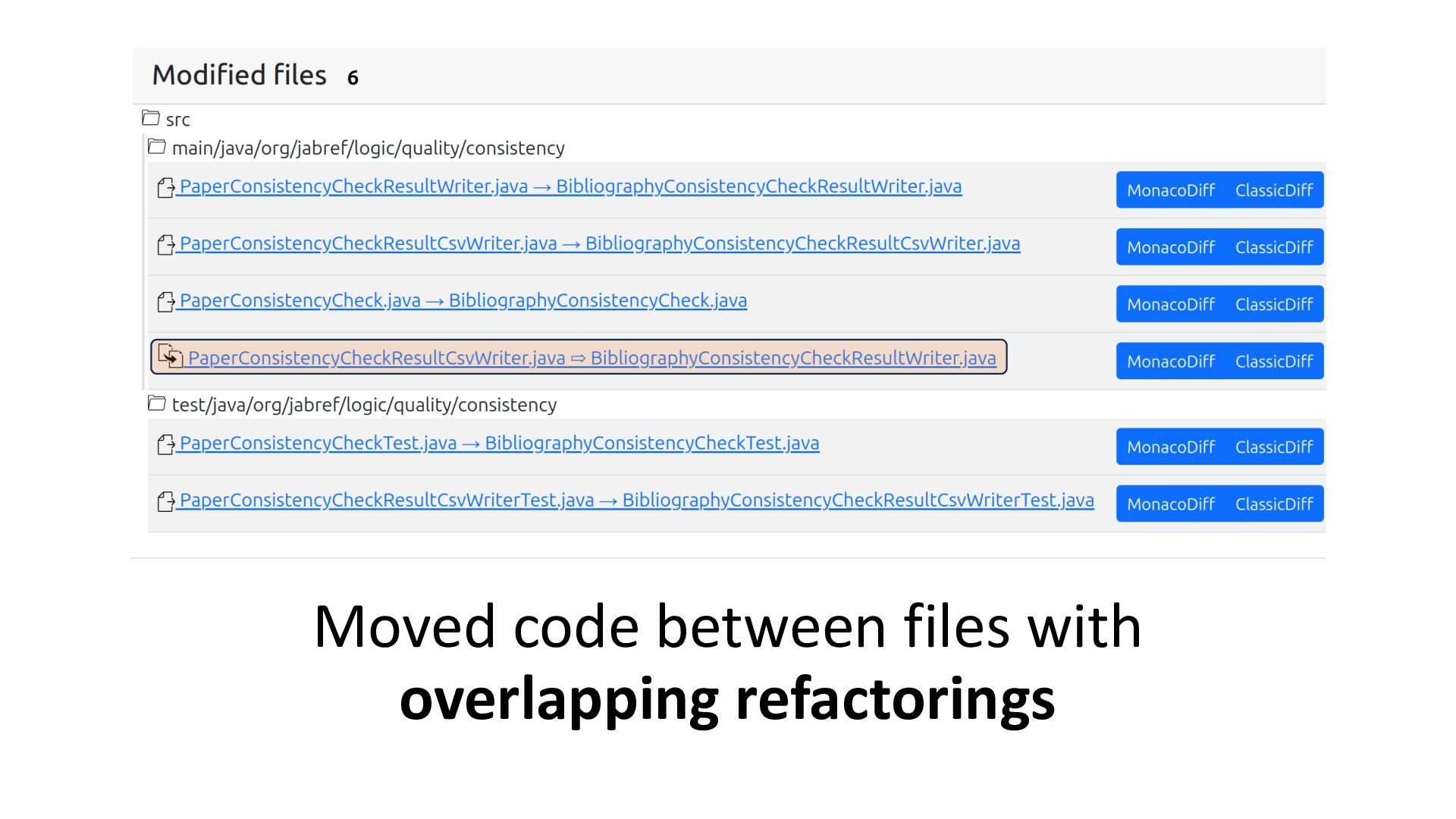

54. Moved code between files with overlapping refactorings

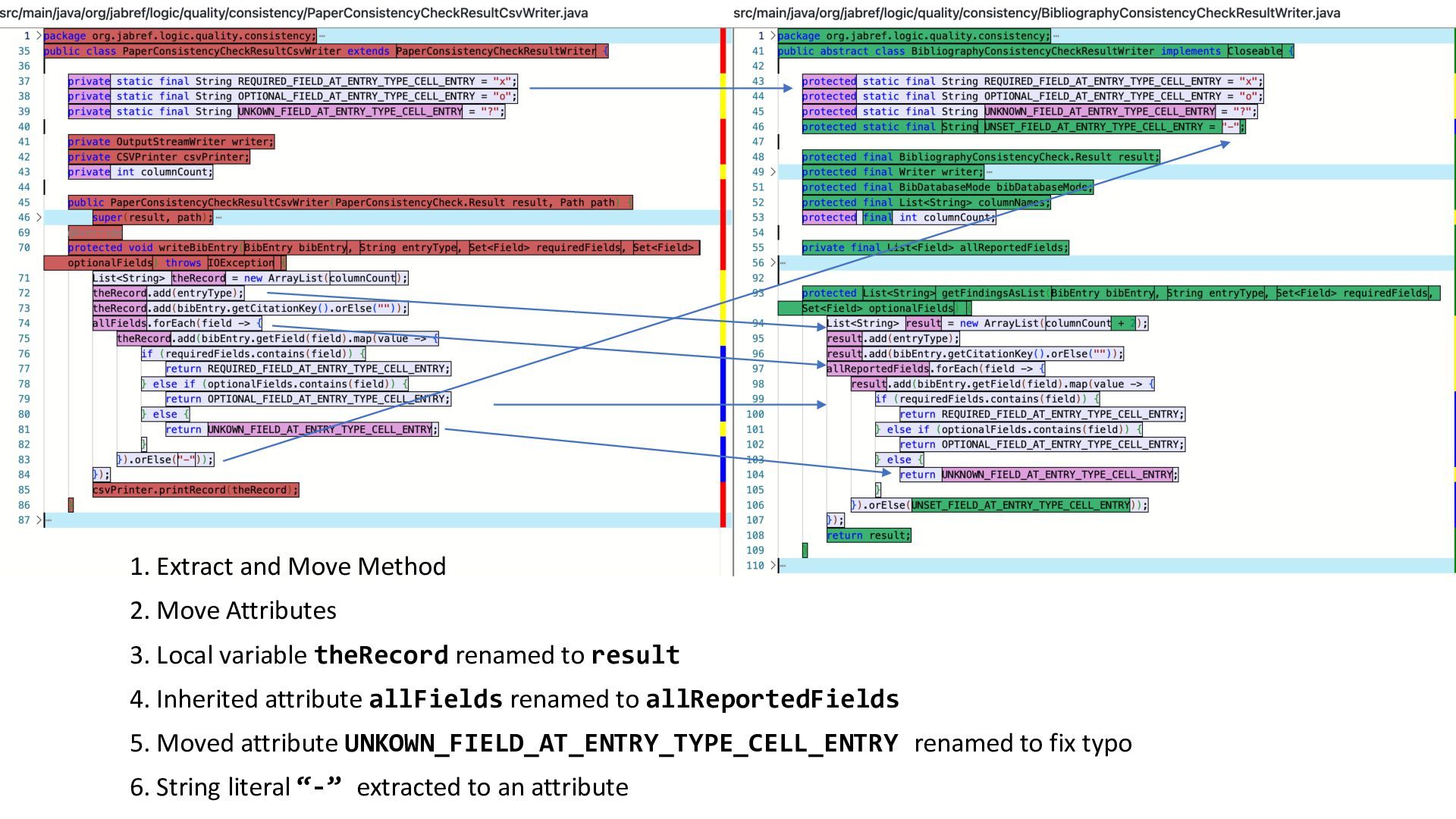

55. 1. Extract and Move Method 3. Local variable theRecord renamed to result 4. Inherited attribute allFields renamed to allReportedFields 5. Moved attribute UNKOWN_FIELD_AT_ENTRY_TYPE_CELL_ENTRY renamed to fix typo 6. String literal “-” extracted to an attribute 2. Move Attributes
57. Is everything so perfect?

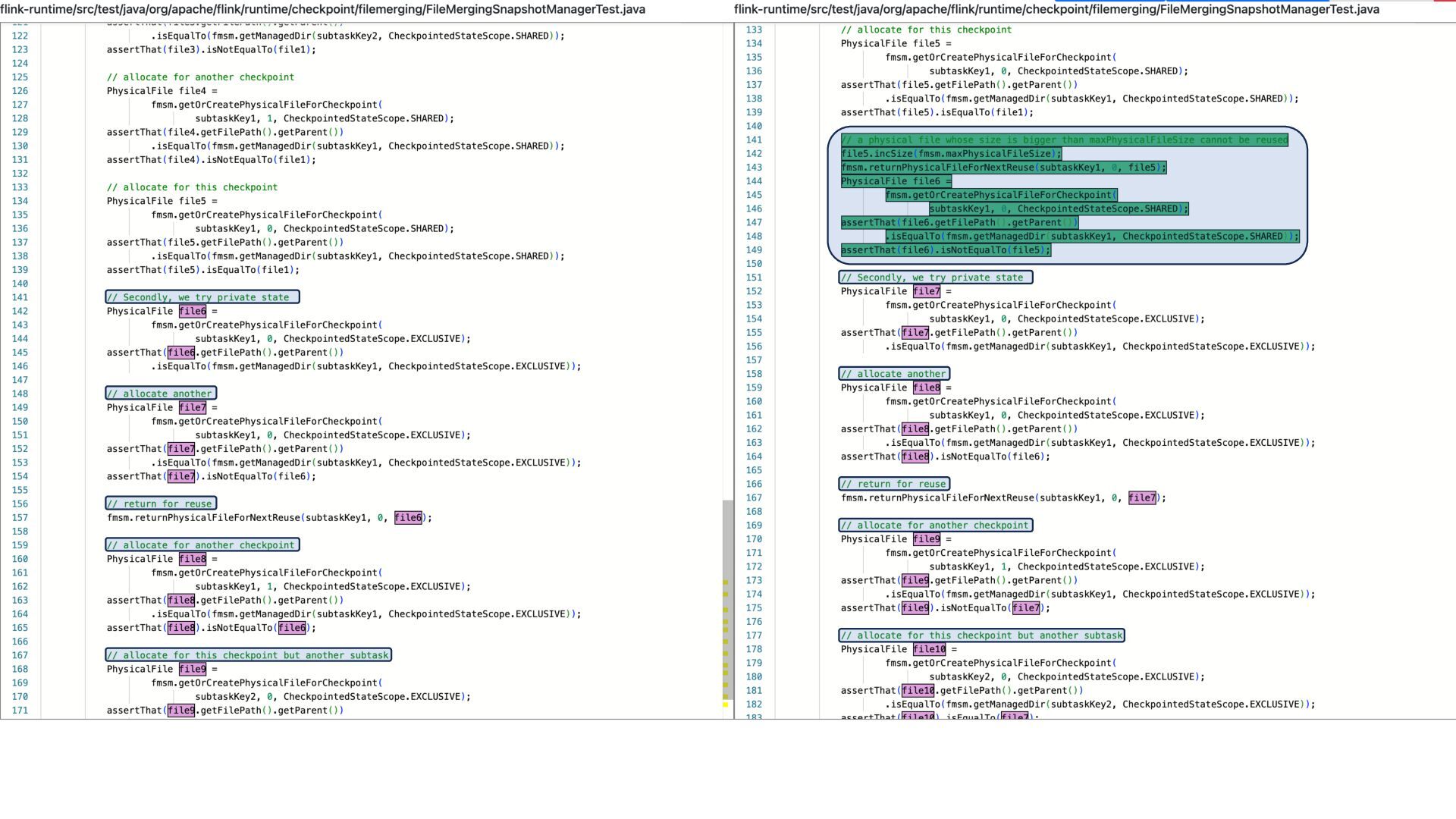

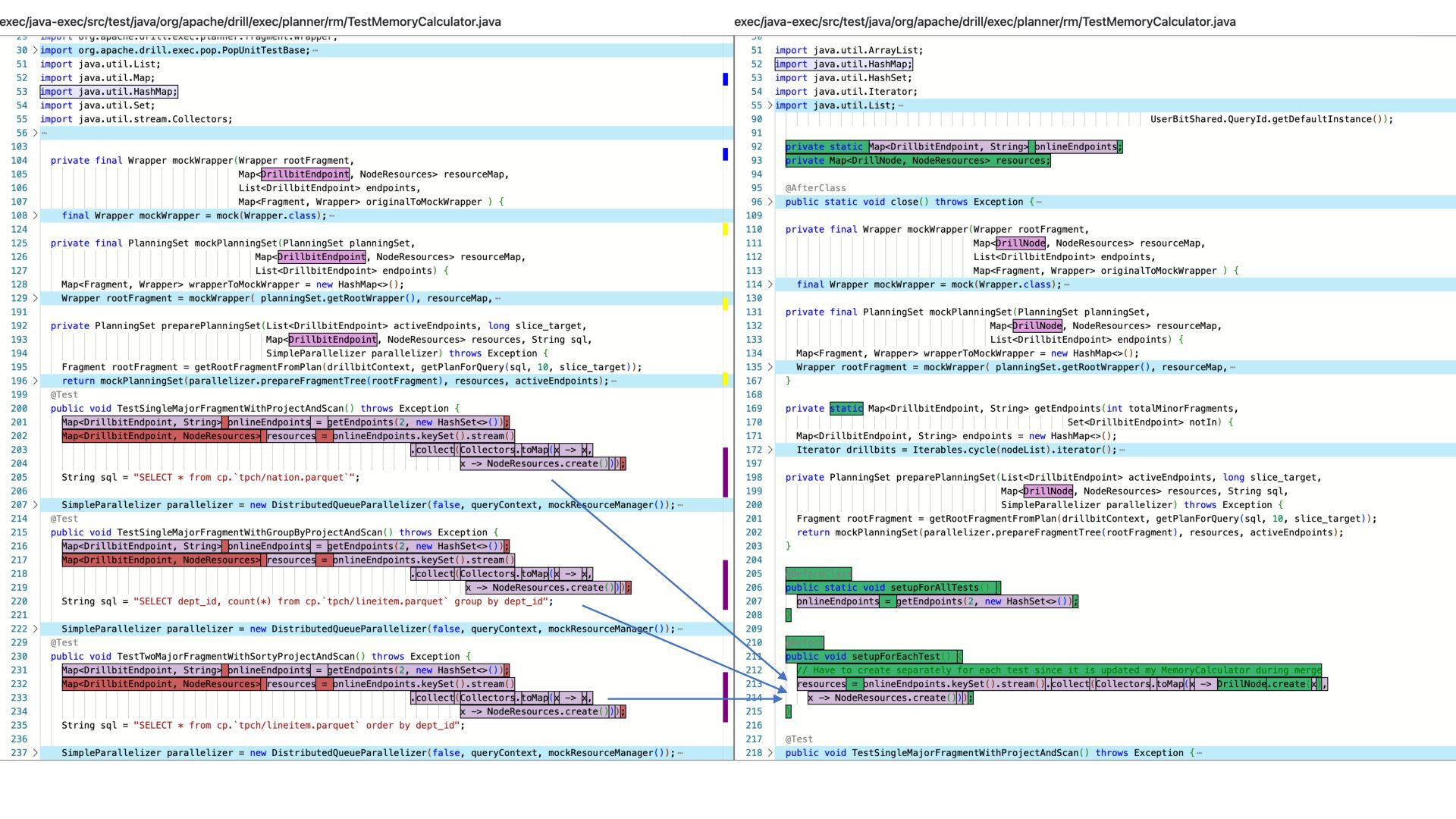

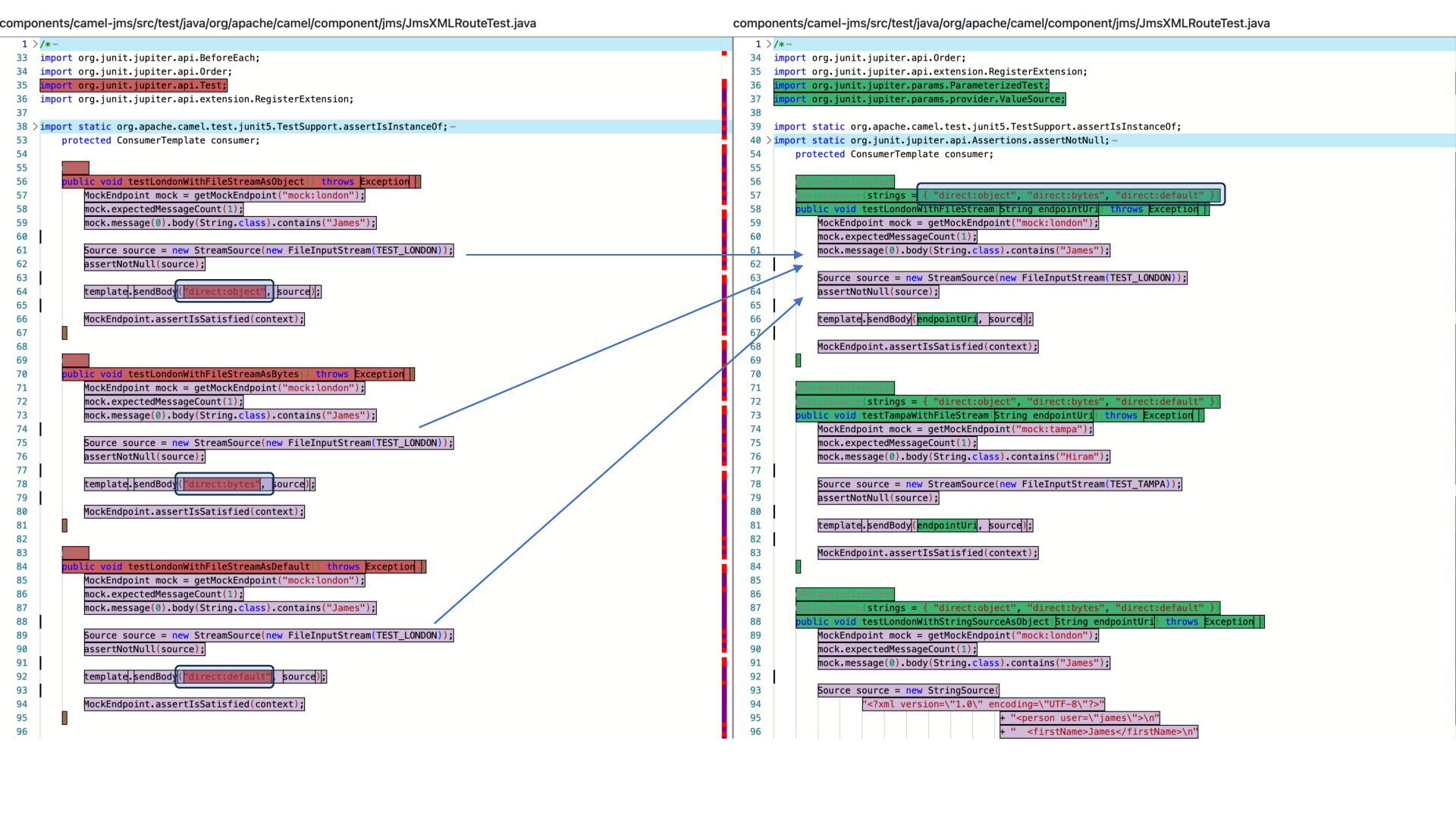

58. Test code is very challenging to correctly match

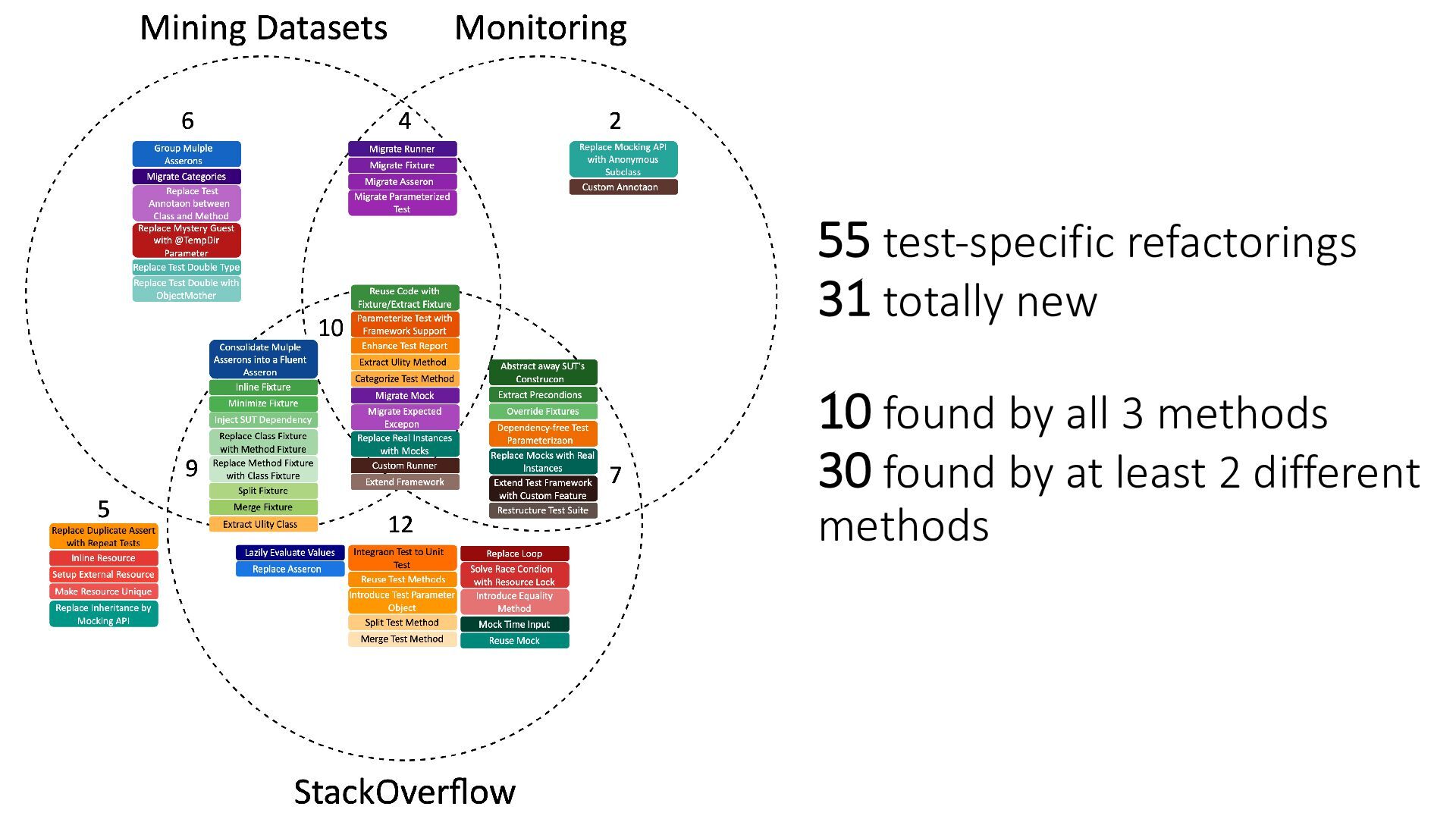

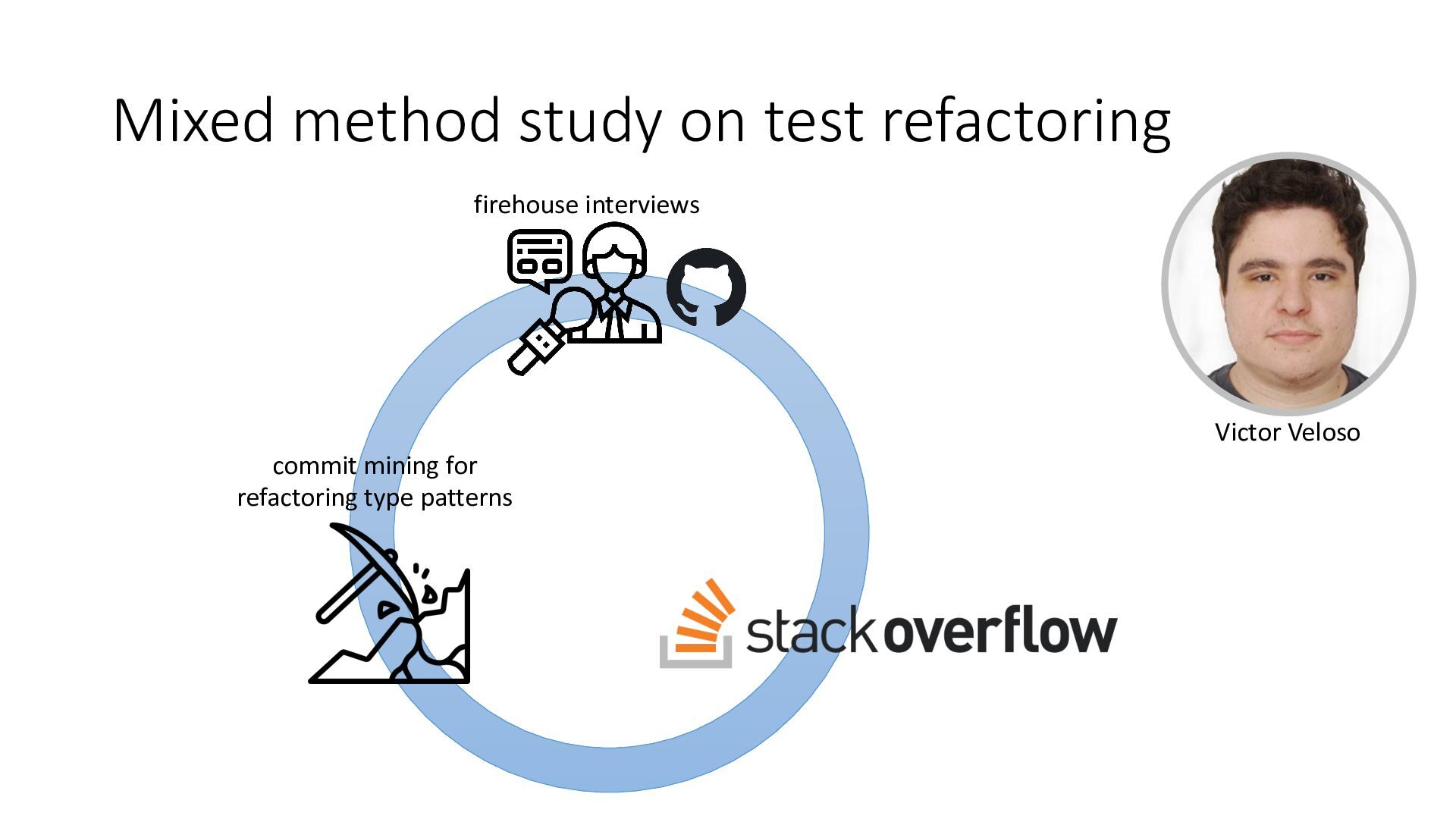

62. Mixed method study on test refactoring firehouse interviews commit mining for refactoring type patterns Victor Veloso
63. 55 test-specific refactorings 31 totally new 10 found by all 3 methods 30 found by at least 2 different methods

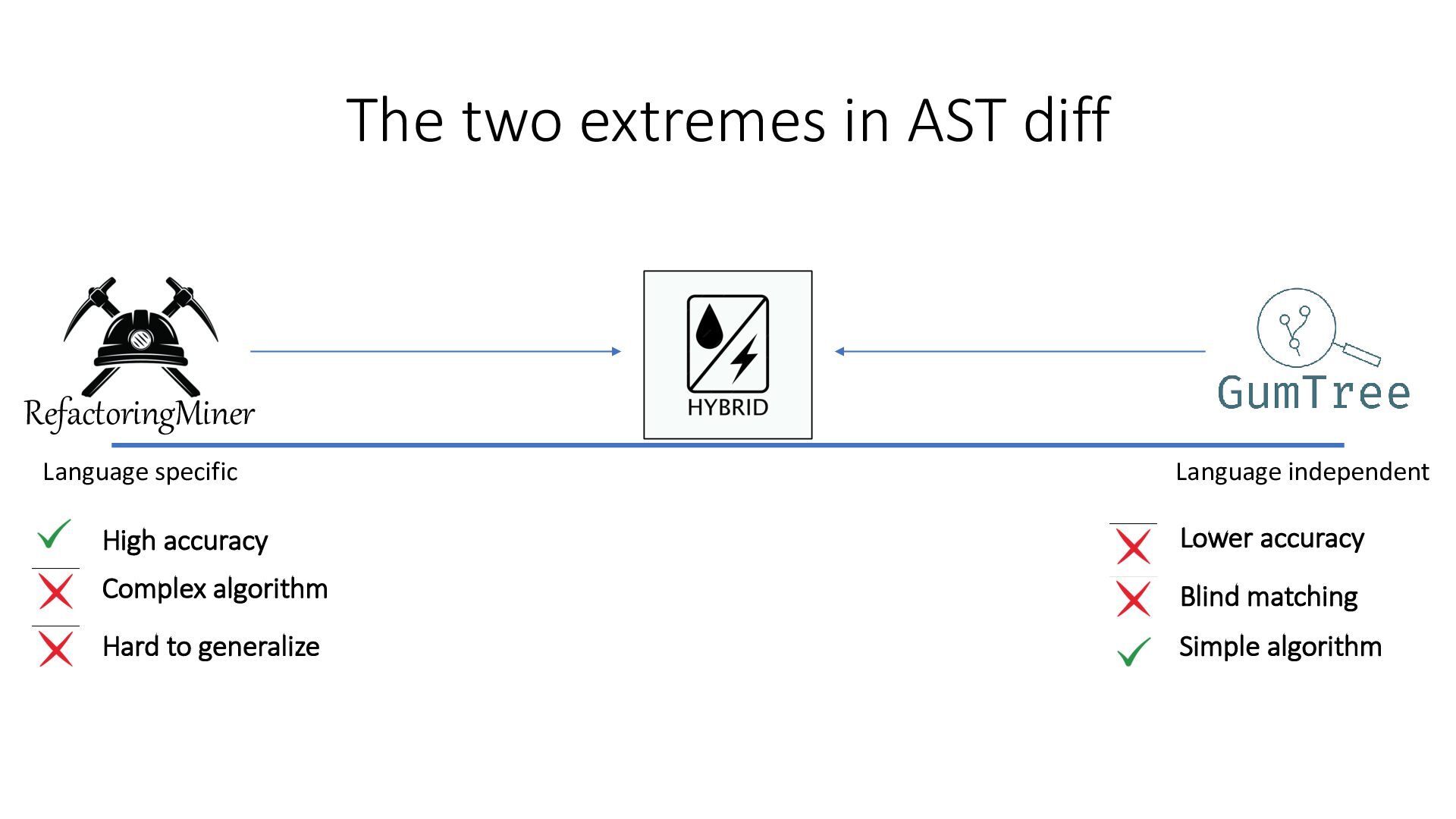

66. The two extremes in AST diff Language specific Language independent RefactoringMiner High accuracy Complex algorithm Hard to generalize Lower accuracy Simple algorithm Blind matching
67. Intelligent Code Review Assistants

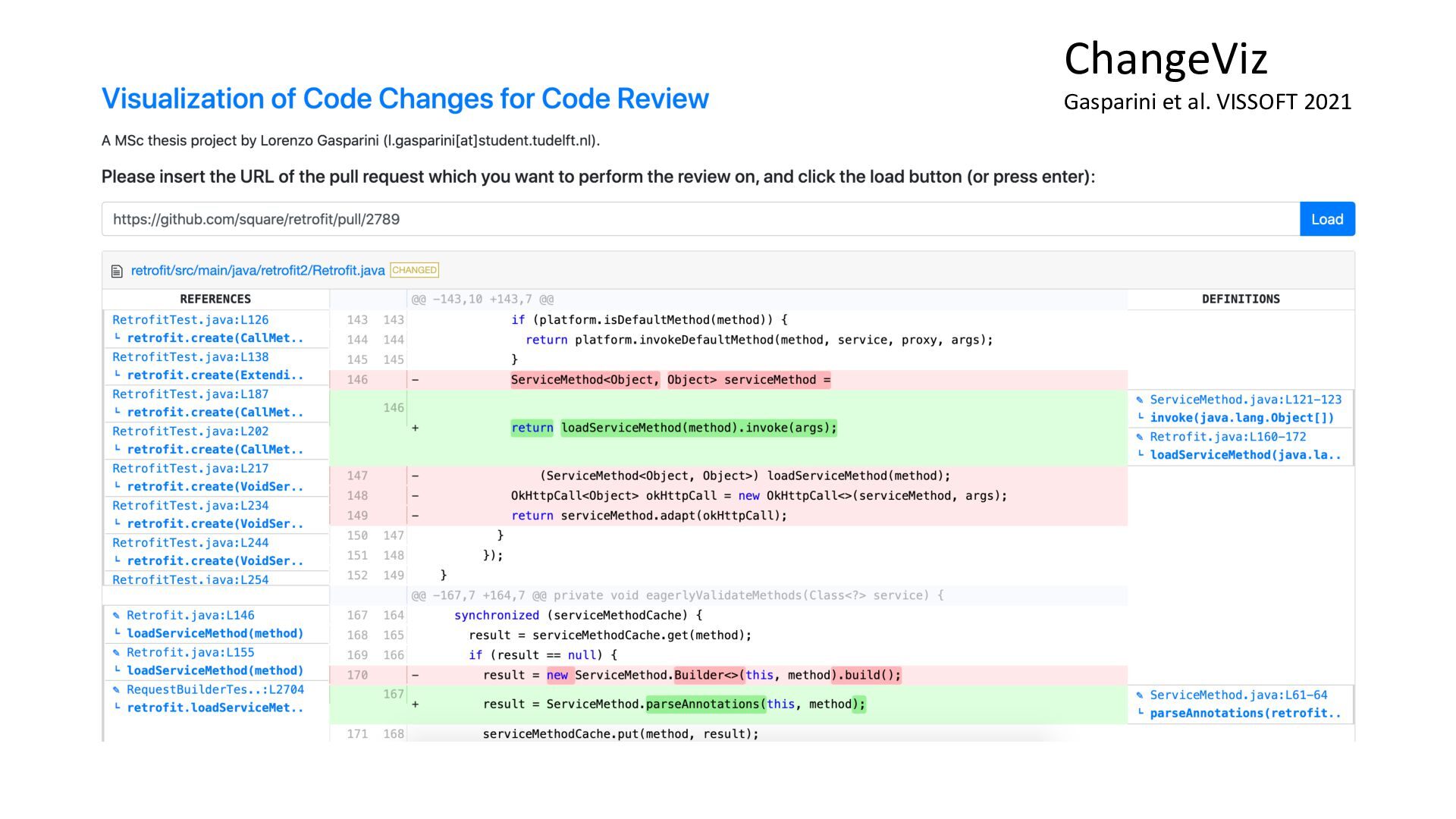

68. ChangeViz Gasparini et al. VISSOFT 2021

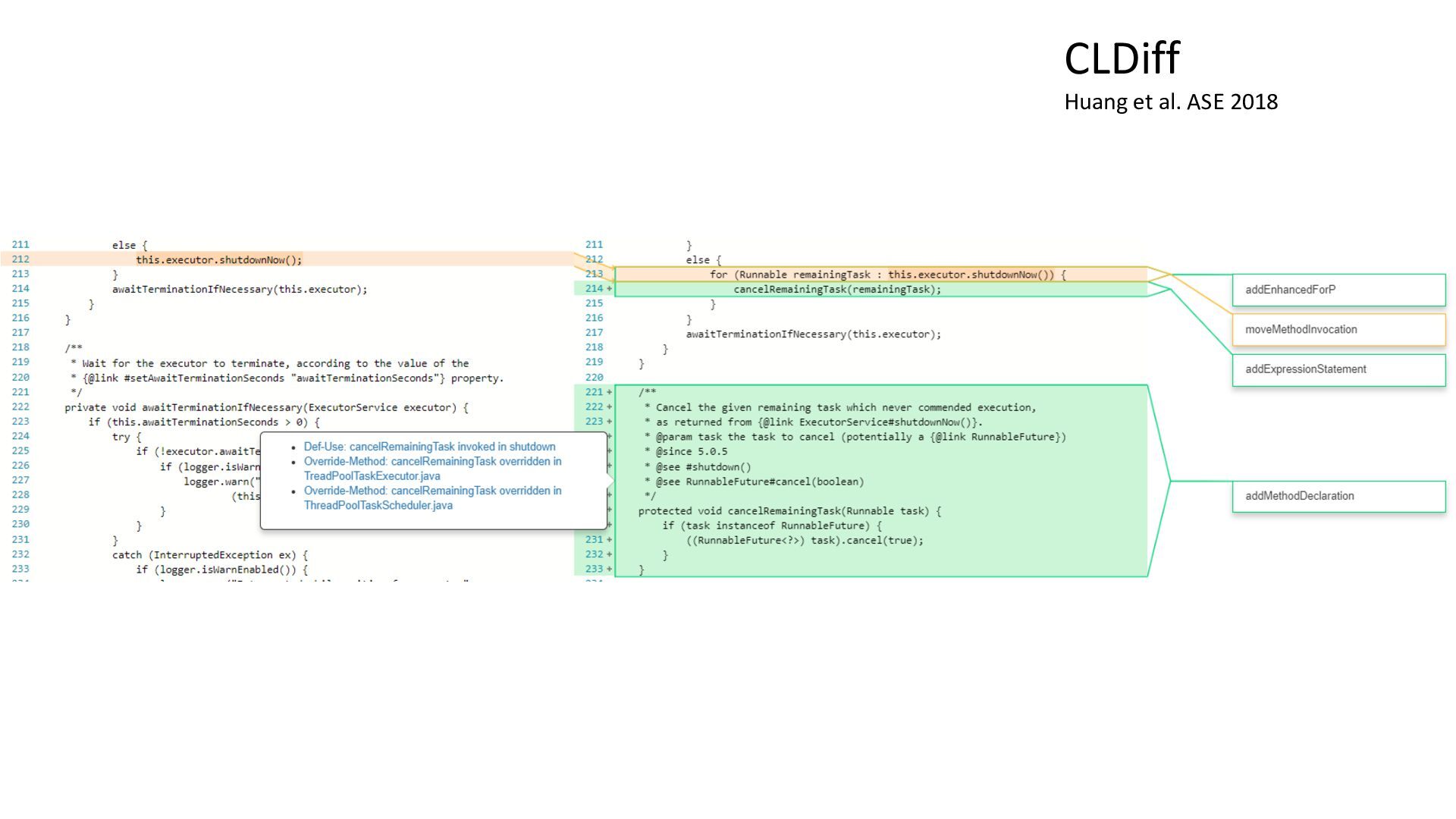

69. CLDiff Huang et al. ASE 2018

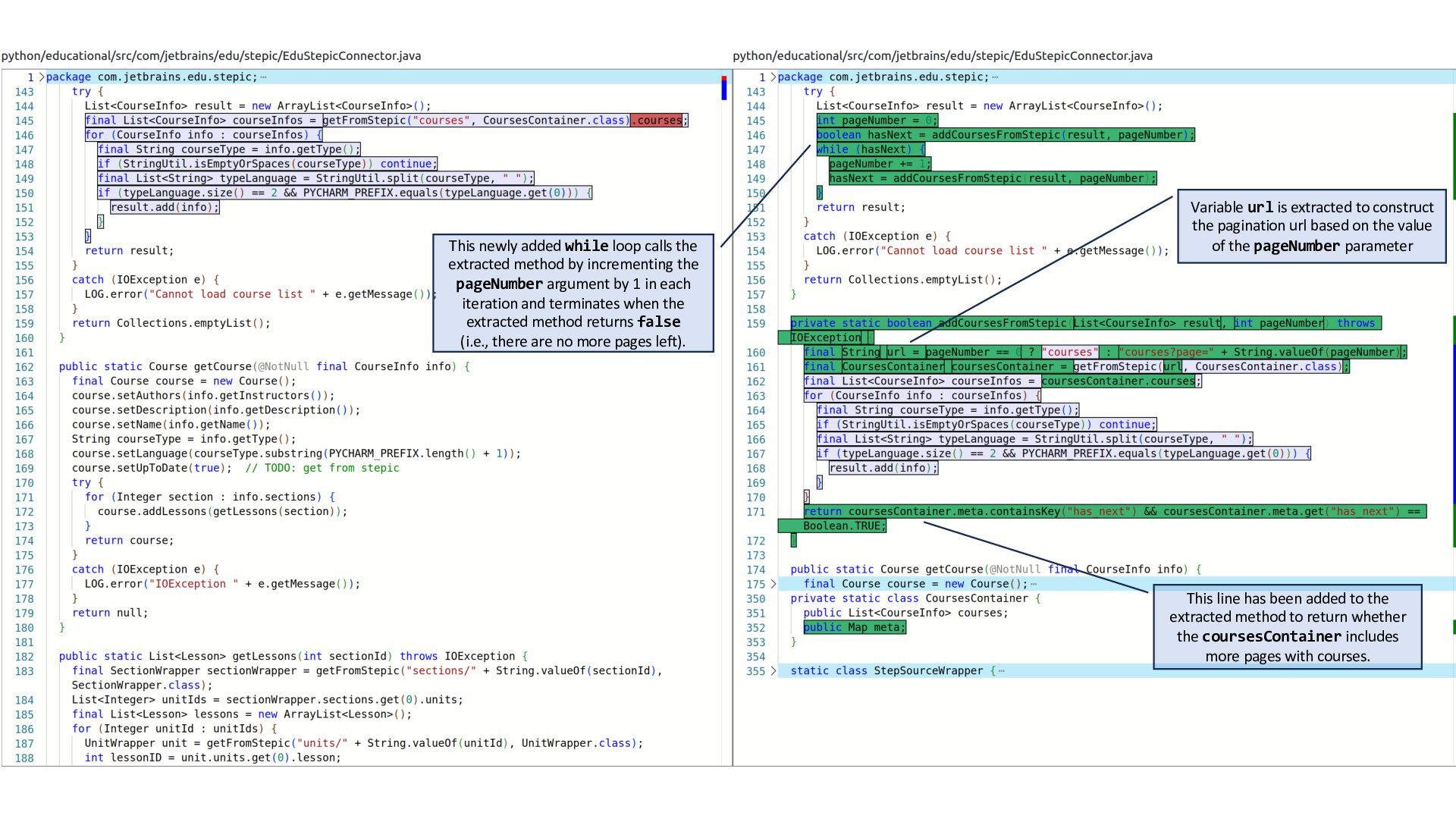

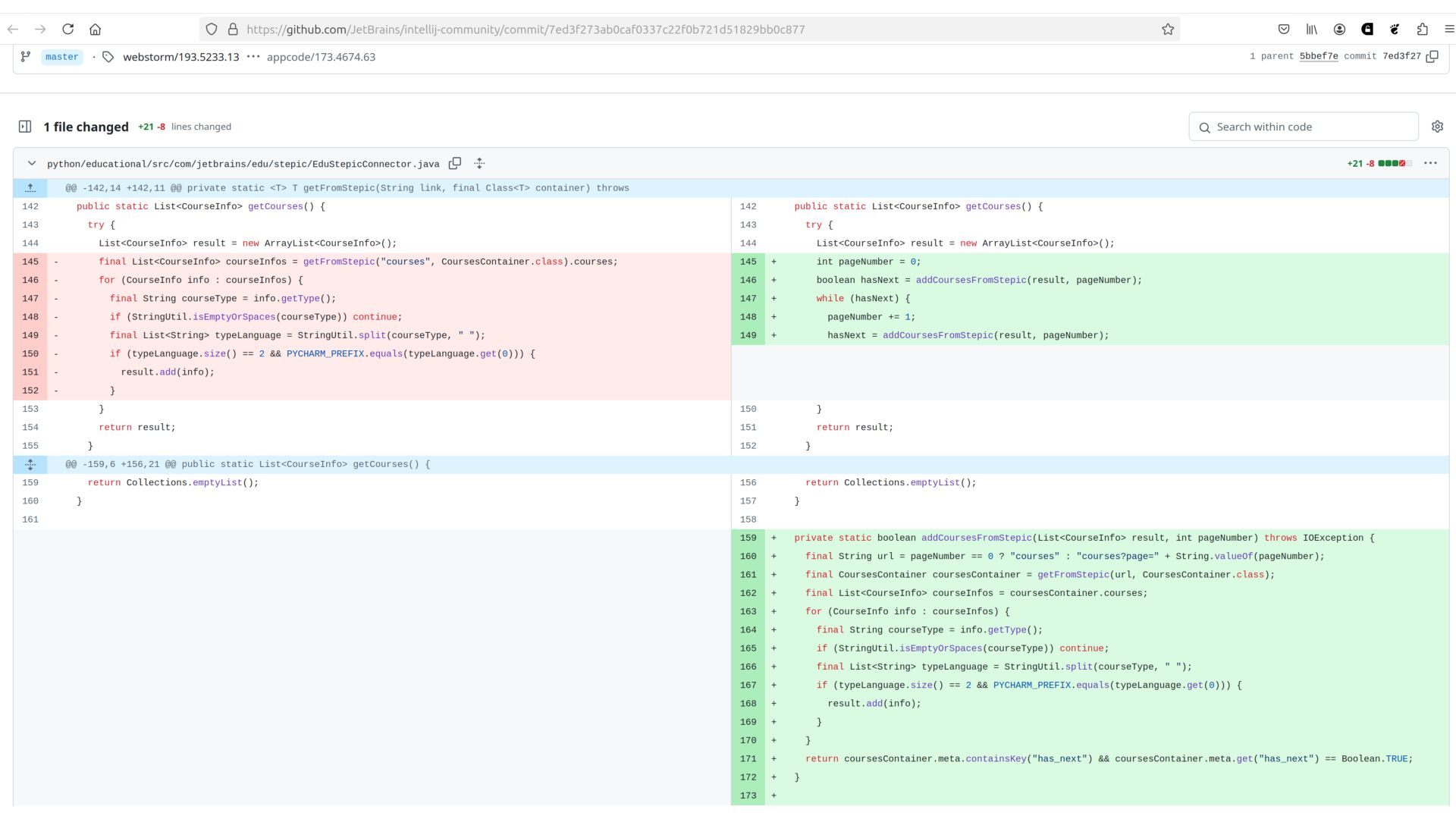

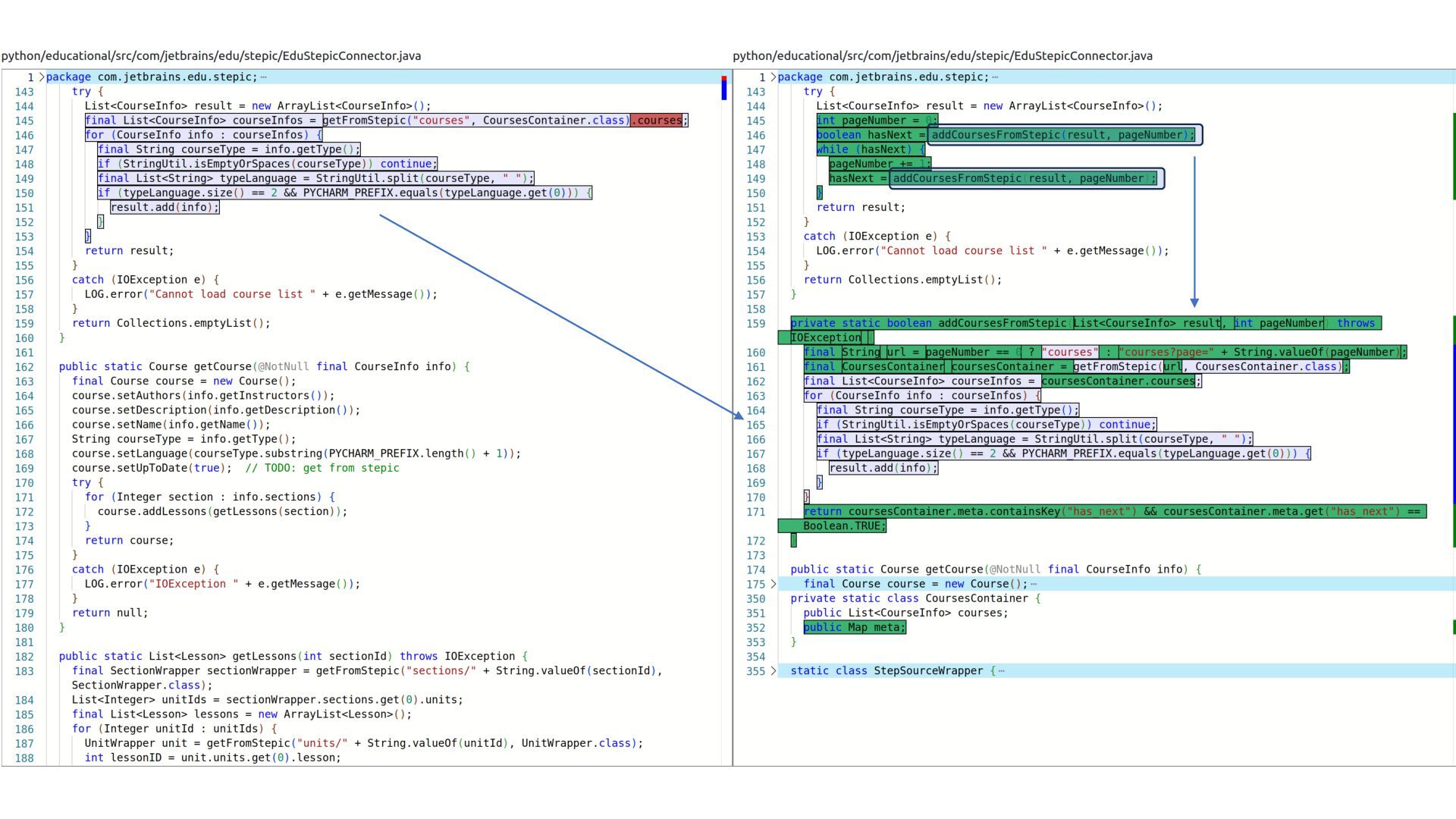

70. Variable url is extracted to construct the pagination url based on the value of the pageNumber parameter This line has been added to the extracted method to return whether the coursesContainer includes more pages with courses. This newly added while loop calls the extracted method by incrementing the pageNumber argument by 1 in each iteration and terminates when the extracted method returns false (i.e., there are no more pages left).
71. More benchmarks

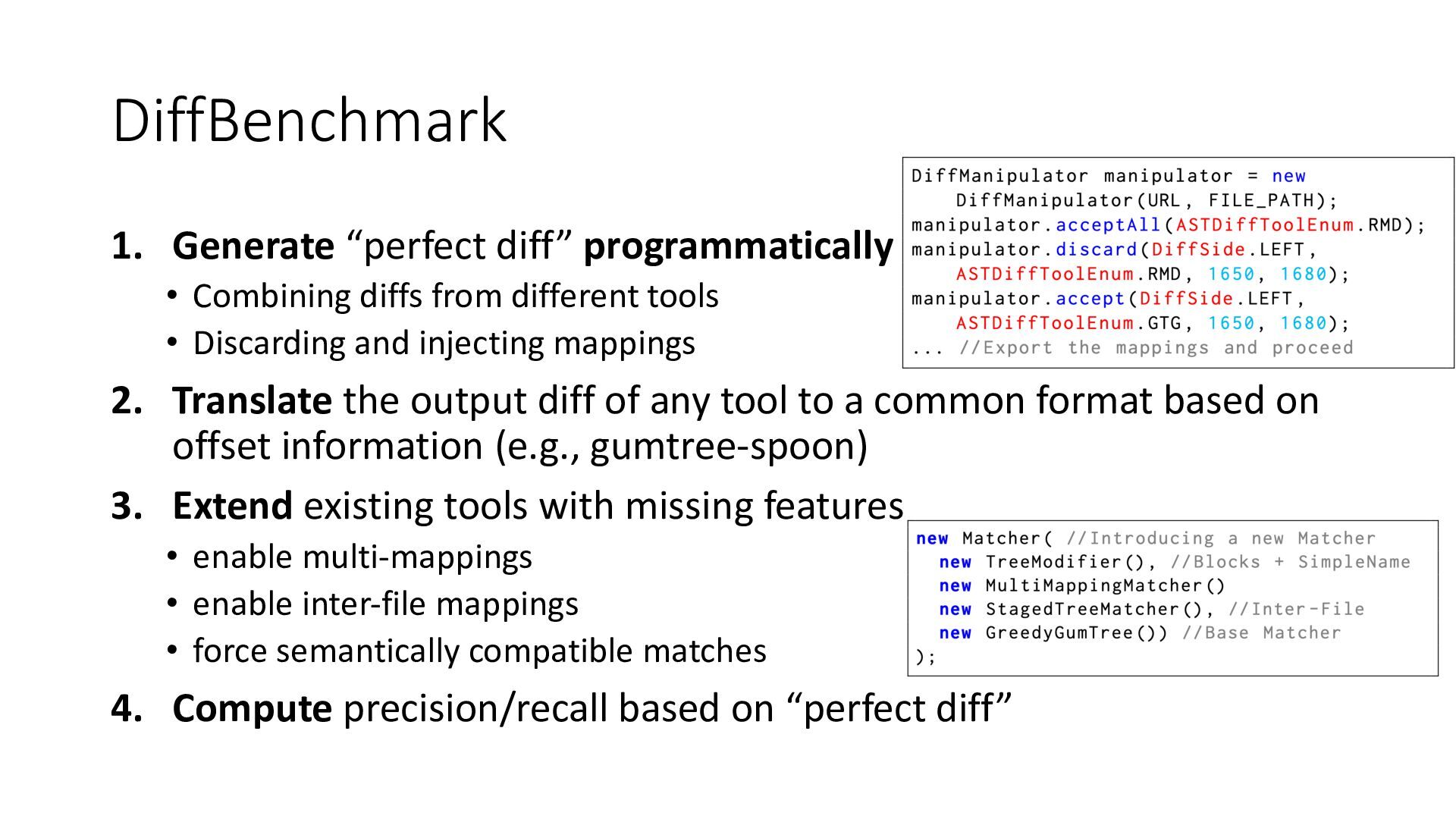

73. DiffBenchmark 1. Generate “perfect diff” programmatically • Combining diffs from different tools • Discarding and injecting mappings 2. Translate the output diff of any tool to a common format based on offset information (e.g., gumtree-spoon) 3. Extend existing tools with missing features • enable multi-mappings • enable inter-file mappings • force semantically compatible matches 4. Compute precision/recall based on “perfect diff”
74. https://github.com/tsantalis/RefactoringMiner https://github.com/pouryafard75/DiffBenchmark
