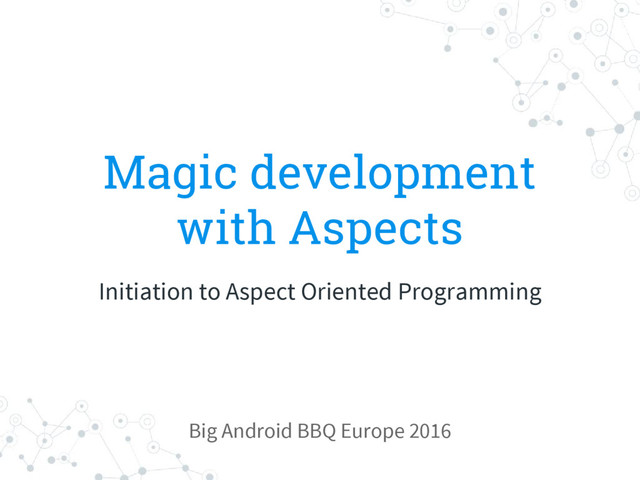

Magic Development with Aspects (Big Android BBQ Europe 2016)

Xavier Gouchet

August 16, 2016
Tweet

More Decks by Xavier Gouchet

Other Decks in Programming

Transcript

  1. About... Xavier F. Gouchet Android Architect Jenkins/Sonar Admin Bad Puns

    Advocate @xgouchet on Github, StackOverflow, Twitter, …
  2. “ “Let's start at the very beginning (A very good

    place to start)” Julie Andrews @xgouchet
  3. It’s NOT ... ◎ A new programming language ◎ Something

    to replace OOP ◎ The solution to all your problems ! @xgouchet
  4. It is a tool to ... ◎ Enhance modularity ◎

    Separate cross cutting concerns ◎ Focus on business logic ◎ Reduce noise in the source code @xgouchet
  5. “ “Let me tell you a story (to chill the

    bones)” Iron Maiden @xgouchet
  6. void foo() { Log.v("Tag", "foo"); beginTransaction(); try { bar(); //

    ... setTransactionSuccessful(); } catch (Exception e) { reportError(e); } finally { endTransaction(); } Log.v("Tag", "foo done"); } Before / After
  7. void foo() { Log.v("Tag", "foo"); beginTransaction(); try { bar(); //

    ... setTransactionSuccessful(); } catch (Exception e) { reportError(e); } finally { endTransaction(); } Log.v("Tag", "foo done"); } Before / After
  8. void foo() { Log.v("Tag", "foo"); beginTransaction(); try { bar(); //

    ... setTransactionSuccessful(); } catch (Exception e) { reportError(e); } finally { endTransaction(); } Log.v("Tag", "foo done"); } Before / After
  9. void foo() { Log.v("Tag", "foo"); beginTransaction(); try { bar(); //

    ... setTransactionSuccessful(); } catch (Exception e) { reportError(e); } finally { endTransaction(); } Log.v("Tag", "foo done"); } Before / After
  10. void foo() { Log.v("Tag", "foo"); beginTransaction(); try { bar(); //

    ... setTransactionSuccessful(); } catch (Exception e) { reportError(e); } finally { endTransaction(); } Log.v("Tag", "foo done"); } Before / After
  11. void foo() { Log.v("Tag", "foo"); beginTransaction(); try { bar(); //

    ... setTransactionSuccessful(); } catch (Exception e) { reportError(e); } finally { endTransaction(); } Log.v("Tag", "foo done"); } Before / After
  12. input[type=text] { font-family: monospace; } blockquote:before { content: '\201C'; font-size:

    300%; font-family: serif; } #nav-home p { color: #FF4630; cursor: pointer; } .contact img:hover { border: 1px #004080; } CSS + HTML
  13. CSS Attributes Changes in appearance applied to … Elements Nodes

    in the source code , defined by … Selectors Rules and patterns @xgouchet
  14. “ “If you know how to use CSS, Then you

    know how to use AOP” …me @xgouchet
  15. Pointcuts Rules and patterns JoinPoints Positions in the source code

    , defined by … Advices Changes in behavior applied to … Aspects @xgouchet
  16. Wizardry or Witchcraft @Aspect public class PreventNPEAspect { @Pointcut("within(com.example.model.*)") public

    void withinModelClass() {} @Around("withinModelClass() && execution(* *(..))") public void advice(ProceeJoinPoint jp) { Object[] args = jp.getArgs(); for (int i = 0; i < args.length; i++) { if (args[i] == null) { args[i] = ""; } } jp.proceed(args); } }
  17. Wizardry or Witchcraft @Aspect public class PreventNPEAspect { @Around("execution(@PreventStringNPE *

    *(..))") public void advice(ProceeJoinPoint jp) { Object[] args = jp.getArgs(); for (int i = 0; i < args.length; i++) { if (args[i] == null) { args[i] = ""; } } jp.proceed(args); } }
  18. “ “I wanna find some answers I wanna ask for

    some help ” Bruce Springsteen @xgouchet
  19. FAQ ◎ What about stack traces ? Caused by: java.lang.RuntimeException

    at com.sample.aspectMyAspect.myAdvice(MyAspect.java:666) at com.app.model.Foo.bar(Foo.java:69) at com.app.model.Foo.<init>(Foo.java:42) at java.lang.Class.newInstance(Native Method) <9 more> ◎ What about breakpoints ? Stepping through your code is ok ◎ What about proguard ? Obfuscation performed after weaving @xgouchet
  20. Bad practices and code smells ◎ Pokemon (gotta catch’em all)

    ◎ Wizard of Oz (pay no attention to the man behind the curtain) ◎ Dr Octopus (my left tentacle doesn’t know what my right is doin’) ◎ Inception (aspects within aspects …) ◎ MacGyver (the swiss army knife @xgouchet
  21. More about AspectJ… ◎ Aspects are singleton by default ◎

    Inter-type declarations ◦ Change class hierarchy ◦ Add fields ◎ Declare aspects precedence ◎ Patch jar libraries @xgouchet
  22. Things to remember ◎ Focus on Cross Cutting concerns ◎

    If you can do it more easily with OOP don’t use AOP ◎ You can only weave code you own @xgouchet
  23. Writing Aspects… ◎ Inheritance, abstracts, generics, inner classes… ◎ Unit

    tests ◎ Android flavors ◎ AOP is real programming @xgouchet
  24. Useful links ◎ Android AspectJ plugin ◦ https://github.com/deezer/Android-Aspectj-Plugin ◎ Counsel

    ◦ https://github.com/deezer/Counsel ◎ AspectJ Documentation ◦ https://eclipse.org/aspectj/doc/next/progguide/ @xgouchet
