  1. Introduction decksh is a Domain-Specific Language (DSL) for making presentations,

    visualizations, and information displays. This reference describes the keywords and elements of the language, how to structure decksh code, along with how to use variables, assignments, and binary operations. Also included is a color reference and a detailed description, with examples, for all decksh elements.

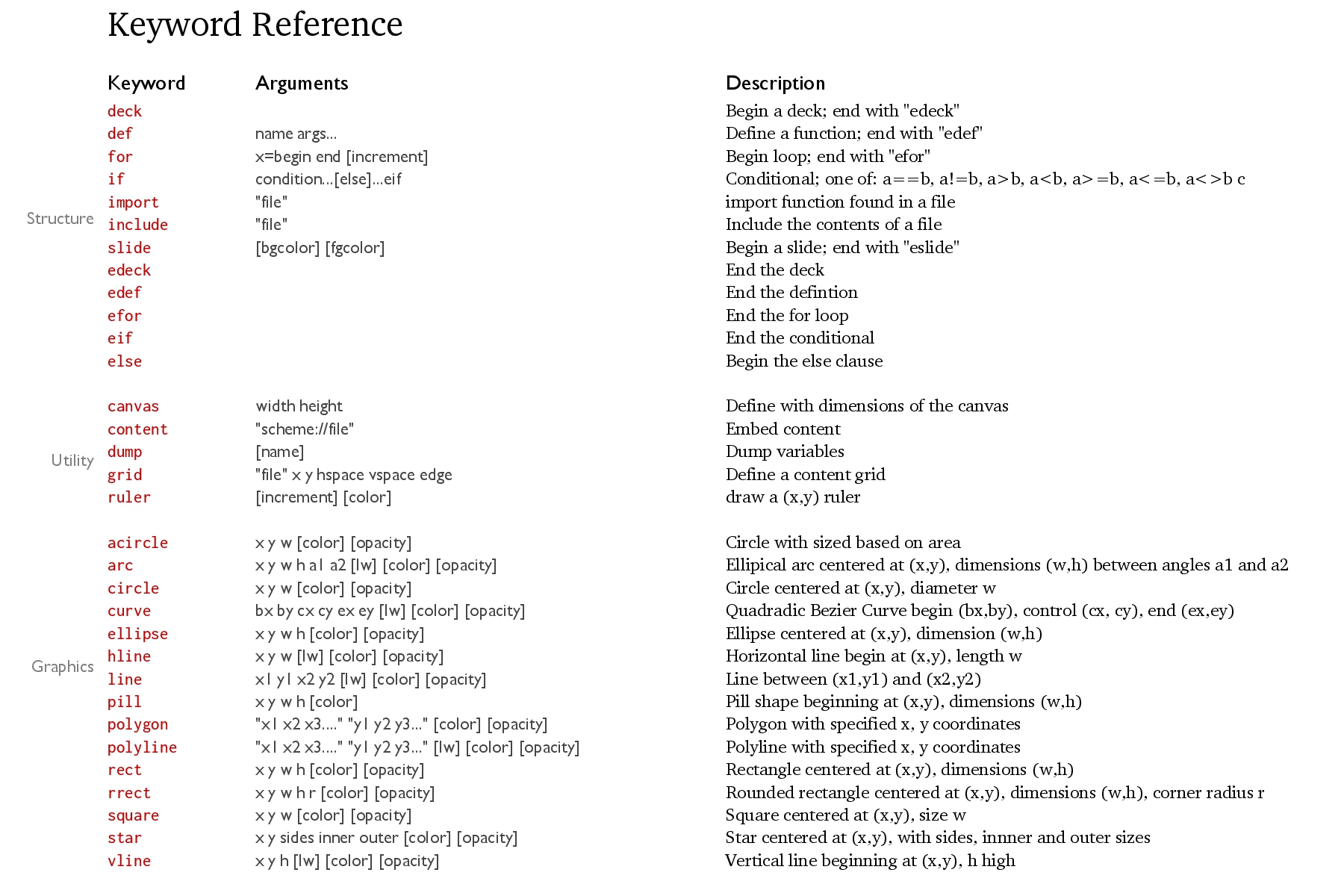

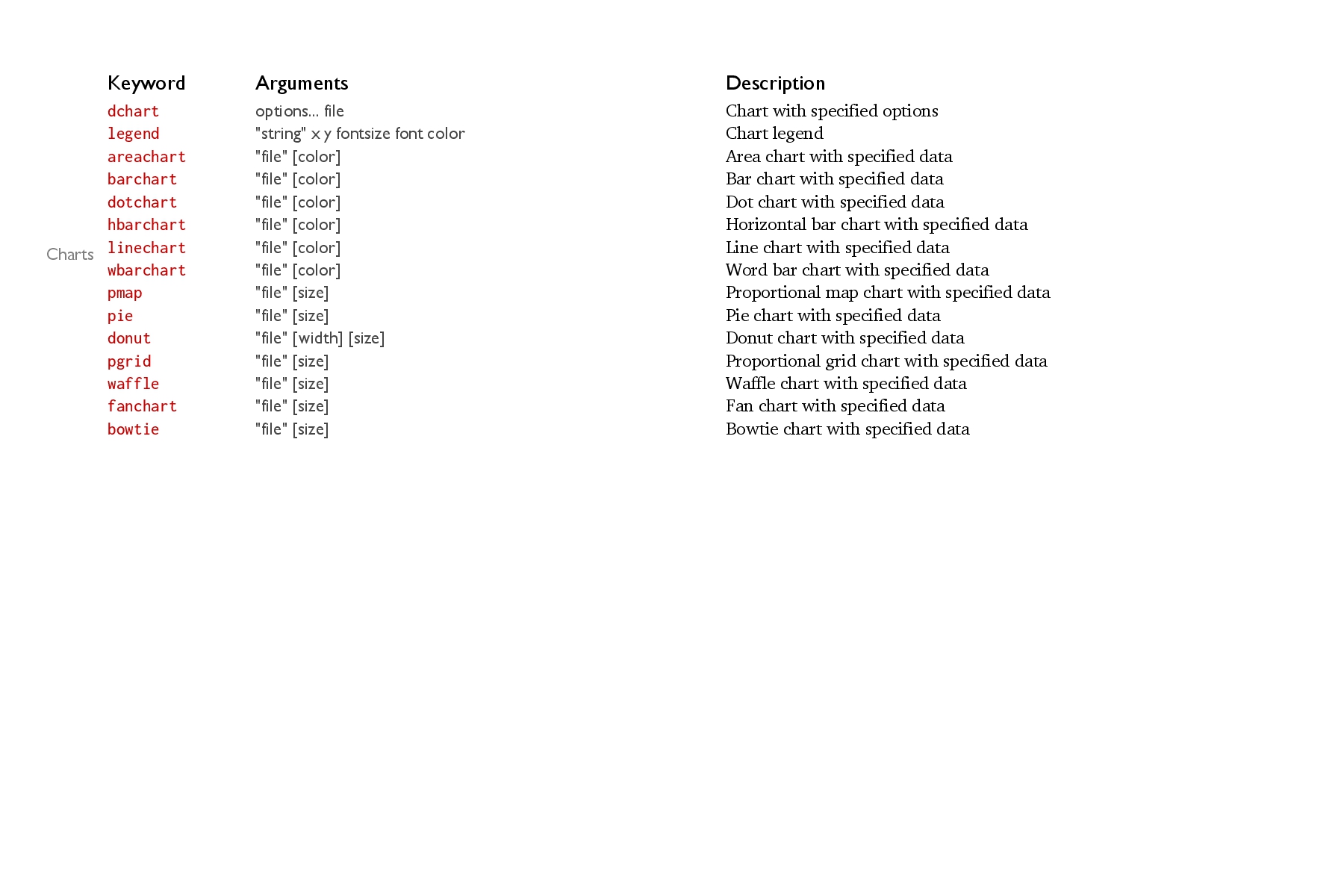

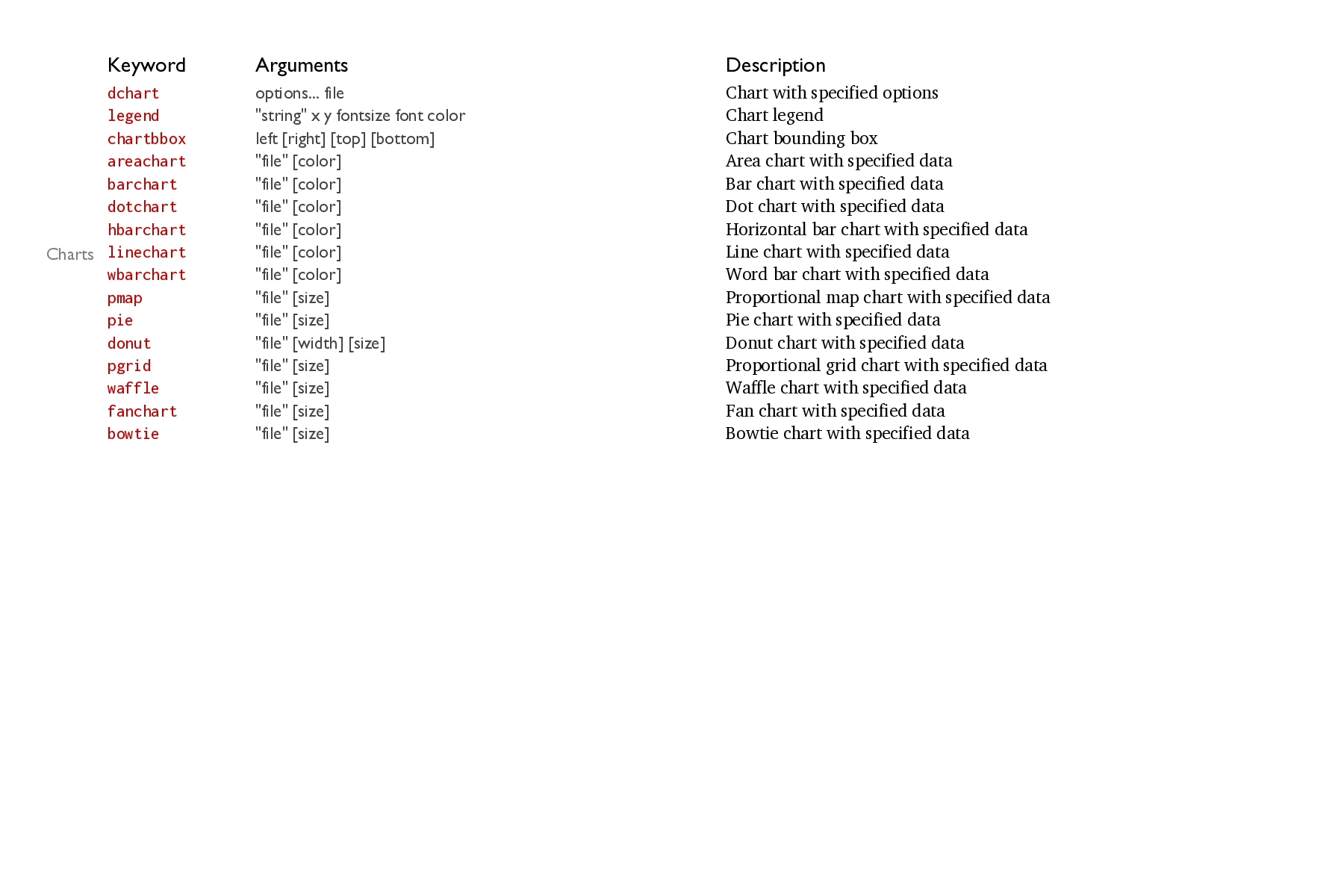

  2. Keywords Structure Text Lists Graphics Braces Arrows Images Charts Loop

    Assignments Math Data deck/edeck slide/eslide canvas def/edef func grid import include if/else/eif text btext ctext etext rtext arctext textblock textblockfile textfile textcode list blist nlist clist li elist acircle arc circle curve ellipse hline line pill polygon polyline rect rrect square star vline lbrace rbrace ubrace dbrace lbracket rbracket dbracket ubracket arrow rcarrow lcarrow ucarrow dcarrow image cimage dchart legend for/efor polar polarx polary random area format substr vmap cosine sine sqrt tangent data edata content
  3. Keywords and arguments text "..string...." x y n "font" "color"

    op keyword arguments mandatory optional text "hello, world" 80 50 2 text "hello, world" 80 40 2 "serif" text "hello, world" 80 30 2 "serif" "red" text "hello, world" 80 20 2 "serif" "red" 50 hello, world hello, world hello, world hello, world
  4. Structure // This is a comment deck canvas 1920 1080

    x=20 // define x y=80 slide text "first" x y 2 eslide slide "black" "white" include "file.dsh" eslide edeck ctext "hello, world" 50 25 10 circle 50 0 100 "blue" for x=20 80 10 circle x 75 2 efor comment canvas size hint (width height) inline comment deck variables slide 1 slide 2
  5. 10 20 30 40 50 60 70 80 90 10

    20 30 40 50 60 70 80 90 Percent Grid (30,20) (90,80) (50,50) (20,70) (60,70) len=20 w=10
  6. Defining and using variables name is thing Note: the reserved

    variable deckshVersion contains the version of decksh 2024-09-16-1.0.0 x = 3.14159265 s = "hello" y = x x = a + b x *= 10 text s x y 2 number string another variable binary operation assignment operator variable use
  7. Binary operators x = a + b x = a

    - b x = a * b x = a / b x = a % b addition subtraction multiplication division modulo
  8. Assignment operators x += 10 x -= 10 x *=

    10 x /= 10 increase x by 10 decrease x by 10 multiply x by 10 divide x by 10
  9. Special Assignments p=(expr, expr) p=polar cx cy r theta x=polarx

    cx cy r theta y=polary cx cy r theta v=format string expr v=substr string begin end v=random v1 v2 v=vmap data v1 v2 v3 v4 v=area expr v=cosine expr v=sine expr v=sqrt expr v=tangent expr coordinates (p_x, p_y) polar coordinate (p_x, p_y) polar coordinate (x) polar coordinate (y) number formatting substring random number range map area cosine sine square root tangent
  10. Colors, fonts, opacity, gradient Colors Fonts Opacity (0-100) "red/blue/90" (applies

    to rect and square only) "steelblue" "#4682b4" "rgb(70,130,180)" "hsv(207,61,71)" "sans" "serif" "mono" "symbol" Sans Serif Serif Monospace `abcd 100 50 25 10
  11. Color Index name hex RGB aliceblue #f0f8ff rgb(240,248,255) antiquewhite #faebd7

    rgb(250,235,215) aqua #00ffff rgb(0,255,255) aquamarine #7fffd4 rgb(127,255,212) azure #f0ffff rgb(240,255,255) beige #f5f5dc rgb(245,245,220) bisque #ffe4c4 rgb(255,228,196) black #000000 rgb(0,0,0) blanchedalmond #ffebcd rgb(255,235,205) blue #0000ff rgb(0,0,255) blueviolet #8a2be2 rgb(138,43,226) brown #a52a2a rgb(165,42,42) burlywood #deb887 rgb(222,184,135) cadetblue #5f9ea0 rgb(95,158,160) chartreuse #7fff00 rgb(127,255,0) chocolate #d2691e rgb(210,105,30) name hex RGB coral #ff7f50 rgb(255,127,80) cornflowerblue #6495ed rgb(100,149,237) cornsilk #fff8dc rgb(255,248,220) crimson #dc143c rgb(220,20,60) cyan #00ffff rgb(0,255,255) darkblue #00008b rgb(0,0,139) darkcyan #008b8b rgb(0,139,139) darkgoldenrod #b8860b rgb(184,134,11) darkgray #a9a9a9 rgb(169,169,169) darkgreen #006400 rgb(0,100,0) darkgrey #a9a9a9 rgb(169,169,169) darkkhaki #bdb76b rgb(189,183,107) darkmagenta #8b008b rgb(139,0,139) darkolivegreen #556b2f rgb(85,107,47) darkorange #ff8c00 rgb(255,140,0) darkorchid #9932cc rgb(153,50,204)
  12. Color Index (2) name hex RGB darkred #8b0000 rgb(139,0,0) darksalmon

    #e9967a rgb(233,150,122) darkseagreen #8fbc8f rgb(143,188,143) darkslateblue #483d8b rgb(72,61,139) darkslategray #2f4f4f rgb(47,79,79) darkslategrey #2f4f4f rgb(47,79,79) darkturquoise #00ced1 rgb(0,206,209) darkviolet #9400d3 rgb(148,0,211) deeppink #ff1493 rgb(255,20,147) deepskyblue #00bfff rgb(0,191,255) dimgray #696969 rgb(105,105,105) dimgrey #696969 rgb(105,105,105) dodgerblue #1e90ff rgb(30,144,255) firebrick #b22222 rgb(178,34,34) floralwhite #fffaf0 rgb(255,250,240) forestgreen #228b22 rgb(34,139,34) name hex RGB fuchsia #ff00ff rgb(255,0,255) gainsboro #dcdcdc rgb(220,220,220) ghostwhite #f8f8ff rgb(248,248,255) gold #ffd700 rgb(255,215,0) goldenrod #daa520 rgb(218,165,32) gray #808080 rgb(128,128,128) green #008000 rgb(0,128,0) greenyellow #adff2f rgb(173,255,47) grey #808080 rgb(128,128,128) honeydew #f0fff0 rgb(240,255,240) hotpink #ff69b4 rgb(255,105,180) indianred #cd5c5c rgb(205,92,92) indigo #4b0082 rgb(75,0,130) ivory #fffff0 rgb(255,255,240) khaki #f0e68c rgb(240,230,140) lavender #e6e6fa rgb(230,230,250)
  13. Color Index (3) name hex RGB lavenderblush #fff0f5 rgb(255,240,245) lawngreen

    #7cfc00 rgb(124,252,0) lemonchiffon #fffacd rgb(255,250,205) lightblue #add8e6 rgb(173,216,230) lightcoral #f08080 rgb(240,128,128) lightcyan #e0ffff rgb(224,255,255) lightgoldenrodyellow #fafad2 rgb(250,250,210) lightgray #d3d3d3 rgb(211,211,211) lightgreen #90ee90 rgb(144,238,144) lightgrey #d3d3d3 rgb(211,211,211) lightpink #ffb6c1 rgb(255,182,193) lightsalmon #ffa07a rgb(255,160,122) lightseagreen #20b2aa rgb(32,178,170) lightskyblue #87cefa rgb(135,206,250) lightslategray #778899 rgb(119,136,153) lightslategrey #778899 rgb(119,136,153) name hex RGB lightsteelblue #b0c4de rgb(176,196,222) lightyellow #ffffe0 rgb(255,255,224) lime #00ff00 rgb(0,255,0) limegreen #32cd32 rgb(50,205,50) linen #faf0e6 rgb(250,240,230) magenta #ff00ff rgb(255,0,255) maroon #800000 rgb(128,0,0) mediumaquamarine #66cdaa rgb(102,205,170) mediumblue #0000cd rgb(0,0,205) mediumorchid #ba55d3 rgb(186,85,211) mediumpurple #9370db rgb(147,112,219) mediumseagreen #3cb371 rgb(60,179,113) mediumslateblue #7b68ee rgb(123,104,238) mediumspringgreen #00fa9a rgb(0,250,154) mediumturquoise #48d1cc rgb(72,209,204) mediumvioletred #c71585 rgb(199,21,133)
  14. Color Index (4) name hex RGB midnightblue #191970 rgb(25,25,112) mintcream

    #f5fffa rgb(245,255,250) mistyrose #ffe4e1 rgb(255,228,225) moccasin #ffe4b5 rgb(255,228,181) navajowhite #ffdead rgb(255,222,173) navy #000080 rgb(0,0,128) oldlace #fdf5e6 rgb(253,245,230) olive #808000 rgb(128,128,0) olivedrab #6b8e23 rgb(107,142,35) orange #ffa500 rgb(255,165,0) orangered #ff4500 rgb(255,69,0) orchid #da70d6 rgb(218,112,214) palegoldenrod #eee8aa rgb(238,232,170) palegreen #98fb98 rgb(152,251,152) paleturquoise #afeeee rgb(175,238,238) palevioletred #db7093 rgb(219,112,147) name hex RGB papayawhip #ffefd5 rgb(255,239,213) peachpuff #ffdab9 rgb(255,218,185) peru #cd853f rgb(205,133,63) pink #ffc0cb rgb(255,192,203) plum #dda0dd rgb(221,160,221) powderblue #b0e0e6 rgb(176,224,230) purple #800080 rgb(128,0,128) red #ff0000 rgb(255,0,0) rosybrown #bc8f8f rgb(188,143,143) royalblue #4169e1 rgb(65,105,225) saddlebrown #8b4513 rgb(139,69,19) salmon #fa8072 rgb(250,128,114) sandybrown #f4a460 rgb(244,164,96) seagreen #2e8b57 rgb(46,139,87) seashell #fff5ee rgb(255,245,238) sienna #a0522d rgb(160,82,45)
  15. Color Index (5) name hex RGB silver #c0c0c0 rgb(192,192,192) skyblue

    #87ceeb rgb(135,206,235) slateblue #6a5acd rgb(106,90,205) slategray #708090 rgb(112,128,144) slategrey #708090 rgb(112,128,144) snow #fffafa rgb(255,250,250) springgreen #00ff7f rgb(0,255,127) steelblue #4682b4 rgb(70,130,180) tan #d2b48c rgb(210,180,140) teal #008080 rgb(0,128,128) thistle #d8bfd8 rgb(216,191,216) tomato #ff6347 rgb(255,99,71) turquoise #40e0d0 rgb(64,224,208) violet #ee82ee rgb(238,130,238) wheat #f5deb3 rgb(245,222,179) white #ffffff rgb(255,255,255) name hex RGB whitesmoke #f5f5f5 rgb(245,245,245) yellow #ffff00 rgb(255,255,0) yellowgreen #9acd32 rgb(154,205,50)
  16. Neutrals name hex RGB aliceblue #f0f8ff rgb(240,248,255) antiquewhite #faebd7 rgb(250,235,215)

    azure #f0ffff rgb(240,255,255) beige #f5f5dc rgb(245,245,220) bisque #ffe4c4 rgb(255,228,196) black #000000 rgb(0,0,0) blanchedalmond #ffebcd rgb(255,235,205) brown #a52a2a rgb(165,42,42) burlywood #deb887 rgb(222,184,135) chocolate #d2691e rgb(210,105,30) cornsilk #fff8dc rgb(255,248,220) darkgray #a9a9a9 rgb(169,169,169) darkgrey #a9a9a9 rgb(169,169,169) darksalmon #e9967a rgb(233,150,122) darkslategray #2f4f4f rgb(47,79,79) darkslategrey #2f4f4f rgb(47,79,79) name hex RGB dimgray #696969 rgb(105,105,105) dimgrey #696969 rgb(105,105,105) floralwhite #fffaf0 rgb(255,250,240) gainsboro #dcdcdc rgb(220,220,220) ghostwhite #f8f8ff rgb(248,248,255) gray #808080 rgb(128,128,128) grey #808080 rgb(128,128,128) honeydew #f0fff0 rgb(240,255,240) ivory #fffff0 rgb(255,255,240) lavender #e6e6fa rgb(230,230,250) lavenderblush #fff0f5 rgb(255,240,245) lightgray #d3d3d3 rgb(211,211,211) lightgrey #d3d3d3 rgb(211,211,211) lightslategray #778899 rgb(119,136,153) lightslategrey #778899 rgb(119,136,153) linen #faf0e6 rgb(250,240,230)
  17. Neutrals (2) name hex RGB mintcream #f5fffa rgb(245,255,250) mistyrose #ffe4e1

    rgb(255,228,225) moccasin #ffe4b5 rgb(255,228,181) navajowhite #ffdead rgb(255,222,173) oldlace #fdf5e6 rgb(253,245,230) papayawhip #ffefd5 rgb(255,239,213) peachpuff #ffdab9 rgb(255,218,185) peru #cd853f rgb(205,133,63) rosybrown #bc8f8f rgb(188,143,143) saddlebrown #8b4513 rgb(139,69,19) salmon #fa8072 rgb(250,128,114) sandybrown #f4a460 rgb(244,164,96) seashell #fff5ee rgb(255,245,238) sienna #a0522d rgb(160,82,45) silver #c0c0c0 rgb(192,192,192) slategray #708090 rgb(112,128,144) name hex RGB slategrey #708090 rgb(112,128,144) snow #fffafa rgb(255,250,250) tan #d2b48c rgb(210,180,140) wheat #f5deb3 rgb(245,222,179) white #ffffff rgb(255,255,255) whitesmoke #f5f5f5 rgb(245,245,245)
  18. Reds name hex RGB coral #ff7f50 rgb(255,127,80) crimson #dc143c rgb(220,20,60)

    darkmagenta #8b008b rgb(139,0,139) darkred #8b0000 rgb(139,0,0) deeppink #ff1493 rgb(255,20,147) firebrick #b22222 rgb(178,34,34) fuchsia #ff00ff rgb(255,0,255) hotpink #ff69b4 rgb(255,105,180) indianred #cd5c5c rgb(205,92,92) lightcoral #f08080 rgb(240,128,128) lightpink #ffb6c1 rgb(255,182,193) lightsalmon #ffa07a rgb(255,160,122) magenta #ff00ff rgb(255,0,255) maroon #800000 rgb(128,0,0) orangered #ff4500 rgb(255,69,0) orchid #da70d6 rgb(218,112,214) name hex RGB palevioletred #db7093 rgb(219,112,147) pink #ffc0cb rgb(255,192,203) plum #dda0dd rgb(221,160,221) red #ff0000 rgb(255,0,0) thistle #d8bfd8 rgb(216,191,216) tomato #ff6347 rgb(255,99,71)
  19. Greens name hex RGB aquamarine #7fffd4 rgb(127,255,212) chartreuse #7fff00 rgb(127,255,0)

    darkgreen #006400 rgb(0,100,0) darkkhaki #bdb76b rgb(189,183,107) darkolivegreen #556b2f rgb(85,107,47) darkseagreen #8fbc8f rgb(143,188,143) forestgreen #228b22 rgb(34,139,34) green #008000 rgb(0,128,0) greenyellow #adff2f rgb(173,255,47) lawngreen #7cfc00 rgb(124,252,0) lightgreen #90ee90 rgb(144,238,144) lightseagreen #20b2aa rgb(32,178,170) lime #00ff00 rgb(0,255,0) limegreen #32cd32 rgb(50,205,50) mediumseagreen #3cb371 rgb(60,179,113) mediumspringgreen #00fa9a rgb(0,250,154) name hex RGB olive #808000 rgb(128,128,0) olivedrab #6b8e23 rgb(107,142,35) palegreen #98fb98 rgb(152,251,152) seagreen #2e8b57 rgb(46,139,87) springgreen #00ff7f rgb(0,255,127) teal #008080 rgb(0,128,128) yellowgreen #9acd32 rgb(154,205,50)
  20. Blues name hex RGB aqua #00ffff rgb(0,255,255) blue #0000ff rgb(0,0,255)

    cadetblue #5f9ea0 rgb(95,158,160) cornflowerblue #6495ed rgb(100,149,237) cyan #00ffff rgb(0,255,255) darkblue #00008b rgb(0,0,139) darkcyan #008b8b rgb(0,139,139) darkslateblue #483d8b rgb(72,61,139) darkturquoise #00ced1 rgb(0,206,209) deepskyblue #00bfff rgb(0,191,255) dodgerblue #1e90ff rgb(30,144,255) lightblue #add8e6 rgb(173,216,230) lightcyan #e0ffff rgb(224,255,255) lightskyblue #87cefa rgb(135,206,250) lightsteelblue #b0c4de rgb(176,196,222) mediumaquamarine #66cdaa rgb(102,205,170) name hex RGB mediumblue #0000cd rgb(0,0,205) mediumslateblue #7b68ee rgb(123,104,238) mediumturquoise #48d1cc rgb(72,209,204) midnightblue #191970 rgb(25,25,112) navy #000080 rgb(0,0,128) paleturquoise #afeeee rgb(175,238,238) powderblue #b0e0e6 rgb(176,224,230) royalblue #4169e1 rgb(65,105,225) skyblue #87ceeb rgb(135,206,235) slateblue #6a5acd rgb(106,90,205) steelblue #4682b4 rgb(70,130,180) turquoise #40e0d0 rgb(64,224,208)
  21. Violets name hex RGB blueviolet #8a2be2 rgb(138,43,226) darkorchid #9932cc rgb(153,50,204)

    darkviolet #9400d3 rgb(148,0,211) indigo #4b0082 rgb(75,0,130) mediumorchid #ba55d3 rgb(186,85,211) mediumpurple #9370db rgb(147,112,219) mediumvioletred #c71585 rgb(199,21,133) purple #800080 rgb(128,0,128) violet #ee82ee rgb(238,130,238)
  22. Yellows name hex RGB darkgoldenrod #b8860b rgb(184,134,11) darkorange #ff8c00 rgb(255,140,0)

    gold #ffd700 rgb(255,215,0) goldenrod #daa520 rgb(218,165,32) khaki #f0e68c rgb(240,230,140) lemonchiffon #fffacd rgb(255,250,205) lightgoldenrodyellow #fafad2 rgb(250,250,210) lightyellow #ffffe0 rgb(255,255,224) orange #ffa500 rgb(255,165,0) palegoldenrod #eee8aa rgb(238,232,170) yellow #ffff00 rgb(255,255,0)
  23. sky decksh version 2024-09-16-1.0.0 (b)text ctext etext rtext arctext textbox

    textfile textcode line hline vline arc curve polyline circle acircle ellipse square rect rrect pill polygon star image cimage lbrace rbrace ubrace dbrace lbracket rbracket ubracket dbracket arrow lcarrow rcarrow dcarrow ucarrow list blist nlist clist begin center end rotate h e l l o, w o r l d Now is the time for all good men to come This is the contents of a file. it has lines of text. Reading is fundamental. import "fmt" func main() { fmt.Println("Go") } one two three one two three 1. one 2. two 3. three first second item thrid

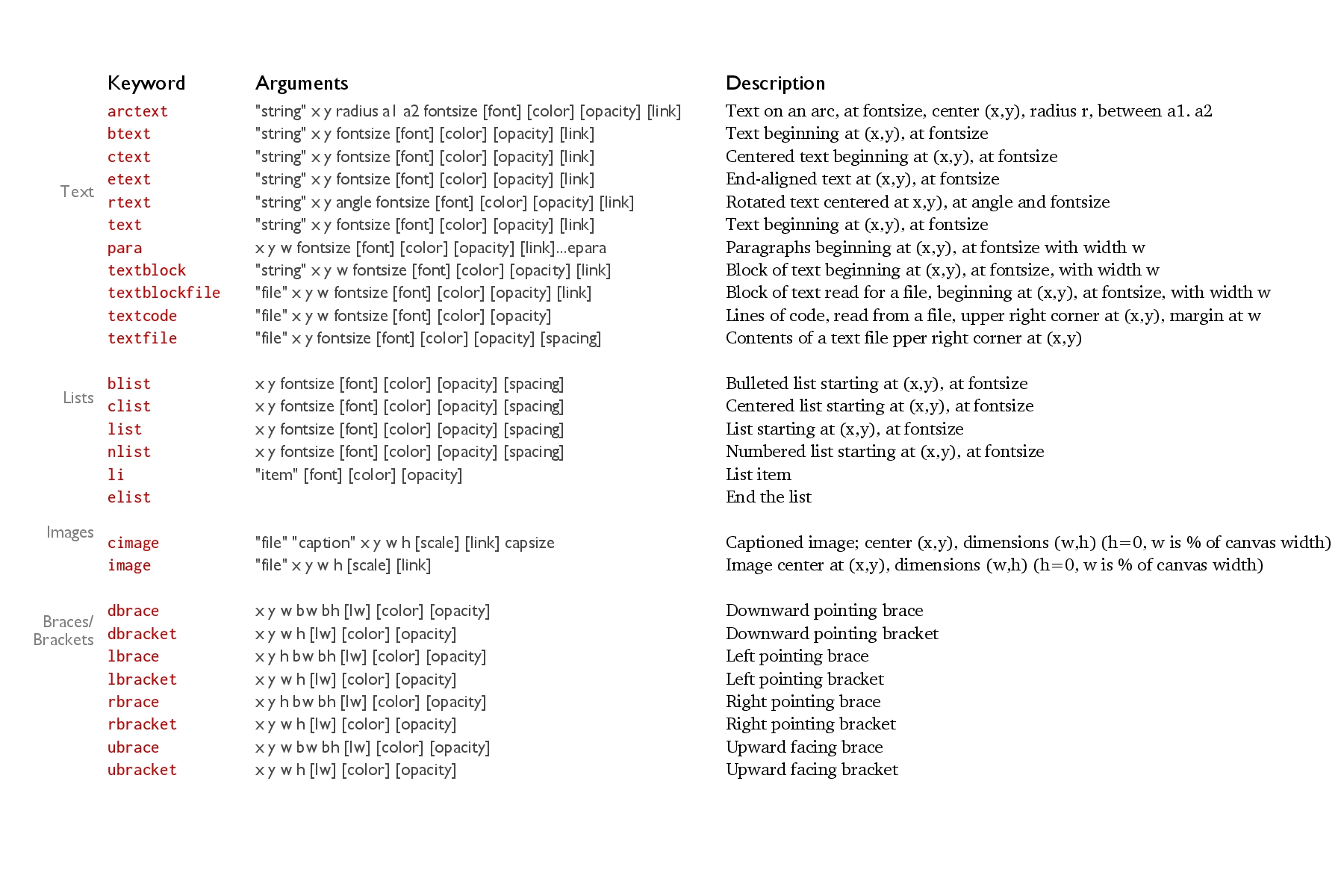

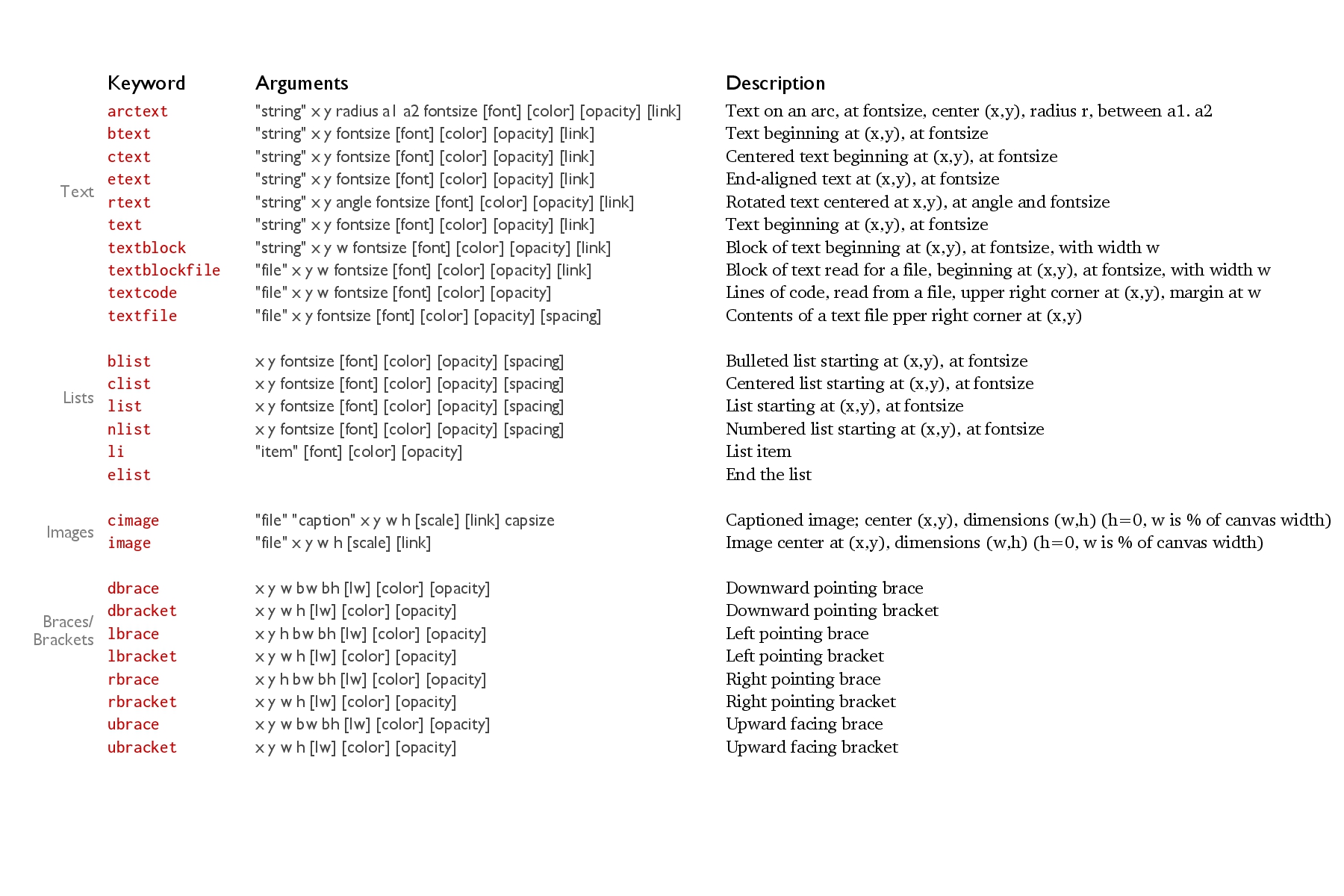

  24. Textual Elements description Left-aligned Centered End-aligned Rotated Text on an

    arc Block text Block text from file File contents Code listing keyword text ctext etext rtext arctext textblock textblockfile textfile textcode mandatory "..." x y fontsize "..." x y fontsize "..." x y fontsize "..." x y angle fontsize "..." x y rad a1 a2 fontsize "..." x y w fontsize "file" x y w fontsize "file" x y fontsize "file" x y w fontsize optional font color op link font color op link font color op link font color op link font color op link font color op link font color op link font color op spacing font color
  25. hello, world text "..." x y fontsize font color op

    link (x,y) abc abc text "abc" 20 20 4 text "abc" 75 20 7 "mono" "maroon"
  26. hello, world ctext "..." x y fontsize font color op

    link (x,y) abc abc ctext "abc" 20 20 4 ctext "abc" 80 20 7 "mono" "maroon"
  27. hello, world etext "..." x y fontsize font color op

    link (x,y) abc abc etext "abc" 20 20 4 etext "abc" 80 20 7 "mono" "maroon"
  28. hello, world rtext "..." x y angle fontsize font color

    op link (x,y) abc abc abc rtext 20 20 30 3 rtext 50 20 90 5 rtext 80 20 270 4 "sans" "maroon"
  29. hell o there w orld (x,y) a1 a2 arctext "..."

    x y radius a1 a2 fontsize font color op link What is up T h i s i s c u r v y arctext "What is up" 25 20 10 180 90 3 "mono" arctext "This is curvy" 75 30 10 180 360 3 "mono"
  30. “Where justice is denied, where poverty is enforced, where ignorance

    prevails, and where any one class is made to feel that society is an organized conspiracy to oppress, rob and degrade them, neither persons nor property will be safe.” (x,y) w textblock "..." x y w fontsize font color op link “Where justice is denied, where poverty is enforced, where ignorance prevails, and where any one class is made to feel that society is an organized conspiracy to oppress, rob and degrade them, neither persons nor property will be safe.” “Where justice is denied, where poverty is enforced, where ignorance prevails, and where any one class is made to feel that society is an organized conspiracy to oppress, rob and degrade them, neither persons nor property will be safe.” textblock "..." 10 35 30 2 textblock "..." 50 35 10 1 "sans" "maroon"
  31. This is the contents of a file. it has lines

    of text. Reading is fundamental. (x,y) textfile "..." x y fontsize font color op link This is the contents of a file. it has lines of text. Reading is fundamental. textfile "example.txt" 10 35 2 import "fmt" func main() { fmt.Println("Go") } textfile "hw-go" 55 35 1.6 "mono" "maroon"
  32. import "fmt" func main() { fmt.Println("Go") } (x,y) textcode "..."

    x y w fontsize font color w import "fmt" func main() { fmt.Println("Go") } textcode "hw-go" 10 35 25 1.0 import "fmt" func main() { fmt.Println("Go") } textcode "hw-go" 55 35 40 1.6 "maroon"
  33. Graphical Elements description Line Horizontal line Vertical line Elliptical arc

    Quadratic Bezier Circle Area circle Ellipse Square Rectangle Rounded rectangle Pill shape Polygon Polyline N-sided star keyword line hline vline arc curve circle acircle ellipse square rect rrect pill polygon polyline star mandatory x1 y1 x2 y2 lw x y w x y h x y w h a1 a2 bx by cx cy ex ey x y w x y area x y w h x y w x y w h x y w h radius x y w h "x1 x2...xn" "y1 y2...yn" "x1 x2...xn" "y1 y2...yn" x y sides inner outer optional color op lw color op lw color op lw color op lw color op color op color op color op color op color op color color color op lw color op color op
  34. (x1,y1) (x2,y2) line x1 y1 x2 y2 lw color op

    lw line 10 20 30 20 line 40 20 60 30 0.5 line 70 20 95 30 1.5 "maroon"
  35. (x,y) hline x y w lw color op w lw

    hline 15 20 10 hline 40 20 20 1 hline 70 20 20 5 "maroon" 20
  36. vline x y w lw color op (x,y) lw h

    vline 20 20 15 vline 50 20 15 2 vline 80 20 15 10 "maroon" 20
  37. arc x y w h a1 a2 lw color op

    (x,y) w h a1 a2 arc 20 20 15 15 0 180 arc 50 20 15 15 0 90 1 arc 80 20 5 5 0 180 5 "maroon"
  38. (bx,by) (cx,cy) (ex,ey) curve bx by cx cy ex ey

    lw color op curve 15 20 25 30 30 25 curve 15 20 25 30 30 25 curve 70 20 70 30 90 25 0.5 "maroon"
  39. (x,y) w circle x y w color op circle 20

    20 10 circle 50 20 10 "maroon" circle 80 20 5 "maroon" 20
  40. (x,y) area circle x y area color op acircle 20

    20 10 acircle 50 20 10 "maroon" acircle 80 20 5 "maroon" 20
  41. (x,y) w h ellipse x y w h color op

    ellipse 20 20 10 5 ellipse 50 20 10 5 "maroon" ellipse 80 20 5 10 "maroon" 20
  42. (x,y) w square x y w color op square 20

    20 10 square 50 20 10 "maroon" square 80 20 5 "maroon" 20
  43. (x,y) w h rect x y w h color op

    rect 20 20 10 5 rect 50 20 10 5 "maroon" rect 80 20 5 10 "maroon" 20
  44. (x,y) radius w h rrect x y w h radius

    color op rrect 20 20 10 5 1 rrect 80 20 5 10 1 "maroon"
  45. (x,y) w h pill x y w h color pill

    20 20 10 5 pill 80 20 5 10 "maroon"
  46. (x1,y1) (x2,y2) (x3,y3) polygon x1 x2...xn" "y1 y2...yn color op

    polygon "10 25 20" "20 30 20" polygon "70 85 90" "20 30 20" "maroon"
  47. (x1,y1) (x2,y2) (x3,y3) polyline x1 x2...xn" "y1 y2...yn lw color

    op polyline "10 25 20" "20 30 20" polyline "70 85 90" "20 30 20" 0.2 "maroon"
  48. (x,y) outer inner star x y sides inner outer color

    op star 20 20 5 2 6 star 50 20 12 2 5 "maroon" star 80 ey 24 2 8 "maroon" 20
  49. Images If h = 0, w specifies the image width

    in terms of canvas width. The scale value is a percentage from 1-100, and link is a URL. capsize is the text size of the caption description Image Captioned image keyword image cimage mandatory "file" x y w h "file" "caption" x y w h optional scale "link" scale "link" capsize
  50. (x,y) w h image "file" x y w h scale

    link image "follow.jpg" 20 25 640 480 10 image "follow.jpg" 75 25 640 480 30
  51. sky sky sky (x,y) w h cimage "file" x y

    w h scale link cimage "cloudy.jpg" "sky" 20 25 640 480 10 cimage "cloudy.jpg" "sky" 75 25 640 480 30 "" 1.5
  52. Lists description Plain list Bullet list Numbered list Centered list

    keyword list blist nlist clist mandatory x y fontsize x y fontsize x y fontsize x y fontsize optional font color op spacing font color op spacing font color op spacing font color op spacing
  53. list x y fs li "first" li "second" li "third"

    elist list x y fontsize font color op spacing (x,y) list 20 30 2.5 li "one" li "two" li "three" elist list 85 30 2.5 "serif" "maroon" 100 1.0 li "one" li "two" li "three" elist one two three one two three
  54. blist x y fs li "first" li "second" li "third"

    elist blist x y fontsize font color op spacing (x,y) blist 20 30 2.5 li "one" li "two" li "three" elist blist 85 30 2.5 "serif" "maroon" 100 1.0 li "one" li "two" li "three" elist one two three one two three
  55. nlist x y fs li "first" li "second" li "third"

    elist nlist x y fontsize font color op spacing (x,y) nlist 20 30 2.5 li "one" li "two" li "three" elist nlist 85 30 2.5 "serif" "maroon" 100 1.0 li "one" li "two" li "three" elist 1. one 2. two 3. three 1. one 2. two 3. three
  56. clist x y fs li "first" li "second" li "third"

    elist clist x y fontsize font color op spacing (x,y) clist 30 30 2.5 li "first one" li "next" li "and last" elist clist 90 30 2.5 "serif" "maroon" 100 1.0 li "first" li "next" li "and last" elist first one next and last first next and last
  57. Arrows description Straight Left curved Right curved Up curved Down

    curved keyword arrow lcarrow rcarrow ucarrow dcarrow mandatory x1 y1 x2 y2 bx by cx cy ex ey bx by cx cy ex ey bx by cx cy ex ey bx by cx cy ex ey optional lw aw ah color op lw aw ah color op lw aw ah color op lw aw ah color op lw aw ah color op
  58. arrow x1 y1 x2 y2 lw aw ah color op

    (x1,y1) (x2,y2) lw ah aw arrow 10 20 30 20 arrow 40 20 60 30 0.5 arrow 70 20 95 30 1.5 6 6 "maroon"
  59. lcarrow bx by cx cy ex ey lw aw ah

    color op (bx,by) (cx,cy) (ex,ey) lcarrow 30 20 30 35 15 35 lcarrow 70 20 70 35 55 35 1 5 5 "maroon"
  60. rcarrow bx by cx cy ex ey lw aw ah

    color op (bx,by) (cx,cy) (ex,ey) rcarrow 15 20 15 35 30 35 rcarrow 50 20 50 35 70 35 1 5 5 "maroon"
  61. ucarrow bx by cx cy ex ey lw aw ah

    color op (bx,by) (cx,cy) (ex,ey) ucarrow 15 20 30 20 30 35 rcarrow 50 20 70 20 70 35 1 5 5 "maroon"
  62. dcarrow bx by cx cy ex ey lw aw ah

    color op (bx,by) (cx,cy) (ex,ey) dcarrow 15 35 30 30 20 dcarrow 50 35 70 35 70 20 1 5 5 "maroon"
  63. Braces and Brackets description Left brace Right brace Up brace

    Down brace Left bracket Right bracket Up bracket Down bracket keyword lbrace rbrace ubrace dbrace lbracket rbracket ubracket dbracket mandatory x y height bw bh x y height bw bh x y width bw bh x y width bw bh x y width height x y width height x y width height x y width height optional lw color op lw color op lw color op lw color op lw color op lw color op lw color op lw color op
  64. lbrace x y height bw bh lw color op (x,y)

    bw bh height lbrace 20 25 20 2 2 lbrace 50 25 20 4 4 1 lbrace 80 25 20 6 3 1 "maroon"
  65. rbrace x y height bw bh lw color op (x,y)

    bw bh height rbrace 20 25 20 2 2 rbrace 50 25 20 4 4 1 rbrace 80 25 20 6 3 1 "maroon"
  66. ubrace x y width bw bh lw color op (x,y)

    bw bh width ubrace 20 25 20 2 4 ubrace 50 25 20 4 8 1 ubrace 80 25 20 4 8 1 "maroon"
  67. dbrace x y width bw bh lw color op (x,y)

    bw bh width dbrace 20 25 20 2 4 dbrace 50 25 20 4 8 1 dbrace 80 25 20 4 8 1 "maroon"
  68. lbracket x y width height lw color op (x,y) width

    height lbrace 20 25 2 20 lbracket 50 25 4 20 1 lbracket 80 25 6 20 1 "maroon"
  69. rbracket x y width height lw color op (x,y) width

    height lbrace 20 25 2 20 rbracket 50 25 4 20 1 rbracket 80 25 6 20 1 "maroon"
  70. ubracket x y width height lw color op (x,y) height

    width ubracket 20 25 20 4 ubracket 50 25 20 4 0.3 ubracket 80 25 20 4 1 "maroon"
  71. dbracket x y width height lw color op (x,y) height

    width dbracket 20 25 20 4 dbracket 50 25 20 4 0.3 dbracket 80 25 20 4 1 "maroon"
  72. Loop, If, Built-ins, Functions, Data and Grid description Loop Conditional

    Polar coordinate (x) Polar coordinate (y) Polar coordinates Area Formatted text Substring Random number Value mapping Define function Import function In-line data Objects on a grid keyword for v= if x=polarx y=polary value=polar value=area value=format value=substr value=random value=vmap def import data grid mandatory begin end [increment] ... efor condition ... [else] ... eif x y radius angle x y radius angle x y radius angle expression fmt expression or up to 5 args string begin end min max data min1 max1 min2 max2 name arg1 ... argn ... edef "file" "file" ... edata "file" x y hspace vspace edge
  73. for v=begin end increment ...efor for v=10 35 5 hline

    50 v 30 0.1 "blue" star 60 v 5 1 0.4 "red" circle 65 v 2 "green" square 70 v 2 "blue" efor for v=begin end [increment] ...items to repeat using v efor
  74. else block may be omitted if condition ... else ...

    eif a=60 b=3 if a > b text "hello" a b 2.5 "sans" "red" else text "bye" a b 2.5 "sans" "blue" eif hello if condition ...statements when true else ...statements when false eif Condition if a == b if a != b if a > b if a < b if a >= b if a <= b if a >< b c Description if a equals b if a not equal to b if a less than b if a greater than b if a greater than or equal to b if a less than or equal to b if a is between b and c
  75. (x,y) px= py= polarx polary x y radius theta x

    y radius theta (px,py) theta radius cpx=60 cpy=20 px1=polarx cpx cpy 10 30 py1=polary cpx cpy 10 30 line cpx cpy px1 py1 circle cpx cpy 1 "gray" circle px1 py1 2 "maroon"
  76. (x,y) p=polar x y radius theta (p_x,p_y) theta radius cpx=60

    cpy=20 point=polar cpx cpy 10 30 line cpx cpy point_x point_y circle cpx cpy 1 "gray" circle point_x point_y 2 "maroon"
  77. area original value value=area expression m1=100 m2=200 a1=area m1 a2=area

    m2 circle 60 20 a1 "maroon" circle 80 20 a2 v=123.45 a=area v
  78. value=format fmt expression or up to 5 args format string

    expression Value=6.28 v1=100.3 v2=200.234 pi=3.1415926 title=format "%.2f Million (USD)" v1 subtitle=format "Total value: %.2f" v1+v2 args=format "Multiple args (%v,%v,%.3f)" 80 10 pi ctext title 80 30 4 "sans" "maroon" ctext subtitle 80 20 3 "sans" "gray" ctext args 80 10 2 "mono" 100.30 Million (USD) Total value: 300.53 Multiple args (80,10,3.142) x=3.14159 y=2.0 title=format "Value=%.2f" x*y
  79. "lo, wo" begin end value=substr string begin end now="Now is

    the time for all good men" s1=substr now 0 14 s2=substr now 16 18 s3=substr now 24 end ctext s1 70 34 3 ctext s2 70 24 3 ctext s3 70 15 3 Now is the time for good men s="hello, world" h=substr s 3 8
  80. value=random min max min max value rx1=random 5 30 ry1=random

    15 35 circle rx1 ry1 3 "maroon" rx2=random 40 60 ry2=random 15 35 circle rx2 ry2 3 "green" rx1=random 75 95 ry1=random 15 35 circle rx3 ry3 3 "blue"
  81. min1 max1 data min2 max2 value value=vmap data min1 max1

    min2 max2 yrmin=1776 yrmax=2021 smin=60 smax=90 vp=vmap 1945 yrmin yrmax smin smax line smin 20 smax 20 0.5 "gray" 20 circle smin 20 1 circle smax 20 1 circle vp 20 2 "maroon"
  82. import "doit.dsh" def doit fx fy fs ft ctext ft

    fx fy fs "serif" "purple" edef fx=50 fy=20 fs=2.5 ft="hello" ctext ft fx fy fs "serif" "purple" contents of "doit.dsh" doit 50 20 2.5 "hello" import "file" calling the function call again doit 50 30 5 "calling the function" doit 50 20 4 "call again"
  83. data file data values data "file" ... edata data "test.d"

    one 100 two 200 three 300 four 400 five 500 edata dchart -bar -left 50 -bottom 15 -right 70 -top 35 "test.d" 100 one 200 two 300 three 400 four 500 five data "file.d" first 20 second 100 third 200 edata
  84. circle x y 2 circle x y 4 circle x

    y 8 square x y 8 square x y 4 square x y 2 grid "file" x y hspace vspace limit (x,y) vspace hspace limit file circle x y 2 circle x y 4 circle x y 6 circle x y 8 square x y 8 square x y 6 square x y 4 square x y 2 grid "code/grid-ex.dsh" 35 33 10 10 65
  85. Math Functions description Cosine Sine Square Root Tangent keyword cosine

    sine sqrt tangent mandatory number or expression number or expression number or expression number or expression
  86. x = -1 y = -0.65364 n = -1 value=cosine

    number or expression a=3.14159265359 b=2*a x=cosine 4 y=cosine a n=cosine a+b
  87. x = -0.75680 y = -0.5440 n = -0.62989 value=sine

    number or expression a=10 b=71 x=sin 4 y=sin a n=sin a+b
  88. x = 2 y = 3.1622776 n = 9 value=sqrt

    number or expression a_squared=10*10 b_squared=20*20 c=sqrt a_squared + b_squared w=70+10 h=15+20 polygon "70 w 70" "15 15 h" clabel=format "c = %.1f" c text clabel 76 25 2 c = 22.4 a=10 b=71 x=sqrt 4 y=sqrt a n=sqrt a+b
  89. x = 1.1578213 y = 0.6483608 n = -0.8109944 value=tangent

    number or expression a=10 b=71 x=tangent 4 y=tangent a n=tangent a+b
  90. dchart options: chart types option default description -bar -wbar -hbar

    -donut -dot -lego -line -pgrid -pmap -bowtie -fan -radial -scatter -slope -vol true false false false false false false false false false false false false false false bar chart word bar chart horizontal bar chart donut chart dot chart lego chart line chart proportional grid proportional map bowtie chart fan chart radial chart scatter chart slope chart volume (area) chart
  91. dchart options: elements option default description -csv -frame -fulldeck -grid

    -note -pct -rline -solidpmap -spokes -title -val -xlast -xstagger -yaxis -chartitle -datacond -hline -valpos -xlabel -yrange false false true false true false false false false true true false false false override title in data low,high,color value,label t=top, b=bottom, m=middle default=1, 0 to suppress min,max.step read CSV files show a colored frame generate full deck markup show gridlines on the y axis show annotations show computed percentage show a regression line show solid pmap colors show spokes in radial chart show the title show values show the last x label stagger x axis labels show a y axis specify the title conditional data colors label horizontal line at value value position x axis label interval specify the y axis label range
  92. dchart options: measures and attributes option default description -bgcolor -barwidth

    -color -csvcol -datafmt -dmin -framecolor -lcolor -linewidth -ls -noteloc -pmlen -psize -pwidth -rlcolor -textsize -xlabrot -vcolor -volop white computed from data size lightsteelblue labe1,label2 %.1f false rgb(127,127,127) rgb(75,75,75) 0.2 2.4 c=center, r=right, l=left 20 30 3 rgb(127,0,0) 1.5 0 rgb(127,0,0) 50 background color barwidth data color specify csv columns data format for values use data minimum, not zero frame color label color linewidth linespacing annotation location pmap label length diameter of the donut width of the donut or pmap regression line color text size xlabel rotation (deg.) value color volume opacity %
  93. dchart options: position and scaling option default description -top -bottom

    -left -right -min -max -bounds 80 30 20 80 data min data max "" top of the chart bottom of the chart left margin right margin set the minimum data value set the maximum data value set left,right,top,bottom
  94. 0 100 200 300 400 500 100 one 200 two

    300 three 400 four 500 five dchart options "file" -bar -yaxis -left=35 -top=90 -bottom=65 -right=65 100 one 200 two 300 three 400 four 500 five dchart -left=10 -right=30 -top=35 -bottom=20 "test.d" 100 one 200 two 300 three 400 four 500 five dchart -left=55 -right=85 -top=35 -bottom=20 -bar=f -line "test.d"
  95. legend x y fontsize font color My text (x,y) Item

    on the chart legend "Item on the chart" 20 30 3 "sans" "red" Thing legend "Thing" 70 30 2 "serif" "blue"
