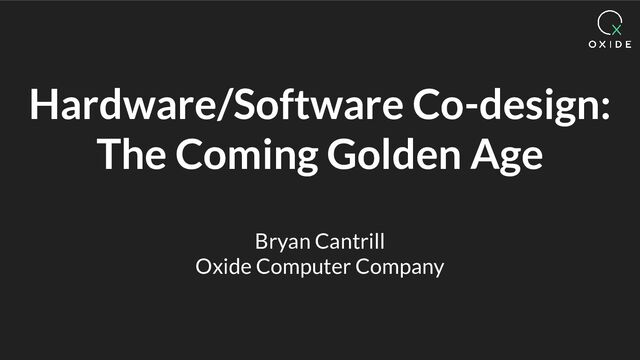

Hardware/software Co-design: The Coming Golden Age

Hardware/software Co-design: The Coming Golden Age

Talk given at RailsConf 2021, Video: https://www.youtube.com/watch?v=nY07zWzhyn4

Bryan Cantrill

April 14, 2021
Tweet

More Decks by Bryan Cantrill

Other Decks in Technology

Transcript

  1. The hardware/software divide • The shift to public cloud computing

    over the last fifteen years has allowed software and hardware to become disconnected • On the one hand, this can be empowering: a SaaS offering can be built with no real understanding of the hardware beneath it • But there’s a risk of taking software-centric thinking too far -- and drawing the mistaken conclusion that hardware is irrelevant (or worse) • This overshot in thinking is epitomized by Marc Andreessen’s 2011 essay, “Why Software is Eating the World”
  2. Revisiting Andreessen • Certainly, the essay makes an important observation

    on the importance of software in essentially every domain:
  3. Revisiting Andreessen • And the effect of Moore’s Law +

    open source + public cloud computing has indisputably lowered the cost of delivering software:
  4. Revisiting Andreessen • But the essay errs in fetishizing software,

    mistakenly viewing extant industries as likely to be disrupted by SaaS alone:
  5. Revisiting Andreessen • Software is important -- but the essay

    conflates software companies with companies that in fact integrate software and hardware • Companies that Andreessen cited that have thrived -- Amazon, Google, etc. -- have very significant hardware components! • Many software-only companies that are cited have disappointed: Zynga, Rovio, Groupon, LivingSocial, Foursquare • Andreessen is dismissive of Apple (up 15X) -- and entirely ignores companies like NVIDIA (57X), AMD (14X), or even Intel (3X)!
  6. So… Moore’s Law? • In his 1965 paper, there is

    no Moore’s Law per se — just a bunch of incredibly astute and prescient observations • The term “Moore’s Law” would be coined by Carver Mead in 1971 as part of his work on determining ultimate physical limits • Moore updated the law in 1975 to be a doubling of transistor density every two years (Denard scaling would be outlined in detail in 1974) • For many years, Moore’s Law could be inferred to be doublings of transistor density, speed, and economics
  7. Moore’s Law: Good old days? • The 1980s and early

    1990s were great for Moore’s Law — so much so that computers needed a “turbo button” to counteract its effects (!!) • But even in those halcyon years, Moore’s Law was leaving DRAM behind: memory was becoming denser but no faster • An increasing number of workloads began hitting the memory wall • Caching was necessary but insufficient...
  8. Moore’s Law: The memory wall • By the mid-1990s, it

    had become clear that symmetric multiprocessing was the path to deliver throughput on multi-threaded workloads • ...but SMP did nothing for single-threaded performance • Deep pipelining and VLIW were — largely — failed experiments • For single-threaded workloads, microprocessors turned to out-of-order and speculative execution to hide memory latency • Even in simpler times, scaling with Moore’s Law was a challenge!
  9. Moore’s Law: Architectural shifts • Denard scaling ended in ~2006

    due to current leakage… • ...but by then chip multiprocessing was clearly the trajectory • CMP was enhanced by simultaneous multithreading (SMT), which offered up to another factor of two on throughput • Thanks to the earlier software work on SMP, CMP/SMT was less of a software performance apocalypse than some feared — but more of a security apocalypse than anyone anticipated! • And “dark silicon” greatly limits CMP!
  10. Moore’s Law: Deceleration • In August 2018, GlobalFoundries suddenly stopped

    7nm development, citing economics -- it was simply too expensive to stay competitive • GlobalFoundries’ departure left TSMC and Samsung on 7nm -- and Intel on 14nm, struggling to get to 10nm • Intel’s Cannon Lake was three years late and an unmitigated disaster -- and for Ice Lake/Cascade Lake, Intel is intermixing 14nm and 10nm • Moving to 3nm/5nm requires moving beyond FinFETs to GAAFETs -- and to EUV photolithography; new nodes are very expensive!
  11. Aside: Process nodes • You may well wonder: when a

    process node is “7nm” or “5nm”, what exactly is seven nanometers or five nanometers long? (And, um, how big is a silicon atom anyway?) • Answer to the second question: ~210 picometers! • Answer to the first question: nothing! Unbelievably, the name of the process node no longer measures anything at all (!!) -- it is merely a rough expression of transistor density (and implication of process) • E.g. 7nm ≈ 100MTr/mm2 (but there are lots of caveats)
  12. Moore’s Law • Increased transistor density is continuing to be

    possible, but at a greatly slowed pace -- and at outsized cost • Economically, Moore’s Law is indisputably ending • But is there another way of looking at it?
  13. Wright’s Law • In 1936, Theodore Wright studied the costs

    of aircraft manufacturing, finding that the cost dropped with experience • Over time, when volume doubled, unit costs dropped by 10-15% • This phenomenon has been observed in other technological domains • In 2013, Jessika Trancik et al. found Wright’s Law to hold better predictive power for transistor cost than Moore’s Law! • Wright’s Law seems to hold, especially for older process nodes
  14. Back to computing! • Andreessen’s 2011 piece, while containing some

    truisms, is overly software-centric and misses hardware’s role entirely • Moore’s Law -- while prescient! -- is indisputably slowing • Wright’s Law, however, may still be holding for transistors -- especially at older processing nodes (22nm, 40nm, 90nm, etc.) • The Jevons Paradox has proven again and again to apply to computing: when general purpose computation is cheaper, we find more to do • We can expect more computation in more places
  15. Compute everywhere? • More computation doesn’t just mean computers in

    new places (à la IoT), it means CPUs present where we once thought of components • E.g., open 32-bit CPUs replacing hidden, closed 8-bit microcontrollers • We are already seeing CPUs on the NIC (SmartNIC), CPUs next to flash (e.g., open-channel SSD) and on the spindle (e.g. WD’s SweRV) • New opportunities for hardware/software co-design: keep hardware simple and put more sophistication into software and/or soft logic • There are several trends acting as accelerants for this shift...
  16. Open instruction sets • X86 and ARM -- the two

    market victors -- are both encumbered by history and licensing • RISC-V is an attempt to learn from the ISA mistakes of the past, in a vessel that is entirely open and -- with open implementations • RISC-V is very promising, but there remain many gaps to close • To succeed, RISC-V must focus as much on the SoC as the ISA -- while remaining entirely open!
  17. Open FPGAs • FPGA bitstreams have historically been entirely proprietary

    -- and one is therefore dependent upon proprietary tools to generate them • The Lattice iCE40 bitstream format was reverse engineered in 2015 by Claire Wolf, and can be entirely synthesized with an open toolchain! • While Xilinx (AMD) and Alterra (Intel) retain proprietary components (e.g., for timing models), newcomers like QuickLogic are entirely open • See, e.g., SymbiFlow, Verilog to Routing (VTR), Yosys, OpenFPGA, and the (new!) Open Source FPGA Foundation
  18. Open HDLs • Hardware description languages have traditionally been dominated

    by Verilog and (later) SystemVerilog • Compilers have been historically proprietary -- and the languages themselves are error prone • In recent years we have seen a wave of new, open HDLs, e.g.: Chisel, nMigen, Bluespec, SpinalHDL, Mamba (PyMTL 3), HardCaml • Of these, one is particularly noteworthy...
  19. Open HDL: Bluespec • Bluespec is a high-level HDL that

    takes its inspiration from formal specification languages -- and strongly typed languages like Haskell • Bluespec uses the expressiveness of the language to move away from individual signals -- and to atomic rules and interfaces • This allows for the compiler to do the hard work of connecting modules and proving correctness, greatly reducing verification time! • In the words of Oxide engineer Arjen Roodselaar, “Bluespec is to SystemVerilog what Rust is to assembly”
  20. Open HDL: Bluespec • Bluespec was proprietary for 20 years;

    open sourced in early 2020! • We at Oxide feel that Bluespec is a profoundly transformative technology -- but not one that is broadly understood or appreciated! • More details: ◦ https://github.com/B-Lang-org/Documentation ◦ https://github.com/B-Lang-org/bsc ◦ https://github.com/oxidecomputer/cobalt
  21. Open source EDA • Proprietary software has historically dominated EDA…

    • Open source alternatives have existed for years -- but one in particular, KiCad, has enjoyed sufficiently broad sponsorship to close the gaps with professional-grade software • The maturity of KiCad coupled with the rise of quick turn PCB manufacturing/assembly has allowed for astonishing speed: ◦ From conception to manufacturer in hours ◦ From manufacturer to shipping board in days
  22. Board economics • Single board computers are very accessible! ◦

    An STM32 Nucleo-144 board with 400 MHz Cortex M7 CPU + 2 MB of flash + 1 MB of RAM + all I/O peripherals for less than $30 ◦ A BeagleBone Black -- with 1 GHz Cortex A8 CPU + 4 GB of flash + 512 MB DDR3 + HDMI for less than $60! • All documentation available online and without NDA -- and the BeagleBone Black is (nearly) entirely open • The BeagleBone Black can also be used as a logic analyzer via sigrok
  23. Open source firmware • The software that runs closest to

    the hardware is increasingly open, with drivers nearly (nearly!) always open • Increasingly, we are seeing the firmware of unseen parts of the system become open as well, viz. the Open Source Firmware Conference • This trend is slower in the 7nm SoCs -- but it’s happening! • However, even in putatively open architectures, there generally still remains proprietary software in the form of boot ROMs -- and this proprietary software remains a problem!
  24. Embedded Rust • Rust has proven to be a revolution

    for systems software: rich type system, algebraic types, ownership model allow for fast, correct code • Slightly more surprising has been Rust’s ability to get small -- which coupled with its lack of a runtime lets it fit everywhere! • With its safety and expressive power, Rust represents a quantum leap over C -- and without losing performance or sacrificing size • We at Oxide are working on a de novo Rust operating system for the embedded use case that we will (naturally?) open source; stay tuned!
  25. A new Golden Age! • Thanks to Moore’s Law, Wright’s

    Law and the rise of open source, it is easier to build hardware than ever before! • We are going to see computers in many more places, posing challenges to us all to develop reliable, secure, high performing systems • Software remains essential, but we must not think of it in isolation; we must co-design the hardware and the software in our systems! • The systems are open, the communities are welcoming! Let’s build!
