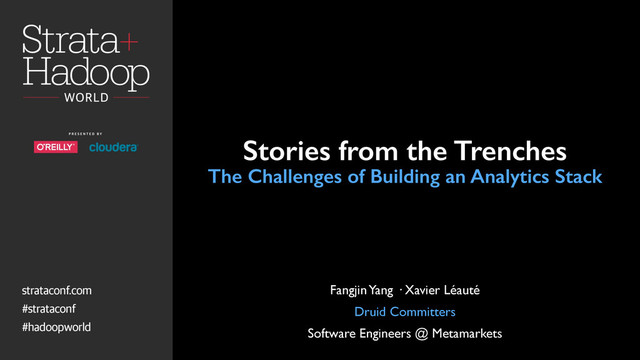

  1. Stories from the Trenches The Challenges of Building an Analytics

    Stack Fangjin Yang · Xavier Léauté Druid Committers Software Engineers @ Metamarkets
  2. Motivations ! Interactive data warehouses ! Answer BI questions -

    How much revenue was generated last quarter broken down by a demographic - How many unique male visitors my website last month? - Not dumping an entire data set - Not querying for an individual event ! Cost effective (we are a startup after all)
  3. Technical Challenges ! Ad-hoc queries ! Arbitrarily slice ’n dice,

    and drill into data ! Immediate insights ! Scalability ! Availability ! Low operational overhead
  4. Where We Stand Today ! Over 10 trillion events !

    ~40PB of raw data ! Over 200TB of compressed query-able data ! Ingesting over 300,000 events/second on average ! Average query time 500ms ! 90% queries under 1 second ! 99% queries under 10 seconds
  5. RDBMS – Setup ! Common setup for data warehousing -

    Star Schema - Aggregate Tables - Query Caches
  6. RDBMS – Results Naive benchmark scan rate ~5.5M rows /

    second / core 1 day of summarized aggregates 60M+ rows 1 query over 1 week, 16 cores ~5 seconds Page load with 20 queries over a week of data … long time
  7. NoSQL – Setup ! Pre-aggregate all dimensional combinations ! Store

    results in a NoSQL store ts gender age revenue 1 M 18 $0.15 1 F 25 $1.03 1 F 18 $0.01 Key Value 1 revenue=$1.19 1,M revenue=$0.15 1,F revenue=$1.04 1,18 revenue=$0.16 1,25 revenue=$1.03 1,M,18 revenue=$0.15 1,F,18 revenue=$0.01 1,F,25 revenue=$1.03
  8. NoSQL – Results ! Queries were fast - range scan

    on primary key ! Inflexible - not aggregated, not available ! Not continuously updated ! Processing scales exponentially - Example: ~500k records - 11 dimensions : 4.5 hours on a 15-node Hadoop cluster - 14 dimensions: 9 hours on a 25-node Hadoop cluster
  9. What We Learned ! Problem with RDBMS: scans are slow

    ! Problem with NoSQL: computationally intractable ! Tackling the RDBMS issue seems easier
  10. What is Druid? ! Low Latency Ingestion ! Fast Aggregations

    ! Arbitrary Slice-n-dice Capabilities ! Approximate & Exact calculations ! Highly Available
  11. Why is Druid the Right Tool? ! Immutable data -

    Ideal for append-heavy, transactional data - Read consistency - Multiple threads can scan the same underlying data - Simplifies replication and distribution ! Column orientation - Load/scan only those columns needed for a query ! Only scans what it needs - Time-partitioning of data - Search indexes (inverted indexes) to only scan what it needs
  12. First Lessons With Druid ! We gained: - Fast/Interactive Queries

    - True data exploration ! We still had problems with: - The cost of scaling - Delays in data freshness - Dealing with more data - Dealing with more users
  13. In-memory is Overrated ! All in-memory – fast and simple

    ! Keeping all data in memory is expensive ! Percentage of data queried at any given time is small RAM 95% queries
  14. Memory Map It ! Memory management is hard, let the

    OS handle paging ! Flexible configuration – control how much to page ! Cost vs. Performance becomes a simple dial ! Use SSDs to mitigate the performance impact (still cheaper than RAM) RAM SSD
  15. Compression is Your Friend ! Paging out data that isn’t

    queried saves cost ! Memory is still critical for performance ! Cost of scaling CPU << cost of adding RAM ! On-the-fly decompression is fast with recent algorithms (LZF, Snappy, LZ4)
  16. Low Latency vs. High throughput ! Combination of batch +

    streaming gives us the best of both ! Immutable data made it easy to combine the two ingestion methods ! Makes for easy backfills and re-processing Streaming Batch λ
  17. Later Druid Architecture Broker Node Historical Node Historical Node Real-time

    Node Broker Node Queries Batch Real-time Node Streaming Handover
  18. Scaling is Hard ! Data doubles every 2 months !

    More Data = More Nodes = More Failures ! Throwing money at the problem only a short term solution ! Some piece always fails to scale ! Startup means daily operations handled by dev team
  19. Not All Data is Created Equal ! Users really care

    about recent data ! Users still want to run quarterly reports ! Large queries create bottlenecks and resource contention
  20. Smarter Rebalancing ! Constantly rebalance to keep workload uniform !

    Greedily rebalance based on cost heuristics ! Avoid co-locating recent or overlapping data ! Favor co-locating data for different customers ! Distribute data likely to be queried simultaneously
  21. Create Data Tiers ! COLD high disk to cpu, and

    disk to ram ratio for old data
  22. Create Data Tiers ! COLD high disk to cpu, and

    disk to ram ratio for old data ! HOT low disk to cpu and low disk to ram for new data
  23. Create Query Tiers ! Separate query nodes for long and

    short running queries Broker Broker
  24. Create Query Tiers ! Separate query nodes for long and

    short running queries ! Prioritize shorter queries Broker Broker
  25. Scaling Upgrades ! Make every piece of the system redundant

    ! Make components stateless ! Fail-over stateful components DOWNTIME
  26. Scaling Upgrades ! Shared nothing architecture ! Maintain backwards compatibility

    ! Allow upgrading components independently ! Easy to run experiments 1 1 1 1 2 2 1 1 1 2 2 1 1 2 2 2 2 1 2 2 2 2 3
  27. It’s OK to be Slow (sometimes) ! Replication can become

    expensive ! Not willing to sacrifice availability ! Tradeoff performance for cost during failures ! Move replica to cold tier ! Keep a single replica for hot
  28. Multitenancy is Harder ! Everyone wants a good experience !

    Behavior is not uniform across customers ! 20% of customers take 80% of resources
  29. Addressing Multitenancy ! Bound Resources ! Keep units of computation

    small ! Constantly yield resources ! Prefer fast approximate answers to slow exact ones ! HyperLogLog sketches ! Approximate top-k ! Approximate histograms
  30. Monitoring ! Collecting lots of data without having the tools

    to analyze it is useless ! Use Druid to monitor Druid! ! > 10TB of metrics data in Druid ! Often hard to tell where problems are coming from ! Interactive exploration of metrics allows us to pinpoints problems quickly ! Granularity down to the individual query or server level ! Gives both the big picture and the detailed breakdown ! Demo!
  31. Take Aways ! Pick the right tool ! Pick the

    tool optimized for the types of queries you will make ! Tradeoffs are everywhere ! Performance vs. cost (in-memory, tiering, compression) ! Latency vs. throughput (streaming vs. batch ingestion) ! Use cases should define engineering (understand query patterns) ! Monitor everything
  32. More About Druid ! Open sourced 2 years ago !

    20+ Production Deployments - Ad-tech - Network traffic analysis - Operations Monitoring - Activity stream analysis
