1. CSC 5100 Modern Software Engineering Lecture 19. Connecting the Dots (in the Cloud) Dr. Javier Gonzalez-Sanchez javiergs@calpoly.edu www.javiergs.phd ffi o ce: 14 -227

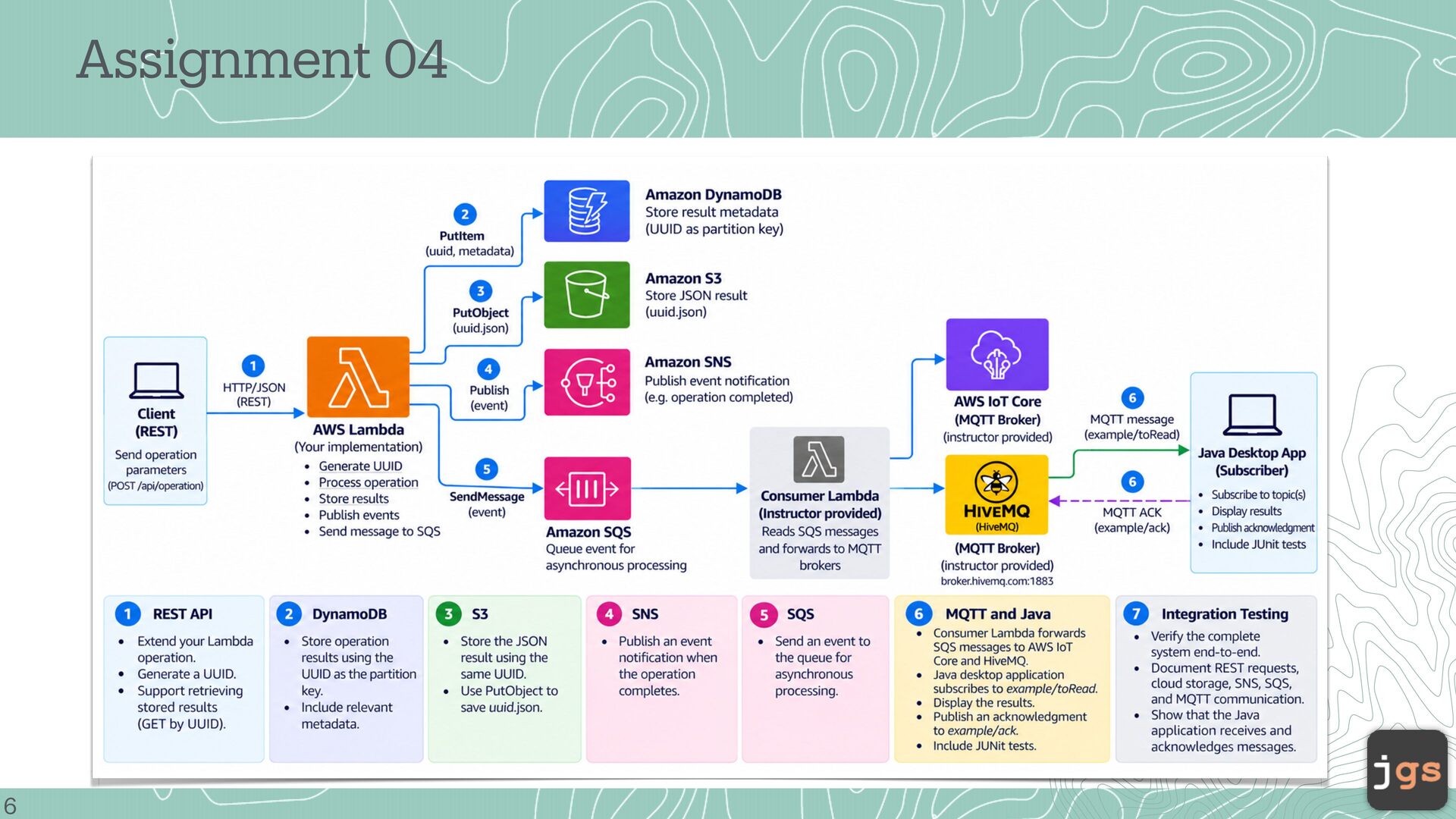

5. Assignment 04 6

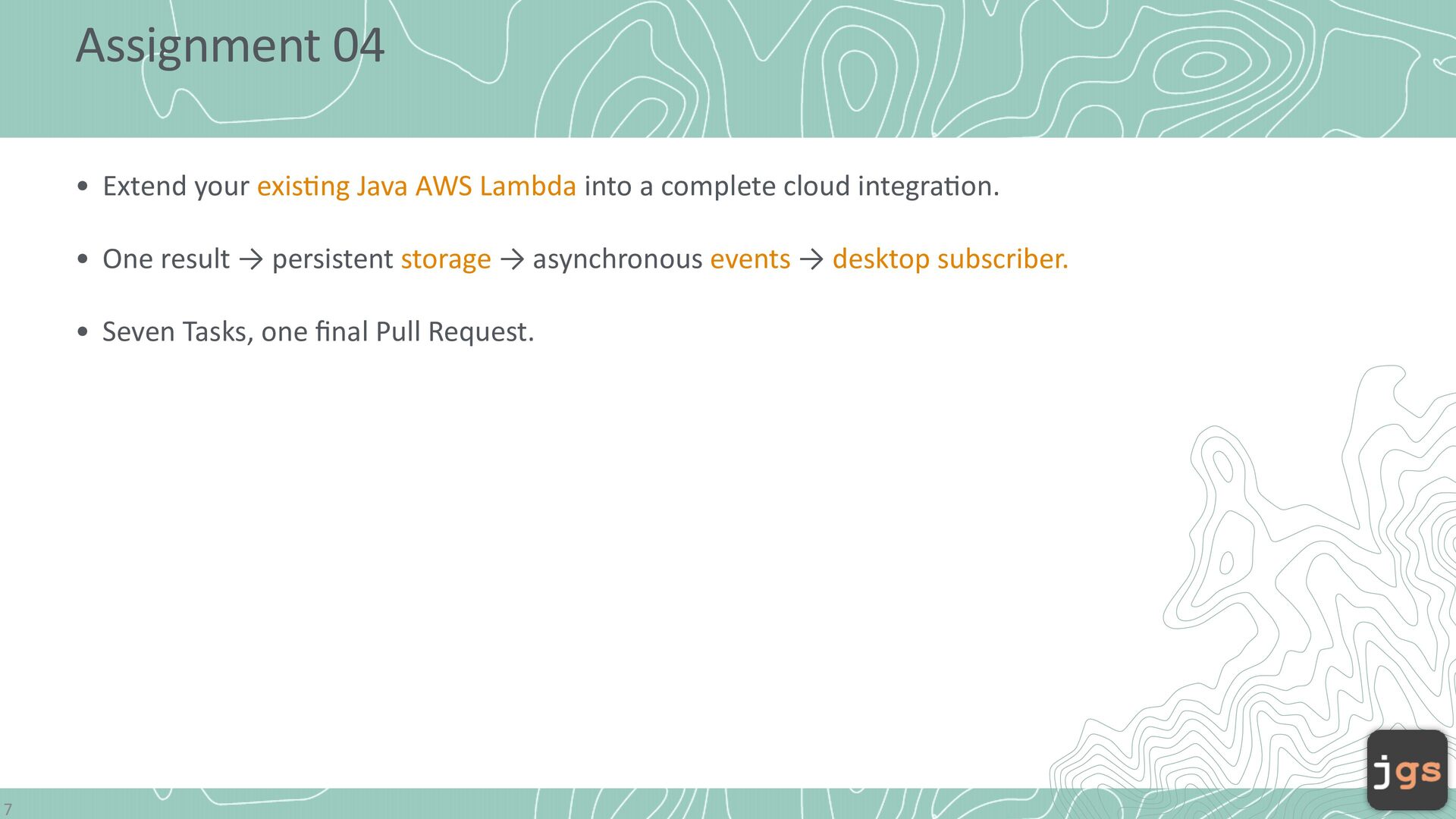

6. Assignment 04 • Extend your exis ng Java AWS Lambda into a complete cloud integra on. • One result → persistent storage → asynchronous events → desktop subscriber. ti fi 7 ti • Seven Tasks, one nal Pull Request.

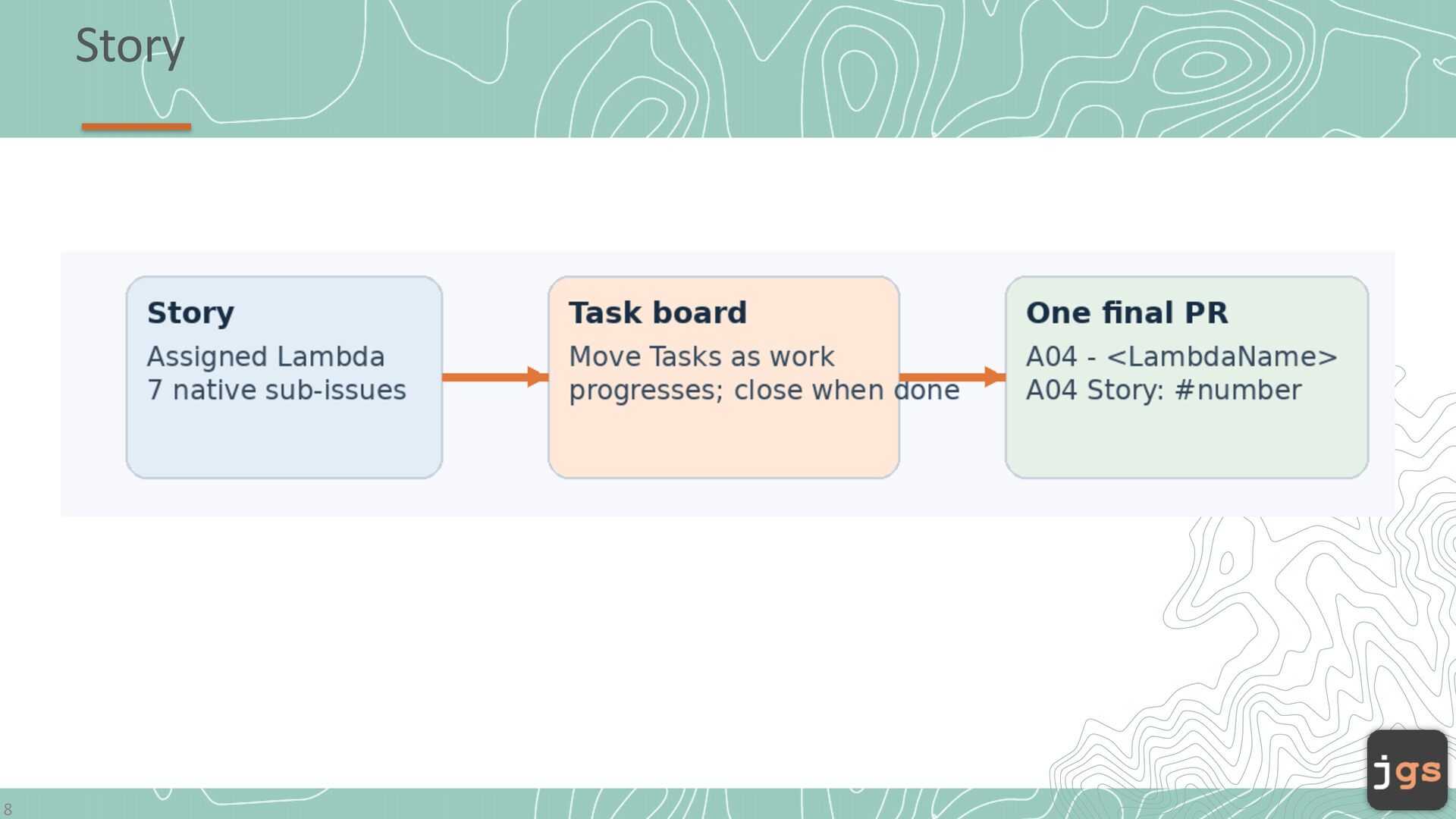

7. Story 8

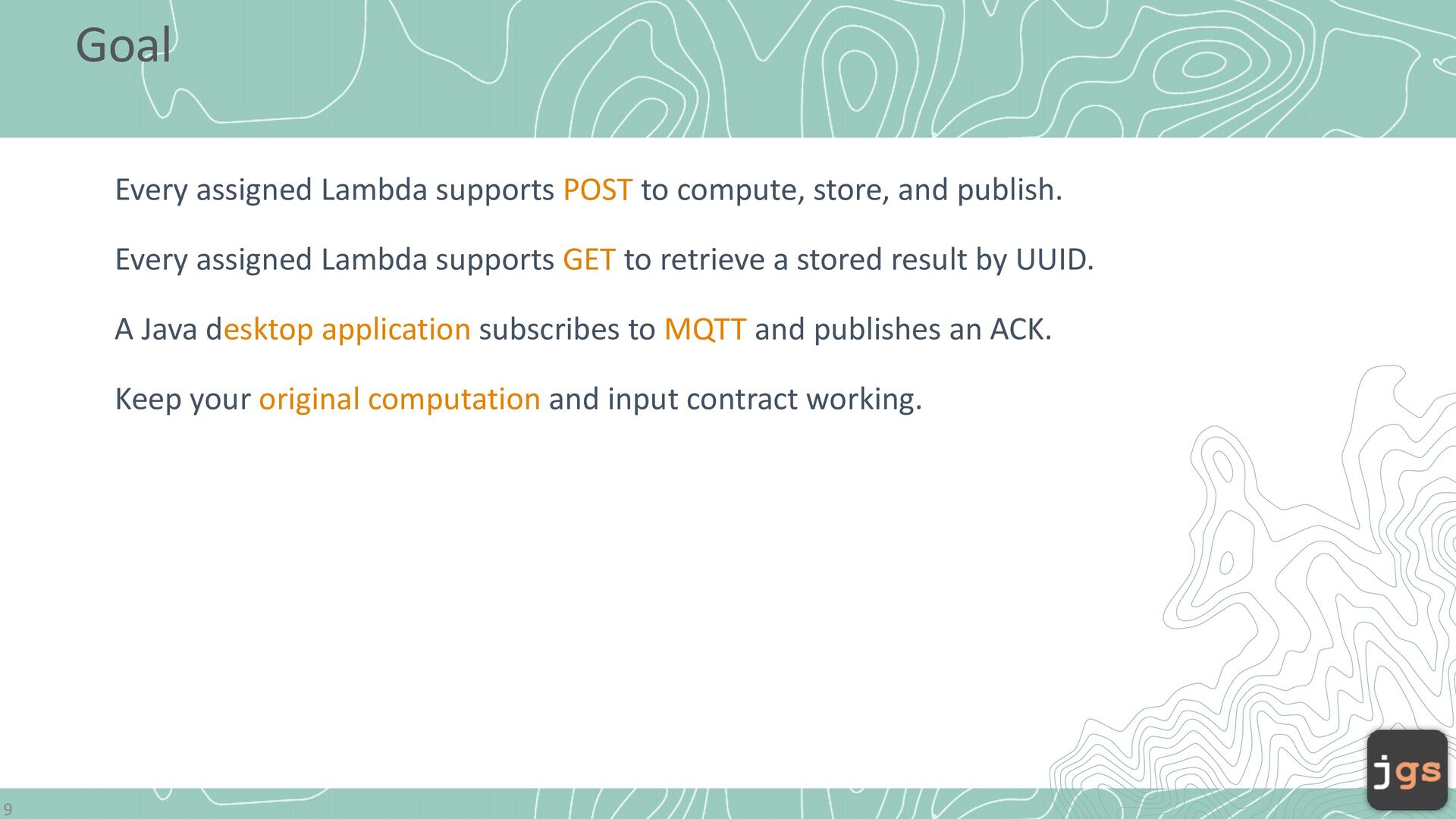

8. Goal Every assigned Lambda supports POST to compute, store, and publish. Every assigned Lambda supports GET to retrieve a stored result by UUID. A Java desktop application subscribes to MQTT and publishes an ACK. Keep your original computation and input contract working. 9

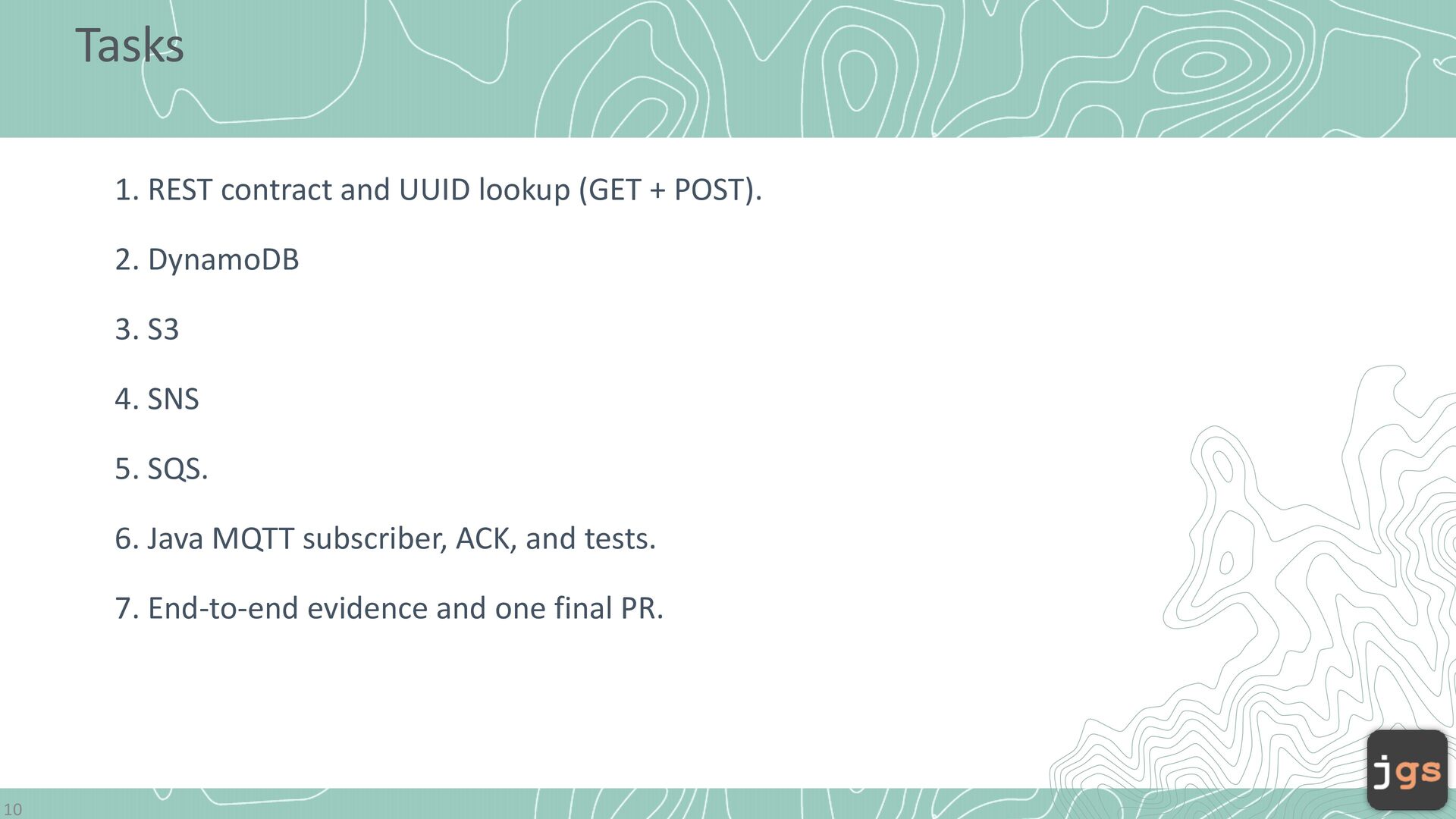

9. Tasks 1. REST contract and UUID lookup (GET + POST). 2. DynamoDB 3. S3 4. SNS 5. SQS. 6. Java MQTT subscriber, ACK, and tests. 7. End-to-end evidence and one final PR. 10

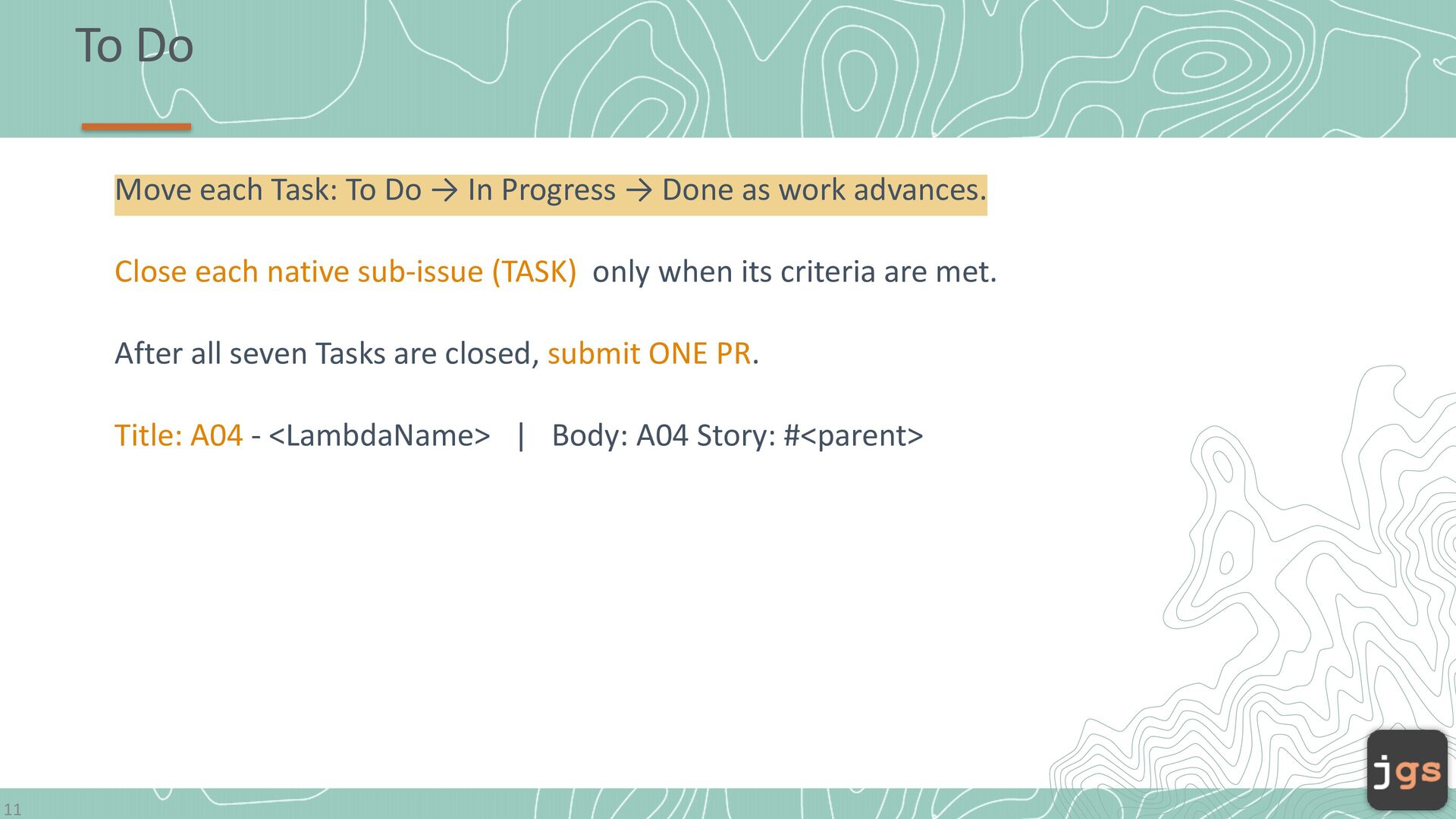

10. To Do Move each Task: To Do → In Progress → Done as work advances. Close each native sub-issue (TASK) only when its criteria are met. After all seven Tasks are closed, submit ONE PR. Title: A04 - <LambdaName> | Body: A04 Story: #<parent> 11
11. Example Step by Step

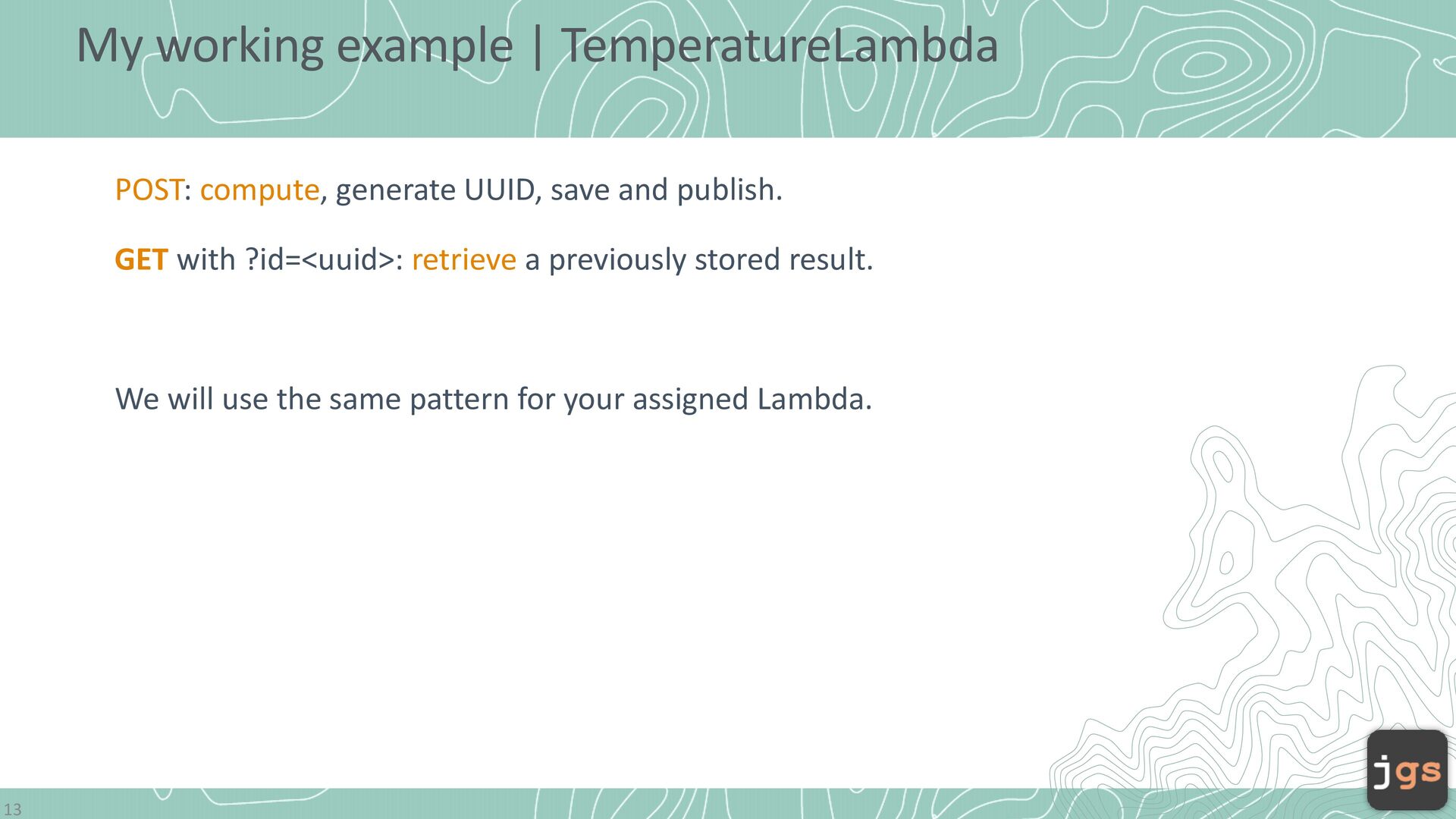

12. My working example | TemperatureLambda POST: compute, generate UUID, save and publish. GET with ?id=<uuid>: retrieve a previously stored result. We will use the same pattern for your assigned Lambda. 13

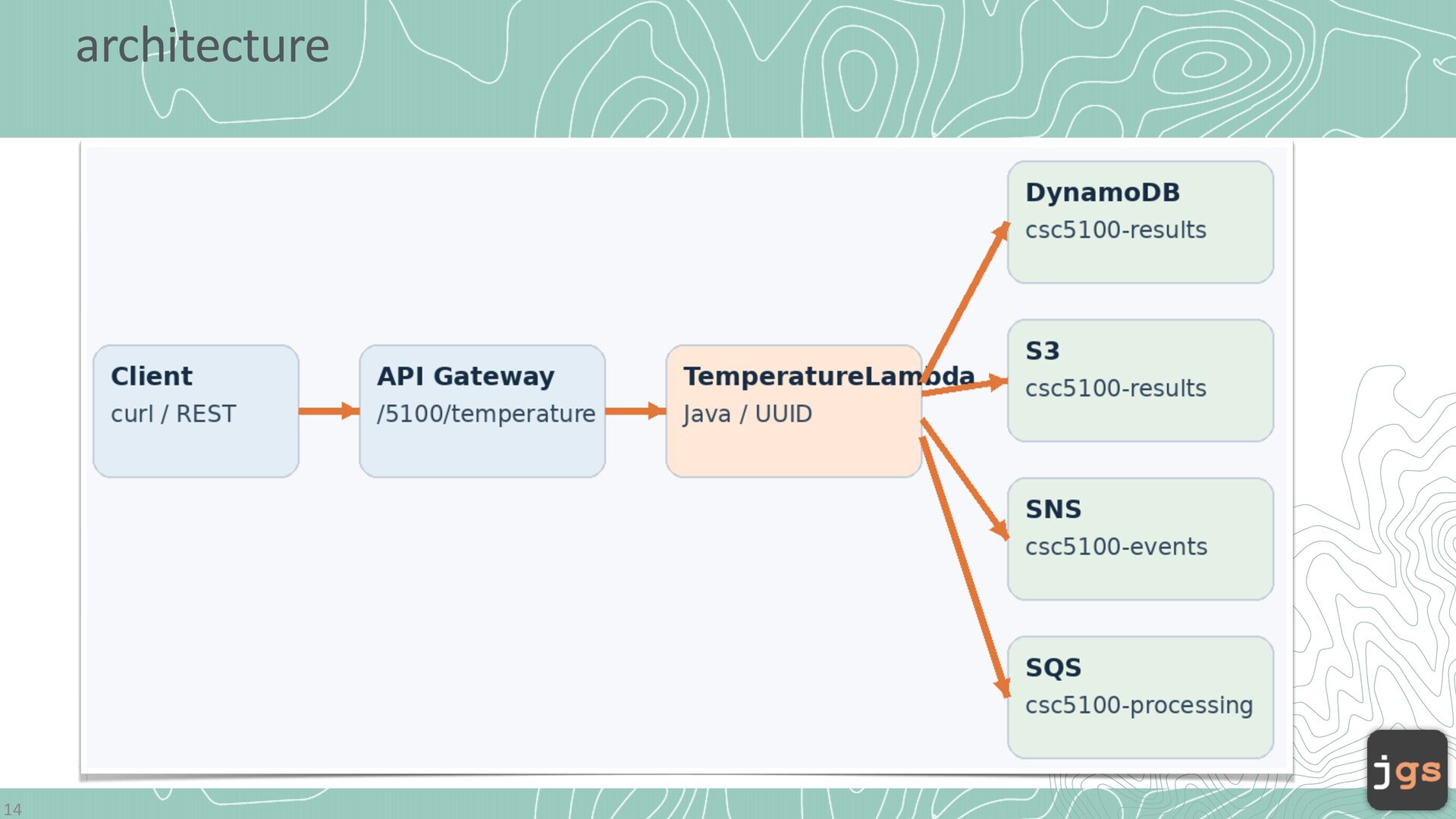

13. architecture 14
14. Review | What each AWS service does API Gateway — receives HTTP and routes to Lambda. Lambda — executes your Java computation. DynamoDB — stores structured results by UUID. S3 — stores a JSON object; SNS — publishes a notification. SQS — holds a message until a consumer processes it. 15

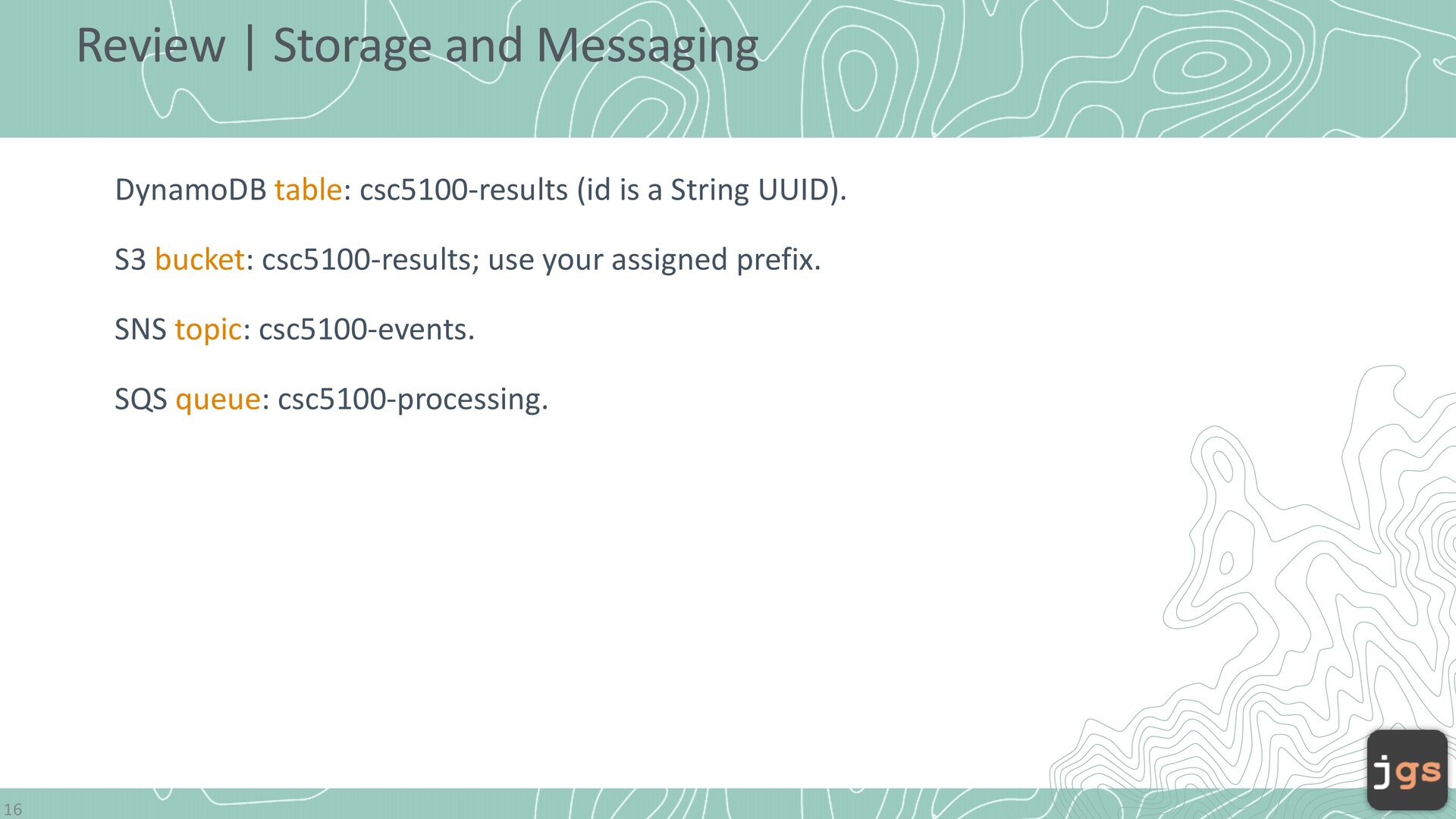

15. Review | Storage and Messaging DynamoDB table: csc5100-results (id is a String UUID). S3 bucket: csc5100-results; use your assigned prefix. SNS topic: csc5100-events. SQS queue: csc5100-processing. 16
16. Reference code | TemperatureLambda // Simplified from instructor/TemperatureLambda.java String id = UUID.randomUUID().toString(); output.put("id", id); storage.save(id, mapper.writeValueAsString(output)); messaging.publish(mapper.writeValueAsString(output)); return httpResponse(200, mapper.writeValueAsString(output)); // GET ?id=... uses storage.get(id) 17

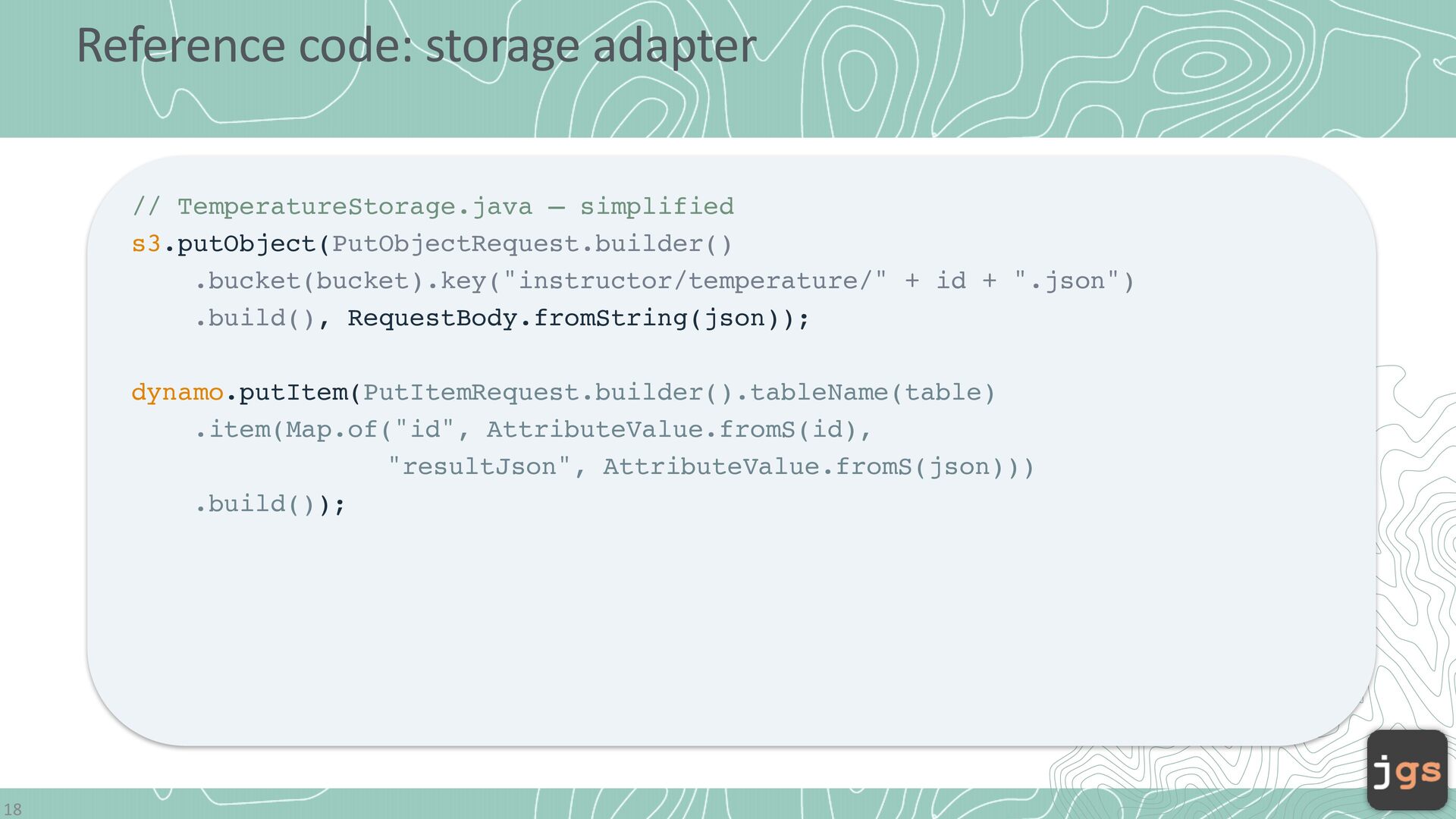

17. Reference code: storage adapter // TemperatureStorage.java — simplified s3.putObject(PutObjectRequest.builder() .bucket(bucket).key("instructor/temperature/" + id + ".json") .build(), RequestBody.fromString(json)); dynamo.putItem(PutItemRequest.builder().tableName(table) .item(Map.of("id", AttributeValue.fromS(id), "resultJson", AttributeValue.fromS(json))) .build()); 18
18. Reference code: messaging adapter // TemperatureMessaging.java — simplified sns.publish(PublishRequest.builder() .topicArn(topicArn).message(json).build()); sqs.sendMessage(SendMessageRequest.builder() .queueUrl(queueUrl).messageBody(json).build()); 19

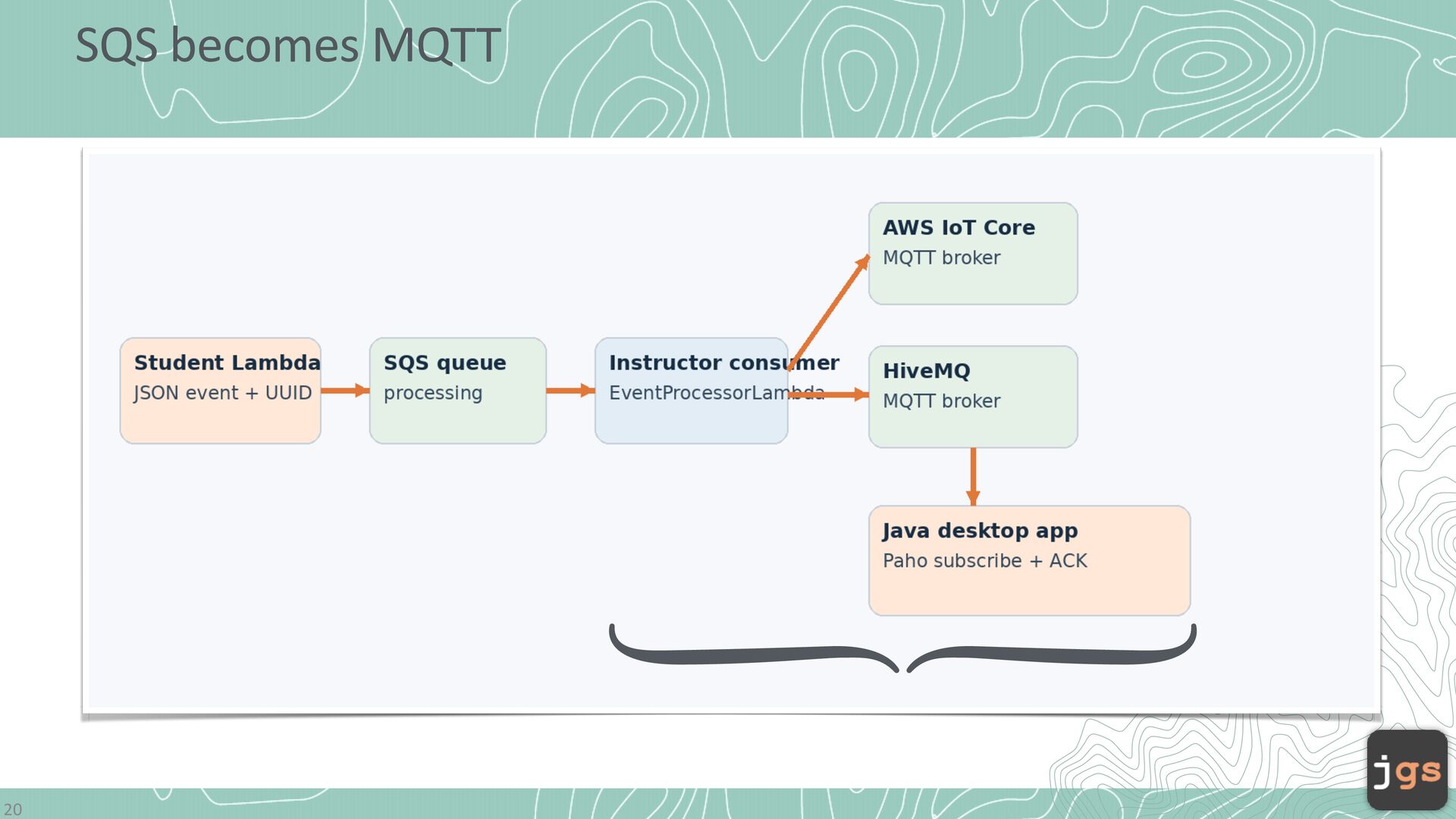

19. SQS becomes MQTT 20

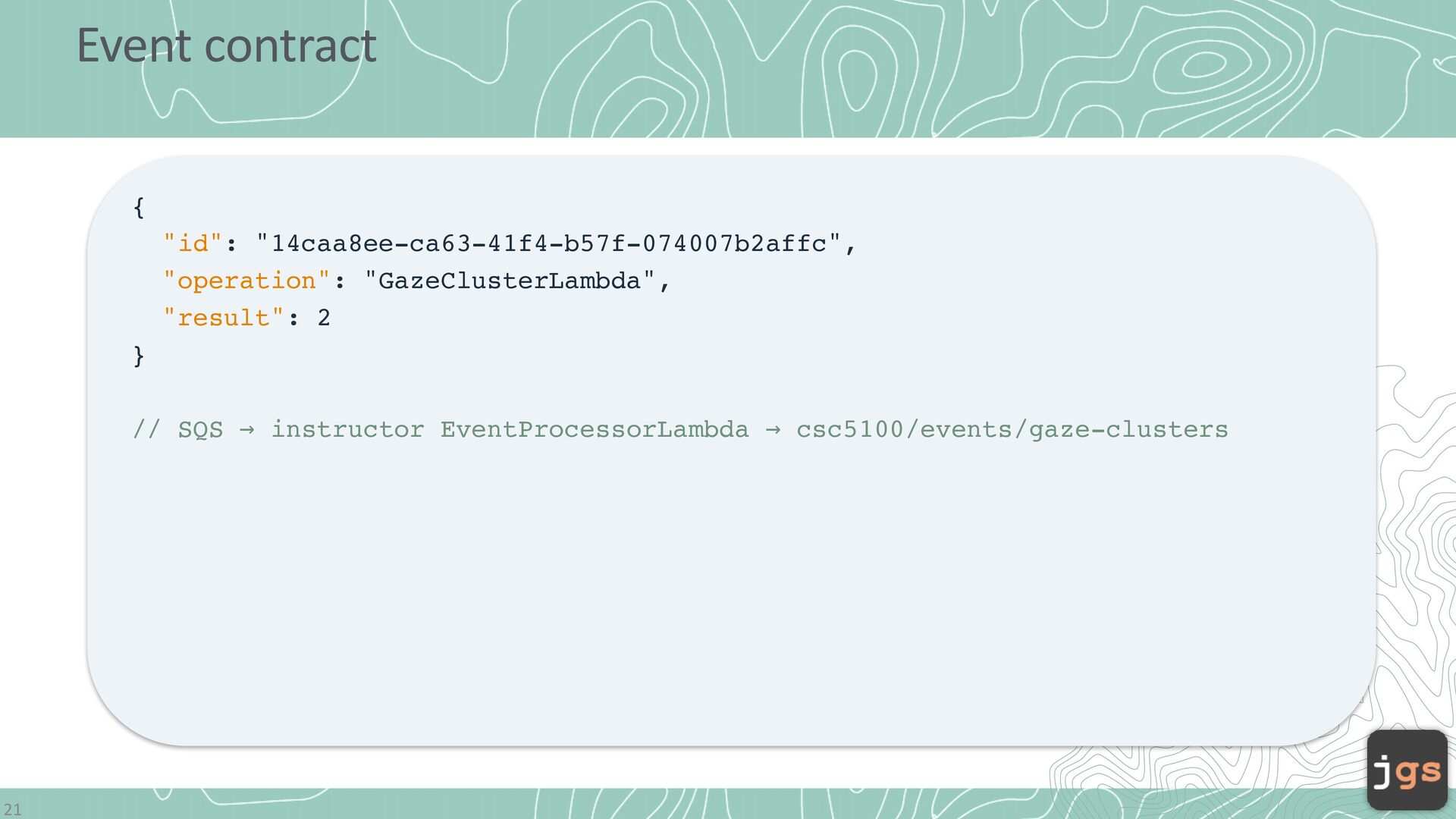

20. Event contract { "id": "14caa8ee-ca63-41f4-b57f-074007b2affc", "operation": "GazeClusterLambda", "result": 2 } // SQS → instructor EventProcessorLambda → csc5100/events/gaze-clusters 21

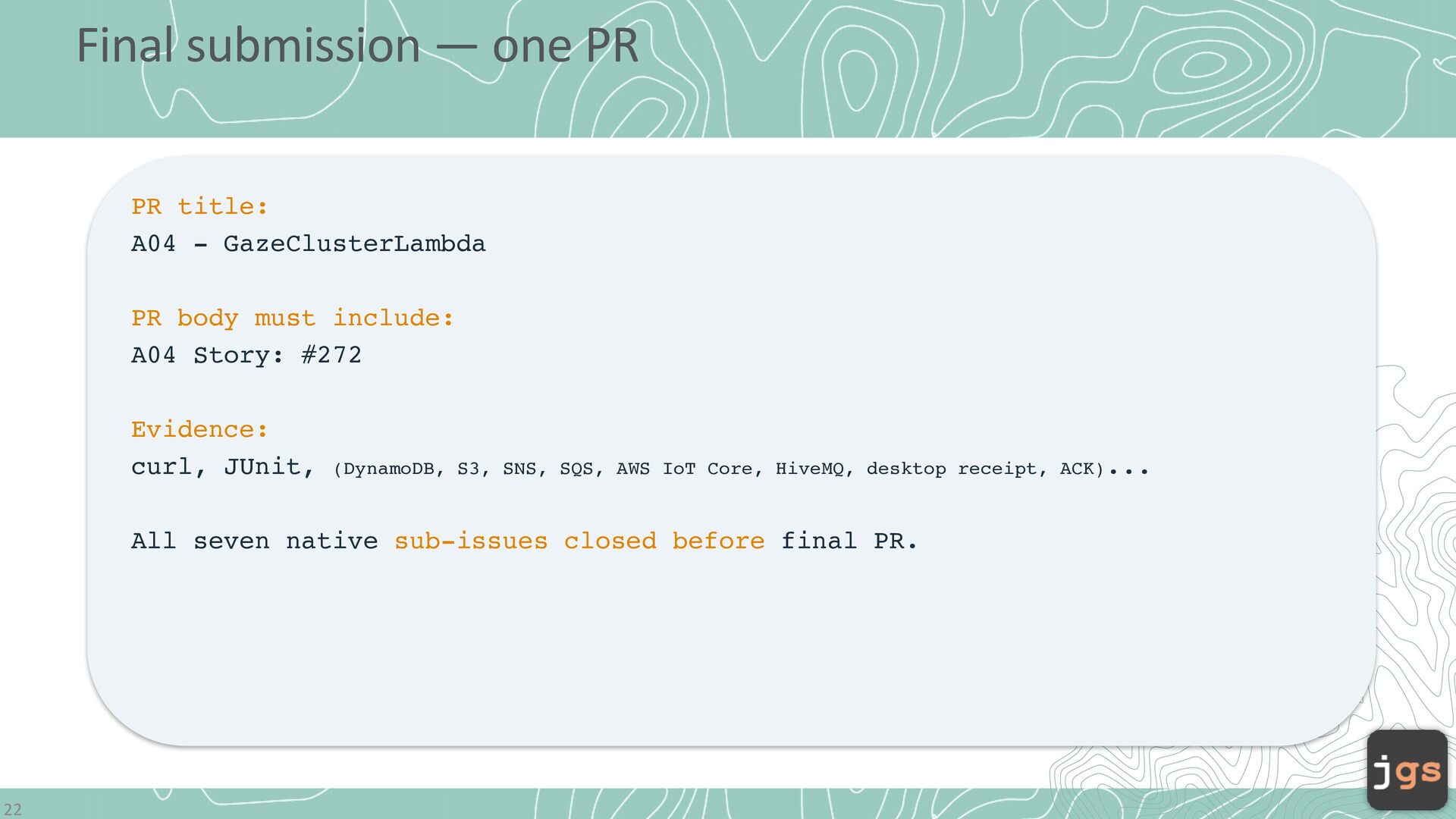

21. Final submission — one PR PR title: A04 - GazeClusterLambda PR body must include: A04 Story: #272 Evidence: curl, JUnit, (DynamoDB, S3, SNS, SQS, AWS IoT Core, HiveMQ, desktop receipt, ACK)... All seven native sub-issues closed before final PR. 22
22. Question 1

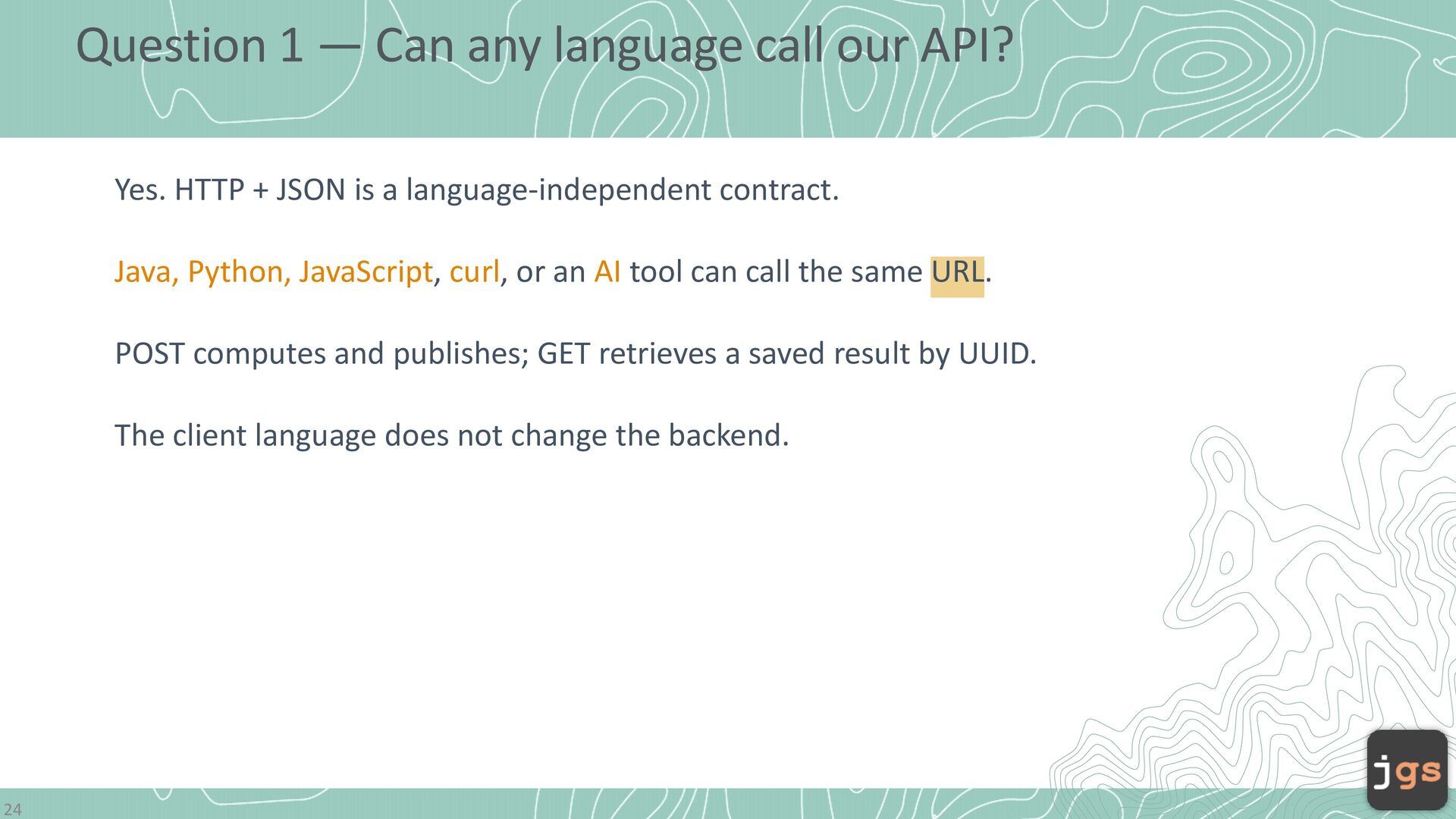

23. Question 1 — Can any language call our API? Yes. HTTP + JSON is a language-independent contract. Java, Python, JavaScript, curl, or an AI tool can call the same URL. POST computes and publishes; GET retrieves a saved result by UUID. The client language does not change the backend. 24
24. REST from Java HttpClient client = HttpClient.newHttpClient(); HttpRequest request = HttpRequest.newBuilder() .uri( URI.create( "https://api.javiergs.phd/5100/temperature"+ "?value=86&from=F&to=C") ) .GET() .build(); String json = client .send(request, HttpResponse.BodyHandlers.ofString()) .body(); System.out.println(json); 25

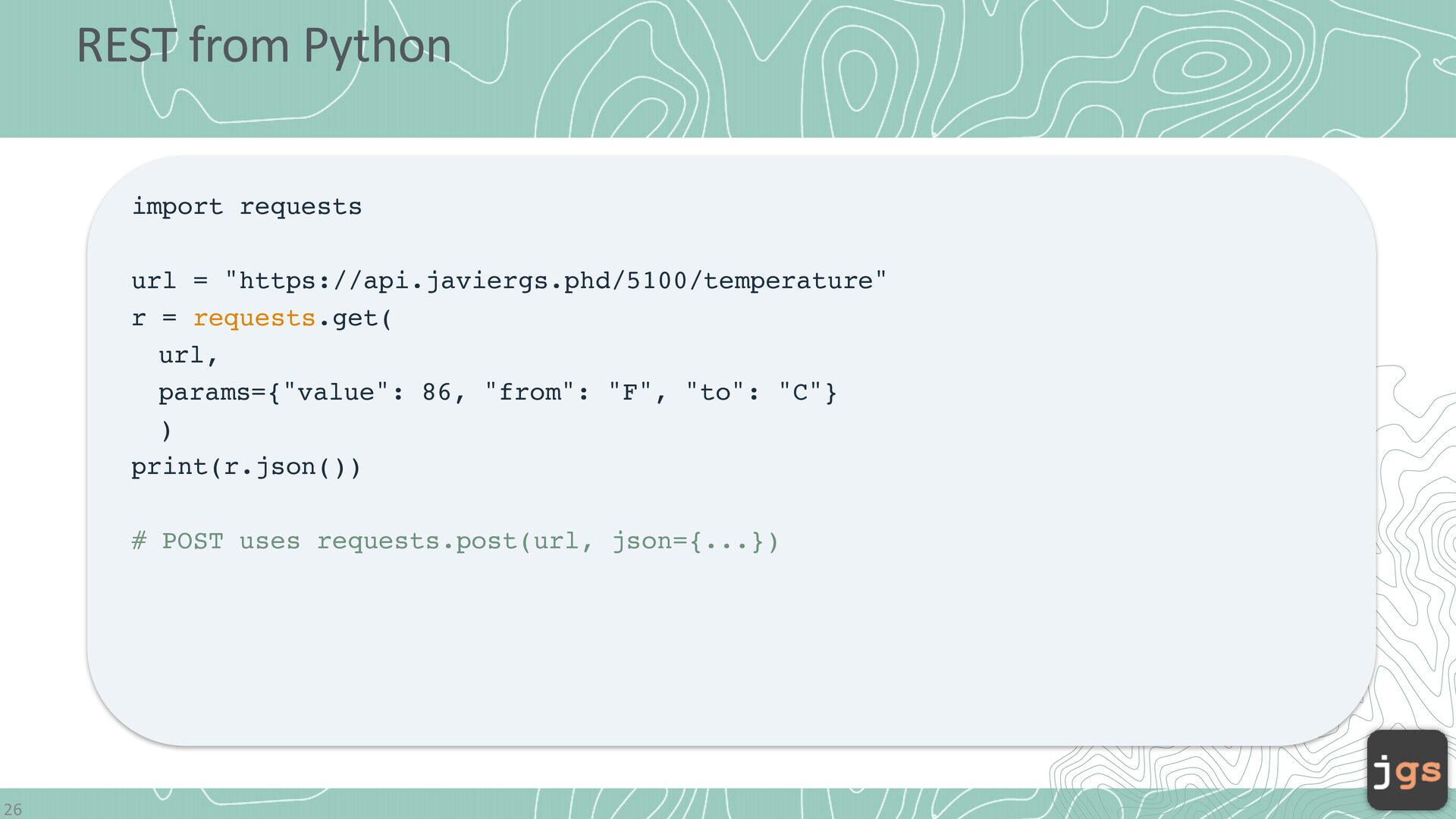

25. REST from Python import requests url = "https://api.javiergs.phd/5100/temperature" r = requests.get( url, params={"value": 86, "from": "F", "to": "C"} ) print(r.json()) # POST uses requests.post(url, json={...}) 26

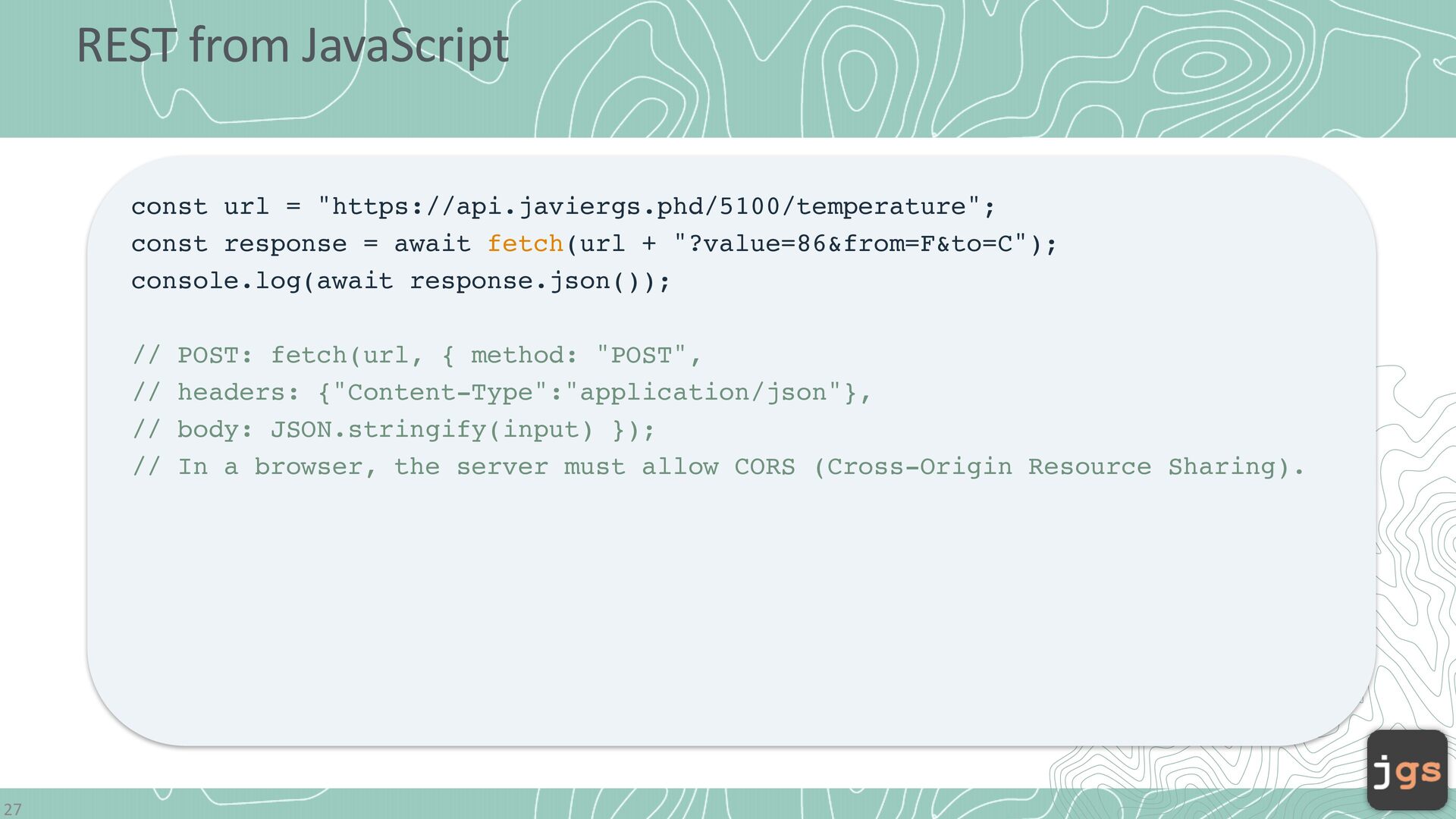

26. REST from JavaScript const url = "https://api.javiergs.phd/5100/temperature"; const response = await fetch(url + "?value=86&from=F&to=C"); console.log(await response.json()); // POST: fetch(url, { method: "POST", // headers: {"Content-Type":"application/json"}, // body: JSON.stringify(input) }); // In a browser, the server must allow CORS (Cross-Origin Resource Sharing). 27

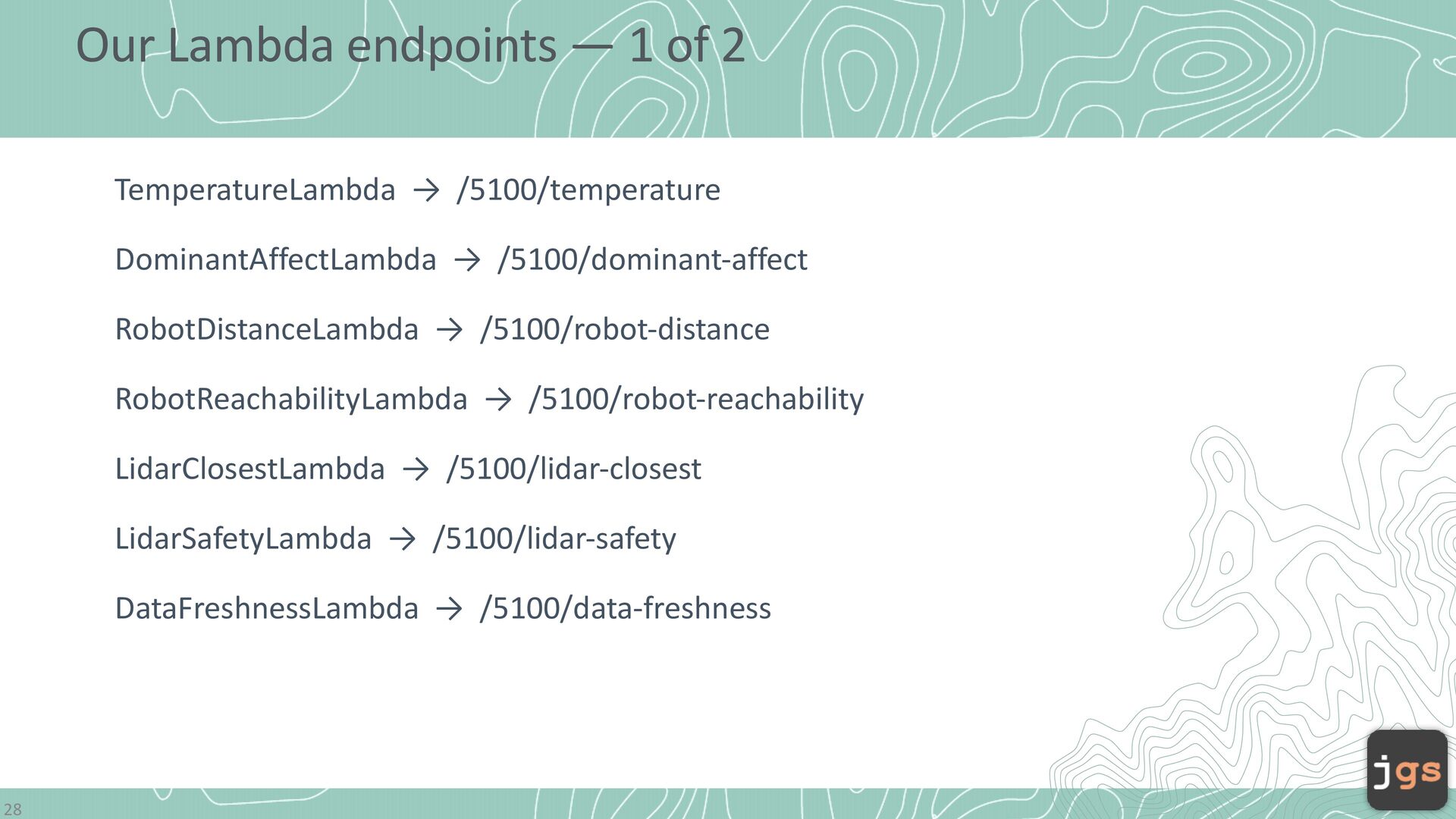

27. Our Lambda endpoints — 1 of 2 TemperatureLambda → /5100/temperature DominantAffectLambda → /5100/dominant-affect RobotDistanceLambda → /5100/robot-distance RobotReachabilityLambda → /5100/robot-reachability LidarClosestLambda → /5100/lidar-closest LidarSafetyLambda → /5100/lidar-safety DataFreshnessLambda → /5100/data-freshness 28

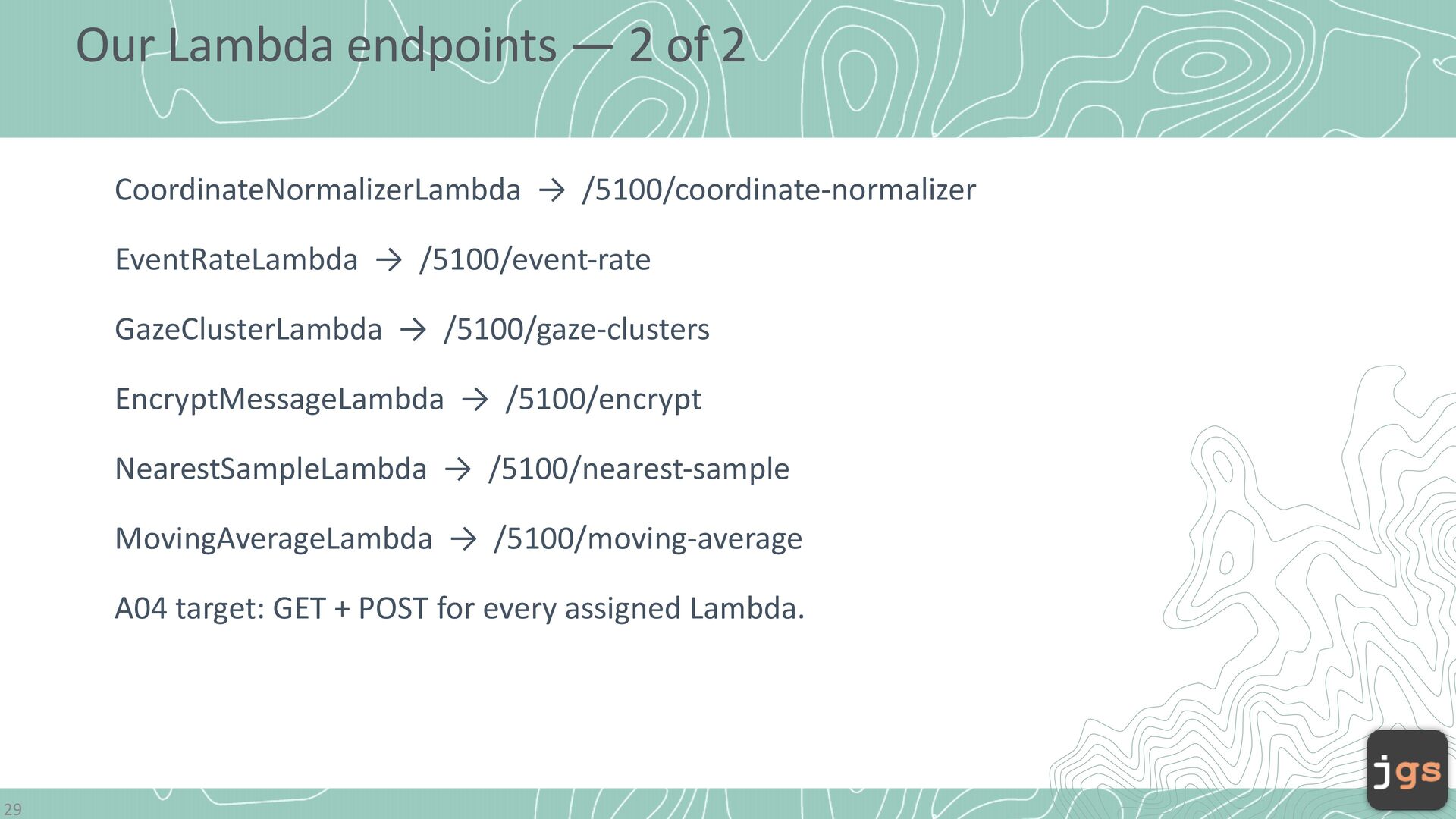

28. Our Lambda endpoints — 2 of 2 CoordinateNormalizerLambda → /5100/coordinate-normalizer EventRateLambda → /5100/event-rate GazeClusterLambda → /5100/gaze-clusters EncryptMessageLambda → /5100/encrypt NearestSampleLambda → /5100/nearest-sample MovingAverageLambda → /5100/moving-average A04 target: GET + POST for every assigned Lambda. 29
29. Question 2
30. Question 2 — Can any language subscribe? Yes. MQTT is a protocol, not a Java-only library. One published event can reach many connected subscribers. Java: Eclipse Paho • Python: Paho MQTT • JS: MQTT.js. 31

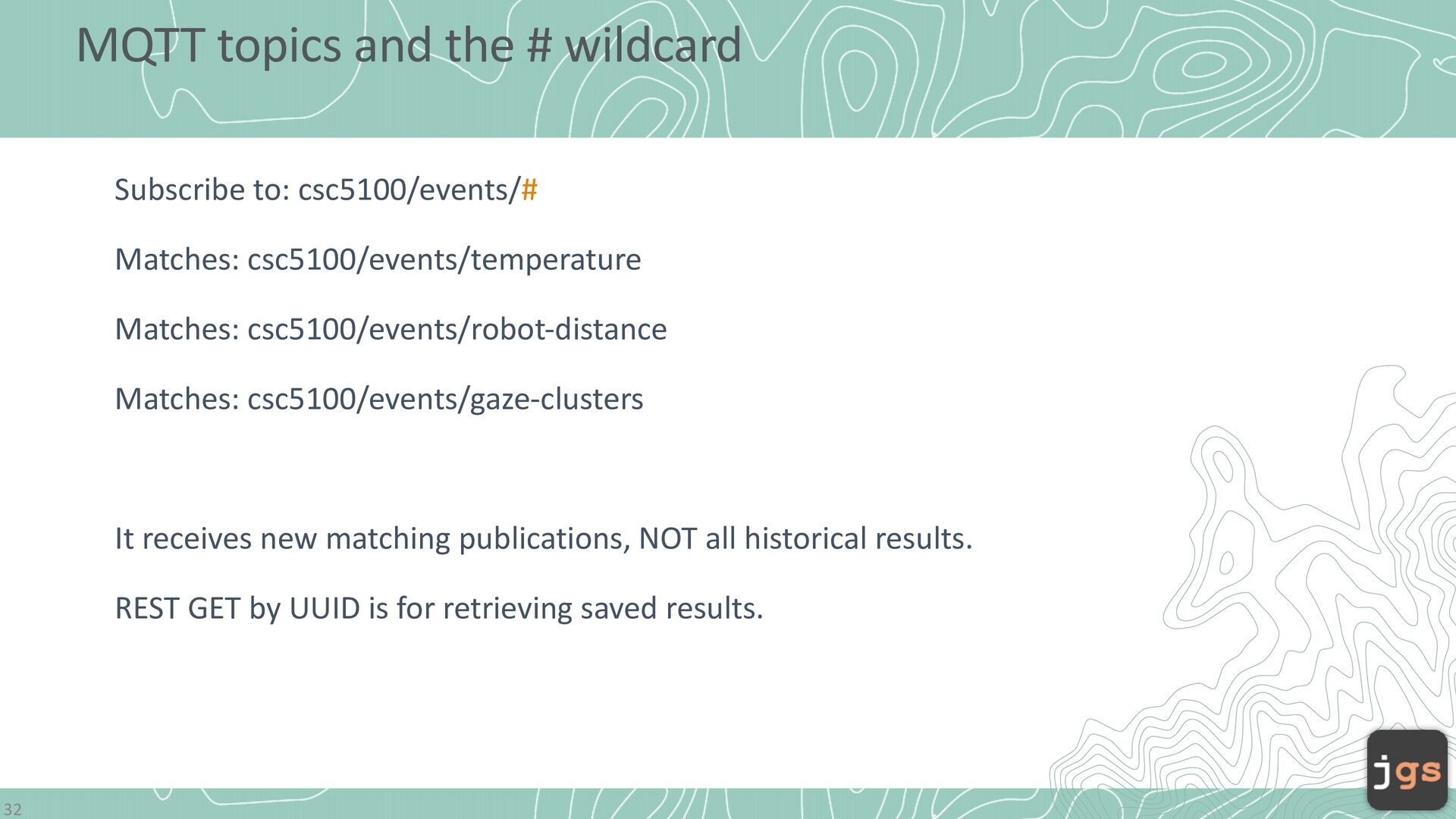

31. MQTT topics and the # wildcard Subscribe to: csc5100/events/# Matches: csc5100/events/temperature Matches: csc5100/events/robot-distance Matches: csc5100/events/gaze-clusters It receives new matching publications, NOT all historical results. REST GET by UUID is for retrieving saved results. 32

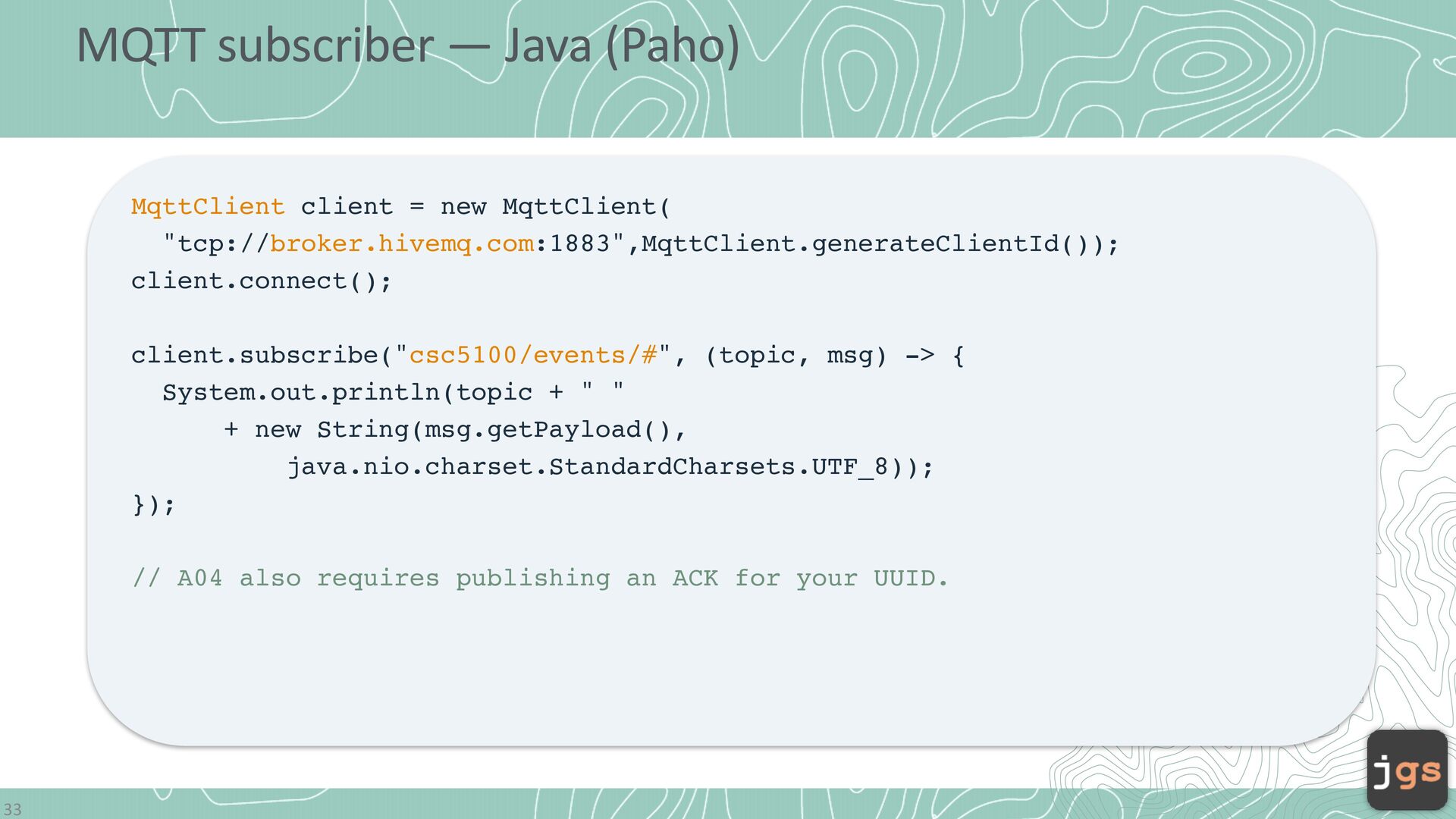

32. MQTT subscriber — Java (Paho) MqttClient client = new MqttClient( "tcp://broker.hivemq.com:1883",MqttClient.generateClientId()); client.connect(); client.subscribe("csc5100/events/#", (topic, msg) -> { System.out.println(topic + " " + new String(msg.getPayload(), java.nio.charset.StandardCharsets.UTF_8)); }); // A04 also requires publishing an ACK for your UUID. 33

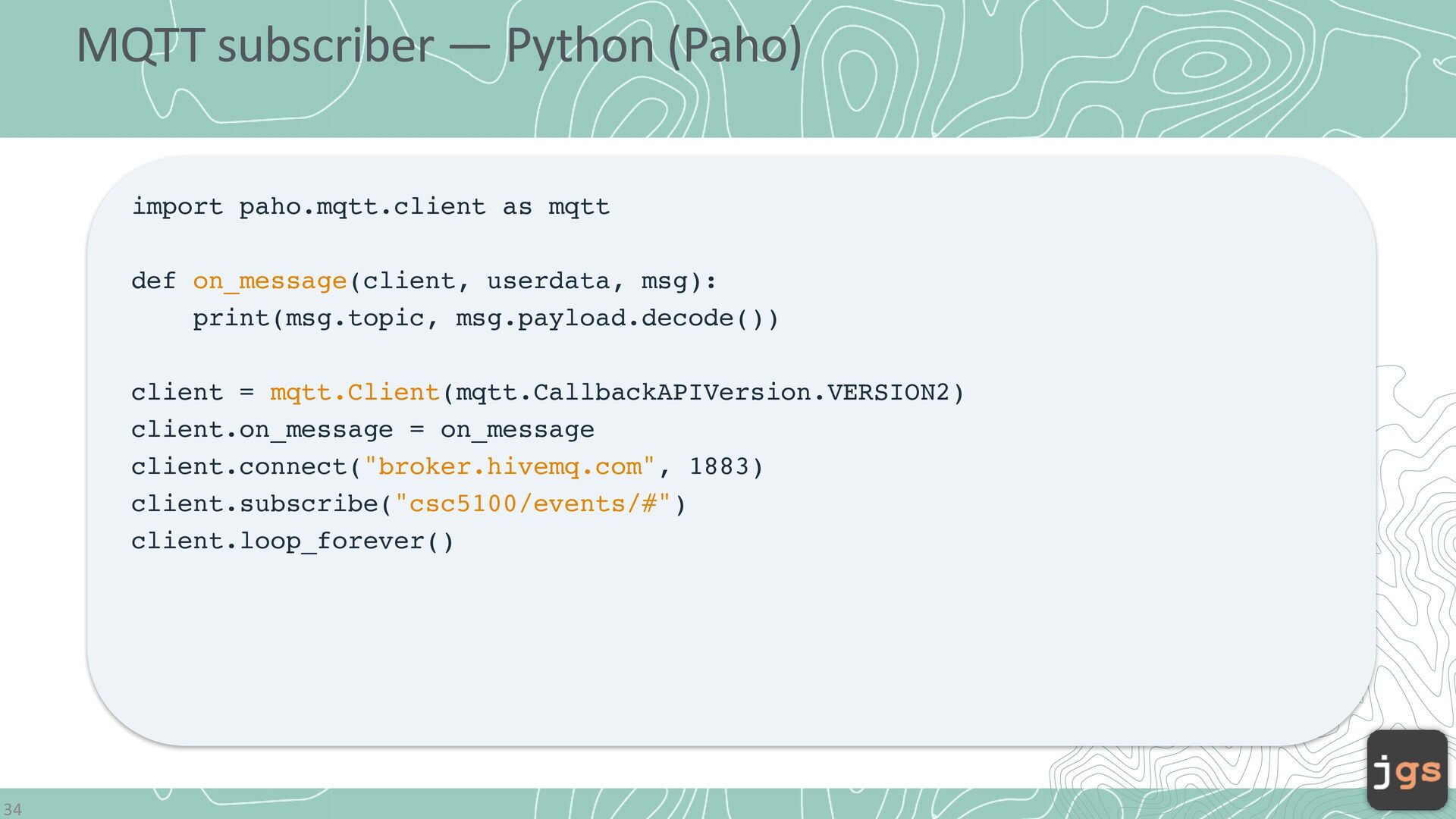

33. MQTT subscriber — Python (Paho) import paho.mqtt.client as mqtt def on_message(client, userdata, msg): print(msg.topic, msg.payload.decode()) client = mqtt.Client(mqtt.CallbackAPIVersion.VERSION2) client.on_message = on_message client.connect("broker.hivemq.com", 1883) client.subscribe("csc5100/events/#") client.loop_forever() 34

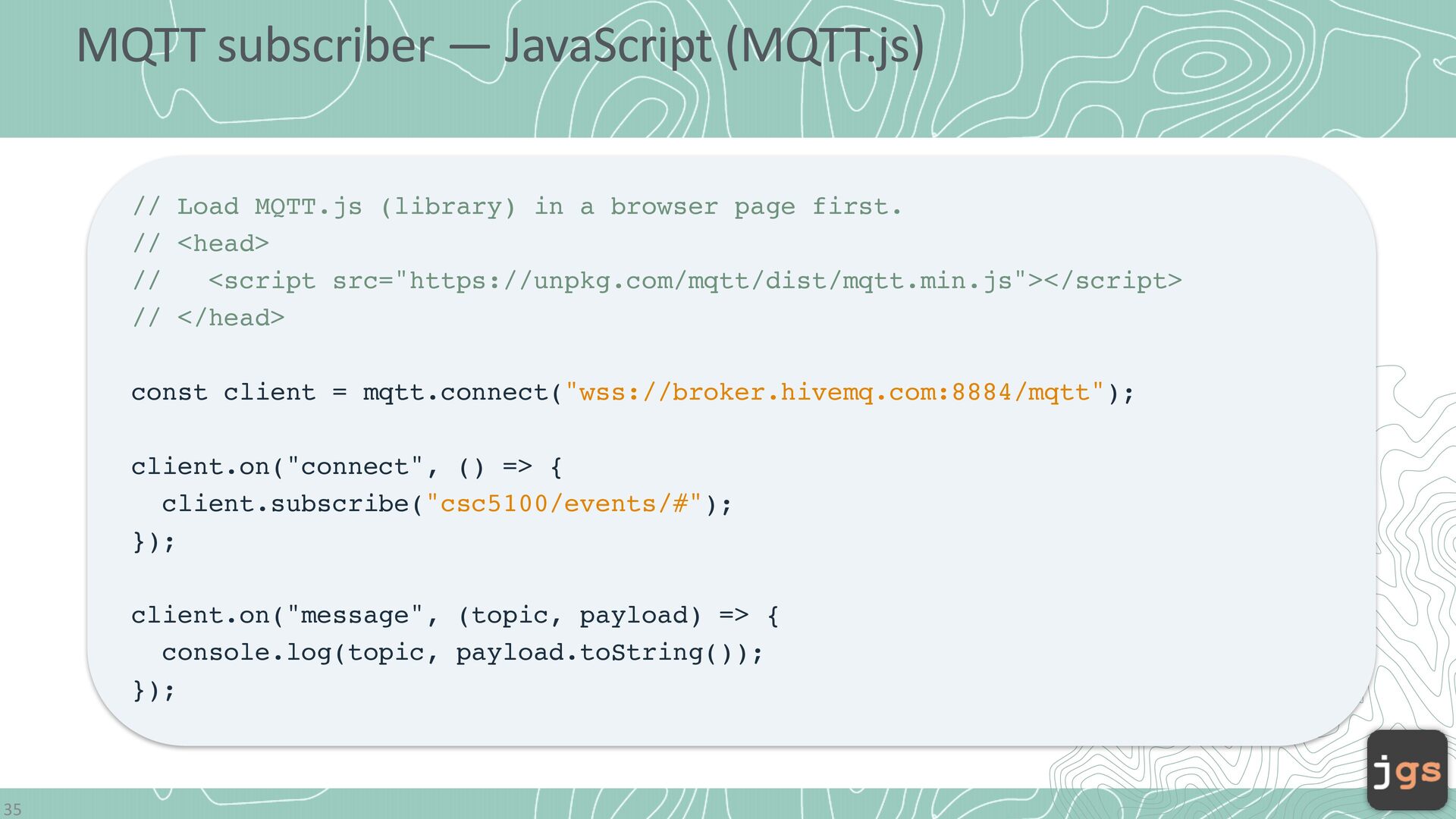

34. MQTT subscriber — JavaScript (MQTT.js) // Load MQTT.js (library) in a browser page first. // <head> // <script src="https://unpkg.com/mqtt/dist/mqtt.min.js"></script> // </head> const client = mqtt.connect("wss://broker.hivemq.com:8884/mqtt"); client.on("connect", () => { client.subscribe("csc5100/events/#"); }); client.on("message", (topic, payload) => { console.log(topic, payload.toString()); }); 35

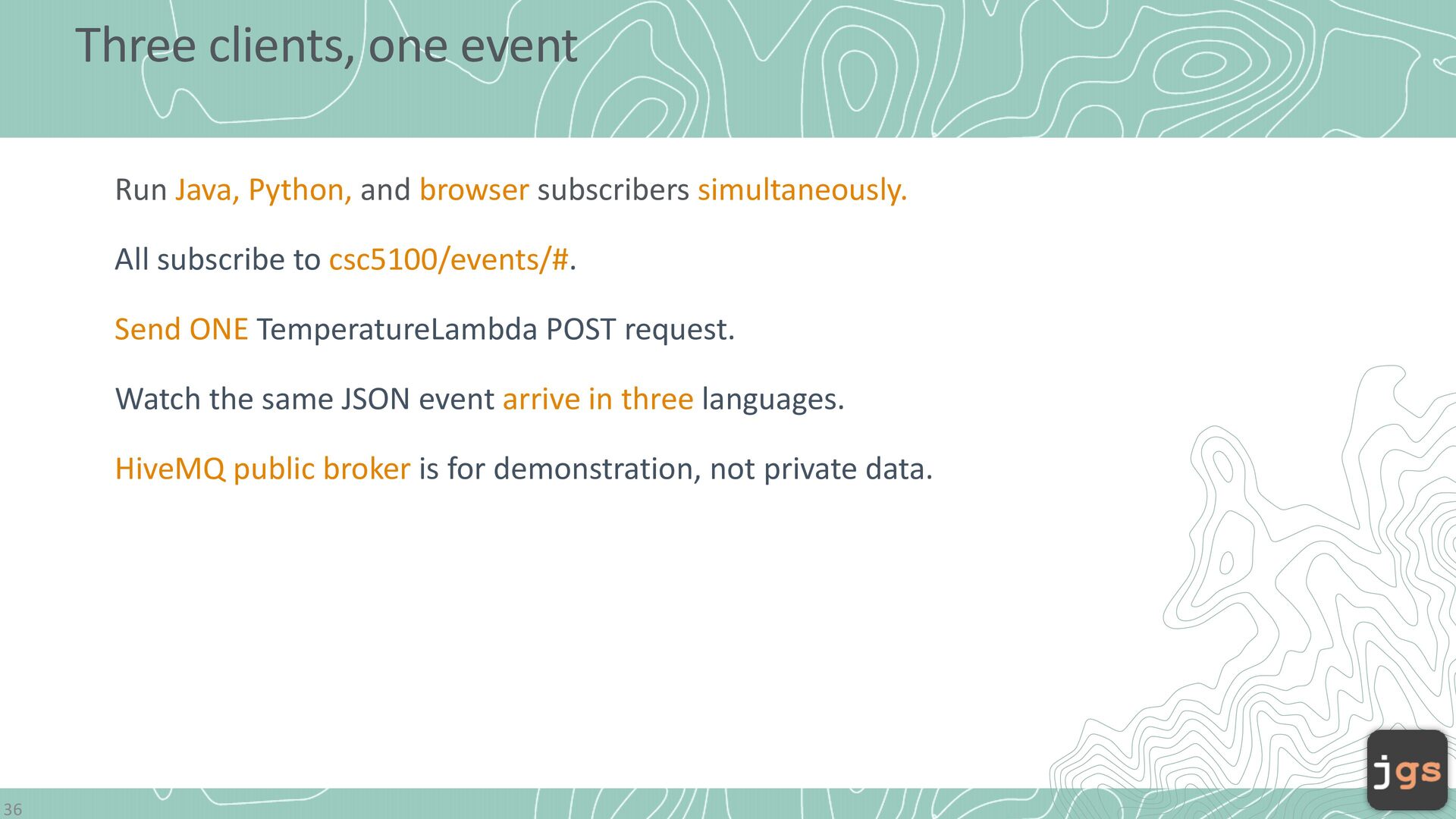

35. Three clients, one event Run Java, Python, and browser subscribers simultaneously. All subscribe to csc5100/events/#. Send ONE TemperatureLambda POST request. Watch the same JSON event arrive in three languages. HiveMQ public broker is for demonstration, not private data. 36

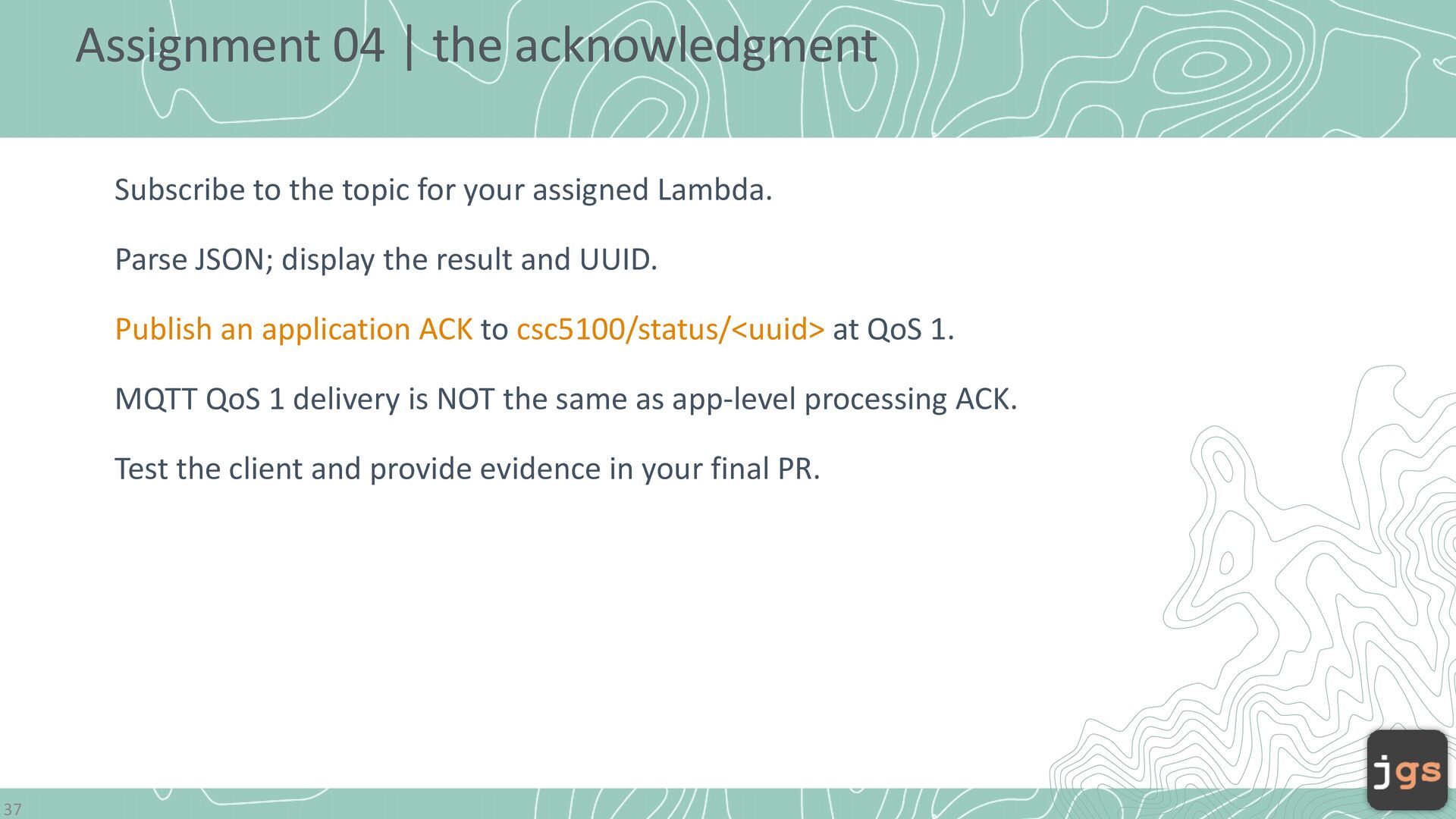

36. Assignment 04 | the acknowledgment Subscribe to the topic for your assigned Lambda. Parse JSON; display the result and UUID. Publish an application ACK to csc5100/status/<uuid> at QoS 1. MQTT QoS 1 delivery is NOT the same as app-level processing ACK. Test the client and provide evidence in your final PR. 37
37. Question 3

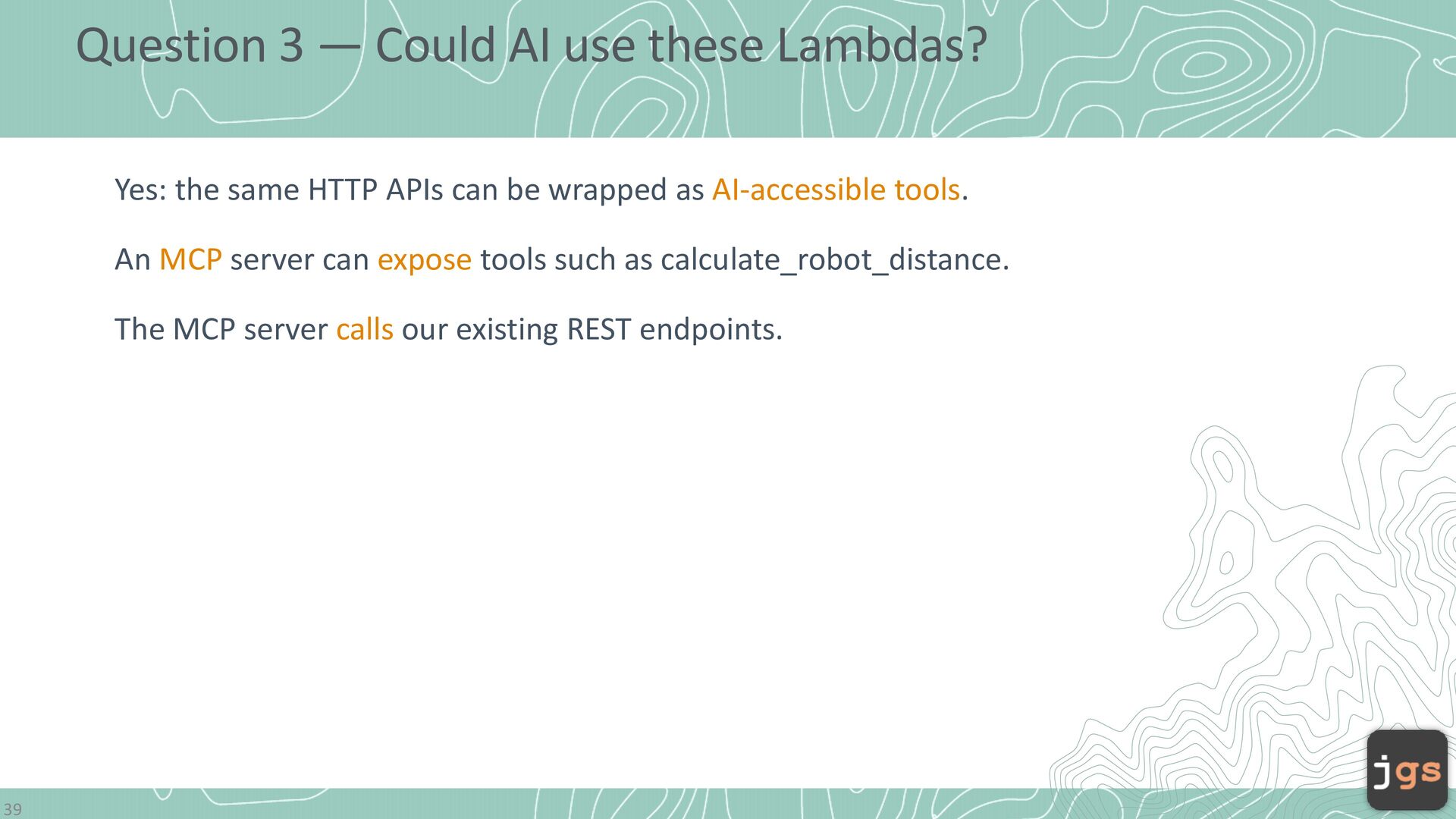

38. Question 3 — Could AI use these Lambdas? Yes: the same HTTP APIs can be wrapped as AI-accessible tools. An MCP server can expose tools such as calculate_robot_distance. The MCP server calls our existing REST endpoints. 39

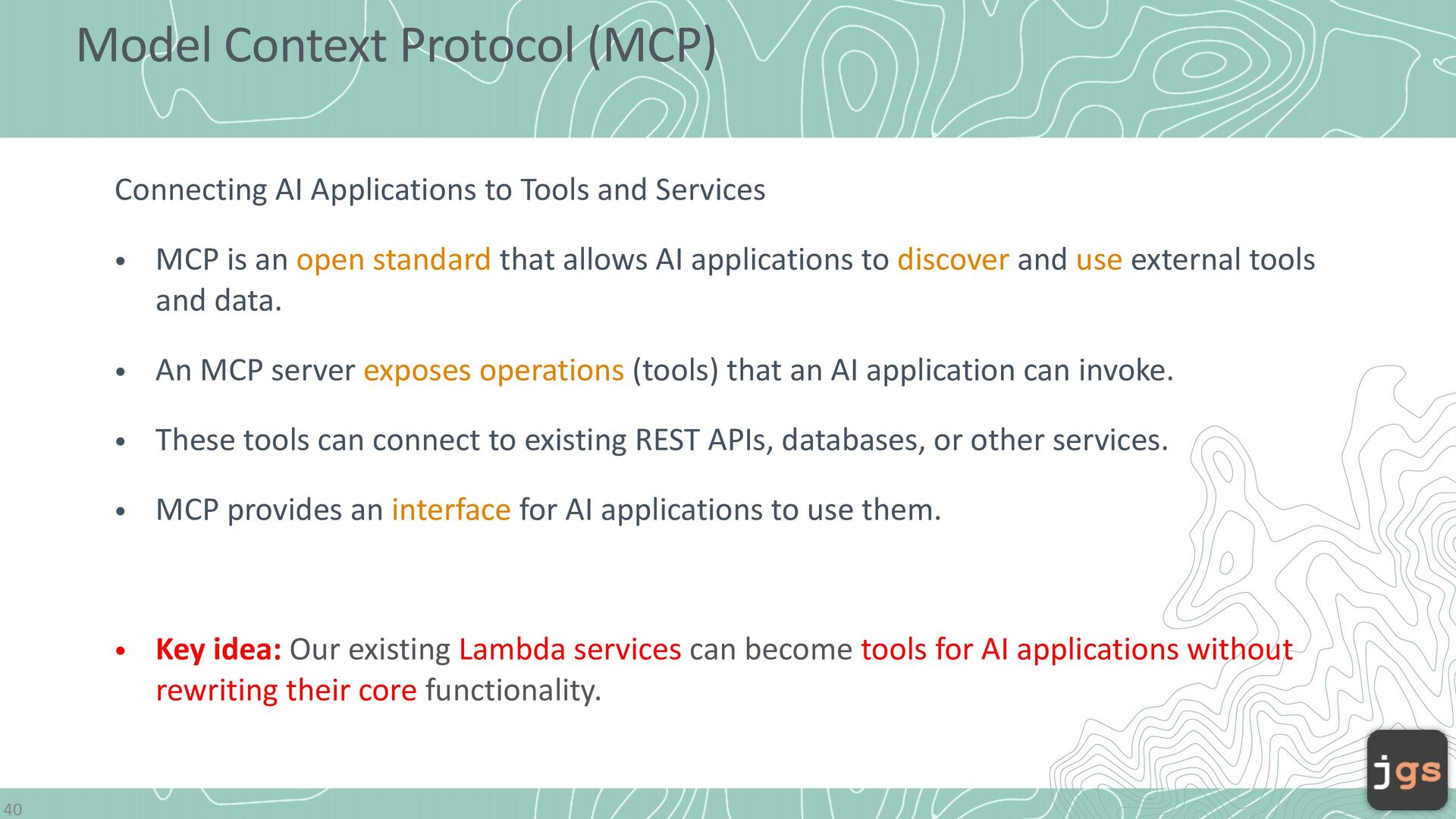

39. Model Context Protocol (MCP) Connecting AI Applications to Tools and Services • MCP is an open standard that allows AI applications to discover and use external tools and data. • An MCP server exposes operations (tools) that an AI application can invoke. • These tools can connect to existing REST APIs, databases, or other services. • MCP provides an interface for AI applications to use them. • Key idea: Our existing Lambda services can become tools for AI applications without rewriting their core functionality. 40

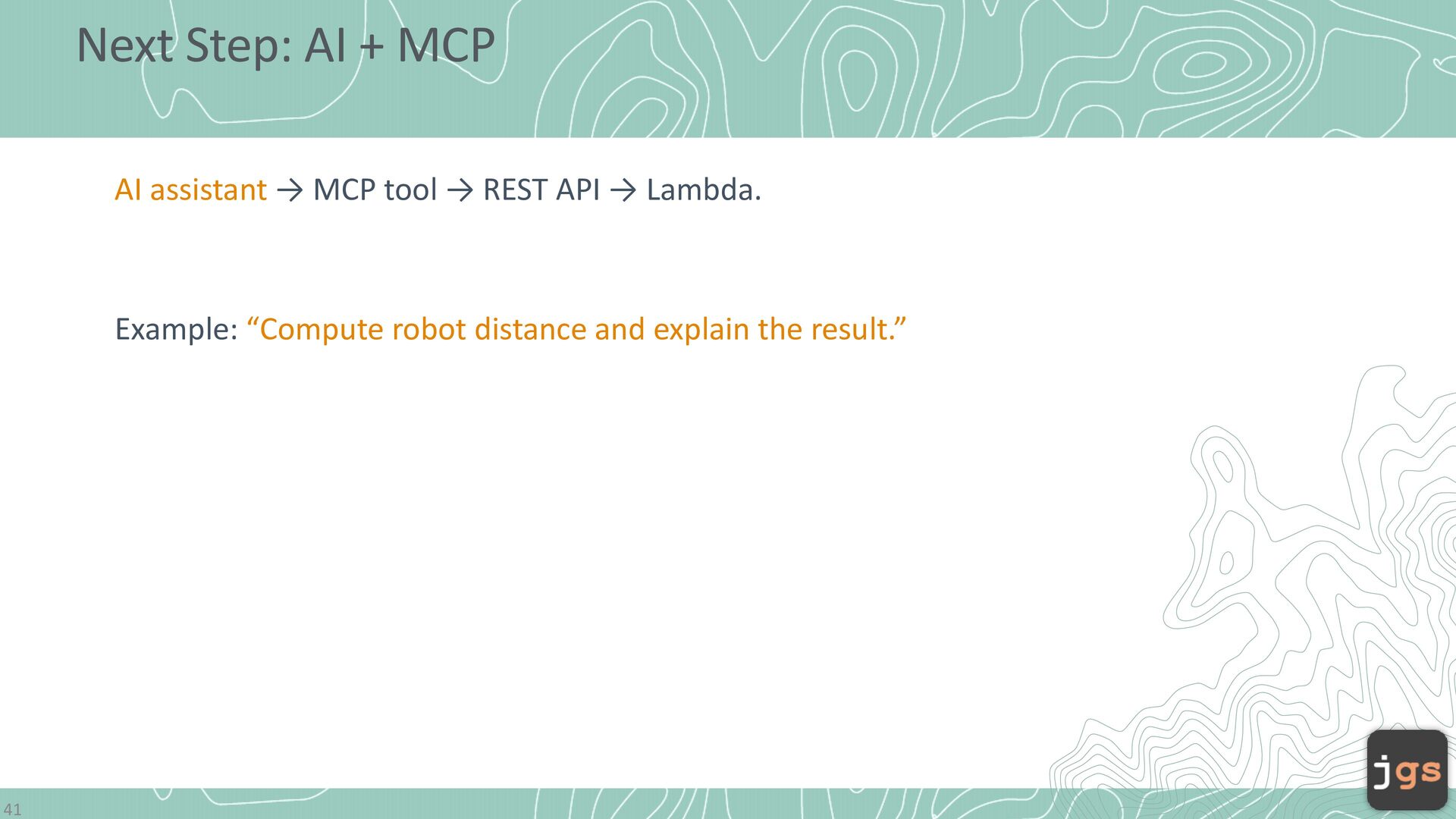

40. Next Step: AI + MCP AI assistant → MCP tool → REST API → Lambda. Example: “Compute robot distance and explain the result.” 41

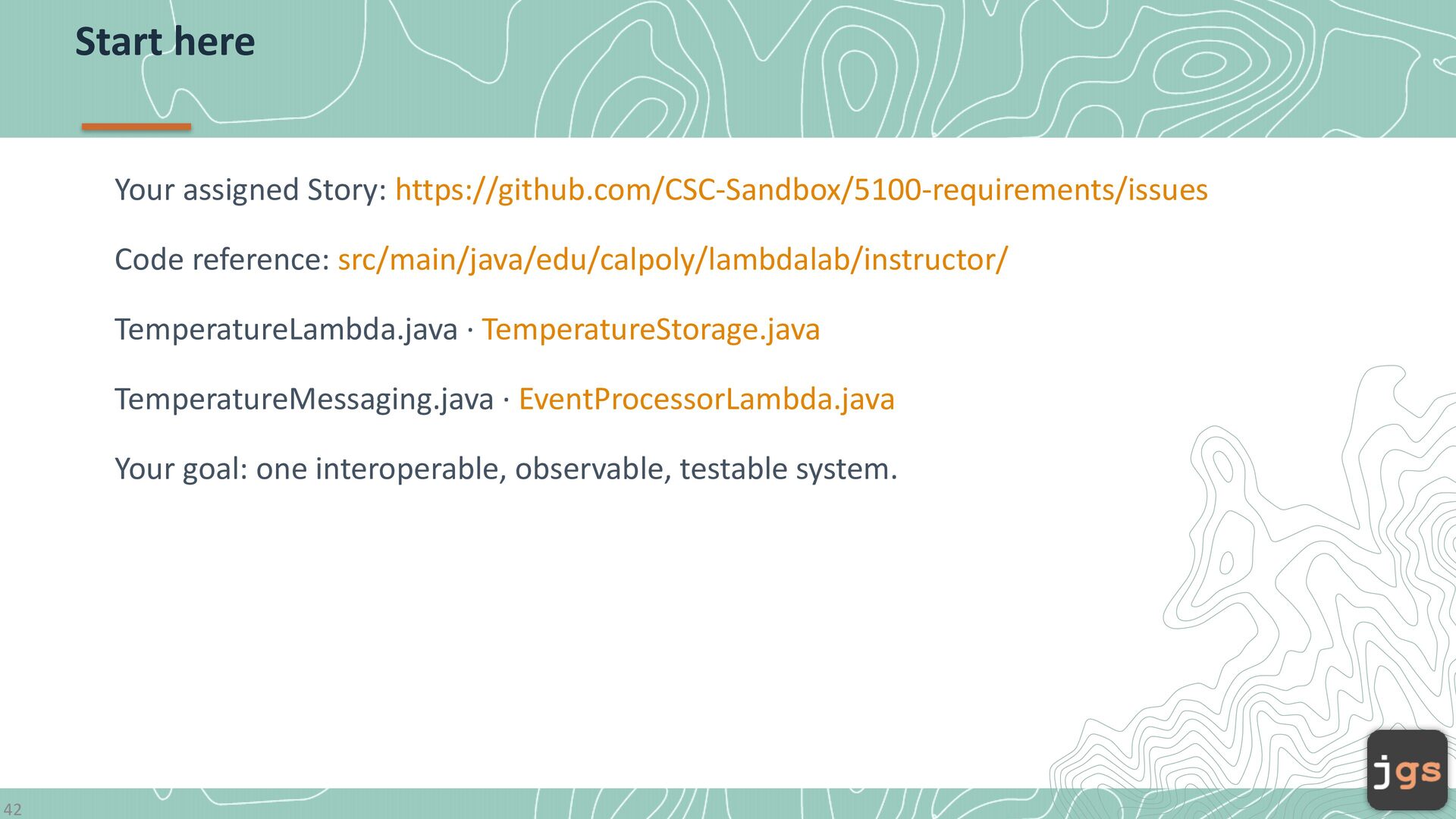

41. Start here Your assigned Story: https://github.com/CSC-Sandbox/5100-requirements/issues Code reference: src/main/java/edu/calpoly/lambdalab/instructor/ TemperatureLambda.java · TemperatureStorage.java TemperatureMessaging.java · EventProcessorLambda.java Your goal: one interoperable, observable, testable system. 42
42. Questions 43
