GRPC Services in Kong

This document is the base for my presentation about the Kong Gateway and its usages with the gRPC plugins. The Kong gateway provides two kinds of plugins that are very crucial when thinking about working with gRPC services. There is a grpc gateway plugin and a grpc web plugin. How to work with them and how to configure them isn't difficult but some help is always good. I provide with this presentation a general look on gRPC itself and how to manage that using an API gateway.

Transcript

1. Managing gRPC Services with an API Gateway By João Esperancinha (2024/05/13)

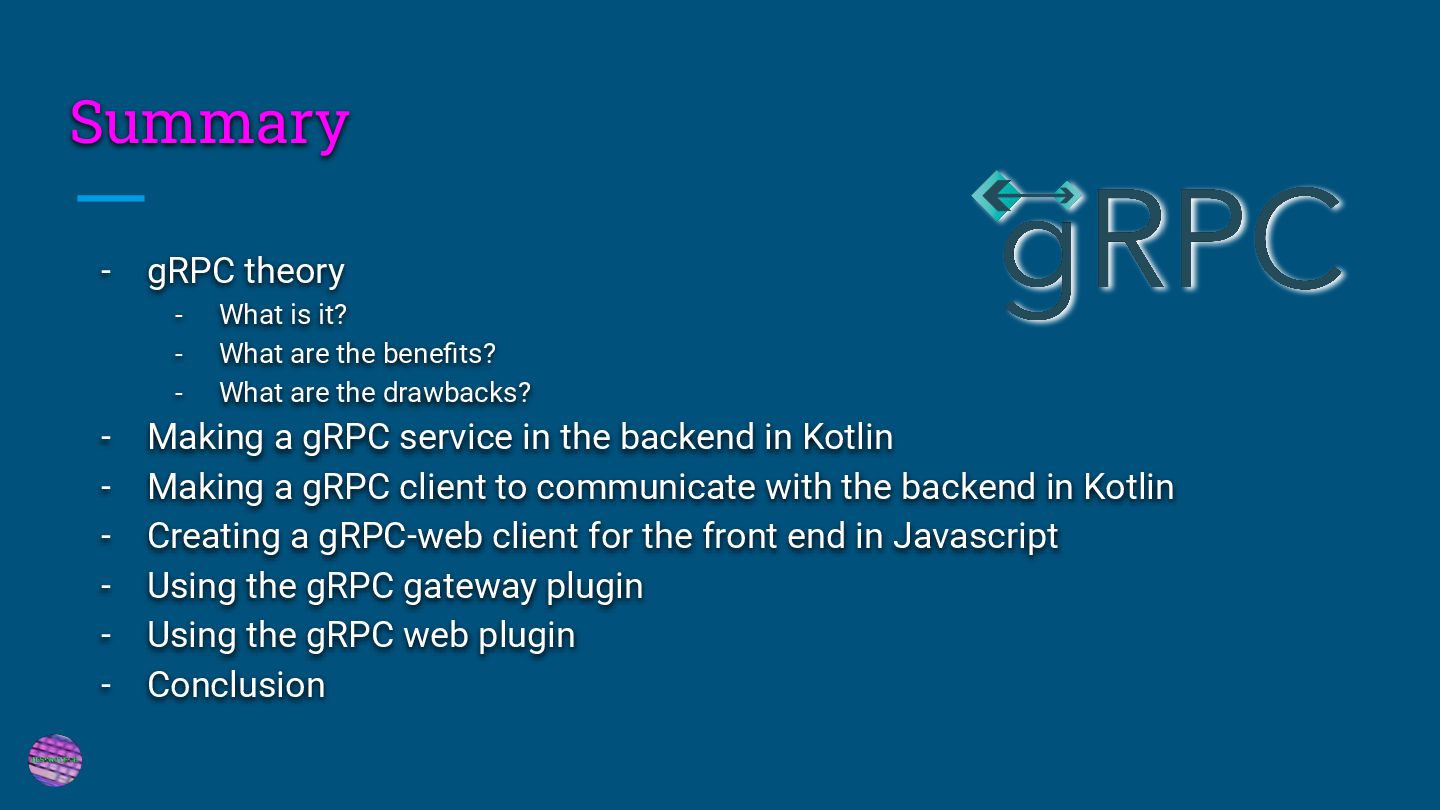

2. Summary - gRPC theory - What is it? - What are the benefits? - What are the drawbacks? - Making a gRPC service in the backend in Kotlin - Making a gRPC client to communicate with the backend in Kotlin - Creating a gRPC-web client for the front end in Javascript - Using the gRPC gateway plugin - Using the gRPC web plugin - Conclusion
3. About me João Esperancinha • Java • Kotlin • Groovy • Scala • Software Engineer 10+ years • JESPROTECH owner for 1 year Kong Champion/Java Professional/Spring Professional
4. Part - I - gRPC Introduction

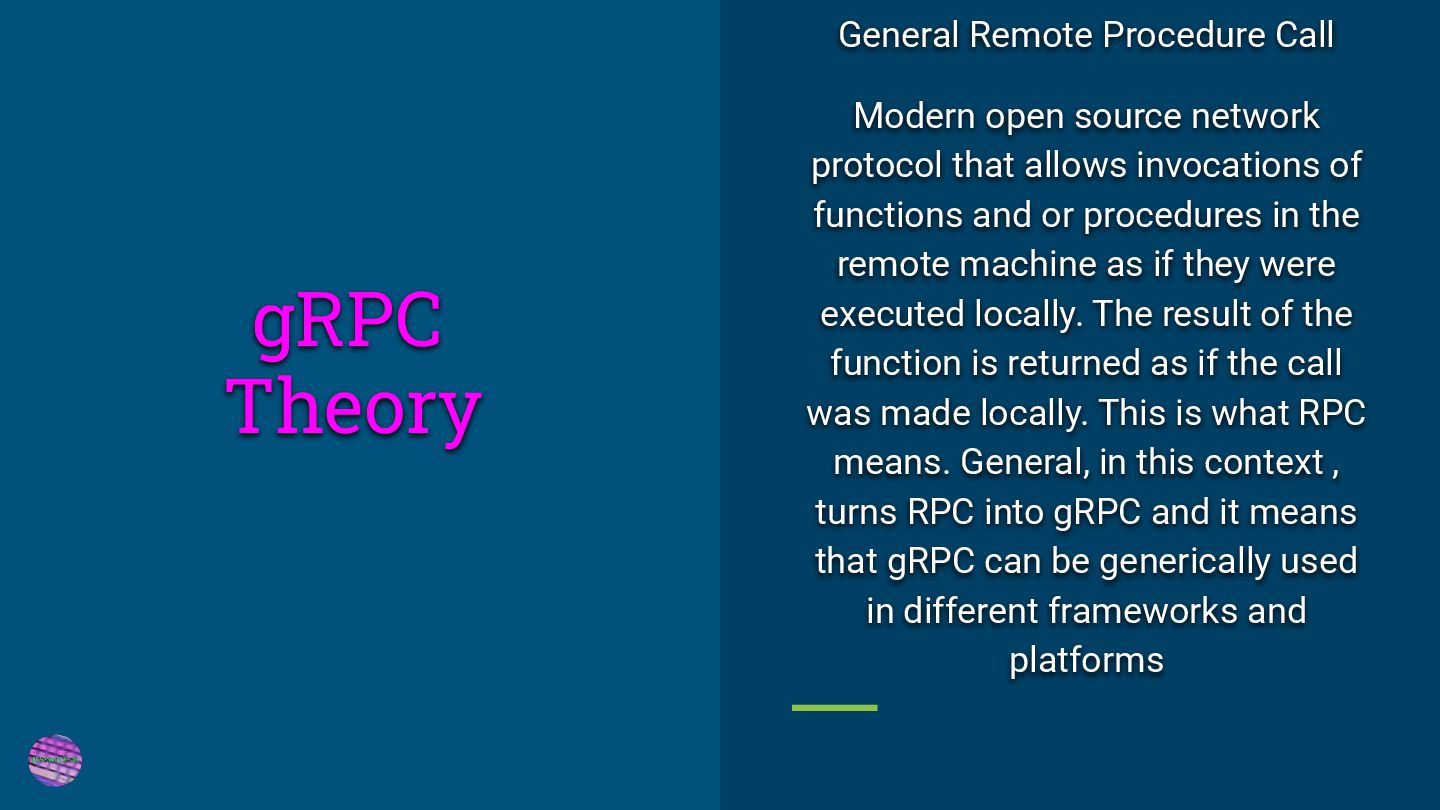

5. gRPC General Remote Procedure Call Modern open source network protocol that allows invocations of functions and or procedures in the remote machine as if they were executed locally. The result of the function is returned as if the call was made locally. This is what RPC means. General, in this context , turns RPC into gRPC and it means that gRPC can be generically used in different frameworks and platforms Theory

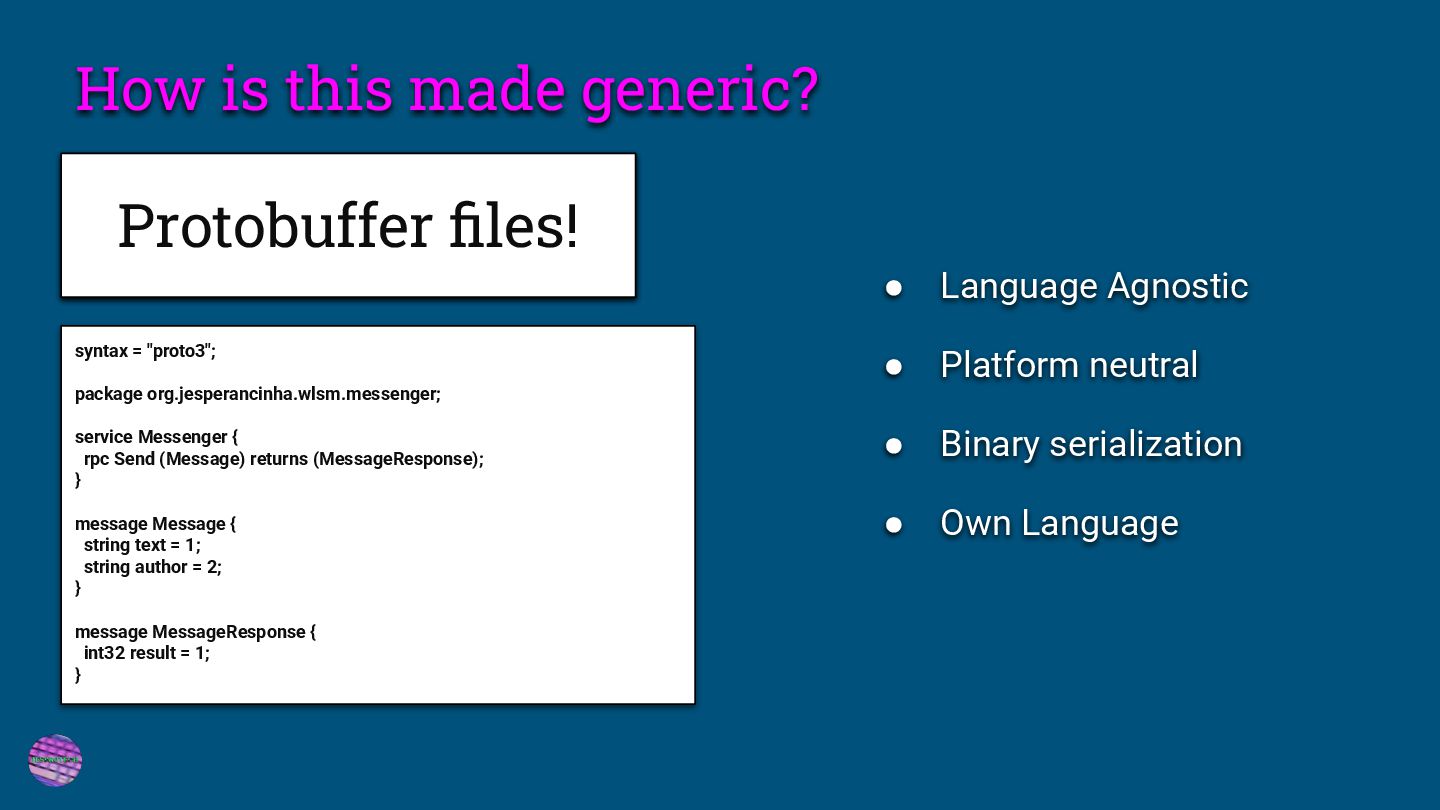

6. How is this made generic? Protobuffer files! syntax = "proto3"; package org.jesperancinha.wlsm.messenger; service Messenger { rpc Send (Message) returns (MessageResponse); } message Message { string text = 1; string author = 2; } message MessageResponse { int32 result = 1; } • Language Agnostic • Platform neutral • Binary serialization • Own Language
7. gRPC backend services start out as protobuf files. The word protobuf means Protocol Buffer and it essentially means what it actually does. This is the data structure format used in the buffers created to transmit data. Backend Service

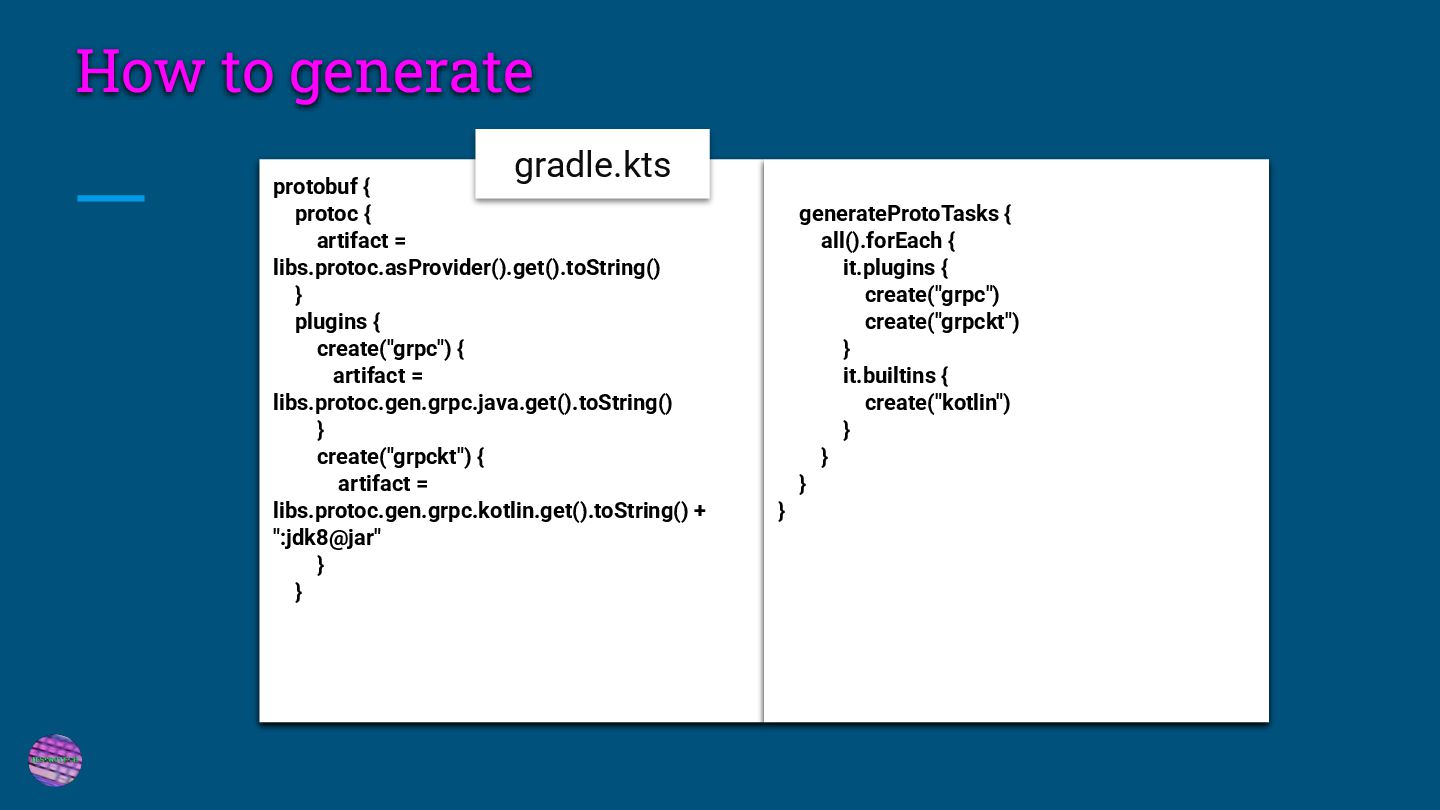

8. How to generate protobuf { protoc { artifact = libs.protoc.asProvider().get().toString() } plugins { create("grpc") { artifact = libs.protoc.gen.grpc.java.get().toString() } create("grpckt") { artifact = libs.protoc.gen.grpc.kotlin.get().toString() + ":jdk8@jar" } } generateProtoTasks { all().forEach { it.plugins { create("grpc") create("grpckt") } it.builtins { create("kotlin") } } } } gradle.kts

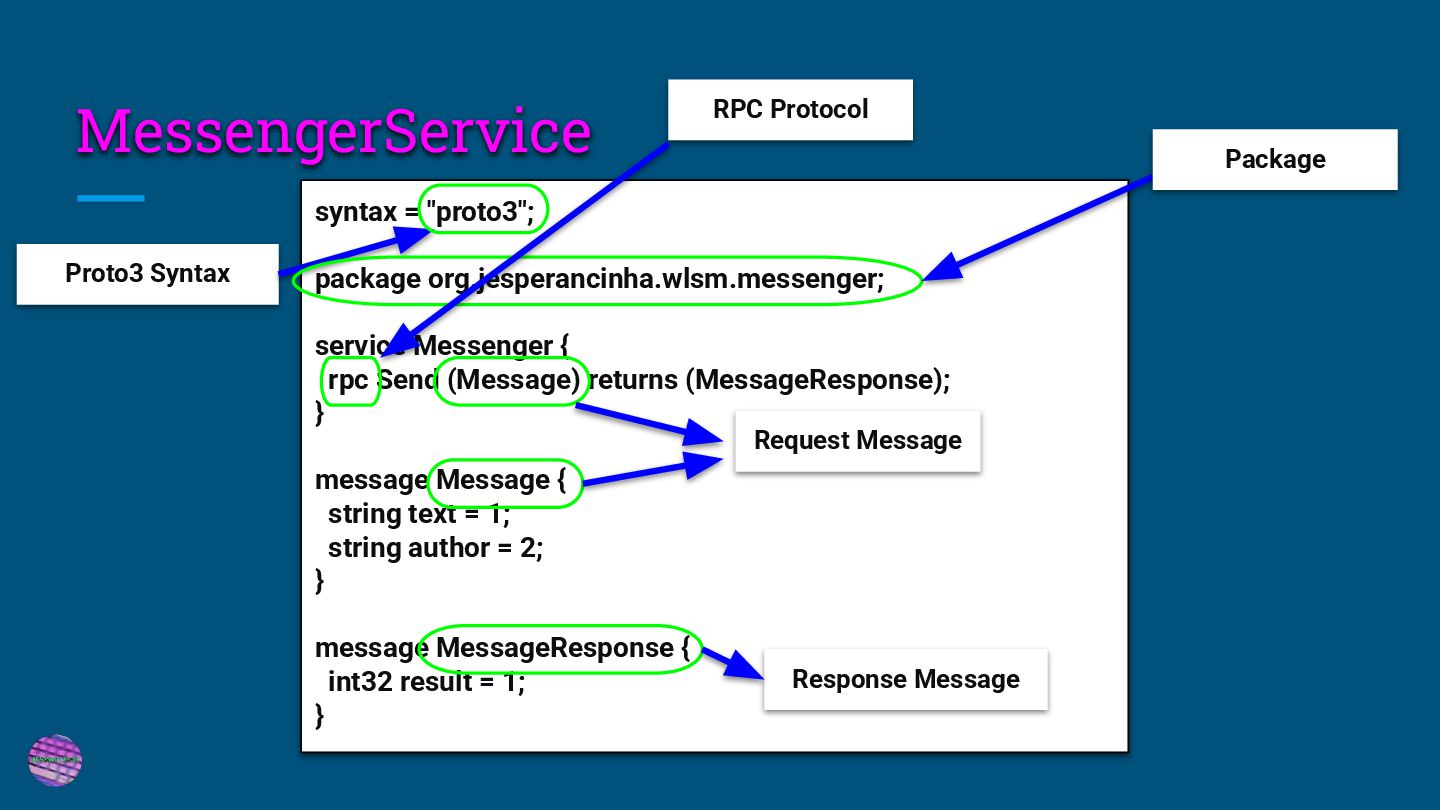

9. MessengerService syntax = "proto3"; package org.jesperancinha.wlsm.messenger; service Messenger { rpc Send (Message) returns (MessageResponse); } message Message { string text = 1; string author = 2; } message MessageResponse { int32 result = 1; } Proto3 Syntax Request Message Response Message Package RPC Protocol

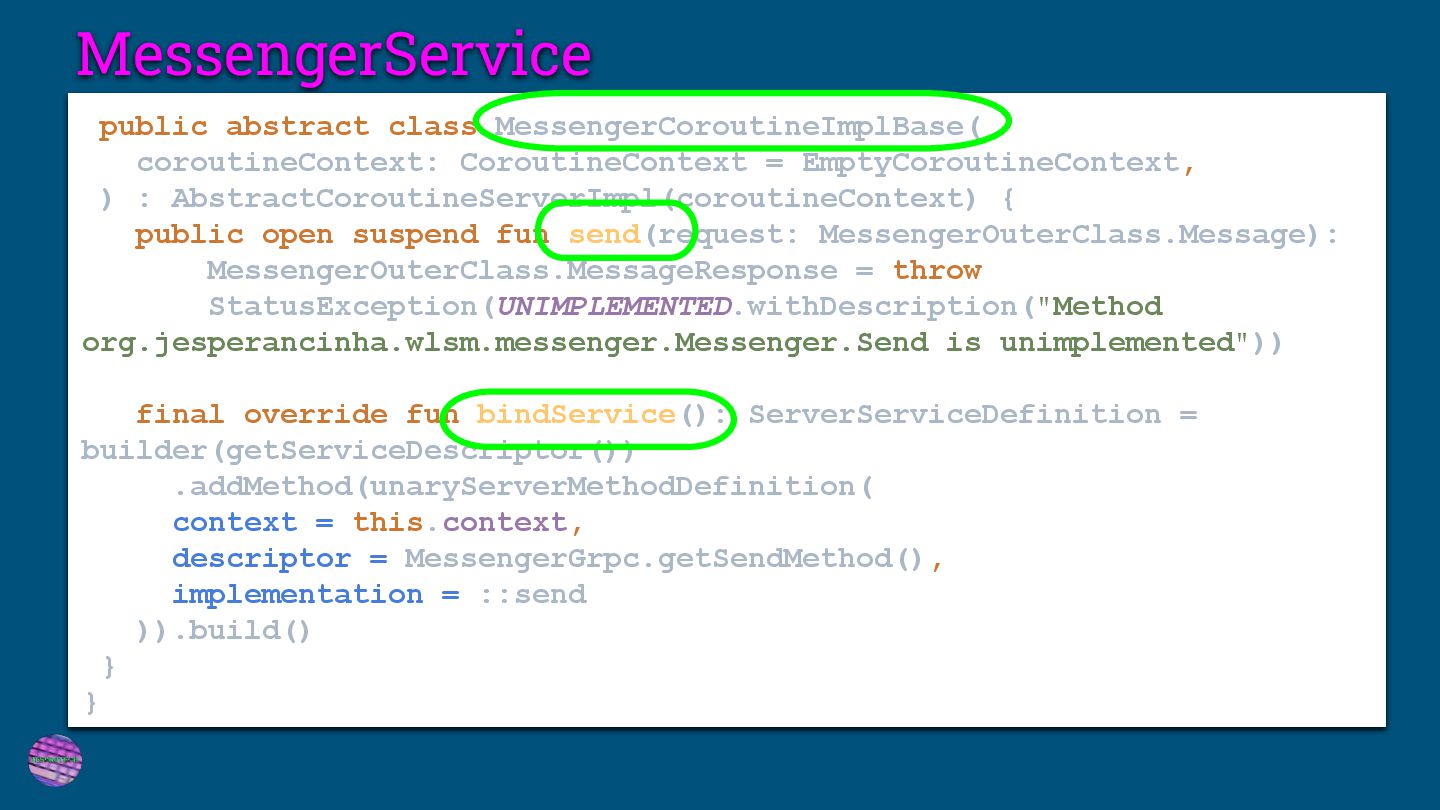

10. MessengerService public abstract class MessengerCoroutineImplBase( coroutineContext: CoroutineContext = EmptyCoroutineContext, ) : AbstractCoroutineServerImpl(coroutineContext) { public open suspend fun send(request: MessengerOuterClass.Message): MessengerOuterClass.MessageResponse = throw StatusException(UNIMPLEMENTED.withDescription("Method org.jesperancinha.wlsm.messenger.Messenger.Send is unimplemented")) final override fun bindService(): ServerServiceDefinition = builder(getServiceDescriptor()) .addMethod(unaryServerMethodDefinition( context = this.context, descriptor = MessengerGrpc.getSendMethod(), implementation = ::send )).build() } }

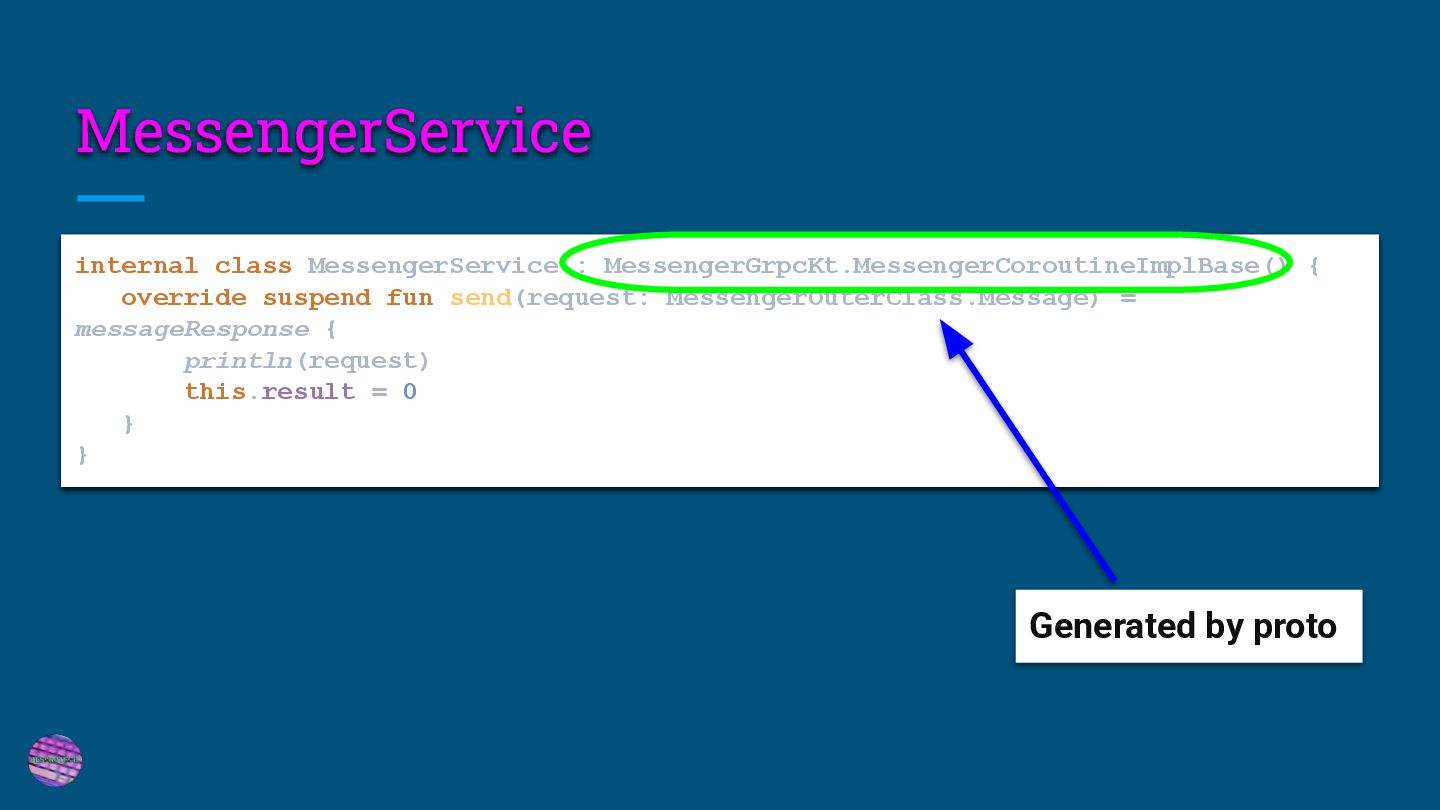

11. MessengerService internal class MessengerService : MessengerGrpcKt.MessengerCoroutineImplBase() { override suspend fun send(request: MessengerOuterClass.Message) = messageResponse { println(request) this.result = 0 } } Generated by proto

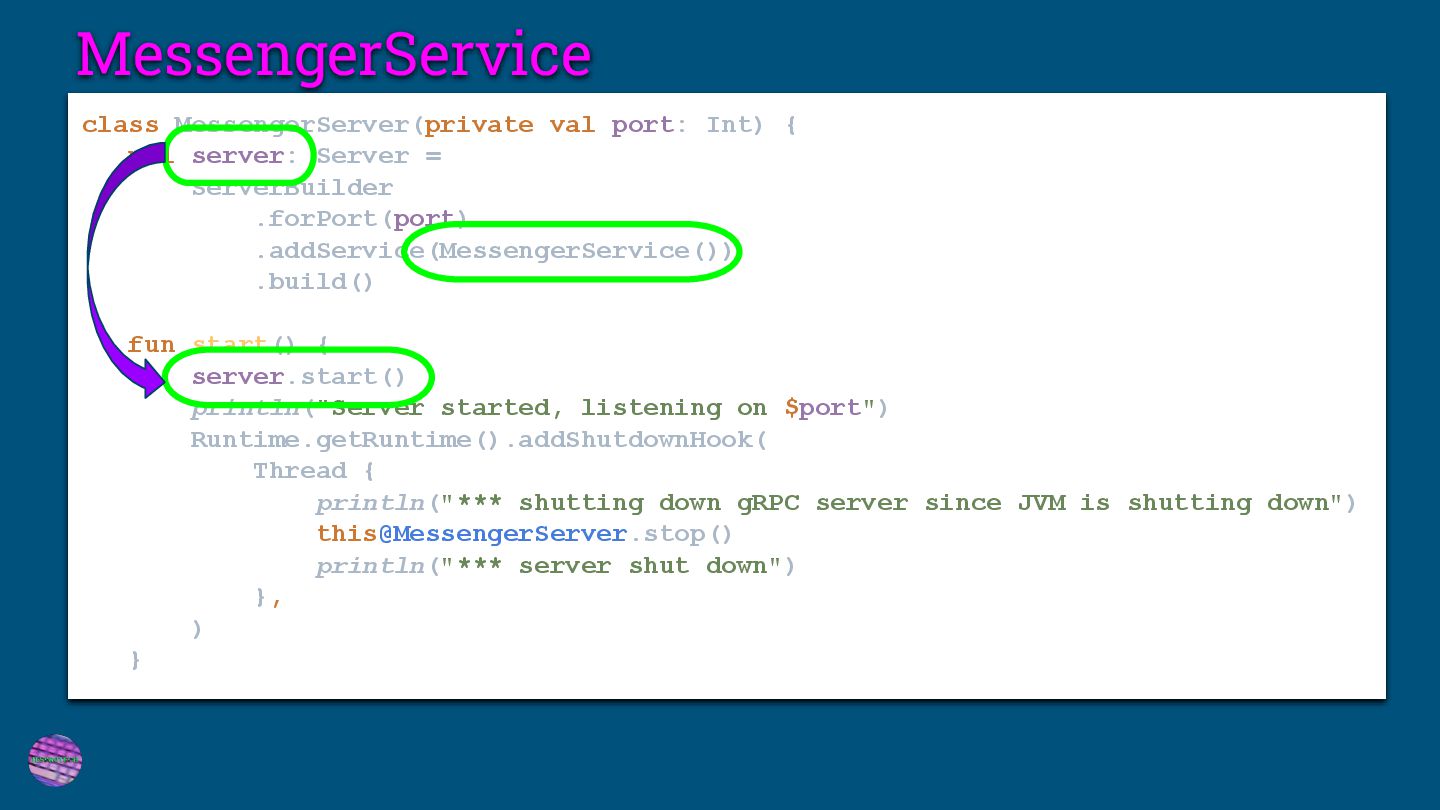

12. MessengerService class MessengerServer(private val port: Int) { val server: Server = ServerBuilder .forPort(port) .addService(MessengerService()) .build() fun start() { server.start() println("Server started, listening on $port") Runtime.getRuntime().addShutdownHook( Thread { println("*** shutting down gRPC server since JVM is shutting down") this@MessengerServer.stop() println("*** server shut down") }, ) }
13. Just as the gRPC services, the client files get also generated with the protobuf plugin. Once that is created, we can easily use the client to access the service. Client

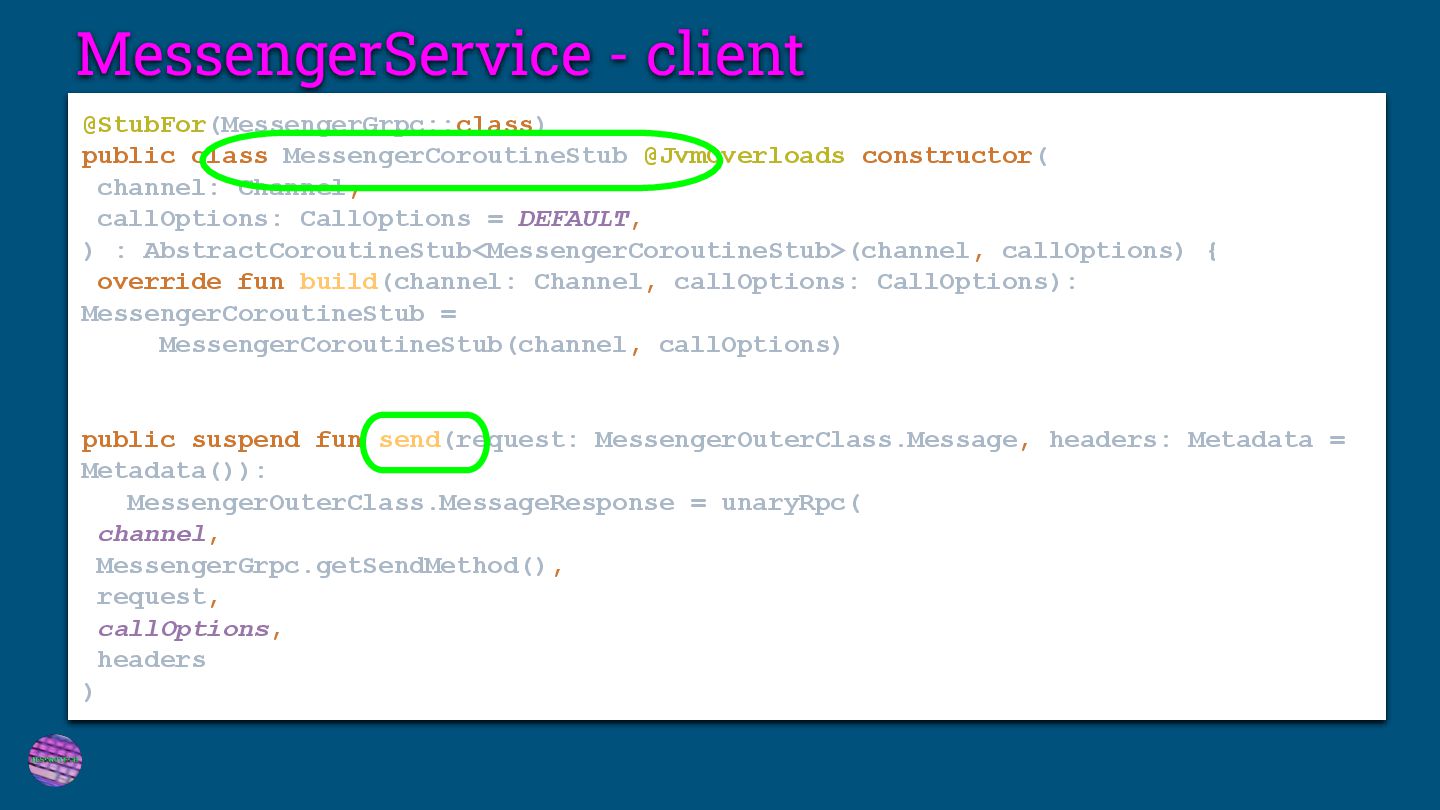

14. MessengerService - client @StubFor(MessengerGrpc::class) public class MessengerCoroutineStub @JvmOverloads constructor( channel: Channel, callOptions: CallOptions = DEFAULT, ) : AbstractCoroutineStub<MessengerCoroutineStub>(channel, callOptions) { override fun build(channel: Channel, callOptions: CallOptions): MessengerCoroutineStub = MessengerCoroutineStub(channel, callOptions) public suspend fun send(request: MessengerOuterClass.Message, headers: Metadata = Metadata()): MessengerOuterClass.MessageResponse = unaryRpc( channel, MessengerGrpc.getSendMethod(), request, callOptions, headers )

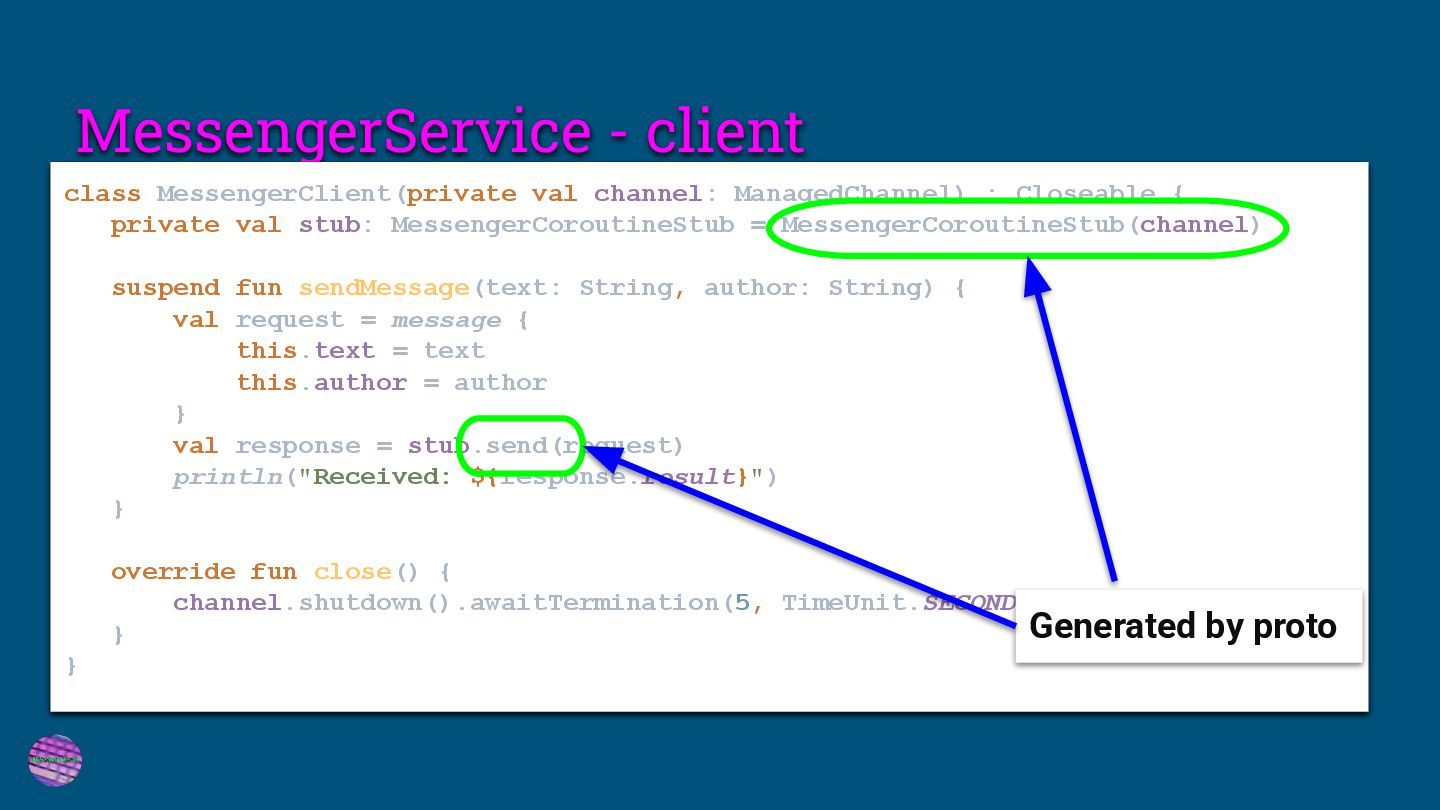

15. MessengerService - client class MessengerClient(private val channel: ManagedChannel) : Closeable { private val stub: MessengerCoroutineStub = MessengerCoroutineStub(channel) suspend fun sendMessage(text: String, author: String) { val request = message { this.text = text this.author = author } val response = stub.send(request) println("Received: ${response.result}") } override fun close() { channel.shutdown().awaitTermination(5, TimeUnit.SECONDS) } } Generated by proto
16. gRPC without gradle gRPC with gradle Creating gRPC DEMO
17. Part - II - gRPC in Kong Konnect

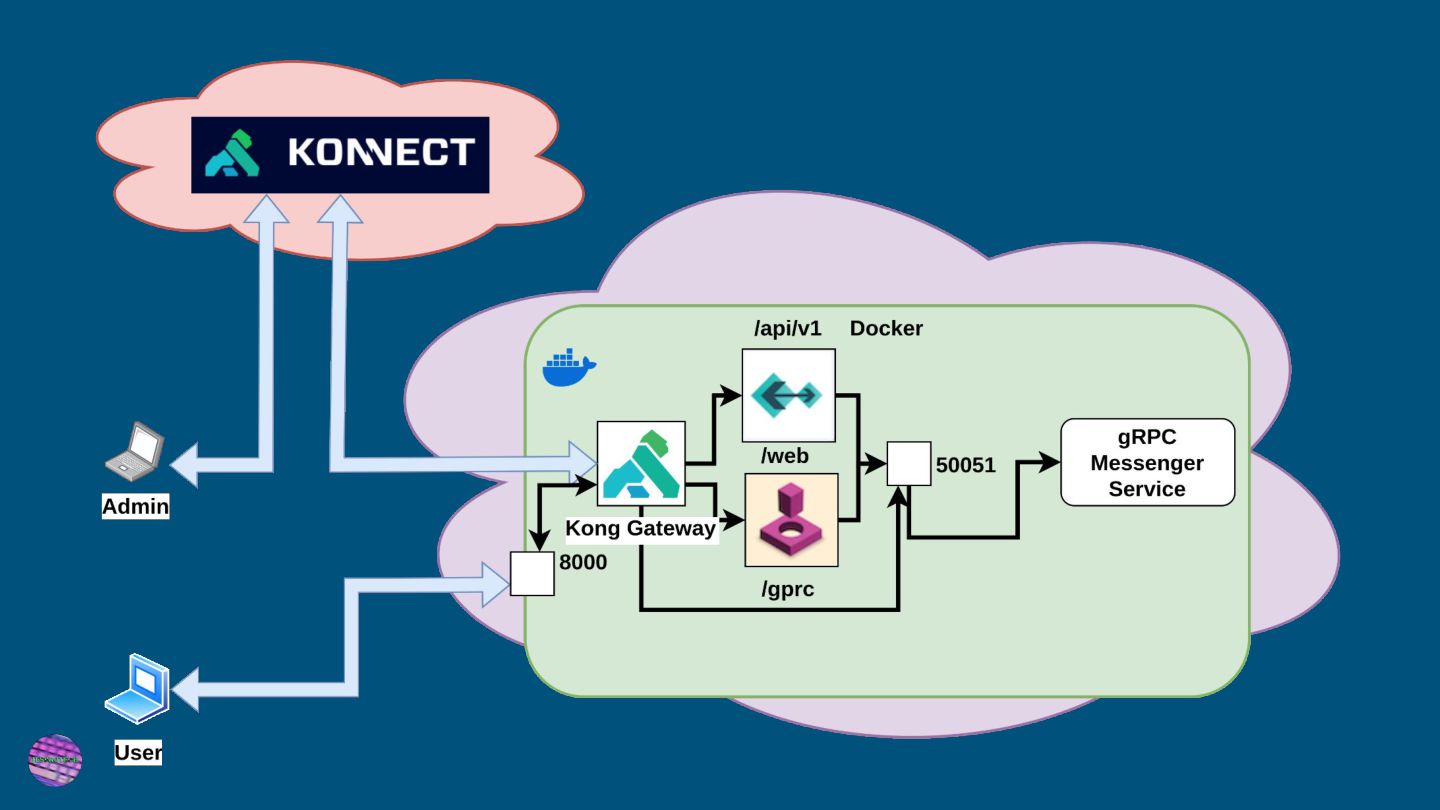

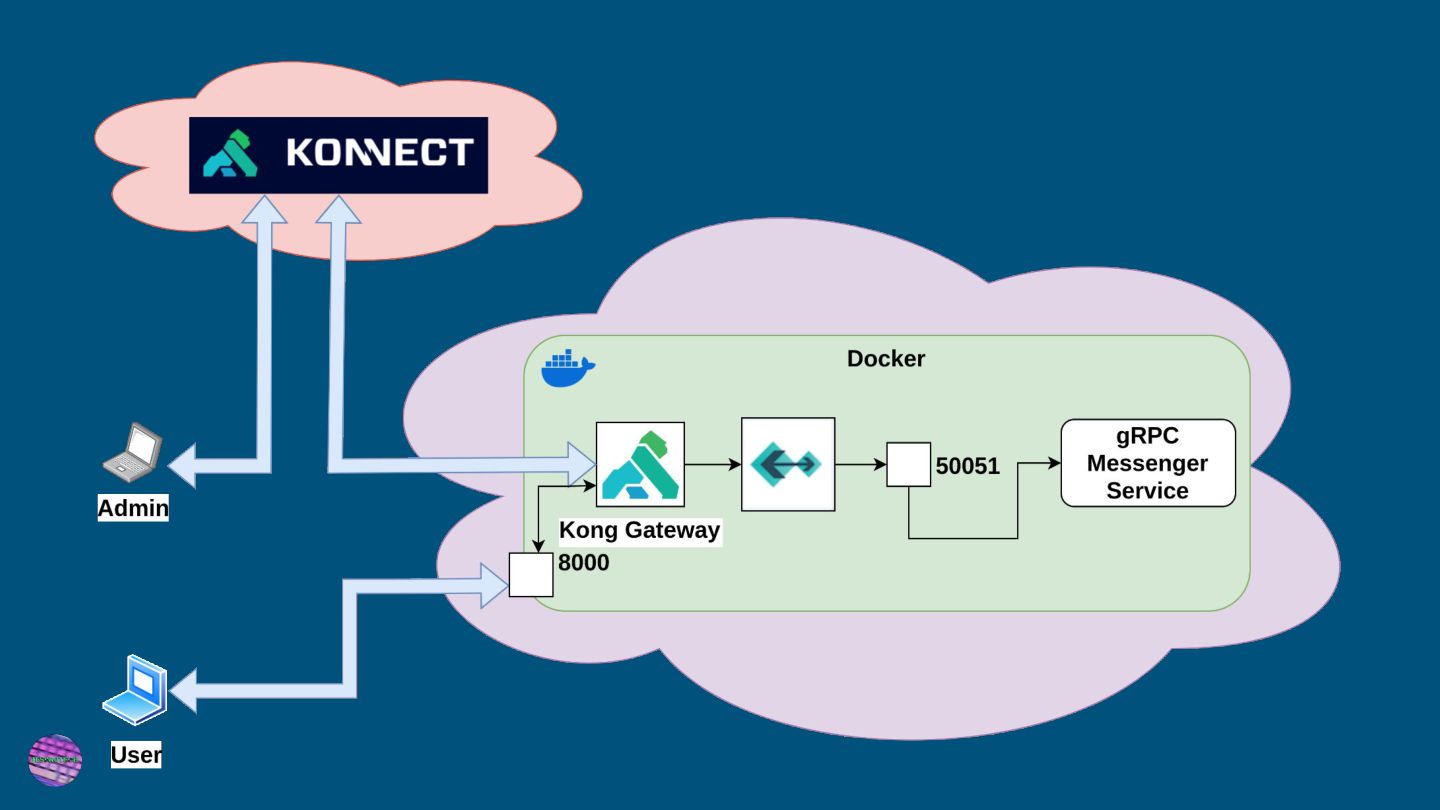

18. Where and how do we make the tests? How do we connect Kong KONNECT to our containerized environment? How do we see gRPC in action? How to use docker-compose

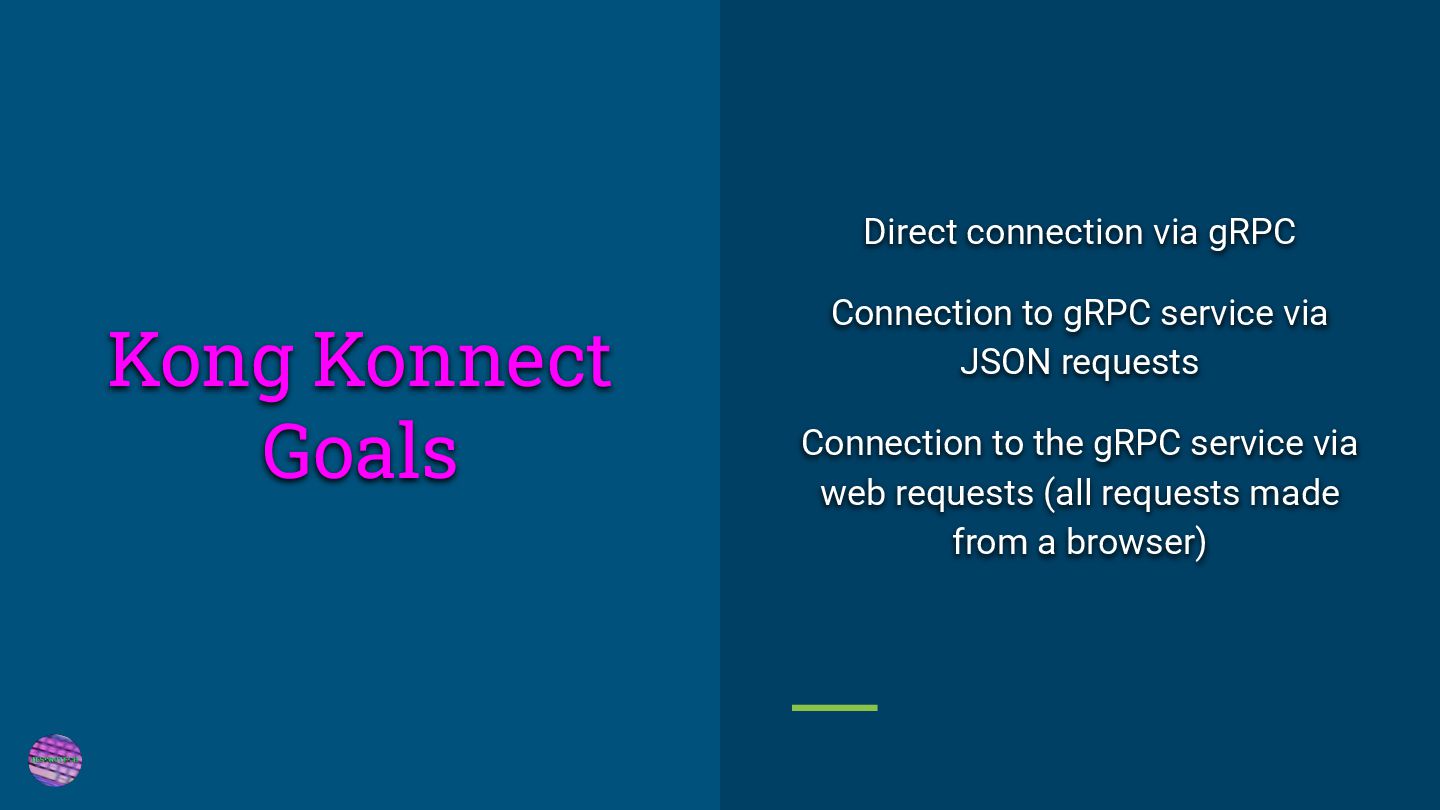

19. Direct connection via gRPC Connection to gRPC service via JSON requests Connection to the gRPC service via web requests (all requests made from a browser) Kong Konnect Goals

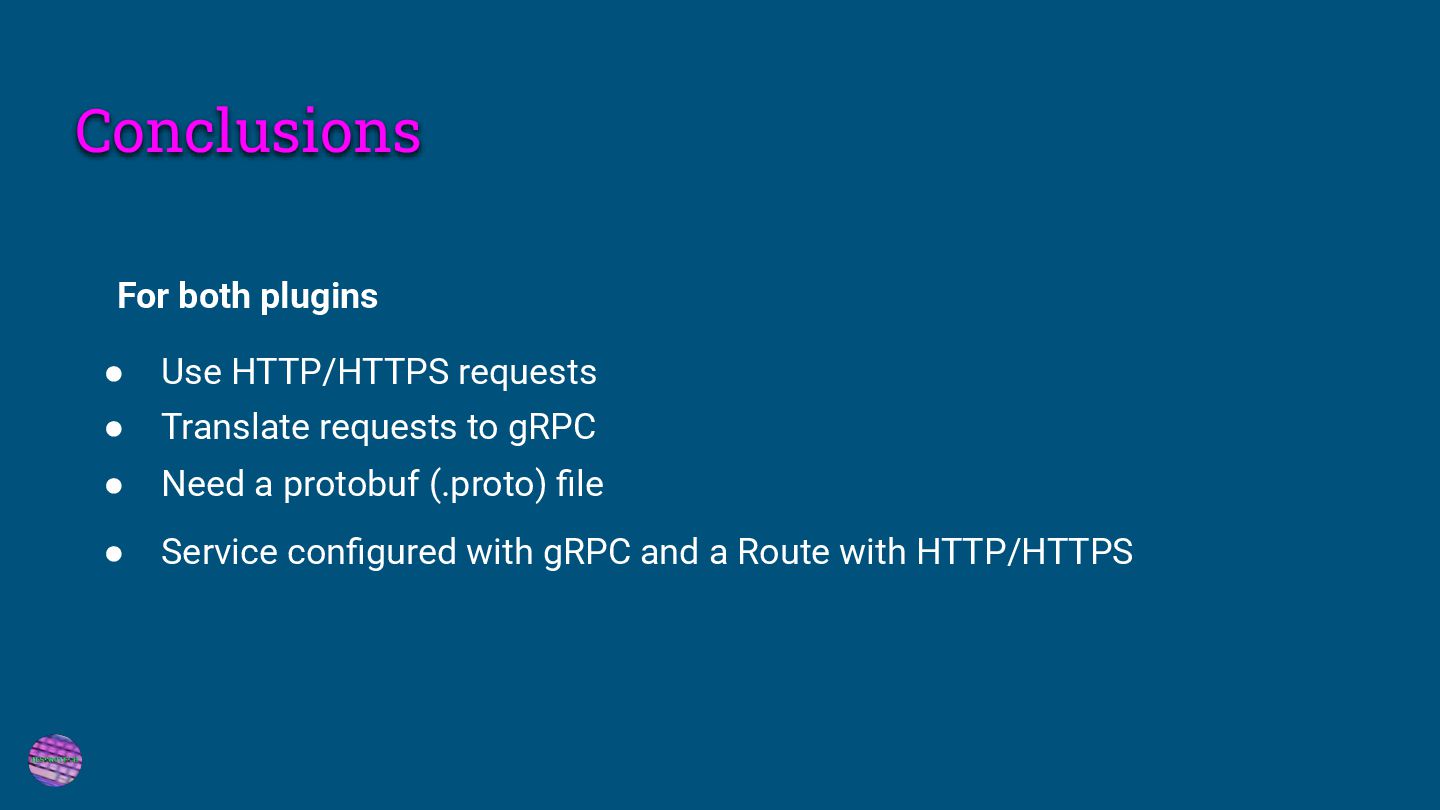

23. Conclusions • Use HTTP/HTTPS requests For both plugins • Translate requests to gRPC • Need a protobuf (.proto) file • Service configured with gRPC and a Route with HTTP/HTTPS

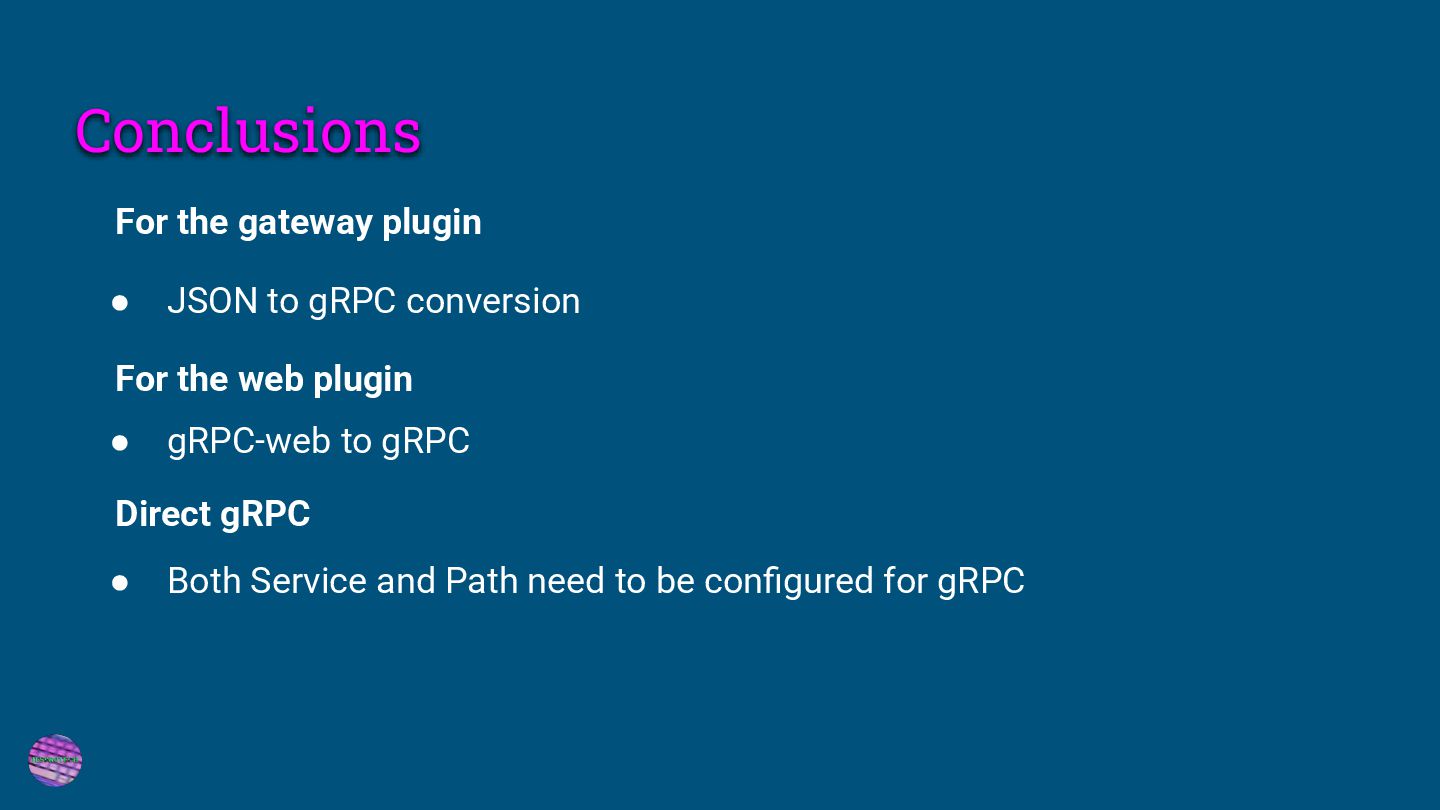

24. Conclusions • JSON to gRPC conversion For the gateway plugin For the web plugin • gRPC-web to gRPC Direct gRPC • Both Service and Path need to be configured for gRPC

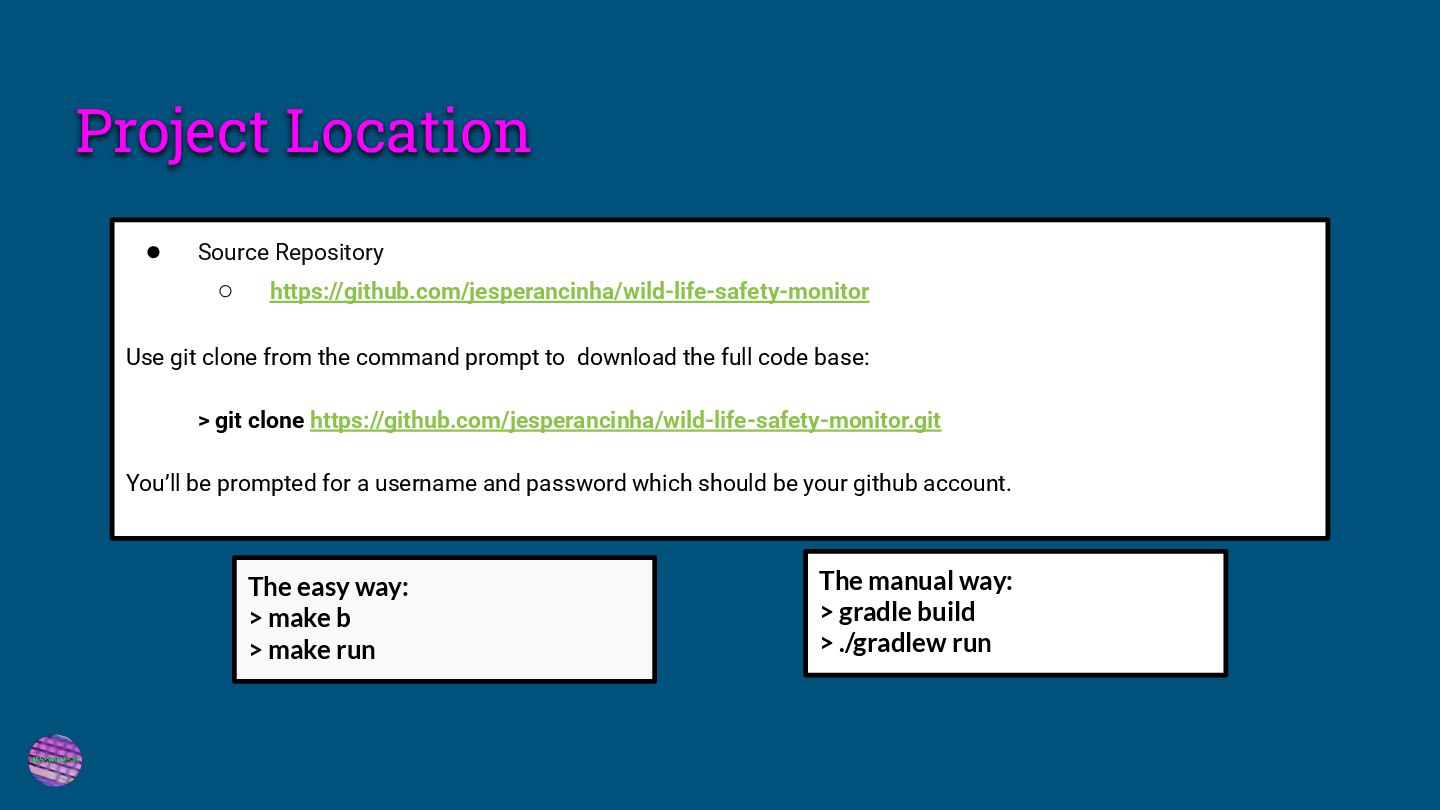

25. • Source Repository ◦ https://github.com/jesperancinha/wild-life-safety-monitor Use git clone from the command prompt to download the full code base: > git clone https://github.com/jesperancinha/wild-life-safety-monitor.git You’ll be prompted for a username and password which should be your github account. The easy way: > make b > make run The manual way: > gradle build > ./gradlew run Project Location

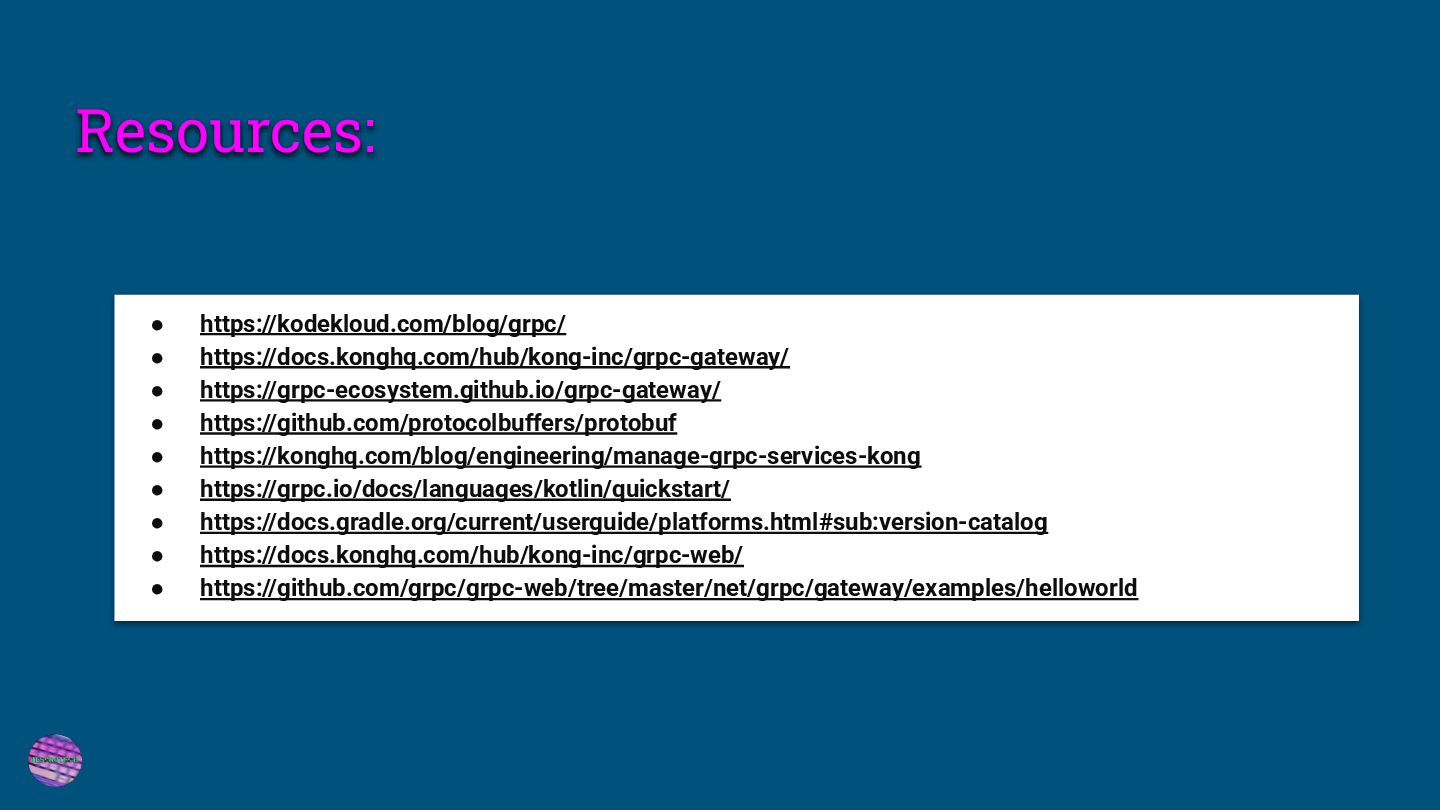

26. Resources: • https://kodekloud.com/blog/grpc/ • https://docs.konghq.com/hub/kong-inc/grpc-gateway/ • https://grpc-ecosystem.github.io/grpc-gateway/ • https://github.com/protocolbuffers/protobuf • https://konghq.com/blog/engineering/manage-grpc-services-kong • https://grpc.io/docs/languages/kotlin/quickstart/ • https://docs.gradle.org/current/userguide/platforms.html#sub:version-catalog • https://docs.konghq.com/hub/kong-inc/grpc-web/ • https://github.com/grpc/grpc-web/tree/master/net/grpc/gateway/examples/helloworld
27. About me • Homepage - https://joaofilipesabinoesperancinha.nl • LinkedIn - https://www.linkedin.com/in/joaoesperancinha/ • YouTube - JESPROTECH ▪ https://www.youtube.com/channel/UCzS_JK7QsZ7ZH-zTc5kBX_g ▪ https://www.youtube.com/@jesprotech • Bluesky - https://bsky.app/profile/jesperancinha.bsky.social • Mastodon - https://masto.ai/@jesperancinha • GitHub - https://github.com/jesperancinha • Hackernoon - https://hackernoon.com/u/jesperancinha • DevTO - https://dev.to/jofisaes • Medium - https://medium.com/@jofisaes
28. Questions?
29. Thank you!
