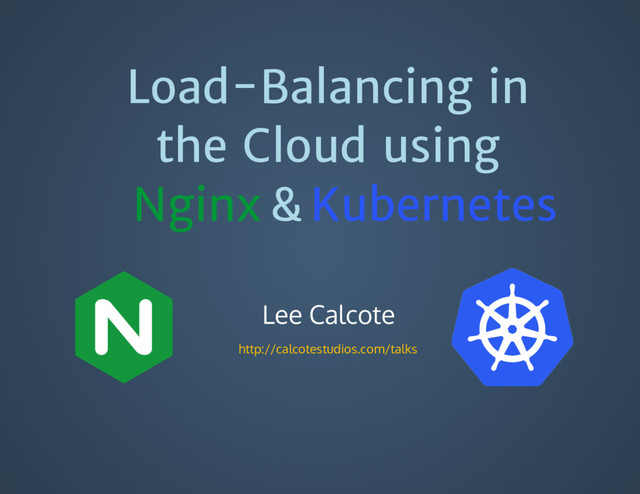

Load-Balancing in the Cloud using Nginx & Kubernetes

Presented on March 16, 2017 through O'Reilly - http://www.oreilly.com/pub/e/3864

Modern day applications bring modern day infrastructure requirements. Whether you bring your own or you use your cloud provider's managed load-balancing services, even moderately sophisticated applications are likely to find their needs underserved.

Lee Calcote

March 16, 2017
Tweet

More Decks by Lee Calcote

Other Decks in Technology

Transcript

  1. Our Case Study is an IDE for game developers created

    by game development studio based in Austin creates a real-time, collaborative game development engine “Google Docs for game development” @lcalcote
  2. Vert.x Our Bloat-a-lith EventBus Handler Persistence Verticle SockJS Analytics Analytics

    UI Hazelcast GridConnection Telemetry Telemetry Analysis Projects, Streams, Users, Sessions, Tenants Kafka Producer Platform Client Producer Spark, R GCE Network Load Balancer Kafka Rendering Engines Platform Publishing Tool Game Analysis Single instance @lcalcote beloved
  3. Faster delivery, rolling updates Horizontal scale out on-demand; on an

    individual service basis Modular architecture Easy integration and deployments Service isolation, resilience and fail-safe recovery Benefits of Microservices Democratization of language and technology choice @lcalcote a quick review it's an excellent time to be a developer The promise of...
  4. Characteristics of Microservices how small is small? Who has a

    system that is too big and that you’d like to break down? Can a small team manage it? More moving parts increases complexity. Can you make a change to a service and deploy it by itself without changing anything else? @lcalcote small, autonomous services that work together. independent, autonomous service self-contained functional unit
  5. App is Reactive Leverages sockets Limited resources Culture (DevOps /

    Cloud maturity) Support containers AND VMs Propagation of huge data sets The Challenge On-the-fly intelligent rendering Distribution of content Extremely low latency for Reactive services Blocking vs non-blocking On-premises telemetry collection and analytics @lcalcote
  6. Our Microbloat v2 Analytics UI Authentication Telemetry Telemetry Analysis Spark,

    R Kafka Rendering Engines Platform Publishing Tool Game Analysis Master etcd Locking Projects Authorization kube-proxy kube-proxy SockJS Authorization kube-proxy DaemonSet Node Node kube-api, etc. @lcalcote Node Pod Pod Deployment Authorization DaemonSet Service
  7. SSL Termination @lcalcote Kubernetes 1.5 No Swarm 1.13 No Mesos+Marathon

    Yes ELB Classic Yes ELB L7 Yes Beanstalk Yes (EC2) IOT Yes ECS Yes (EC2) Load-Balancer No App Gateway Yes Container Service ? Cloud LB (HTTP) Yes Cloud LB (Network) Yes GKE No Container Orchestrators Clouds AWS Azure GCP Link Link Link Link Link Link Link Link Link SSL Proxy SSL Proxy
  8. Websocket Support Kubernetes 1.5 No Swarm 1.13 No Mesos+Marathon Yes

    Container Orchestrators Clouds AWS Azure GCP Link Link Link Link Link Link Link Link Link @lcalcote ELB Classic Yes ELB L7 Yes Beanstalk Yes IOT Yes ECS Yes Load-Balancer No App Gateway Yes Container Service ? Cloud LB (HTTP) No Cloud LB (Network) Yes GKE No
  9. Microbloat v3 Going deeper with Nginx & Kubernetes As an

    ingress controller in Kubernetes SSL termination Path-based rules Web socket support @lcalcote Service Discovery with Nginx Plus Need for locating service instances instantly without reconfiguring On-the-fly Reconfiguration API Work with etcd
  10. - group of co-scheduled containers and volumes Replication Controller -

    reconciliation loop to keep current state congruent with desired state - a set of pods that comprise a common function - manages updates for Pods and Replica Sets - store and retrieve sensitive data ConfigMap Pod Service Deployment Secrets \ˈnō-mən-ˌklā-chər a brief Kubernetes construct review @lcalcote
  11. Exposing Kubernetes Services - service to be reachable only from

    inside of the cluster. - It serves as a way to return an alias to an external service residing outside the cluster. - exposes service on a port on each node of the cluster. - cluster-internal IP and exposing service on a NodePort, also ask the cloud provider for a load balancer which forwards requests to the Service exposed as a <NodeIP>:NodePort for each Node. ClusterIP ExternalName NodePort LoadBalancer @lcalcote
  12. runs on each node in the cluster a network proxy

    that represents Services on each node integral to how services are exposed in the cluster limited to layer 4 (tcp/udp) load-balancing kube-proxy kube-proxy no·men·cla·ture @lcalcote kube-proxy
  13. iptables Container AA Container A kube-proxy kube-proxy Node A Node

    B Client Pod A Service A iptables Inbound Outbound NodePort @lcalcote Traffic flow with NodePort/LoadBalancer Container BB Container B Pod B Service B
  14. An is a collection of rules that allow inbound connections

    to reach the cluster services. - how you expose and route to the . Ingress service Ingress no·men·cla·ture @lcalcote apiVersion: extensions/v1beta1 kind: Ingress metadata: name: projects spec: tls: - hosts: - api.maxplay.io secretName: api-secret rules: - host: api.maxplay.io http: paths: - path: /projects backend: serviceName: tenant-svc servicePort: 80 - path: /tenants backend: serviceName: user-svc servicePort: 80 - path: /users backend: serviceName: user-svc servicePort: 80
  15. An is a control loop that manages rules enabling inbound

    traffic to applications. Ingress Controller Ingress Controller specification @lcalcote apiVersion: extensions/v1beta1 kind: Deployment metadata: name: nginx-ingress-dp labels: app: nginx-ingress spec: replicas: 1 selector: app: nginx-ingress template: metadata: labels: app: nginx-ingress spec: containers: - image: maxplay/nginx-ingress:latest imagePullPolicy: Always name: nginx-ingress ports: - containerPort: 80 hostPort: 80 - containerPort: 443 hostPort: 443 args: - /nginx-ingress-controller - --default-backend-service= \ $(POD_NAMESPACE)/nginx-default-backend Make sure you review controller specific docs so you understand the caveats of each one.
  16. iptables Container AA Container A Ingress Controller kube-proxy kube-proxy Node

    A Node B Client Pod A Ingress B Service A iptables Inbound Outbound @lcalcote Traffic flow with Ingress Controller
  17. Annotation in the Ingress resource definition specifies which services are

    web socket services - "socks-svc" Web Socket Support Ingress Resource Annotation @lcalcote apiVersion: extensions/v1beta1 kind: Ingress metadata: name: api-ingress annotations: nginx.org/websocket-services: "sockjs-svc" spec: tls: - hosts: - api.maxplay.io secretName: api-secret rules: - host: api.maxplay.io http: paths: - path: /sockjs backend: serviceName: sockjs-svc servicePort: 8181
  18. Why Nginx 1. Hybrid needs On-premises and Google Cloud Platform

    2. Consistent administration and capabilities central load balancing and proxy platform 3. Support for VM and container-based technologies with minimal configuration change 4. Deeper feature set available as services/team matures use as an Application Delivery Controller Platform independence @lcalcote
  19. A/B Testing Using Nginx Ingress Controller and Deployments Requests App

    v0.1 App v0.2 90% of requests go to v0.1 10% of requests go to v0.2 @lcalcote
  20. GSLB & Content Caching w/Nginx Plus App App App GeoDNS

    US Regions Session Persistence and Sticky Routing help in performance of request routing and localized content Content Caching provides faster retrieval of data Performance, reliability and availability Global Regions @lcalcote
  21. Lee Calcote linkedin.com/in/leecalcote @lcalcote blog.gingergeek.com [email protected] Thank you. Questions? clouds,

    containers, infrastructure, applications and their management http://calcotestudios.com/ talks
