Never Name a Database "Standby" (and nine other things they don't teach in Data Guard school)

Transcript

1. Never Name a Database "Standby" (...and nine other things they don't teach in Data Guard school) CASOUG 25 - Tashkent 27 October 2025 Seàn Scott Oracle ACE Director Managing Principal Consultant Viscosity North America
2. Get the slides:
3. Database Reliability Engineering MAA ⁘ RAC ⁘ RMAN Data Guard ⁘ Sharding ⁘ Partitioning Information Lifecycle Management Exadata & Engineered Systems Database Modernization Upgrades ⁘ Patching ⁘ Migrations Cloud ⁘ Hybrid Automation DevOps ⁘ IaC ⁘ Containers ⁘ Terraform Vagrant ⁘ Ansible Observability AHF ⁘ TFA ⁘ CHA ⁘ CHM
4. Oracle on Docker Running Oracle Databases in Linux Containers Free sample chapter: h tt ps://oraclesean.com
5. Tech Superstars Unite Get worldwide recognition as an Oracle ACE Oracle.com profile page Exclusive content Your own Oracle cloud account Swag, certification exam credit & event passes Networking events Travel support Learn more at: ace.oracle.com @oracleace Linkedin.com/groups/72183 @oracleace.bsky.social
6. 10 Conferences 15 Presentations 5 Panels 🌐 15 Time Zones 33 Days 54:28 Hours 15 Nations • 16 Airports • 20 Flights 43,826 km 23,664 nm and More Trains Trains Trains
7. www.viscosityna.com @ViscosityNA WARNING: Opinions Ahead!
8. www.viscosityna.com @ViscosityNA THE GOAL: Make things as error-resistant as possible

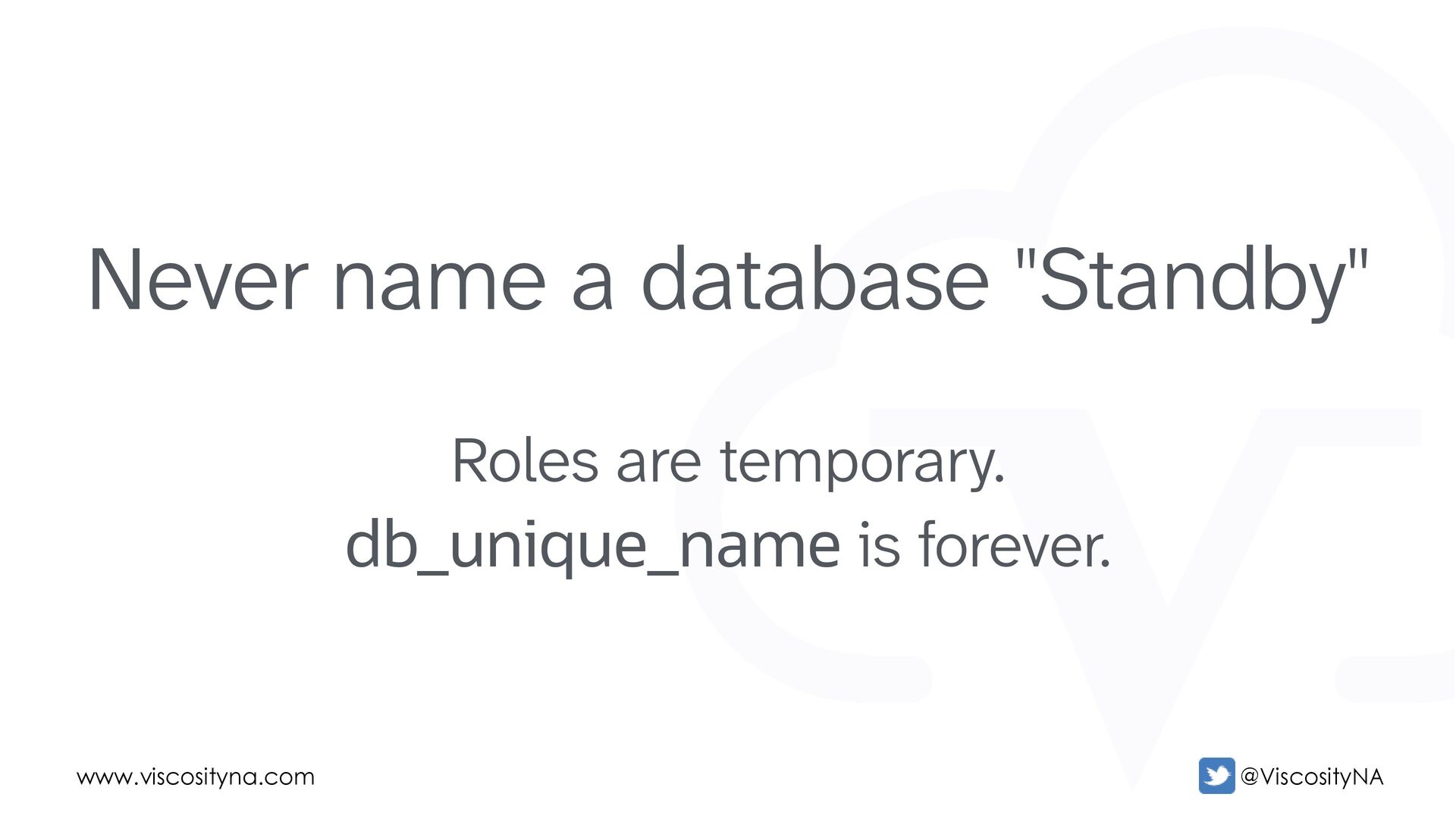

9. www.viscosityna.com @ViscosityNA Never name a database "Standby" Roles are temporary. db_unique_name is forever.

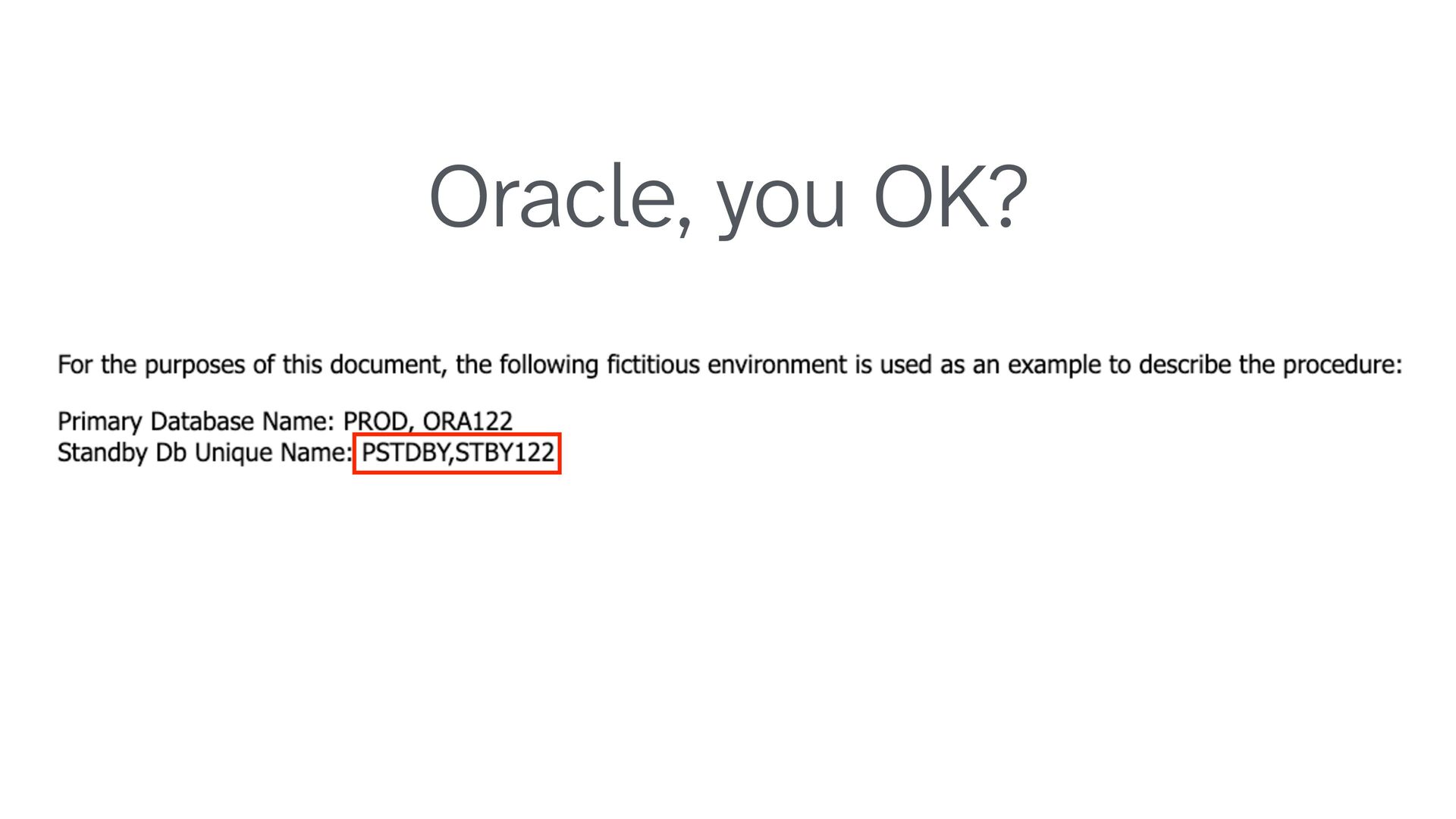

10. Oracle, you OK?

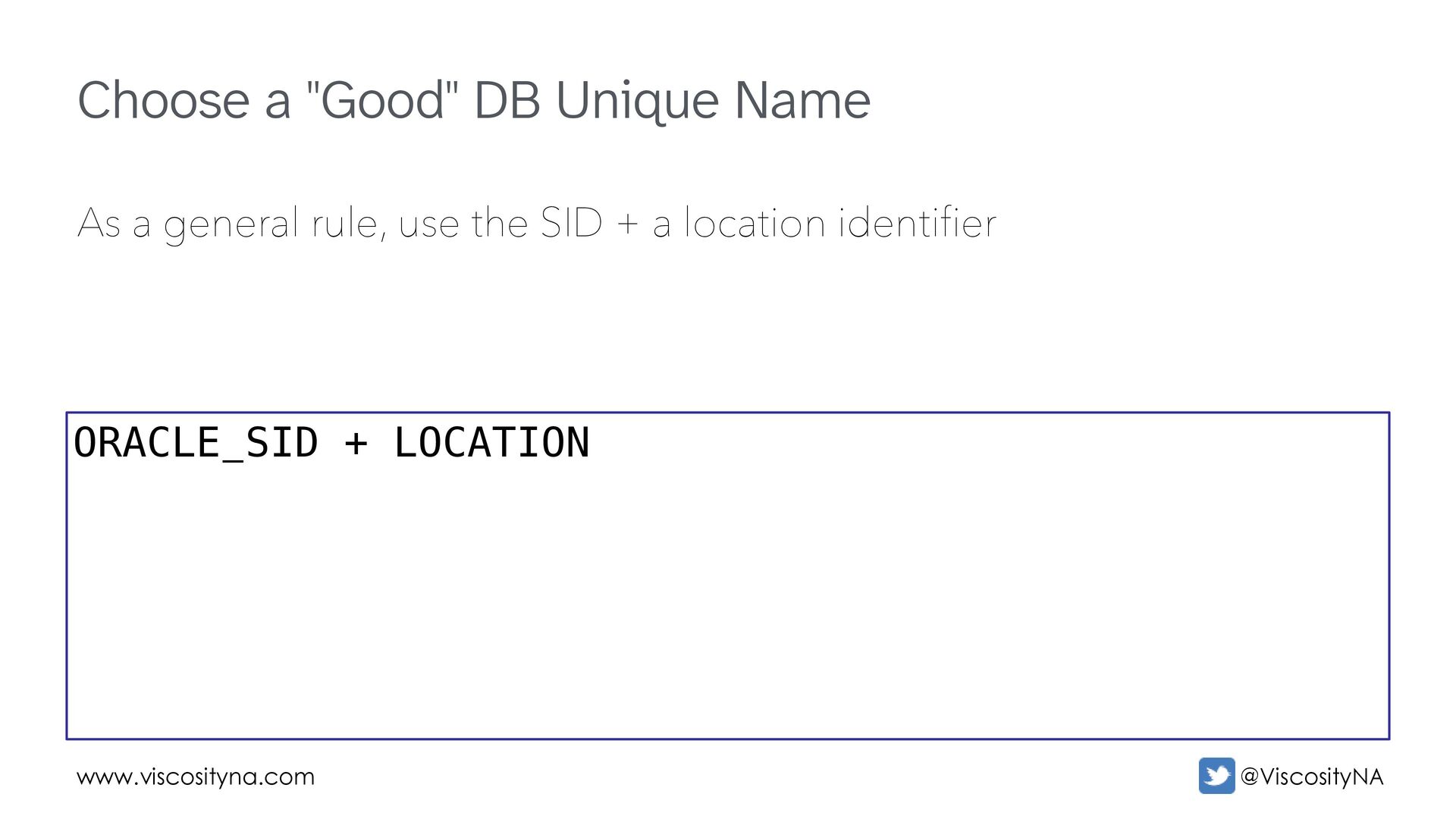

11. www.viscosityna.com @ViscosityNA Choose a "Good" DB Unique Name As a general rule, use the SID + a location identifier ORACLE_SID + LOCATION

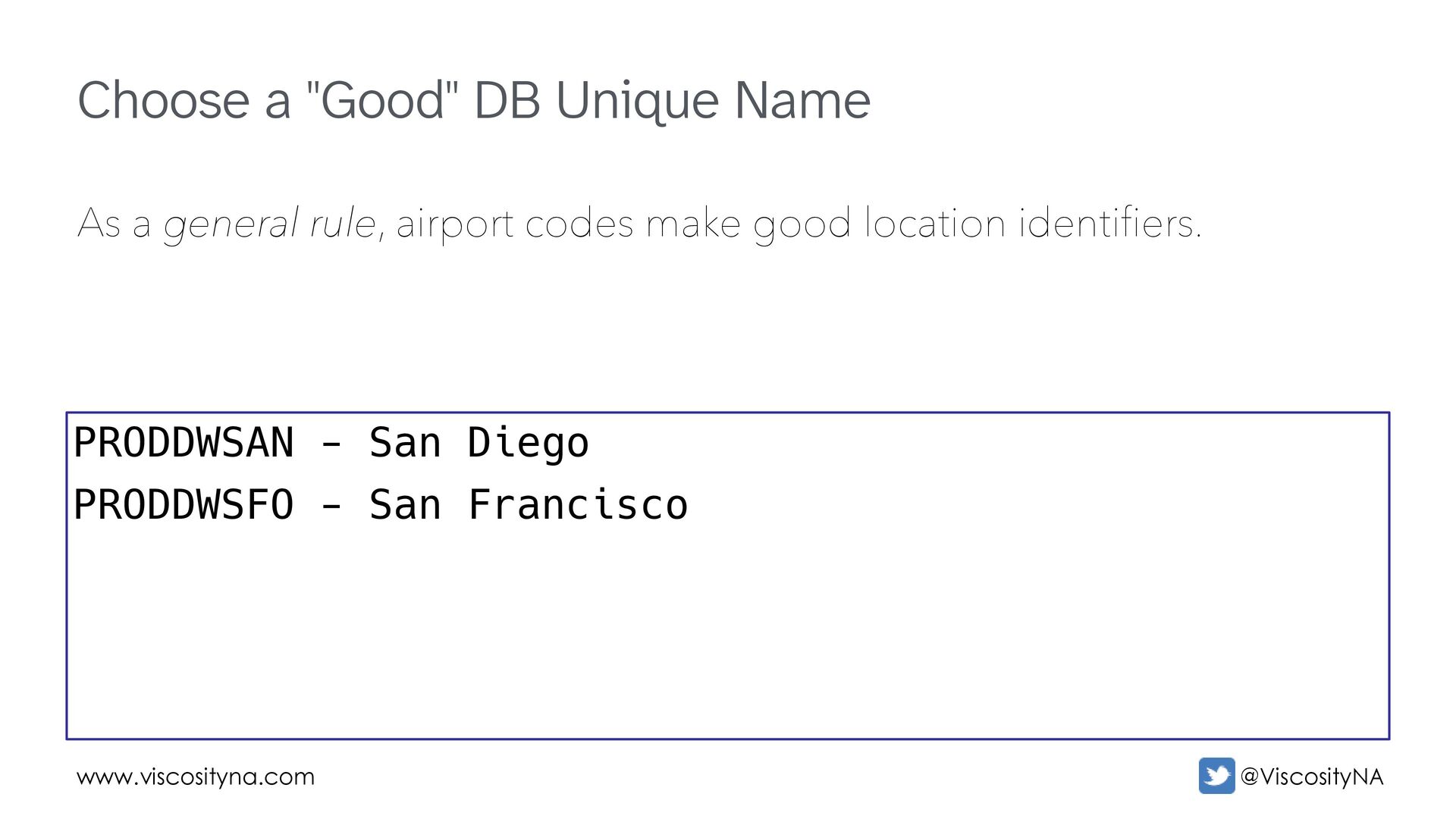

12. www.viscosityna.com @ViscosityNA Choose a "Good" DB Unique Name As a general rule, airport codes make good location identifiers. PRODDWSAN - San Diego PRODDWSFO - San Francisco

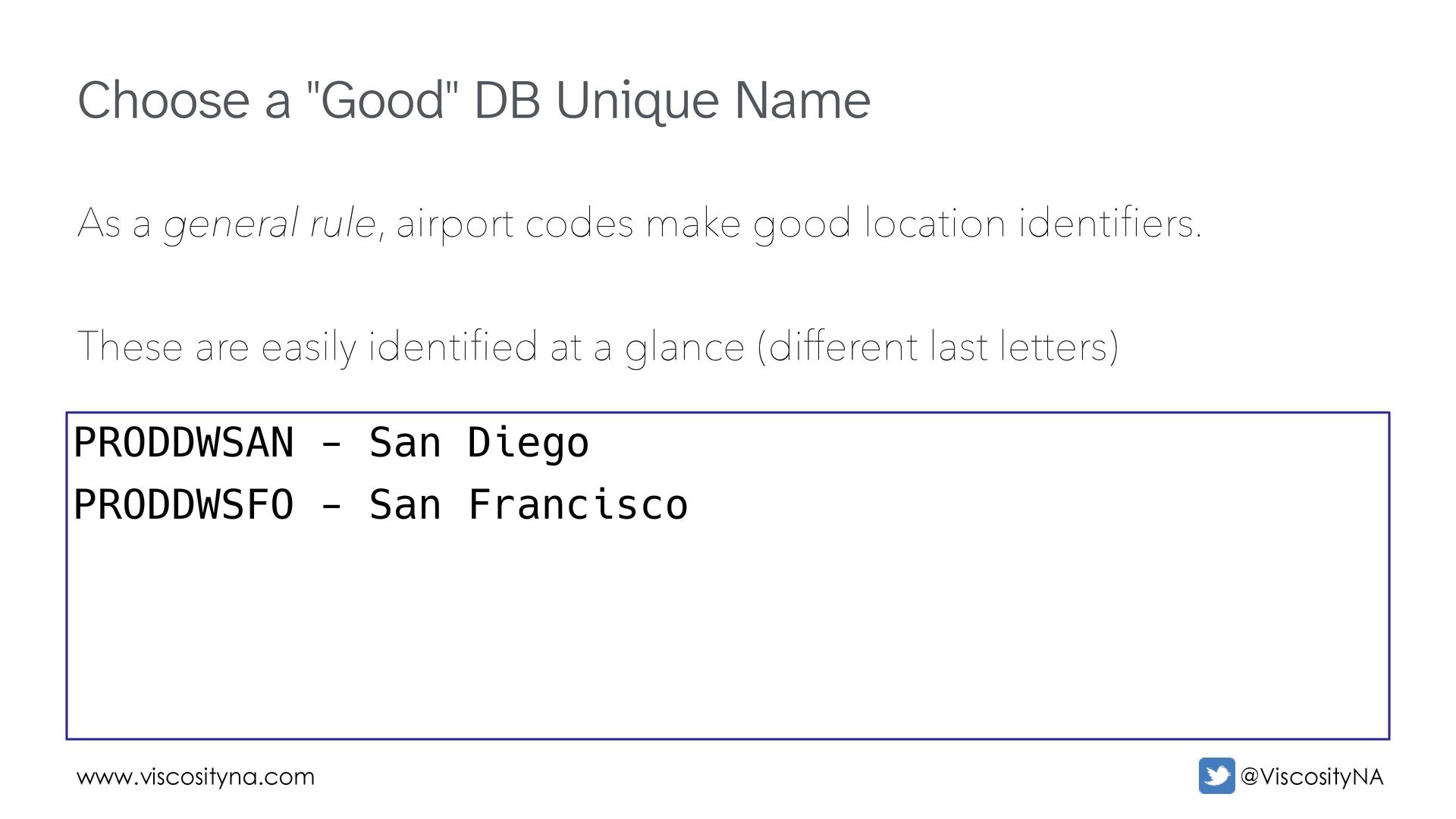

13. www.viscosityna.com @ViscosityNA Choose a "Good" DB Unique Name As a general rule, airport codes make good location identifiers. These are easily identified at a glance (different last letters) PRODDWSAN - San Diego PRODDWSFO - San Francisco

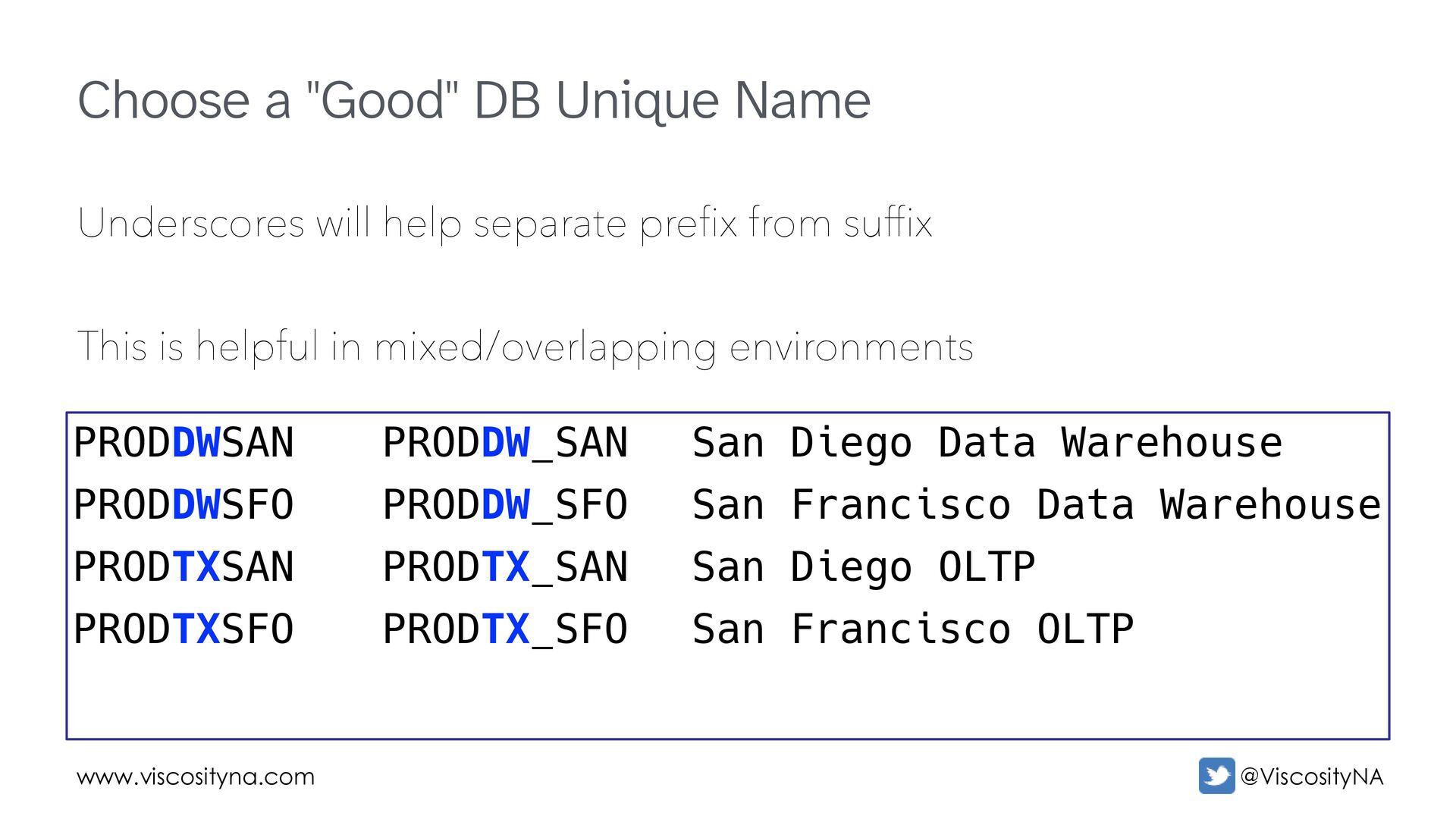

14. www.viscosityna.com @ViscosityNA Choose a "Good" DB Unique Name Underscores will help separate prefix from suffix This is helpful in mixed/overlapping environments PRODDWSAN PRODDWSFO PRODTXSAN PRODTXSFO PRODDW_SAN PRODDW_SFO PRODTX_SAN PRODTX_SFO San Diego Data Warehouse San Francisco Data Warehouse San Diego OLTP San Francisco OLTP

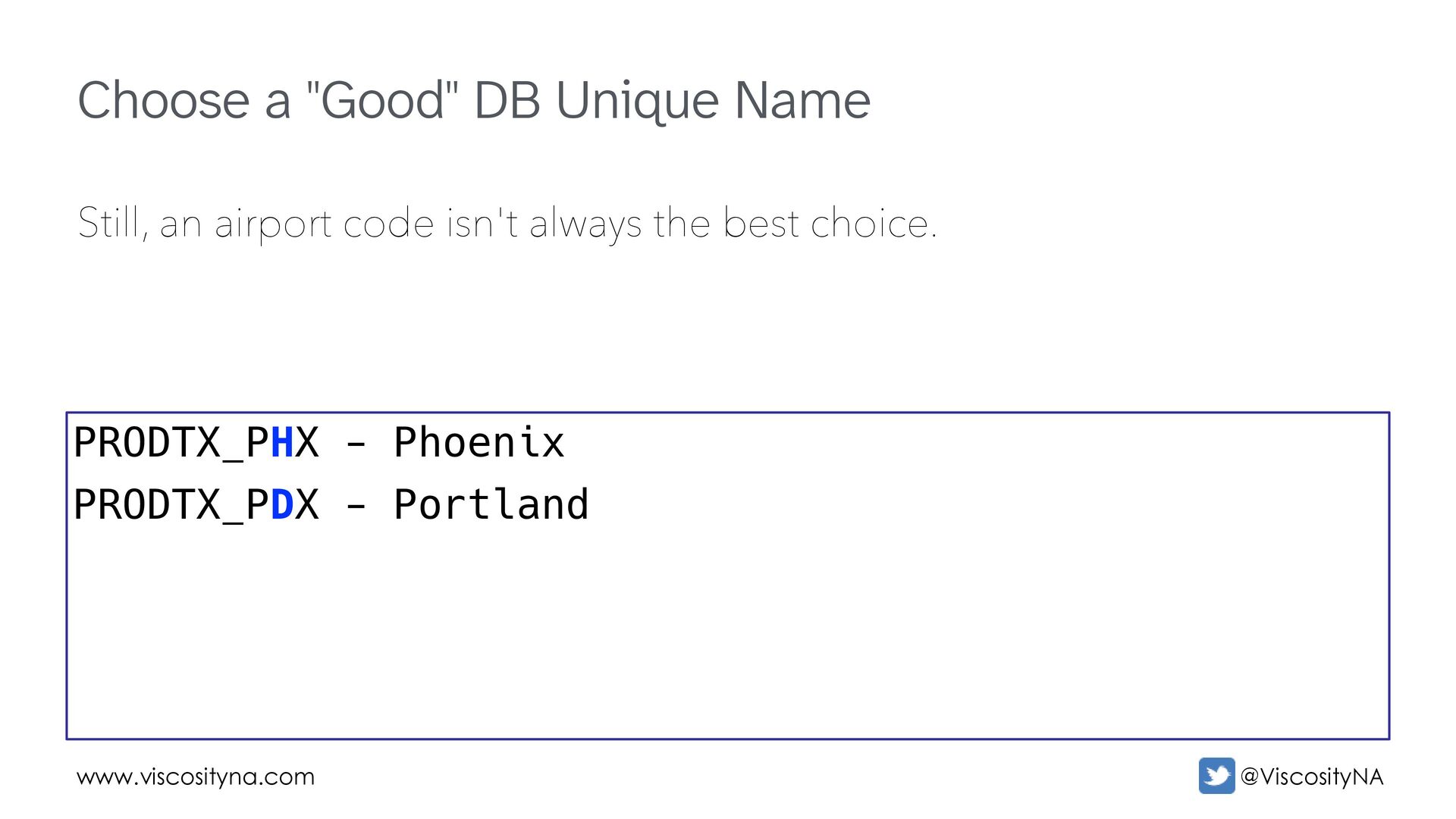

15. www.viscosityna.com @ViscosityNA Choose a "Good" DB Unique Name Still, an airport code isn't always the best choice. PRODTX_PHX - Phoenix PRODTX_PDX - Portland

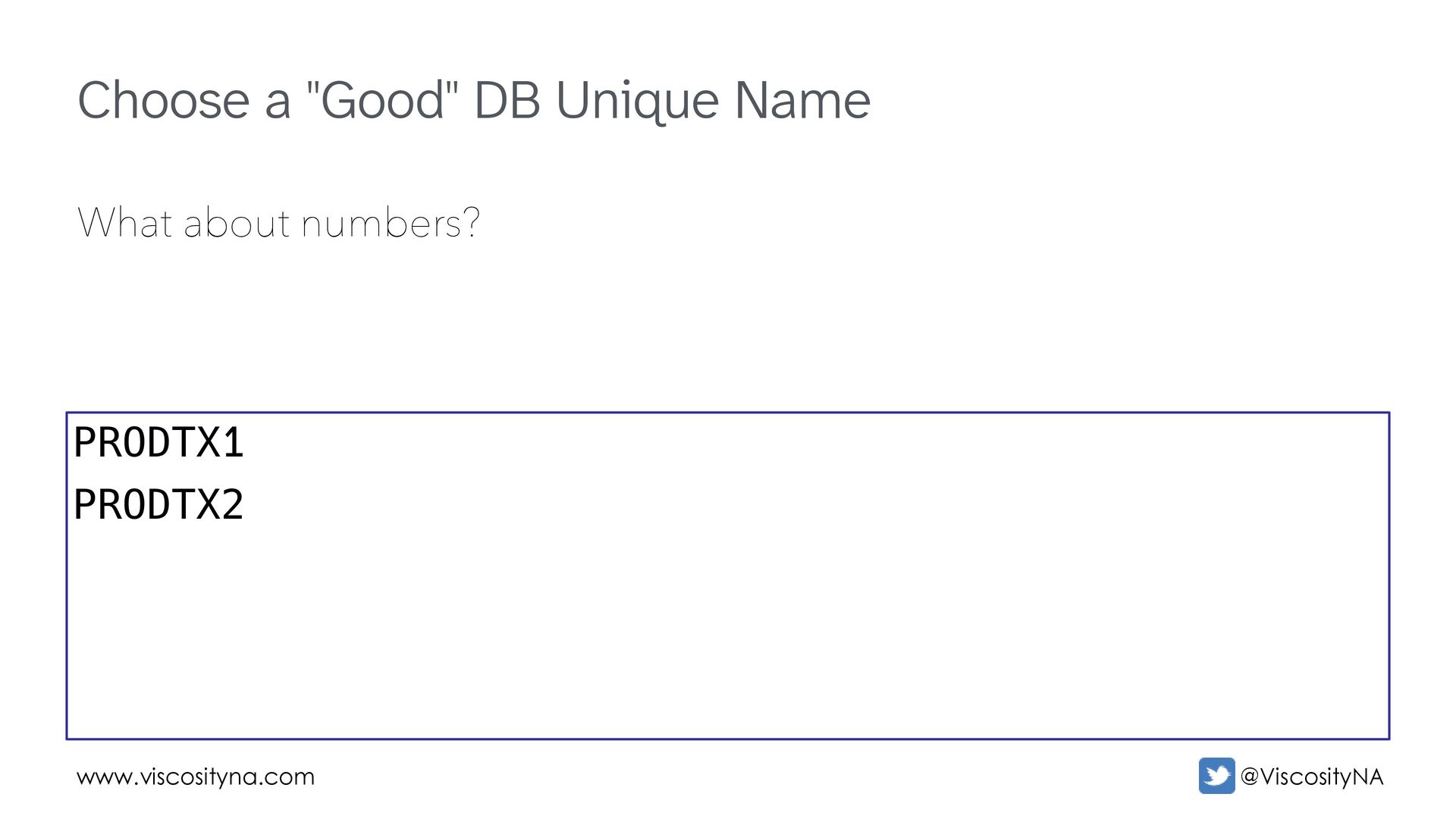

16. www.viscosityna.com @ViscosityNA Choose a "Good" DB Unique Name What about numbers? PRODTX1 PRODTX2

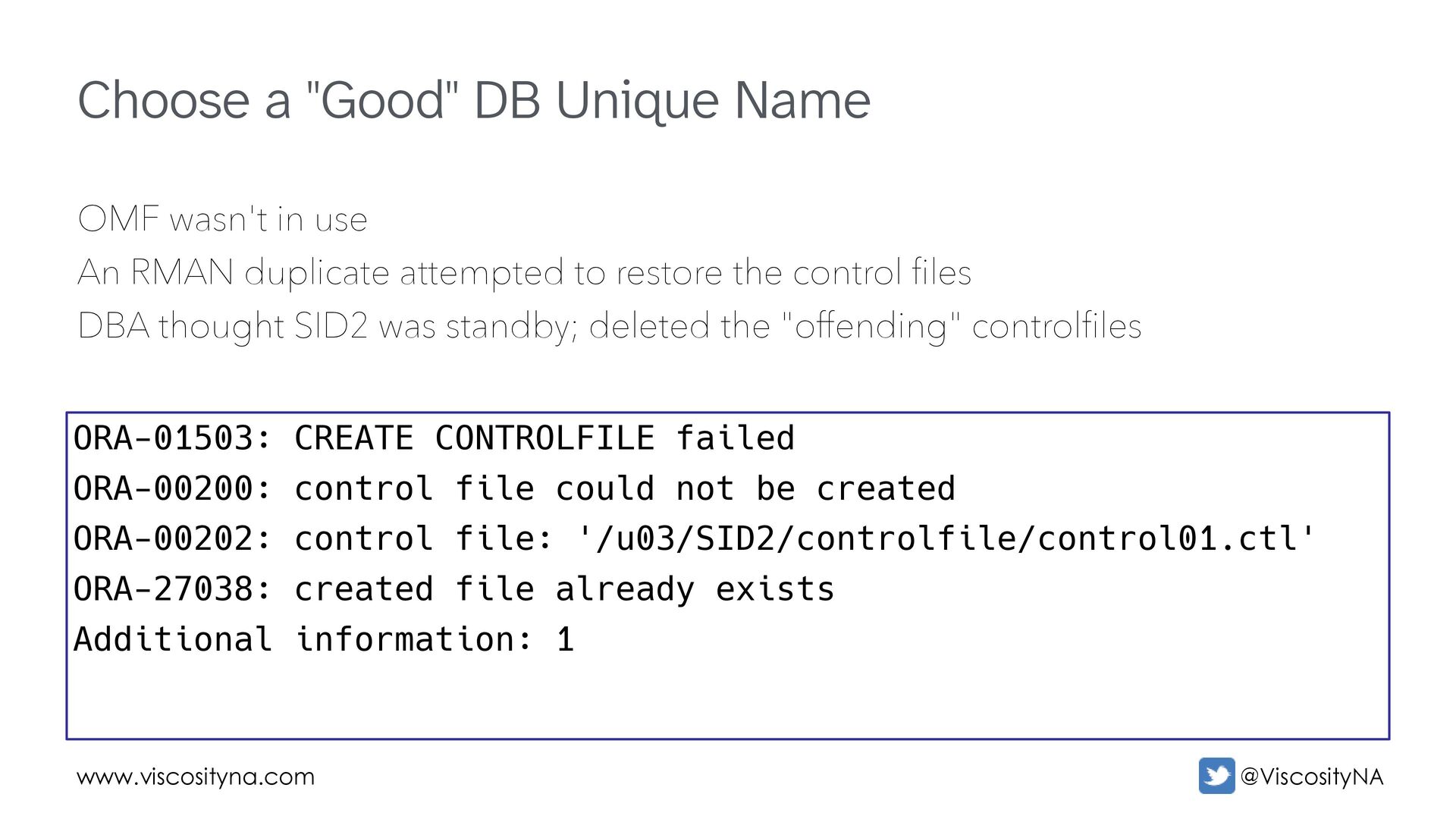

17. www.viscosityna.com @ViscosityNA Choose a "Good" DB Unique Name OMF wasn't in use An RMAN duplicate attempted to restore the control files DBA thought SID2 was standby; deleted the "offending" controlfiles ORA-01503: CREATE CONTROLFILE failed ORA-00200: control file could not be created ORA-00202: control file: '/u03/SID2/controlfile/control01.ctl' ORA-27038: created file already exists Additional information: 1

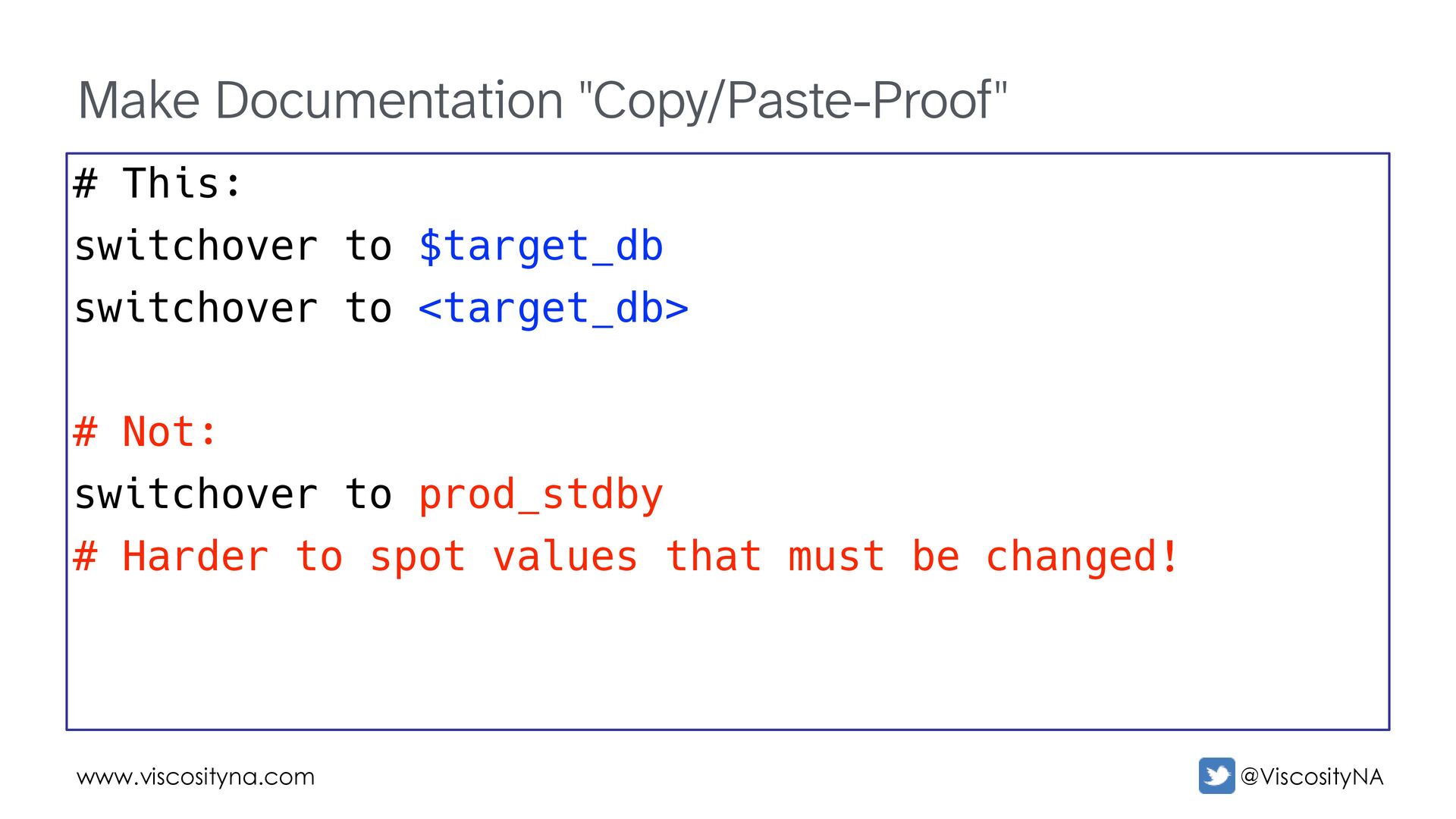

18. www.viscosityna.com @ViscosityNA Make Documentation "Copy/Paste-Proof" # This: switchover to $target_db switchover to <target_db> # Not: switchover to prod_stdby # Harder to spot values that must be changed!

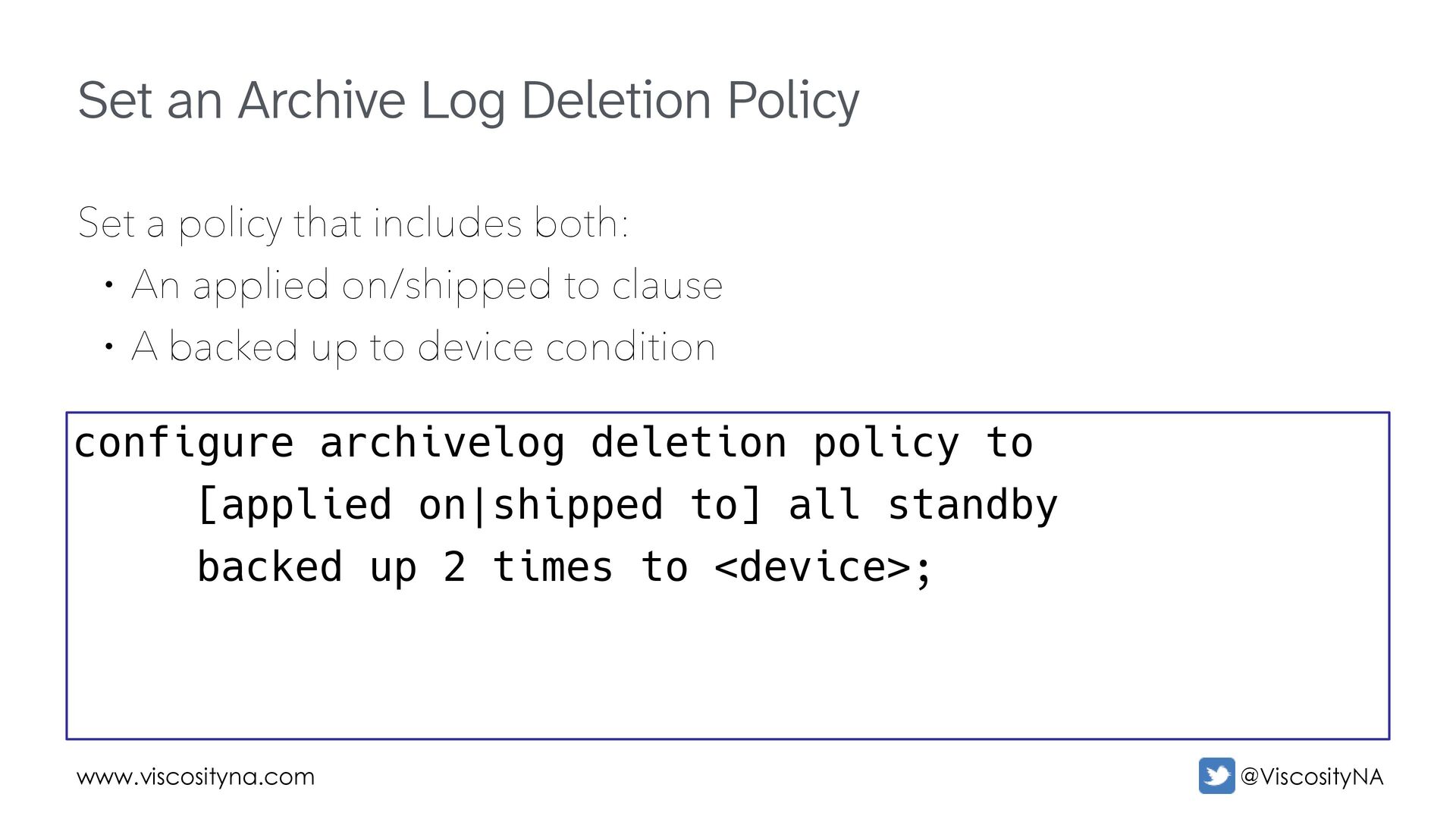

19. www.viscosityna.com @ViscosityNA Set an Archive Log Deletion Policy Set a policy that includes both: • An applied on/shipped to clause • A backed up to device condition configure archivelog deletion policy to [applied on|shipped to] all standby backed up 2 times to <device>;

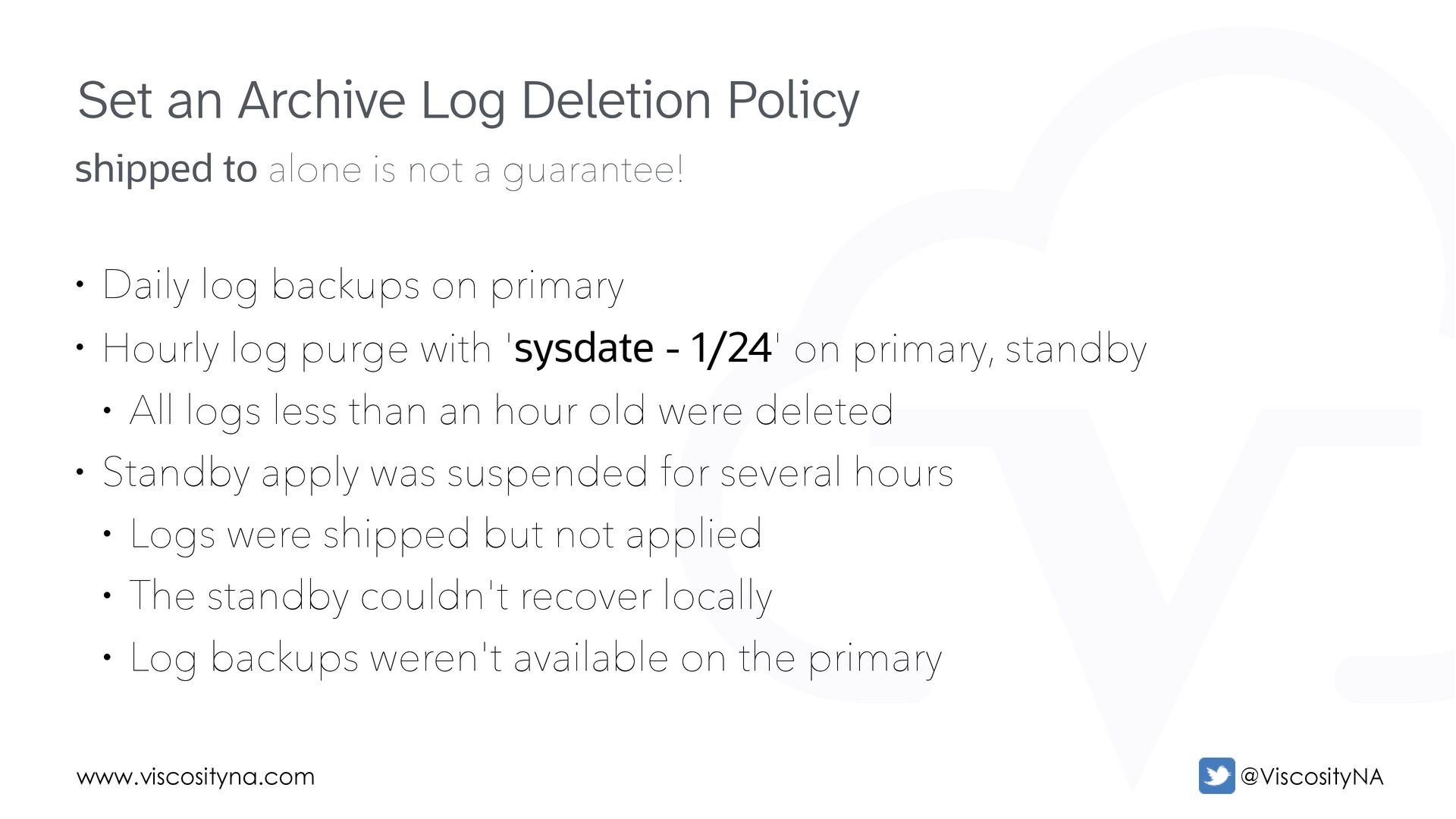

20. www.viscosityna.com @ViscosityNA shipped to alone is not a guarantee! • Daily log backups on primary • Hourly log purge with 'sysdate - 1/24' on primary, standby • All logs less than an hour old were deleted • Standby apply was suspended for several hours • Logs were shipped but not applied • The standby couldn't recover locally • Log backups weren't available on the primary Set an Archive Log Deletion Policy

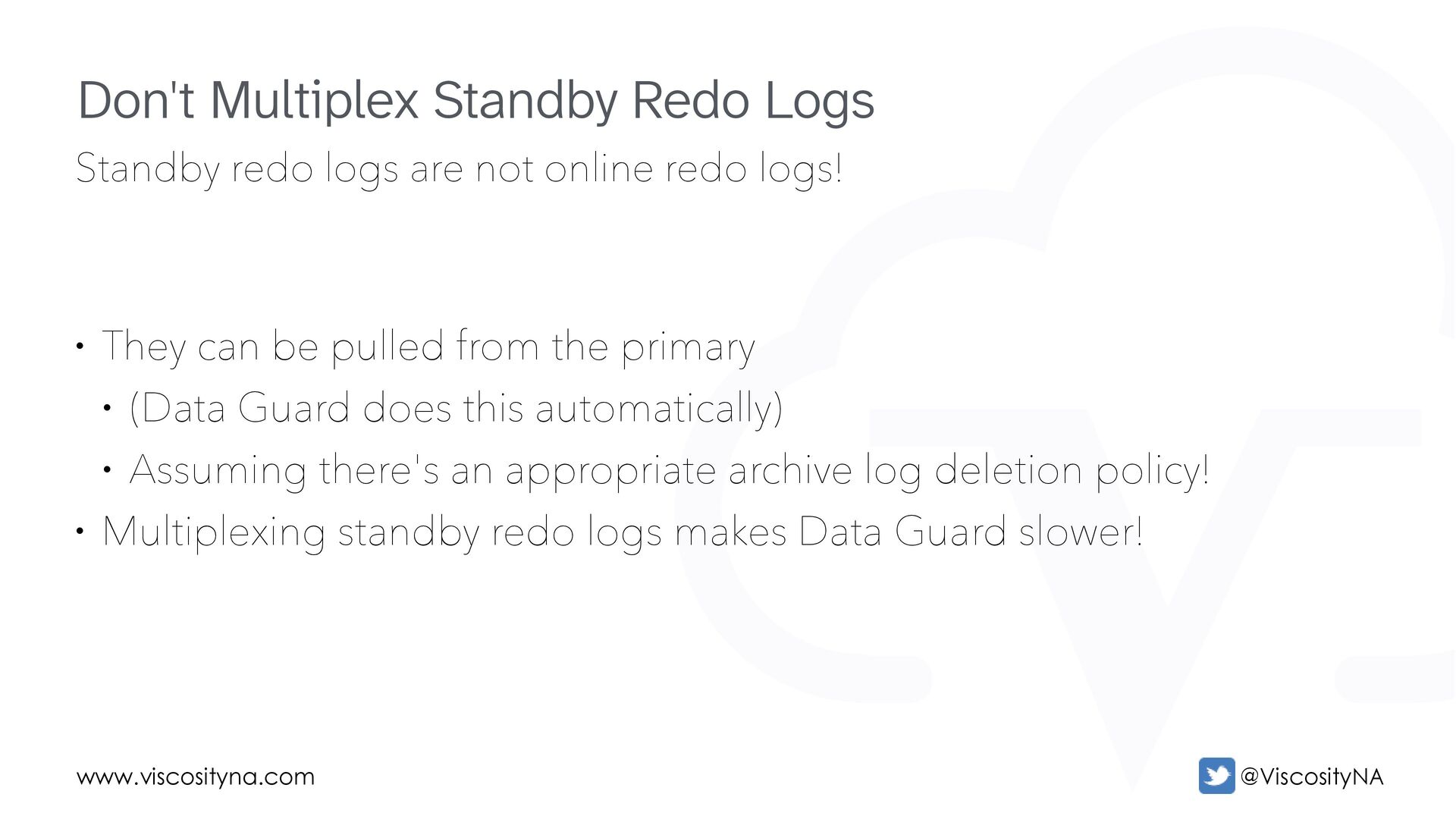

21. www.viscosityna.com @ViscosityNA Standby redo logs are not online redo logs! • They can be pulled from the primary • (Data Guard does this automatically) • Assuming there's an appropriate archive log deletion policy! • Multiplexing standby redo logs makes Data Guard slower! Don't Multiplex Standby Redo Logs

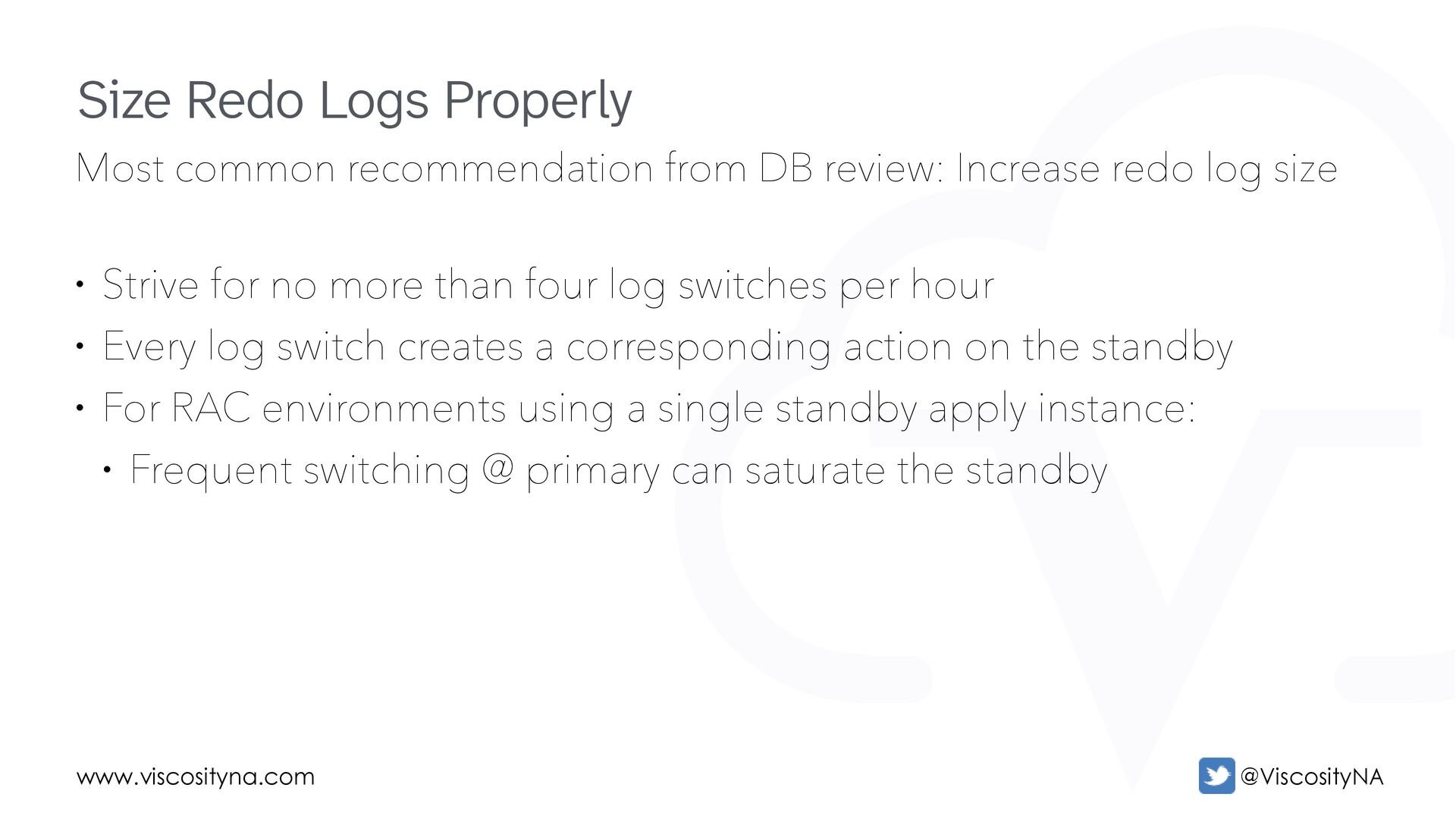

22. www.viscosityna.com @ViscosityNA Most common recommendation from DB review: Increase redo log size • Strive for no more than four log switches per hour • Every log switch creates a corresponding action on the standby • For RAC environments using a single standby apply instance: • Frequent switching @ primary can saturate the standby Size Redo Logs Properly

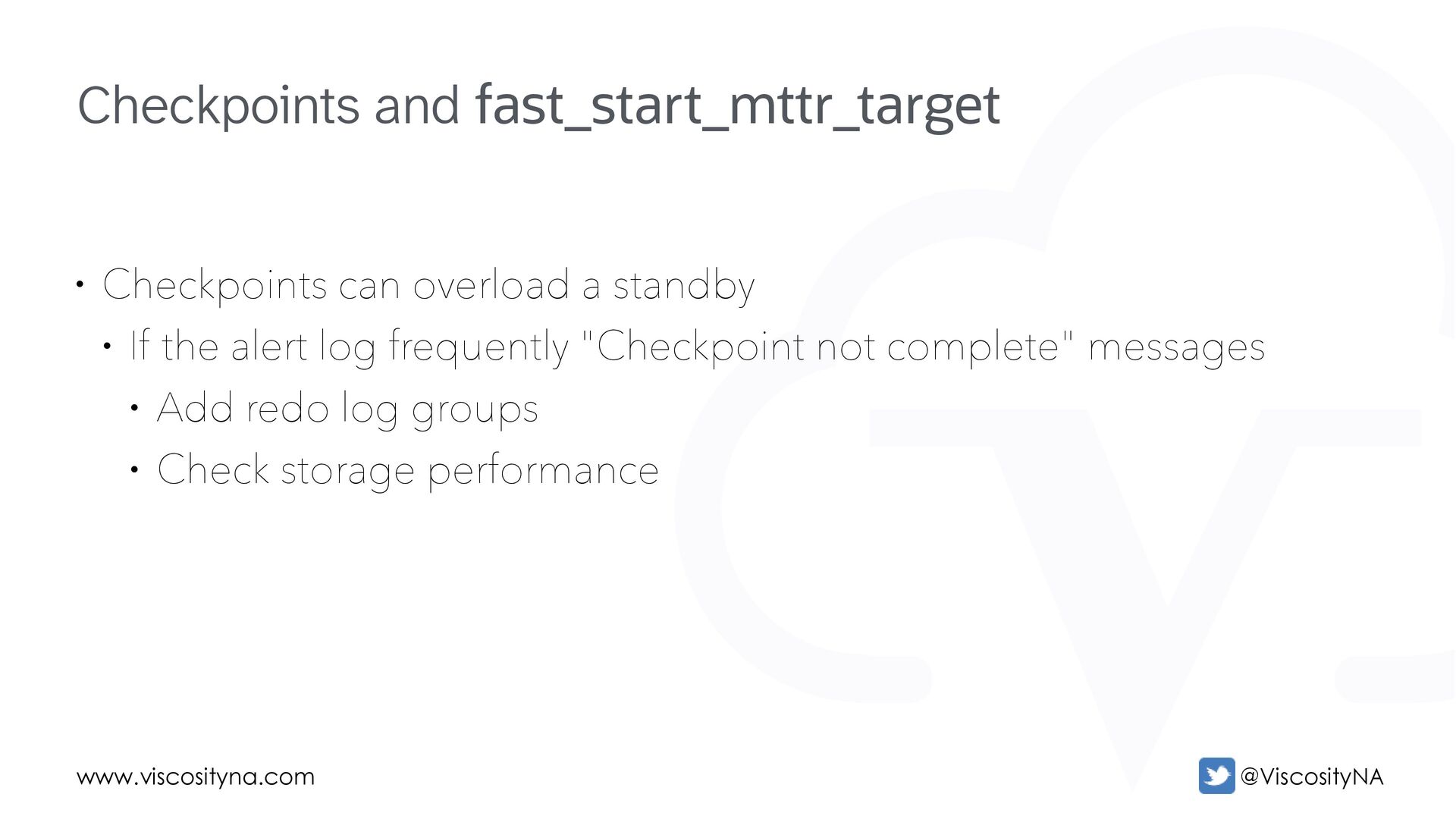

23. www.viscosityna.com @ViscosityNA • Checkpoints can overload a standby • If the alert log frequently "Checkpoint not complete" messages • Add redo log groups • Check storage performance Checkpoints and fast_start_mttr_target

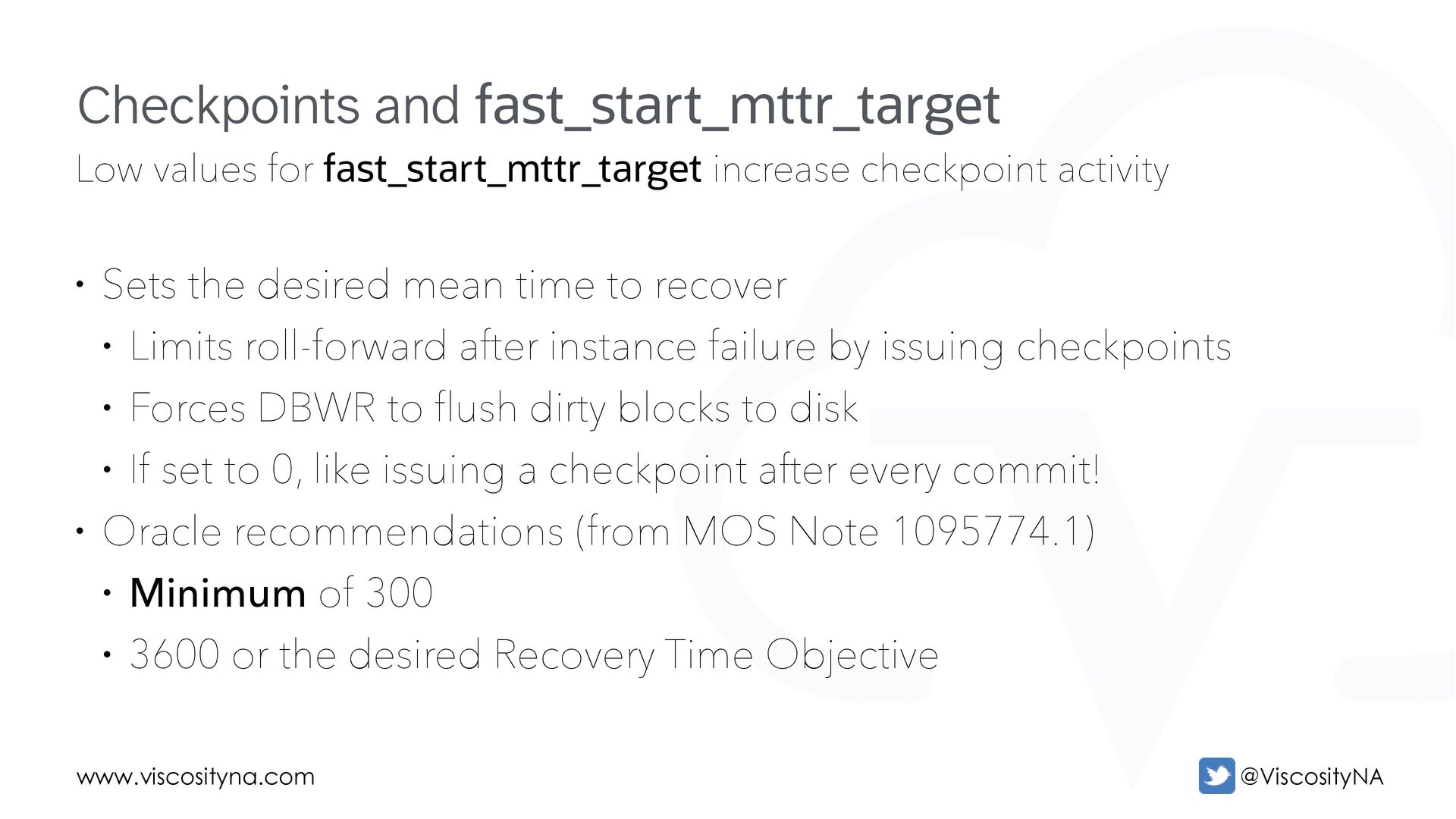

24. www.viscosityna.com @ViscosityNA Low values for fast_start_mttr_target increase checkpoint activity • Sets the desired mean time to recover • Limits roll-forward after instance failure by issuing checkpoints • Forces DBWR to flush dirty blocks to disk • If set to 0, like issuing a checkpoint after every commit! • Oracle recommendations (from MOS Note 1095774.1) • Minimum of 300 • 3600 or the desired Recovery Time Objective Checkpoints and fast_start_mttr_target

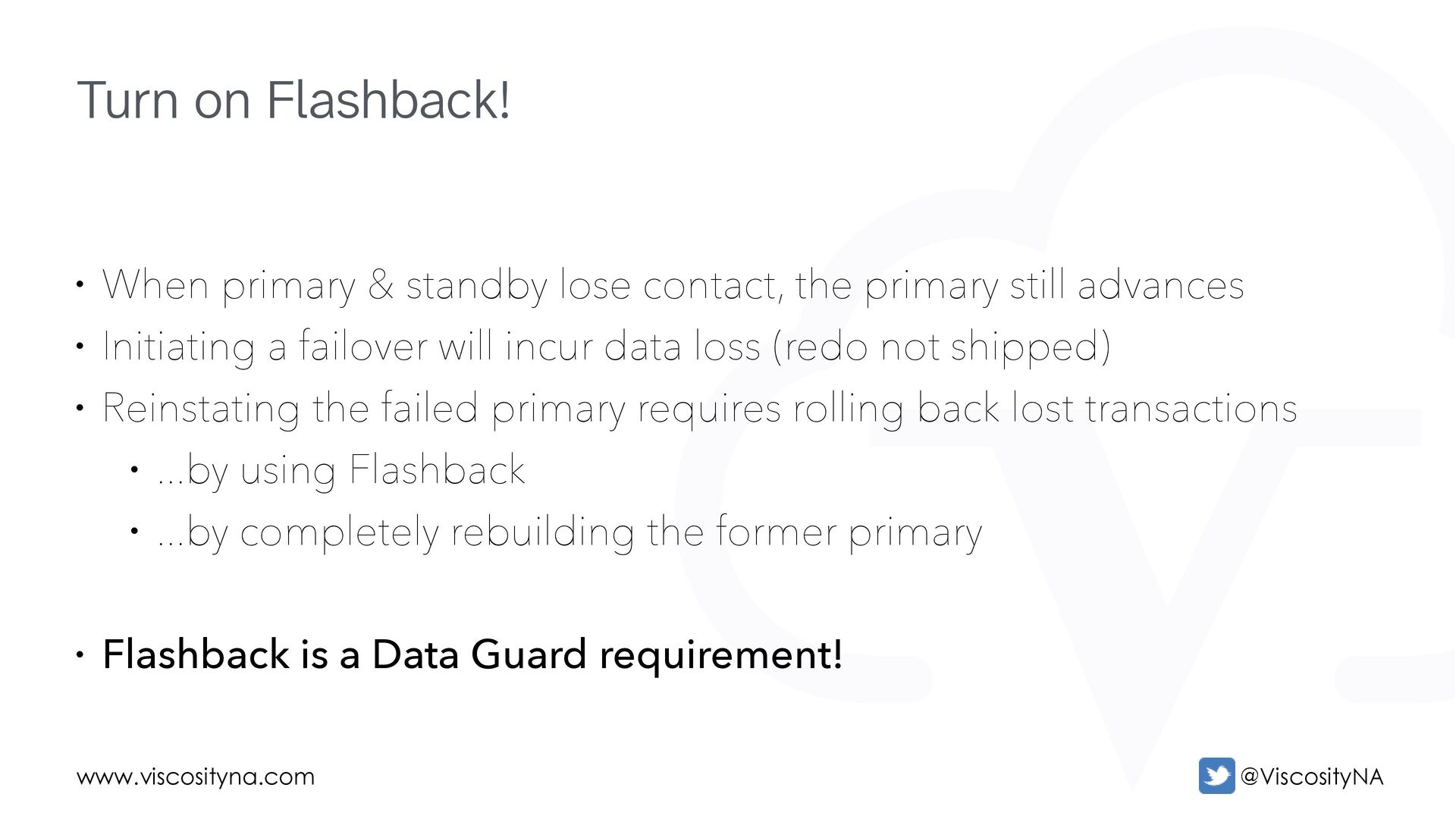

25. www.viscosityna.com @ViscosityNA • When primary & standby lose contact, the primary still advances • Initiating a failover will incur data loss (redo not shipped) • Reinstating the failed primary requires rolling back lost transactions • ...by using Flashback • ...by completely rebuilding the former primary • Flashback is a Data Guard requirement! Turn on Flashback!

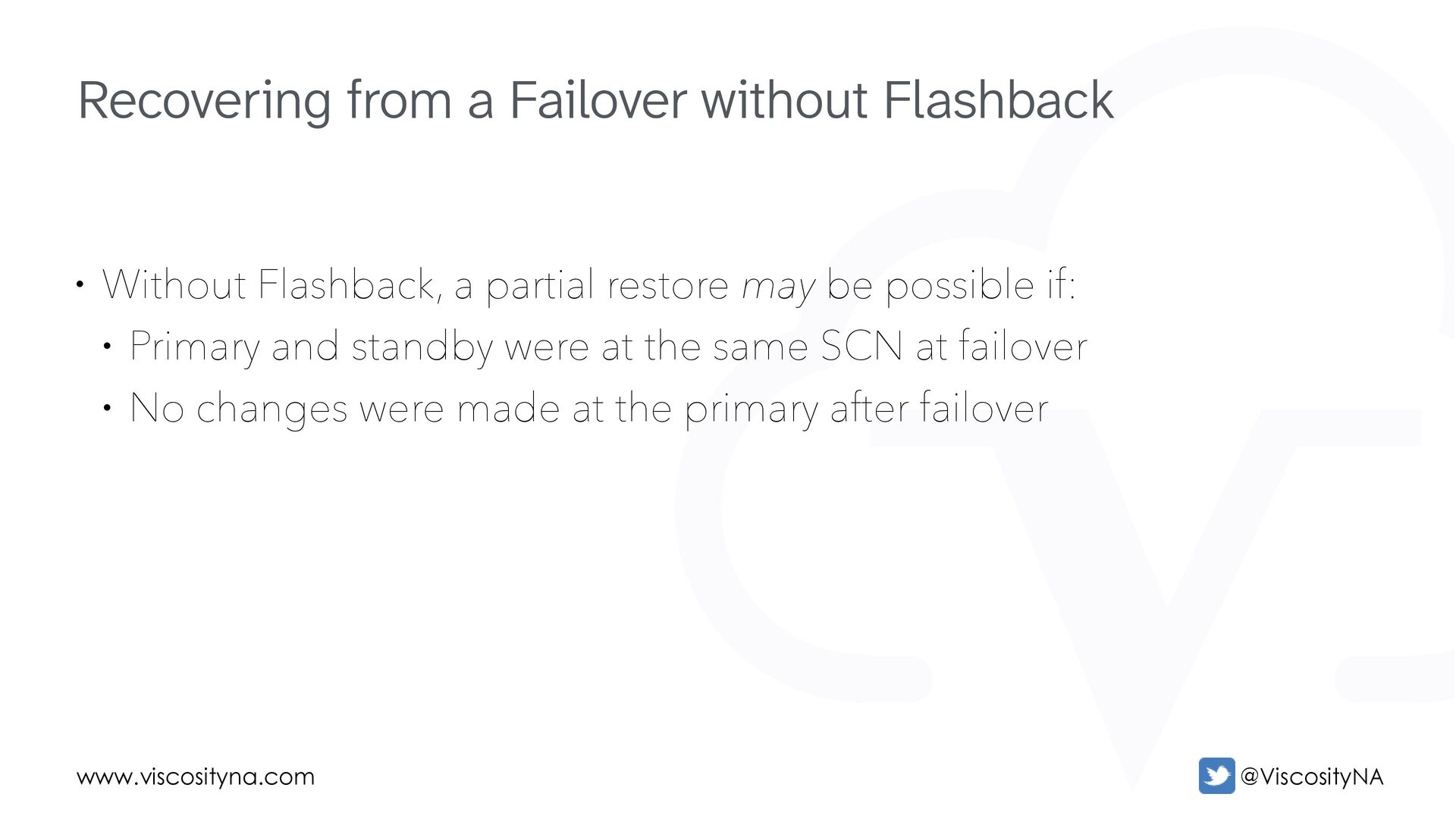

26. www.viscosityna.com @ViscosityNA • Without Flashback, a partial restore may be possible if: • Primary and standby were at the same SCN at failover • No changes were made at the primary after failover Recovering from a Failover without Flashback

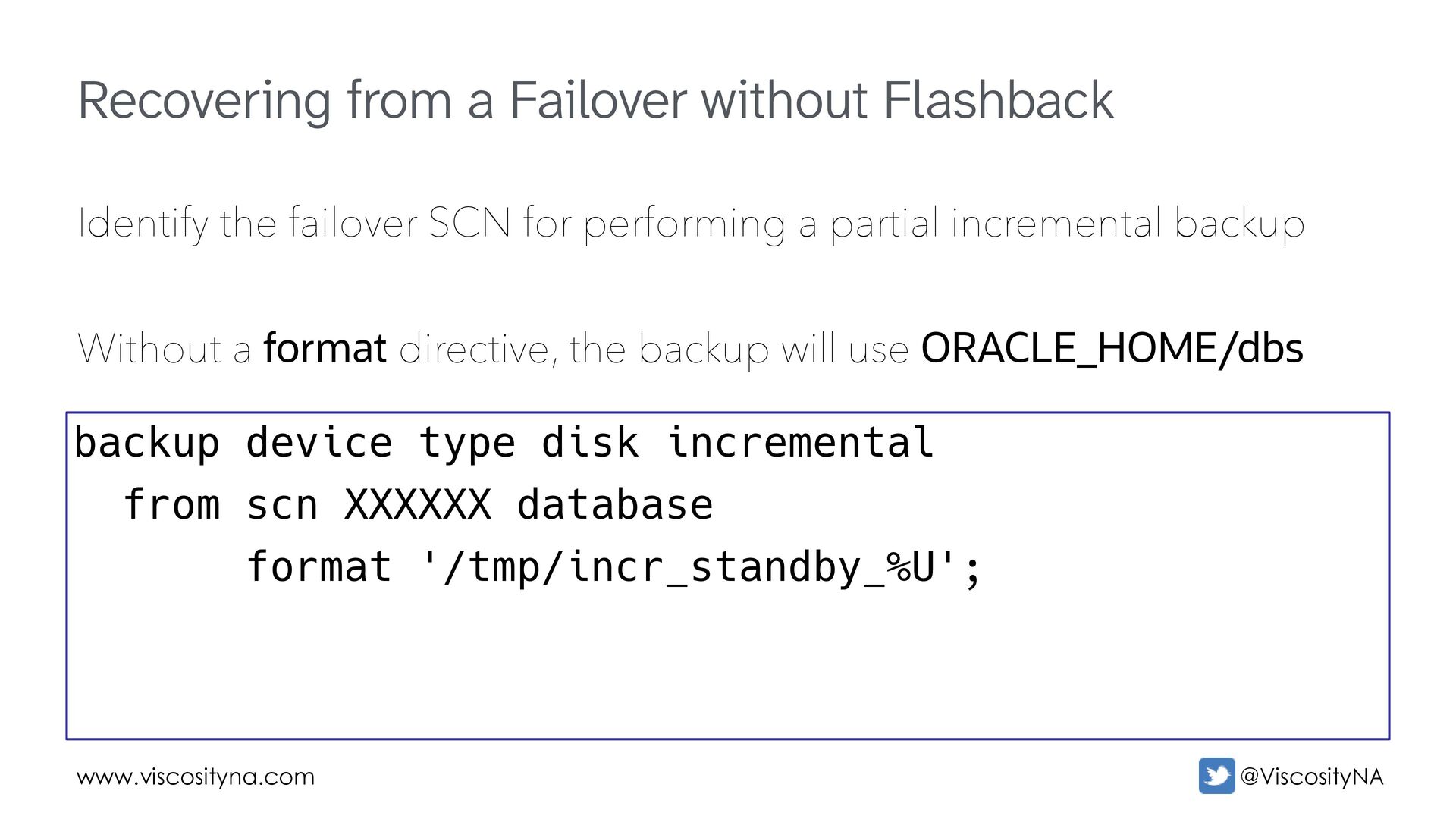

27. www.viscosityna.com @ViscosityNA Recovering from a Failover without Flashback Identify the failover SCN for performing a partial incremental backup Without a format directive, the backup will use ORACLE_HOME/dbs backup device type disk incremental from scn XXXXXX database format '/tmp/incr_standby_%U';

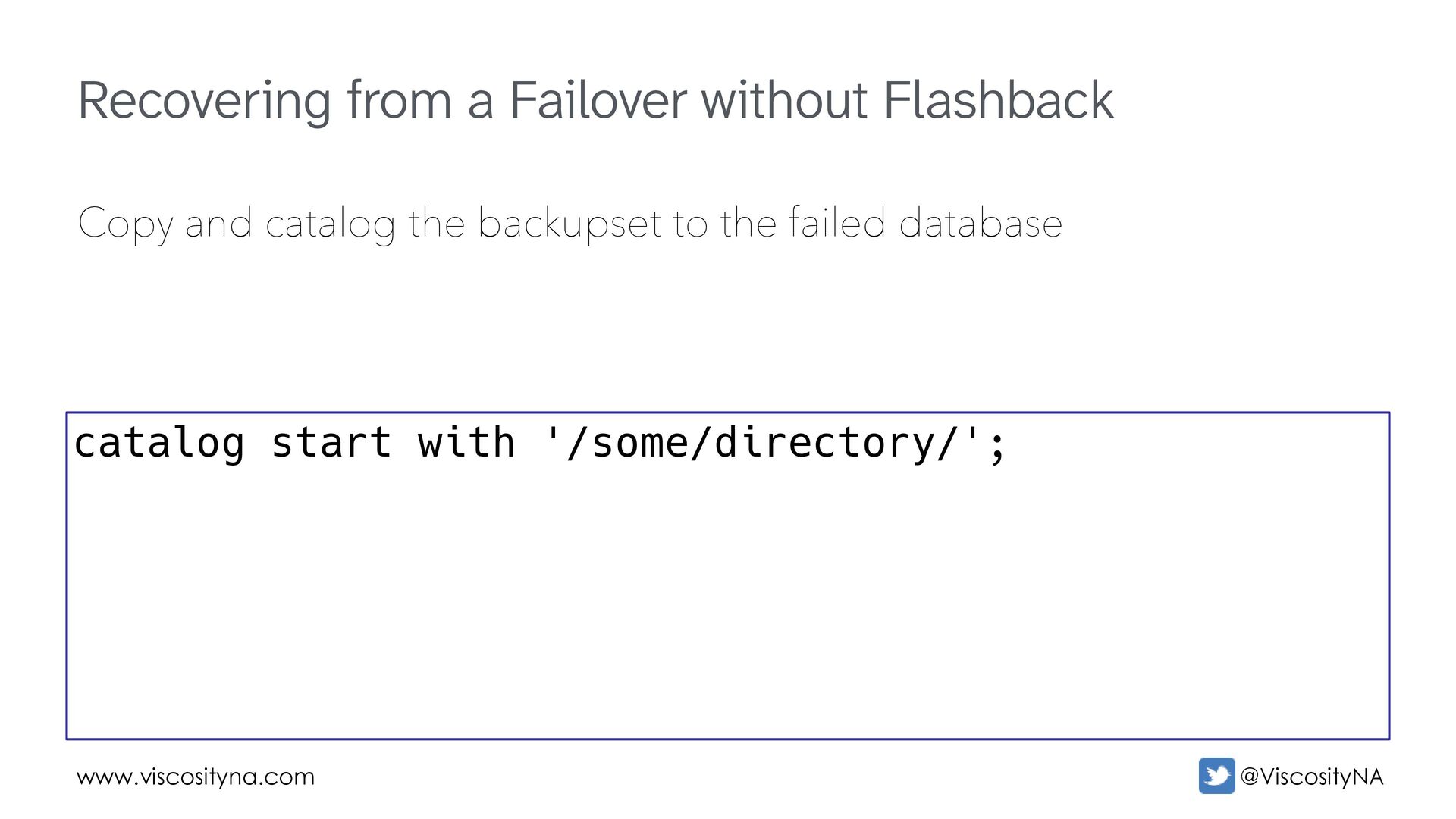

28. www.viscosityna.com @ViscosityNA Recovering from a Failover without Flashback Copy and catalog the backupset to the failed database catalog start with '/some/directory/';

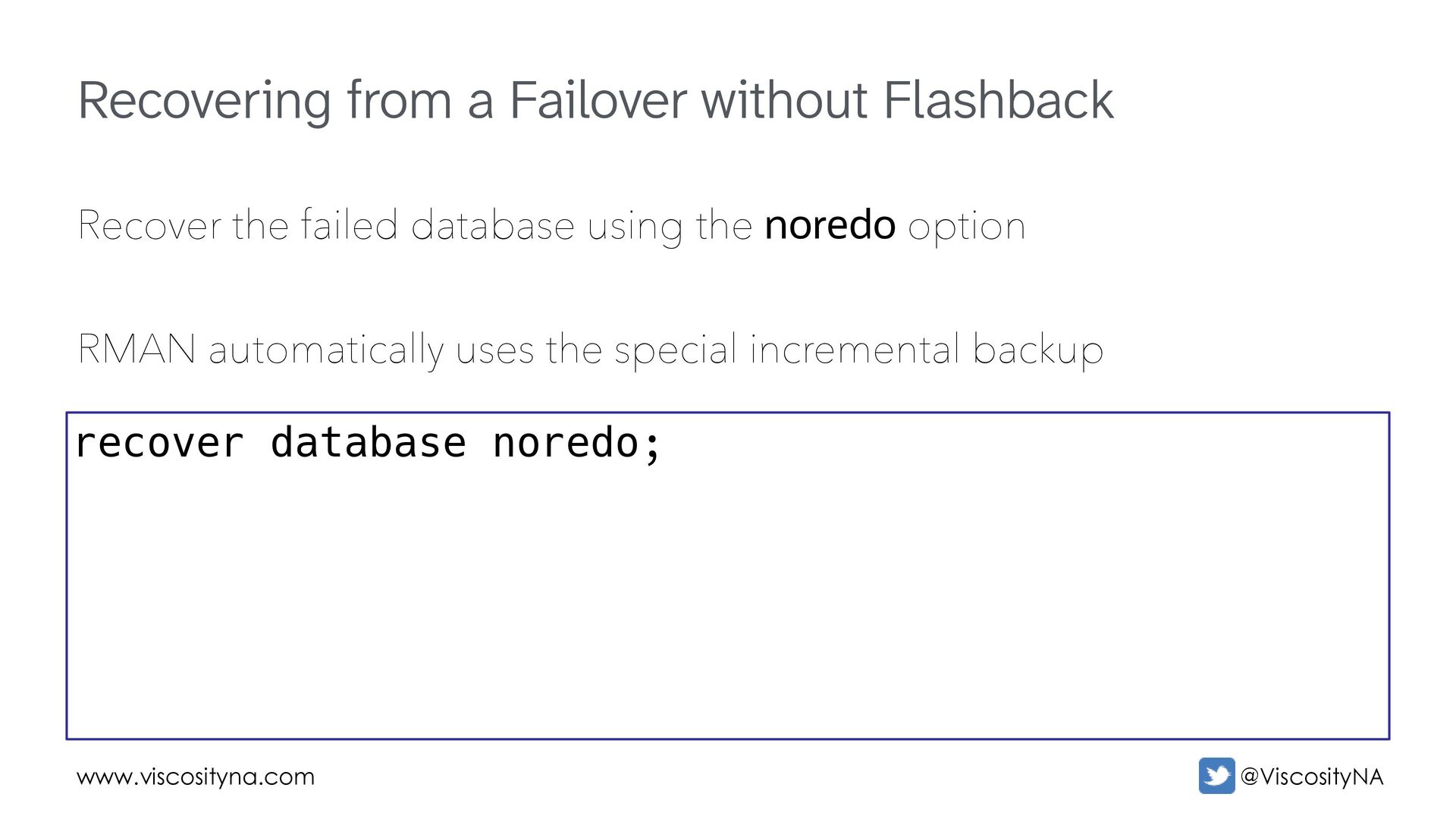

29. www.viscosityna.com @ViscosityNA Recovering from a Failover without Flashback Recover the failed database using the noredo option RMAN automatically uses the special incremental backup recover database noredo;

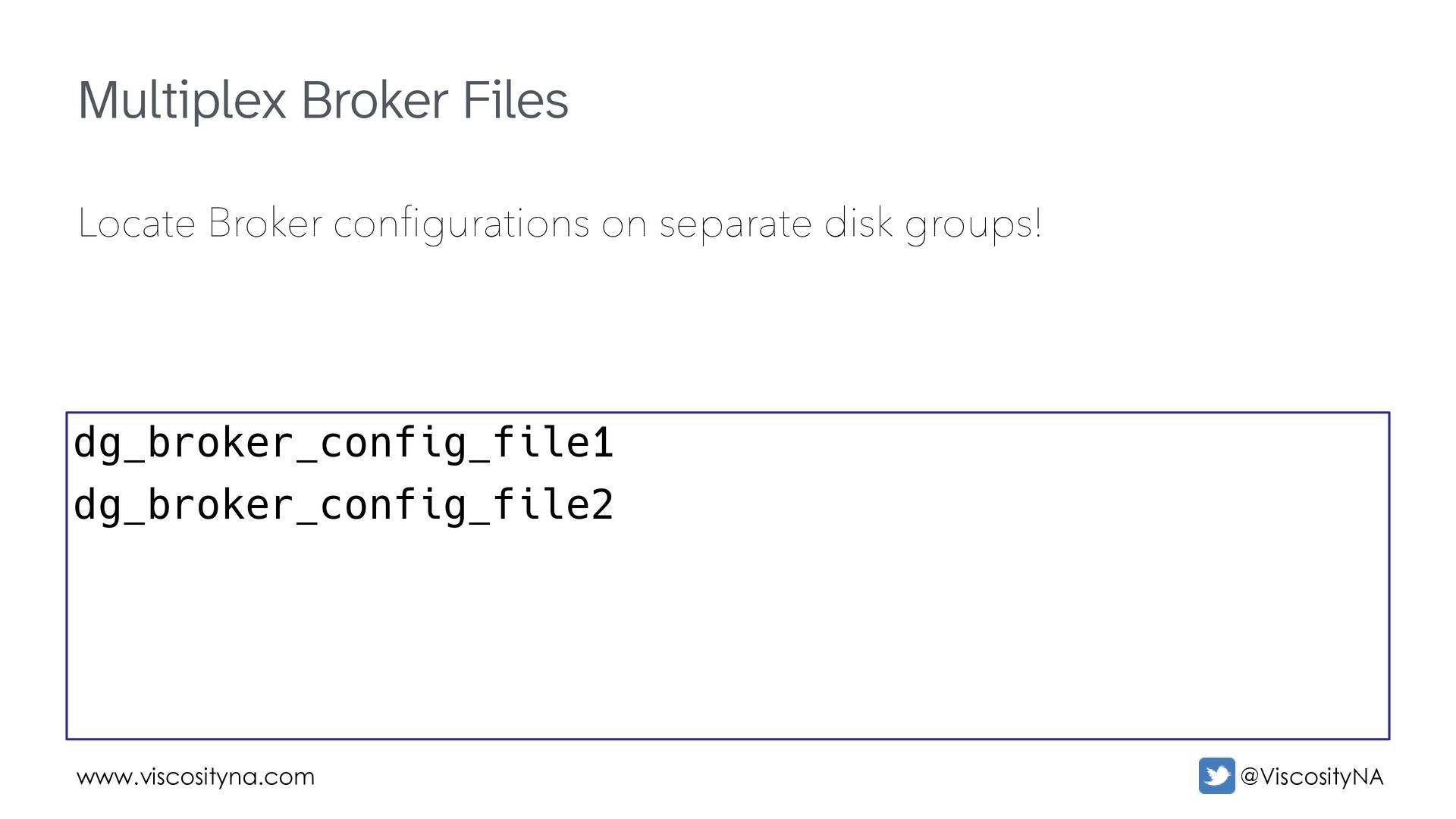

30. www.viscosityna.com @ViscosityNA Multiplex Broker Files Locate Broker configurations on separate disk groups! dg_broker_config_file1 dg_broker_config_file2

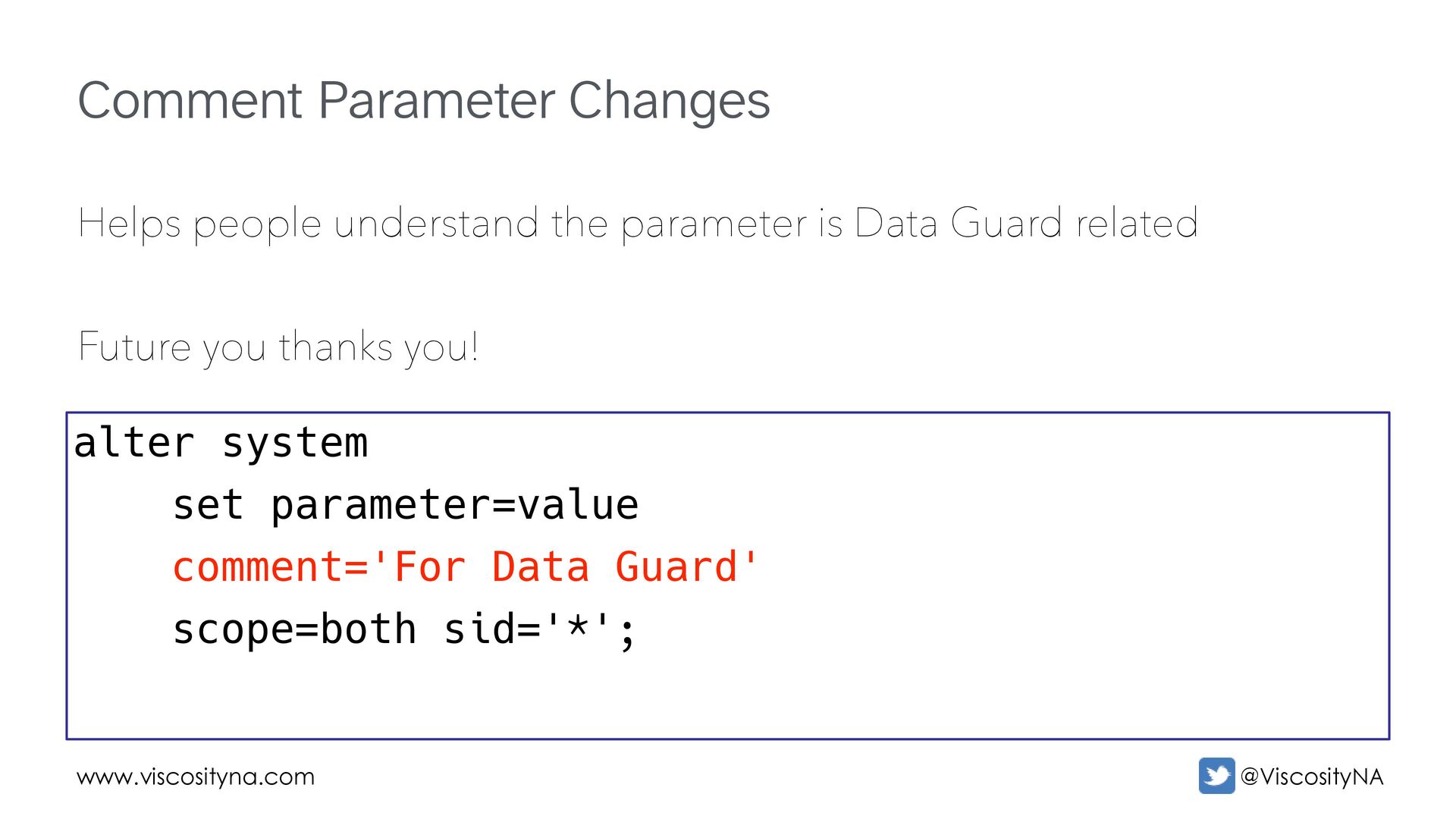

31. www.viscosityna.com @ViscosityNA Comment Parameter Changes Helps people understand the parameter is Data Guard related Future you thanks you! alter system set parameter=value comment='For Data Guard' scope=both sid='*';

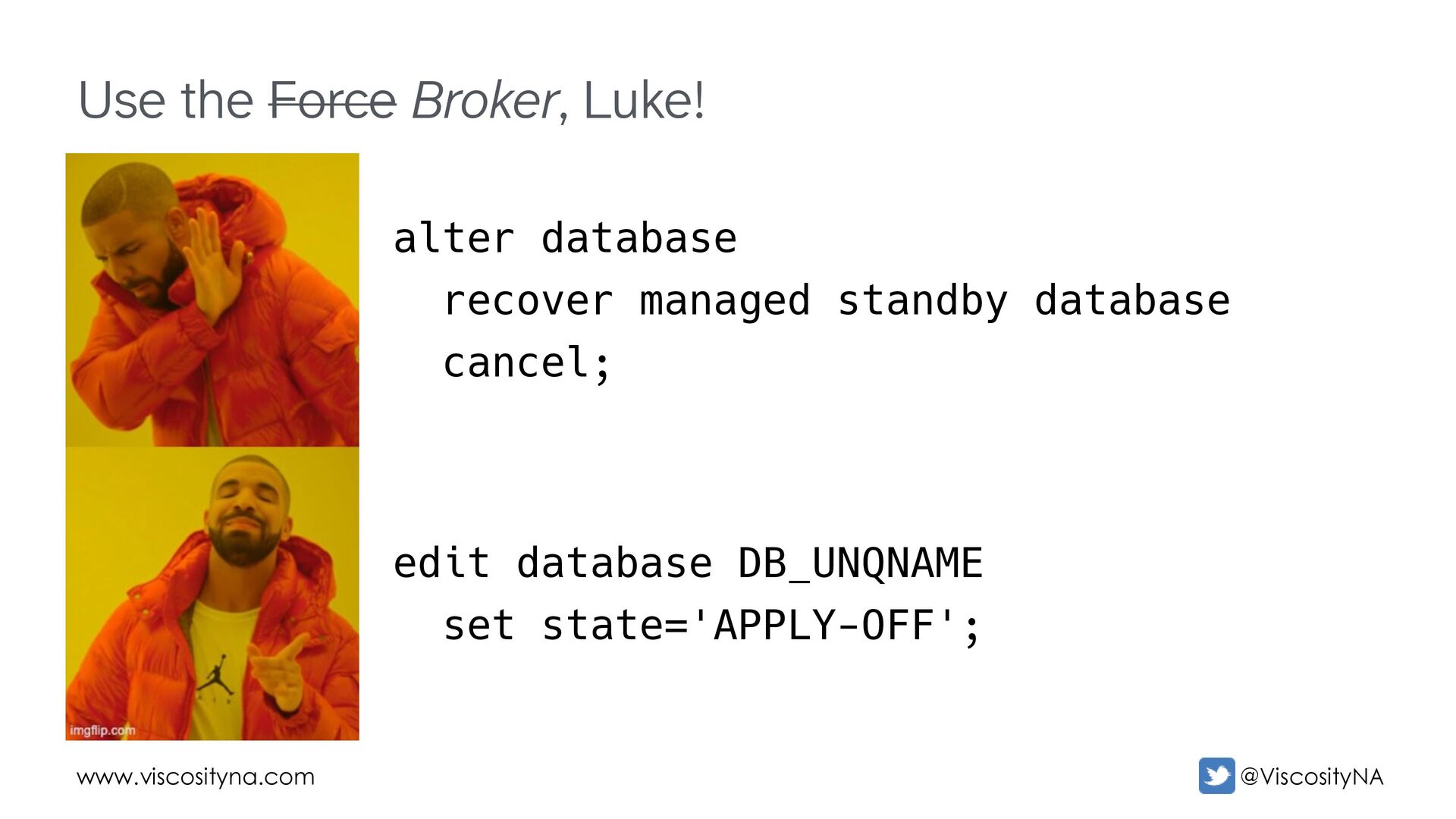

32. www.viscosityna.com @ViscosityNA Use the Force Broker, Luke! edit database DB_UNQNAME set state='APPLY-OFF'; alter database recover managed standby database cancel;

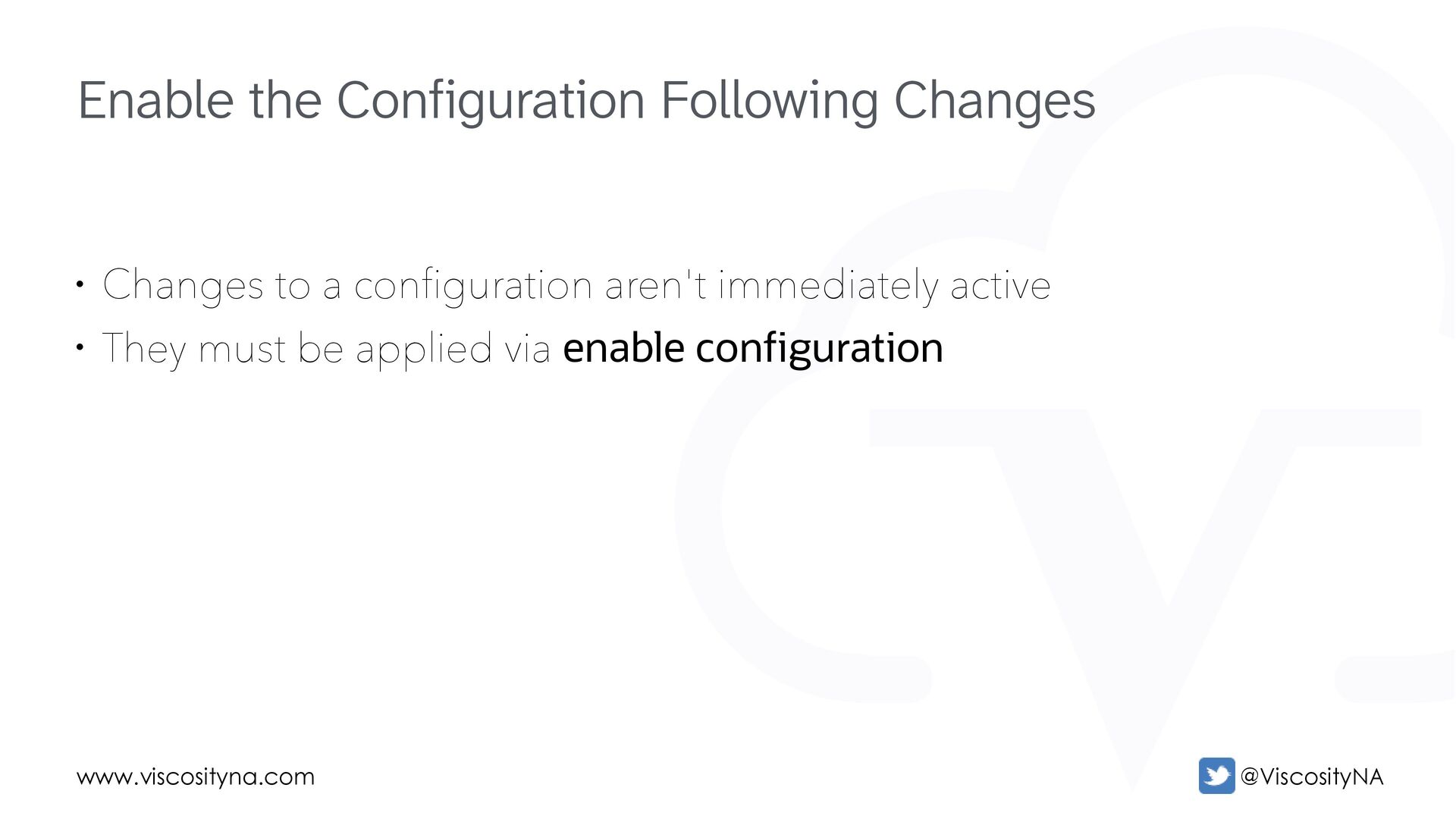

33. www.viscosityna.com @ViscosityNA • Changes to a configuration aren't immediately active • They must be applied via enable configuration Enable the Configuration Following Changes

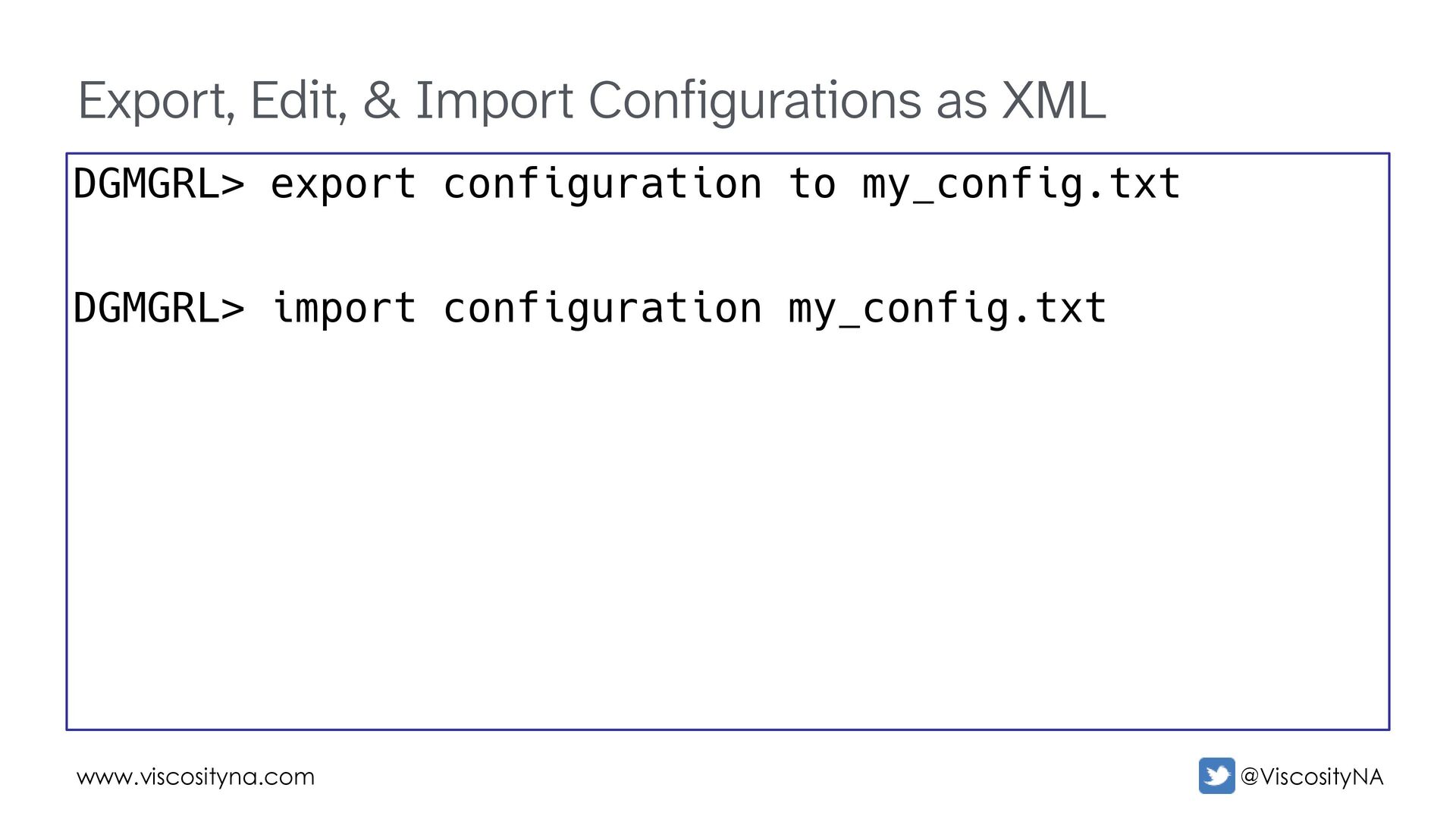

34. www.viscosityna.com @ViscosityNA Export, Edit, & Import Configurations as XML DGMGRL> export configuration to my_config.txt DGMGRL> import configuration my_config.txt

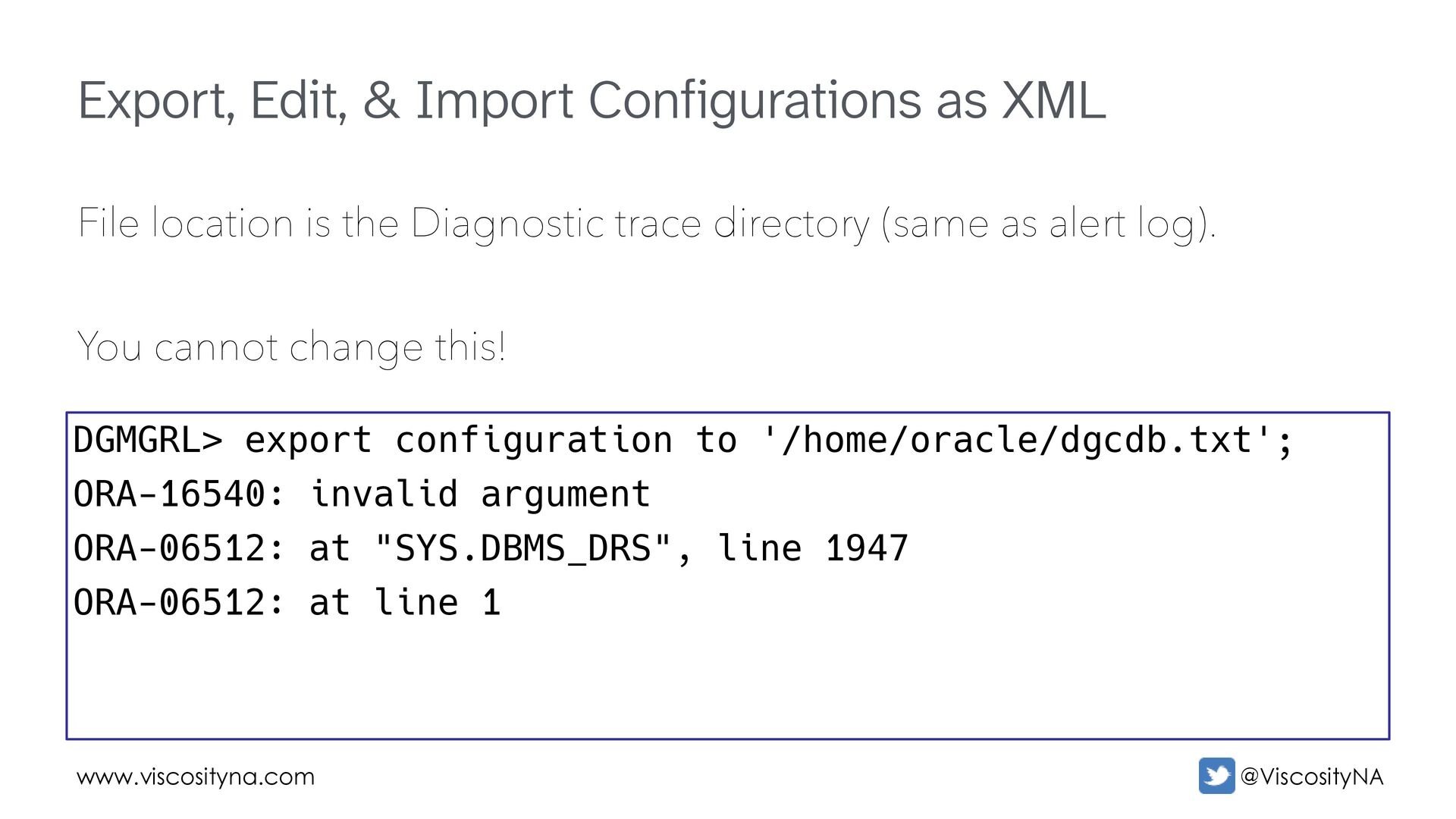

35. www.viscosityna.com @ViscosityNA Export, Edit, & Import Configurations as XML File location is the Diagnostic trace directory (same as alert log). You cannot change this! DGMGRL> export configuration to '/home/oracle/dgcdb.txt'; ORA-16540: invalid argument ORA-06512: at "SYS.DBMS_DRS", line 1947 ORA-06512: at line 1

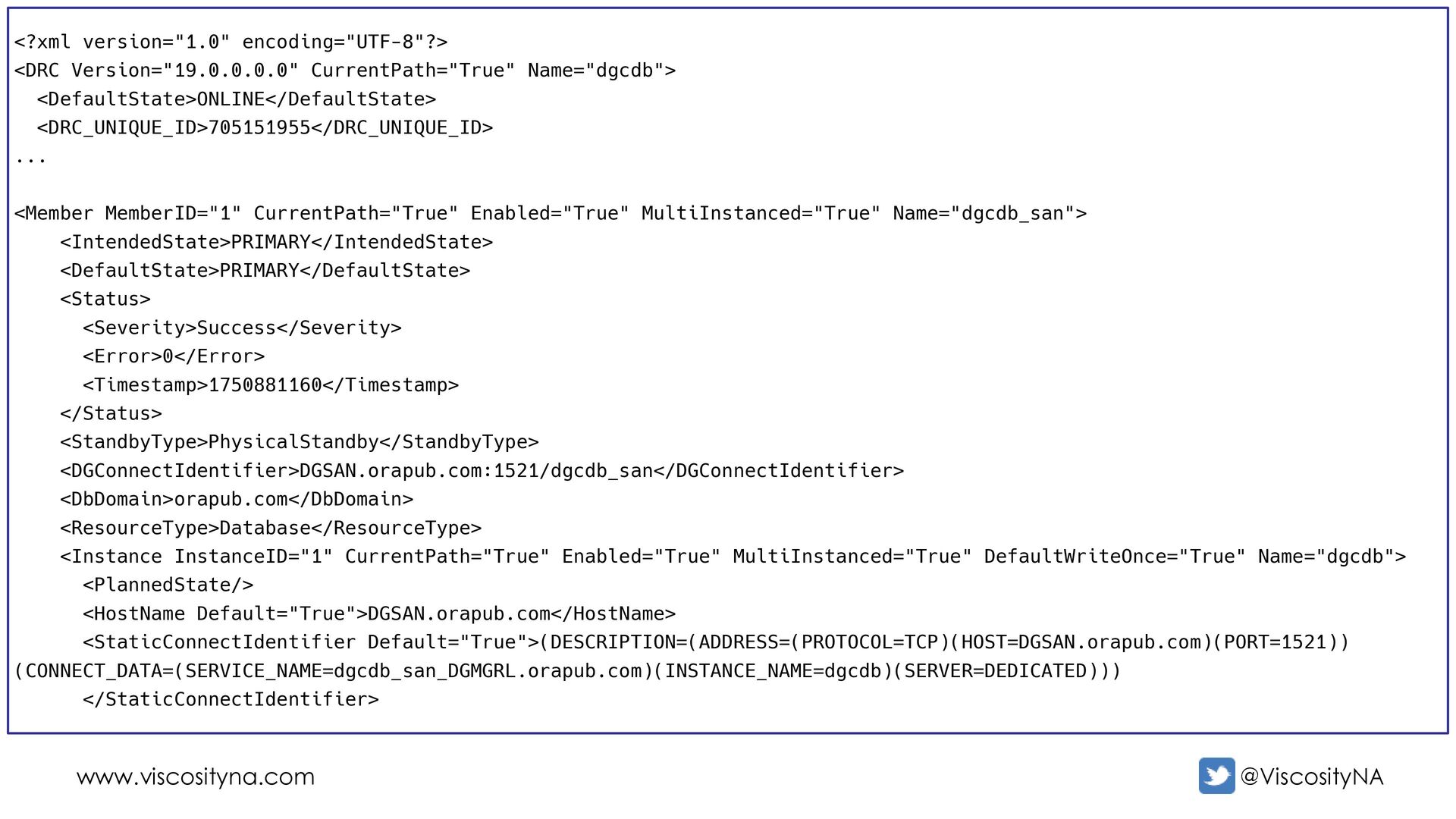

36. www.viscosityna.com @ViscosityNA <?xml version="1.0" encoding="UTF-8"?> <DRC Version="19.0.0.0.0" CurrentPath="True" Name="dgcdb"> <DefaultState>ONLINE</DefaultState> <DRC_UNIQUE_ID>705151955</DRC_UNIQUE_ID> ... <Member MemberID="1" CurrentPath="True" Enabled="True" MultiInstanced="True" Name="dgcdb_san"> <IntendedState>PRIMARY</IntendedState> <DefaultState>PRIMARY</DefaultState> <Status> <Severity>Success</Severity> <Error>0</Error> <Timestamp>1750881160</Timestamp> </Status> <StandbyType>PhysicalStandby</StandbyType> <DGConnectIdentifier>DGSAN.orapub.com:1521/dgcdb_san</DGConnectIdentifier> <DbDomain>orapub.com</DbDomain> <ResourceType>Database</ResourceType> <Instance InstanceID="1" CurrentPath="True" Enabled="True" MultiInstanced="True" DefaultWriteOnce="True" Name="dgcdb"> <PlannedState/> <HostName Default="True">DGSAN.orapub.com</HostName> <StaticConnectIdentifier Default="True">(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=DGSAN.orapub.com)(PORT=1521)) (CONNECT_DATA=(SERVICE_NAME=dgcdb_san_DGMGRL.orapub.com)(INSTANCE_NAME=dgcdb)(SERVER=DEDICATED))) </StaticConnectIdentifier>
37. www.viscosityna.com @ViscosityNA Network Configuration
38. www.viscosityna.com @ViscosityNA Rules for the DGConnectIdentifier • All members must be able to reach every other member • Members must be able to reach themselves • Allow connections to all instances of RAC databases • Uses a service that dynamically registers with listeners • Allows connect-time failover on RAC • Must not be defined or managed by Clusterware • Failover attributes allow Redo Transport to ship to any RAC instance DGConnectIdentifier

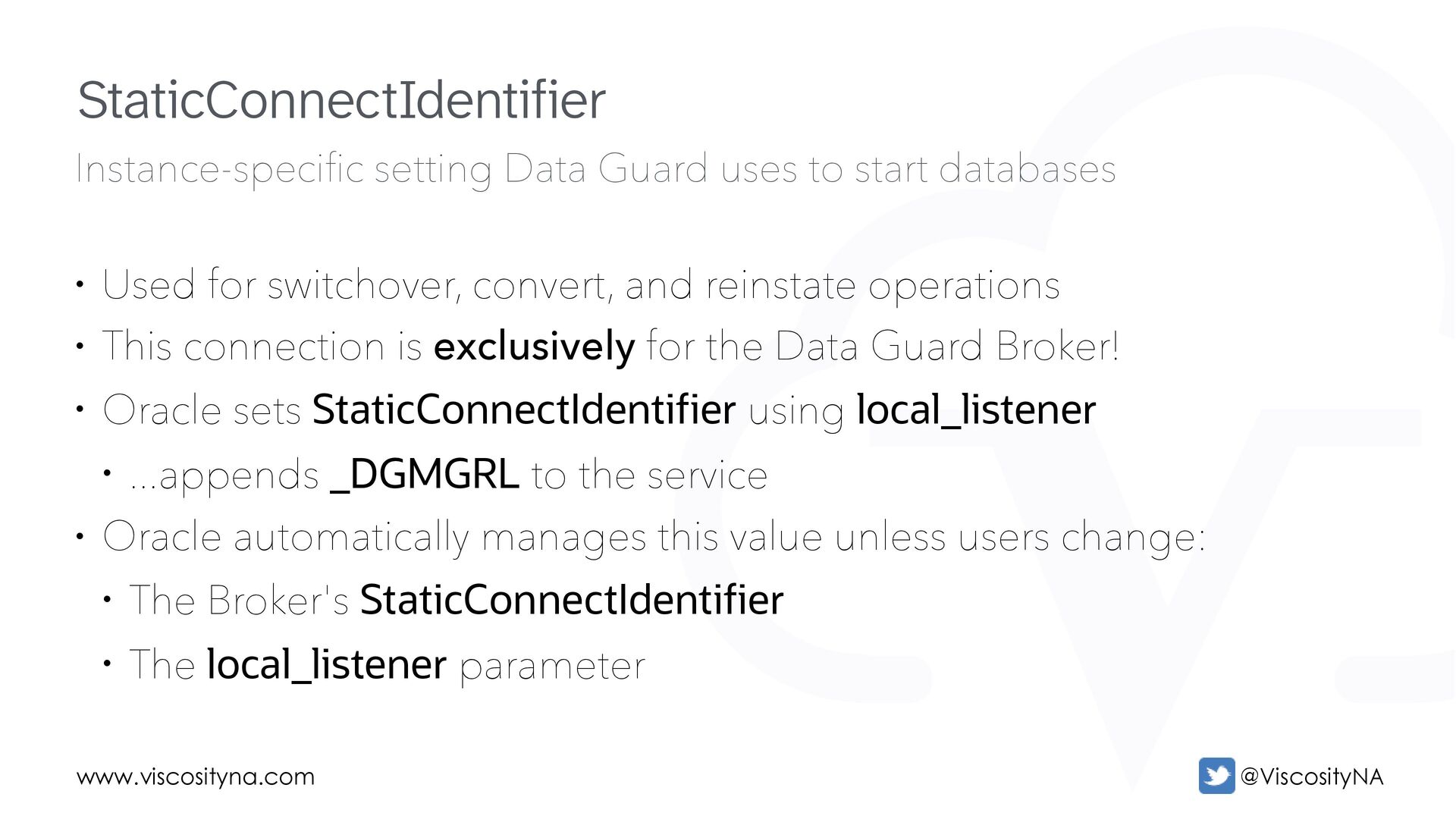

39. www.viscosityna.com @ViscosityNA Instance-speci fi c setting Data Guard uses to start databases • Used for switchover, convert, and reinstate operations • This connection is exclusively for the Data Guard Broker! • Oracle sets StaticConnectIdentifier using local_listener • ...appends _DGMGRL to the service • Oracle automatically manages this value unless users change: • The Broker's StaticConnectIdentifier • The local_listener parameter StaticConnectIdentifier

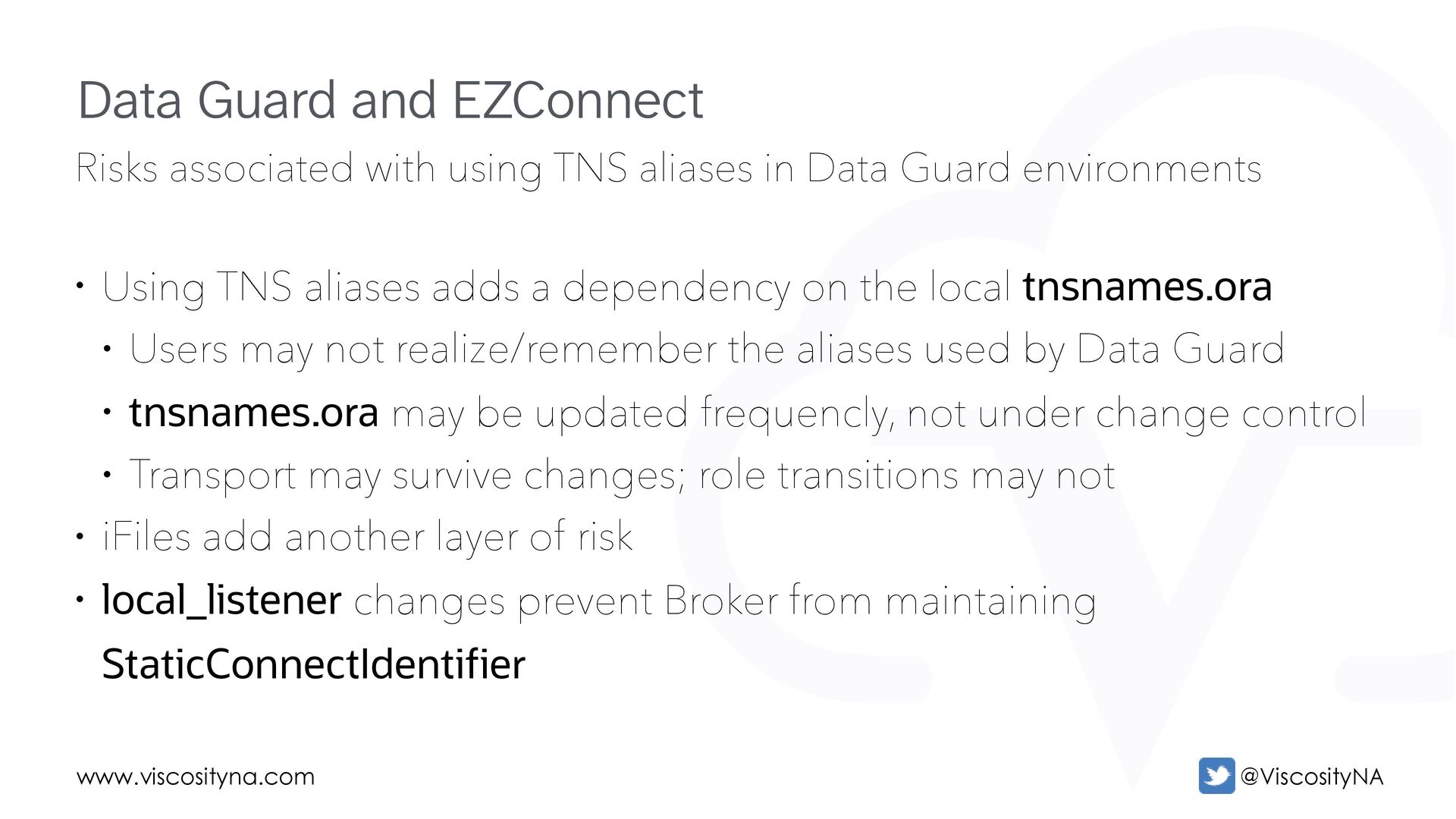

40. www.viscosityna.com @ViscosityNA Risks associated with using TNS aliases in Data Guard environments • Using TNS aliases adds a dependency on the local tnsnames.ora • Users may not realize/remember the aliases used by Data Guard • tnsnames.ora may be updated frequencly, not under change control • Transport may survive changes; role transitions may not • iFiles add another layer of risk • local_listener changes prevent Broker from maintaining StaticConnectIdentifier Data Guard and EZConnect

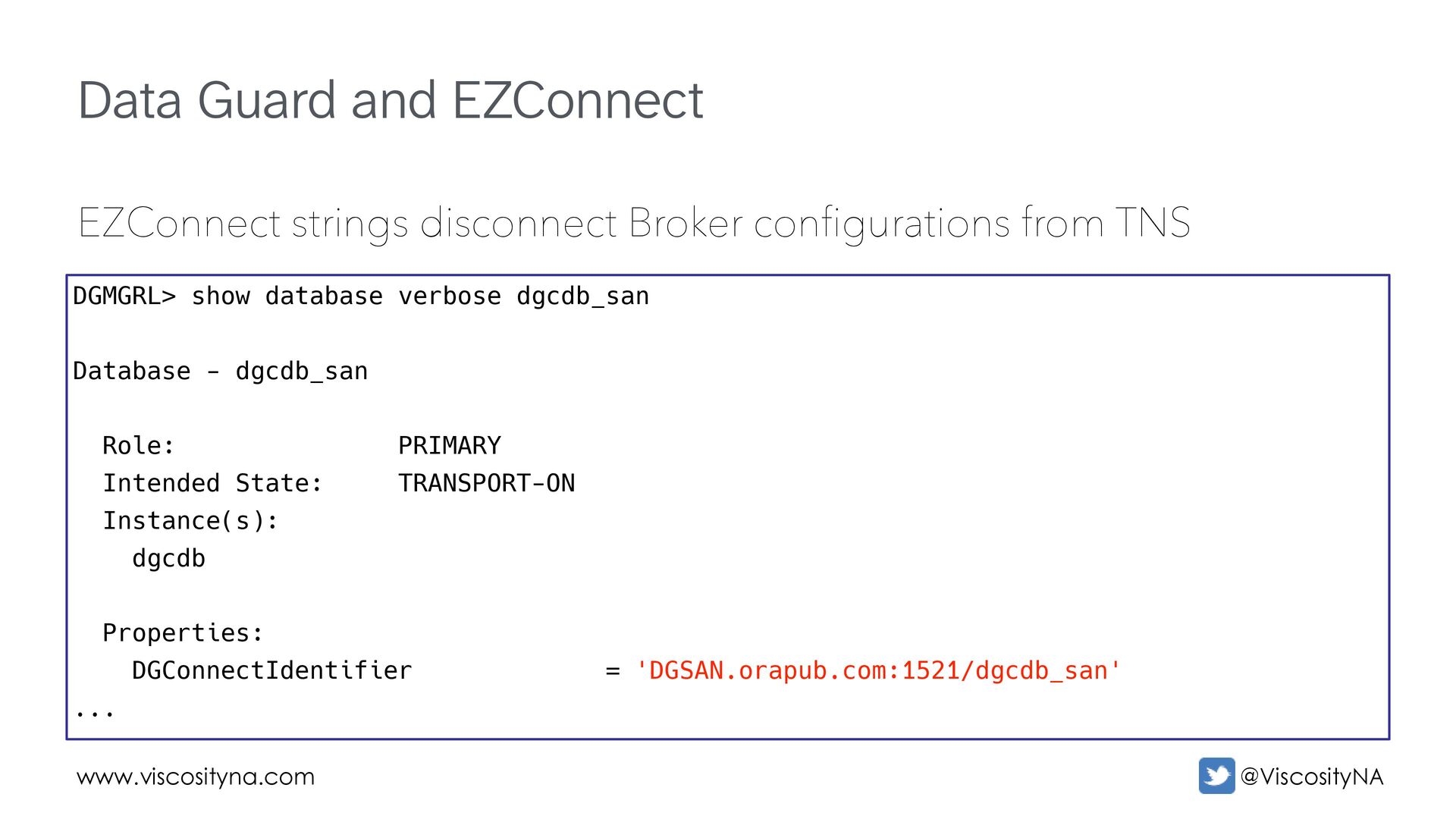

41. www.viscosityna.com @ViscosityNA Data Guard and EZConnect EZConnect strings disconnect Broker configurations from TNS DGMGRL> show database verbose dgcdb_san Database - dgcdb_san Role: PRIMARY Intended State: TRANSPORT-ON Instance(s): dgcdb Properties: DGConnectIdentifier = 'DGSAN.orapub.com:1521/dgcdb_san' ...

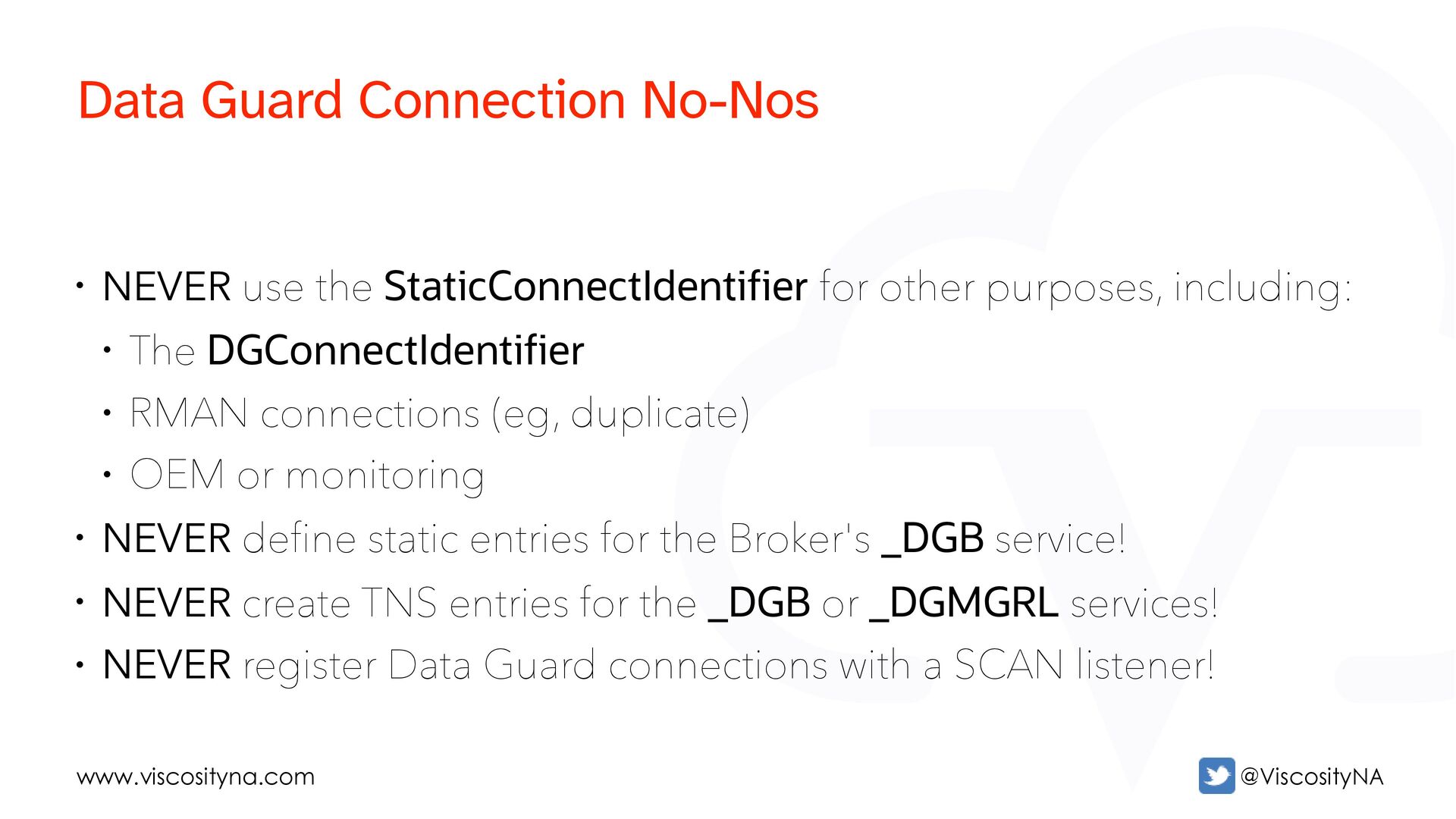

42. www.viscosityna.com @ViscosityNA • NEVER use the StaticConnectIdentifier for other purposes, including: • The DGConnectIdentifier • RMAN connections (eg, duplicate) • OEM or monitoring • NEVER define static entries for the Broker's _DGB service! • NEVER create TNS entries for the _DGB or _DGMGRL services! • NEVER register Data Guard connections with a SCAN listener! Data Guard Connection No-Nos

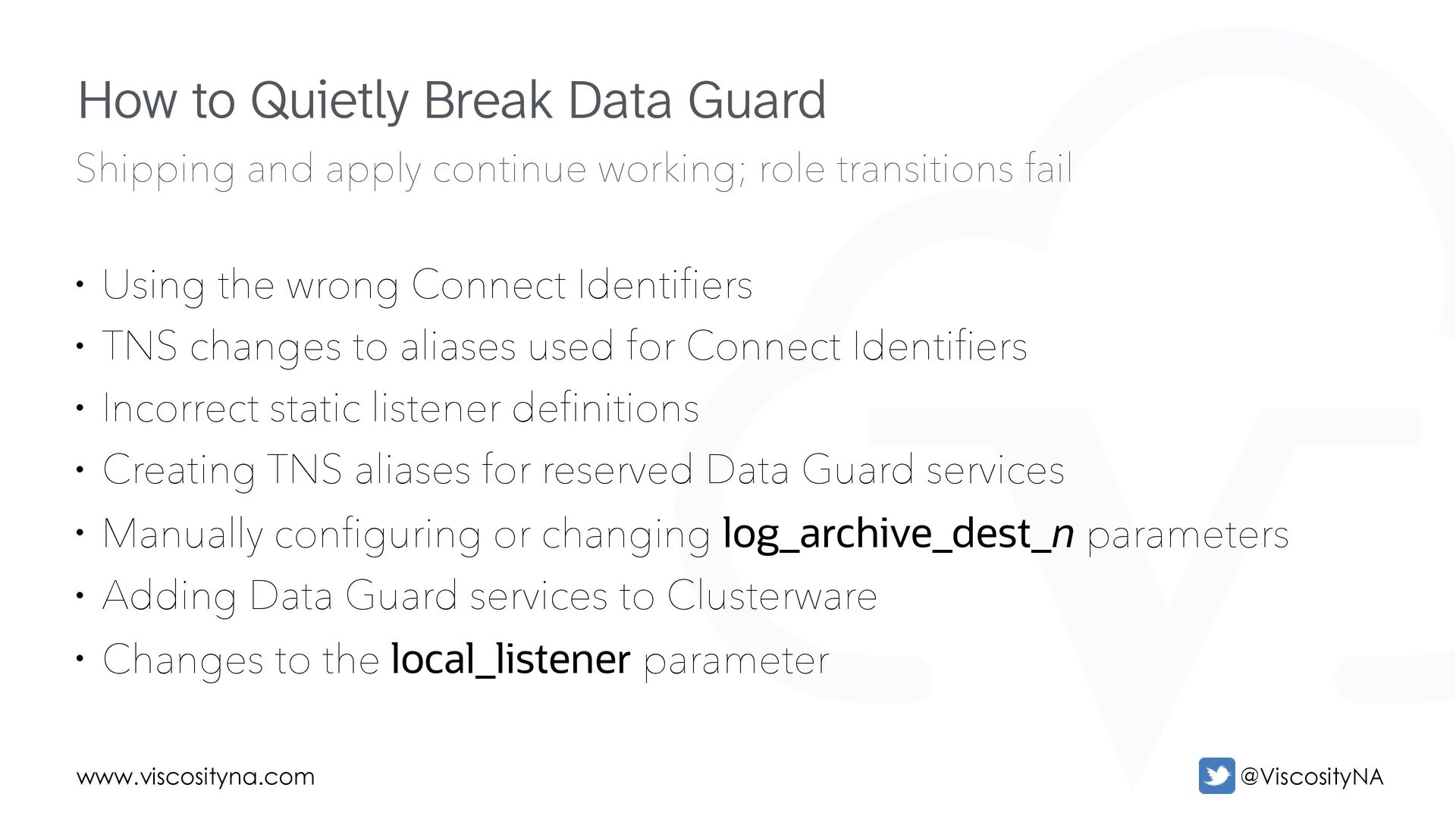

43. www.viscosityna.com @ViscosityNA Shipping and apply continue working; role transitions fail • Using the wrong Connect Identifiers • TNS changes to aliases used for Connect Identifiers • Incorrect static listener definitions • Creating TNS aliases for reserved Data Guard services • Manually configuring or changing log_archive_dest_n parameters • Adding Data Guard services to Clusterware • Changes to the local_listener parameter How to Quietly Break Data Guard

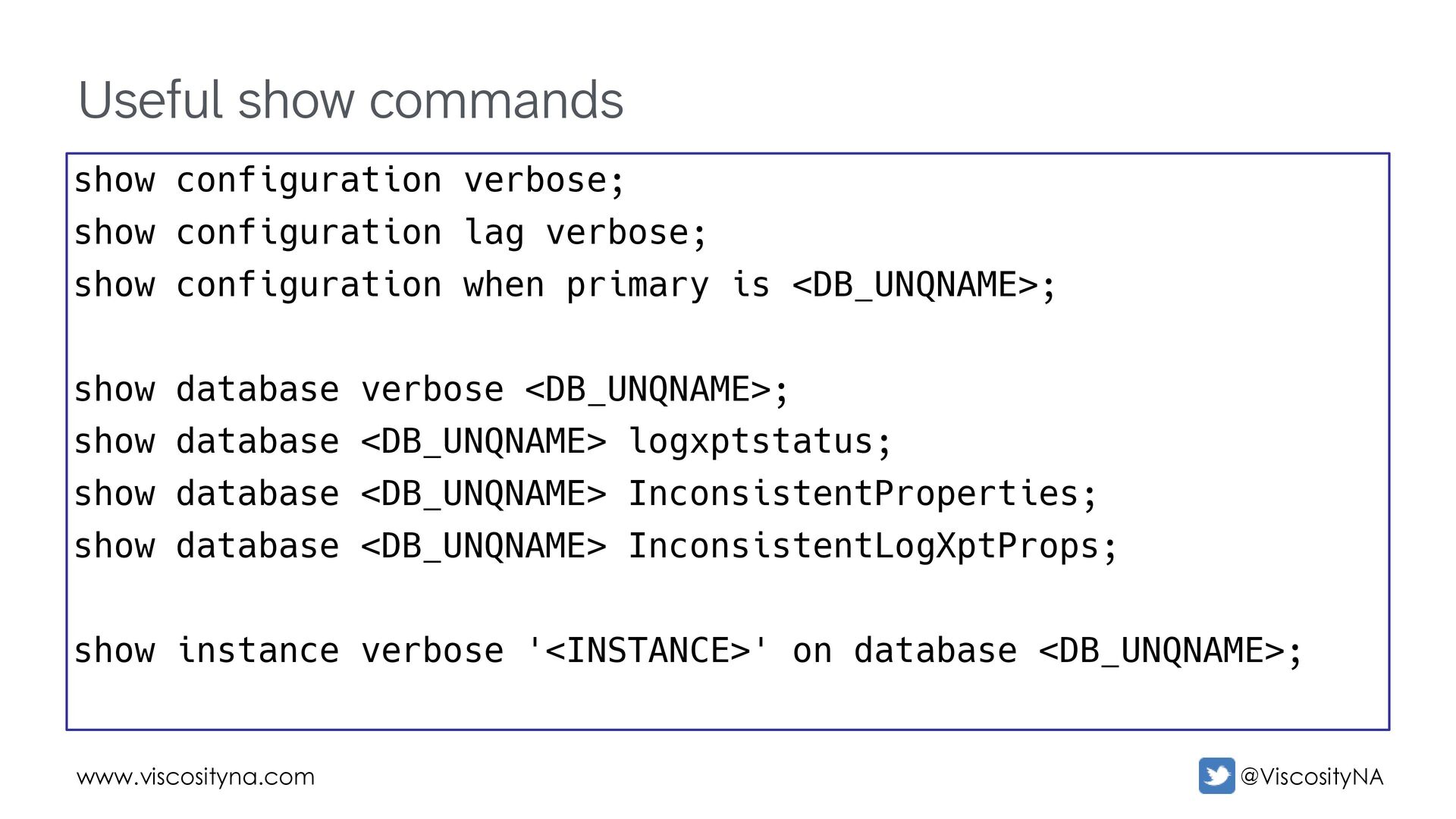

44. www.viscosityna.com @ViscosityNA Useful show commands show configuration verbose; show configuration lag verbose; show configuration when primary is <DB_UNQNAME>; show database verbose <DB_UNQNAME>; show database <DB_UNQNAME> logxptstatus; show database <DB_UNQNAME> InconsistentProperties; show database <DB_UNQNAME> InconsistentLogXptProps; show instance verbose '<INSTANCE>' on database <DB_UNQNAME>;

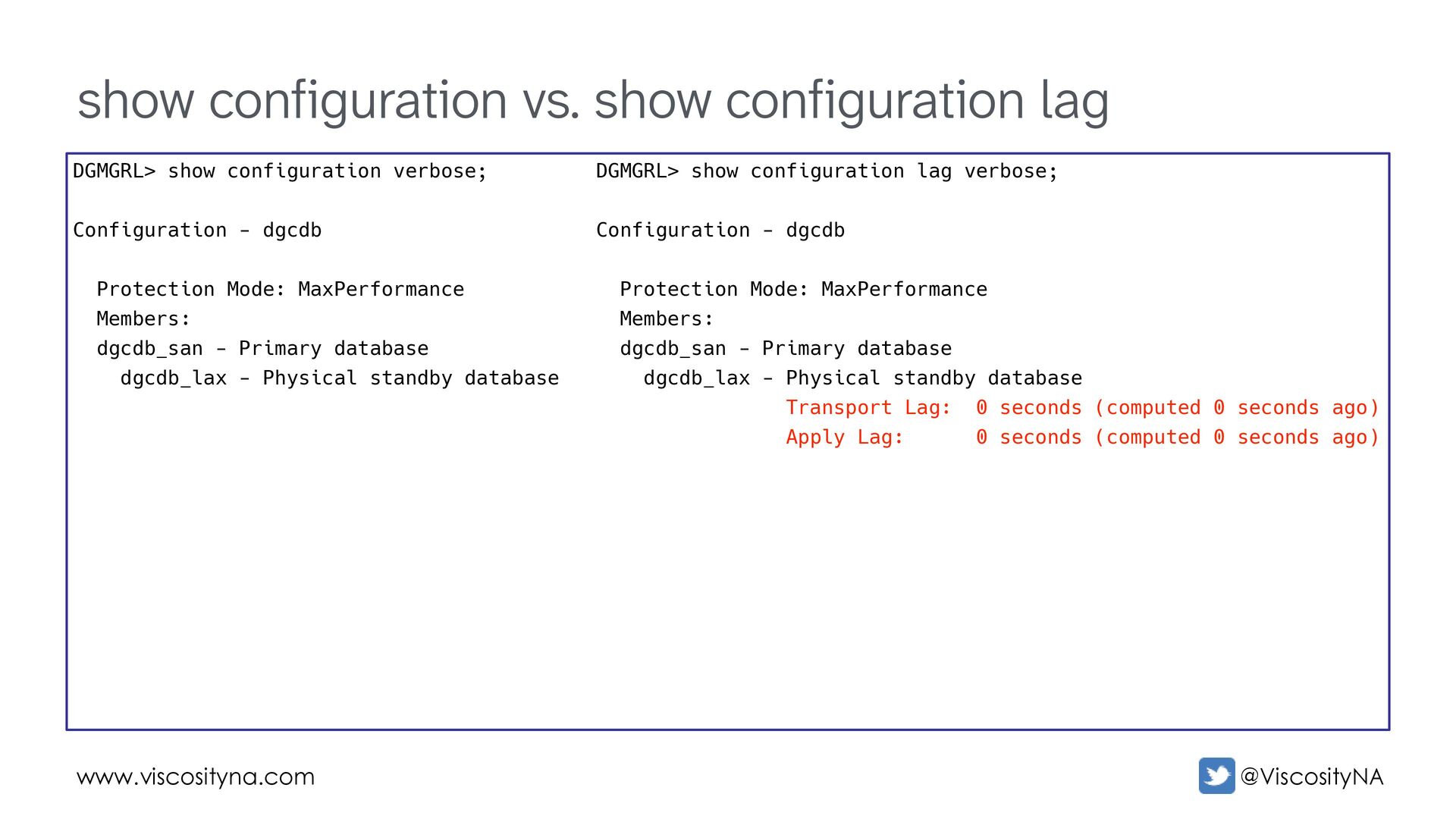

45. www.viscosityna.com @ViscosityNA show configuration vs. show configuration lag DGMGRL> show configuration verbose; Configuration - dgcdb Protection Mode: MaxPerformance Members: dgcdb_san - Primary database dgcdb_lax - Physical standby database DGMGRL> show configuration lag verbose; Configuration - dgcdb Protection Mode: MaxPerformance Members: dgcdb_san - Primary database dgcdb_lax - Physical standby database Transport Lag: 0 seconds (computed 0 seconds ago) Apply Lag: 0 seconds (computed 0 seconds ago)

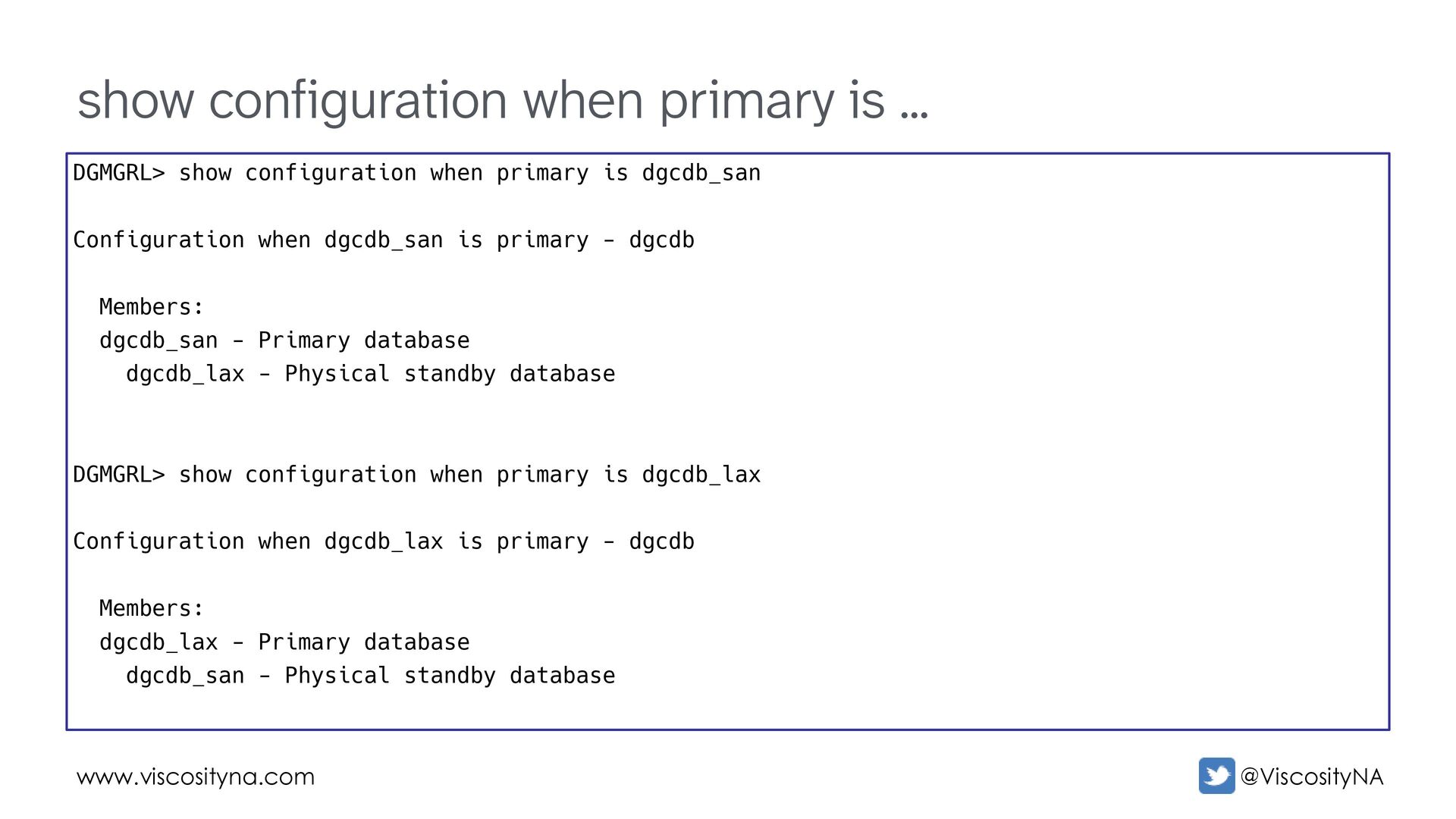

46. www.viscosityna.com @ViscosityNA show configuration when primary is ... DGMGRL> show configuration when primary is dgcdb_san Configuration when dgcdb_san is primary - dgcdb Members: dgcdb_san - Primary database dgcdb_lax - Physical standby database DGMGRL> show configuration when primary is dgcdb_lax Configuration when dgcdb_lax is primary - dgcdb Members: dgcdb_lax - Primary database dgcdb_san - Physical standby database

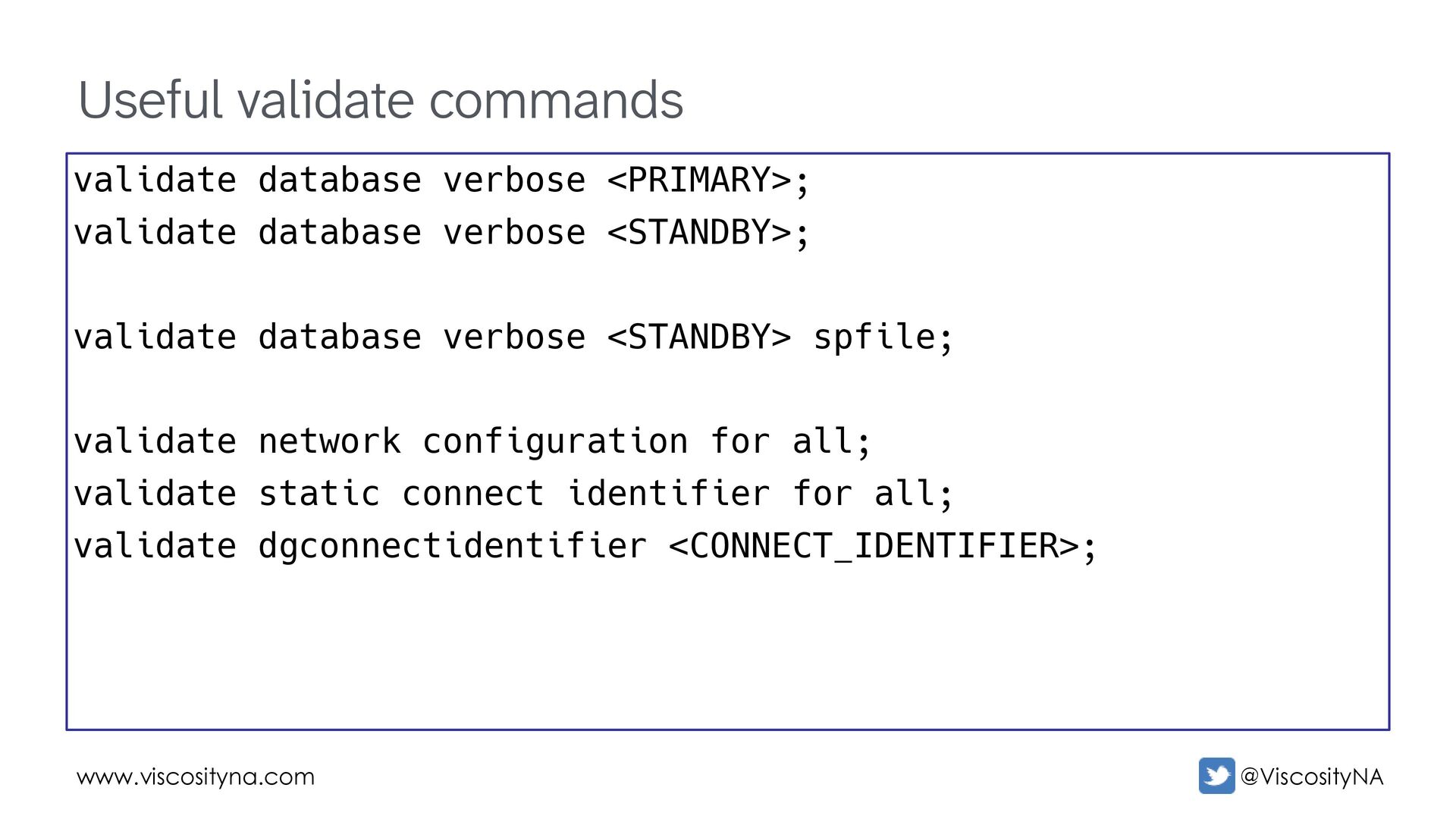

47. www.viscosityna.com @ViscosityNA Useful validate commands validate database verbose <PRIMARY>; validate database verbose <STANDBY>; validate database verbose <STANDBY> spfile; validate network configuration for all; validate static connect identifier for all; validate dgconnectidentifier <CONNECT_IDENTIFIER>;

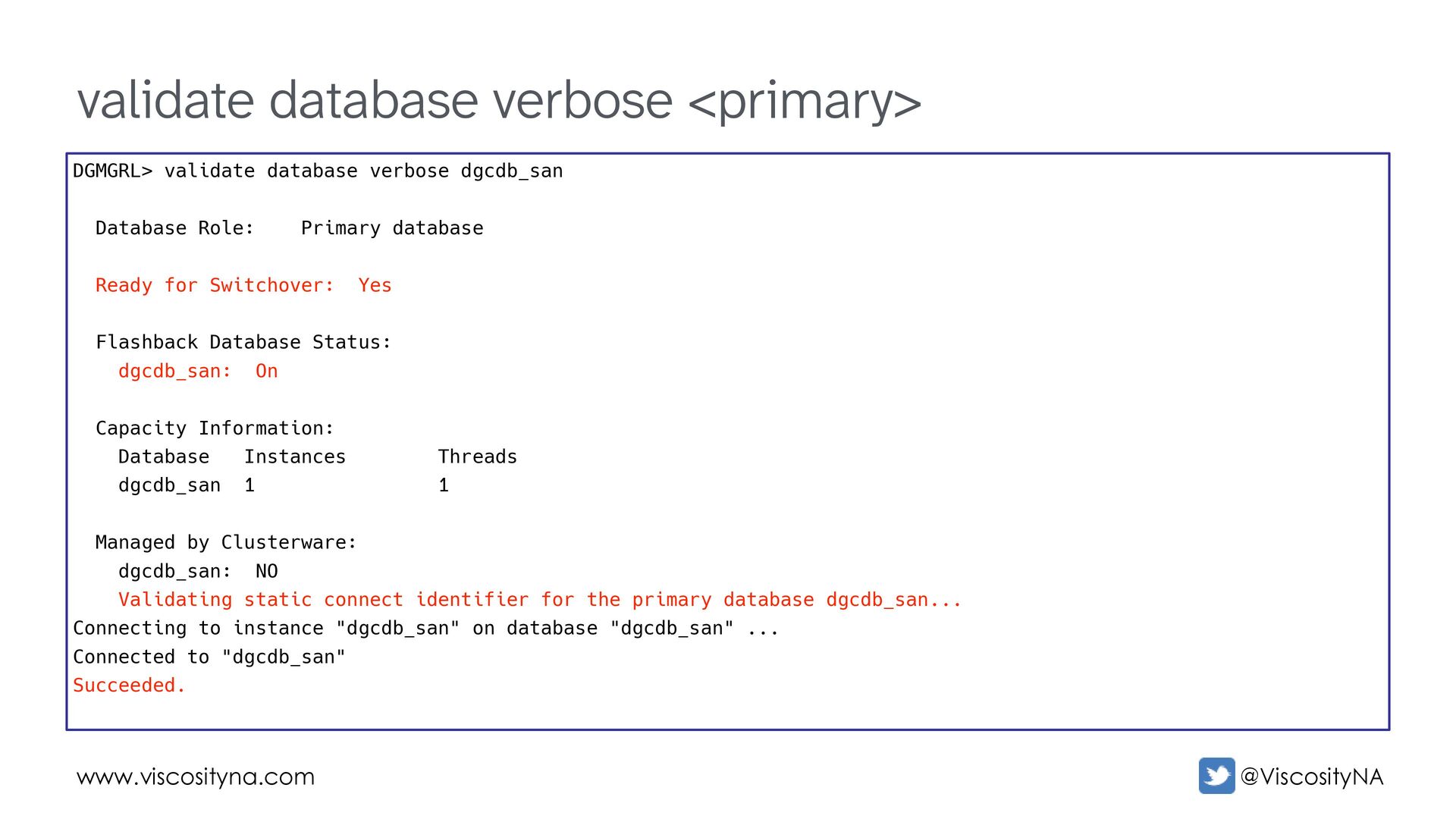

48. www.viscosityna.com @ViscosityNA validate database verbose <primary> DGMGRL> validate database verbose dgcdb_san Database Role: Primary database Ready for Switchover: Yes Flashback Database Status: dgcdb_san: On Capacity Information: Database Instances Threads dgcdb_san 1 1 Managed by Clusterware: dgcdb_san: NO Validating static connect identifier for the primary database dgcdb_san... Connecting to instance "dgcdb_san" on database "dgcdb_san" ... Connected to "dgcdb_san" Succeeded.

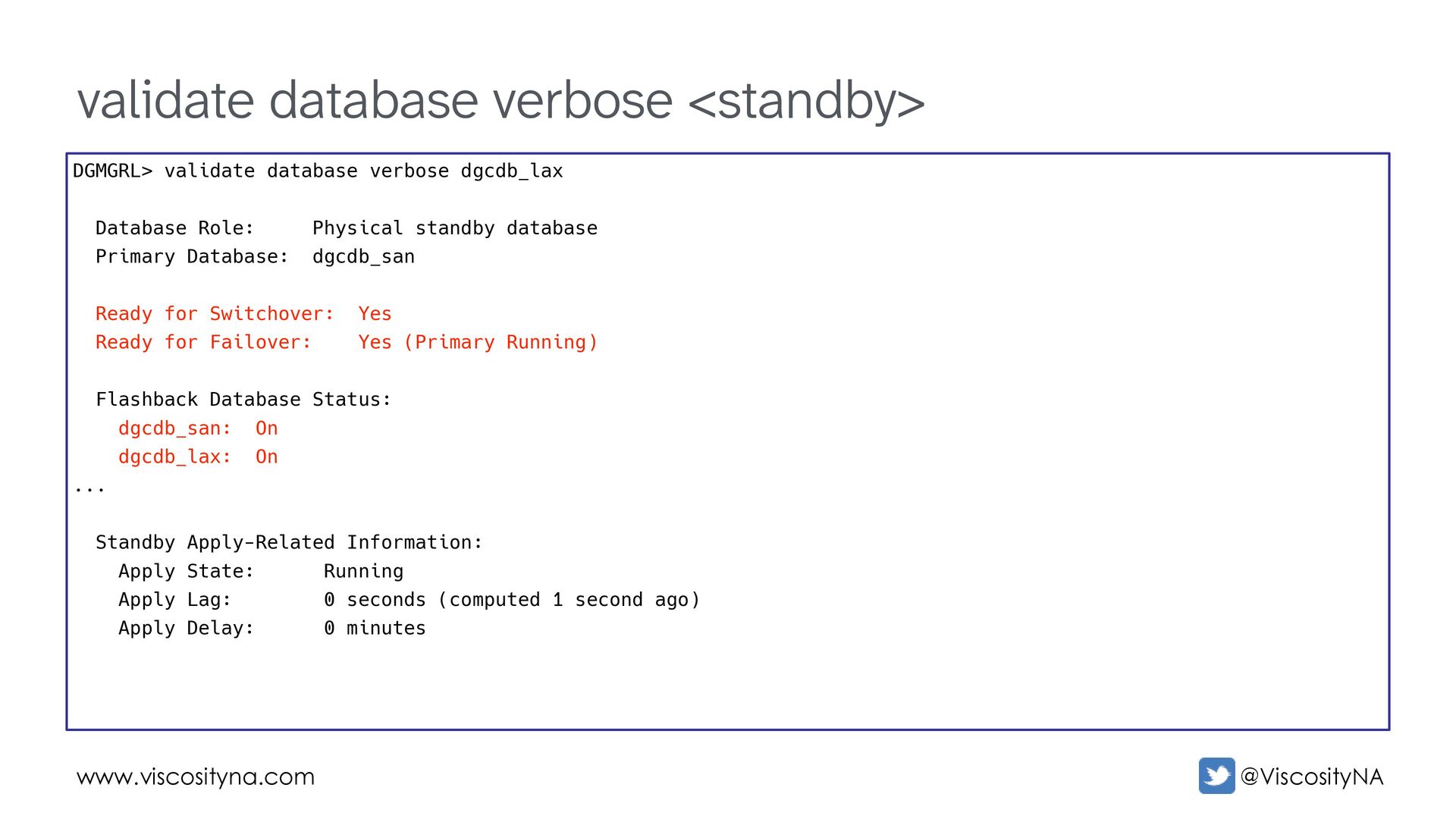

49. www.viscosityna.com @ViscosityNA validate database verbose <standby> DGMGRL> validate database verbose dgcdb_lax Database Role: Physical standby database Primary Database: dgcdb_san Ready for Switchover: Yes Ready for Failover: Yes (Primary Running) Flashback Database Status: dgcdb_san: On dgcdb_lax: On ... Standby Apply-Related Information: Apply State: Running Apply Lag: 0 seconds (computed 1 second ago) Apply Delay: 0 minutes

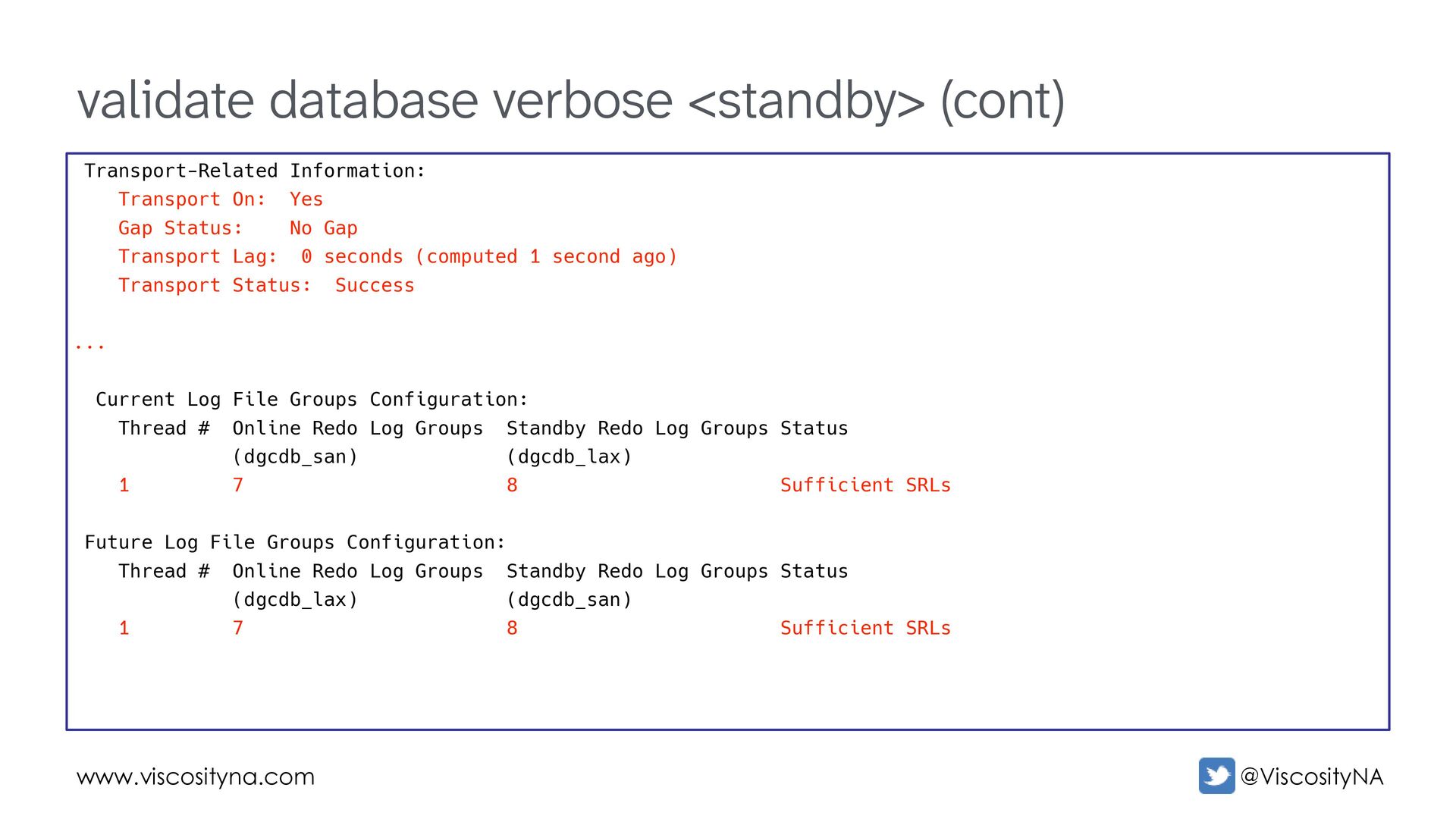

50. www.viscosityna.com @ViscosityNA validate database verbose <standby> (cont) Transport-Related Information: Transport On: Yes Gap Status: No Gap Transport Lag: 0 seconds (computed 1 second ago) Transport Status: Success ... Current Log File Groups Configuration: Thread # Online Redo Log Groups Standby Redo Log Groups Status (dgcdb_san) (dgcdb_lax) 1 7 8 Sufficient SRLs Future Log File Groups Configuration: Thread # Online Redo Log Groups Standby Redo Log Groups Status (dgcdb_lax) (dgcdb_san) 1 7 8 Sufficient SRLs

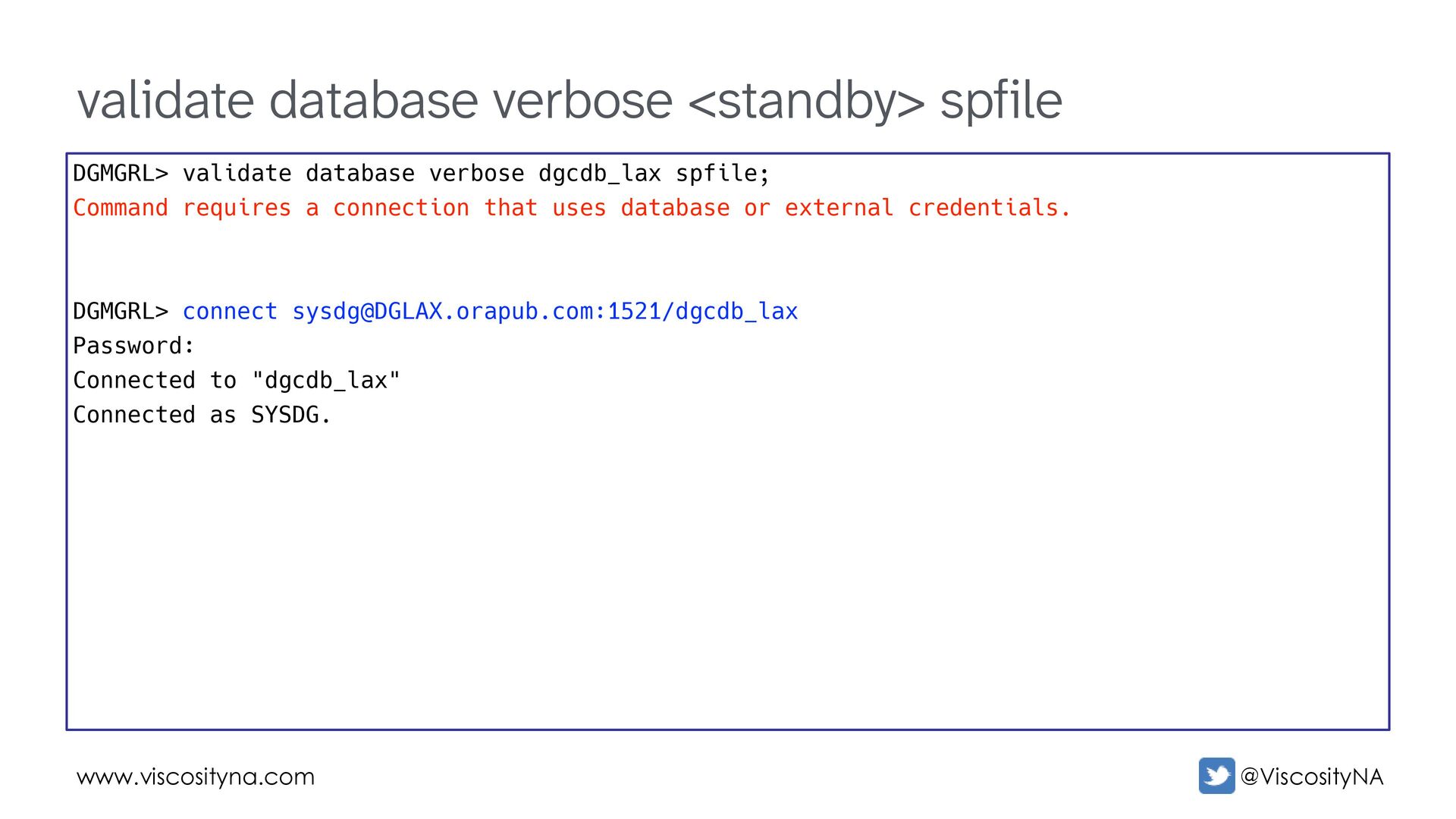

51. www.viscosityna.com @ViscosityNA validate database verbose <standby> spfile DGMGRL> validate database verbose dgcdb_lax spfile; Command requires a connection that uses database or external credentials. DGMGRL> connect sysdg@DGLAX.orapub.com:1521/dgcdb_lax Password: Connected to "dgcdb_lax" Connected as SYSDG.

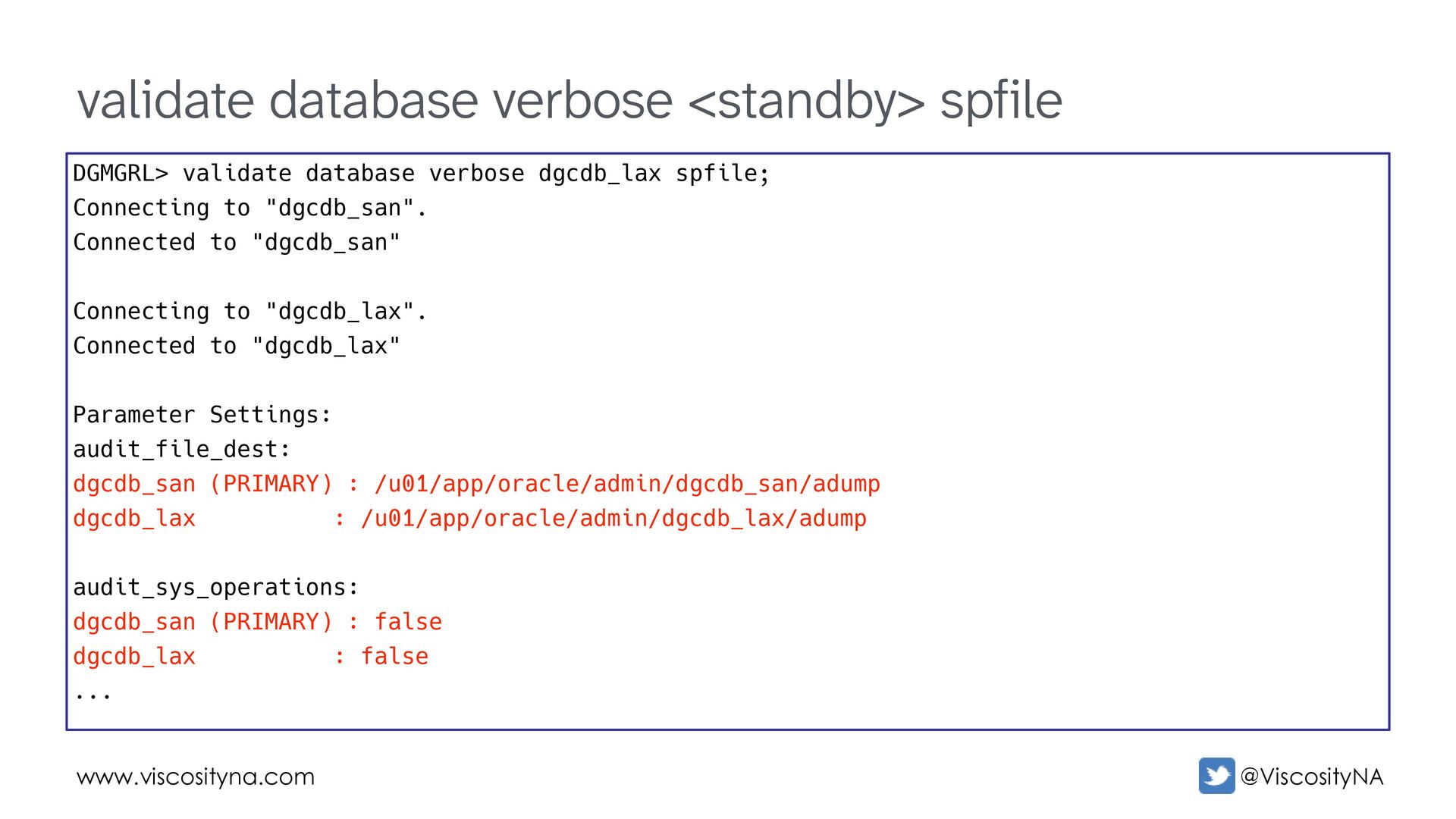

52. www.viscosityna.com @ViscosityNA validate database verbose <standby> spfile DGMGRL> validate database verbose dgcdb_lax spfile; Connecting to "dgcdb_san". Connected to "dgcdb_san" Connecting to "dgcdb_lax". Connected to "dgcdb_lax" Parameter Settings: audit_file_dest: dgcdb_san (PRIMARY) : /u01/app/oracle/admin/dgcdb_san/adump dgcdb_lax : /u01/app/oracle/admin/dgcdb_lax/adump audit_sys_operations: dgcdb_san (PRIMARY) : false dgcdb_lax : false ...

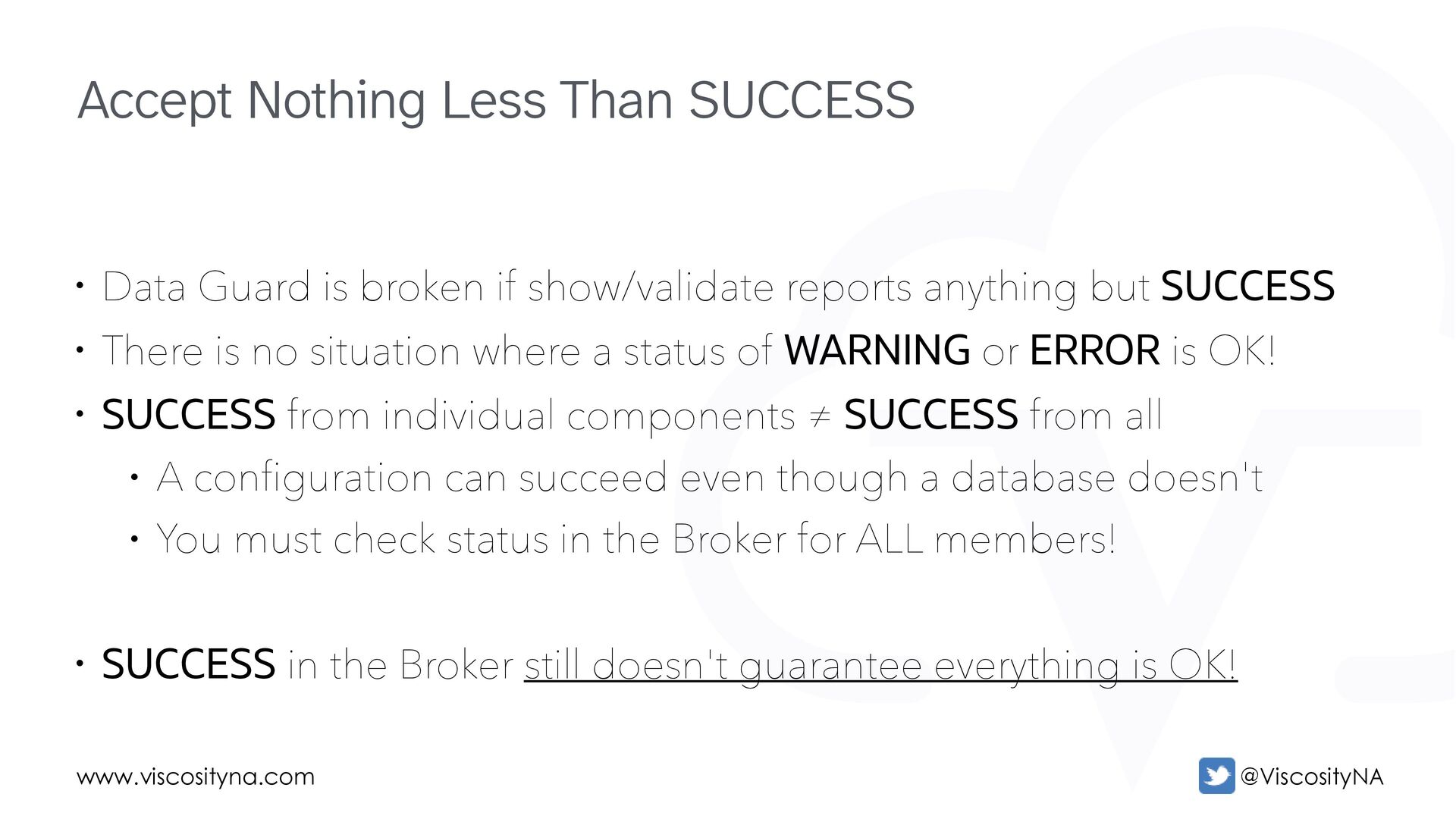

53. www.viscosityna.com @ViscosityNA • Data Guard is broken if show/validate reports anything but SUCCESS • There is no situation where a status of WARNING or ERROR is OK! • SUCCESS from individual components ≠ SUCCESS from all • A configuration can succeed even though a database doesn't • You must check status in the Broker for ALL members! • SUCCESS in the Broker still doesn't guarantee everything is OK! Accept Nothing Less Than SUCCESS

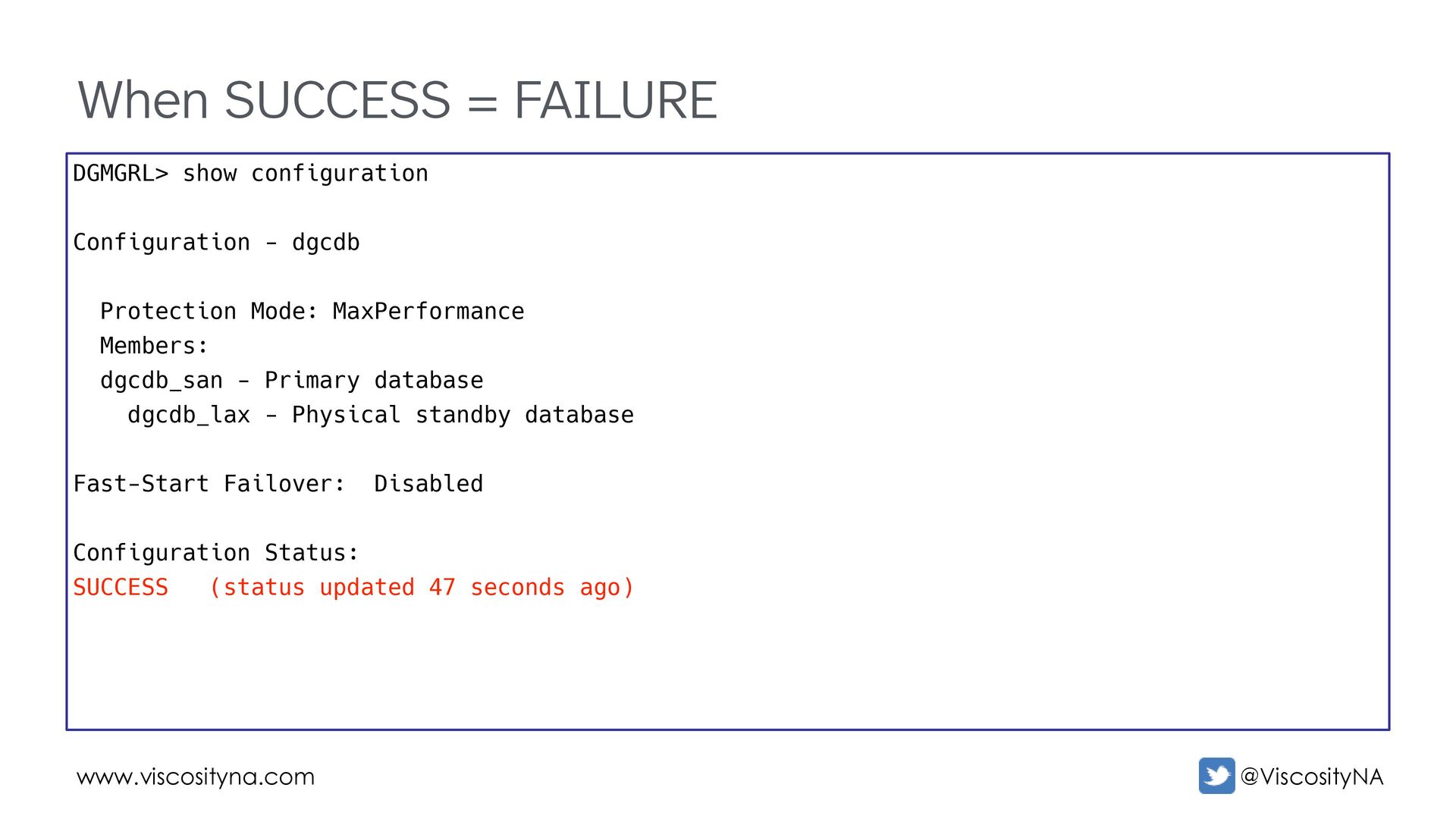

54. www.viscosityna.com @ViscosityNA When SUCCESS = FAILURE DGMGRL> show configuration Configuration - dgcdb Protection Mode: MaxPerformance Members: dgcdb_san - Primary database dgcdb_lax - Physical standby database Fast-Start Failover: Disabled Configuration Status: SUCCESS (status updated 47 seconds ago)

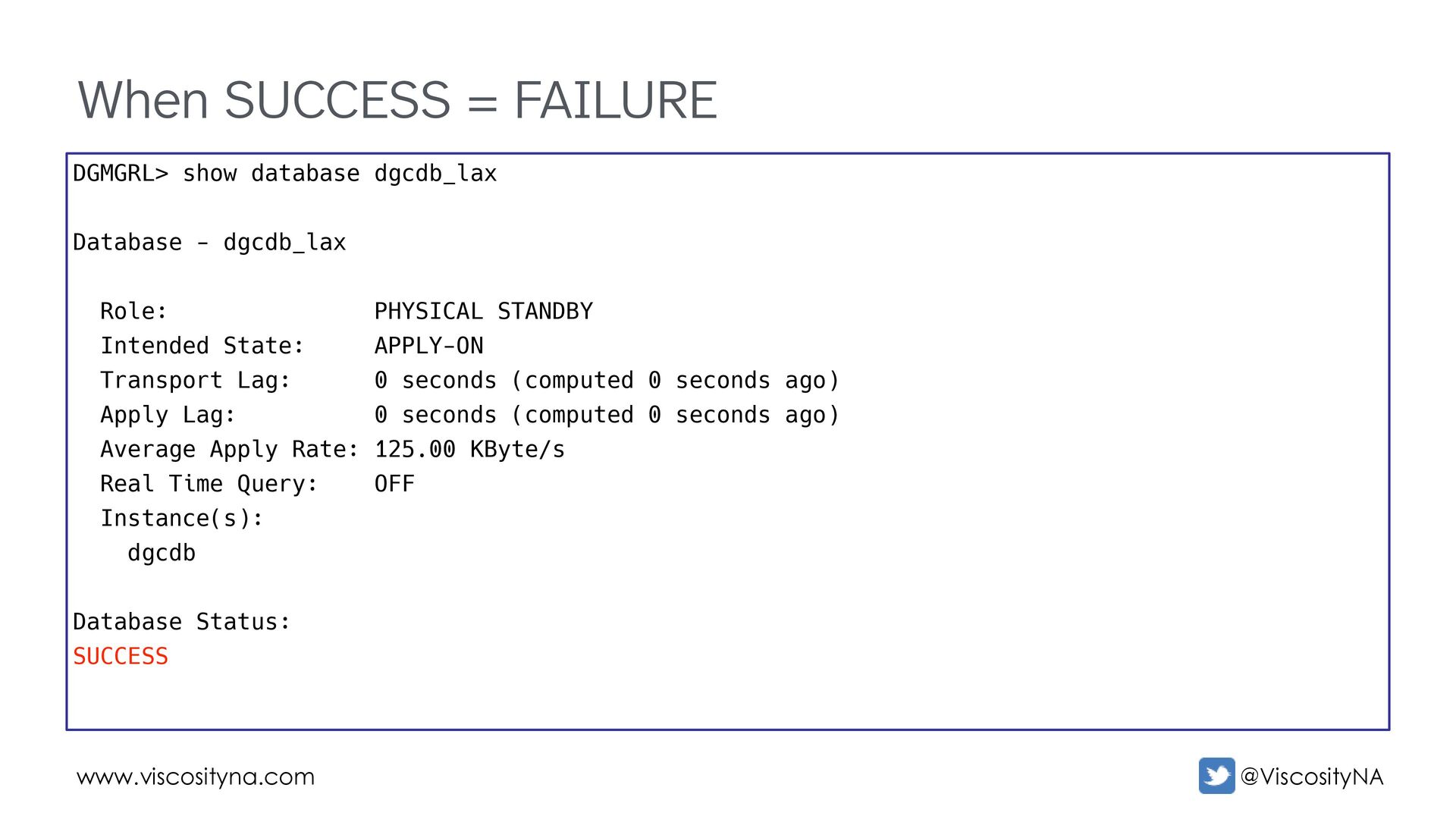

55. www.viscosityna.com @ViscosityNA When SUCCESS = FAILURE DGMGRL> show database dgcdb_lax Database - dgcdb_lax Role: PHYSICAL STANDBY Intended State: APPLY-ON Transport Lag: 0 seconds (computed 0 seconds ago) Apply Lag: 0 seconds (computed 0 seconds ago) Average Apply Rate: 125.00 KByte/s Real Time Query: OFF Instance(s): dgcdb Database Status: SUCCESS

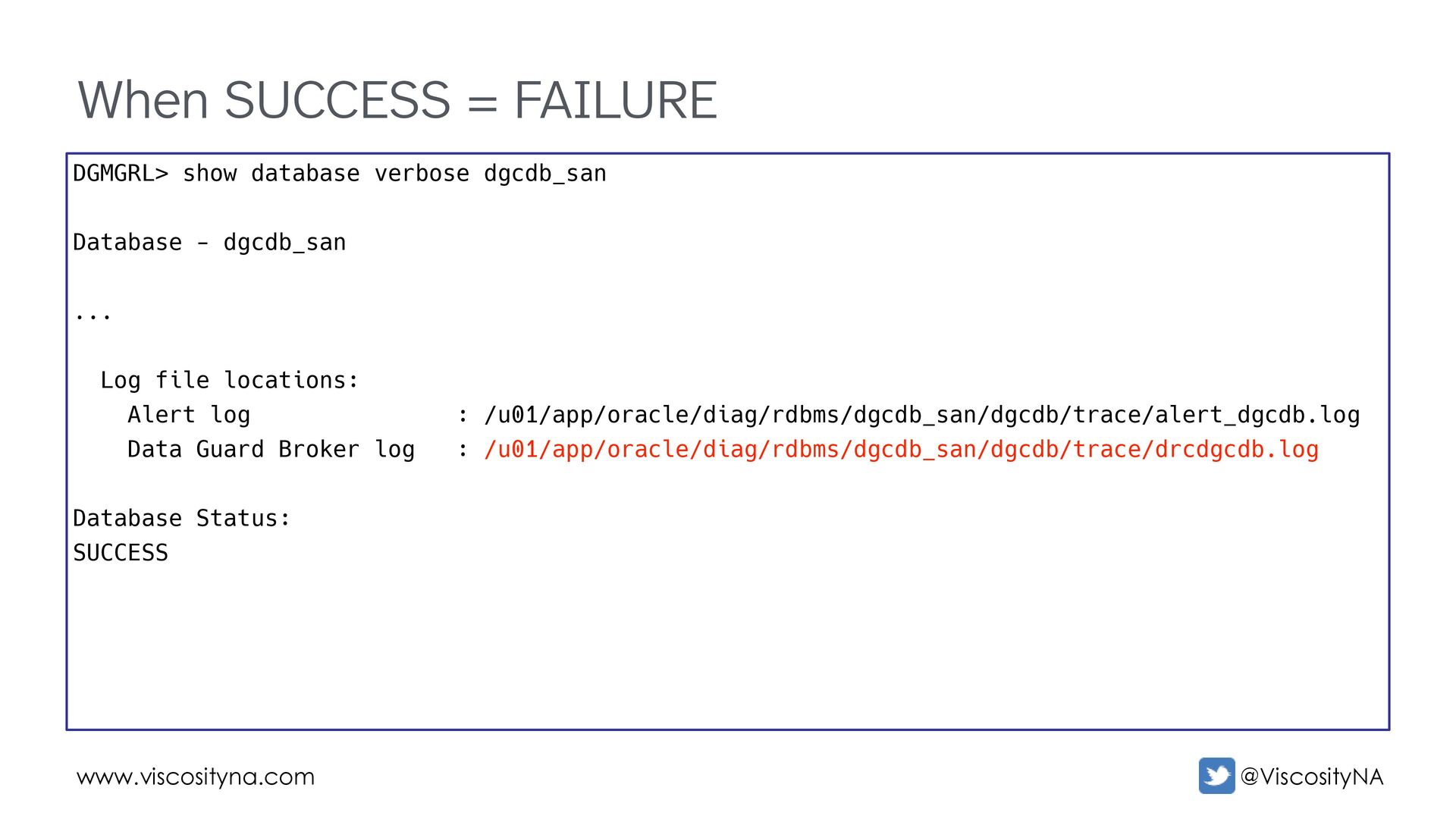

56. www.viscosityna.com @ViscosityNA When SUCCESS = FAILURE DGMGRL> show database verbose dgcdb_san Database - dgcdb_san ... Log file locations: Alert log : /u01/app/oracle/diag/rdbms/dgcdb_san/dgcdb/trace/alert_dgcdb.log Data Guard Broker log : /u01/app/oracle/diag/rdbms/dgcdb_san/dgcdb/trace/drcdgcdb.log Database Status: SUCCESS

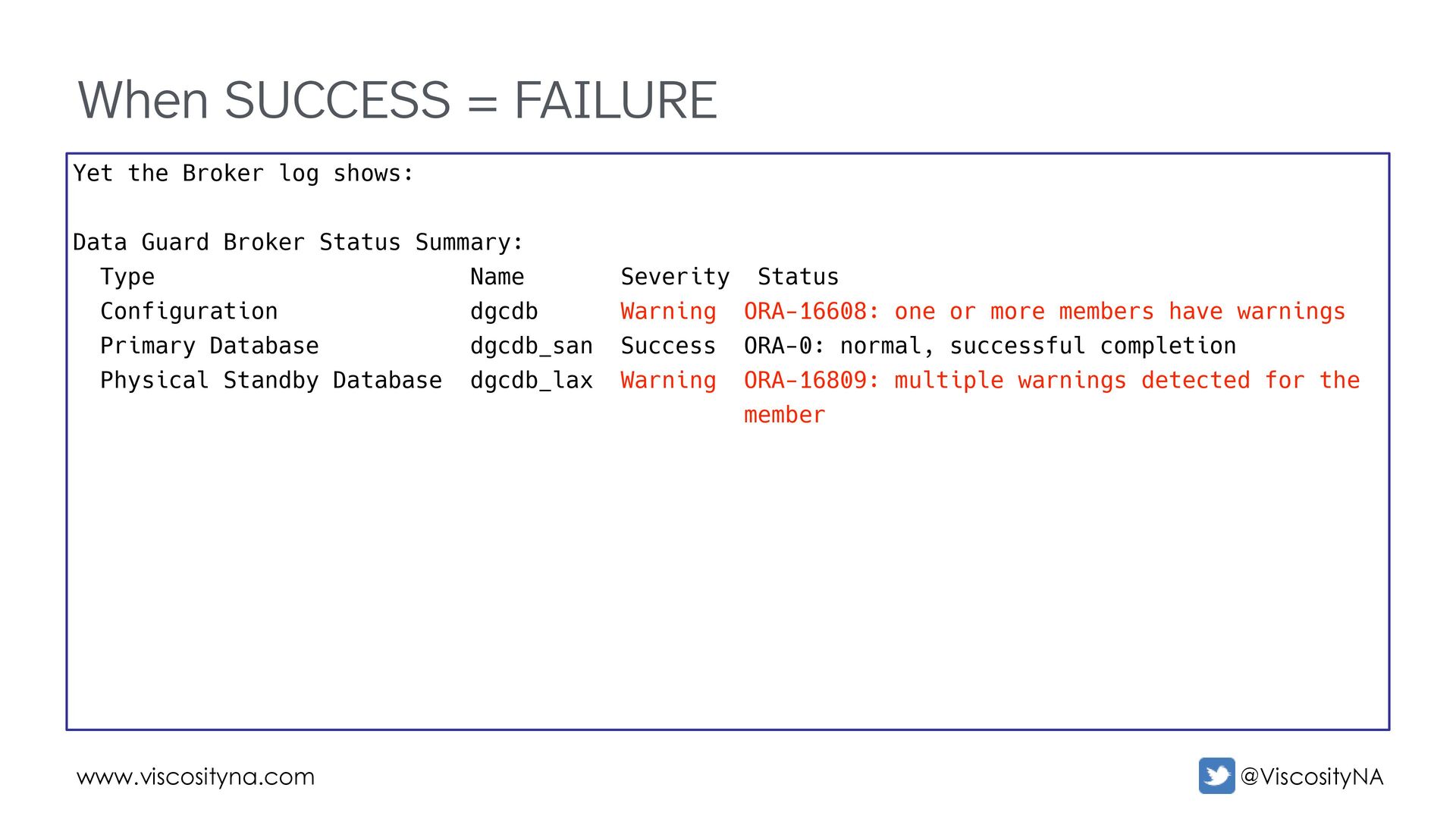

57. www.viscosityna.com @ViscosityNA When SUCCESS = FAILURE Yet the Broker log shows: Data Guard Broker Status Summary: Type Name Severity Status Configuration dgcdb Warning ORA-16608: one or more members have warnings Primary Database dgcdb_san Success ORA-0: normal, successful completion Physical Standby Database dgcdb_lax Warning ORA-16809: multiple warnings detected for the member

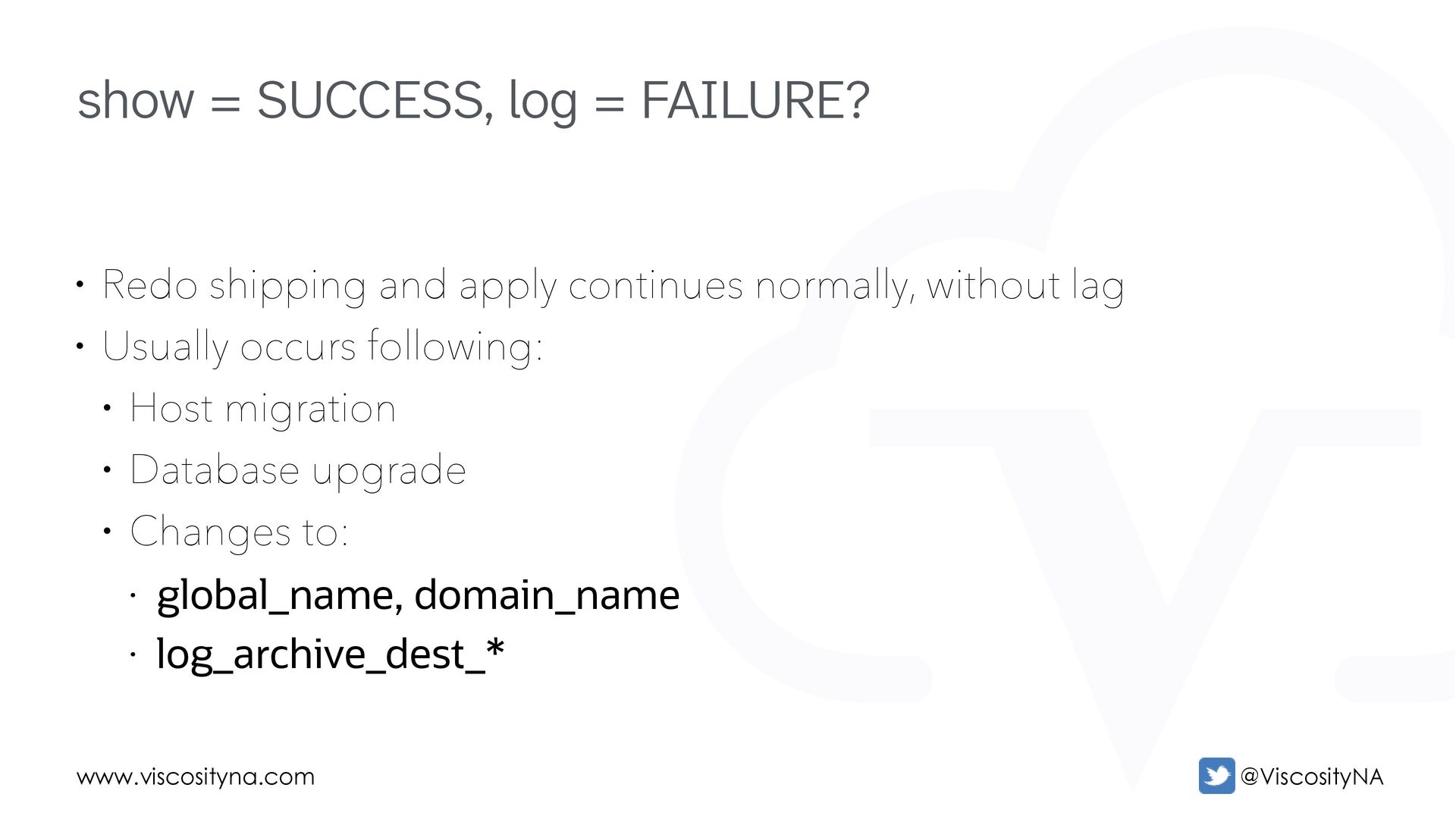

58. www.viscosityna.com @ViscosityNA • Redo shipping and apply continues normally, without lag • Usually occurs following: • Host migration • Database upgrade • Changes to: • global_name, domain_name • log_archive_dest_* show = SUCCESS, log = FAILURE?

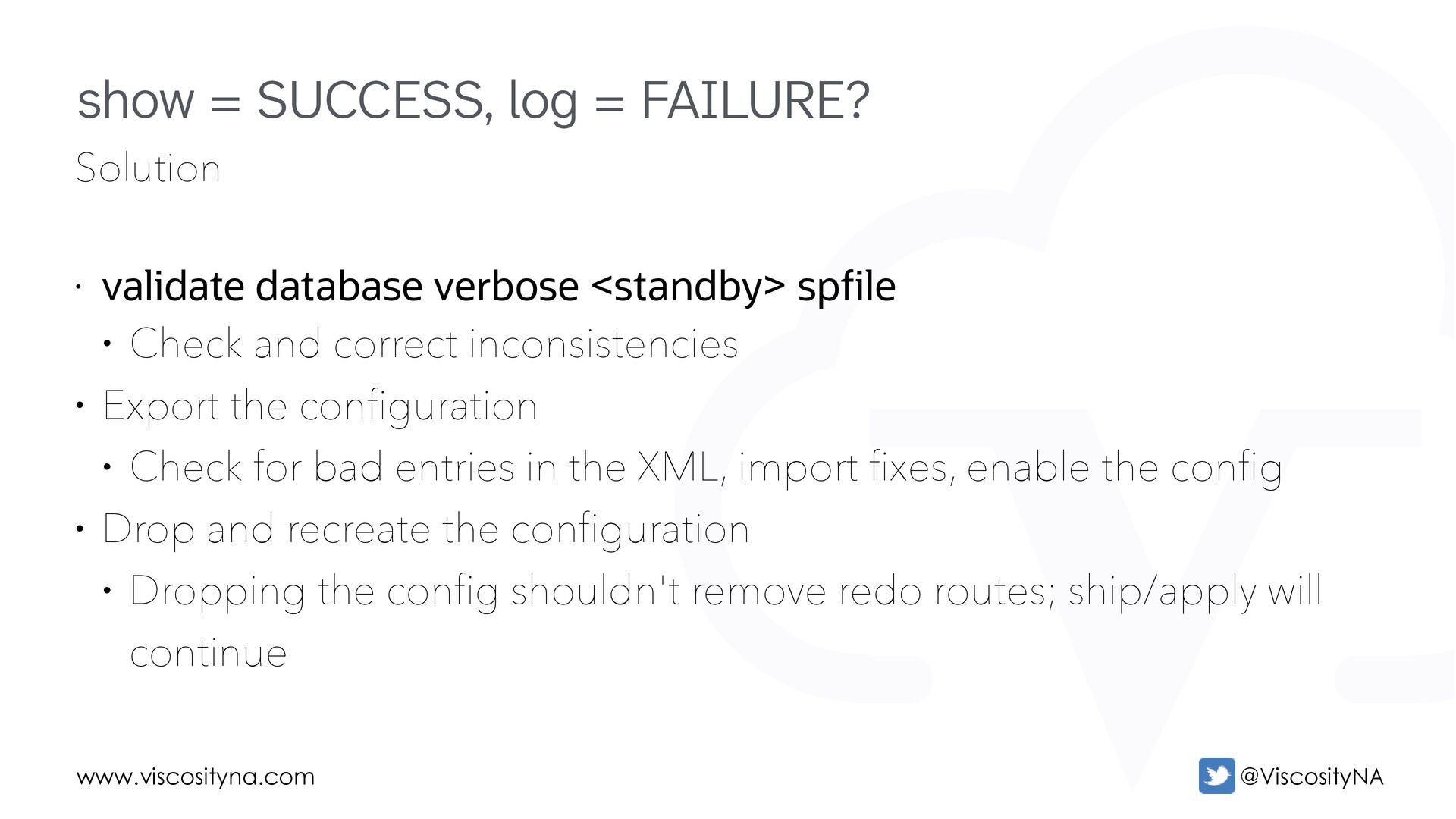

59. www.viscosityna.com @ViscosityNA Solution • validate database verbose <standby> spfile • Check and correct inconsistencies • Export the configuration • Check for bad entries in the XML, import fixes, enable the config • Drop and recreate the configuration • Dropping the config shouldn't remove redo routes; ship/apply will continue show = SUCCESS, log = FAILURE?

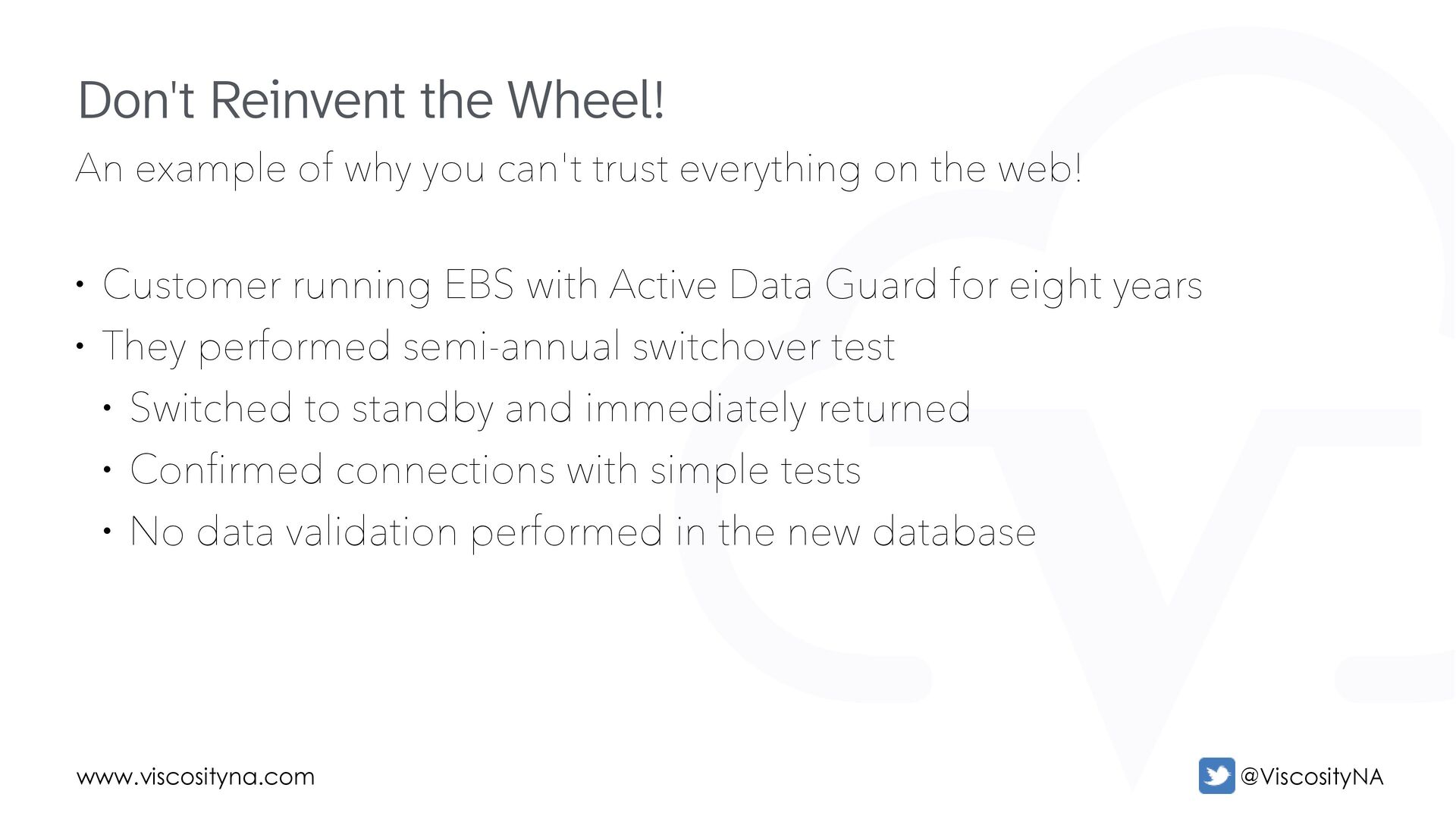

60. www.viscosityna.com @ViscosityNA An example of why you can't trust everything on the web! • Customer running EBS with Active Data Guard for eight years • They performed semi-annual switchover test • Switched to standby and immediately returned • Confirmed connections with simple tests • No data validation performed in the new database Don't Reinvent the Wheel!

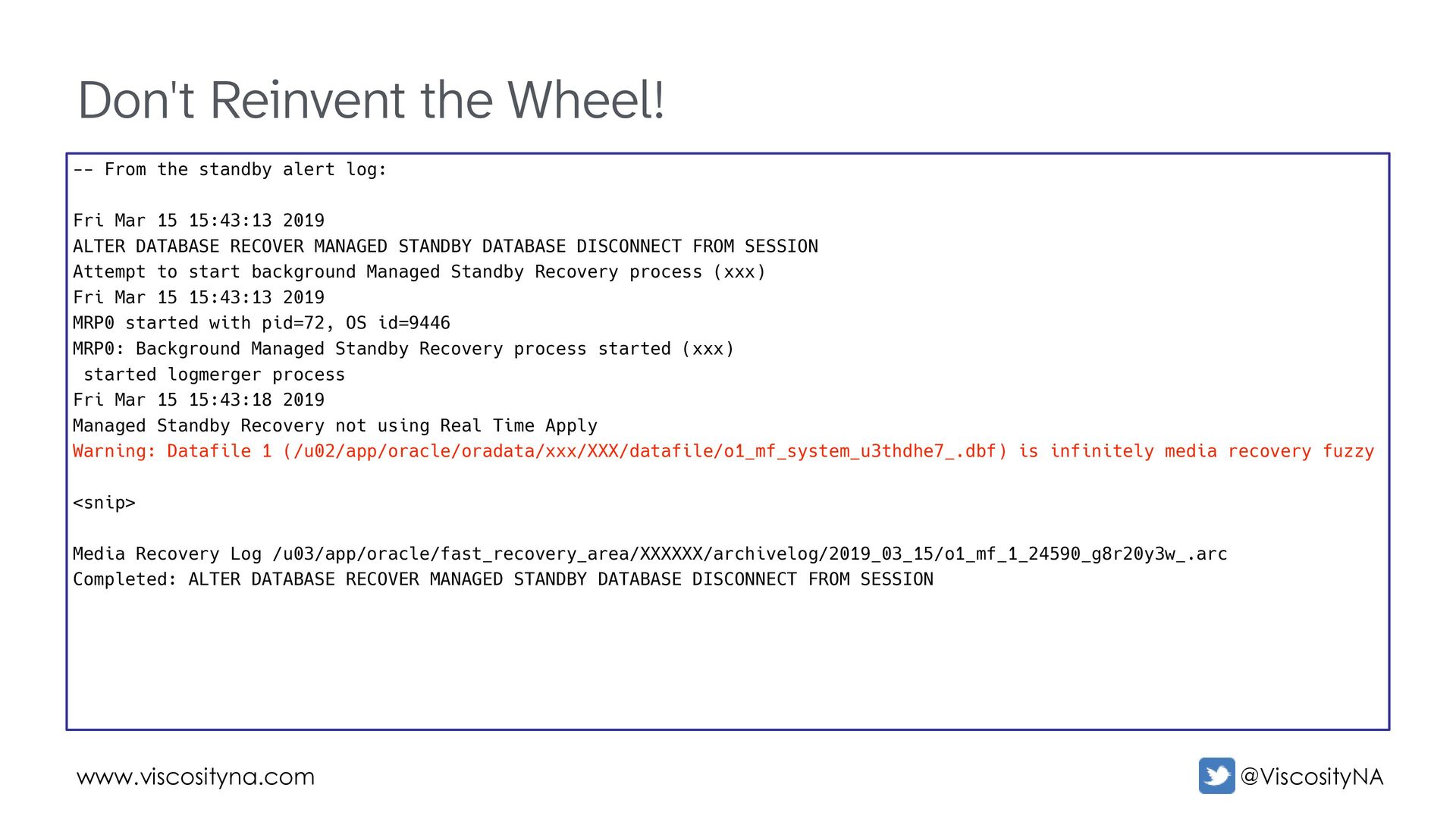

61. www.viscosityna.com @ViscosityNA Don't Reinvent the Wheel! -- From the standby alert log: Fri Mar 15 15:43:13 2019 ALTER DATABASE RECOVER MANAGED STANDBY DATABASE DISCONNECT FROM SESSION Attempt to start background Managed Standby Recovery process (xxx) Fri Mar 15 15:43:13 2019 MRP0 started with pid=72, OS id=9446 MRP0: Background Managed Standby Recovery process started (xxx) started logmerger process Fri Mar 15 15:43:18 2019 Managed Standby Recovery not using Real Time Apply Warning: Datafile 1 (/u02/app/oracle/oradata/xxx/XXX/datafile/o1_mf_system_u3thdhe7_.dbf) is infinitely media recovery fuzzy <snip> Media Recovery Log /u03/app/oracle/fast_recovery_area/XXXXXX/archivelog/2019_03_15/o1_mf_1_24590_g8r20y3w_.arc Completed: ALTER DATABASE RECOVER MANAGED STANDBY DATABASE DISCONNECT FROM SESSION

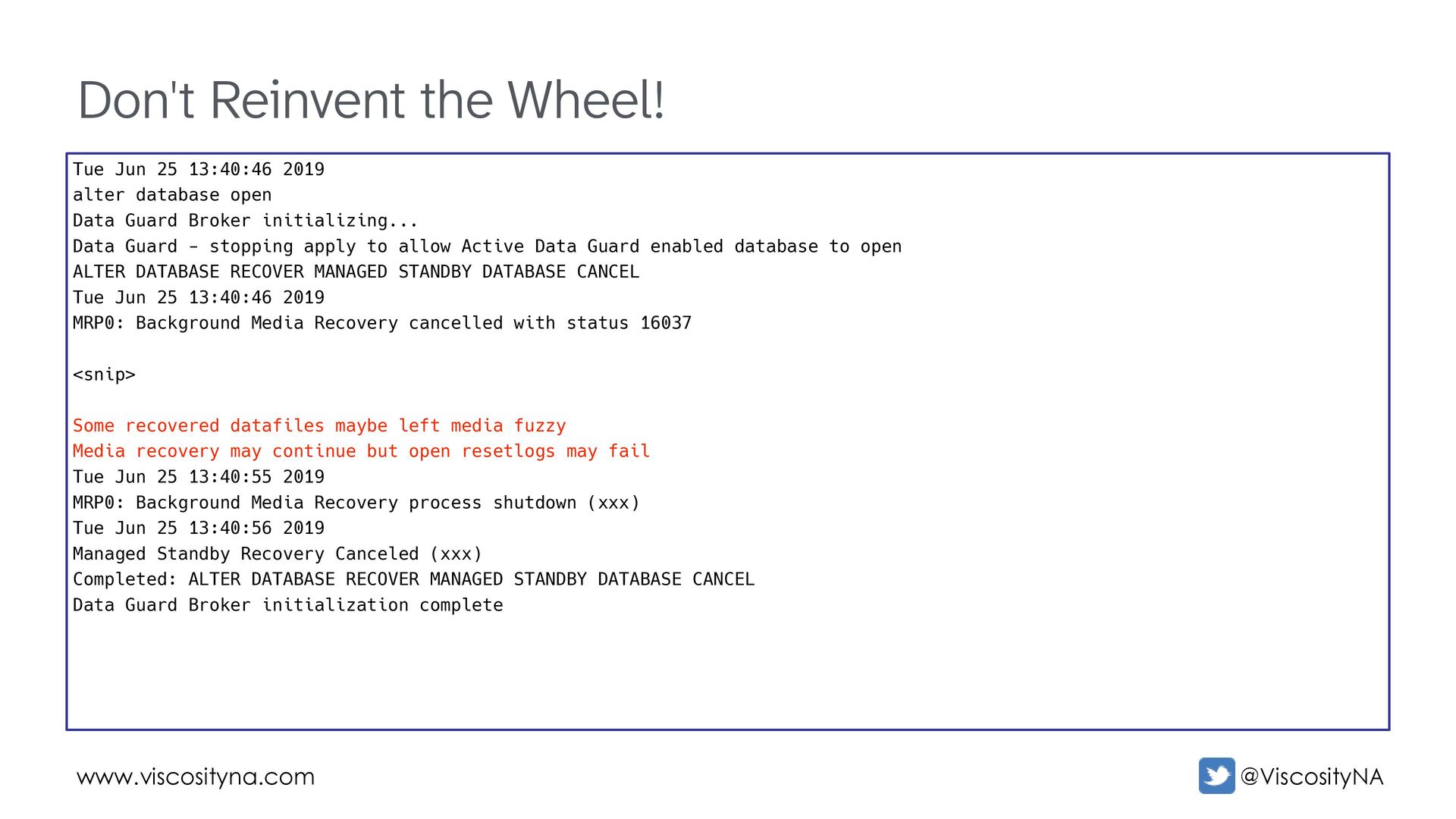

62. www.viscosityna.com @ViscosityNA Don't Reinvent the Wheel! Tue Jun 25 13:40:46 2019 alter database open Data Guard Broker initializing... Data Guard - stopping apply to allow Active Data Guard enabled database to open ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL Tue Jun 25 13:40:46 2019 MRP0: Background Media Recovery cancelled with status 16037 <snip> Some recovered datafiles maybe left media fuzzy Media recovery may continue but open resetlogs may fail Tue Jun 25 13:40:55 2019 MRP0: Background Media Recovery process shutdown (xxx) Tue Jun 25 13:40:56 2019 Managed Standby Recovery Canceled (xxx) Completed: ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL Data Guard Broker initialization complete

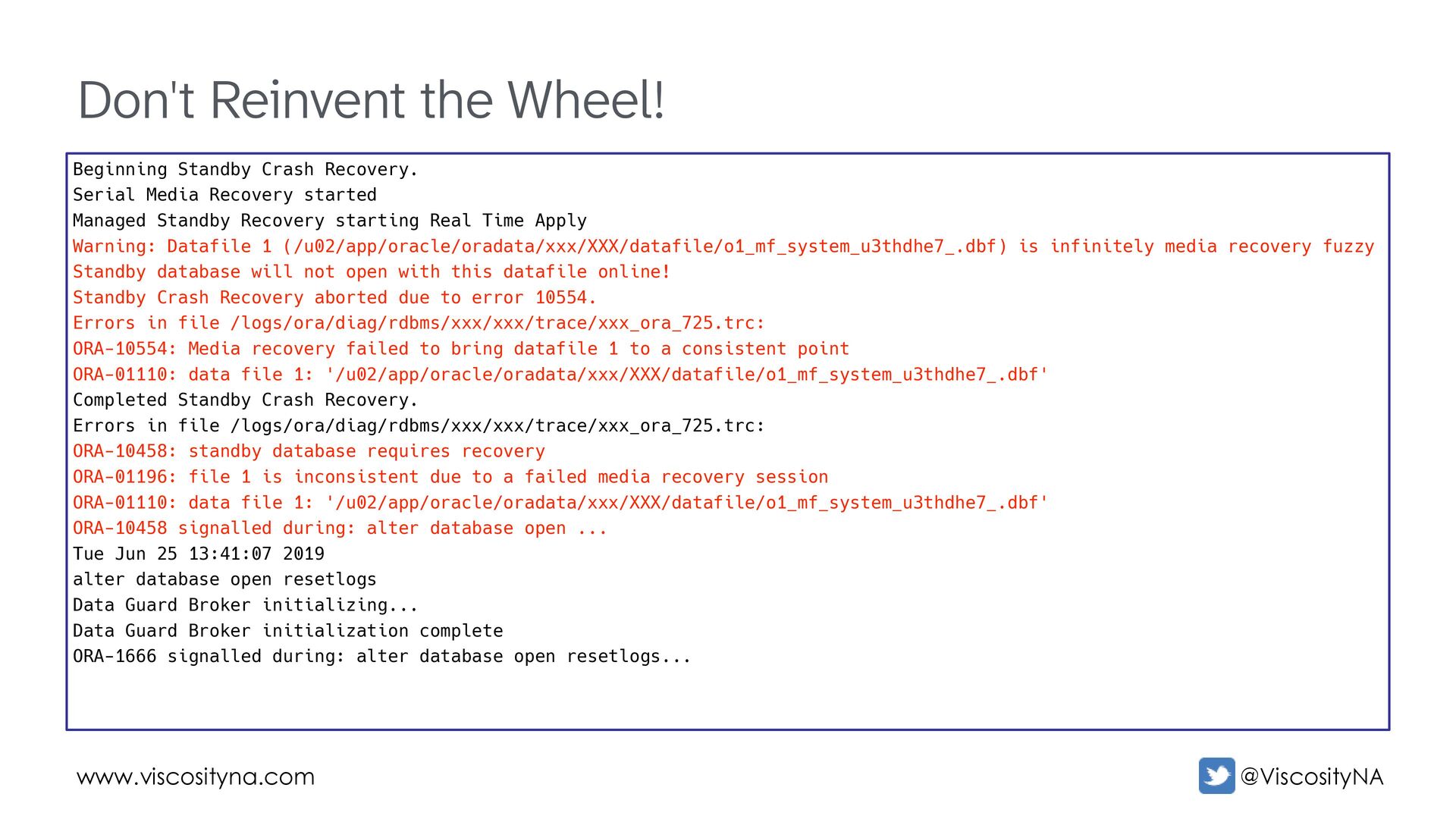

63. www.viscosityna.com @ViscosityNA Don't Reinvent the Wheel! Beginning Standby Crash Recovery. Serial Media Recovery started Managed Standby Recovery starting Real Time Apply Warning: Datafile 1 (/u02/app/oracle/oradata/xxx/XXX/datafile/o1_mf_system_u3thdhe7_.dbf) is infinitely media recovery fuzzy Standby database will not open with this datafile online! Standby Crash Recovery aborted due to error 10554. Errors in file /logs/ora/diag/rdbms/xxx/xxx/trace/xxx_ora_725.trc: ORA-10554: Media recovery failed to bring datafile 1 to a consistent point ORA-01110: data file 1: '/u02/app/oracle/oradata/xxx/XXX/datafile/o1_mf_system_u3thdhe7_.dbf' Completed Standby Crash Recovery. Errors in file /logs/ora/diag/rdbms/xxx/xxx/trace/xxx_ora_725.trc: ORA-10458: standby database requires recovery ORA-01196: file 1 is inconsistent due to a failed media recovery session ORA-01110: data file 1: '/u02/app/oracle/oradata/xxx/XXX/datafile/o1_mf_system_u3thdhe7_.dbf' ORA-10458 signalled during: alter database open ... Tue Jun 25 13:41:07 2019 alter database open resetlogs Data Guard Broker initializing... Data Guard Broker initialization complete ORA-1666 signalled during: alter database open resetlogs...

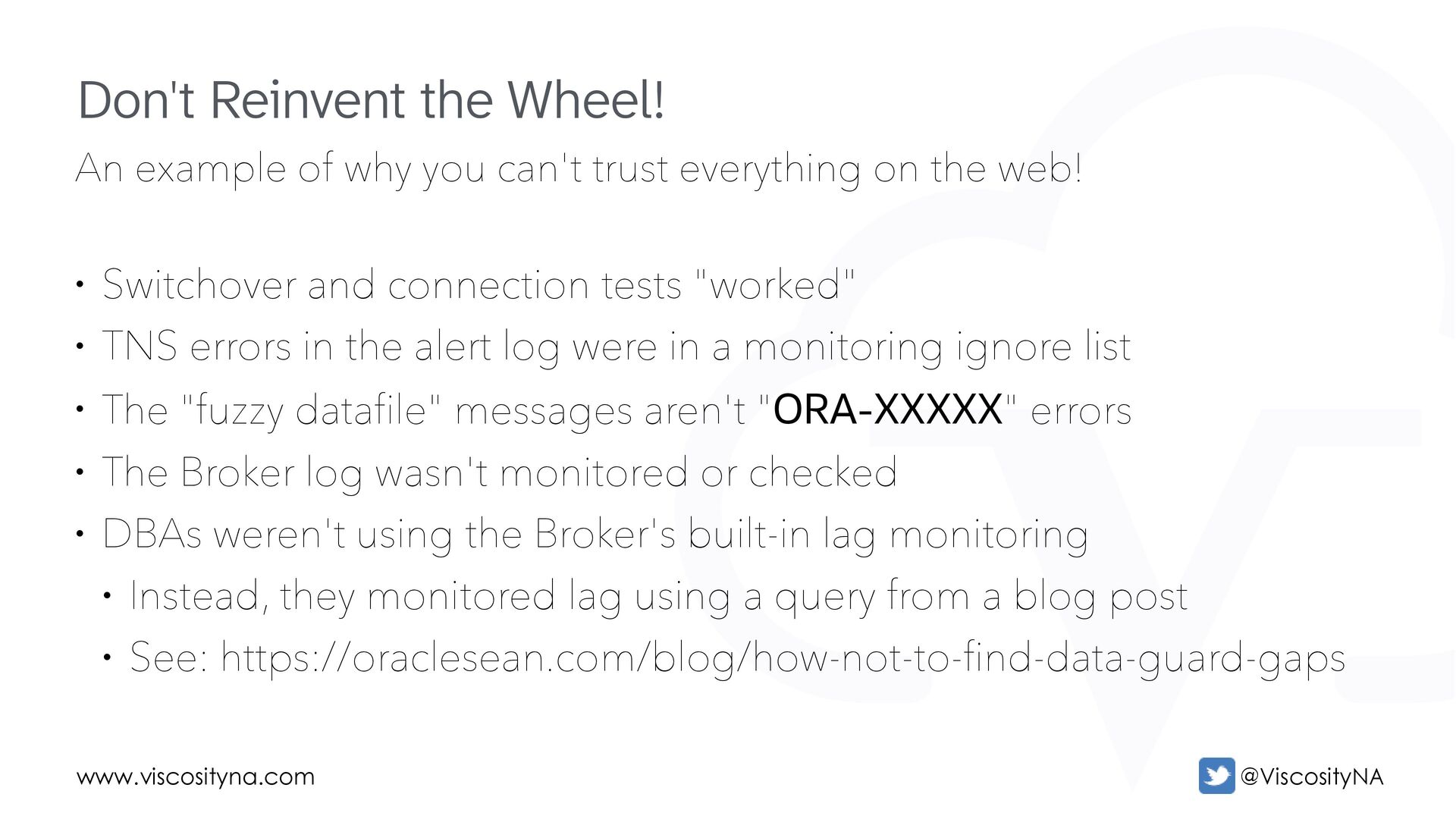

64. www.viscosityna.com @ViscosityNA An example of why you can't trust everything on the web! • Switchover and connection tests "worked" • TNS errors in the alert log were in a monitoring ignore list • The "fuzzy datafile" messages aren't "ORA-XXXXX" errors • The Broker log wasn't monitored or checked • DBAs weren't using the Broker's built-in lag monitoring • Instead, they monitored lag using a query from a blog post • See: https://oraclesean.com/blog/how-not-to-find-data-guard-gaps Don't Reinvent the Wheel!
65. Get the slides:
66. Questions? Contact Me! sean.scott@viscosityna.com https://linktr.ee/oraclesean www.viscosityna.com
