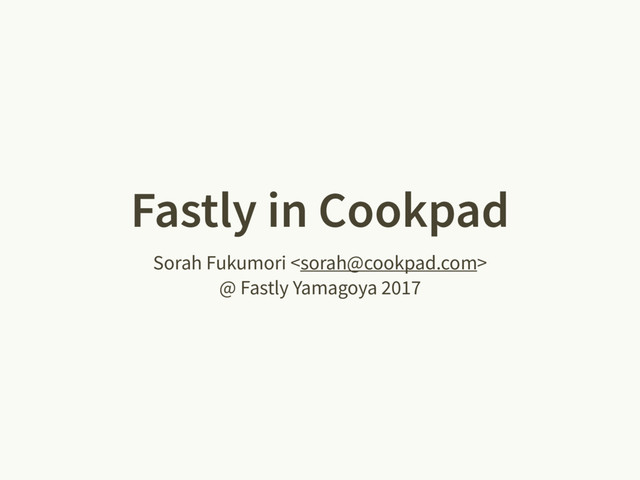

Fastly in Cookpad

Talk at Fastly Yamagoya 2017 https://techplay.jp/event/633461

How Cookpad Global https://cookpad.com/uk uses Fastly CDN.

Sorah Fukumori

October 17, 2017
Tweet

More Decks by Sorah Fukumori

Other Decks in Technology

Transcript

  1. $ whoami Sorah Fukumori (׉׵כ https://sorah.jp/ | GitHub @sorah |

    Twitter @sora_h Site Reliability Engineer at Cookpad Global Rubyist, Ruby committer Operating AS59128 Interests: Site Reliability, Networking, Distributed systems
  2. Agenda • About us • Latency • Fastly usage in

    Cookpad • How we manage/use Fastly
  3. Cookpad? • The world’s largest recipe sharing platform • 69

    countries, 22 regions • Rapidly growing in the world • Code is different, unshared between Global and JP
  4. Cookpad? • The world’s largest recipe sharing platform • 69

    countries, 22 regions • Rapidly growing in the world • Code is different, unshared between Global and JP • But the domain name is shared!
  5. Infrastructure • Everything on AWS • JP uses Tokyo (ap-northest-1),


    Global uses US East (N.Virginia, us-east-1) • 2 CDNs (Fastly, CloudFront)
  6. Fighting with Latency • Assume everyone know latency affects user

    experience heavily • TCP/TLS handshake…
  7. Fighting with Latency • Q. Apps live in multiple regions,

    but share the single, same domain • … What?
  8. • We chose Route53 Latency Based Routing at first •

    DNS returns IP addresses of the closer region from a resolver • If a requested service lives in another region, reverse- proxy to the alternate region Fighting with Latency
  9. ! "

  10. • This is the minimum • 2 regions are not

    enough • We have to serve in Middle East, Europe, UK … • They’re too far away from both US east and Japan Fighting with Latency
  11. • But who want to manage many proxy servers in

    the all available AWS regions? • tips: AWS doesn’t cover the • CDN? Fighting with Latency
  12. Past CDN usage in Cookpad • User provided Images •

    Dynamic resizing provided by an internal service • Cache resized images • Static assets (CSS, JavaScript, Images) • No Dynamic Content
  13. No Dynamic Content • No dynamic content • (Contents served

    via CDN are guaranteed static by their URL) • As an old-school CDN user: • Slow deployments, slow purging… • It’s too risky when we fail at something
  14. Meet with Fastly • “less-risky?” • Fast purge! • Fast

    deployment! • VCL! • Decided to start using as a replacement of existing CDN, to take a try
  15. The first use case • Images and Assets for Global

    Platform • Achieved higher hit rate, better performance
 than our previous CDN provider • Shielding <3 • Few and fast POPs
  16. Fastly in Cookpad • And https://cookpad.com/ (except JP) • Existing

    traffic in JP is high, but most doesn’t need CDN • We have many legacy clients, also we determined so risky, on TLSv1.0/1.1 and 3DES issue.
  17. Tips • Managing Fastly services • VCL implements a kind

    of “presigned URL” • Retry with Restart • Dealing with X-Forwarded-For • Use as reverse proxy
  18. Managing Fastly services • In Cookpad, we do codification for

    (almost) everything • i.e. AWS Route 53, EC2 Security Groups, ELB, … • Codification makes reviewing and managing history very easy • Fastly isn’t a exception
  19. sorah/codily • https://github.com/sorah/codily • Simple tool to manage Fastly services

    • (Alternate way available now is Terraform, but we’ve never used)
  20. service "global-api.cookpad.com" do backend "addr …" do hostname … error_threshold

    0 first_byte_timeout 21000 weight 100 address … connect_timeout 1000 port 443 between_bytes_timeout 10000 auto_loadbalance false ssl_check_cert true ssl_cert_hostname "global-api.cookpad.com" max_conn 200 use_ssl true end domain "global-api.cookpad.com" condition '!req.url' do # for logging priority 10 statement '!req.url' type 'RESPONSE' end vcl "default" do content file: 'global-api.cookpad.com.vcl' main true
  21. sorah/codily • codily --apply
 --target my-awesome—service
 --activate
 • So easy

    • Useful… especially when testing VCLs
 (Edit in local editor → Run command → Activation done → Test → Edit → …)
  22. Presigned URL • For some reason we need to restrict

    access to some dynamically resized image in CDN • But, we want to keep cache across users
  23. Presigned URL • Fastly VCL has “Cryptographic- and hashing-related VCL

    functions” • Implement HMAC signature based access control in VCL
  24. if (!table.lookup(keys_table, req.http.X-Tmp-Sign-Key)) { error 701 "forbidden"; } if (time.is_after(now,


    std.integer2time(std.atoi(req.http.X-Tmp-Expiry)))) { error 701 "forbidden"; } set req.http.X-Tmp-Path = regsub(req.url.path, …) if (req.http.X-Tmp-Signature !=
 digest.hmac_sha256(
 table.lookup(keys_table, req.http.X—Tmp-Sign-Key),
 req.http.X-Tmp-Expiry ":" req.http.X-Tmp-Path)) { error 701 "forbidden"; } } else { error 701 "forbidden"; } } else { error 701 "forbidden"; }
  25. Retry with Restart • “restart” allows us to restart processing

    from the (almost) beginning • What’s important here is “some variables are kept after restarts” • We can do any magics here, like dispatching multiple backend requests, in a single user request, intentionally, using “restart” • (Original use case is just for retry I guess)
  26. Retry with Restart • We replicates some production data to

    development servers • But for images, without copying, we implement “retry on production backend” when 404 returned from development backend
  27. sub vcl_recv { # … set req.backend = F_dev_origin; if

    (req.http.X-Dev-Retry && req.restarts > 0) { set req.http.Fastly-Force-Shield = "yes"; set req.backend = F_prd_origin; } sub vcl_deliver { # … if (server.identity ~ "-IAD$" || req.http.Fastly-FF) { if (resp.status != 200 && !req.http.X-Dev-Retry) { set req.http.X-Dev-Retry = "1"; restart; }
  28. Retry with Restart • (Found this is mentioned in the

    official doc now) • https://docs.fastly.com/guides/performance-tuning/ checking-multiple-backends-for-a-single-request
  29. Dealing with X-Forwarded-For • Source IP of requests is important.

    • Logging, Analyzing … • We have to deal with X-Forwarded-For header when requests come from CDN
  30. Dealing with X-Forwarded-For • Most web application framework whitelists “private

    IP range” for a proxy included in X-Forwarded-For header • Implementing whitelisting Fastly IPs carefully in every app takes maintenance cost • And, some load balancers (e.g. AWS ELB) overwrites XFF header!
  31. Dealing with X-Forwarded-For • How we did: • Send X-Forwarded-For

    in different name
 (Requires VCL) • Overwrite X-Forwarded-For with it, , on our-side reverse proxy… when request comes from Fastly IPs
  32. Dealing with X-Forwarded-For # nginx.conf geo $trust_xff { # list

    Fastly IPs } server { set $cond “$trust_xff,$http_x_my_xff"; if ($cond ~ "1,.") { set $myxff “$http_x_my_xff, $remote_addr"; } if ($myxff = "") { set $myxff $proxy_add_x_forwarded_for; } proxy_set_header X-My-XFF $myxff; proxy_set_header X-Forwarded-For $myxff; proxy_set_header X-Raw-Forwarded-For $proxy_add_x_forwarded_for;
  33. Use as a reverse proxy sub vcl_recv { #FASTLY recv

    # Never cache by default return(pass); }
  34. UAE

  35. What we require to a CDN • Stable • Don’t

    obscure failures, incidents • High cache efficiency
  36. What we require to a CDN • Stable • I

    think it’s really improved in these years • Don’t obscure failures, incidents • status.fastly.com always truthful • High cache efficiency
