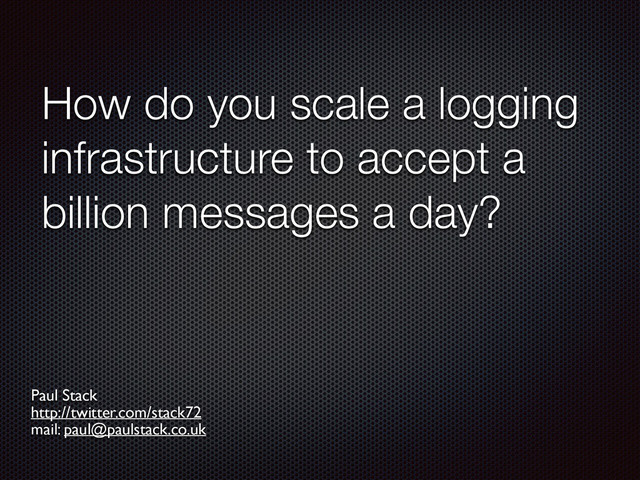

How do you scale a logging infrastructure to accept a
billion messages a day? Paul Stack http://twitter.com/stack72 mail:
[email protected]
About Me Infrastructure Engineer for a cool startup :) Reformed
ASP.NET / C# Developer DevOps Extremist Conference Junkie
Background Project was to replace the legacy ‘logging solution’
Iteration 0: A Developer created a single box with the
ELK all in 1 jar
Time to make it production ready now
None
Iteration 1: Using Redis as the input mechanism for LogStash
None
None
Enter Apache Kafka
“Kafka is a distributed publish- subscribe messaging system that is
designed to be fast, scalable, and durable” Source: Cloudera Blog
Introduction to Kafka • Kafka is made up of ‘topics’,
‘producers’, ‘consumers’ and ‘brokers’ • Communication is via TCP • Backed by Zookeeper
Kafka Topics Source: http://kafka.apache.org/documentation.html
Kafka Producers • Producers are responsible to chose what topic
to publish data to • The producer is responsible for choosing a partition to write to • Can be handled round robin or partition functions
Kafka Consumers • Consumption can be done via: • queuing
• pub-sub
Kafka Consumers • Kafka consumer group • Strong ordering
Kafka Consumers • Strong ordering
https://github.com/opentable/puppet-exhibitor
None
Iteration 2 Introduction of Kafka
None
None
Iteration 3 Further ‘Improvements’ to the cluster layout
None
The Numbers • Logs kept in ES for 30 days
then archived • 12 billion documents active in ES • ES space was about 25 - 30TB in EBS volumes • Average Doc Size ~ 1.2KB • V-Day 2015: ~750M docs collected without failure
What about metrics and monitoring?
Monitoring - Nagios • Alerts on • ES Cluster •
zK and Kafka Nodes • Logstash / Redis nodes
None
https://github.com/stack72/nagios-elasticsearch
Metrics - Kafka Offset Monitor
https://github.com/opentable/KafkaOffsetMonitor
Metrics - ElasticSearch
None
None
None
Visibility Rocks!
None
So what would I do differently?
Questions?
Paul Stack @stack72
