Making PHP extremely fast in WebAssembly

In this talk we'll explore the strategies that we did in Wasmer to make PHP run almost at native speeds, from switching compilers from Cranelift to LLVM, to enable opcache to using WebAssembly Exceptions to bring 10x faster performance.

Transcript

1. Making PHP extremely fast Syrus Akbary, Edoardo Marangoni March 2025 And how we got here…
2. Who we are?
3. Syrus Edo
4. such cool WOW It’s sounds like Wasm + Docker
5. Speed is our obsession

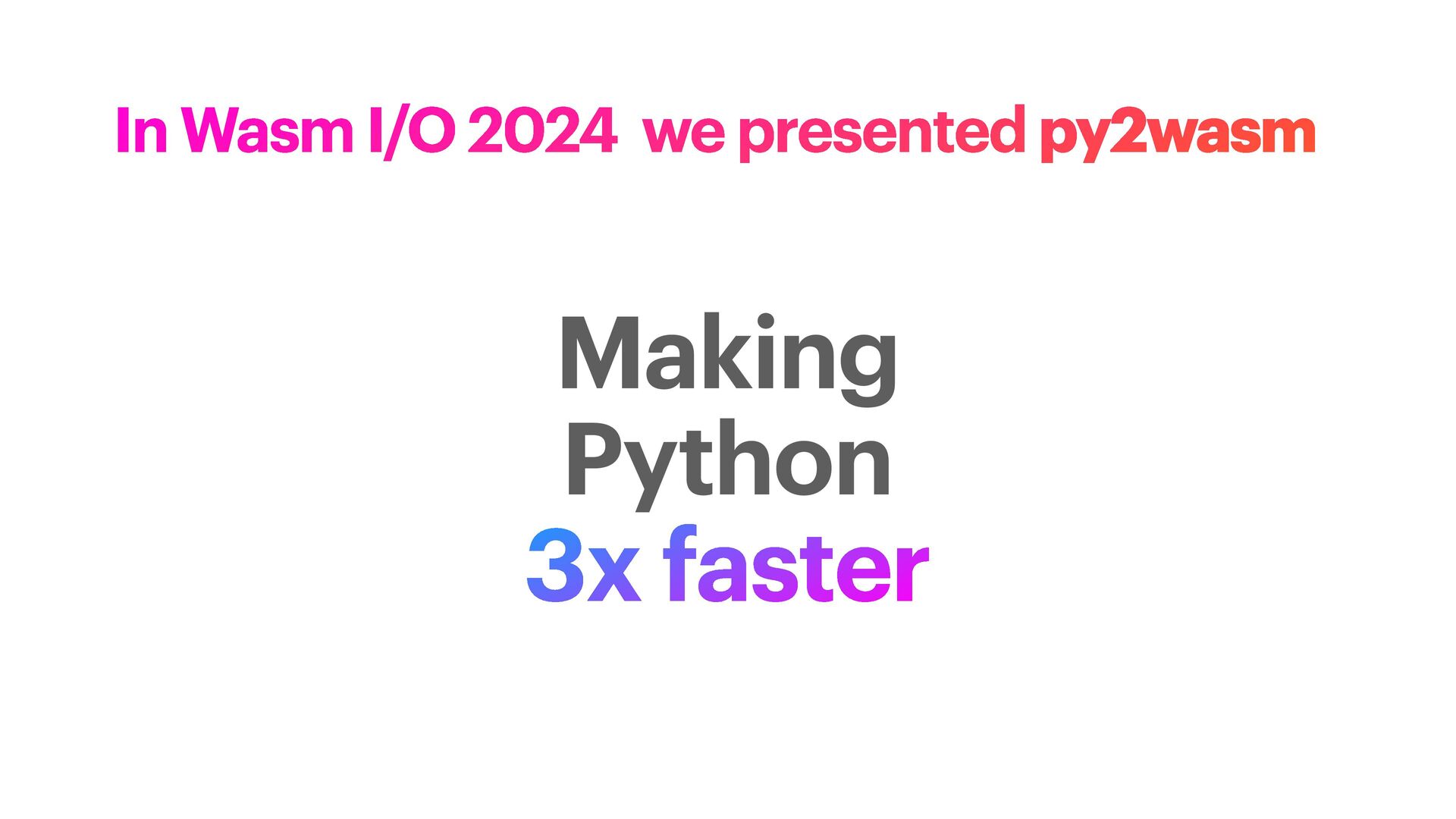

6. In Wasm I/O 2024 we presented py2wasm Making Python 3x faster
8. We want to run WordPress at the Edge Could we use the same strategy?

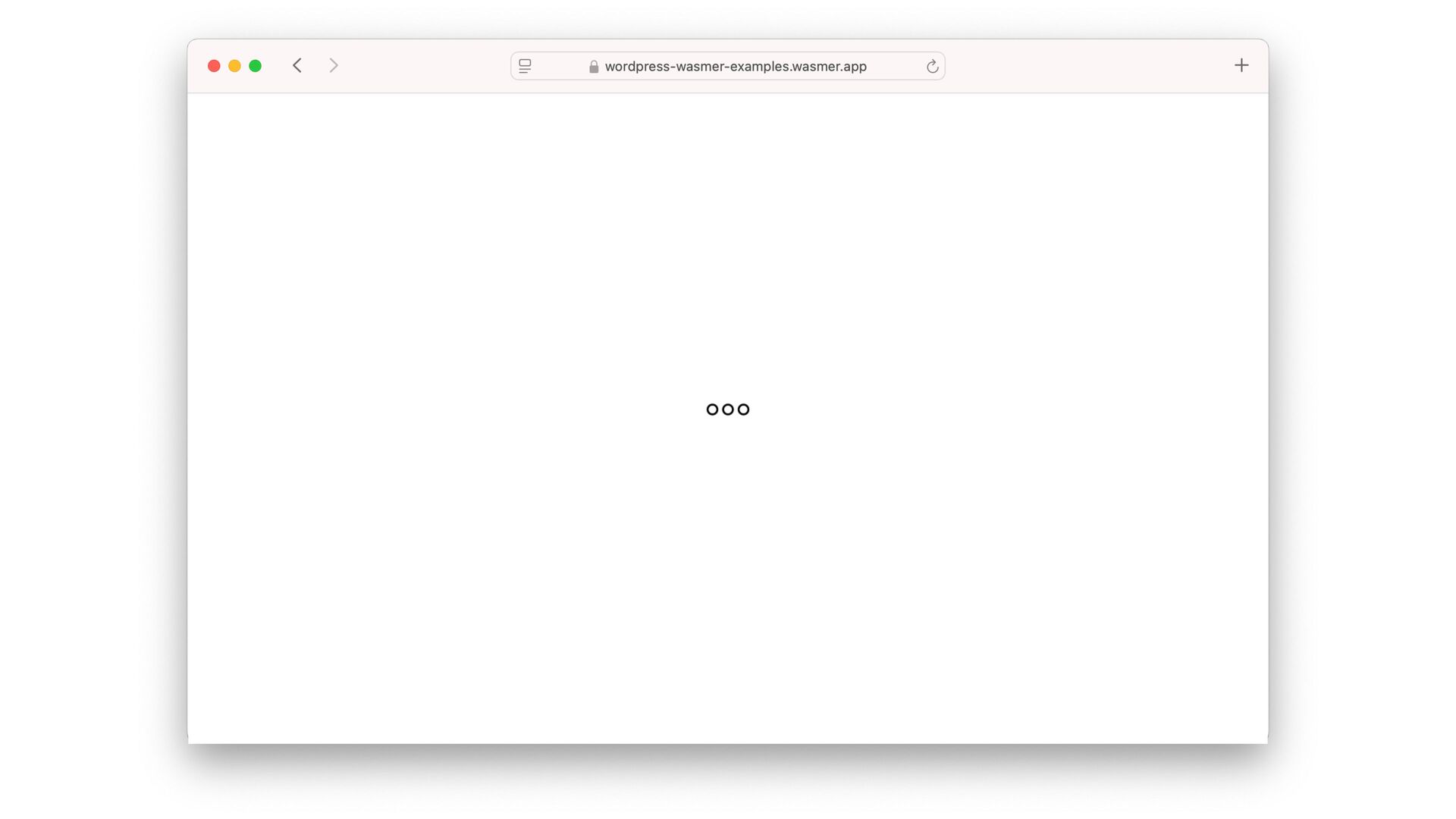

9. Lets just try WordPress! *Using Cranelift + Asyncify

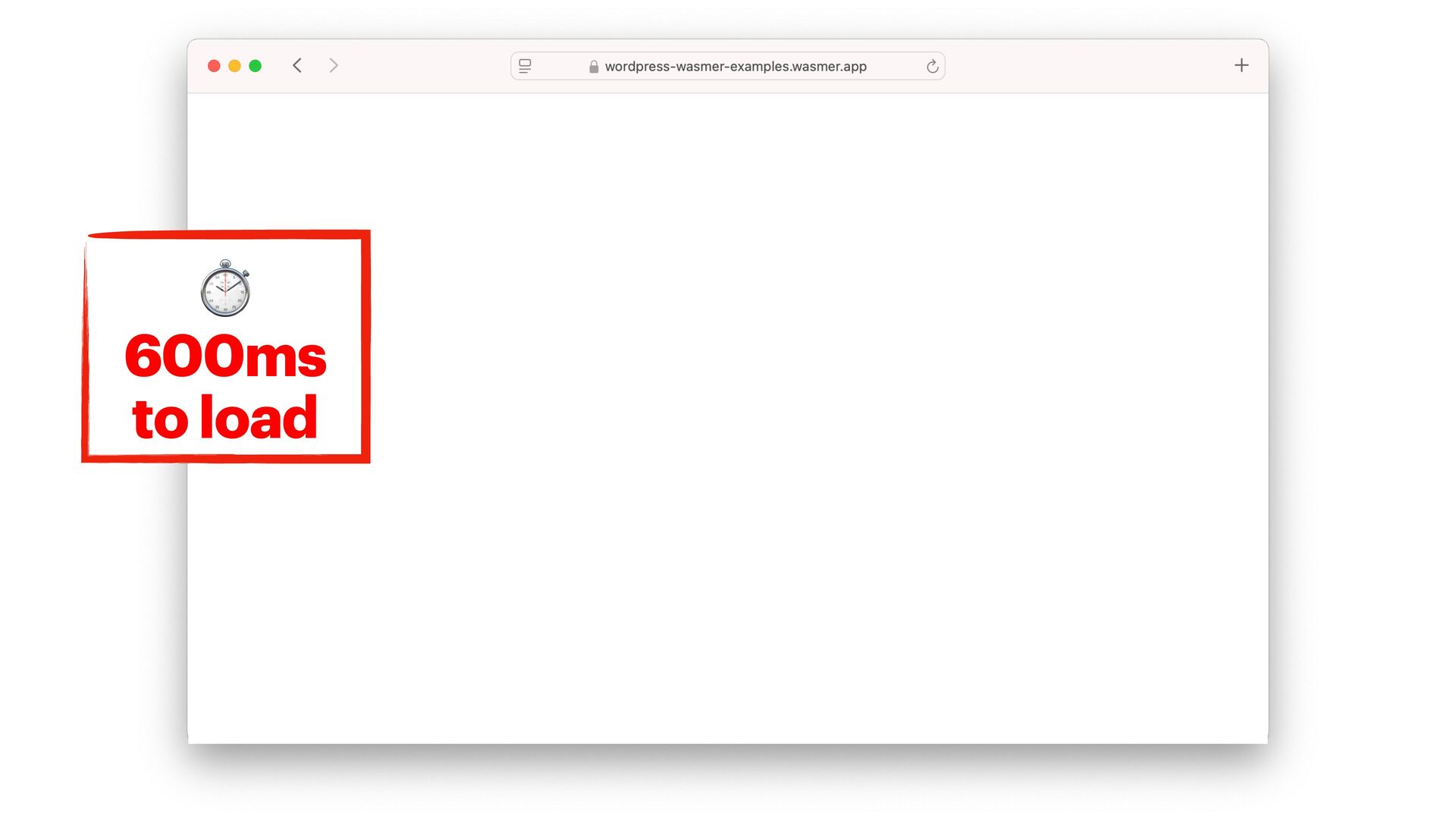

12. ⏱ 600ms to load
13. Why PHP *was Slow • It didn’t have Opcache • Used Cranelift • Used asyncify for longjmp/setjmp 600ms
14. Embed Opcache More than 350 PHP f iles read and parsed for rendering the homepage of WordPress! Was challenging because PHP modules required dlsym/dlopen. Opcache could be a huge win
15. Why PHP *was Slow • It didn’t have Opcache Embed Opcache • Used Cranelift • Used asyncify for longjmp/setjmp 1.5-2x speedup 380ms
16. Use LLVM Cranelift has regressed on speed, LLVM on the other hand has gotten much better in the last versions
17. Why PHP *was Slow • It didn’t have Opcache Embed Opcache • Used Cranelift Use LLVM • Used asyncify for longjmp/setjmp 1.5-2x speedup 2.5-3x speedup 120ms
18. What is Asyncify?
19. Asyncify Brings Pause and Resume to WebAssembly programs $ wasm-opt input.wasm -O1 --asyncify -o output.wasm output.wasm 1.5 bigger 2x slower
20. Use Wasm Exceptions
21. Why PHP *was Slow • It didn’t have Opcache Embed Opcache • Used Cranelift Use LLVM • Used asyncify for longjmp/setjmp Used Wasm Exceptions 1.5-2x speedup 2.5-3x speedup 2x speedup 60ms

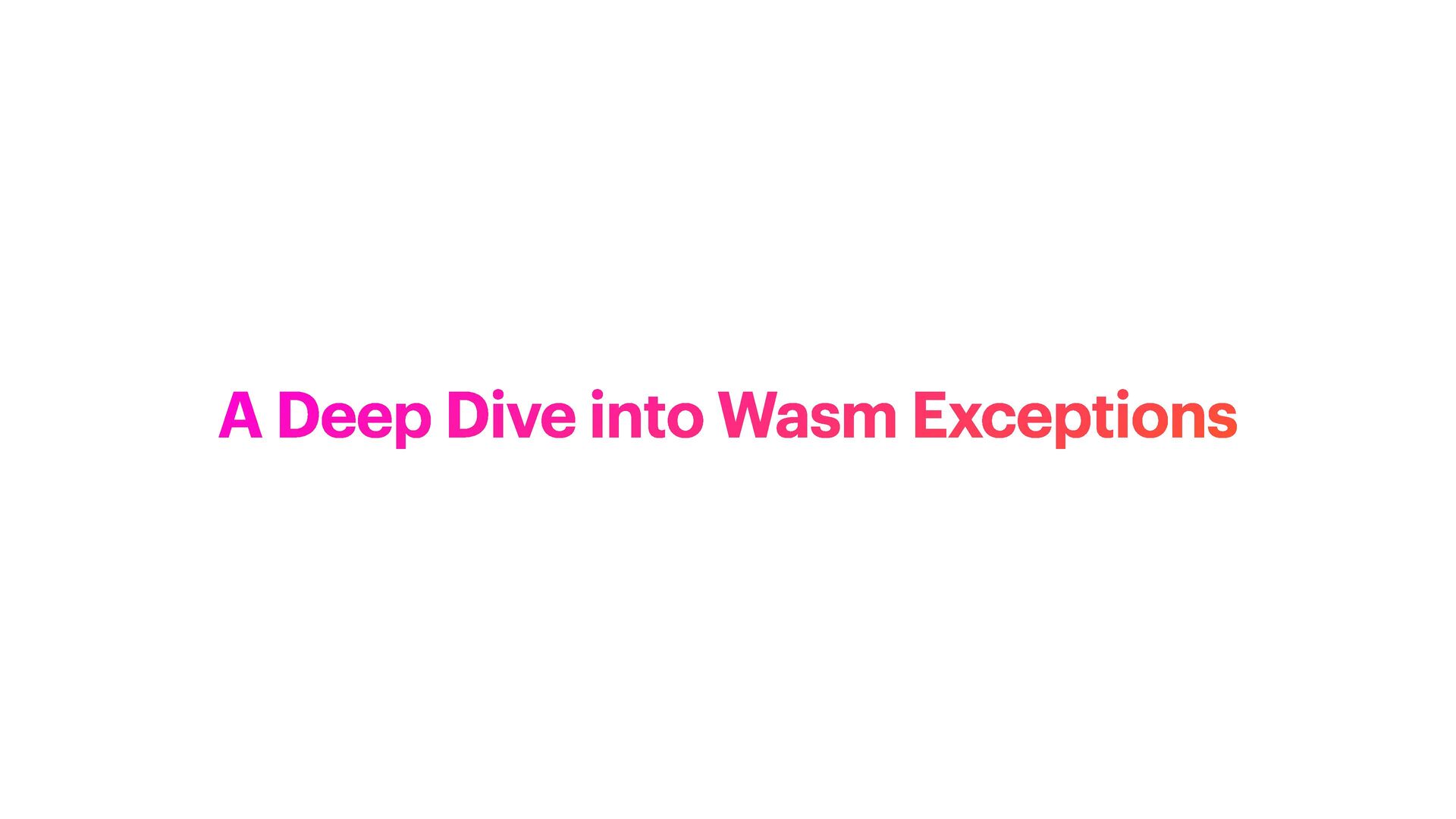

22. A Deep Dive into Wasm Exceptions

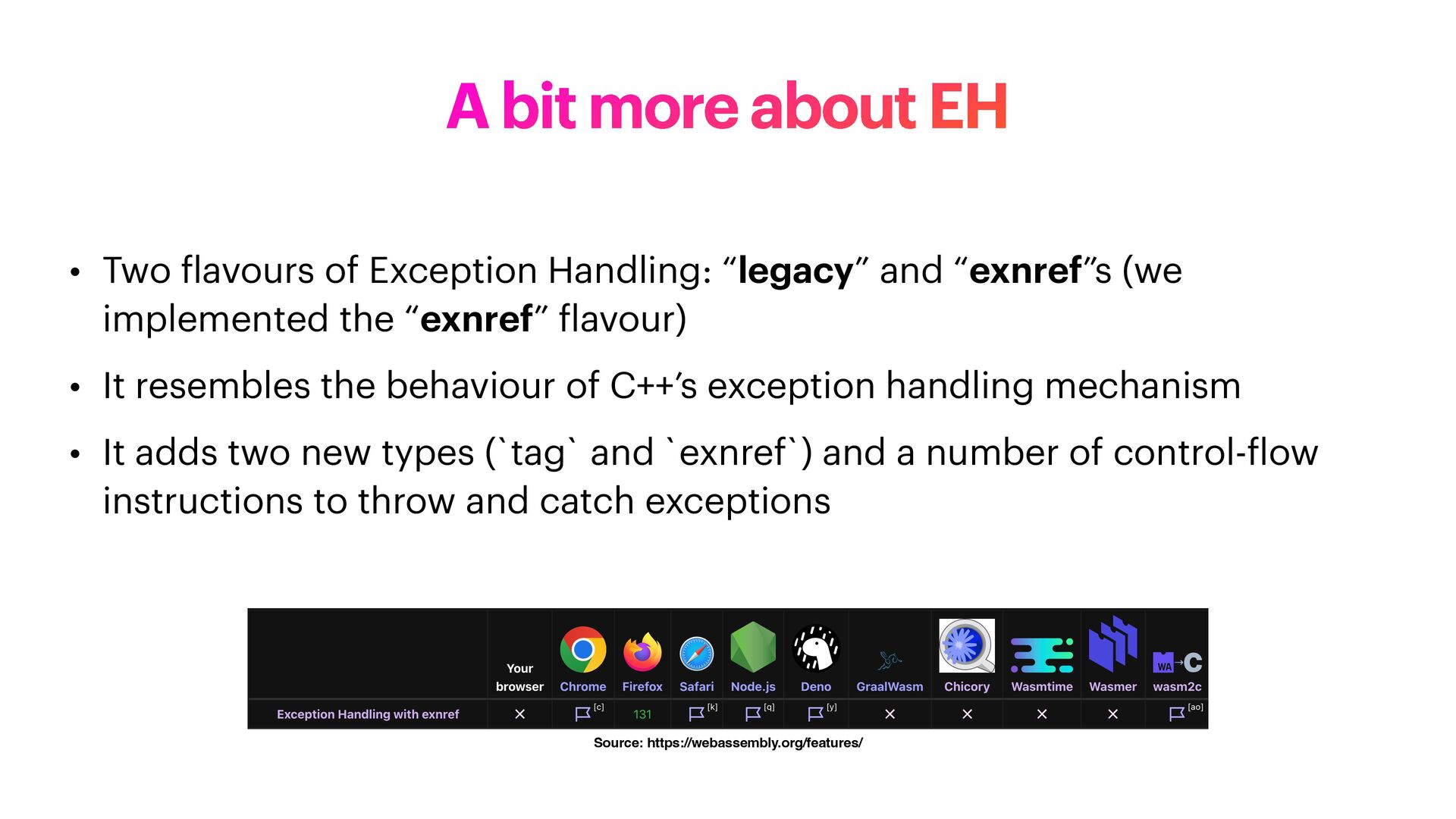

23. A bit more about EH • Two f lavours of Exception Handling: “legacy” and “exnref”s (we implemented the “exnref” f lavour) • It resembles the behaviour of C++’s exception handling mechanism • It adds two new types (`tag` and `exnref`) and a number of control- f low instructions to throw and catch exceptions Source: https://webassembly.org/features/

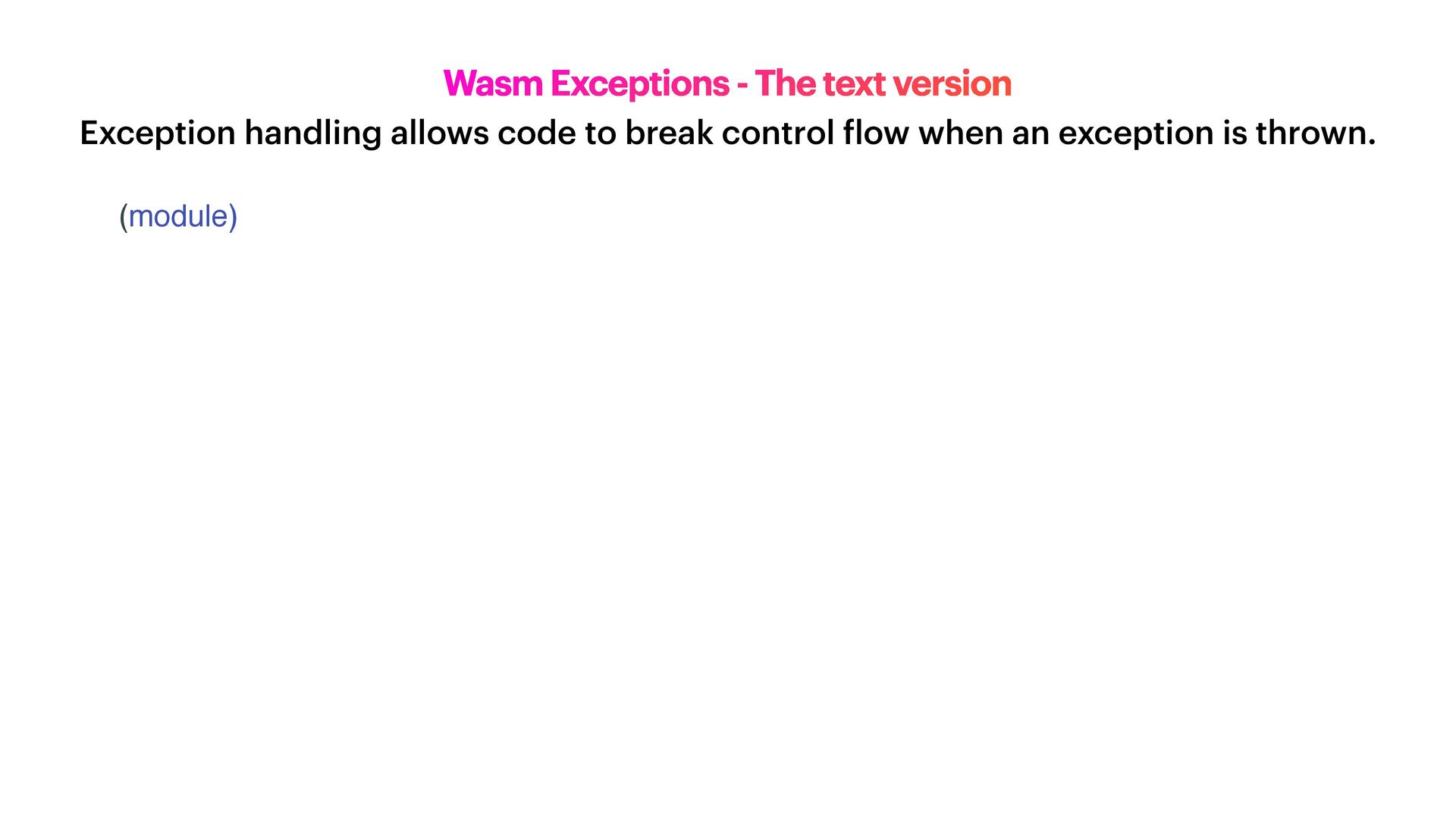

24. Wasm Exceptions - The text version Exception handling allows code to break control f low when an exception is thrown. (module)
25. Wasm Exceptions - The text version Exception handling allows code to break control f low when an exception is thrown. (module (tag $e0))

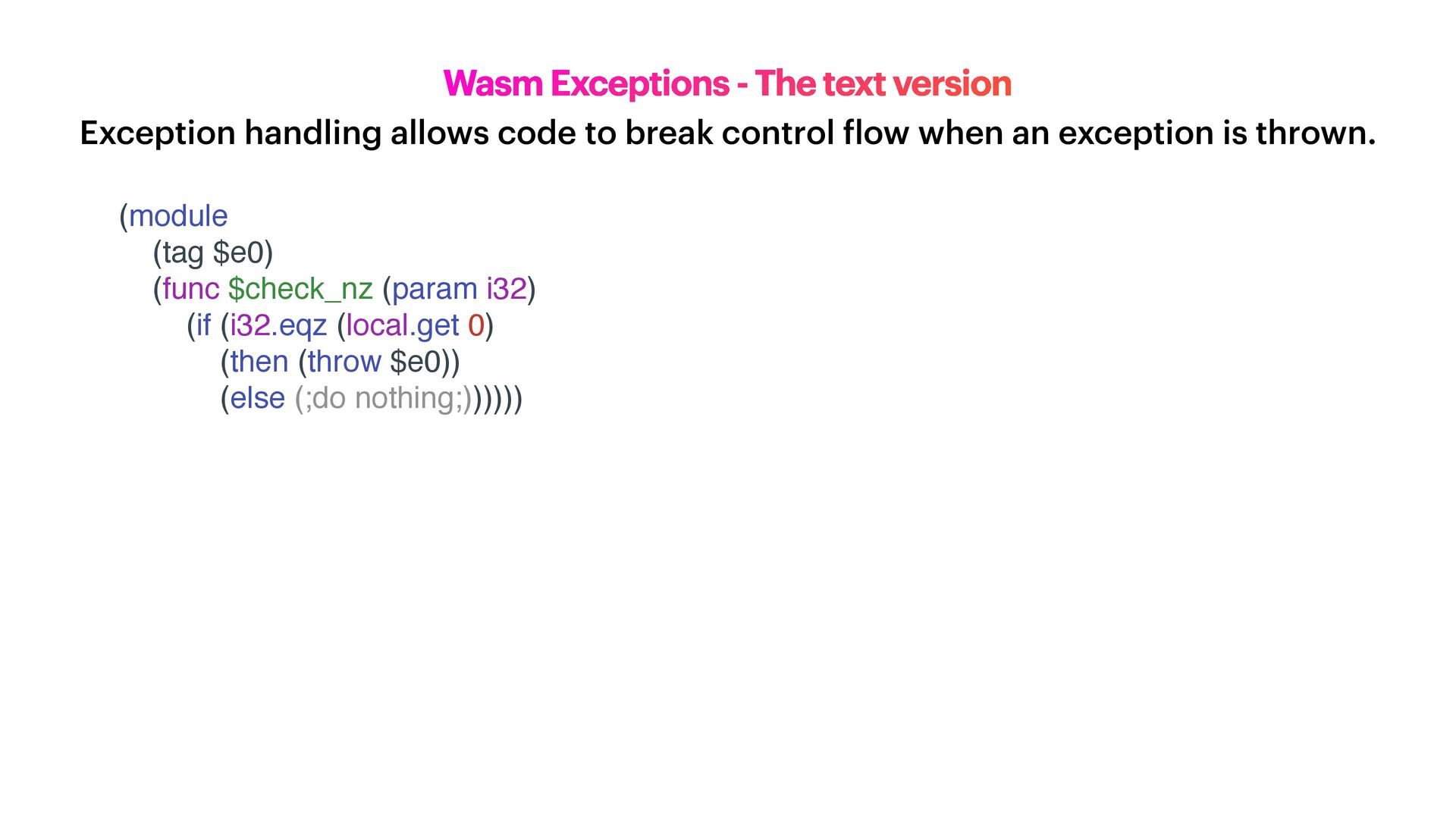

26. Wasm Exceptions - The text version Exception handling allows code to break control f low when an exception is thrown. (module (tag $e0) (func $check_nz (param i32) (if (i32.eqz (local.get 0) (then (throw $e0)) (else (;do nothing;))))))
27. Wasm Exceptions - The text version Exception handling allows code to break control f low when an exception is thrown. (module (tag $e0) (func $check_nz (param i32) (if (i32.eqz (local.get 0) (then (throw $e0)) (else (;do nothing;))))) (func (param i32) (result i32) (local.get 0) (block $h (try_table (catch_all $h) (call $check_nz) (i32.const 0) (return)) ;; Ouch! (i32.const 1) (return))))

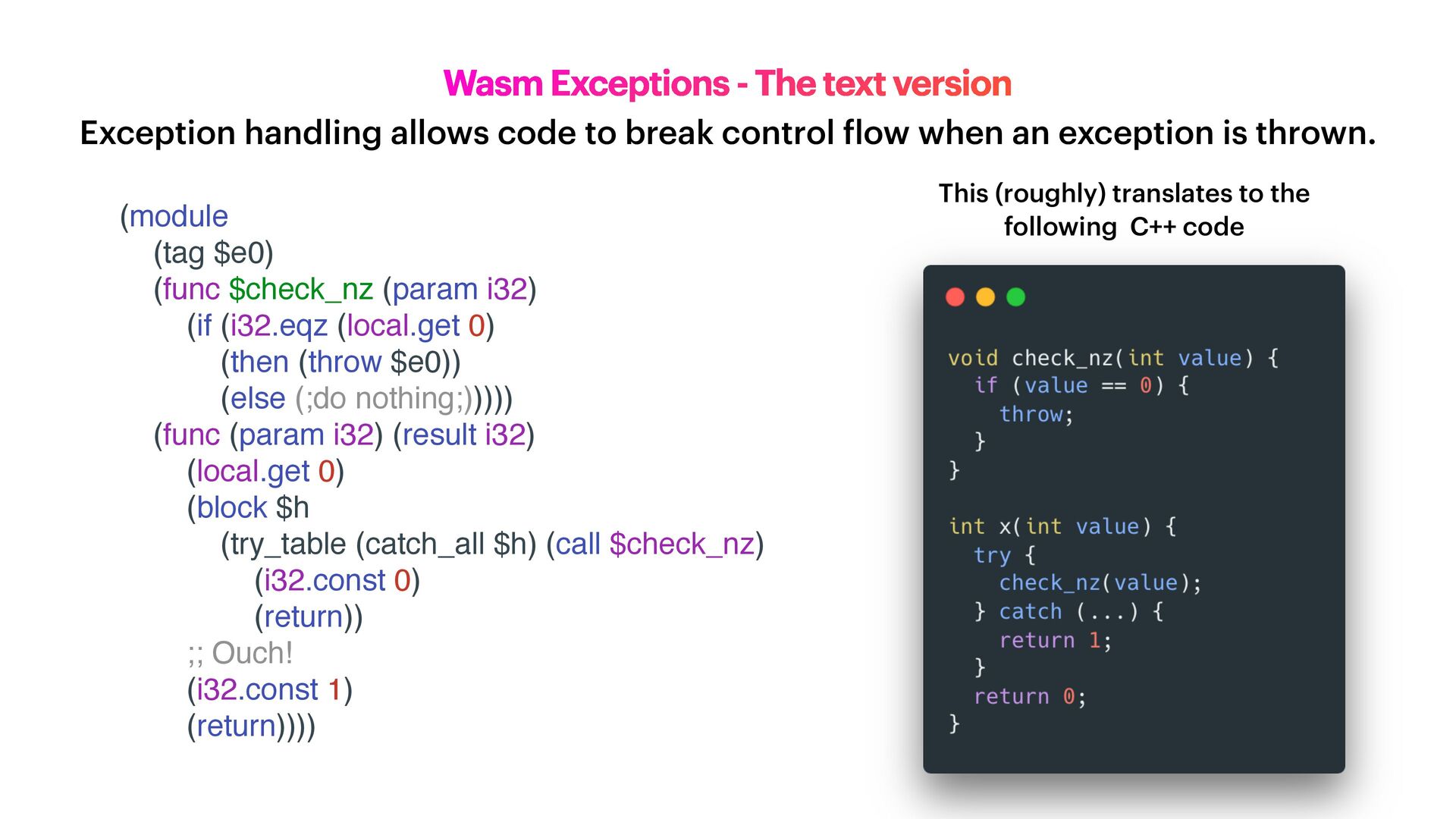

28. Wasm Exceptions - The text version Exception handling allows code to break control f low when an exception is thrown. (module (tag $e0) (func $check_nz (param i32) (if (i32.eqz (local.get 0) (then (throw $e0)) (else (;do nothing;))))) (func (param i32) (result i32) (local.get 0) (block $h (try_table (catch_all $h) (call $check_nz) (i32.const 0) (return)) ;; Ouch! (i32.const 1) (return)))) This (roughly) translates to the following C++ code

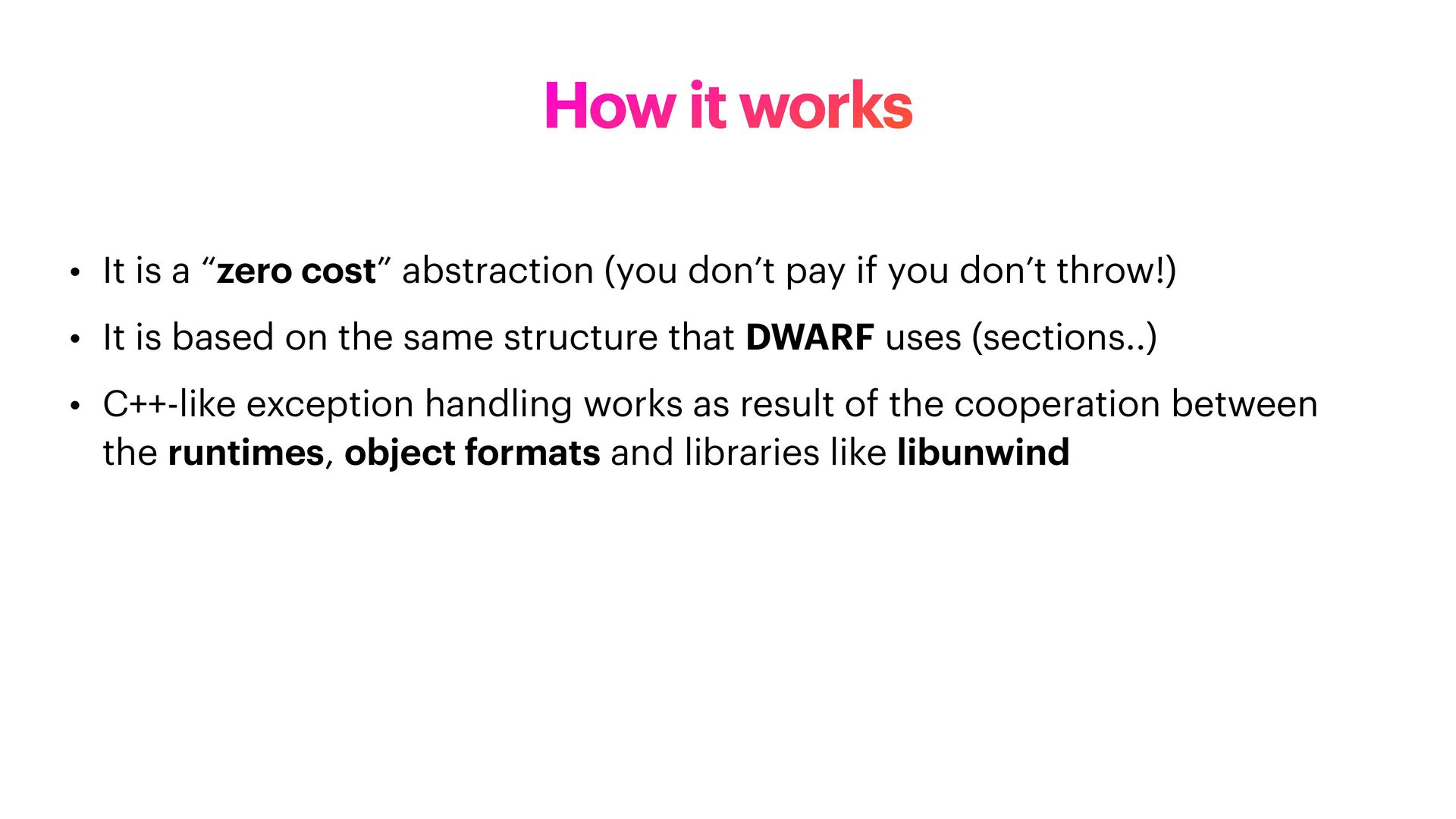

29. How it works • It is a “zero cost” abstraction (you don’t pay if you don’t throw!) • It is based on the same structure that DWARF uses (sections..) • C++-like exception handling works as result of the cooperation between the runtimes, object formats and libraries like libunwind

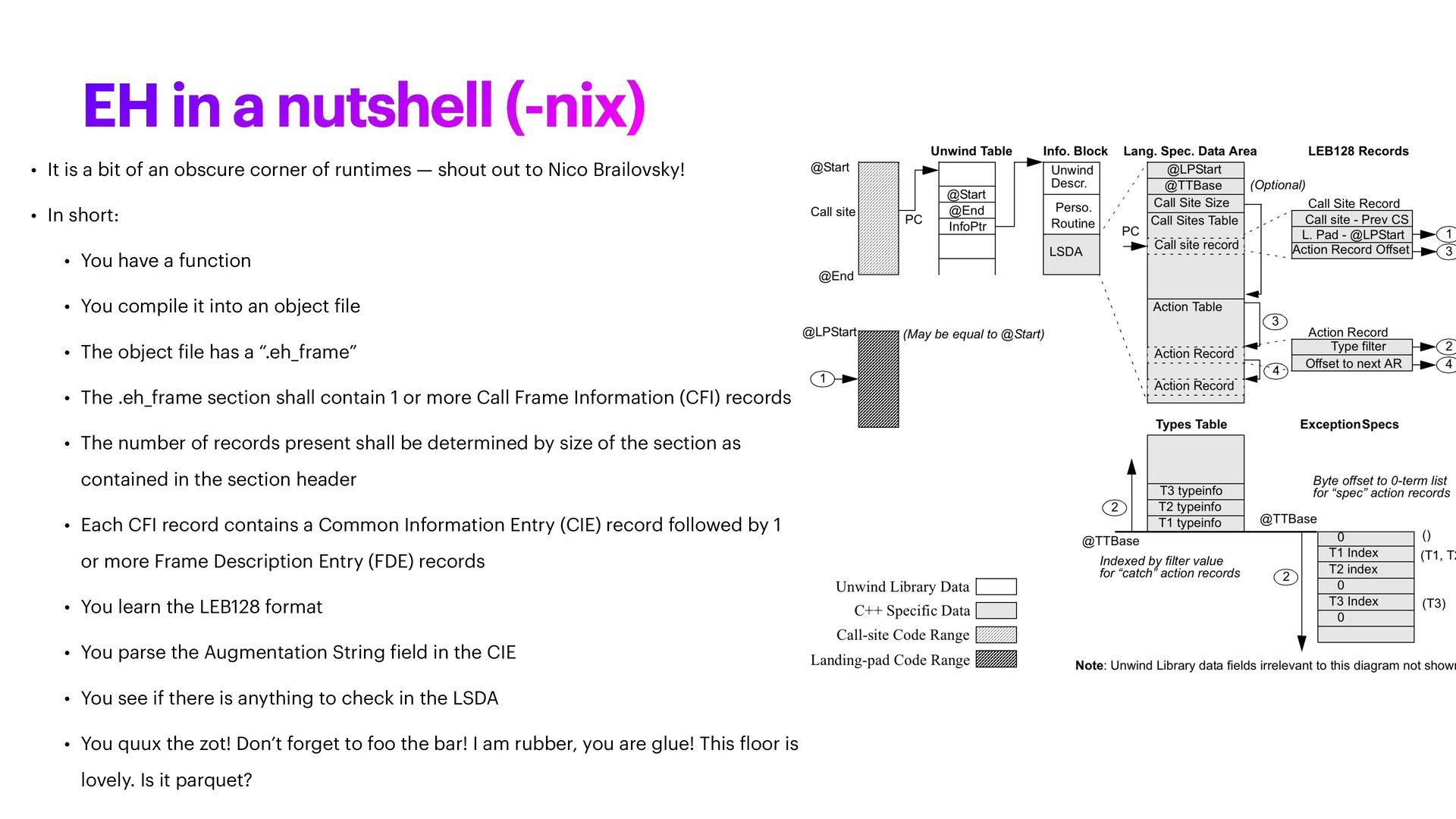

30. EH in a nutshell (-nix) • It is a bit of an obscure corner of runtimes — shout out to Nico Brailovsky! • In short: • You have a function • You compile it into an object f ile • The object f ile has a “.eh_frame” • The .eh_frame section shall contain 1 or more Call Frame Information (CFI) records • The number of records present shall be determined by size of the section as contained in the section header • Each CFI record contains a Common Information Entry (CIE) record followed by 1 or more Frame Description Entry (FDE) records • You learn the LEB128 format • You parse the Augmentation String f ield in the CIE • You see if there is anything to check in the LSDA • You quux the zot! Don’t forget to foo the bar! I am rubber, you are glue! This f loor is lovely. Is it parquet?

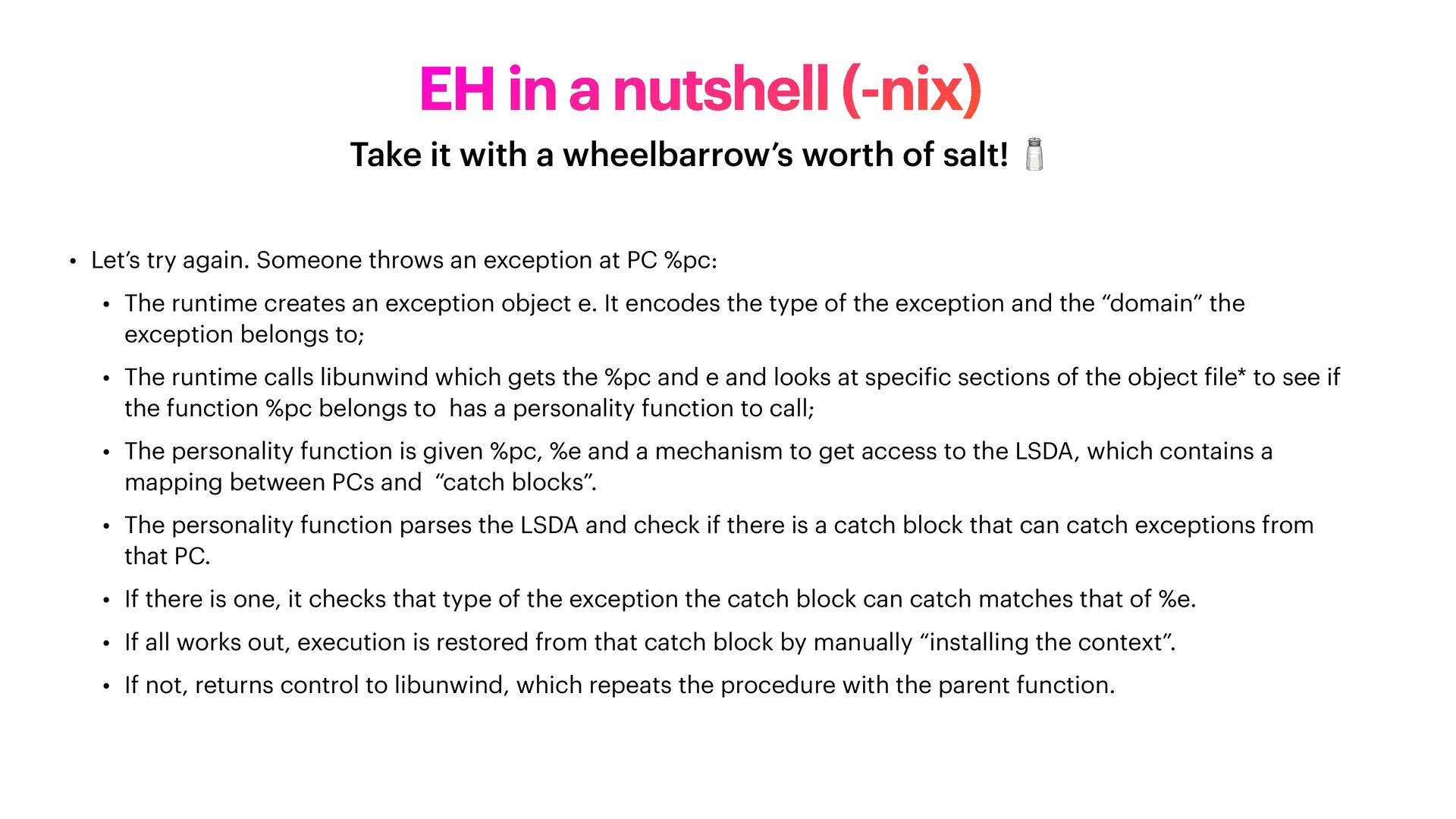

31. • Let’s try again. Someone throws an exception at PC %pc: • The runtime creates an exception object e. It encodes the type of the exception and the “domain” the exception belongs to; • The runtime calls libunwind which gets the %pc and e and looks at speci f ic sections of the object f ile* to see if the function %pc belongs to has a personality function to call; • The personality function is given %pc, %e and a mechanism to get access to the LSDA, which contains a mapping between PCs and “catch blocks”. • The personality function parses the LSDA and check if there is a catch block that can catch exceptions from that PC. • If there is one, it checks that type of the exception the catch block can catch matches that of %e. • If all works out, execution is restored from that catch block by manually “installing the context”. • If not, returns control to libunwind, which repeats the procedure with the parent function. EH in a nutshell (-nix) Take it with a wheelbarrow’s worth of salt! 🧂

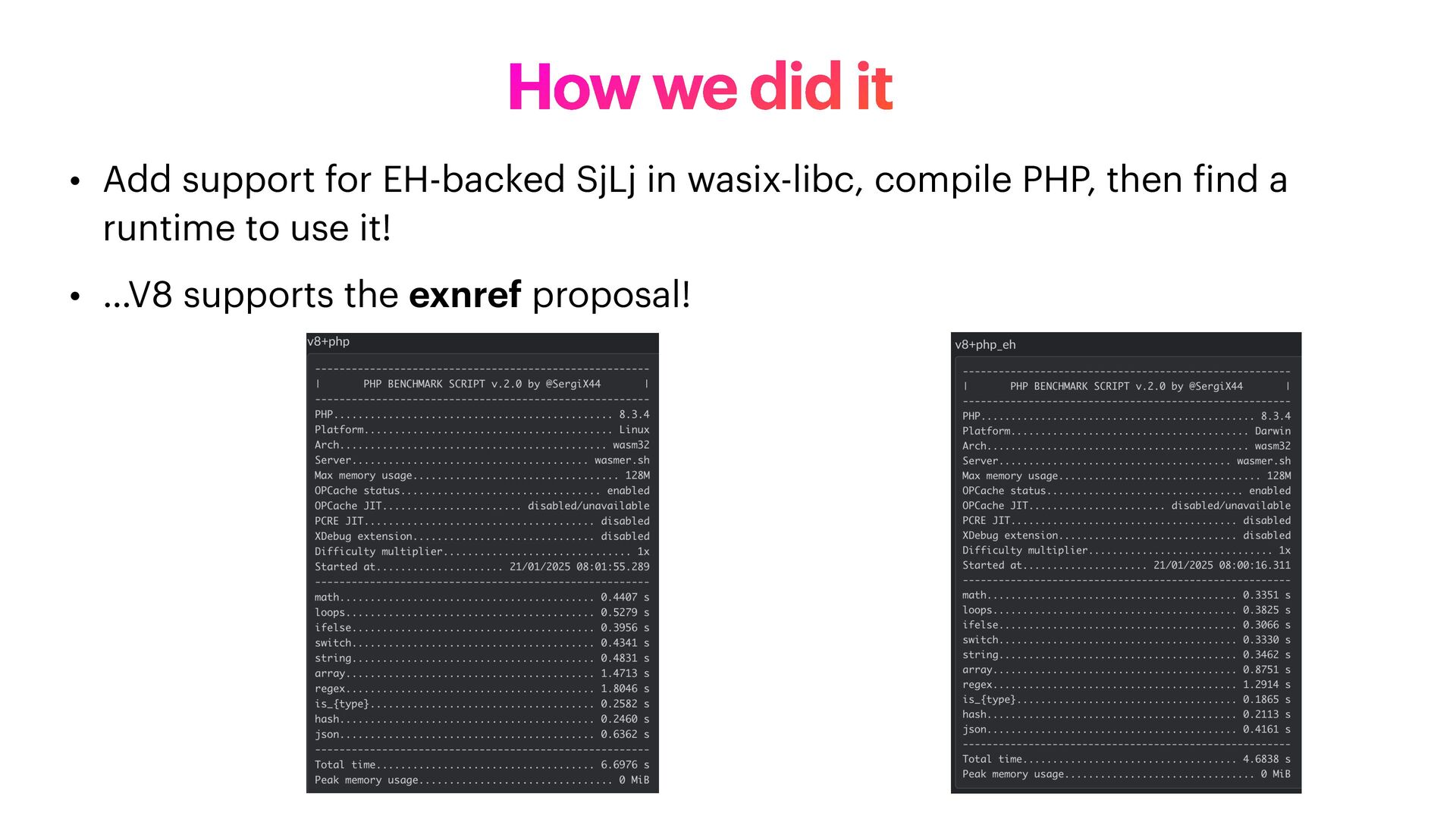

32. • Add support for EH-backed SjLj in wasix-libc, compile PHP, then f ind a runtime to use it! • …V8 supports the exnref proposal! How we did it
33. So we added support for V8 + EH in Wasmer
34. Can it be faster?

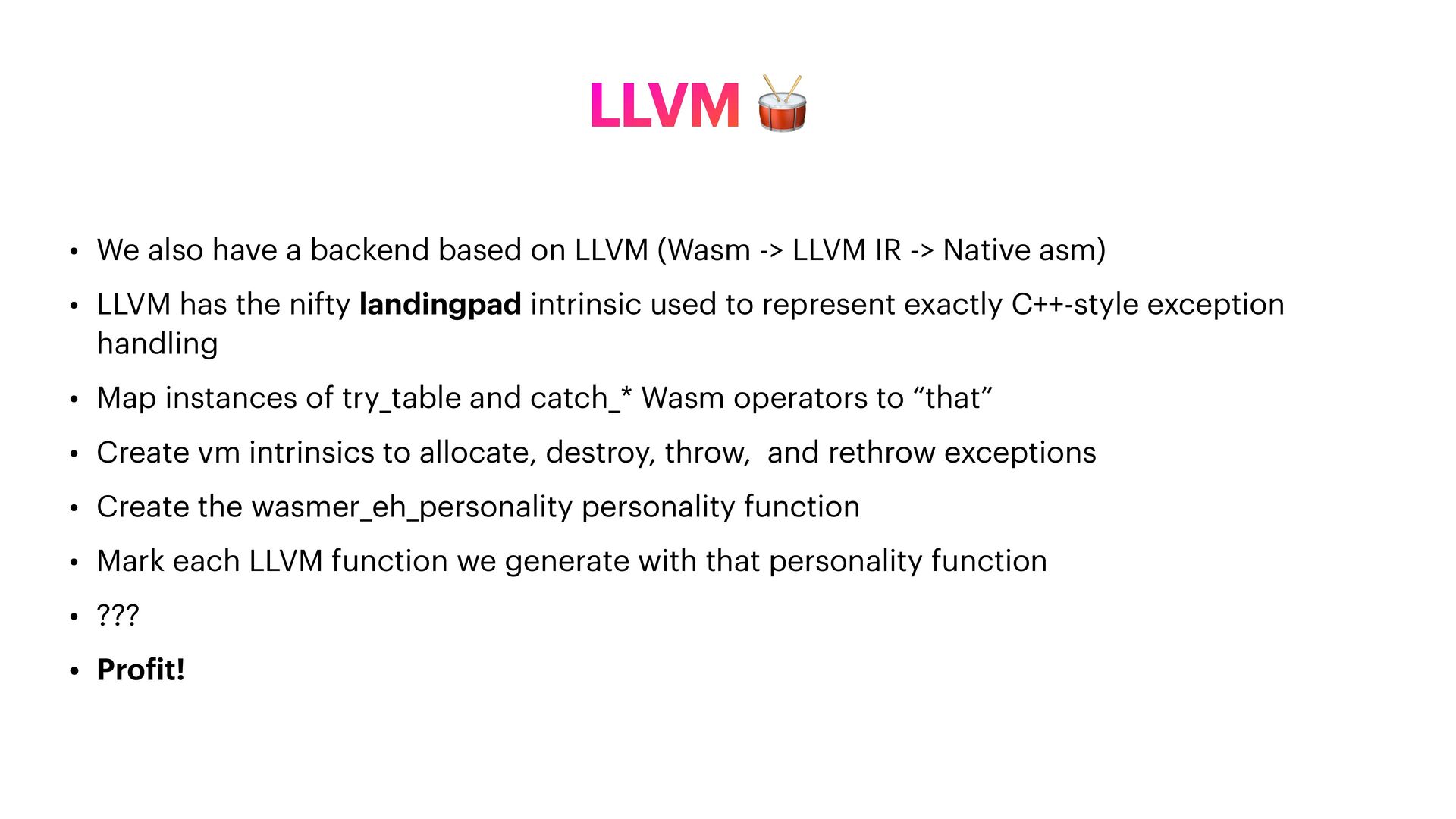

35. • We also have a backend based on LLVM (Wasm -> LLVM IR -> Native asm) • LLVM has the nifty landingpad intrinsic used to represent exactly C++-style exception handling • Map instances of try_table and catch_* Wasm operators to “that” • Create vm intrinsics to allocate, destroy, throw, and rethrow exceptions • Create the wasmer_eh_personality personality function • Mark each LLVM function we generate with that personality function • ??? • Pro f it! LLVM 🥁
36. Live demo! Praise for the gods to make the demo successful / Terms and conditions may apply

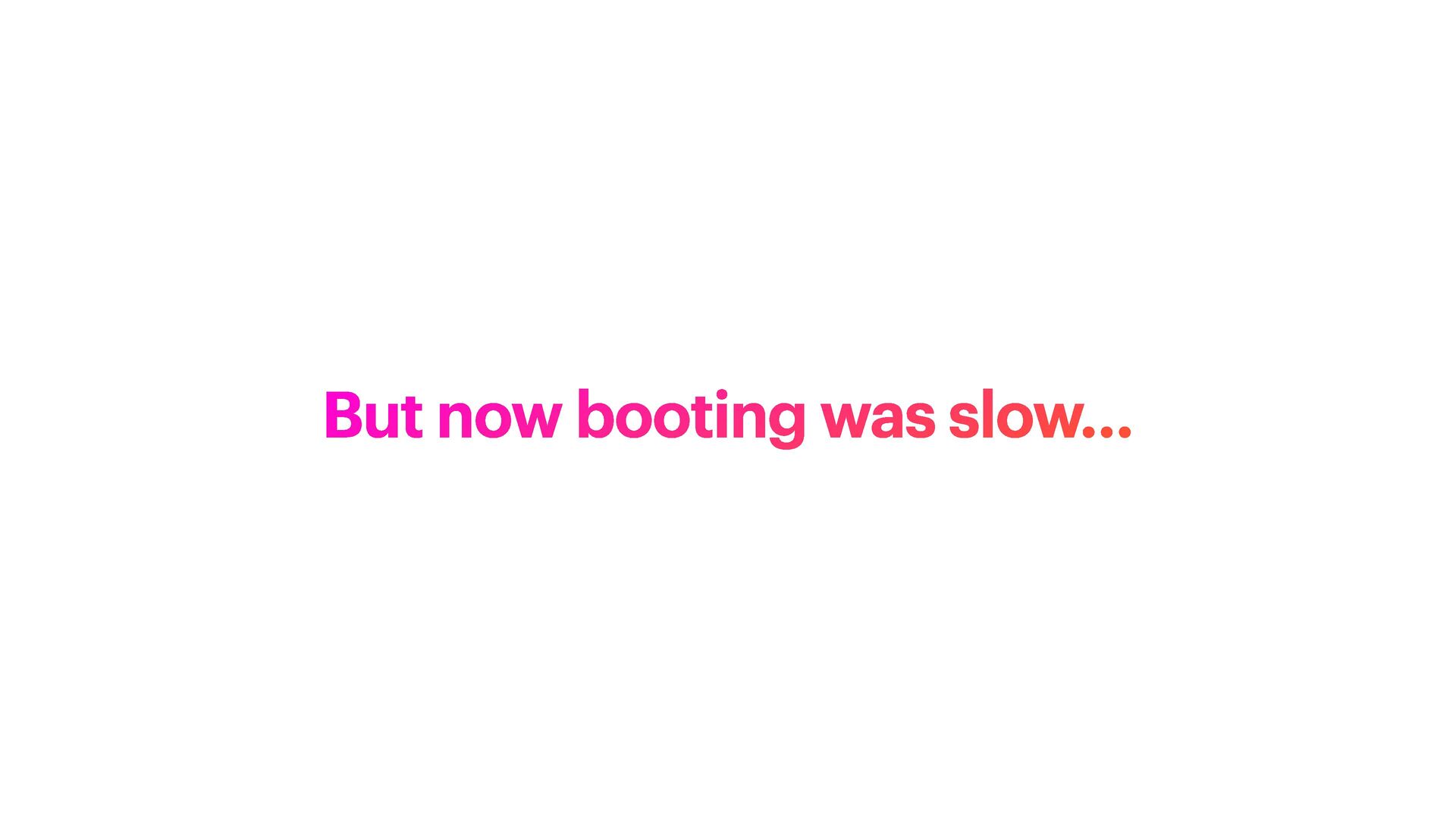

37. But now booting was slow…

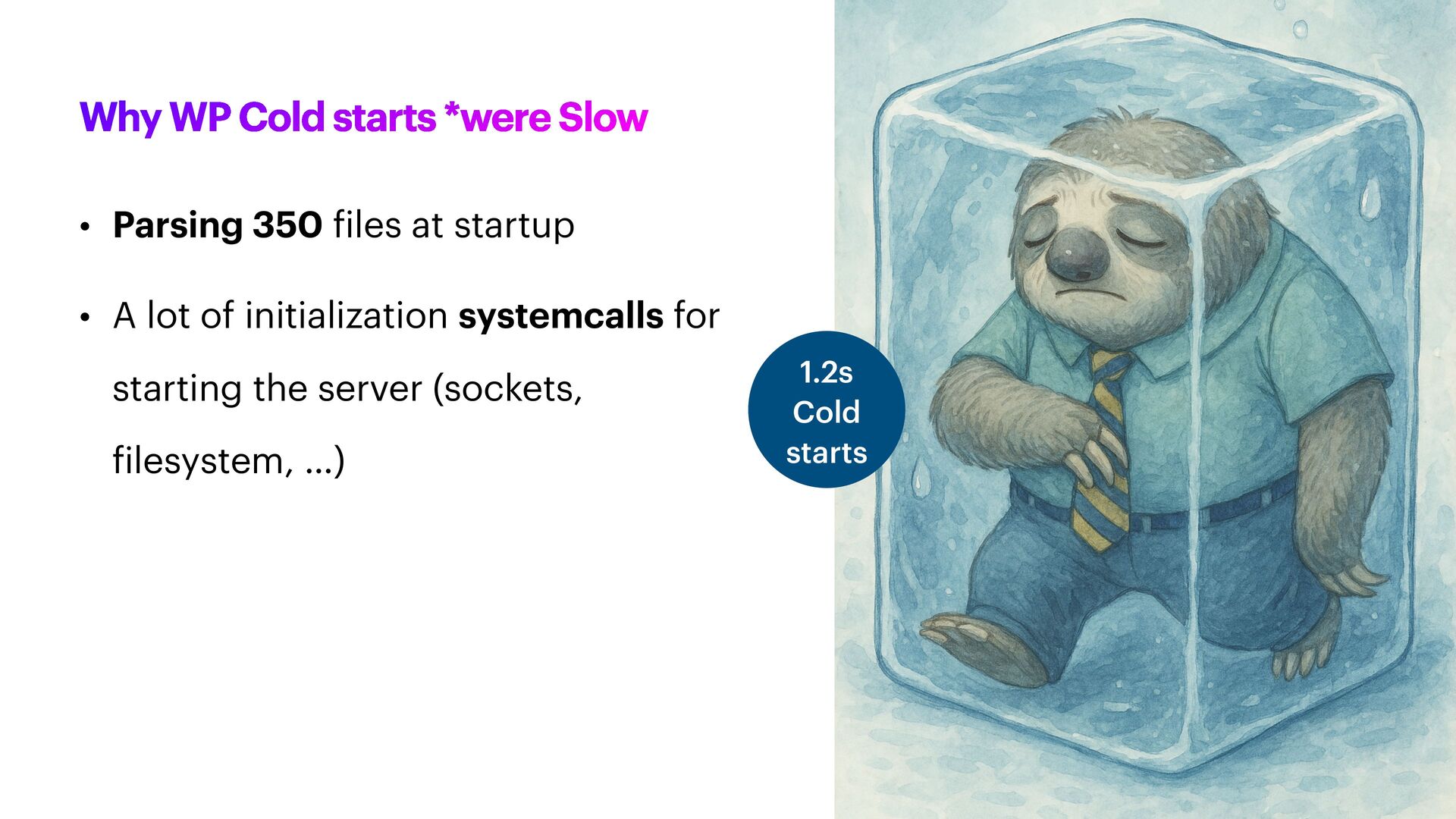

38. Why WP Cold starts *were Slow • Parsing 350 f iles at startup • A lot of initialization systemcalls for starting the server (sockets, f ilesystem, …) 1.2s Cold starts
39. One last thing… Instaboot 🎉 Bringing cold start times to ZERO thanks to WebAssembly

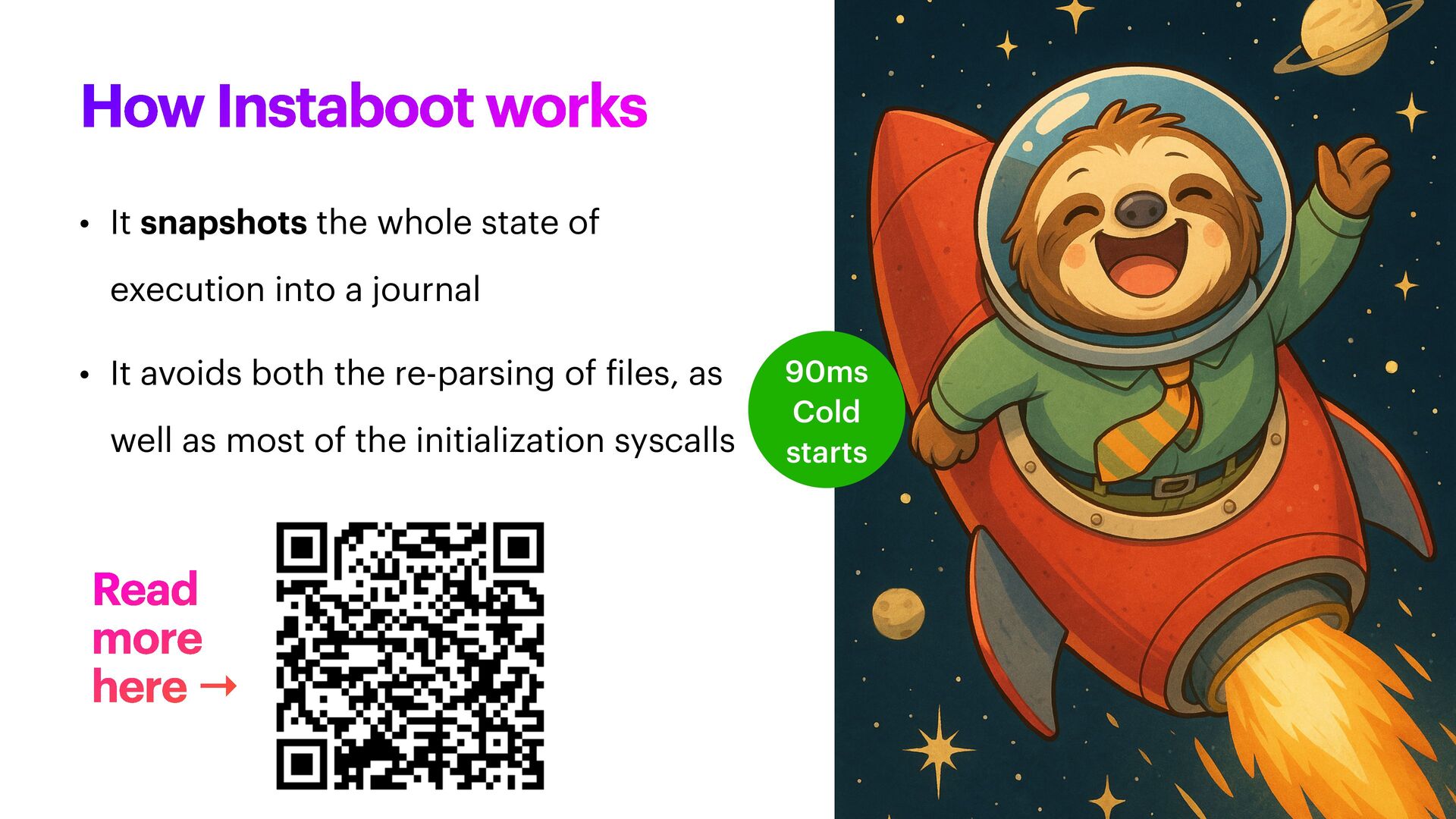

40. How Instaboot works • It snapshots the whole state of execution into a journal • It avoids both the re-parsing of f iles, as well as most of the initialization syscalls 90ms Cold starts Read more here →
41. Demo time!

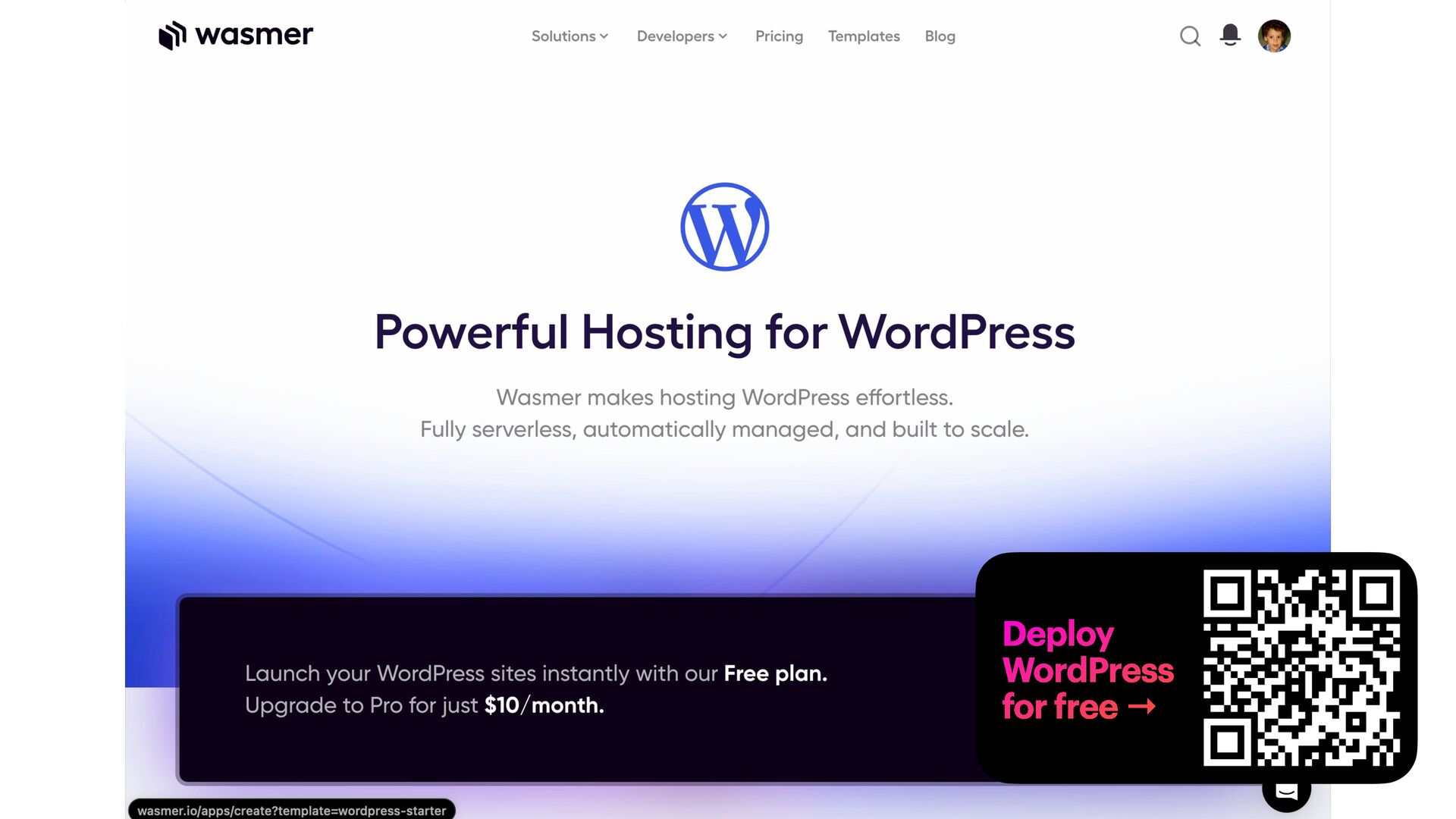

42. Deploy WordPress for free →
43. Thank you 🙏 @syrusakbary / (Edo only lives in the physical world) / @wasmerio
