New Features in Texdoc 3.0 / texdoc3

Watson
April 29, 2018

New Features in Texdoc 3.0 / texdoc3

Texdoc is a command line program to find documentation in TeX Live. The new version of the program, Texdoc 3.0, has two big features: new option parser and fuzzy search. In this talk, I will also introduce how Texdoc finds documents related to input keywords, and discuss how the process can be improved. The latest source code is available from: https://github.com/TeX-Live/texdoc.

Watson

April 29, 2018
Tweet

More Decks by Watson

Other Decks in Programming

Transcript

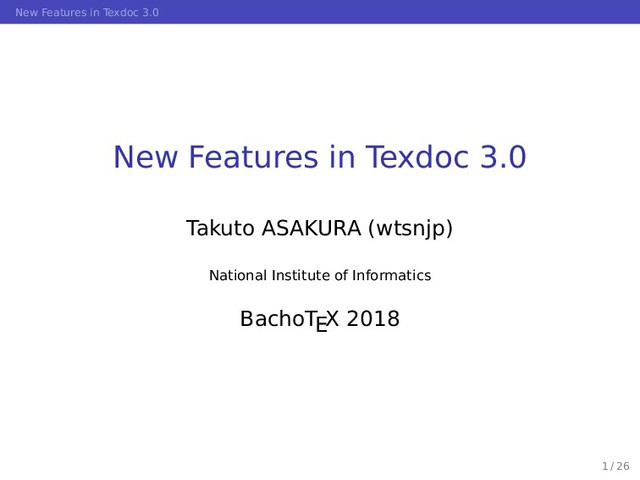

  1. New Features in Texdoc 3.0 New Features in Texdoc 3.0

    Takuto ASAKURA (wtsnjp) National Institute of Informatics BachoTEX 2018 1 / 26
  2. New Features in Texdoc 3.0 What is Texdoc? … A

    command line tool … Search & view documents in TEX Live … Cross-platform (Windows, macOS, Linux, etc.) Usage $ texdoc [hoptionsi] hkeywordi … Typically, hkeywordi is a package name … Documents related to hkeywordi will be shown Please try “texdoc texdoc” for more details 2 / 26
  3. New Features in Texdoc 3.0 Why did I become a

    maintainer of Texdoc? (off-topic) 3 / 26
  4. New Features in Texdoc 3.0 Snowman culture in Japan …

    Snowman is popular among Japanese TEXperts … They are known as “Snowman Comedians” … August 8th ( / ) is “Snowman’s Day” … Just like the Duck culture in the West (?) Japan Western countries 4 / 26
  5. New Features in Texdoc 3.0 Variety of snowman in glyphs

    A1 Gothic Shuei Nijimi Mincho Shuei Maru Gothic Bunkyu Gothic HGP Gothic Nishiki-teki Ro Hon Mincho Meiryo 5 / 26
  6. New Features in Texdoc 3.0 SC-series: L A TEX packages

    … The scsnowman package DL CTAN … Displaying many variants of snowmen … Utilizing TikZ (independent from fonts) … cf. There is package tikzducks for duck lovers Examples scsnowman tikzducks T EX … The scpremiumfriday package DL GitHub … The scwrapfig package DL GitHub 6 / 26
  7. New Features in Texdoc 3.0 The Whitesnowman language … A

    variant of the Whitespace language, using: … ⇤ (U+2603) Space … ƒ (U+26C4) Tab … « (U+26C7) New line … I developed an interpreter in TEX DL GitHub Example 7 / 26
  8. New Features in Texdoc 3.0 SC-ripts: TEX-related scripts There are

    also SC-variant scripts DL GitHub Mostly develped by Takayuki YATO (a.k.a. ZR) … scmakesvf: creating Snowman VFs … scmendex: variant of mendex† … scptex2pdf: variant of ptex2pdf … scxml2ltx: variant of xml2ltx I also created one. . . … sctexdoc: variant of Texdoc DL Gist To develop above, I read the souce code of Texdoc ! I became familiar with its implementation! †Japanese-aware version of makeindex program 8 / 26
  9. New Features in Texdoc 3.0 Current status of Texdoc …

    Maintained by the TEX Live team: Karl Berry, Norbert Preining, and me … Development is hosted on GitHub ! The svn on puszcza has been dropped! … Texdoc 2.0171 is the latest (TEX Live 2017) … Main features of v3.0 is already implemented ! Those are in fuzzy_search branch Please visit: https://github.com/TeX-Live/texdoc 10 / 26
  10. New Features in Texdoc 3.0 New features in Texdoc 3.0

    … New option parser ! to specify multiple options much easier … Fuzzy search ! now you can mistype hkeywordi … Other small changes … Documentation updates … Removing a chache file There is no major update since 2012. . . Now it’s time to change a lot! 11 / 26
  11. New Features in Texdoc 3.0 New option parser Features …

    POSIX compatible as much as possible … Allowing the users to group short options Example In the past versions: $ texdoc -v -l -I ... Now, you can specify just like: $ texdoc -vlI ... 12 / 26
  12. New Features in Texdoc 3.0 How to implement fuzzy search?

    Levenshtein distance … Differnce between two strings … Minimum number of single-character edits … insertions … deletions … substitutions Example Levenshtein distance between “duck” and “dog”: 1. duck deletion ! duc 2. duc substitution ! dug 3. dug substitution ! dog The distance is 3 14 / 26
  13. New Features in Texdoc 3.0 Calculating Levenshtein distance Levenshtein distance

    can be calculated with DP: … considering two strings , b; and … let | |, |b| are lengths of , b respectively. Calculating the distance in O(| ||b|) time: lev ,b( , j) = 8 > > > < > > > : m x( , j) if min( , j) = 0; otherwise, min 8 < : lev ,b( 1, j) + 1 lev ,b( , j 1) + 1 lev ,b( 1, j 1) + 1( 6=bj) 15 / 26
  14. New Features in Texdoc 3.0 Don’t you think. . .

    we heard similar story last year? Implementing bioinformatics algorithms in TEX The Gotoh algorithm: DP Sequence alignment has a slightly more complex scoring scheme. Example m tch = 1, mism tch = 1, g( ) = d ( 1)e The algorithm Sequence alignment in O(mn) time: M +1,j+1 = m x ¶ M j, j , y j © + c bj where +1,j = m x ¶ M j d, j e, y j d © , y ,j+1 = m x ¶ M j d, y j e © . 5 / 11 16 / 26
  15. New Features in Texdoc 3.0 Fuzzy search in Texdoc 3.0

    … Running when the normal search cannot find any documentation in TEX Live … Finding a package name which has minimum Levenshtein distance with the hkeywordi Let me show you a demonstration! More details … The default allowance is up to 5 … To change: set fuzzy_level in texdoc.cnf … Set the value to 0, disable fuzzy search … The result is shown as “info” message 17 / 26
  16. New Features in Texdoc 3.0 Other changes in Texdoc 3.0

    These are small things, now we’re working on: Documentation updates … Explaining about new features … Removing old information Removing a cache file … A large cache file was in the repo (1.5 MB) … It was used only when tlpdb does not exist ! It won’t happen in normal TEX Live 18 / 26
  17. New Features in Texdoc 3.0 Call for testers … Where

    can we get the development version? ! https://github.com/TeX-Live/texdoc … How to run the development version? ! http://tug.org/texdoc/dev/ 19 / 26
  18. New Features in Texdoc 3.0 How to report bugs? …

    Creating issues on GitHub … Pull requests are also welcome … Sending a mail to the mailing list … [email protected] 20 / 26
  19. New Features in Texdoc 3.0 Other functions of Texdoc Alias

    … Aliases can be defined in texdoc.cnf … Both the original and name will be searched alias horiginal keywordi = hnamei Adjusting score (in ad-hoc) … You can adjust score in texdoc.cnf adjscore hpatterni = hscore adjustmenti 22 / 26
  20. New Features in Texdoc 3.0 Improving fuzzy search Finding Scoring

    Results exist? Viewing Fuzzy search yes no … Even if the results exist for normal search, could fuzzy results still be helpful? … Can fuzzy results win the normal results? … Should we not only search package names? ! What it should be? 23 / 26
  21. New Features in Texdoc 3.0 Problems in the scoring The

    scoring scheme needs to be improved: Too much adjscore (in default) Too many false cases Too complicated Possible solution … Allowing package authors to control the priority of the documents in their package ! How to compare among other packages? … Using useful meta data in tlpdb We need your wonderful ideas 24 / 26
  22. New Features in Texdoc 3.0 Documents not included in TEX

    Live Problem There is no way to find the documents Solution 1 … A variety of alias to specify absolute paths alias* foo = /path/to/your/foobar.pdf Solution 2 … Make it possible to specify particular directory Example ~/texdoc … Searching the documents in the directory 25 / 26
  23. New Features in Texdoc 3.0 Conclusions … Please visit our

    GitHub repository https://github.com/TeX-Live/texdoc … New features of Texdoc 3.0 are: … New option parser … Fuzzy search … If you are interested in the features: 1. Getting them from fuzzy_search branch 2. Reporting bugs on GitHub or using mailing list … Any suggestion to improve Texdoc is welcome … Sending a mail to [email protected] … Creating an issue/pull requests on GitHub Thank you & Happy Texdocing 26 / 26
