GraphQL and Relay Intro
Search
Jeremy Lu
August 26, 2015
Technology
0
230
GraphQL and Relay Intro
reactjs.tw 八月小聚簡報,介紹 GraphQL, Relay。
Jeremy Lu
August 26, 2015
Tweet
Share
More Decks by Jeremy Lu
See All by Jeremy Lu
採用 TypeScript 前你該考慮的十件事
coodoo
1
2.3k
React Conf 2019 回顧 與 2020 前端開發趨勢展望
coodoo
0
610
前端開發的再次典範轉移 如何走出混亂並讓複雜變得可掌控
coodoo
9
2.2k
ReactVR - a quick glance
coodoo
2
180
React Native 帶來的跨平台 mobile app 開發典範轉移
coodoo
6
3.1k
Reactjs.tw meetup 7 - 技術匯報
coodoo
22
1.5k
從「學習一次、隨處應用」 談 React Native 帶來的開發典範轉移
coodoo
5
1.3k
Sneak Preivew of React Native
coodoo
18
2.5k
Immutable model 簡介
coodoo
17
1.6k
Other Decks in Technology
See All in Technology
AIエージェント最前線! Amazon Bedrock、Amazon Q、そしてMCPを使いこなそう
minorun365
PRO
15
5.4k
GeminiとNotebookLMによる金融実務の業務革新
abenben
0
240
Snowflake Summit 2025 データエンジニアリング関連新機能紹介 / Snowflake Summit 2025 What's New about Data Engineering
tiltmax3
0
320
Kotlin Coroutine Mechanisms: A Surprisingly Deep Rabbithole
amanda_hinchman
2
100
低レイヤを知りたいPHPerのためのCコンパイラ作成入門 完全版 / Building a C Compiler for PHPers Who Want to Dive into Low-Level Programming - Expanded
tomzoh
4
3.3k
強化されたAmazon Location Serviceによる新機能と開発者体験
dayjournal
3
230
製造業からパッケージ製品まで、あらゆる領域をカバー!生成AIを利用したテストシナリオ生成 / 20250627 Suguru Ishii
shift_evolve
PRO
1
140
Fabric + Databricks 2025.6 の最新情報ピックアップ
ryomaru0825
1
140
急成長を支える基盤作り〜地道な改善からコツコツと〜 #cre_meetup
stefafafan
0
130
生成AI時代の開発組織・技術・プロセス 〜 ログラスの挑戦と考察 〜
itohiro73
1
290
生成AI活用の組織格差を解消する 〜ビジネス職のCursor導入が開発効率に与えた好循環〜 / Closing the Organizational Gap in AI Adoption
upamune
5
3.9k
【TiDB GAME DAY 2025】Shadowverse: Worlds Beyond にみる TiDB 活用術
cygames
0
1.1k
Featured
See All Featured
Distributed Sagas: A Protocol for Coordinating Microservices
caitiem20
331
22k
"I'm Feeling Lucky" - Building Great Search Experiences for Today's Users (#IAC19)
danielanewman
229
22k
Mobile First: as difficult as doing things right
swwweet
223
9.7k
Exploring the Power of Turbo Streams & Action Cable | RailsConf2023
kevinliebholz
34
5.9k
Let's Do A Bunch of Simple Stuff to Make Websites Faster
chriscoyier
507
140k
Java REST API Framework Comparison - PWX 2021
mraible
31
8.7k
Chrome DevTools: State of the Union 2024 - Debugging React & Beyond
addyosmani
7
710
No one is an island. Learnings from fostering a developers community.
thoeni
21
3.3k
Rebuilding a faster, lazier Slack
samanthasiow
82
9.1k
Making Projects Easy
brettharned
116
6.3k
Gamification - CAS2011
davidbonilla
81
5.3k
The MySQL Ecosystem @ GitHub 2015
samlambert
251
13k
Transcript

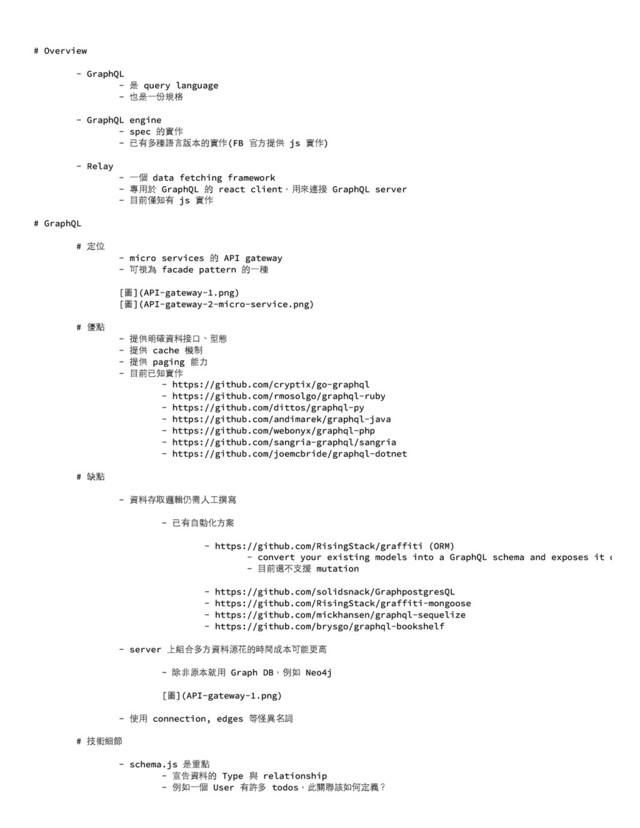

# Overview - GraphQL - 是 query language - 也是一份規格
- GraphQL engine - spec 的實作 - 已有多種語言版本的實作(FB 官方提供 js 實作) - Relay - 一個 data fetching framework - 專用於 GraphQL 的 react client,用來連接 GraphQL server - 目前僅知有 js 實作 # GraphQL # 定位 - micro services 的 API gateway - 可視為 facade pattern 的一種 [圖](API-gateway-1.png) [圖](API-gateway-2-micro-service.png) # 優點 - 提供明確資料接口、型態 - 提供 cache 機制 - 提供 paging 能力 - 目前已知實作 - https://github.com/cryptix/go-graphql - https://github.com/rmosolgo/graphql-ruby - https://github.com/dittos/graphql-py - https://github.com/andimarek/graphql-java - https://github.com/webonyx/graphql-php - https://github.com/sangria-graphql/sangria - https://github.com/joemcbride/graphql-dotnet # 缺點 - 資料存取邏輯仍需人工撰寫 - 已有自動化方案 - https://github.com/RisingStack/graffiti (ORM) - convert your existing models into a GraphQL schema and exposes it over H - 目前還不支援 mutation - https://github.com/solidsnack/GraphpostgresQL - https://github.com/RisingStack/graffiti-mongoose - https://github.com/mickhansen/graphql-sequelize - https://github.com/brysgo/graphql-bookshelf - server 上組合多方資料源花的時間成本可能更高 - 除非原本就用 Graph DB,例如 Neo4j [圖](API-gateway-1.png) - 使用 connection, edges 等怪異名詞 # 技術細節 - schema.js 是重點 - 宣告資料的 Type 與 relationship - 例如一個 User 有許多 todos,此關聯該如何定義?
- database.js - 串接資料源,例如 REST API 或各種 db # Relay
# 定位 - 介於 client 與 server 間的 connector # 優點 - query 與 mutation 都用相同語言(GraphQL) - 每個元件外包一個 relay container 省去層層傳遞 - data 不用透過 context 或 props 層層傳遞 - app 結構變的扁平化,幾乎只有一階 - 資料與元件緊密相依 - 易於管理 - 不會 over/under fetching - 程式易讀、易開發、不易犯錯 - 只要看 view component 內容,就知道它會用到哪些資料 - 元件從此真正完全封裝,也可隨意移到任何層級內,不用擔心資料接口會丟失(因為以往是由上到下逐層傳遞) - 集中式 store 代為處理資料正規化、cache、存取操作 - made efficient through caching, batching, re-use, and other means to reduce the size of queries - 這些事原本都要工人智慧來做,現在它自動做好了 - 將來會支援 server 之外的資料源,例如 in-memory, file system, device APIs,也能 offline 操作 - 便於分工,一個人負責寫 schema 與所有 muation - 這個人可能就是原本的後端工程師,因為 REST API 也是他寫的 - 其它 component developer 只要會用 graphql 語法就好 # 缺點 - 目前 client 端只有 react 實作 - ios/android 無法使用,只能繼續透過 REST API 操作 - 所有 CUD 都要寫一支 mutation js,內含六大步驟 # 技術細節 - 功能 - 提供統一的 store - 與 GraphQL server 溝通(透過標準 GET/POST 操作) - 負責所有 model 的 normalization, cache, update... [圖](relay-structure.png) - 提供封裝的 container - 它就是 container component - 大量應用 Higher Order Component 技巧 - 負責 data fetching, binding, redrawing [圖](Containers-HOC-Relay.png) - query 的範例 // todo.js fragments: { todo: () => Relay.QL` fragment on Todo { complete,
id, text, } `, viewer: () => Relay.QL` fragment on
User { ${ChangeTodoStatusMutation.getFragment('viewer')}, ${RemoveTodoMutation.getFragment('viewer')}, } `, }, - mutation 的範例 - 新增一筆 todo _handleTextInputSave = (text) => { Relay.Store.update( new AddTodoMutation({text, viewer: this.props.viewer}) ); } - mutation 的六個關鍵步驟 fragments: 宣告 mutation 操作過程中一定要取得的欄位 getOptimisticResponse: 為了實現 optimistic update 而提供的假資料 getFatQuery: mutation 後要從 server 取回的新資料 getMutation: 指定要操作的 mutation 名稱(要事先定義在 schema.js 內) getConfigs: mutation 後從 server 取回新資料該如何更新本地端舊資料,注意這裡有四種 type: FIELDS_CHANGE, NODE_DELETE, RANGE_ADD, RANGE_DELETE getVariables: 取得 mutation 要用的變數,例如新輸入的 text 內容 - routing - 目前看來將與 react-router 配合 # 結論 - 採用 GraphQL/Relay 的考量 → 省掉的部份 - 原本 client 要手工維護的各種 CRUD 與 optimistic update code 皆可省略 → 不能省的部份 - client 還是要寫 RemoveTodoMutation.js 來定義更新 logic - getFatQuery(), getConfigs(), getOptimisticResonpose()等 ← 雖然最後一定是 copy/paste 直接用 ← 並且將來可省掉這步 - server 上要多一份 schema.js ,頗長 - 而且 CRUD 操作要用它定義的 graph connection 語法,要重學 - 目前 GraphQL/Relay 的規格與範例都還在快速演化中,至少等兩個月再進場不遲 - 現階段摸熟 redux 與週邊配套方案效益最高 - 參考 - Falcor - netflix.github.io/falcor/starter/what-is-falcor.html - Netflix 推出,以 JSON graph 為主的解決方案
- Relay 二三事 (David Chang) - https://goo.gl/jzOKfV - Relay-Chat example
(Edward Chen) - https://github.com/transedward/relay-chat
