Ruby Kaigi 2025 - Parsing and generating SQLite's SQL dialect with Ruby

SQLite's popularity is on the rise, and likewise the ecosystem of tools around it is growing. Unfortunately, SQLite does not expose its parser for 3rd parties to use independently. This greatly limits the ability of developers to build tools that must interact with SQLite's SQL dialect. And so, I have hand-written a 100% Ruby, 100% compatible parser for SQLite's SQL dialect. In addition, having a complete AST permits us to also generate SQL queries from terse, structured Ruby code. In this talk, I will demonstrate how we ensure that the parser is 100% compatible with SQLite's SQL dialect. We will also explore how the parser is implemented and what kind of AST it produces. Then, we will dive into how to use the parser to build tools that can analyze and manipulate SQL queries. Finally, we will look at how to use the generator to build tools that can generate SQL queries programmatically. As Ruby's only full SQLite SQL parser, this library opens up a world of possibilities for developers

Transcript

2. Parsing and generating SQLite's SQL dialect with Ruby Stephen Margheim RubyKaigi 2025
3. About me Stephen Margheim
4. About me Stephen Margheim @fractaledmind
5. About me Stephen Margheim @fractaledmind fractaledmind.github.io
6. About me Stephen Margheim @fractaledmind fractaledmind.github.io Regular contributor to:
7. About me Stephen Margheim @fractaledmind fractaledmind.github.io Regular contributor to: rails/rails
8. About me Stephen Margheim @fractaledmind fractaledmind.github.io Regular contributor to: rails/rails sparklemotion/sqlite3-ruby

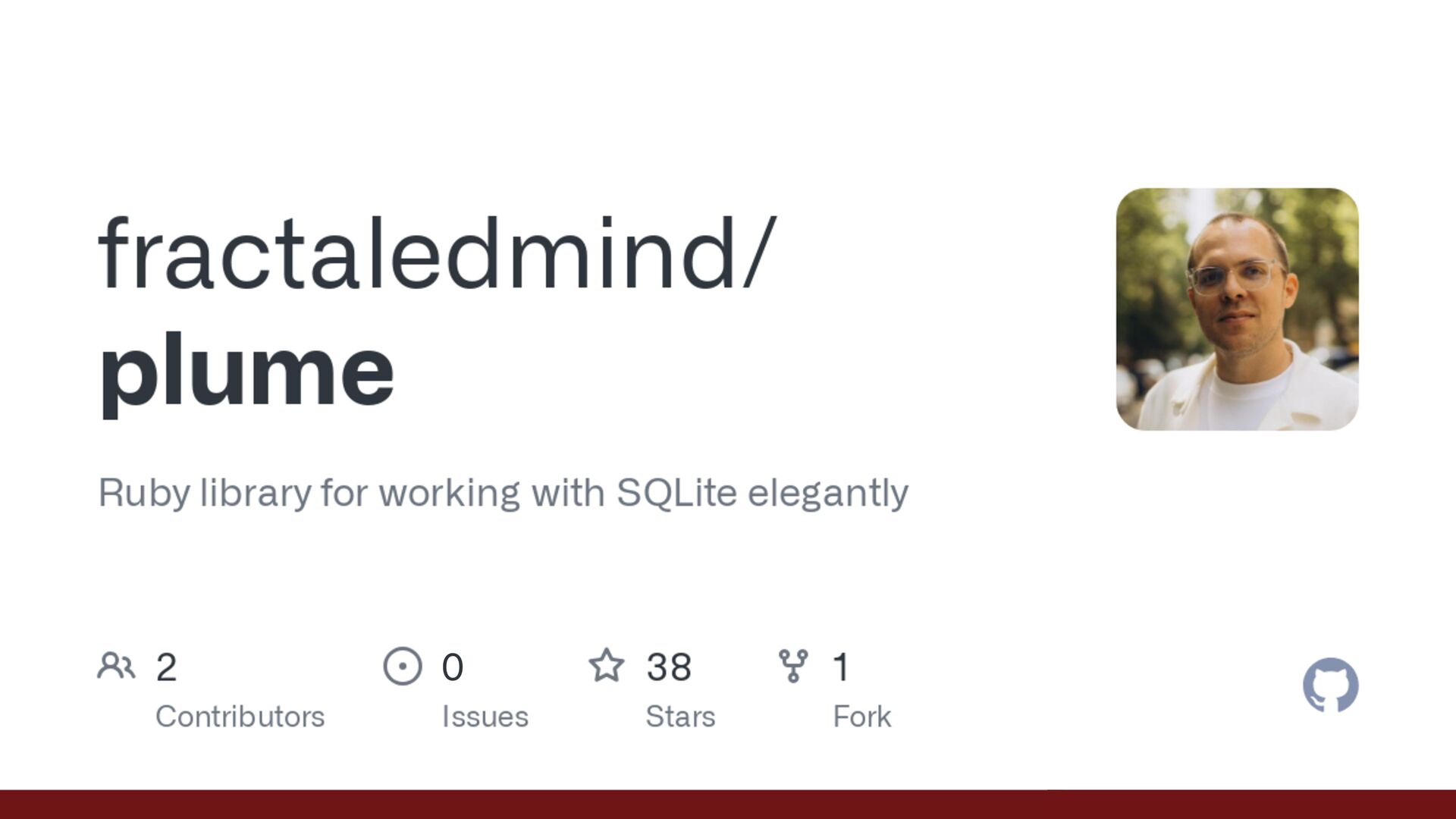

14. 0 https://github.com/fractaledmind/plume

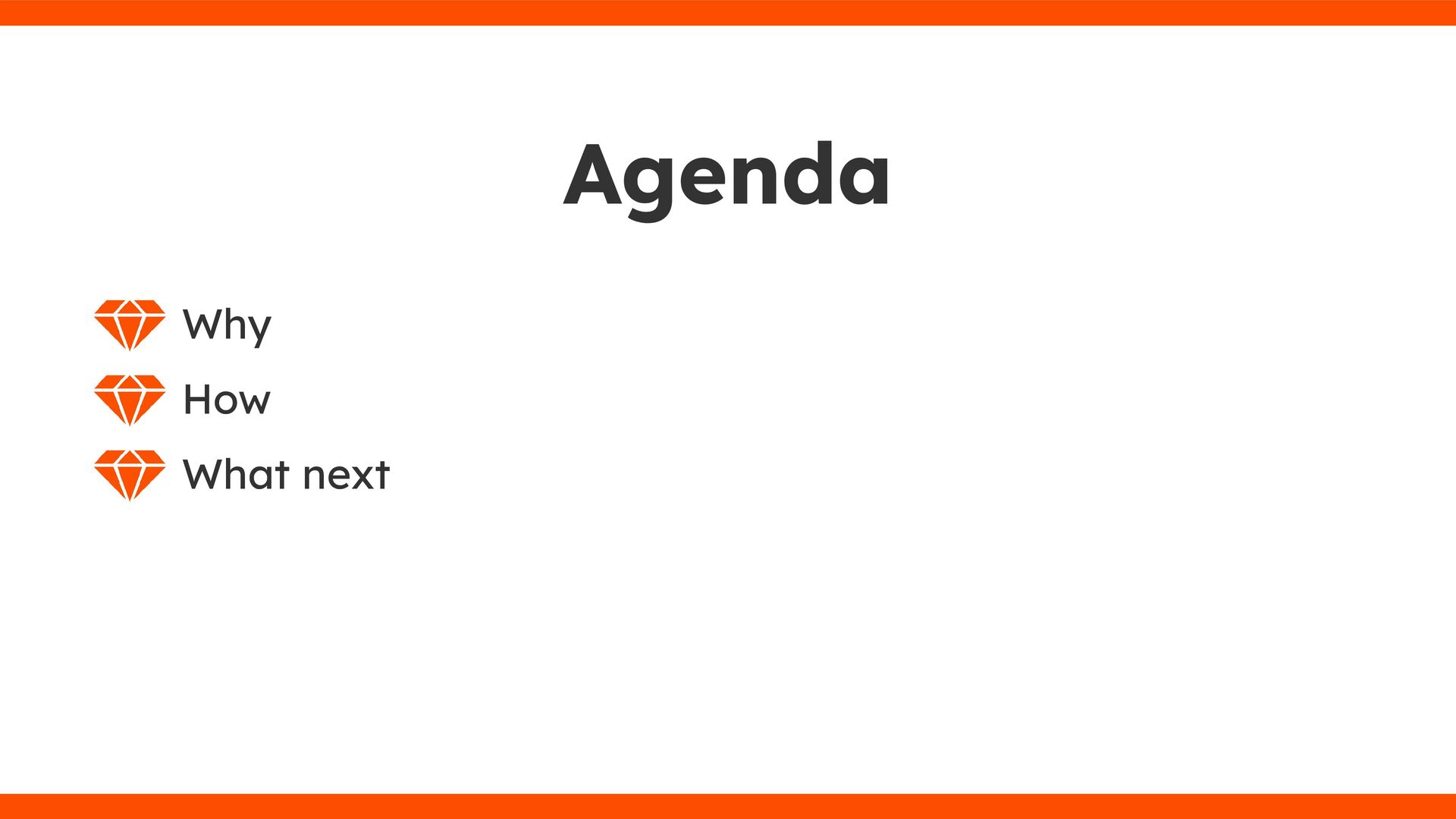

15. Agenda
16. Agenda Why How What next
17. Why
25. CREATE TABLE table ( id INTEGER PRIMARY KEY AUTOINCREMENT, foo TEXT, UNIQUE (id, foo) CHECK (LENGTH(foo) < 10) )

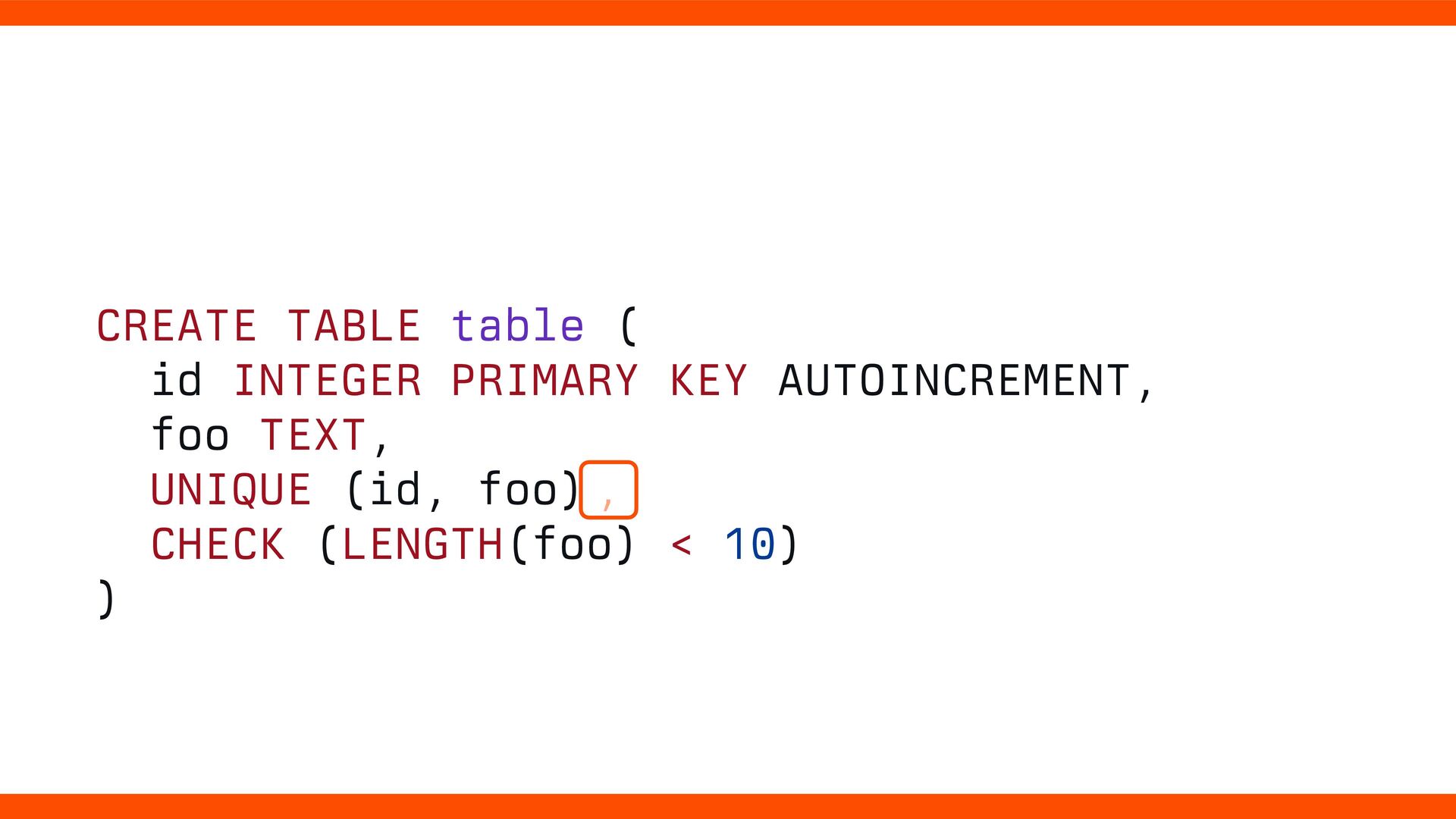

26. CREATE TABLE table ( id INTEGER PRIMARY KEY AUTOINCREMENT, foo TEXT, UNIQUE (id, foo) CHECK (LENGTH(foo) < 10) )
27. CREATE TABLE table ( id INTEGER PRIMARY KEY AUTOINCREMENT, foo TEXT, UNIQUE (id, foo) CHECK (LENGTH(foo) < 10) ) ,
31. Compatibility is king
32. Compatibility is king 👑

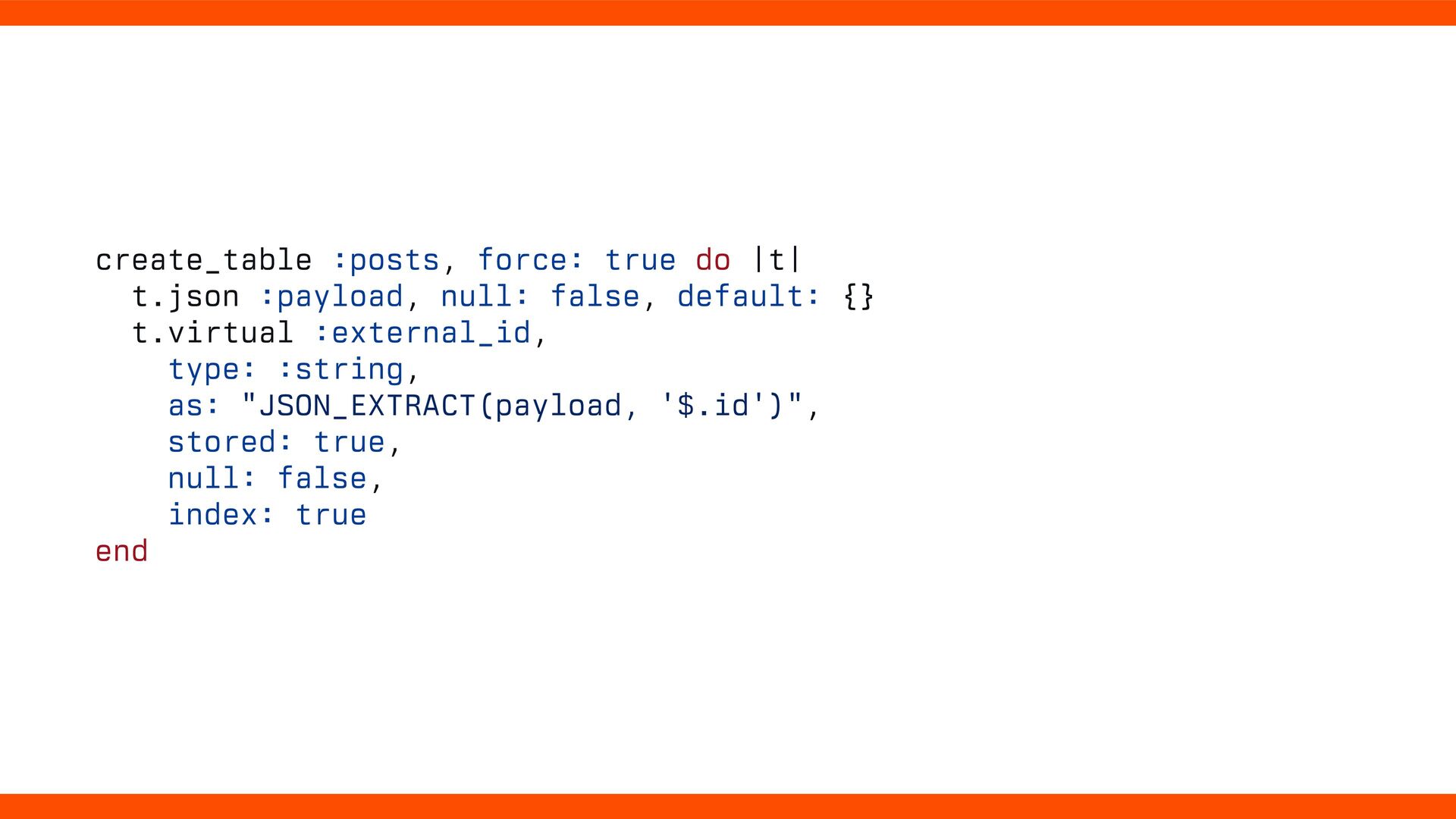

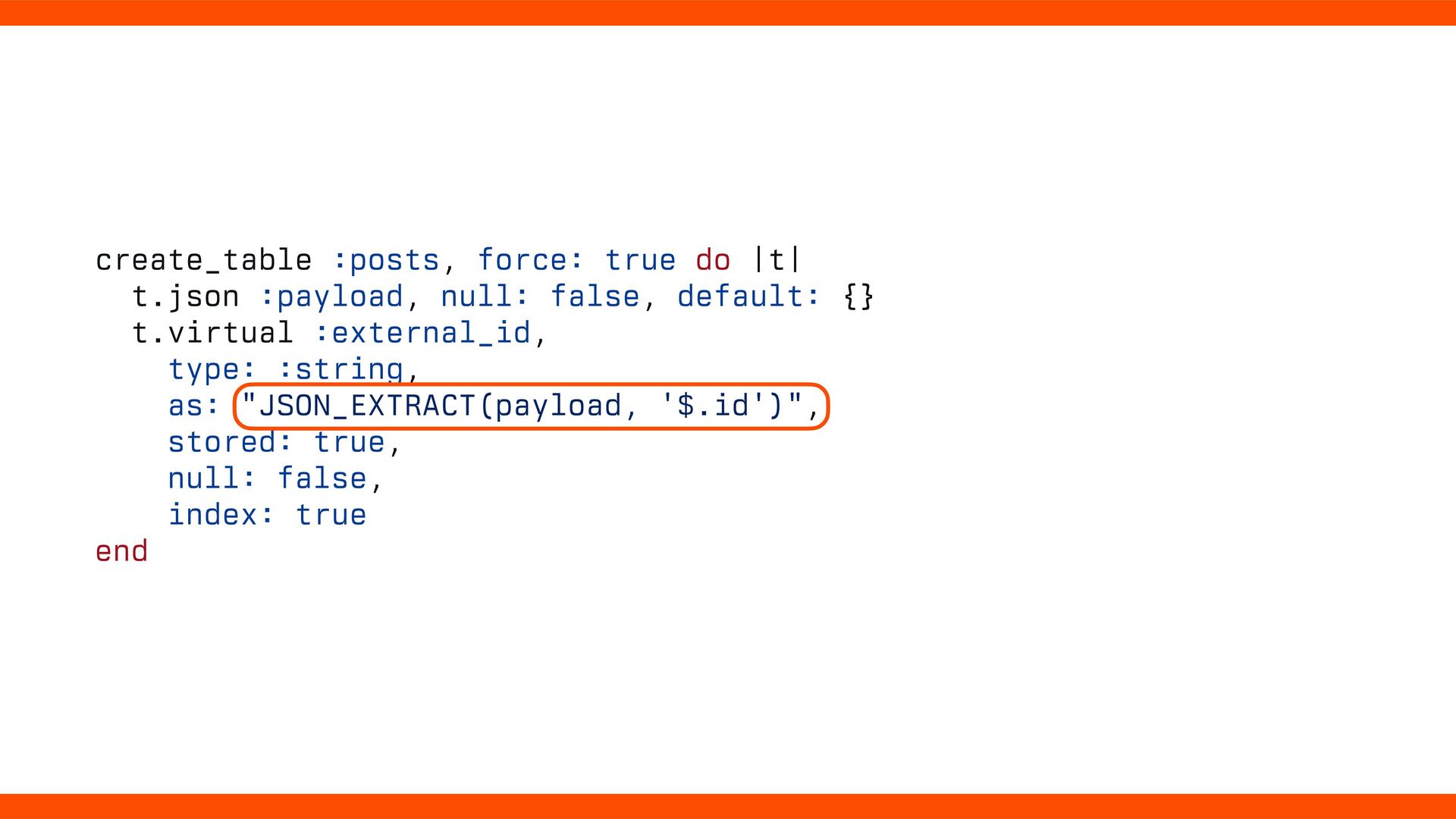

42. create_table :posts, force: true do |t| t.json :payload, null: false, default: {} t.virtual :external_id, type: :string, as: "JSON_EXTRACT(payload, '$.id')", stored: true, null: false, index: true end
43. create_table :posts, force: true do |t| t.json :payload, null: false, default: {} t.virtual :external_id, type: :string, as: "JSON_EXTRACT(payload, '$.id')", stored: true, null: false, index: true end
44. # Splitting with left parentheses and discarding the first part will return all columns separated with comma(,). result.partition(UNQUOTED_OPEN_PARENS_REGEX) .last .sub(FINAL_CLOSE_PARENS_REGEX, "") .split(",") .map(&:strip)

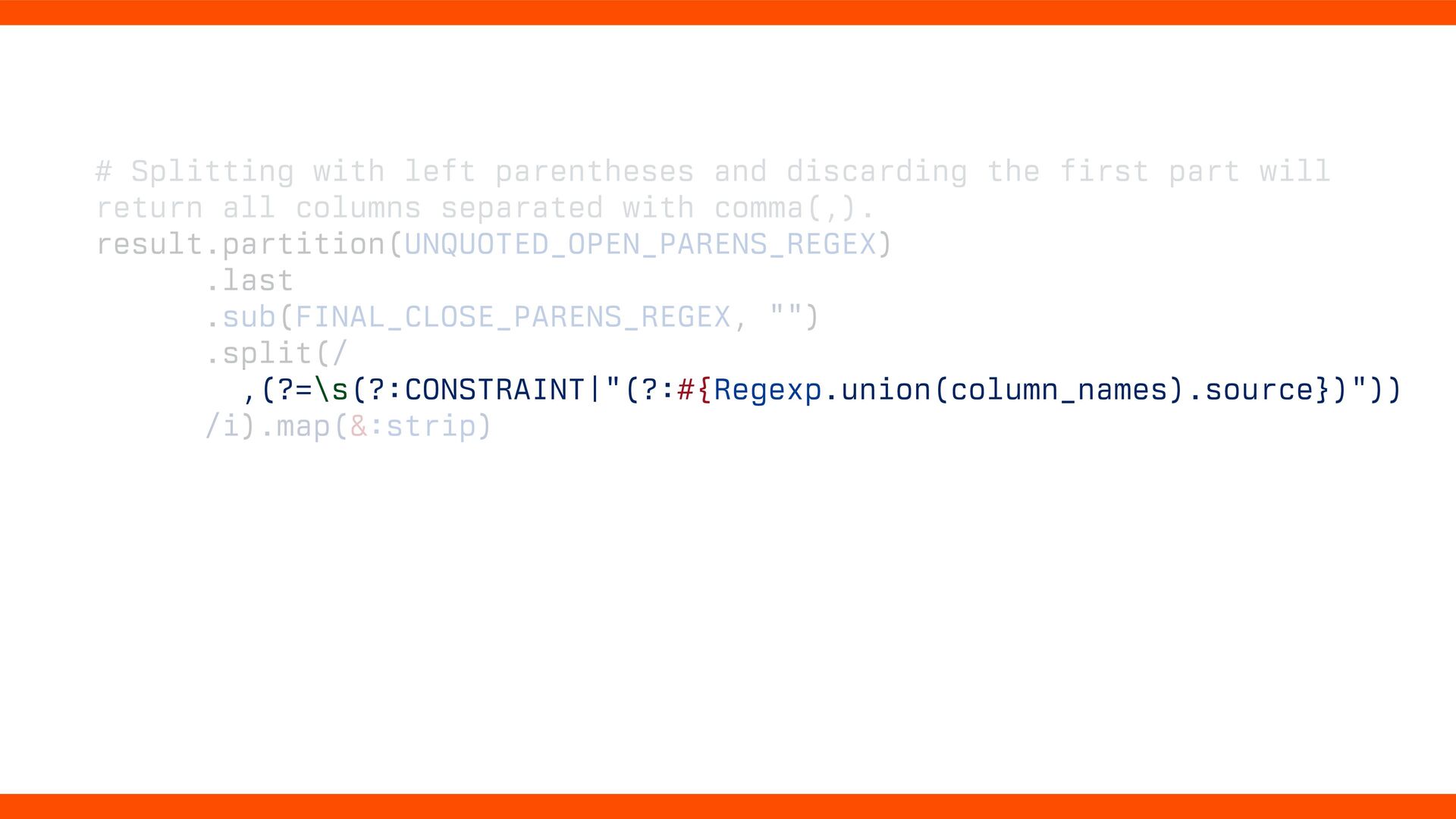

45. # Splitting with left parentheses and discarding the first part will return all columns separated with comma(,). result.partition(UNQUOTED_OPEN_PARENS_REGEX) .last .sub(FINAL_CLOSE_PARENS_REGEX, "") .split(/ ,(?=\s(?:CONSTRAINT|"(?:#{Regexp.union(column_names).source})")) /i).map(&:strip)

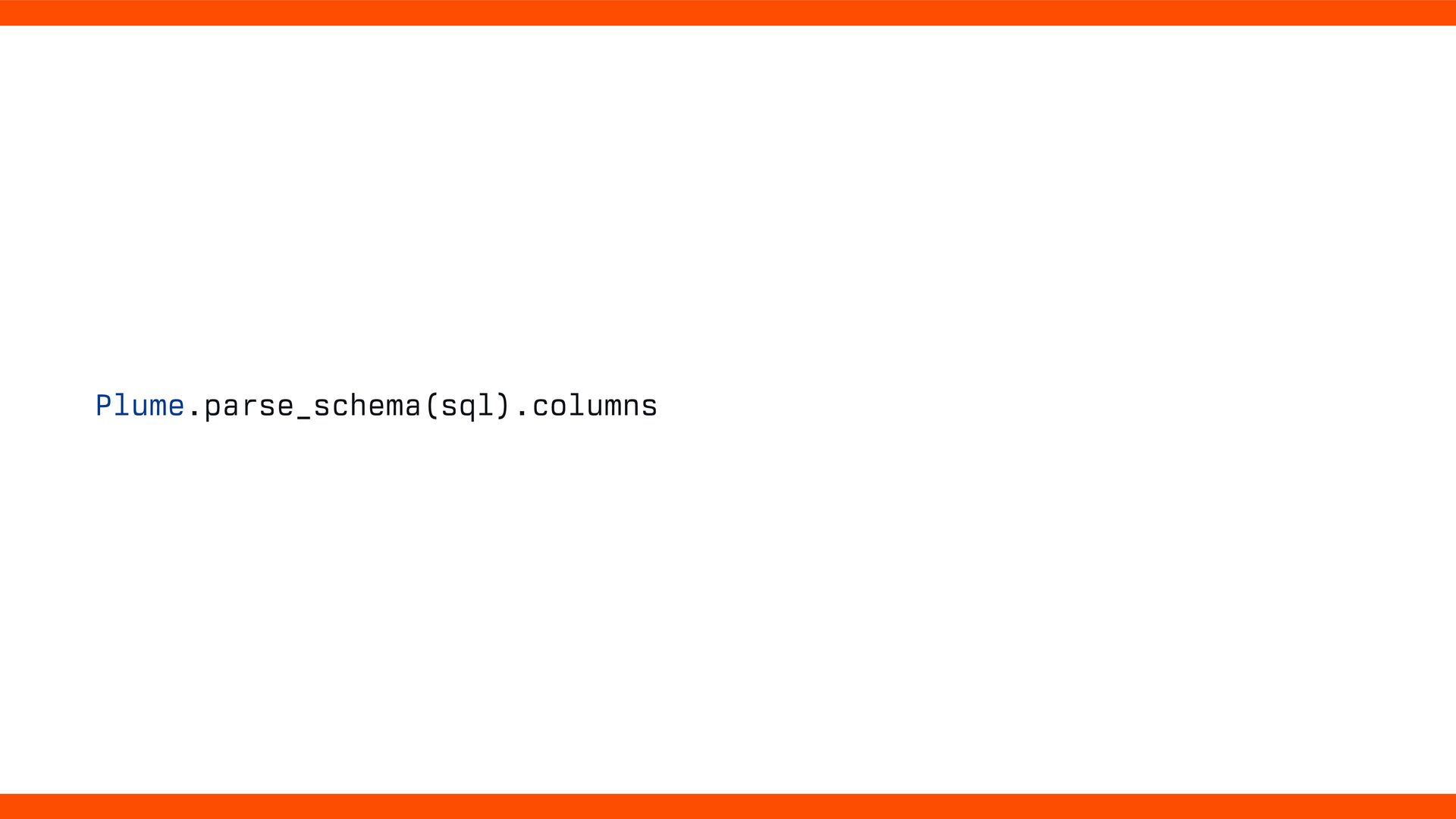

47. Plume.parse_schema(sql).columns
48. Why Foundation for next wave of SQLite tooling Secure Rails’ foundation for introspecting SQLite (?) Challenge myself
49. How

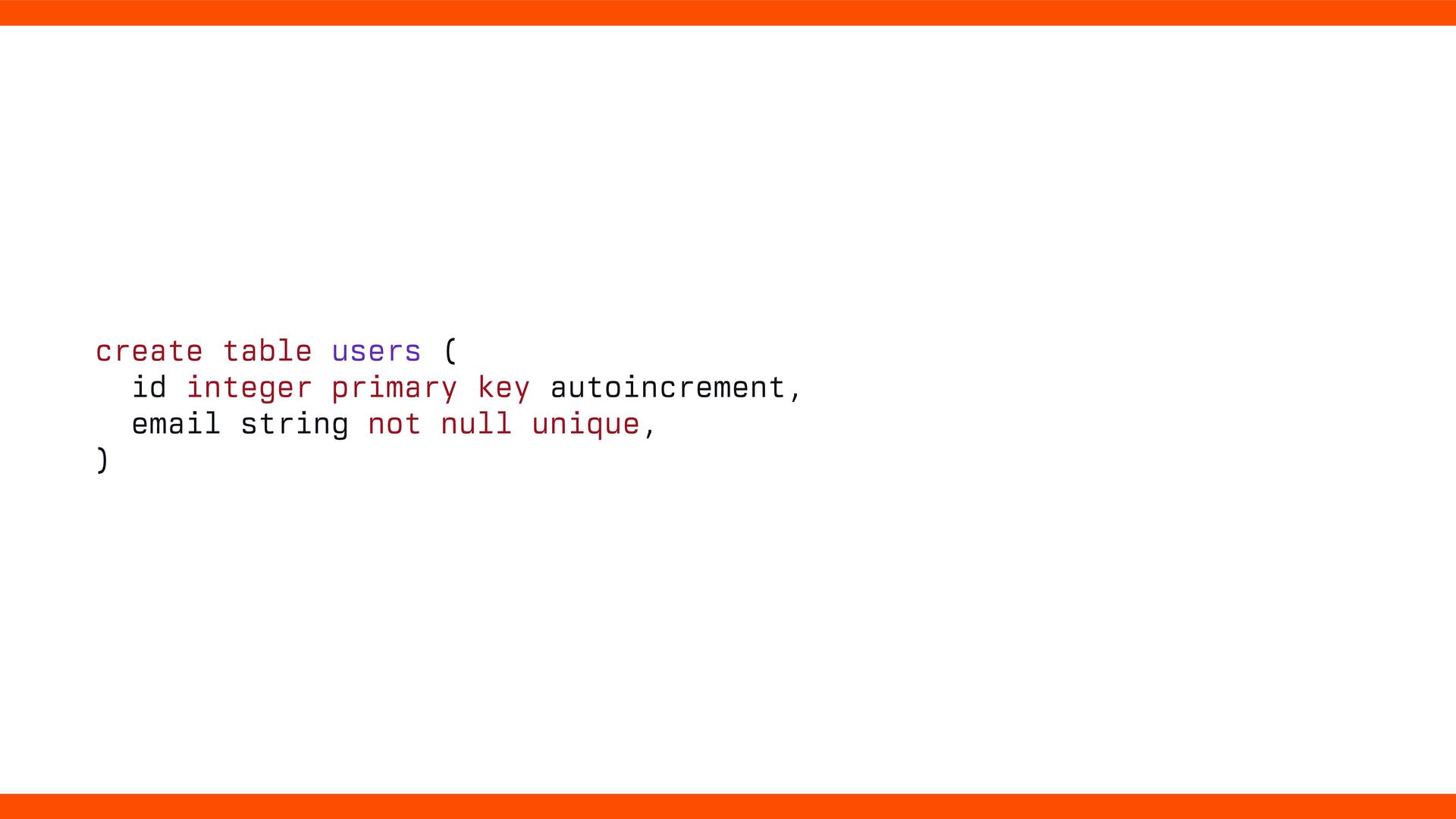

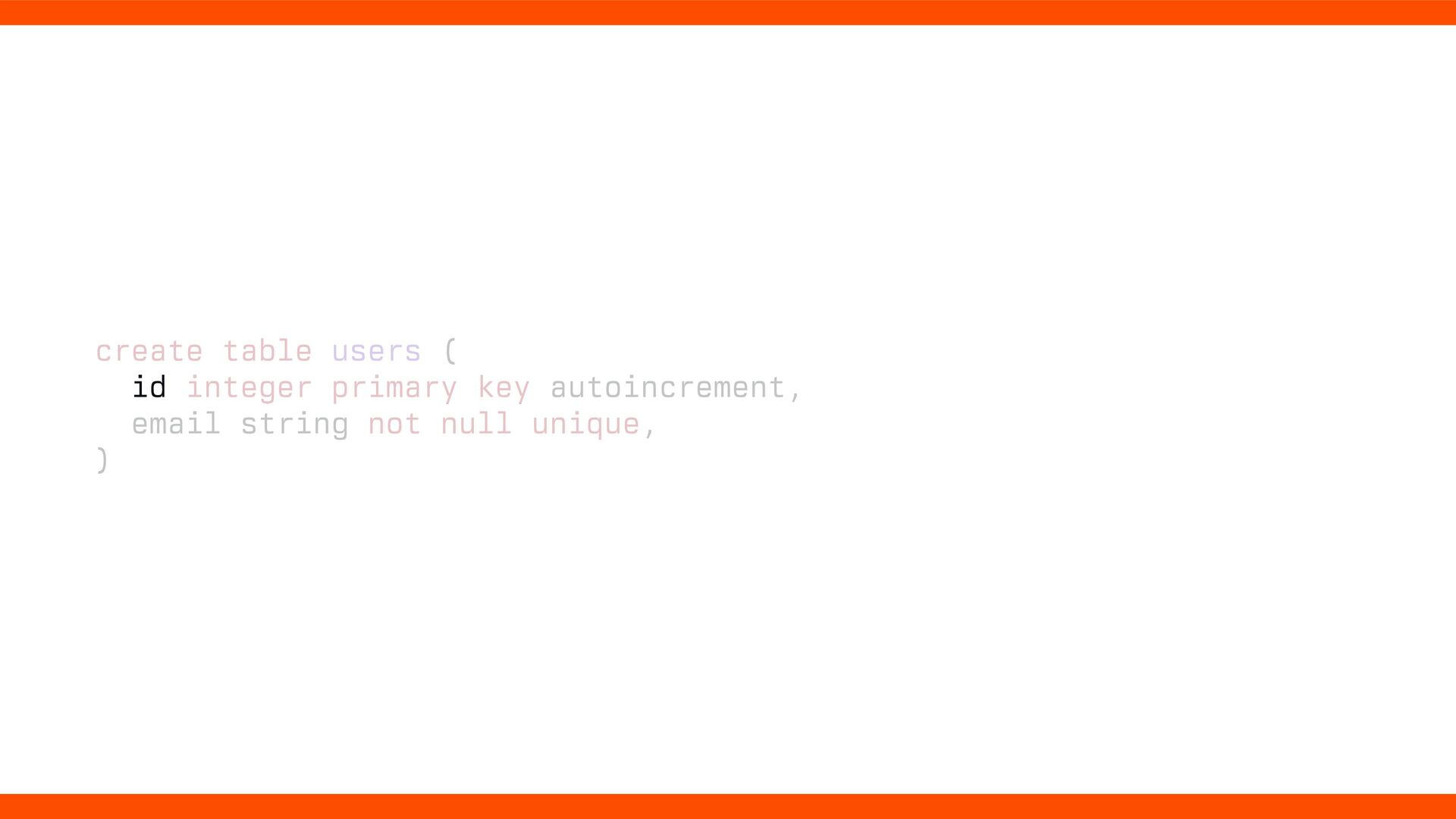

50. create table users ( id integer primary key autoincrement, email string not null unique, )

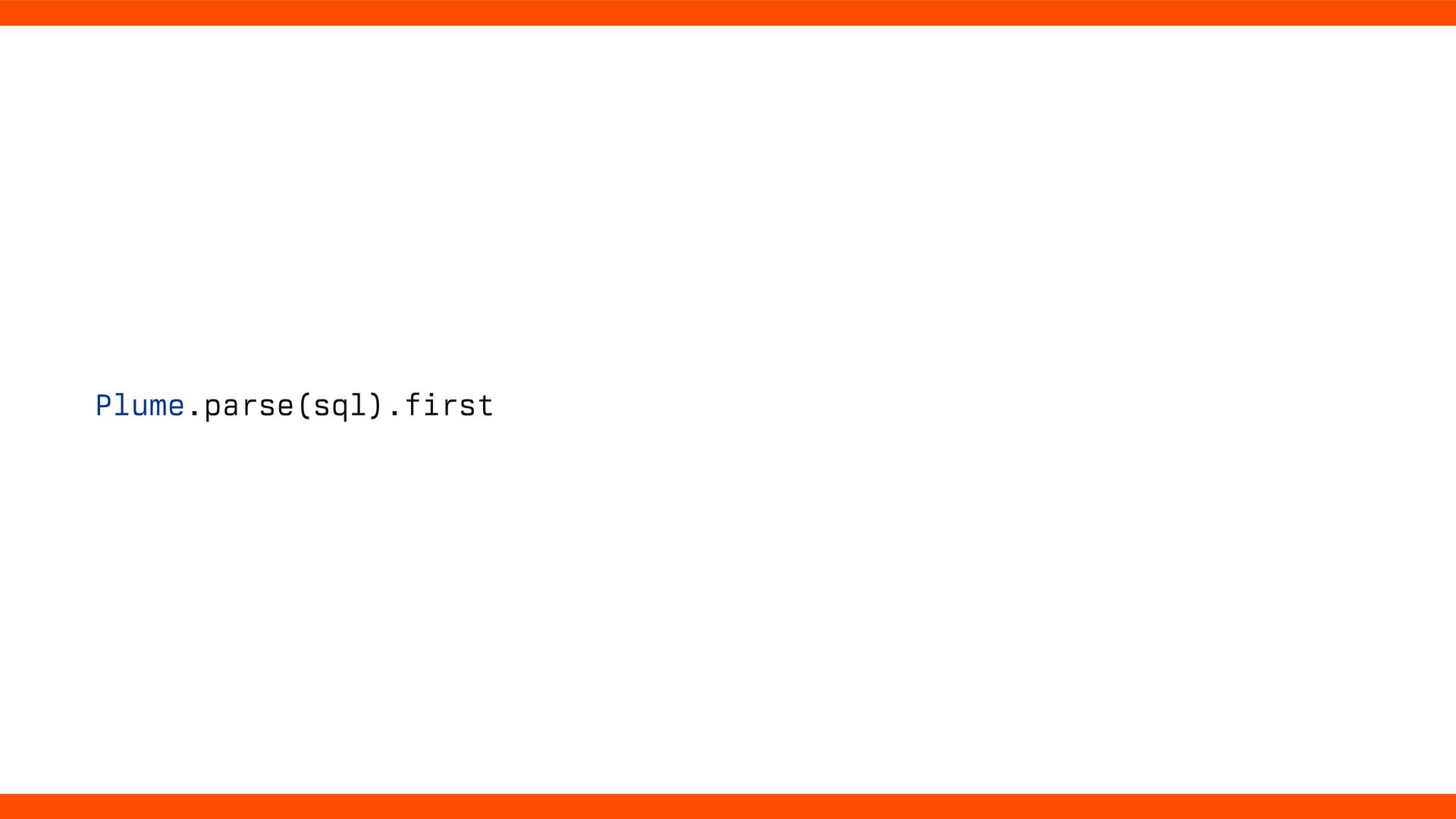

51. Plume.parse(sql).first
52. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

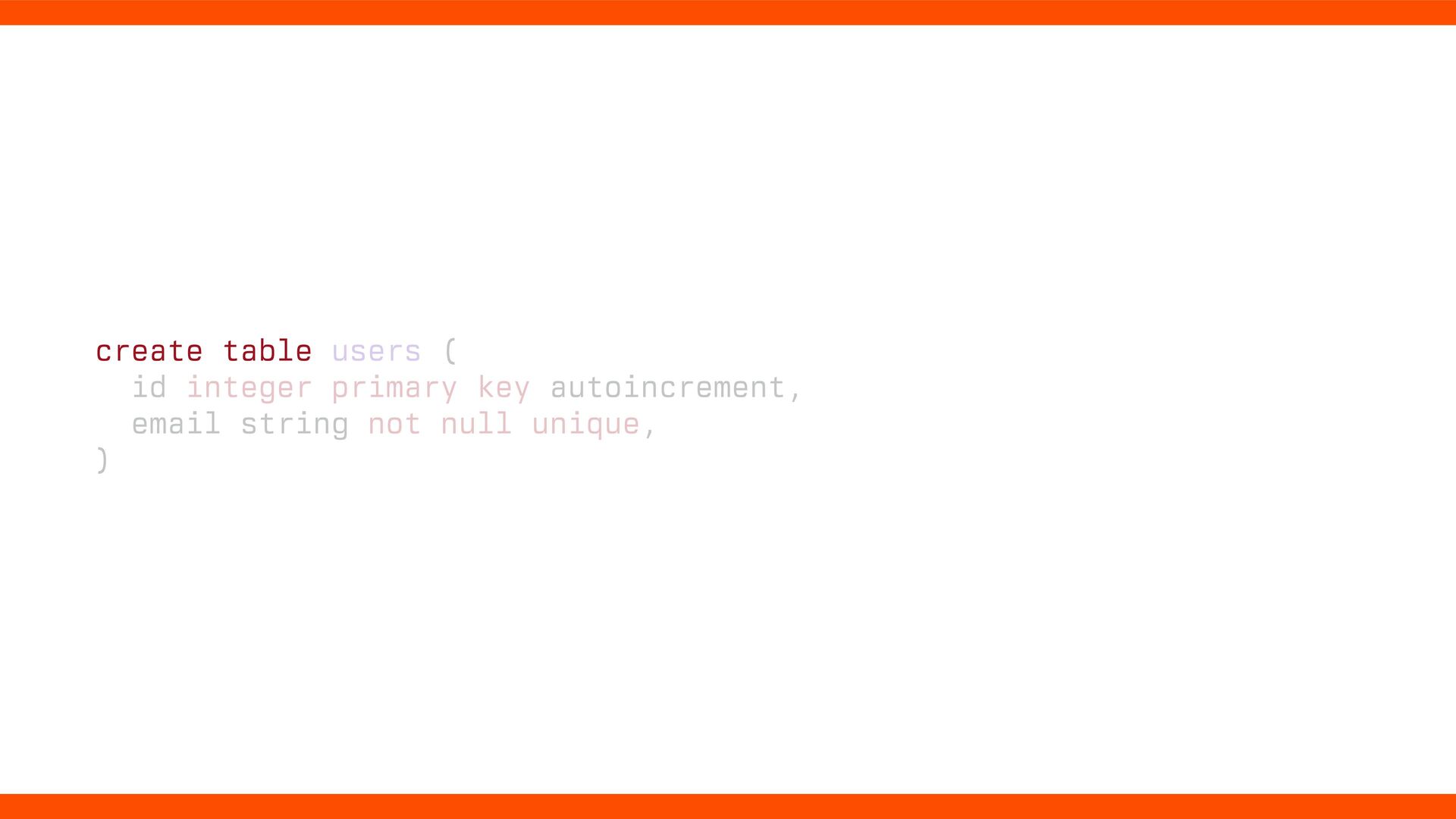

53. create table users ( id integer primary key autoincrement, email string not null unique, )

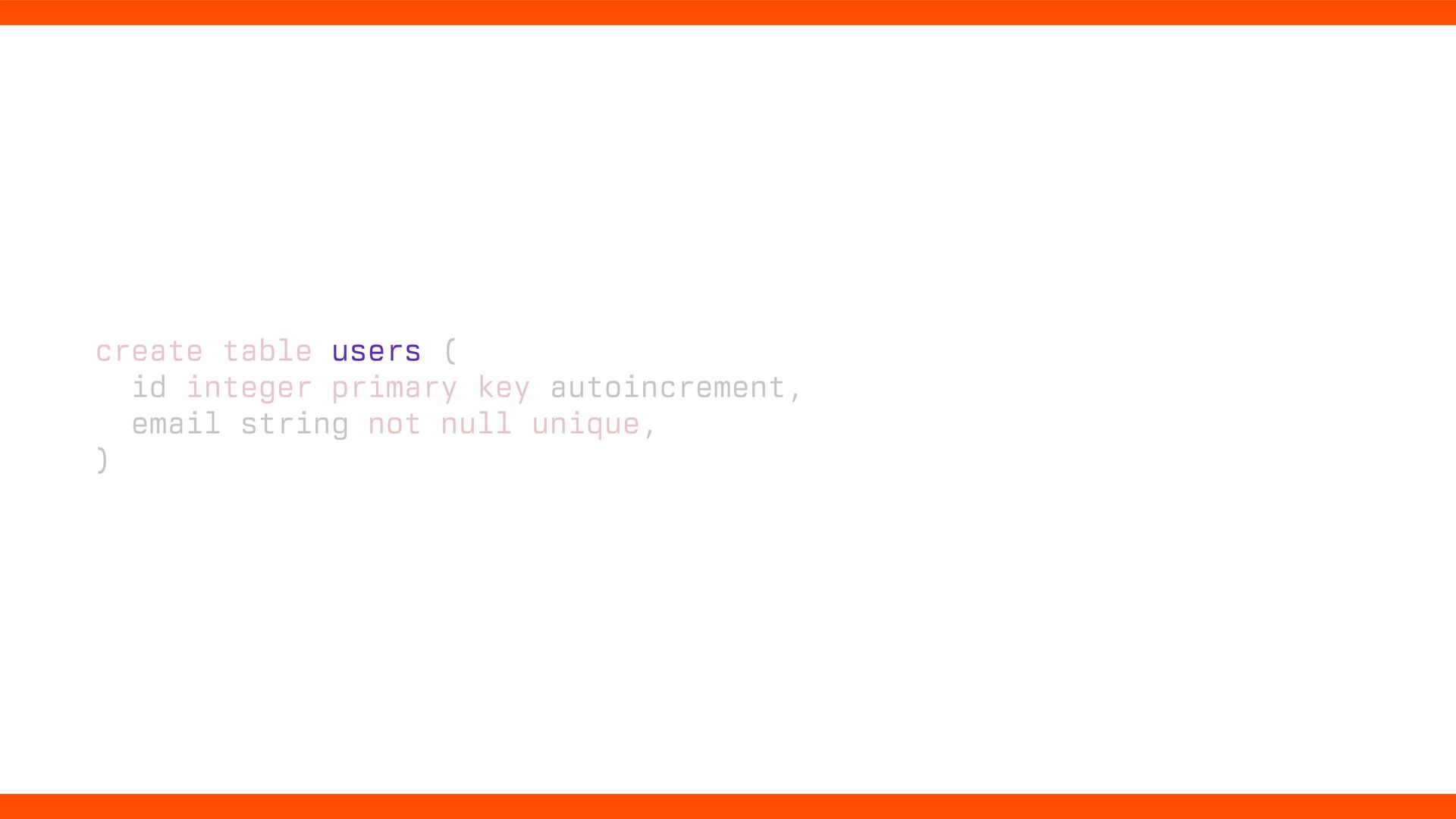

54. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )
55. create table users ( id integer primary key autoincrement, email string not null unique, )

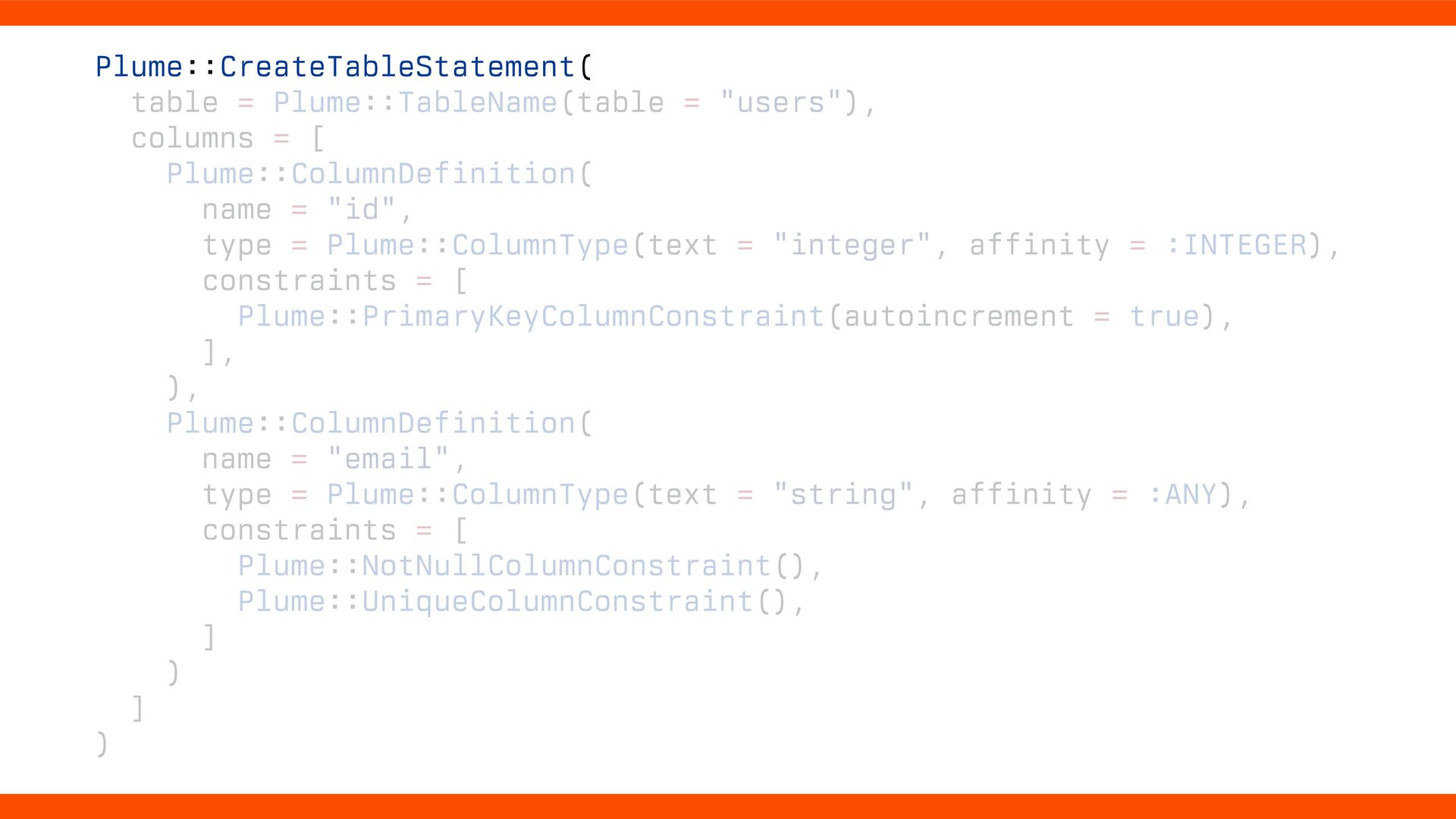

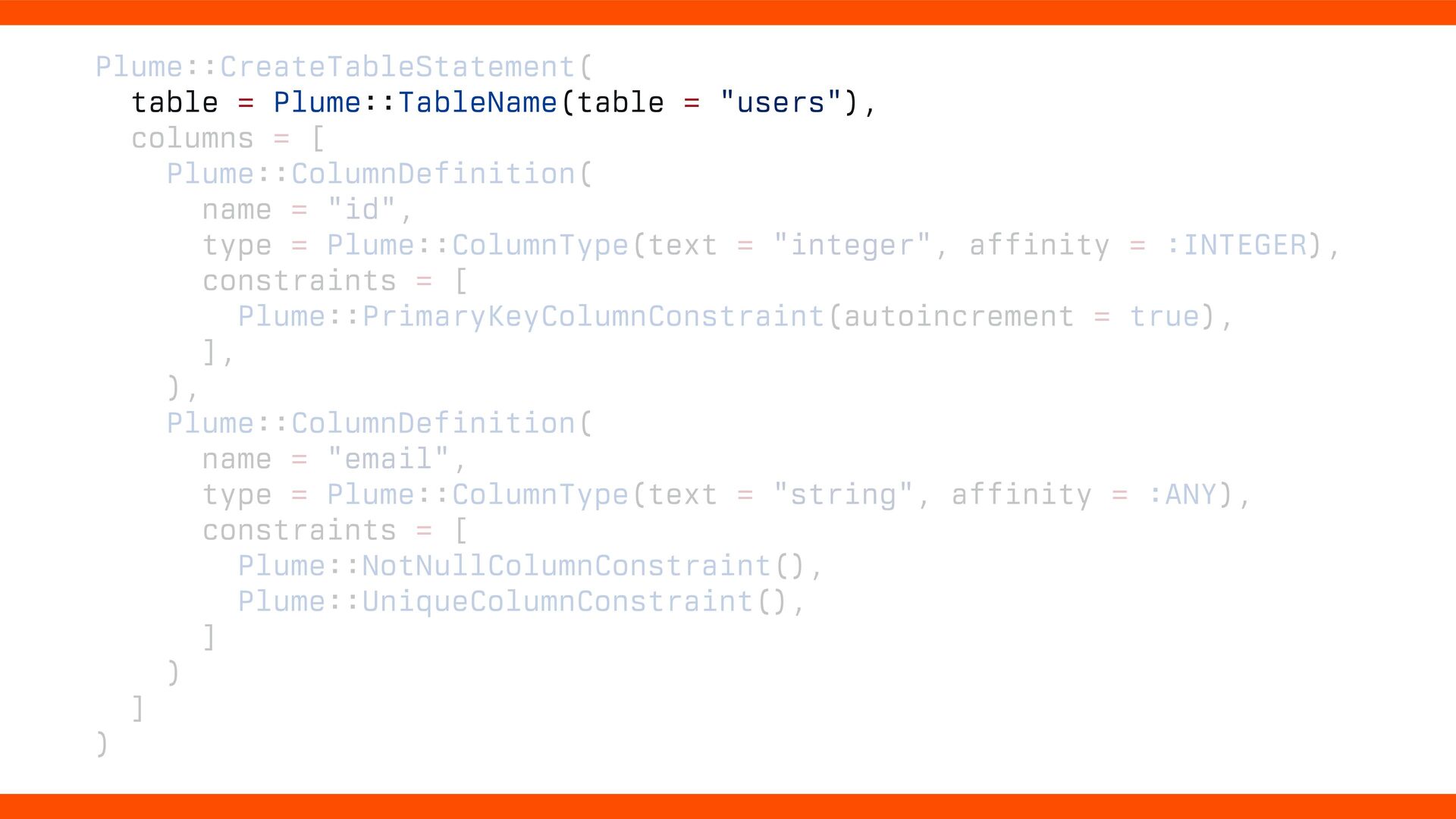

56. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

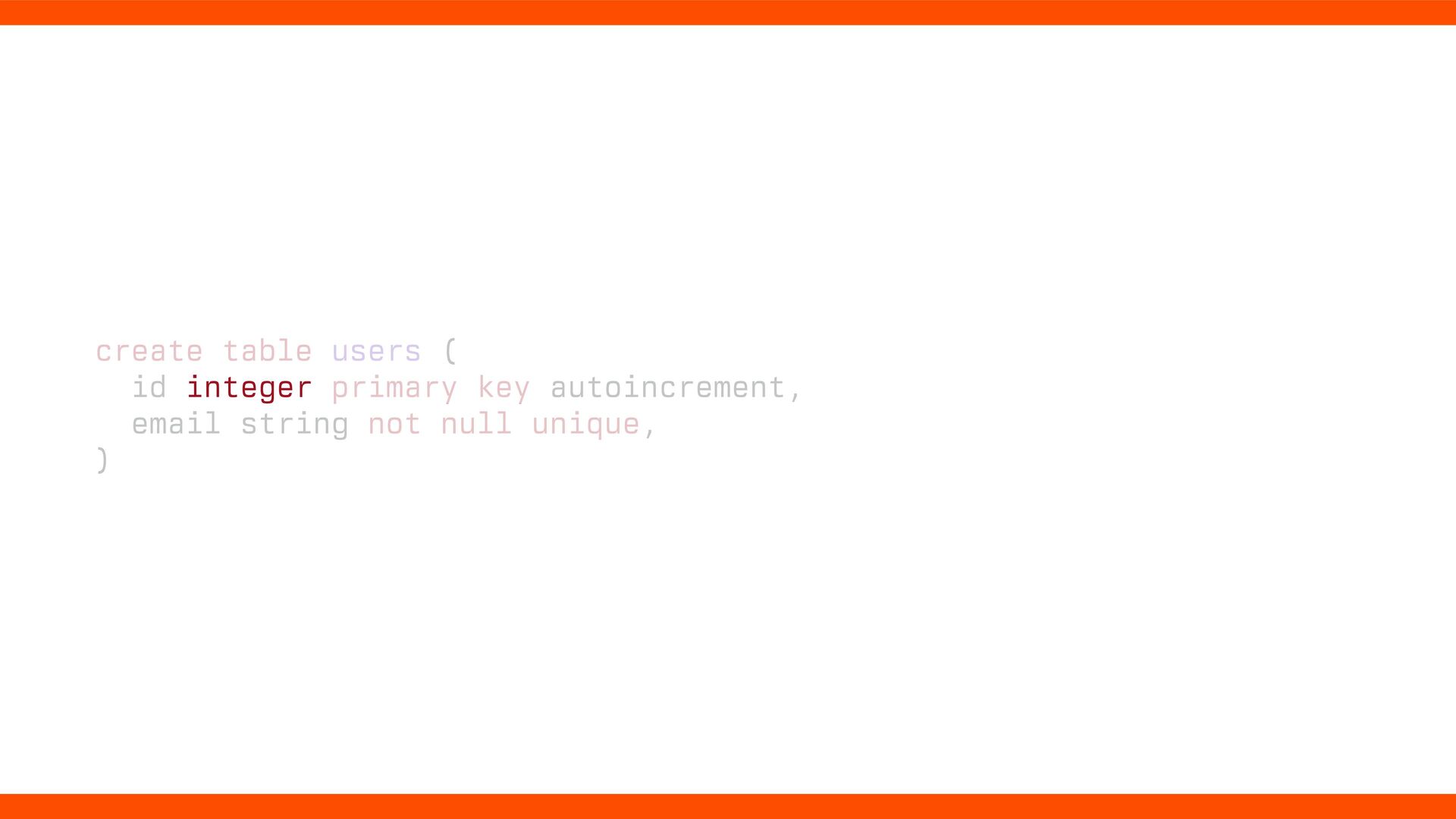

57. create table users ( id integer primary key autoincrement, email string not null unique, )

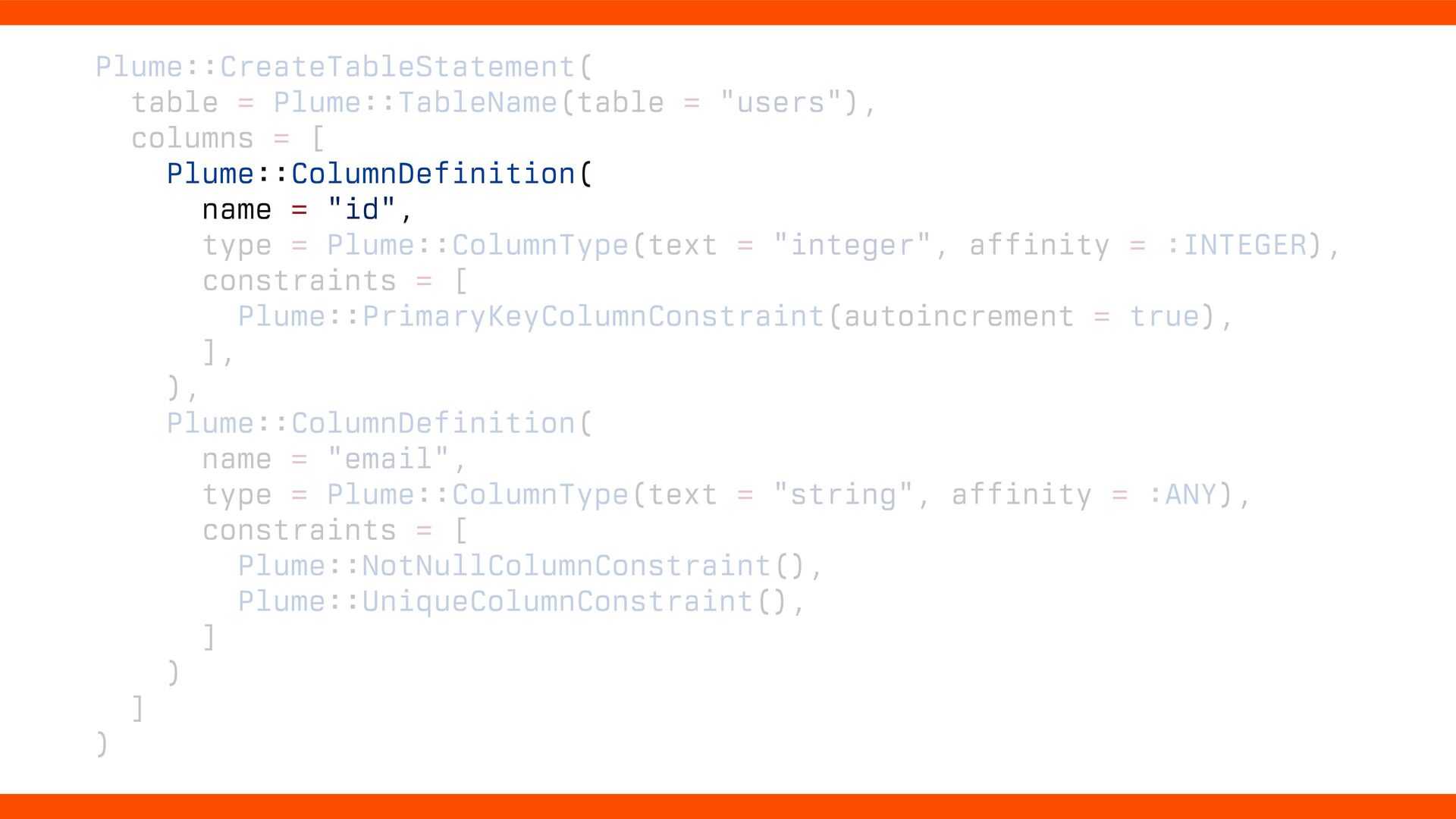

58. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

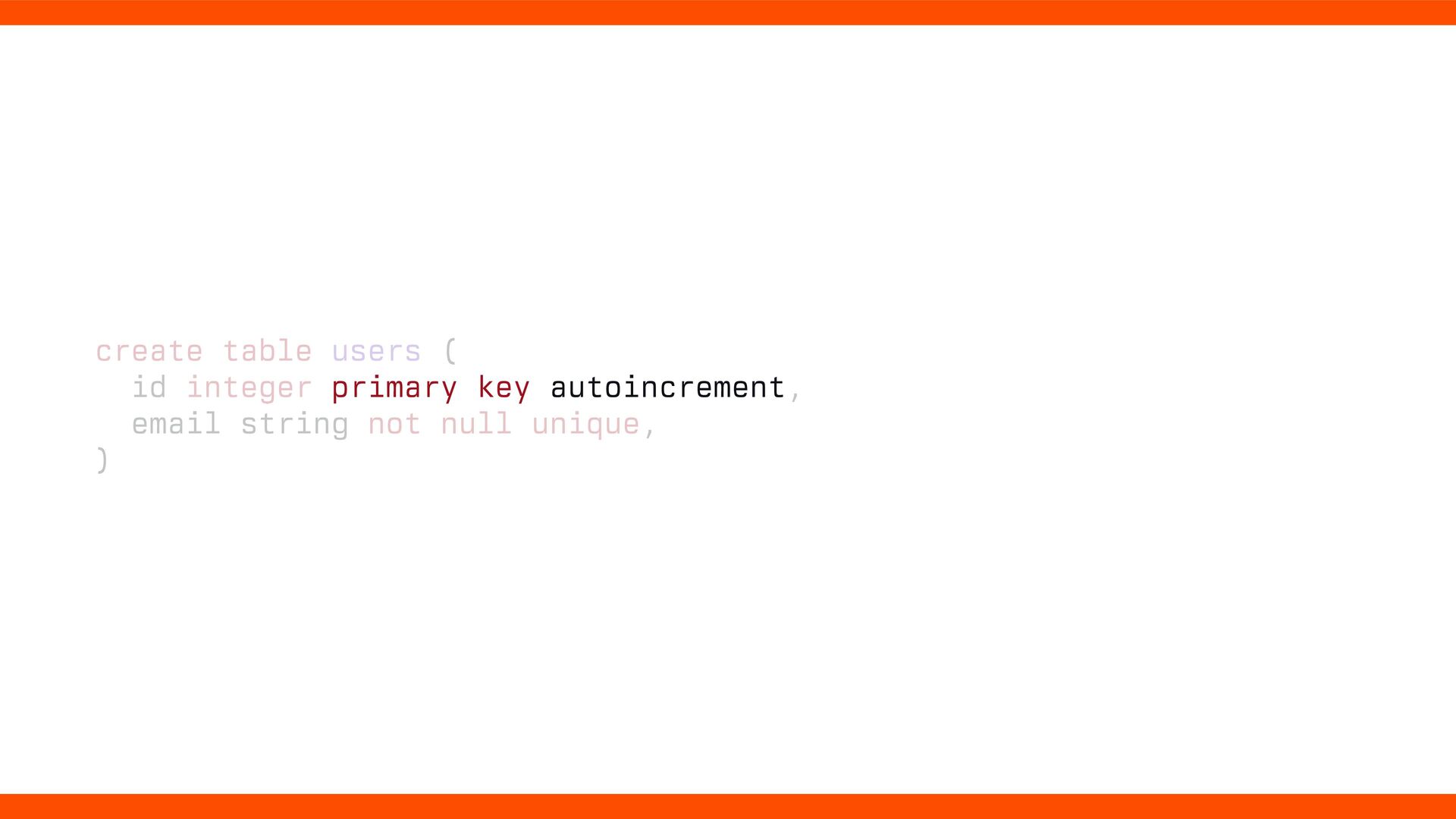

59. create table users ( id integer primary key autoincrement, email string not null unique, )
60. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

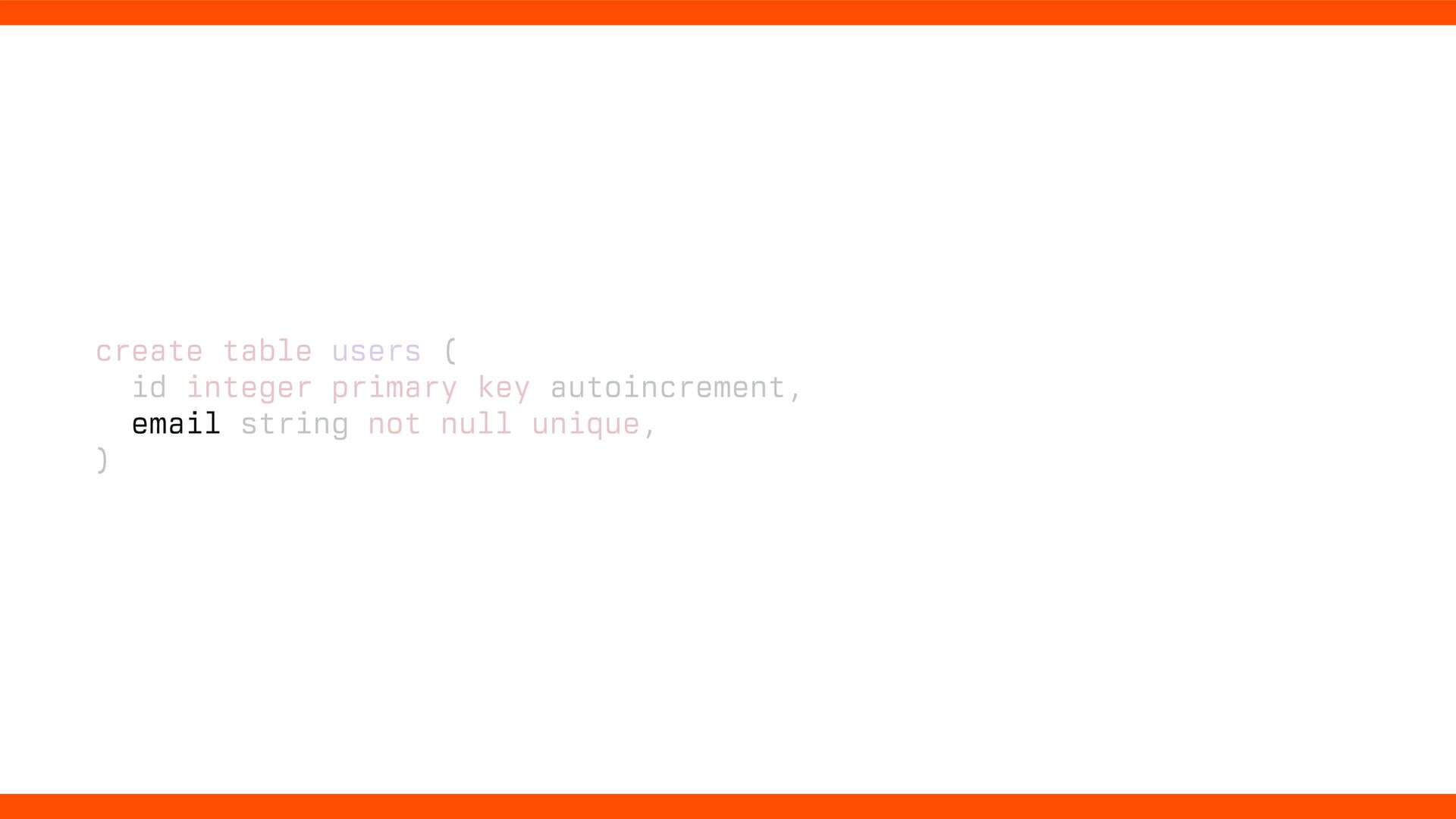

61. create table users ( id integer primary key autoincrement, email string not null unique, )

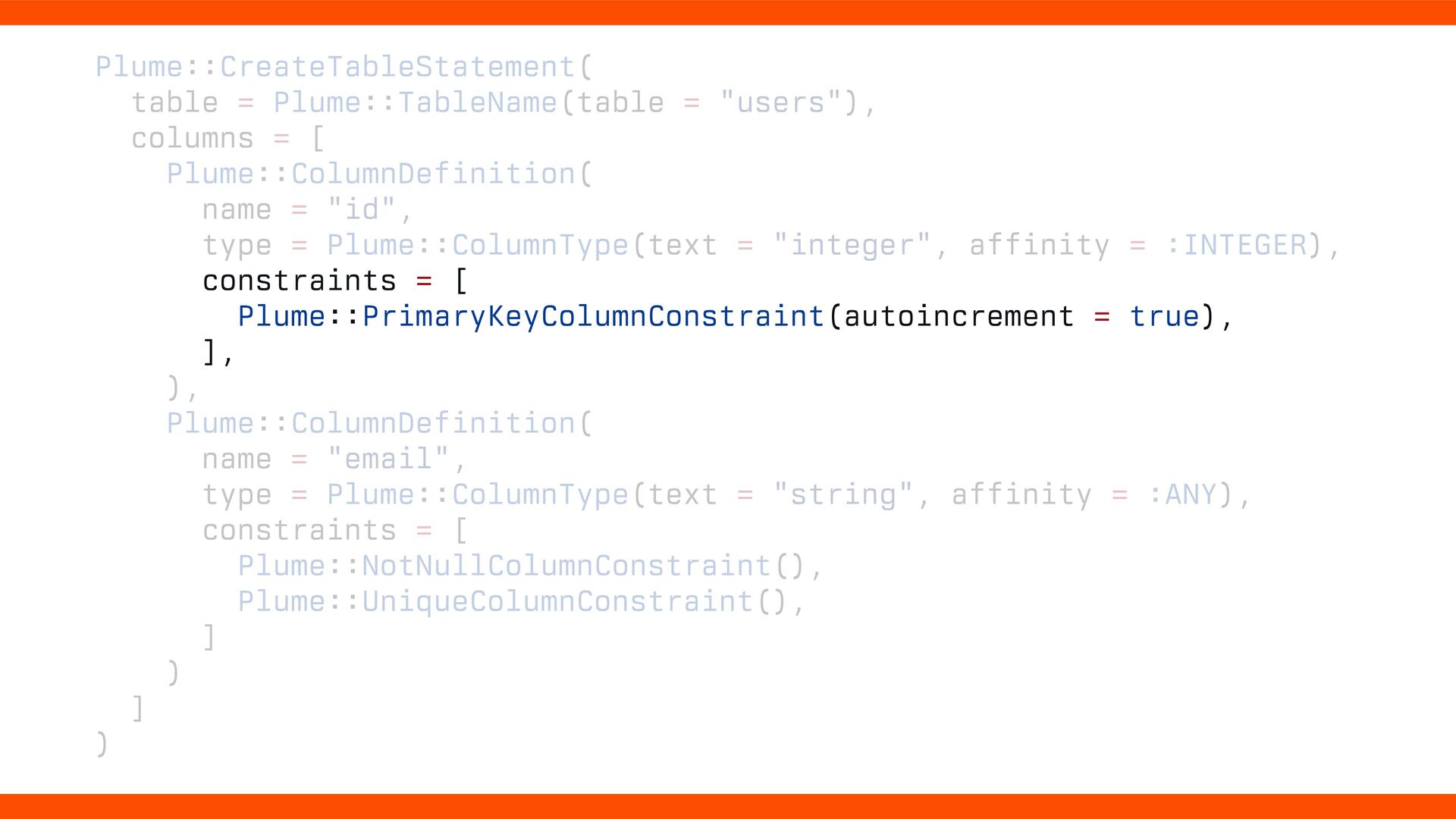

62. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )
63. create table users ( id integer primary key autoincrement, email string not null unique, )

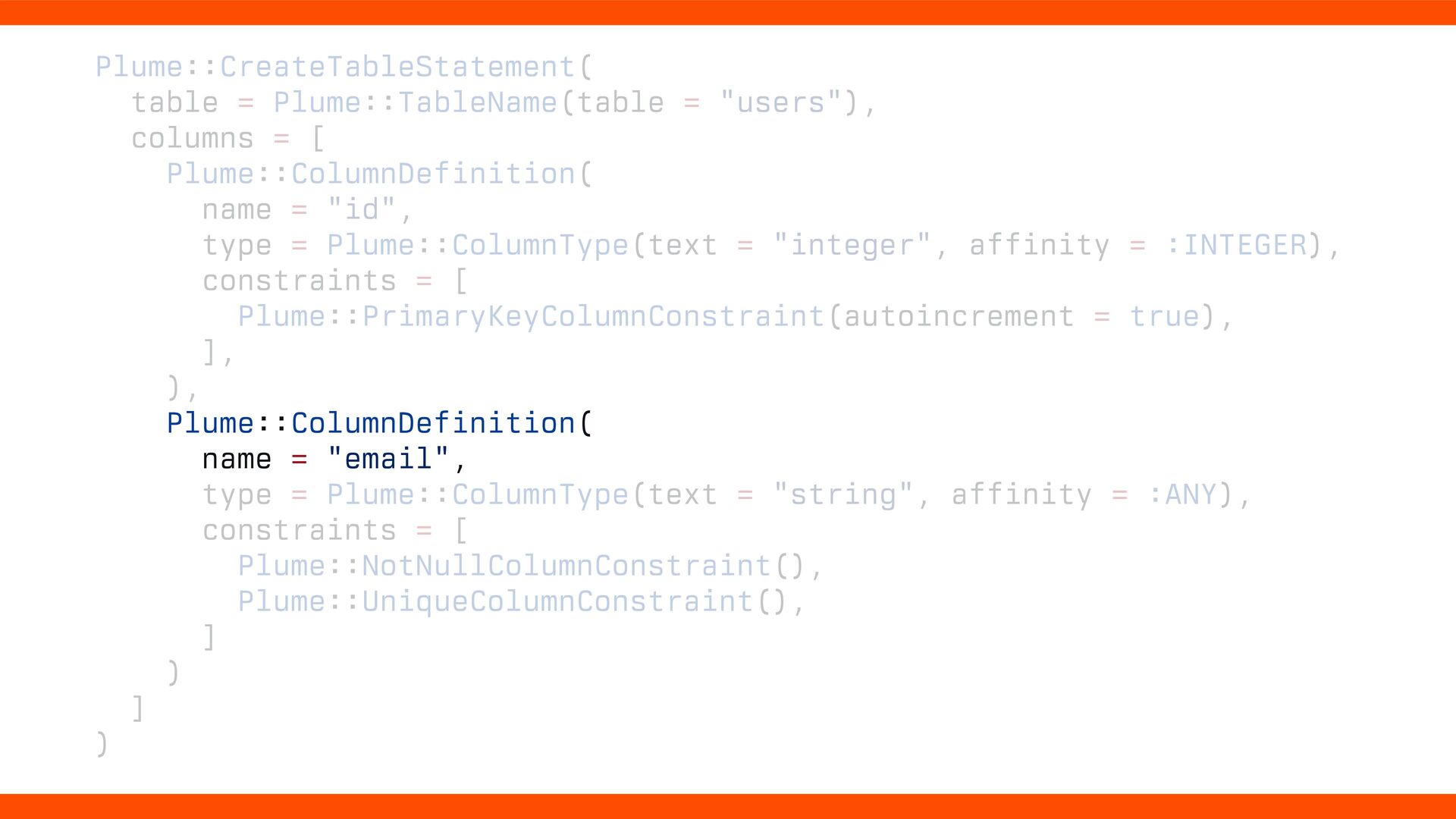

64. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

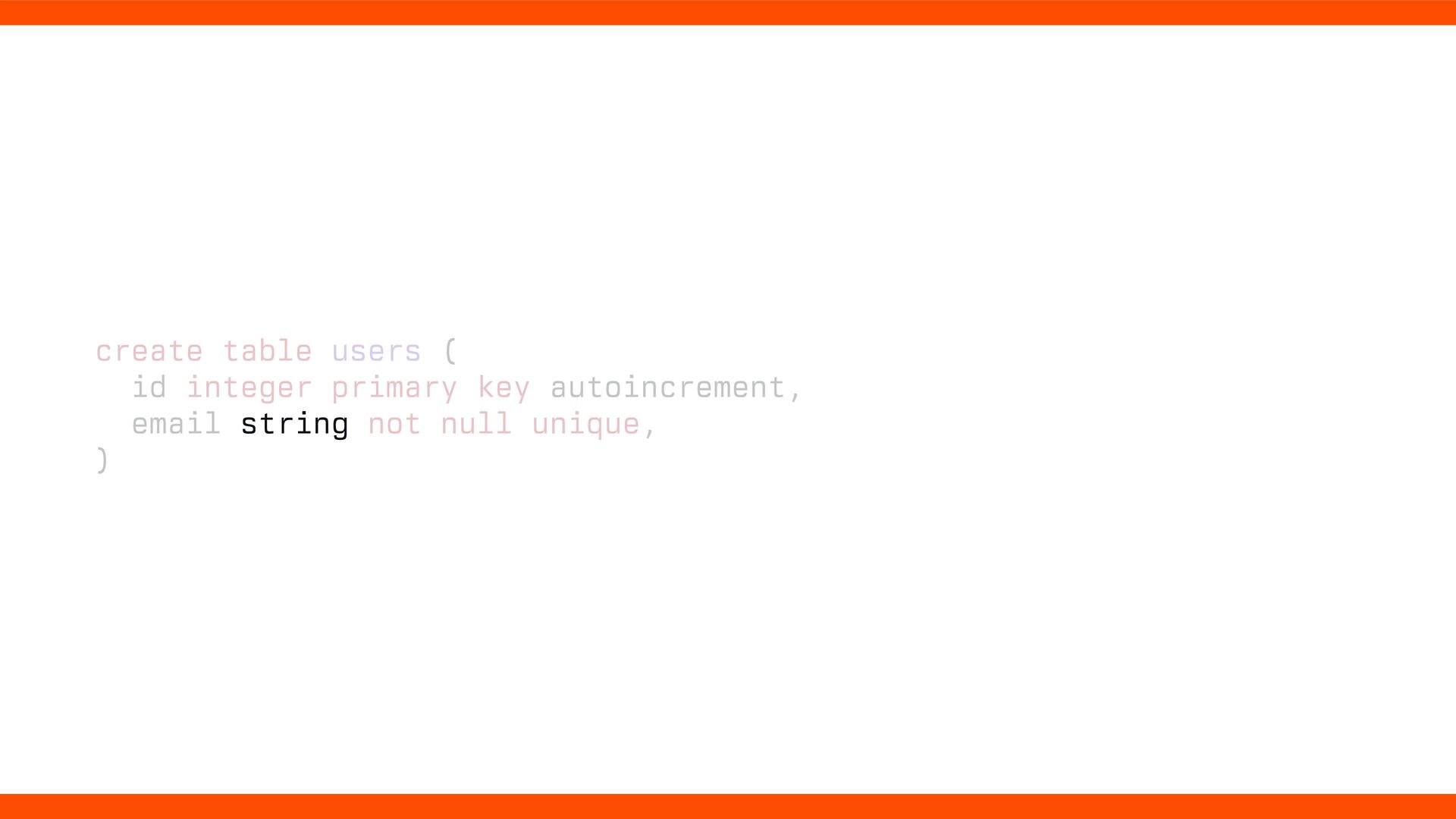

65. create table users ( id integer primary key autoincrement, email string not null unique, )

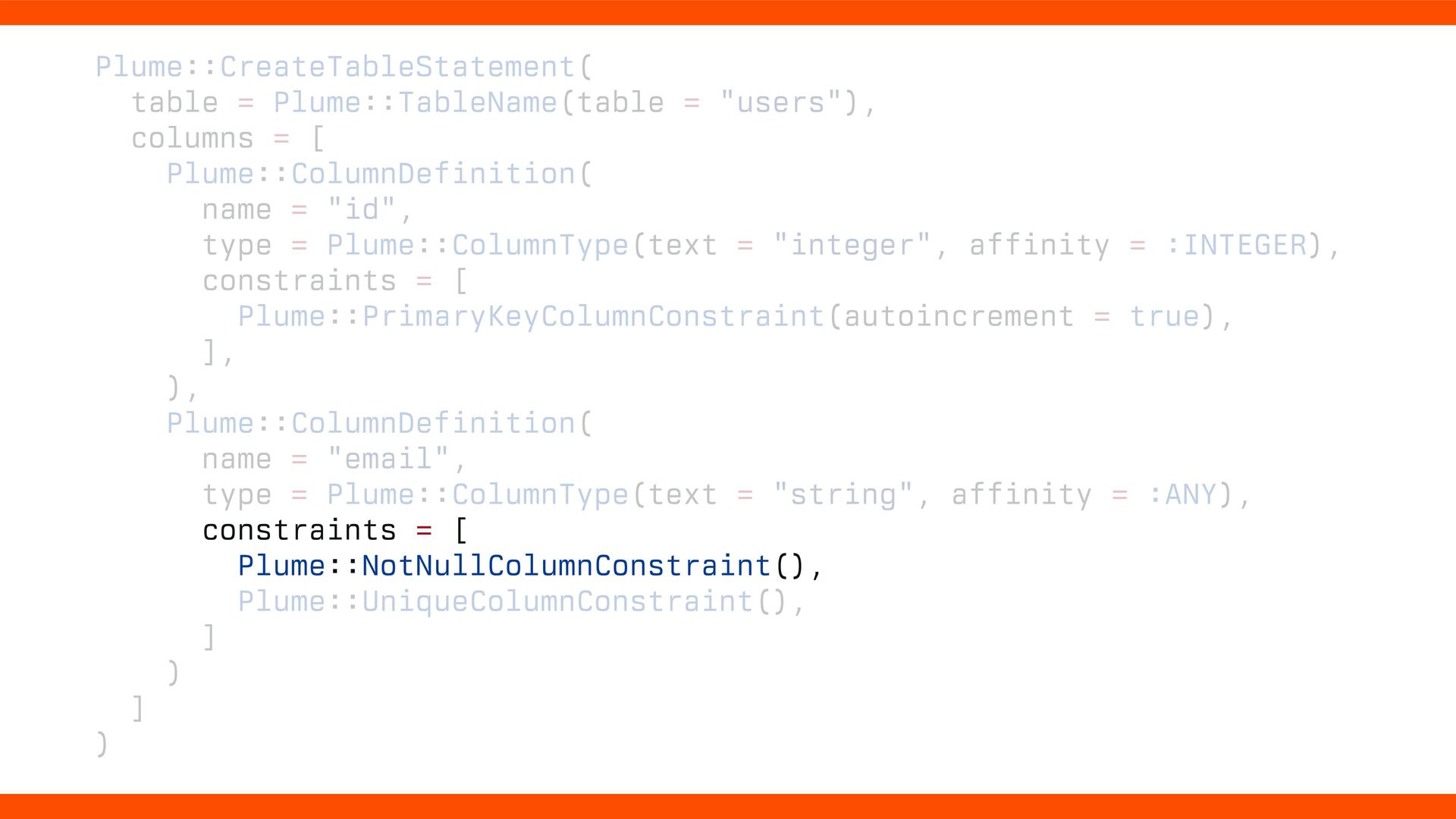

66. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

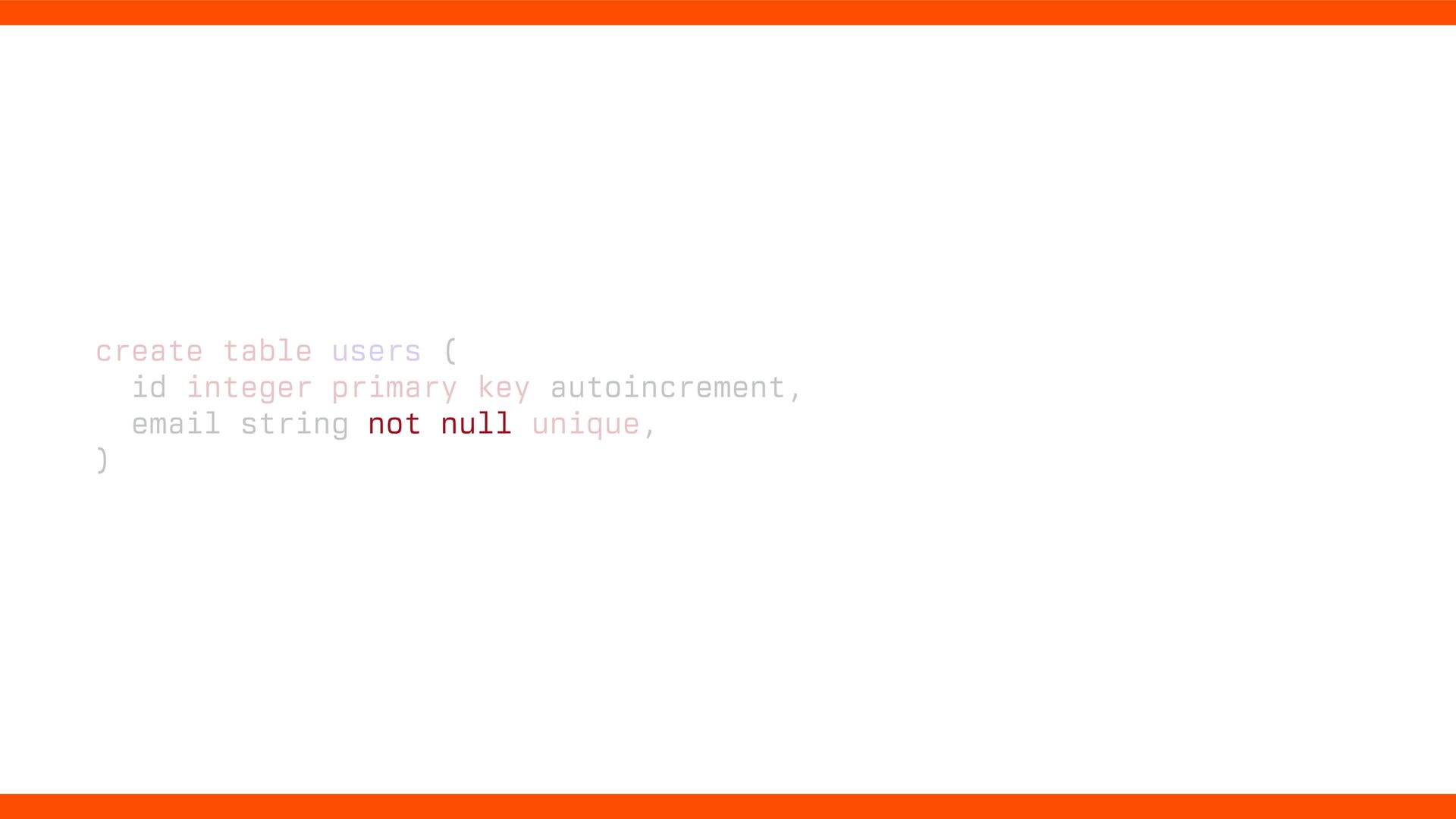

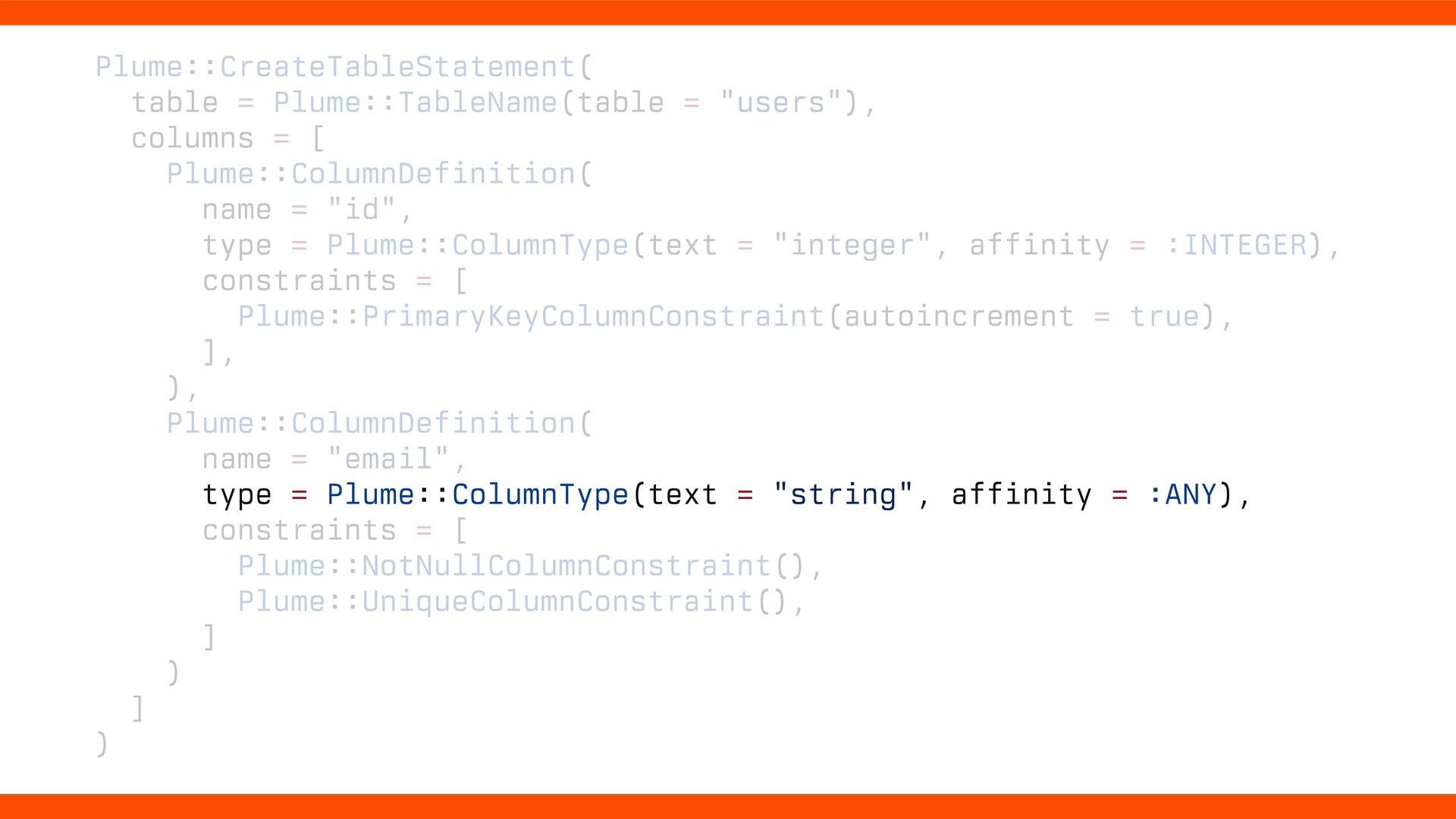

67. create table users ( id integer primary key autoincrement, email string not null unique, )

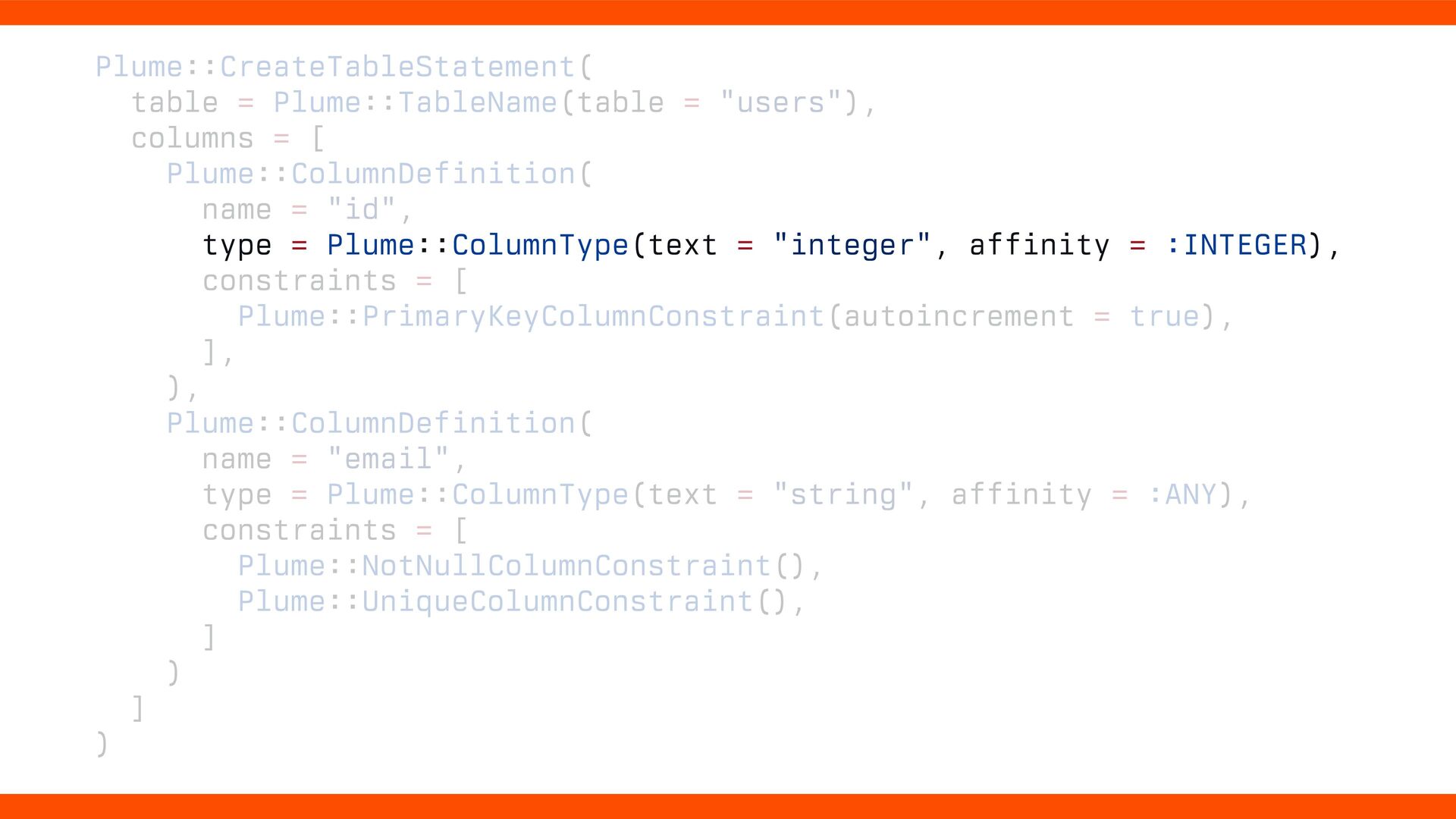

68. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

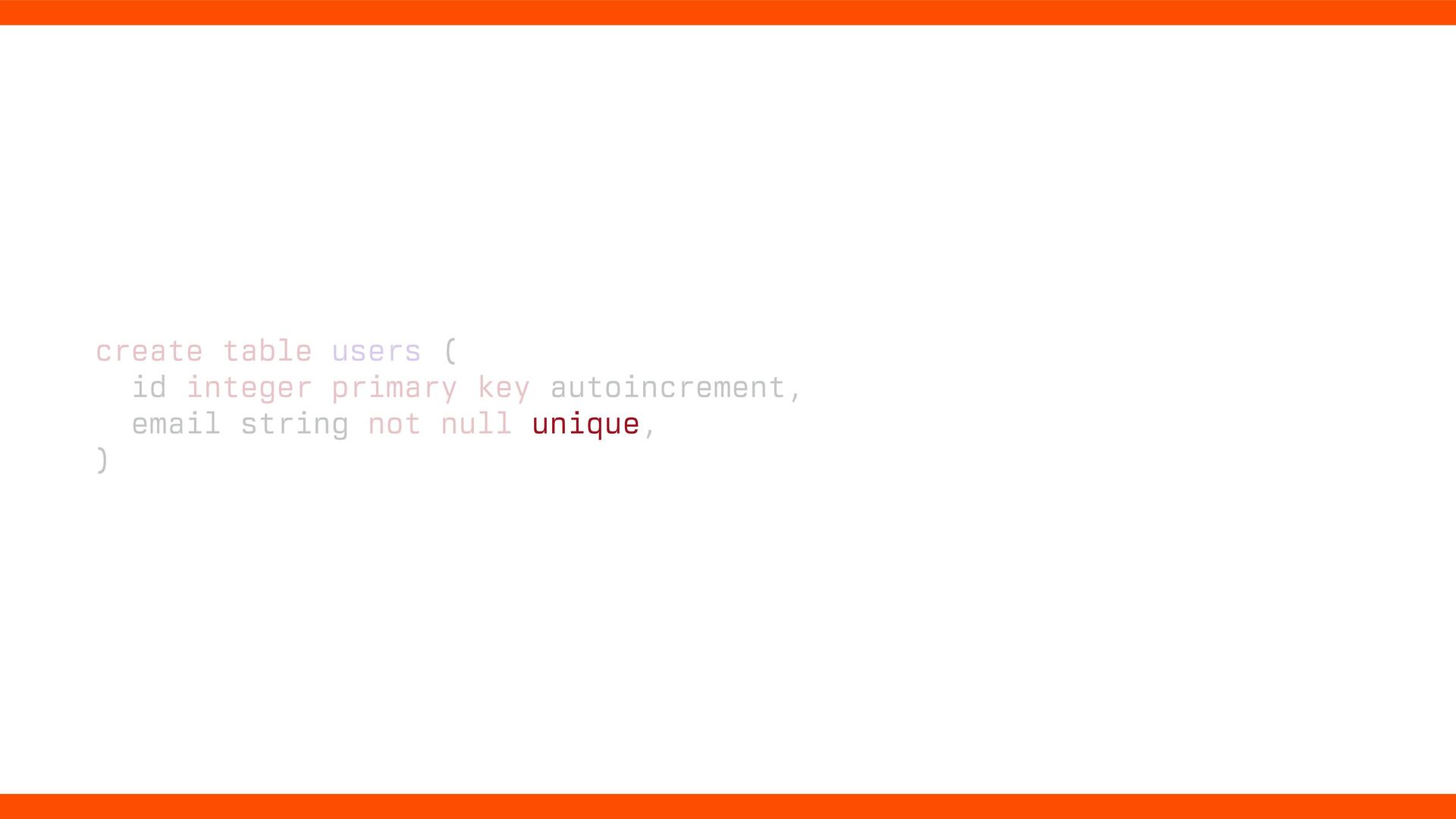

69. create table users ( id integer primary key autoincrement, email string not null unique, )

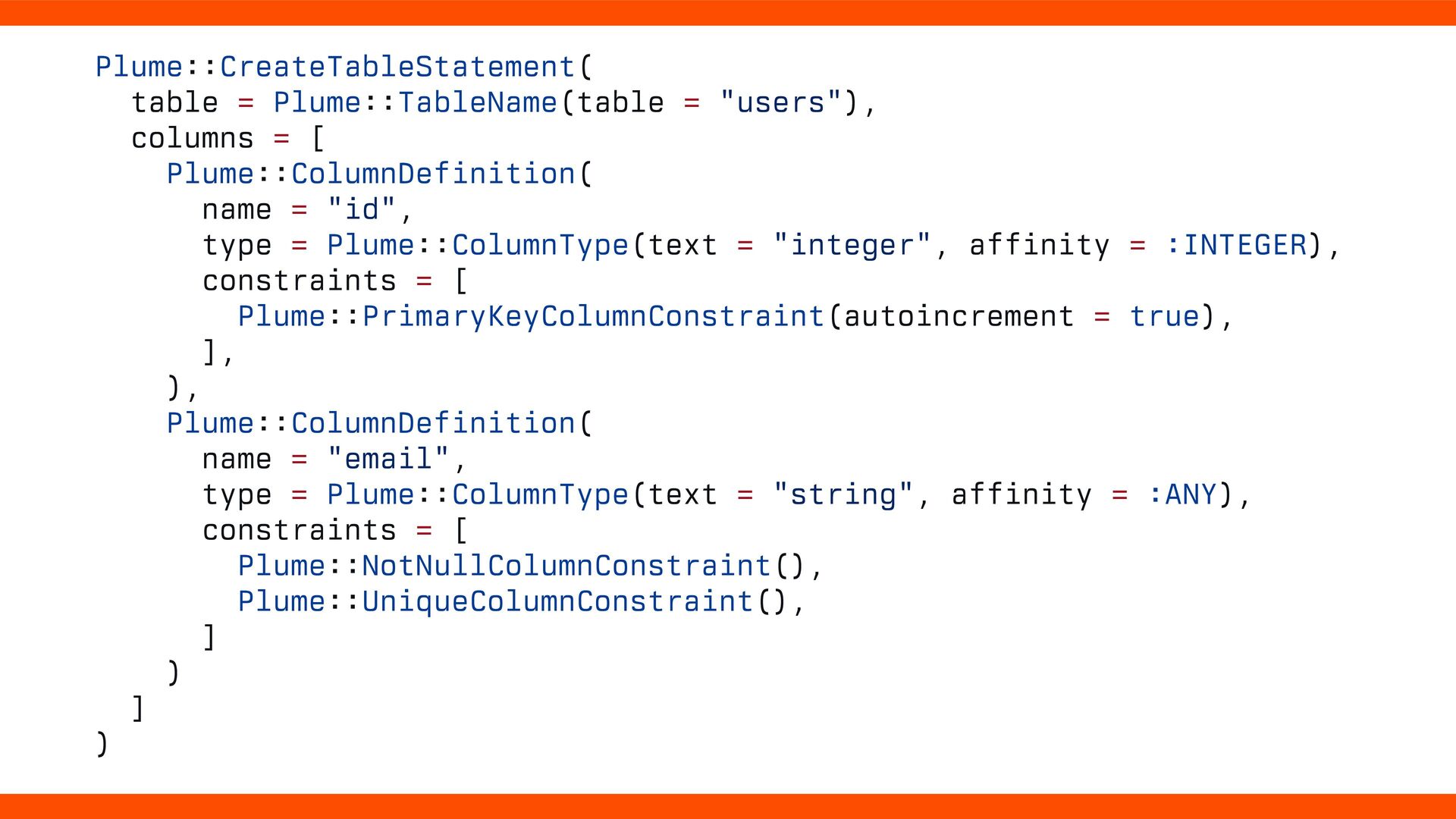

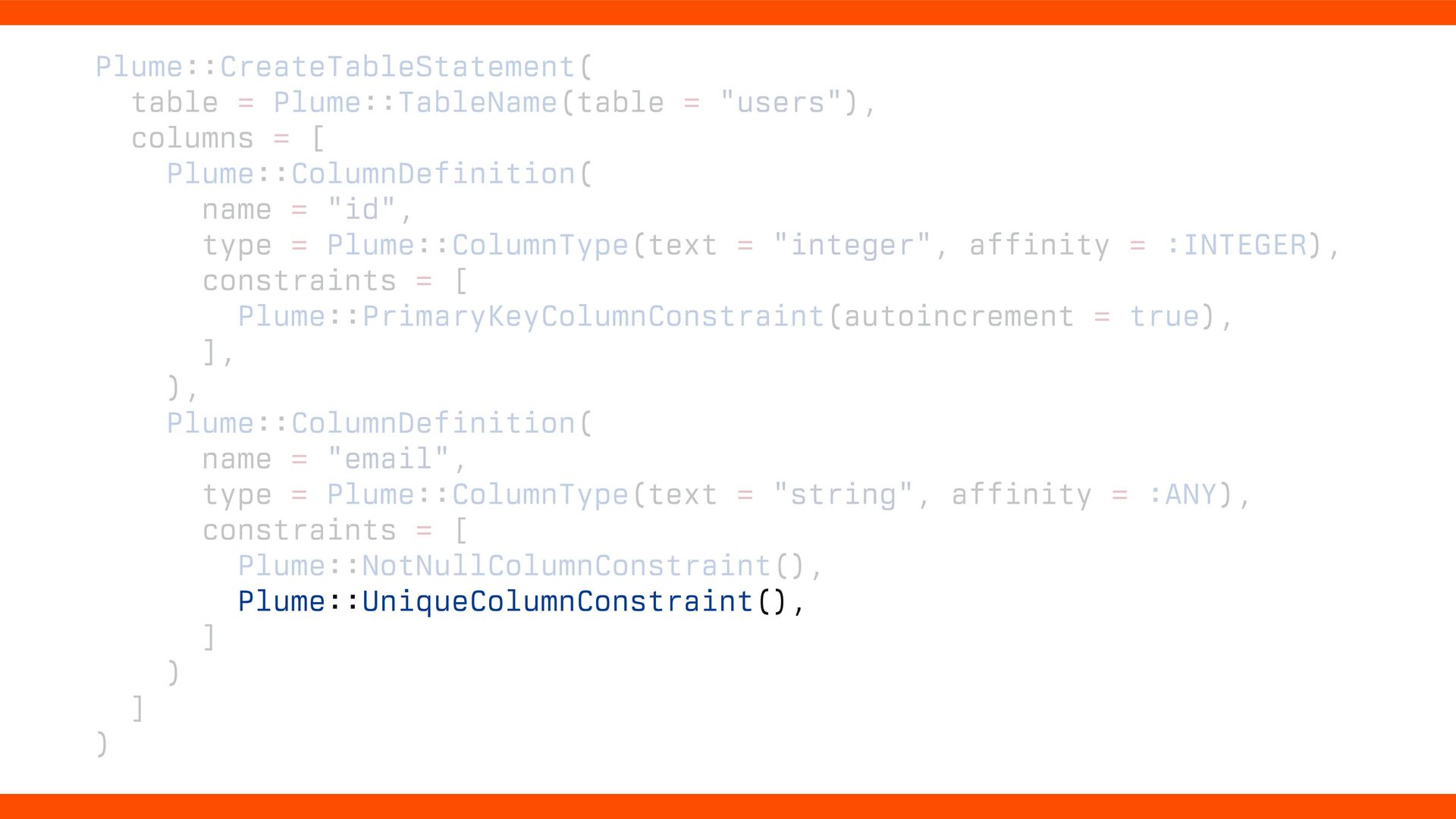

70. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )
71. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

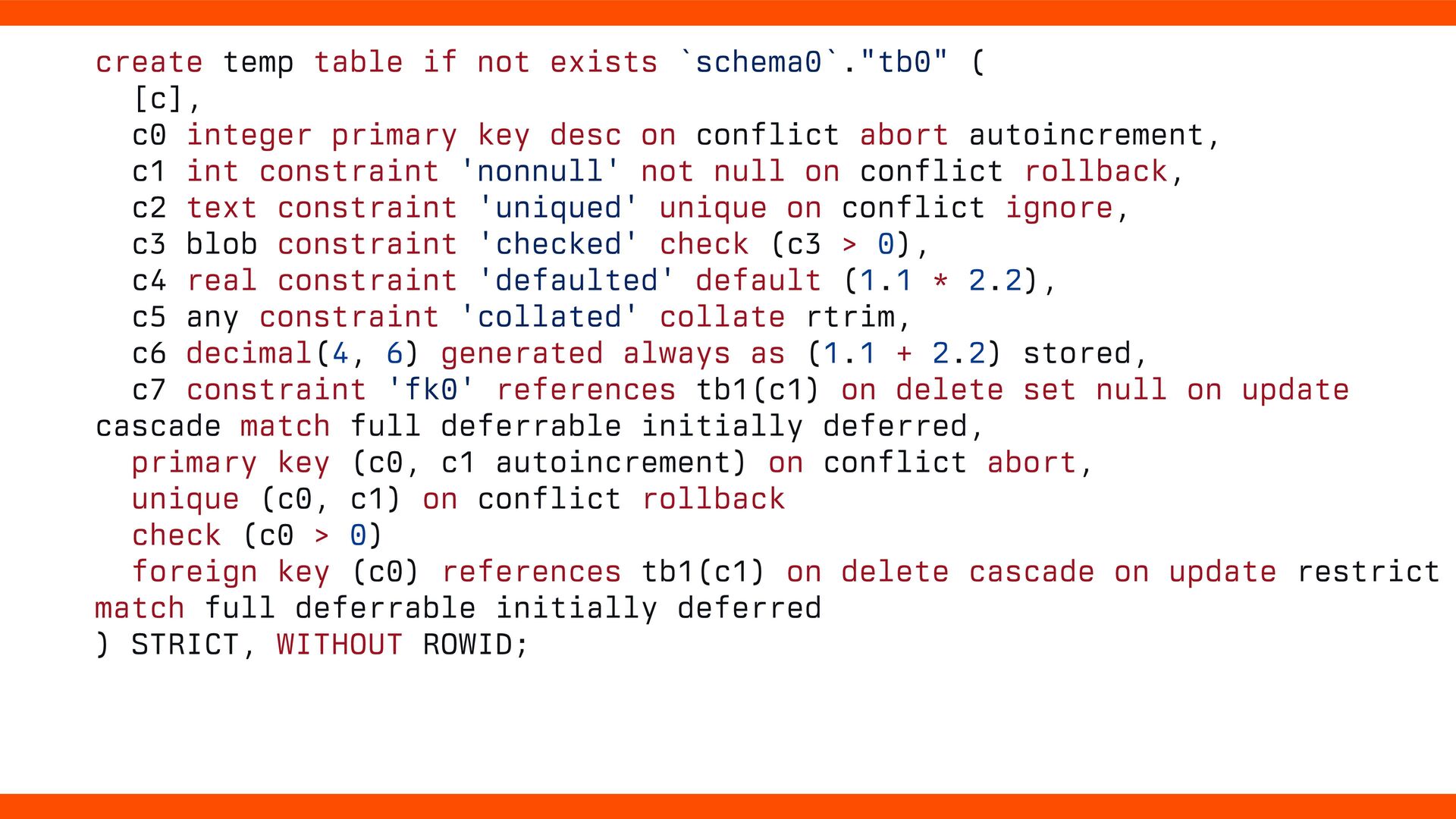

72. create temp table if not exists `schema0`."tb0" ( [c], c0 integer primary key desc on conflict abort autoincrement, c1 int constraint 'nonnull' not null on conflict rollback, c2 text constraint 'uniqued' unique on conflict ignore, c3 blob constraint 'checked' check (c3 > 0), c4 real constraint 'defaulted' default (1.1 * 2.2), c5 any constraint 'collated' collate rtrim, c6 decimal(4, 6) generated always as (1.1 + 2.2) stored, c7 constraint 'fk0' references tb1(c1) on delete set null on update cascade match full deferrable initially deferred, primary key (c0, c1 autoincrement) on conflict abort, unique (c0, c1) on conflict rollback check (c0 > 0) foreign key (c0) references tb1(c1) on delete cascade on update restrict match full deferrable initially deferred ) STRICT, WITHOUT ROWID;

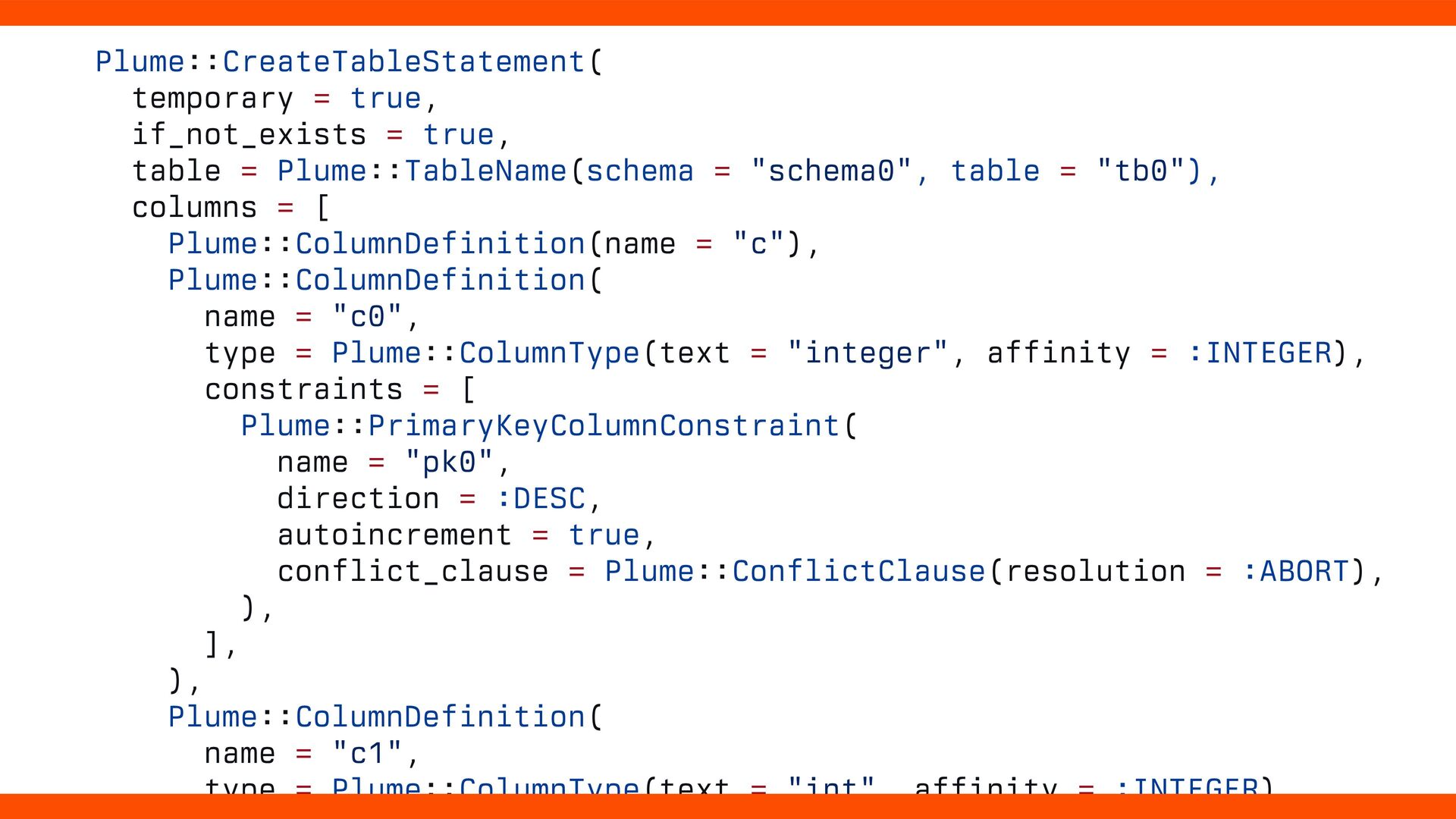

73. Plume::CreateTableStatement( temporary = true, if_not_exists = true, table = Plume::TableName(schema = "schema0", table = "tb0"), columns = [ Plume::ColumnDefinition(name = "c"), Plume::ColumnDefinition( name = "c0", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint( name = "pk0", direction = :DESC, autoincrement = true, conflict_clause = Plume::ConflictClause(resolution = :ABORT), ), ], ), Plume::ColumnDefinition( name = "c1", type = Plume::ColumnType(text = "int", affinity = :INTEGER),
75. Patterson’s Parsing Principles write Ruby parser to minimize Ruby <—> C calls minimize allocations (pass integers and symbols) use lazy allocations when possible (e.g. token values)

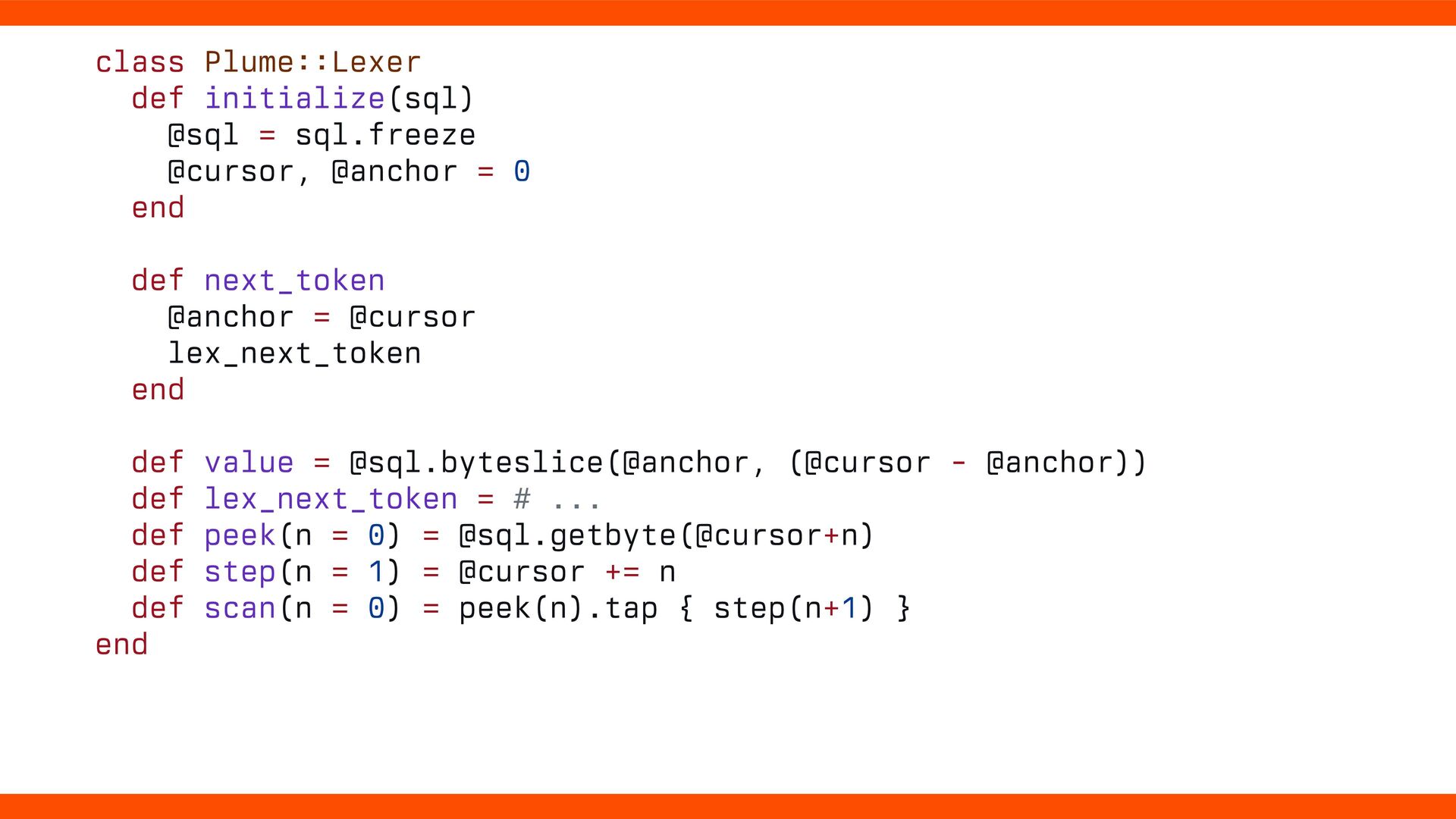

76. class Plume::Lexer def initialize(sql) @sql = sql.freeze @cursor, @anchor = 0 end def next_token @anchor = @cursor lex_next_token end def value = @sql.byteslice(@anchor, (@cursor - @anchor)) def lex_next_token = # ... def peek(n = 0) = @sql.getbyte(@cursor+n) def step(n = 1) = @cursor += n def scan(n = 0) = peek(n).tap { step(n+1) } end

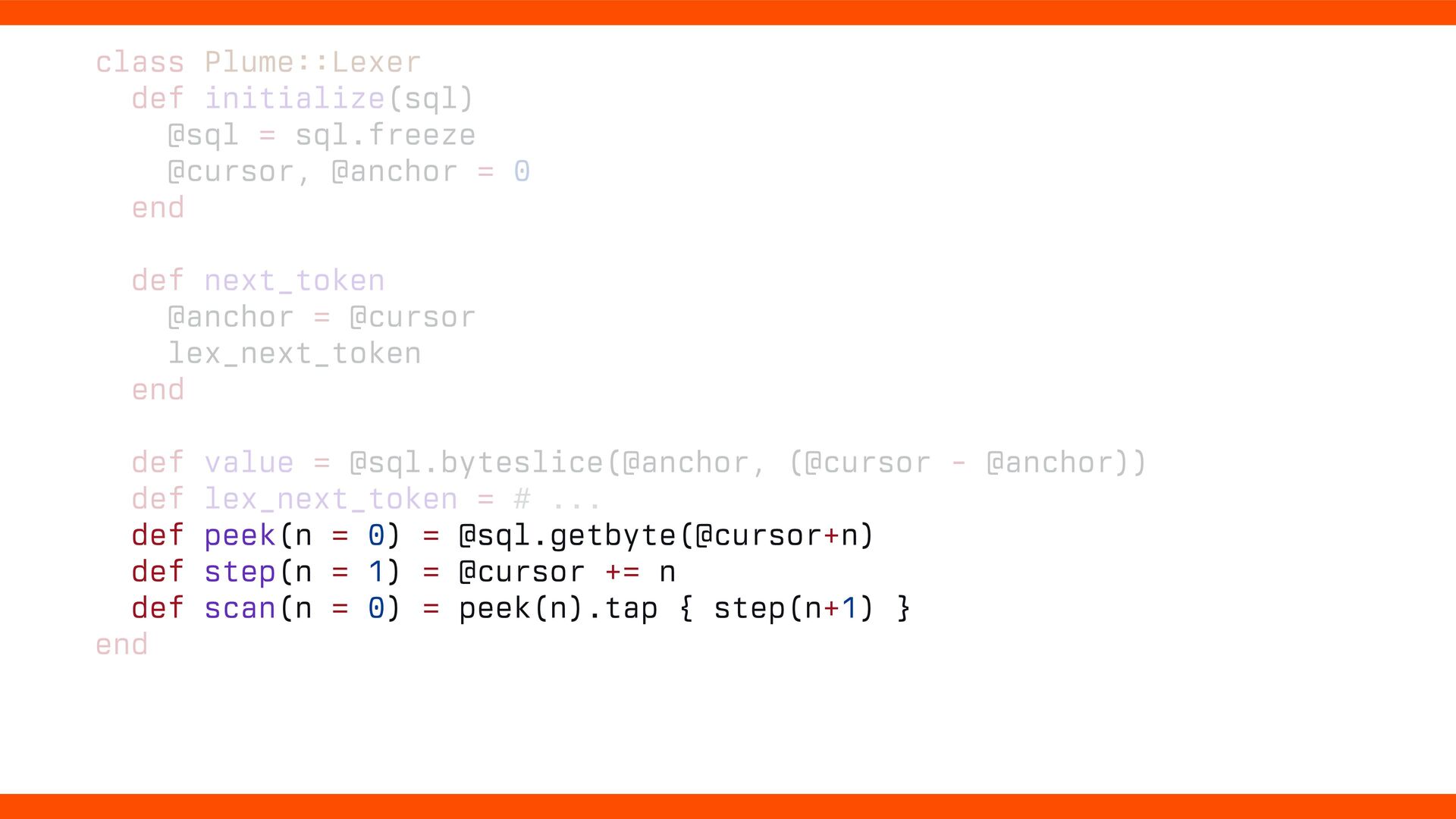

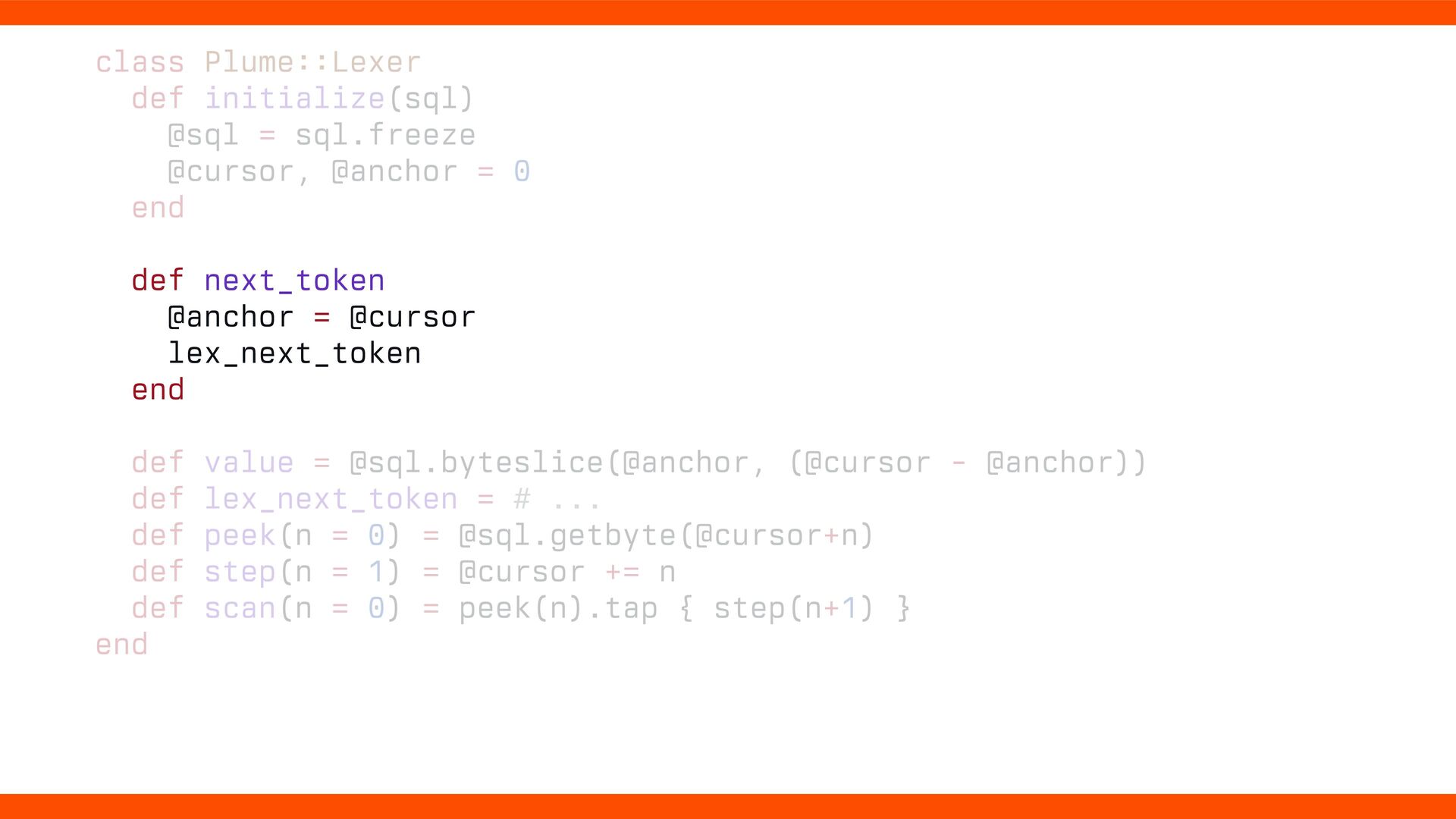

77. class Plume::Lexer def initialize(sql) @sql = sql.freeze @cursor, @anchor = 0 end def next_token @anchor = @cursor lex_next_token end def value = @sql.byteslice(@anchor, (@cursor - @anchor)) def lex_next_token = # ... def peek(n = 0) = @sql.getbyte(@cursor+n) def step(n = 1) = @cursor += n def scan(n = 0) = peek(n).tap { step(n+1) } end

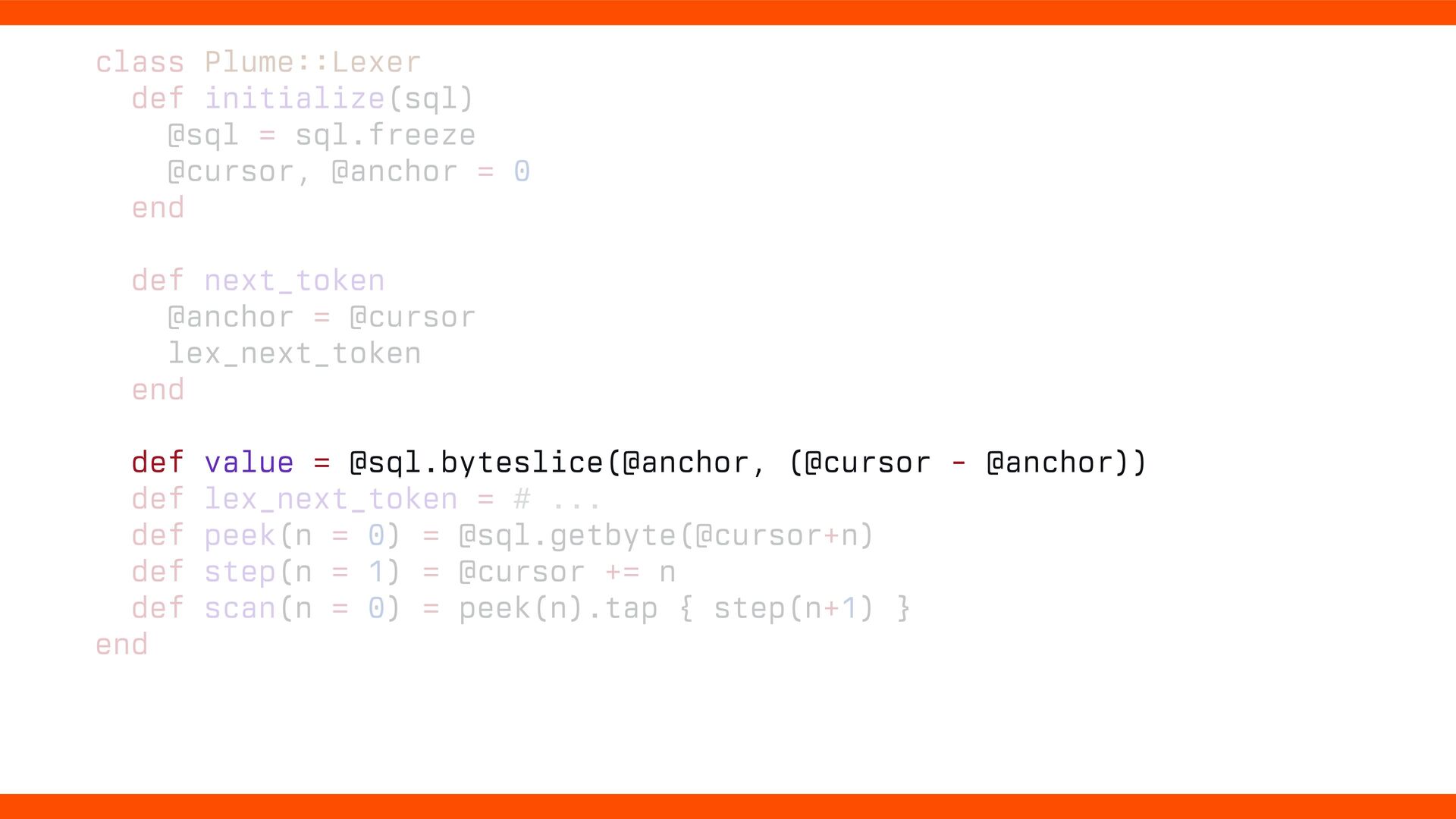

78. class Plume::Lexer def initialize(sql) @sql = sql.freeze @cursor, @anchor = 0 end def next_token @anchor = @cursor lex_next_token end def value = @sql.byteslice(@anchor, (@cursor - @anchor)) def lex_next_token = # ... def peek(n = 0) = @sql.getbyte(@cursor+n) def step(n = 1) = @cursor += n def scan(n = 0) = peek(n).tap { step(n+1) } end
79. class Plume::Lexer def initialize(sql) @sql = sql.freeze @cursor, @anchor = 0 end def next_token @anchor = @cursor lex_next_token end def value = @sql.byteslice(@anchor, (@cursor - @anchor)) def lex_next_token = # ... def peek(n = 0) = @sql.getbyte(@cursor+n) def step(n = 1) = @cursor += n def scan(n = 0) = peek(n).tap { step(n+1) } end

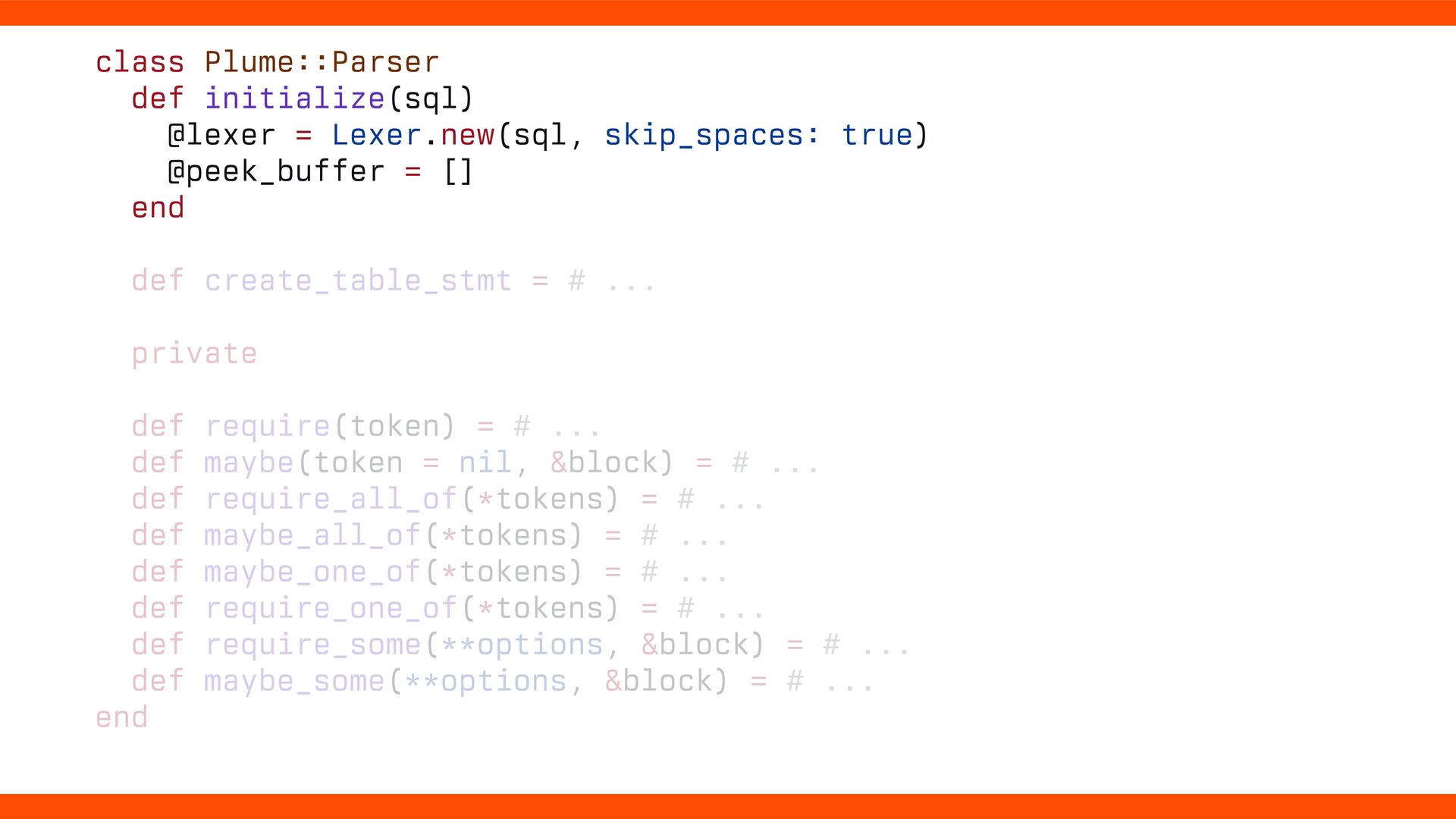

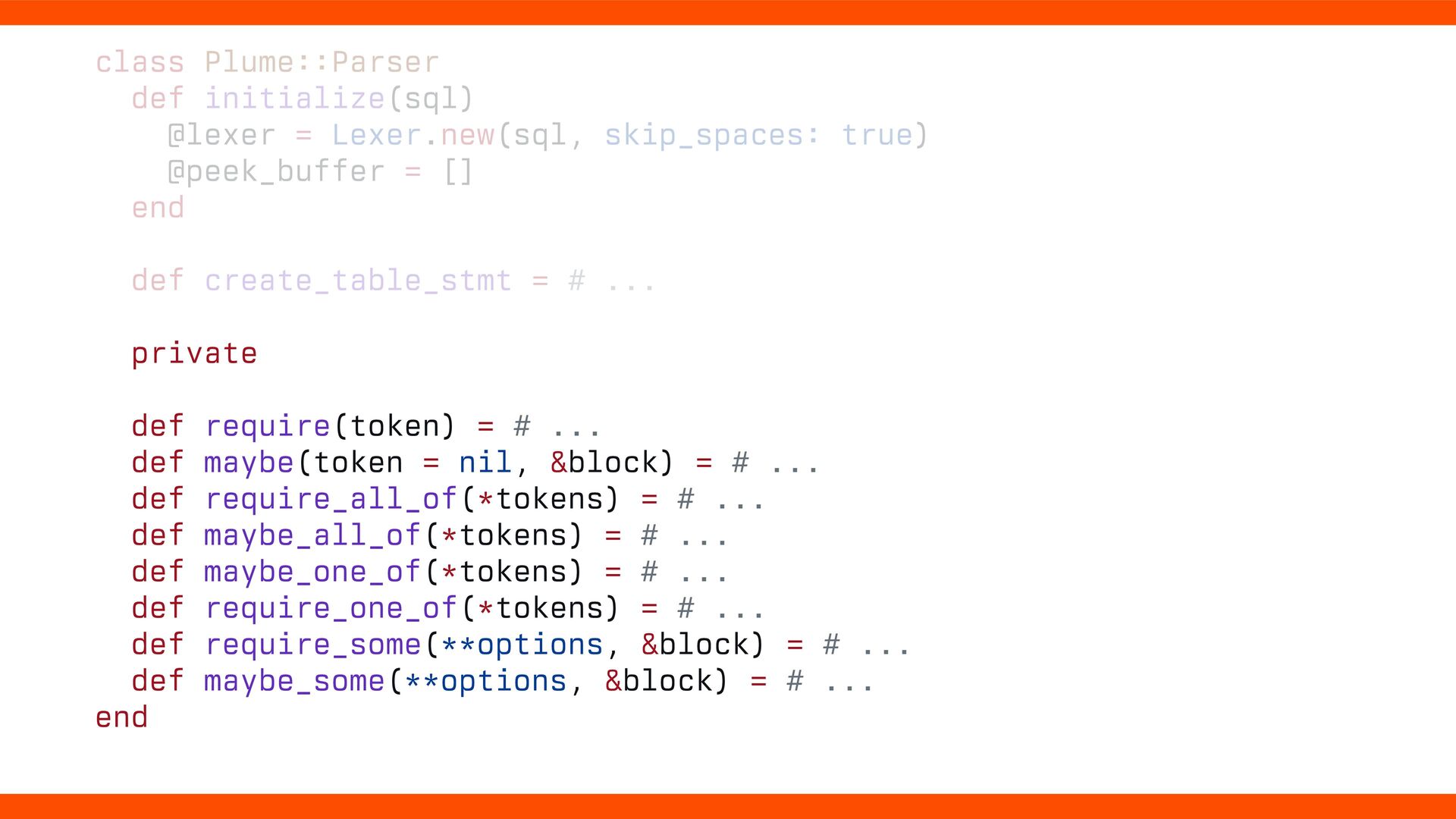

80. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end def create_table_stmt = # ... private def require(token) = # ... def maybe(token = nil, &block) = # ... def require_all_of(*tokens) = # ... def maybe_all_of(*tokens) = # ... def maybe_one_of(*tokens) = # ... def require_one_of(*tokens) = # ... def require_some(**options, &block) = # ... def maybe_some(**options, &block) = # ... end
81. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end def create_table_stmt = # ... private def require(token) = # ... def maybe(token = nil, &block) = # ... def require_all_of(*tokens) = # ... def maybe_all_of(*tokens) = # ... def maybe_one_of(*tokens) = # ... def require_one_of(*tokens) = # ... def require_some(**options, &block) = # ... def maybe_some(**options, &block) = # ... end

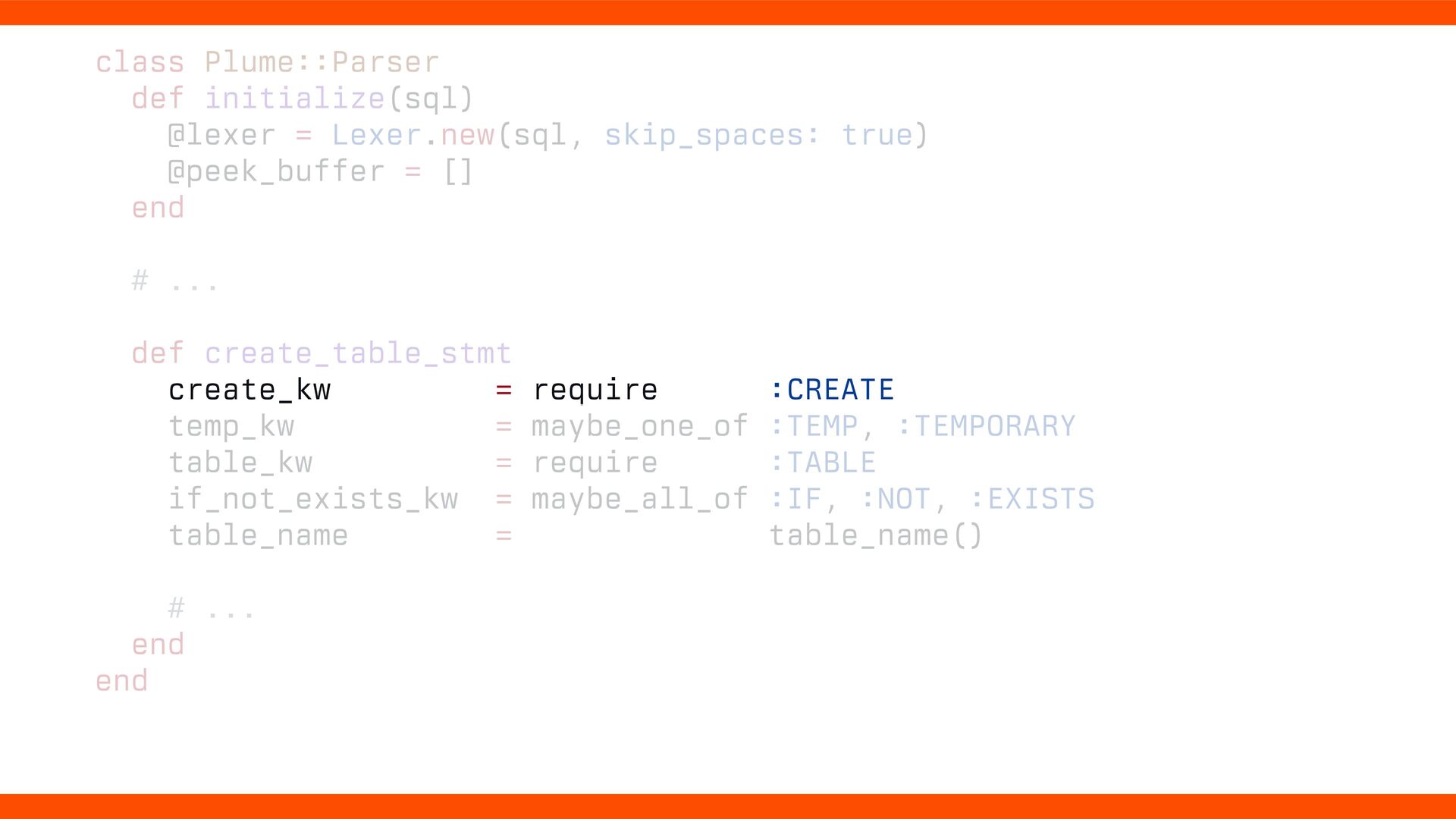

84. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end # ... def create_table_stmt create_kw = require :CREATE temp_kw = maybe_one_of :TEMP, :TEMPORARY table_kw = require :TABLE if_not_exists_kw = maybe_all_of :IF, :NOT, :EXISTS table_name = table_name() # ... end end
85. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end # ... def create_table_stmt create_kw = require :CREATE temp_kw = maybe_one_of :TEMP, :TEMPORARY table_kw = require :TABLE if_not_exists_kw = maybe_all_of :IF, :NOT, :EXISTS table_name = table_name() # ... end end
86. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end # ... def create_table_stmt create_kw = require :CREATE temp_kw = maybe_one_of :TEMP, :TEMPORARY table_kw = require :TABLE if_not_exists_kw = maybe_all_of :IF, :NOT, :EXISTS table_name = table_name() # ... end end

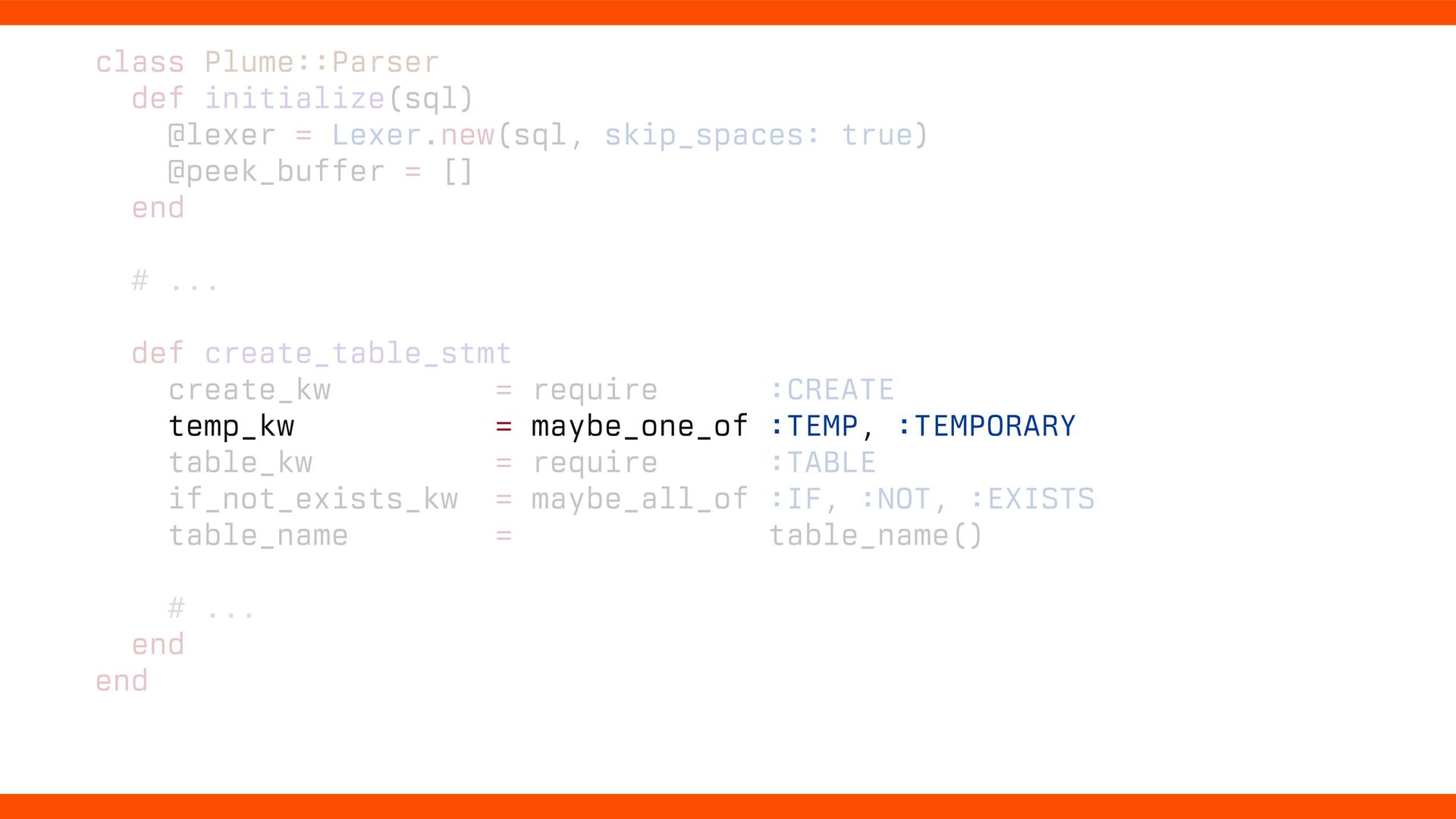

87. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end # ... def create_table_stmt create_kw = require :CREATE temp_kw = maybe_one_of :TEMP, :TEMPORARY table_kw = require :TABLE if_not_exists_kw = maybe_all_of :IF, :NOT, :EXISTS table_name = table_name() # ... end end

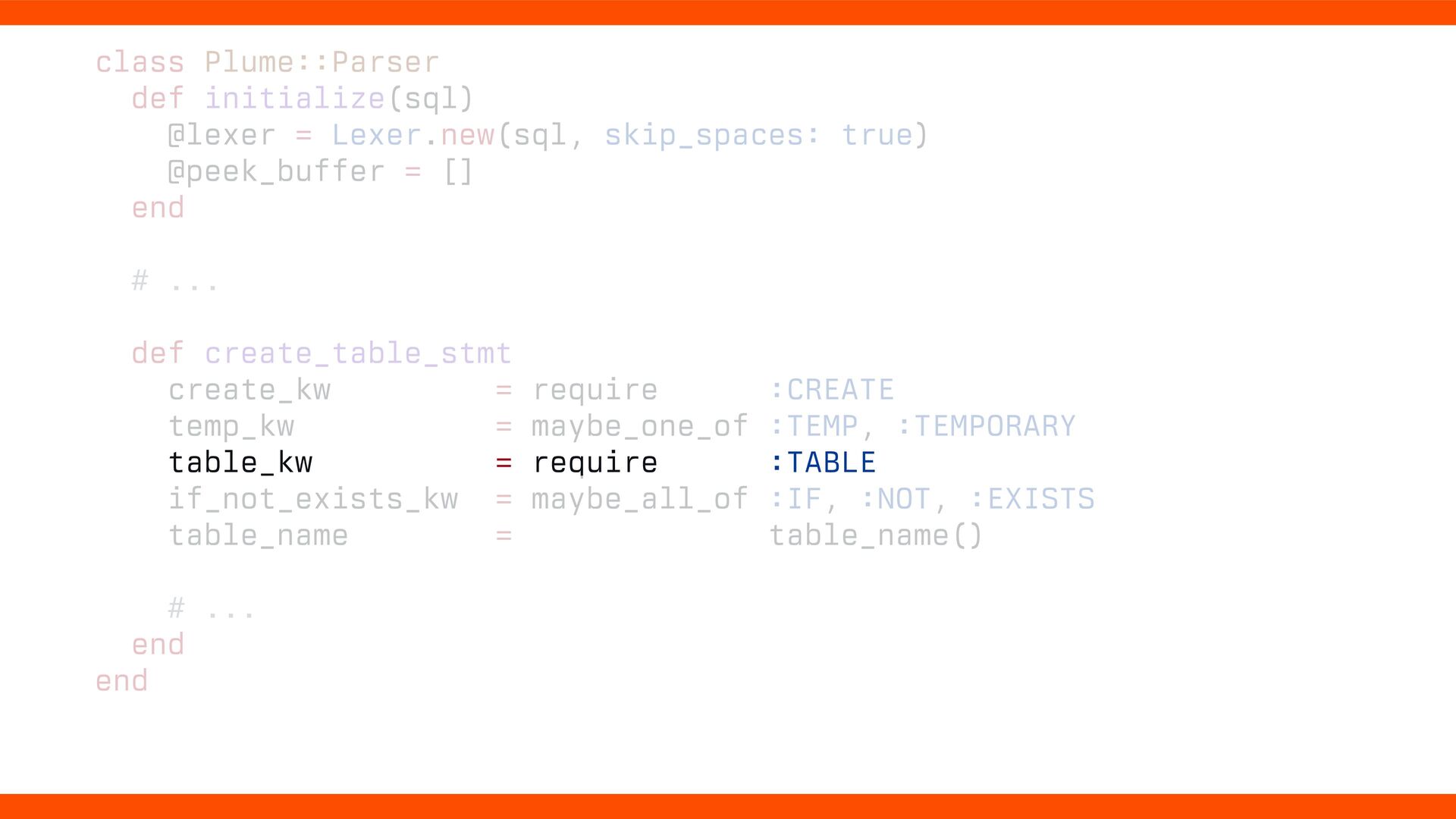

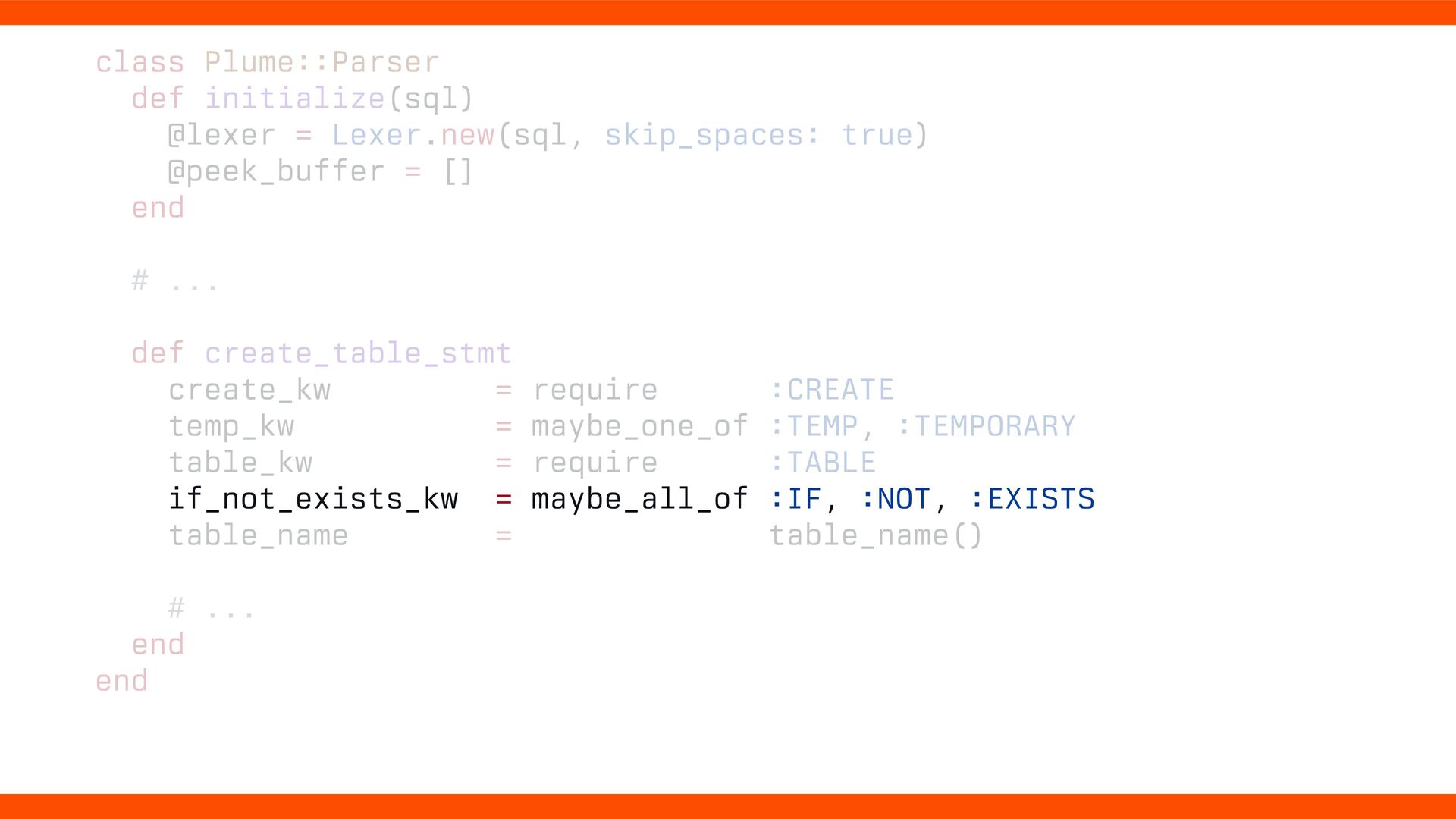

88. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end # ... def create_table_stmt create_kw = require :CREATE temp_kw = maybe_one_of :TEMP, :TEMPORARY table_kw = require :TABLE if_not_exists_kw = maybe_all_of :IF, :NOT, :EXISTS table_name = table_name() # ... end end

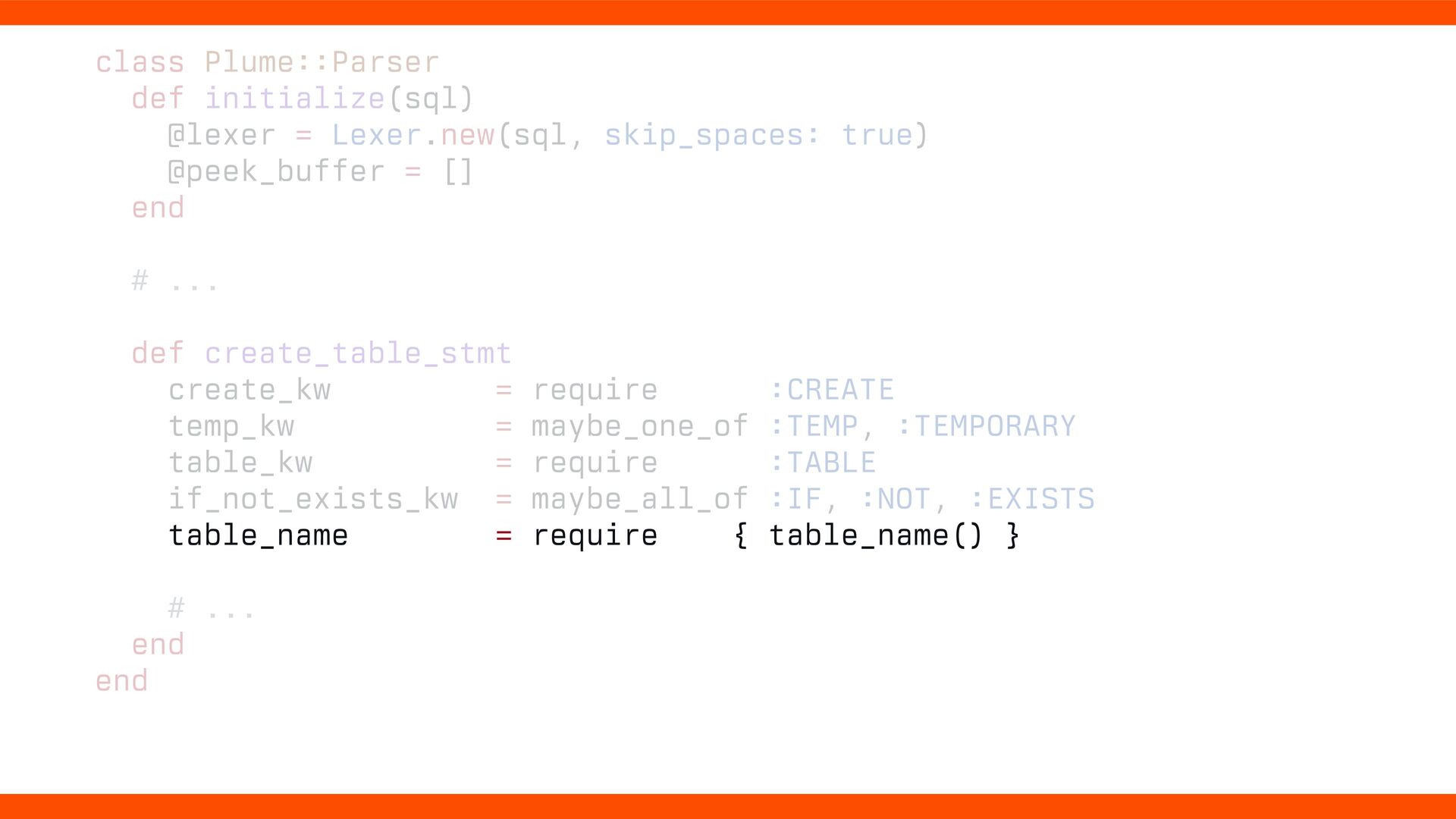

89. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end # ... def create_table_stmt create_kw = require :CREATE temp_kw = maybe_one_of :TEMP, :TEMPORARY table_kw = require :TABLE if_not_exists_kw = maybe_all_of :IF, :NOT, :EXISTS table_name = table_name() # ... end end
90. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end # ... def create_table_stmt create_kw = require :CREATE temp_kw = maybe_one_of :TEMP, :TEMPORARY table_kw = require :TABLE if_not_exists_kw = maybe_all_of :IF, :NOT, :EXISTS table_name = require { table_name() } # ... end end

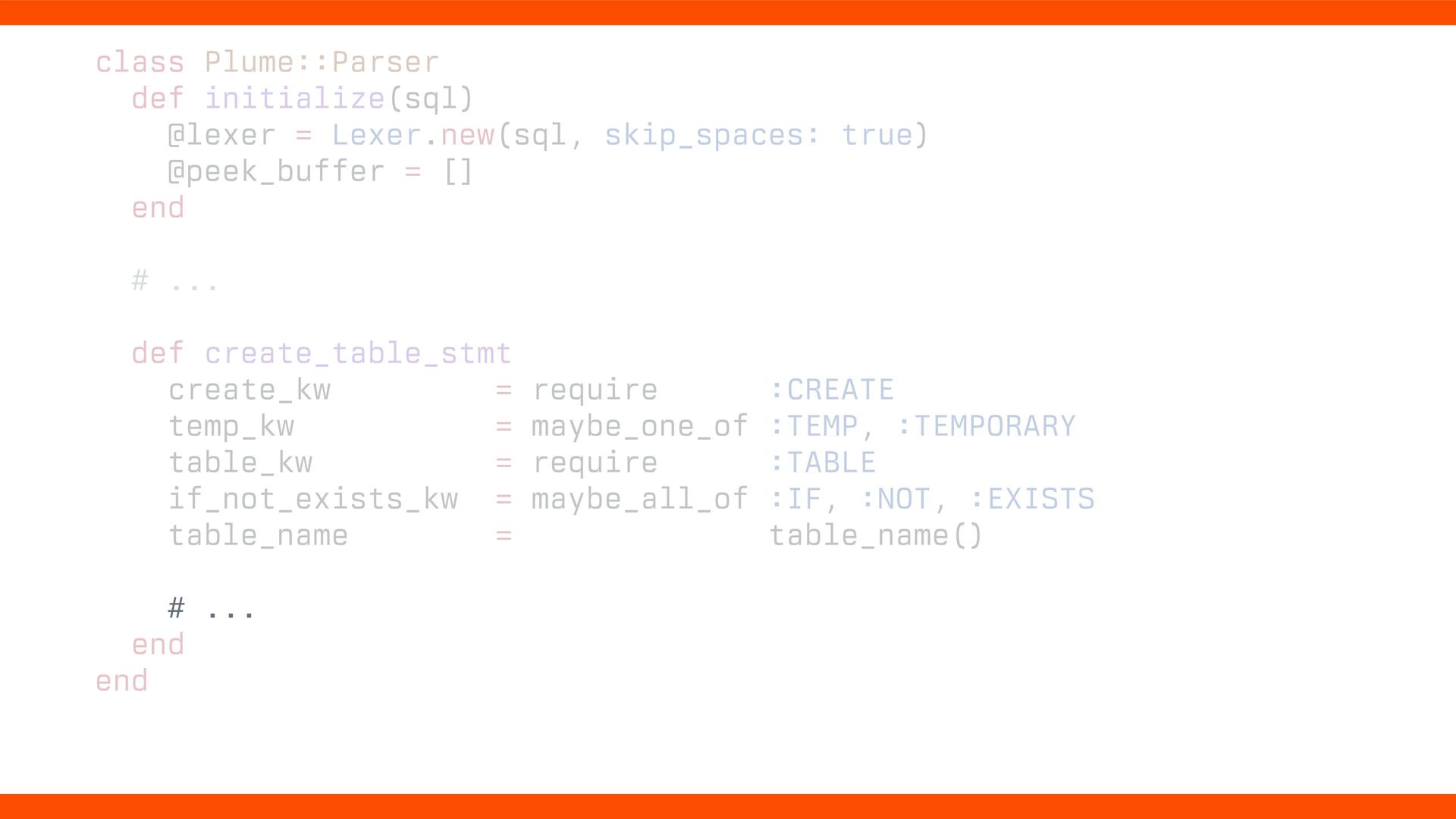

91. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end # ... def create_table_stmt create_kw = require :CREATE temp_kw = maybe_one_of :TEMP, :TEMPORARY table_kw = require :TABLE if_not_exists_kw = maybe_all_of :IF, :NOT, :EXISTS table_name = table_name() # ... end end
92. class Plume::Parser def initialize(sql) @lexer = Lexer.new(sql, skip_spaces: true) @peek_buffer = [] end # ... def create_table_stmt create_kw = require :CREATE temp_kw = maybe_one_of :TEMP, :TEMPORARY table_kw = require :TABLE if_not_exists_kw = maybe_all_of :IF, :NOT, :EXISTS table_name = table_name() # ... end end

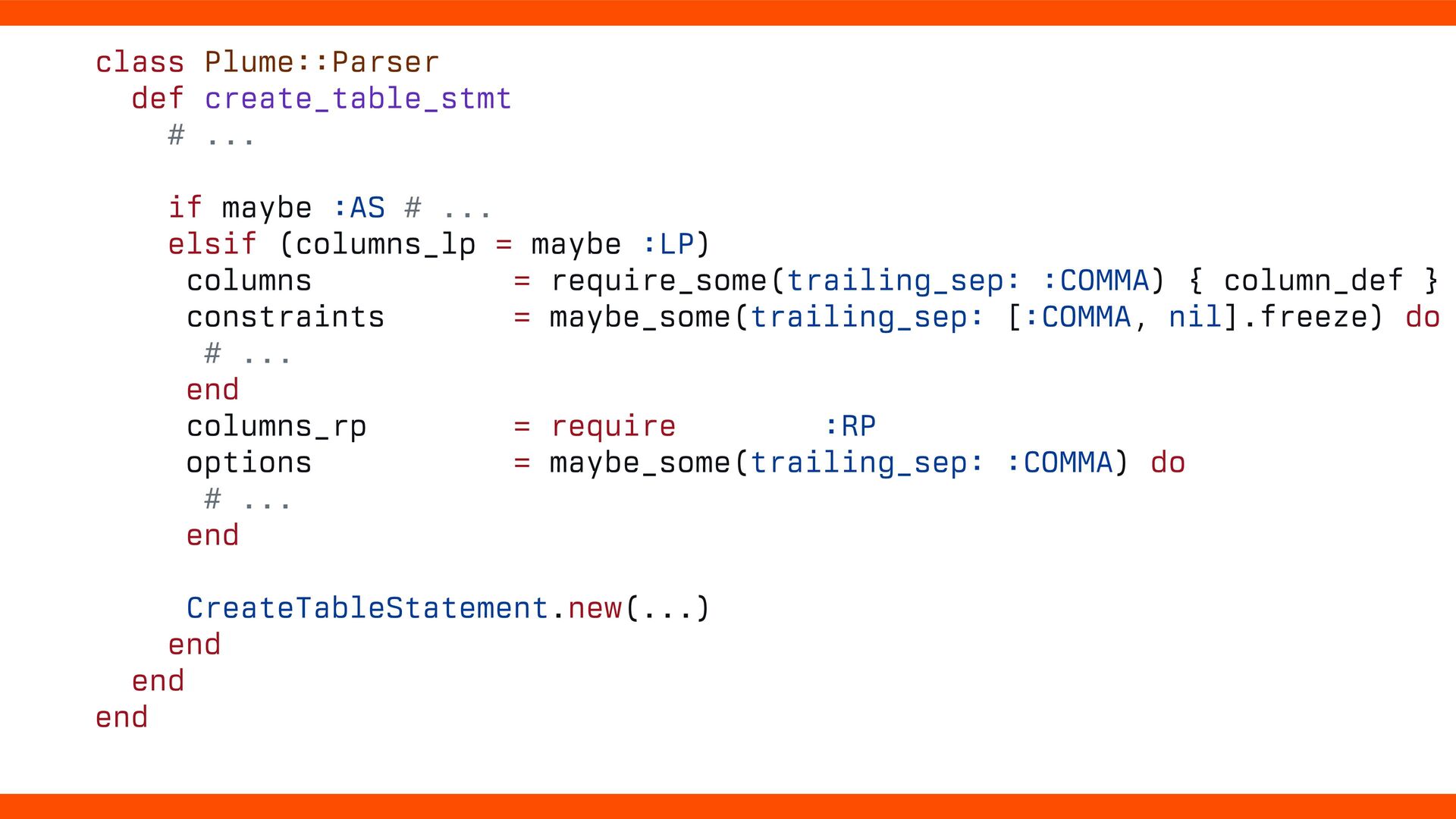

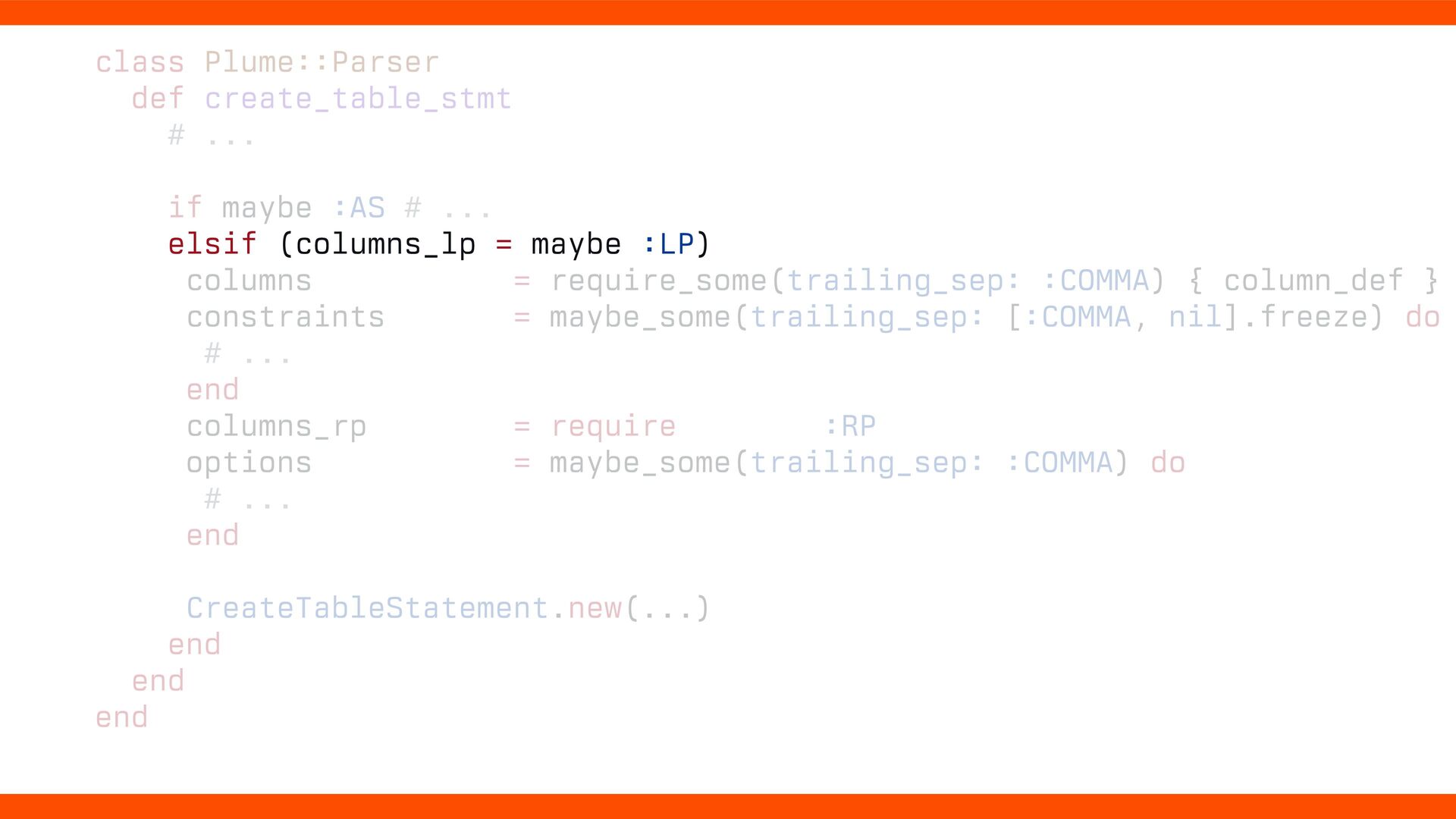

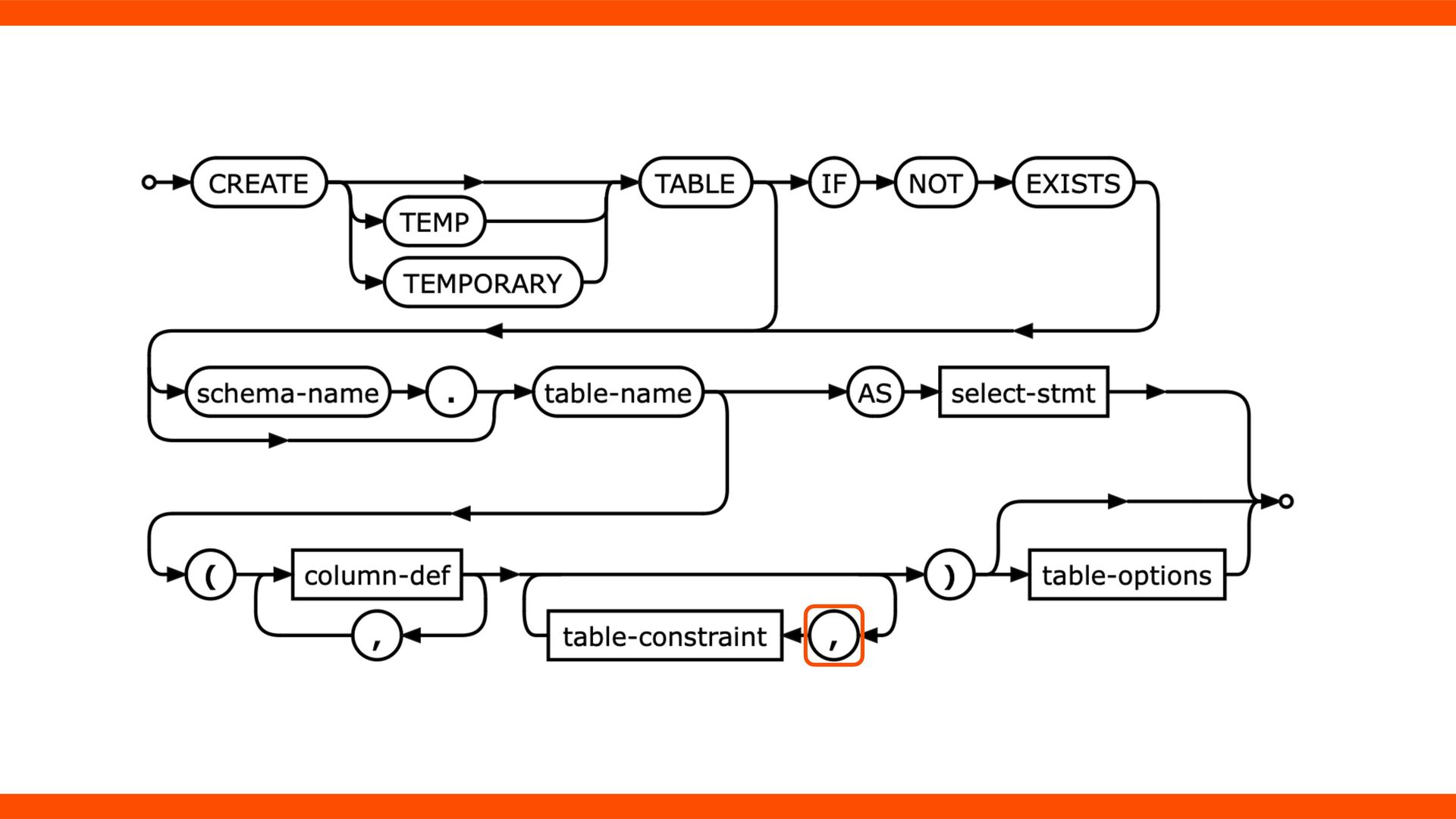

93. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end

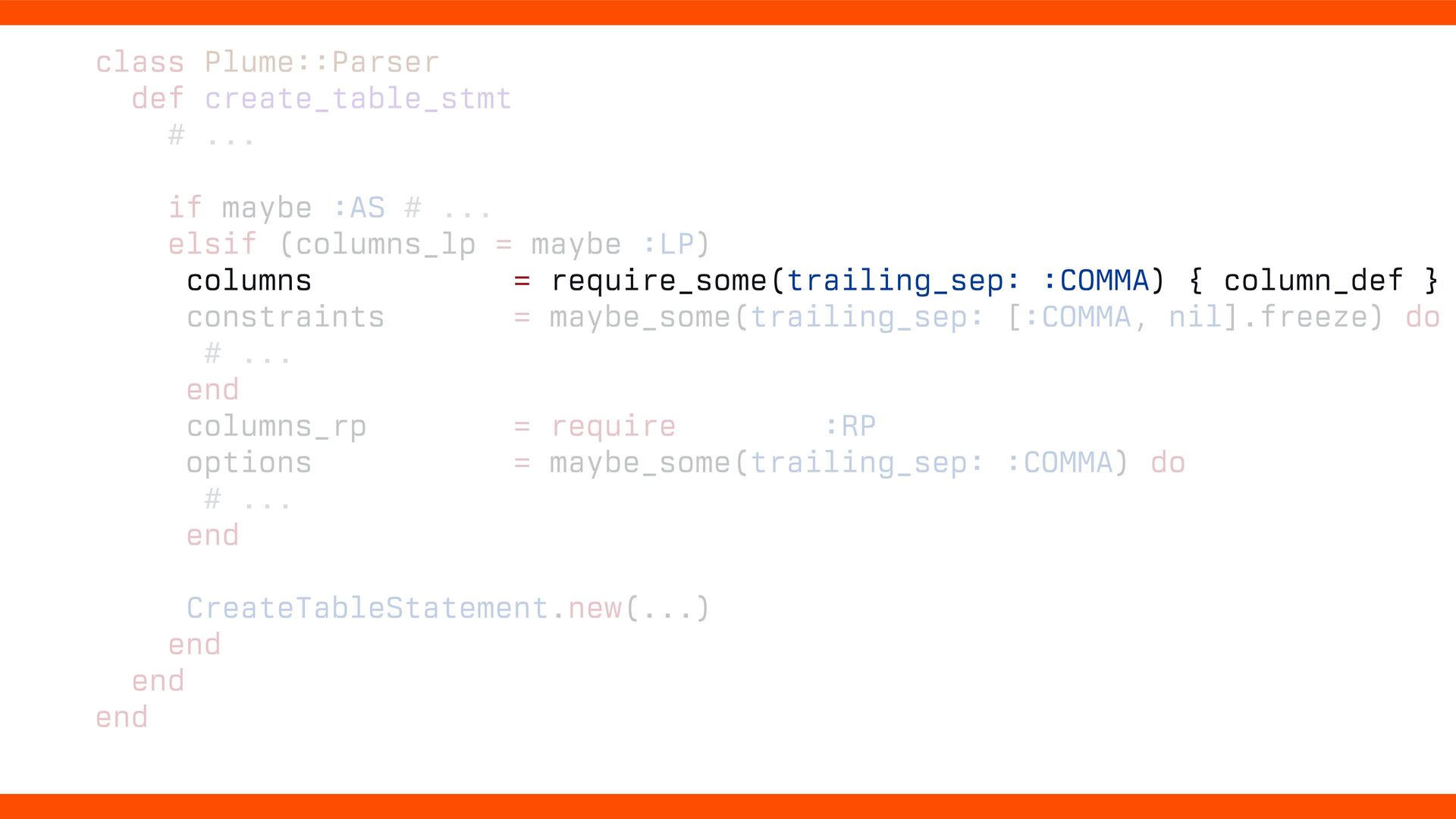

94. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end
95. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end

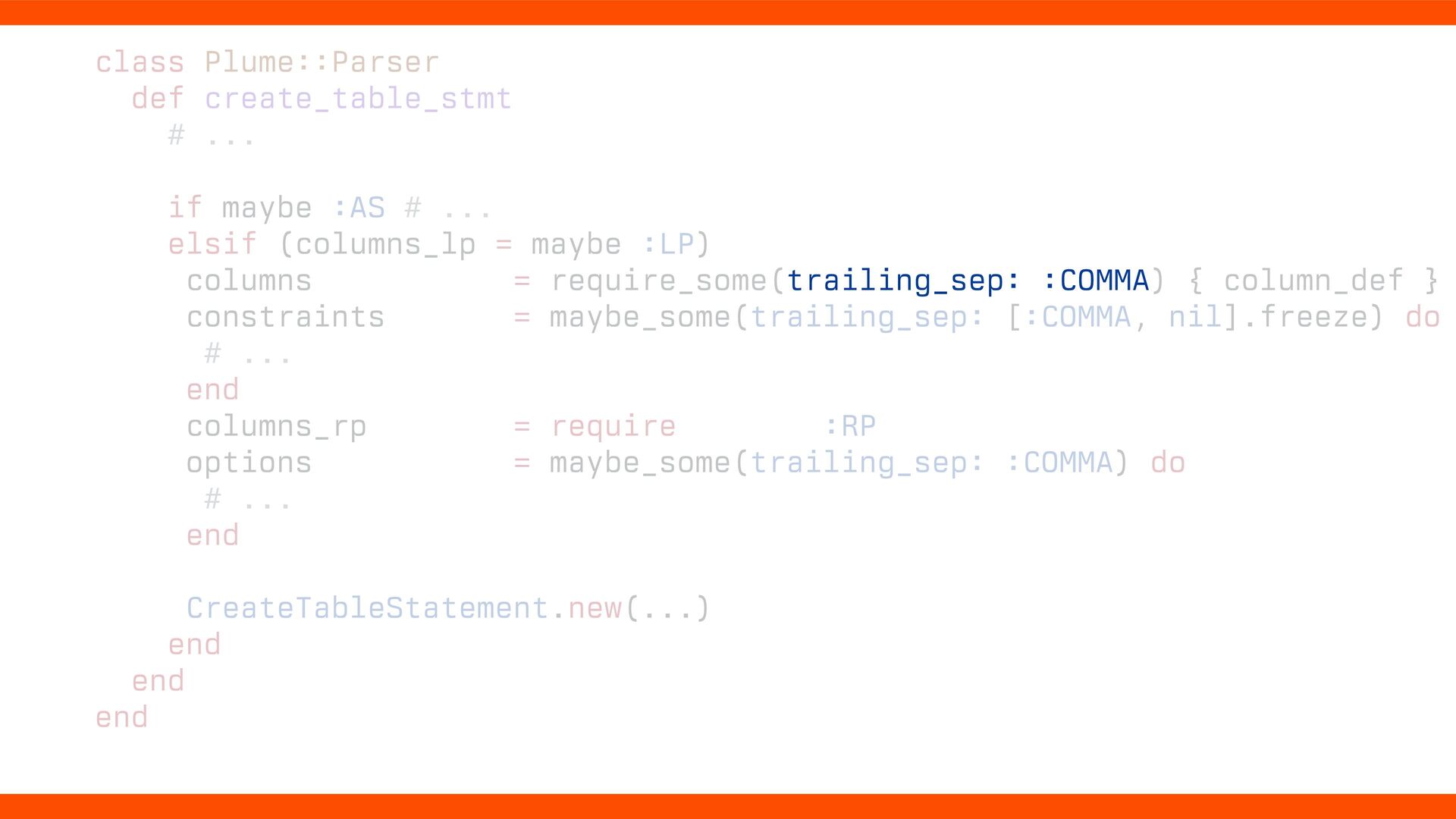

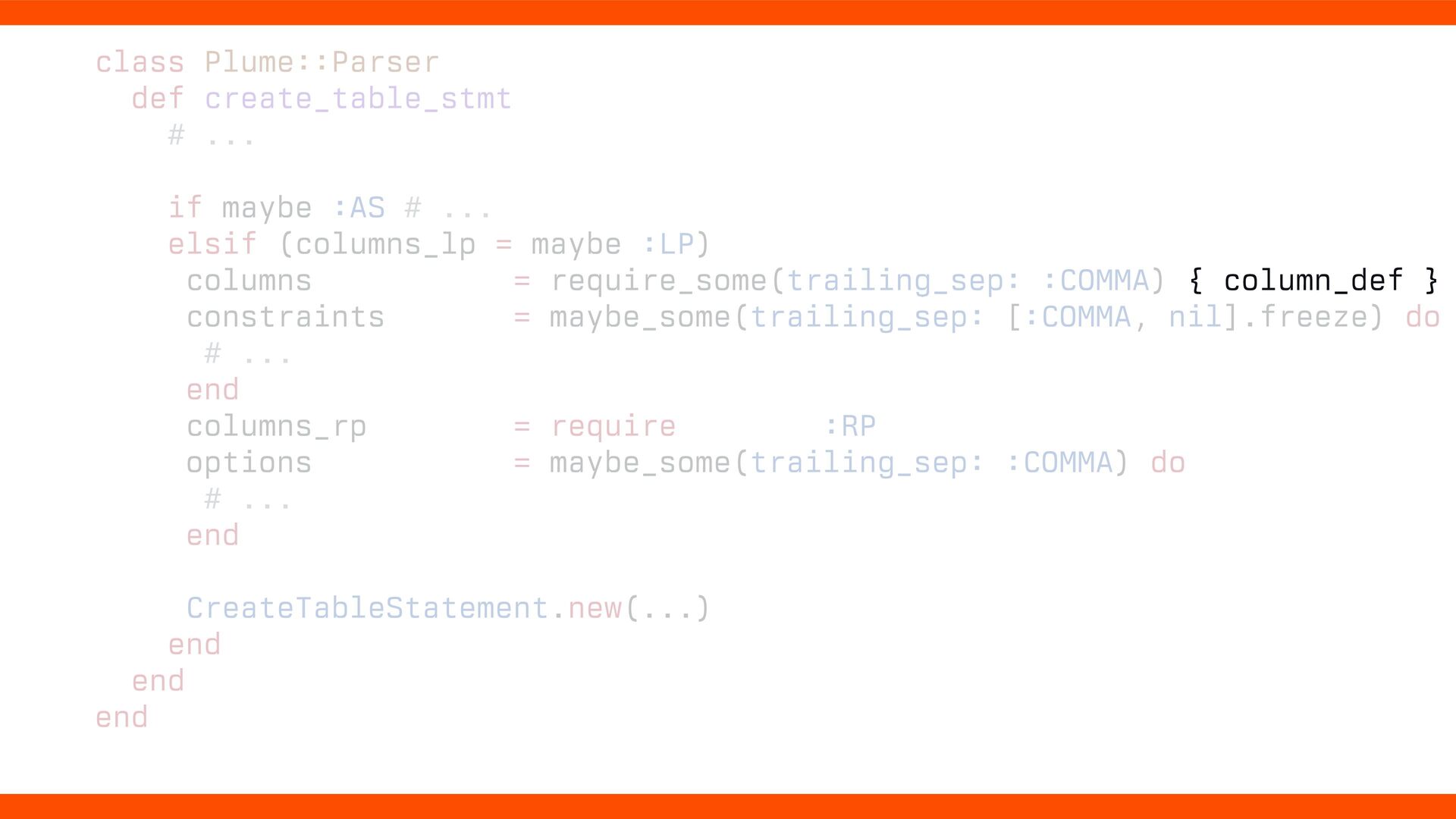

96. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end
97. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end

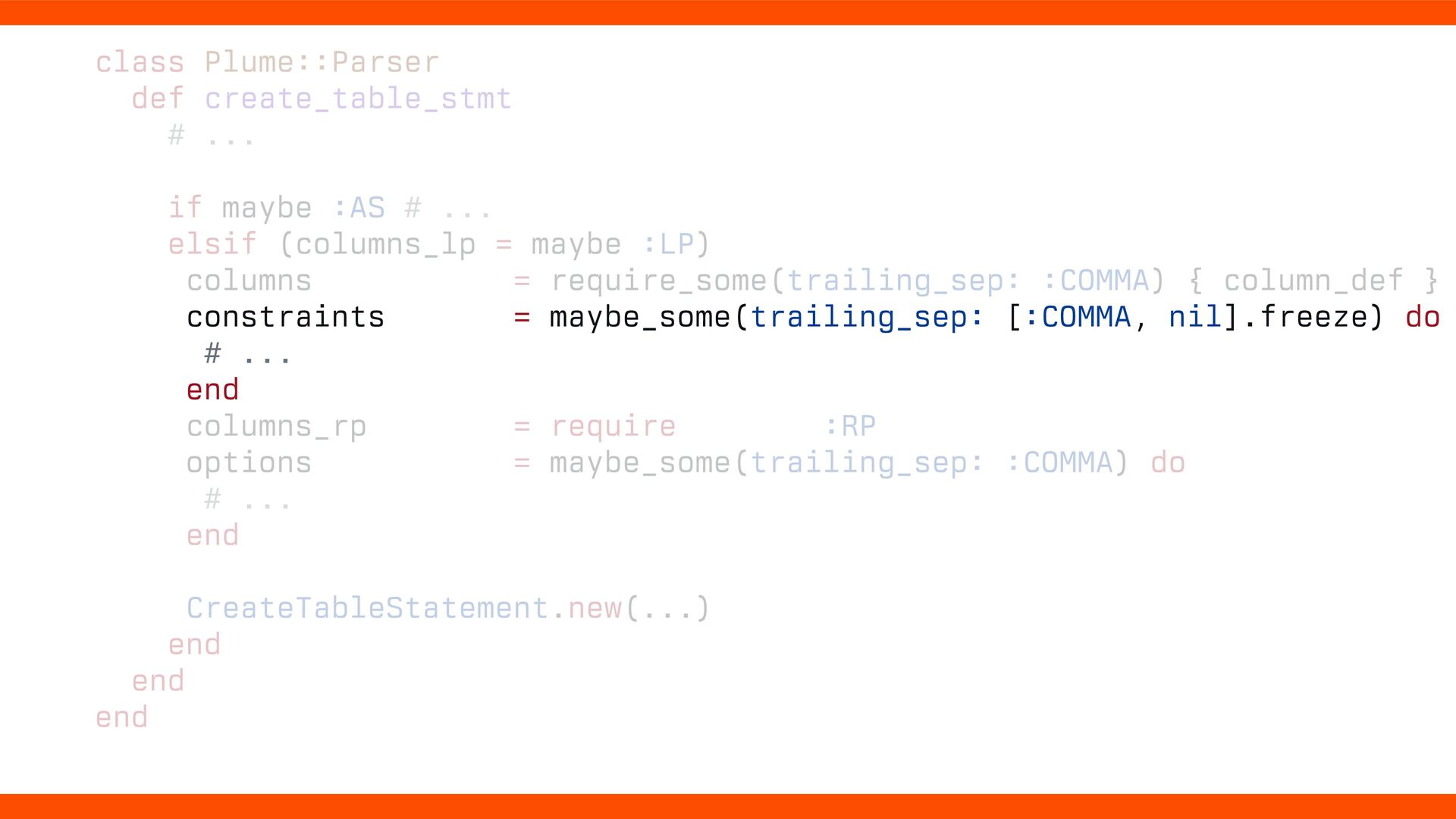

98. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end

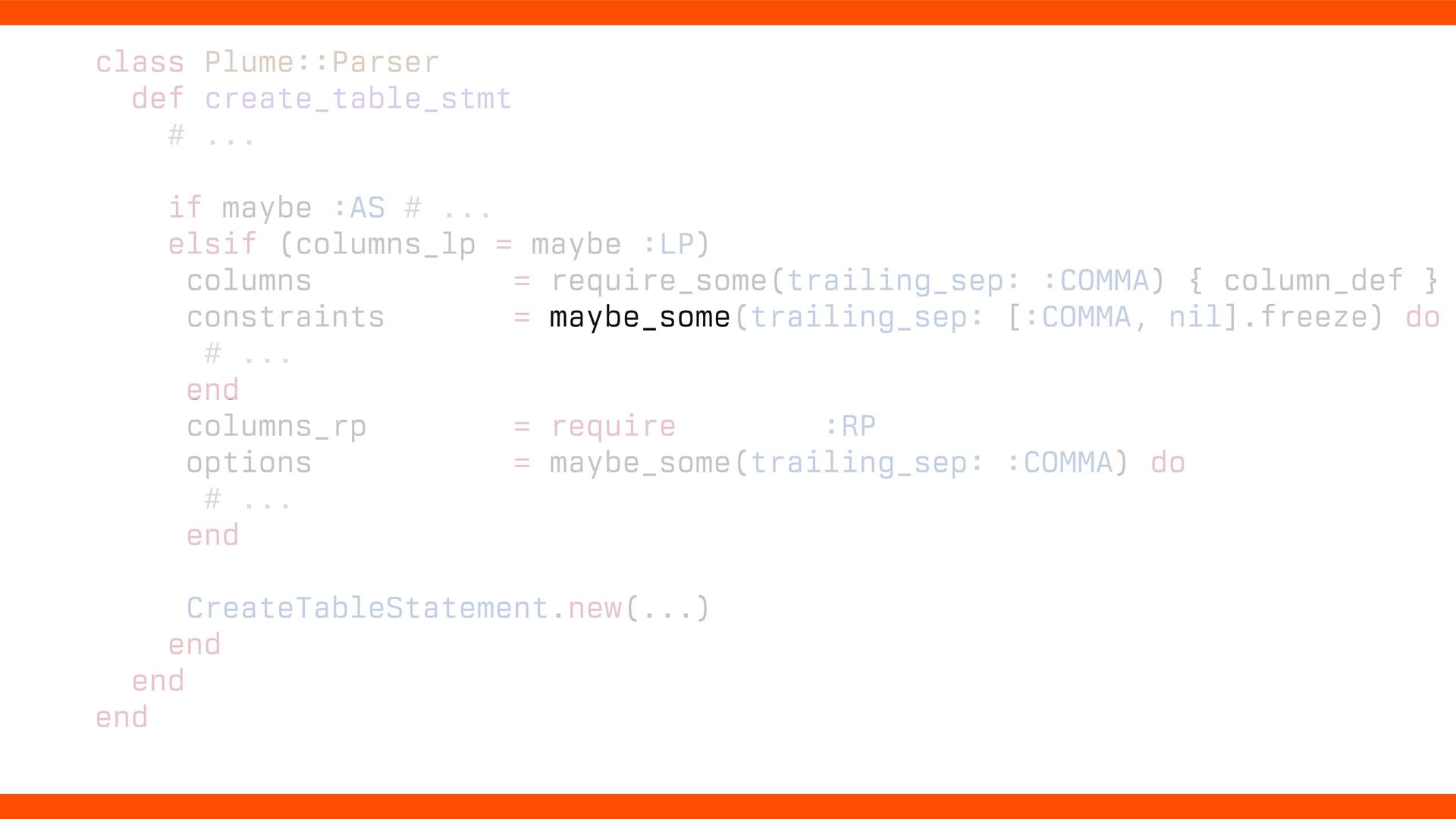

99. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end

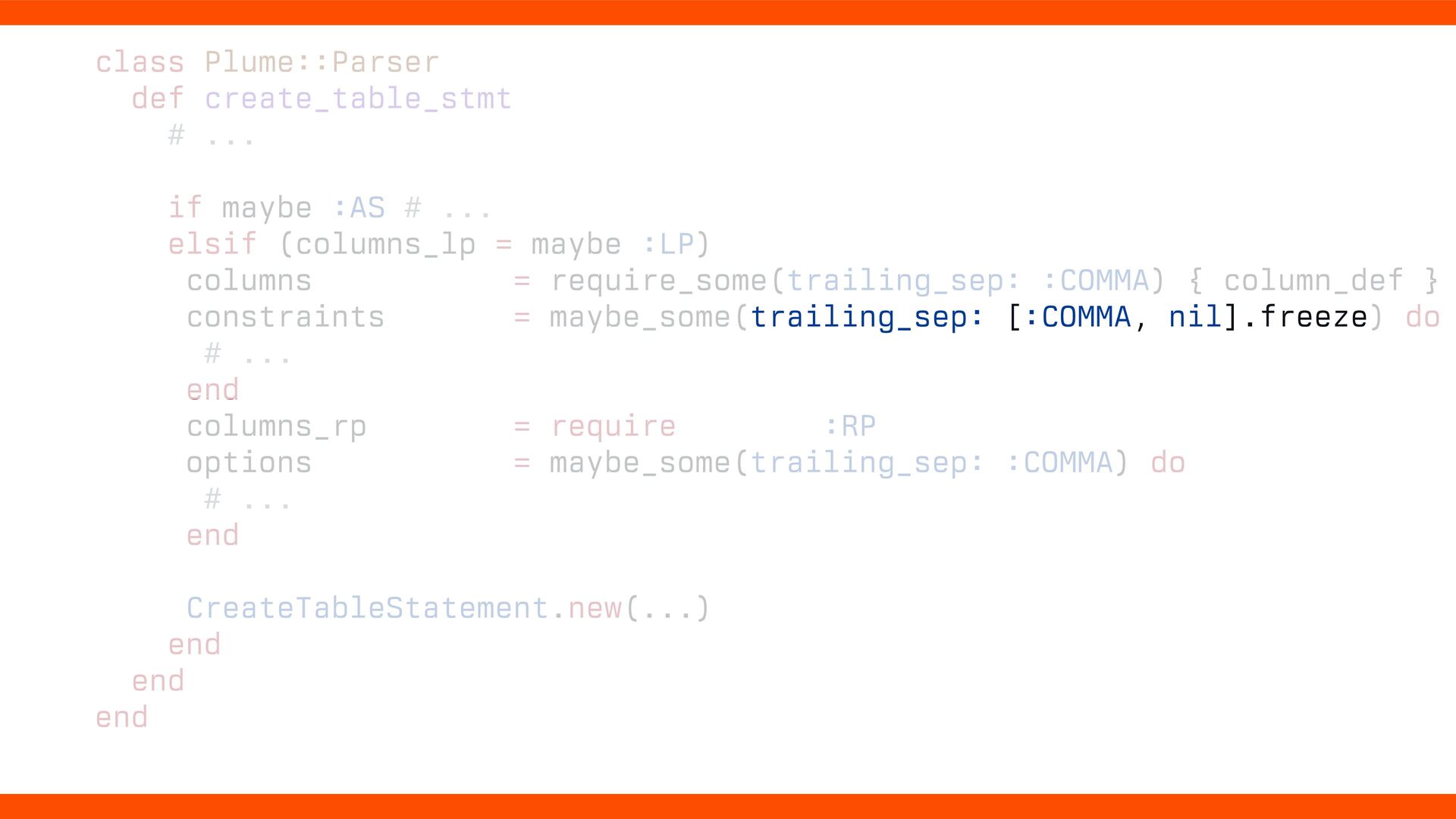

100. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end

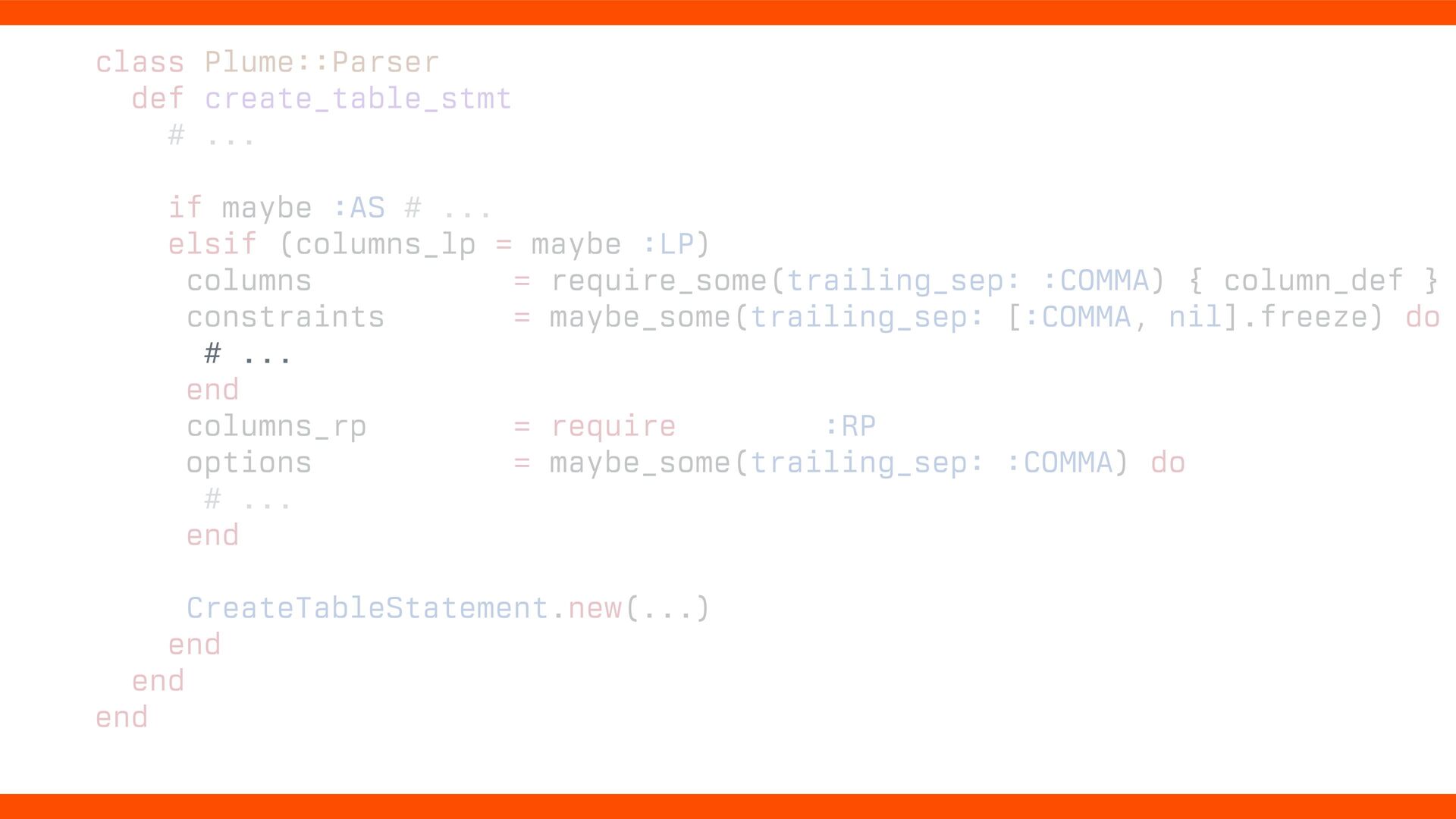

101. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end
102. CREATE TABLE table ( id INTEGER PRIMARY KEY AUTOINCREMENT, foo TEXT, UNIQUE (id, foo) CHECK (LENGTH(foo) < 10) ) ,

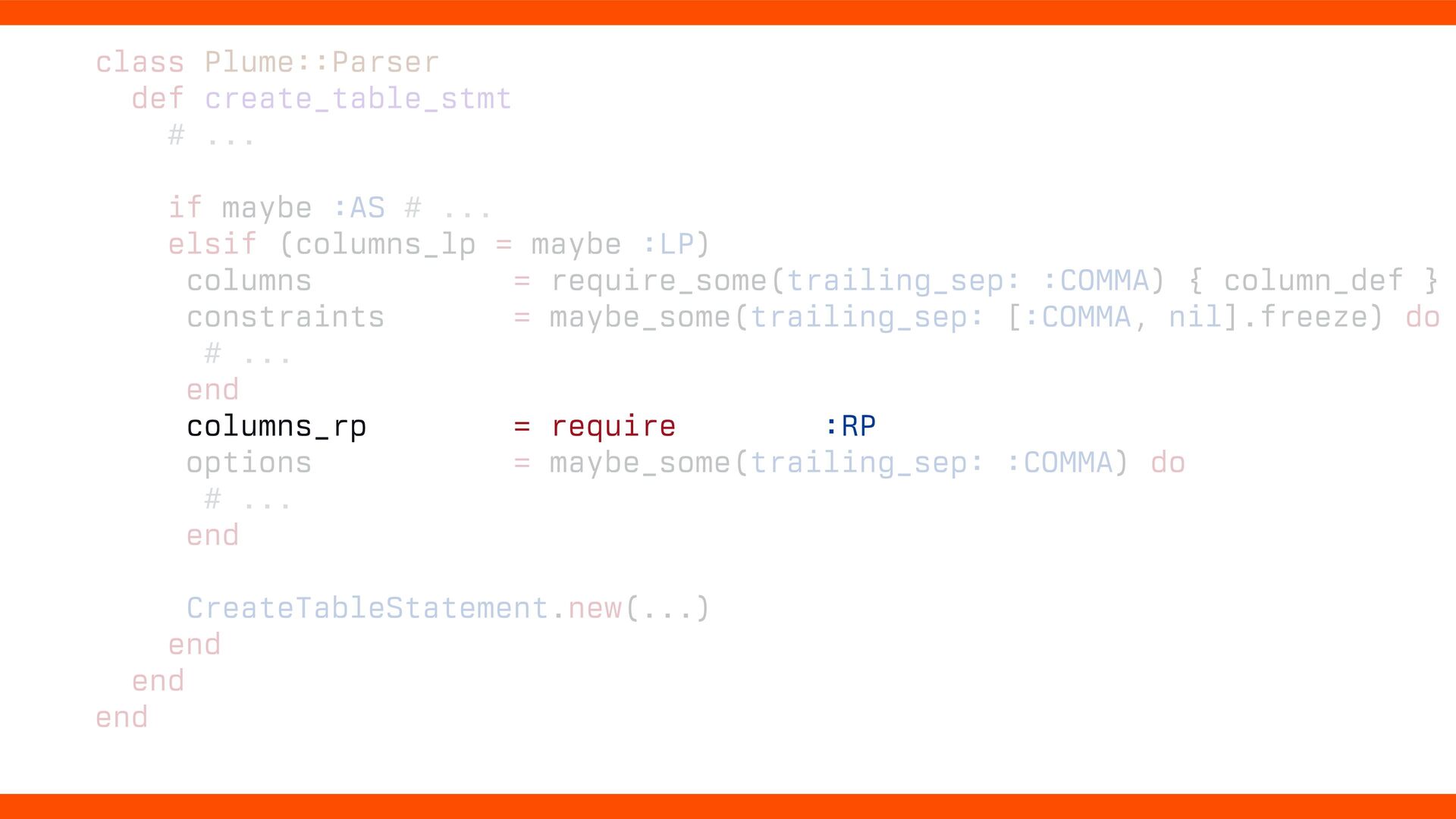

103. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end

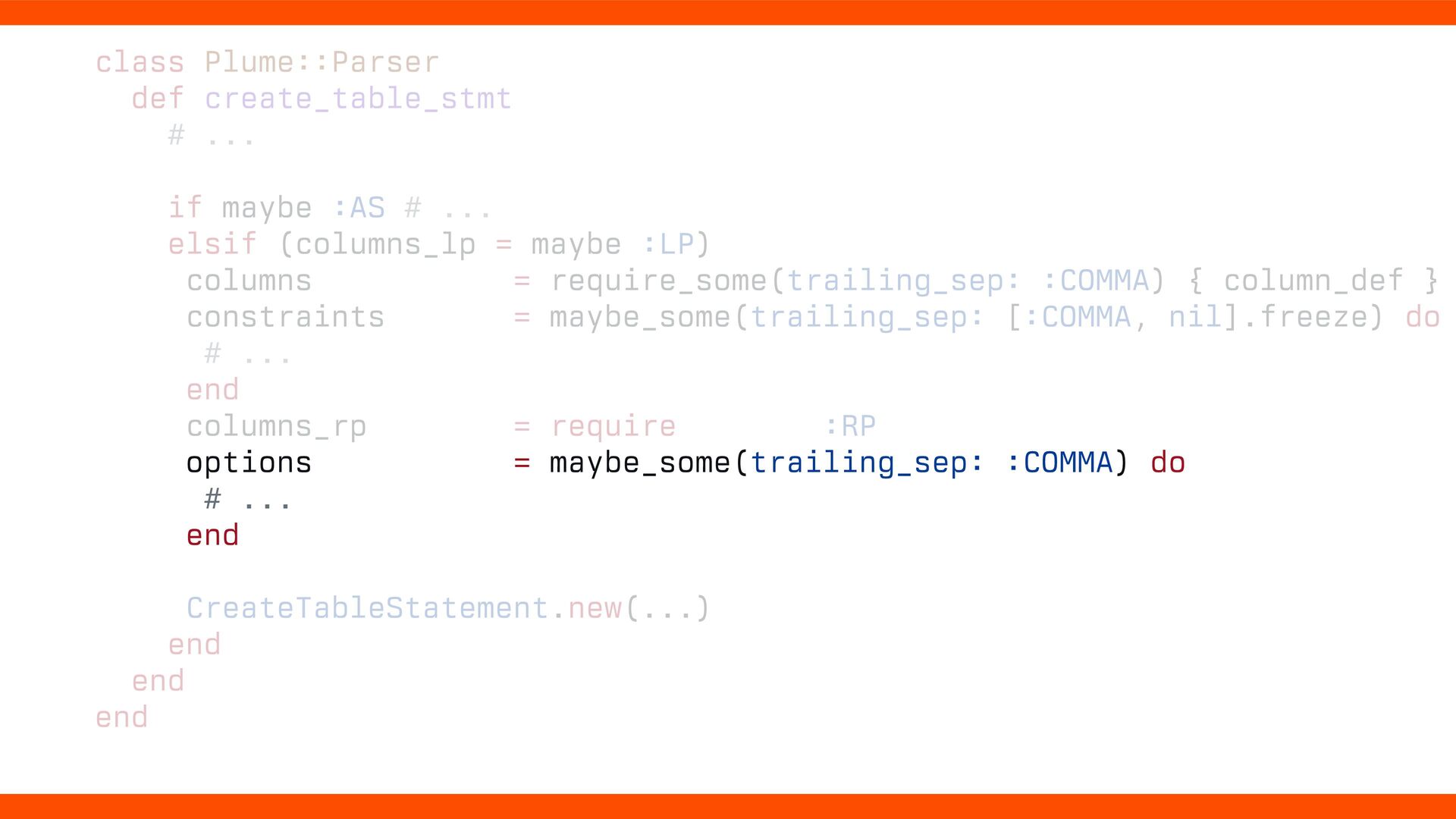

104. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end
105. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end

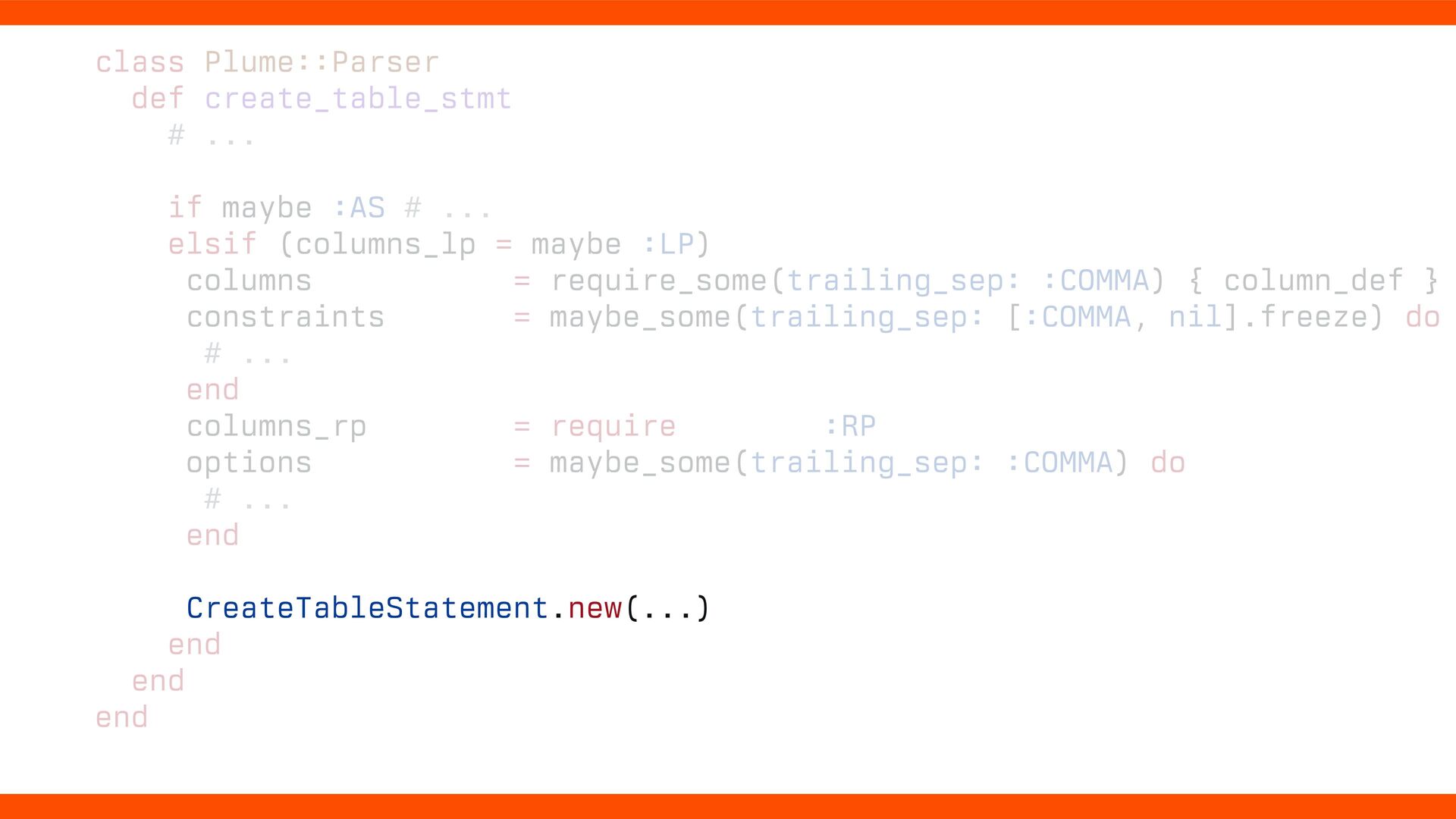

106. class Plume::Parser def create_table_stmt # ... if maybe :AS # ... elsif (columns_lp = maybe :LP) columns = require_some(trailing_sep: :COMMA) { column_def } constraints = maybe_some(trailing_sep: [:COMMA, nil].freeze) do # ... end columns_rp = require :RP options = maybe_some(trailing_sep: :COMMA) do # ... end CreateTableStatement.new(...) end end end

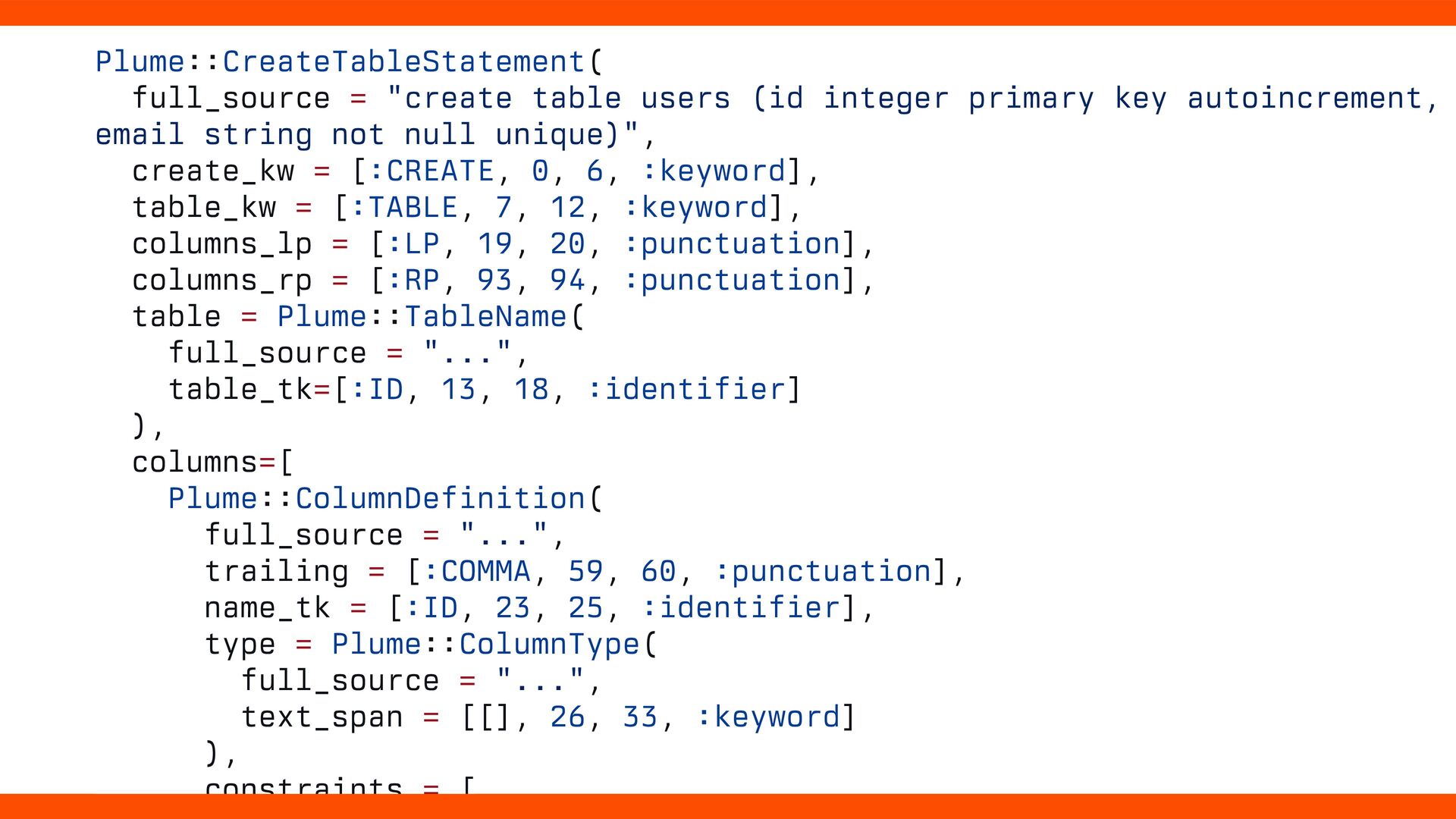

107. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

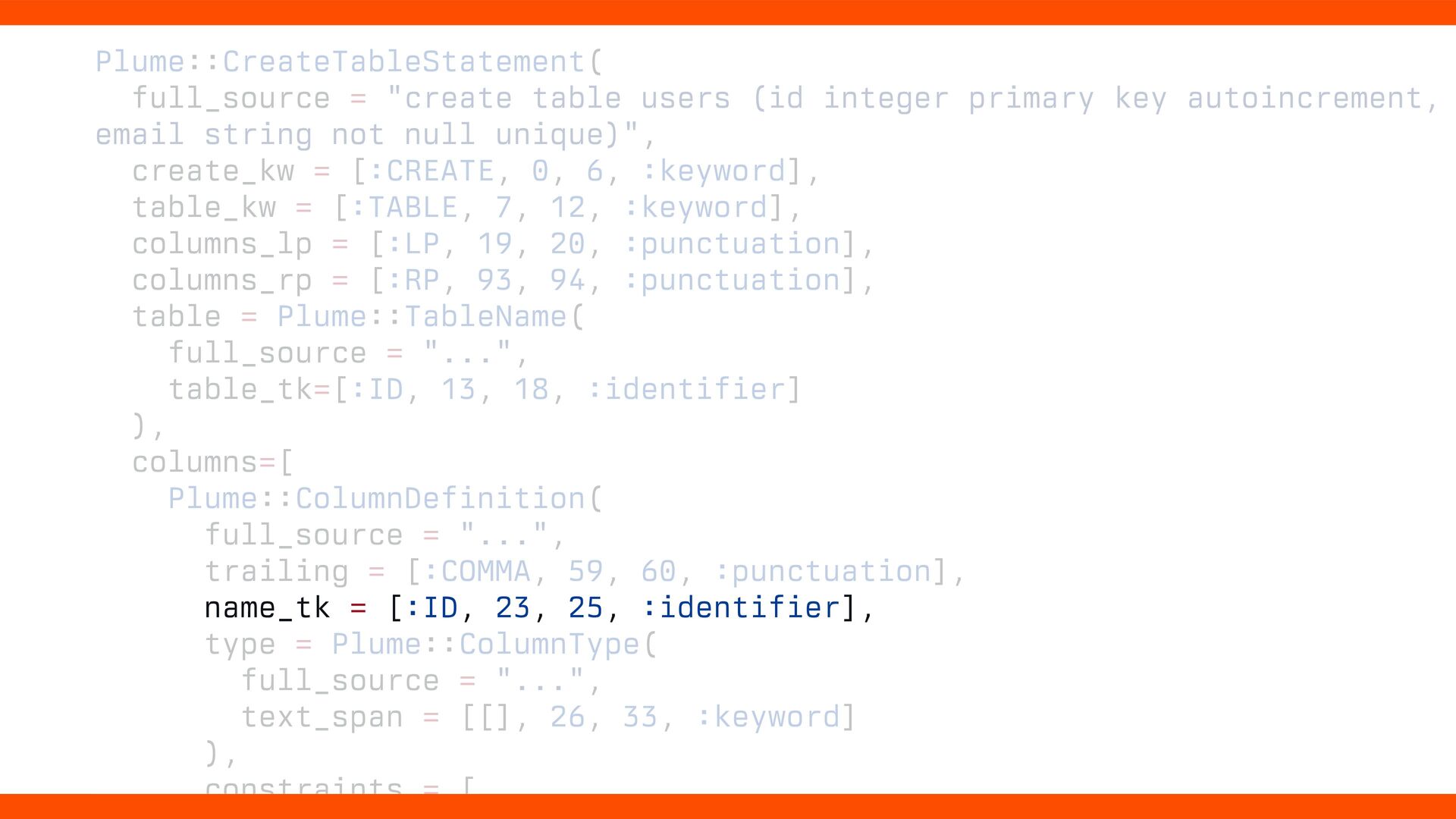

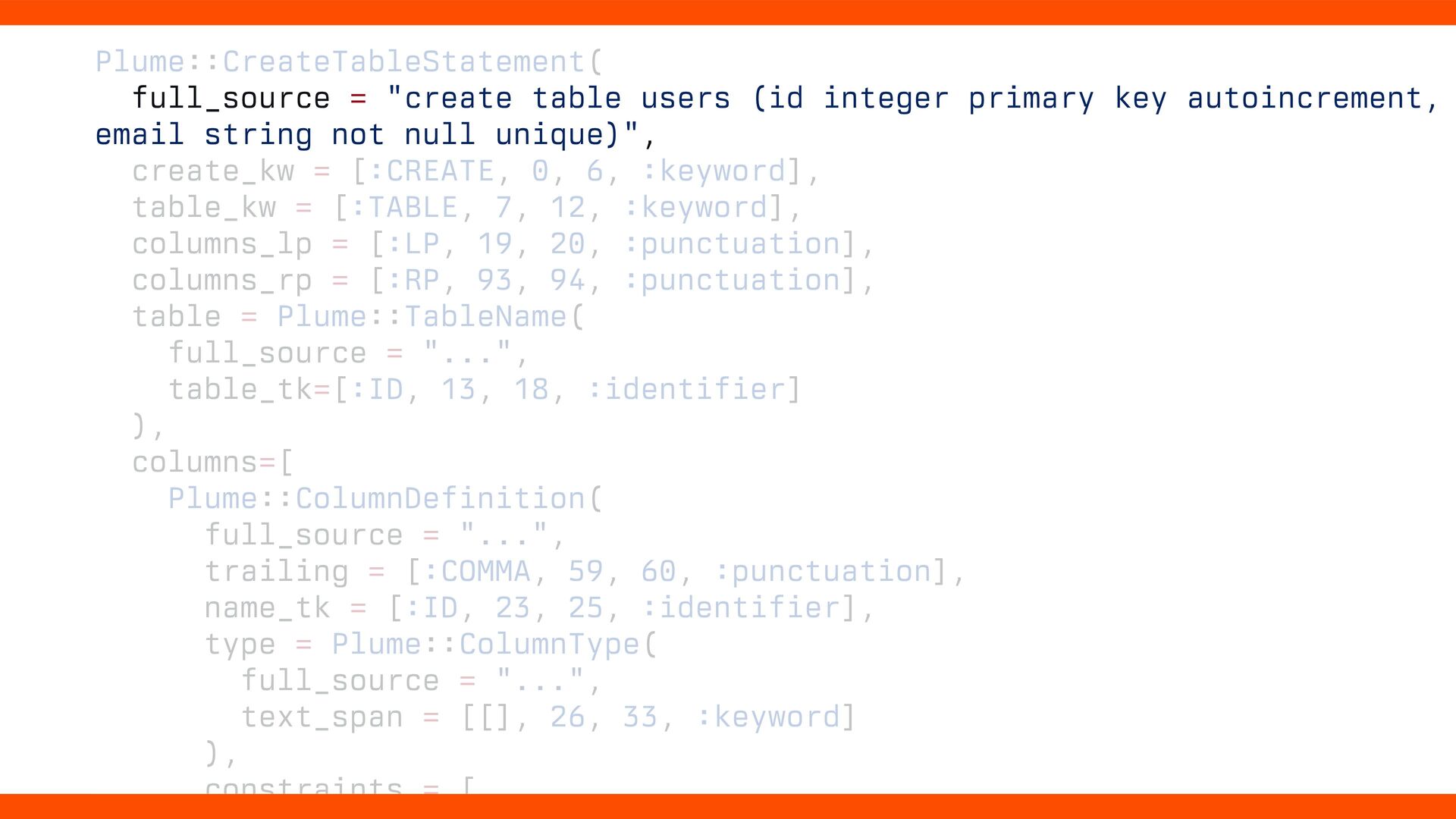

108. Plume::CreateTableStatement( full_source = "create table users (id integer primary key autoincrement, email string not null unique)", create_kw = [:CREATE, 0, 6, :keyword], table_kw = [:TABLE, 7, 12, :keyword], columns_lp = [:LP, 19, 20, :punctuation], columns_rp = [:RP, 93, 94, :punctuation], table = Plume::TableName( full_source = "...", table_tk=[:ID, 13, 18, :identifier] ), columns=[ Plume::ColumnDefinition( full_source = "...", trailing = [:COMMA, 59, 60, :punctuation], name_tk = [:ID, 23, 25, :identifier], type = Plume::ColumnType( full_source = "...", text_span = [[], 26, 33, :keyword] ), constraints = [

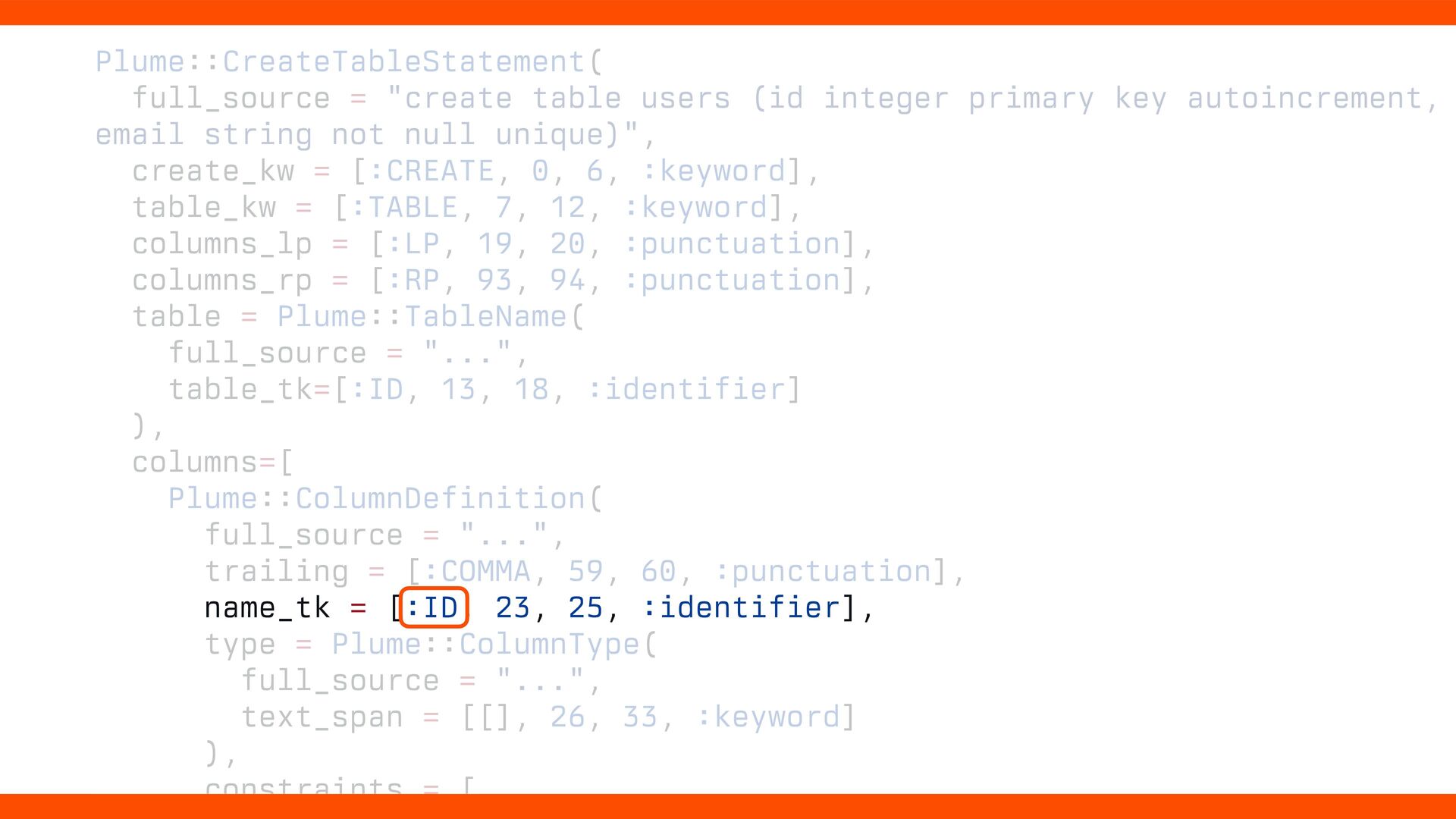

109. Plume::CreateTableStatement( full_source = "create table users (id integer primary key autoincrement, email string not null unique)", create_kw = [:CREATE, 0, 6, :keyword], table_kw = [:TABLE, 7, 12, :keyword], columns_lp = [:LP, 19, 20, :punctuation], columns_rp = [:RP, 93, 94, :punctuation], table = Plume::TableName( full_source = "...", table_tk=[:ID, 13, 18, :identifier] ), columns=[ Plume::ColumnDefinition( full_source = "...", trailing = [:COMMA, 59, 60, :punctuation], name_tk = [:ID, 23, 25, :identifier], type = Plume::ColumnType( full_source = "...", text_span = [[], 26, 33, :keyword] ), constraints = [

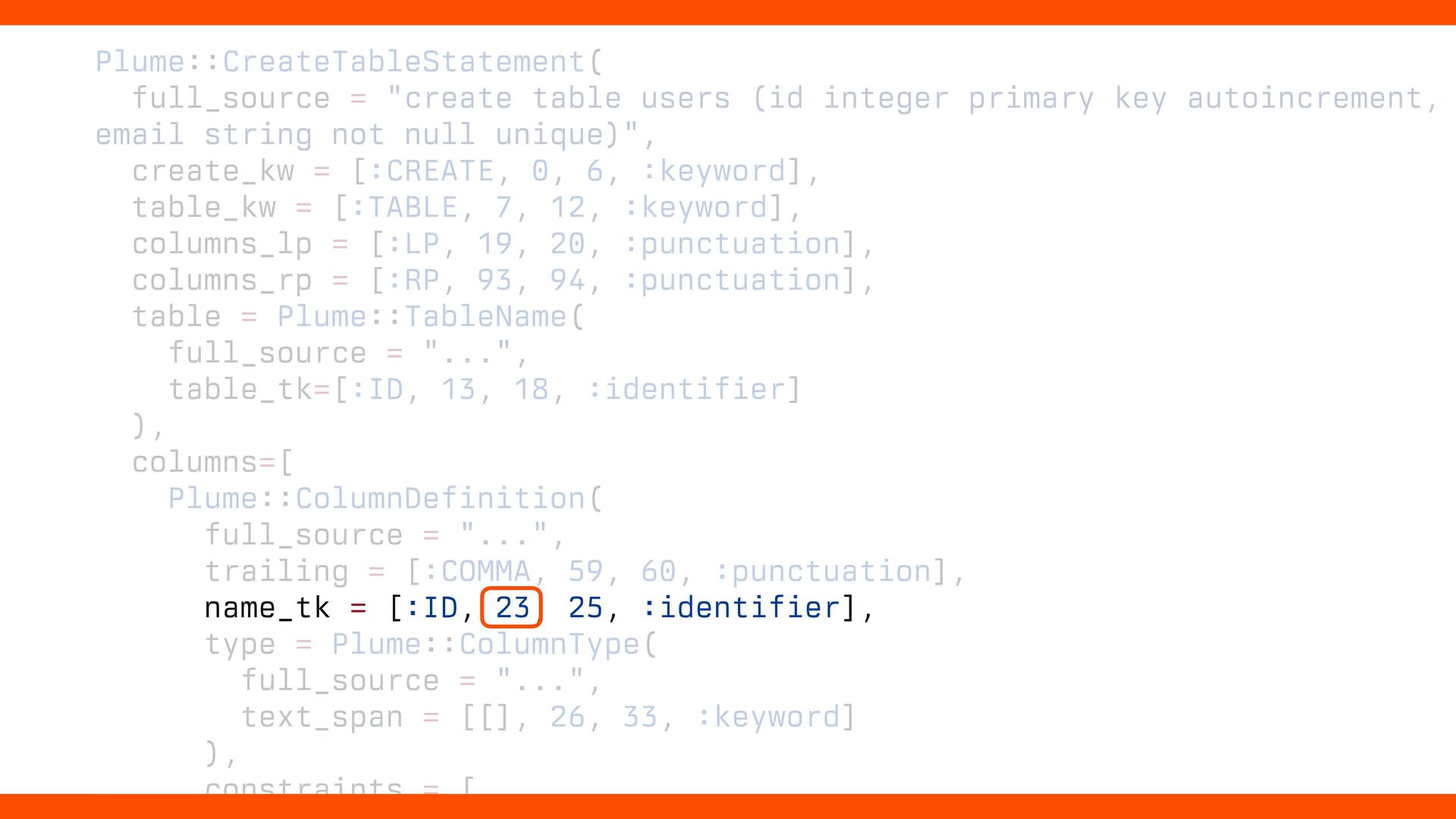

110. Plume::CreateTableStatement( full_source = "create table users (id integer primary key autoincrement, email string not null unique)", create_kw = [:CREATE, 0, 6, :keyword], table_kw = [:TABLE, 7, 12, :keyword], columns_lp = [:LP, 19, 20, :punctuation], columns_rp = [:RP, 93, 94, :punctuation], table = Plume::TableName( full_source = "...", table_tk=[:ID, 13, 18, :identifier] ), columns=[ Plume::ColumnDefinition( full_source = "...", trailing = [:COMMA, 59, 60, :punctuation], name_tk = [:ID, 23, 25, :identifier], type = Plume::ColumnType( full_source = "...", text_span = [[], 26, 33, :keyword] ), constraints = [
111. Plume::CreateTableStatement( full_source = "create table users (id integer primary key autoincrement, email string not null unique)", create_kw = [:CREATE, 0, 6, :keyword], table_kw = [:TABLE, 7, 12, :keyword], columns_lp = [:LP, 19, 20, :punctuation], columns_rp = [:RP, 93, 94, :punctuation], table = Plume::TableName( full_source = "...", table_tk=[:ID, 13, 18, :identifier] ), columns=[ Plume::ColumnDefinition( full_source = "...", trailing = [:COMMA, 59, 60, :punctuation], name_tk = [:ID, 23, 25, :identifier], type = Plume::ColumnType( full_source = "...", text_span = [[], 26, 33, :keyword] ), constraints = [

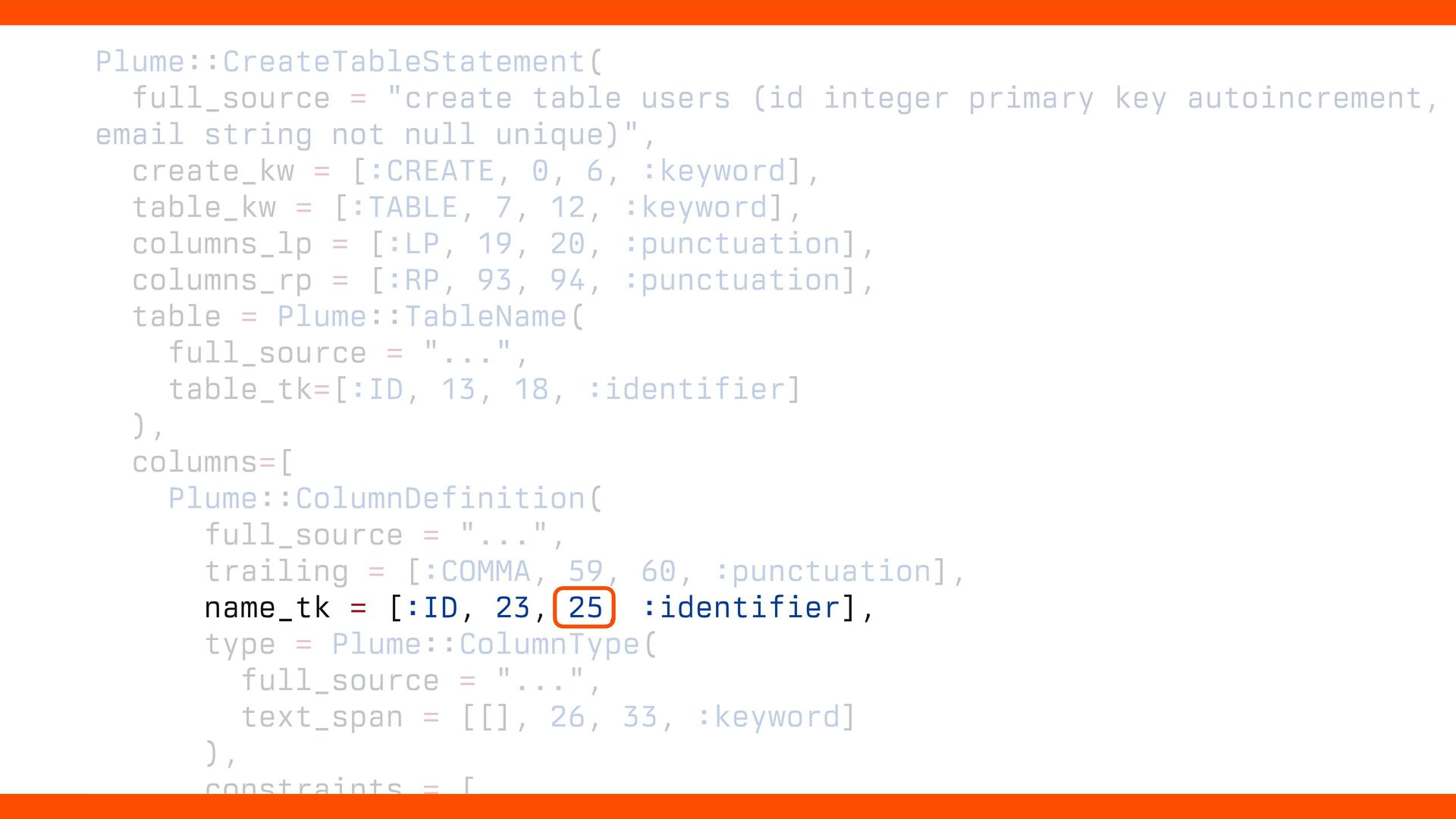

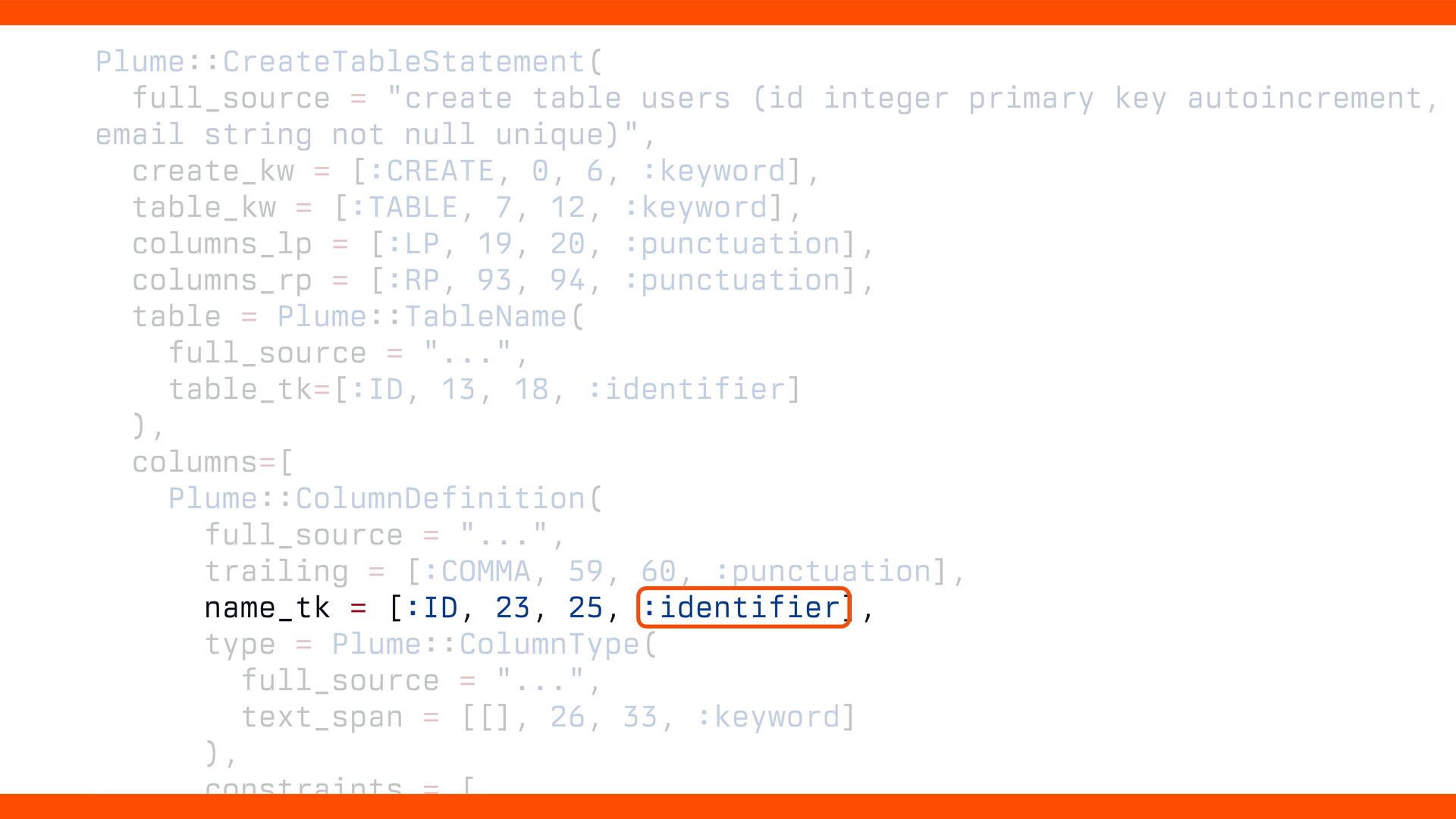

112. Plume::CreateTableStatement( full_source = "create table users (id integer primary key autoincrement, email string not null unique)", create_kw = [:CREATE, 0, 6, :keyword], table_kw = [:TABLE, 7, 12, :keyword], columns_lp = [:LP, 19, 20, :punctuation], columns_rp = [:RP, 93, 94, :punctuation], table = Plume::TableName( full_source = "...", table_tk=[:ID, 13, 18, :identifier] ), columns=[ Plume::ColumnDefinition( full_source = "...", trailing = [:COMMA, 59, 60, :punctuation], name_tk = [:ID, 23, 25, :identifier], type = Plume::ColumnType( full_source = "...", text_span = [[], 26, 33, :keyword] ), constraints = [
113. Plume::CreateTableStatement( full_source = "create table users (id integer primary key autoincrement, email string not null unique)", create_kw = [:CREATE, 0, 6, :keyword], table_kw = [:TABLE, 7, 12, :keyword], columns_lp = [:LP, 19, 20, :punctuation], columns_rp = [:RP, 93, 94, :punctuation], table = Plume::TableName( full_source = "...", table_tk=[:ID, 13, 18, :identifier] ), columns=[ Plume::ColumnDefinition( full_source = "...", trailing = [:COMMA, 59, 60, :punctuation], name_tk = [:ID, 23, 25, :identifier], type = Plume::ColumnType( full_source = "...", text_span = [[], 26, 33, :keyword] ), constraints = [
114. Plume::CreateTableStatement( full_source = "create table users (id integer primary key autoincrement, email string not null unique)", create_kw = [:CREATE, 0, 6, :keyword], table_kw = [:TABLE, 7, 12, :keyword], columns_lp = [:LP, 19, 20, :punctuation], columns_rp = [:RP, 93, 94, :punctuation], table = Plume::TableName( full_source = "...", table_tk=[:ID, 13, 18, :identifier] ), columns=[ Plume::ColumnDefinition( full_source = "...", trailing = [:COMMA, 59, 60, :punctuation], name_tk = [:ID, 23, 25, :identifier], type = Plume::ColumnType( full_source = "...", text_span = [[], 26, 33, :keyword] ), constraints = [
115. Plume::CreateTableStatement( table = Plume::TableName(table = "users"), columns = [ Plume::ColumnDefinition( name = "id", type = Plume::ColumnType(text = "integer", affinity = :INTEGER), constraints = [ Plume::PrimaryKeyColumnConstraint(autoincrement = true), ], ), Plume::ColumnDefinition( name = "email", type = Plume::ColumnType(text = "string", affinity = :ANY), constraints = [ Plume::NotNullColumnConstraint(), Plume::UniqueColumnConstraint(), ] ) ] )

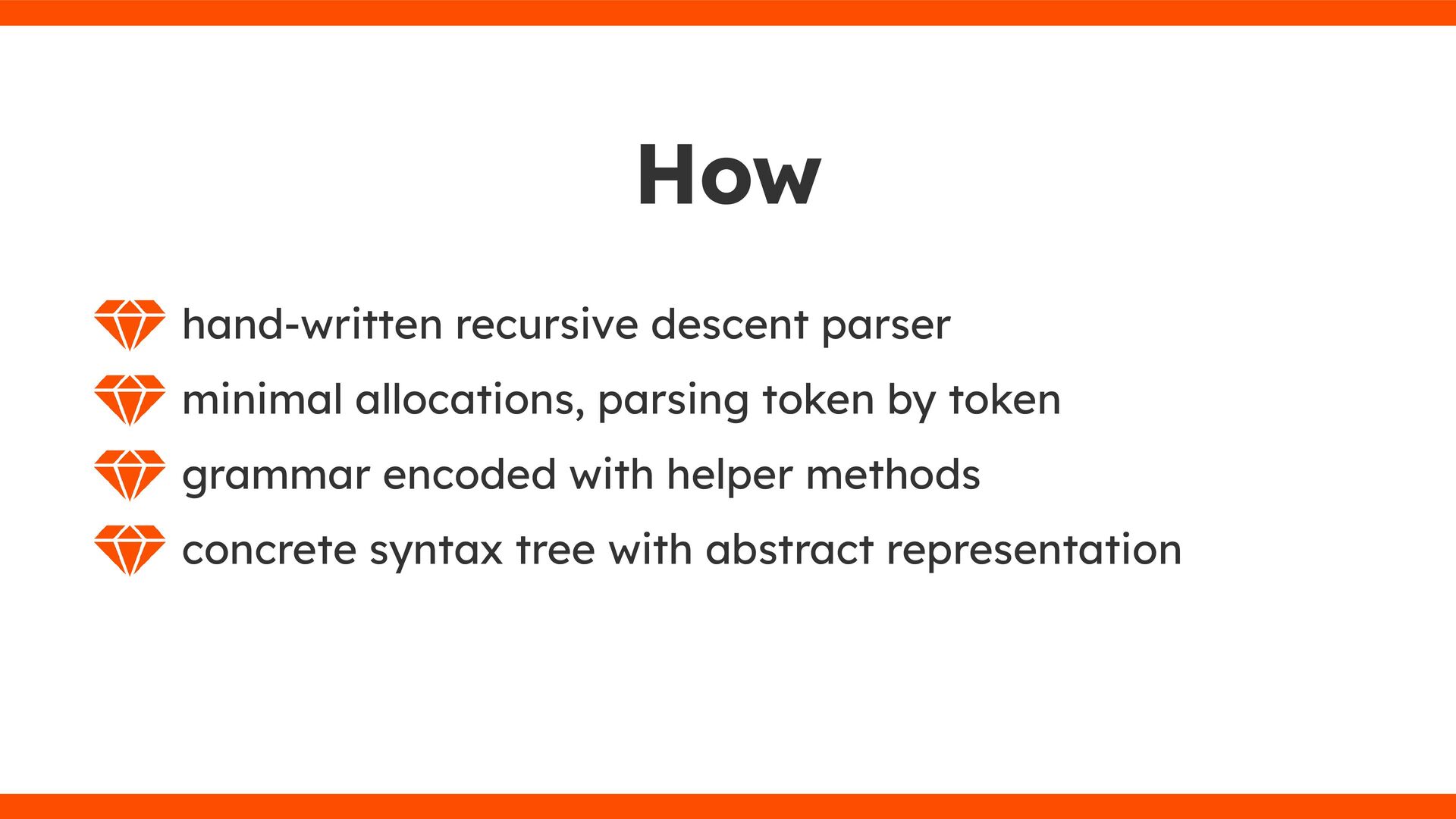

116. How hand-written recursive descent parser minimal allocations, parsing token by token grammar encoded with helper methods concrete syntax tree with abstract representation
117. What next

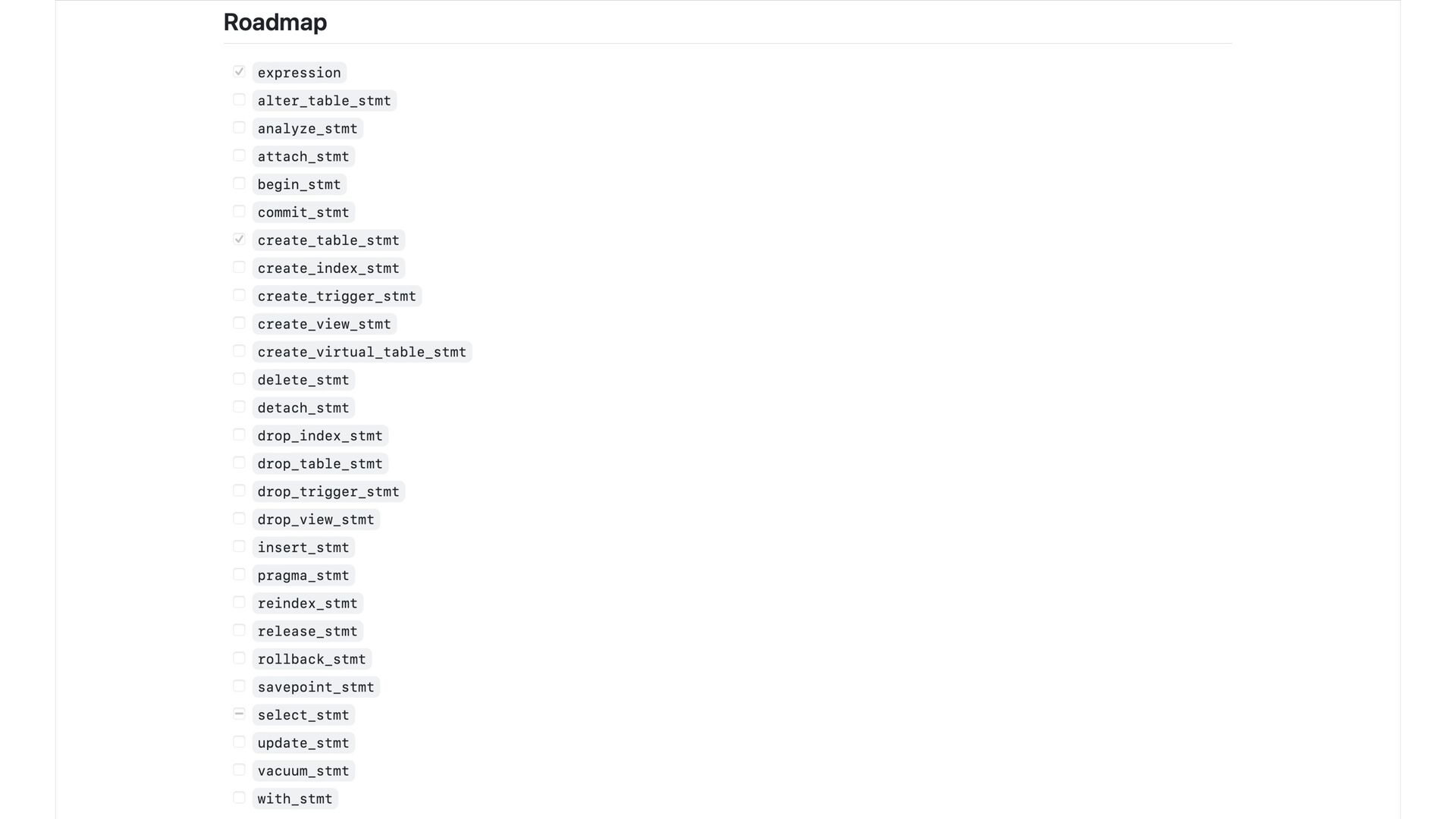

118. What next More statements

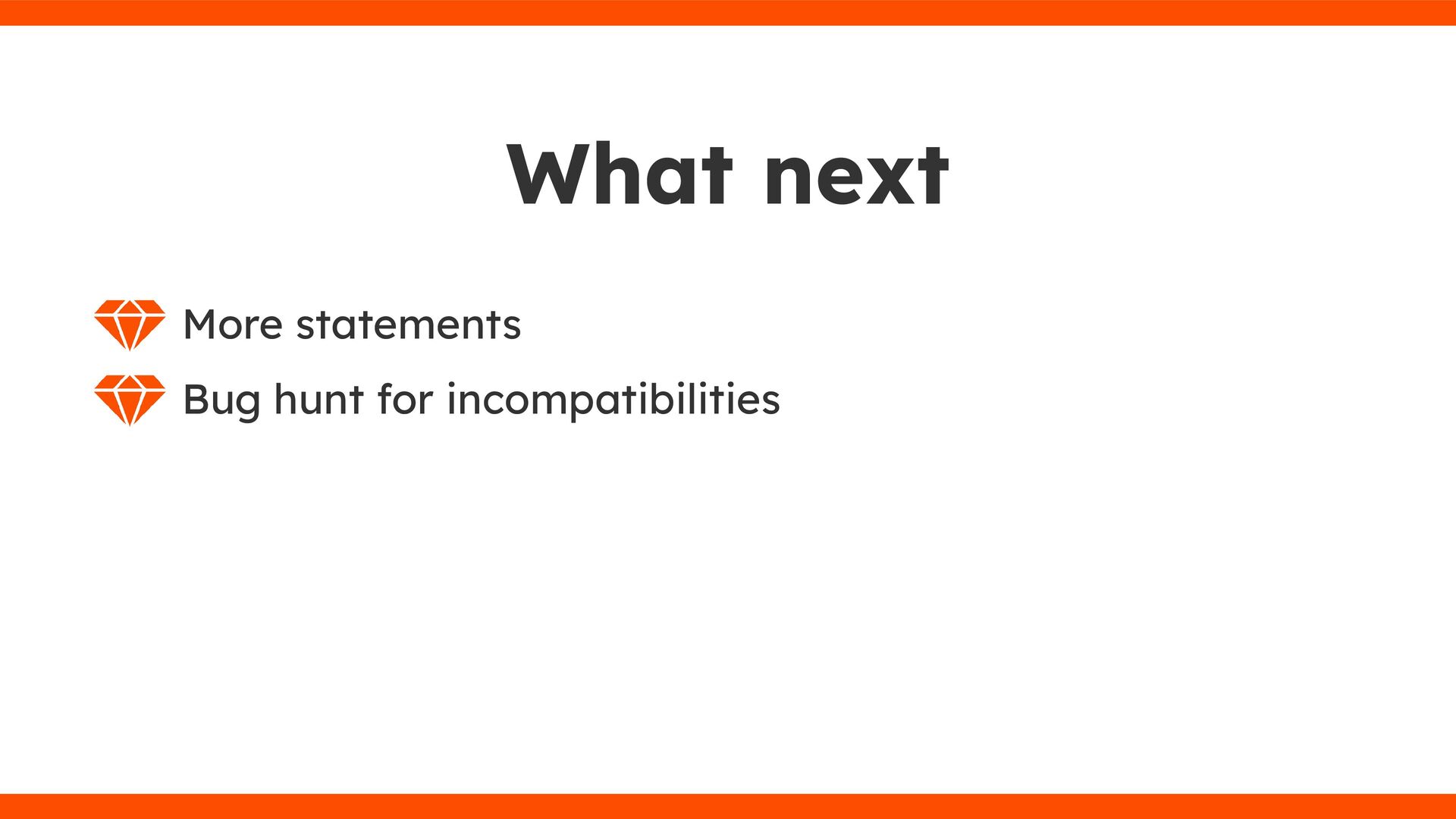

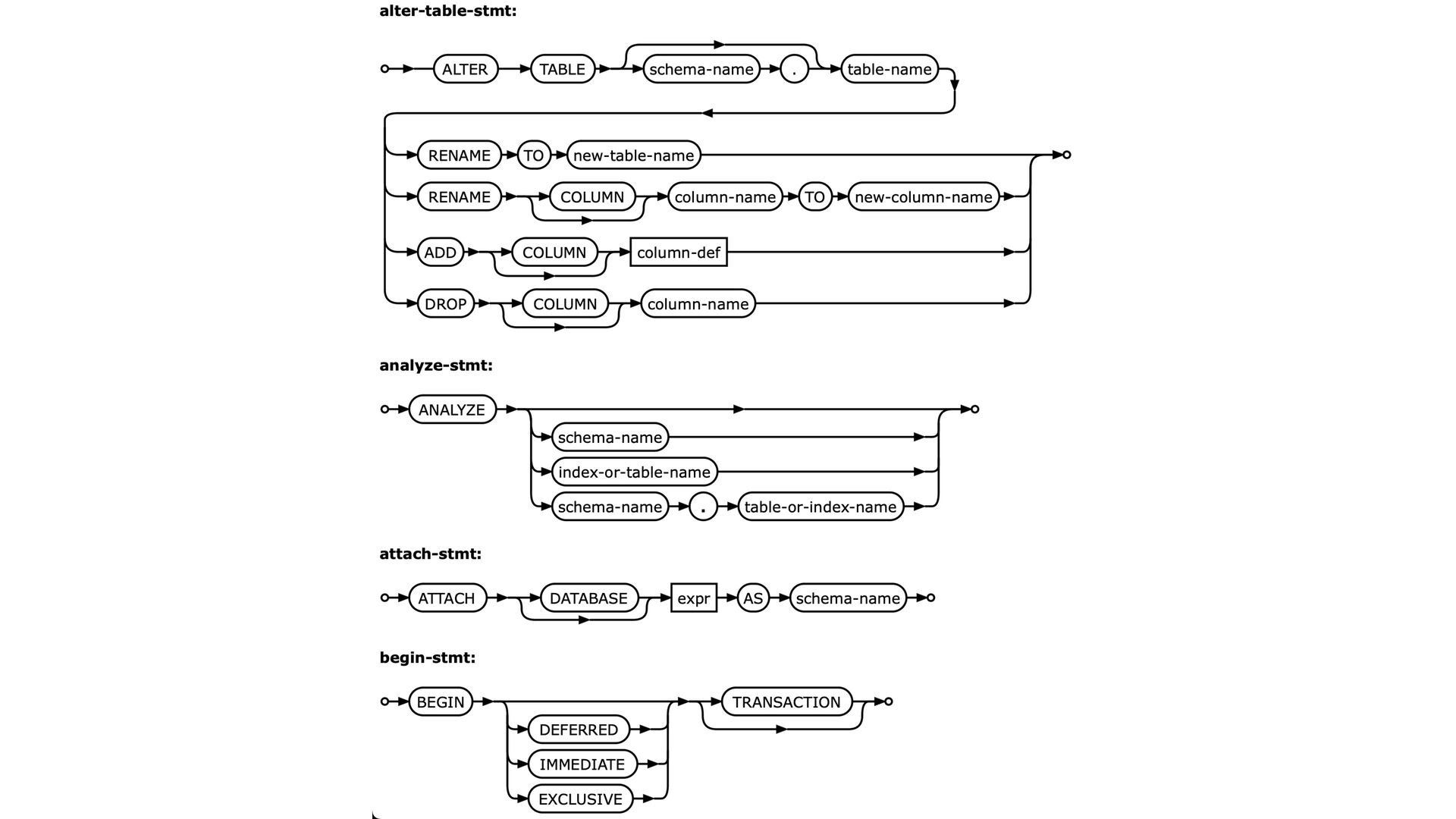

121. What next More statements
122. What next More statements Bug hunt for incompatibilities

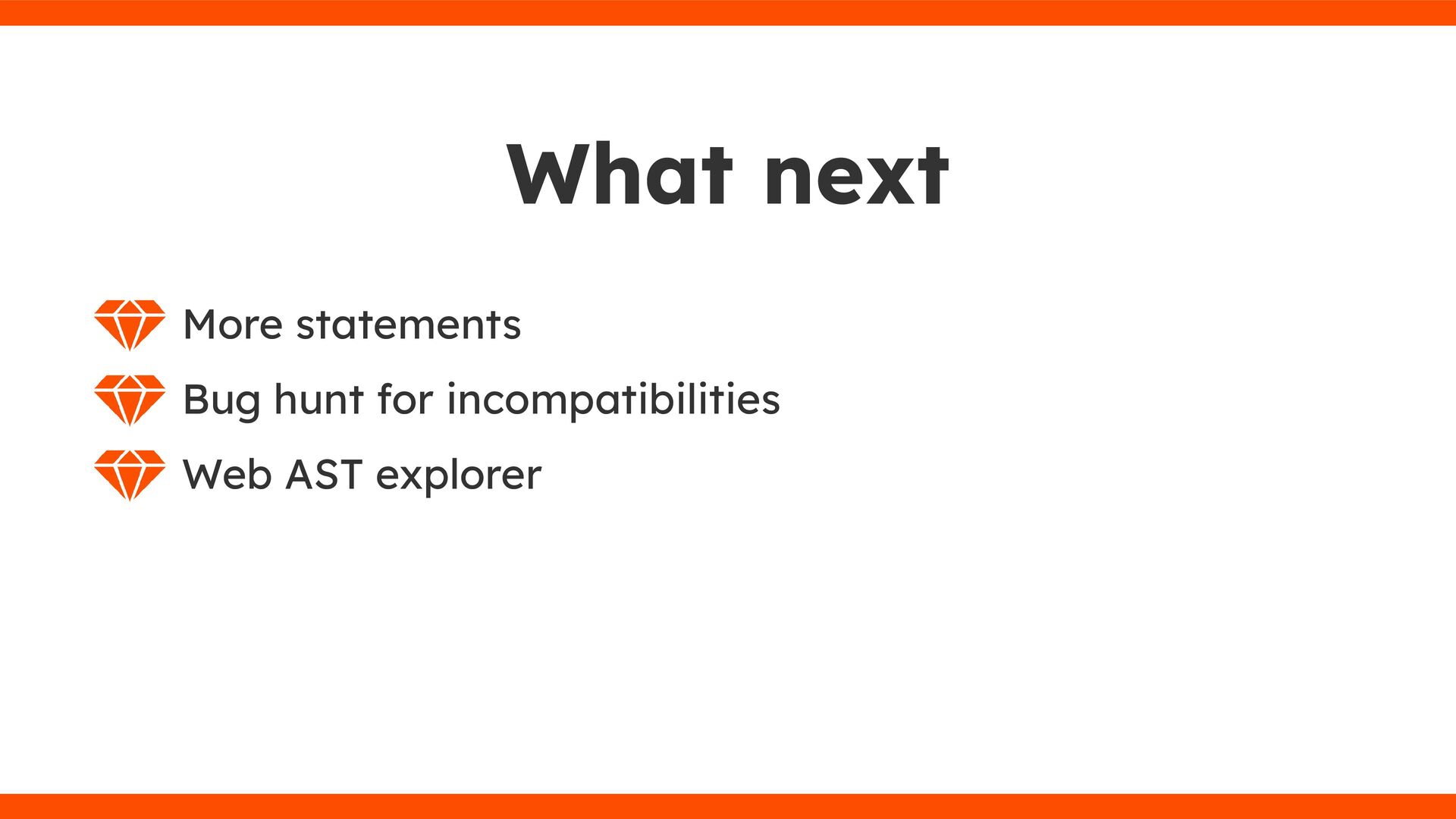

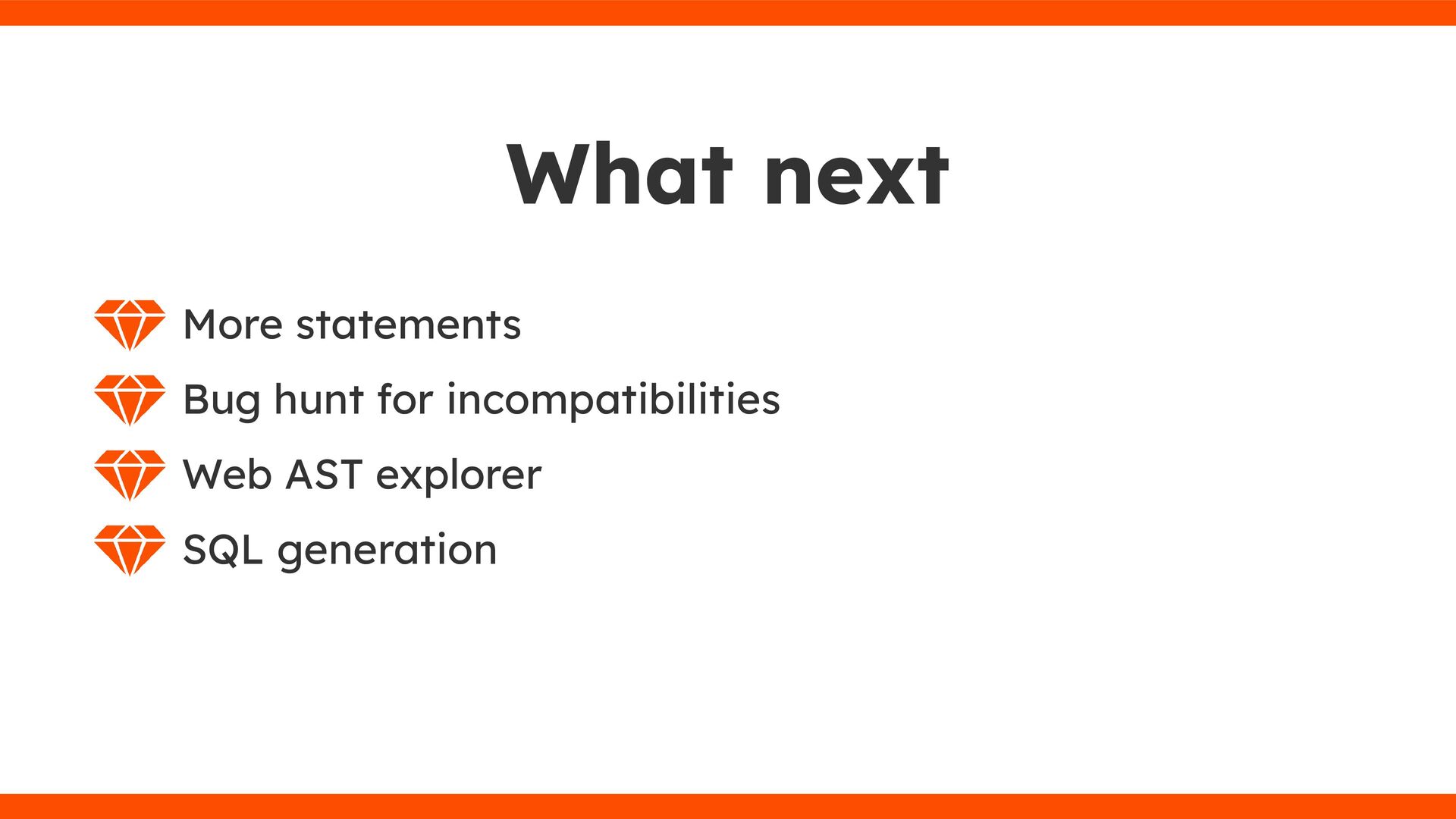

123. What next More statements Bug hunt for incompatibilities Web AST explorer
124. What next More statements Bug hunt for incompatibilities Web AST explorer SQL generation

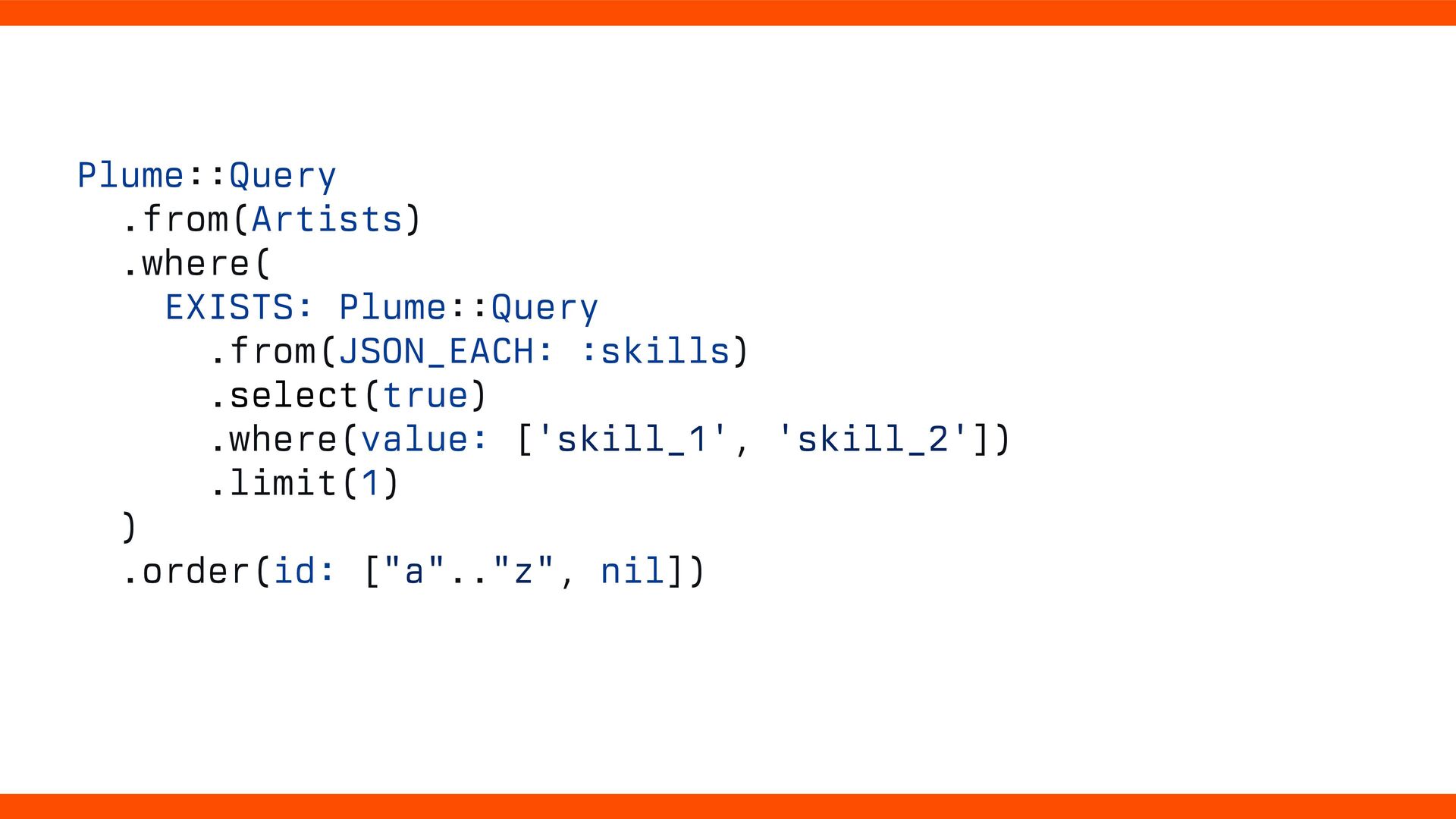

125. Plume::Query .from(Artists) .where( EXISTS: Plume::Query .from(JSON_EACH: :skills) .select(true) .where(value: ['skill_1', 'skill_2']) .limit(1) ) .order(id: ["a".."z", nil])

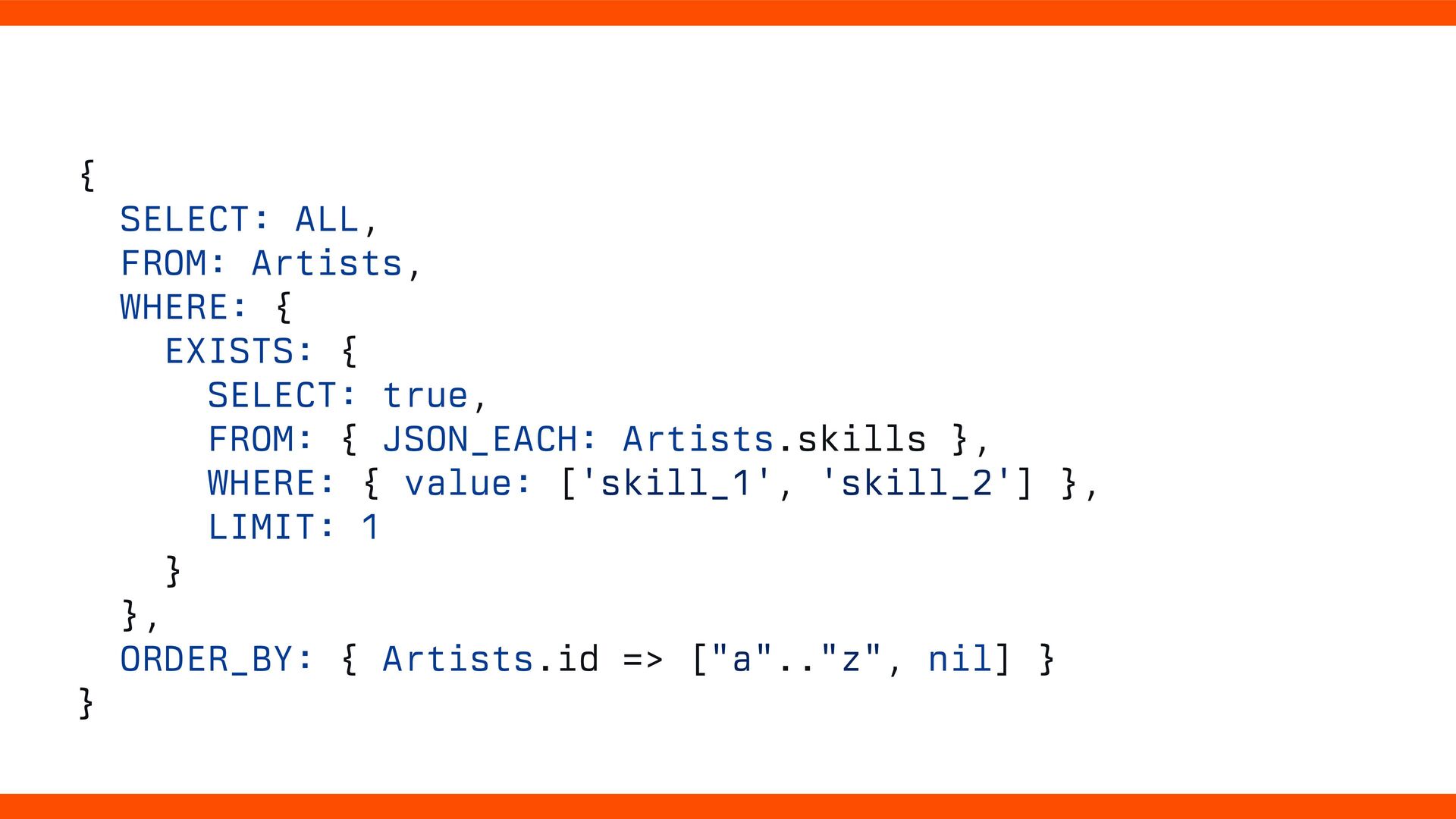

126. { SELECT: ALL, FROM: Artists, WHERE: { EXISTS: { SELECT: true, FROM: { JSON_EACH: Artists.skills }, WHERE: { value: ['skill_1', 'skill_2'] }, LIMIT: 1 } }, ORDER_BY: { Artists.id => ["a".."z", nil] } }

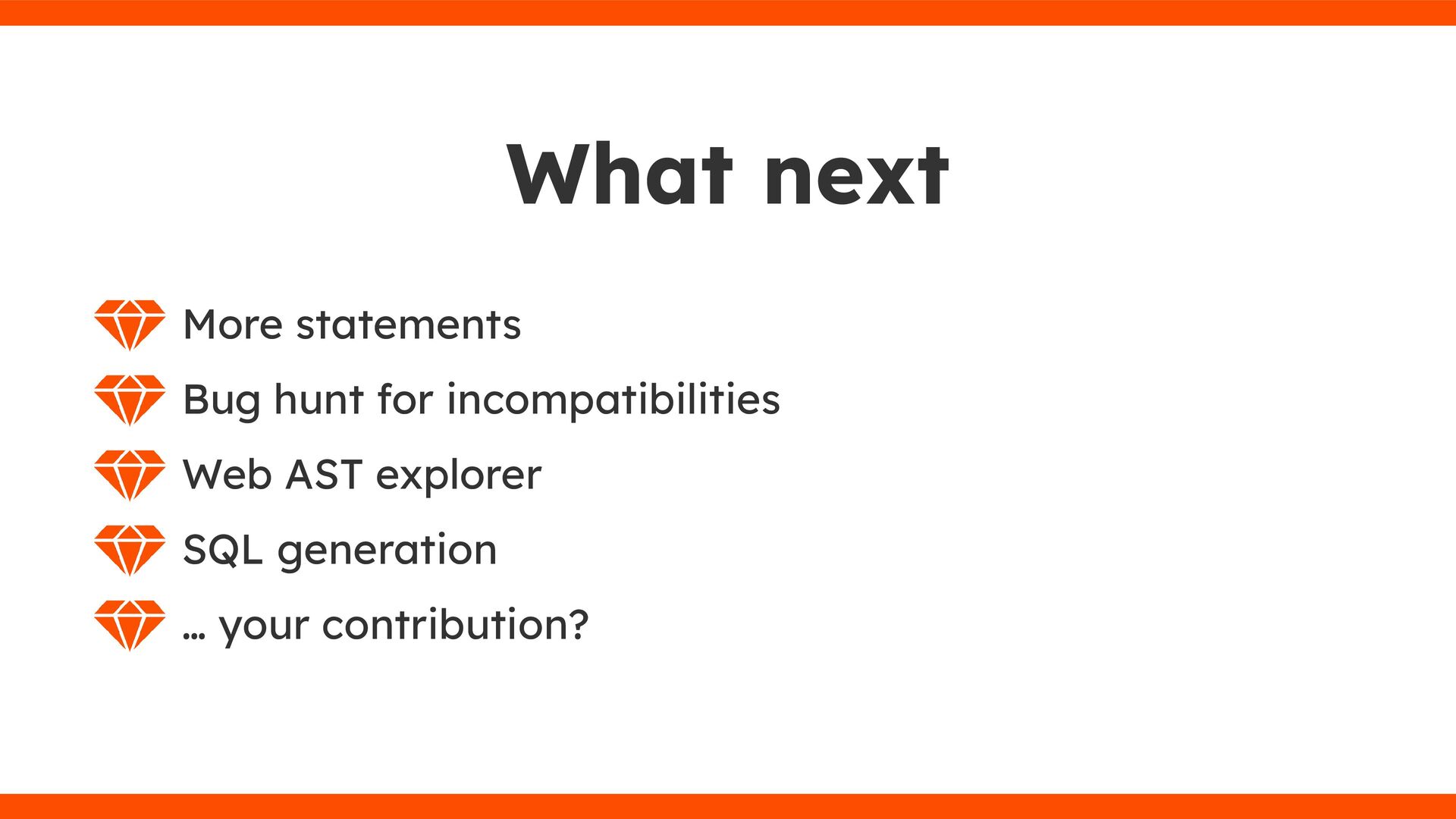

127. What next More statements Bug hunt for incompatibilities Web AST explorer SQL generation … your contribution?
129. 0 https://github.com/fractaledmind/plume
131. Thank you ありがとう
