How does the Relay connect Android app development and Design?

At Google I/O 2023, there will be one session on Relay, which is an experience of the process of developing a single Android application using Relay. This deck introduces how to connect Android app development and design using Relay.

- Build a complete app with Relay and Compose
- https://io.google/2023/program/bac078a1-4c65-4566-b200-71e8cbe14601/
- Codelab: Build a complete app with Relay and Jetpack Compose
- https://codelabs.developers.google.com/relay-complete-app#0
- Overview: Relay
- https://developer.android.com/jetpack/compose/tooling/relay

Ryosuke Horie

June 01, 2023
Tweet

More Decks by Ryosuke Horie

Other Decks in Programming

Transcript

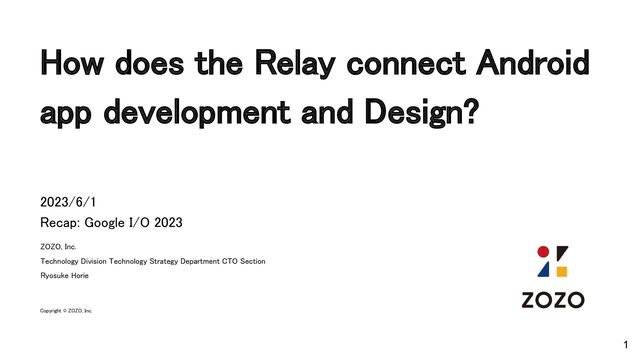

  1. How does the Relay connect Android app development and Design?


    ZOZO, Inc.
 Technology Division Technology Strategy Department CTO Section
 Ryosuke Horie Copyright © ZOZO, Inc. 1 2023/6/1
 Recap: Google I/O 2023

  2. © ZOZO, Inc. ZOZO, Inc.
 Technology Division
 Technology Strategy

    Department
 CTO Section
 Ryosuke Horie
 2
  3. © ZOZO, Inc. 5 What is Relay?
 • Easy to

    build apps with Figma's UI components

  4. © ZOZO, Inc. 9 What is UI Packages?
 • Intermediate

    representation of UI shared between Figma and Android Studio
 https://developer.android.com/jetpack/compose/tooling/relay/create-ui-packages
  5. © ZOZO, Inc. 10 What is UI Packages?
 • Intermediate

    representation of UI shared between Figma and Android Studio
 • The UI package contains the following information:
 ◦ Layout Information
 ◦ UI Package Summary
 ◦ Content and interaction parameters
 ◦ Styling information
 ◦ Font and image assets
 https://developer.android.com/jetpack/compose/tooling/relay/create-ui-packages
  6. © ZOZO, Inc. 12 Relay workflow
 Figma Relay for Figma

    Plugin UI Packages Android Studio Relay for Android Studio Plugin Components Android Studio icon from: https://developer.android.com/studio
  7. © ZOZO, Inc. • UI Package is fetched by entering

    the Figma source URL
 13 Import UI Package with Relay for Android Studio Plugin



  8. © ZOZO, Inc. • UI Package is fetched by entering

    the Figma source URL
 • Fetched UI Packages are placed under ui-packages
 14 Import UI Package with Relay for Android Studio Plugin



  9. © ZOZO, Inc. 15 Relay workflow
 Figma Relay for Figma

    Plugin UI Packages Android Studio Relay for Android Studio Plugin Components Android Studio icon from: https://developer.android.com/studio
  10. © ZOZO, Inc. 16 Relay workflow
 Figma Relay for Figma

    Plugin UI Packages Android Studio Relay for Android Studio Plugin Components Relay Gradle Plugin Android Studio icon from: https://developer.android.com/studio
  11. © ZOZO, Inc. 17 Generate code from UI package with

    Relay Gradle Plugin




 • Generate Composables in Android project build

  12. © ZOZO, Inc. 18 Generate code from UI package with

    Relay Gradle Plugin




 • Generate Composables in Android project build
 • The following two gradle tasks are defined:
 ◦ generateRelayCode
 ◦ generateRelayRuntimeCode
 • Perform these tasks if you only want to build UI packages

  13. © ZOZO, Inc. 19 Relay workflow
 Figma Relay for Figma

    Plugin UI Packages Relay Gradle Plugin Relay for Android Studio Plugin Composables Components @Composable fun EventCard(modifier: Modifier = Modifier) { TopLevel(modifier = modifier) { Thumbnail() Title() Description() } } Android Studio Android Studio icon from: https://developer.android.com/studio
  14. © ZOZO, Inc. 20 Relay workflow
 Figma Relay for Figma

    Plugin UI Packages Relay Gradle Plugin Relay for Android Studio Plugin Composables Components @Composable fun EventCard(modifier: Modifier = Modifier) { TopLevel(modifier = modifier) { Thumbnail() Title() Description() } } Android Studio Android Studio icon from: https://developer.android.com/studio
  15. © ZOZO, Inc. 22 Make and propagate design updates
 •

    Update design and save named version

  16. © ZOZO, Inc. 23 Make and propagate design updates
 •

    Update UI package in Android Studio
 • Rebuild Android project to reflect updates

  17. © ZOZO, Inc. 25 What should I do in these

    cases?
 • Dynamically change text and images
 • Handling Components with Multiple UI Patterns
 • Handling clicks and other interactions

  18. © ZOZO, Inc. 31 Handling Design Variants
 • Create Design

    Variants with Figma
 • Relay can handle Variants
 ◦ Switching Composables with enum

  19. © ZOZO, Inc. 32 Handling Design Variants
 • Switching Composable

    with enum
 // Design to select for EventComponents enum class View { EventCard, ListItem } /** * This composable was generated from the UI Package 'event_components'. * Generated code; do not edit directly */ @Composable fun EventComponents( modifier: Modifier = Modifier, view: View = View.EventCard ) { when (view) { View.EventCard -> TopLevelViewEventCard(modifier = modifier) { ThumbnailViewEventCard() TitleViewEventCard() DescriptionViewEventCard() } View.ListItem -> TopLevelViewListItem(modifier = modifier) { ThumbnailViewListItem() TextsViewListItem { TitleViewListItem() DescriptionViewListItem() OptionsViewListItem { OptionViewListItem() } } } }
  20. © ZOZO, Inc. 33 Handling Design Variants
 • Switching Composable

    with enum
 // Design to select for EventComponents enum class View { EventCard, ListItem } /** * This composable was generated from the UI Package 'event_components'. * Generated code; do not edit directly */ @Composable fun EventComponents( modifier: Modifier = Modifier, view: View = View.EventCard ) { when (view) { View.EventCard -> TopLevelViewEventCard(modifier = modifier) { ThumbnailViewEventCard() TitleViewEventCard() DescriptionViewEventCard() } View.ListItem -> TopLevelViewListItem(modifier = modifier) { ThumbnailViewListItem() TextsViewListItem { TitleViewListItem() DescriptionViewListItem() OptionsViewListItem { OptionViewListItem() } } } }
  21. © ZOZO, Inc. 34 Handling Design Variants
 • Switching Composable

    with enum
 // Design to select for EventComponents enum class View { EventCard, ListItem } /** * This composable was generated from the UI Package 'event_components'. * Generated code; do not edit directly */ @Composable fun EventComponents( modifier: Modifier = Modifier, view: View = View.EventCard ) { when (view) { View.EventCard -> TopLevelViewEventCard(modifier = modifier) { ThumbnailViewEventCard() TitleViewEventCard() DescriptionViewEventCard() } View.ListItem -> TopLevelViewListItem(modifier = modifier) { ThumbnailViewListItem() TextsViewListItem { TitleViewListItem() DescriptionViewListItem() OptionsViewListItem { OptionViewListItem() } } } }
  22. © ZOZO, Inc. 35 Handling Design Variants
 • Switching Composable

    with enum
 // Design to select for EventComponents enum class View { EventCard, ListItem } /** * This composable was generated from the UI Package 'event_components'. * Generated code; do not edit directly */ @Composable fun EventComponents( modifier: Modifier = Modifier, view: View = View.EventCard ) { when (view) { View.EventCard -> TopLevelViewEventCard(modifier = modifier) { ThumbnailViewEventCard() TitleViewEventCard() DescriptionViewEventCard() } View.ListItem -> TopLevelViewListItem(modifier = modifier) { ThumbnailViewListItem() TextsViewListItem { TitleViewListItem() DescriptionViewListItem() OptionsViewListItem { OptionViewListItem() } } } }
  23. © ZOZO, Inc. 36 Content Parameters in Design Variants
 •

    Add content parameters to entire Design Variants

  24. © ZOZO, Inc. 37 /** * This composable was generated

    from the UI Package 'event_components'. * Generated code; do not edit directly * * @param thumbnail Event thumbnail image * @param title Event title * @param description Event description */ @Composable fun EventComponents( modifier: Modifier = Modifier, view: View = View.EventCard, thumbnail: Painter = EmptyPainter(), title: String = "", description: String = "" ) { when (view) { View.EventCard -> TopLevelViewEventCard(modifier = modifier) { ThumbnailViewEventCard(thumbnail = thumbnail) TitleViewEventCard(title = title) DescriptionViewEventCard(description = description) } View.ListItem -> TopLevelViewListItem(modifier = modifier) { ThumbnailViewListItem(thumbnail = thumbnail) TextsViewListItem { TitleViewListItem(title = title) DescriptionViewListItem(description = description) OptionsViewListItem { OptionViewListItem() } } } }
  25. © ZOZO, Inc. 38 /** * This composable was generated

    from the UI Package 'event_components'. * Generated code; do not edit directly * * @param thumbnail Event thumbnail image * @param title Event title * @param description Event description */ @Composable fun EventComponents( modifier: Modifier = Modifier, view: View = View.EventCard, thumbnail: Painter = EmptyPainter(), title: String = "", description: String = "" ) { when (view) { View.EventCard -> TopLevelViewEventCard(modifier = modifier) { ThumbnailViewEventCard(thumbnail = thumbnail) TitleViewEventCard(title = title) DescriptionViewEventCard(description = description) } View.ListItem -> TopLevelViewListItem(modifier = modifier) { ThumbnailViewListItem(thumbnail = thumbnail) TextsViewListItem { TitleViewListItem(title = title) DescriptionViewListItem(description = description) OptionsViewListItem { OptionViewListItem() } } } }
  26. © ZOZO, Inc. 41 @Composable fun EventComponents( modifier: Modifier =

    Modifier, view: View = View.EventCard, thumbnail: Painter = EmptyPainter(), title: String = "", description: String = "", onTapped: () -> Unit = {} ) { when (view) { View.EventCard -> TopLevelViewEventCard( onTapped = onTapped, modifier = modifier ) { ThumbnailViewEventCard(thumbnail = thumbnail) TitleViewEventCard(title = title) DescriptionViewEventCard(description = description) } View.ListItem -> TopLevelViewListItem( onTapped = onTapped, modifier = modifier ) { ThumbnailViewListItem(thumbnail = thumbnail) TextsViewListItem { TitleViewListItem(title = title) DescriptionViewListItem(description = description) OptionsViewListItem { OptionViewListItem() } } } } }
  27. © ZOZO, Inc. 42 @Composable fun EventComponents( modifier: Modifier =

    Modifier, view: View = View.EventCard, thumbnail: Painter = EmptyPainter(), title: String = "", description: String = "", onTapped: () -> Unit = {} ) { when (view) { View.EventCard -> TopLevelViewEventCard( onTapped = onTapped, modifier = modifier ) { ThumbnailViewEventCard(thumbnail = thumbnail) TitleViewEventCard(title = title) DescriptionViewEventCard(description = description) } View.ListItem -> TopLevelViewListItem( onTapped = onTapped, modifier = modifier ) { ThumbnailViewListItem(thumbnail = thumbnail) TextsViewListItem { TitleViewListItem(title = title) DescriptionViewListItem(description = description) OptionsViewListItem { OptionViewListItem() } } } } }
  28. © ZOZO, Inc. 43 Partially add Interaction Handlers
 • Add

    interactions only for specific components

  29. © ZOZO, Inc. 44 @Composable fun EventComponents( modifier: Modifier =

    Modifier, view: View = View.EventCard, thumbnail: Painter = EmptyPainter(), title: String = "", description: String = "", onTapped: () -> Unit = {}, onMenuTapped: () -> Unit = {} ) { when (view) { View.EventCard -> TopLevelViewEventCard( onTapped = onTapped, modifier = modifier ) { ThumbnailViewEventCard(thumbnail = thumbnail) TitleViewEventCard(title = title) DescriptionViewEventCard(description = description) } View.ListItem -> TopLevelViewListItem( onTapped = onTapped, modifier = modifier ) { ThumbnailViewListItem(thumbnail = thumbnail) TextsViewListItem { TitleViewListItem(title = title) DescriptionViewListItem(description = description) OptionsViewListItem { OptionViewListItem(onMenuTapped = onMenuTapped) } } } } }
  30. © ZOZO, Inc. 45 @Composable fun EventComponents( modifier: Modifier =

    Modifier, view: View = View.EventCard, thumbnail: Painter = EmptyPainter(), title: String = "", description: String = "", onTapped: () -> Unit = {}, onMenuTapped: () -> Unit = {} ) { when (view) { View.EventCard -> TopLevelViewEventCard( onTapped = onTapped, modifier = modifier ) { ThumbnailViewEventCard(thumbnail = thumbnail) TitleViewEventCard(title = title) DescriptionViewEventCard(description = description) } View.ListItem -> TopLevelViewListItem( onTapped = onTapped, modifier = modifier ) { ThumbnailViewListItem(thumbnail = thumbnail) TextsViewListItem { TitleViewListItem(title = title) DescriptionViewListItem(description = description) OptionsViewListItem { OptionViewListItem(onMenuTapped = onMenuTapped) } } } } }
  31. © ZOZO, Inc. 46 Add state and interaction
 • UI

    package is stateless
 • Wrap your generated package in a custom Composable function for state management
 • For example, if the DropdownMenu is displayed by clicking on the menu

  32. © ZOZO, Inc. 47 @Composable fun EventListItemController( event: Event, onTapped:

    () -> Unit, ) { var expanded by remember { mutableStateOf(false) } Box { EventComponents( … view = View.ListItem, onTapped = onTapped, onMenuTapped = { expanded = true } ) DropdownMenu( expanded = expanded, onDismissRequest = { expanded = false }, ) { DropdownMenuItem( text = { Text(text = "menu1") }, onClick = { /*TODO*/ } ) … } } }
  33. © ZOZO, Inc. 48 @Composable fun EventListItemController( event: Event, onTapped:

    () -> Unit, ) { var expanded by remember { mutableStateOf(false) } Box { EventComponents( … view = View.ListItem, onTapped = onTapped, onMenuTapped = { expanded = true } ) DropdownMenu( expanded = expanded, onDismissRequest = { expanded = false }, ) { DropdownMenuItem( text = { Text(text = "menu1") }, onClick = { /*TODO*/ } ) … } } }
  34. © ZOZO, Inc. 49 What should I do in these

    cases?
 • Dynamically change text and images
 • Handling Components with Multiple UI Patterns
 • Handling clicks and other interactions

  35. © ZOZO, Inc. 50 What should I do in these

    cases?
 • Dynamically change text and images
 → Content Parameters
 • Handling Components with Multiple UI Patterns
 → Switching in Design Variants
 • Handling clicks and other interactions
 → Interaction Handlers

  36. © ZOZO, Inc. 52 Other Features
 • Mapping Figma’s Styles

    to Compose theme
 • Mapping components to existing code

  37. © ZOZO, Inc. 53 Pros & Cons
 • Composables generated

    from design files are considered accurate
 • Easy Android app development with UI package
 • Need to design with the generated code in mind, for better or worse
 • Roles of designers and engineers need to be reconsidered


  38. © ZOZO, Inc. 54 Conclusion
 • Design and Android app

    development are closely connected
 • It is exciting to see Composable being generated from Figma!
 ◦ This is an α release and I look forward to future updates
 • A lot of thinking to ask into the development process, but much potential for productivity improvement.


  39. © ZOZO, Inc. 55 How to study Relay?
 • Watch

    “Build a complete app with Relay and Compose”
 • Do Codelab
 • Read the Android Developers documentation
 • Hands on (good if you can do it with a designer)
