Lights, Camera, Snapshot! Paparazzi 2.0 📸

Paparazzi 2.0 development has been underway since last year's Droidcon NYC:

In this session, we'll discuss:
* what APIs the 2.0 release will offer
* how to have more control with animation snapshots with a proposed keyframe and touch gestures API
* how to tackle fidelity issues between real devices and layoutlib using diffing algorithms
* ...and more!

We'll also give a demo of these 2.0 features, as well as why we're excited about it and you should be too!

Transcript

1. Lights, Camera, Snapshot! Paparazzi 2.0 📸 John Rodriguez

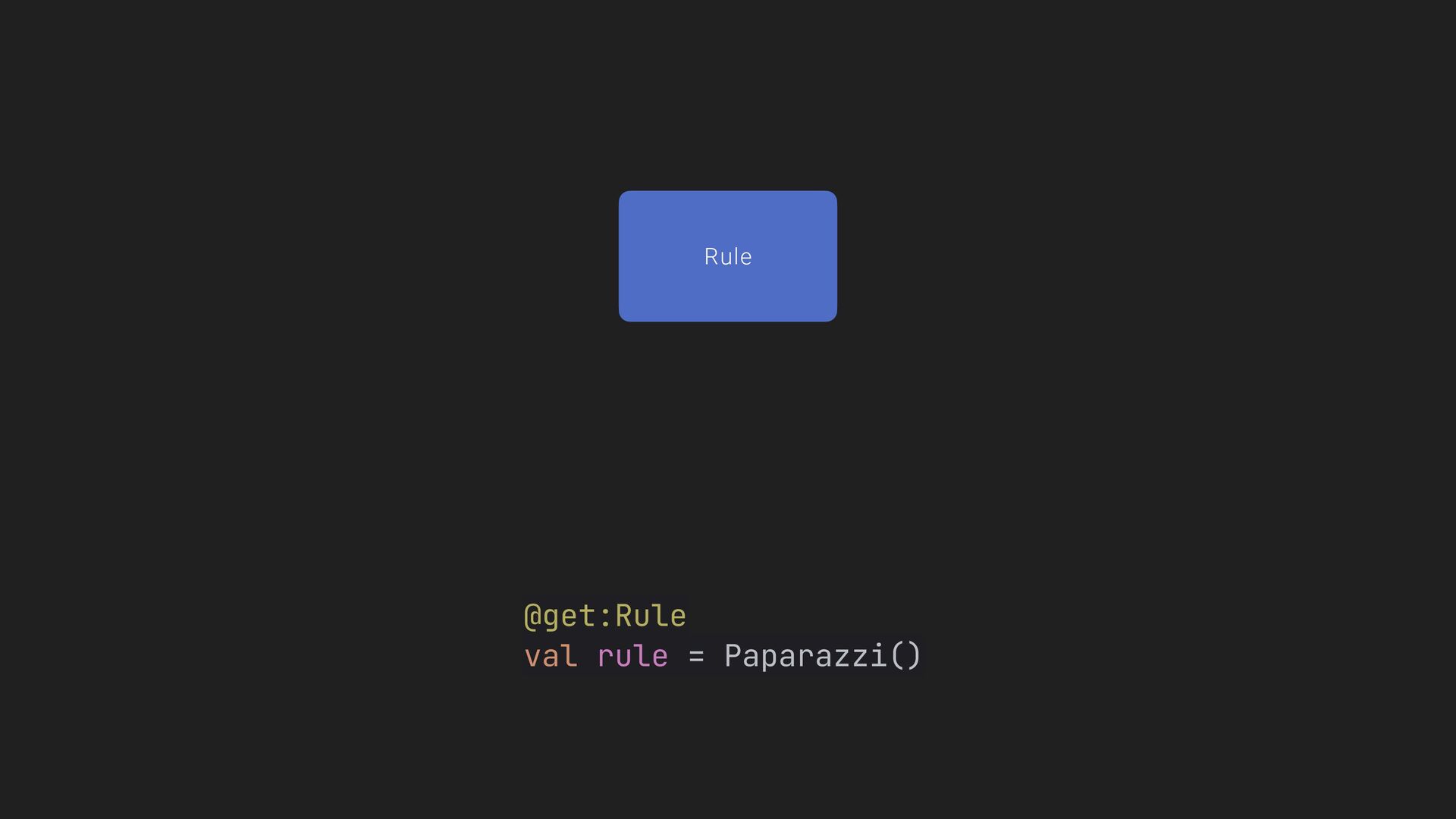

3. Rule @get:Rule val rule = Paparazzi()

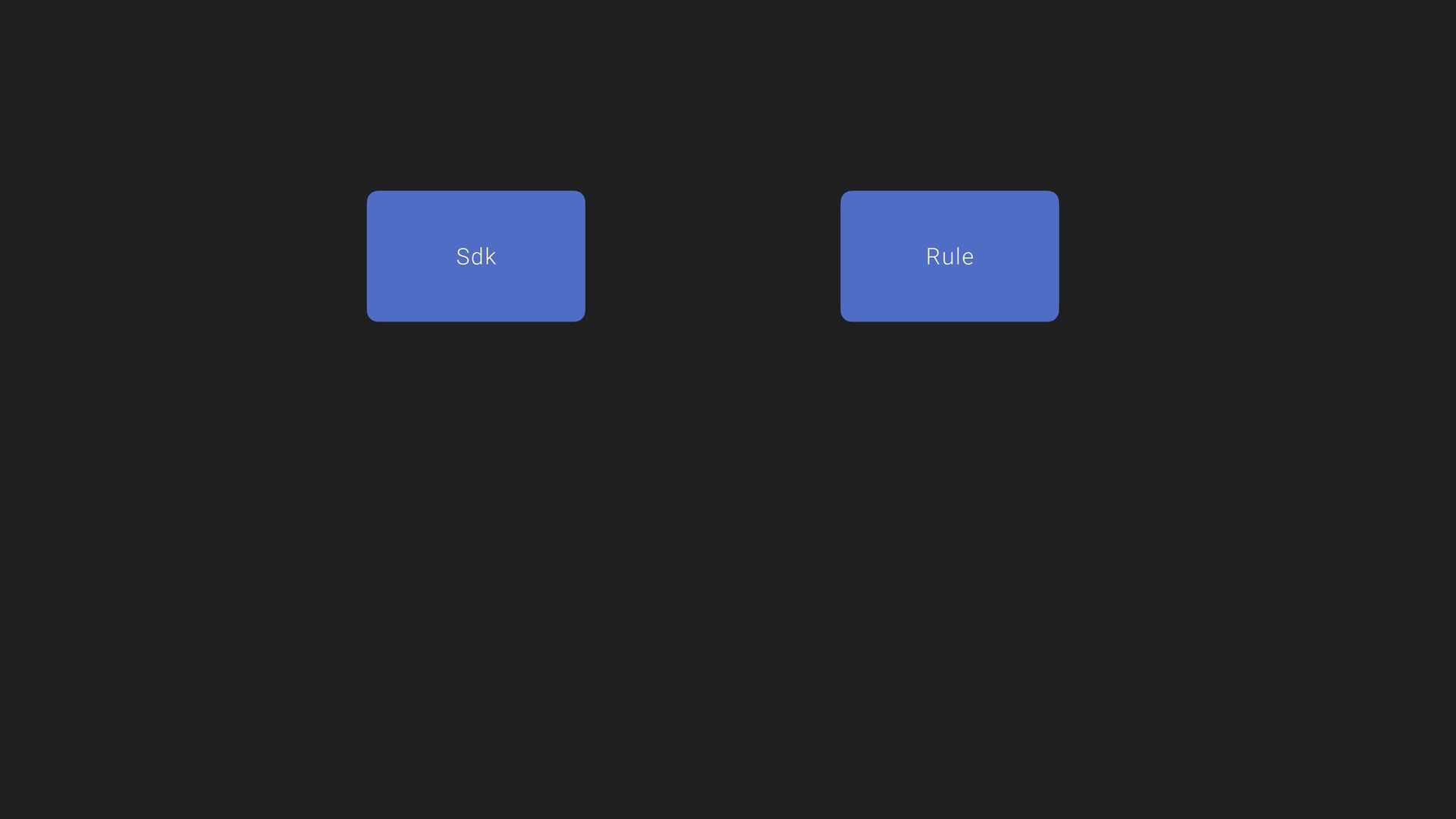

4. Rule Sdk

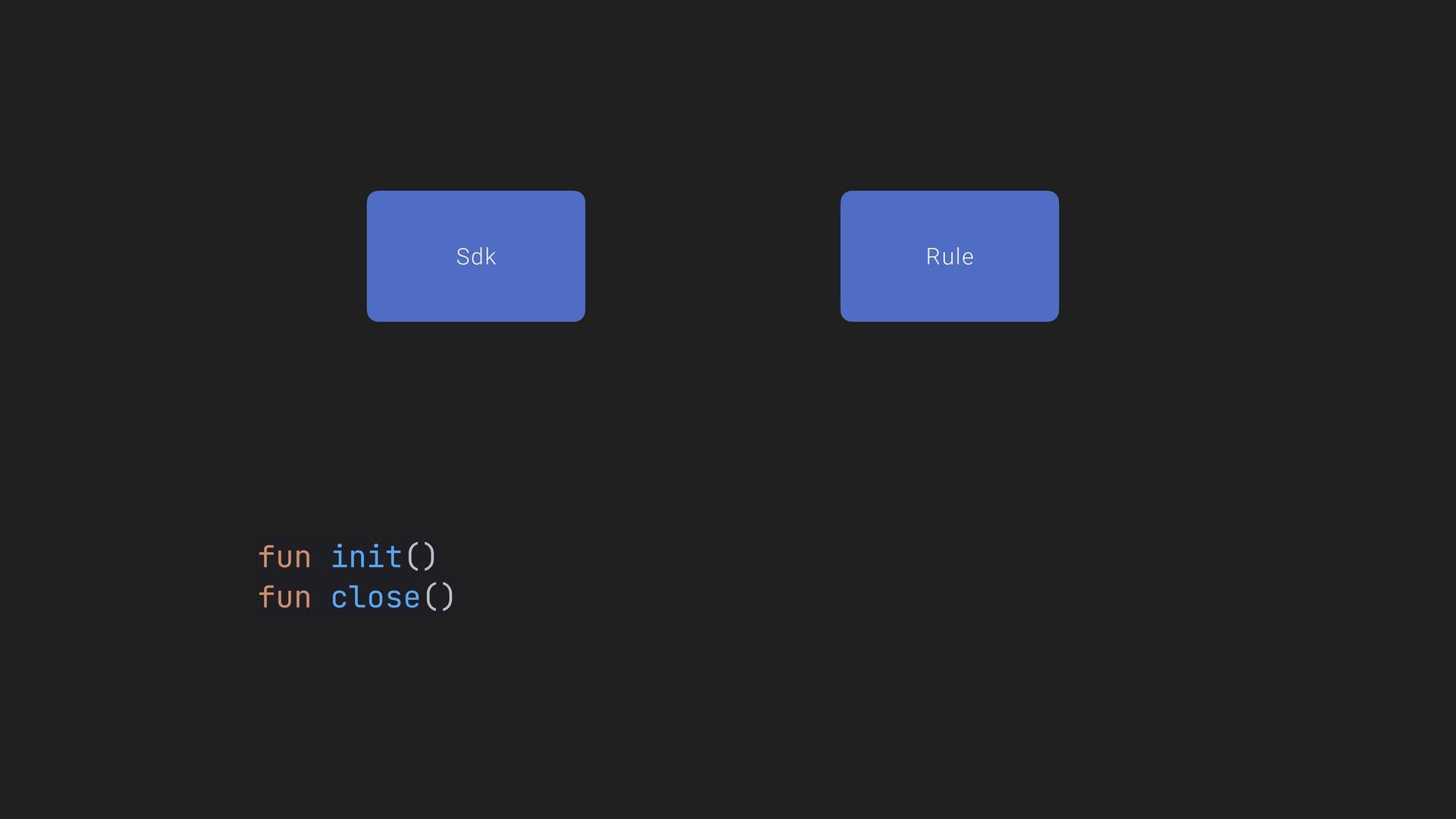

5. Rule Sdk funainit() funaclose()
6. Rule Sdk funainit() funaclose() fun snapshot(): Snapshot fun clip(): Clip

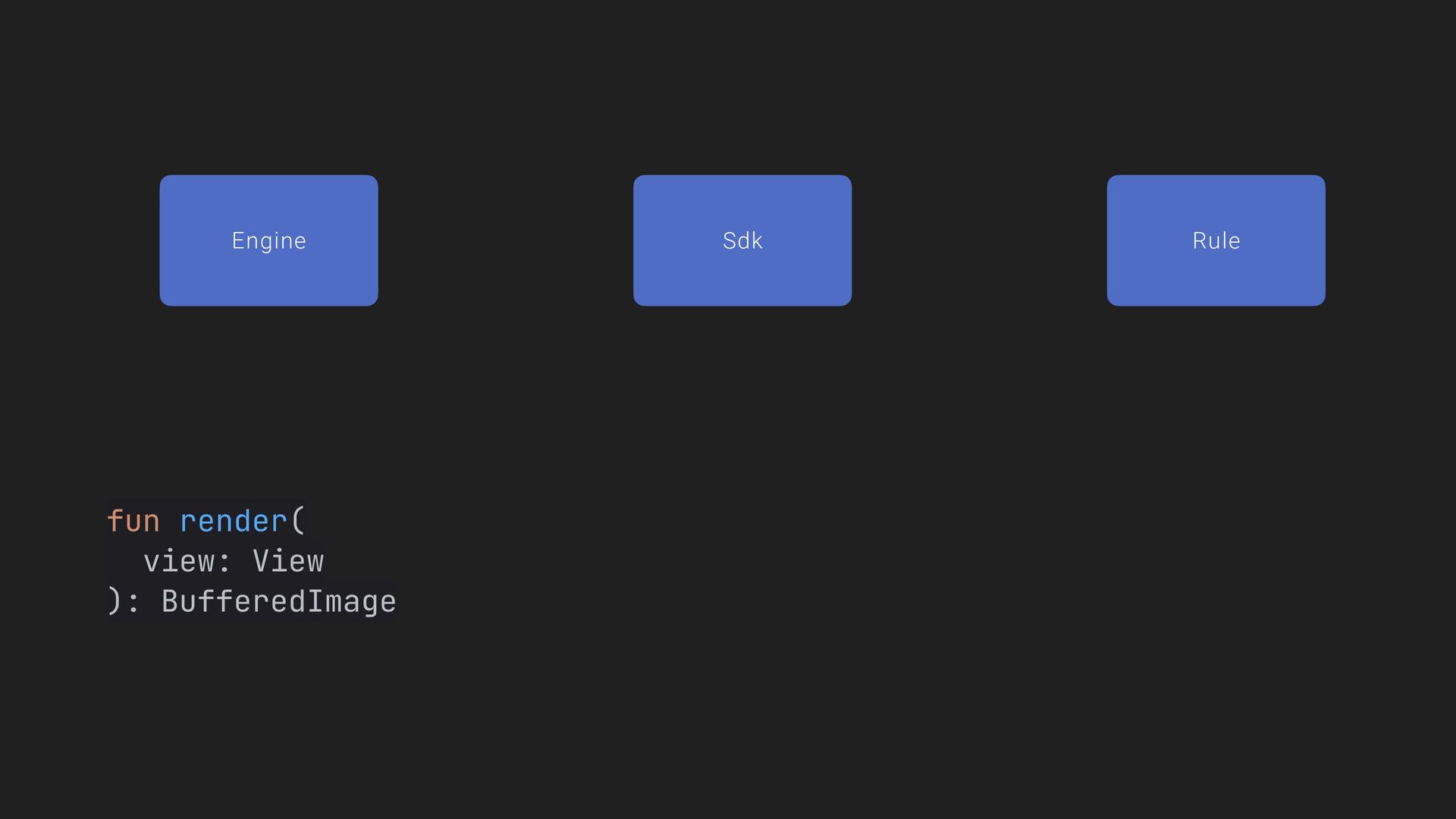

7. Rule Sdk Engine fun render( view: View ): BufferedImage

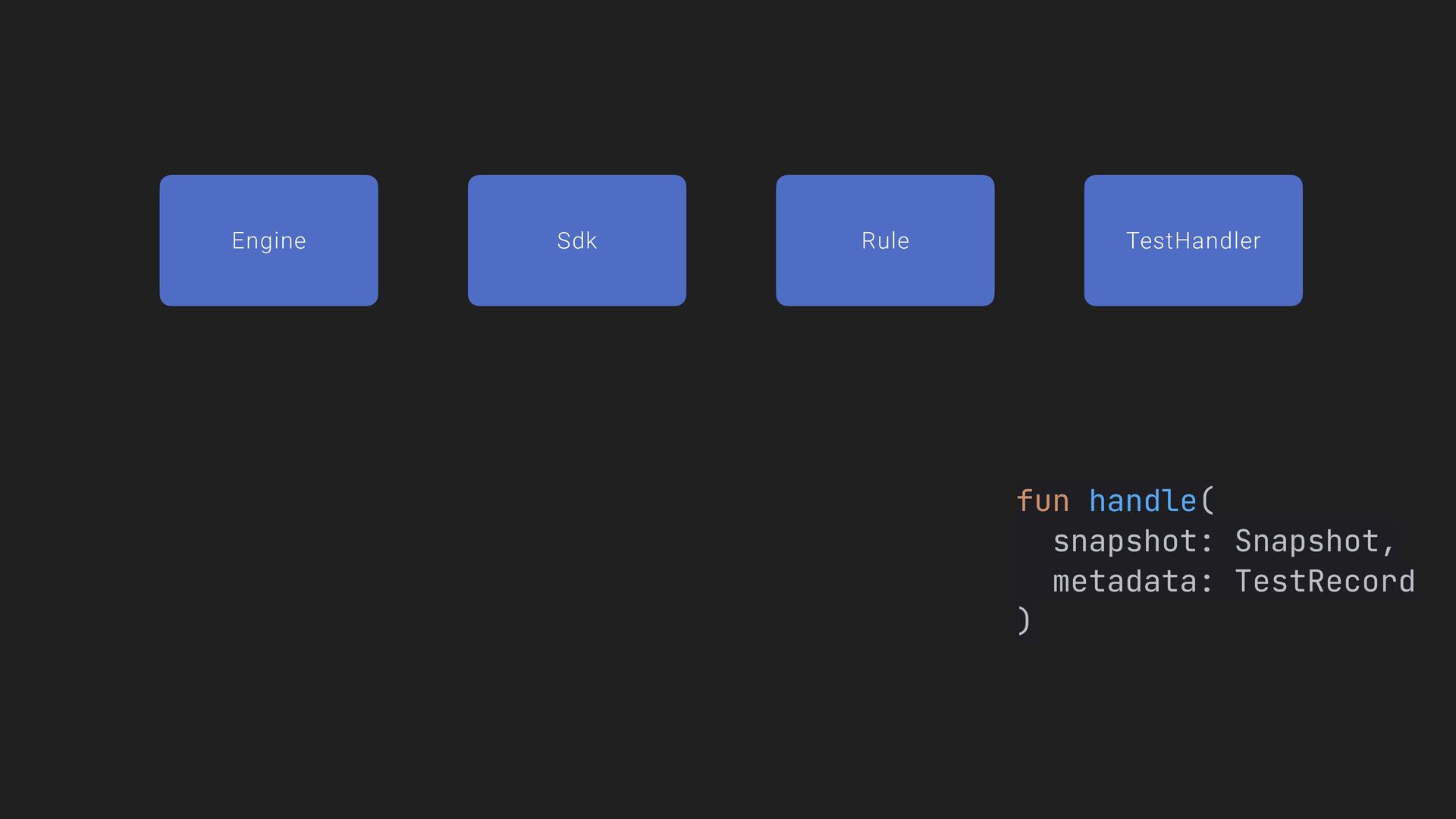

8. TestHandler Rule Sdk Engine fun handle( snapshot: Snapshot, metadata: TestRecord )

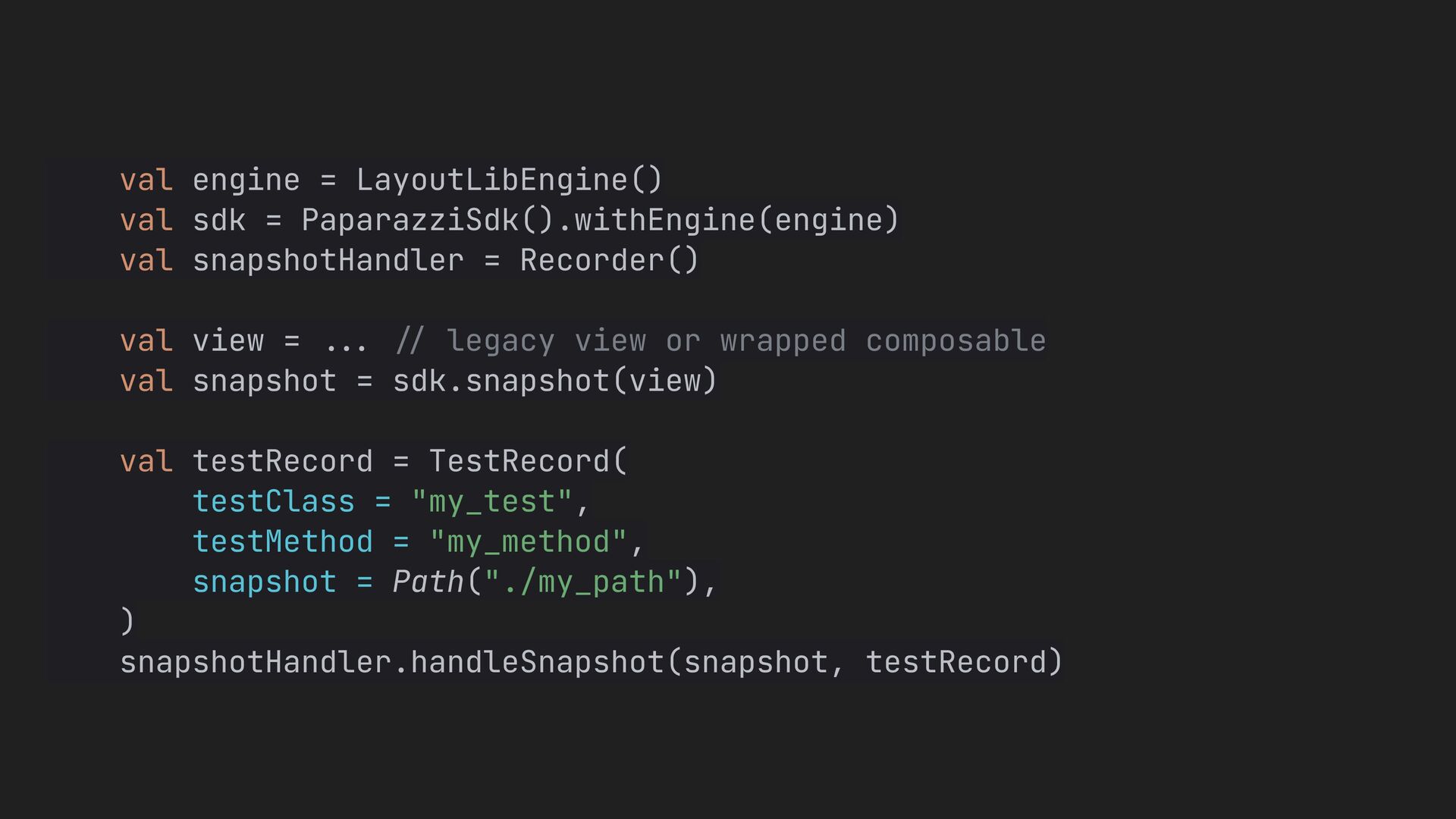

9. val engine = LayoutLibEngine() val sdk = PaparazziSdk().withEngine(engine) val snapshotHandler = Recorder() val view = ... // legacy view or wrapped composable val snapshot = sdk.snapshot(view) val testRecord = TestRecord( testClass = "my_test", testMethod = "my_method", snapshot = Path("./my_path"), ) snapshotHandler.handleSnapshot(snapshot, testRecord)

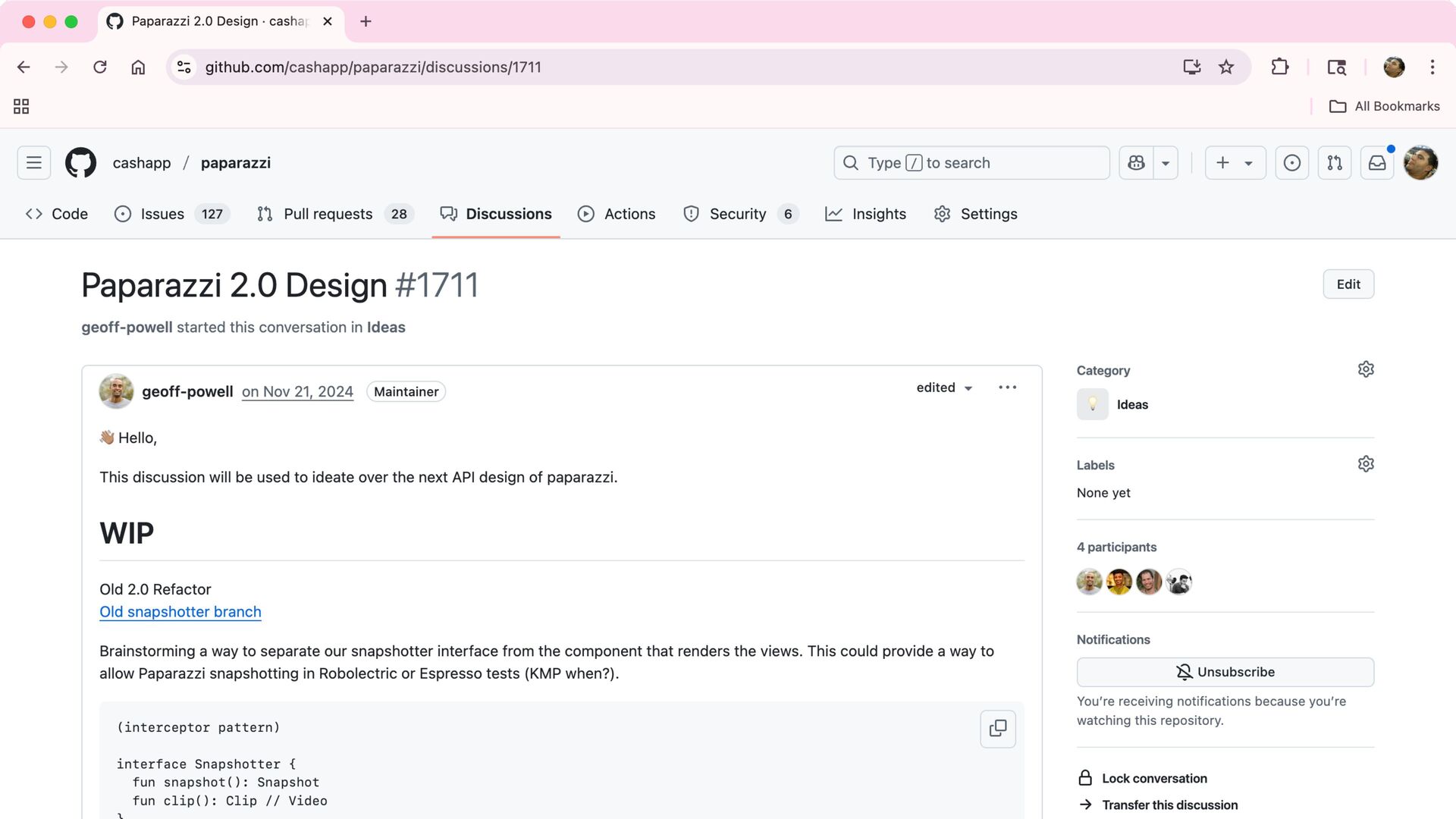

11. https://github.com/cashapp/paparazzi/discussions/1711

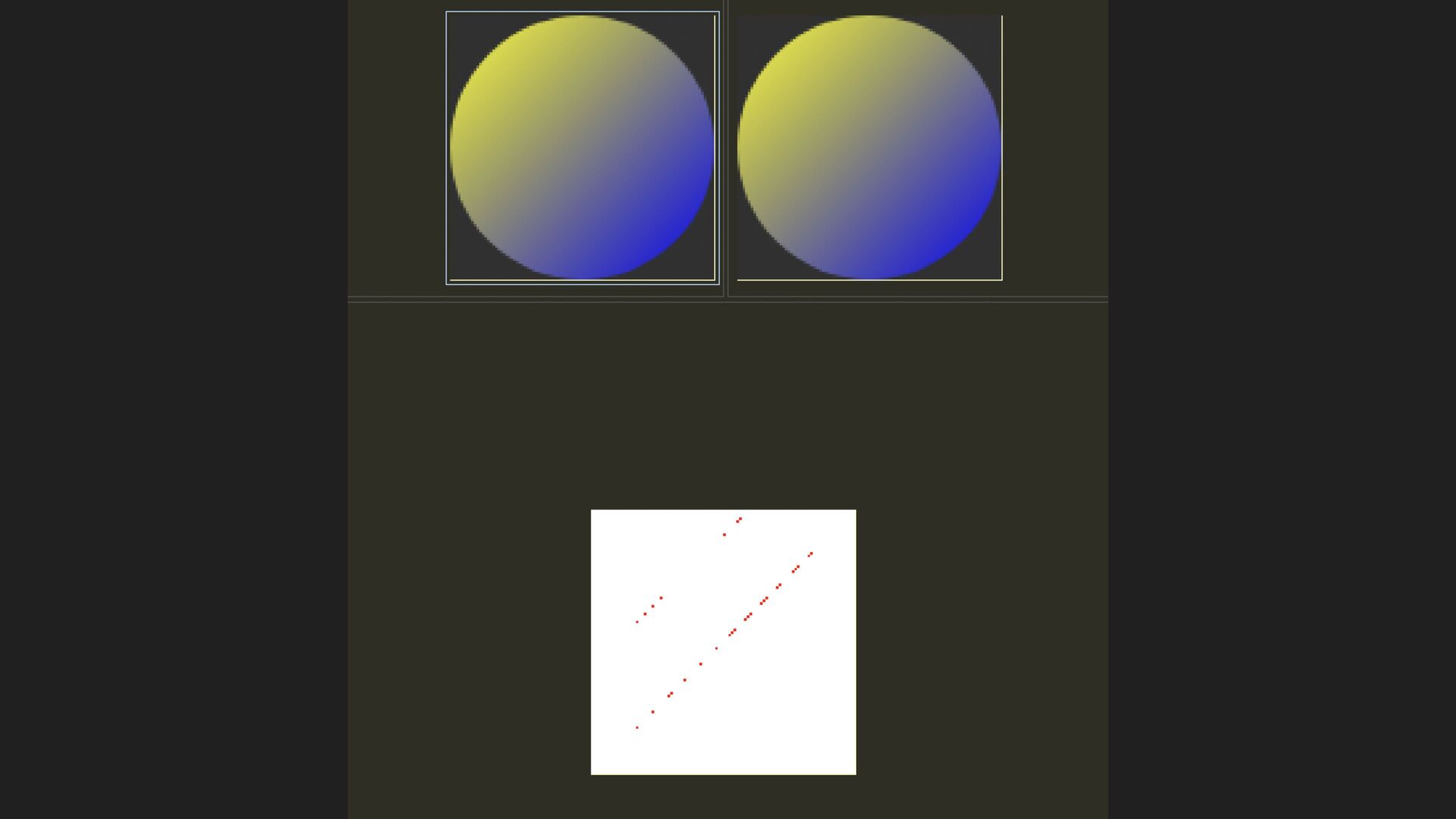

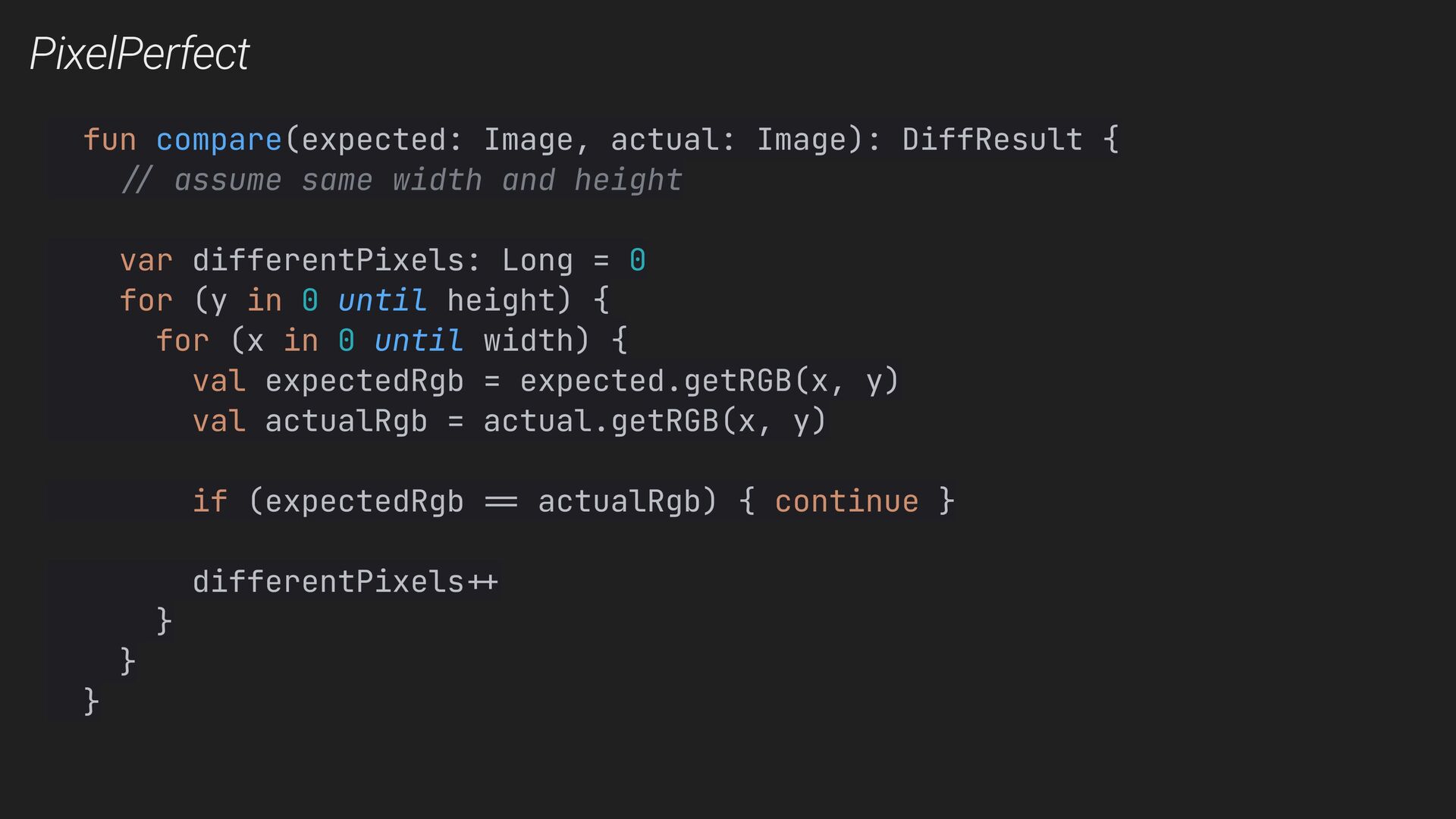

13. PixelPerfect fun compare(expected: Image, actual: Image): DiffResult { // assume same width and height var differentPixels: Long = 0 for (y in 0 until height) { for (x in 0 until width) { val expectedRgb = expected.getRGB(x, y) val actualRgb = actual.getRGB(x, y) if (expectedRgb == actualRgb) { continue } differentPixels ++ } } }

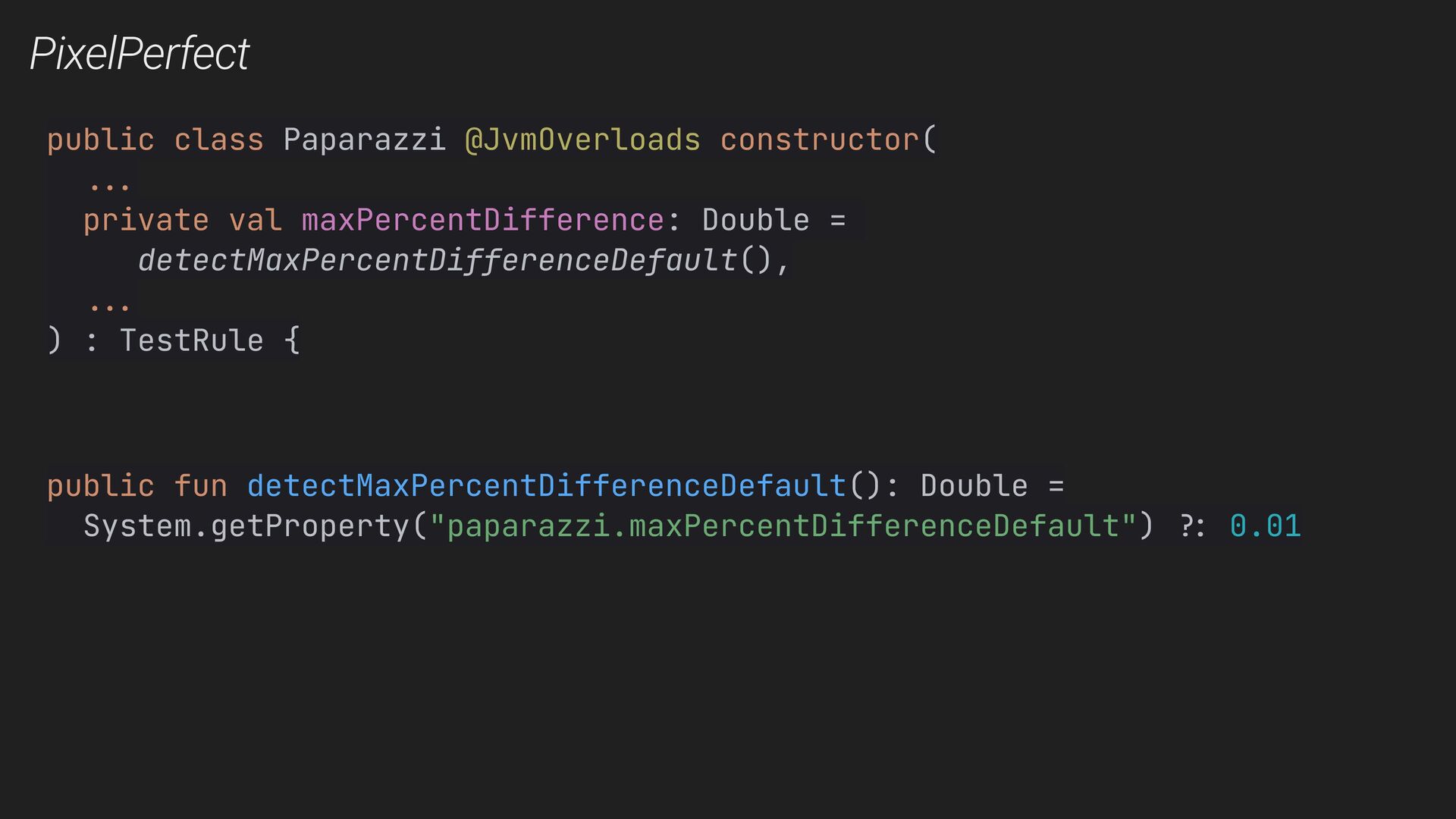

14. PixelPerfect public class Paparazzi @JvmOverloads constructor( ... private val maxPercentDifference: Double = detectMaxPercentDifferenceDefault(), ... ) : TestRule { public fun detectMaxPercentDifferenceDefault(): Double = System.getProperty("paparazzi.maxPercentDifferenceDefault") ?: 0.01

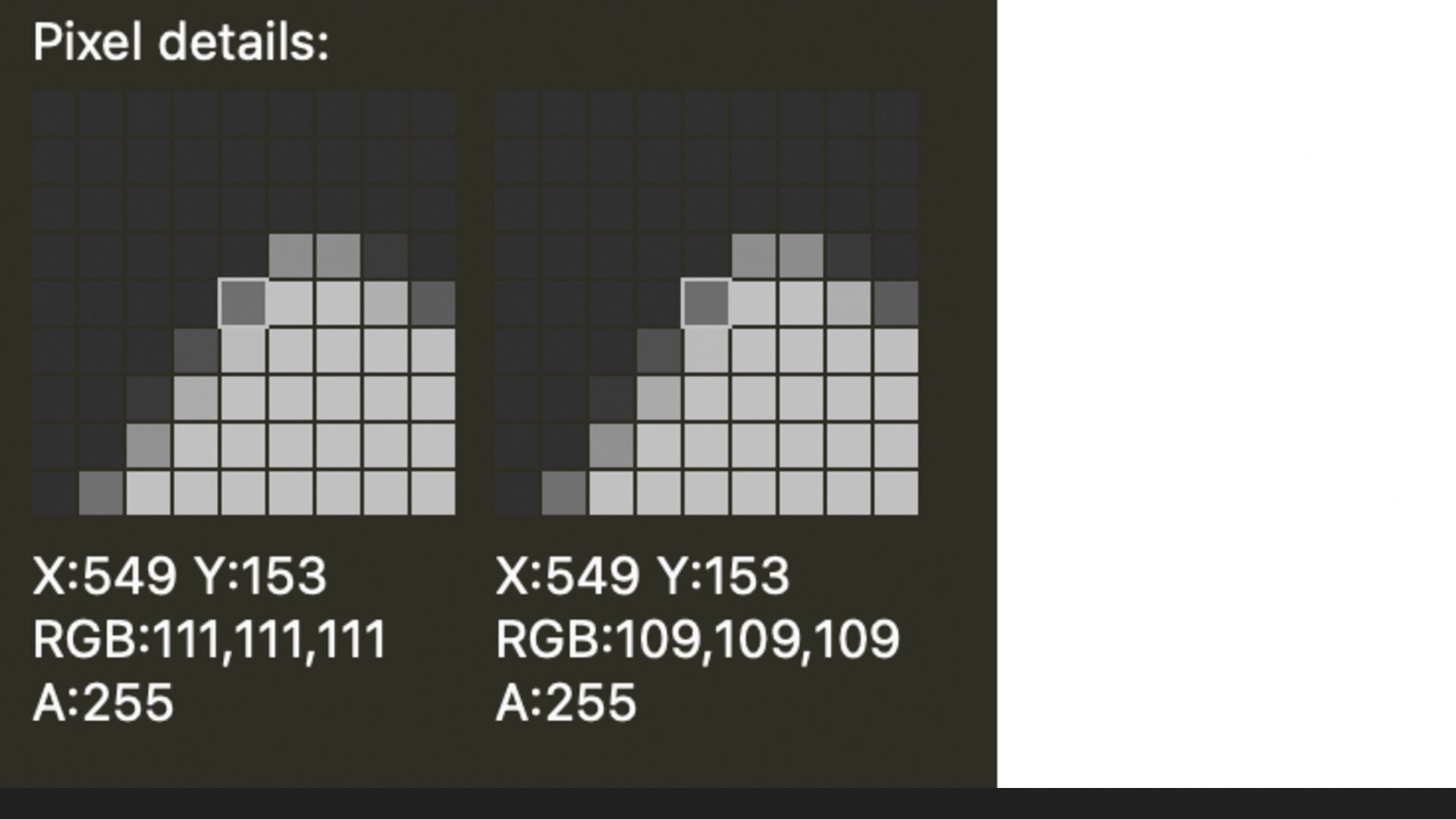

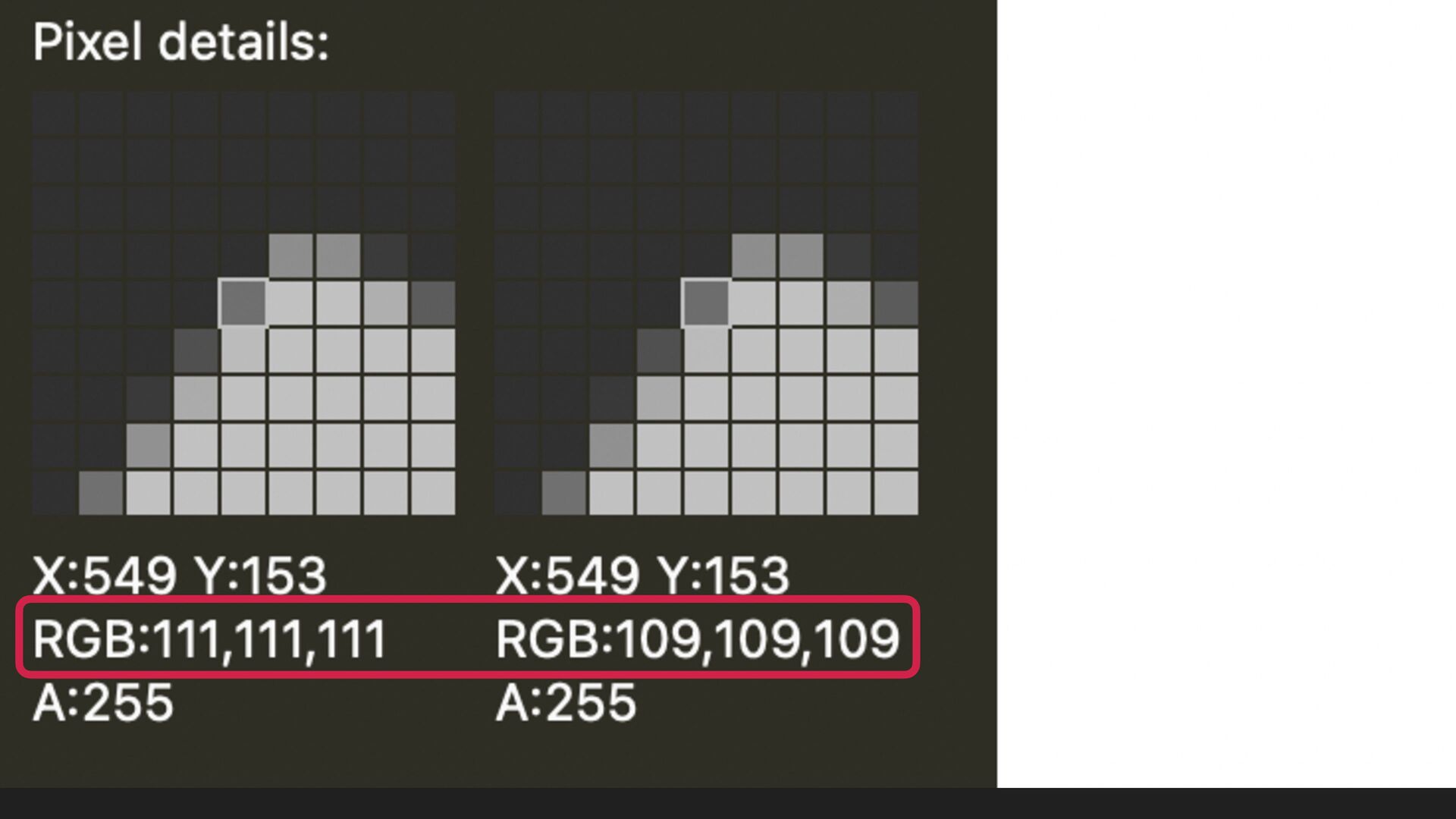

21. fun compare(expected: Image, actual: Image): DiffResult { var differentPixels: Long = 0 for (y in 0 until height) { for (x in 0 until width) { val expectedRgb = expected.getRGB(x, y) val actualRgb = actual.getRGB(x, y) if (expectedRgb == actualRgb) { continue } differentPixels ++ } } } OffByTwo

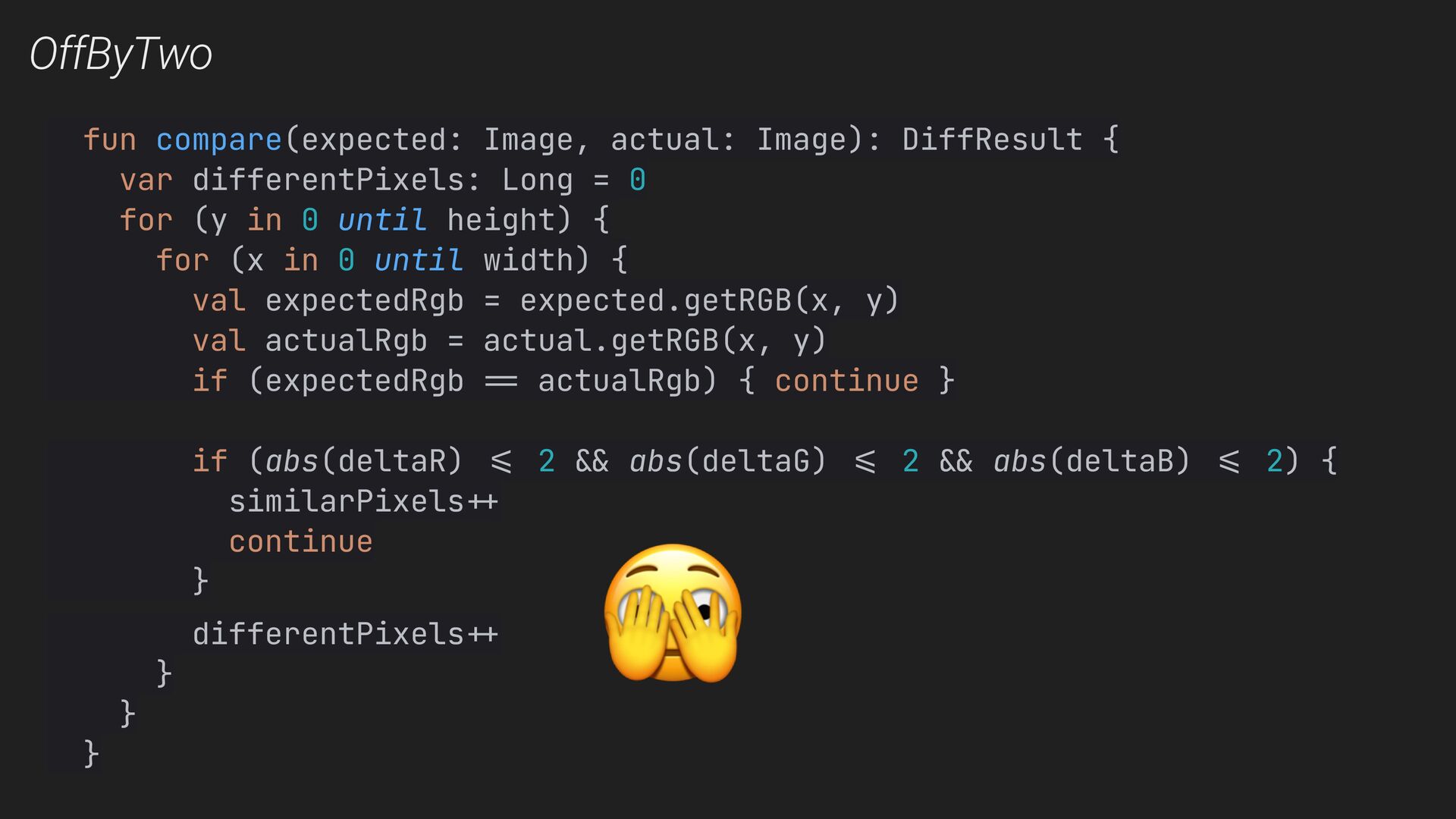

22. fun compare(expected: Image, actual: Image): DiffResult { var differentPixels: Long = 0 for (y in 0 until height) { for (x in 0 until width) { val expectedRgb = expected.getRGB(x, y) val actualRgb = actual.getRGB(x, y) if (expectedRgb == actualRgb) { continue } if (abs(deltaR) <= 2 && abs(deltaG) <= 2 && abs(deltaB) <= 2) { similarPixels ++ continue } differentPixels ++ } } } OffByTwo 🫣

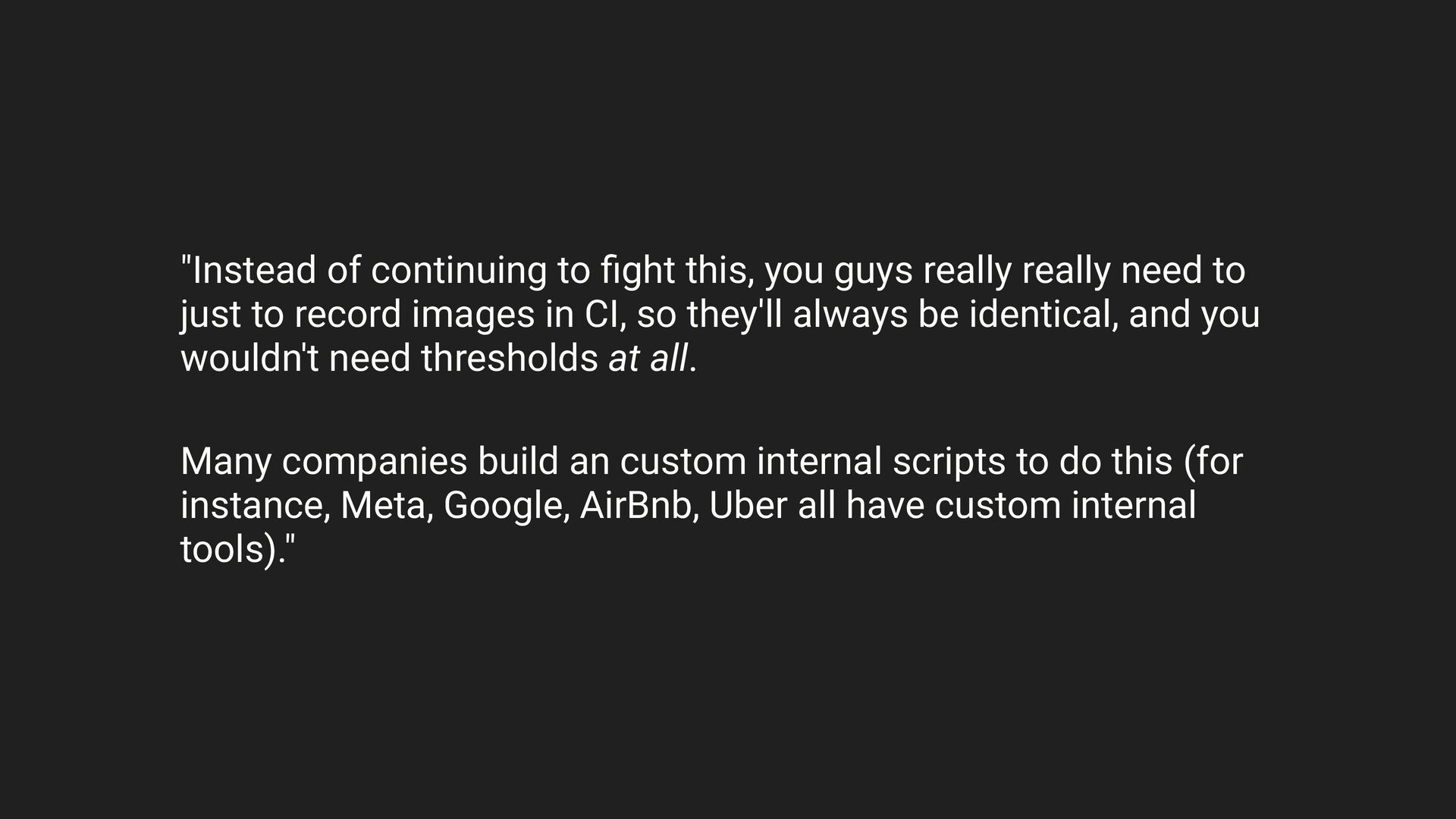

23. "Instead of continuing to fi ght this, you guys really really need to just to record images in CI, so they'll always be identical, and you wouldn't need thresholds at all. Many companies build an custom internal scripts to do this (for instance, Meta, Google, AirBnb, Uber all have custom internal tools)."

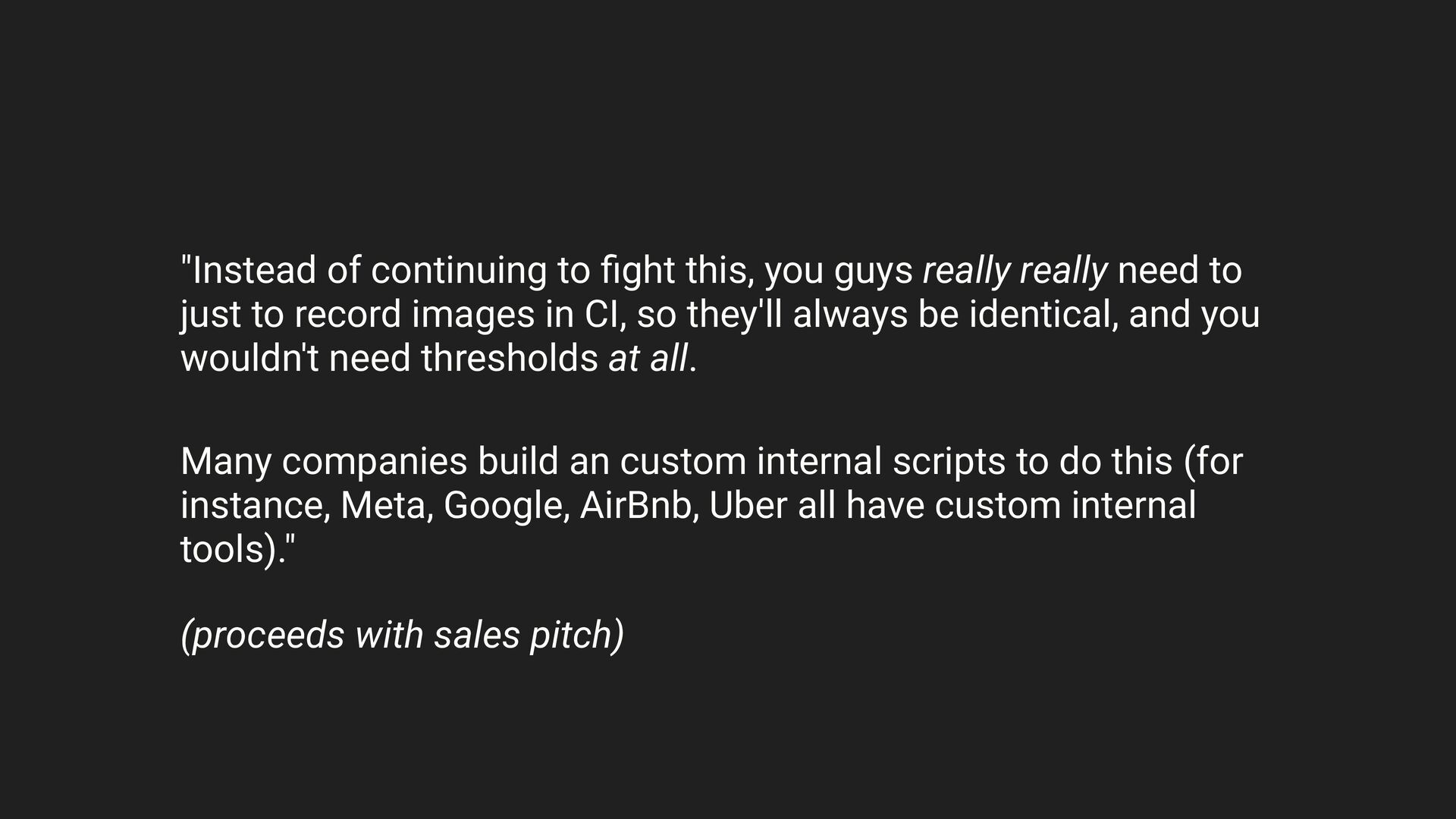

24. "Instead of continuing to fi ght this, you guys really really need to just to record images in CI, so they'll always be identical, and you wouldn't need thresholds at all. Many companies build an custom internal scripts to do this (for instance, Meta, Google, AirBnb, Uber all have custom internal tools)." (proceeds with sales pitch)

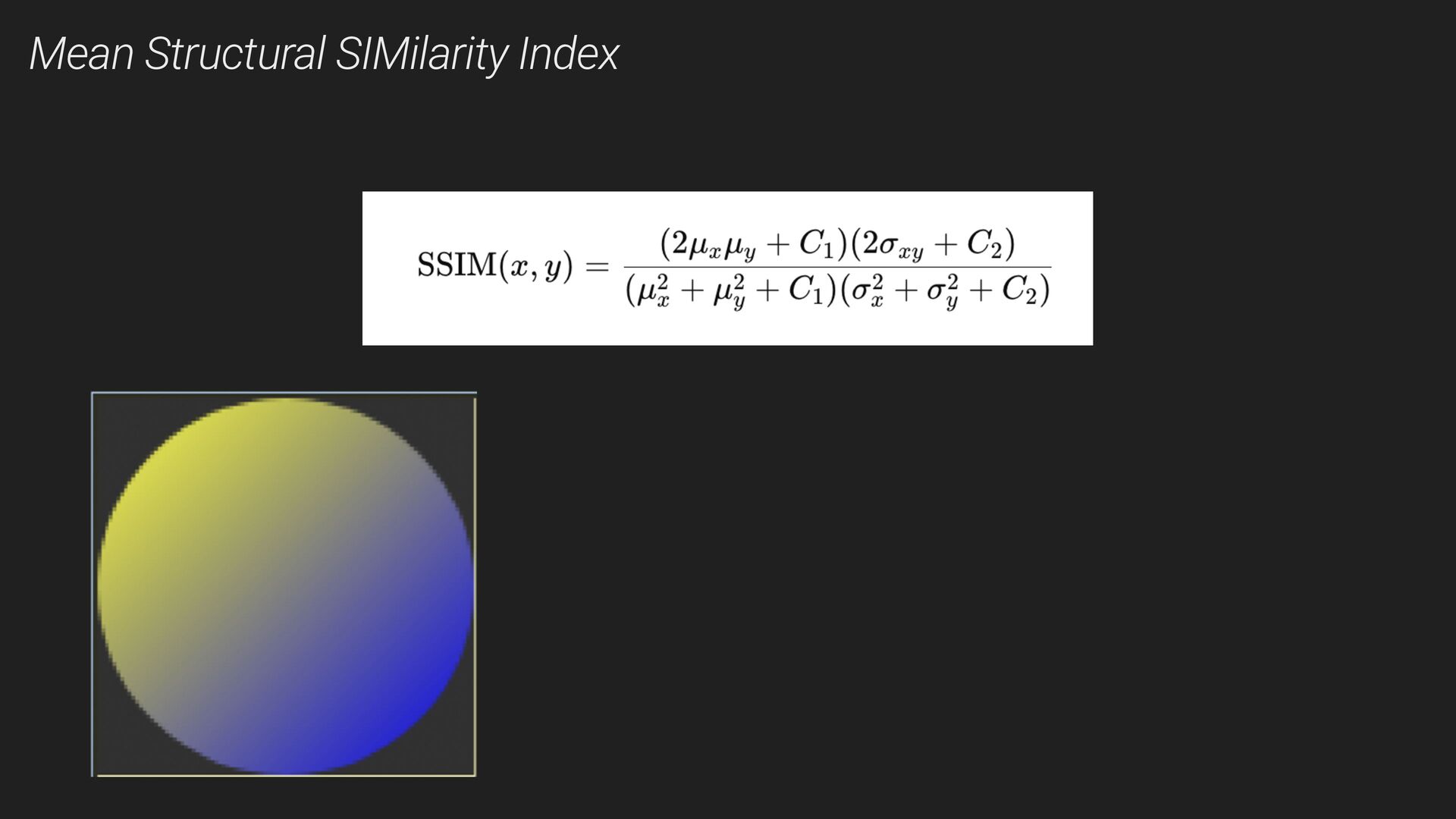

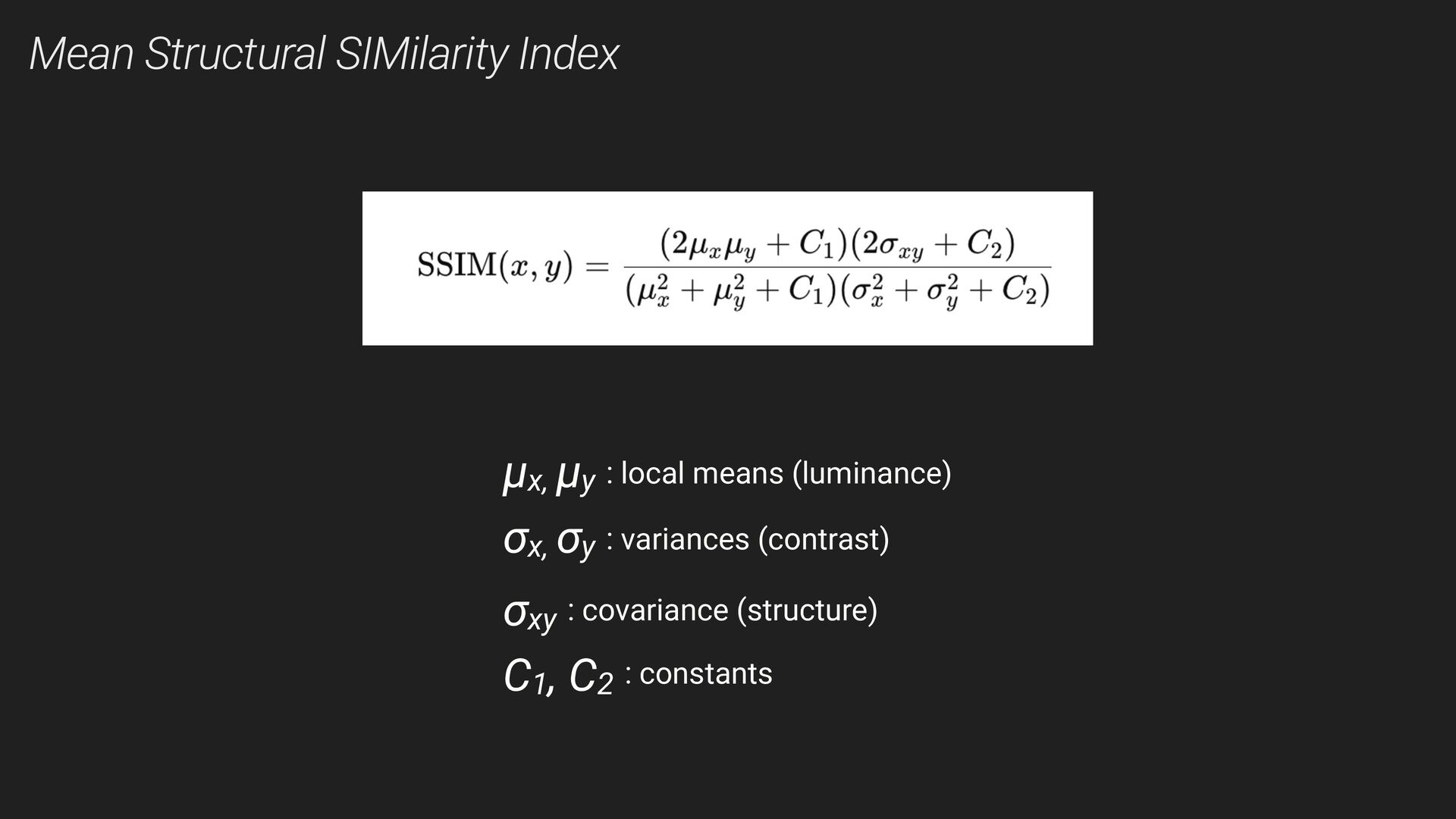

25. Mean Structural SIMilarity Index : local means (luminance) μx, μy : variances (contrast) σx, σy : covariance (structure) σxy C1, C2 : constants

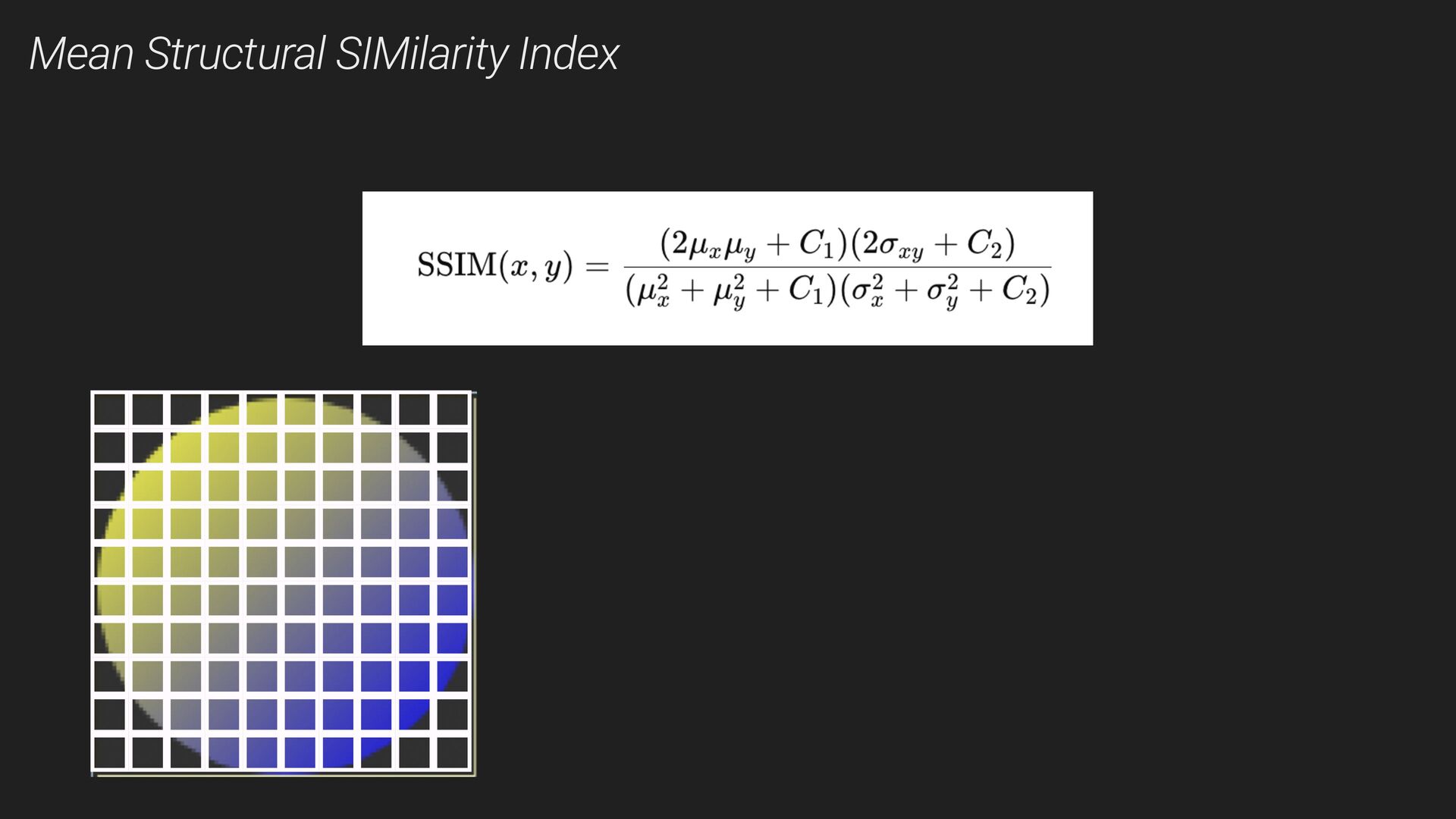

26. Mean Structural SIMilarity Index
27. Mean Structural SIMilarity Index

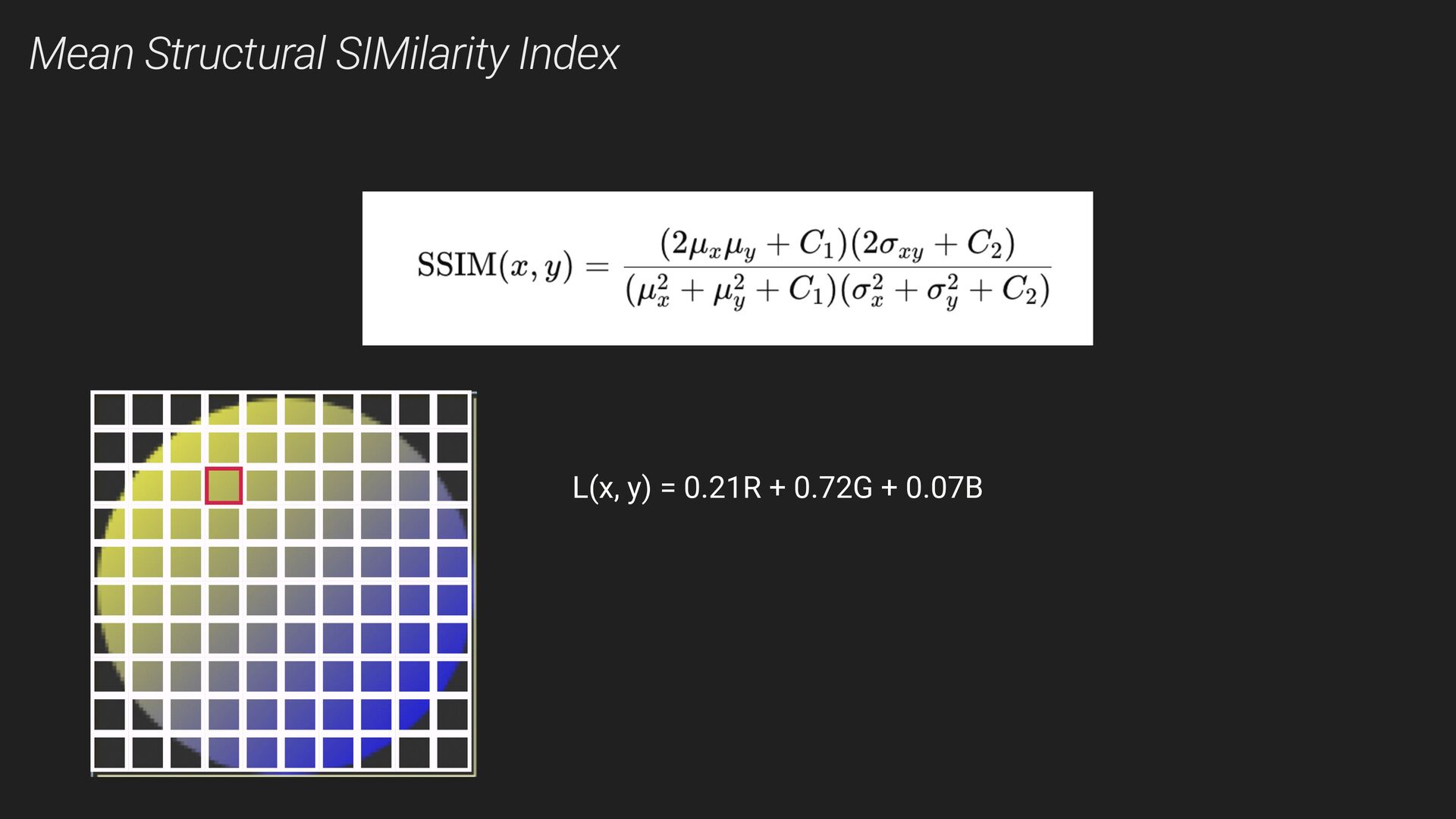

28. Mean Structural SIMilarity Index L(x, y) = 0.21R + 0.72G + 0.07B

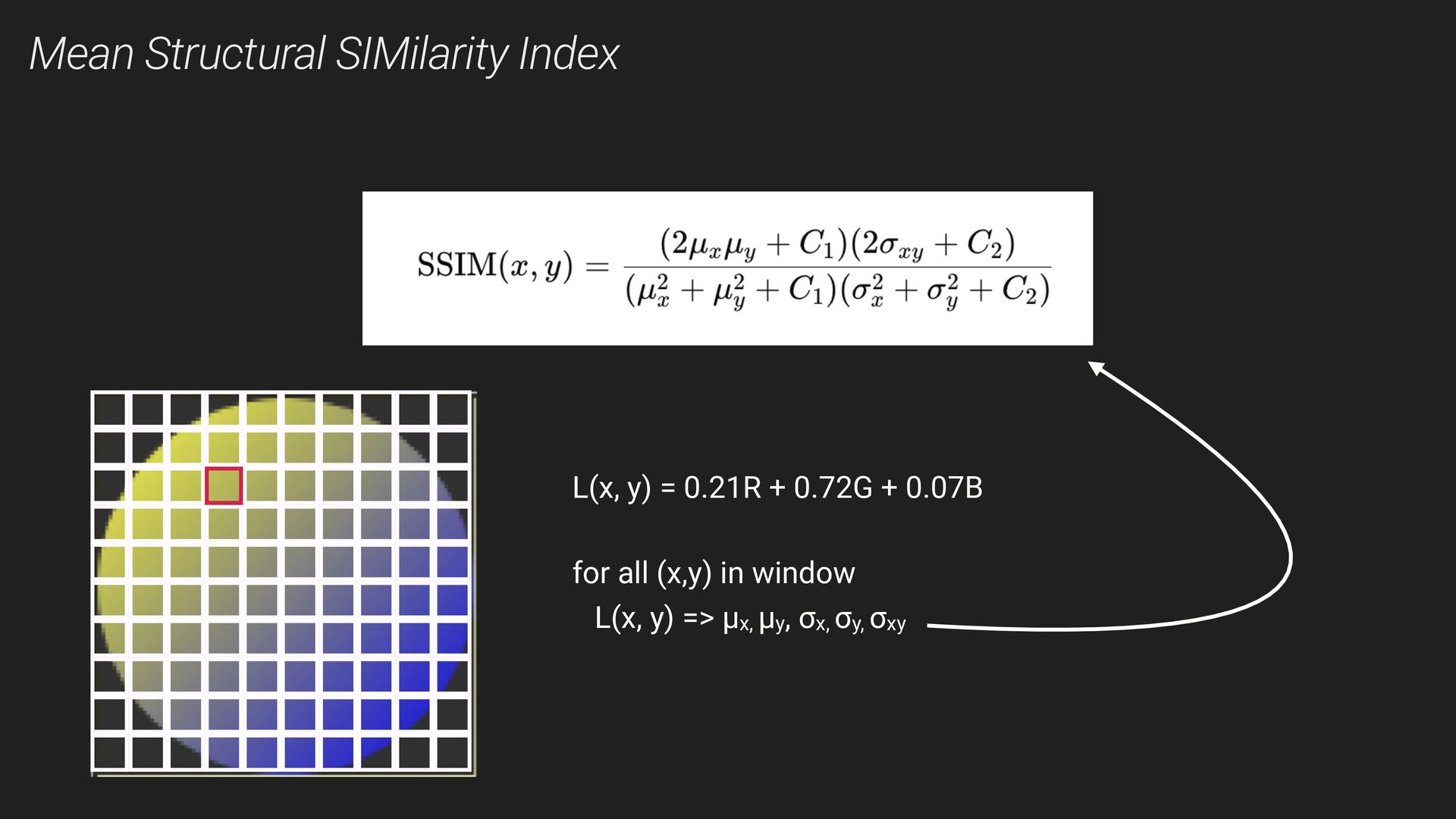

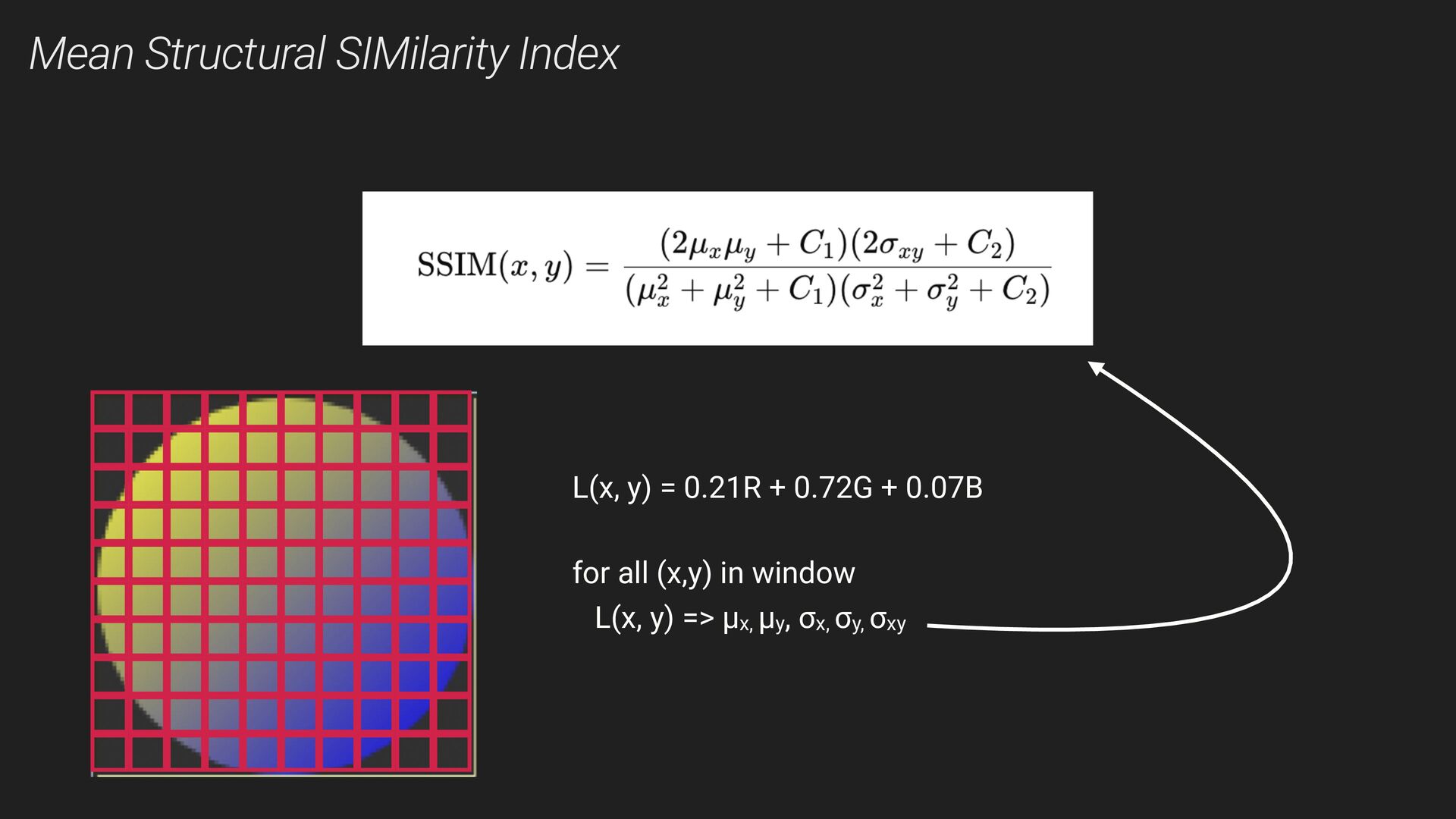

29. Mean Structural SIMilarity Index for all (x,y) in window L(x, y) => μx, μy, σx, σy, σxy L(x, y) = 0.21R + 0.72G + 0.07B
30. Mean Structural SIMilarity Index for all (x,y) in window L(x, y) => μx, μy, σx, σy, σxy L(x, y) = 0.21R + 0.72G + 0.07B
31. Mean Structural SIMilarity Index for all (x,y) in window L(x, y) => μx, μy, σx, σy, σxy L(x, y) = 0.21R + 0.72G + 0.07B

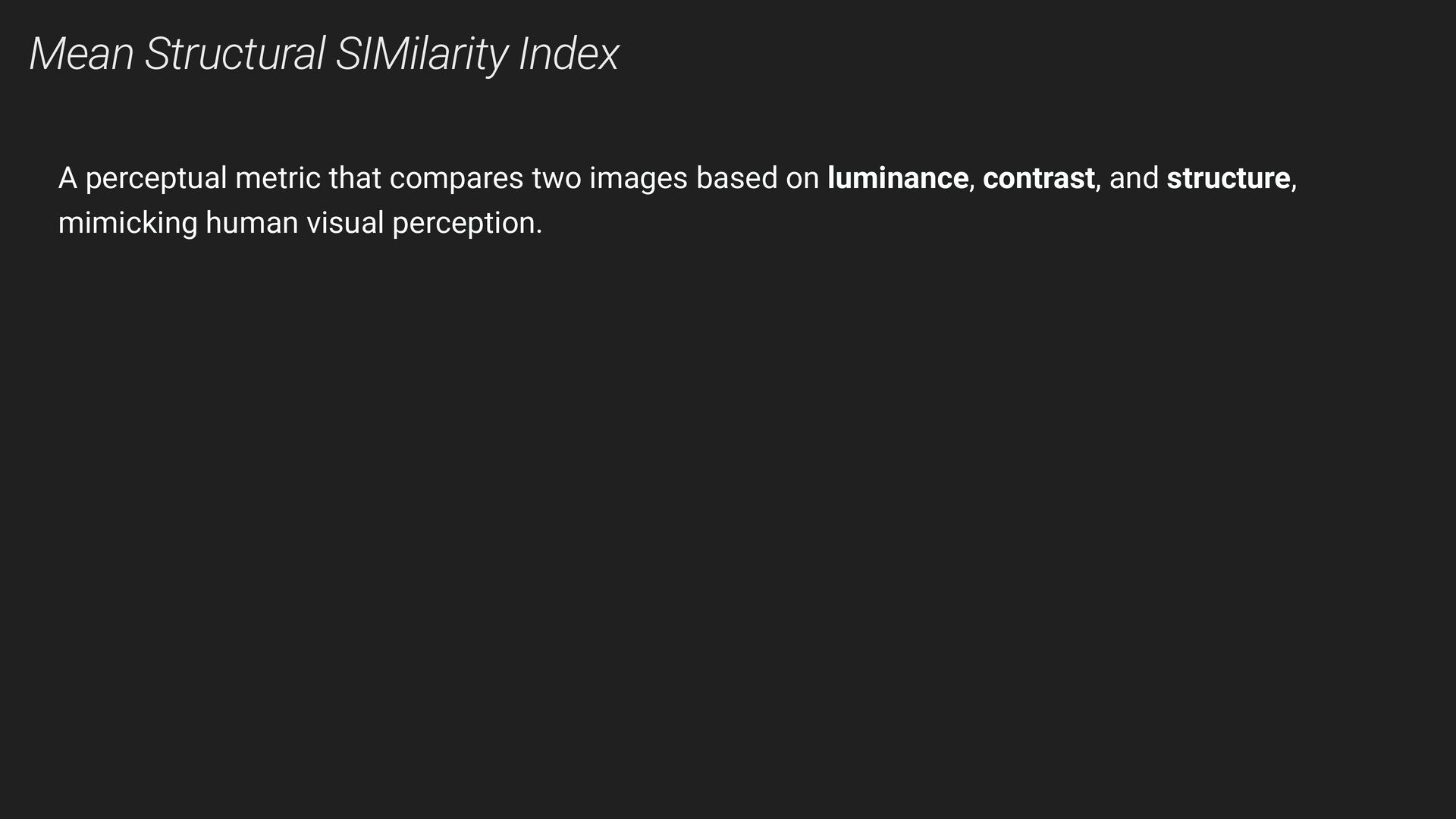

32. A perceptual metric that compares two images based on luminance, contrast, and structure, mimicking human visual perception. Mean Structural SIMilarity Index

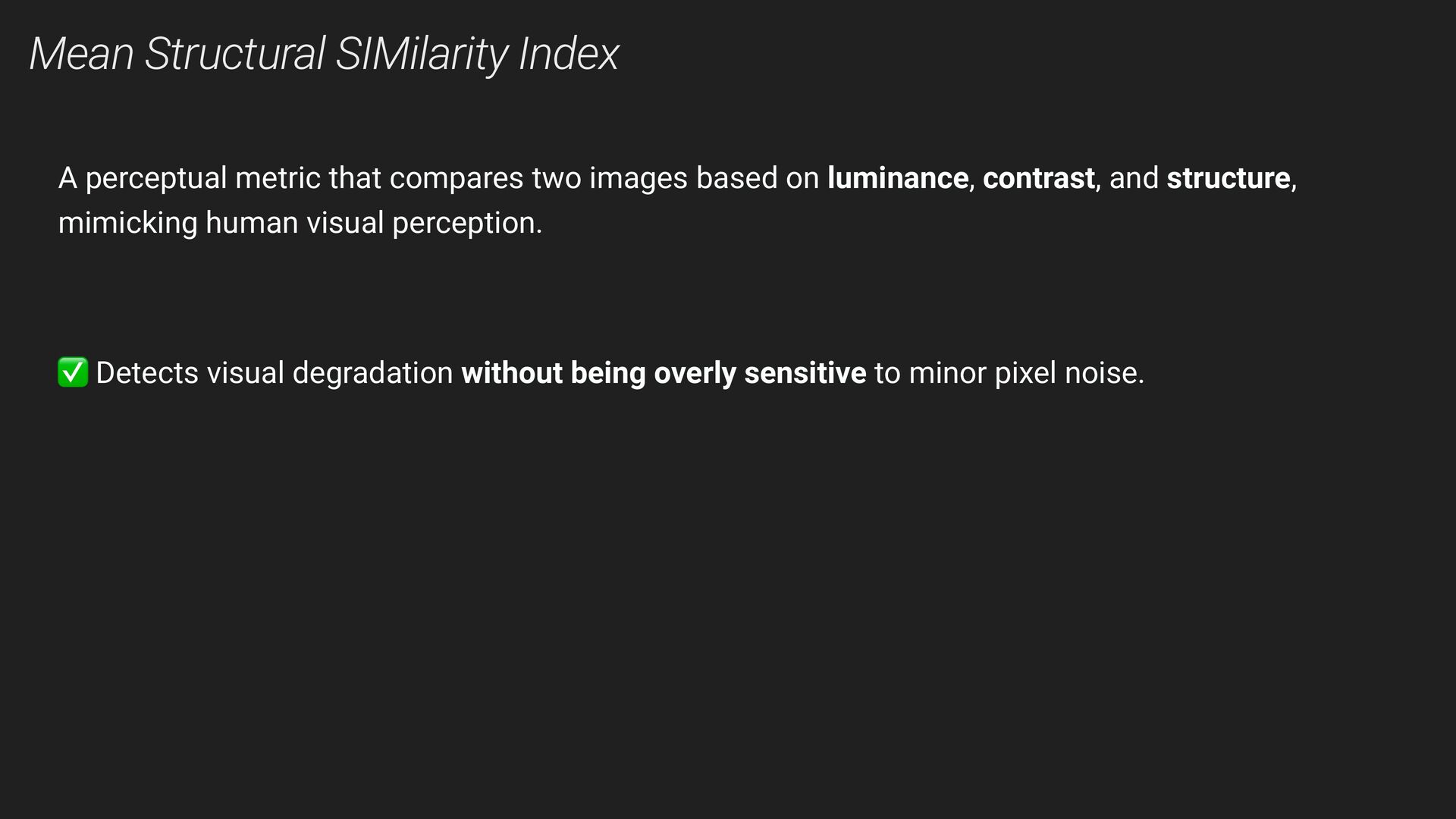

33. A perceptual metric that compares two images based on luminance, contrast, and structure, mimicking human visual perception. ✅ Detects visual degradation without being overly sensitive to minor pixel noise. Mean Structural SIMilarity Index

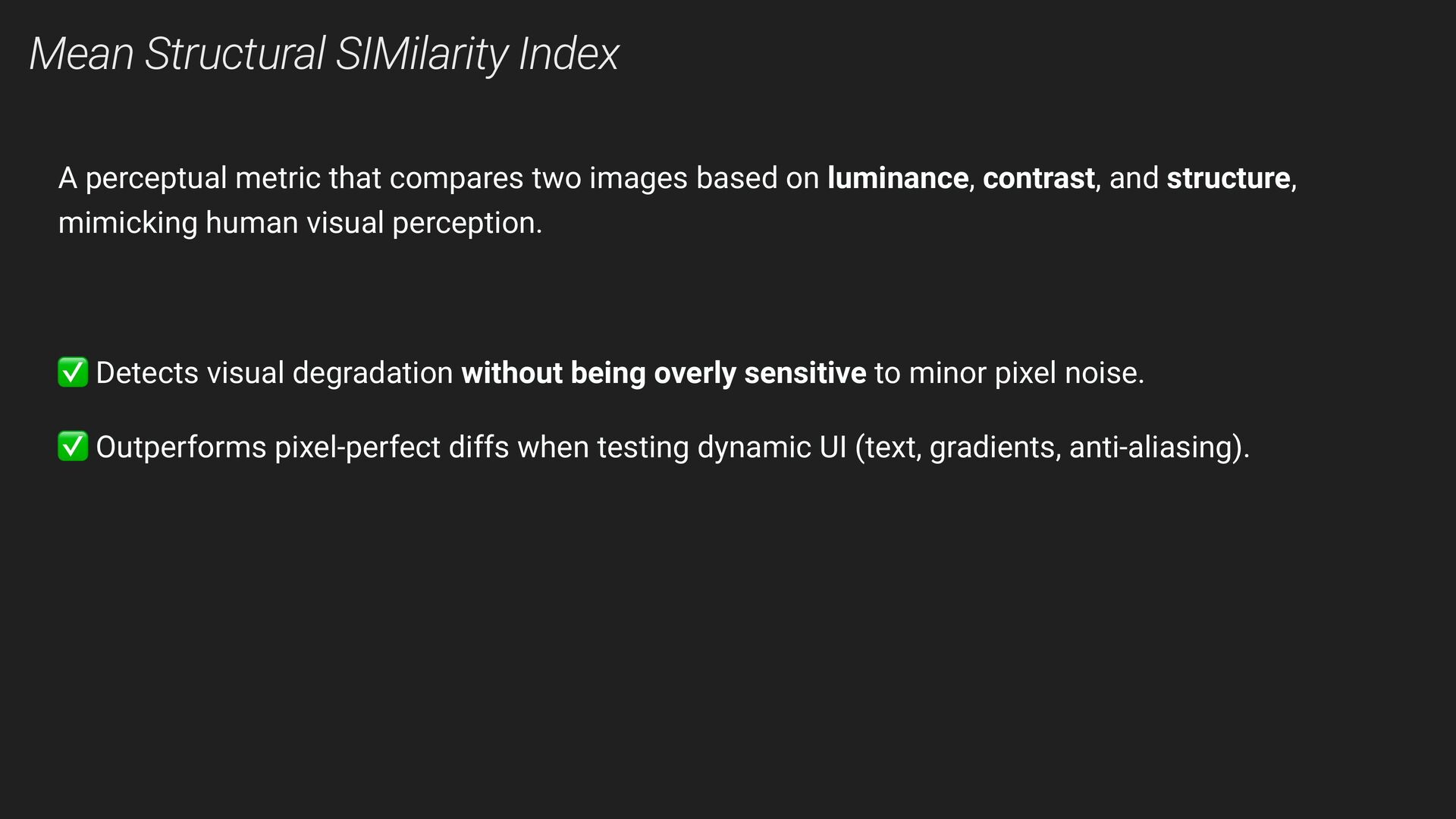

34. A perceptual metric that compares two images based on luminance, contrast, and structure, mimicking human visual perception. ✅ Detects visual degradation without being overly sensitive to minor pixel noise. Mean Structural SIMilarity Index ✅ Outperforms pixel-perfect diffs when testing dynamic UI (text, gradients, anti-aliasing).

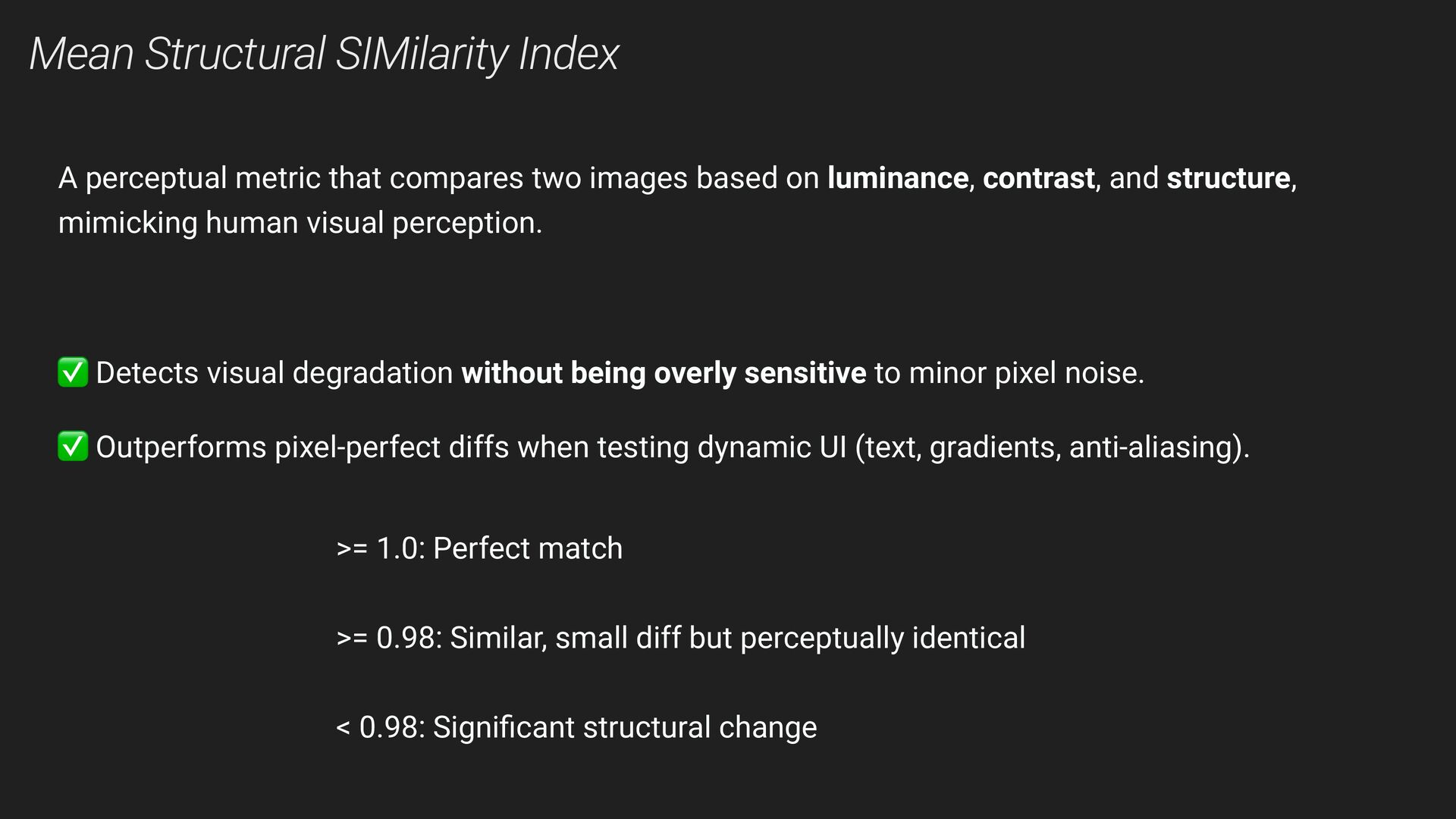

35. A perceptual metric that compares two images based on luminance, contrast, and structure, mimicking human visual perception. ✅ Detects visual degradation without being overly sensitive to minor pixel noise. Mean Structural SIMilarity Index ✅ Outperforms pixel-perfect diffs when testing dynamic UI (text, gradients, anti-aliasing). >= 1.0: Perfect match >= 0.98: Similar, small diff but perceptually identical < 0.98: Signi fi cant structural change

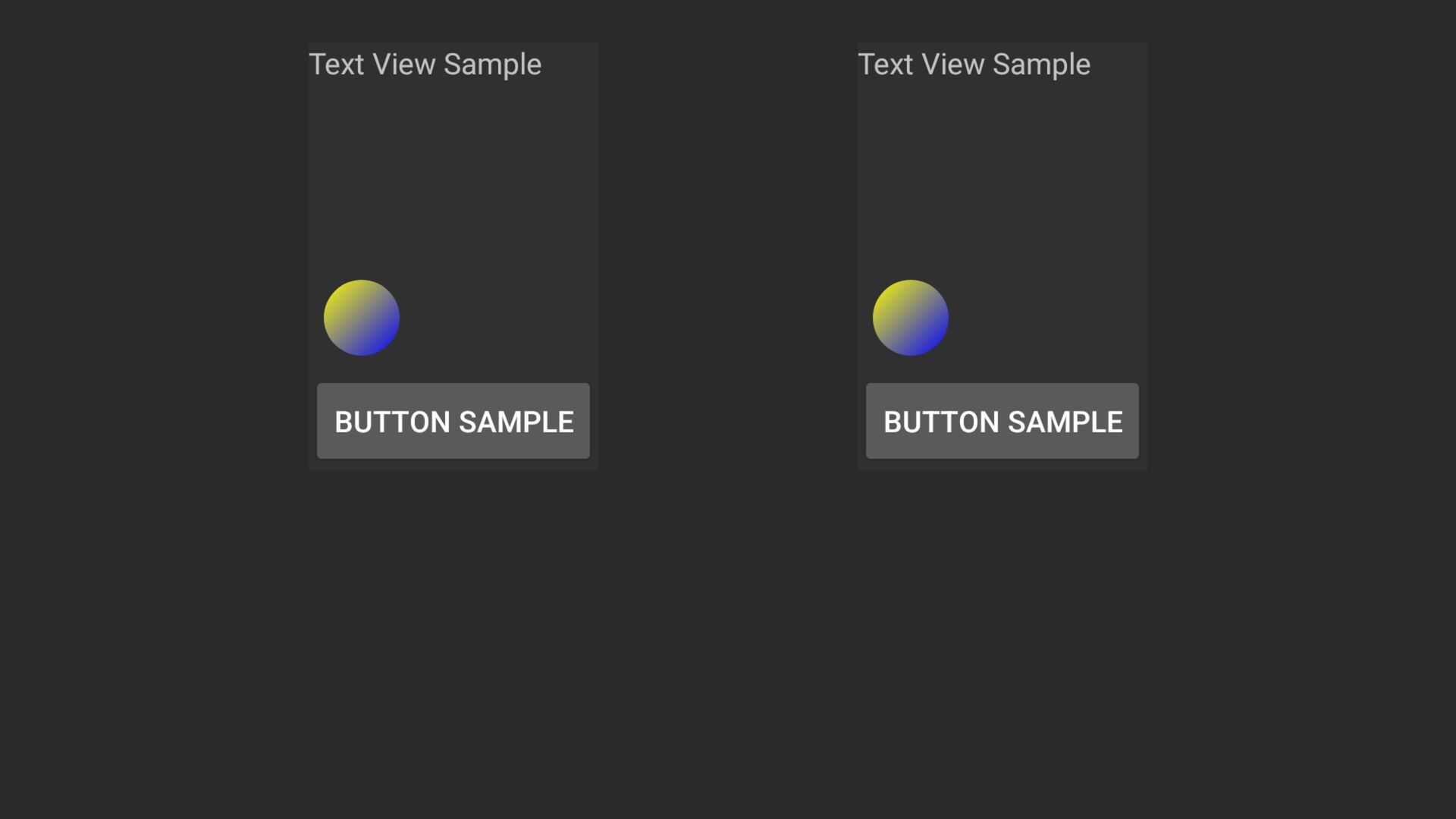

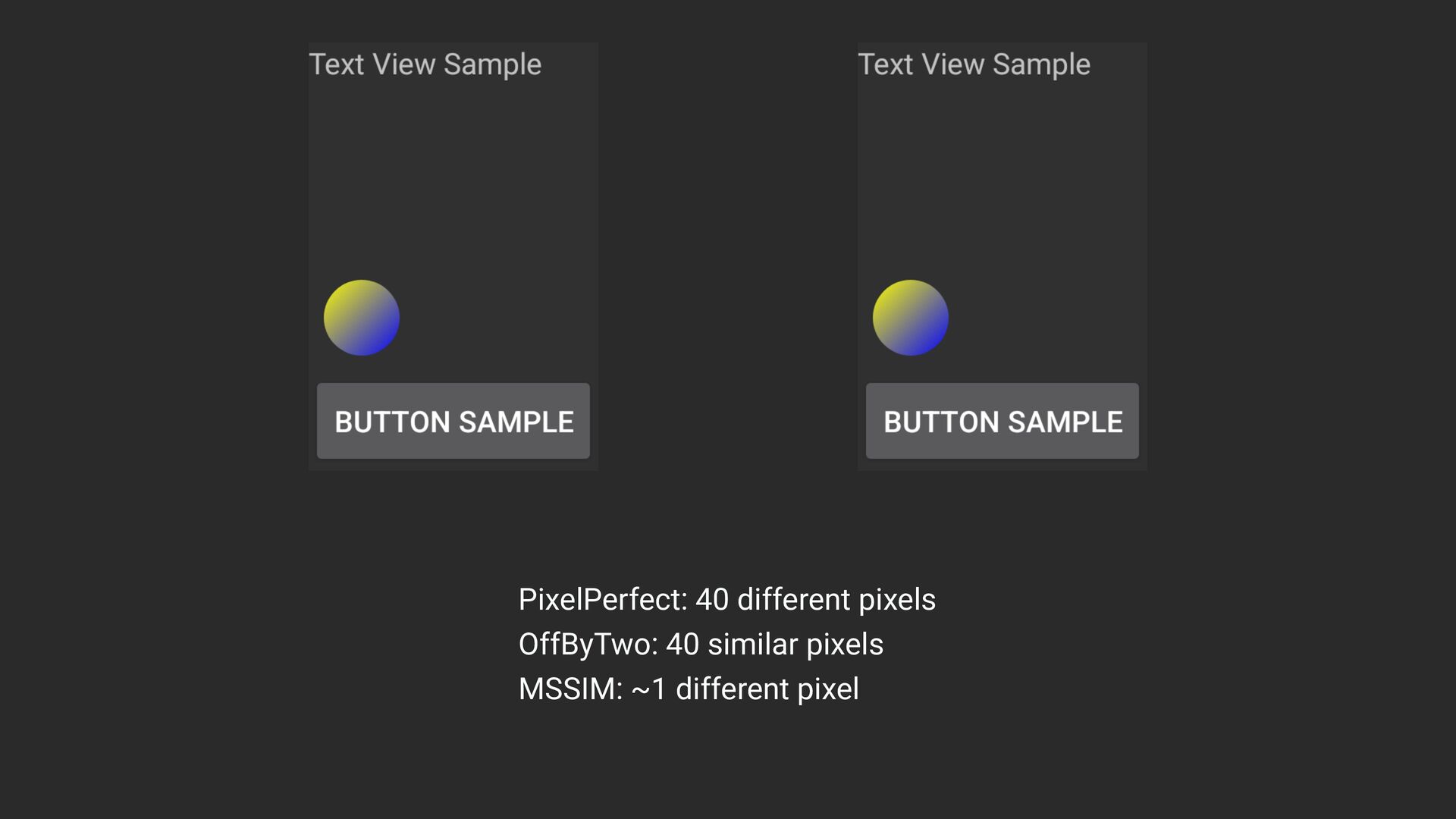

37. PixelPerfect: 40 different pixels OffByTwo: 40 similar pixels MSSIM: ~1 different pixel

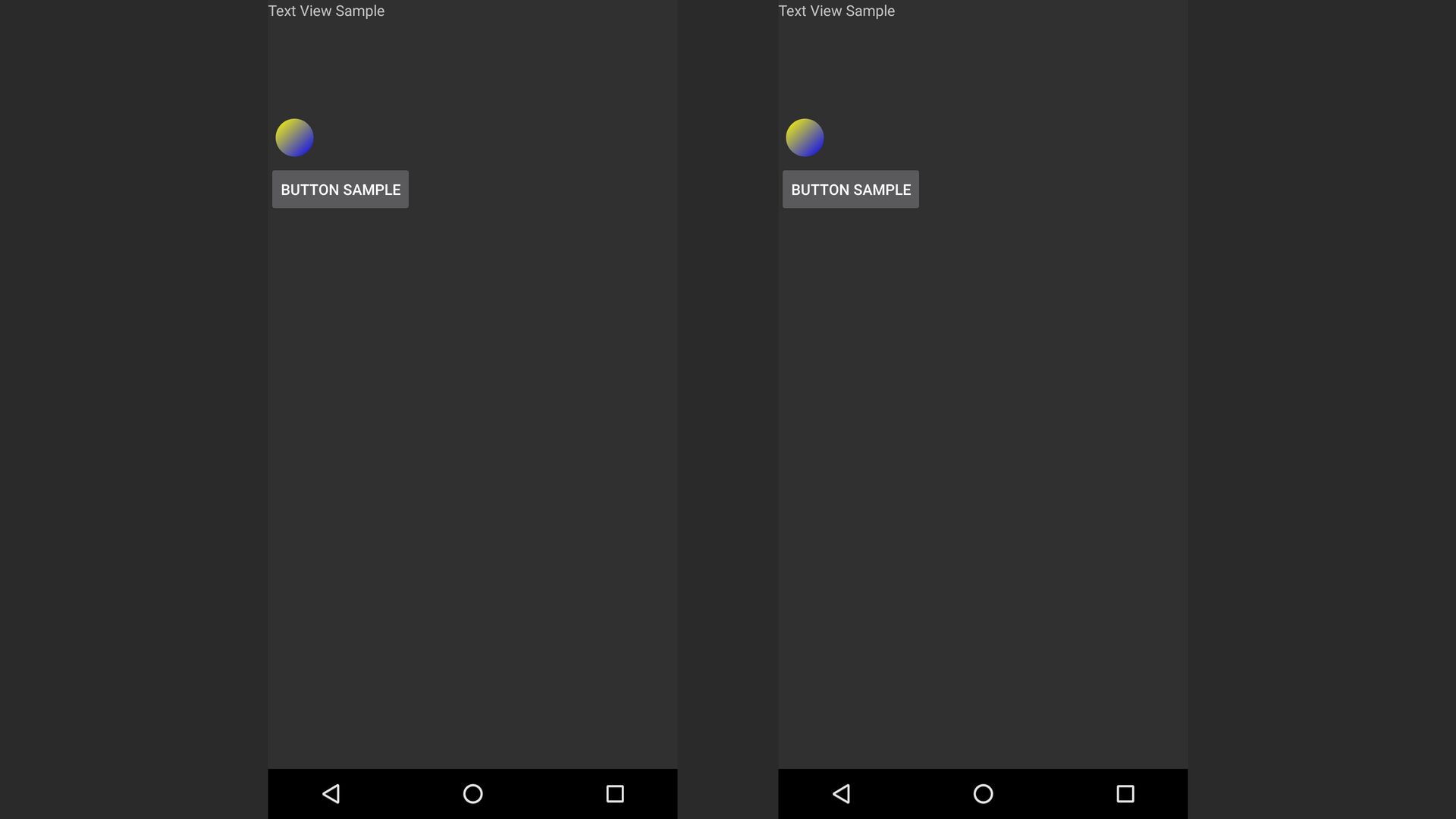

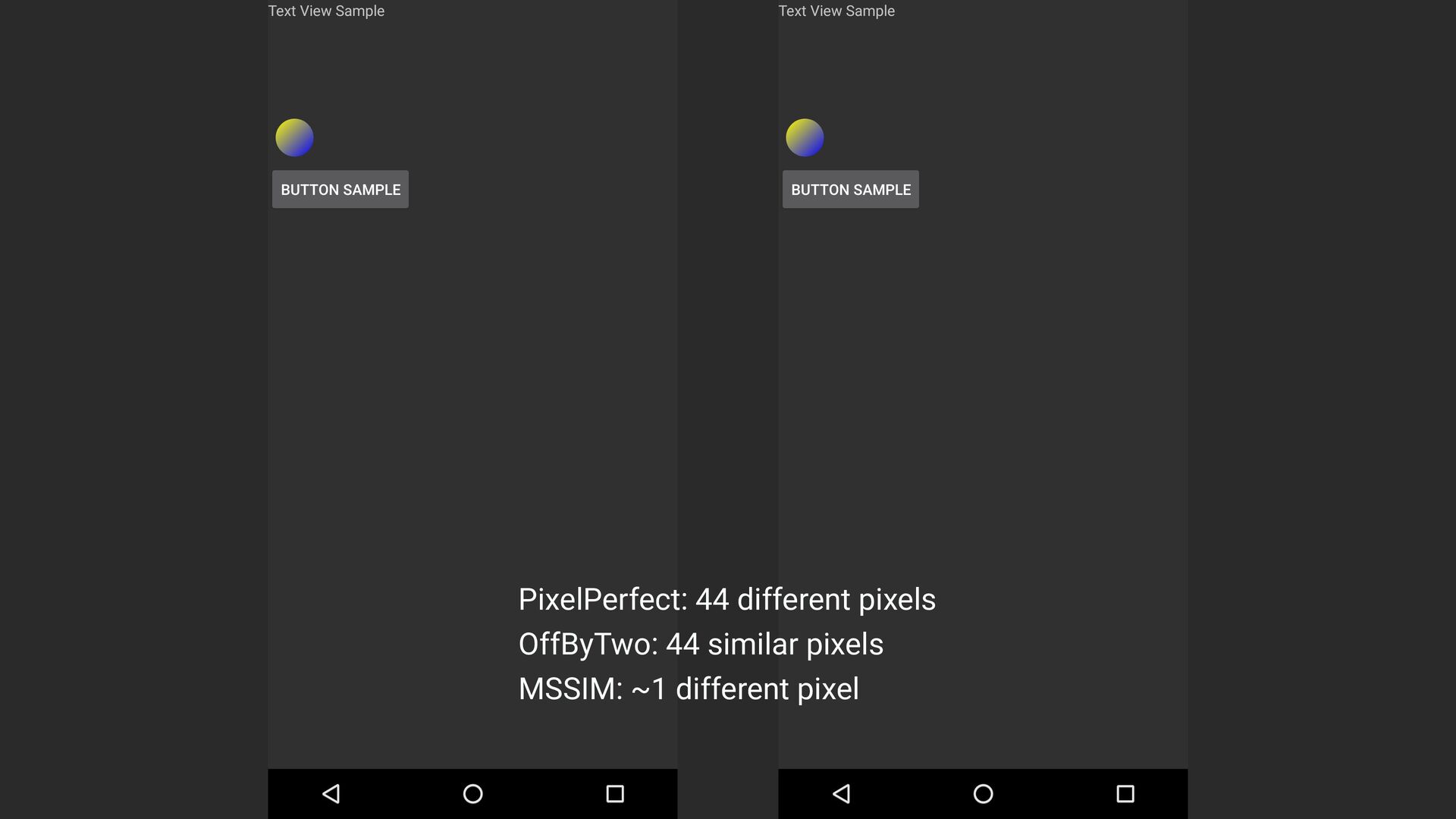

39. PixelPerfect: 44 different pixels OffByTwo: 44 similar pixels MSSIM: ~1 different pixel

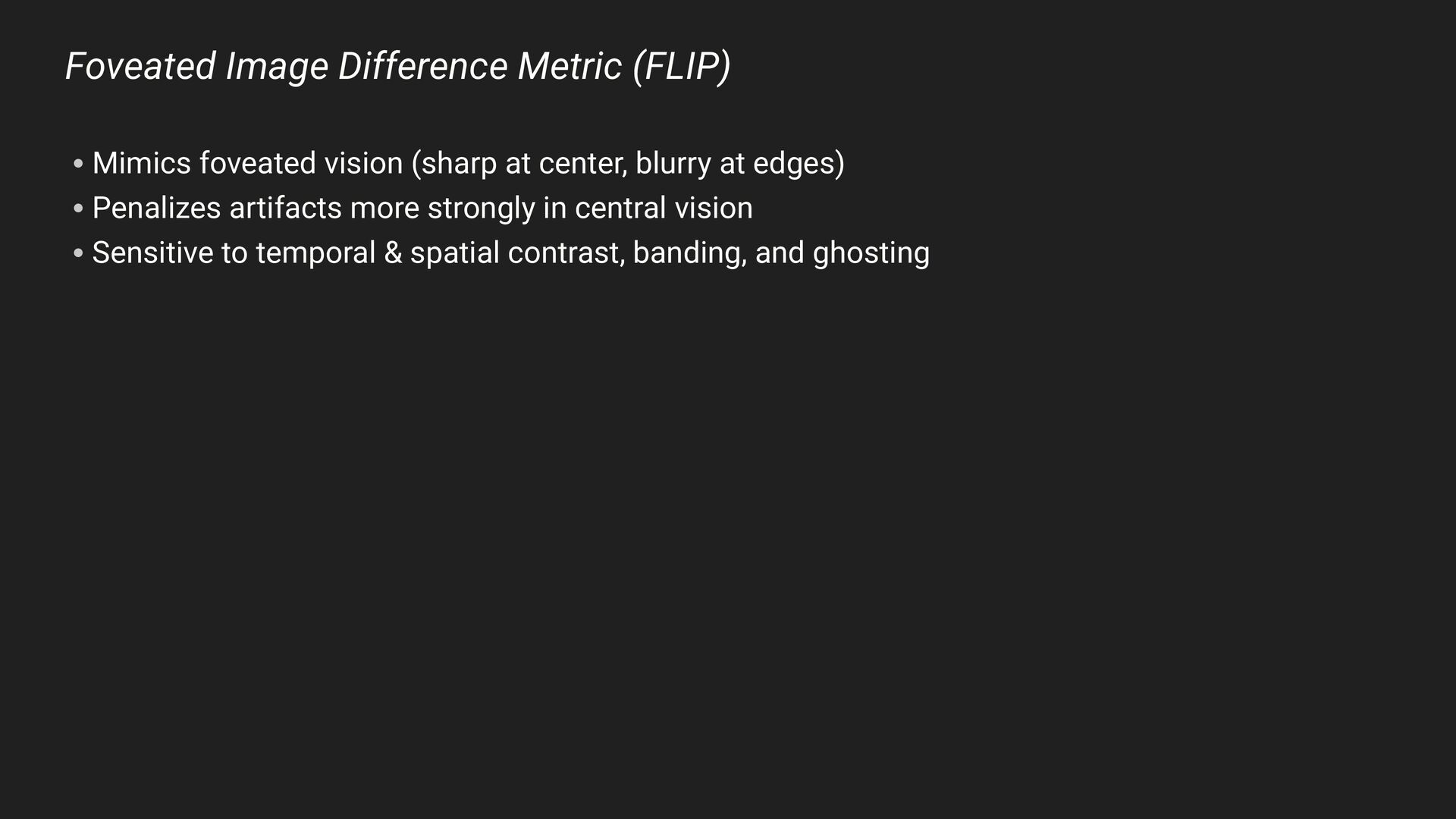

40. Foveated Image Difference Metric (FLIP) • Mimics foveated vision (sharp at center, blurry at edges) • Penalizes artifacts more strongly in central vision • Sensitive to temporal & spatial contrast, banding, and ghosting

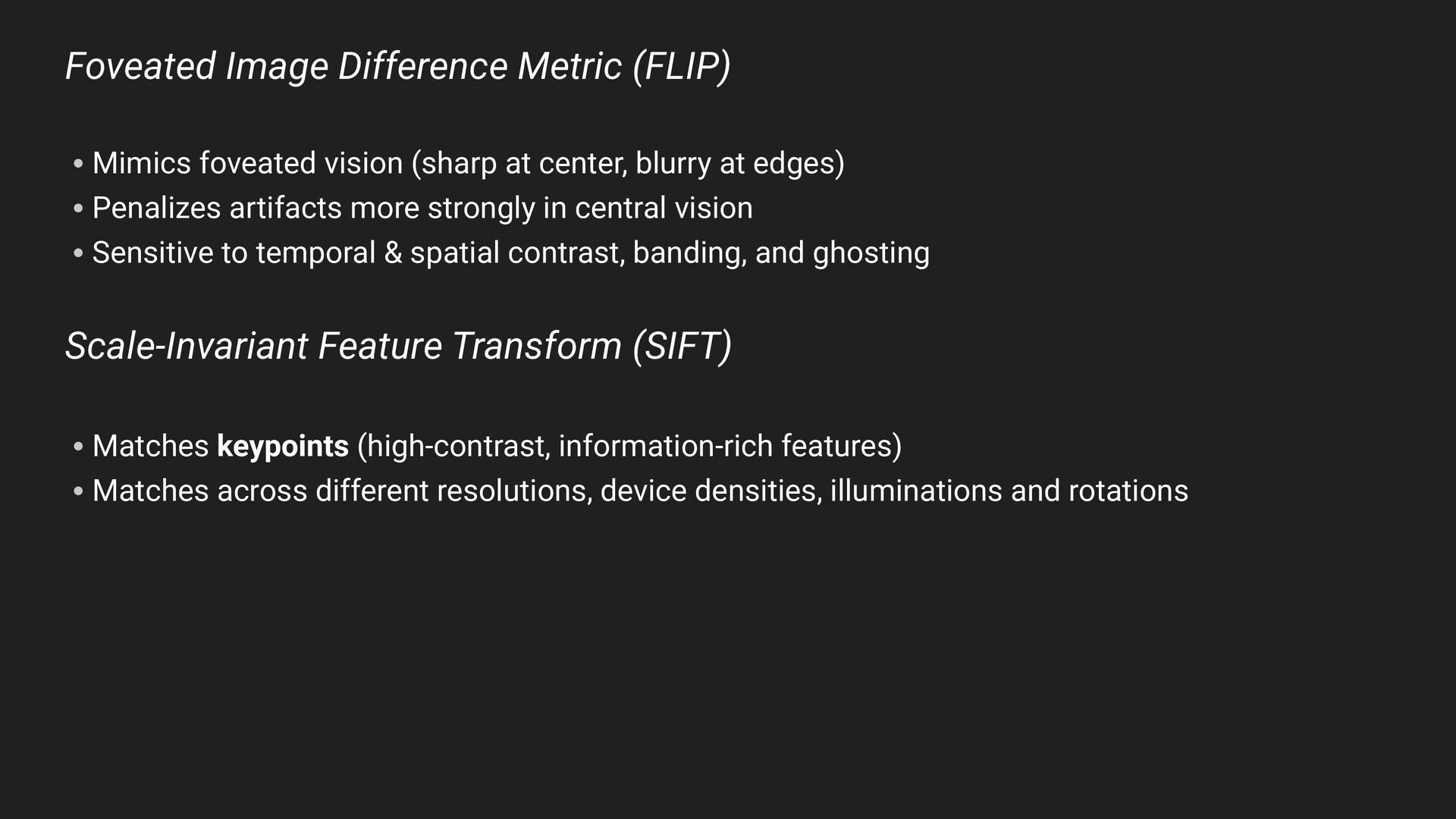

41. Foveated Image Difference Metric (FLIP) • Mimics foveated vision (sharp at center, blurry at edges) • Penalizes artifacts more strongly in central vision • Sensitive to temporal & spatial contrast, banding, and ghosting Scale-Invariant Feature Transform (SIFT) • Matches keypoints (high-contrast, information-rich features) • Matches across different resolutions, device densities, illuminations and rotations

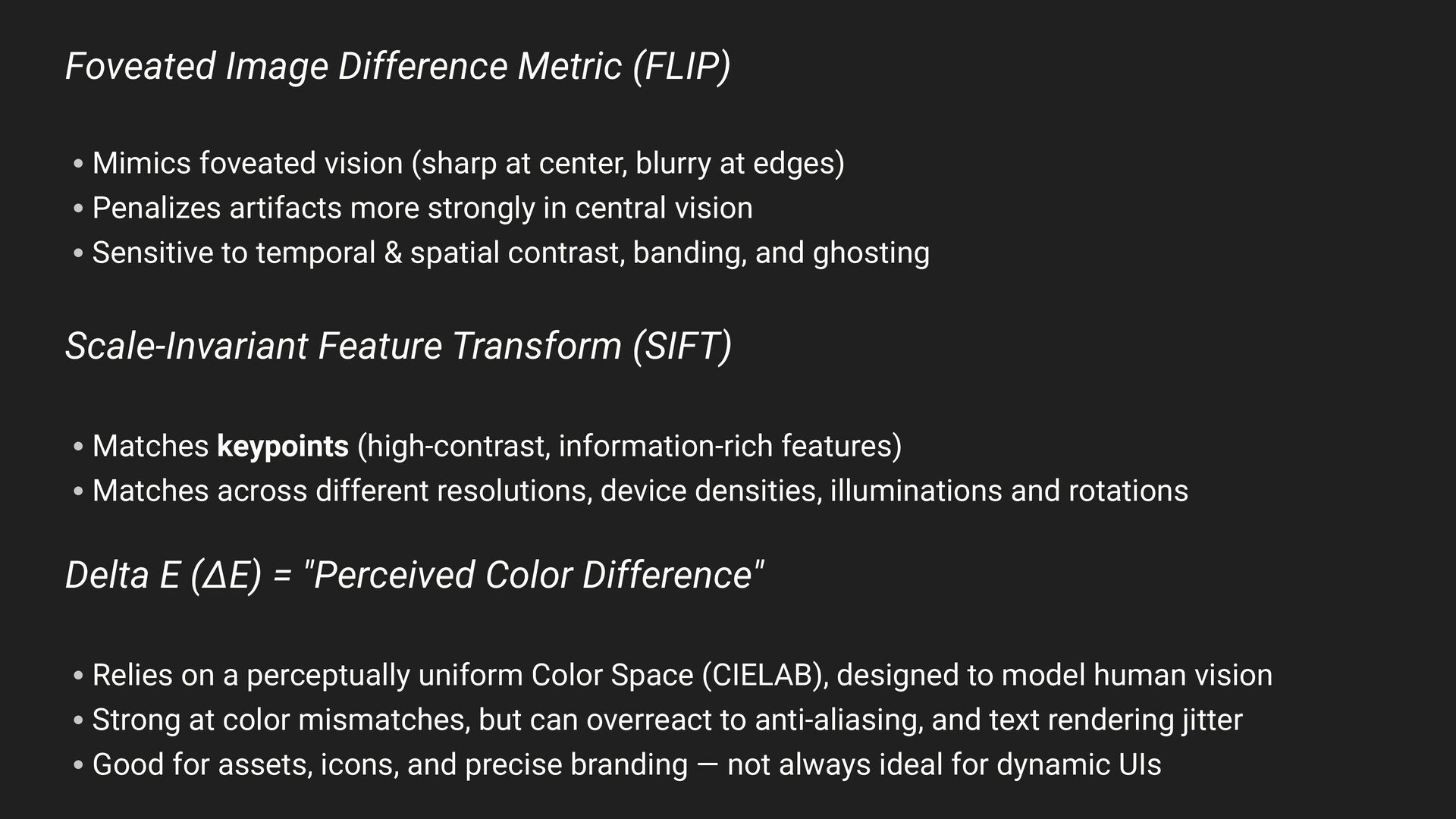

42. Foveated Image Difference Metric (FLIP) • Mimics foveated vision (sharp at center, blurry at edges) • Penalizes artifacts more strongly in central vision • Sensitive to temporal & spatial contrast, banding, and ghosting Scale-Invariant Feature Transform (SIFT) • Matches keypoints (high-contrast, information-rich features) • Matches across different resolutions, device densities, illuminations and rotations Delta E (ΔE) = "Perceived Color Difference" • Relies on a perceptually uniform Color Space (CIELAB), designed to model human vision • Strong at color mismatches, but can overreact to anti-aliasing, and text rendering jitter • Good for assets, icons, and precise branding — not always ideal for dynamic UIs

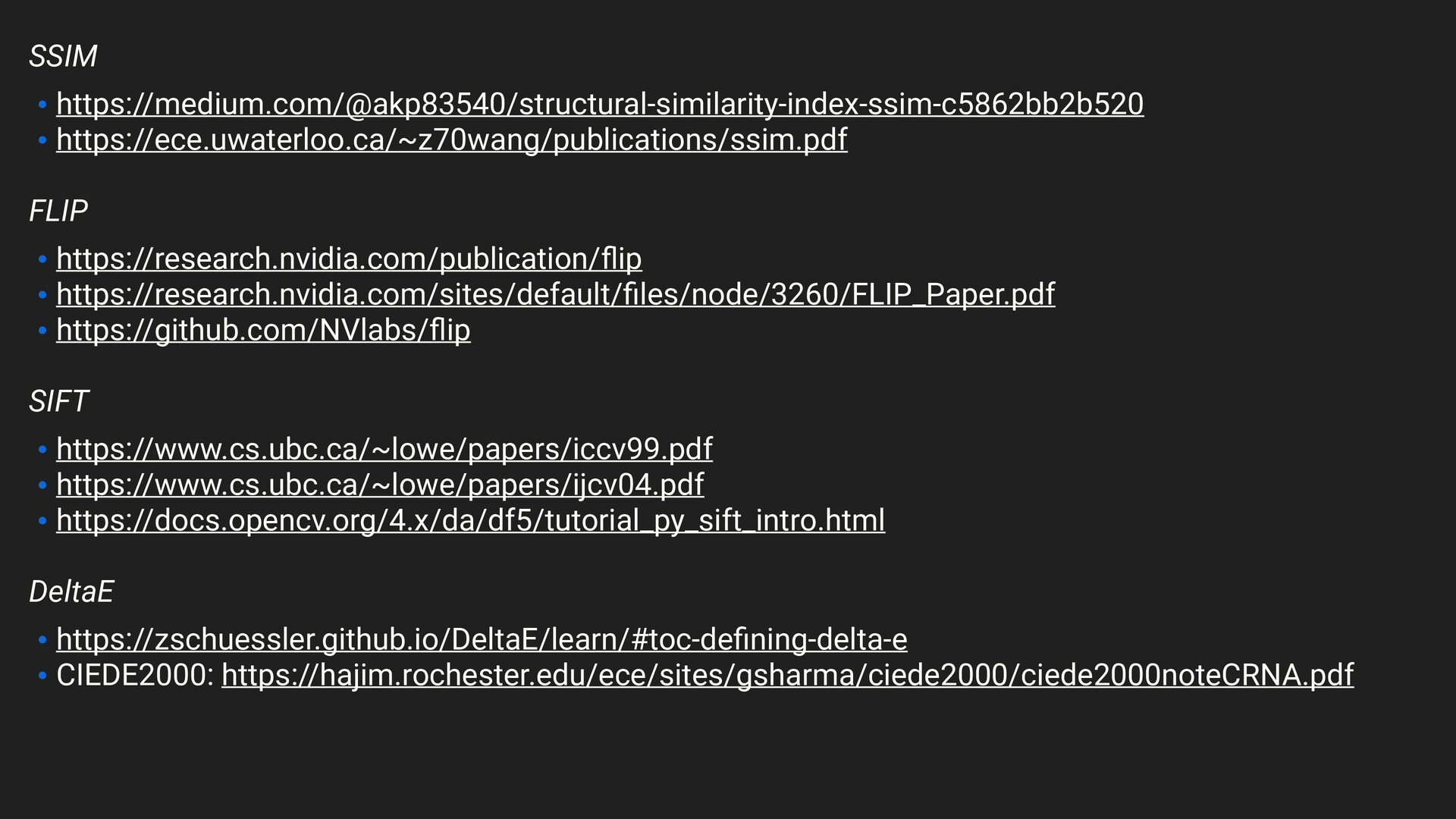

43. SSIM • https://medium.com/@akp83540/structural-similarity-index-ssim-c5862bb2b520 • https://ece.uwaterloo.ca/~z70wang/publications/ssim.pdf FLIP • https://research.nvidia.com/publication/ fl ip • https://research.nvidia.com/sites/default/ fi les/node/3260/FLIP_Paper.pdf • https://github.com/NVlabs/ fl ip SIFT • https://www.cs.ubc.ca/~lowe/papers/iccv99.pdf • https://www.cs.ubc.ca/~lowe/papers/ijcv04.pdf • https://docs.opencv.org/4.x/da/df5/tutorial_py_sift_intro.html DeltaE • https://zschuessler.github.io/DeltaE/learn/#toc-de fi ning-delta-e • CIEDE2000: https://hajim.rochester.edu/ece/sites/gsharma/ciede2000/ciede2000noteCRNA.pdf

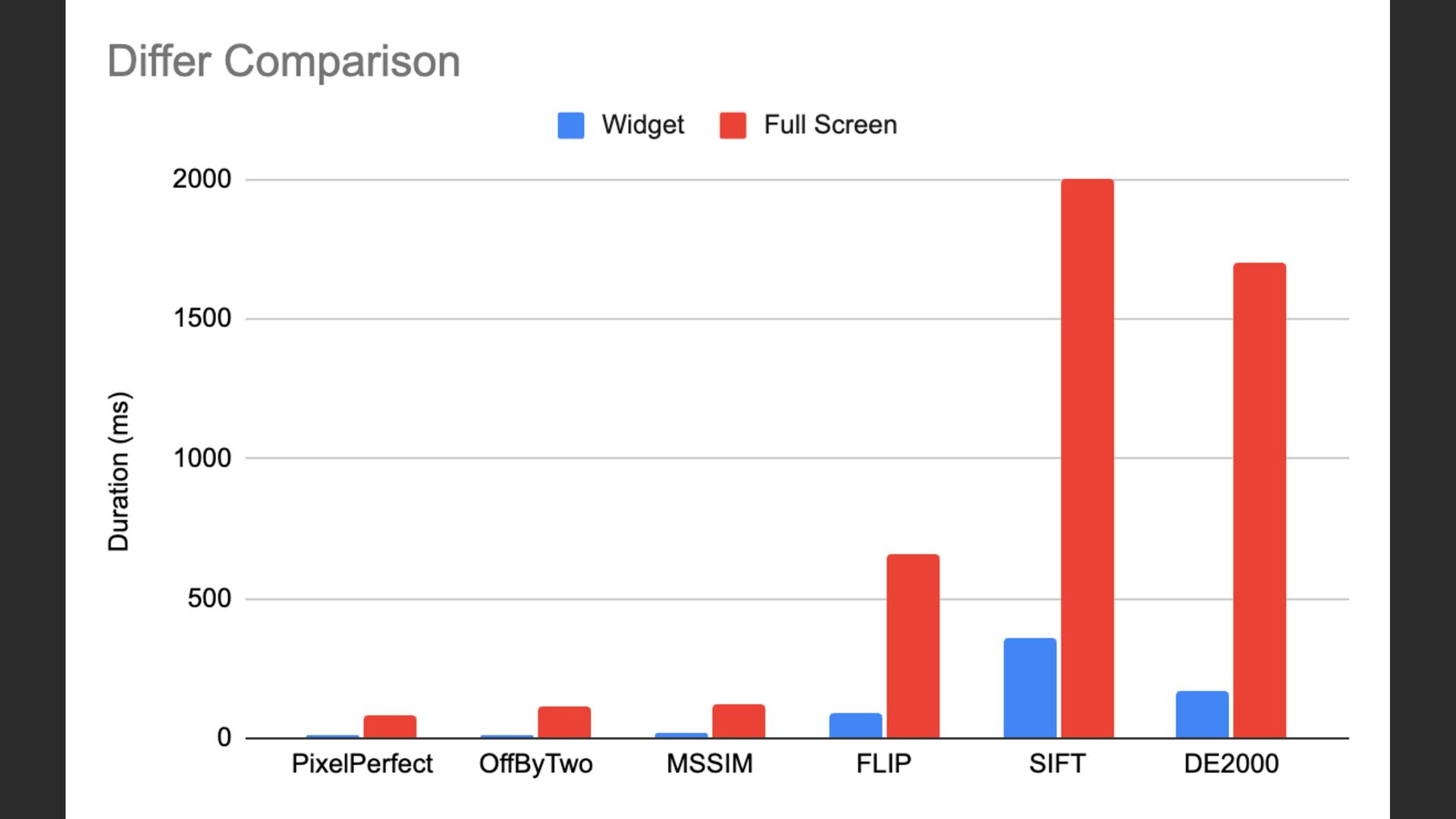

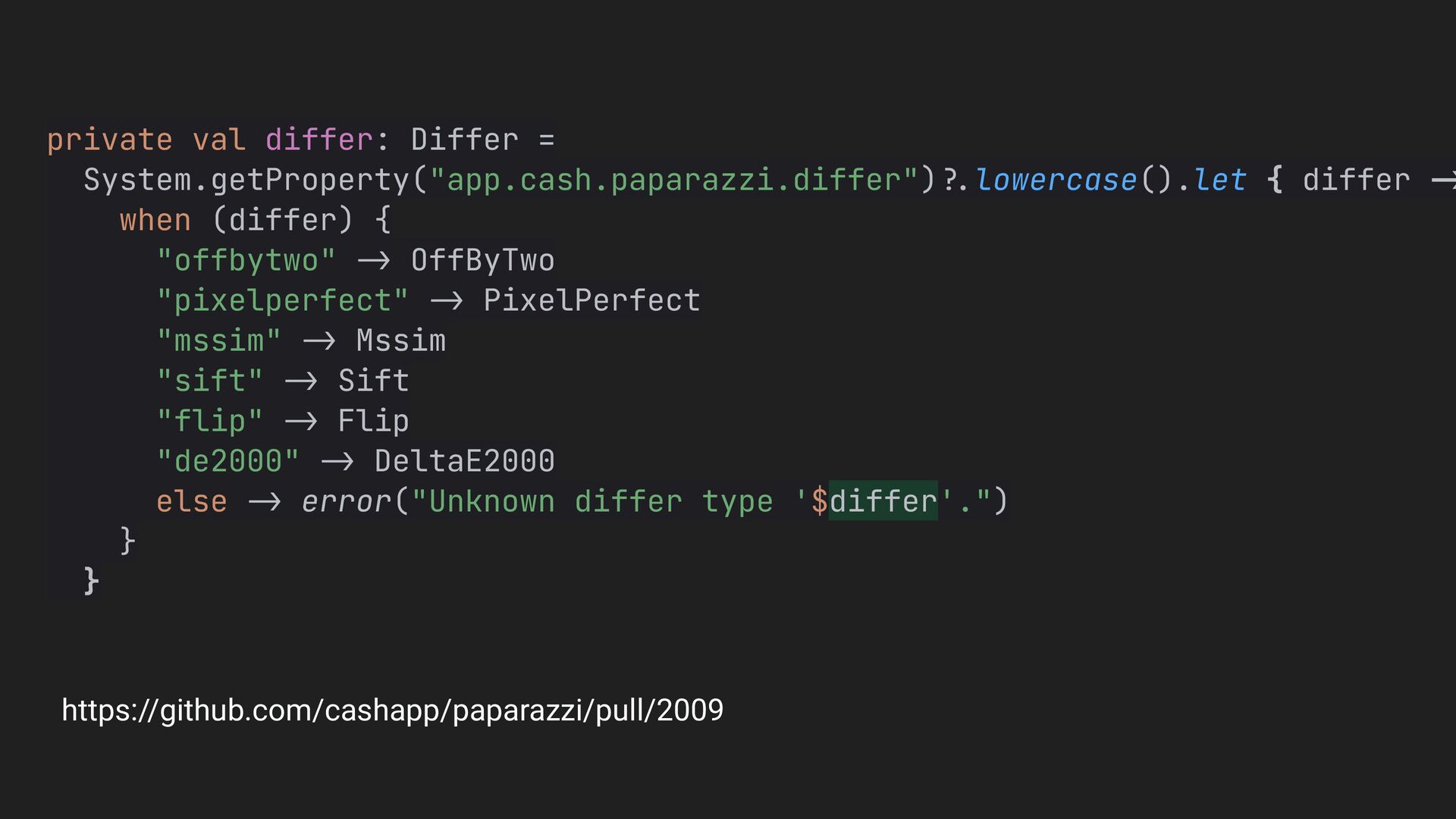

45. private val differ: Differ = System.getProperty("app.cash.paparazzi.differ") ?. lowercase().let { differ -> when (differ) { "offbytwo" -> OffByTwo "pixelperfect" -> PixelPerfect "mssim" -> Mssim "sift" -> Sift "flip" -> Flip "de2000" -> DeltaE2000 else -> error("Unknown differ type '$differ'.") } } https://github.com/cashapp/paparazzi/pull/2009

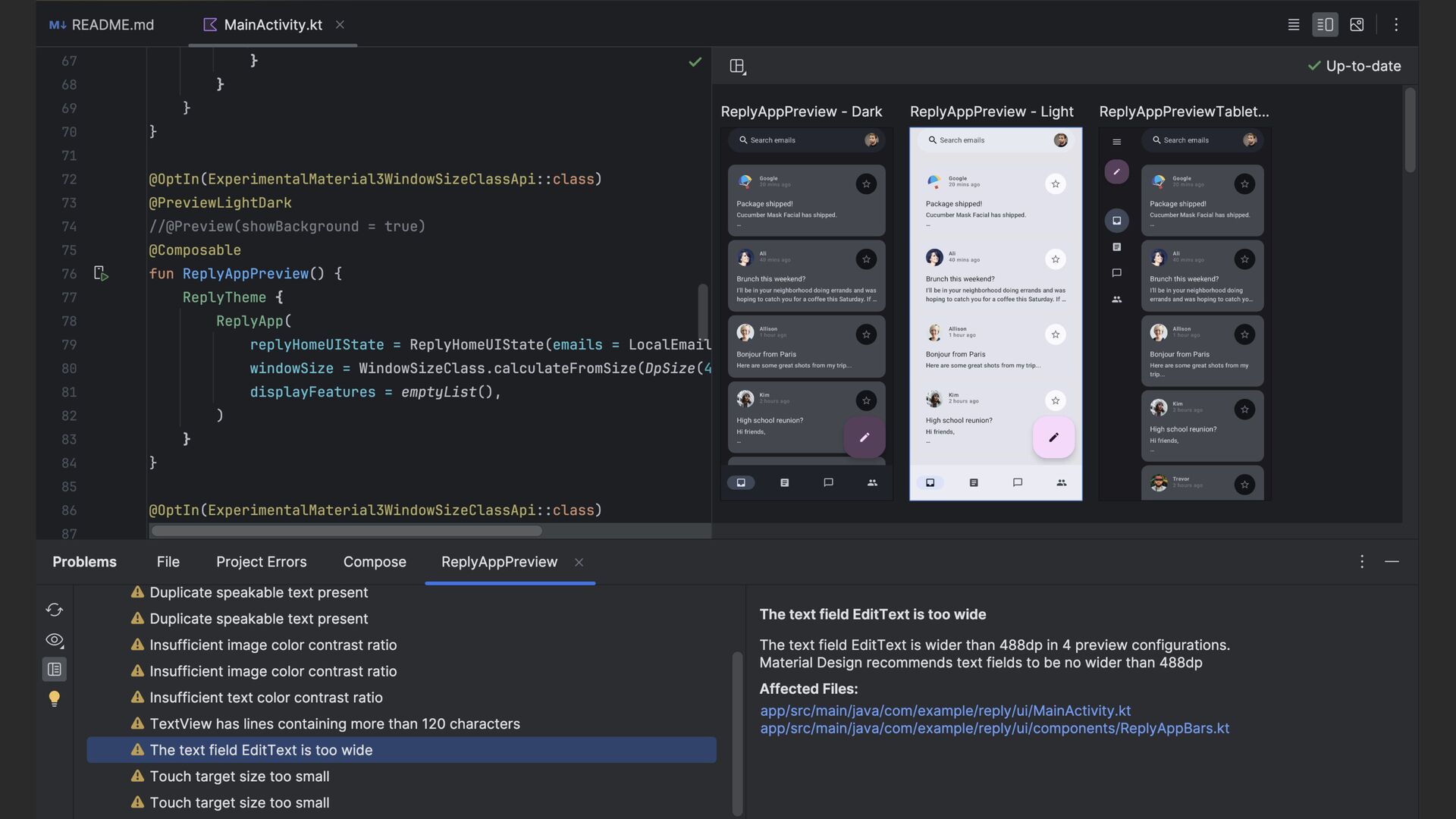

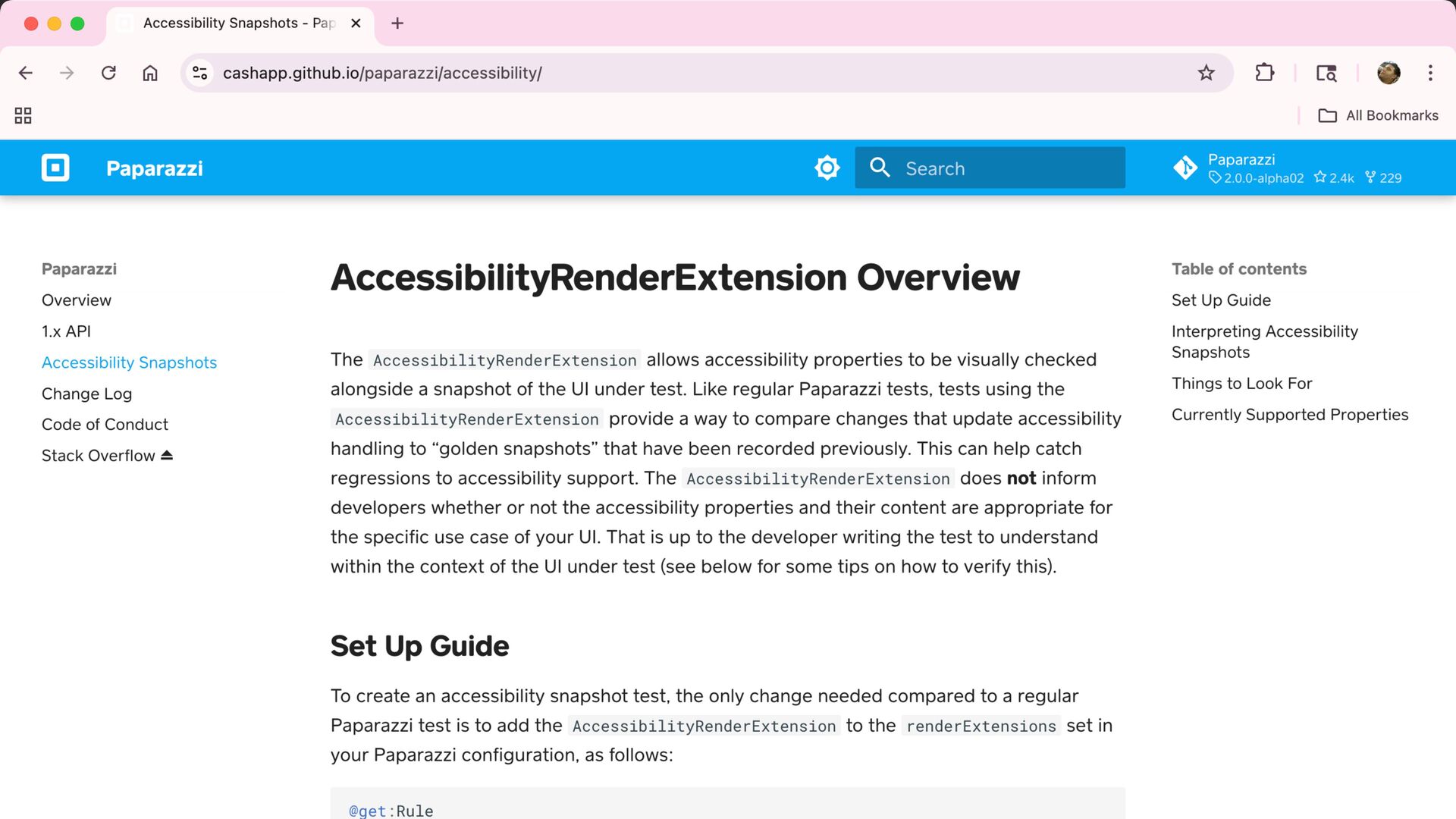

48. https://cashapp.github.io/paparazzi/accessibility/

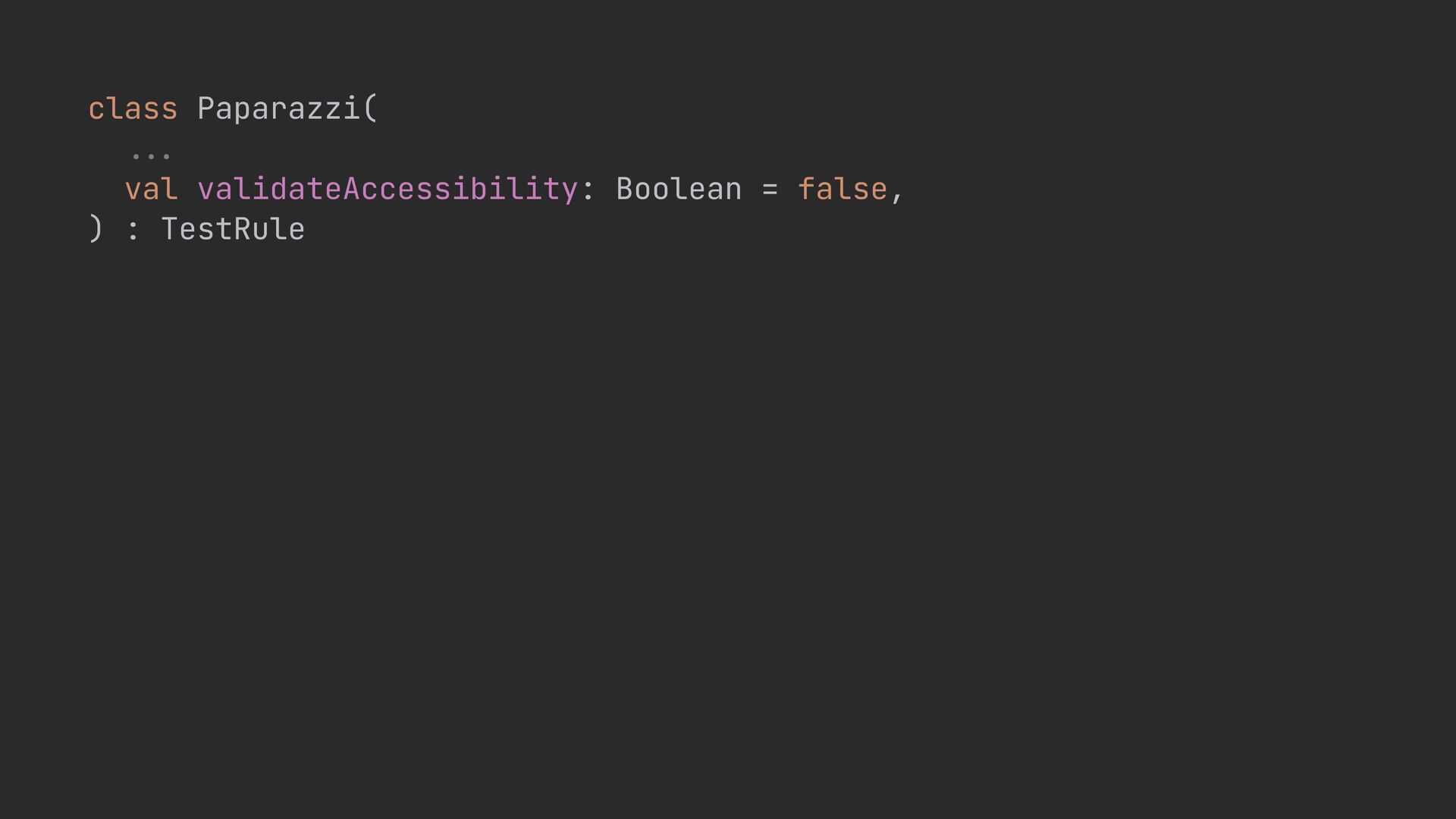

49. class Paparazzi( ... val validateAccessibility: Boolean = false, ) : TestRule

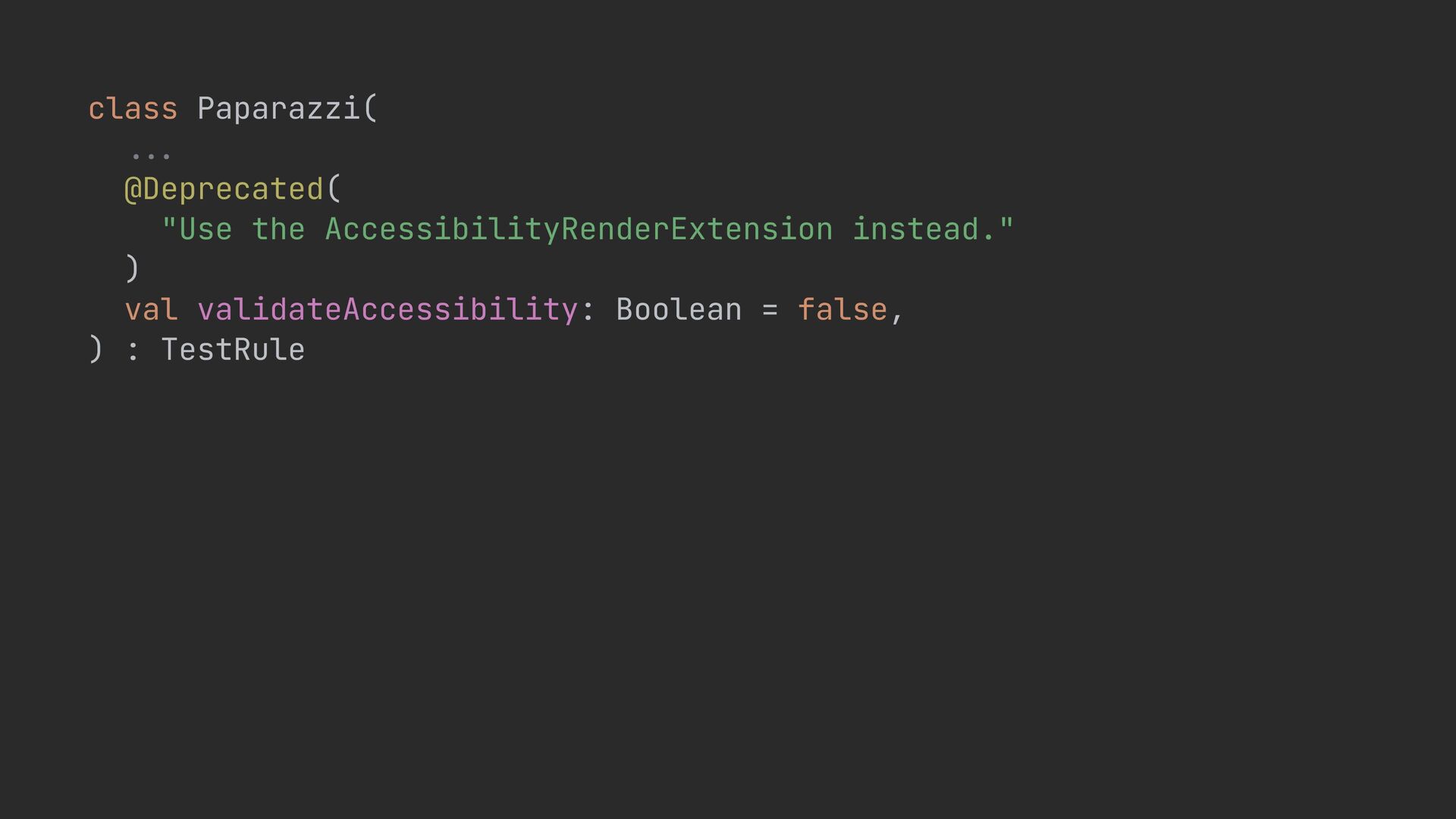

50. class Paparazzi( ... @Deprecated( "Use the AccessibilityRenderExtension instead." ) val validateAccessibility: Boolean = false, ) : TestRule

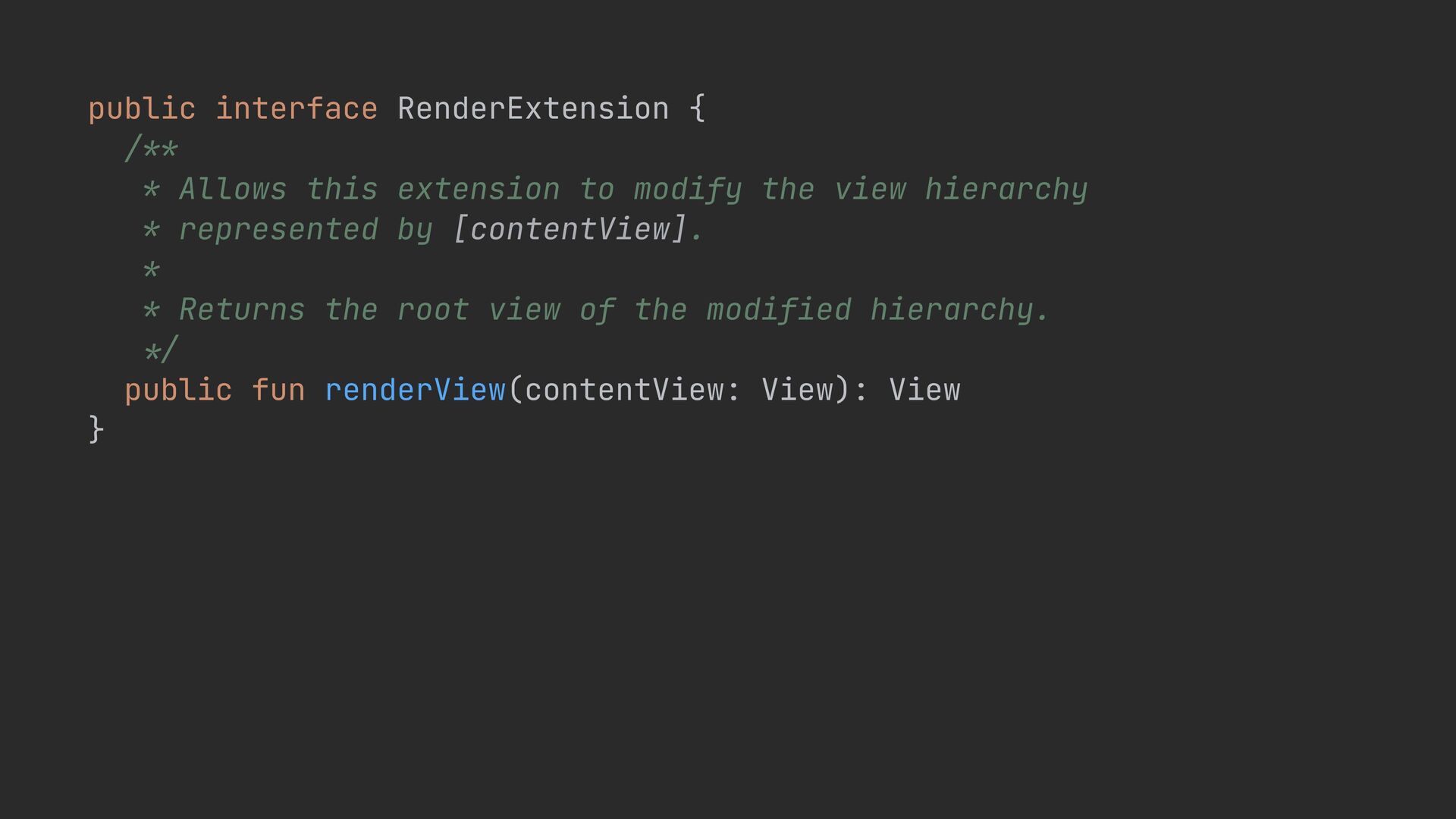

52. public interface RenderExtension { /** * Allows this extension to modify the view hierarchy * represented by [contentView]. * * Returns the root view of the modified hierarchy. */ public fun renderView(contentView: View): View }

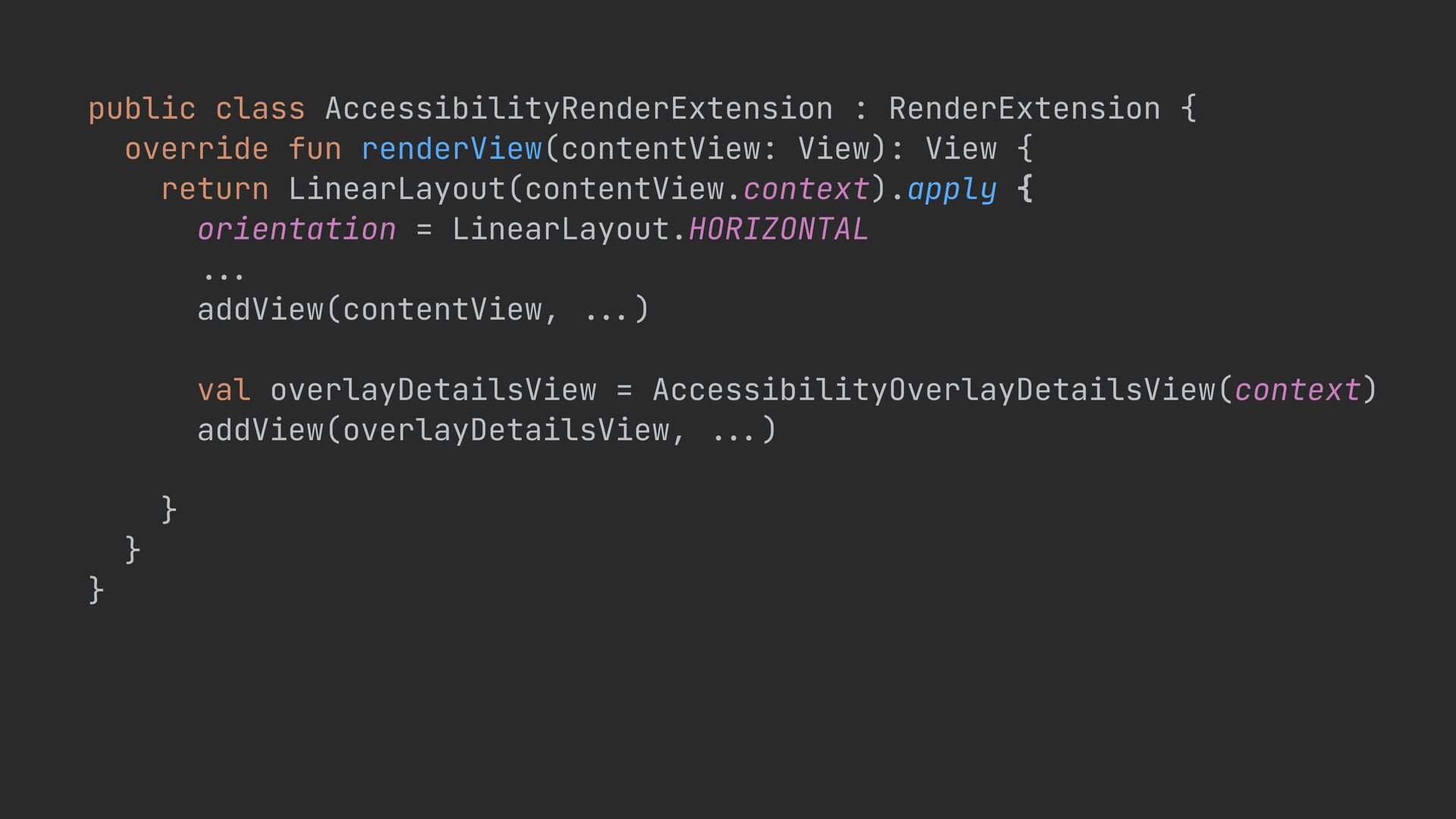

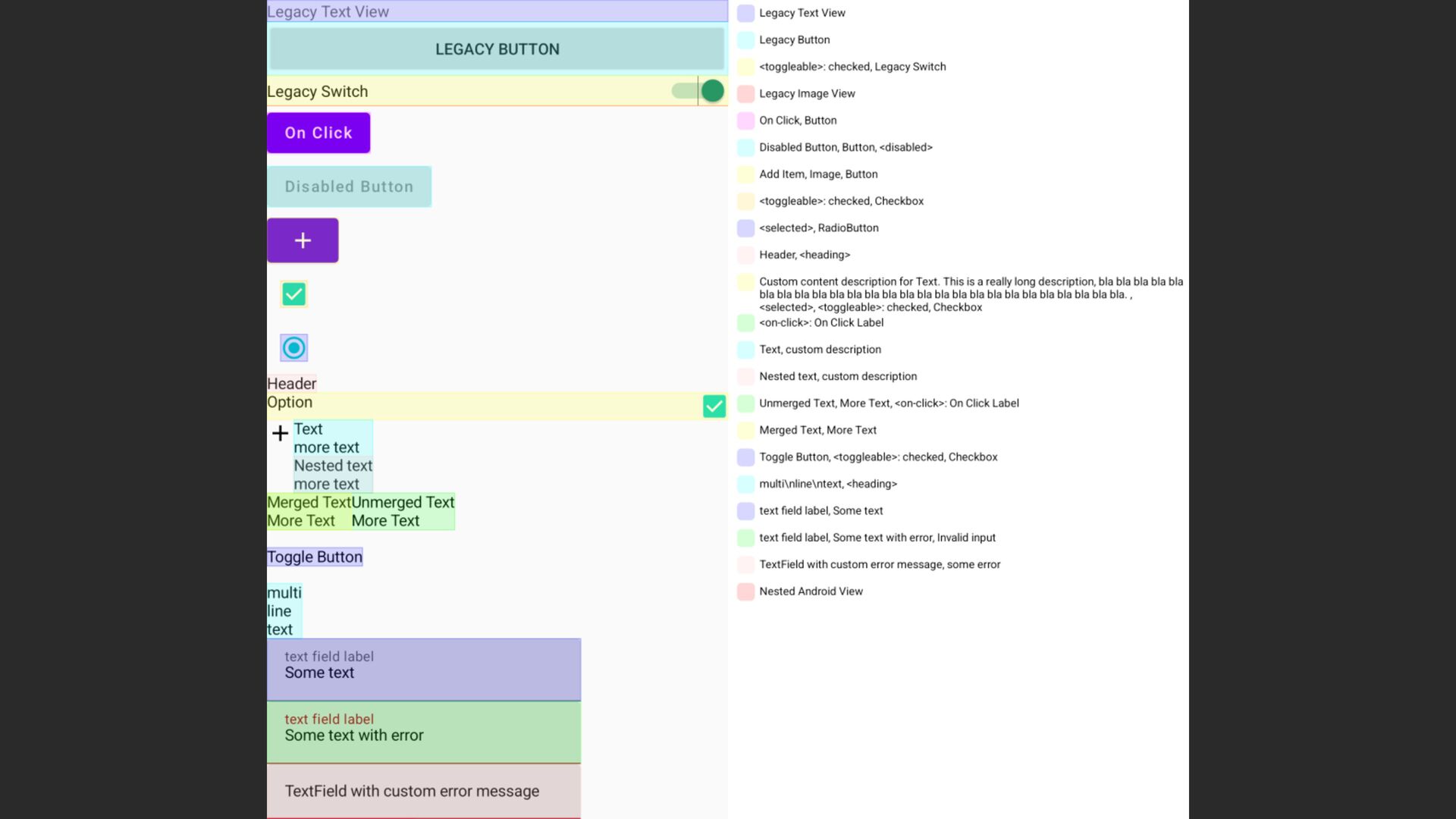

53. public class AccessibilityRenderExtension : RenderExtension { override fun renderView(contentView: View): View { return LinearLayout(contentView.context).apply { orientation = LinearLayout.HORIZONTAL ... addView(contentView, ... ) val overlayDetailsView = AccessibilityOverlayDetailsView(context) addView(overlayDetailsView, ... ) } } }

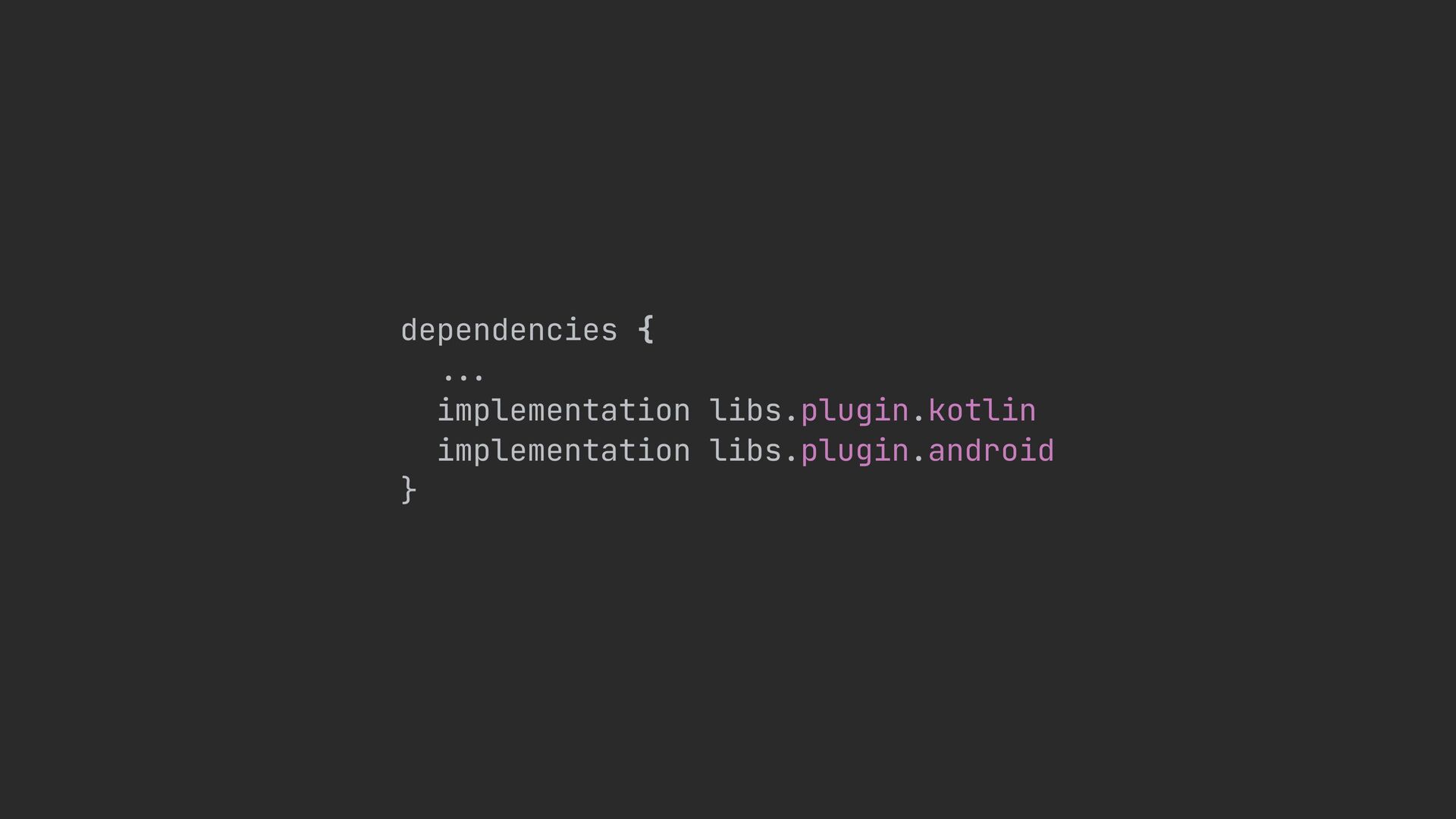

57. dependencies { . .. implementation libs.plugin.kotlin implementation libs.plugin.android }

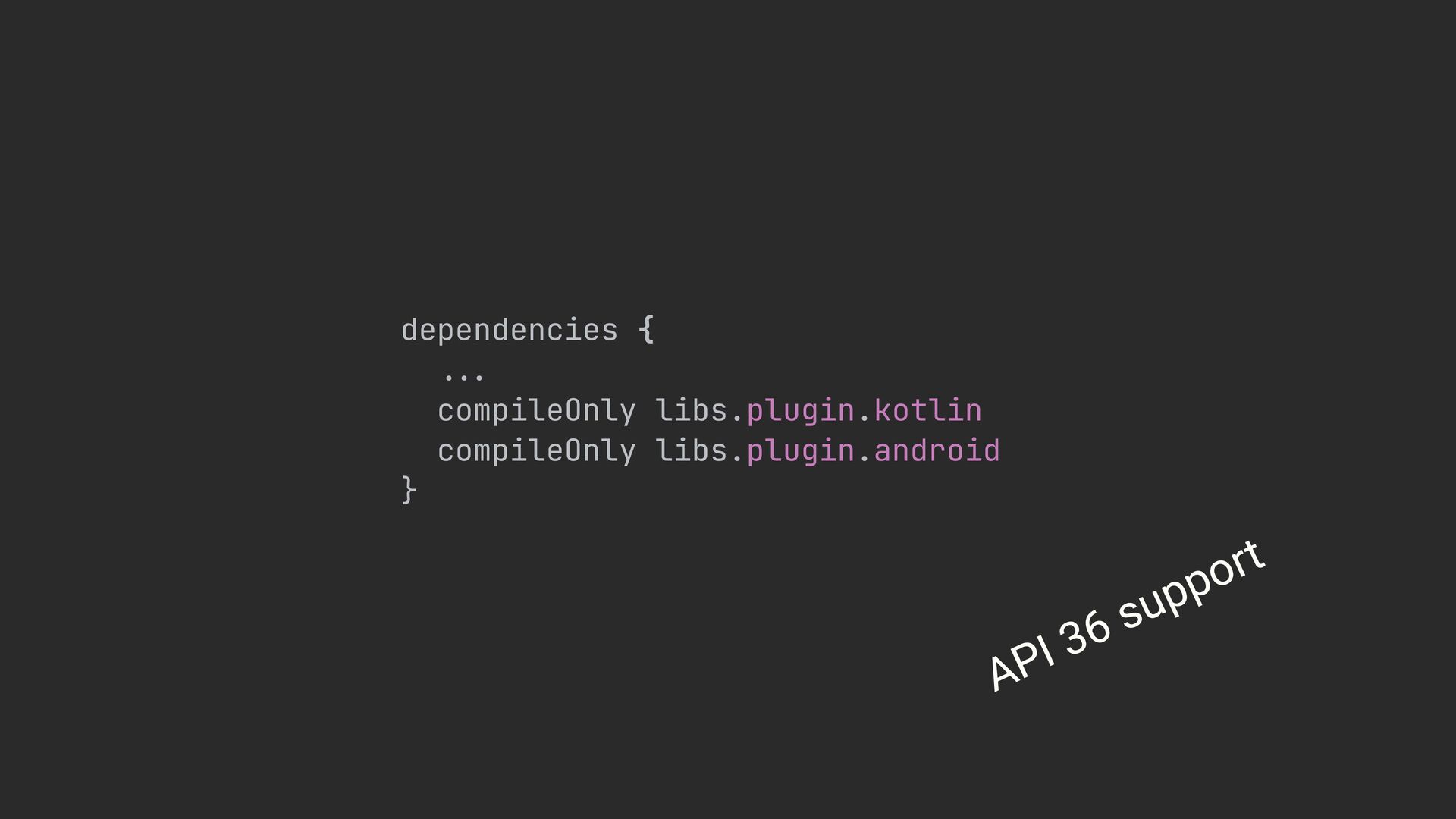

58. dependencies { . .. compileOnly libs.plugin.kotlin compileOnly libs.plugin.android } API 36 support

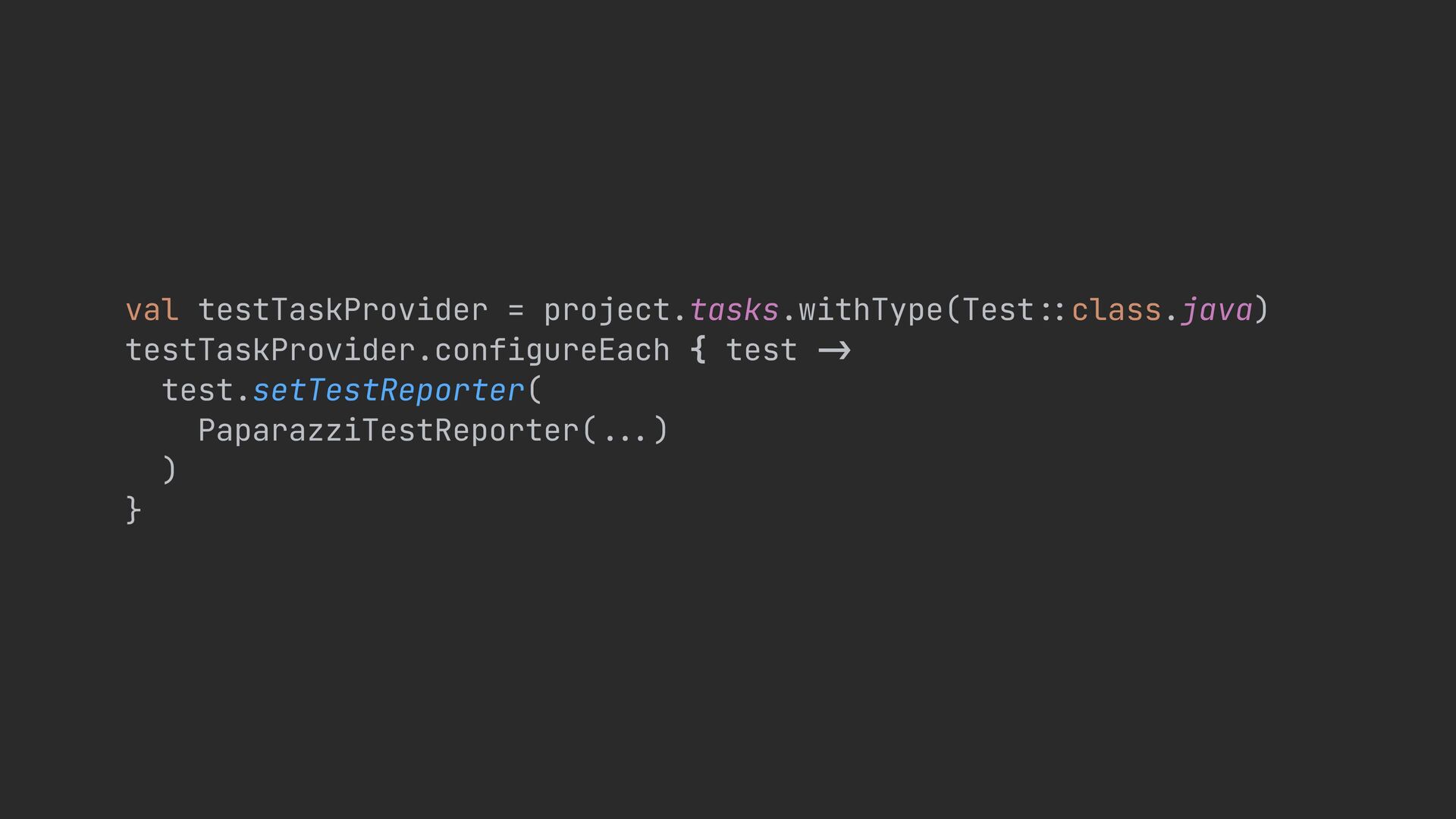

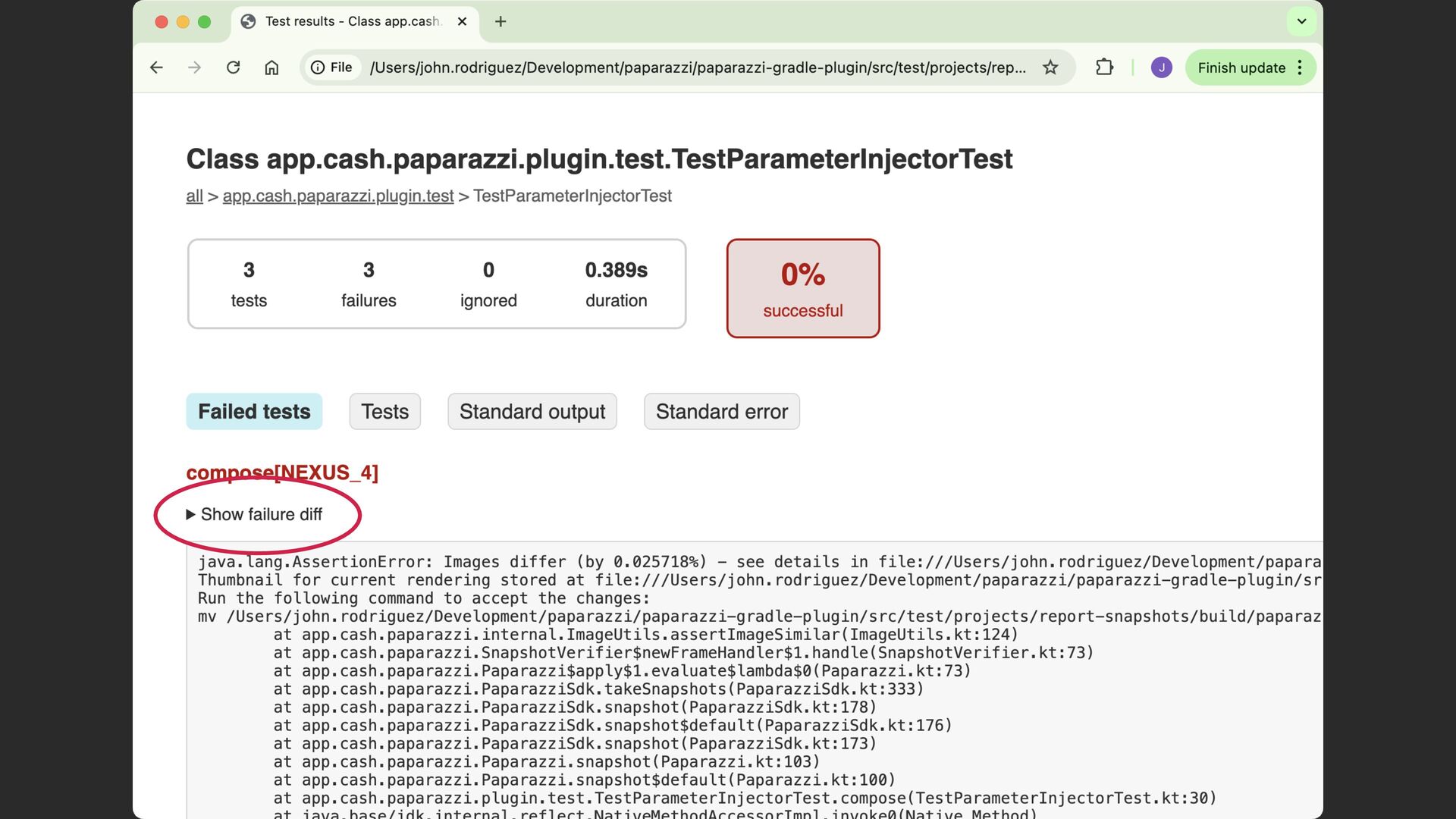

62. val testTaskProvider = project.tasks.withType(Test :: class.java) testTaskProvider.configureEach { test - > test.setTestReporter( PaparazziTestReporter( ... ) ) }

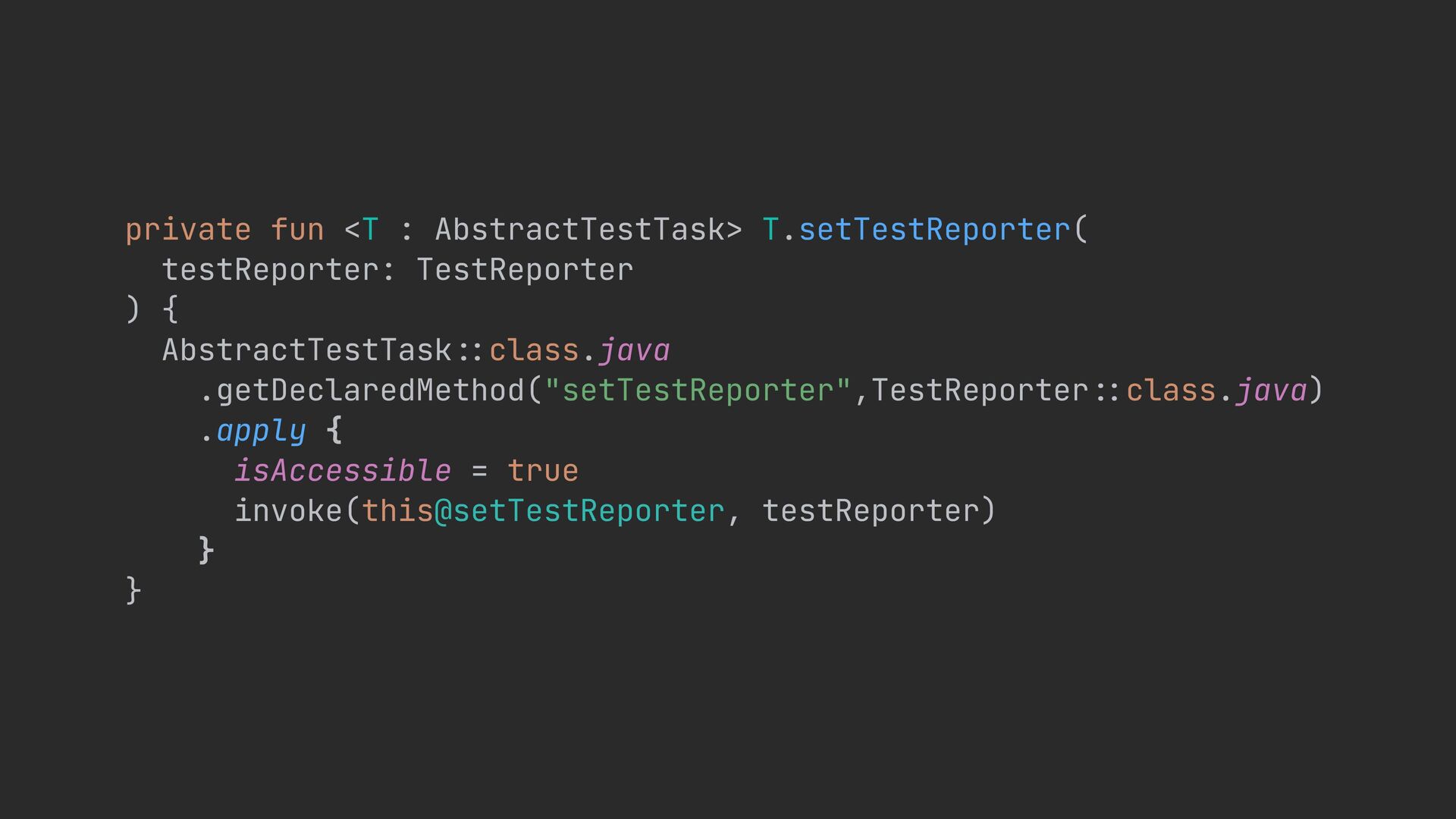

63. private fun <T : AbstractTestTask> T.setTestReporter( testReporter: TestReporter ) { AbstractTestTask :: class.java .getDeclaredMethod("setTestReporter",TestReporter :: class.java) .apply { isAccessible = true invoke(this@setTestReporter, testReporter) } }

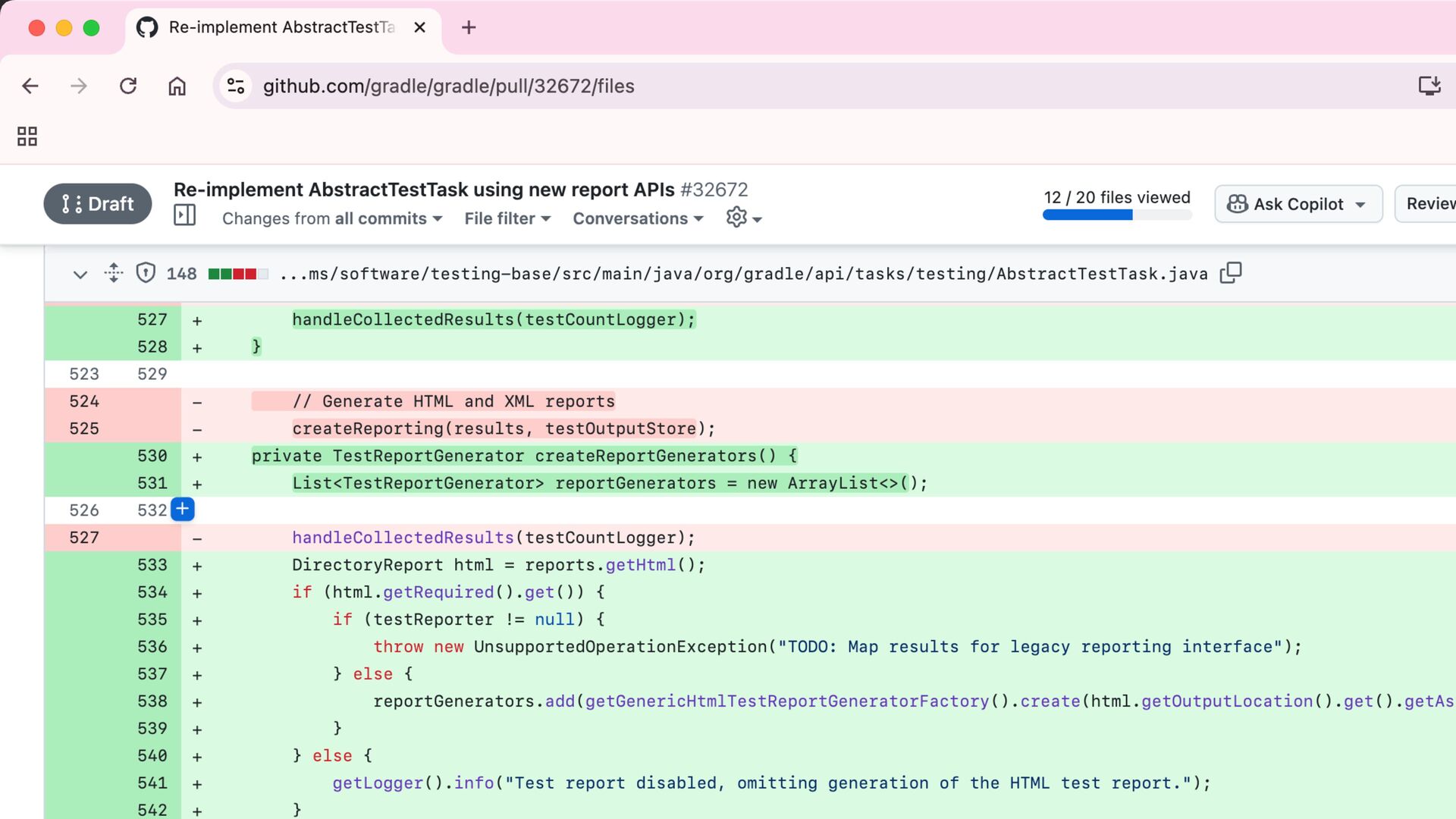

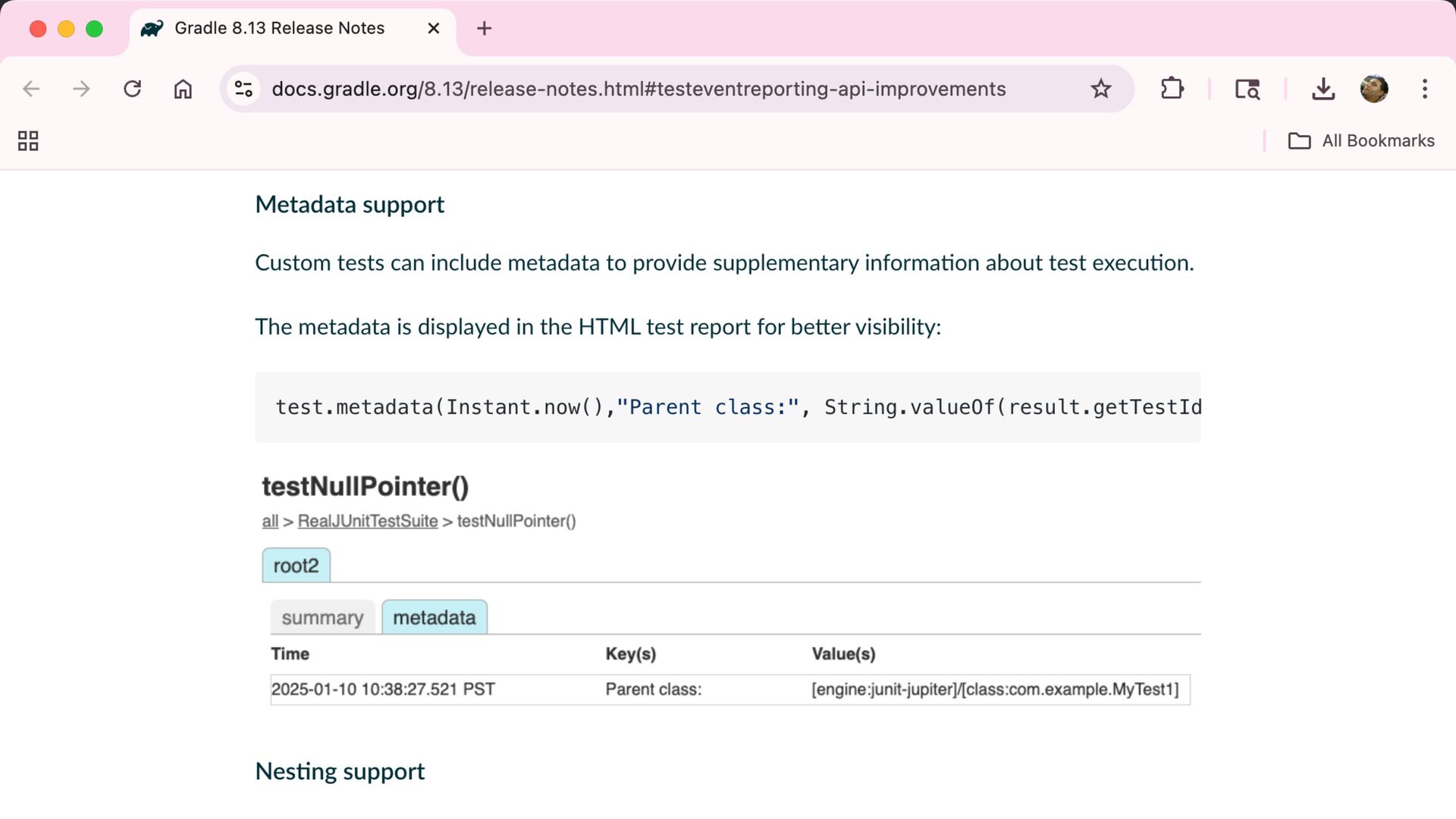

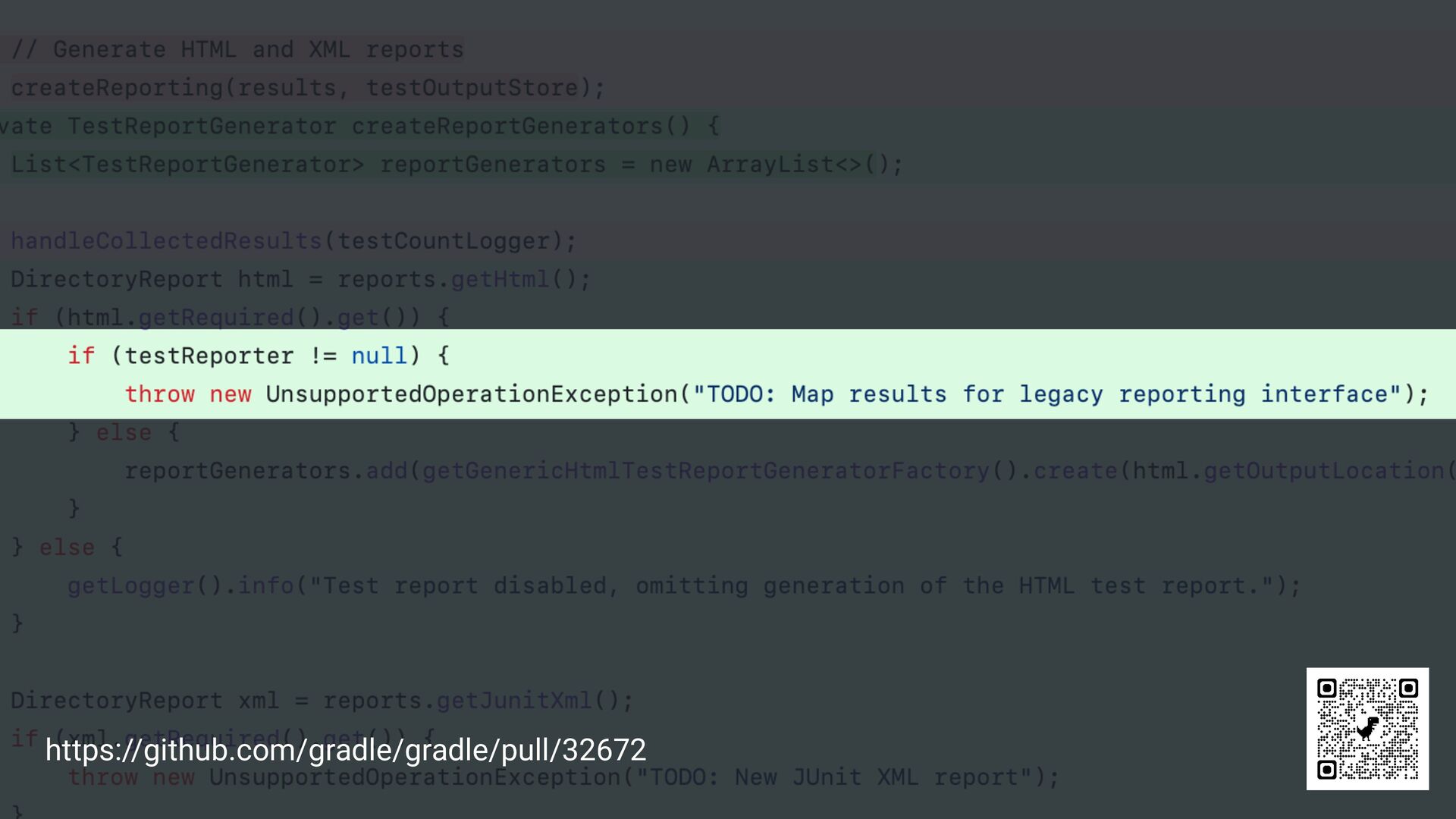

66. https://github.com/gradle/gradle/pull/32672

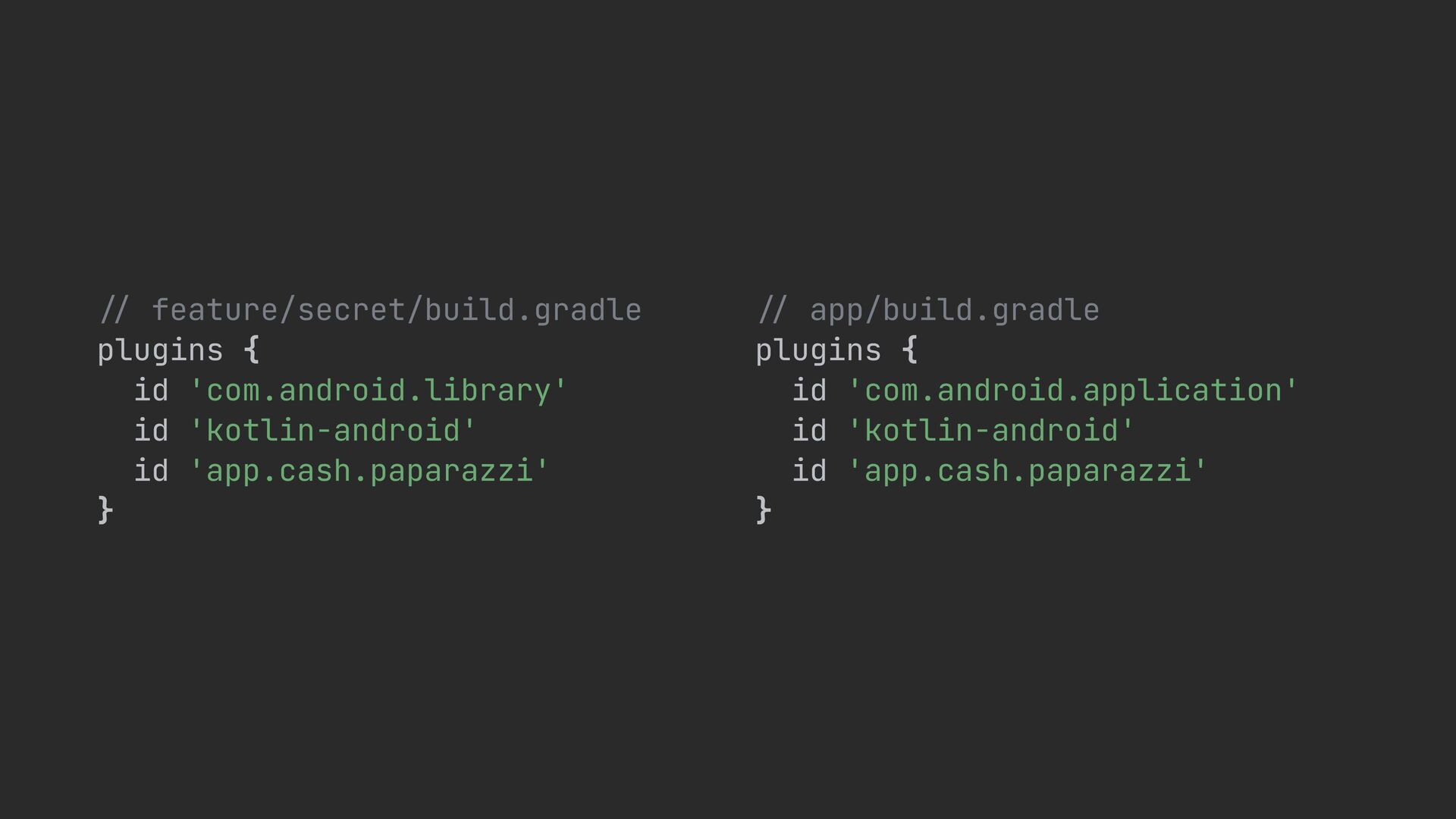

71. // feature/secret/build.gradle plugins { id 'com.android.library' id 'kotlin-android' id 'app.cash.paparazzi' } // app/build.gradle plugins { id 'com.android.application' id 'kotlin-android' id 'app.cash.paparazzi' }

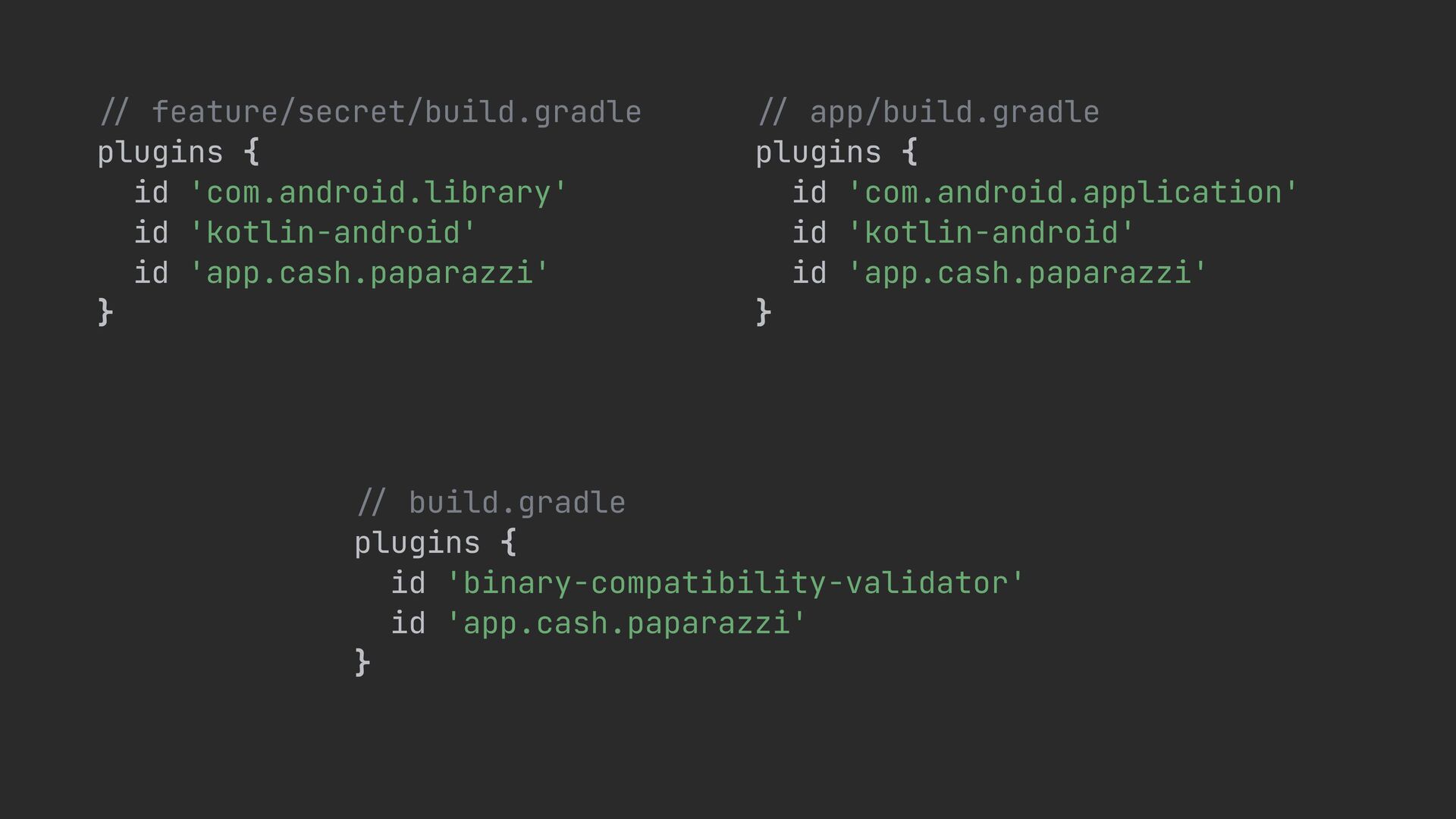

72. // feature/secret/build.gradle plugins { id 'com.android.library' id 'kotlin-android' id 'app.cash.paparazzi' } // app/build.gradle plugins { id 'com.android.application' id 'kotlin-android' id 'app.cash.paparazzi' } // build.gradle plugins { id 'binary-compatibility-validator' id 'app.cash.paparazzi' }

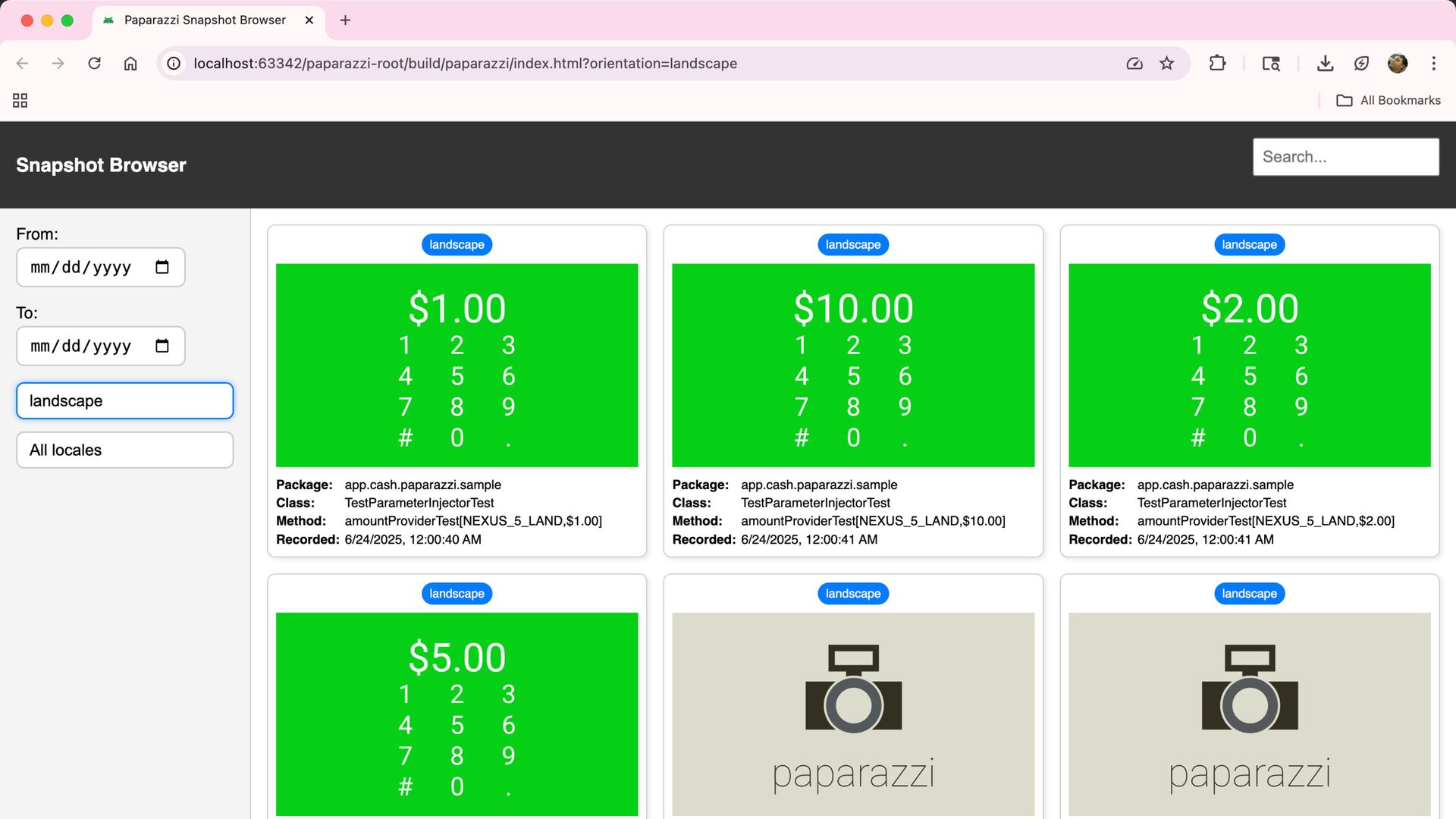

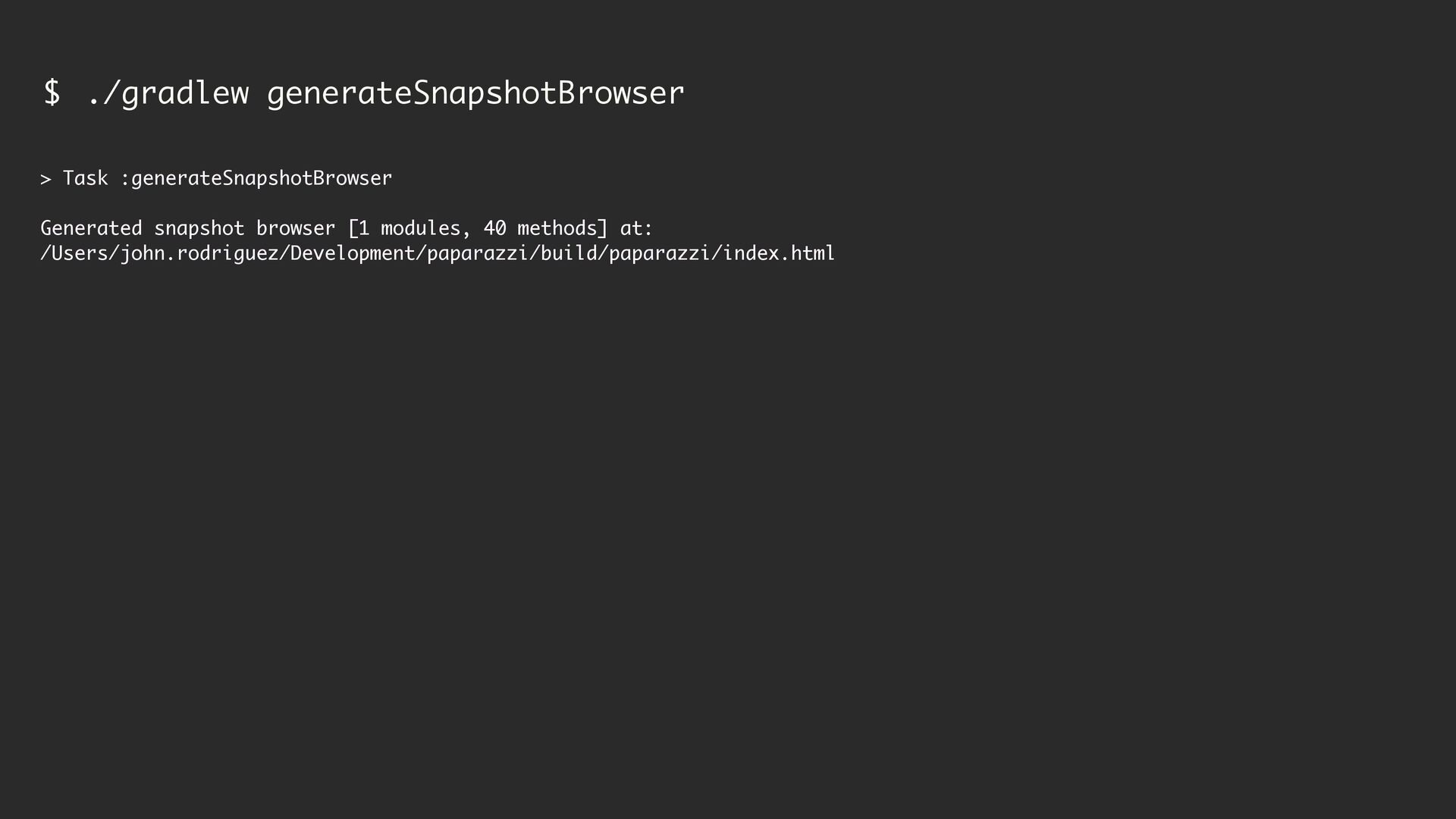

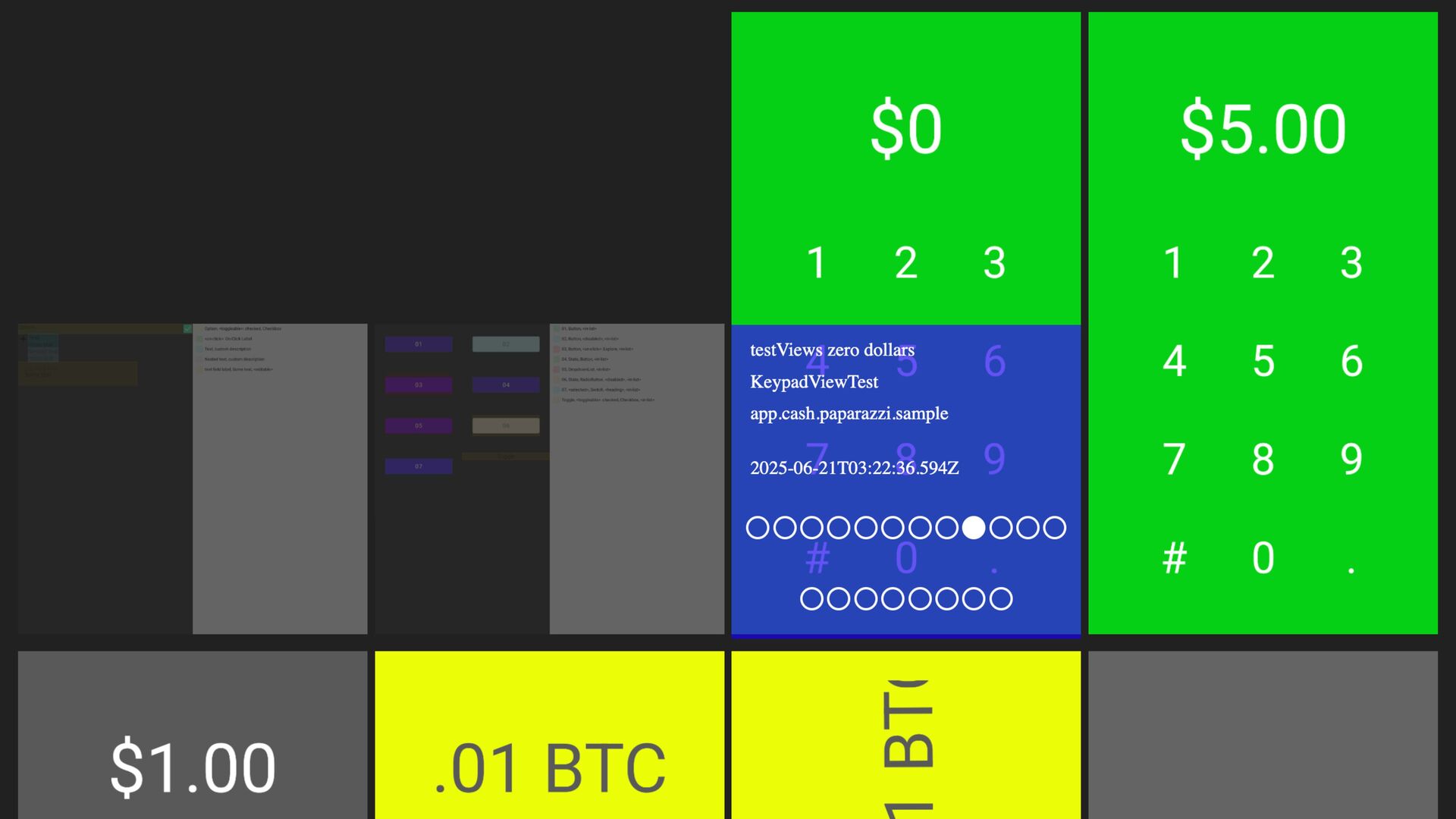

73. ./gradlew generateSnapshotBrowser > Task :generateSnapshotBrowser Generated snapshot browser [1 modules, 40 methods] at: /Users/john.rodriguez/Development/paparazzi/build/paparazzi/index.html $

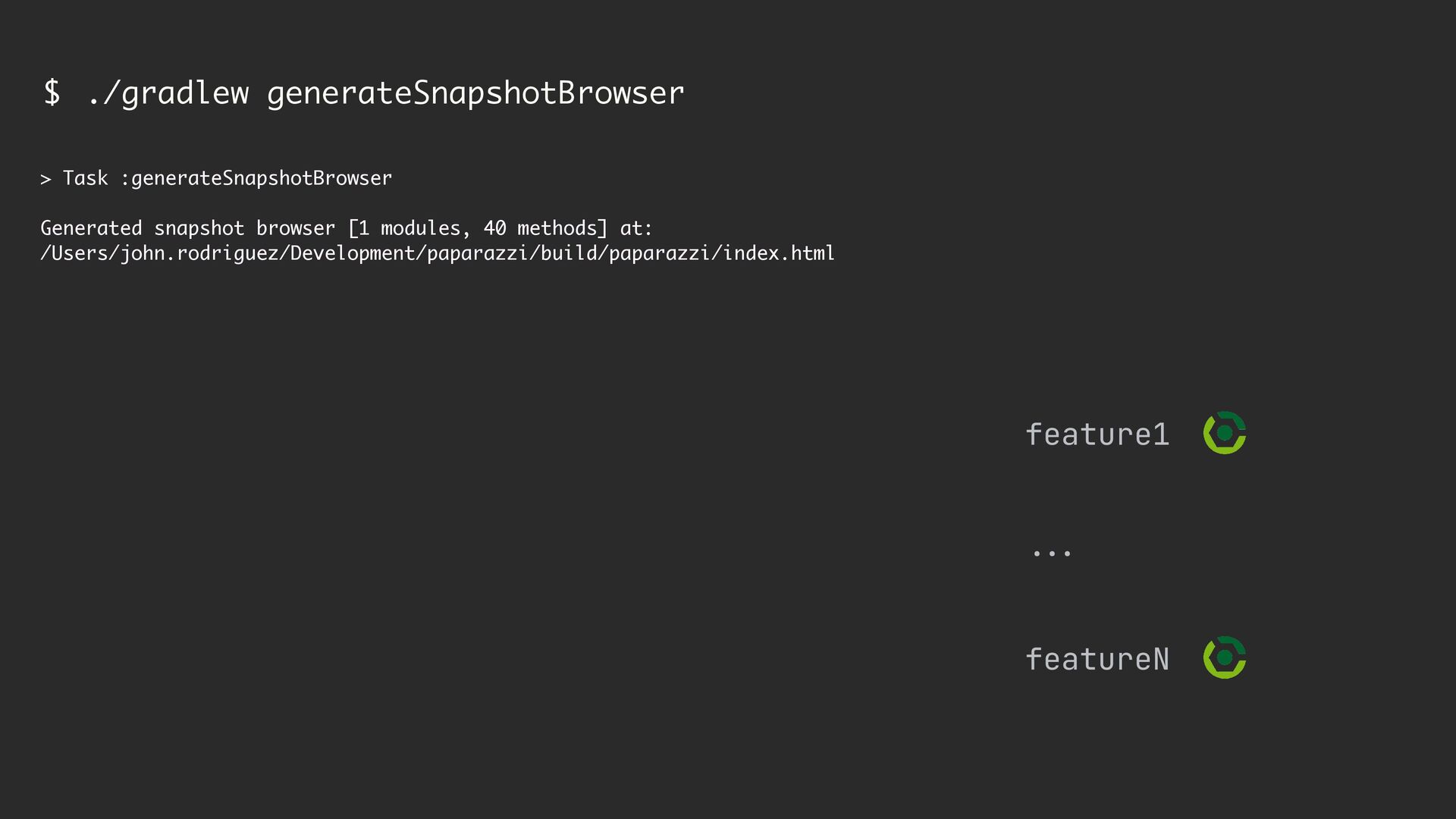

74. ./gradlew generateSnapshotBrowser > Task :generateSnapshotBrowser Generated snapshot browser [1 modules, 40 methods] at: /Users/john.rodriguez/Development/paparazzi/build/paparazzi/index.html $ feature1 featureN ...

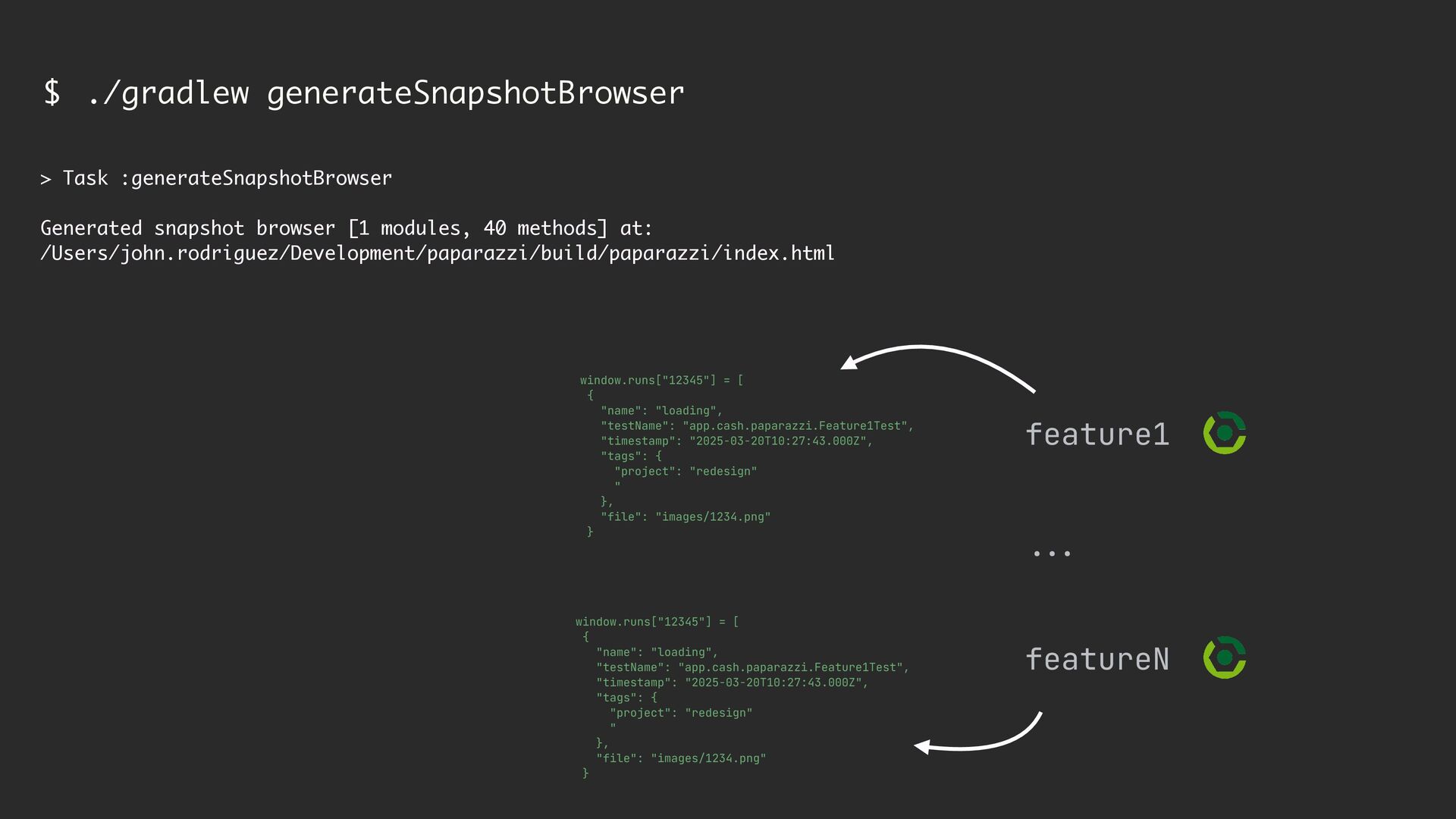

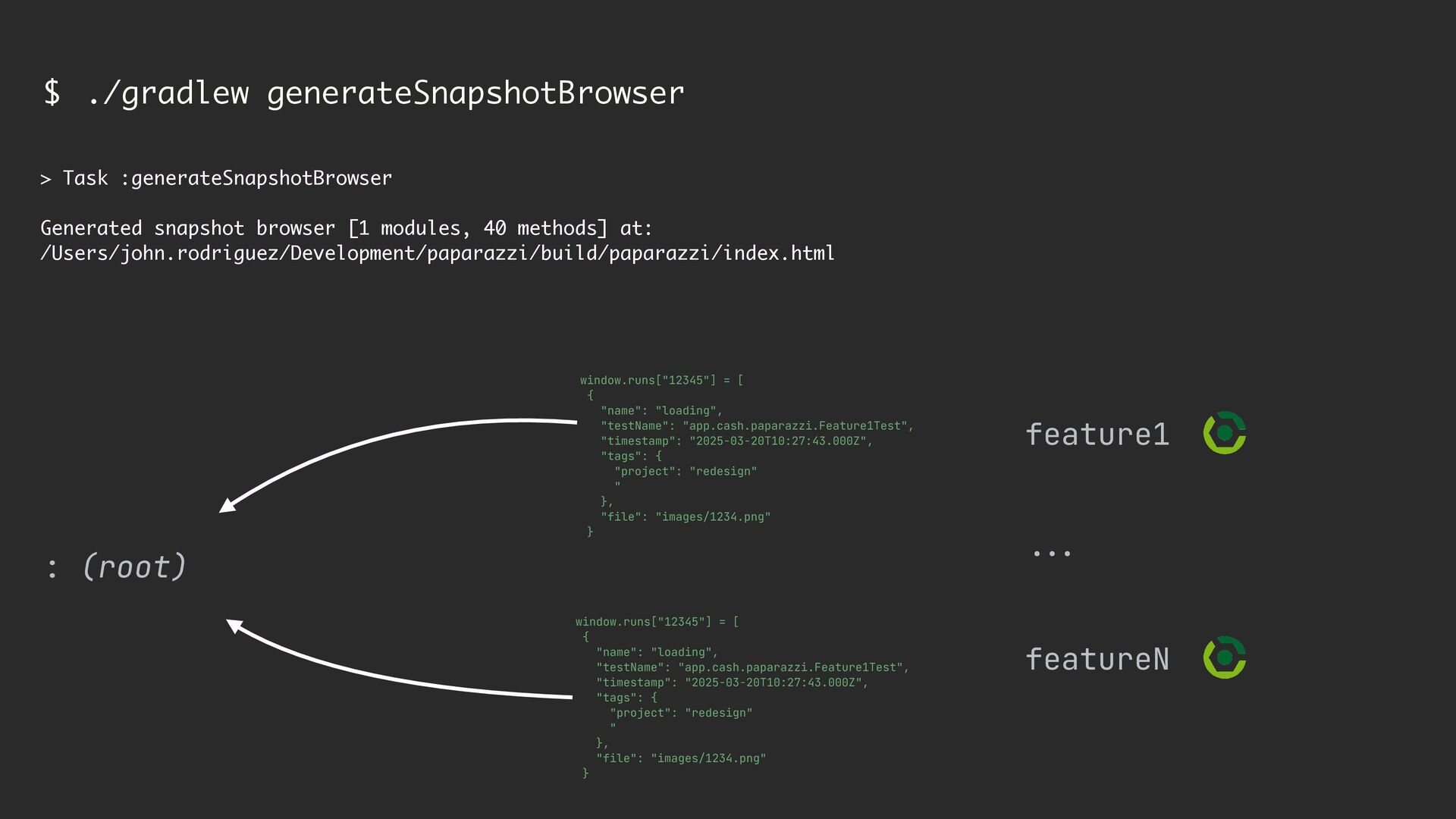

75. ./gradlew generateSnapshotBrowser > Task :generateSnapshotBrowser Generated snapshot browser [1 modules, 40 methods] at: /Users/john.rodriguez/Development/paparazzi/build/paparazzi/index.html $ feature1 featureN ... window.runs["12345"] = [ { "name": "loading", "testName": "app.cash.paparazzi.Feature1Test", "timestamp": "2025-03-20T10:27:43.000Z", "tags": { "project": "redesign" " }, "file": "images/1234.png" } window.runs["12345"] = [ { "name": "loading", "testName": "app.cash.paparazzi.Feature1Test", "timestamp": "2025-03-20T10:27:43.000Z", "tags": { "project": "redesign" " }, "file": "images/1234.png" }
76. ./gradlew generateSnapshotBrowser > Task :generateSnapshotBrowser Generated snapshot browser [1 modules, 40 methods] at: /Users/john.rodriguez/Development/paparazzi/build/paparazzi/index.html $ feature1 featureN ... window.runs["12345"] = [ { "name": "loading", "testName": "app.cash.paparazzi.Feature1Test", "timestamp": "2025-03-20T10:27:43.000Z", "tags": { "project": "redesign" " }, "file": "images/1234.png" } window.runs["12345"] = [ { "name": "loading", "testName": "app.cash.paparazzi.Feature1Test", "timestamp": "2025-03-20T10:27:43.000Z", "tags": { "project": "redesign" " }, "file": "images/1234.png" } : (root)

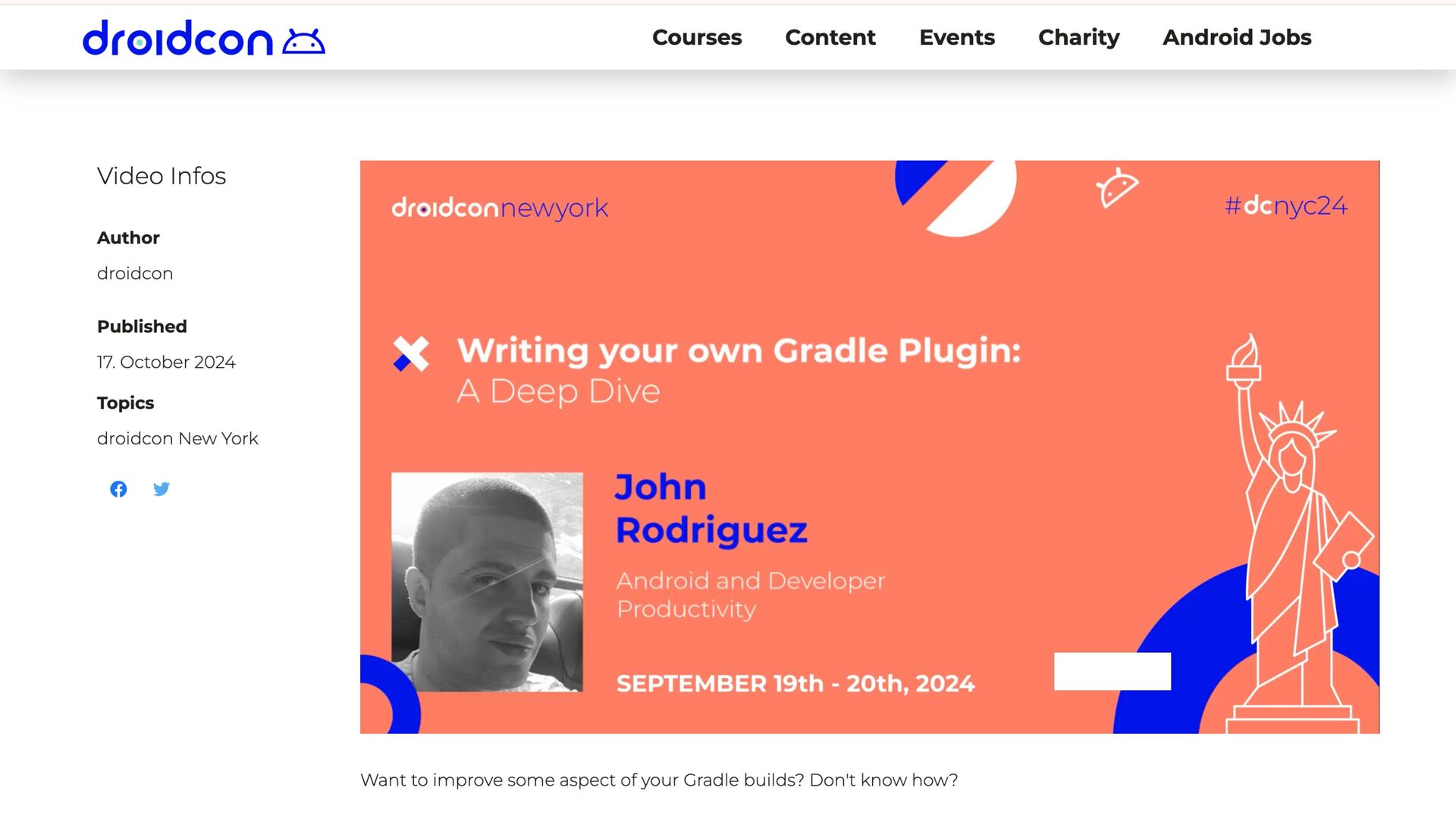

78. https://www.droidcon.com/2024/10/17/writing-your-own-gradle-plugin-a-deep-dive/
82. Potential Ideas ✅ Comparing snapshots across app versions ✅ Gradle DSL for theming ✅ Export and host on internal portal or go/link ✅ Enable plugin for iOS screenshots + AI parity checker

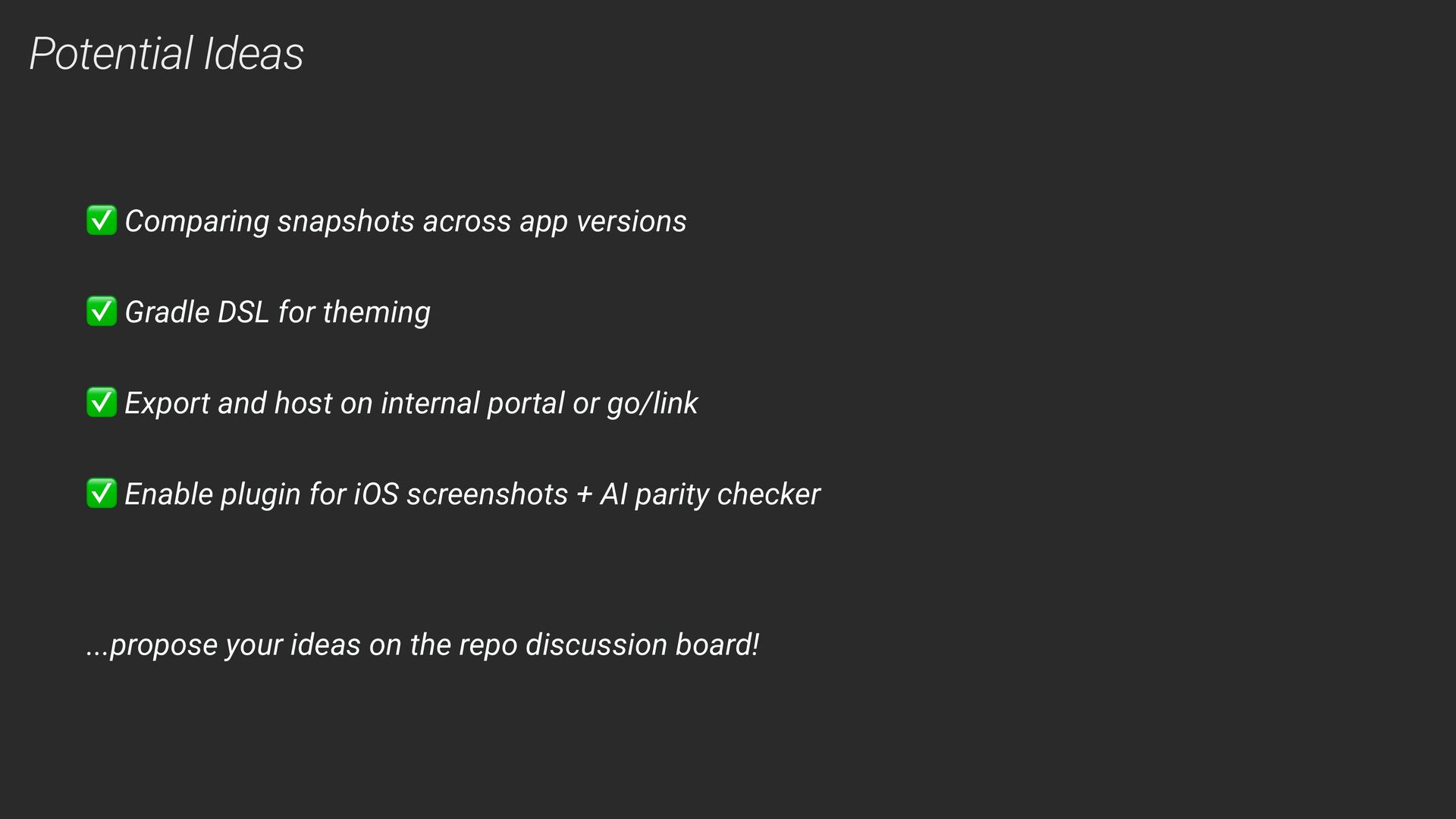

83. Potential Ideas ✅ Comparing snapshots across app versions ✅ Gradle DSL for theming ✅ Export and host on internal portal or go/link ✅ Enable plugin for iOS screenshots + AI parity checker ...propose your ideas on the repo discussion board!
84. Keyframes API

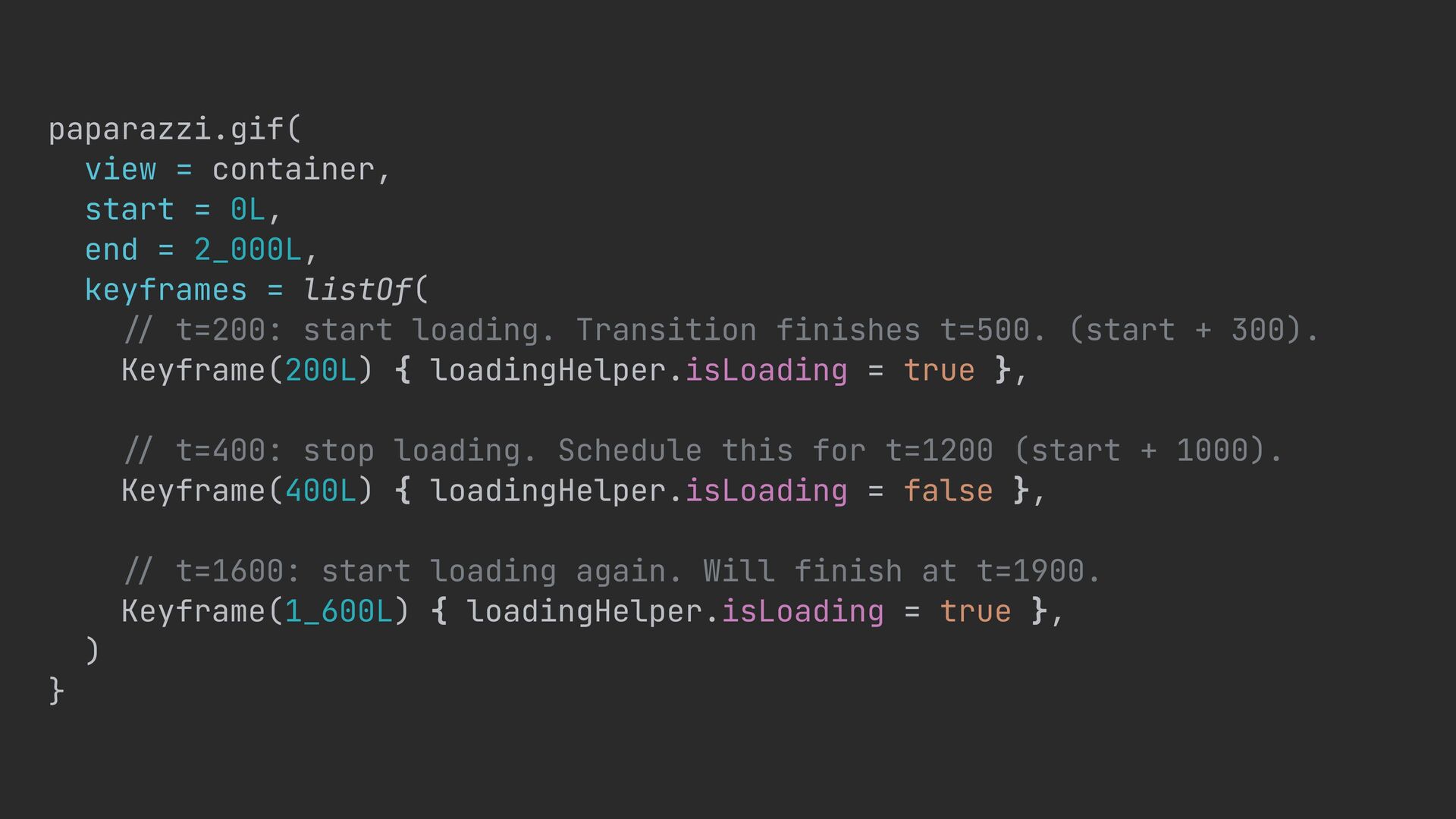

85. paparazzi.gif( view = container, start = 0L, end = 2_000L, keyframes = listOf( // t=200: start loading. Transition finishes t=500. (start + 300). Keyframe(200L) { loadingHelper.isLoading = true }, // t=400: stop loading. Schedule this for t=1200 (start + 1000). Keyframe(400L) { loadingHelper.isLoading = false }, // t=1600: start loading again. Will finish at t=1900. Keyframe(1_600L) { loadingHelper.isLoading = true }, ) }

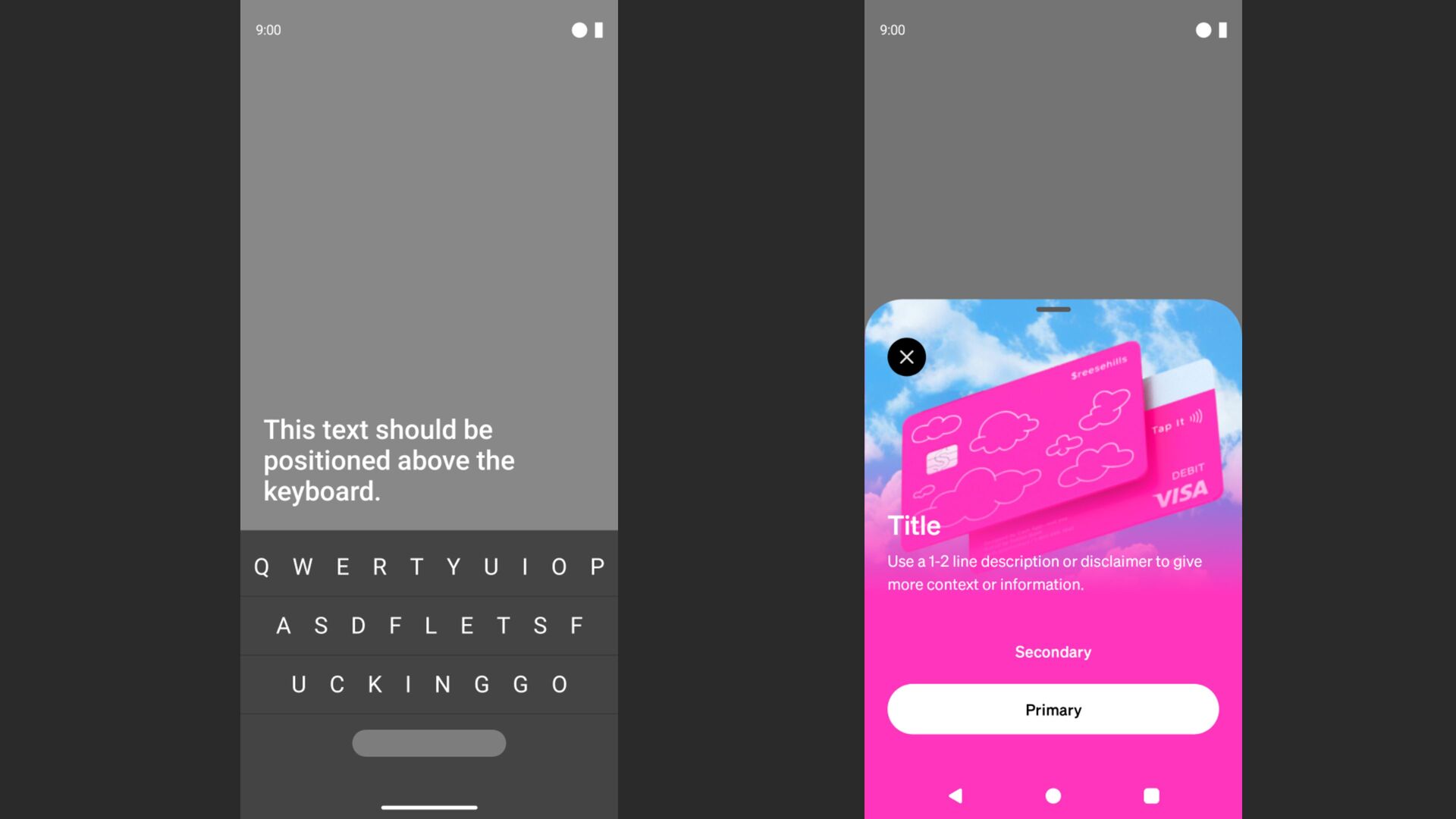

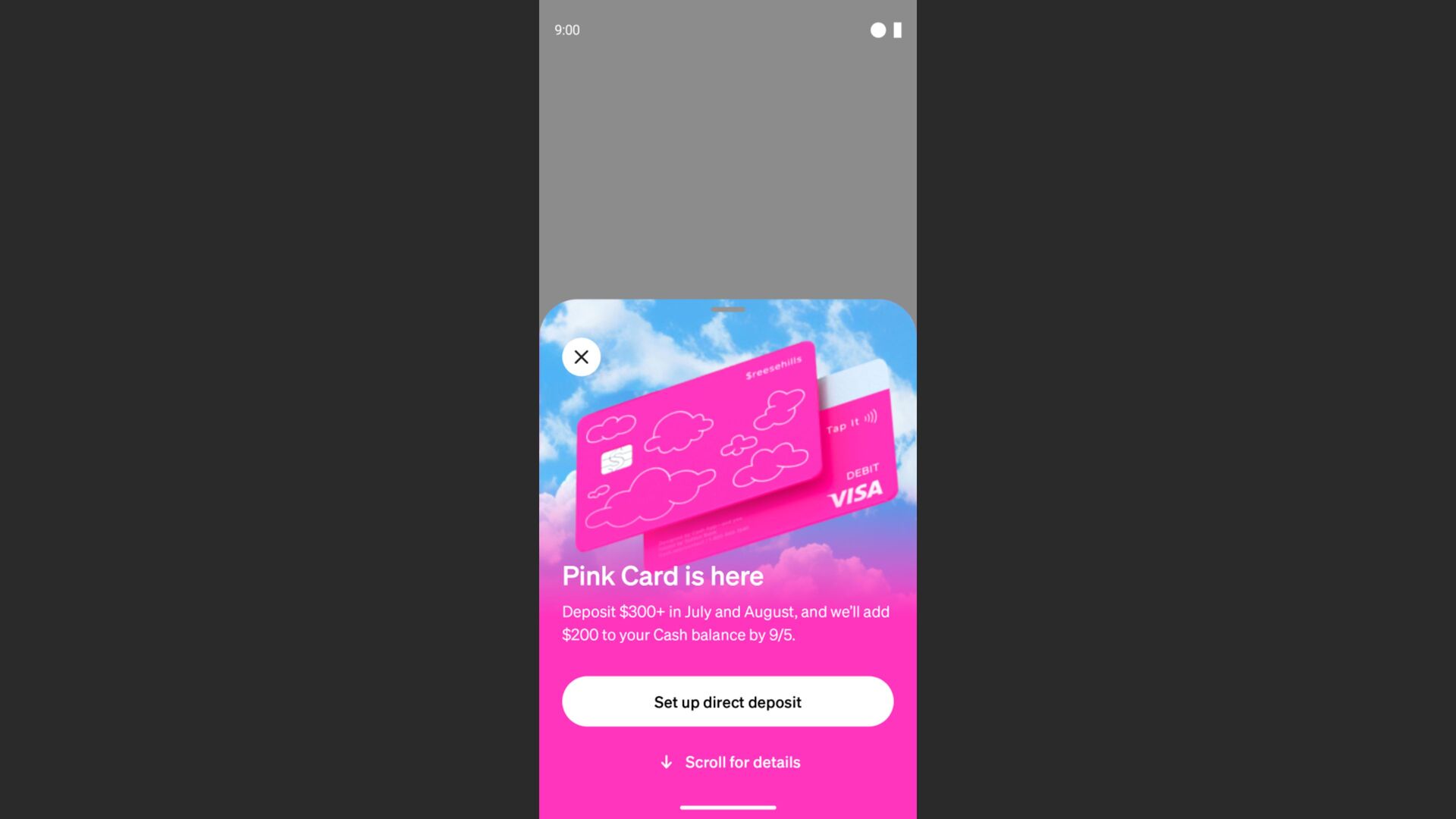

86. System UI
89. .com/cashapp/paparazzi
90. Lights, Camera, Snapshot! Paparazzi 2.0 📸 @jrodbx
