Advanced Zenoh Tutorial -- Part V

This six-part webinar series is designed for developers who want to master Zenoh’s full potential. We’ll cover everything from core concepts to advanced programming techniques, performance tuning, and deployment strategies. The sessions use Rust as the primary language with some complementary examples in Python. Whether you're building robotics systems, telemetry pipelines, or IoT infrastructures—this series will help you unlock the true power of Zenoh.

Transcript

1. CEO / CTO ZettaScale Technology Angelo Corsaro, PhD Advanced Zenoh Tutorial Episode 5

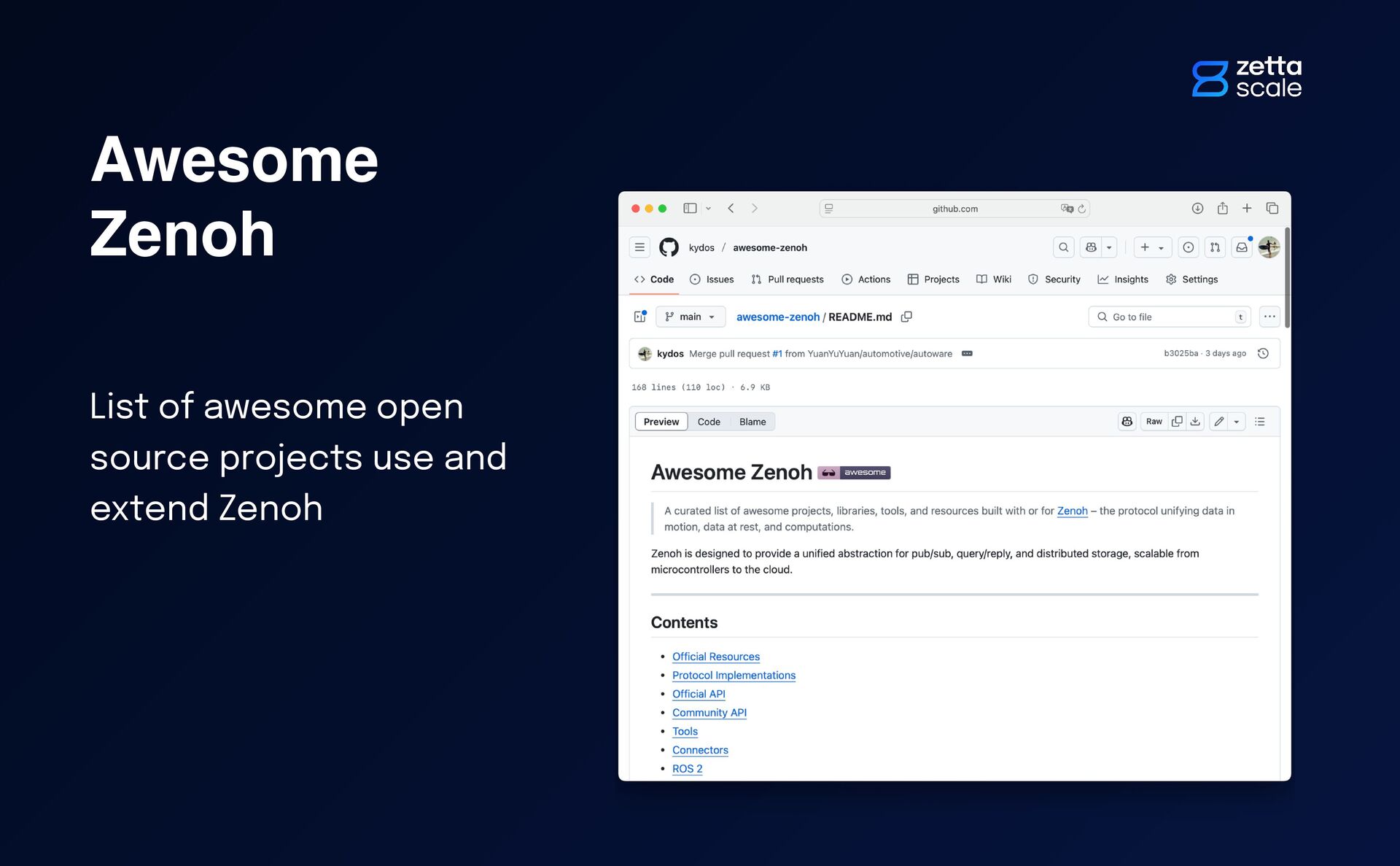

2. Awesome Zenoh List of awesome open source projects use and extend Zenoh
3. Awesome Zenoh List of awesome open source projects use and extend Zenoh

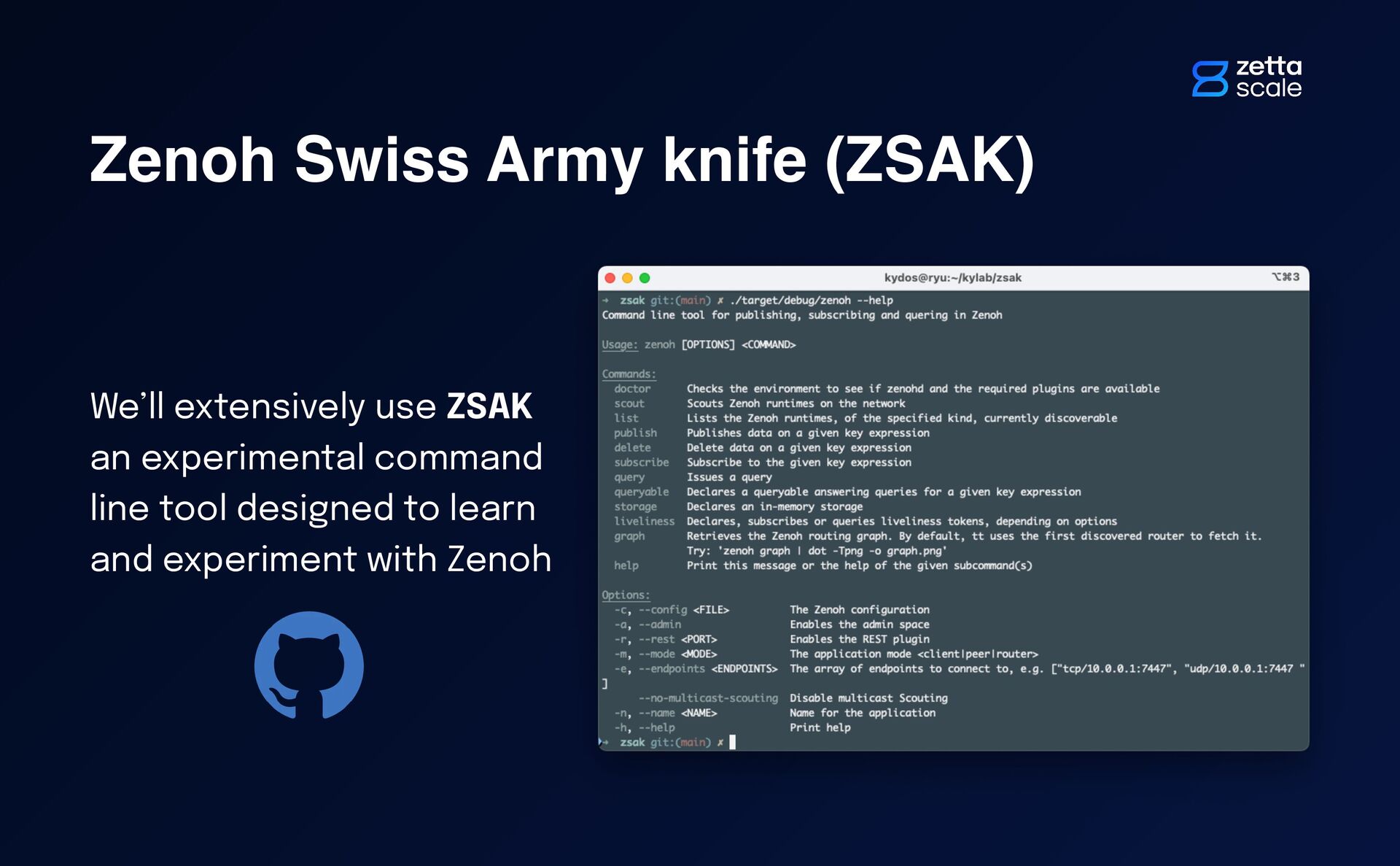

4. https://github.com/kydos/zsak Zenoh Swiss Army knife (ZSAK) We’ll extensively use ZSAK an experimental command line tool designed to learn and experiment with Zenoh

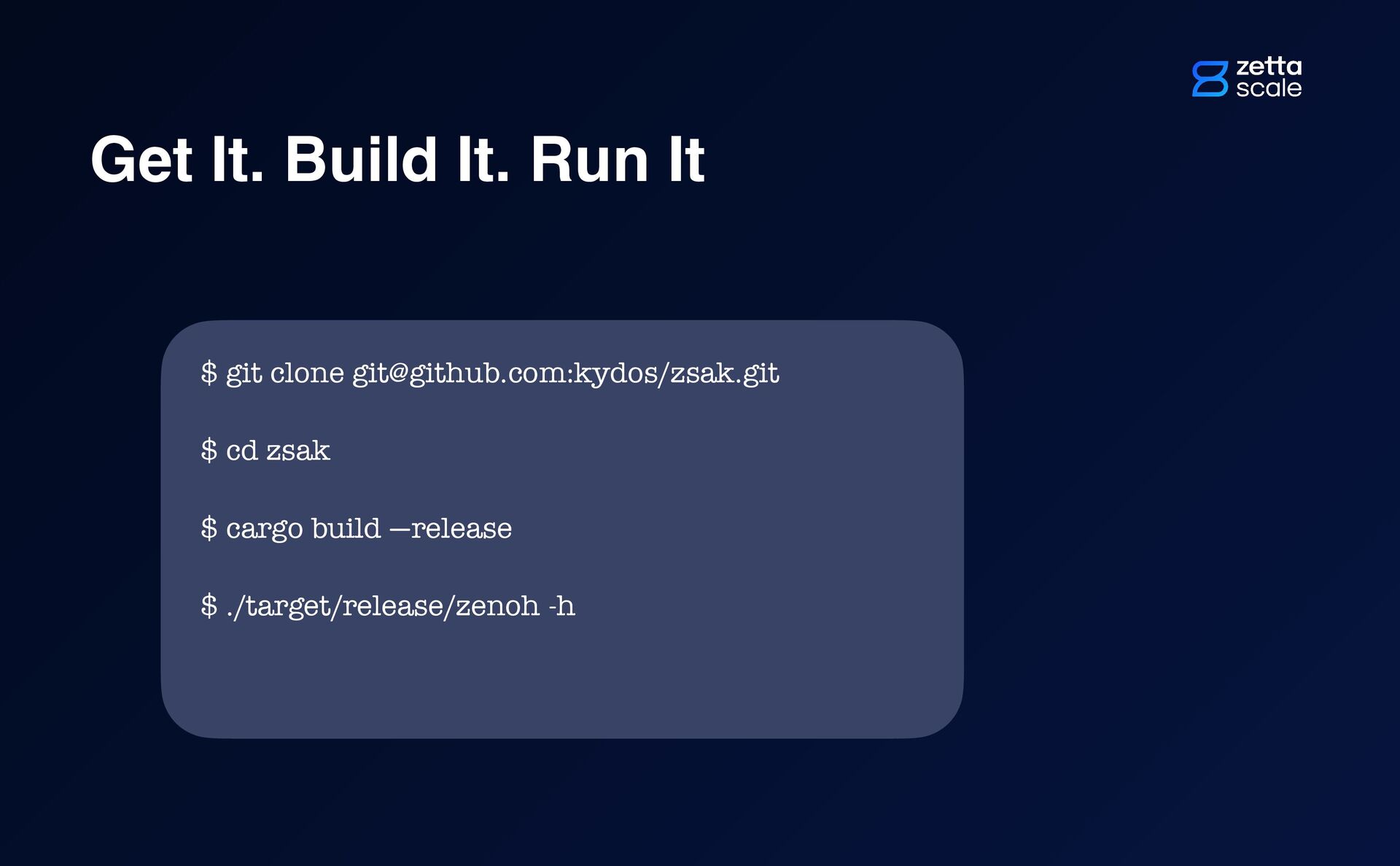

5. Get It. Build It. Run It $ git clone git@github.com:kydos/zsak.git $ cd zsak $ cargo build —release $ ./target/release/zenoh -h
6. Interceptors

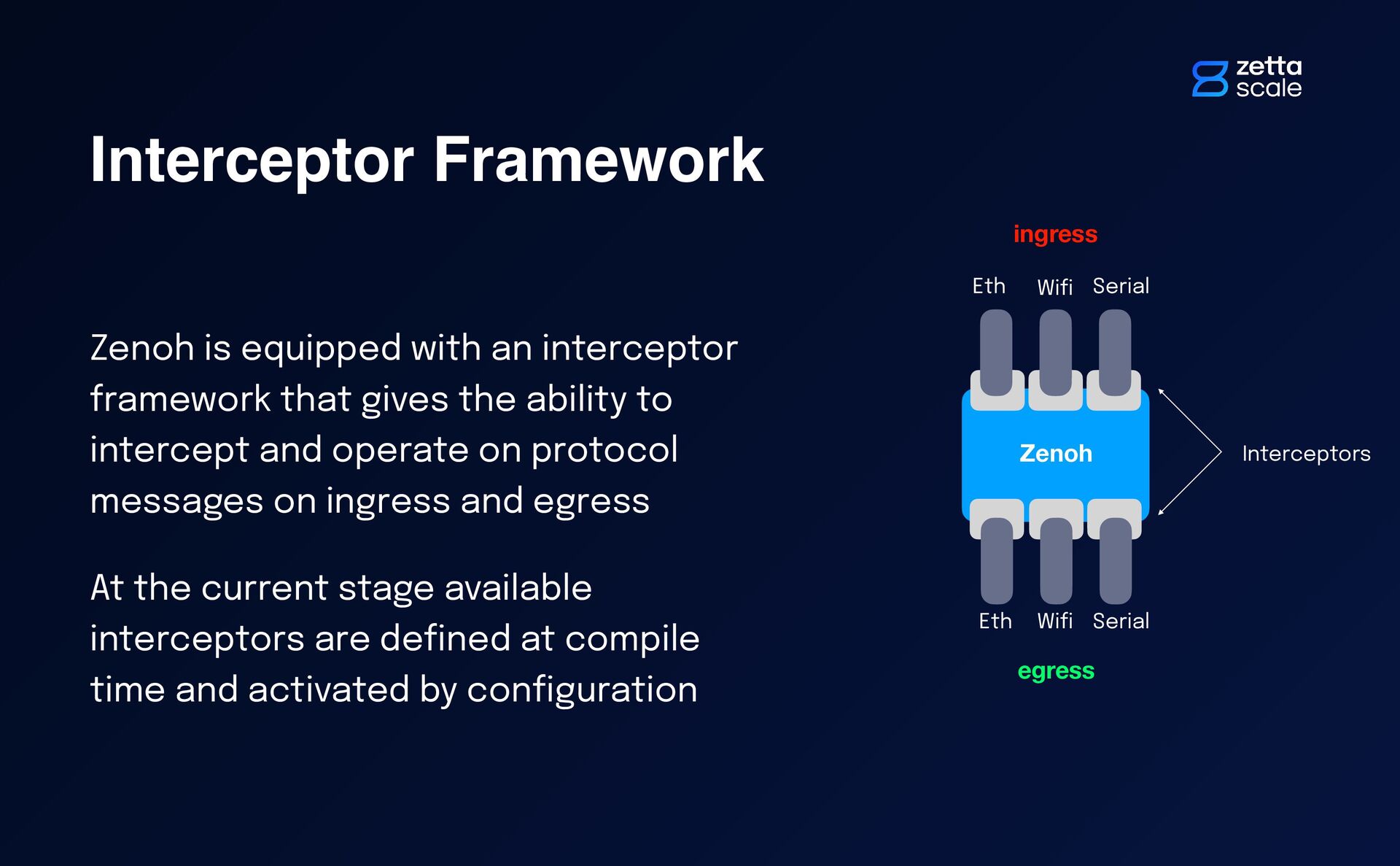

7. Interceptor Framework Zenoh is equipped with an interceptor framework that gives the ability to intercept and operate on protocol messages on ingress and egress At the current stage available interceptors are de fi ned at compile time and activated by con fi guration Eth Wi f Serial Zenoh Eth Wi f Serial ingress egress Interceptors

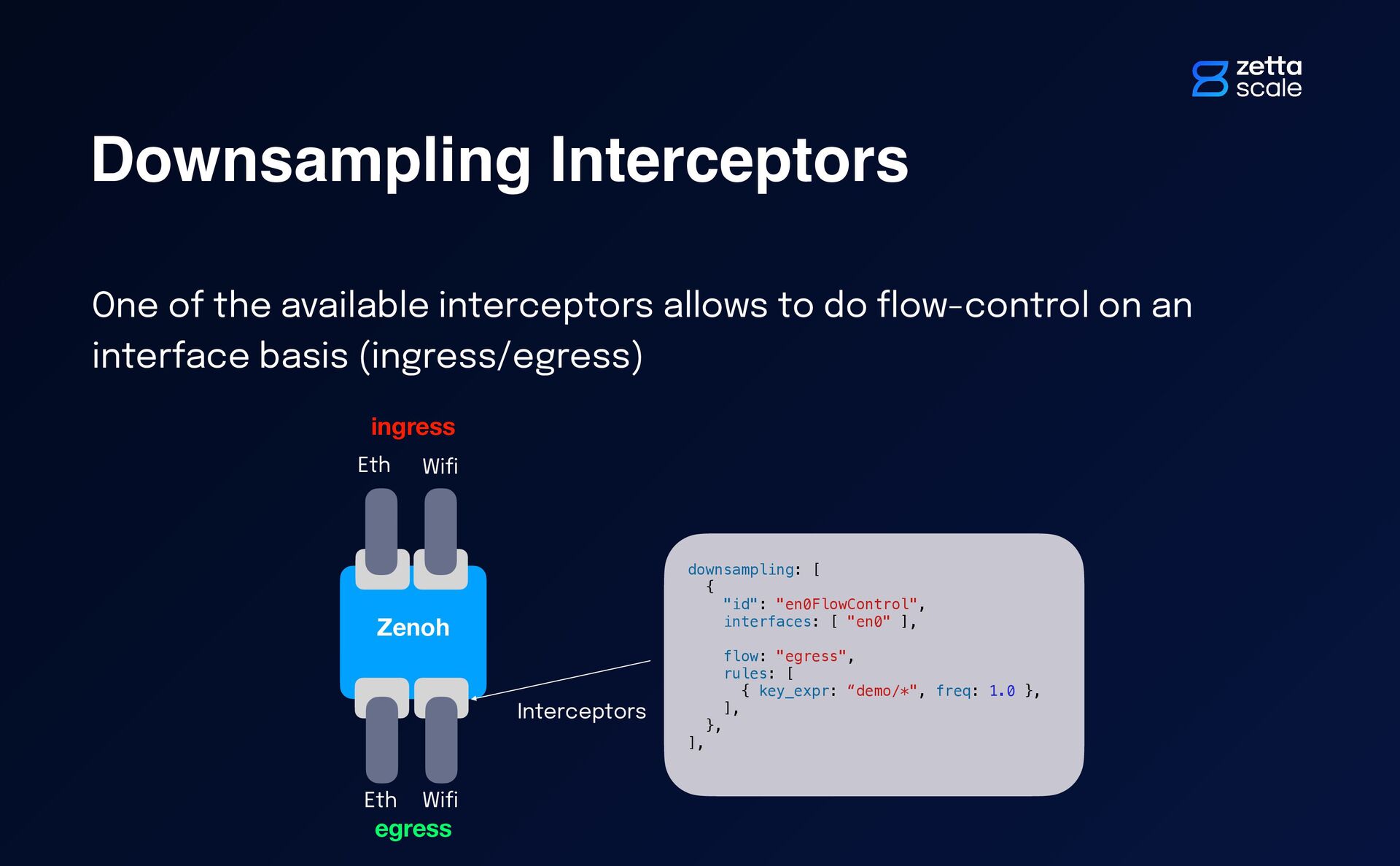

8. Downsampling Interceptors One of the available interceptors allows to do fl ow-control on an interface basis (ingress/egress) downsampling: [ { "id": "en0FlowControl", interfaces: [ "en0" ], flow: "egress", rules: [ { key_expr: “demo/*", freq: 1.0 }, ], }, ], Eth Wi f Zenoh Eth Wi f ingress egress Interceptors

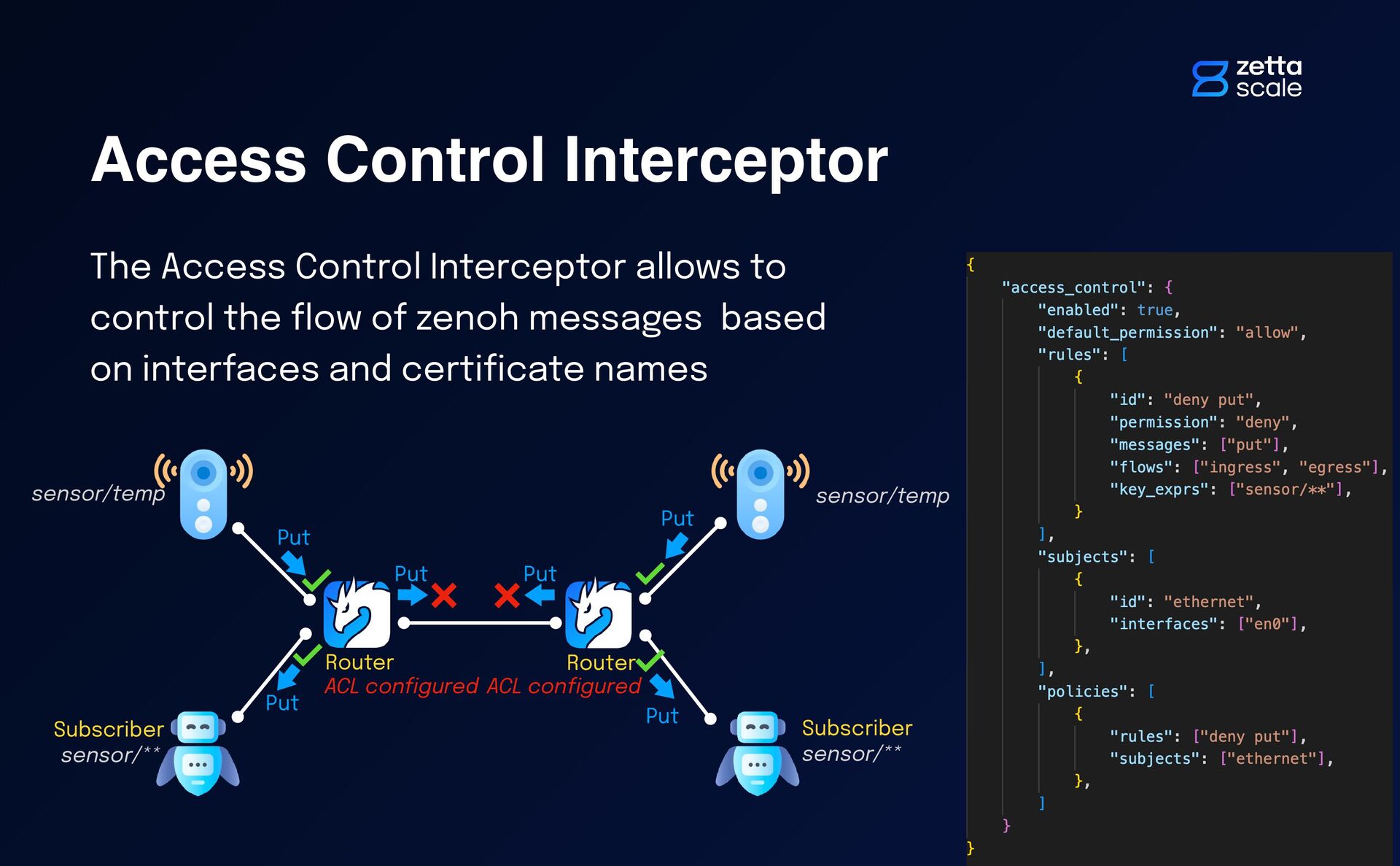

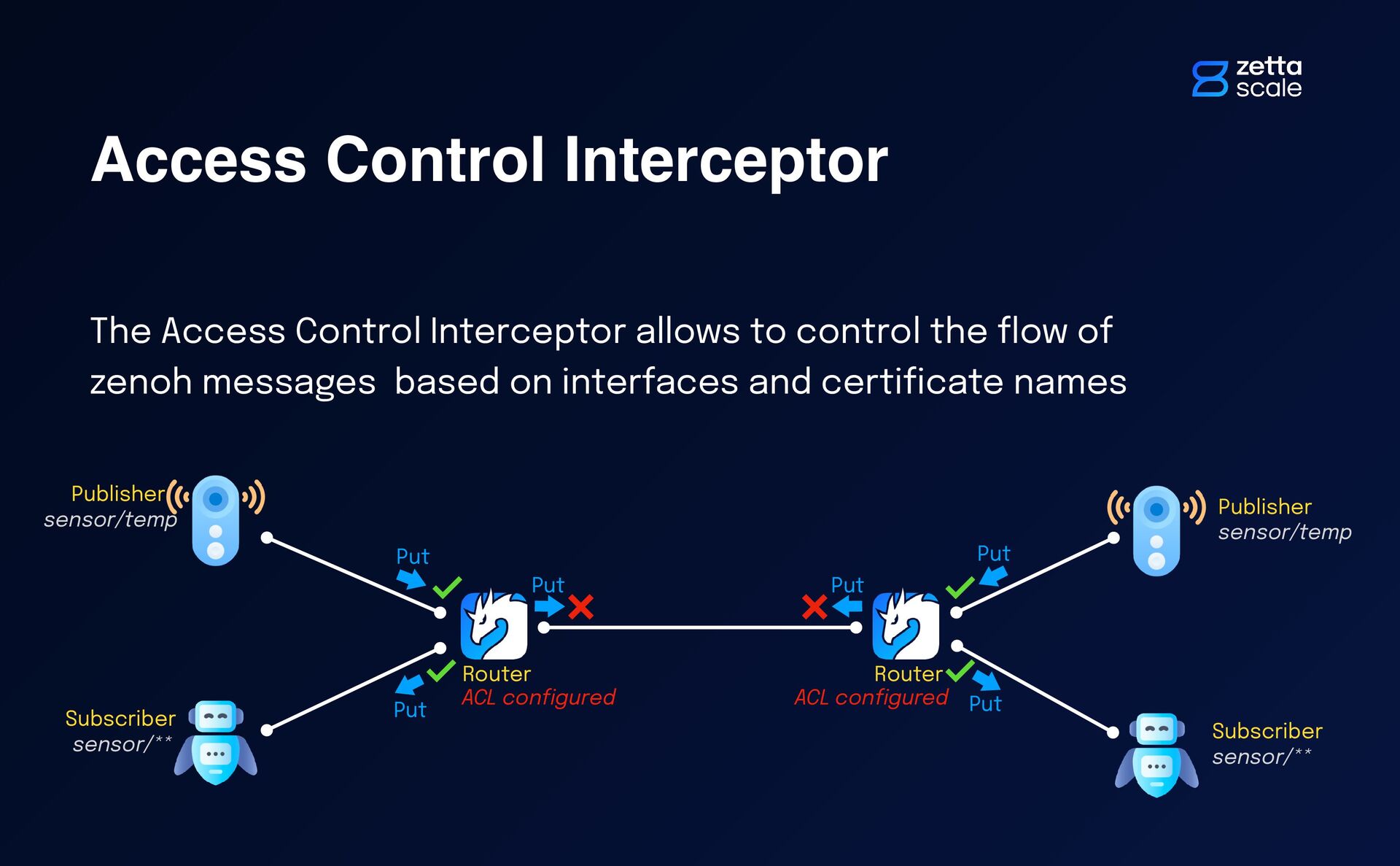

9. Access Control Interceptor The Access Control Interceptor allows to control the fl ow of zenoh messages based on interfaces and certi fi cate names Router Router Subscriber sensor/** Publisher sensor/temp Subscriber sensor/** Publisher sensor/temp Put Put Put Put Put Put ACL con fi gured ACL con fi gured
10. Access Control Interceptor The Access Control Interceptor allows to control the fl ow of zenoh messages based on interfaces and certi fi cate names Router Router Subscriber sensor/** sensor/temp Subscriber sensor/** sensor/temp Put Put Put Put ACL con fi gured ACL con fi gured Put Put
11. Shared Memory & Zero Copy

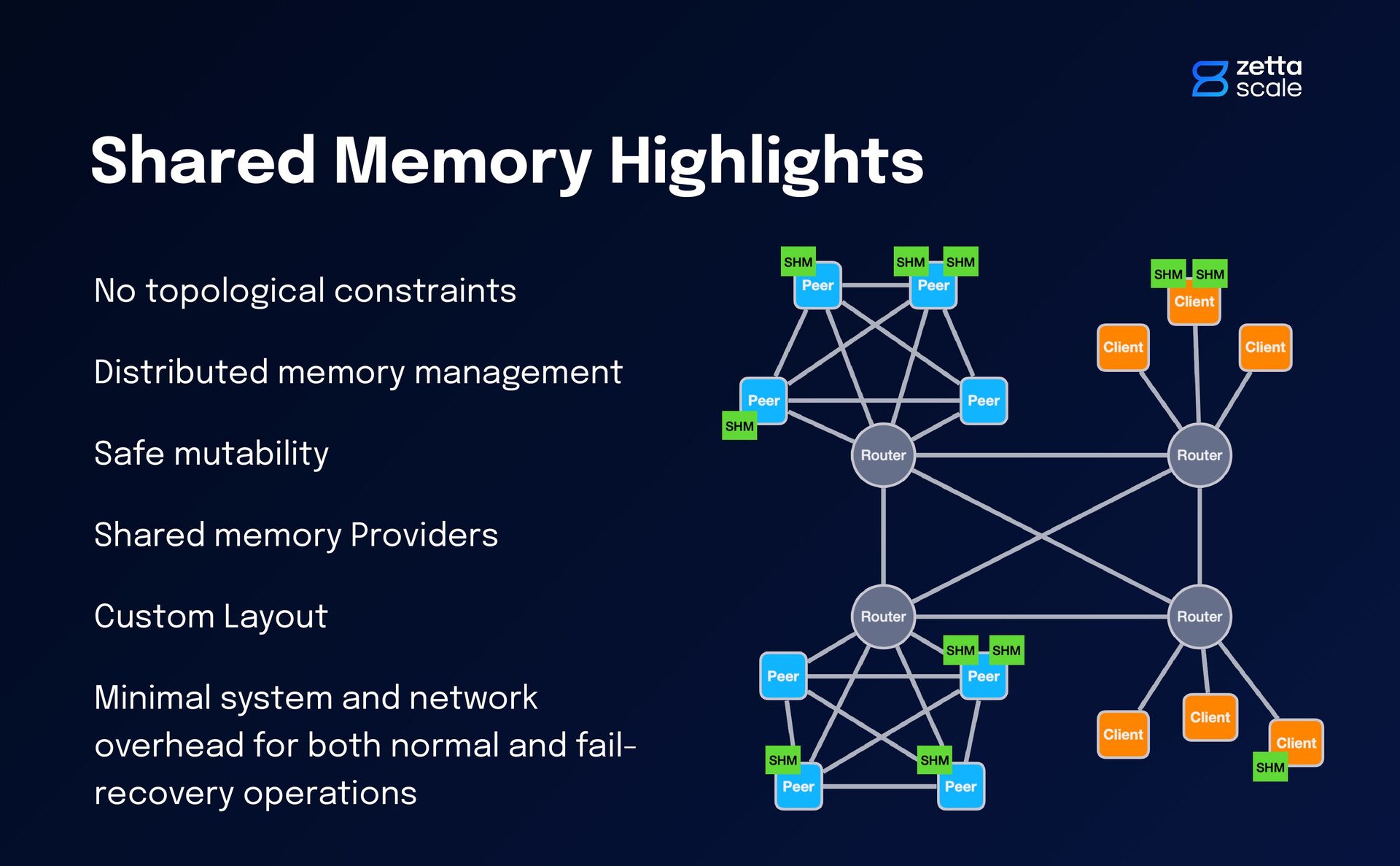

12. Shared Memory Highlights No topological constraints Distributed memory management Safe mutability Shared memory Providers Custom Layout Minimal system and network overhead for both normal and fail- recovery operations

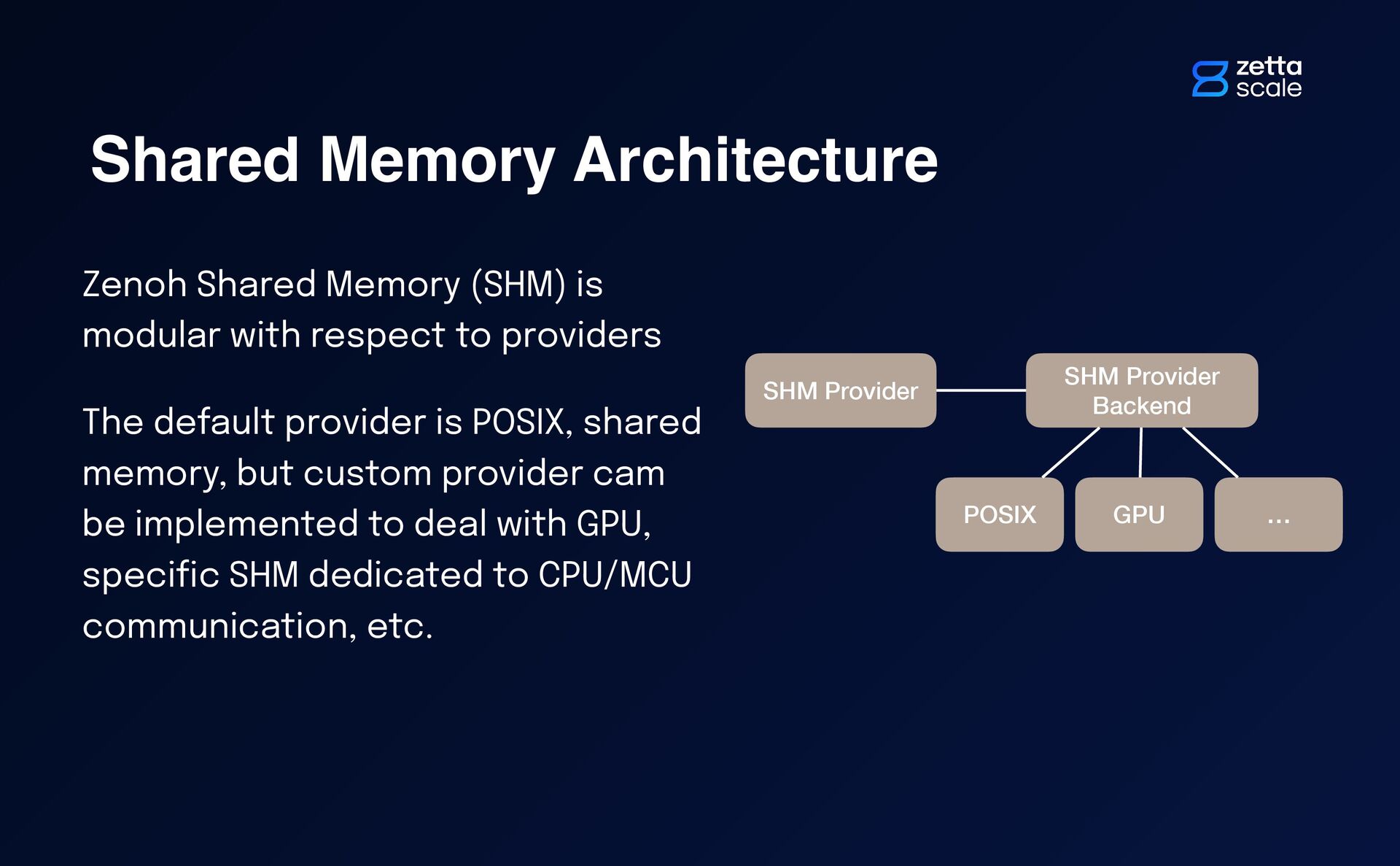

13. Shared Memory Architecture SHM Provider Backend SHM Provider POSIX GPU … Zenoh Shared Memory (SHM) is modular with respect to providers The default provider is POSIX, shared memory, but custom provider cam be implemented to deal with GPU, speci fi c SHM dedicated to CPU/MCU communication, etc.

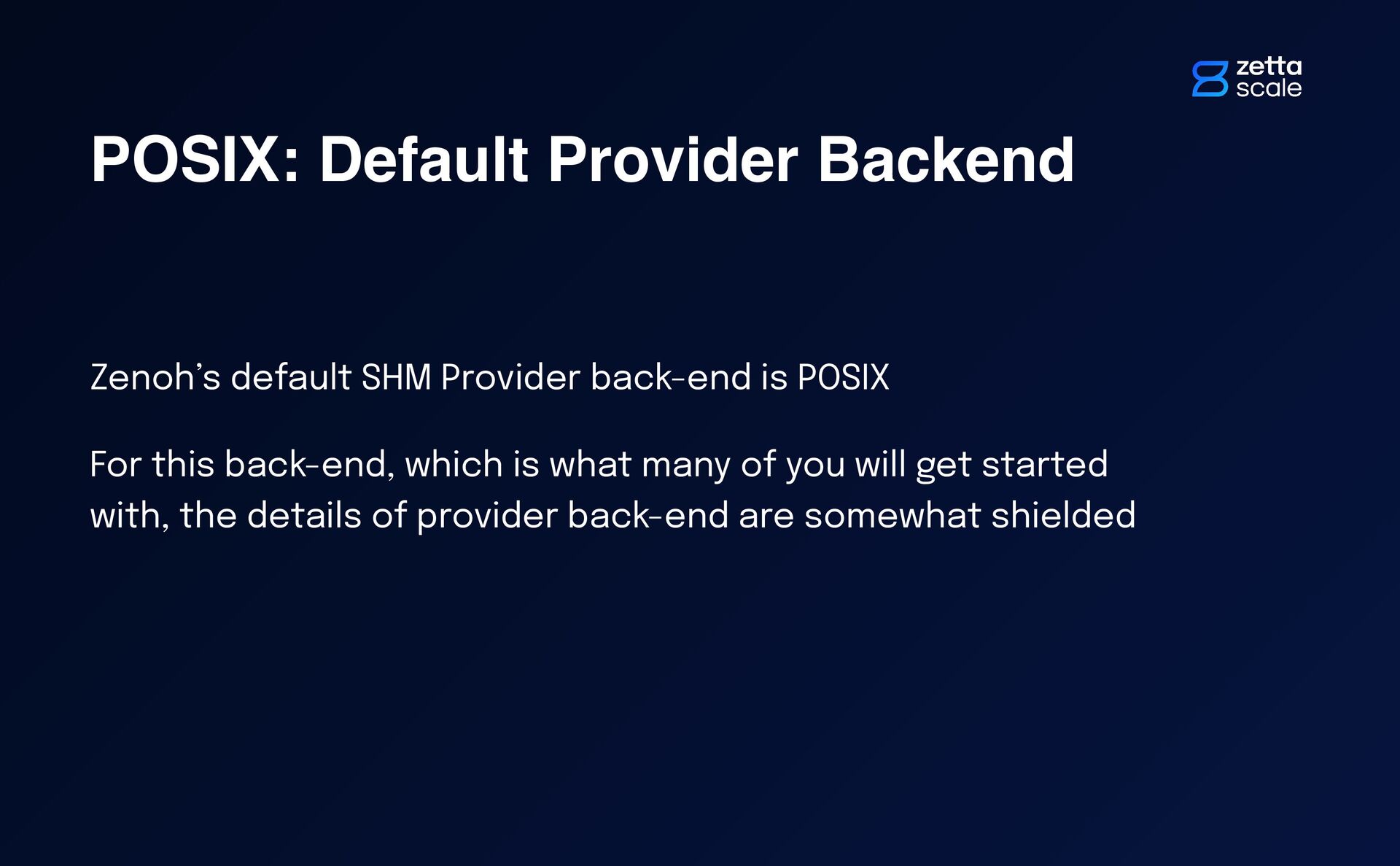

14. POSIX: Default Provider Backend Zenoh’s default SHM Provider back-end is POSIX For this back-end, which is what many of you will get started with, the details of provider back-end are somewhat shielded

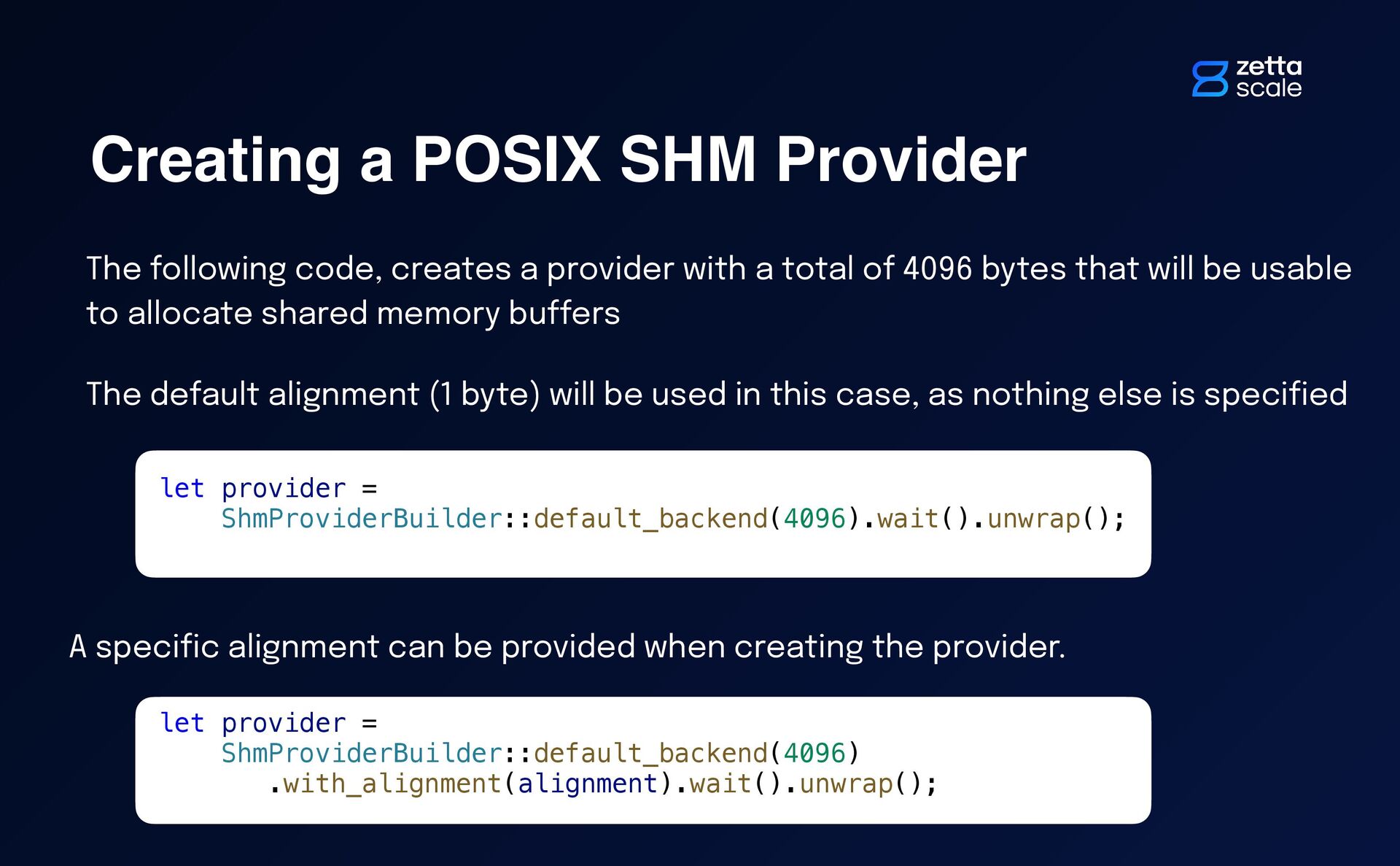

15. Creating a POSIX SHM Provider The following code, creates a provider with a total of 4096 bytes that will be usable to allocate shared memory bu ff ers The default alignment (1 byte) will be used in this case, as nothing else is speci fi ed let provider = ShmProviderBuilder::default_backend(4096).wait().unwrap(); let provider = ShmProviderBuilder::default_backend(4096) .with_alignment(alignment).wait().unwrap(); A speci fi c alignment can be provided when creating the provider.

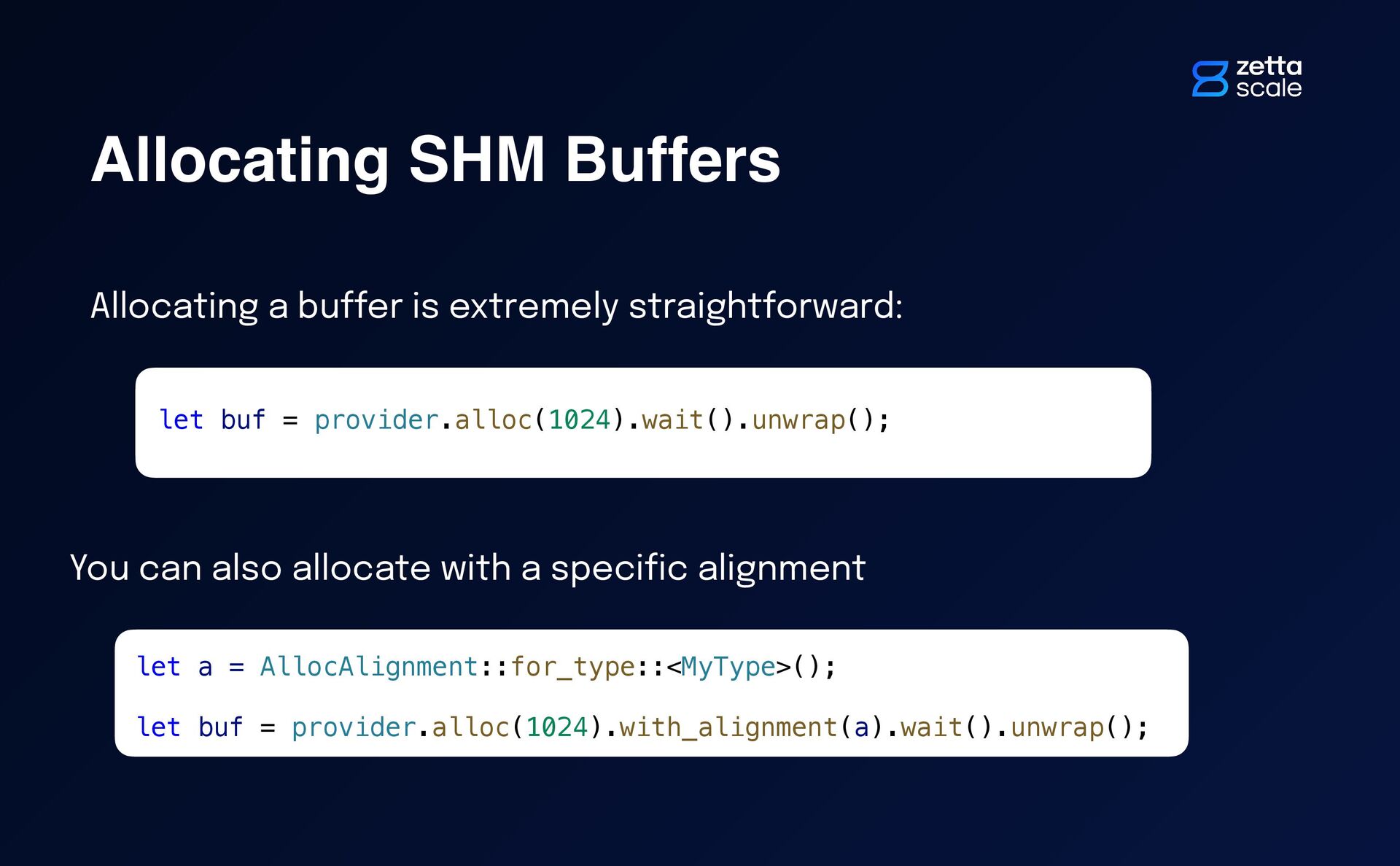

16. Allocating SHM Buffers Allocating a bu ff er is extremely straightforward: let buf = provider.alloc(1024).wait().unwrap(); let a = AllocAlignment::for_type::<MyType>(); let buf = provider.alloc(1024).with_alignment(a).wait().unwrap(); You can also allocate with a speci fi c alignment

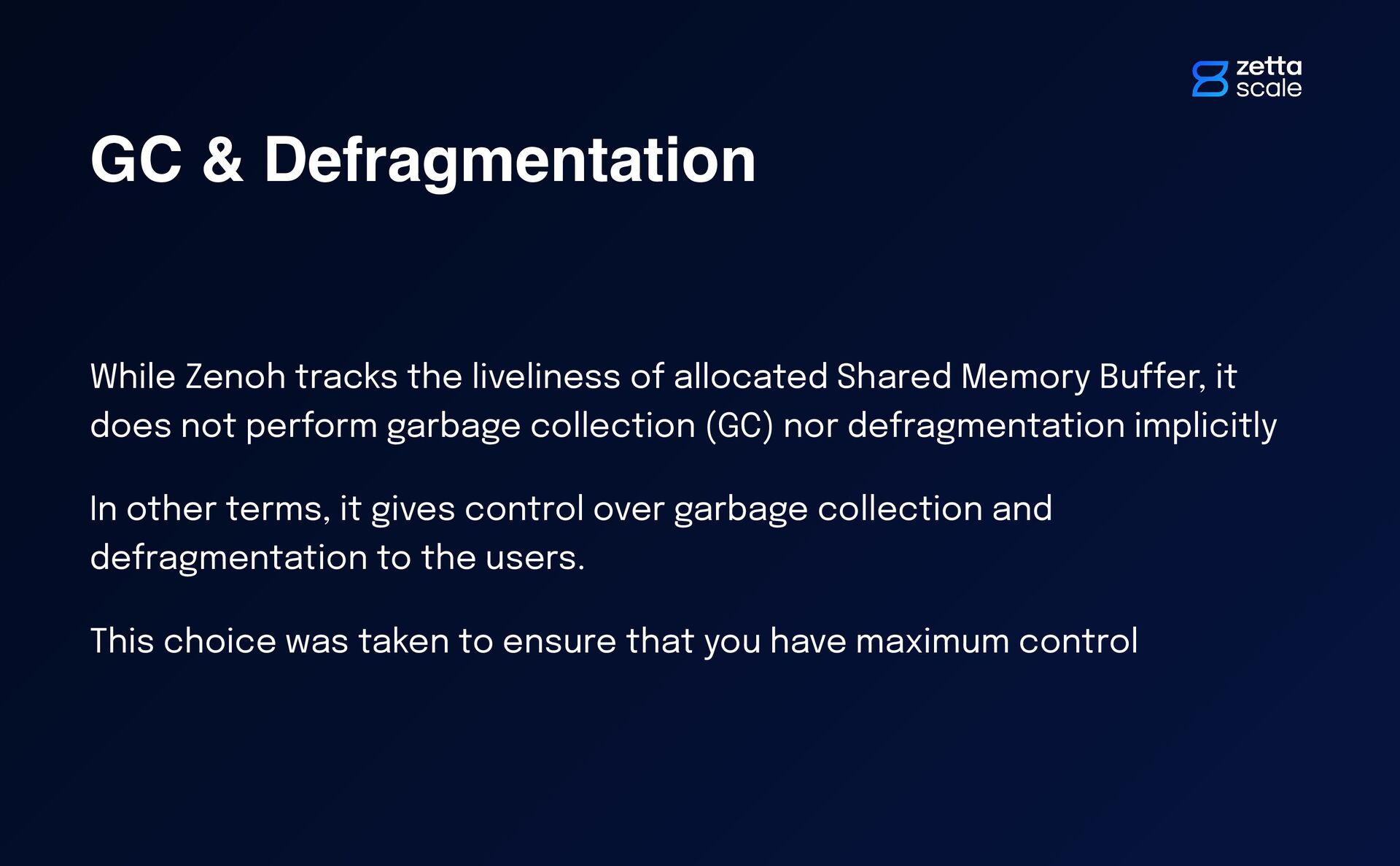

17. GC & Defragmentation While Zenoh tracks the liveliness of allocated Shared Memory Bu ff er, it does not perform garbage collection (GC) nor defragmentation implicitly In other terms, it gives control over garbage collection and defragmentation to the users. This choice was taken to ensure that you have maximum control

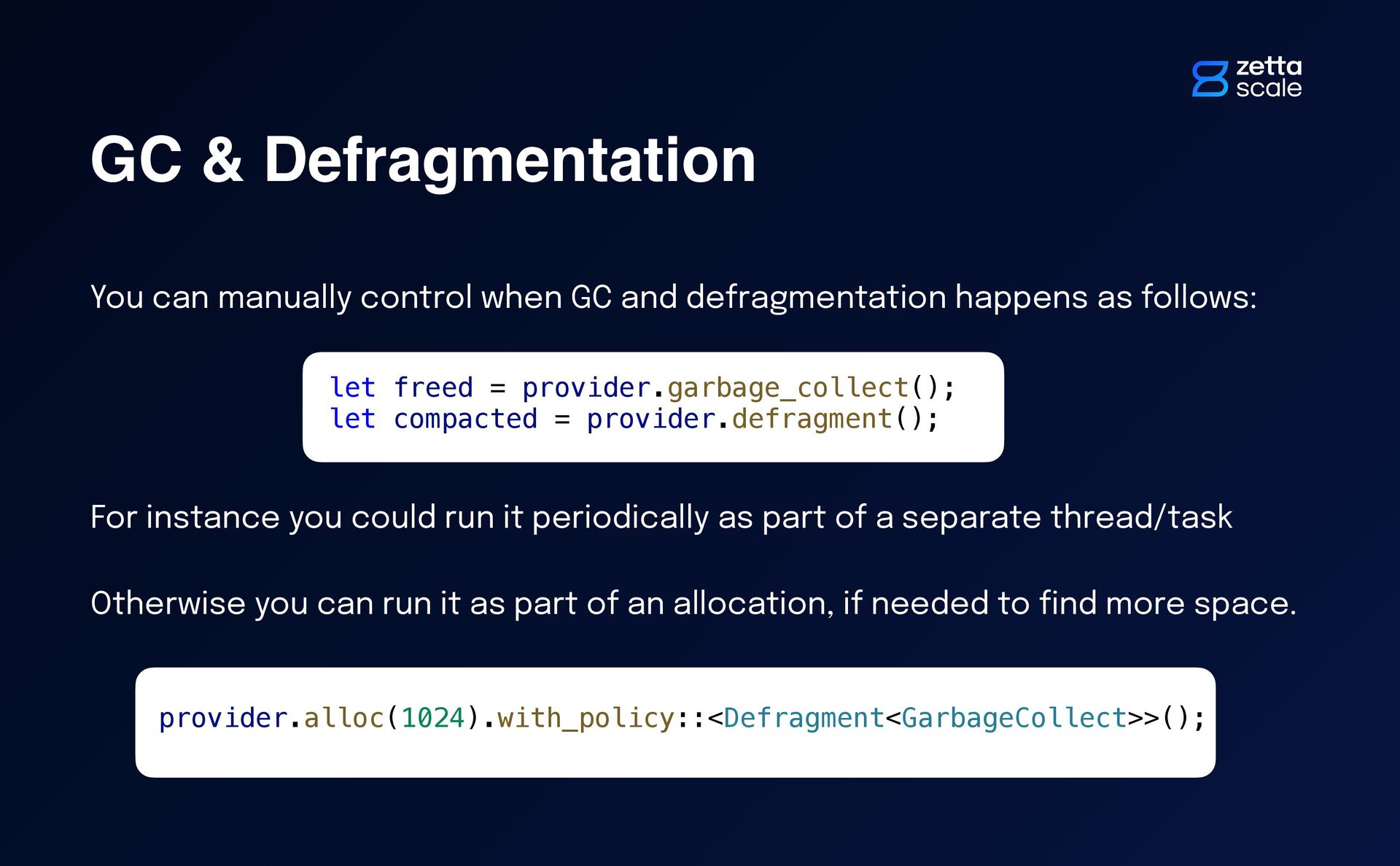

18. GC & Defragmentation You can manually control when GC and defragmentation happens as follows: let freed = provider.garbage_collect(); let compacted = provider.defragment(); For instance you could run it periodically as part of a separate thread/task Otherwise you can run it as part of an allocation, if needed to fi nd more space. provider.alloc(1024).with_policy::<Defragment<GarbageCollect>>();

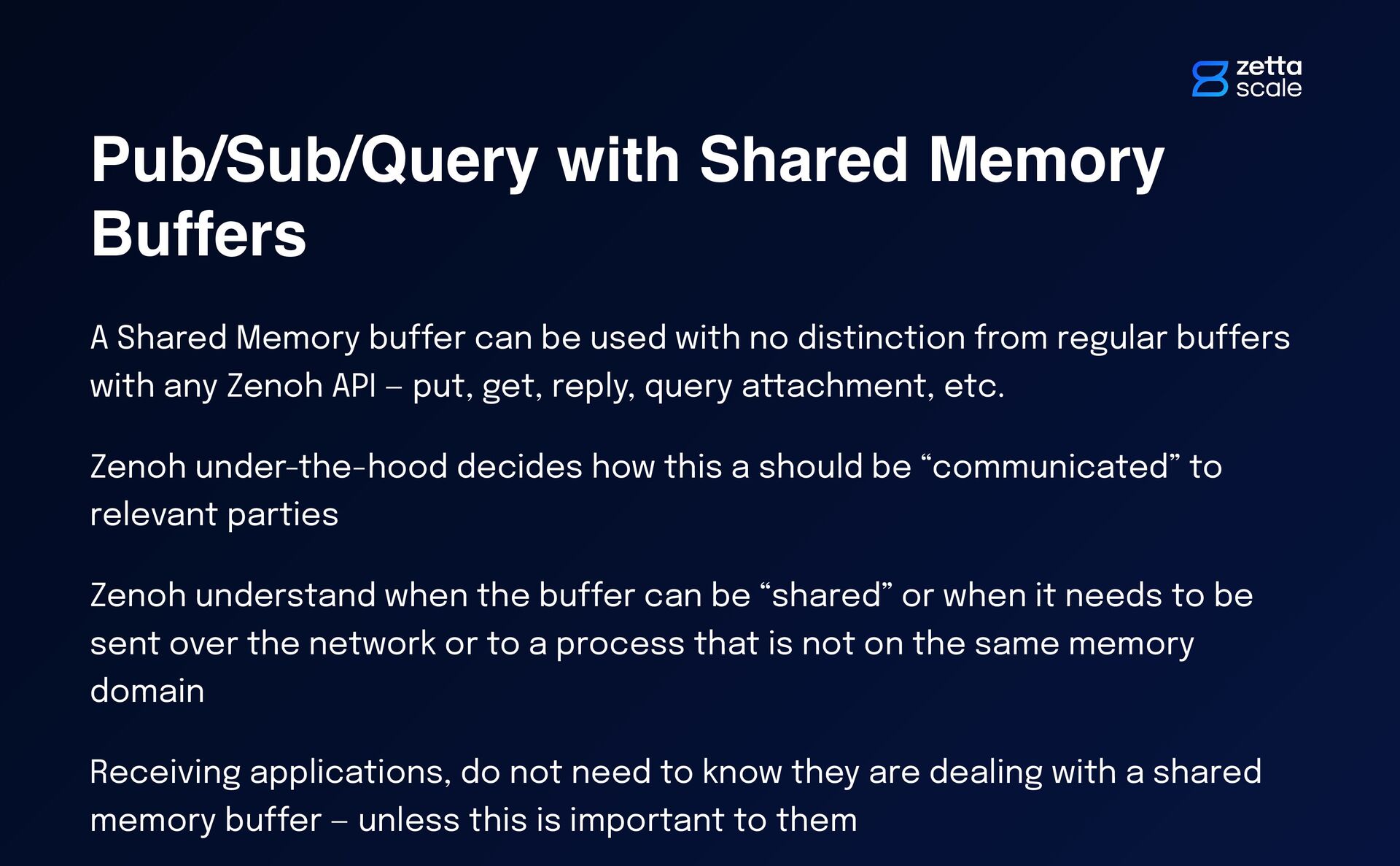

19. Pub/Sub/Query with Shared Memory Buffers A Shared Memory bu ff er can be used with no distinction from regular bu ff ers with any Zenoh API — put, get, reply, query attachment, etc. Zenoh under-the-hood decides how this a should be “communicated” to relevant parties Zenoh understand when the bu ff er can be “shared” or when it needs to be sent over the network or to a process that is not on the same memory domain Receiving applications, do not need to know they are dealing with a shared memory bu ff er — unless this is important to them

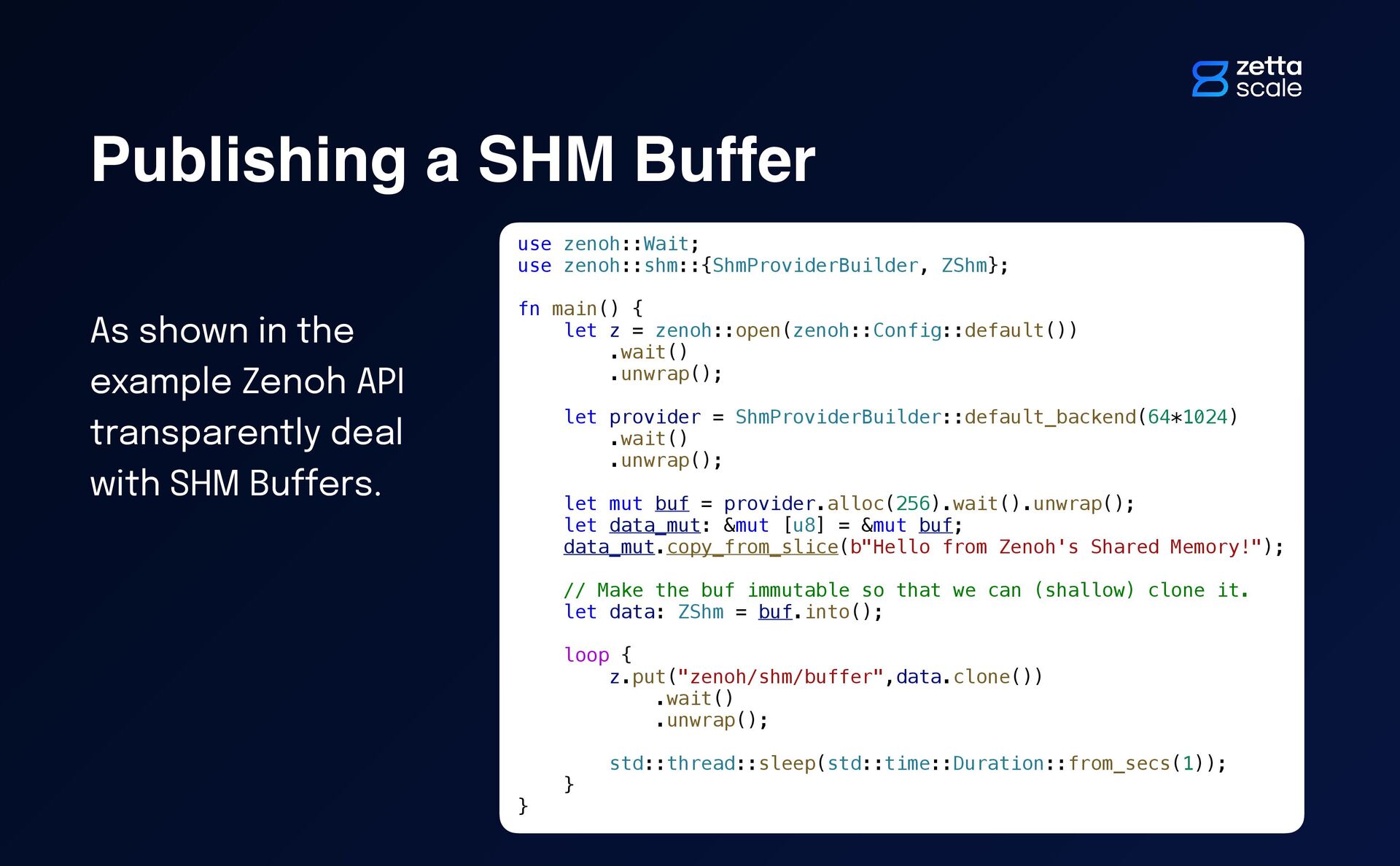

20. Publishing a SHM Buffer As shown in the example Zenoh API transparently deal with SHM Bu ff ers. use zenoh::Wait; use zenoh::shm::{ShmProviderBuilder, ZShm}; fn main() { let z = zenoh::open(zenoh::Config::default()) .wait() .unwrap(); let provider = ShmProviderBuilder::default_backend(64*1024) .wait() .unwrap(); let mut buf = provider.alloc(256).wait().unwrap(); let data_mut: &mut [u8] = &mut buf; data_mut.copy_from_slice(b"Hello from Zenoh's Shared Memory!"); // Make the buf immutable so that we can (shallow) clone it. let data: ZShm = buf.into(); loop { z.put("zenoh/shm/buffer",data.clone()) .wait() .unwrap(); std::thread::sleep(std::time::Duration::from_secs(1)); } }

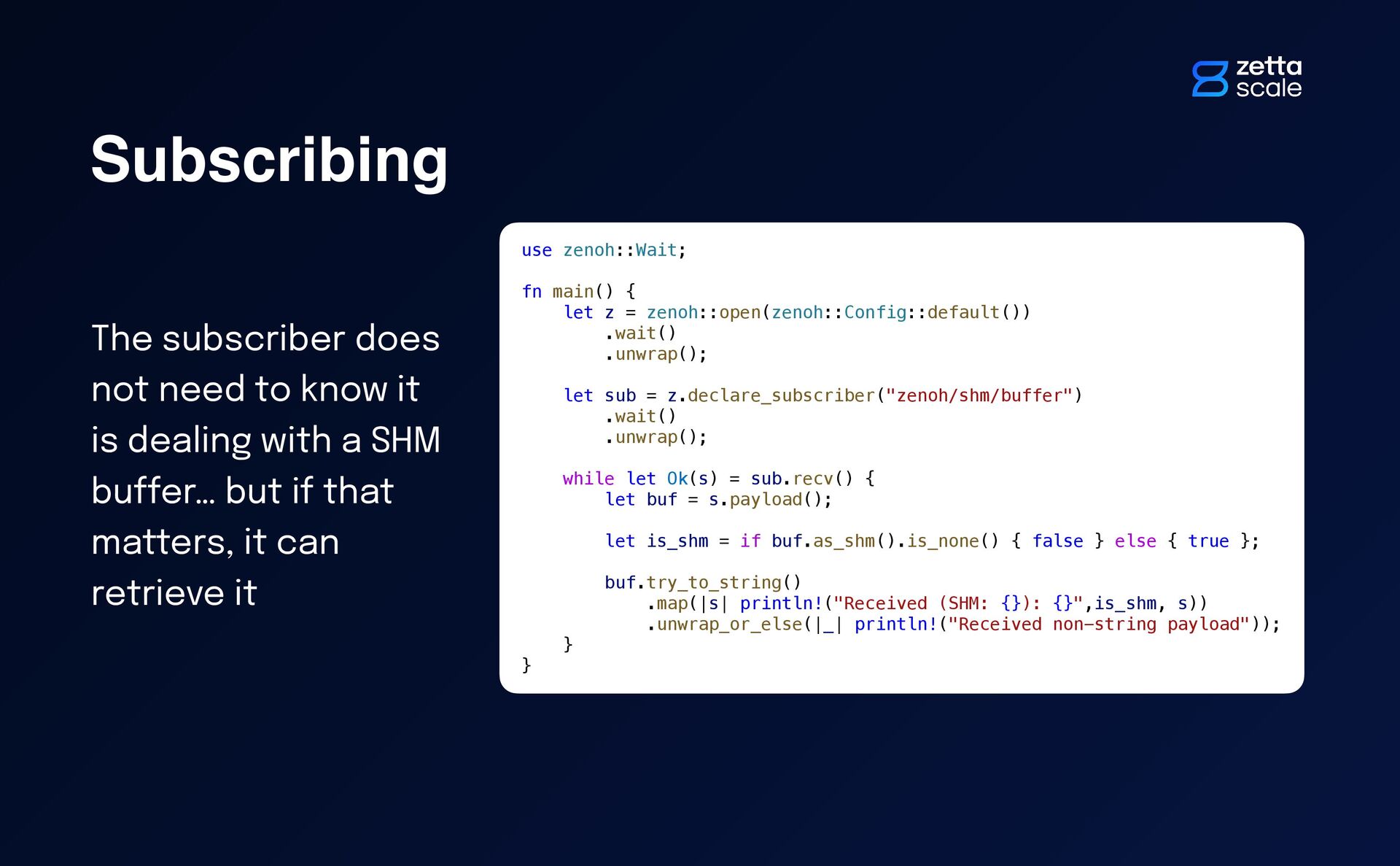

21. The subscriber does not need to know it is dealing with a SHM bu ff er… but if that matters, it can retrieve it Subscribing use zenoh::Wait; fn main() { let z = zenoh::open(zenoh::Config::default()) .wait() .unwrap(); let sub = z.declare_subscriber("zenoh/shm/buffer") .wait() .unwrap(); while let Ok(s) = sub.recv() { let buf = s.payload(); let is_shm = if buf.as_shm().is_none() { false } else { true }; buf.try_to_string() .map(|s| println!("Received (SHM: {}): {}",is_shm, s)) .unwrap_or_else(|_| println!("Received non-string payload")); } }
22. Using Zenoh SHM

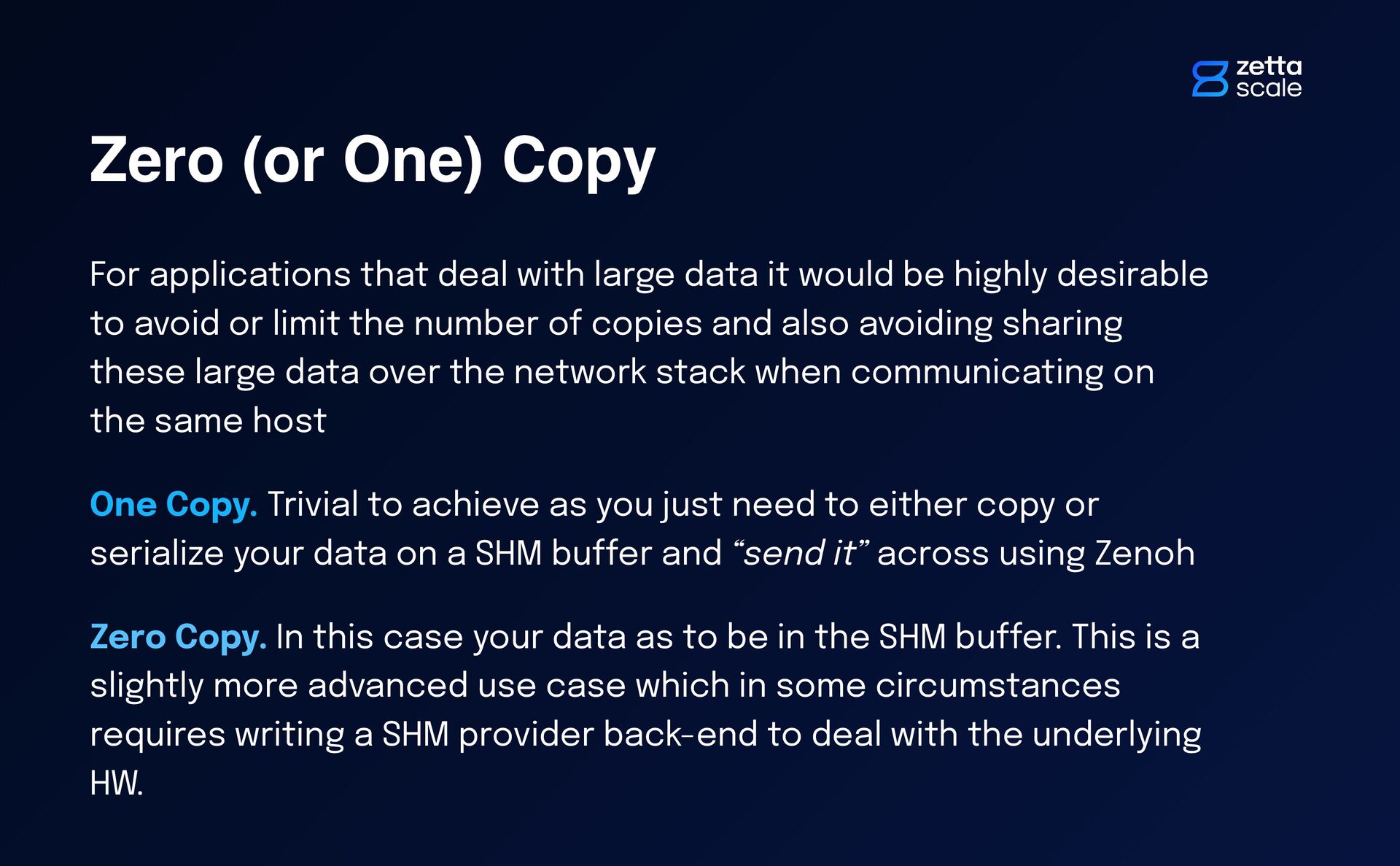

23. Zero (or One) Copy For applications that deal with large data it would be highly desirable to avoid or limit the number of copies and also avoiding sharing these large data over the network stack when communicating on the same host One Copy. Trivial to achieve as you just need to either copy or serialize your data on a SHM bu ff er and “send it” across using Zenoh Zero Copy. In this case your data as to be in the SHM bu ff er. This is a slightly more advanced use case which in some circumstances requires writing a SHM provider back-end to deal with the underlying HW.

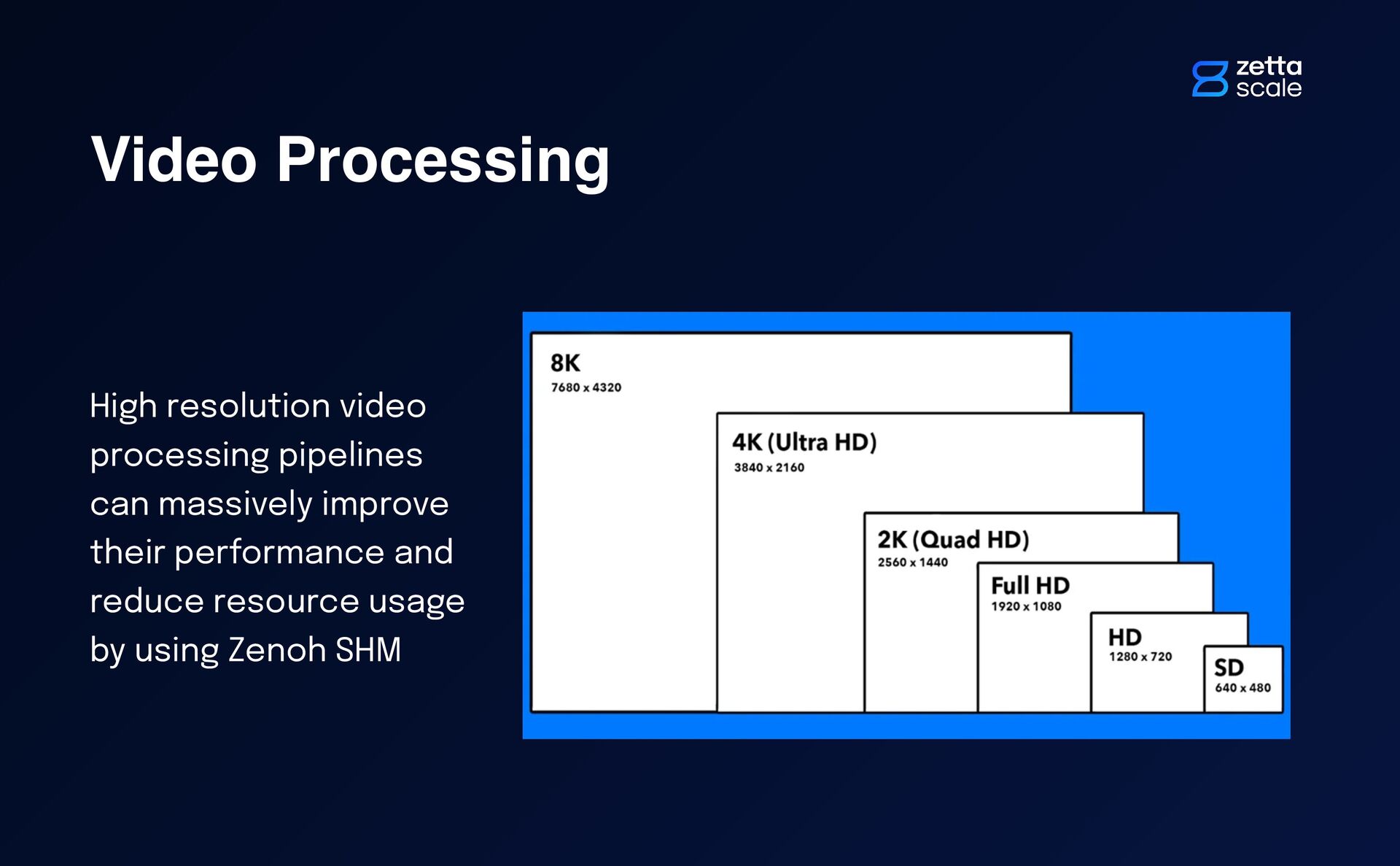

24. Video Processing High resolution video processing pipelines can massively improve their performance and reduce resource usage by using Zenoh SHM

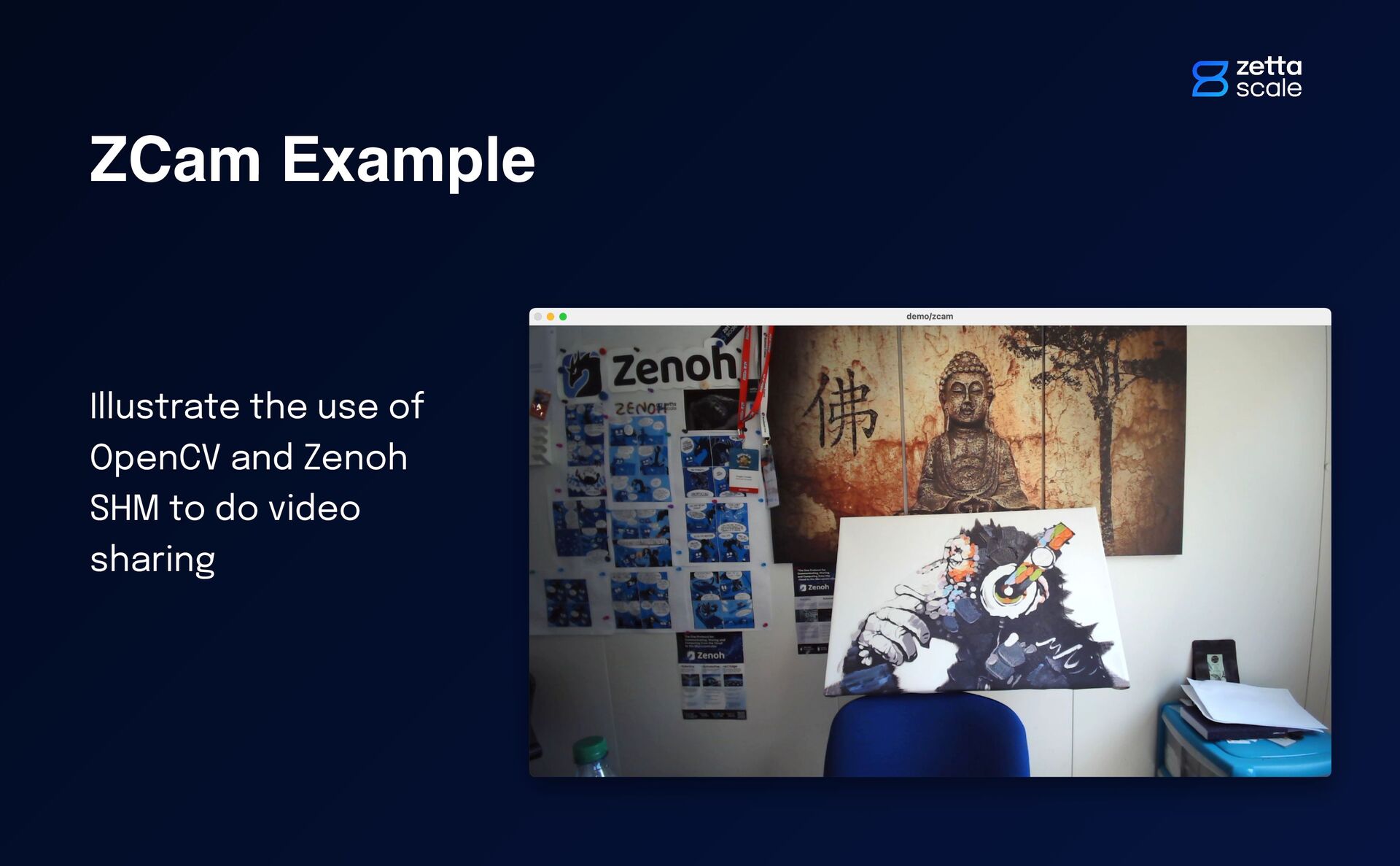

25. ZCam Example Illustrate the use of OpenCV and Zenoh SHM to do video sharing
26. Building on Zenoh SHM

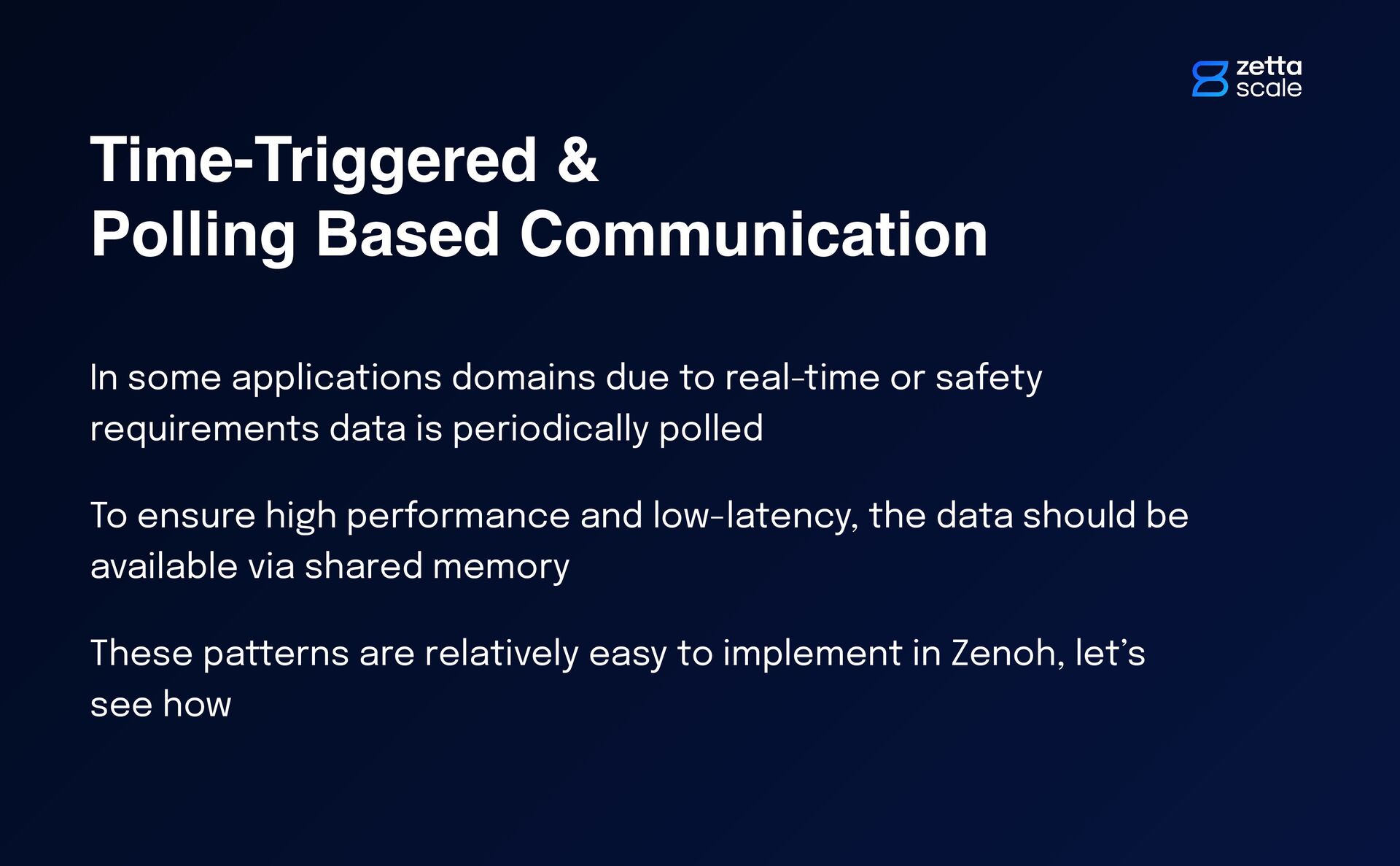

27. Time-Triggered & Polling Based Communication In some applications domains due to real-time or safety requirements data is periodically polled To ensure high performance and low-latency, the data should be available via shared memory These patterns are relatively easy to implement in Zenoh, let’s see how

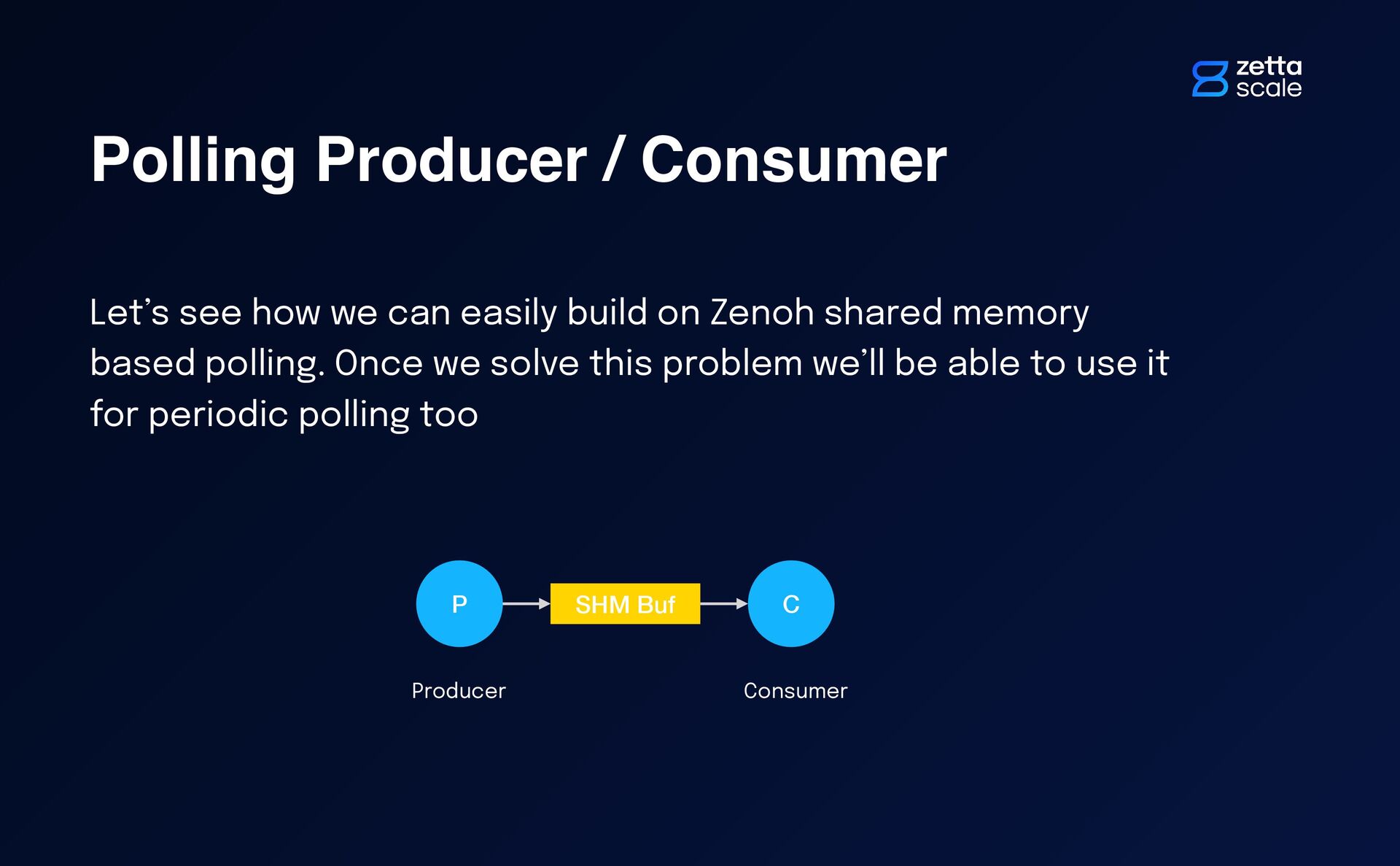

28. Polling Producer / Consumer Let’s see how we can easily build on Zenoh shared memory based polling. Once we solve this problem we’ll be able to use it for periodic polling too P C SHM Buf Producer Consumer

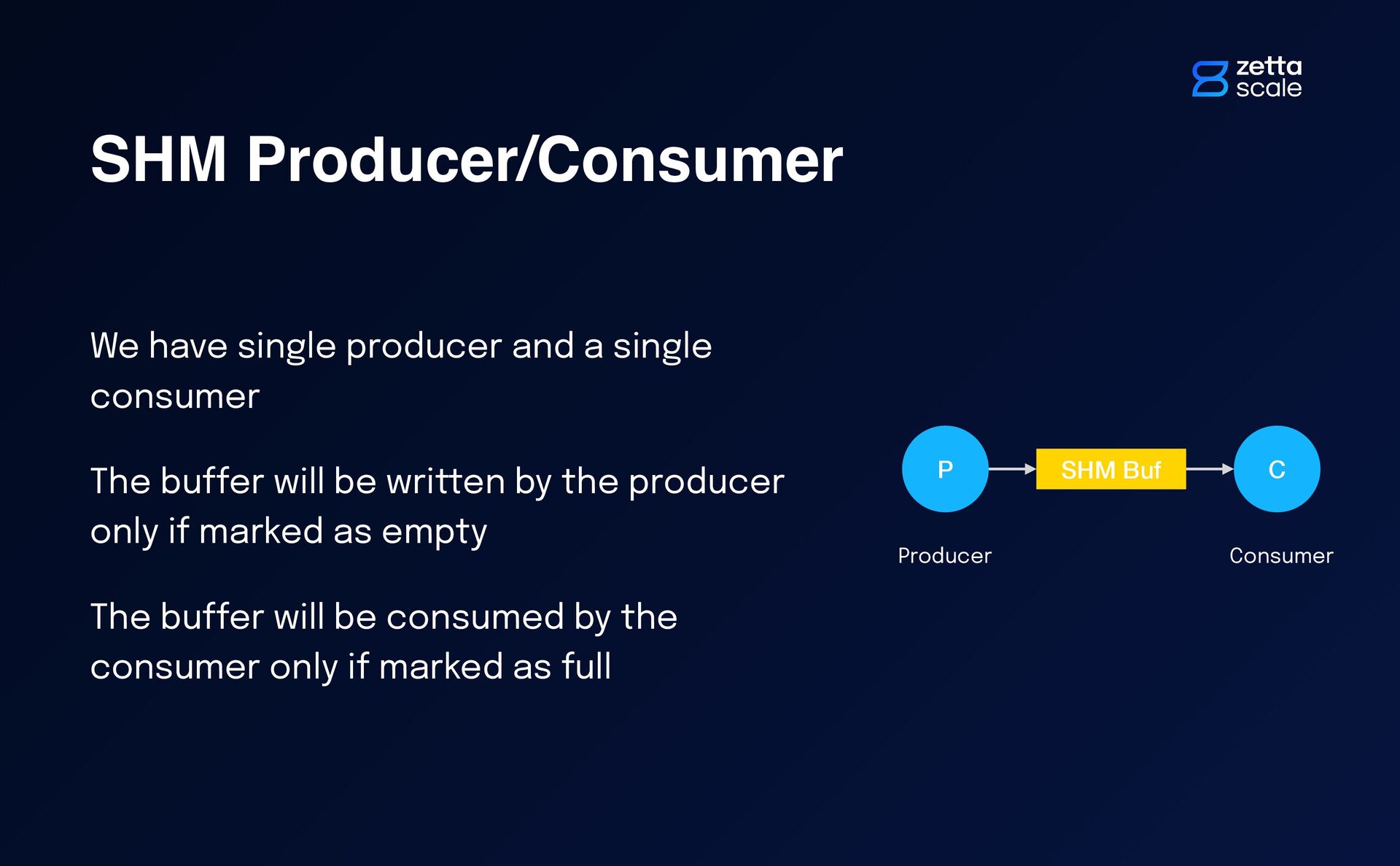

29. SHM Producer/Consumer We have single producer and a single consumer The bu ff er will be written by the producer only if marked as empty The bu ff er will be consumed by the consumer only if marked as full P C SHM Buf Producer Consumer

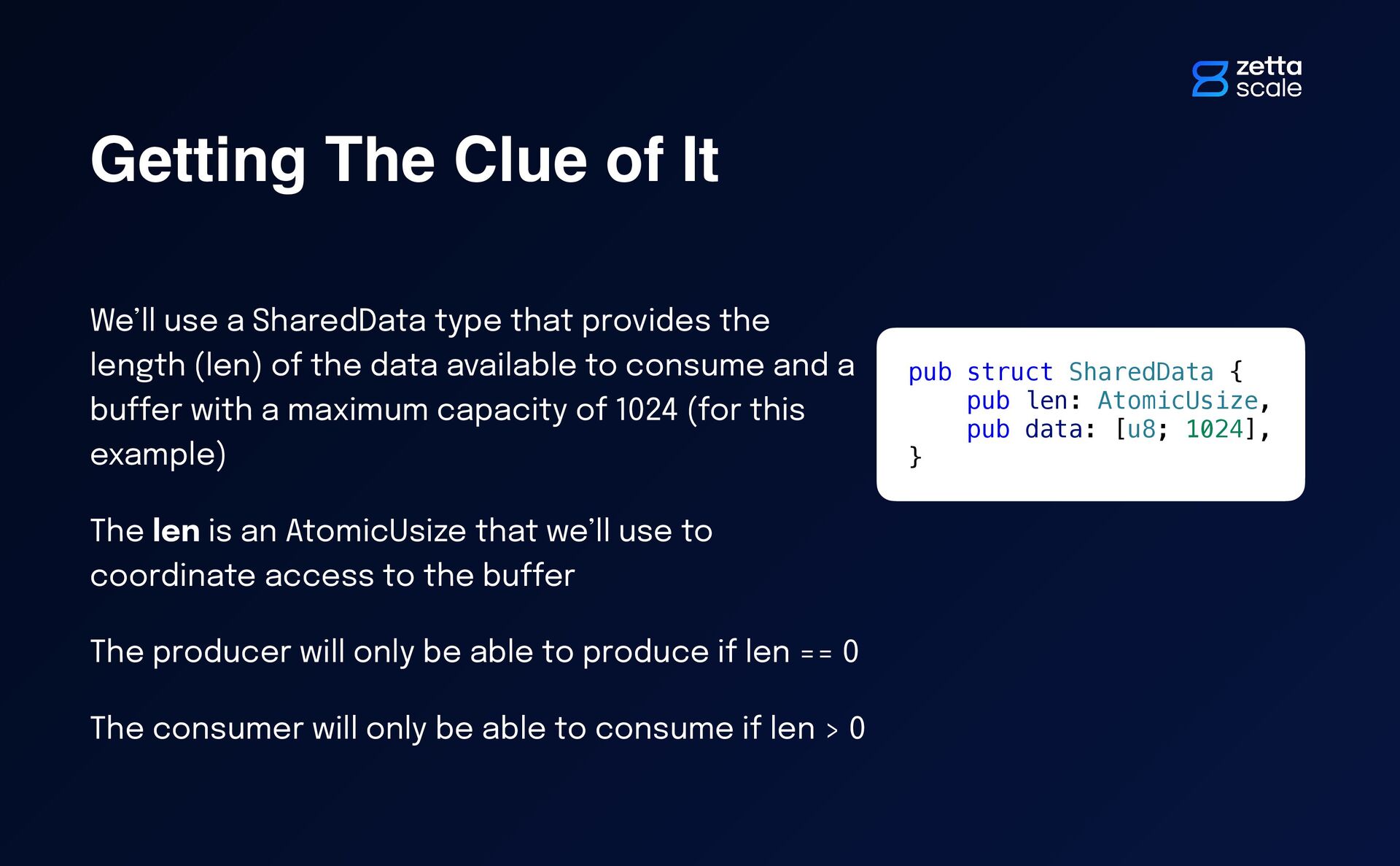

30. Getting The Clue of It We’ll use a SharedData type that provides the length (len) of the data available to consume and a bu ff er with a maximum capacity of 1024 (for this example) The len is an AtomicUsize that we’ll use to coordinate access to the bu ff er The producer will only be able to produce if len == 0 The consumer will only be able to consume if len > 0 pub struct SharedData { pub len: AtomicUsize, pub data: [u8; 1024], }

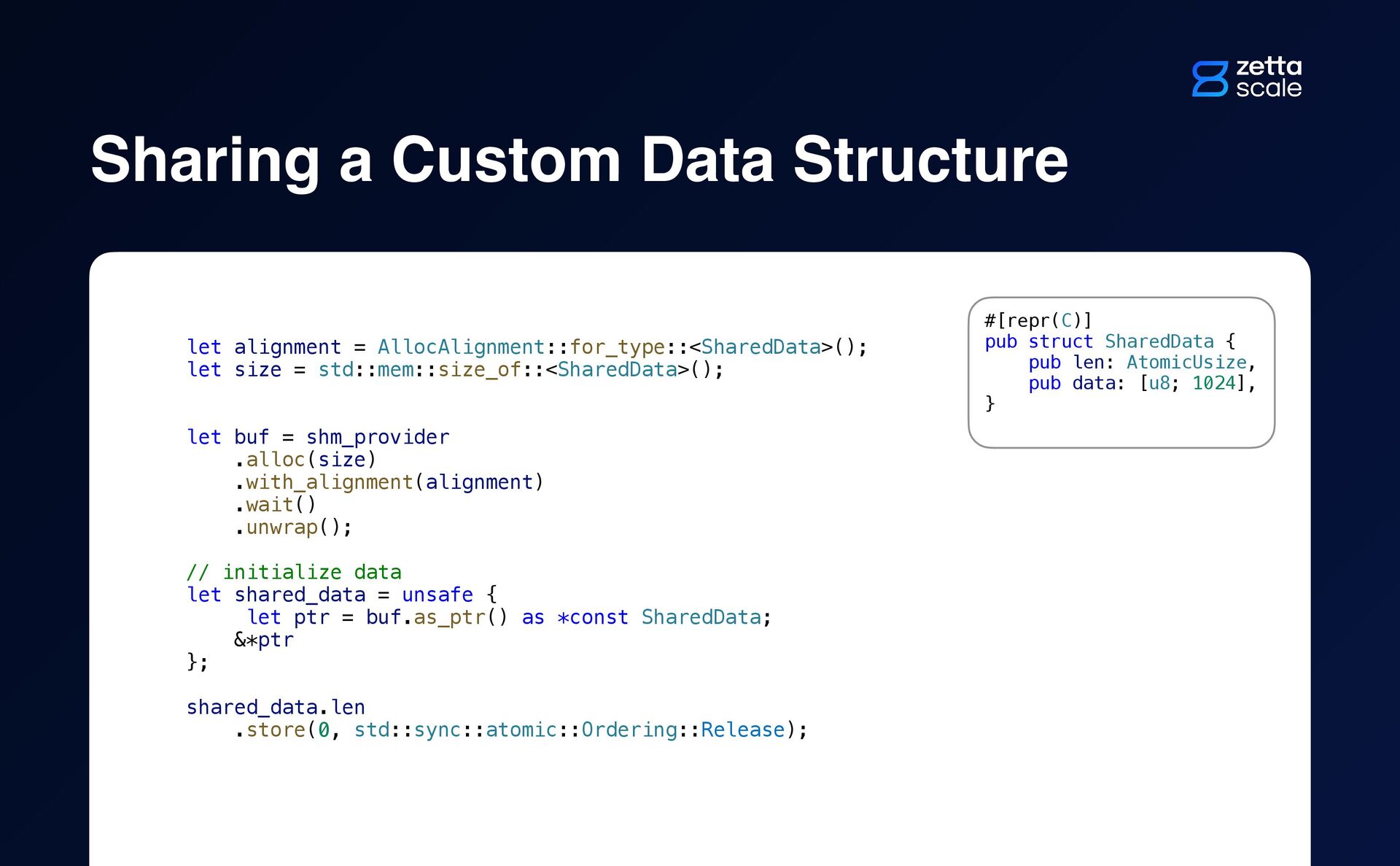

31. Sharing a Custom Data Structure let alignment = AllocAlignment::for_type::<SharedData>(); let size = std::mem::size_of::<SharedData>(); let buf = shm_provider .alloc(size) .with_alignment(alignment) .wait() .unwrap(); // initialize data let shared_data = unsafe { let ptr = buf.as_ptr() as *const SharedData; &*ptr }; shared_data.len .store(0, std::sync::atomic::Ordering::Release); #[repr(C)] pub struct SharedData { pub len: AtomicUsize, pub data: [u8; 1024], }

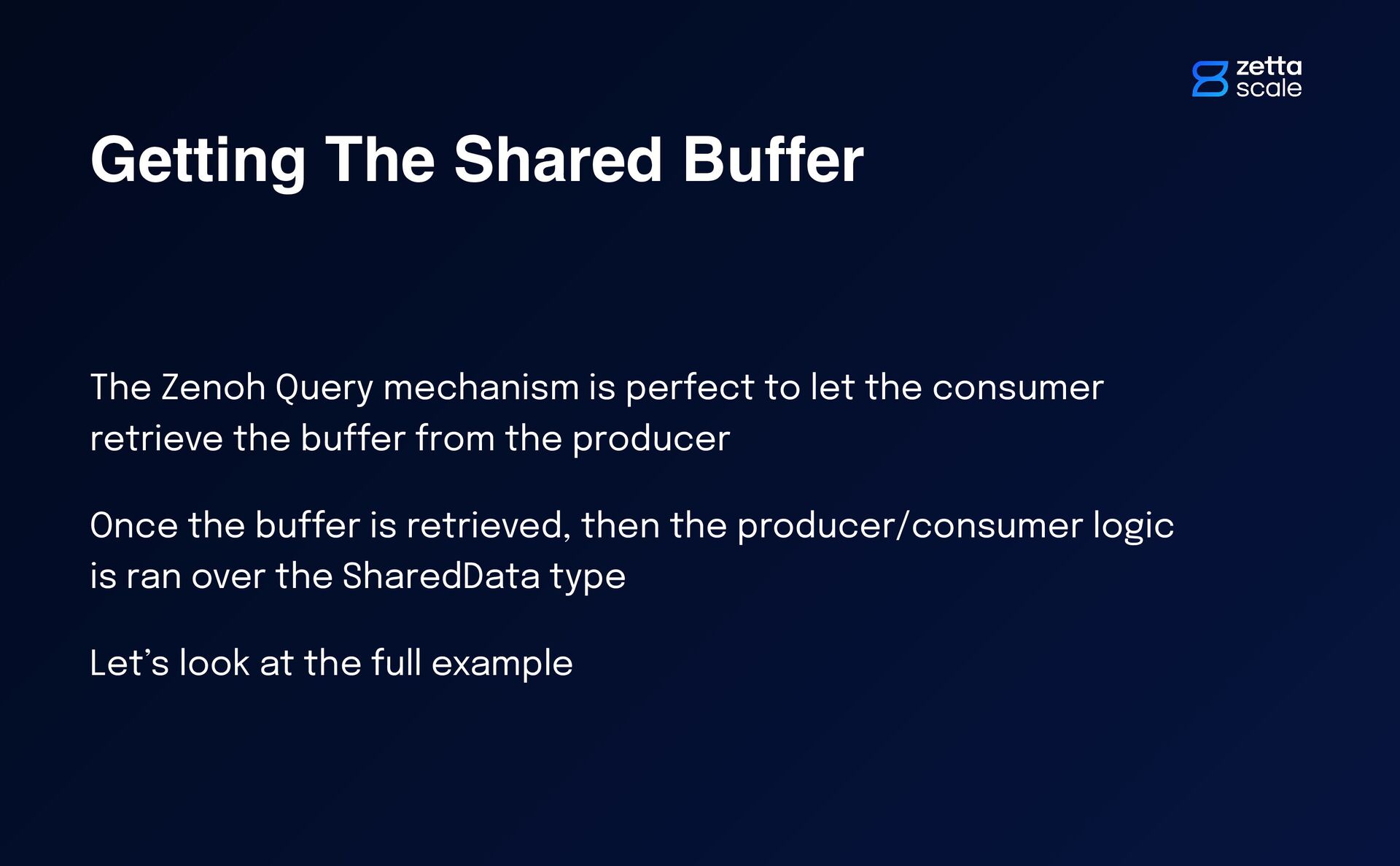

32. Getting The Shared Buffer The Zenoh Query mechanism is perfect to let the consumer retrieve the bu ff er from the producer Once the bu ff er is retrieved, then the producer/consumer logic is ran over the SharedData type Let’s look at the full example

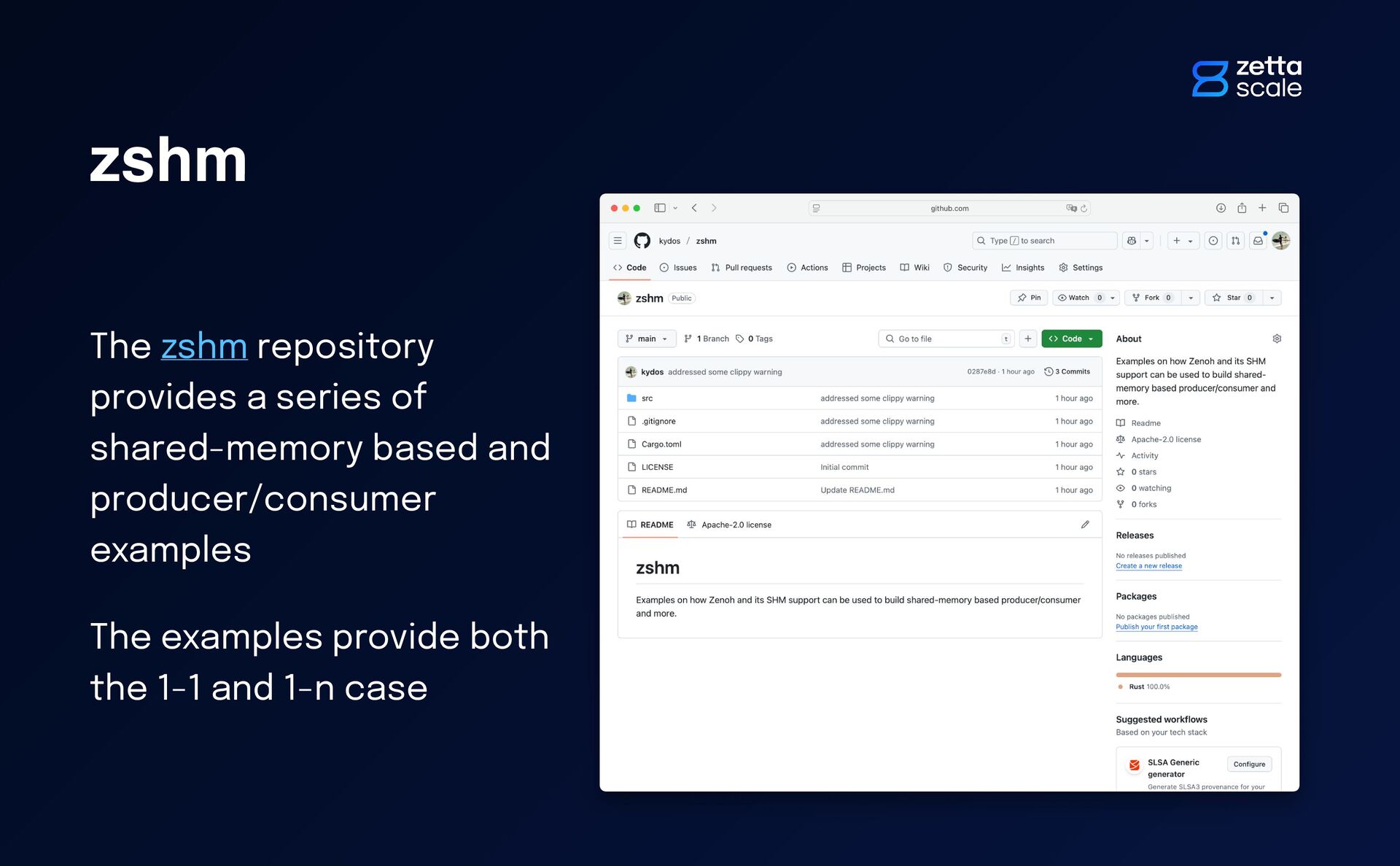

33. zshm The zshm repository provides a series of shared-memory based and producer/consumer examples The examples provide both the 1-1 and 1-n case

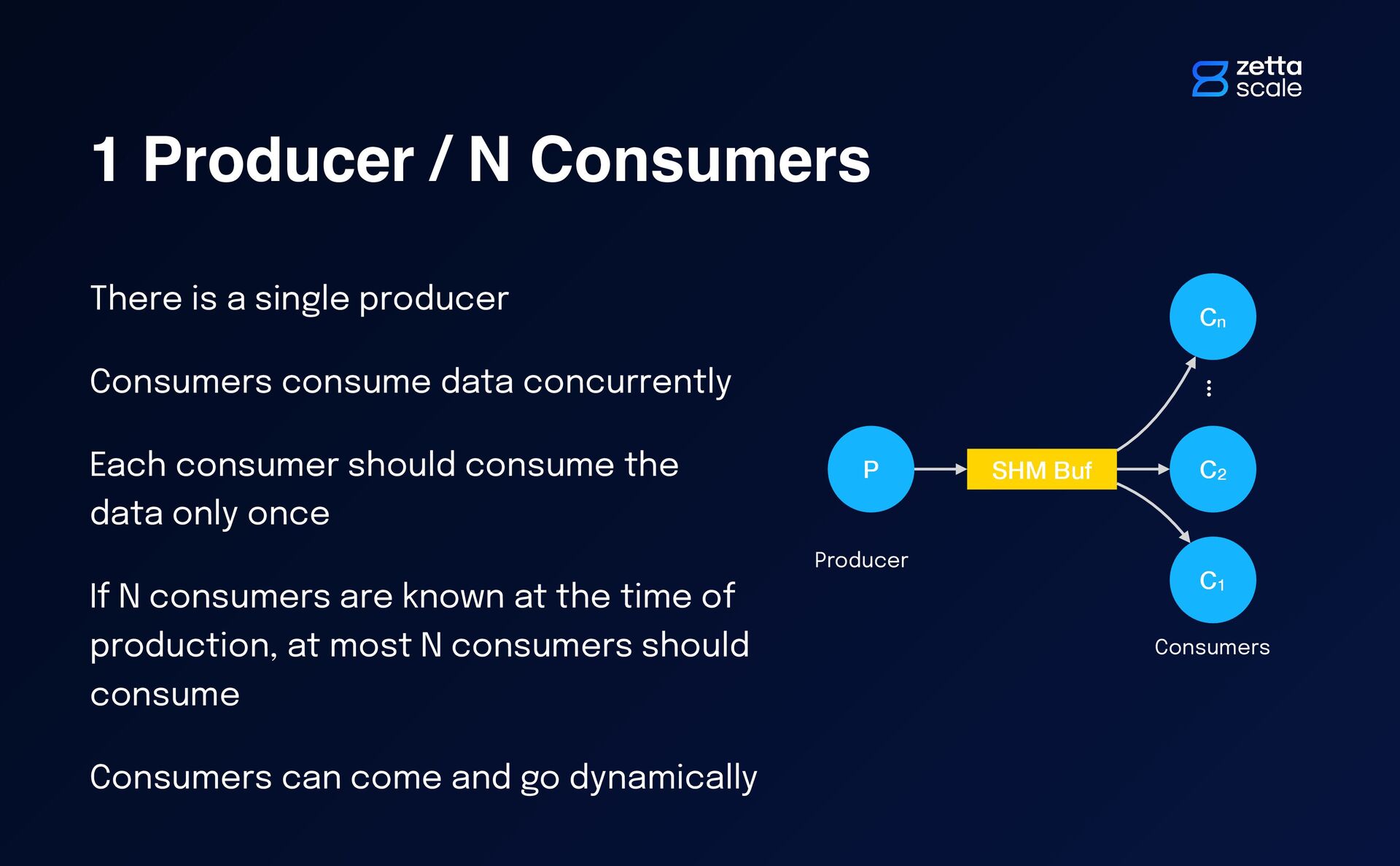

34. 1 Producer / N Consumers There is a single producer Consumers consume data concurrently Each consumer should consume the data only once If N consumers are known at the time of production, at most N consumers should consume Consumers can come and go dynamically P C1 SHM Buf Producer Consumers C2 Cn …

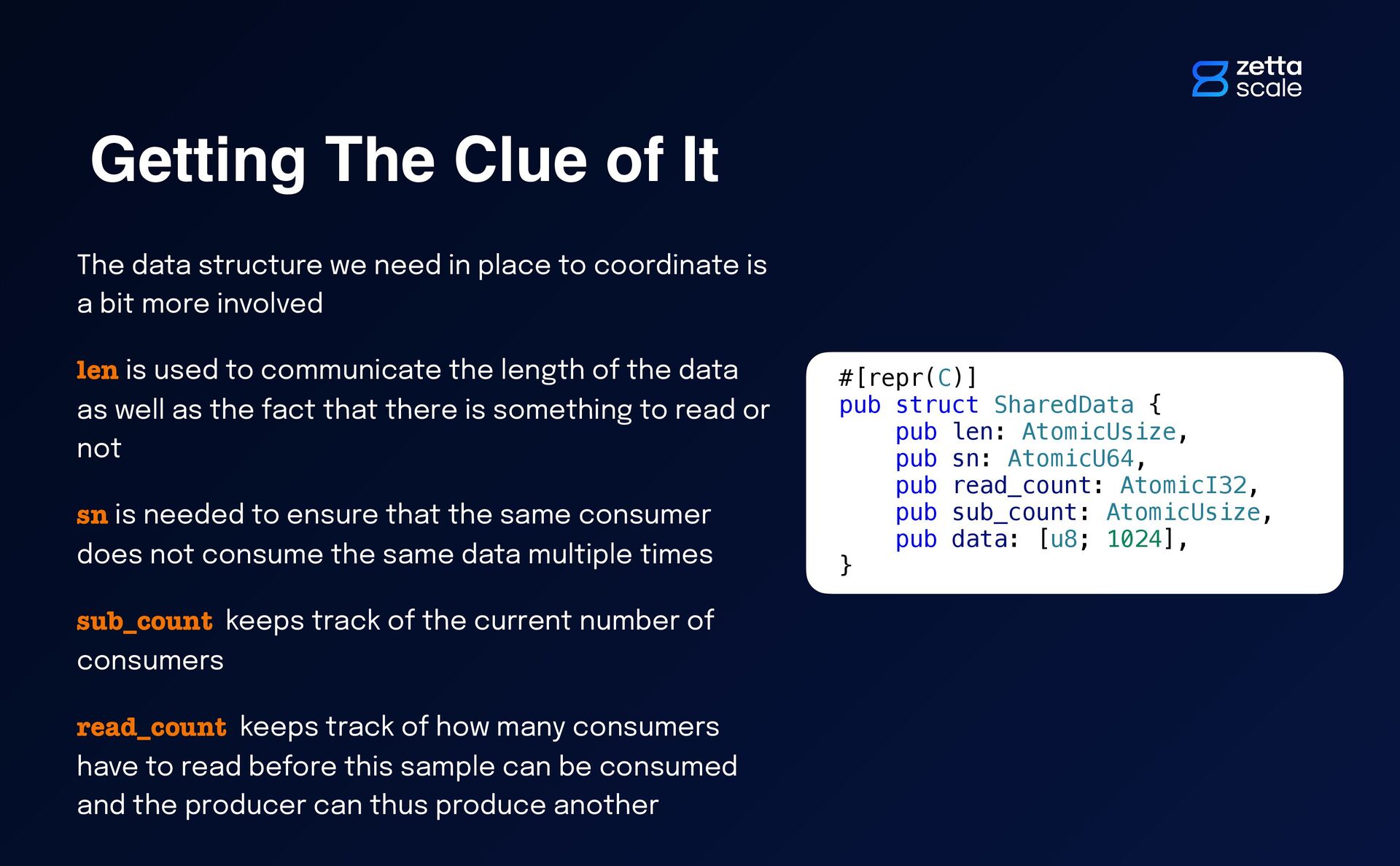

35. Getting The Clue of It The data structure we need in place to coordinate is a bit more involved len is used to communicate the length of the data as well as the fact that there is something to read or not sn is needed to ensure that the same consumer does not consume the same data multiple times sub_count keeps track of the current number of consumers read_count keeps track of how many consumers have to read before this sample can be consumed and the producer can thus produce another #[repr(C)] pub struct SharedData { pub len: AtomicUsize, pub sn: AtomicU64, pub read_count: AtomicI32, pub sub_count: AtomicUsize, pub data: [u8; 1024], }
36. What if I don’t Like Polling?
37. Futex Linux Futex, or equivalent if available on your platform, can be used to e ff i ciently coordinate over shared memory leveraging atomics

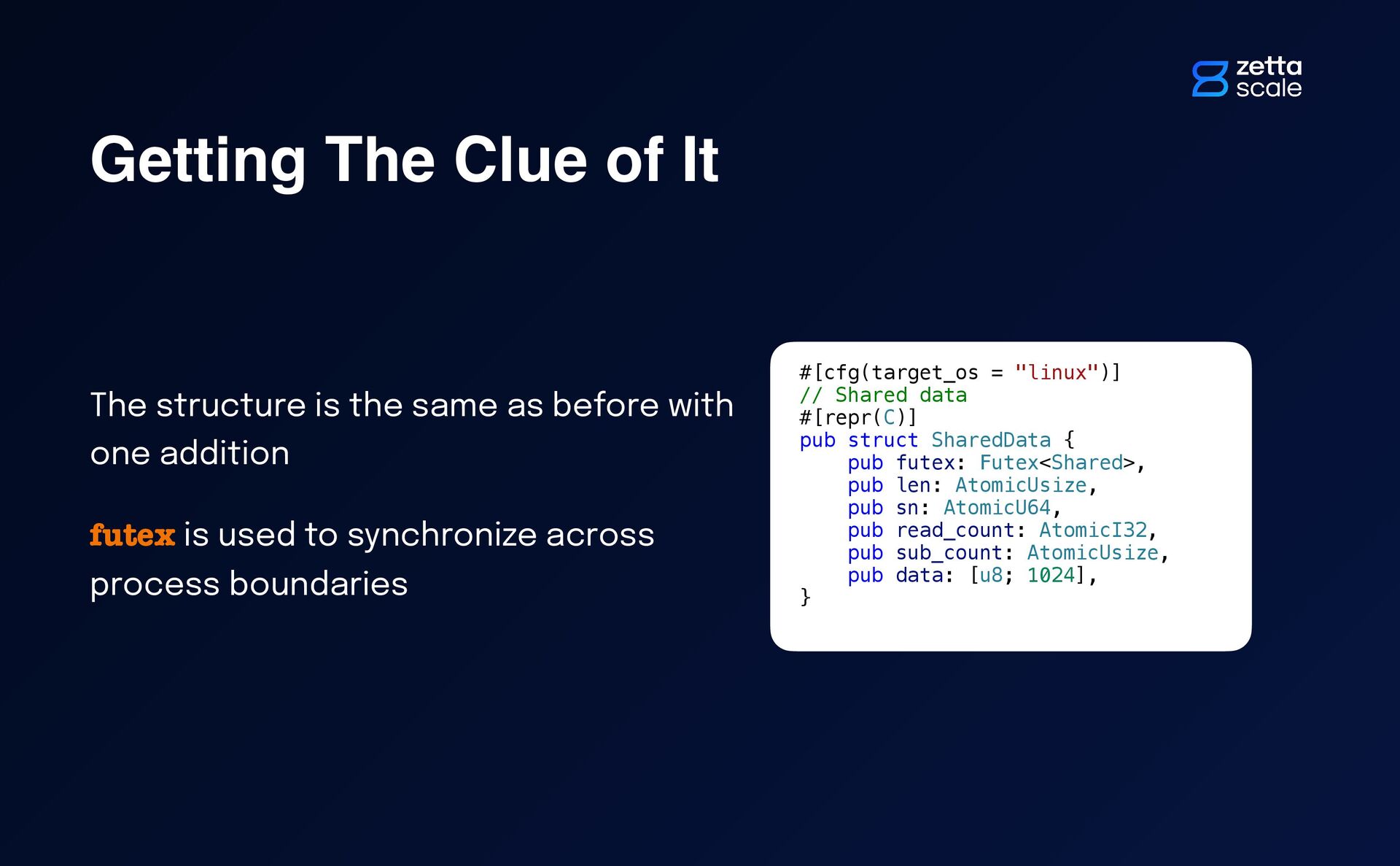

38. Getting The Clue of It The structure is the same as before with one addition futex is used to synchronize across process boundaries #[cfg(target_os = "linux")] // Shared data #[repr(C)] pub struct SharedData { pub futex: Futex<Shared>, pub len: AtomicUsize, pub sn: AtomicU64, pub read_count: AtomicI32, pub sub_count: AtomicUsize, pub data: [u8; 1024], }
39. Key Highlights Zenoh is one of a kind protocol — it uni fi es data in motion, data at rest and computations It is the only protocol able to run from the microcontroller up to the datacenter It has not topological constraints It is extremely easy to use!
40. Advanced Configuration
