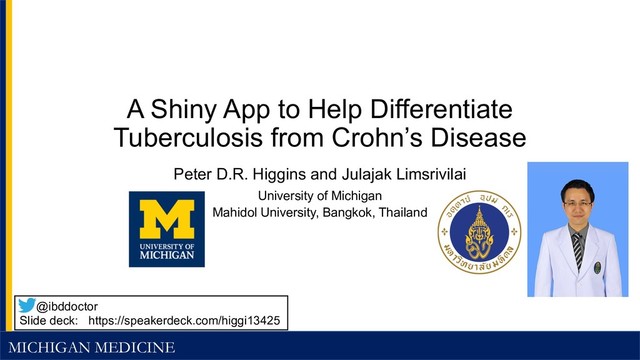

  1. MICHIGAN MEDICINE A Shiny App to Help Differentiate Tuberculosis from

    Crohn’s Disease Peter D.R. Higgins and Julajak Limsrivilai University of Michigan Mahidol University, Bangkok, Thailand @ibddoctor Slide deck: https://speakerdeck.com/higgi13425
  2. MICHIGAN MEDICINE The Problem of Small Intestine Ulceration 2 very

    important and likely diagnoses Healthy small intestine Crohn’s disease ulceration Intestinal TB ulceration Treat with immune suppression Treat with antimicrobials Wrong Rx – antimicrobials – very, very sick Wrong Rx – immune suppression – very, very sick or DEAD TREATMENT: WRONG DIAGNOSIS:
  3. MICHIGAN MEDICINE Changing Epidemiology • No Crohn’s disease in Asia

    until the 1960s • All small bowel ulceration assumed to be TB • Now Crohn’s disease is exploding in incidence in Asia, particularly in cities. Am J Gast 2008; 103; 3167-82. Lancet 2017; 390; 2769-78.
  4. MICHIGAN MEDICINE How to Treat? • Asia-Pacific GI Consensus Guideline

    on small bowel ulceration: • If unsure whether intestinal TB (ITB) vs. Crohn’s disease, Empirically treat with 4 anti-tuberculous therapies for 8-12 weeks. • If not improved, likely to be Crohn’s disease • During the 8-12 weeks, patients can experience worsening bleeding, weight loss, fatigue, intestinal blockages, nausea/vomiting, and intestinal perforation – may progress to surgery Ooi CJ , Hilmi I , Makharia GK et al. The Asia Pacific Consensus Statements on Crohn's Disease Part 1: definition, diagnosis and epidemiology. J Gastroenterol Hepatol 2015; 31: 45–55.
  5. MICHIGAN MEDICINE Can You Differentiate CD from TB? • Literature

    review • Lots of purported independent predictors (55) published • Sensitivities of single lab tests for diagnosis of Intestinal TB: • AFB stained : 5.3-37.5% • Caseous granuloma : 10-40% • Culture (6-8 weeks) : 23-45.8% • Tissue PCR : 36.4-67.9% • Performed meta-analysis for each of 55 predictors with metafor • 38 quality studies • 2,117 Crohn’s disease cases • 1,589 intestinal tuberculosis cases
  6. MICHIGAN MEDICINE Chaining multiple LRs Each LR for which we

    have data available The relative prevalence of ITB ( !"# !"#$%& ) Probability of ITB = ( ) ∗(,- . ∗,- / ∗⋯ ) .2( ) $(( ) ∗,- . ∗,- / ∗⋯ ) For findings without available results, the model defaults to an LR of 1 for that finding
  7. MICHIGAN MEDICINE External multicenter validation • 590 patients were included,

    427 CD and 163 ITB • Thai cohort: 242 patients, 137 CD and 105 ITB • Hong Kong cohort: 348 patients, 290 CD and 58 ITB Bangkok Hong Kong
  8. MICHIGAN MEDICINE Model validation • The available data was applied

    to sequential models • Clinical model • Endoscopy model • Clinical + endoscopy model • Clinical + endoscopy + pathology model • The performance of the model was determined by • area under the curve of receiver operating characteristic curves • sensitivity, specificity, accuracy, false positive & negative rate
  9. MICHIGAN MEDICINE AuROC Clinical: 0.766 (0.723 – 0.809) Endoscopy: 0.786

    (0.748 – 0.824) Clinical+Endo: 0.858 (0.825 – 0.892) Clinical+Endo+Patho: 0.903 (0.854 – 0.952) Model Performance 590 patients in Thailand and Hong Kong 427 Crohn’s Disease and 163 Intestinal TB
  10. MICHIGAN MEDICINE This Is Easier in a Shiny App! •

    https://www.pathology.med.umich.edu/shiny/tbcrohns/ - Robust to incomplete data - Computes estimates immediately - Allows user to evaluate the effects of additional (sometimes expensive) testing - Now frequently use in Asia
  11. MICHIGAN MEDICINE Limitations and Edge Cases • The model forces

    a dichotomous choice • Medicine is often not dichotomous • Patient with weight loss and hemoccult + stool • Strange-looking ulceration in small intestine on scope • Biopsies: ulceration, nonspecific inflammation, and healing • Model suggests more likely to be TB • All TB tests negative • ??? • Re-scope, more biopsies with depth – small bowel adenocarcinoma
  12. MICHIGAN MEDICINE Conclusions & Lessons Learned • Shiny apps can

    make models useful at the point of care • Can not be definitive • It helps to be robust to missing data • Always consider edge cases! • Manuscript: Limsrivilai, J., Am J Gast. 2017; 112: 415-427. https://www.ncbi.nlm.nih.gov/pubmed/28045023 • Shiny app: https://www.pathology.med.umich.edu/shiny/tbcrohns/
