360° Object Detection Robot Car

This slide was used in the AMD Pervasive AI Developer Contest.
Main Project:
https://www.hackster.io/iotengineer22/360-object-detection-robot-car-bdb1bd

Transcript

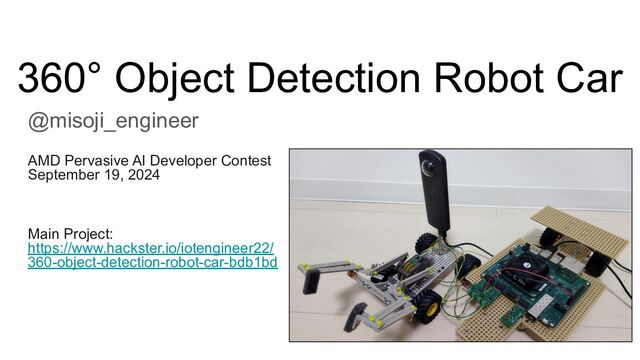

1. 360° Object Detection Robot Car @misoji_engineer AMD Pervasive AI Developer Contest September 19, 2024 Main Project: https://www.hackster.io/iotengineer22/ 360-object-detection-robot-car-bdb1bd
2. About Me Name:@misoji_engineer Occupation: Hardware Engineer. I am a Hardware and Hobbyist FPGA Engineer !
3. Working Demo
4. Project Feature Developed a robot with 360-degree AI vision by KR260.
5. Architecture By integrating with PYNQ, the robot achieves 360-degree AI vision.
6. Demo Video
7. Project Value Communication and Demonstration
8. Subprojects Created 14 Subprojects to make it easier for beginners to recreate. Subprojects are organized into the following chapters. 1. PYNQ + GPIO(LED Blinking) 2. PYNQ + PWM(DC-Motor Control) 3. Object Detection(Yolo) with DPU-PYNQ 4. Implementation DPU, GPIO, and PWM 5. Remote Control 360° Camera 6. GStreamer + OpenCV with 360°Camera 7. 360 Live Streaming + Object Detect(DPU) 8. ROS2 3D Marker from 360 Live Streaming 9. Control 360° Object Detection Robot Car 10. Improve Object Detection Speed with YOLOX 11. Benchmark Architectures of the DPU 12. Power Consumption of 360° Object Detection Robot Car 13. Application to Vitis AI ONNX Runtime Engine (VOE) 14. Appendix: Object Detection Using YOLOX with a Webcam Long project is divided into 14 subprojects
9. Videos Provided 35 demo videos to make the content clearer. We made detailed 35 Videos, and opened in hackster.io and Youtube. https://www.youtube.com/playlist?list=PLVu7mPgGBMbaku3Ff9iG18OYoNWfO1pT7
10. Quality of Code and Structure
11. Open Software source All Software environment (Jupyter notebook, python) are opened. The detailed Software source is saved, and linked in main project page; https://github.com/iotengineer22/AMD-Pervasive-AI-Developer-Contest . ├── bom # BOM file (BOM list) ├── imgs # Image file (Electrical Diagrams) ├── jupyter_notebooks # Jupyter Notebooks (pre-Test Program) ├── pcb # PCB link files ├── src # Python files (Test Program) ├── LICENSE └── README.md
12. Prepared all pre-Test environments Anyone can perform pre-Test program(.ipynb) easily. Jupyter Notebooks (pre-Test Program) examples https://github.com/iotengineer22/AMD-Pervasive-AI-Developer-Contest/tree/main/jupyter_notebooks All the necessary files are provided.
13. Prepared all Main environments Similarly, anyone can easily follow main program(.py). Python (Main Program) https://github.com/iotengineer22/AMD-Pervasive-AI-Developer-Contest/tree/main/src All the necessary files are provided.
14. Linked for project Provided codes to run all demos introduced in projects. ・Controller test with Jupyter Notebooks Subproject_9. Control 360° Object Detection Robot Car ・YOLOX Object Detection with Python Subproject_10. Improve Object Detection Speed with YOLOX /jupyter_notebooks/pynq-original-dpu-model/controller-pwm-gpio-test.ipynb src/yolox-test/app_gst-yolox-real-360-2divide.py
15. Code Overview(1) from pynq_dpu import DpuOverlay from pynq import Overlay from pynq.lib import AxiGPIO overlay = DpuOverlay(dpu_model) overlay.load_model(cnn_xmodel) # Define and create the GStreamer pipeline for 360-camera pipeline = "thetauvcsrc mode=2K ! h264parse ! avdec_h264 ! videoconvert ! video/x-raw,format=BGR ! appsink" # Initialize the VideoCapture object cap = cv2.VideoCapture(pipeline, cv2.CAP_GSTREAMER) # Initialize and start the Motor-controller-thread controller_thread = threading.Thread(target=continuous_controller) controller_thread.start() 360-degree AI vision
16. Code Overview(2) try: while True: ret, frame = cap.read() # Split the 360-image into 2 quadrants quadrants = { 'q1': frame[:, :width // 2], #front 'q2': frame[:, width // 2:], #back } # Apply YOLOX object detection and ROS2 Output to each quadrant for key, img in quadrants.items(): d_boxes, d_scores, d_classes = yolox_run(img, key) # Publish each quadrant as a separate ROS message img_publishers[key].publish(bridge.cv2_to_imgmsg(img, encoding="bgr8")) publish_markers(box_publishers, node_box, d_boxes, d_classes, key) 360-degree AI vision
17. Ease of Use
18. Open Hardware source All Hardware data(Diagrams and PCBs) are opened. The detailed Hardware source is also saved; https://www.hackster.io/iotengineer22/360-object-detection-robot-car-bdb1bd#schematics $130 Electrical Diagrams Debug PCB Datas Motor-driver PCB Datas
19. Main Electrical Diagrams The Robot don’t need special Power, and assembly is simple.
20. Robot Structure The Robot is controlled by General-purpose DC motors and gearbox.
21. Simple and Low-cost BOM This low-cost robot costs about $550 with a 360° camera. The detailed BOM list is also saved; https://www.hackster.io/iotengineer22/360-object-detection- robot-car-bdb1bd#toc-2--bom-1 ・360° camera …$370 ・Robot Structure …$130 ・Original PCBs …$30 ・wire and spacers …$20 ~~~~~~~~~~~~~~~~~~ ・Total …$550 $370 $20 $130 $30
22. Complexity of the Project
23. 360-degree AI vision Provided detailed explanations on key points(AI vision). ・Implement DPU, GPIO and PWM with PYNQ Subproject_4. Implementation DPU, GPIO, and PWM ・ROS2 Output from 360 Live Streaming Subproject_8. ROS2 3D Marker from 360 Live Streaming
24. Update Object Detection Implemented YOLOX for object detection with DPU-PYNQ. ・Update and Speedup with YOLOX from YOLOv3(DPU-PYNQ sample program) Subproject_10. Improve Object Detection Speed with YOLOX
25. Benchmark Conducted benchmarks for processing speed and power consumption. ・DPU inference benchmark Subproject_11. Benchmark Architectures of the DPU ・Power Consumption benchmark Subproject_12. Power Consumption of 360° Object Detection Robot Car
26. Vitis AI 3.5 New Function Introduced the use of the Vitis AI ONNX Runtime Engine (VOE). ・The new function in ONNX Runtime have made benchmark significantly easier. Subproject_13. Application to Vitis AI ONNX Runtime Engine (VOE)
27. Thank you This contest has been a great fun challenge! Thanks to AMD and Hackster for the opportunity and the hardware.
