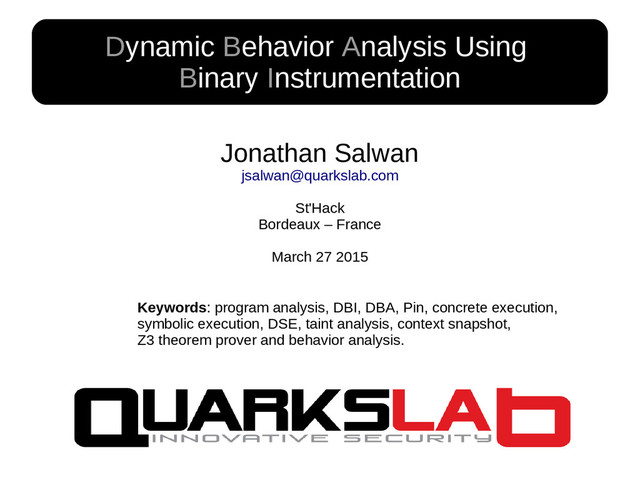

Dynamic Behavior Analysis Using Binary Instrumentation

Dynamic Behavior Analysis Using Binary Instrumentation Jonathan Salwan [email protected] St'Hack
Bordeaux – France March 27 2015 Keywords: program analysis, DBI, DBA, Pin, concrete execution, symbolic execution, DSE, taint analysis, context snapshot, Z3 theorem prover and behavior analysis.

2 • I am a junior security researcher at Quarkslab
working on tools development for programs analysis • I have a strong interest in all low level computing • I like to play with weird things even though it sometimes seems useless Who Am I?

3 • Few words about the goal of this stuff
• Short review of the Security Day Lille's talk – Really short introduction – Covering a function using DSE approach – Some words about vulnerabilities hunting • Objectives of this talk – Build specific analysis to find specific bugs • Analysis for use-after-free detection • Analysis for heap overflow detection • Analysis for stack overflow detection • Analysis for format string detection • Analysis for {wrtite, read}-what-where detection – Few words about generic analysis – Few words about the Triton project !! • Conclusion • Q&A Roadmap Of This Talk

4 • First Of All – The Goal Of This
Stuff

5 • Main goal: – I want to analyze a
binary dynamically – I want to find unexpected behaviors in its execution to find potential vulnerabilities • Even if these bugs do not crash the program • First Of All – The Goal Of This Stuff ba 05 00 00 00 be 00 58 40 00 31 ff 89 4c 24 10 e8 1c fb ff ff 31 f6 48 89 c2 bf 01 00 00 00 31 c0 e8 3b fd ff ff 8b 05 35 67 20 00 8b 4c 24 10 Be 30 58 40 00 31 ba 05 00 00 00 be 00 58 40 00 31 ff 89 4c 24 10 e8 1c fb ff ff 31 f6 48 89 c2 bf 01 00 00 00 31 c0 e8 3b fd ff ff 8b 05 35 67 20 00 8b 4c 24 10 Be 30 58 40 00 31 Execution Behavior Analysis binary Analysis 1 Analysis 2

6 • Short Review Of The Security Day Lille's Talk

7 • In the last talk [0] , we saw
how it was possible to cover a function in memory using a dynamic symbolic execution approach – We generate and inject concrete values in memory in order to go through all paths • Short Review Of The Security Day Lille's Talk [0] http://shell-storm.org/talks/SecurityDay2015_dynamic_symbolic_execution_Jonathan_Salwan.pdf

8 • Basically, we: – Target a function – Take
a context snapshot at the first instruction – Switch to a dynamic symbolic execution in order to build the path constraint (PC) – Restore the snapshot and generate another concrete value to go through another path – Repeat this operation until all paths are taken • Short Review Of The Security Day Lille's Talk

9 • In a nutshell, we got something like this:
• Short Review Of The Security Day Lille's Talk Restore context Snapshot Restore Snapshot Target function / basic block Dynamic Symbolic Execution Possible paths in the target

10 • Dynamic Symbolic Execution • The Dynamic Symbolic Execution
process looks like this: Control flow graph ρin ρ1 ρ2 ρout ρ3 π1 π2

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 1st iteration Take a snapshot

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 1st iteration PC = T : {ρin } Add to scope

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin } ¬π1

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 } Add to scope

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } Add to scope

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 1st iteration Restore the snapshot PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout }

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } Add to scope 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout }

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 : {ρin } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } π1

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 : {ρin , ρ2 } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } Add to scope

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } ¬π2

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } Add to scope

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } Restore the snapshot

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } Add to scope 3th iteration PC = T : {ρin }

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } 3th iteration PC = T : {ρin } PC = π1 : {ρin } π1

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } 3th iteration PC = T : {ρin } PC = π1 : {ρin , ρ2 } Add to scope

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } 3th iteration PC = T : {ρin } PC = π1 π ∧ 2 : {ρin , ρ2 } π2

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } 3th iteration PC = T : {ρin } PC = π1 π ∧ 2 : {ρin , ρ2 , ρ3 } Add to scope

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } 3th iteration PC = T : {ρin } PC = π1 π ∧ 2 : {ρin , ρ2 , ρ3 , ρout } Add to scope

process looks like this: ρin ρ1 ρ2 ρout ρ3 π1 π2 2nd iteration PC = T : {ρin } PC = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } 1st iteration PC = T : {ρin } PC = ¬π1 : {ρin , ρ1 , ρout } 3th iteration PC = T : {ρin } PC = π1 π ∧ 2 : {ρin , ρ2 , ρ3 , ρout } There is no more branches, so the restore process is over PC1 = T : {ρin } PC2 = ¬π1 : {ρin , ρ1 , ρout } PC3 = π1 ¬π ∧ 2 : {ρin , ρ2 , ρout } PC4 = π1 π ∧ 2 : {ρin , ρ2 , ρ3 , ρout }

30 • Symbolic Execution Guided By The Taint Analysis

31 • Symbolic Execution Guided By The Taint Analysis •
Taint analysis provides information about which registers and memory addresses are controllable by the user at each program point: – Assists the symbolic engine to setup the symbolic variables (a symbolic variable is a memory area that the user can control) – May assist the symbolic engine to perform some symbolic optimizations – At each branch instruction, we directly know if the user can go through both branches (this is mainly used for code coverage)

32 • Symbolic Execution Guided By The Taint Analysis What
user can control ? Can I take both branches ?

33 • Symbolic Execution Guided By The Taint Analysis ZF
is controllable, so I can choose the branch Tainted memory area Spread the taint

34 • Few Words About Fuzzing

35 • Few Words About Fuzzing • Generally, the main
objective is to cover a maximum of code by injecting different input samples and wait for a side effect like a segmentation fault – When a segmentation fault occurs, it means that we probably found a bug – The main issue is that some bugs do not make the program crash Never triggered Never triggered Side effect → Segfault Side effect → Segfault No side effect, no crash How can I find it? Program Iteration 2 Iteration 1 bug Program Coverage Entry point

36 • Is Covering All The Paths Enough To Find
Vulnerabilities?

37 Ignored values Ignored values • Is Covering All The
Paths Enough To Find Vulnerabilities? Values set Execution (time) Set of values ignored in the path Set of possible values used in the path State of variables during the execution Values that trigger a vulnerability • No! Code coverage != State coverage. A variable can hold several values during the execution and some of these may not trigger any bug. • We must generate all concrete values that a path can hold to cover all the possible states. – Imply a lot of overload in the worst case • Below, a Cousot style graph which represents some possible states of a variable during the execution in a path.

38 Ignored values Ignored values • A Bug May Not
Make The Program Crash Values set Execution (time) Set of values ignored in the path Set of possible values used in the path State of the variable during the execution Values that trigger a vulnerability • Another important point is that a bug may not make the program crash • Lots of fuzzers are based on the fact that a bug may have side effect like a SIGSEGV – That's why we must implement some behavior analysis to find bugs which does not make the program crash May not cause a crash

39 • OK, now that the introduction is over, let's
start the talk!

40 • Covering a function is not enough to find
vulnerabilities – We must apply some “behavior analysis” at runtime using binary instrumentation • Really hard to build a generic analysis which find all kind of bugs • So, we must build specific analysis to find specific bugs • What kind of bugs we want to find? In this talk we will see how to find these kind of bugs: – Use-after-free – Overflow on heap / stack – Format string – {write, read}-what-where Objective Of This Talk

41 • Use-After-Free Analysis

42 • An use-after-free mainly occurs when there is a
LOAD/STORE on an already freed area • First, we maintain an allocation map (TA) and a free map (TF) of <Δ,S> items where Δ is the base address of the allocation and S its size. <Δ,S> represents an area – Monitor the malloc (*alloc) function(s) • Δ is provided by the EAX register at the malloc return • S is provided by the argument of the malloc call • We add a new <Δ,S> in TA and delete the <Δ,S> in TF if it exist. – If Δnew TF ∈ ∧ Snew ≠ Sold → <Δold ,Sold >TF is divided in two items where the first item will be in TA and the second item will still be in TF – When a free occurs we move the <Δ,S> from TA to TF – When a LOAD/STORE occurs, we check if there is a Δ in TA or TF and applies these following rules: • If Δ TA ∈ → valid memory access • If Δ TA Δ TF ∉ ∧ ∉ → invalid memory access • If Δ TA Δ TF ∉ ∧ ∈ → use-after-free Use-After-Free Analysis Allocate Used Freed Used Execution

43 • Heap Overflow Analysis

44 • Maintain an allocation map (TA) of <Δ,S> where
Δ is the base address of the allocation and S its size (<Δ,S> represents an area) • Monitor all STORE / LOAD and checkup if Δ TA ∈ • We denote β ∈ ℕ0 the iteration number and <Δβ ,Sβ > the area description over each loop iteration • When a loop applies a linear STORE, we apply these rules: – If β * Δ ∈ ℕ ∧ β = Δβ-1 β < S → OK ∧ – If β * Δ ∈ ℕ ∧ β ≠ Δβ-1 β >= S → Heap overflow ∧ Heap Overflow Analysis Execution Nb Instruction STORE instruction 1 5 6 Loop Compare and Branch instruction Memory <Δ, S> STORE outside an allocated area

45 • Stack Overflow Analysis

46 • Two possible analysis: – Overflow outside the stack
frame – Overflow between two variables of a same stack frame • We will focus on this analysis Stack Overflow Analysis int a, b, i; a = 0x90909090; b = 0x91919191; for (i = 0; i <= sizeof(b); i++) /* off-by-one */ *(((unsigned char *)(&b))+i) = 'E'; Same stack frame One byte wrote outside the b area How can I detect this off-by-one?

47 • We must: – Isolate all stack frames •
Routine may be given by Pin or monitor all call/ret • Then, the area is given by the prologue – Find how many variables are in the stack frame • We use the A-Locs (Abstract Locations) methods from the Value-Set-Analysis paper [0] – Assign an area <ID,Δ,S> for each variable where ID ∈ is the unique stack ℕ frame id, Δ the base address of the variable and S the size of the variable • Like heap overflow analysis, check if there is a change of area <ID,Δ,S> during a linear STORE Stack Overflow Analysis [0] Analyzing Memory Accesses in x86 Executables by Gogul Balakrishnan and Thomas Reps http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.129.1920&rep=rep1&type=pdf Each stack frame must have a unique ID

48 Stack Overflow Analysis 01. 4006d4: mov qword ptr [rbp-0x10],
0x0 (dest: 7fffdae70d10) (stack frame ID: 3) 02. 4006dc: mov qword ptr [rbp-0x18], 0x0 (dest: 7fffdae70d08) (stack frame ID: 3) 03. 4006e4: mov dword ptr [rbp-0x4], 0x0 (dest: 7fffdae70d1c) (stack frame ID: 3) 04. 40071f: mov dword ptr [rbp-0x4], 0x0 (dest: 7fffdae70d1c) (stack frame ID: 5) 05. 400742: mov dword ptr [rbp-0x4], 0x0 (dest: 7fffdae70d1c) (stack frame ID: 5) 06. 400640: mov dword ptr [rbp-0x4], 0x0 (dest: 7fffdae70cdc) (stack frame ID: 9) 07. 400669: mov dword ptr [rbp-0x8], 0x90909090 (dest: 7fffdae70cd8) (stack frame ID: 10) 08. 400670: mov dword ptr [rbp-0xc], 0x91919191 (dest: 7fffdae70cd4) (stack frame ID: 10) 09. 400677: mov dword ptr [rbp-0x4], 0x0 (dest: 7fffdae70cdc) (stack frame ID: 10) 10. 11. id stack frame: 3 Num var: 3 12. id stack frame: 5 Num var: 1 13. id stack frame: 9 Num var: 1 14. id stack frame: 10 Num var: 3 1 var • If there is two assignments on a same <ID,Δ> → Interpret this as one variable area (take a look at line .04 and .05) • However, if there is two assignments on <ID,Δ> and <ID,Δ+n> → Interpret this as two variables areas and we must refine the first area

49 Stack Overflow Analysis • As the heap overflow analysis,
we must monitor each loop which applies a linear STORE and check if there is a change of area • We denote β ∈ ℕ0 the iteration number and <IDβ ,Δβ ,Sβ > the area description over each loop iteration • If β * X ∈ ℕ ∧ β = Xβ-1 ∧ Δβ = Δβ-1 → OK • If β * X ∈ ℕ ∧ β ≠ Xβ-1 → Overflow outside the stack frame • If β * Δ ∈ ℕ ∧ β ≠ Δβ-1 → Overflow between two variables 0x400517 0x7fffffffdc12 0x7fffffffdc13 0x7fffffffdc14 0x7fffffffdc11 0x7fffffffdc10 <3, 0x7fffffffdc10, 4> <3, 0x7fffffffdc10, 4> <3, 0x7fffffffdc10, 4> <3, 0x7fffffffdc10, 4> <3, 0x7fffffffdc14, 4> Execution Nb Instruction STORE instruction 1 5 6 Loop Compare and Branch instruction Stack <x,Δ1 ,S> <x,Δ2 ,S>

50 Stack Overflow Analysis • The main weakness of this
approach is the false positives in a specific case • Lots of developers use the memset function to fill structures • Let assume A,B S such that A→<1,Δ,4>, B→<1,Δ+4,4> and S→<1,Δ,8> ∈ • When the memset function is applied, the analysis will detect a stack overflow from the area A to B f(){ struct s_foo S; memset(&S, 0, sizeof(struct s_foo)); … }

51 • Format String Analysis

52 • This analysis mainly relies on the Taint Engine
• We monitor all functions susceptible to use string formats – Based on the calling convention, when a CALL occurs we get the function's arguments – If the first argument points on a tainted area, it means that the user can control the format string • Implies a format string bug Format String Analysis RDI: string CALL RDI: string RSI: va_arg1 CALL RDI: string RSI: va_arg1 RDX: va_arg2 CALL printf(ptr) printf(ptr, arg1) printf(ptr, arg1, arg2) RDI is an address. Does this address contains tainted bytes?

53 • {Write, Read}-What-Where Analysis

54 • This analysis mainly relies on the Taint Engine
• We must monitor all STORE/LOAD instruction and check if the destination/source is tainted • LOAD: – If reg is tainted → read-where bug • STORE: – If reg is tainted → write-where bug – If both operands are tainted (reg, reg) → write-what-where bug {Write, Read}-What-Where Analysis Memory LOAD STORE mov r, [ ] Mov [ ], r/imm Tainted? reg reg Unsafe Safe Yes No

55 • Conclusion

56 • Covering a function or its state is not
enough • We must apply some behavior analysis during the execution to find bugs which do not make the program to crash • Building a generic algorithm to find all kind of bugs is hard – We must build specific analysis to find specific bugs • Lots of developments must be done before starting to work on the analysis part – Some analysis may reposes on the result of engines like the write-what-where or format string bugs which are based on the Taint Engine Conclusion

57 • The Triton project ! The Triton Project

58 • The Triton project ! The Triton Project •
Triton provides some engines to improve analysis given by the Pin framework • Developed in close collaboration with Florent Saudel • Basically the Triton's engines are: – A Taint engine • Mainly used to know what variables and part of memory are controllable by the user at each program point – A Symbolic state engine • Mainly used to build symbolic expression for each register/memory at each program point – A Snapshot engine • Mainly used to replay traces directly in memory without running again the program – It also provides an Intermediate Representation in SMT2-LIB • Mainly used to solve equations with a theorem prover – It provides an interface with Z3 to solve symbolic expression like the paths condition – Then, it also applies all analysis described in this talk • The Triton project will be detailed and released at SSTIC 2015

59 • Final Words

60 • Recap: – It possible to cover a function
in memory using snapshot and dynamic symbolic execution – It possible to find bugs without side effect (like SIGSEGV) • Some bugs do not crash the program – Really hard to make generic algorithms to find all kind of bugs • We must build specific analysis for each bugs category – Use symbolic execution for code coverage and dynamic behavior analysis to find vulnerabilities in paths • Increase your chance to find bugs – Triton project announcement Final Words

61 • Contact – Mail: [email protected] – Twitter: @JonathanSalwan •
Thanks – I would like to thank the st'hack's staff and especially Florian Gaultier for the invitation and his hard work. Thanks also to Jean-Christophe Delaunay, Serge Guelton and Eloi Vanderbeken for the proofreading Thanks For Your Attention Question(s)?

62 • How did you detect the loops? • The
main problem was for the stack and the heap overflow analysis • Detect loops at runtime is a kind of challenge – Lots of papers apply a first pass of static analysis to build CFG and locates the loops • Actually, what we did is a kind of “hack” and we did not found the good way yet... • At runtime, we maintains a map of <Δ:n> where Δ is the address of the current instruction and n * ∈ ℕ the number of hits • Generally a loop ends by a branch instruction and contains more than 1 hits (n) • We apply some heuristics based on these “tricks” • One of the problem with this, is that we can't detect a loop of 1 iteration. However, should we consider this as a loop? • Even if we don't apply runtime analysis, all results of the trace can be stored in a database and further processed Q&A - Problems Encountered Addr Nb Inst 4004e4 1 push rbp 4004e5 1 mov rbp, rsp 4004e8 1 mov dword ptr [rbp-0x14], edi 4004eb 1 mov qword ptr [rbp-0x20], rsi 4004ef 1 mov dword ptr [rbp-0x10], 0x11111111 4004f6 1 mov dword ptr [rbp-0x8], 0x22222222 4004fd 1 mov dword ptr [rbp-0xc], 0x33333333 400504 1 mov dword ptr [rbp-0x4], 0x0 40050b 1 jmp 0x40051e 40050d 5 mov eax, dword ptr [rbp-0x4] 400510 5 lea rdx, ptr [rbp-0x10] 400514 5 add rax, rdx 400517 5 mov byte ptr [rax], 0x2e 40051a 5 add dword ptr [rbp-0x4], 0x1 40051e 6 cmp dword ptr [rbp-0x4], 0x4 400522 6 jbe 0x40050d 400524 1 mov eax, 0x0 400529 1 pop rbp 40052a 1 ret Probably a loop

63 • Does your analysis imply overheads? • Yes, of
course as a lots of tools • By default DBI increases the time of the execution. Add others analysis and you got an overhead of 500% to 1000% • For example, Triton processes 5,120,000 of expressions (with dataflow, SMT translation, symbolic state,...) around 140 seconds with 12Go of consumed RAM – Tested on a Lenovo x230 - i7-3520M CPU @ 2.90GHz • Still unworkable on a whole binary as Firefox, chromium, etc... – That is why we target specific functions Q&A - Benchmarks

64 • Do you have some future ideas? • Yes:
– First of all: still working on the Triton design – Optimize the symbolic execution processing using a semantics' dictionary (poke Florent) – Optimize the memory usage caused by the execution using a custom remote allocation implemented as a kernel module – Use abstract interpretation in specific cases (poke Eloi) – Build a real runtime models checking – Search how can we parallelize the execution (fork at each branch?) – Manage the memory snapshotting using memory versioning – IDA plugin – And still lots of secret ideas :) Q&A – Future Work?
