Fundamentals of Memory Management in Go: Learning Through the History

Oct 24, 2025: Slides for the presentation at Go West Conference in Lehi, UT.

Takuto Nagami

October 24, 2025

Transcript

196 slides
  1. What is memory management? • Memory management = broad concept

    • In context of programming language: ◦ How data (variables) are managed in memory
  2. Why memory management matters? • For better performance • Who

    takes care of Go itself? • Memory management is fun to learn!

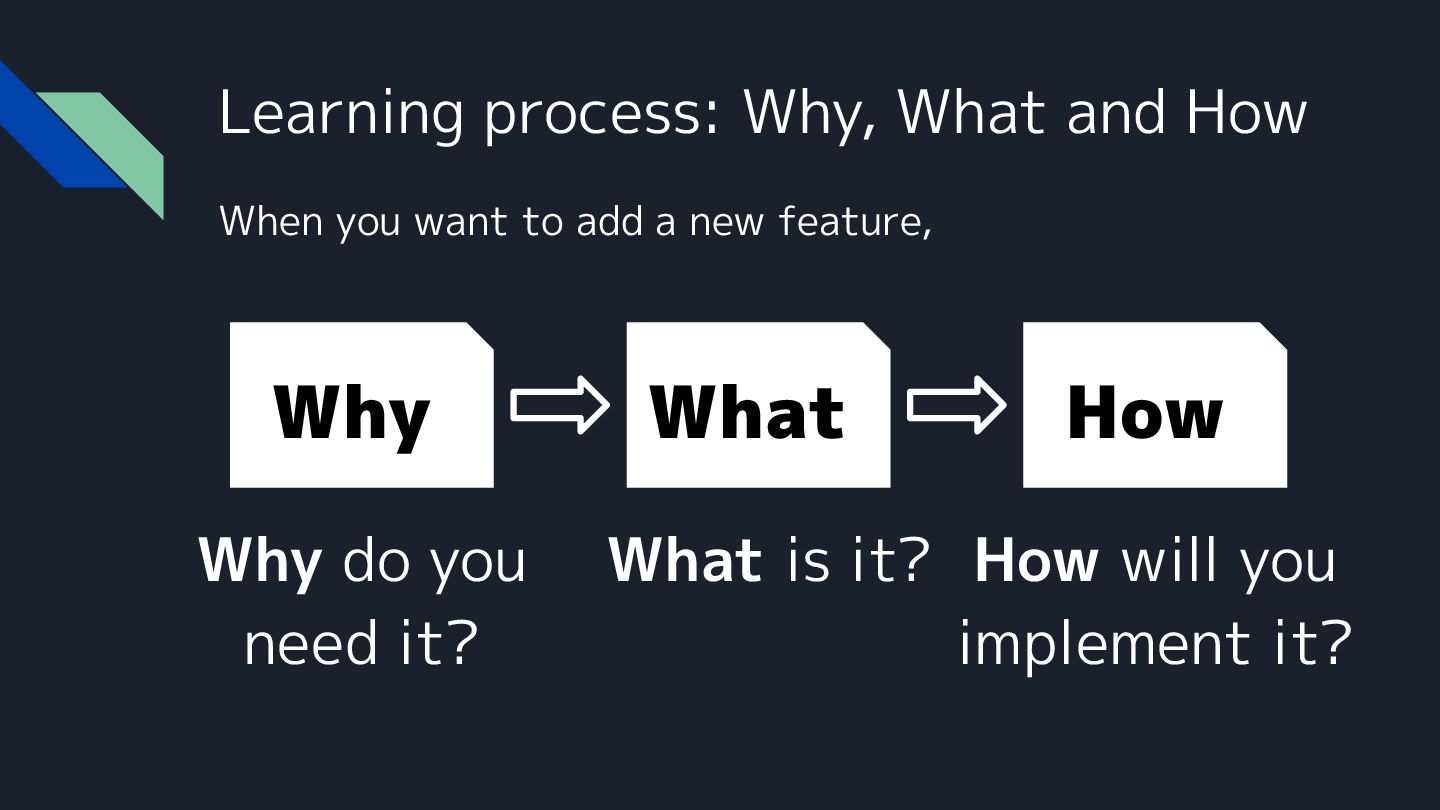

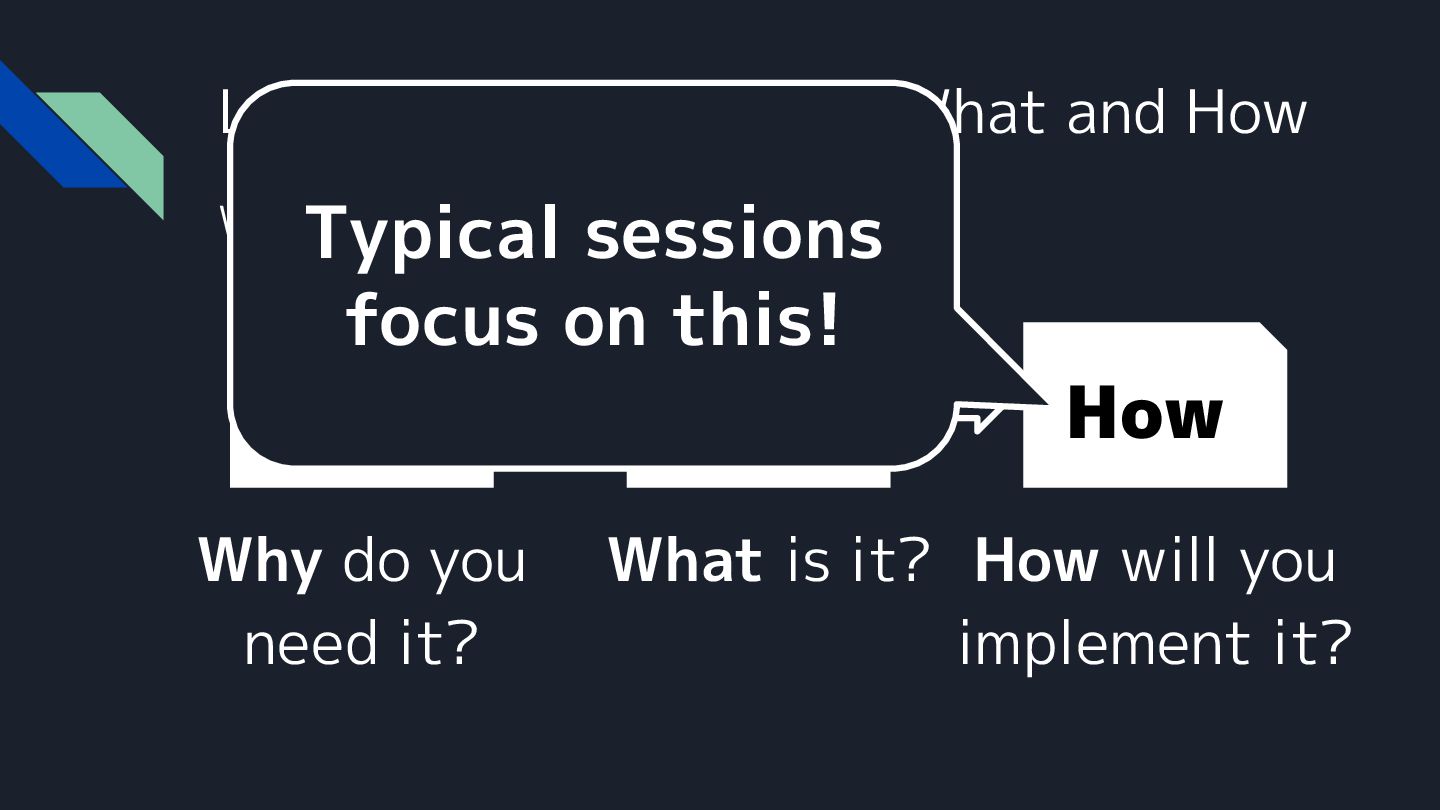

  3. Learning process: Why, What and How When you want to

    add a new feature, Why Why do you need it?

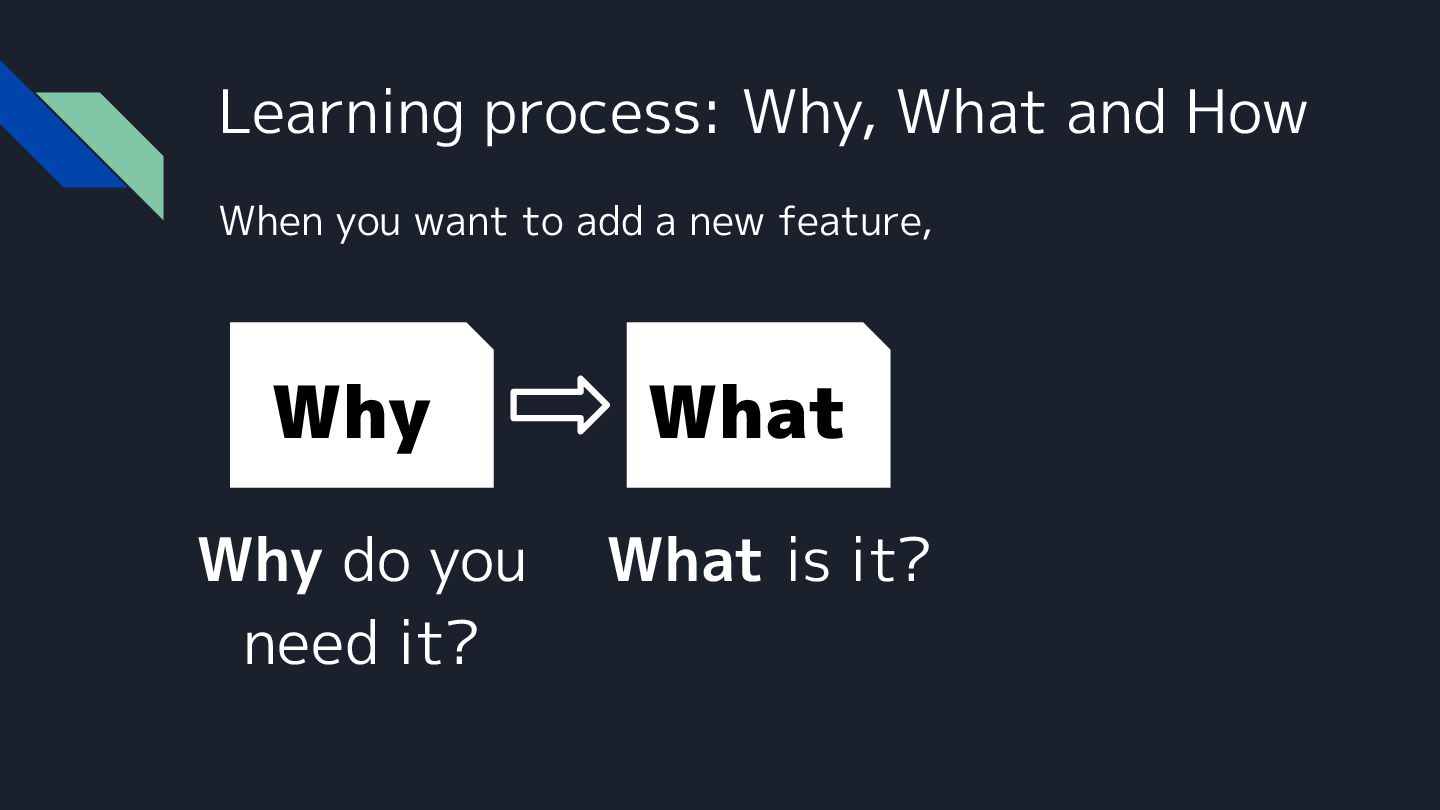

  4. Learning process: Why, What and How Why Why do you

    need it? What What is it? When you want to add a new feature,

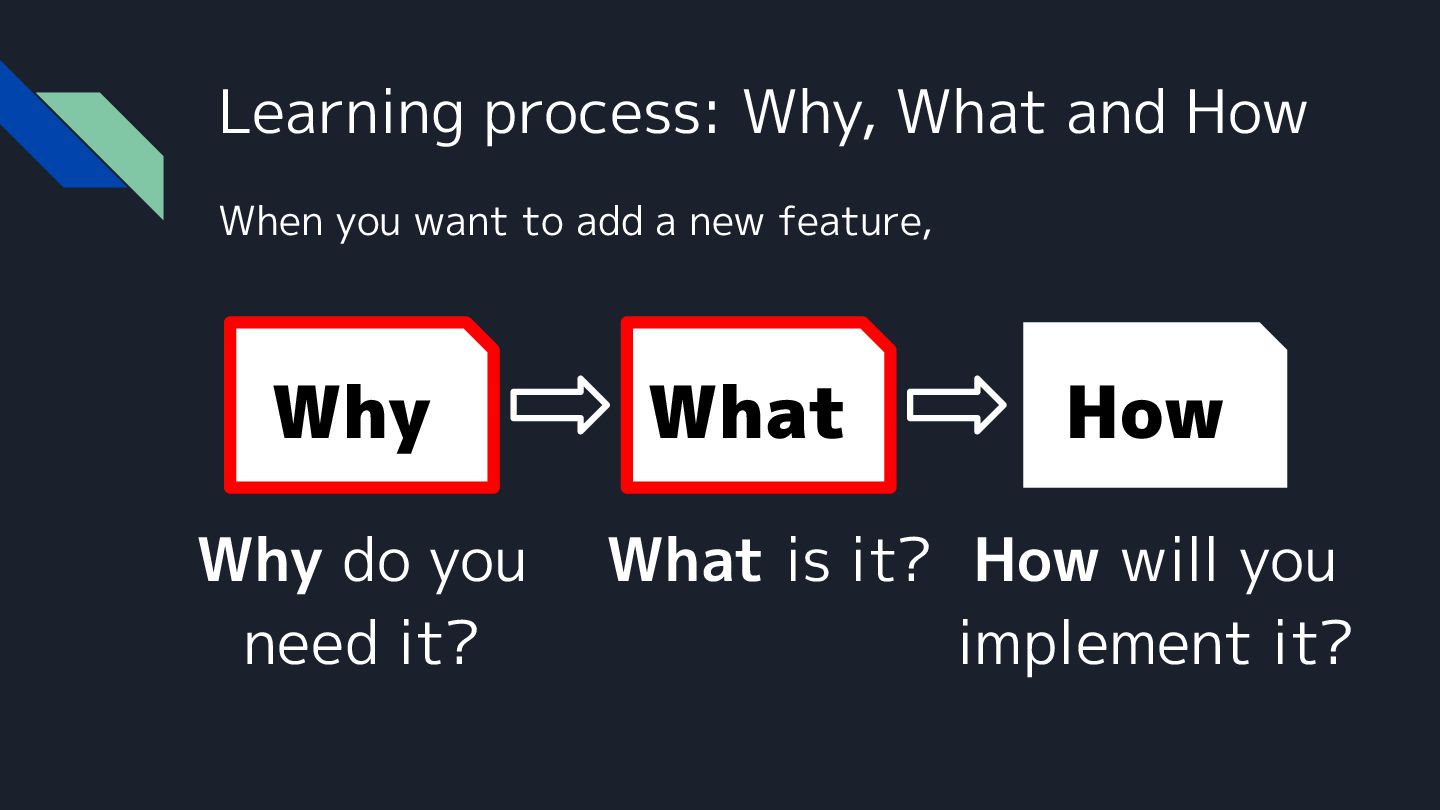

  5. Learning process: Why, What and How Why Why do you

    need it? What What is it? How How will you implement it? When you want to add a new feature,
  6. When you want to add a new feature, Learning process:

    Why, What and How Why Why do you need it? What What is it? How How will you implement it? Typical sessions focus on this!
  7. Learning process: Why, What and How Why Why do you

    need it? What What is it? How How will you implement it? When you want to add a new feature,

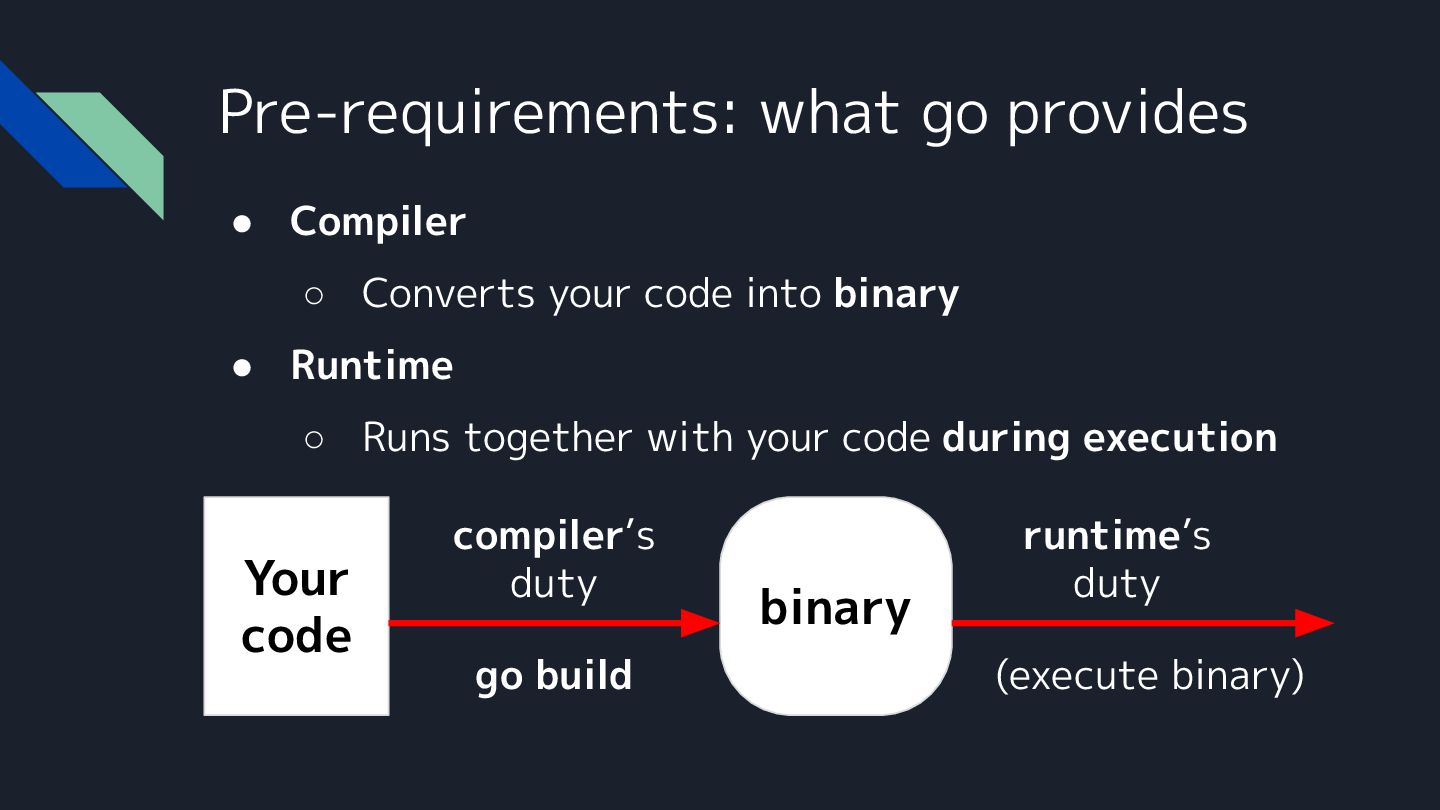

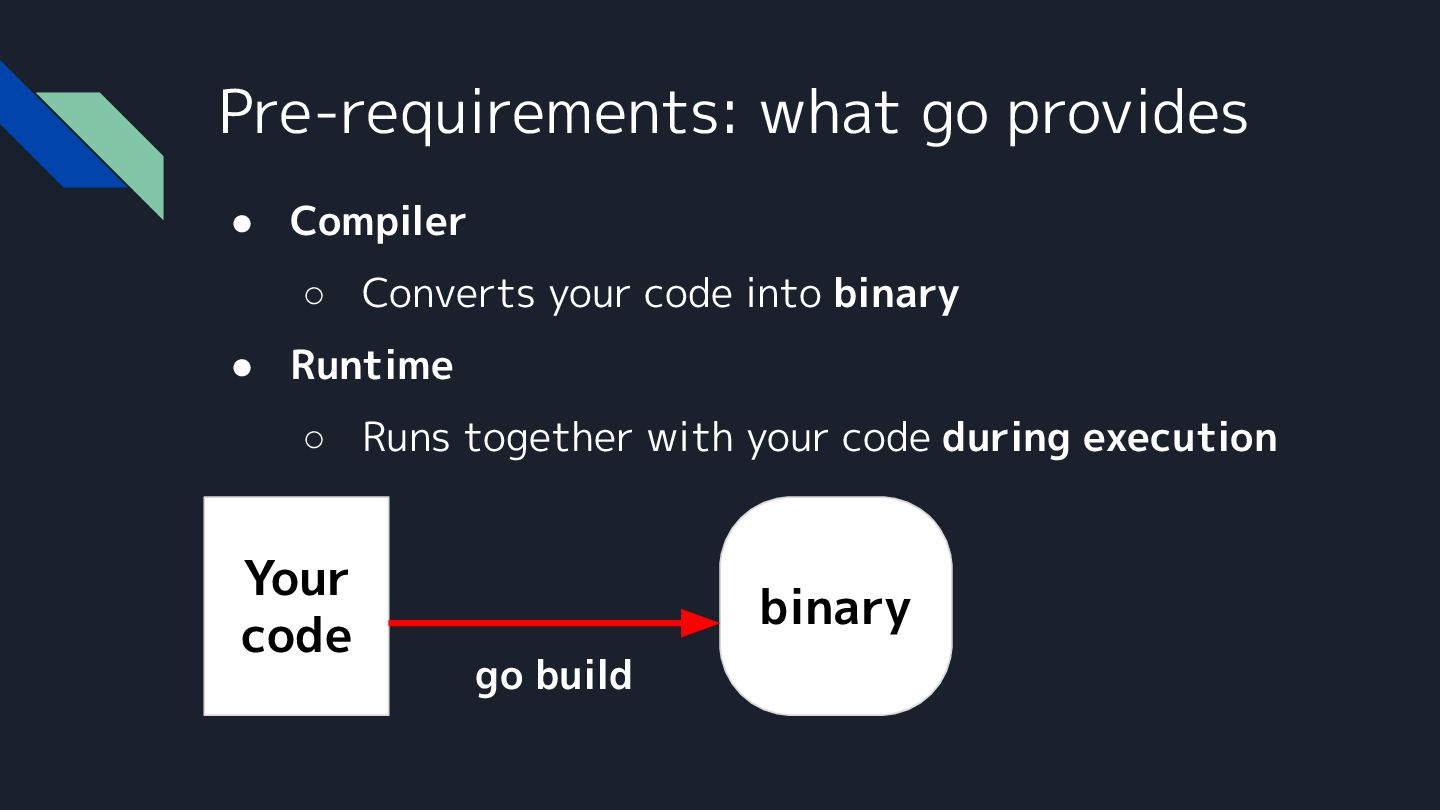

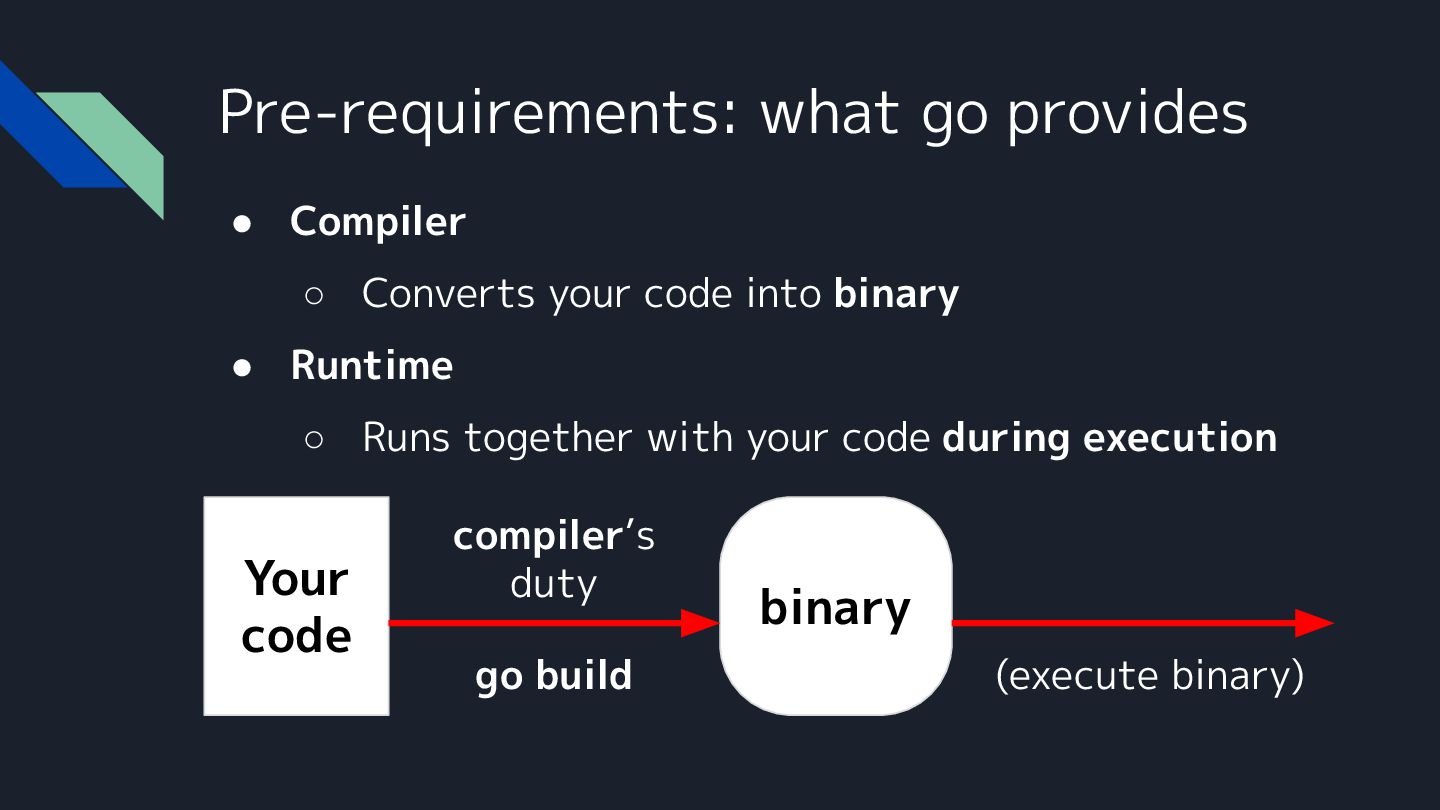

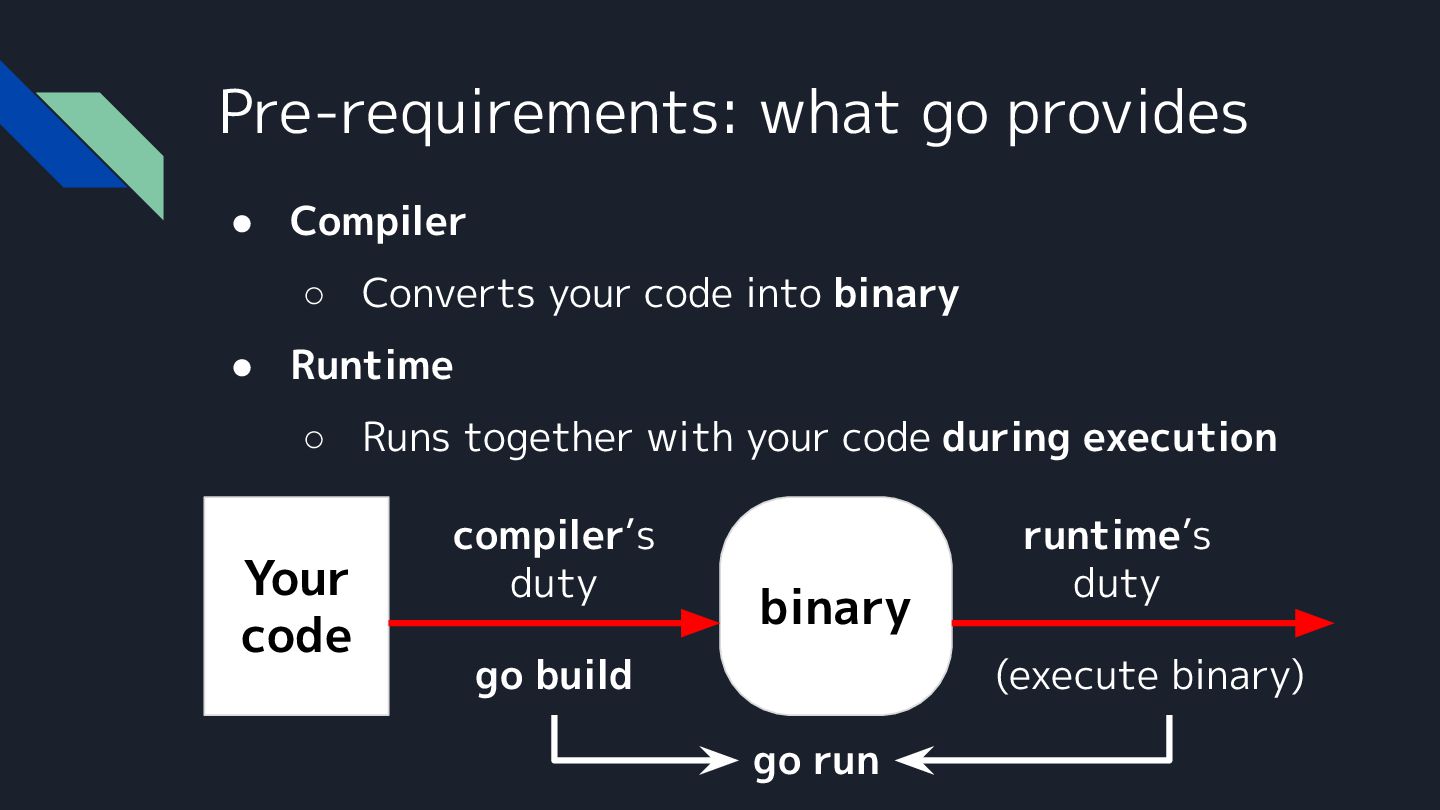

  8. Pre-requirements: what go provides • Compiler ◦ Converts your code

    into binary • Runtime ◦ Runs together with your code during execution

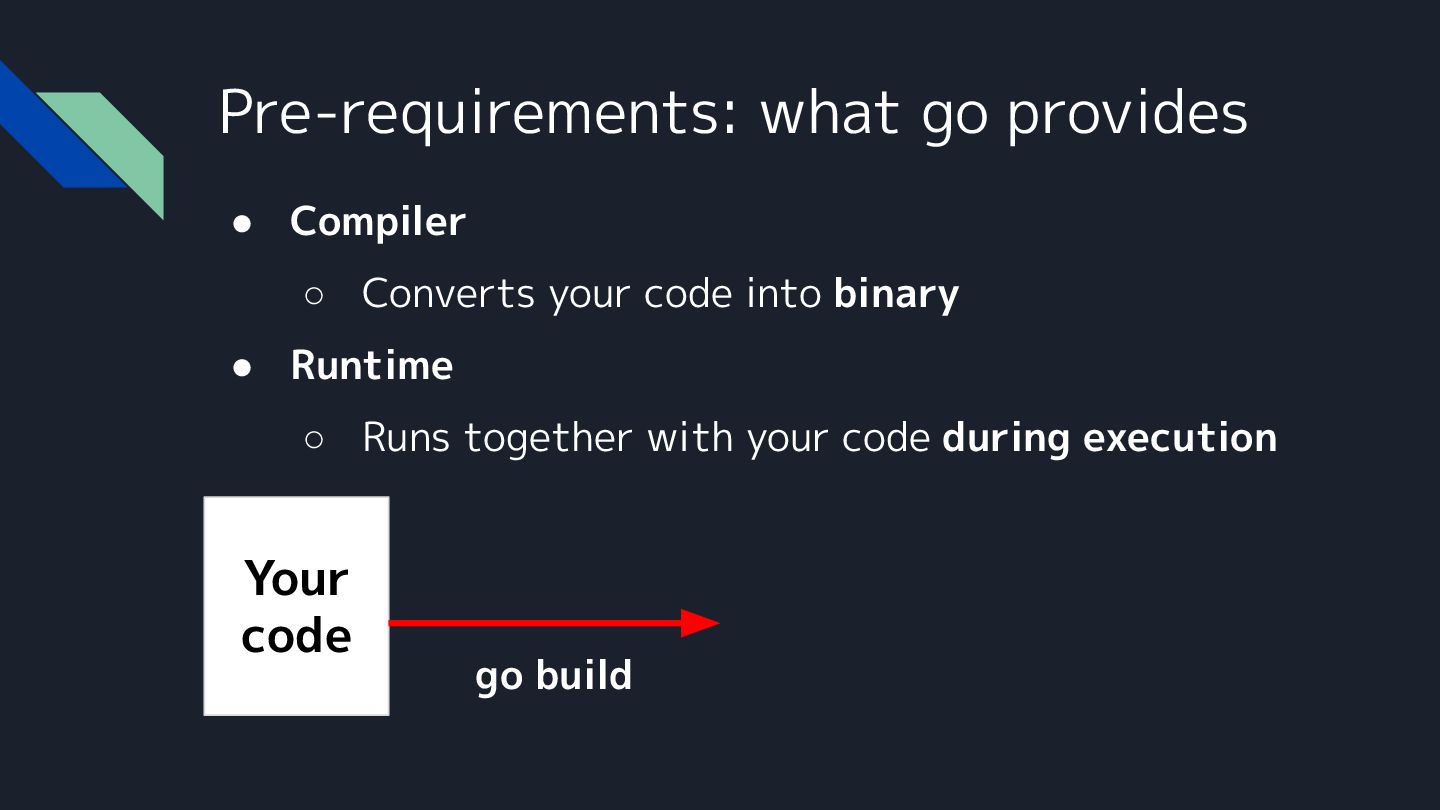

  9. Pre-requirements: what go provides Your code go build • Compiler

    ◦ Converts your code into binary • Runtime ◦ Runs together with your code during execution

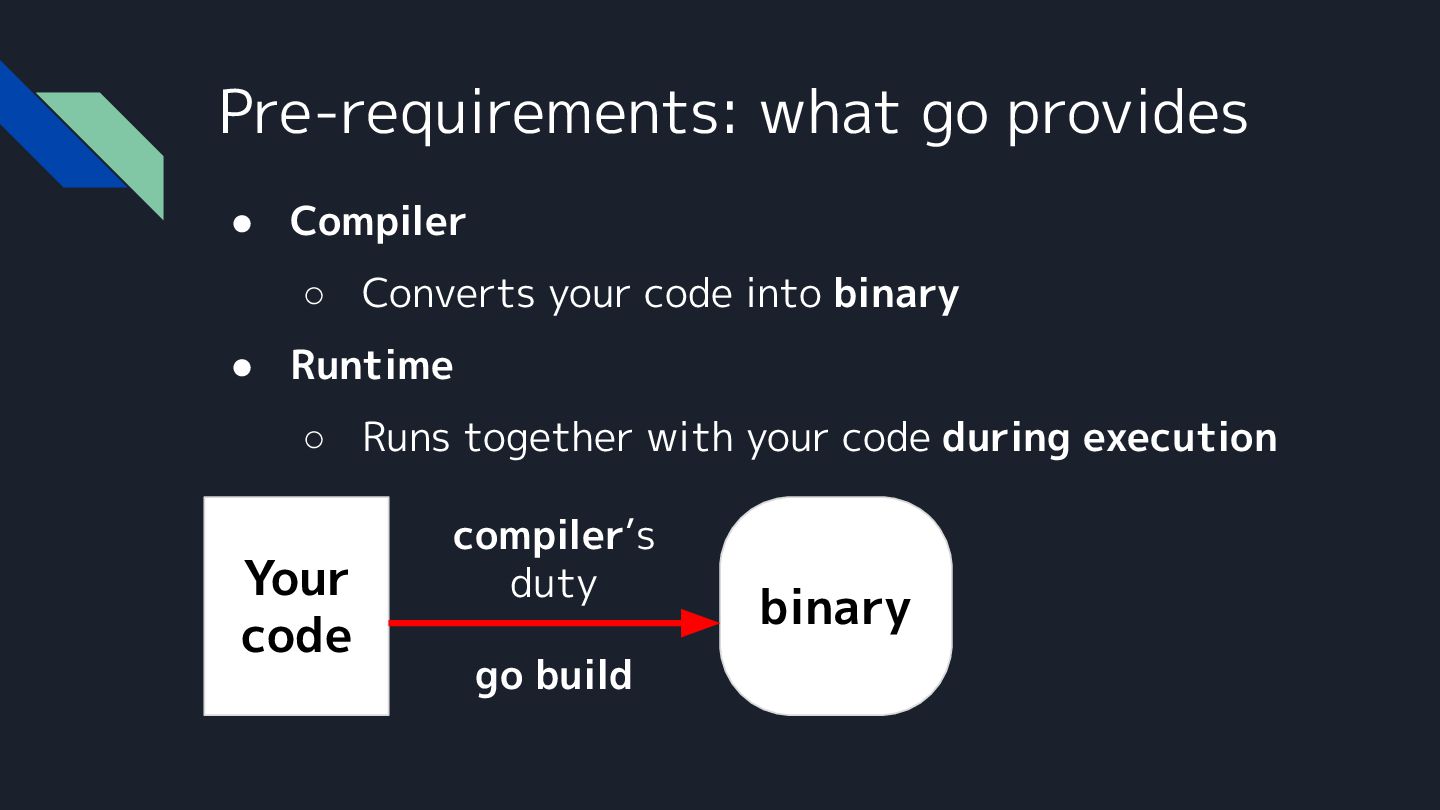

  10. Pre-requirements: what go provides Your code binary go build •

    Compiler ◦ Converts your code into binary • Runtime ◦ Runs together with your code during execution
  11. Pre-requirements: what go provides Your code binary go build compiler’s

    duty • Compiler ◦ Converts your code into binary • Runtime ◦ Runs together with your code during execution
  12. Pre-requirements: what go provides Your code binary go build compiler’s

    duty (execute binary) • Compiler ◦ Converts your code into binary • Runtime ◦ Runs together with your code during execution
  13. Pre-requirements: what go provides Your code binary go build compiler’s

    duty (execute binary) runtime’s duty • Compiler ◦ Converts your code into binary • Runtime ◦ Runs together with your code during execution
  14. Pre-requirements: what go provides Your code binary go build compiler’s

    duty (execute binary) runtime’s duty go run • Compiler ◦ Converts your code into binary • Runtime ◦ Runs together with your code during execution

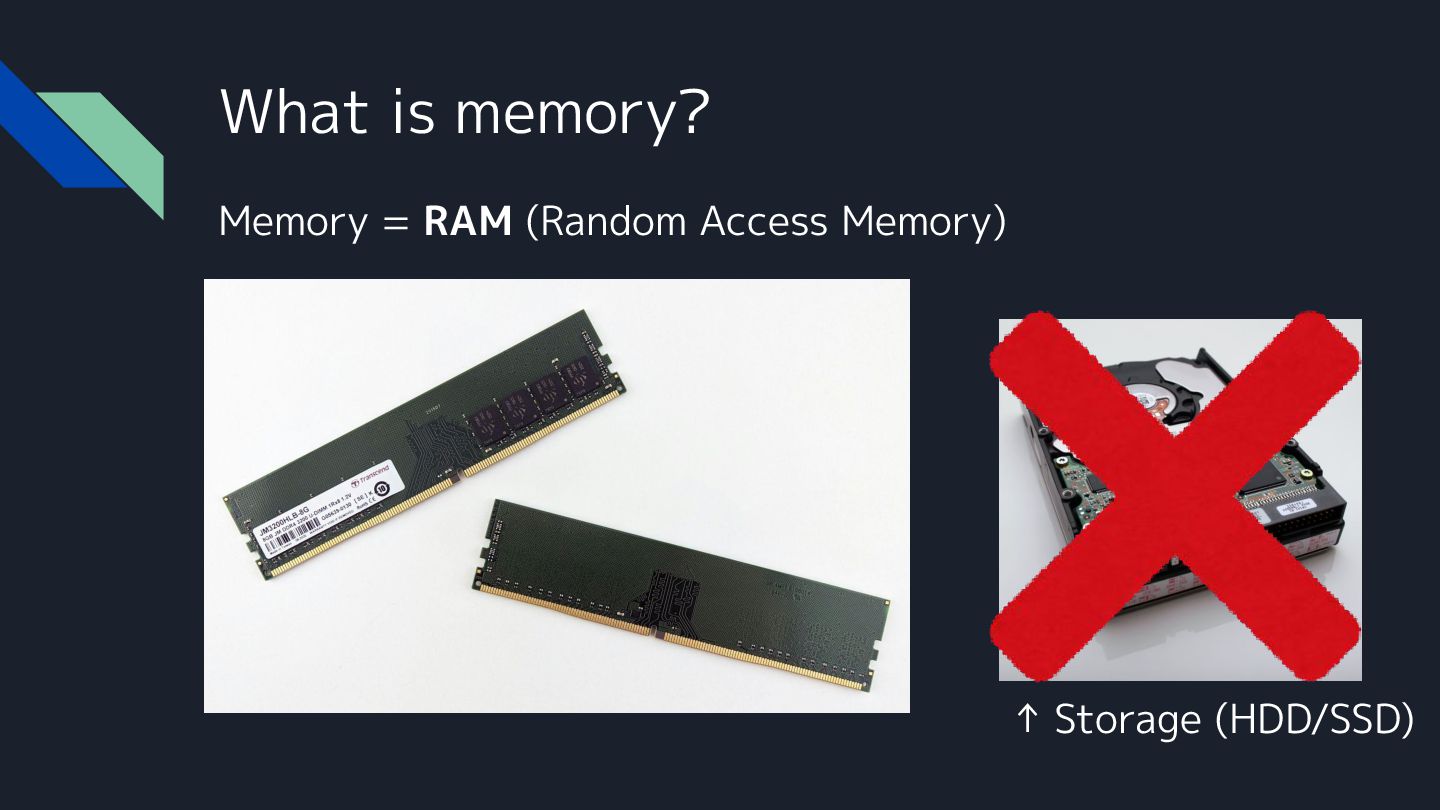

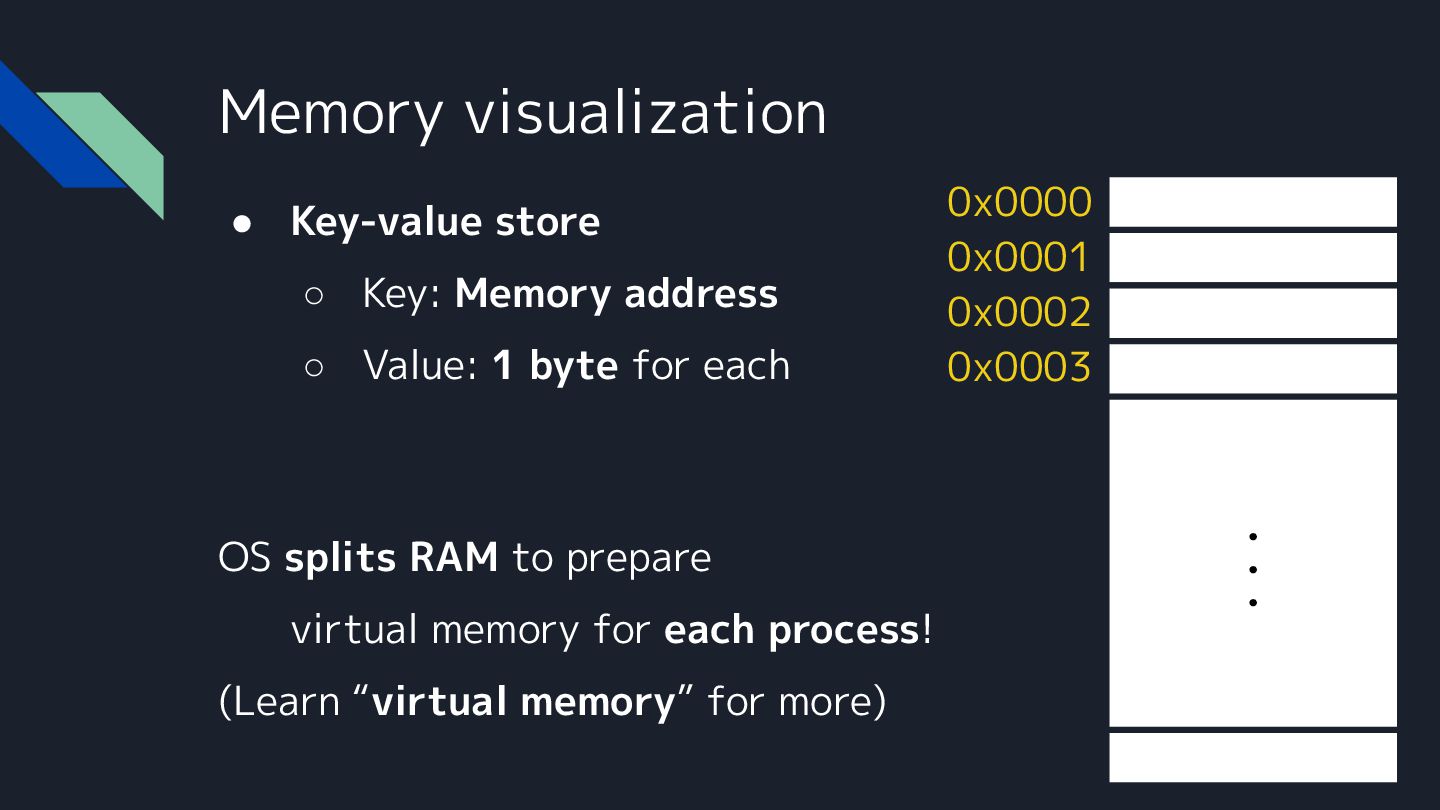

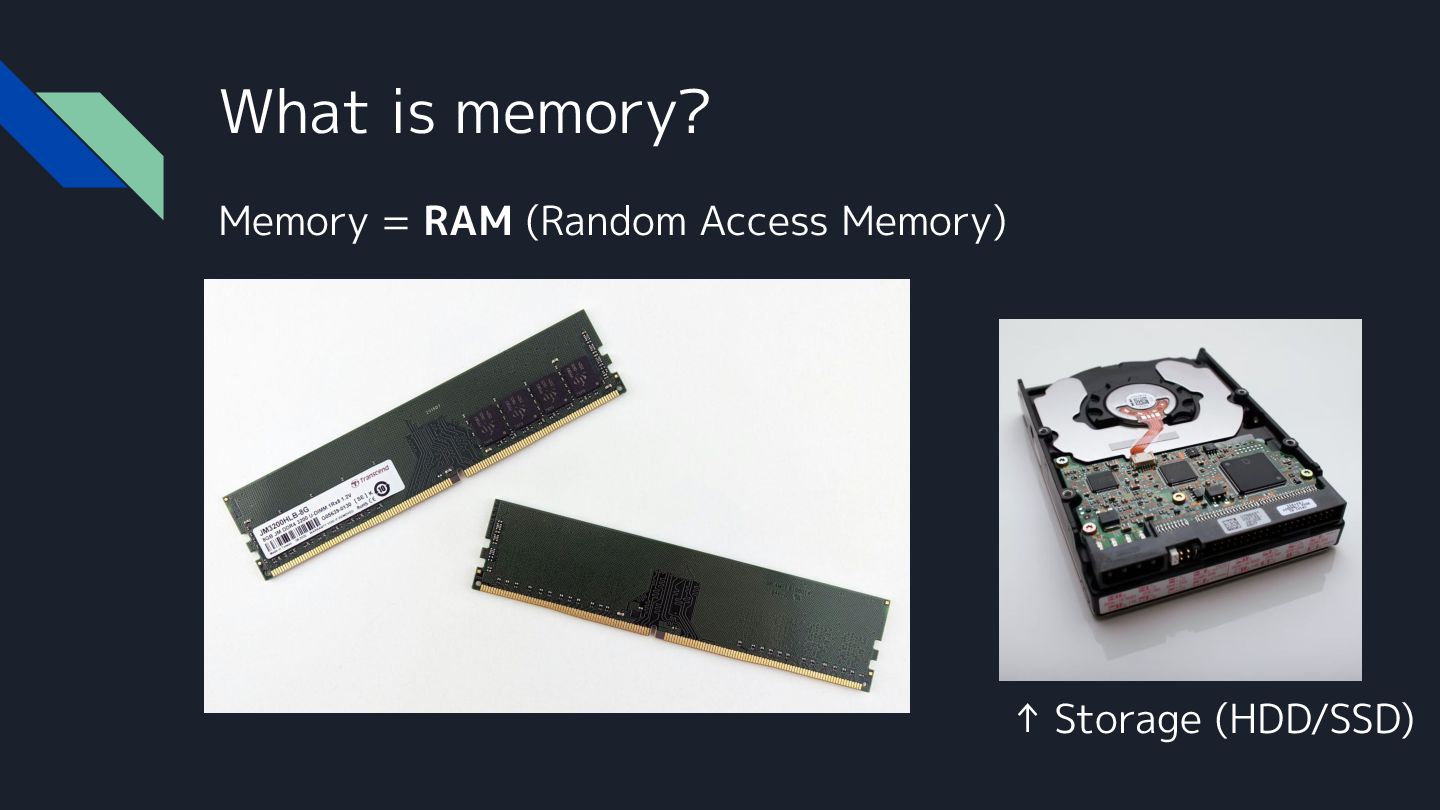

  15. Memory visualization . . . • Key-value store ◦ Key:

    Memory address ◦ Value: 1 byte for each OS splits RAM to prepare virtual memory for each process! (Learn “virtual memory” for more) 0x0000 0x0001 0x0002 0x0003
  16. Read/Write with assembly . . . . . . 0x0000

    0x0001 0x0002 0x0003 {address}

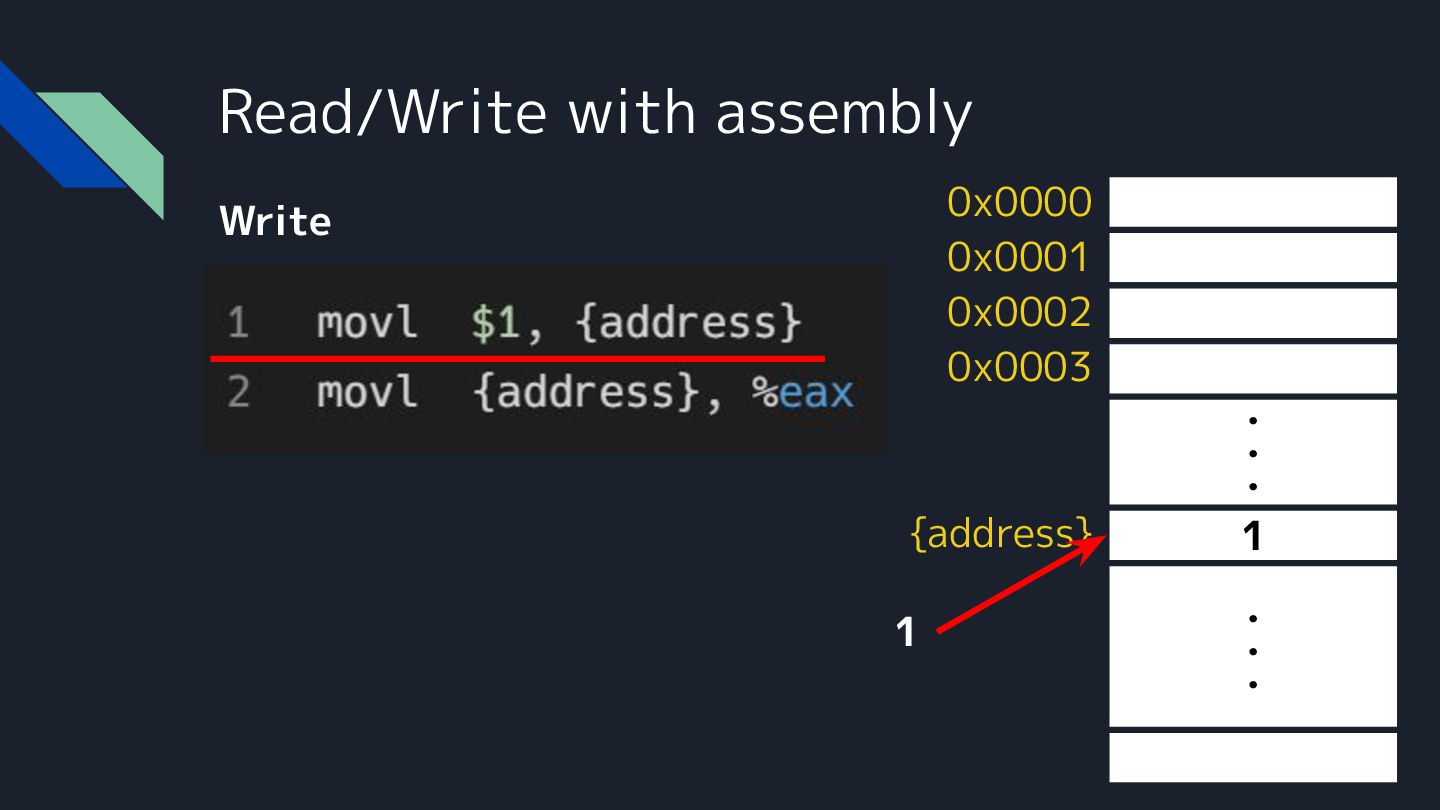

  17. Read/Write with assembly . . . . . . Write

    0x0000 0x0001 0x0002 0x0003 {address} 1 1

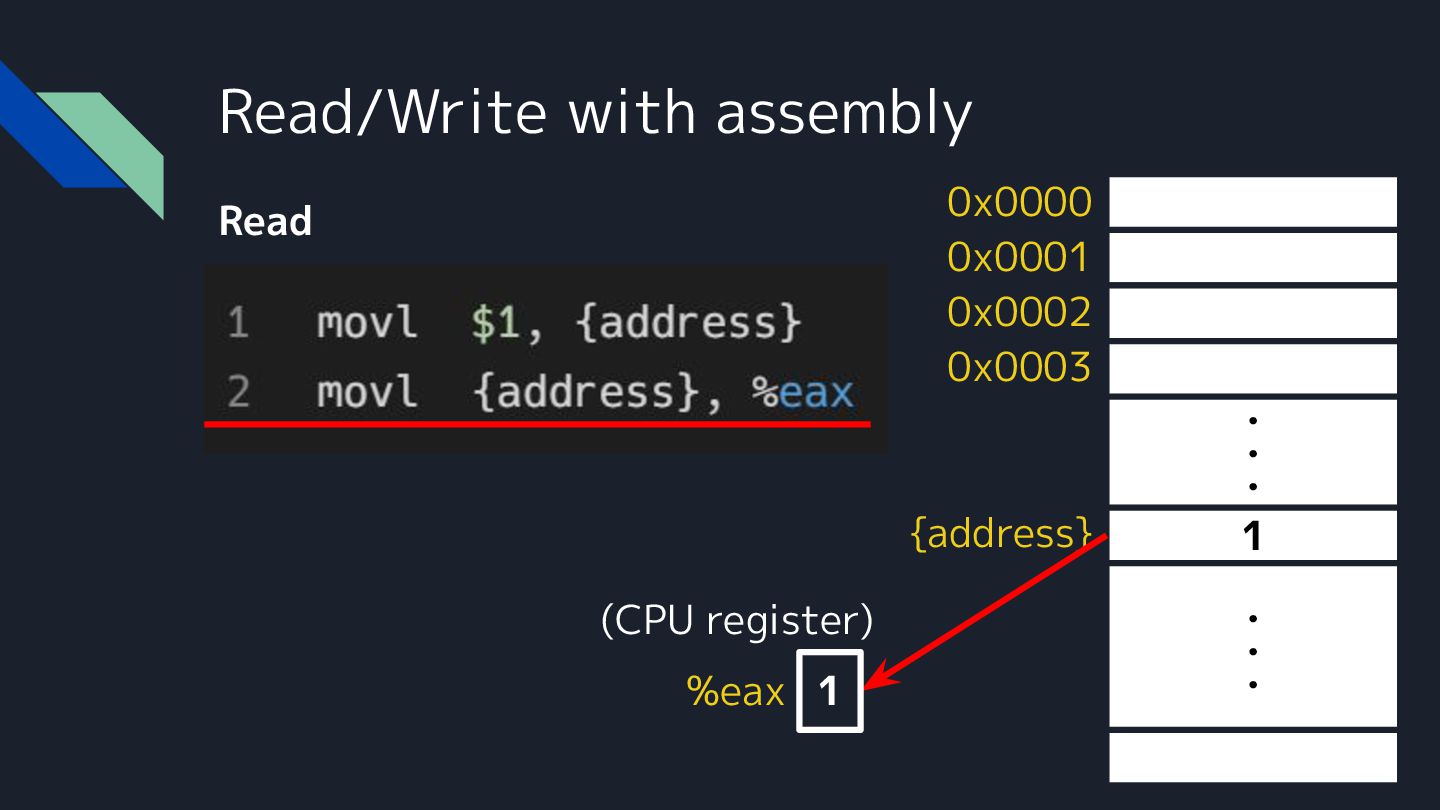

  18. Read/Write with assembly . . . . . . Read

    0x0000 0x0001 0x0002 0x0003 {address} 1 1 %eax (CPU register)
  19. High-level languages arose • 1957: Fortran was released ◦ “First”

    high-level programming language • COBOL, BASIC, PASCAL, C... and eventually Go

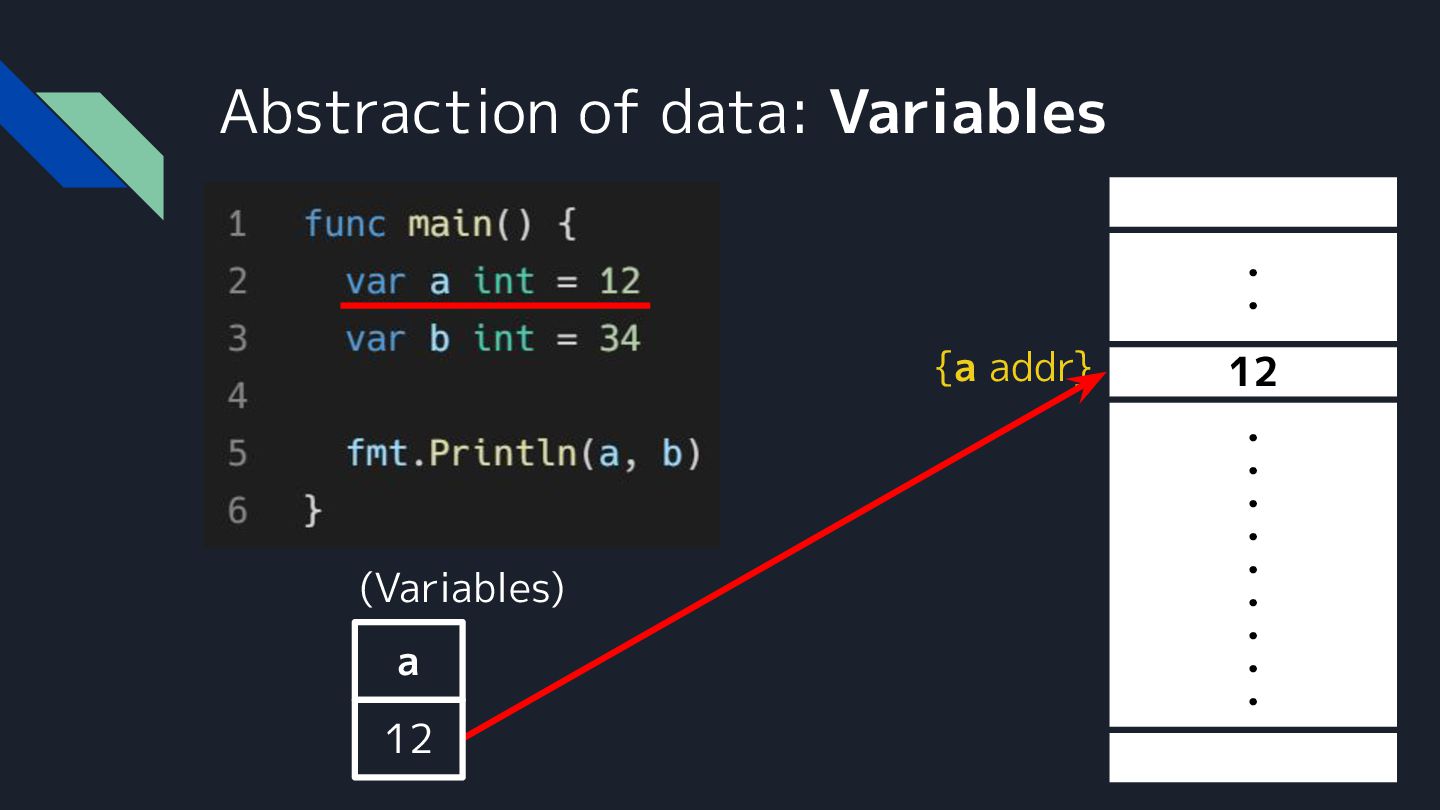

  20. Abstraction of data: Variables . . . . . .

    . . . . . {a addr} 12 a (Variables) 12

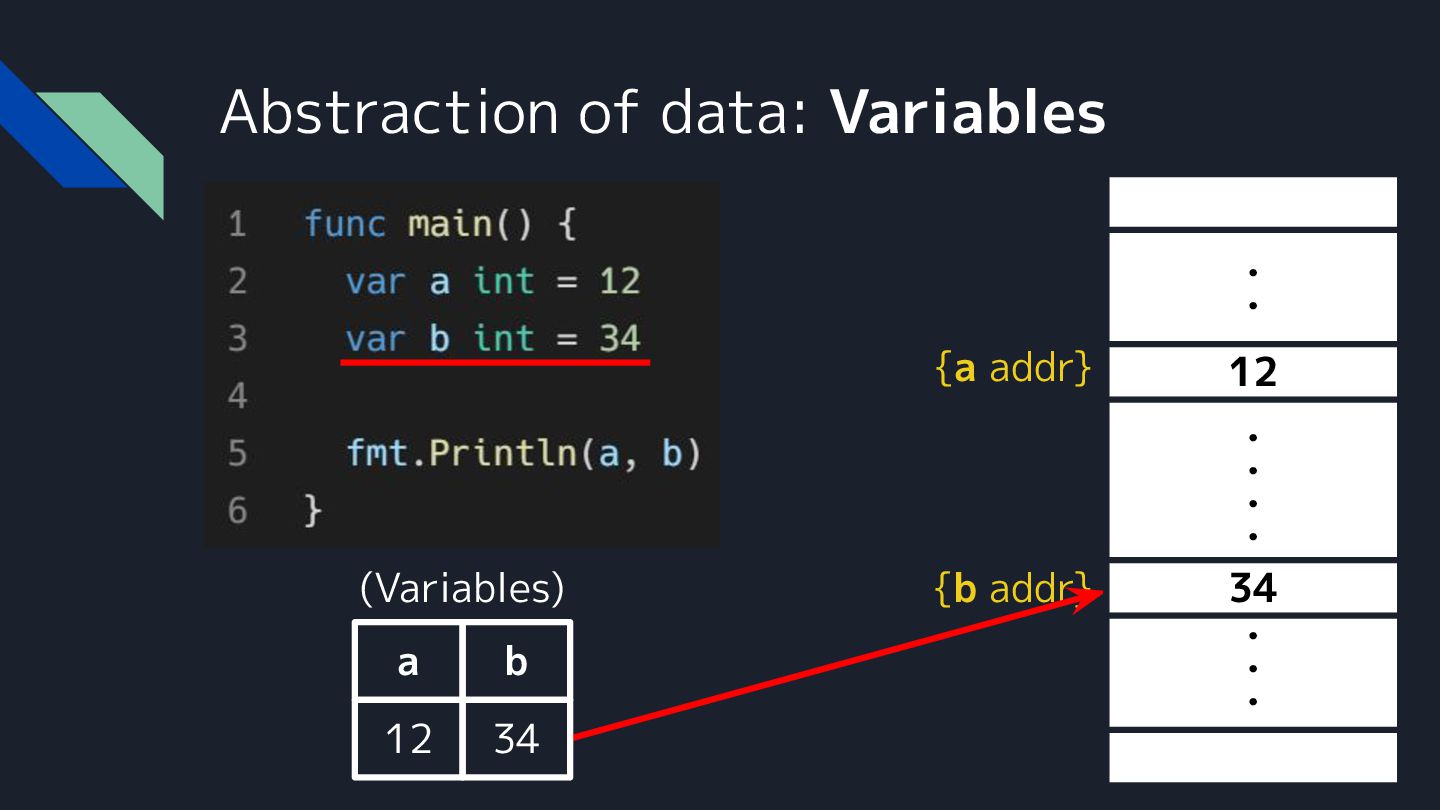

  21. Abstraction of data: Variables a (Variables) 12 b 34 {a

    addr} {b addr} . . . . . . . . . 12 34 Programmers recognize only these!
  22. We want some rules to place them! {a addr} ?

    {b addr} ? . . . . . . . . . 12 34

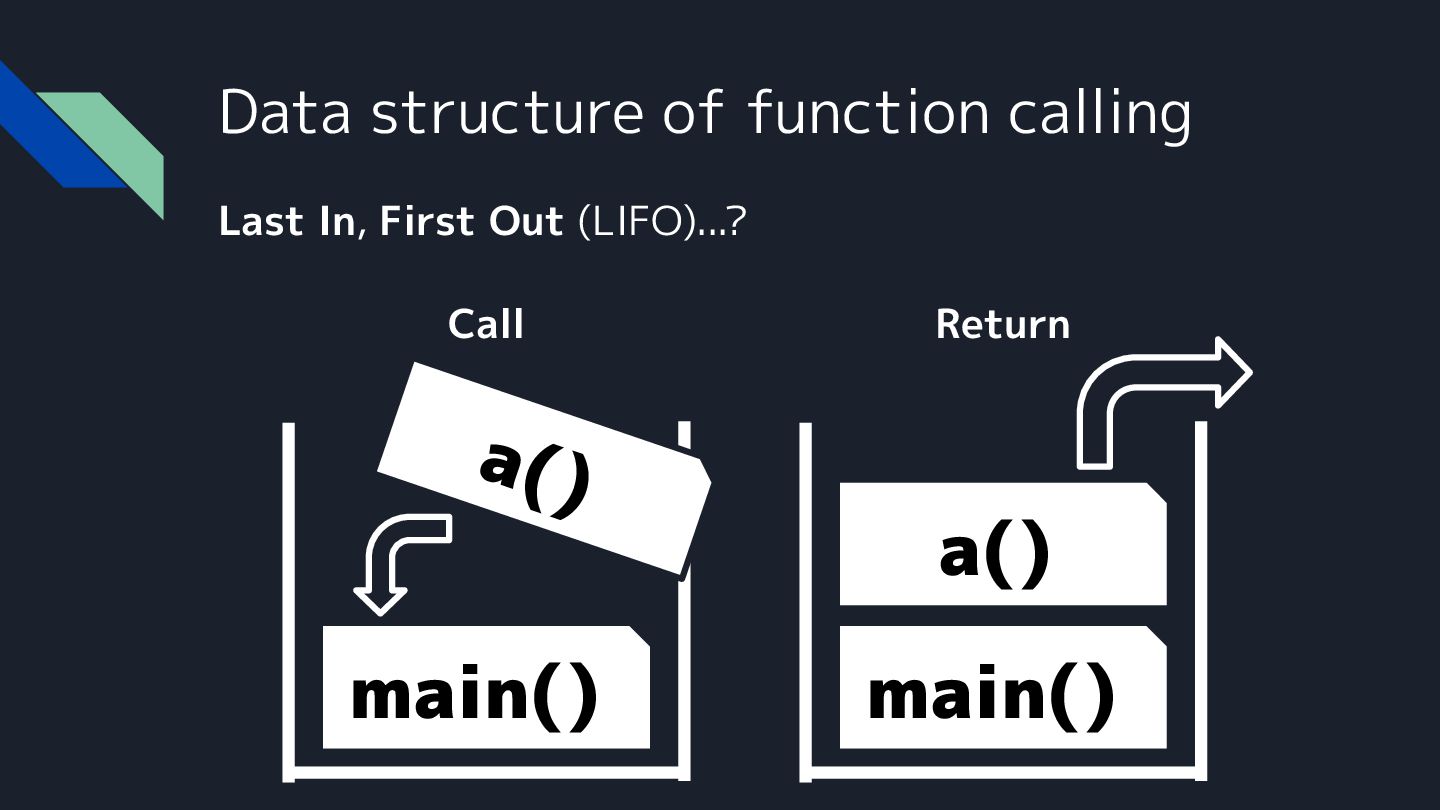

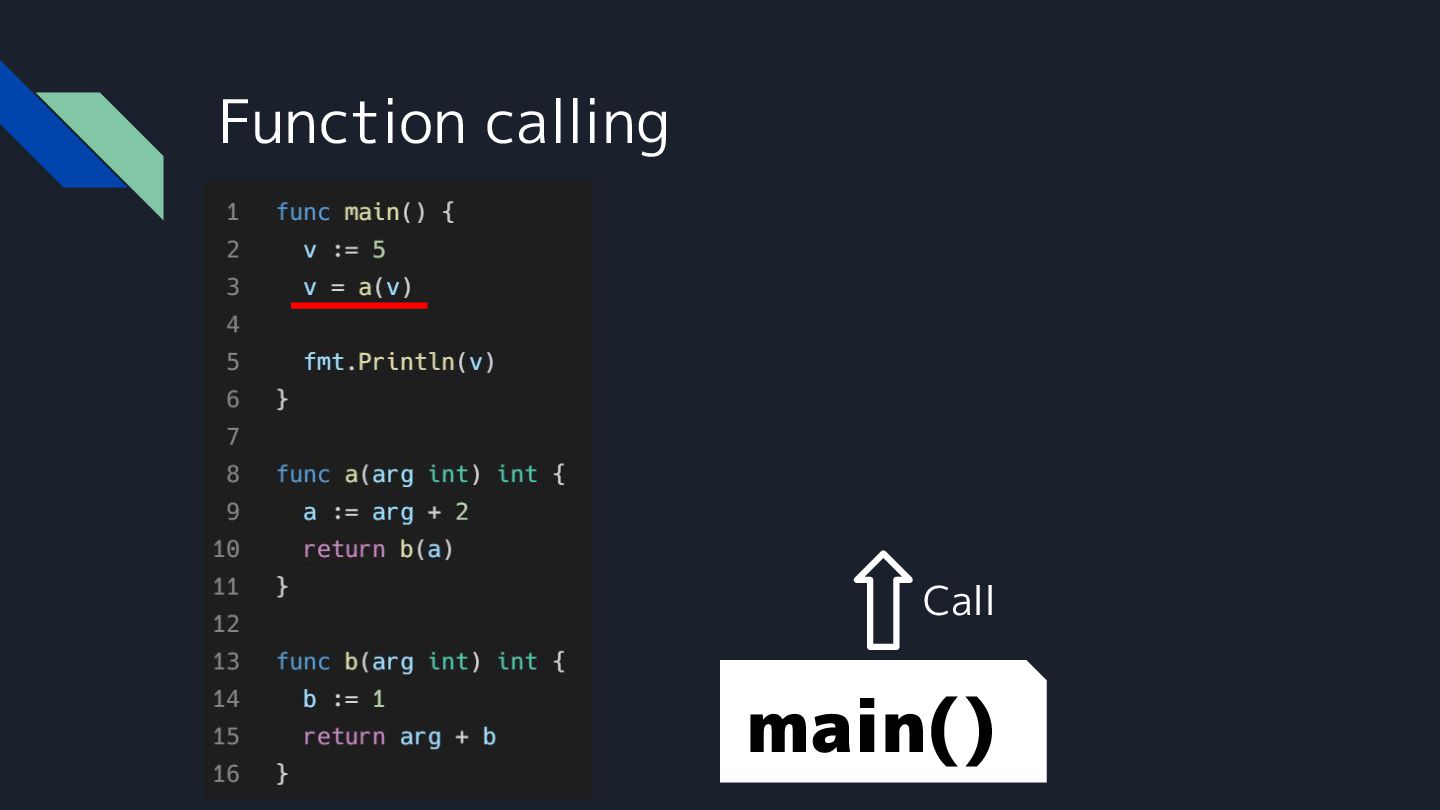

  23. Data structure of function call First In, First Out (FIFO)...?

    main() a() Call main() a() Return Yes! That’s STACK !!

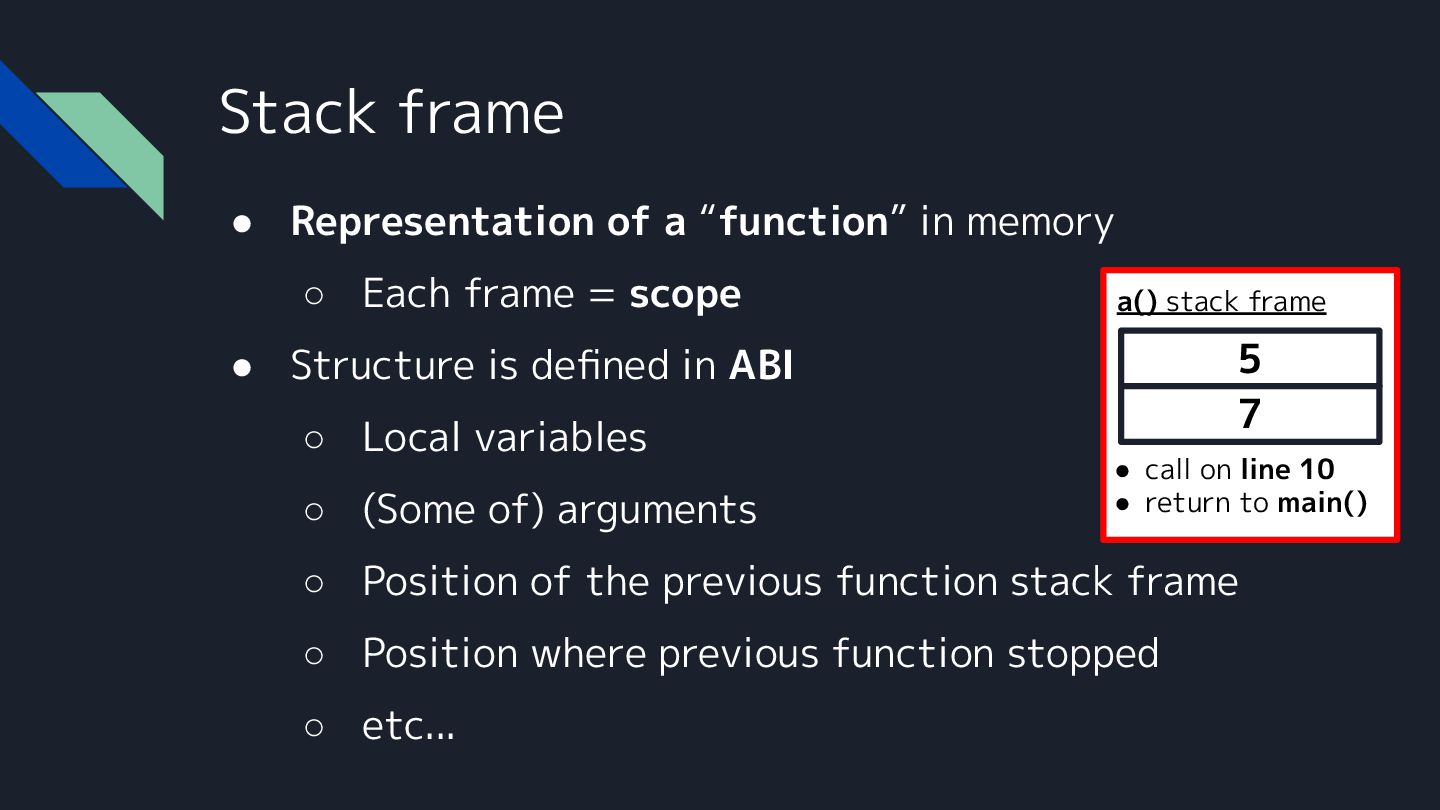

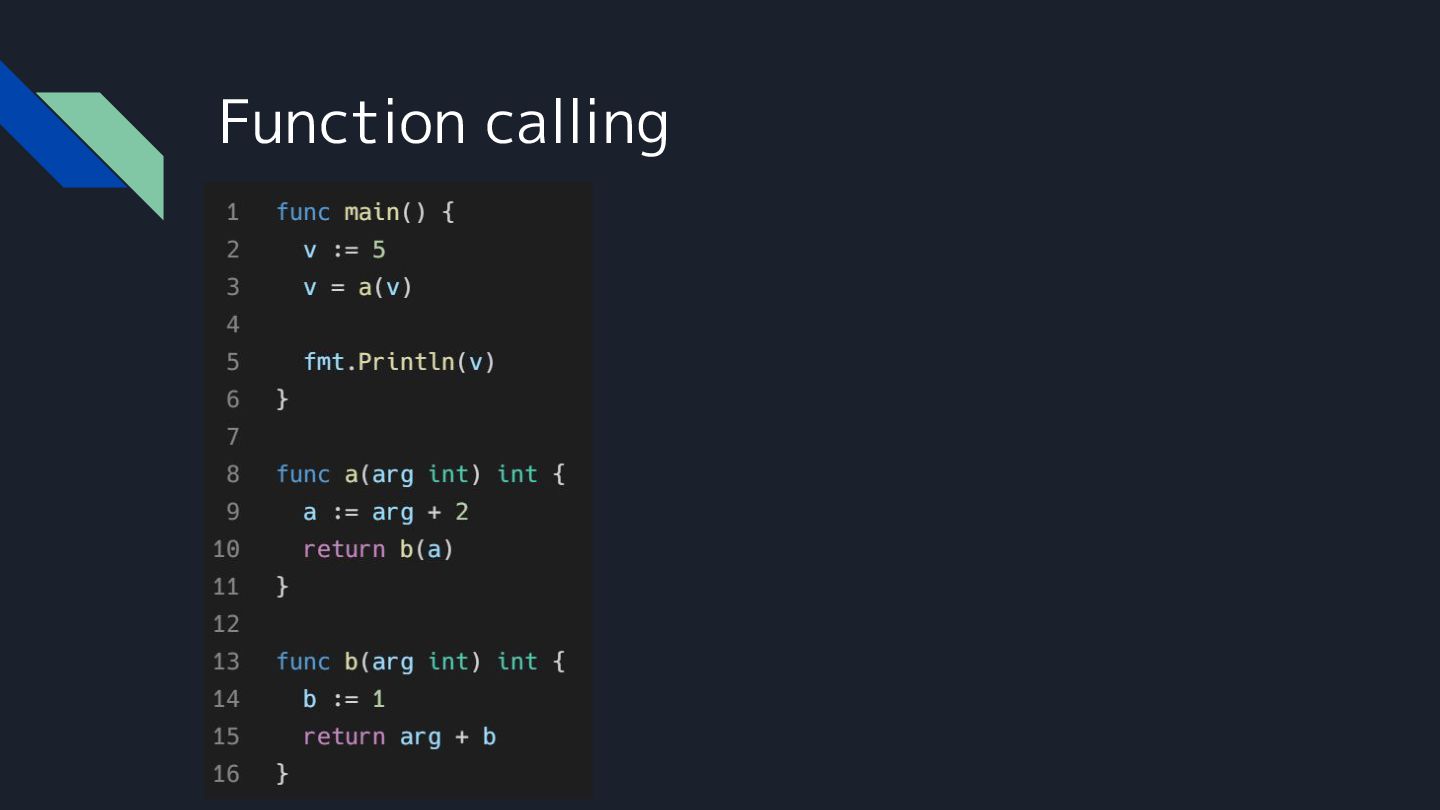

  24. Stack frame • Representation of a “function” in memory ◦

    Each frame = scope • Structure is defined in ABI ◦ Local variables ◦ (Some of) arguments ◦ Position of the previous function stack frame ◦ Position where function call happens etc... a() stack frame • call on line 10 • return to main() 5 7

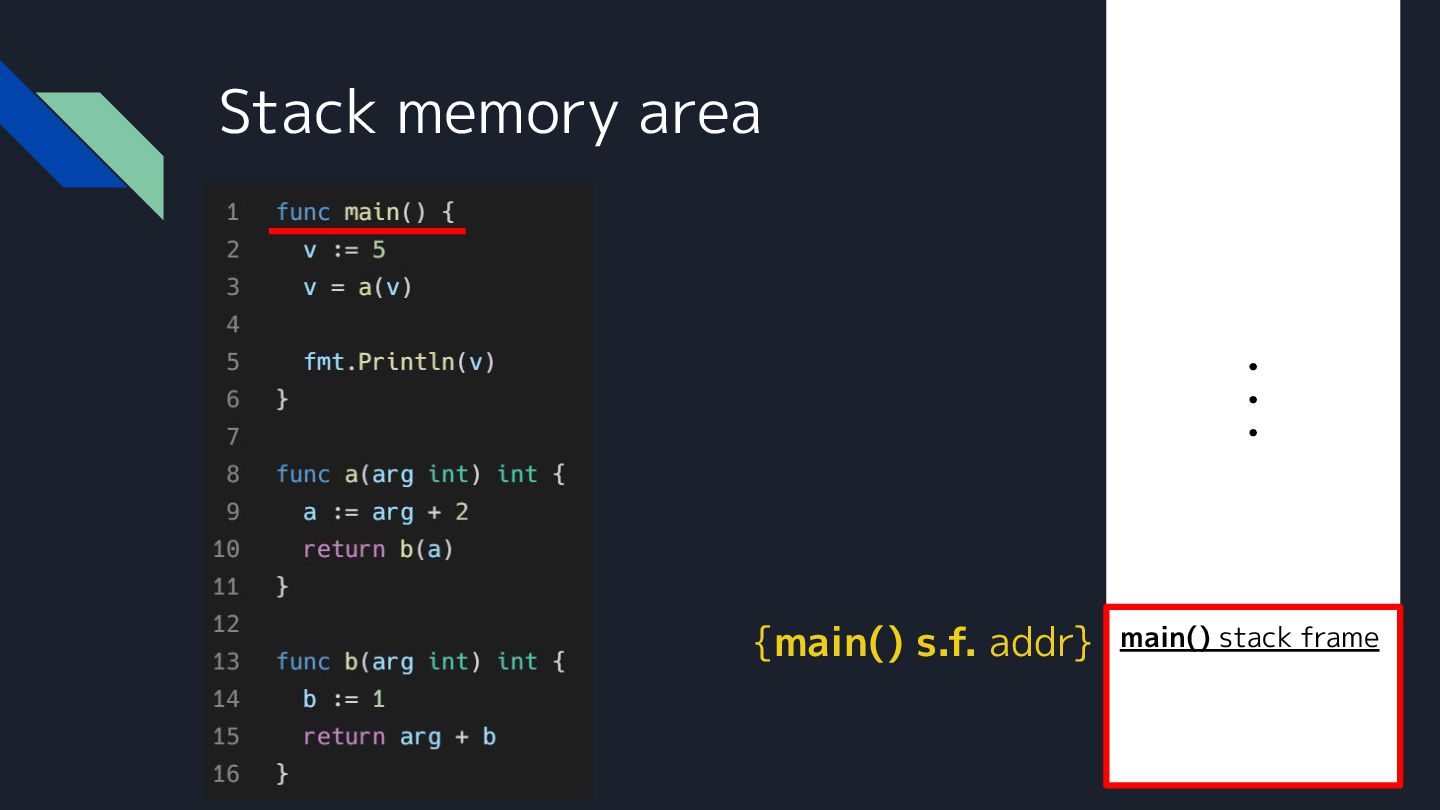

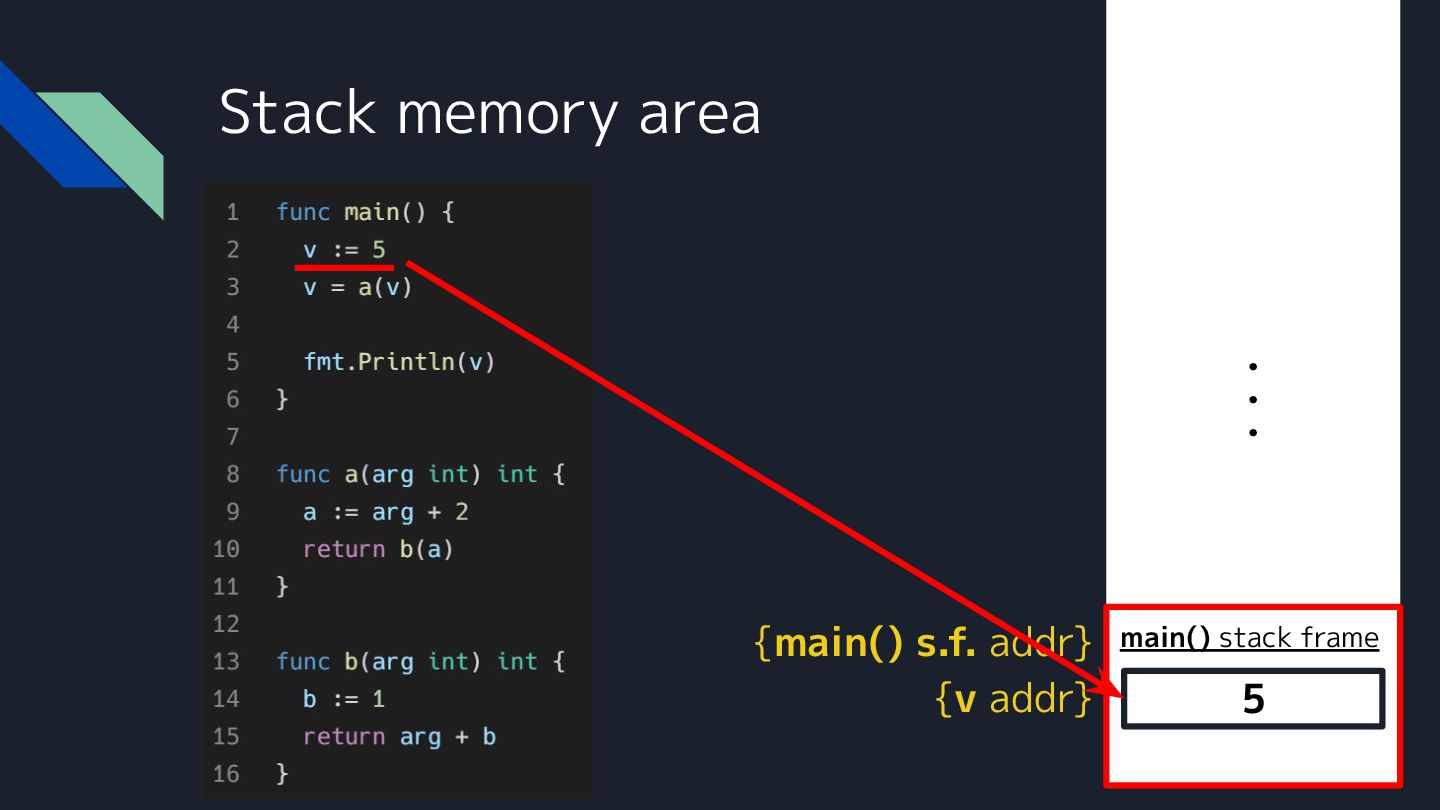

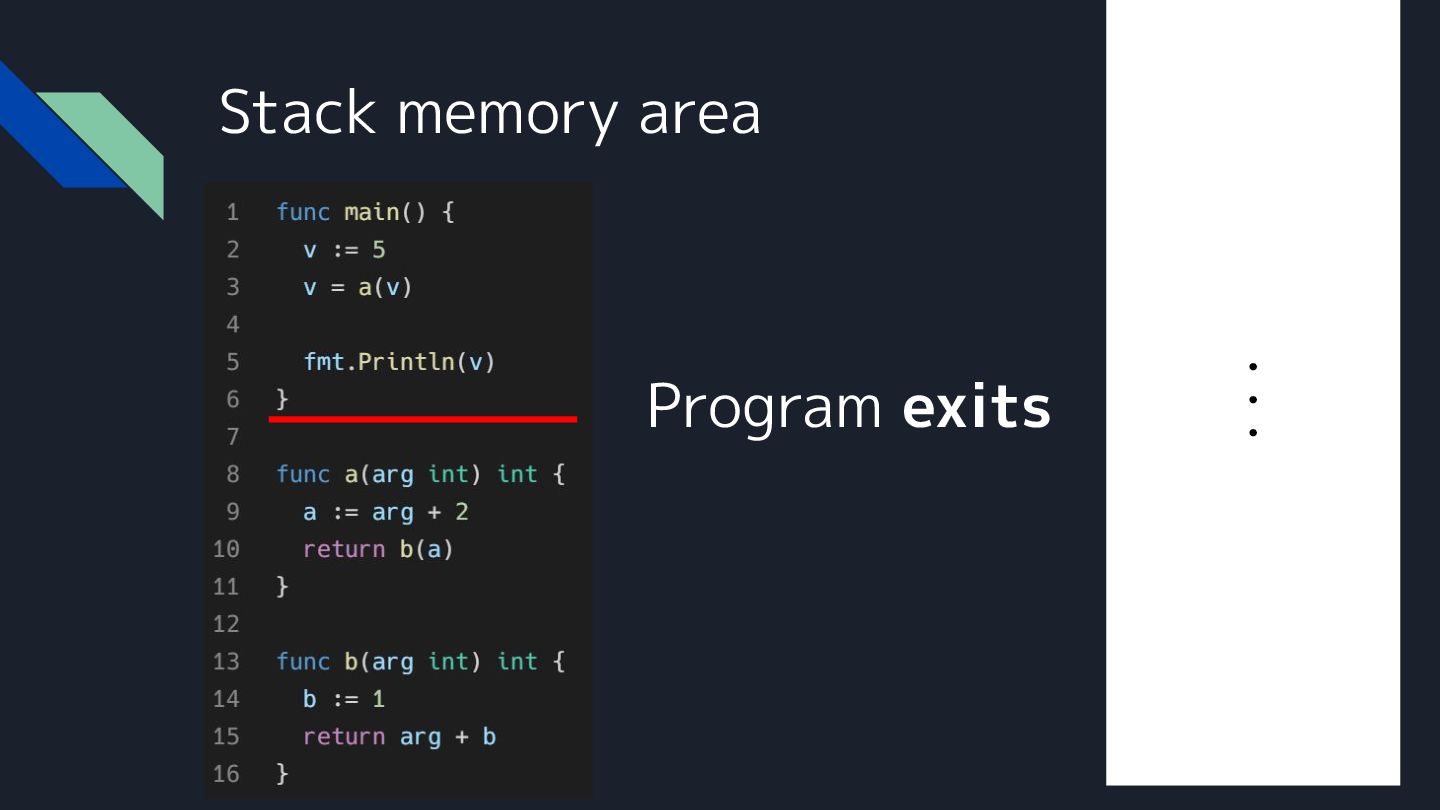

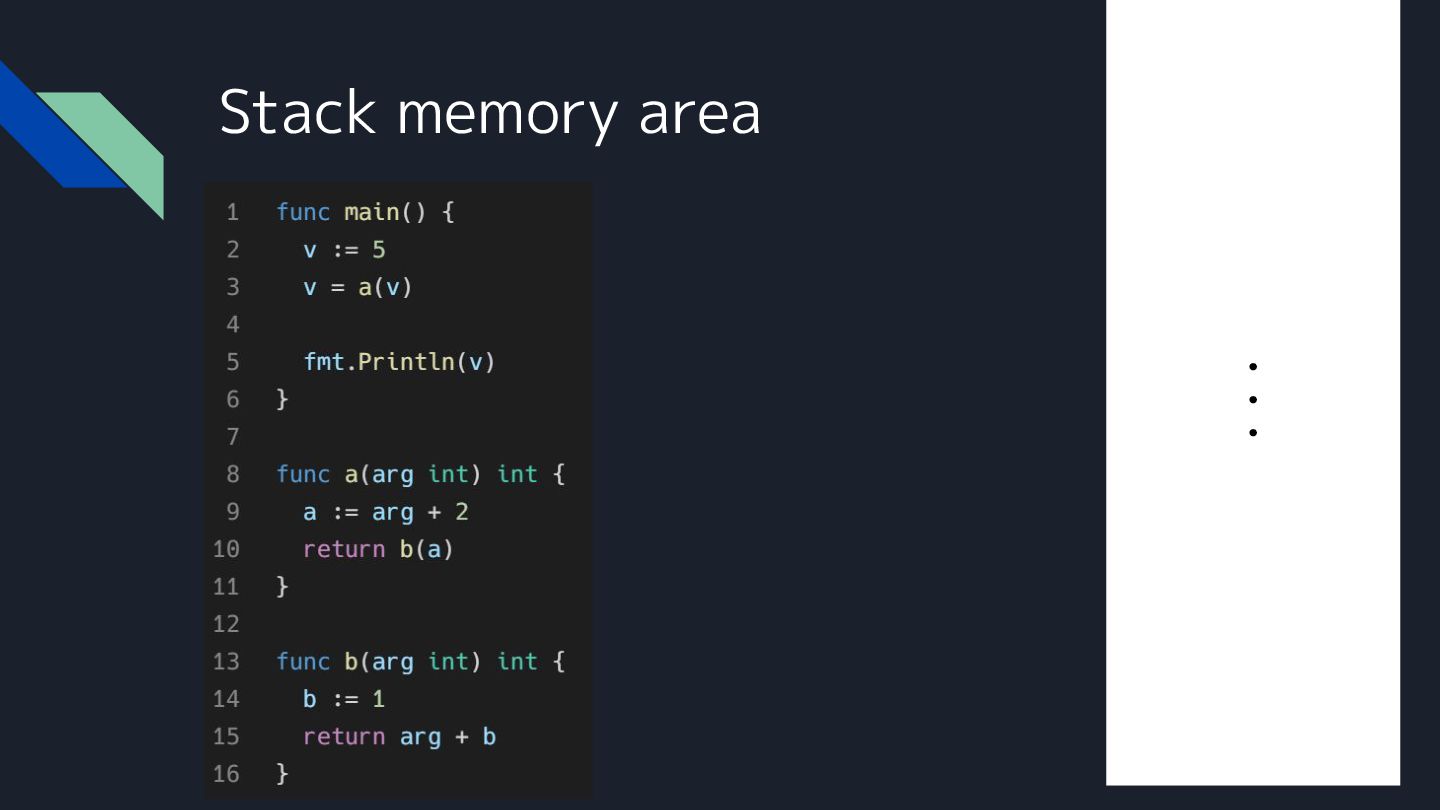

  25. . . . main() stack frame 5 Stack memory area

    {main() s.f. addr} {v addr}
  26. . . . main() stack frame • call on line

    3 5 Stack memory area {main() s.f. addr} {v addr}

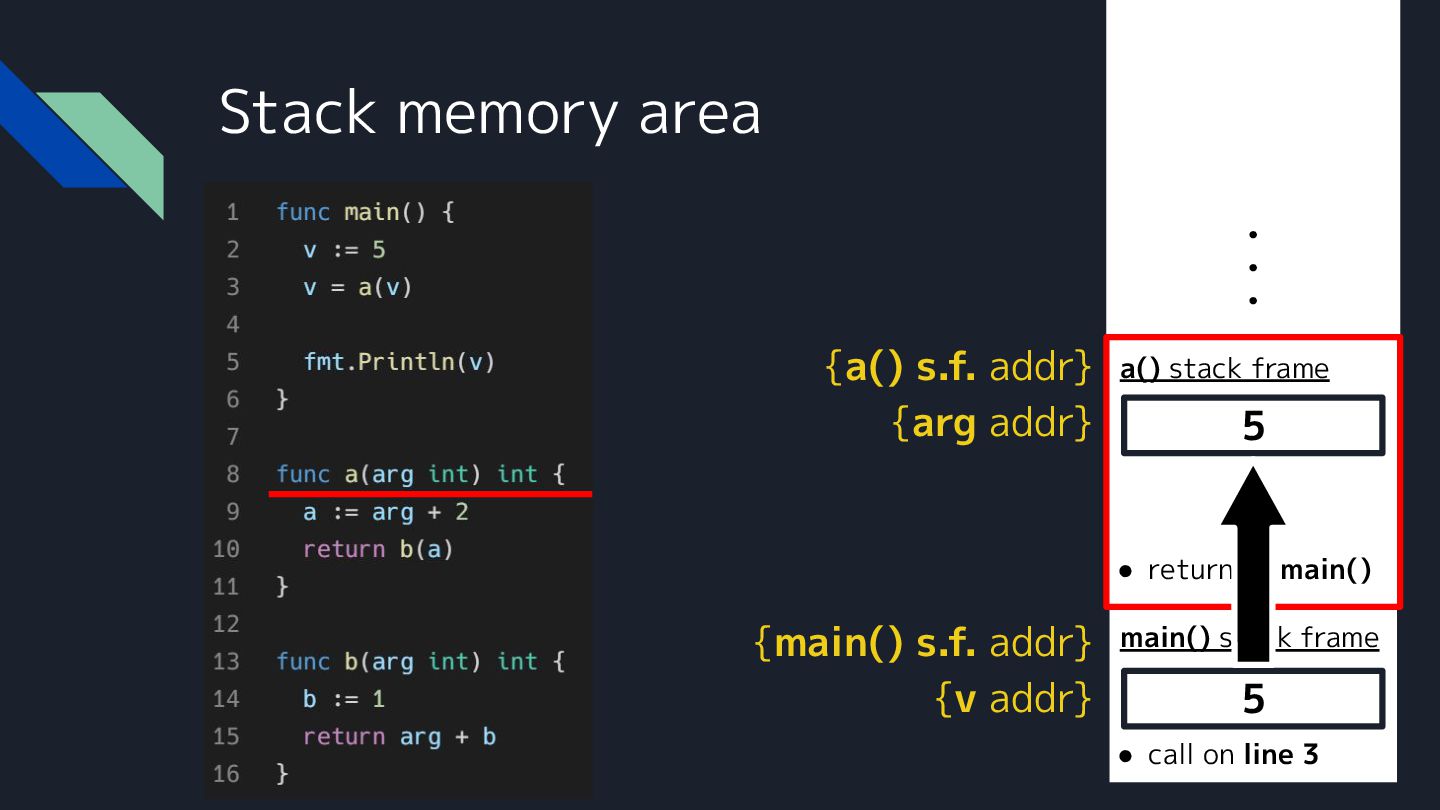

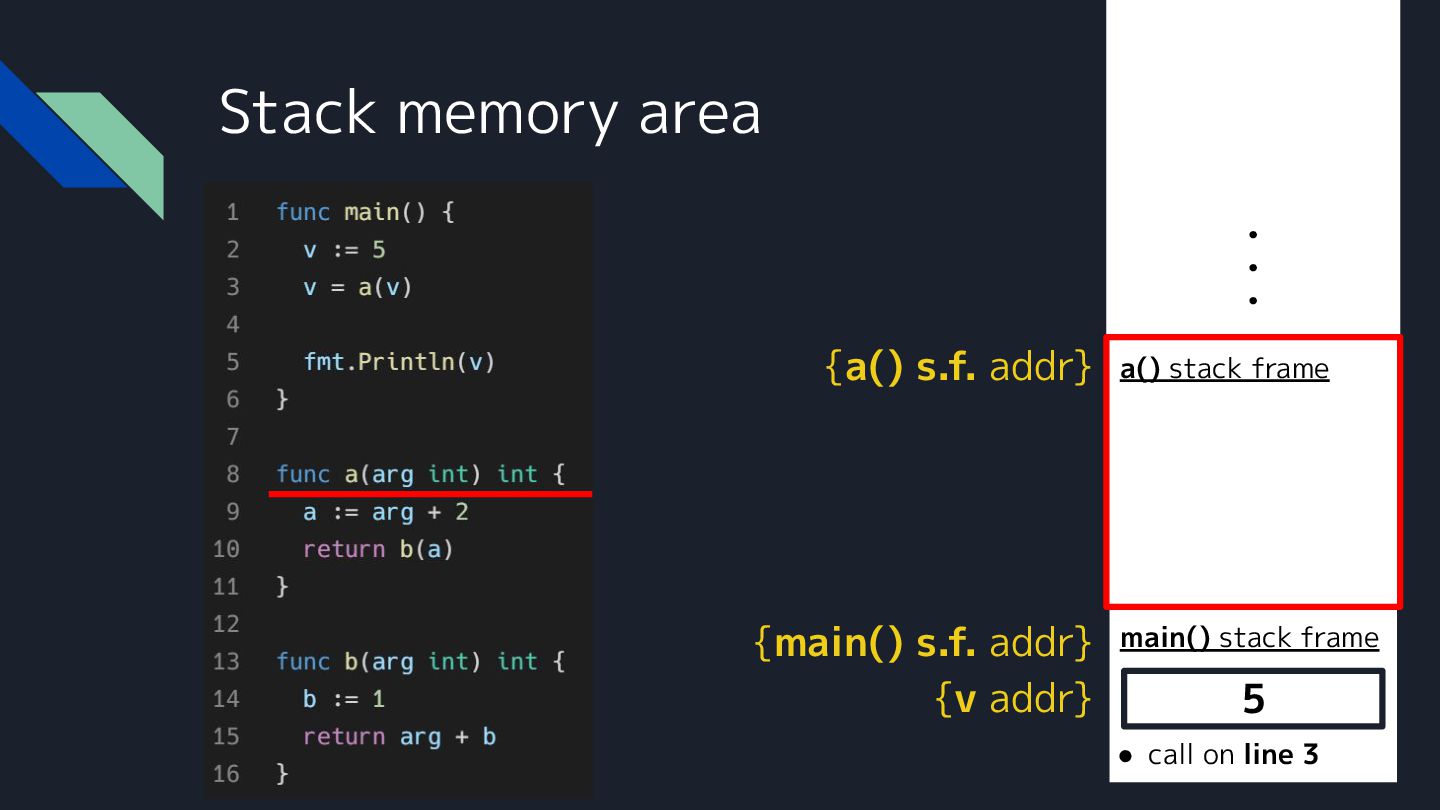

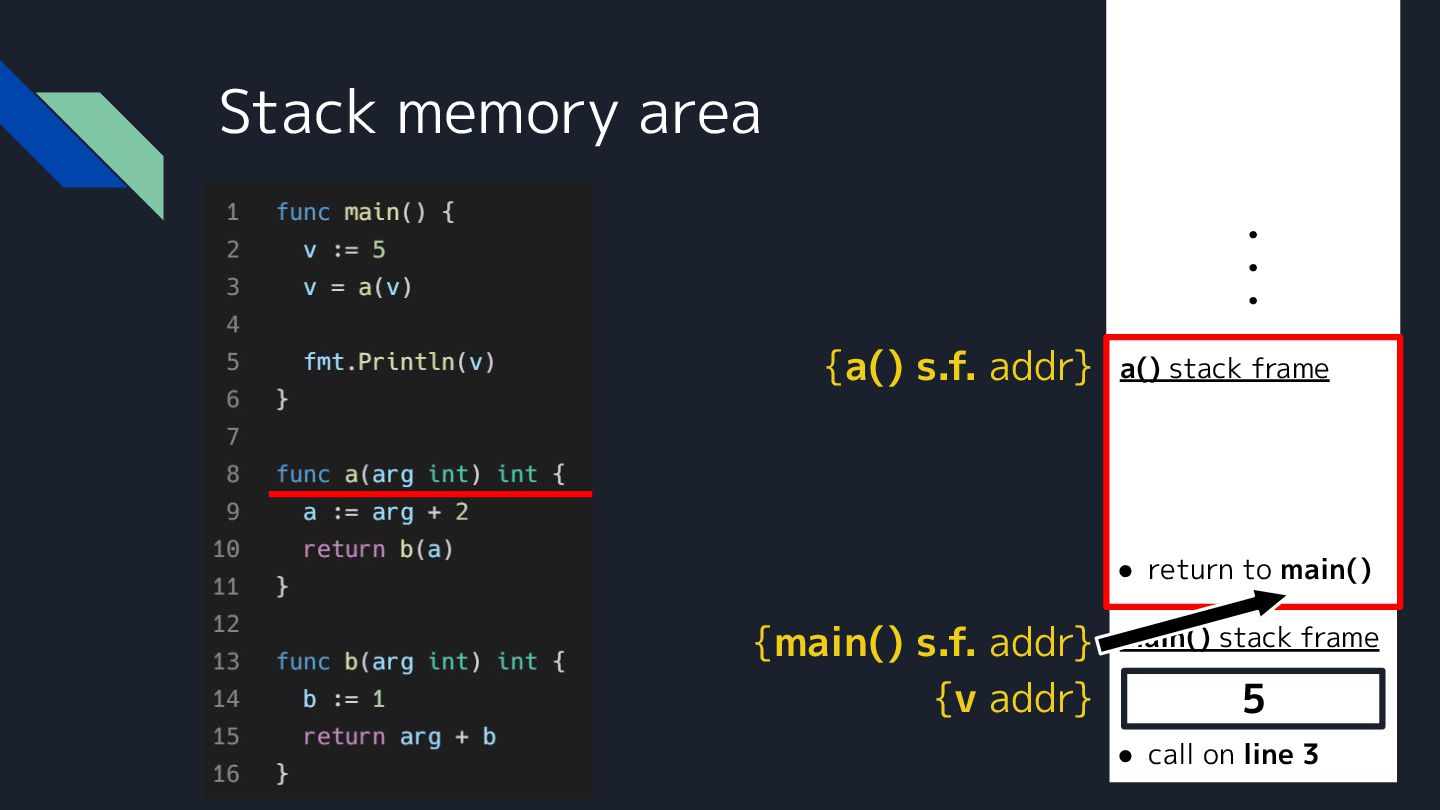

  27. . . . main() stack frame • call on line

    3 5 a() stack frame Stack memory area {a() s.f. addr} {main() s.f. addr} {v addr}
  28. . . . main() stack frame • call on line

    3 5 a() stack frame • return to main() Stack memory area {a() s.f. addr} {main() s.f. addr} {v addr}
  29. . . . main() stack frame • call on line

    3 5 a() stack frame • return to main() 5 Stack memory area {a() s.f. addr} {arg addr} {main() s.f. addr} {v addr}

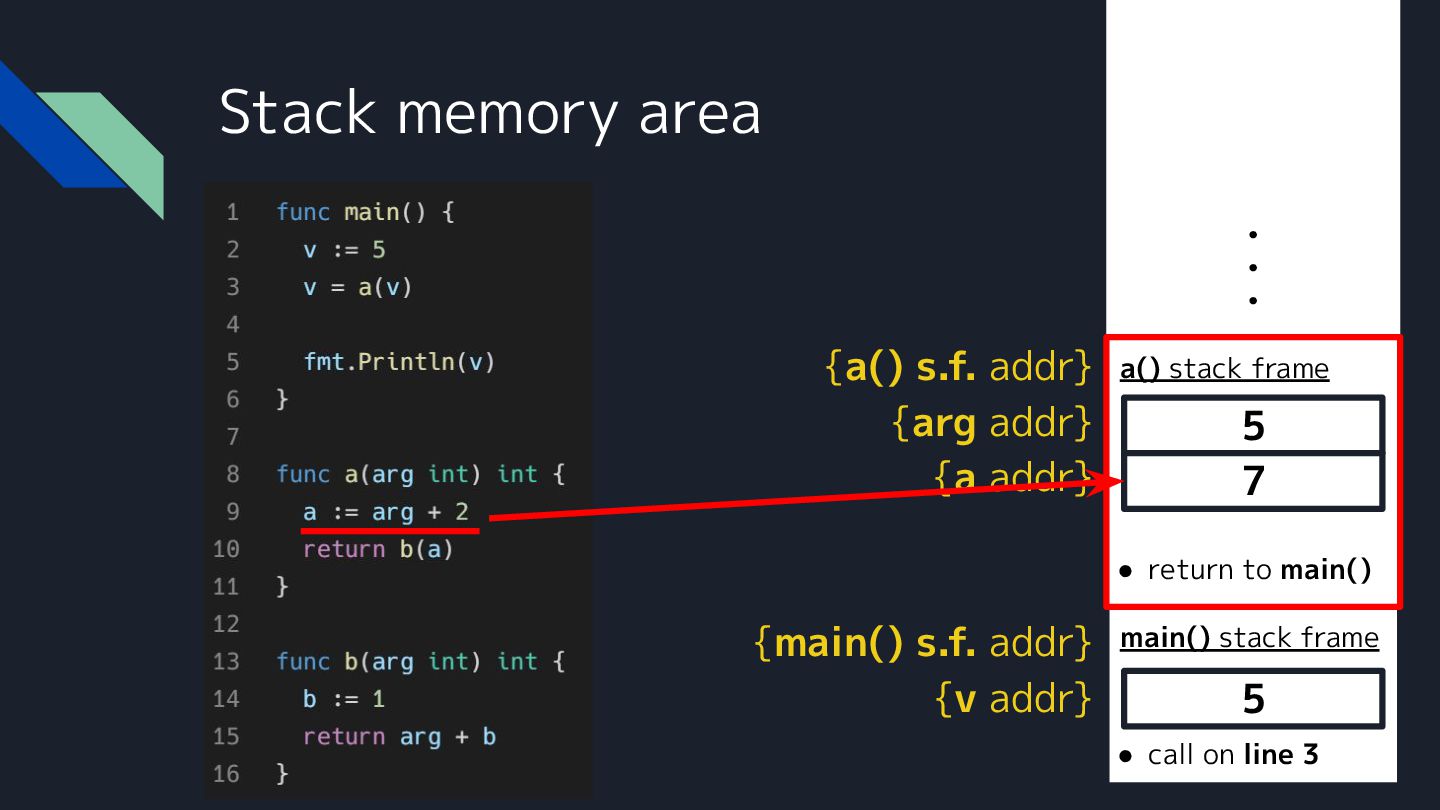

  30. . . . main() stack frame • call on line

    3 5 a() stack frame • return to main() 5 arg+2= 7 Stack memory area {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr}
  31. . . . main() stack frame • call on line

    3 5 a() stack frame • return to main() 5 7 Stack memory area {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr}
  32. . . . main() stack frame • call on line

    3 5 a() stack frame • return to main() 5 7 Stack memory area {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr}

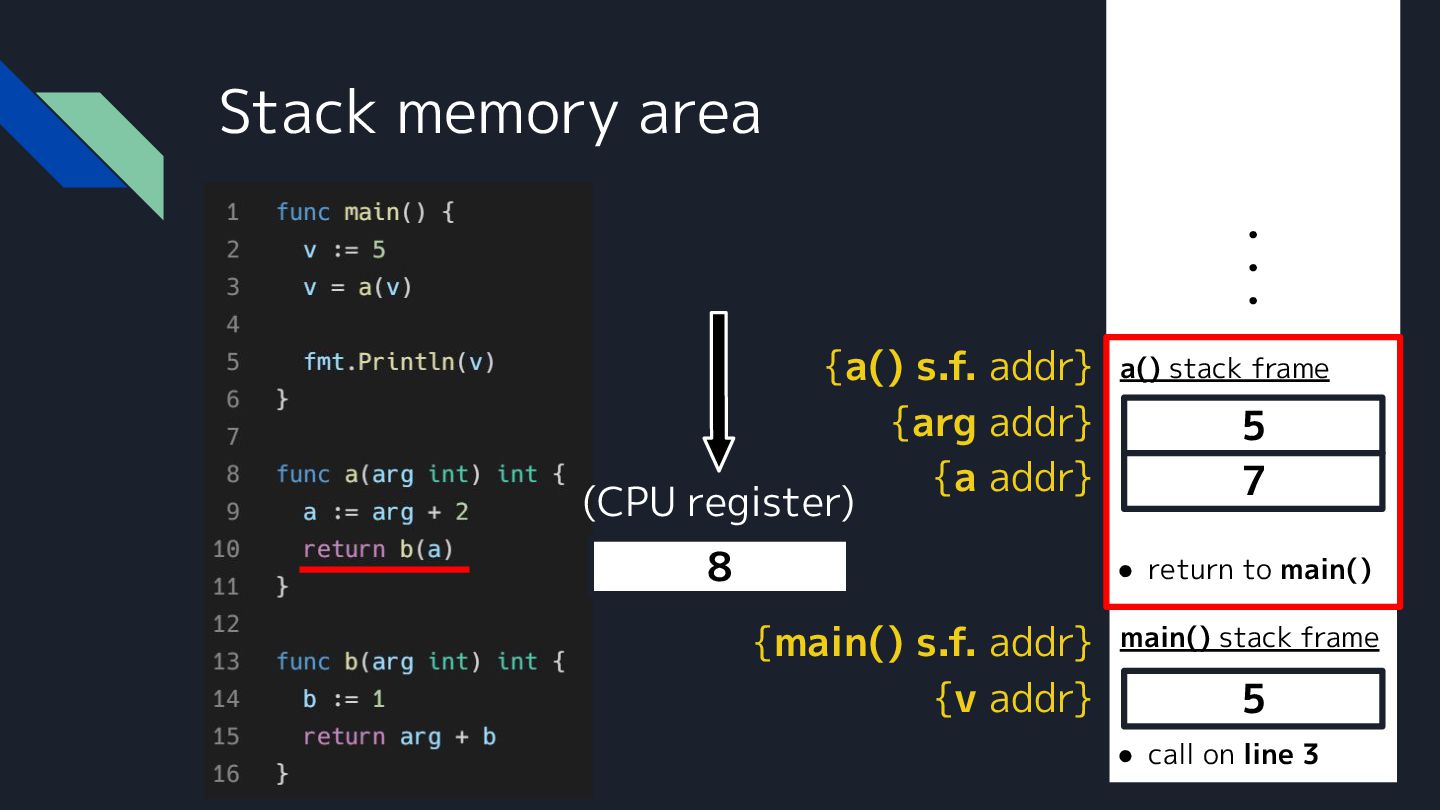

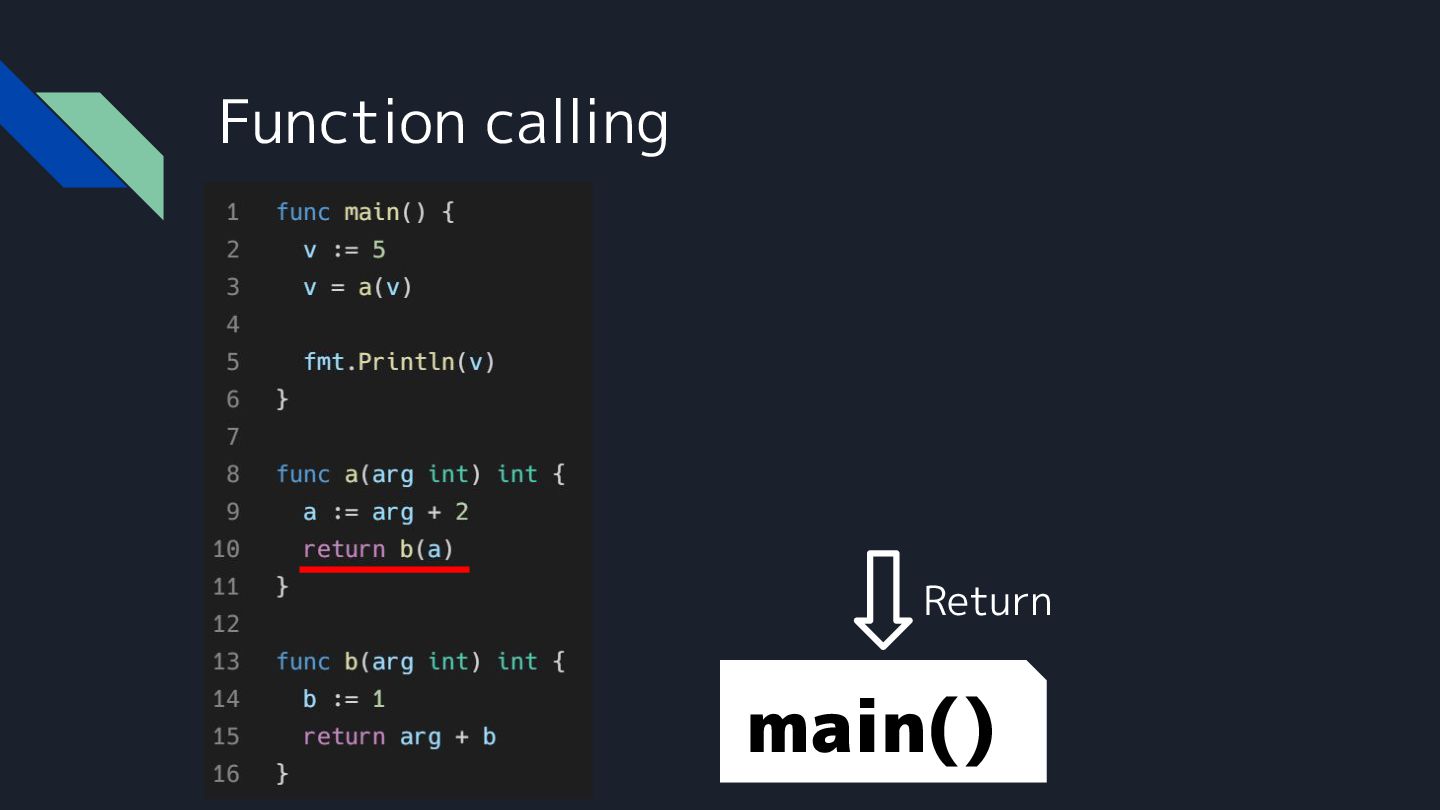

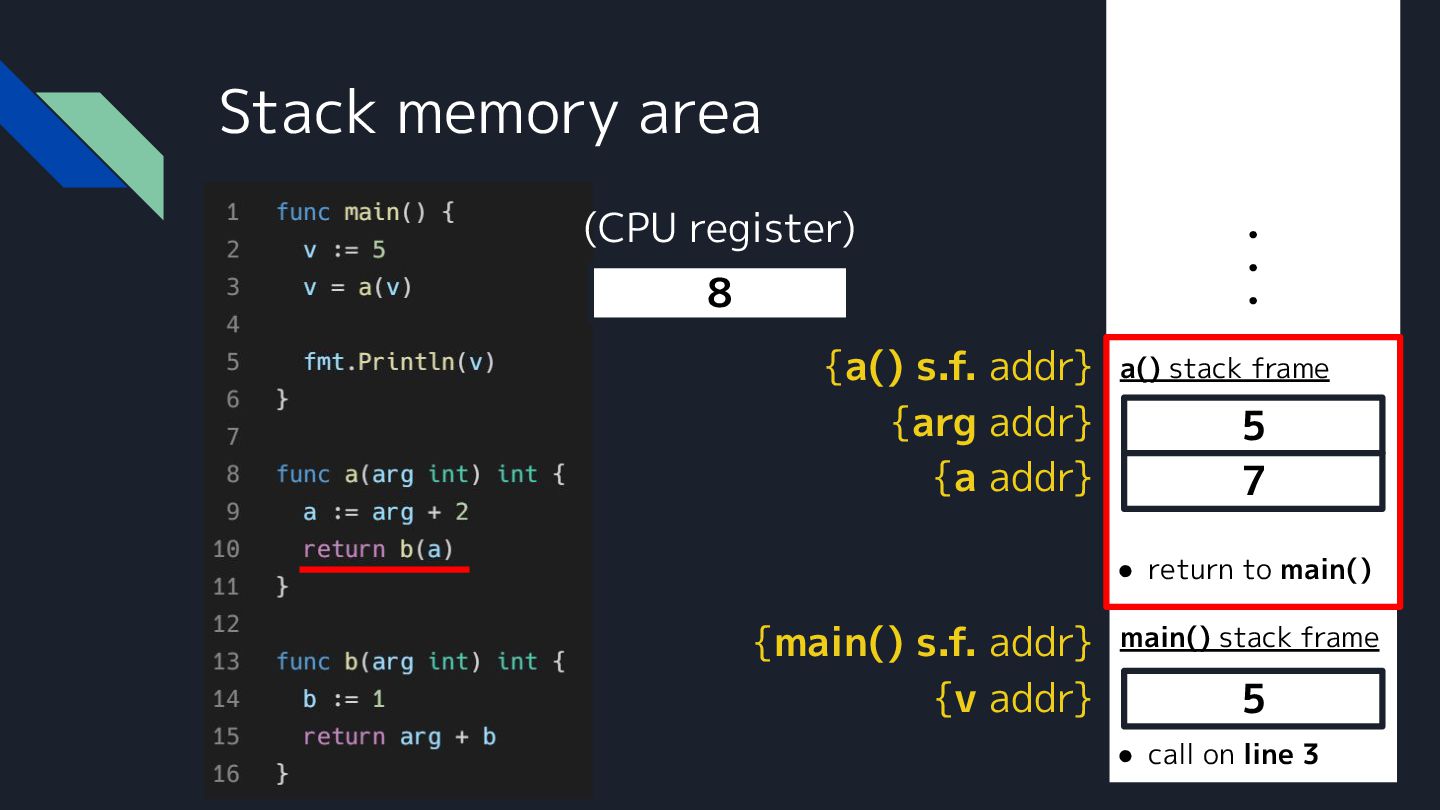

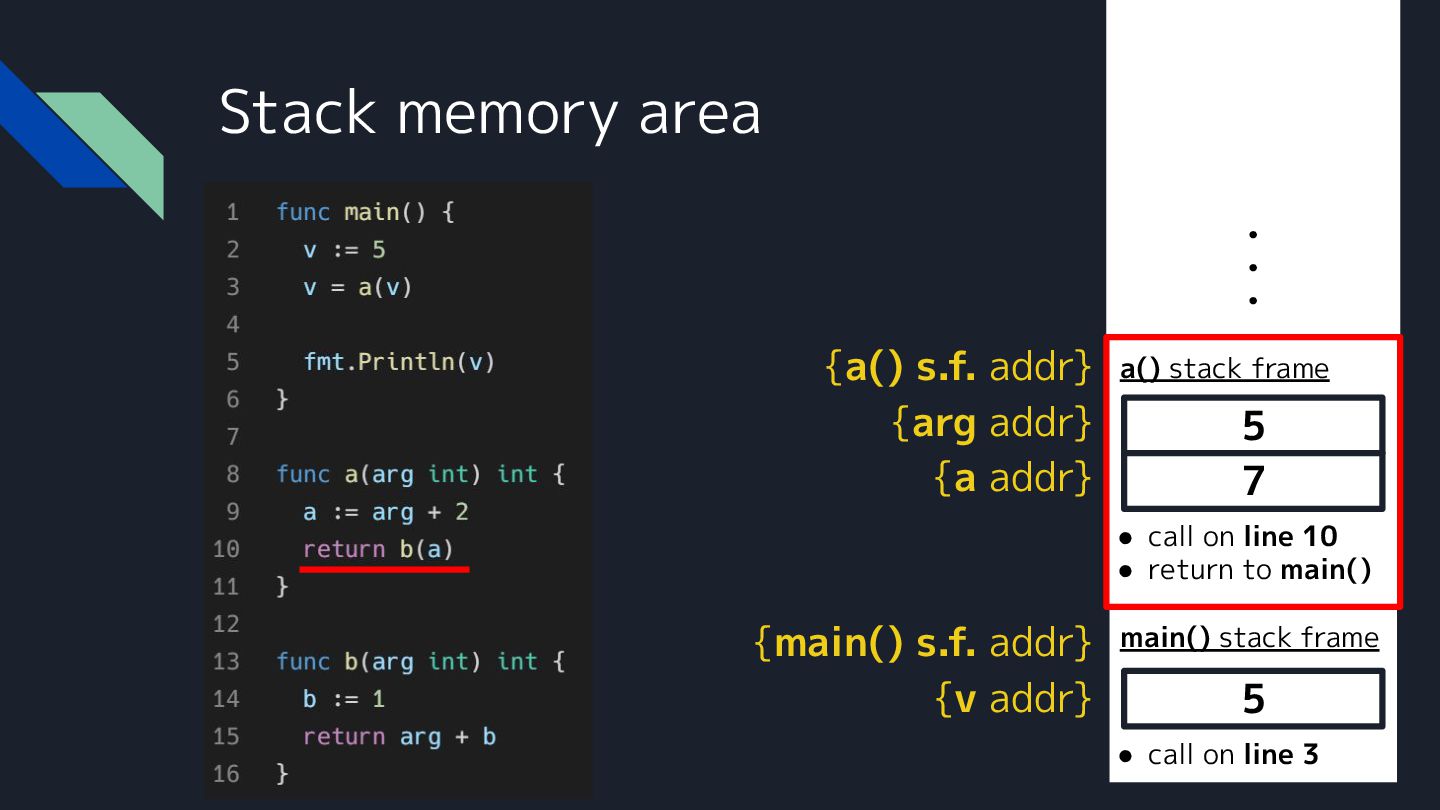

  33. . . . main() stack frame • call on line

    3 5 a() stack frame • call on line 10 • return to main() 5 7 Stack memory area {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr}

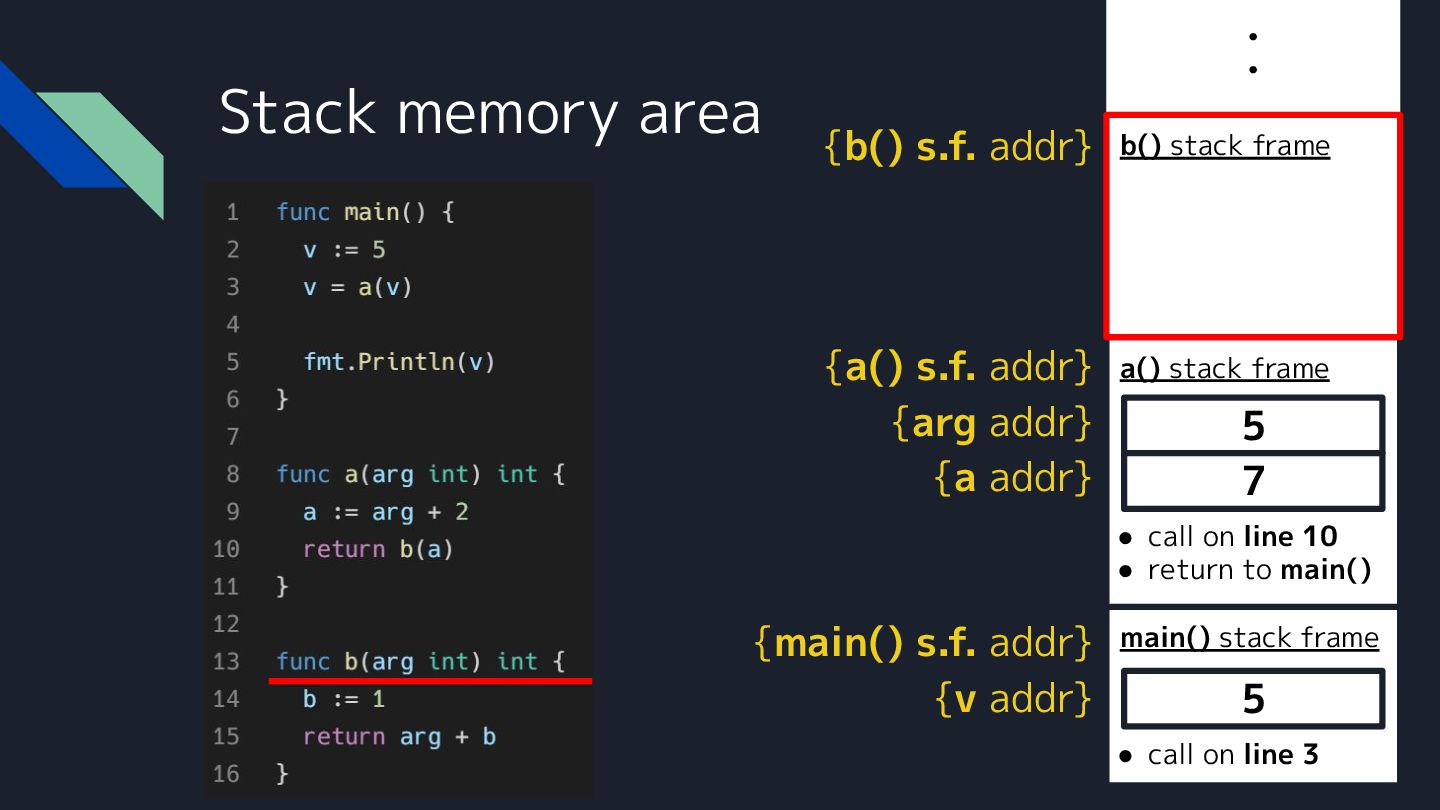

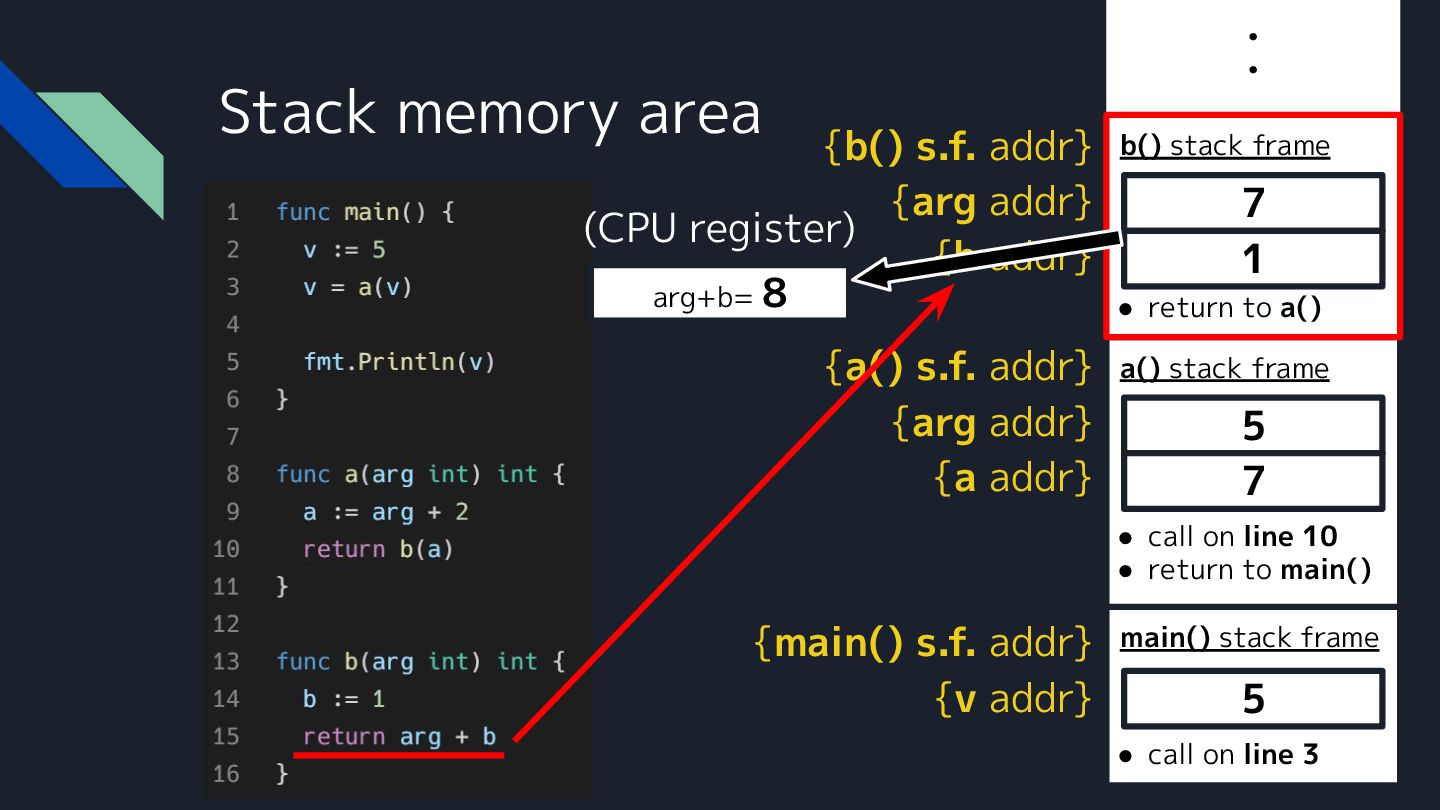

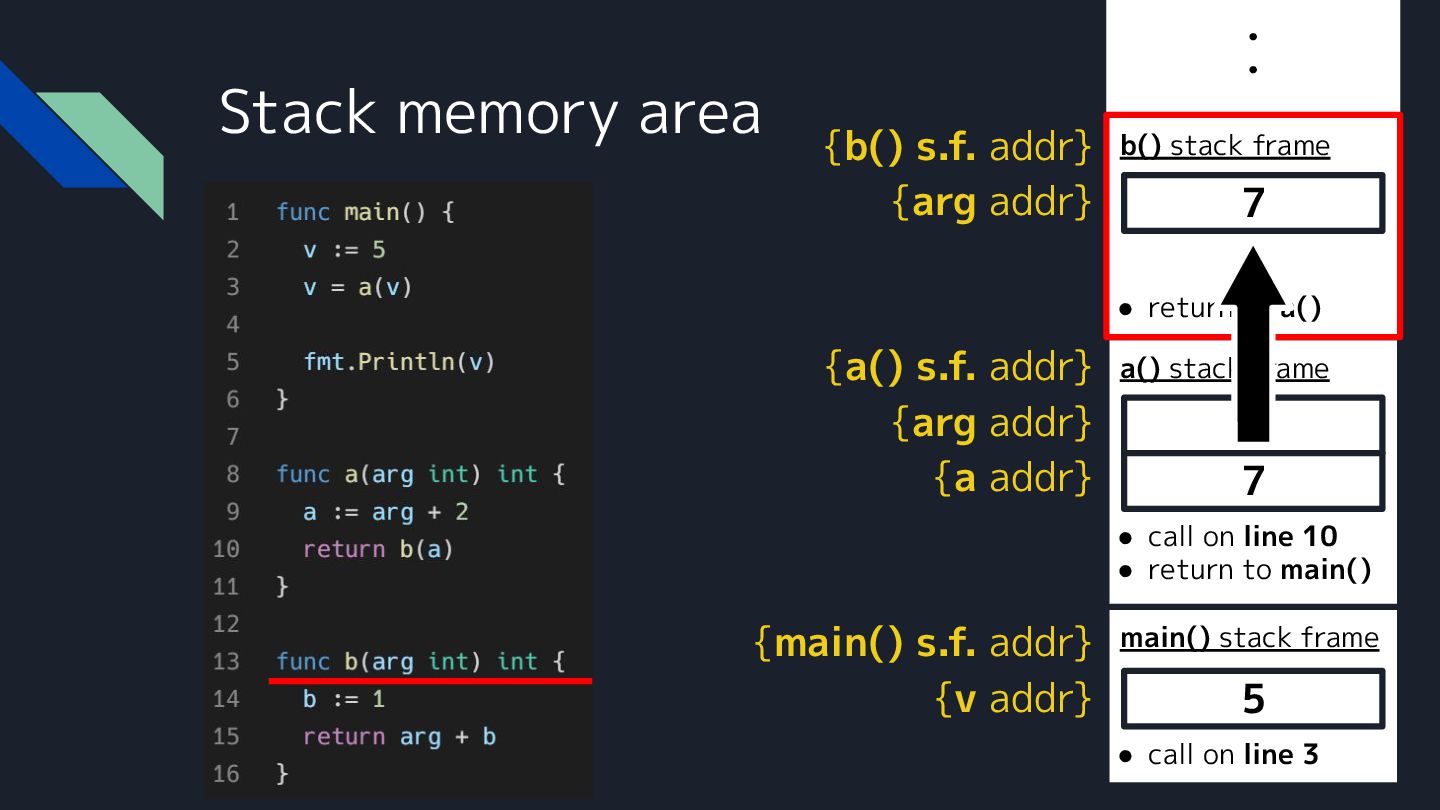

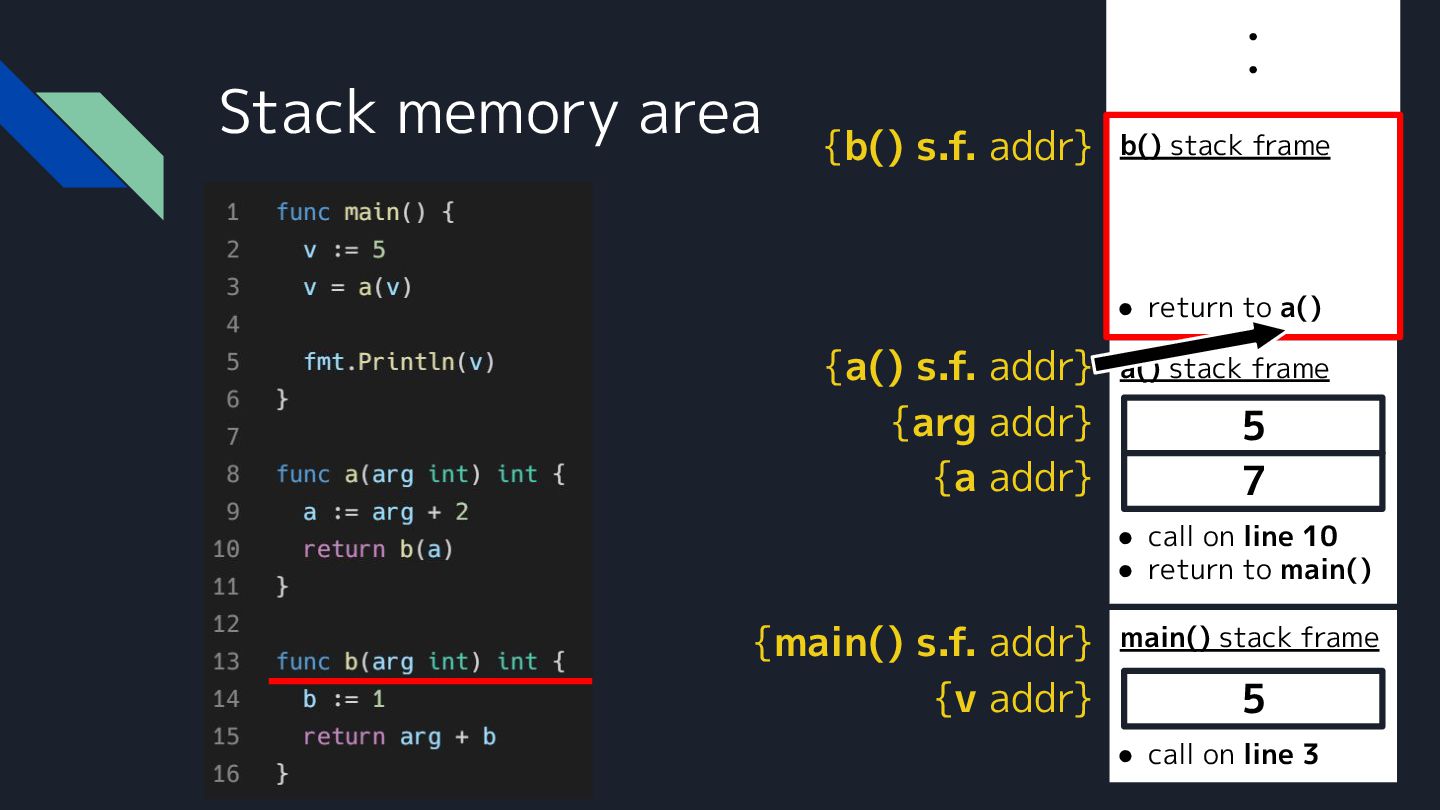

  34. . . Stack memory area main() stack frame • call

    on line 3 5 a() stack frame • call on line 10 • return to main() {b() s.f. addr} {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr} 5 7 b() stack frame
  35. . . Stack memory area main() stack frame • call

    on line 3 5 a() stack frame • call on line 10 • return to main() {b() s.f. addr} {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr} 5 7 b() stack frame • return to a()
  36. . . Stack memory area main() stack frame • call

    on line 3 5 a() stack frame • call on line 10 • return to main() {b() s.f. addr} {arg addr} {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr} 5 7 b() stack frame • return to a() 7
  37. . . Stack memory area main() stack frame • call

    on line 3 5 a() stack frame • call on line 10 • return to main() {b() s.f. addr} {arg addr} {b addr} {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr} 5 7 b() stack frame • return to a() 7 1
  38. . . Stack memory area main() stack frame • call

    on line 3 5 a() stack frame • call on line 10 • return to main() {b() s.f. addr} {arg addr} {b addr} {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr} 5 7 b() stack frame • return to a() 7 1

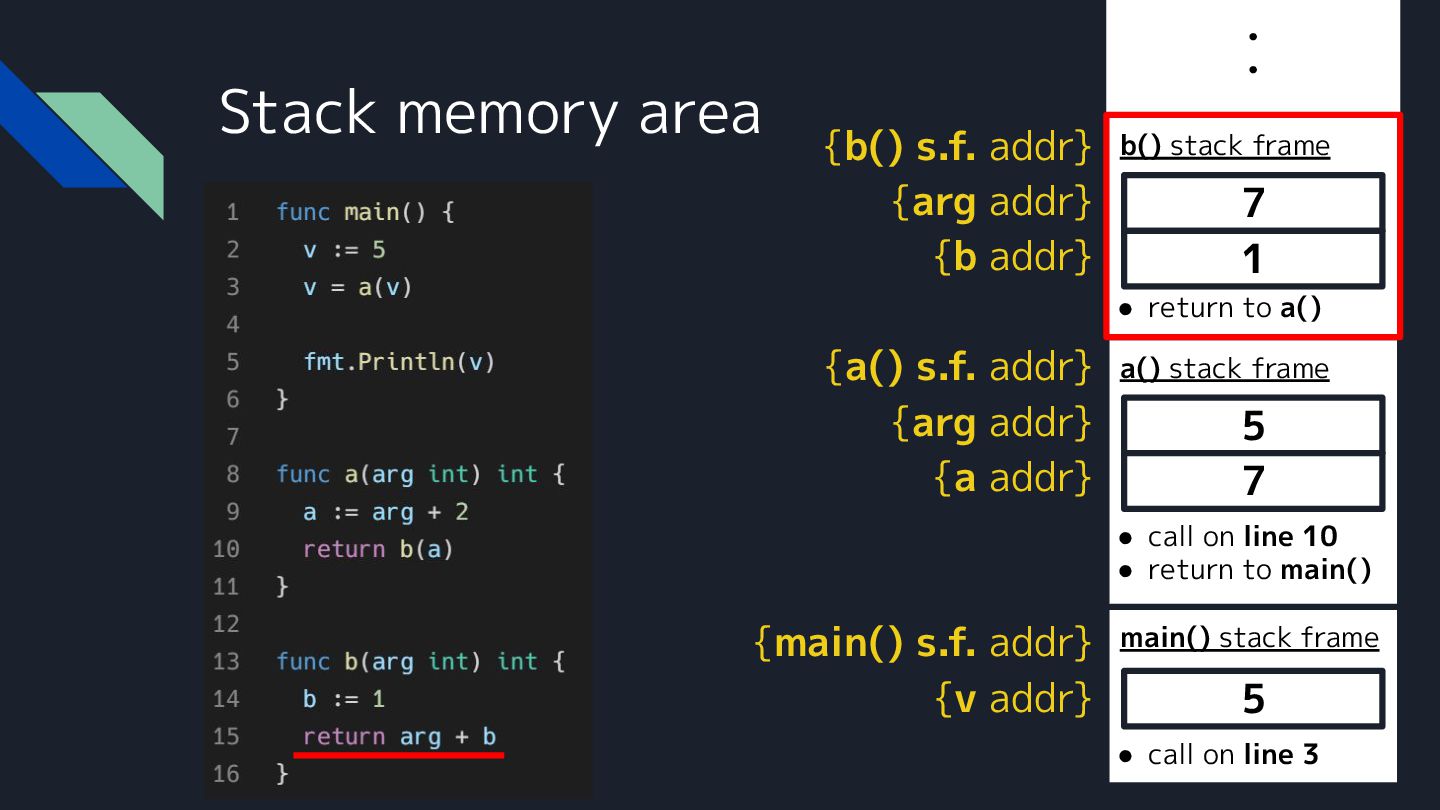

  39. . . Stack memory area main() stack frame • call

    on line 3 5 a() stack frame • call on line 10 • return to main() {b() s.f. addr} {arg addr} {b addr} {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr} 5 7 b() stack frame • return to a() 7 1 arg+b= 8 (CPU register)
  40. . . Stack memory area main() stack frame • call

    on line 3 5 a() stack frame • call on line 10 • return to main() {b() s.f. addr} {arg addr} {b addr} {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr} 5 7 b() stack frame • return to a() 7 1 8 (CPU register)

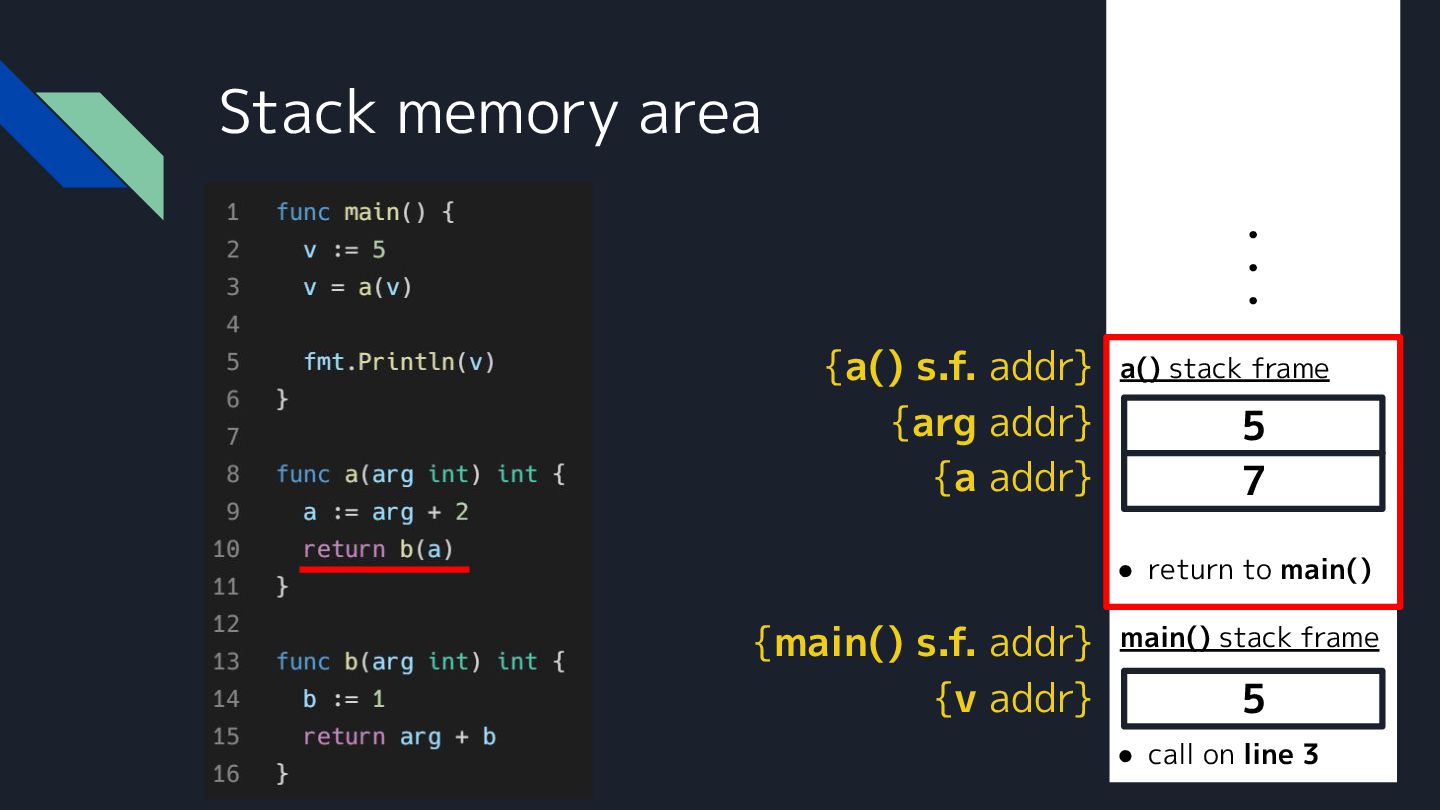

  41. . . . Stack memory area main() stack frame •

    call on line 3 5 a() stack frame • return to main() {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr} 5 7 8 (CPU register)
  42. . . . Stack memory area main() stack frame •

    call on line 3 5 a() stack frame • return to main() {a() s.f. addr} {arg addr} {a addr} {main() s.f. addr} {v addr} 5 7 8 (CPU register)
  43. . . . Stack memory area main() stack frame 5

    {main() s.f. addr} {v addr} 8 (CPU register)

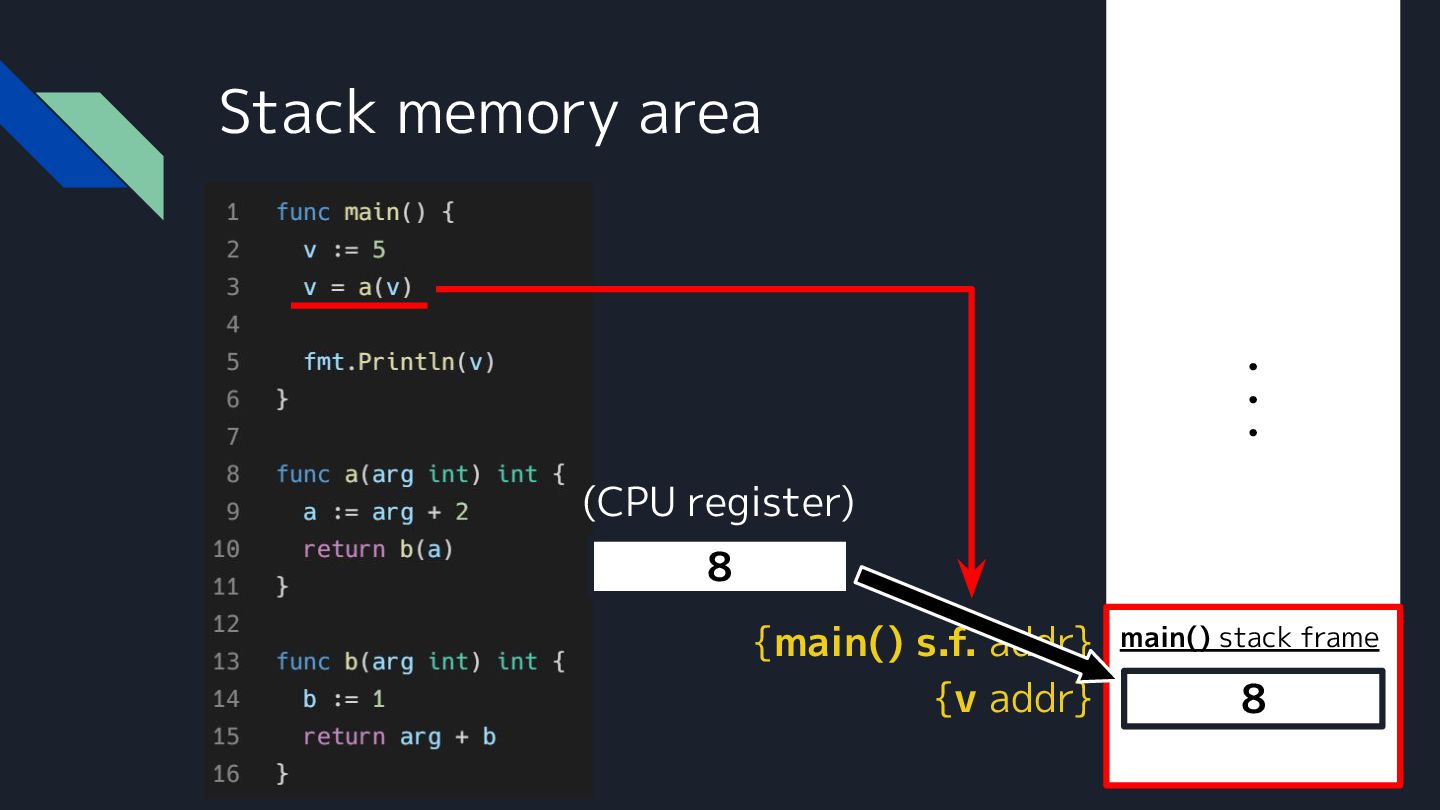

  44. . . . Stack memory area main() stack frame 8

    {main() s.f. addr} {v addr} 8 (CPU register)
  45. . . . Stack memory area main() stack frame 8

    {main() s.f. addr} {v addr}
  46. Stack is not a silver bullet... • Can’t handle unknown

    data size (maps/slices) ◦ Stack allocation is compiler’s duty • Sometimes can’t share variables between functions

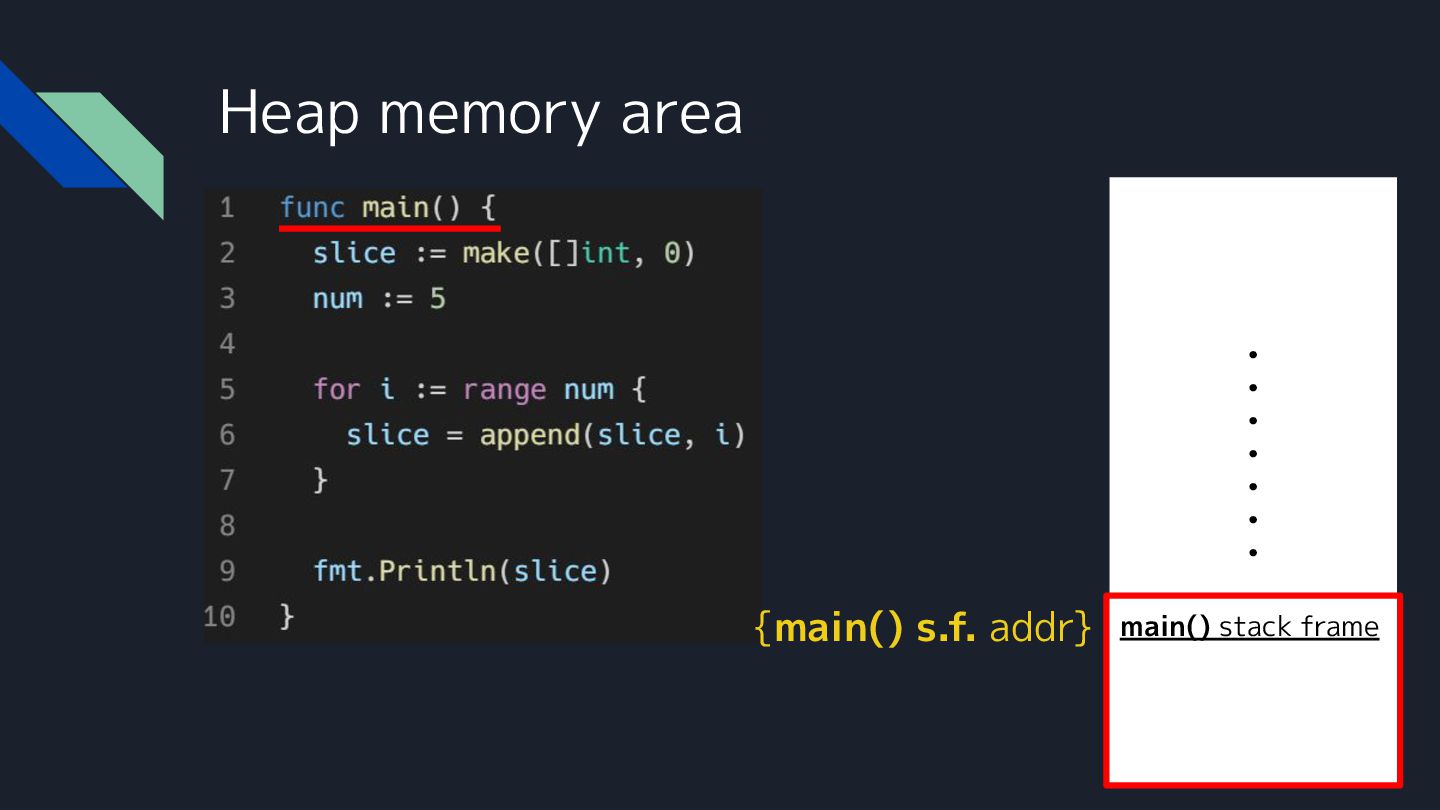

  47. Heap memory area . . . . . . .

    [] {slice_h addr} {main() s.f. addr} main() stack frame

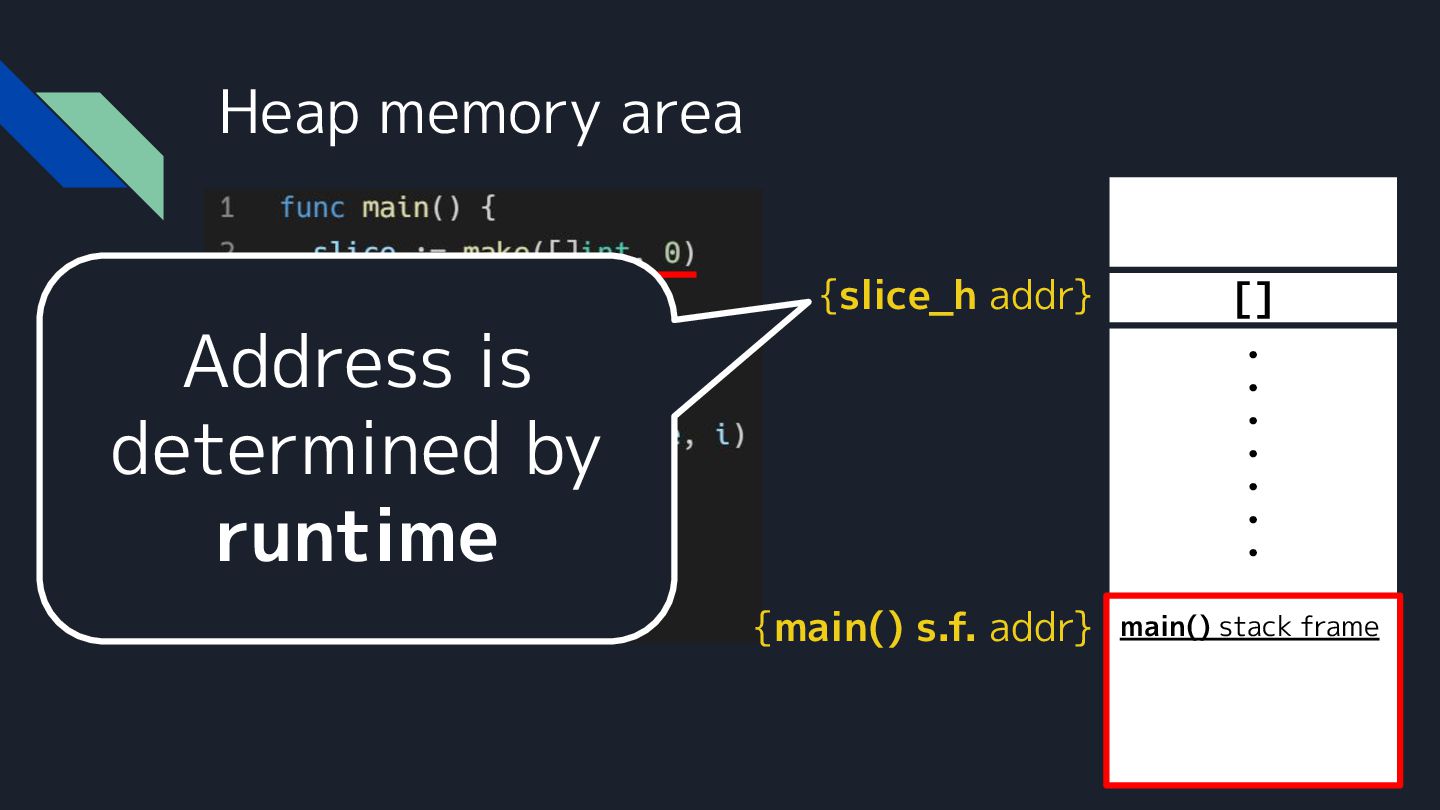

  48. Heap memory area . . . . . . .

    [] {slice_h addr} {main() s.f. addr} main() stack frame Address is determined by runtime

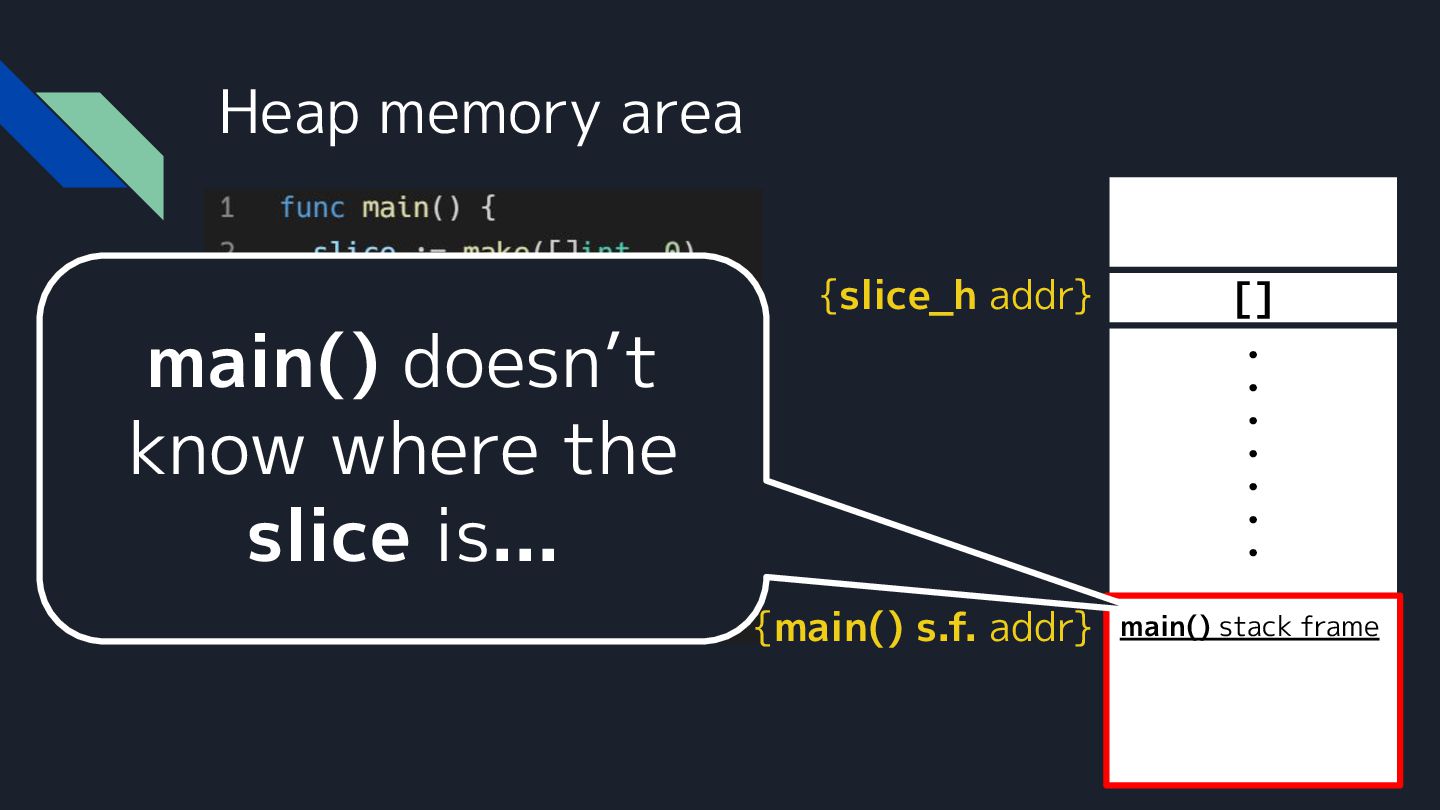

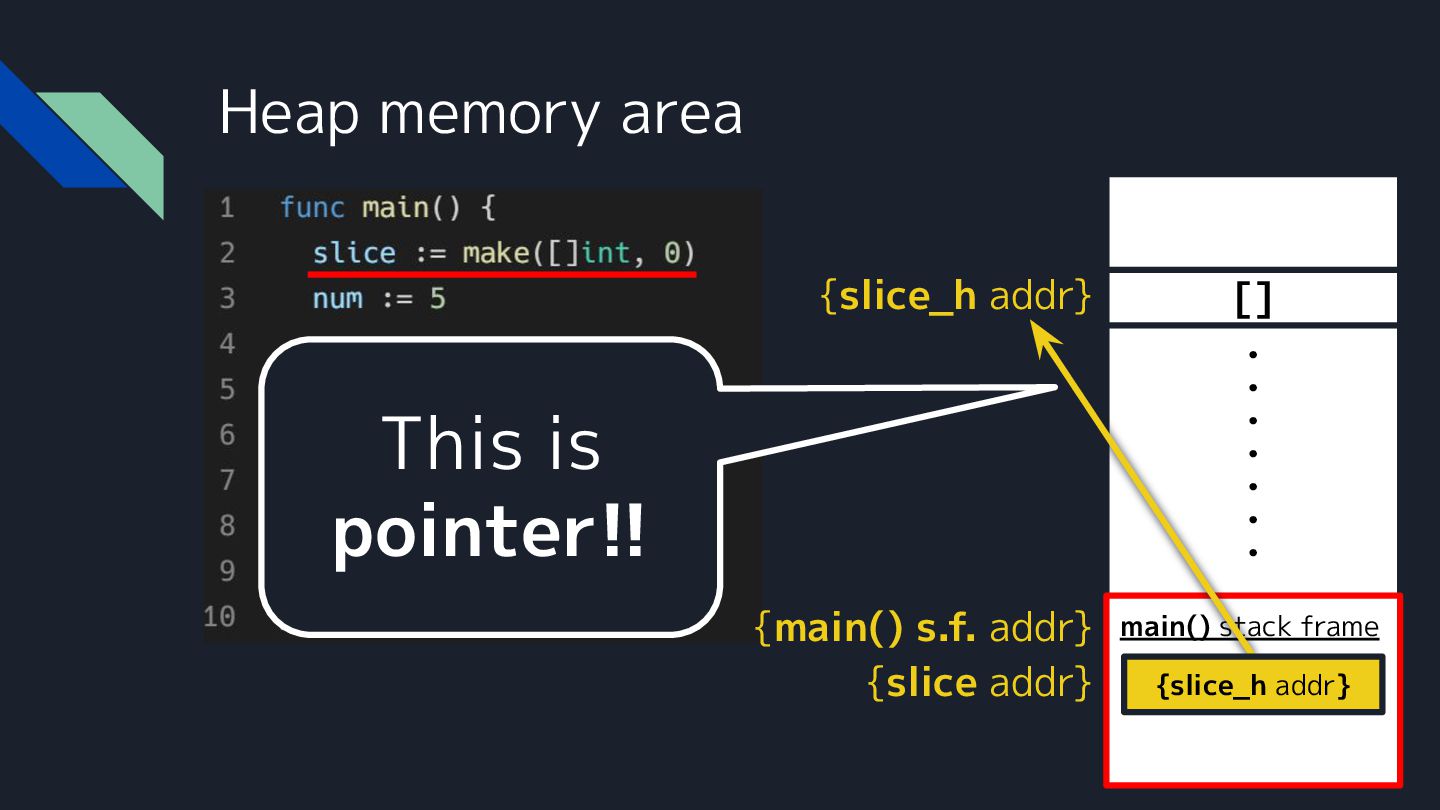

  49. Heap memory area . . . . . . .

    [] {slice_h addr} {main() s.f. addr} main() stack frame main() doesn’t know where the slice is...

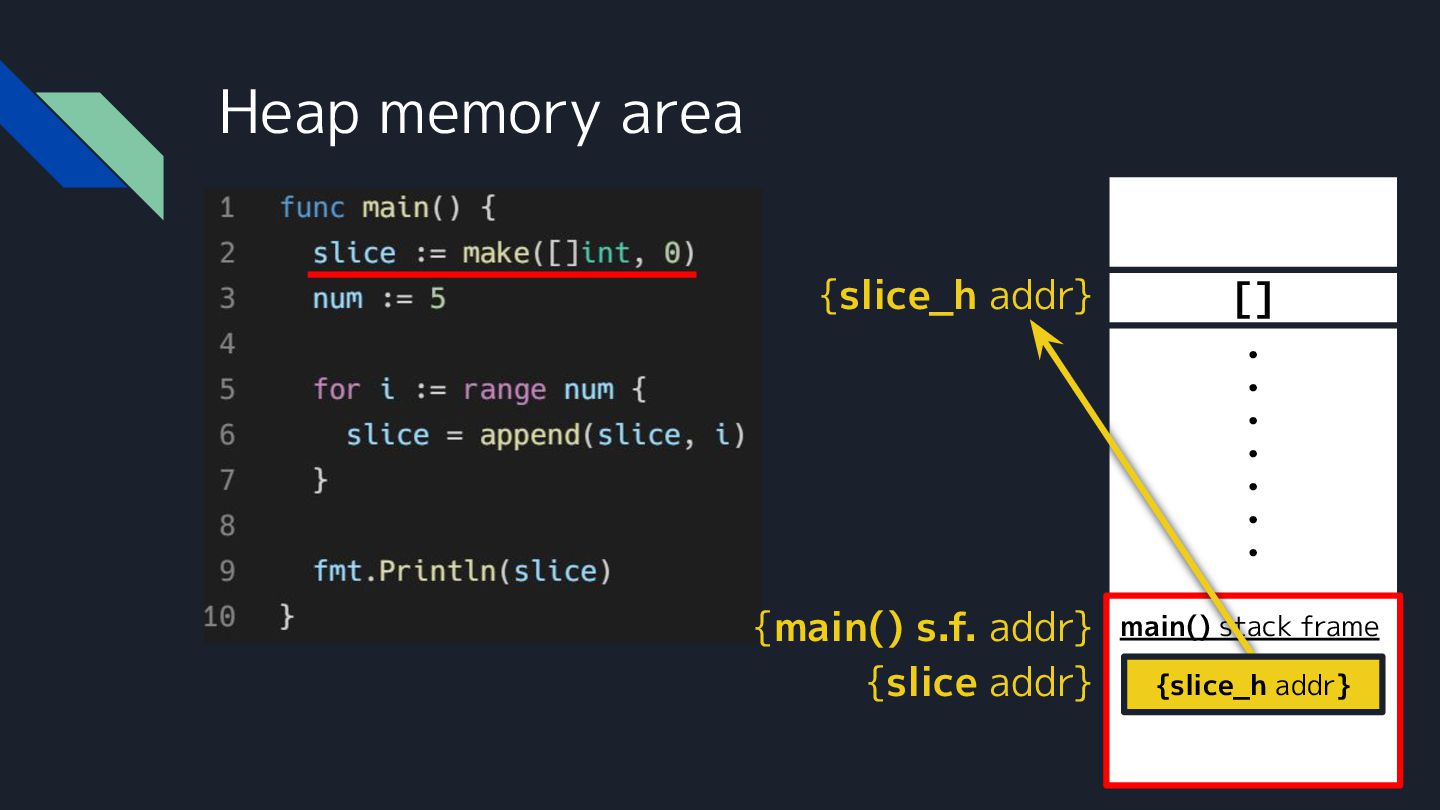

  50. . . . . . . . [] {slice_h addr}

    {main() s.f. addr} {slice addr} main() stack frame Heap memory area {slice_h addr}

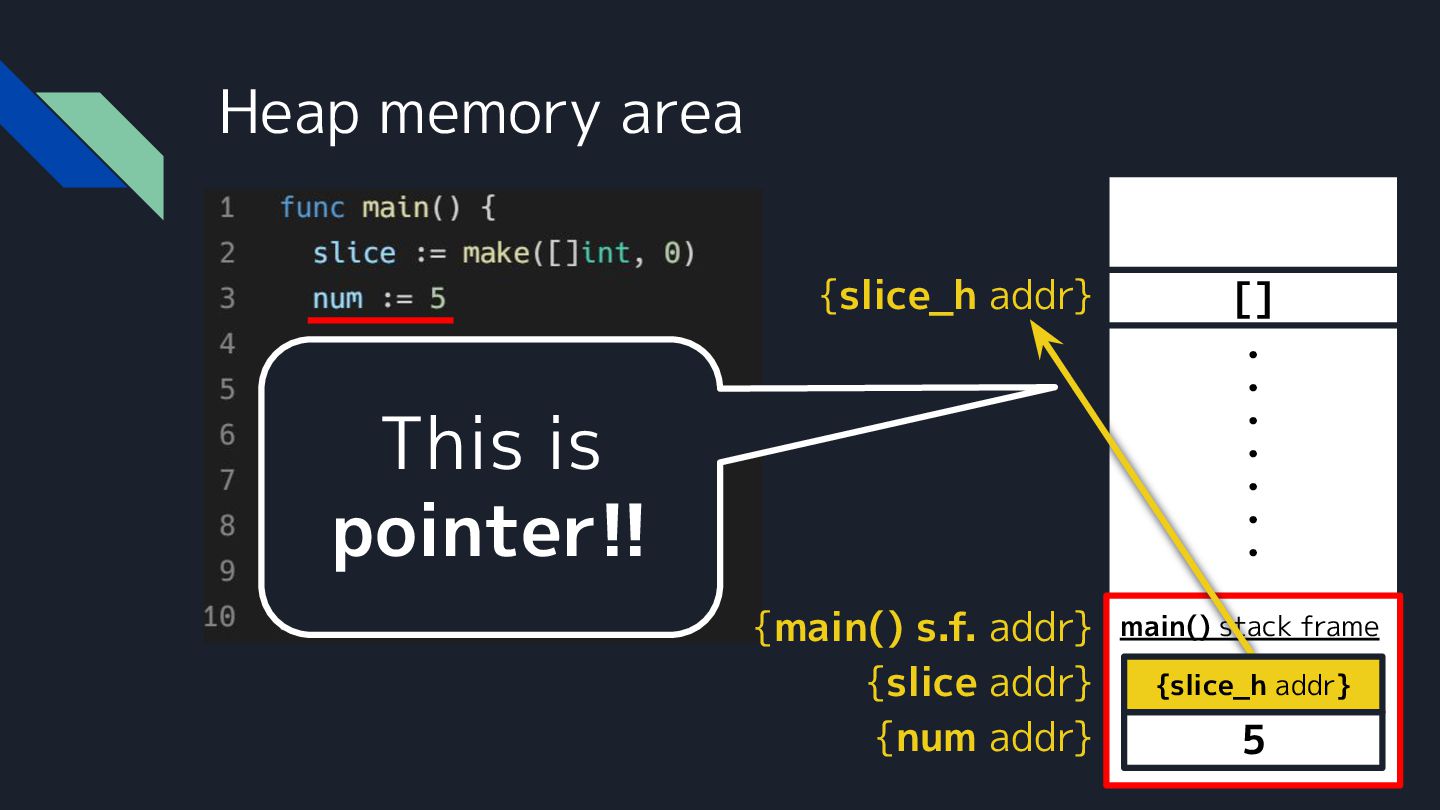

  51. . . . . . . . [] {slice_h addr}

    {main() s.f. addr} {slice addr} main() stack frame Heap memory area This is pointer!! {slice_h addr}
  52. . . . . . . . [] {slice_h addr}

    {main() s.f. addr} {slice addr} {num addr} main() stack frame Heap memory area 5 This is pointer!! {slice_h addr}

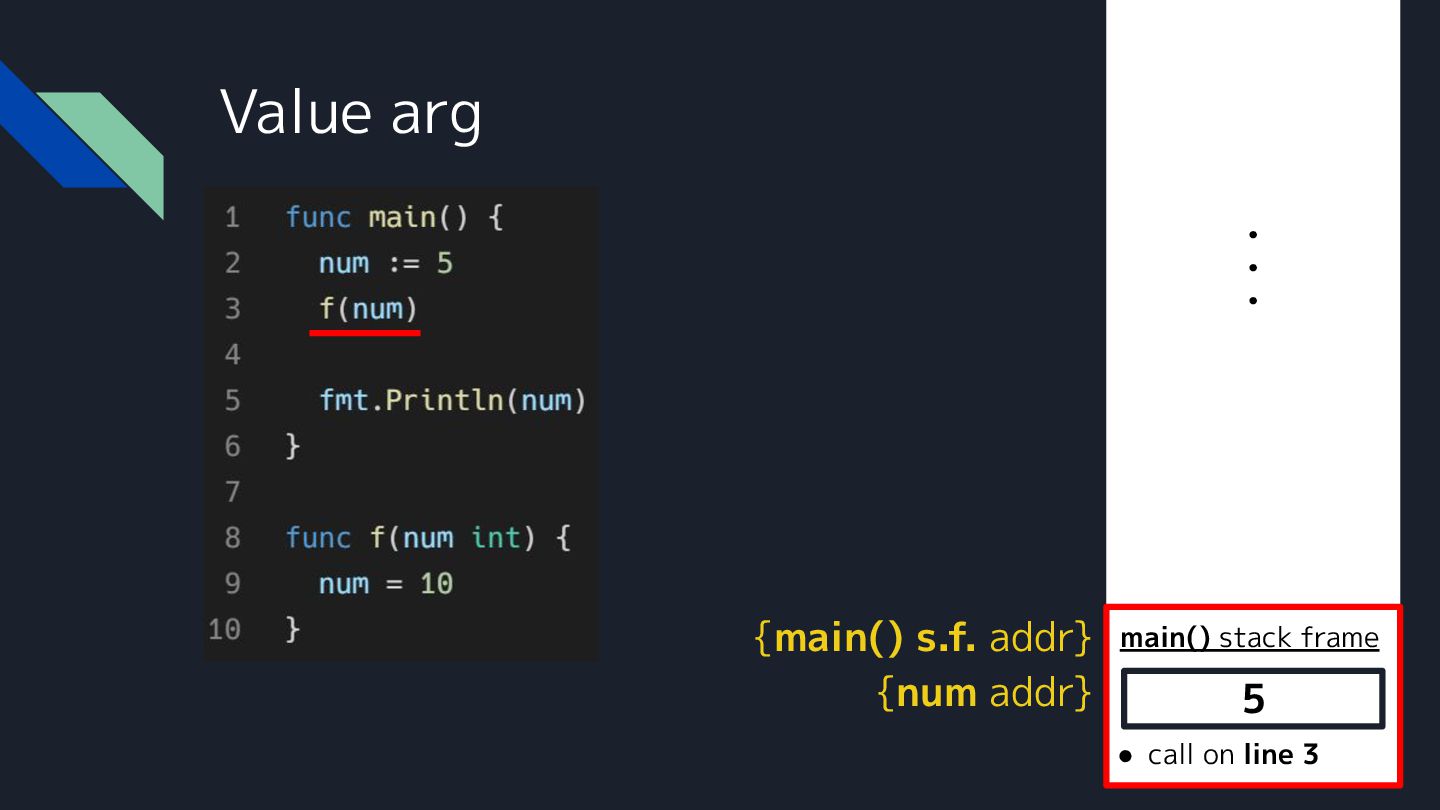

  53. . . . main() stack frame • call on line

    3 5 Value arg {main() s.f. addr} {num addr}

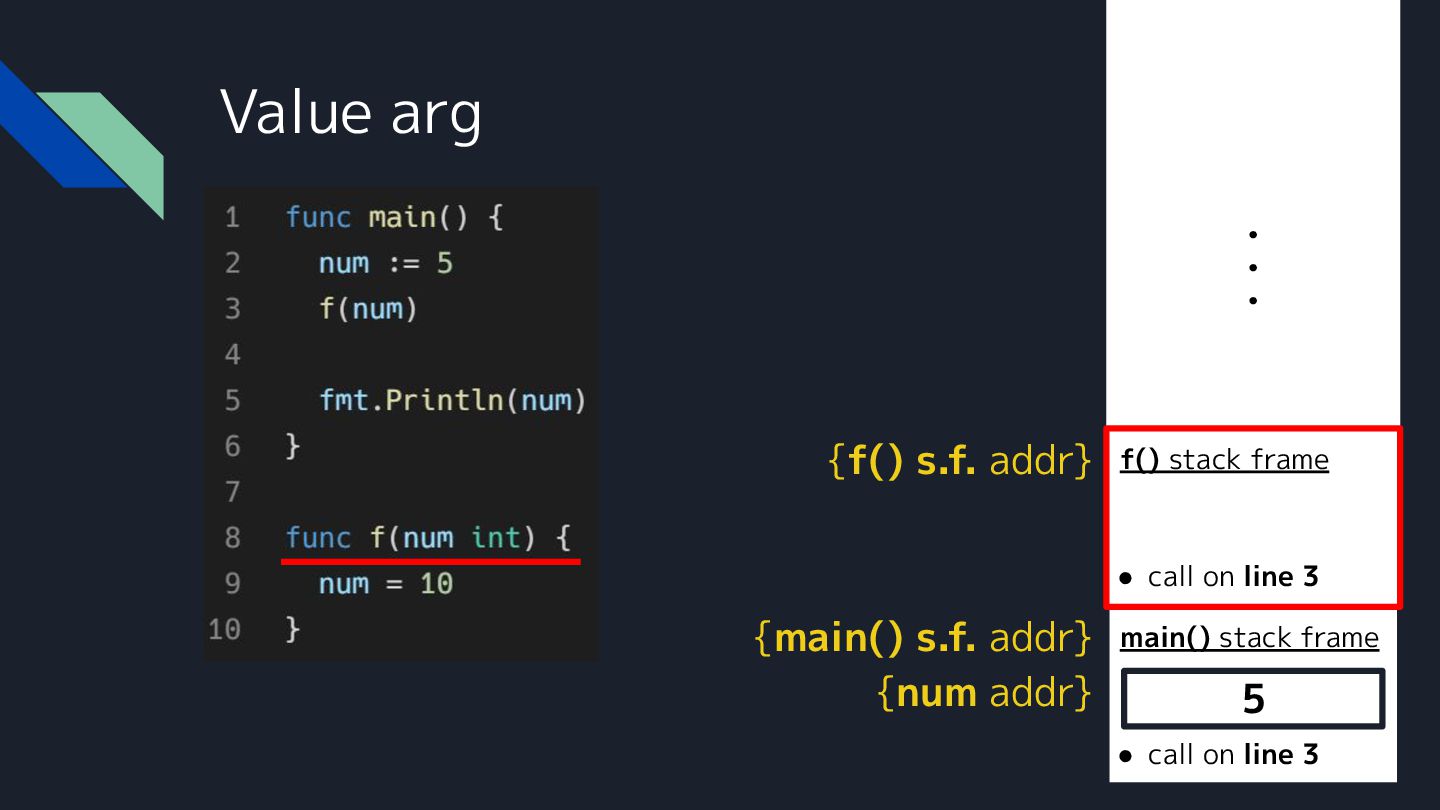

  54. . . . main() stack frame • call on line

    3 5 Value arg f() stack frame {f() s.f. addr} {main() s.f. addr} {num addr}
  55. . . . main() stack frame • call on line

    3 5 Value arg f() stack frame 5 {f() s.f. addr} {num addr} {main() s.f. addr} {num addr}

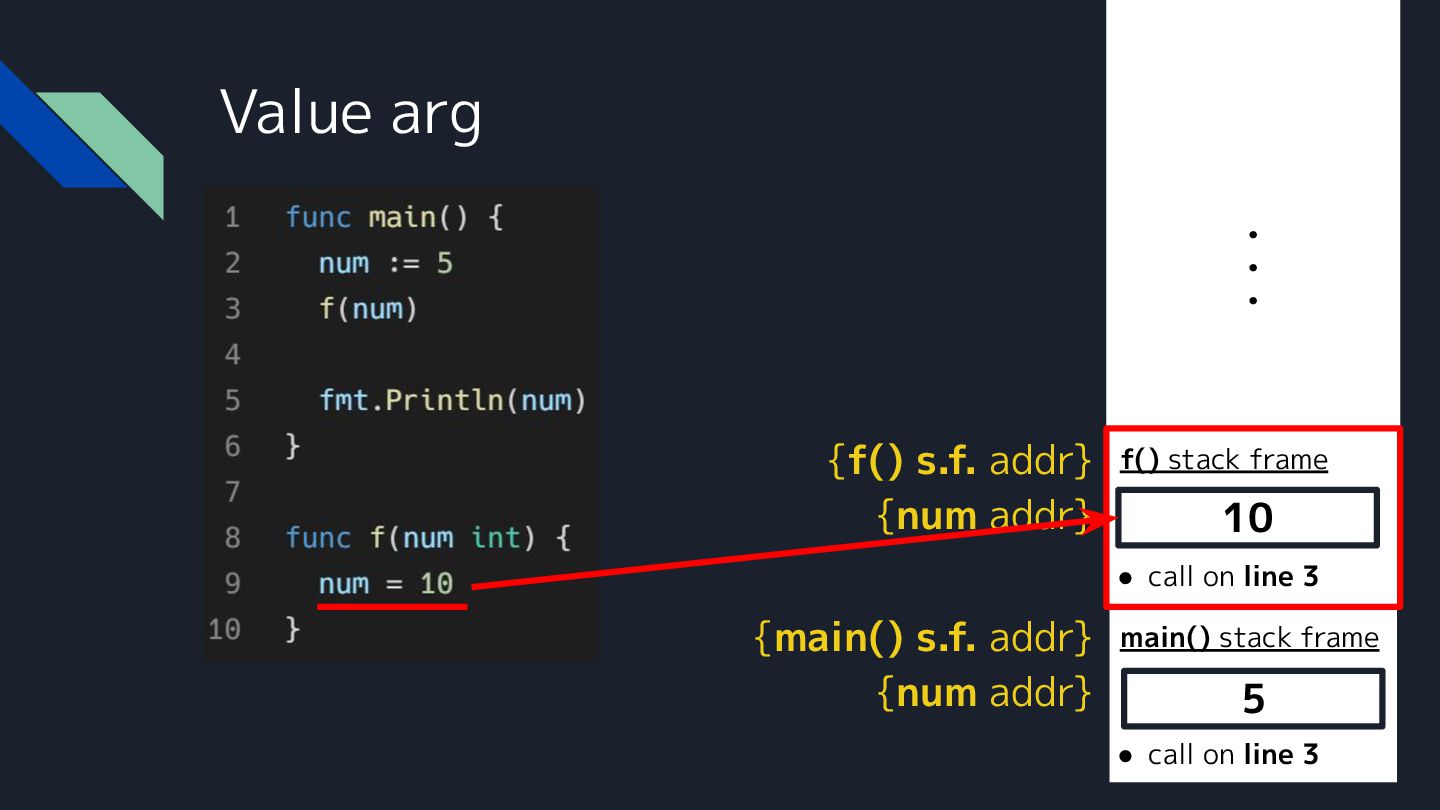

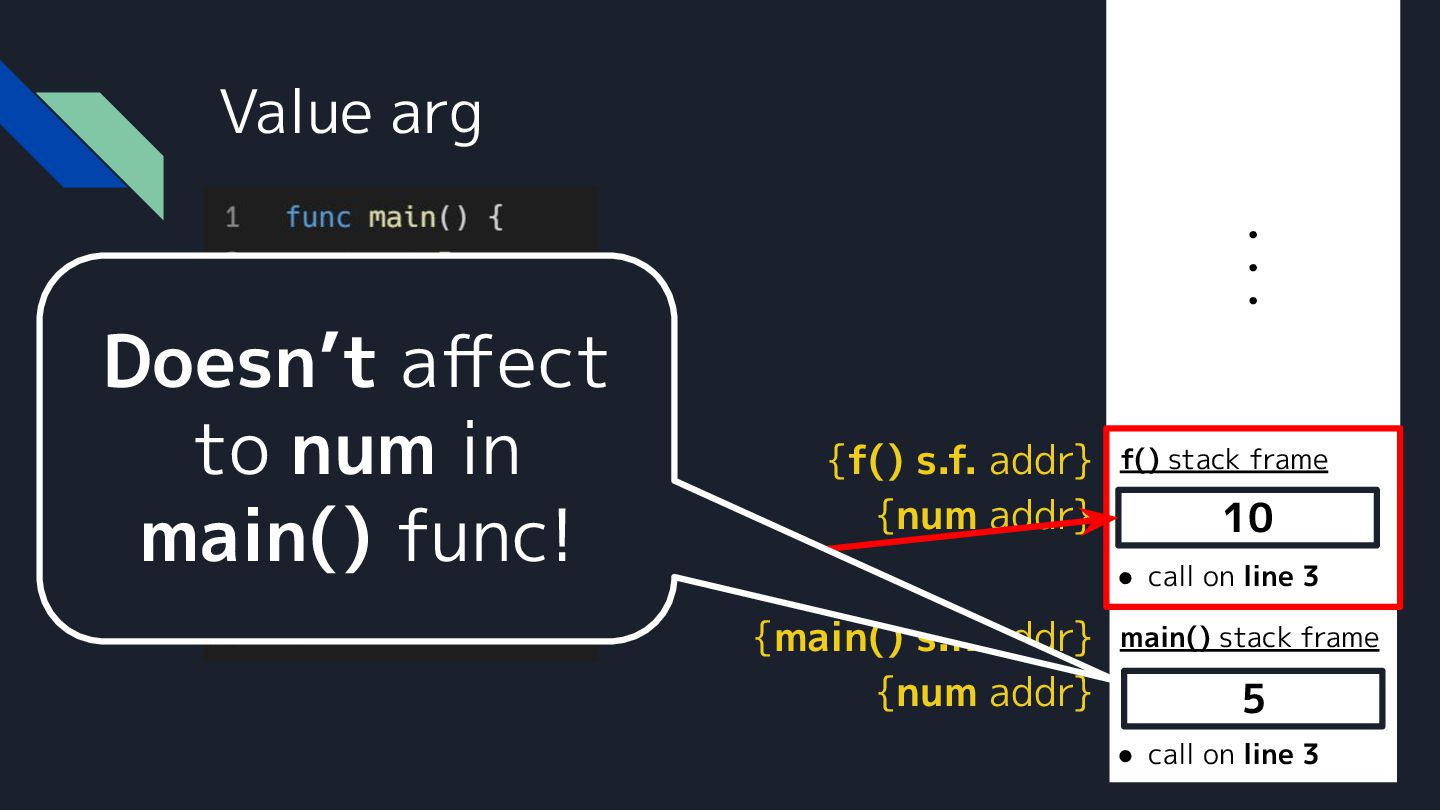

  56. {f() s.f. addr} {num addr} {main() s.f. addr} {num addr}

    . . . main() stack frame • call on line 3 5 Value arg f() stack frame 10
  57. {f() s.f. addr} {num addr} {main() s.f. addr} {num addr}

    . . . main() stack frame • call on line 3 5 Value arg f() stack frame 10 Doesn’t affect to num in main() func!

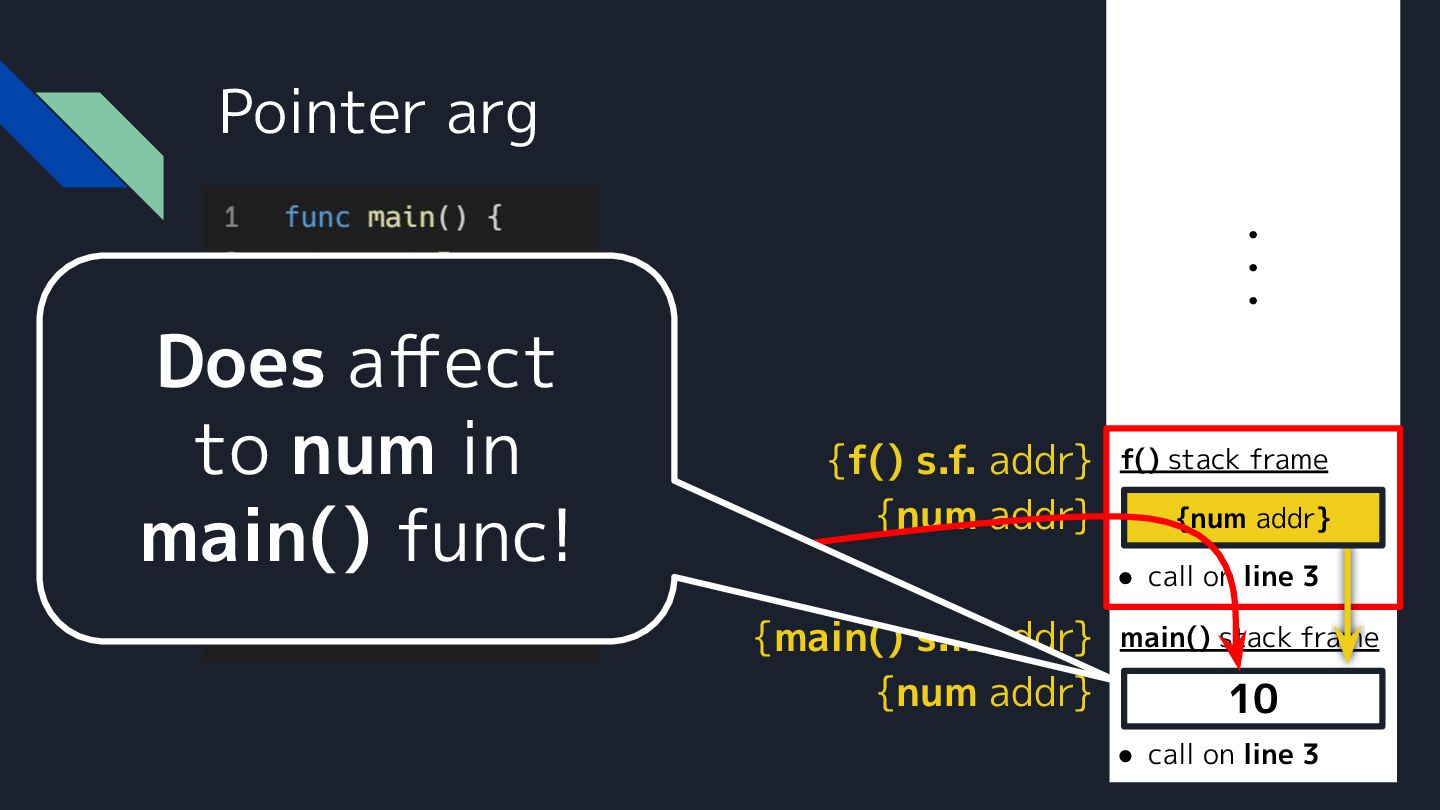

  58. . . . Pointer arg main() stack frame • call

    on line 3 5 {main() s.f. addr} {num addr}
  59. . . . Pointer arg main() stack frame • call

    on line 3 5 f() stack frame {f() s.f. addr} {main() s.f. addr} {num addr}
  60. . . . main() stack frame • call on line

    3 f() stack frame Pointer arg 5 {num addr} {f() s.f. addr} {num addr} {main() s.f. addr} {num addr}
  61. . . . main() stack frame • call on line

    3 f() stack frame Pointer arg {f() s.f. addr} {num addr} {main() s.f. addr} {num addr} 10 {num addr}
  62. . . . {f() s.f. addr} {num addr} {main() s.f.

    addr} {num addr} main() stack frame • call on line 3 10 f() stack frame Pointer arg {num addr} Does affect to num in main() func!

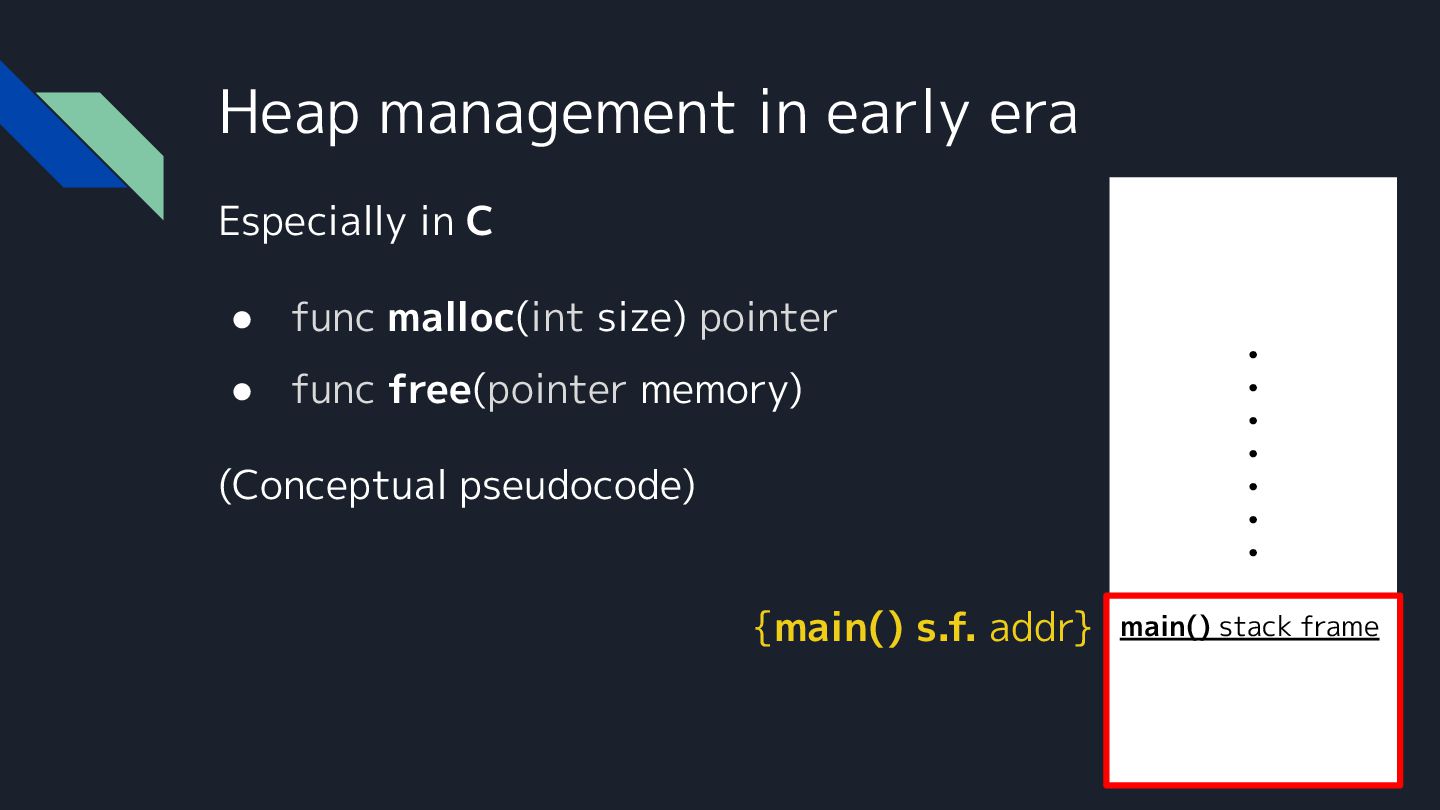

  63. Heap management in early era . . . . .

    . . {main() s.f. addr} main() stack frame Especially in C • func malloc(int size) pointer • func free(pointer memory) (Conceptual pseudocode)

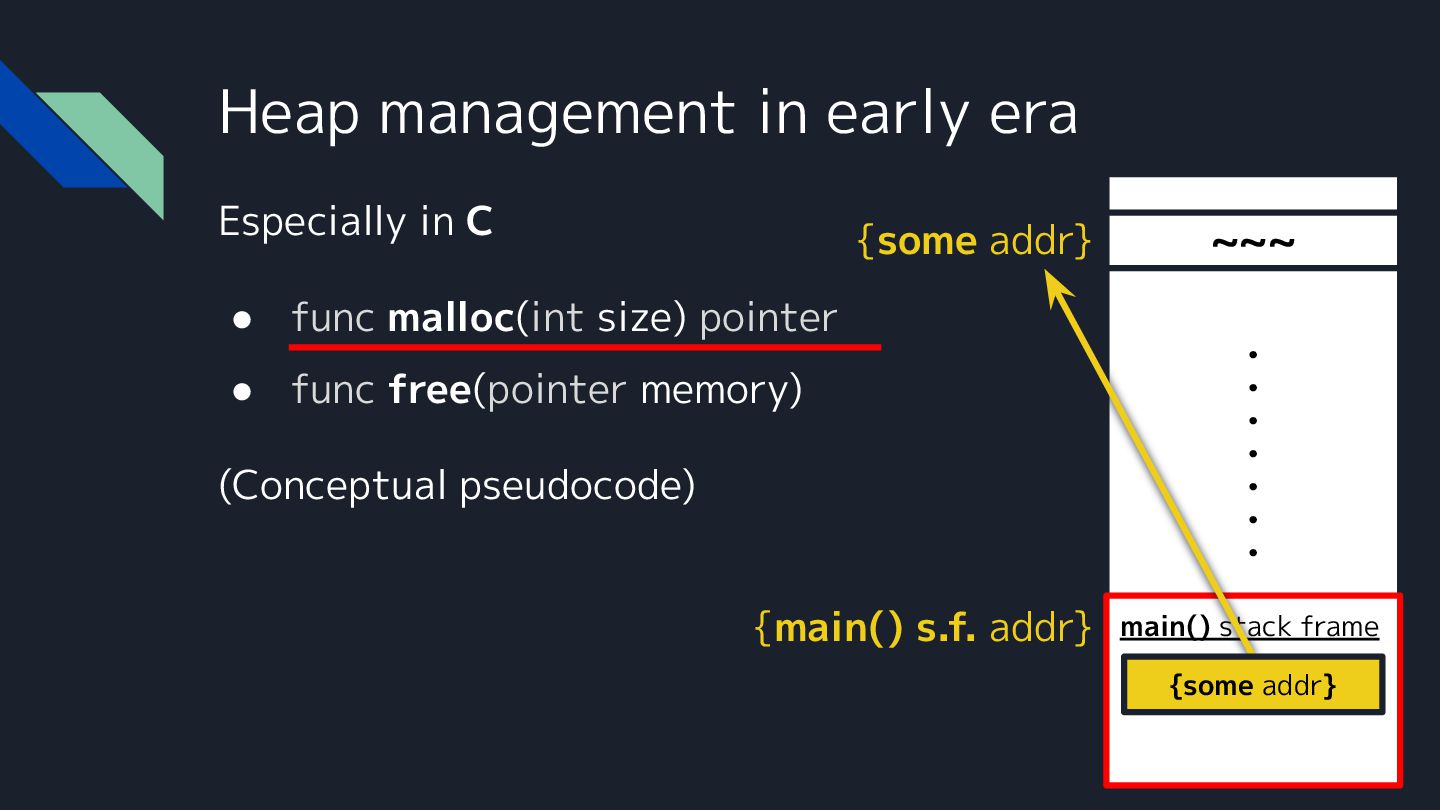

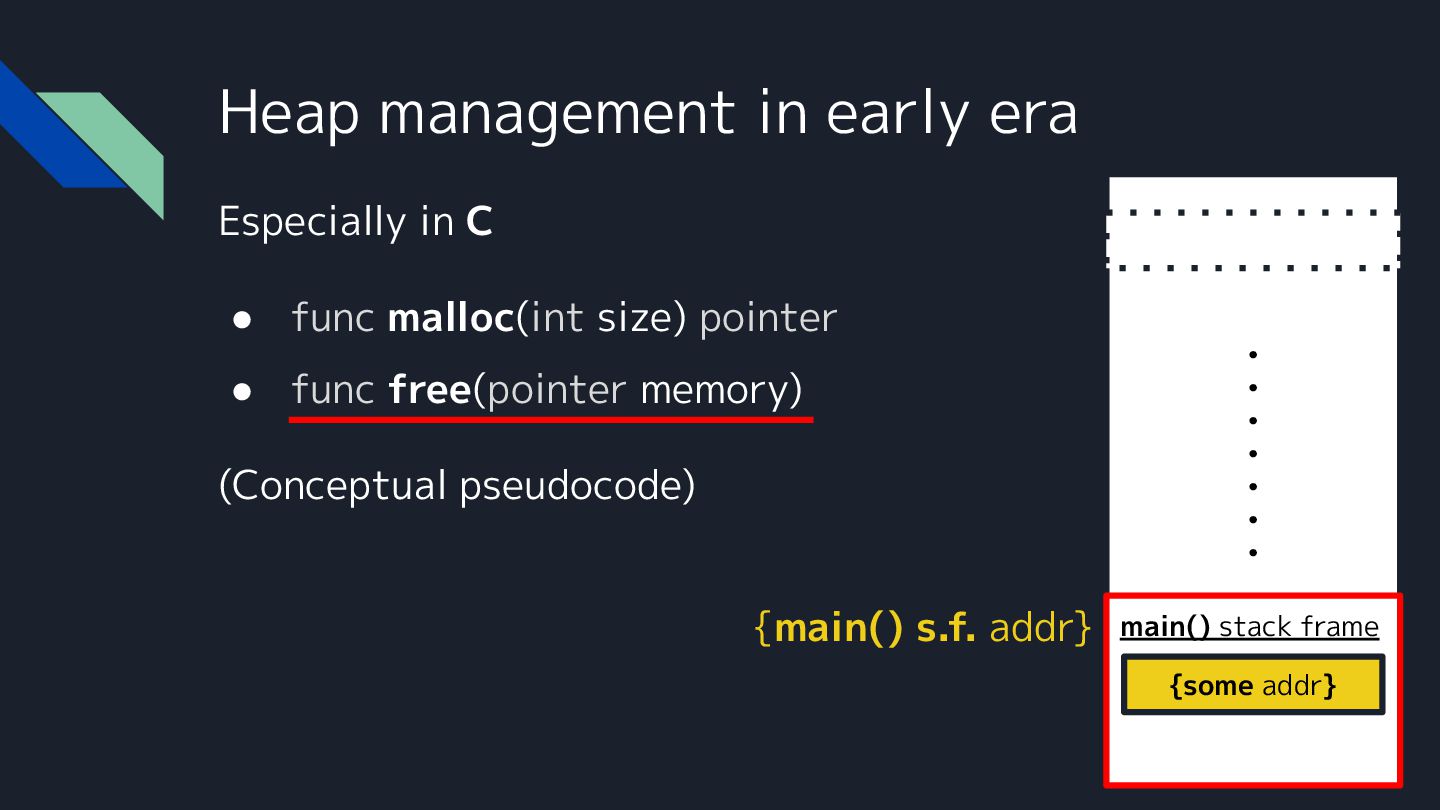

  64. Heap management in early era Especially in C • func

    malloc(int size) pointer • func free(pointer memory) (Conceptual pseudocode) . . . . . . . ~~~ {some addr} {main() s.f. addr} main() stack frame {some addr}
  65. Heap management in early era . . . . .

    . . {main() s.f. addr} main() stack frame {some addr} Especially in C • func malloc(int size) pointer • func free(pointer memory) (Conceptual pseudocode)

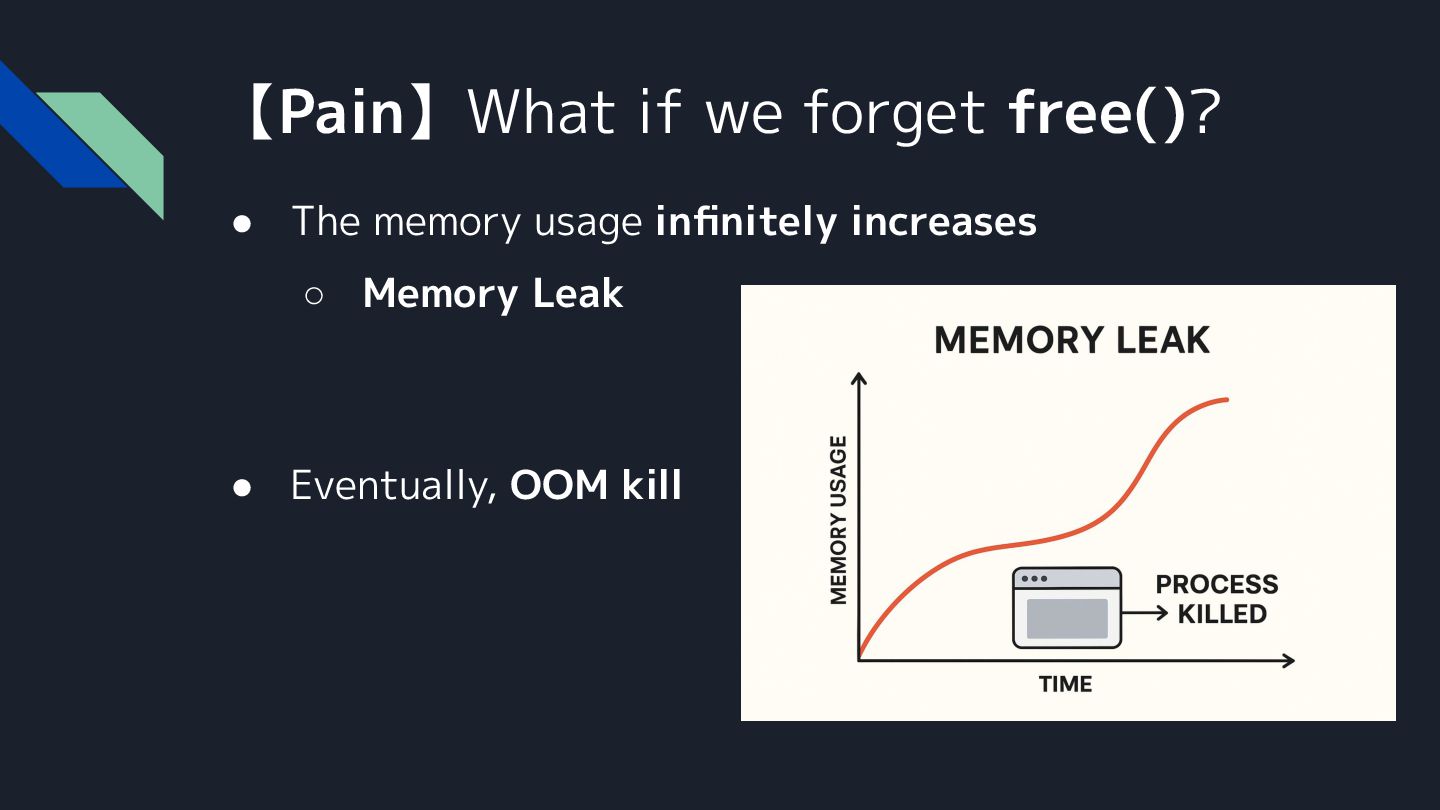

  66. 【Pain】What if we forget free()? • The memory usage infinitely

    increases ◦ Memory Leak • Eventually, OOM kill
  67. Garbage collection (GC) • Cleans up heap variables that are

    no longer in use • Executed by runtime

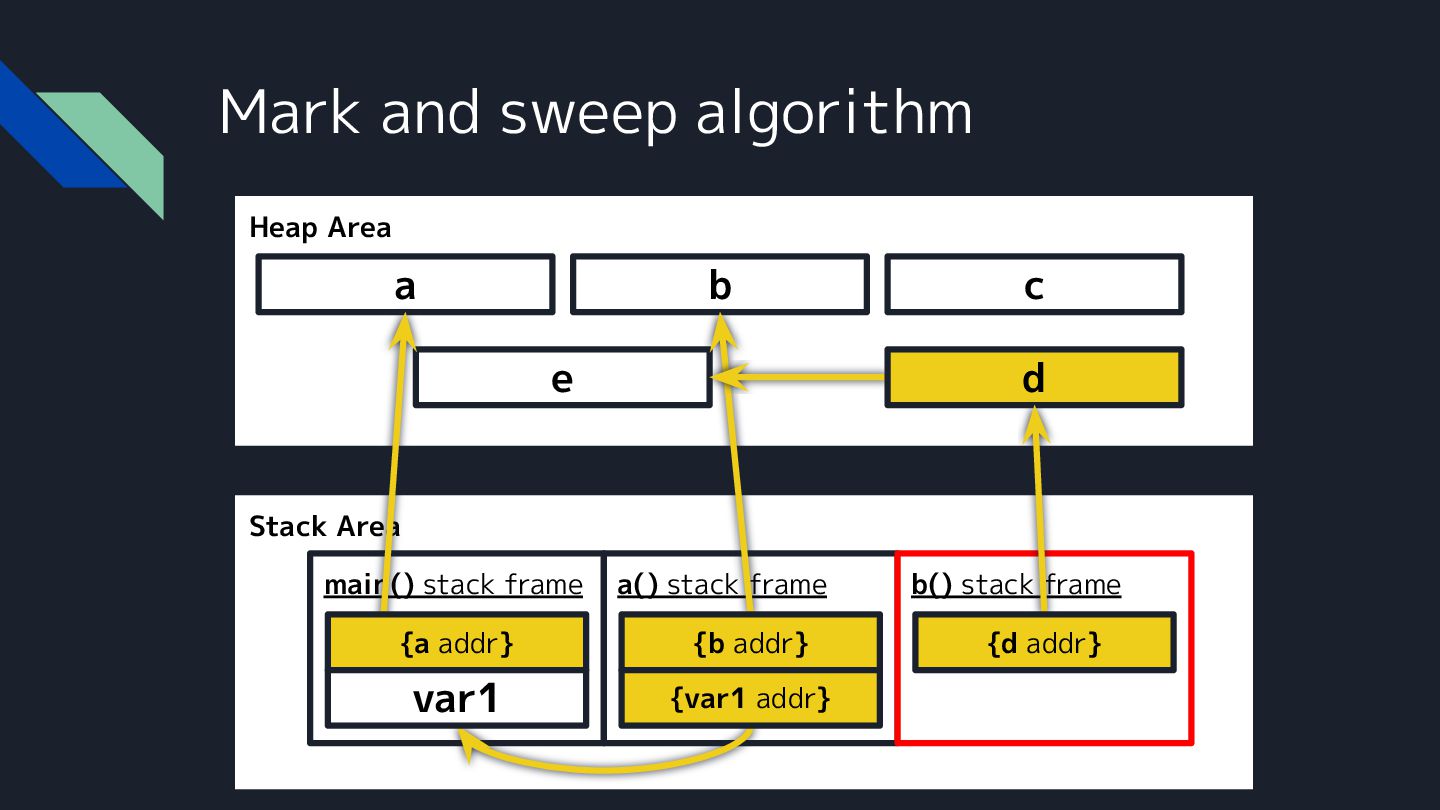

  68. Heap Area Stack Area Mark and sweep algorithm main() stack

    frame a() stack frame b() stack frame a b c e {a addr} d {b addr} {var1 addr} var1 {d addr}

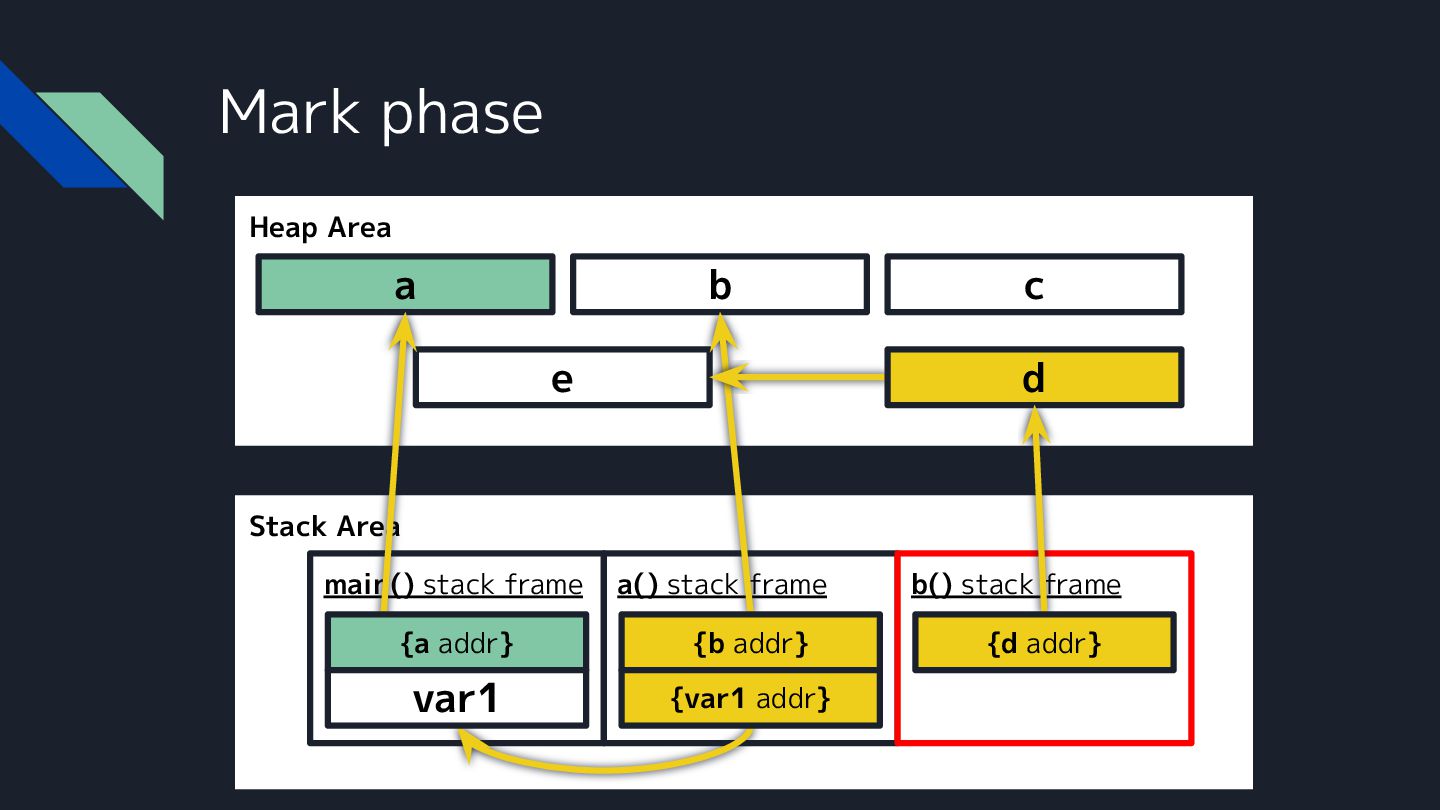

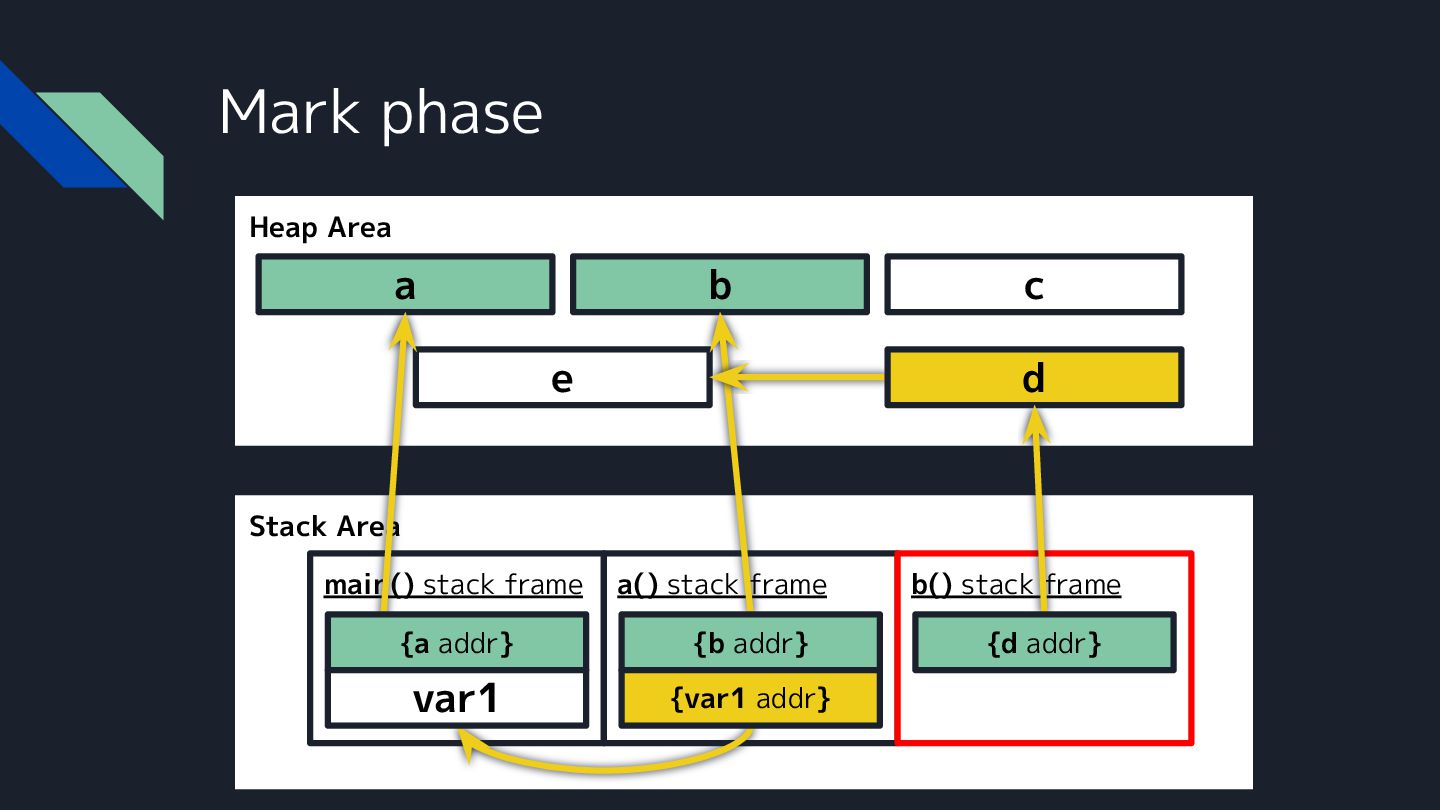

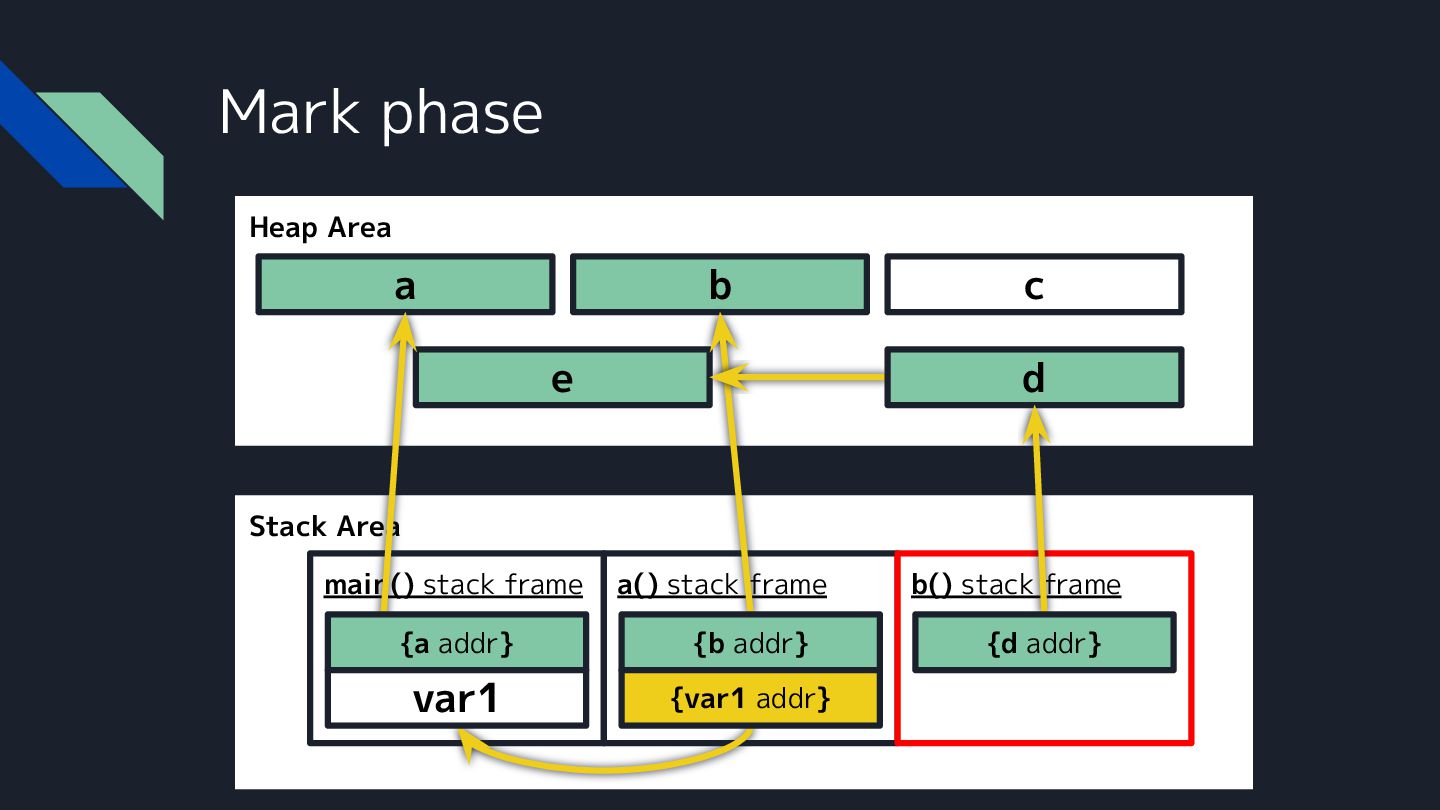

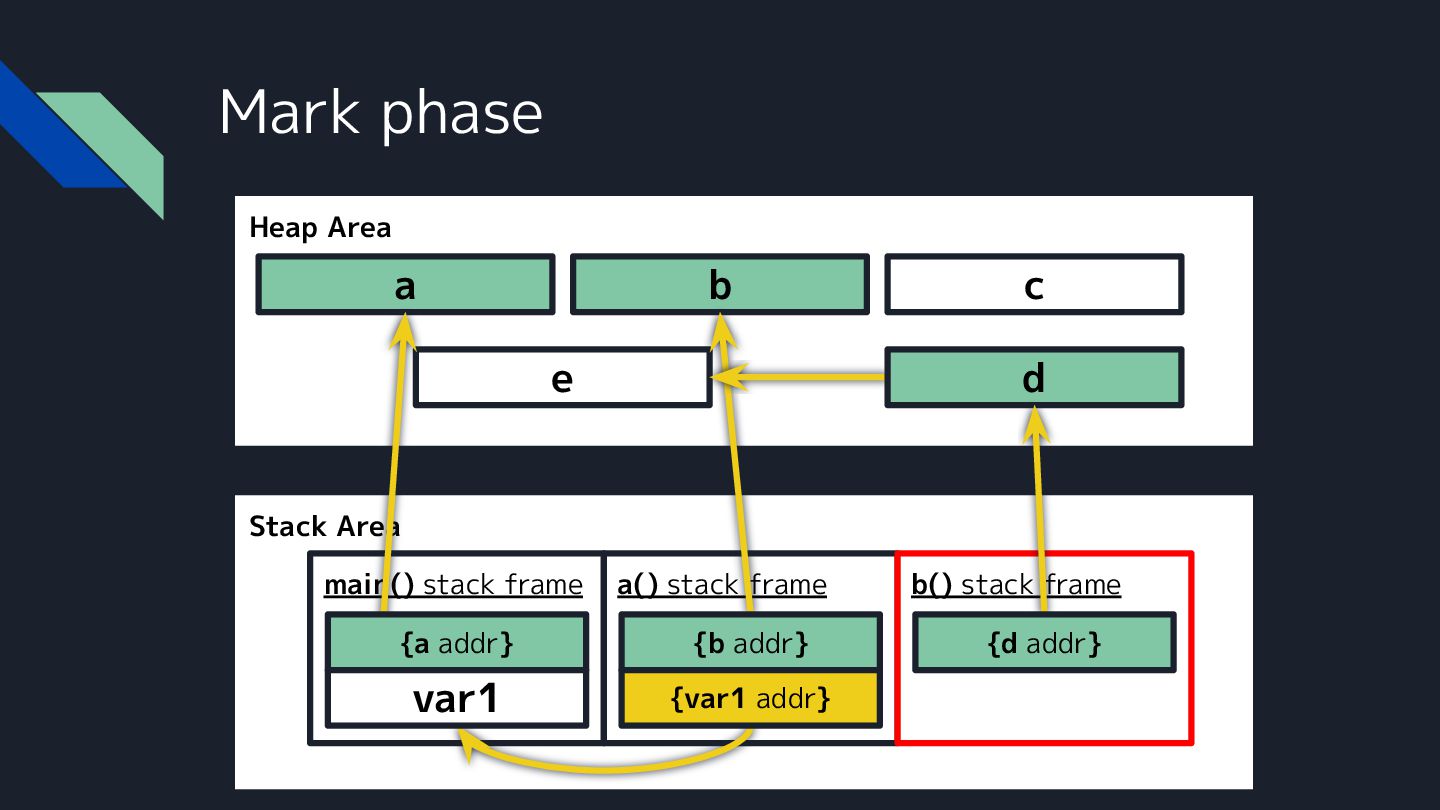

  69. Heap Area Stack Area Mark phase main() stack frame a()

    stack frame b() stack frame a b c e {a addr} d {b addr} {var1 addr} var1 {d addr}
  70. Heap Area Stack Area Mark phase main() stack frame a()

    stack frame b() stack frame a b c e {a addr} d {b addr} {var1 addr} var1 {d addr}
  71. Heap Area Stack Area Mark phase main() stack frame a()

    stack frame b() stack frame a b c e {a addr} d {b addr} {var1 addr} var1 {d addr}
  72. Heap Area Stack Area Mark phase main() stack frame a()

    stack frame b() stack frame a b c e {a addr} d {b addr} {var1 addr} var1 {d addr}
  73. Heap Area Stack Area Mark phase main() stack frame a()

    stack frame b() stack frame a b c e {a addr} d {b addr} {var1 addr} var1 {d addr}
  74. Heap Area Stack Area Mark phase main() stack frame a()

    stack frame b() stack frame a b c e {a addr} d {b addr} {var1 addr} var1 {d addr}
  75. Heap Area Stack Area Mark phase main() stack frame a()

    stack frame b() stack frame a b c e {a addr} d {b addr} {var1 addr} var1 {d addr}

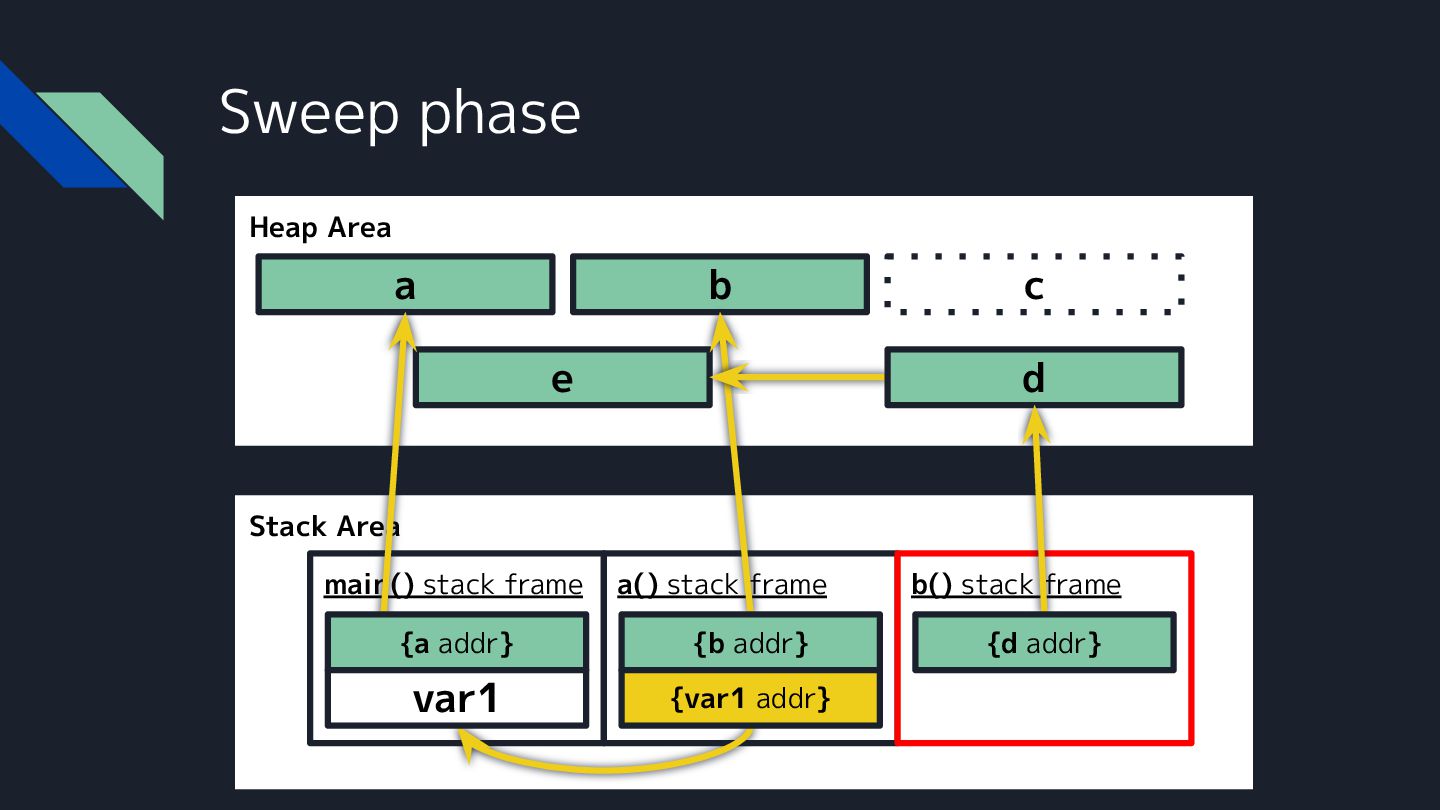

  76. Heap Area Stack Area main() stack frame a() stack frame

    b() stack frame a b e {a addr} d {b addr} {var1 addr} var1 {d addr} Sweep phase c
  77. Heap Area Stack Area main() stack frame a() stack frame

    b() stack frame a b e {a addr} d {b addr} {var1 addr} var1 {d addr} Sweep phase
  78. Very simple, but hard to optimize • Marking concurrently to

    other goroutines ◦ Tri-color marking algorithm etc... • Adjusting triggers • Green Tea!!!
  79. Very simple, but hard to optimize • Can be optimized

    more with complex algorithm • Go doesn’t = philosophy of symplicity
  80. 【Pain】GC is great, but expensive • Placing much data in

    the heap = high GC cost ◦ Especially marking
  81. Most GC languages determine by type • Old Java: all

    objects are in heap • Python: all objects are in heap • JS: all non-primitives are in heap
  82. • Old Java: all objects are in heap • Python:

    all objects are in heap • JS: all non-primitives are in heap Most GC languages determine by type Non-primitive types tend to be in heap!
  83. Heap escape • Put as much data in the stack

    as possible • Specific data “escapes” to the heap

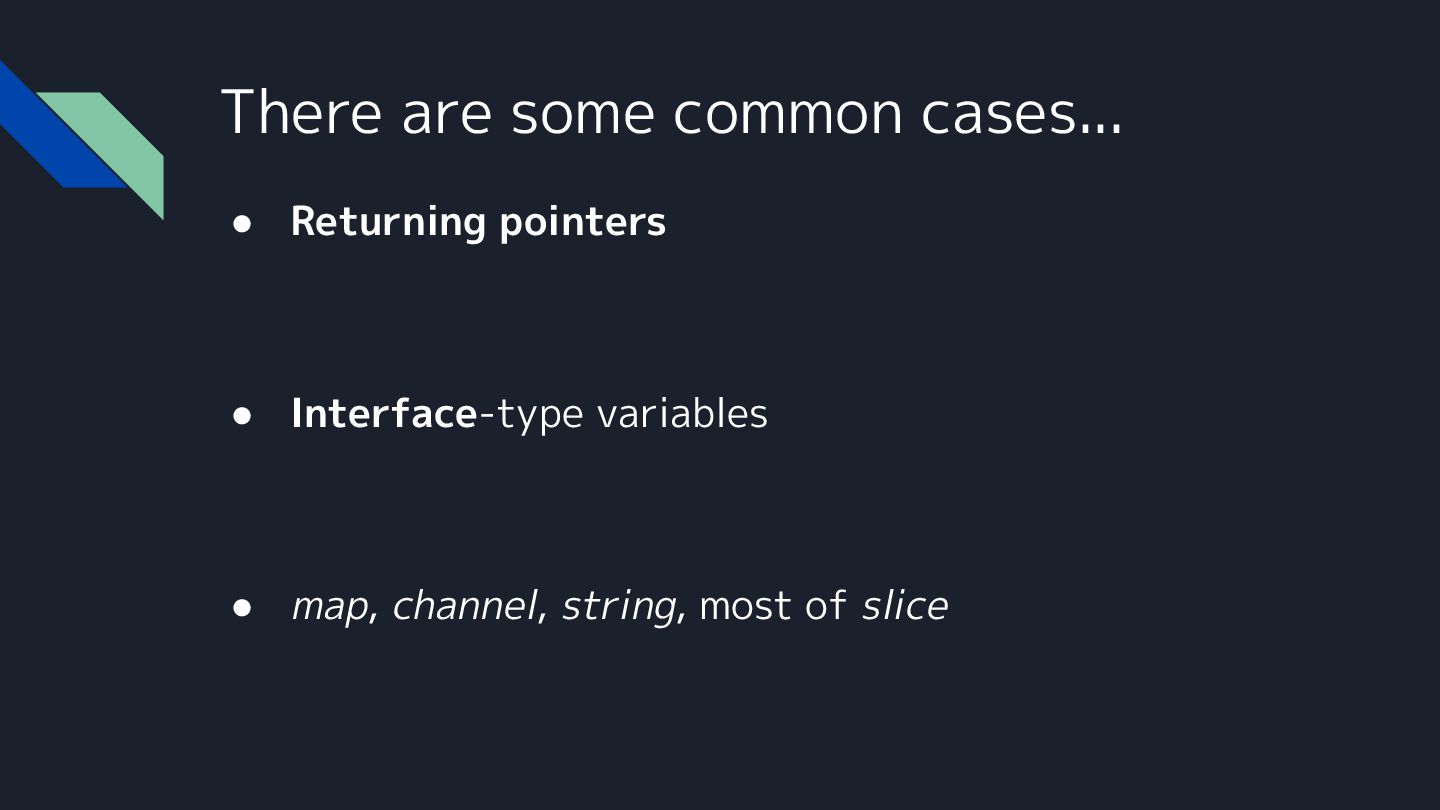

  84. There are some common cases... • Returning pointers • Interface-type

    variables • map, channel, string, most of slice
  85. Only the compiler & runtime know... • Many are decided

    by compiler • Rest are decided by runtime

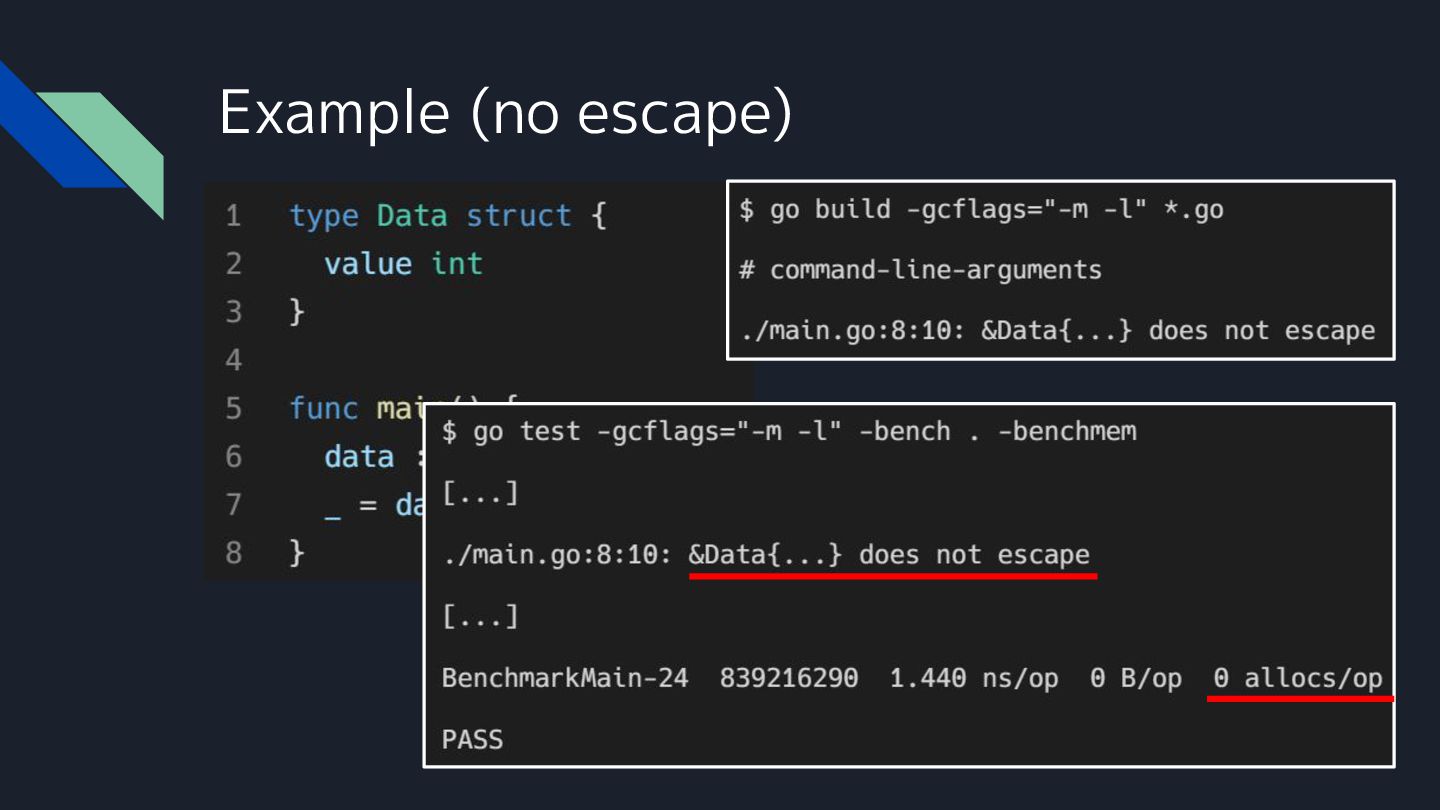

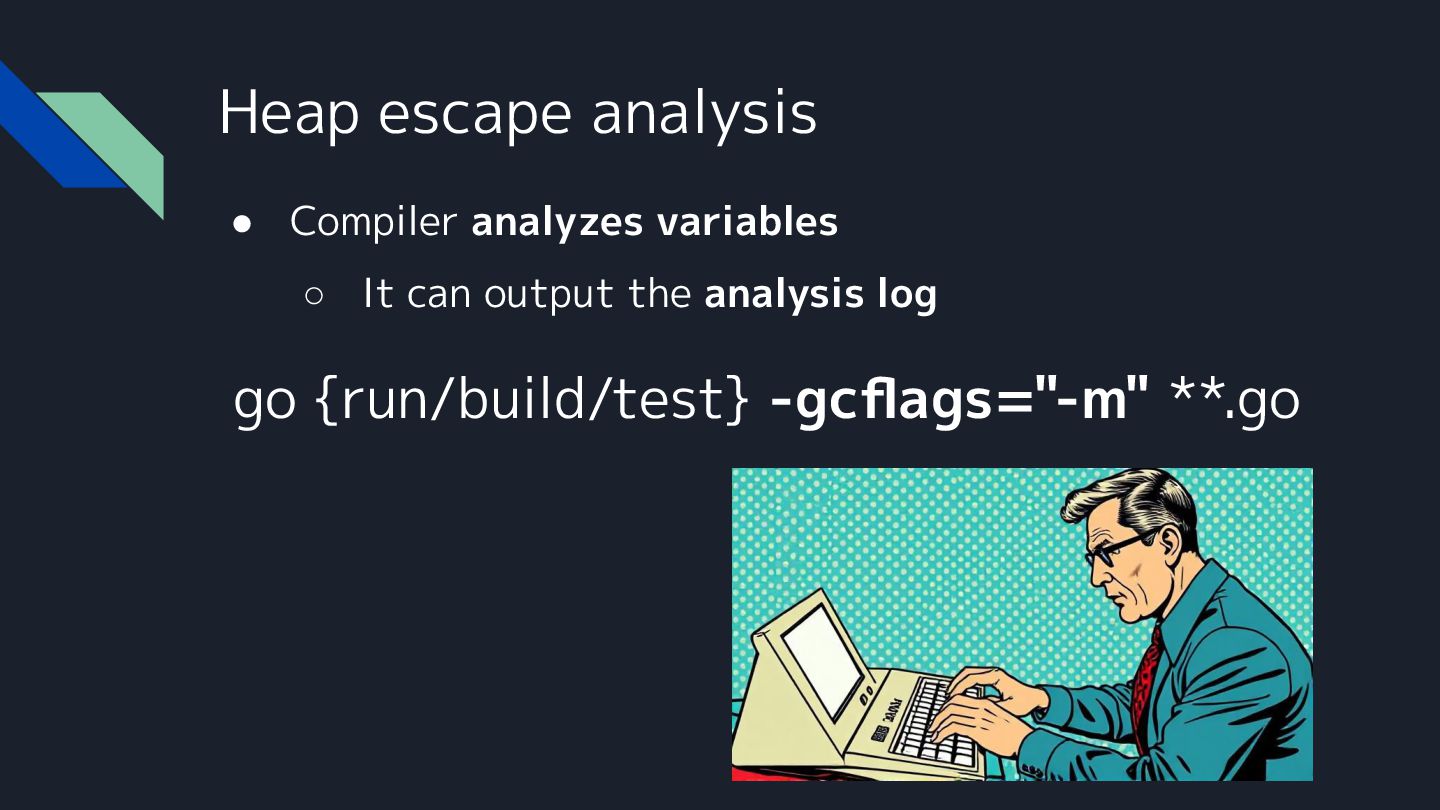

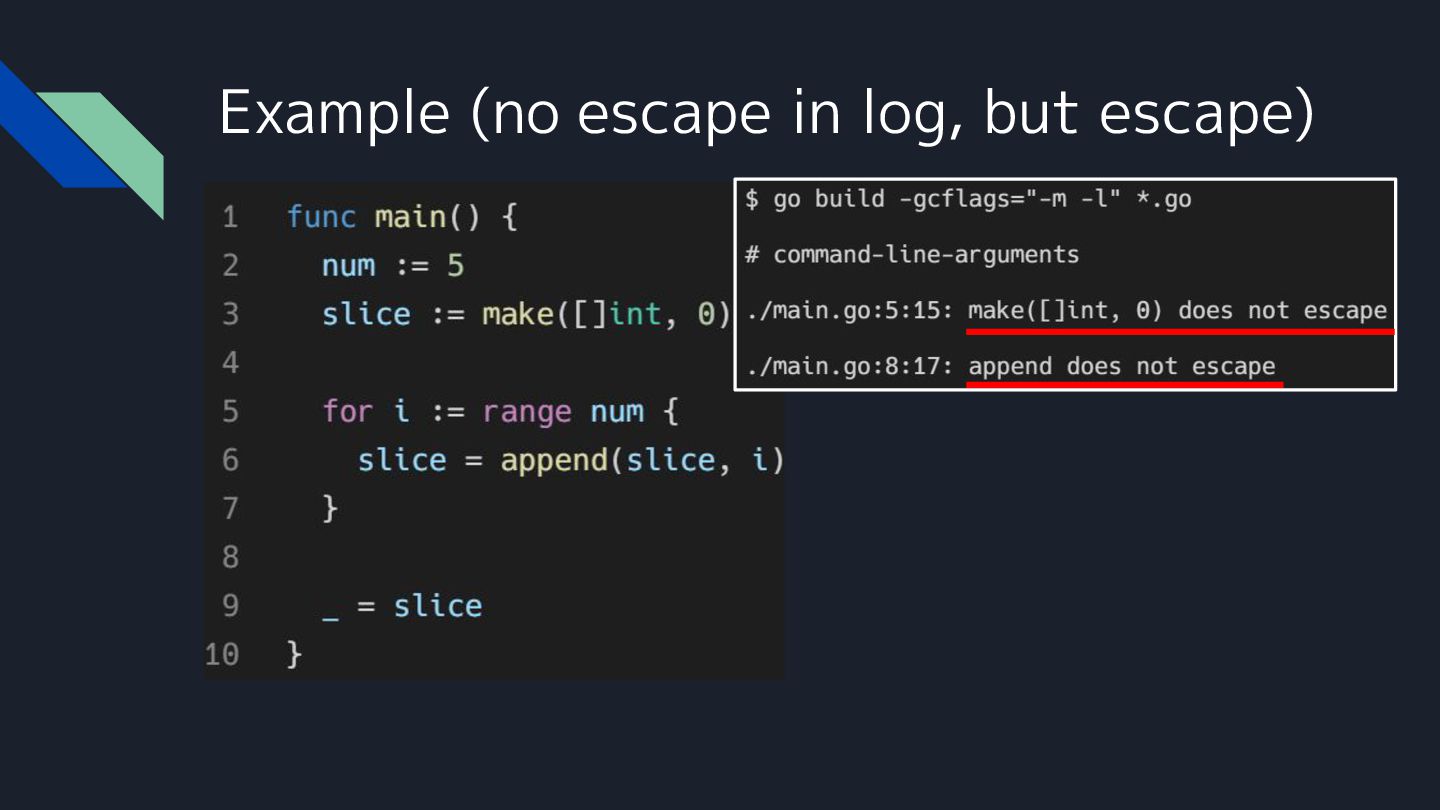

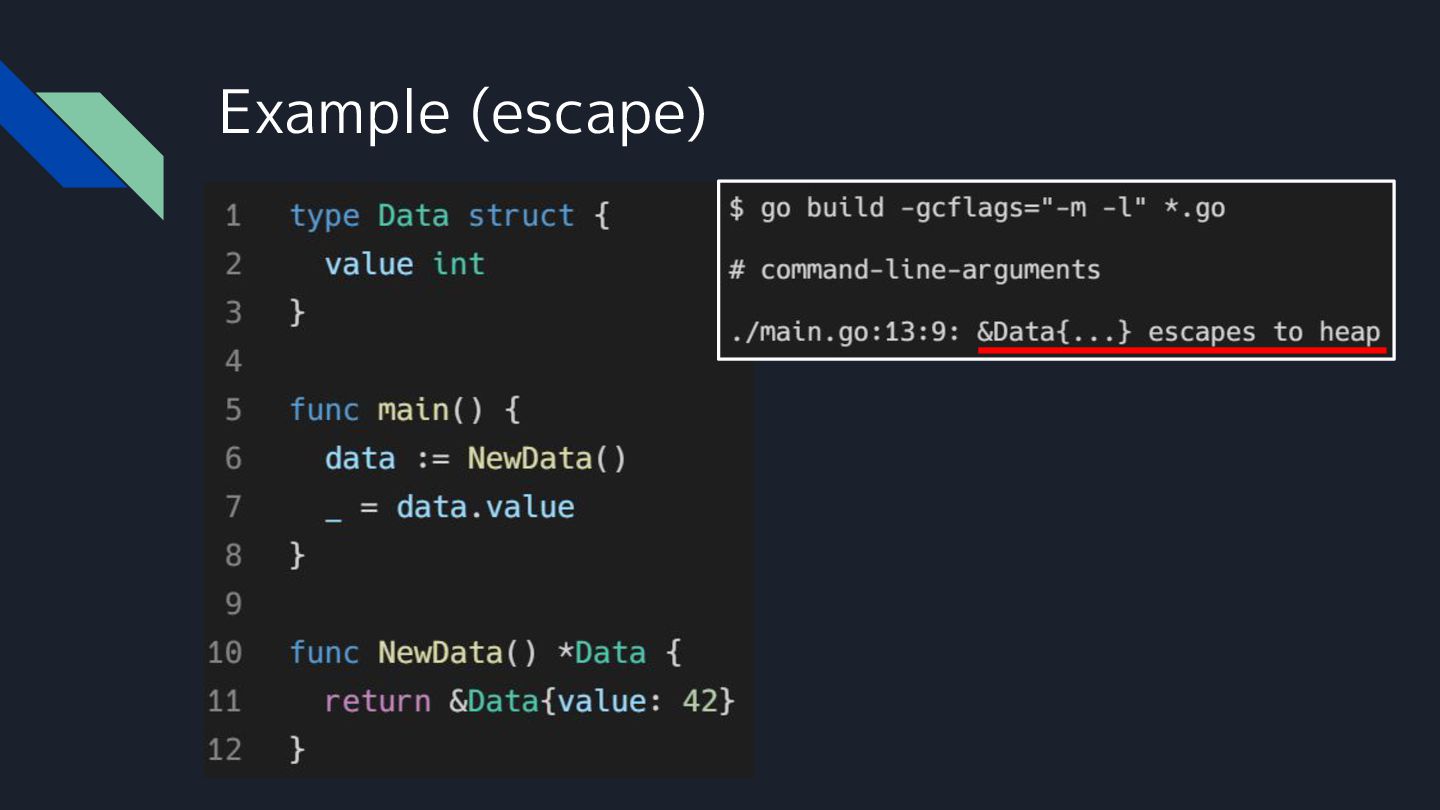

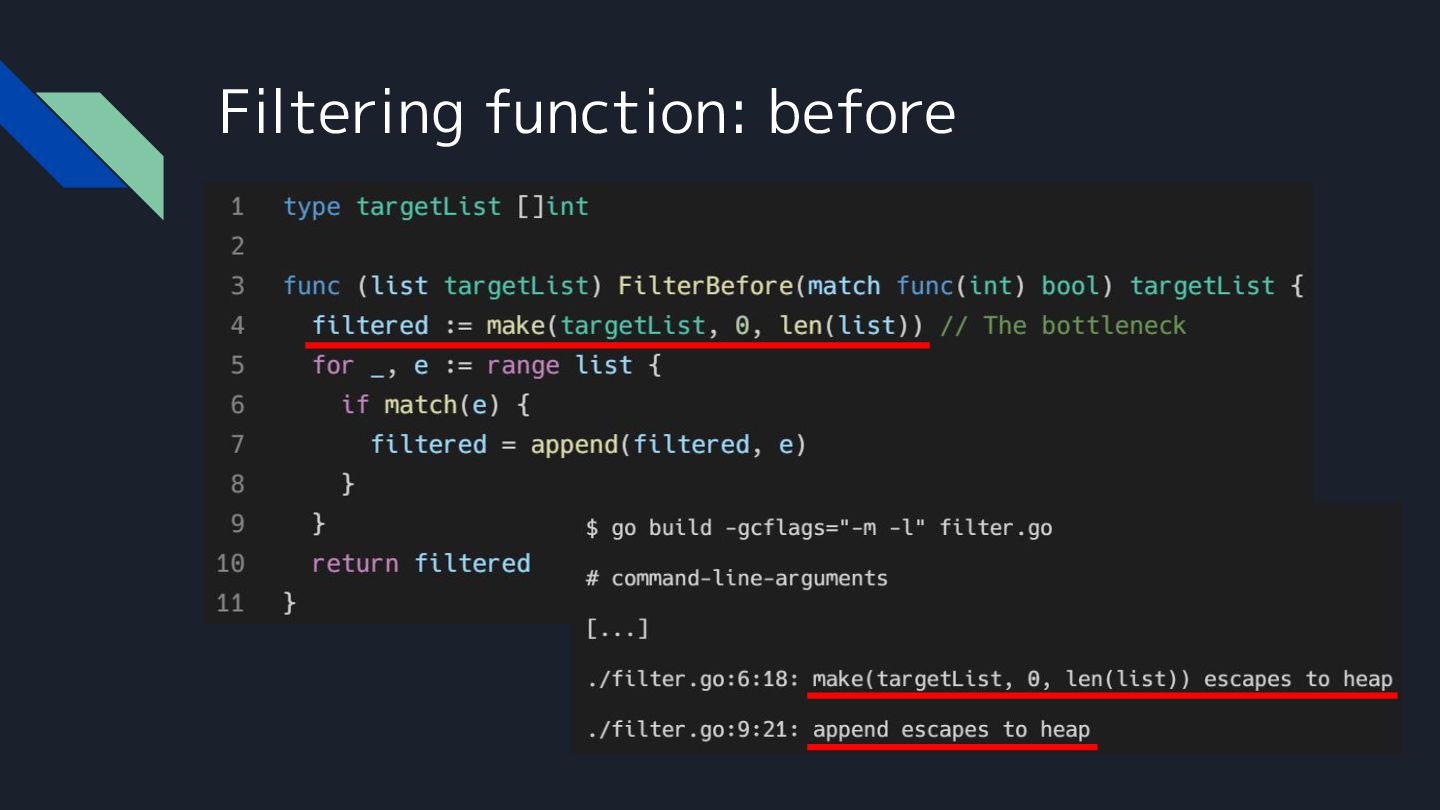

  86. Heap escape analysis • Compiler analyzes variables ◦ It can

    output the analysis log go {run/build/test} -gcflags="-m" **.go

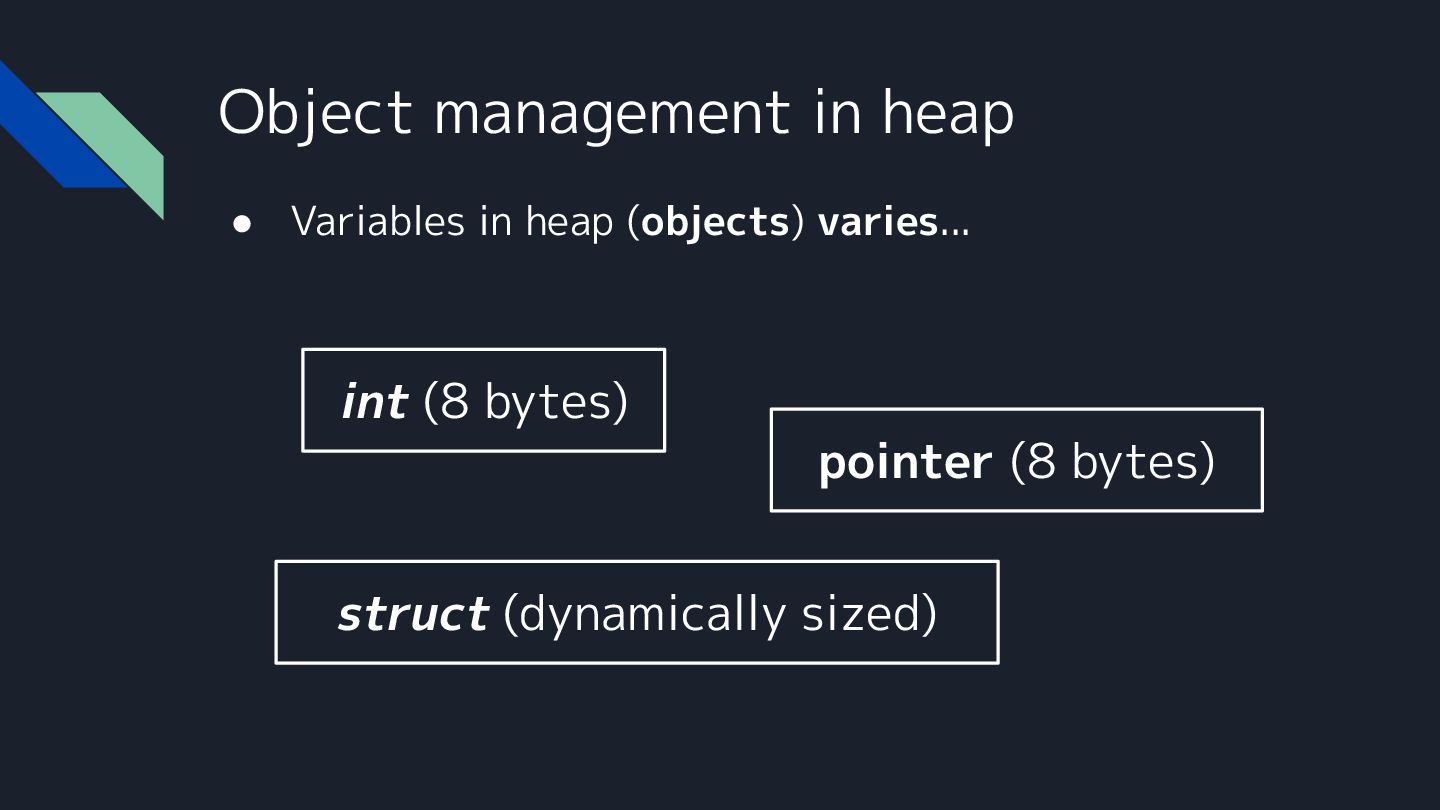

  87. Object management in heap • Variables in heap (objects) varies...

    int (8 bytes) struct (dynamically sized) pointer (8 bytes)

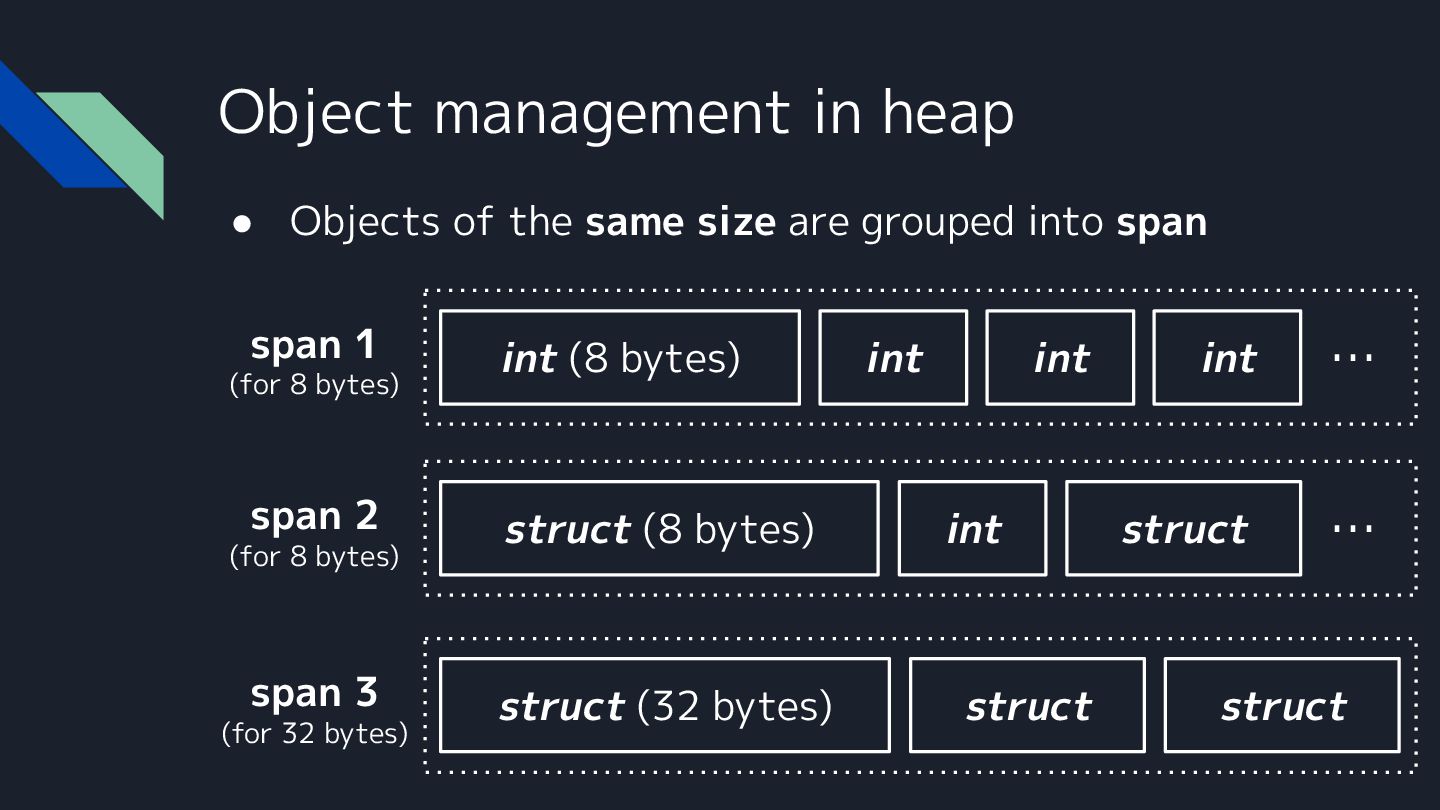

  88. … … Object management in heap • Objects of the

    same size are grouped into span int (8 bytes) struct (8 bytes) struct struct (32 bytes) struct struct int int span 1 (for 8 bytes) span 2 (for 8 bytes) span 3 (for 32 bytes) int int

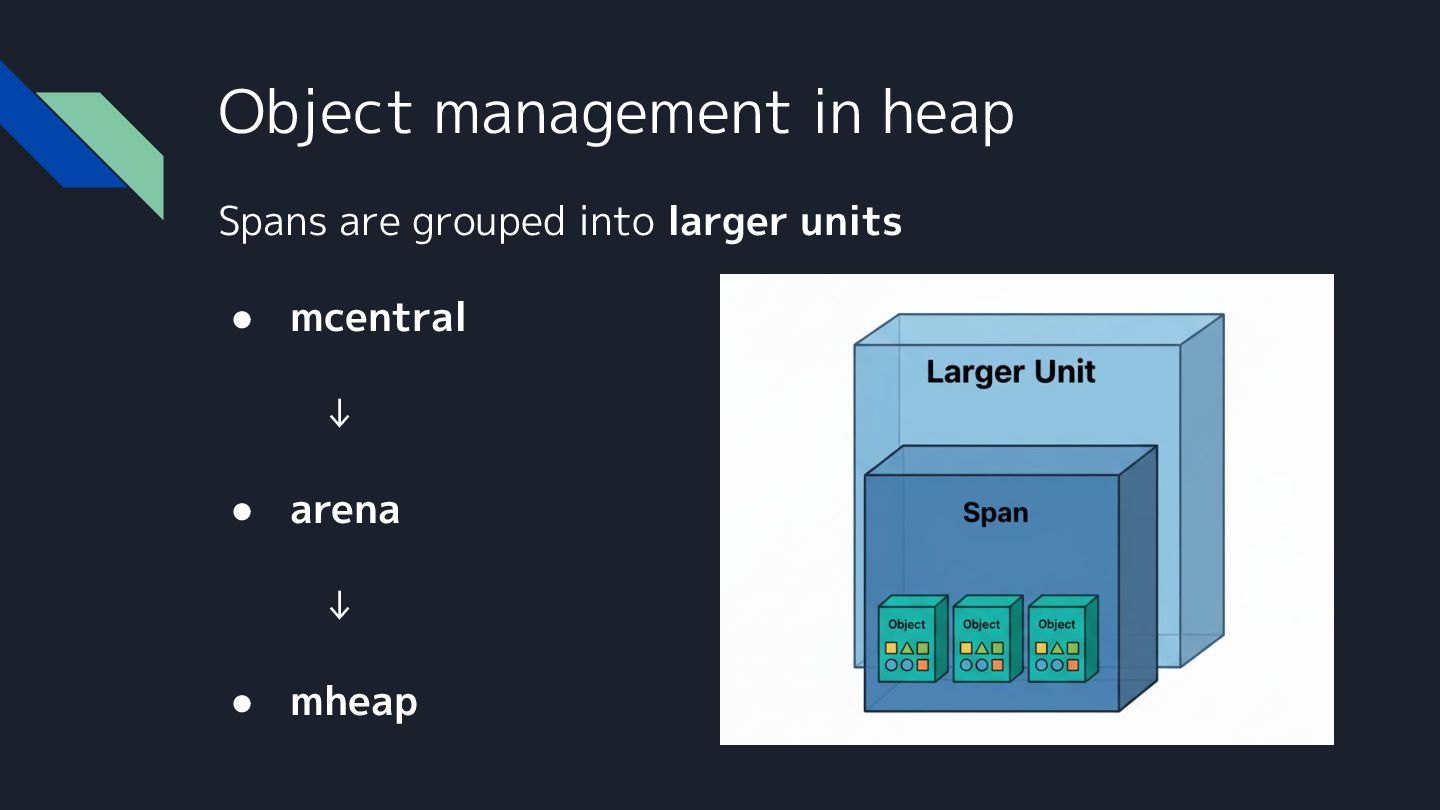

  89. Object management in heap Spans are grouped into larger units

    • mcentral ↓ • arena ↓ • mheap

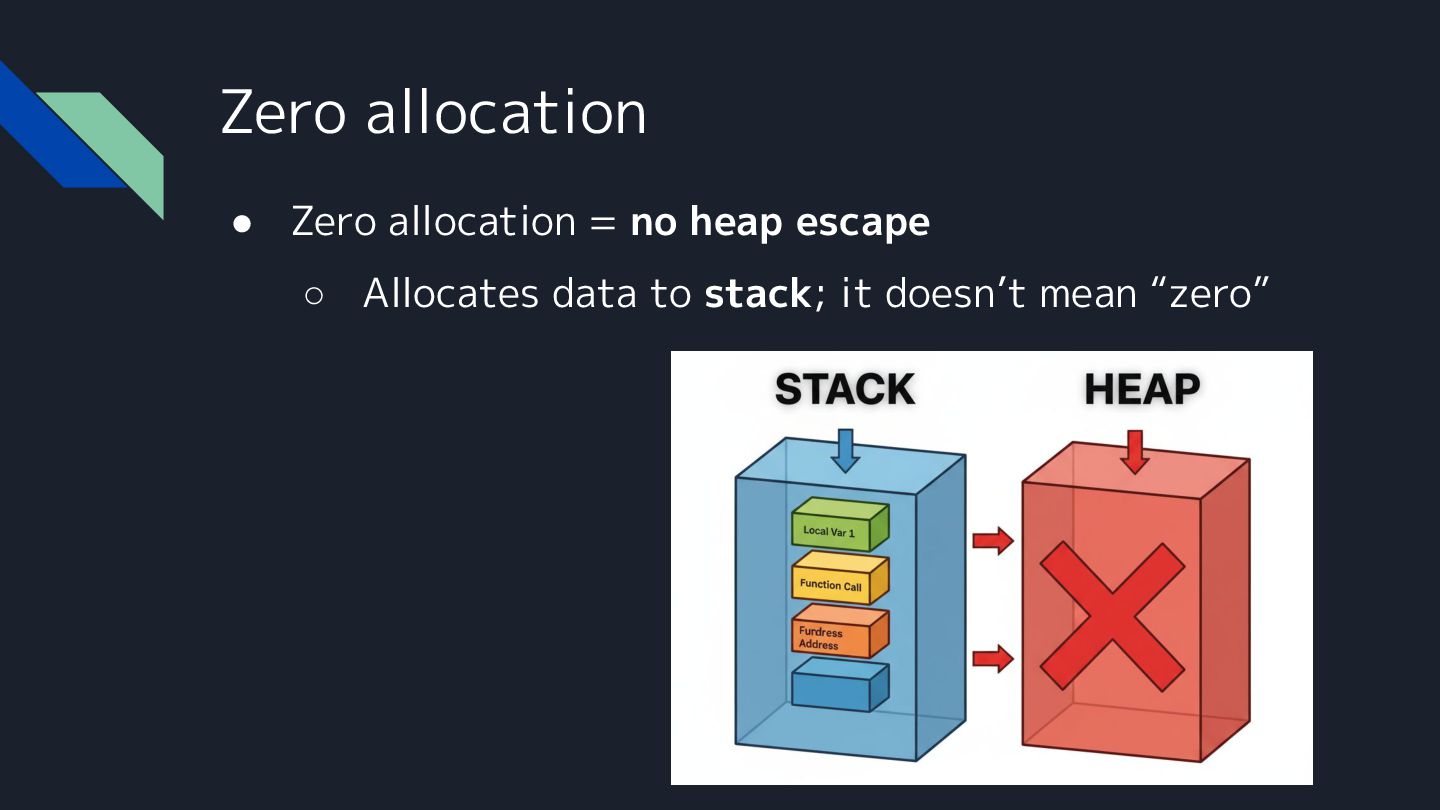

  90. Zero allocation • Zero allocation = no heap escape ◦

    Allocates data to stack; it doesn’t mean “zero”

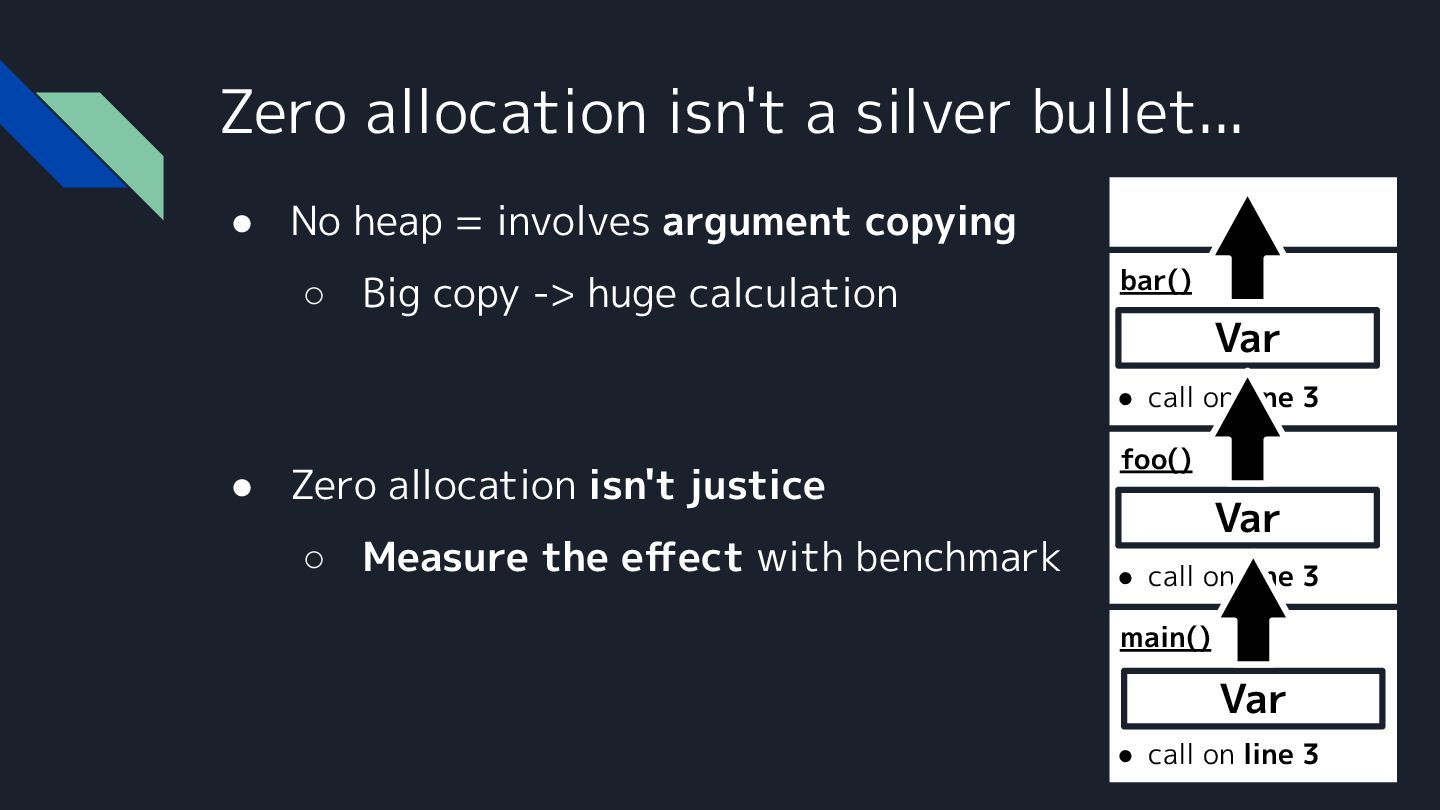

  91. Zero allocation isn't a silver bullet... • No heap =

    involves argument copying ◦ Big copy -> huge calculation • Zero allocation isn't justice ◦ Measure the effect with benchmark main() Var foo() Arg bar() Arg

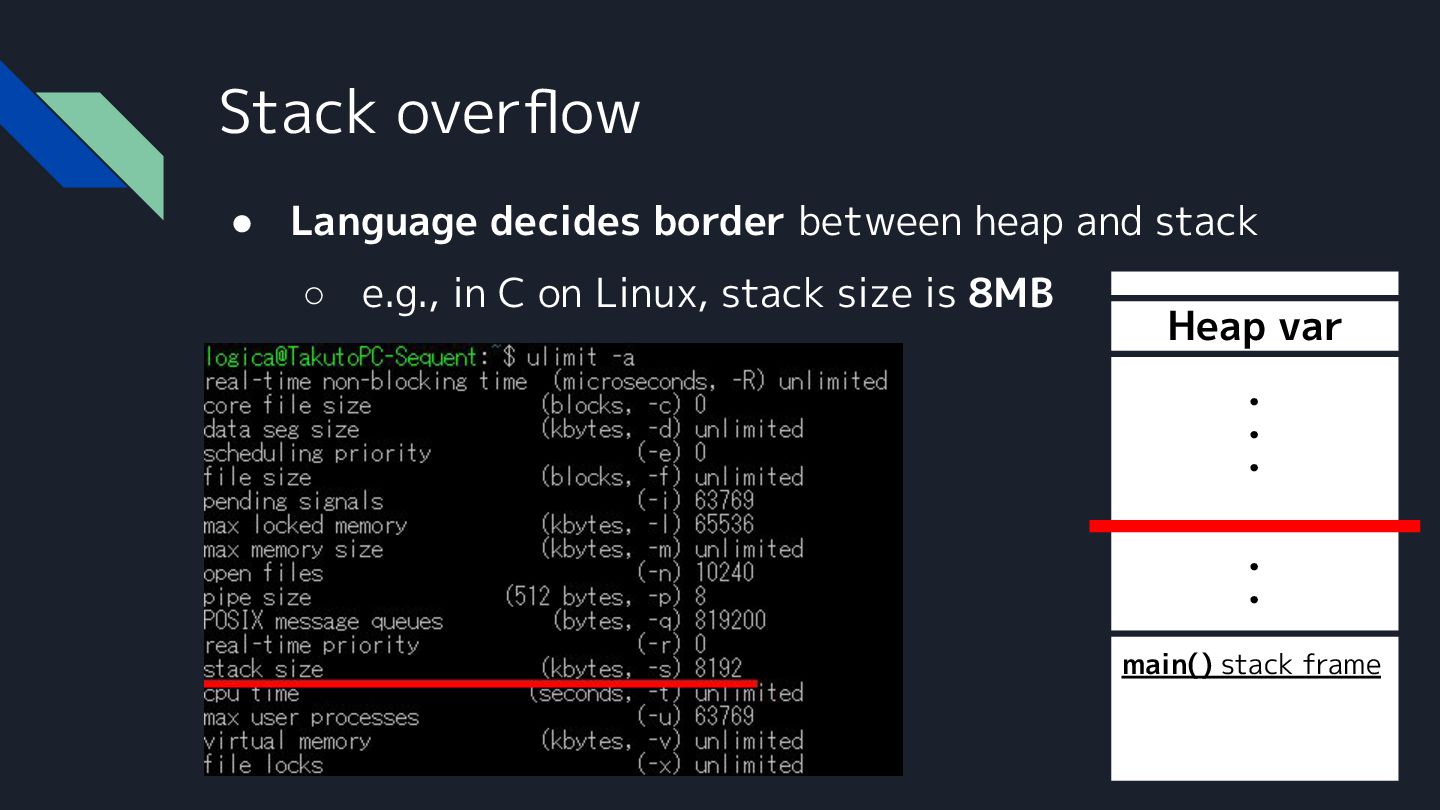

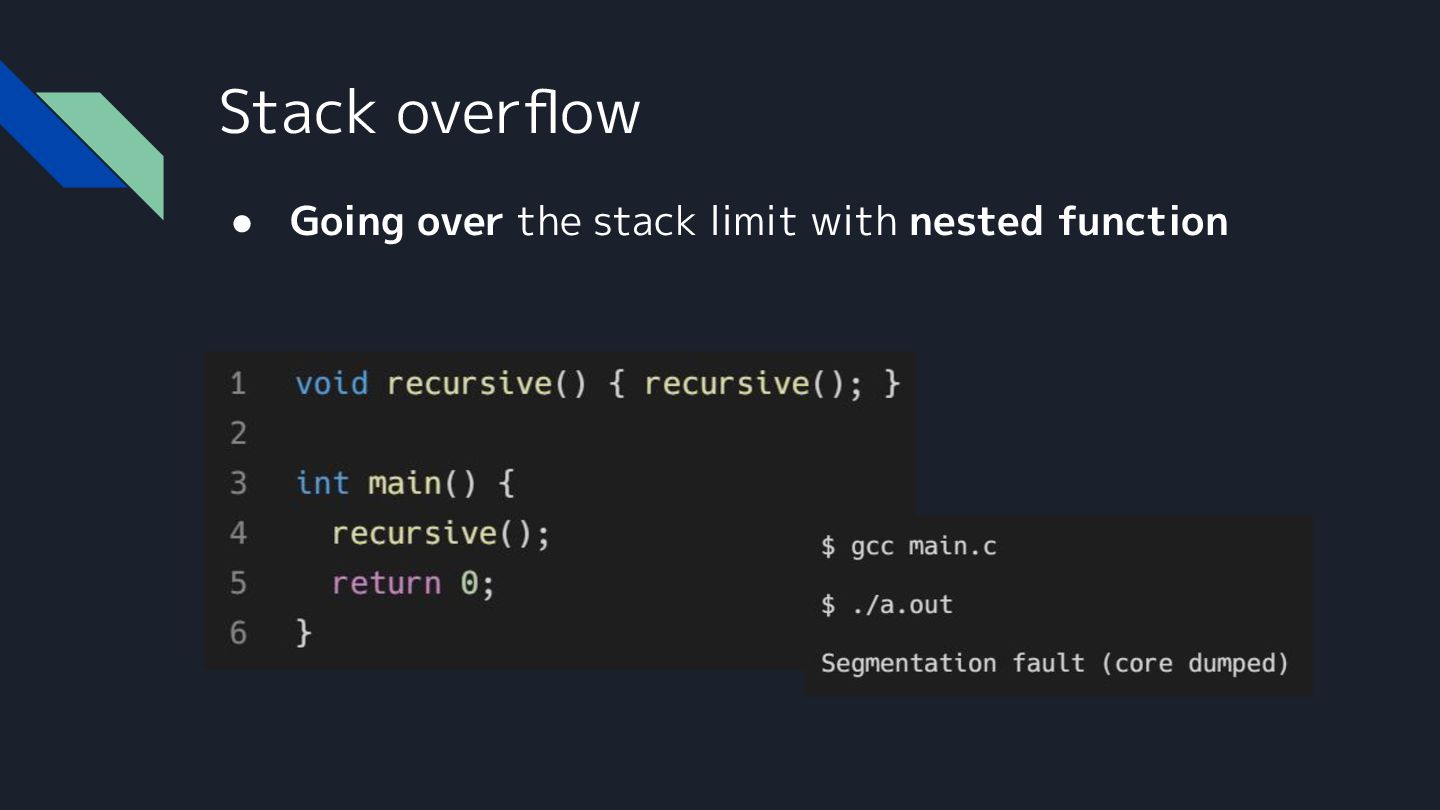

  92. Stack overflow • Language decides border between heap and stack

    ◦ e.g., in C on Linux, stack size is 8MB . . . . . Heap var main() stack frame

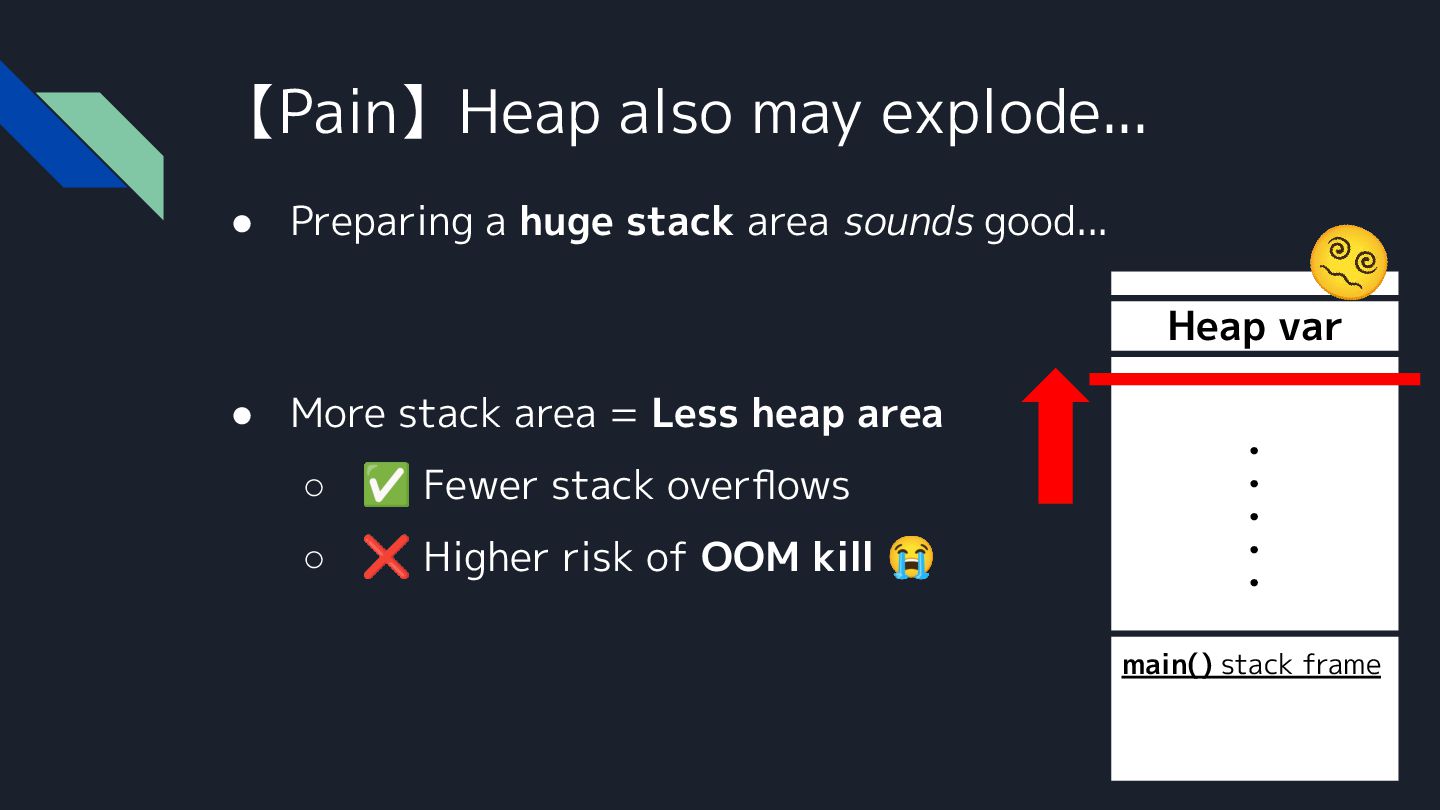

  93. 【Pain】Heap also may explode... • Preparing a huge stack area

    sounds good... • More stack area = Less heap area ◦ ✅ Fewer stack overflows ◦ ❌ Higher risk of OOM kill 😭 . . . . . Heap var main() stack frame 󰷺
  94. Go has flexible stack • Go creates a stack for

    each goroutine • Each stack grows and shrinks on demand ◦ Initialized with 4kB

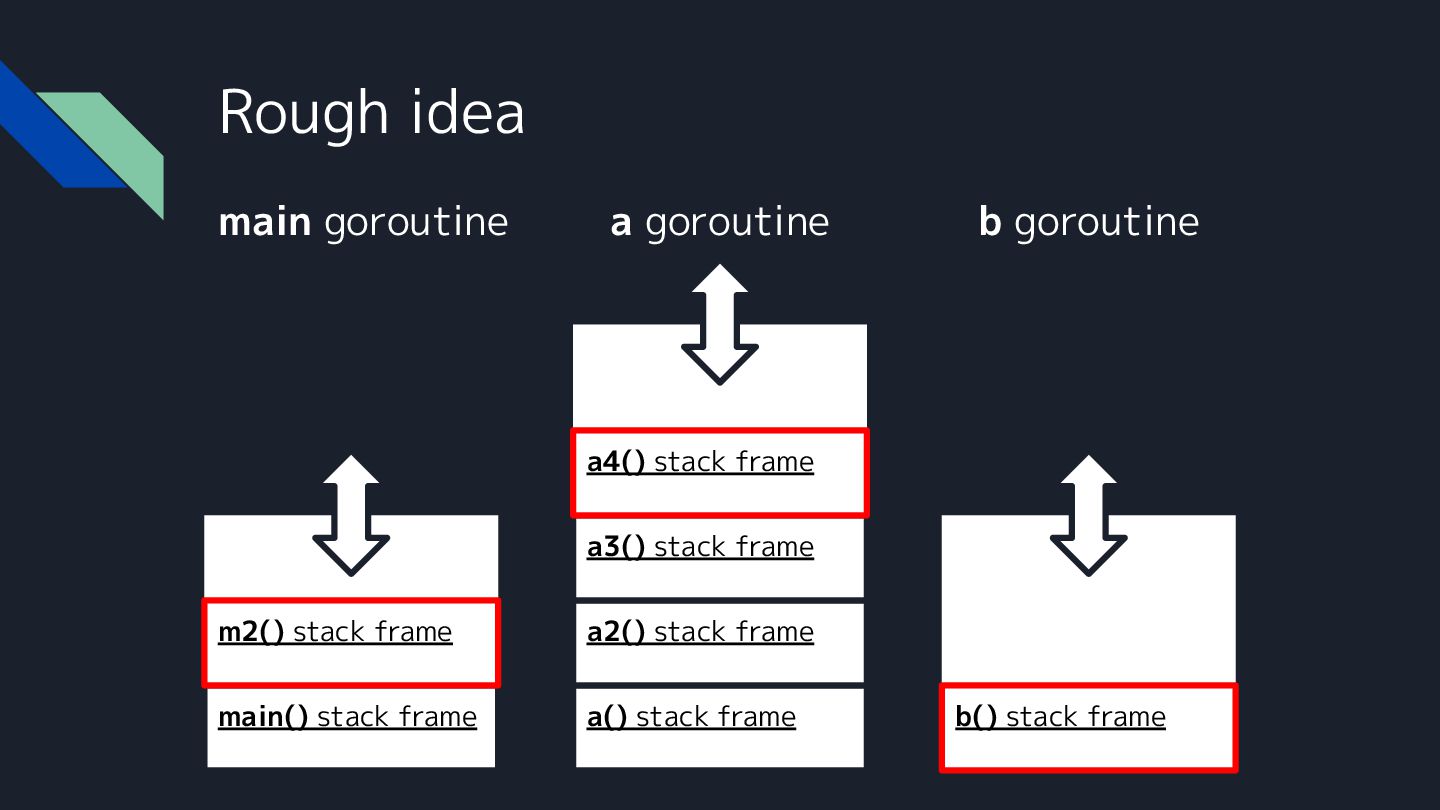

  95. Rough idea main goroutine main() stack frame a() stack frame

    a2() stack frame a3() stack frame a4() stack frame m2() stack frame b() stack frame a goroutine b goroutine

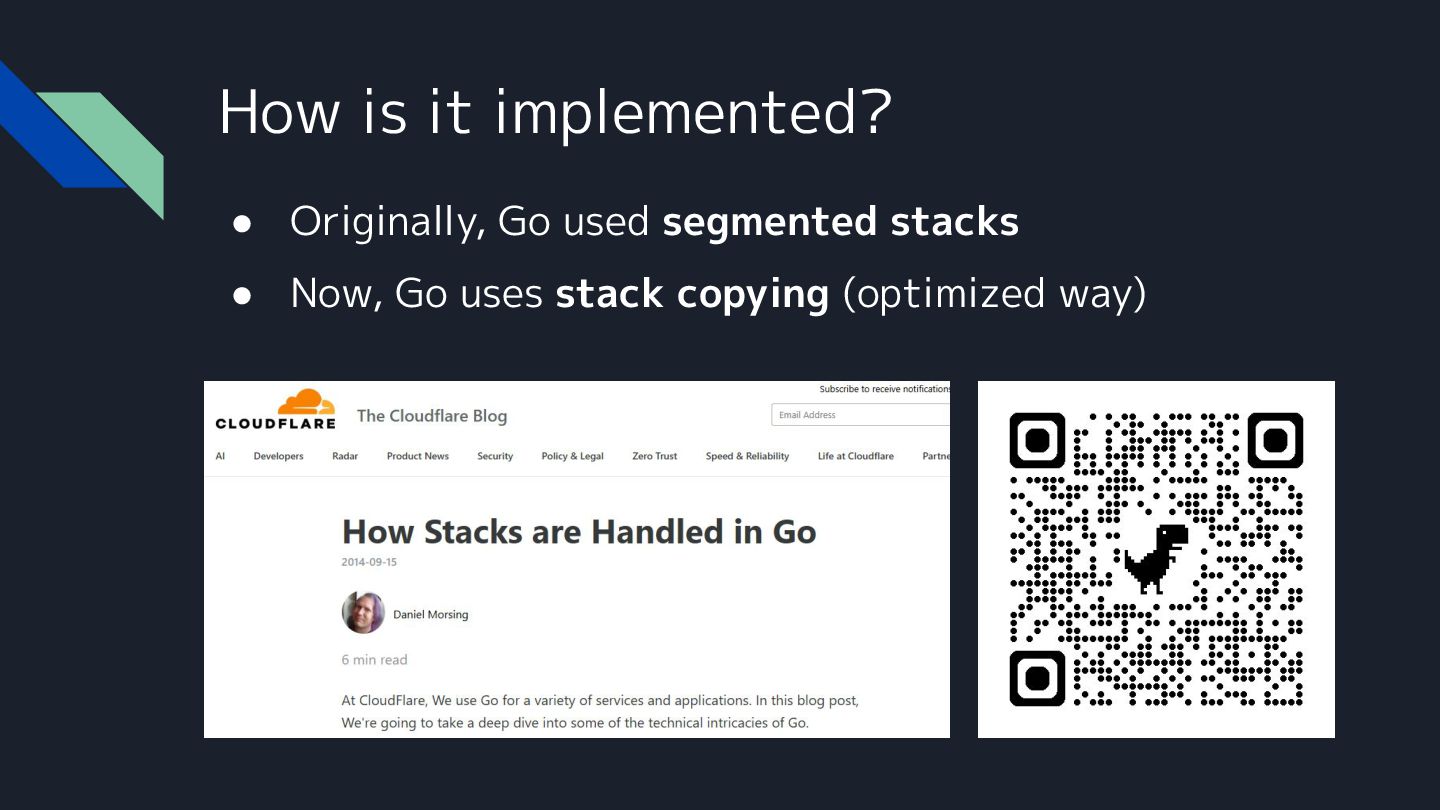

  96. How is it implemented? • Originally, Go used segmented stacks

    • Now, Go uses stack copying (optimized way)

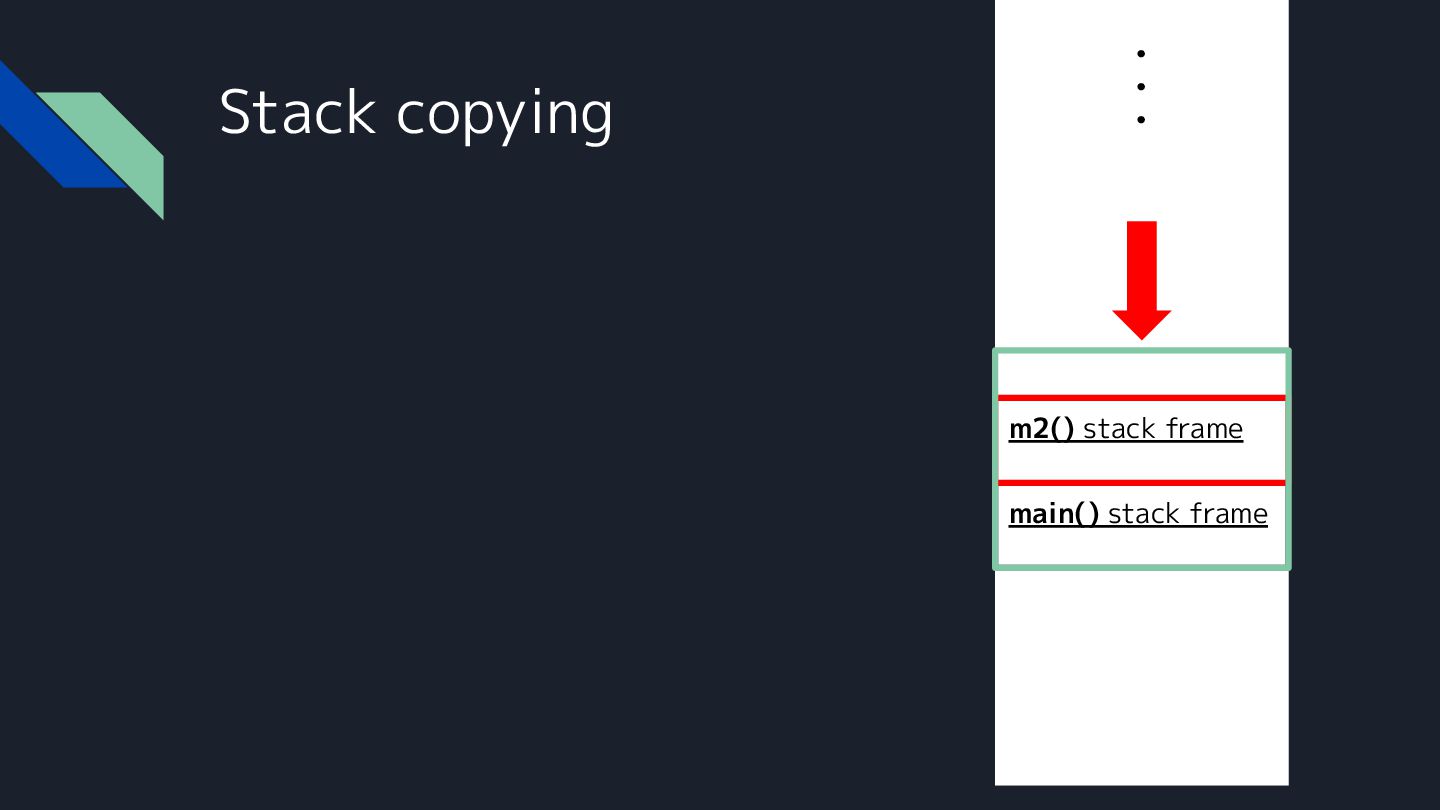

  97. Stack copying . . . main() stack frame m2() stack

    frame main goroutine’s stack

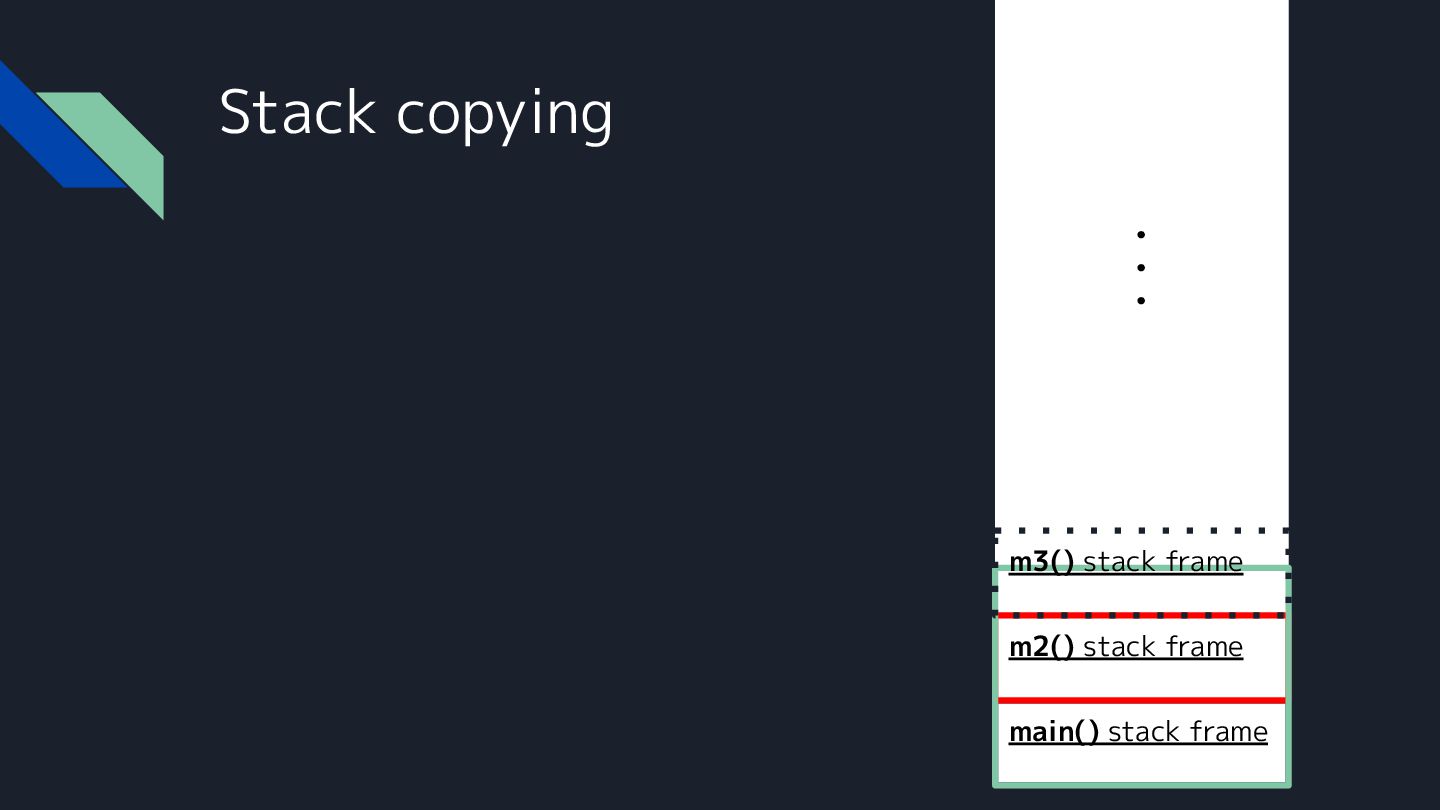

  98. Stack copying . . . main() stack frame m2() stack

    frame m3() stack frame Not big enough to execute m3()

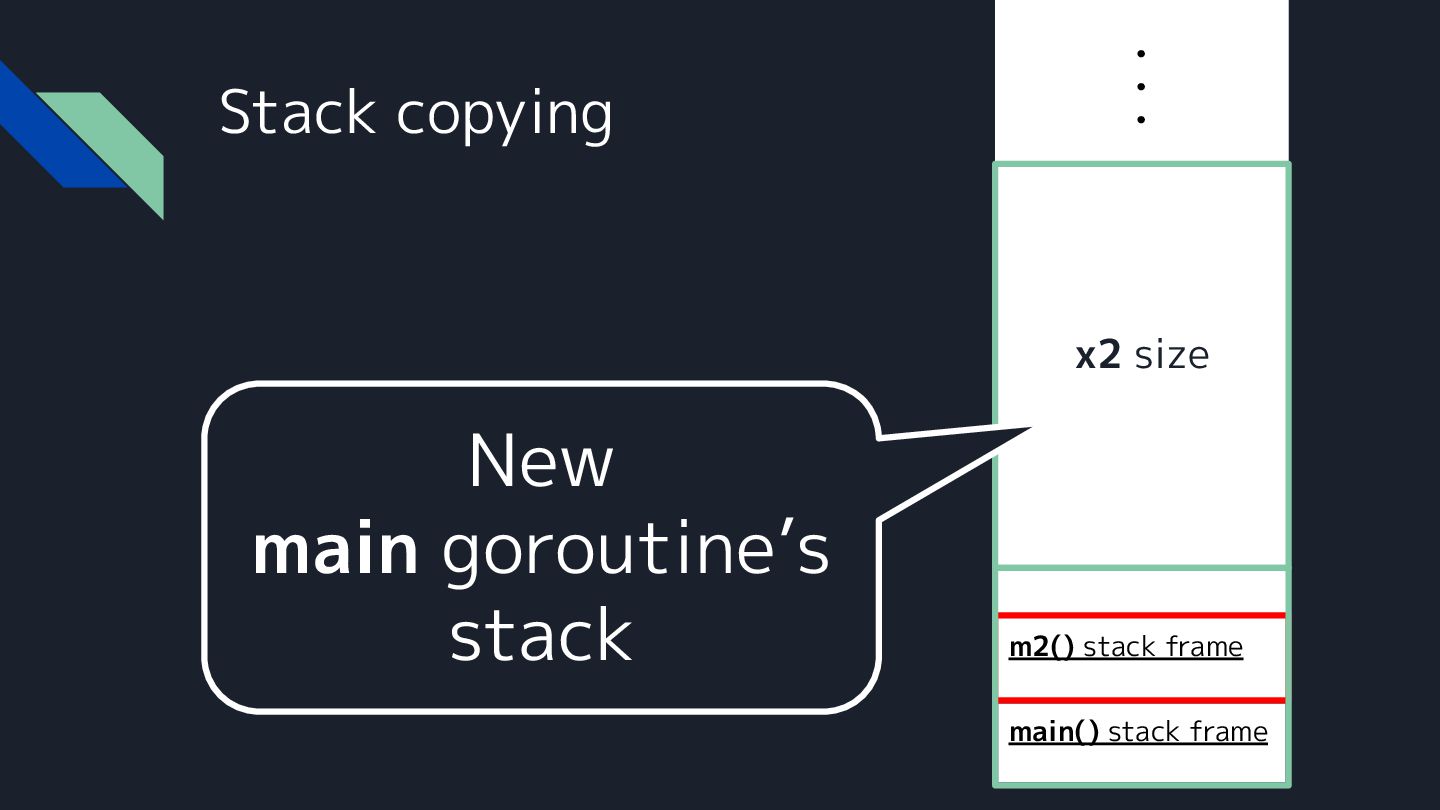

  99. Stack copying . . . main() stack frame m2() stack

    frame x2 size New main goroutine’s stack

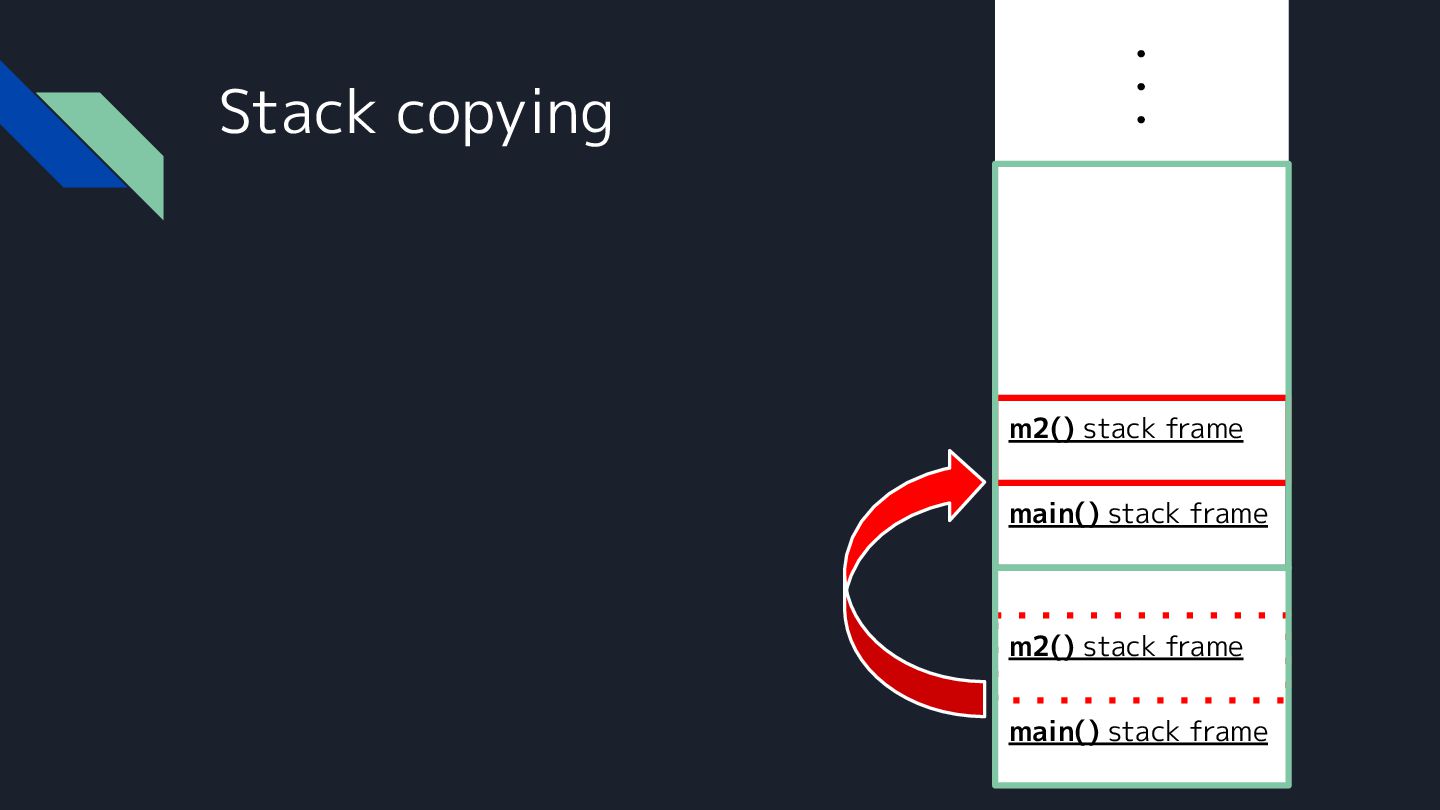

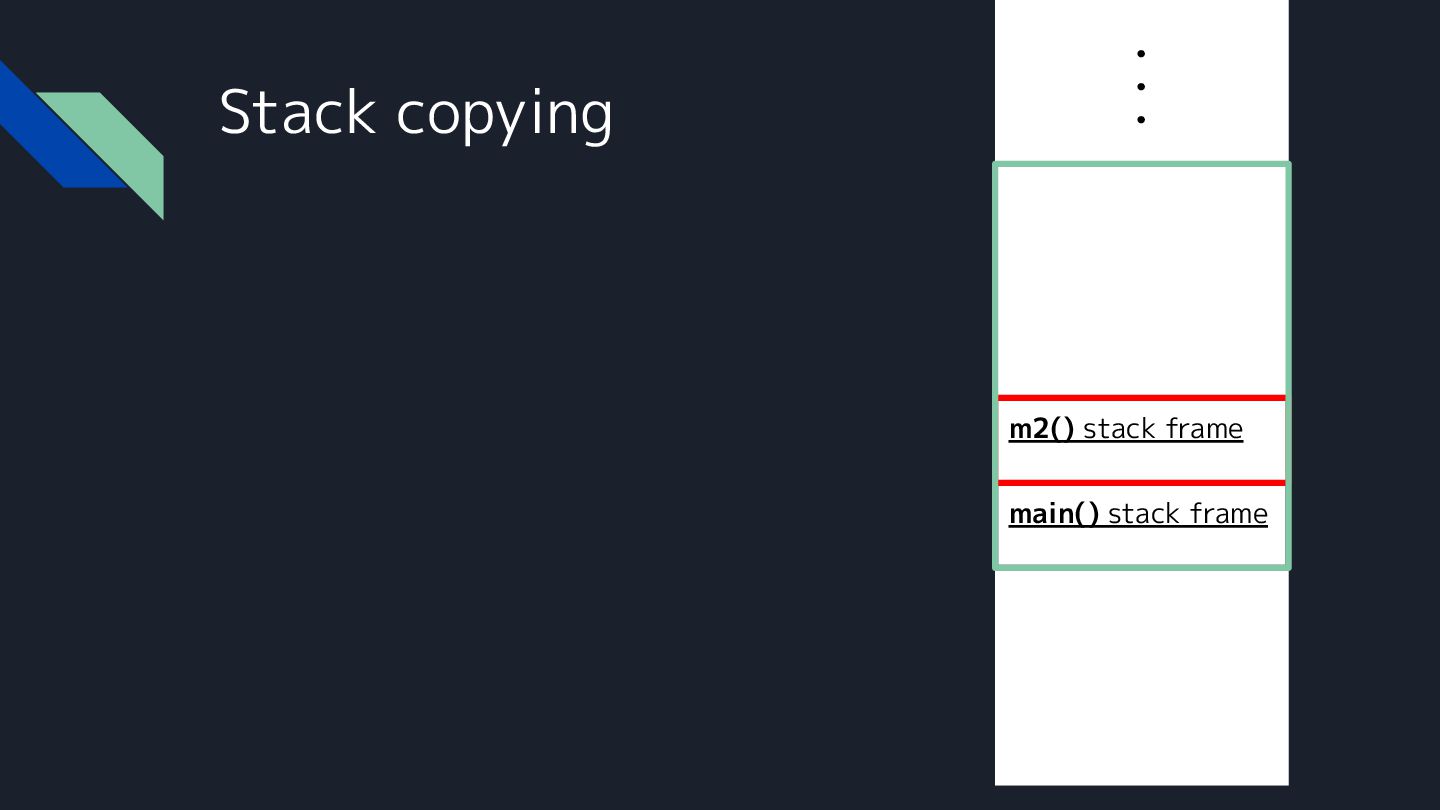

  100. Stack copying . . . main() stack frame m2() stack

    frame main() stack frame m2() stack frame

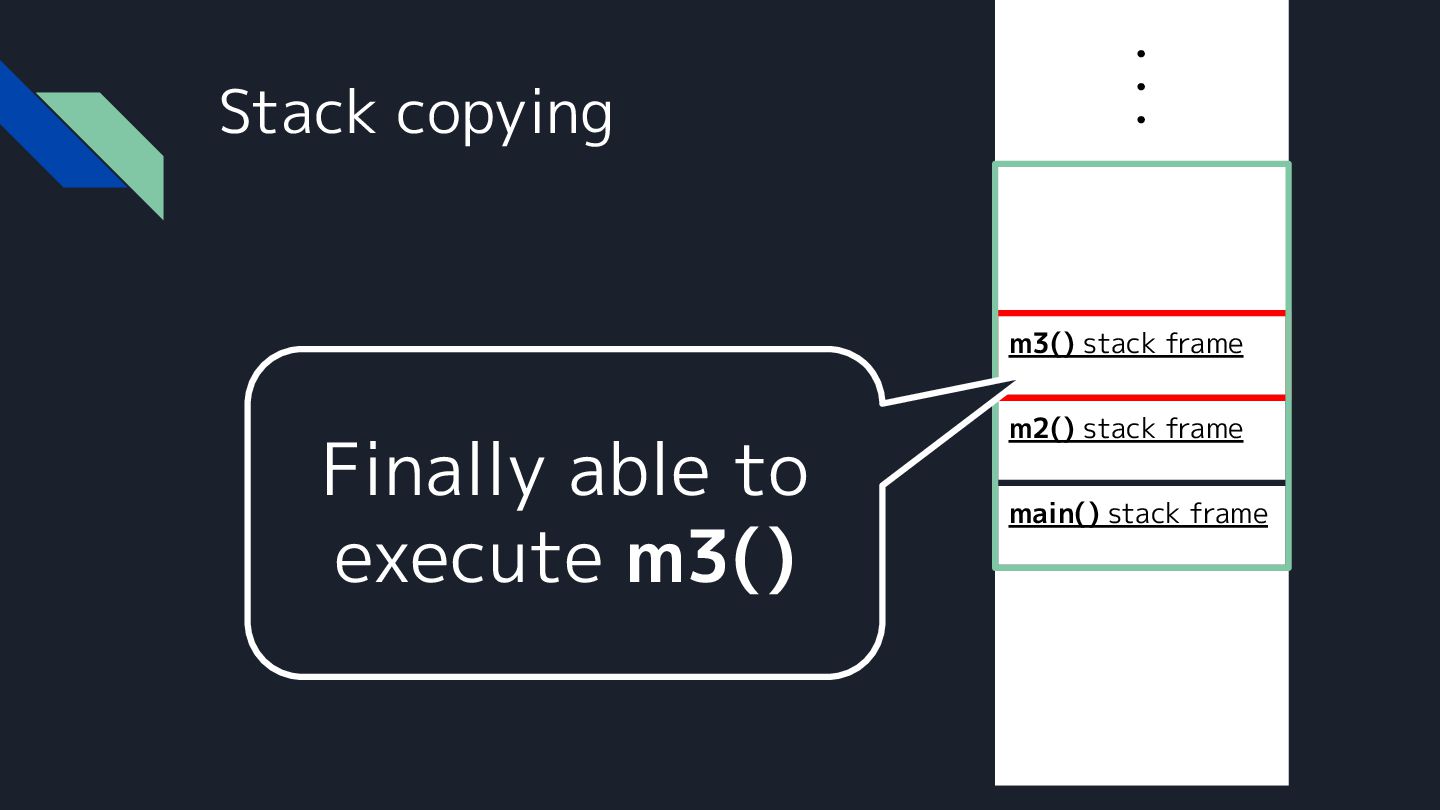

  101. Stack copying . . . main() stack frame m2() stack

    frame m3() stack frame Finally able to execute m3()
  102. Maximum stack size • Stack of each goroutine has limit

    of 1GB (default) ◦ If stack exceeds limit, stack overflow happends
  103. Flexible size stack per goroutine makes stack in Go special!

    This is what makes goroutine special, too

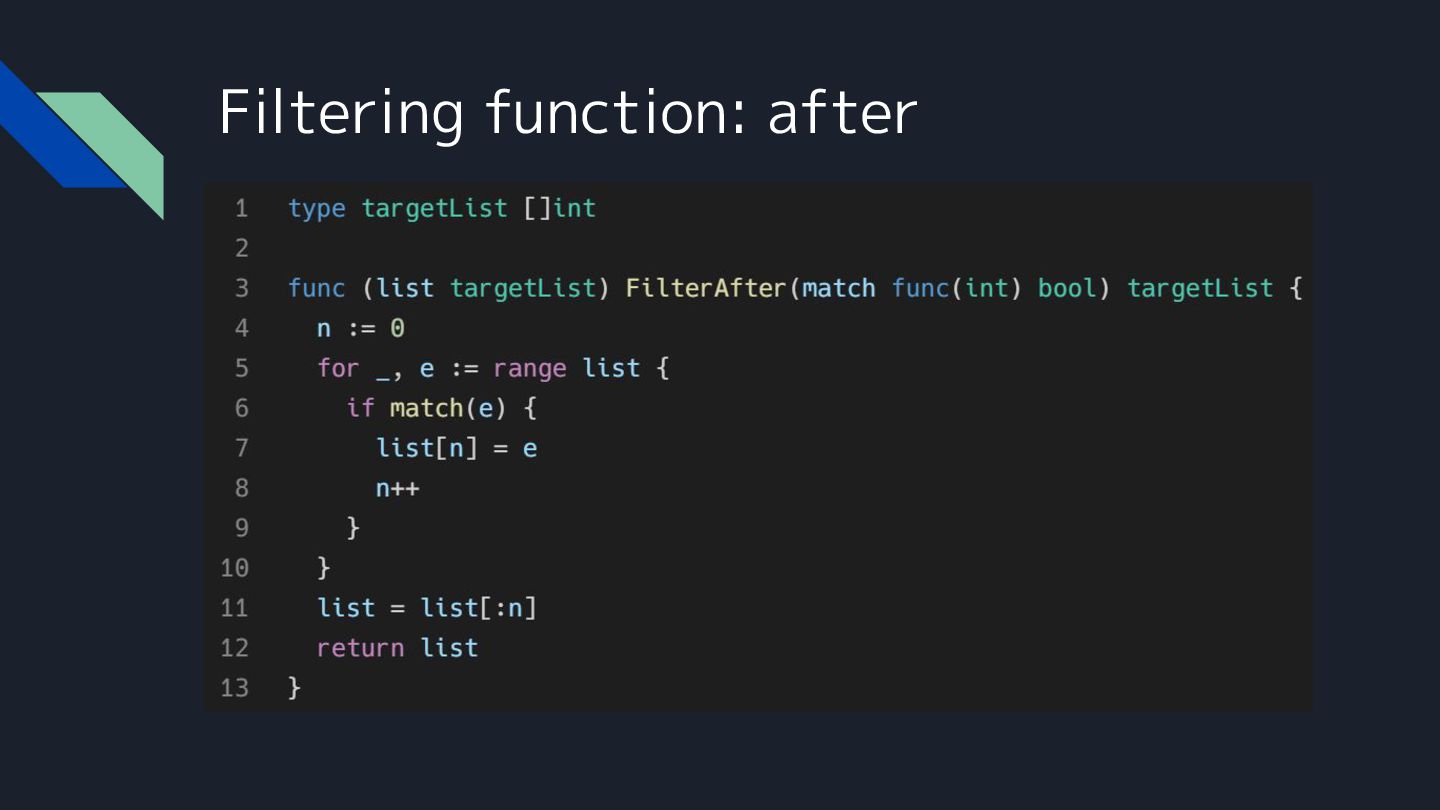

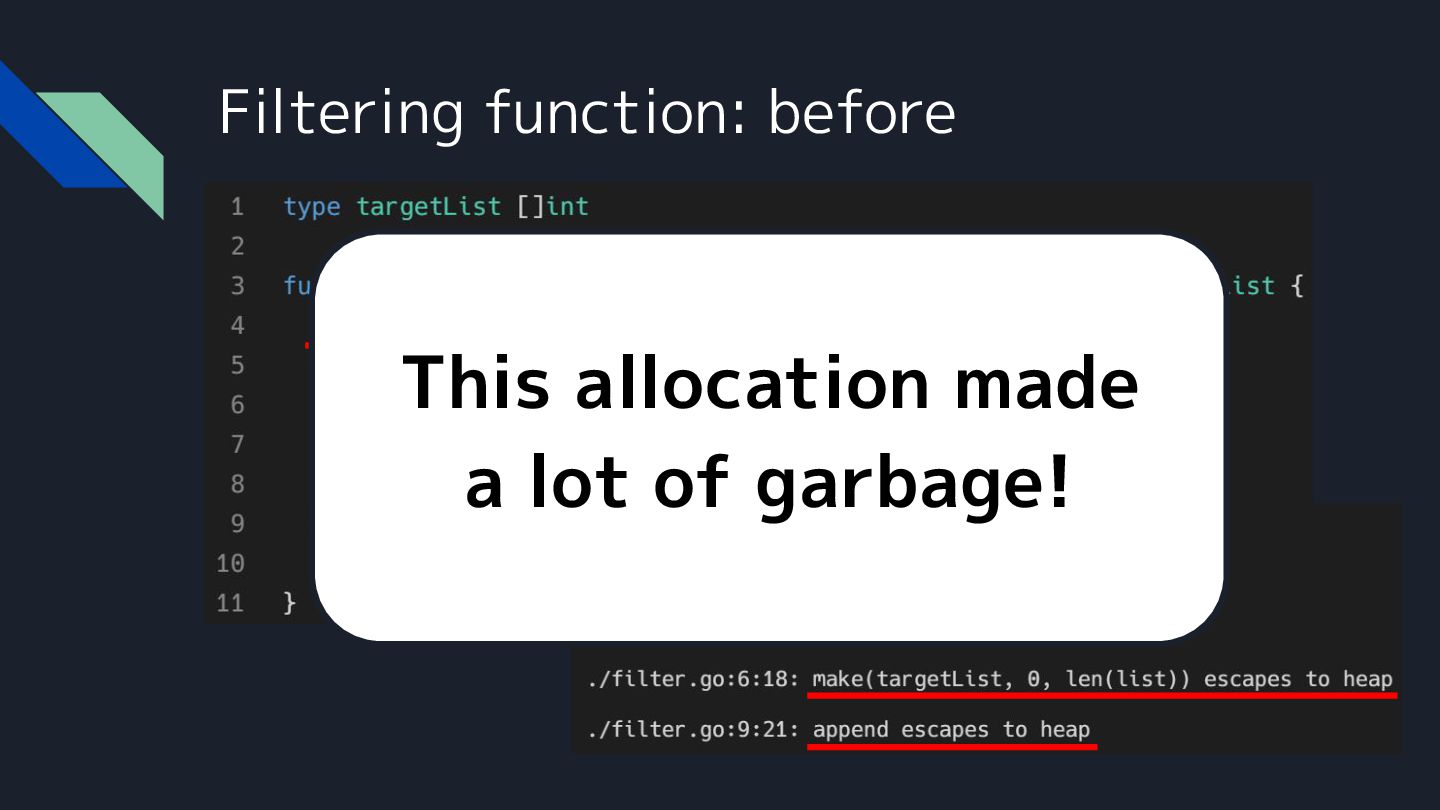

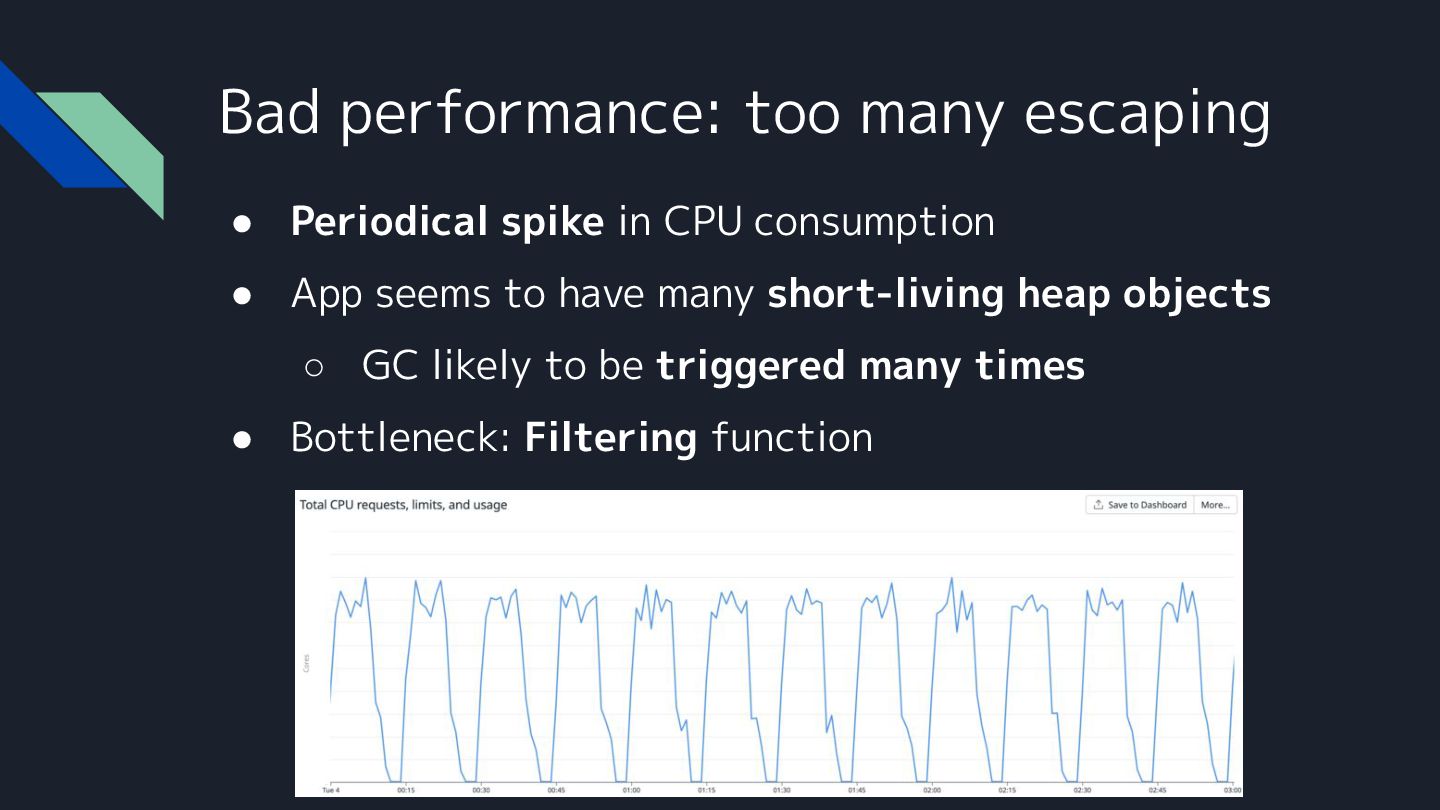

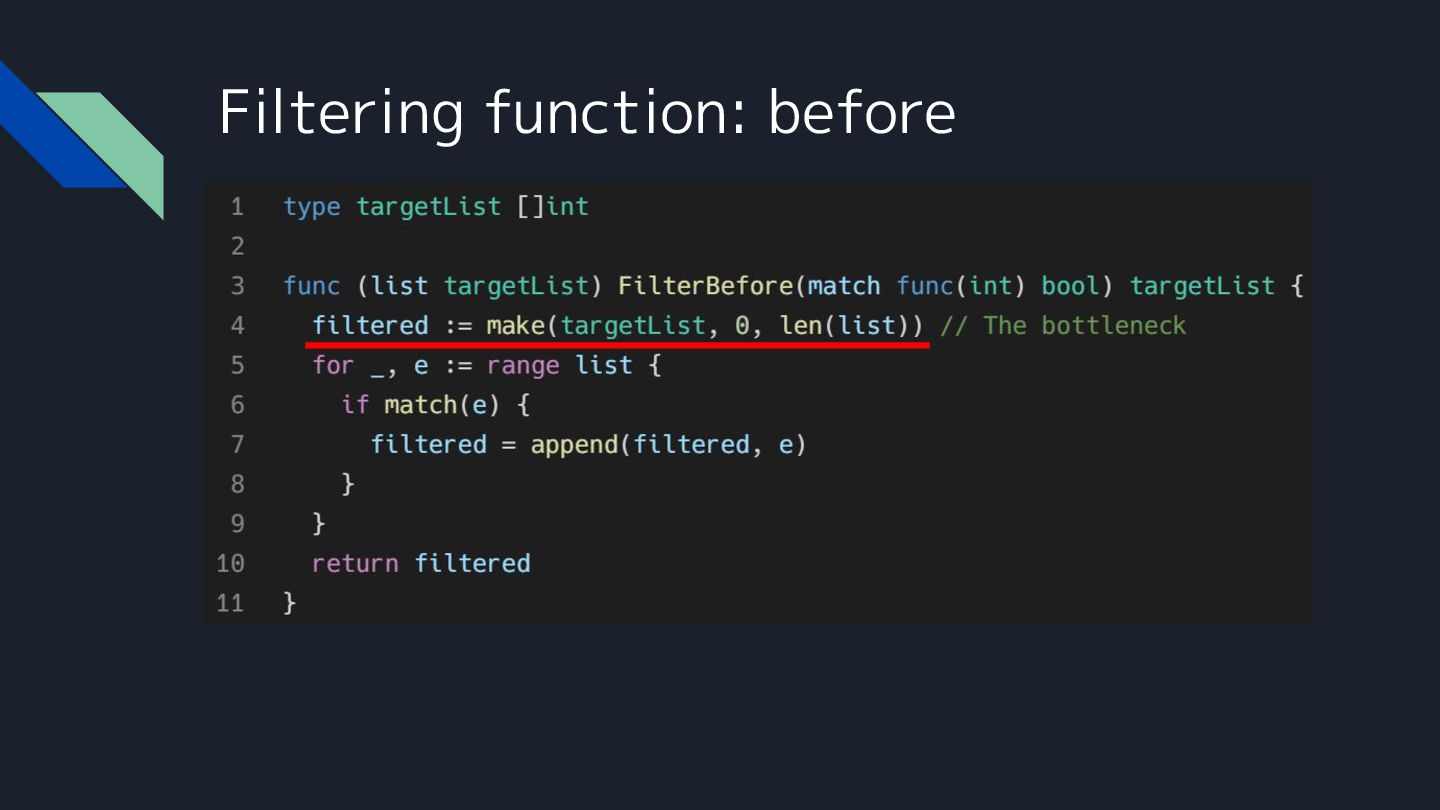

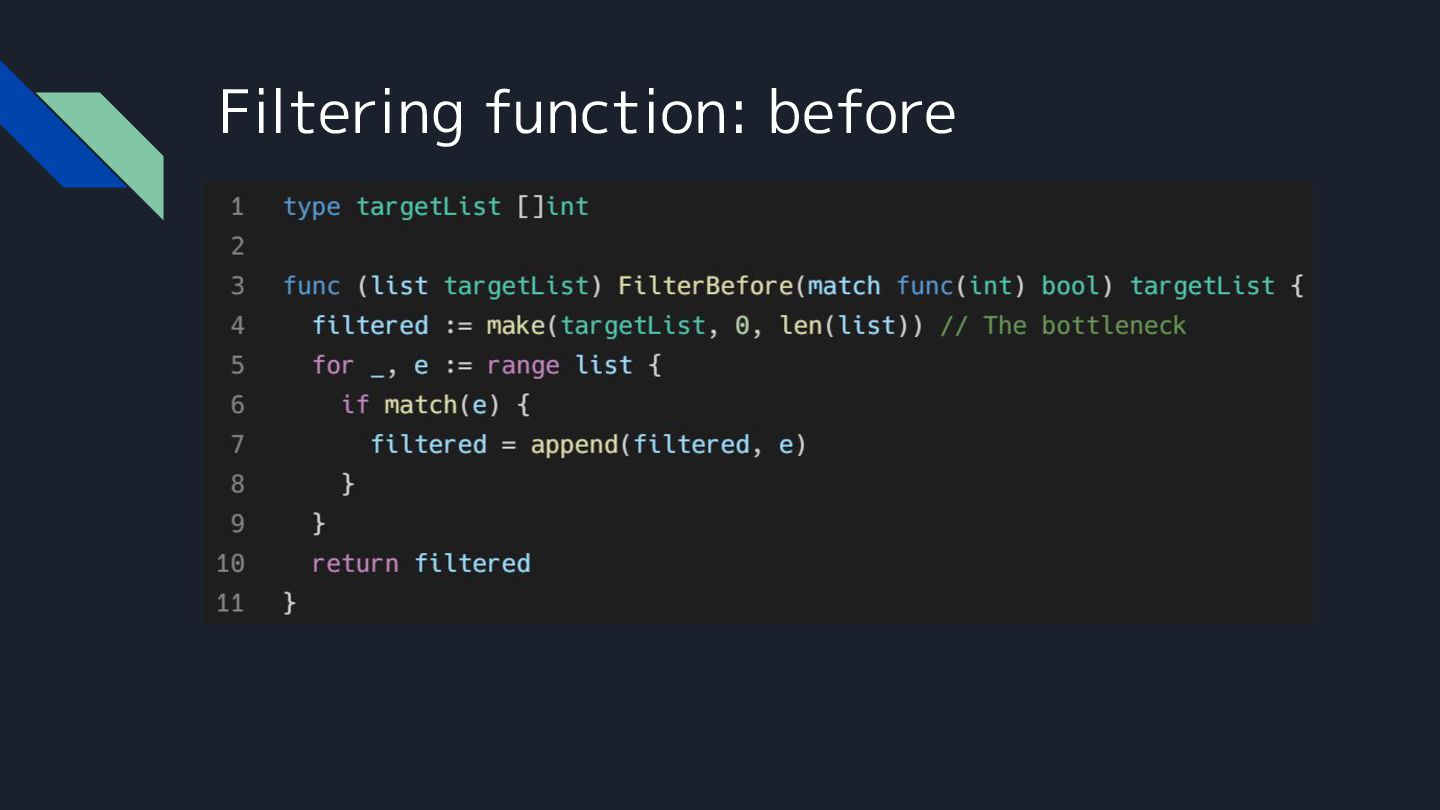

  104. Bad performance: too many escaping • Periodical spike in CPU

    consumption • App seems to have many short-living heap objects ◦ GC likely to be triggered many times • Bottleneck: Filtering function

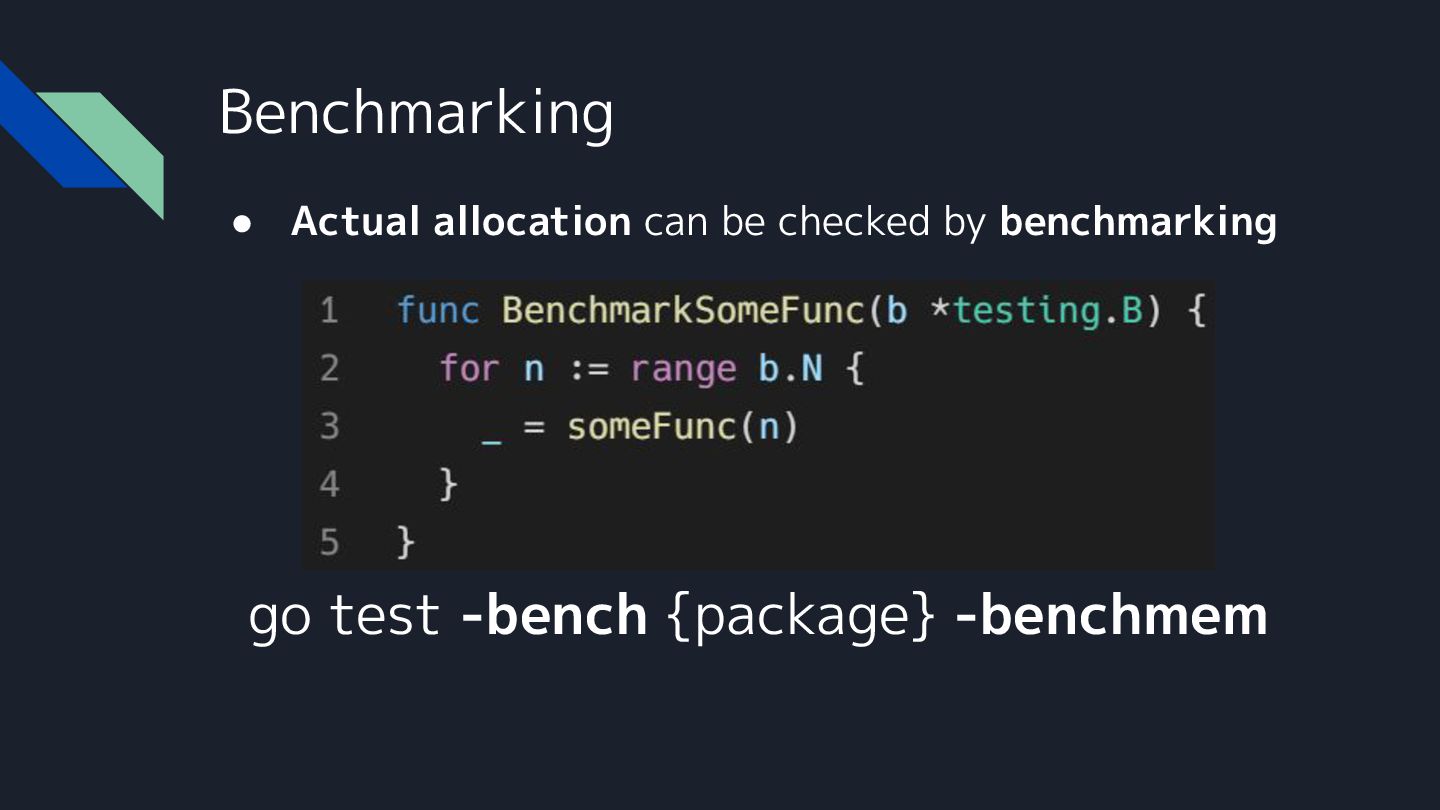

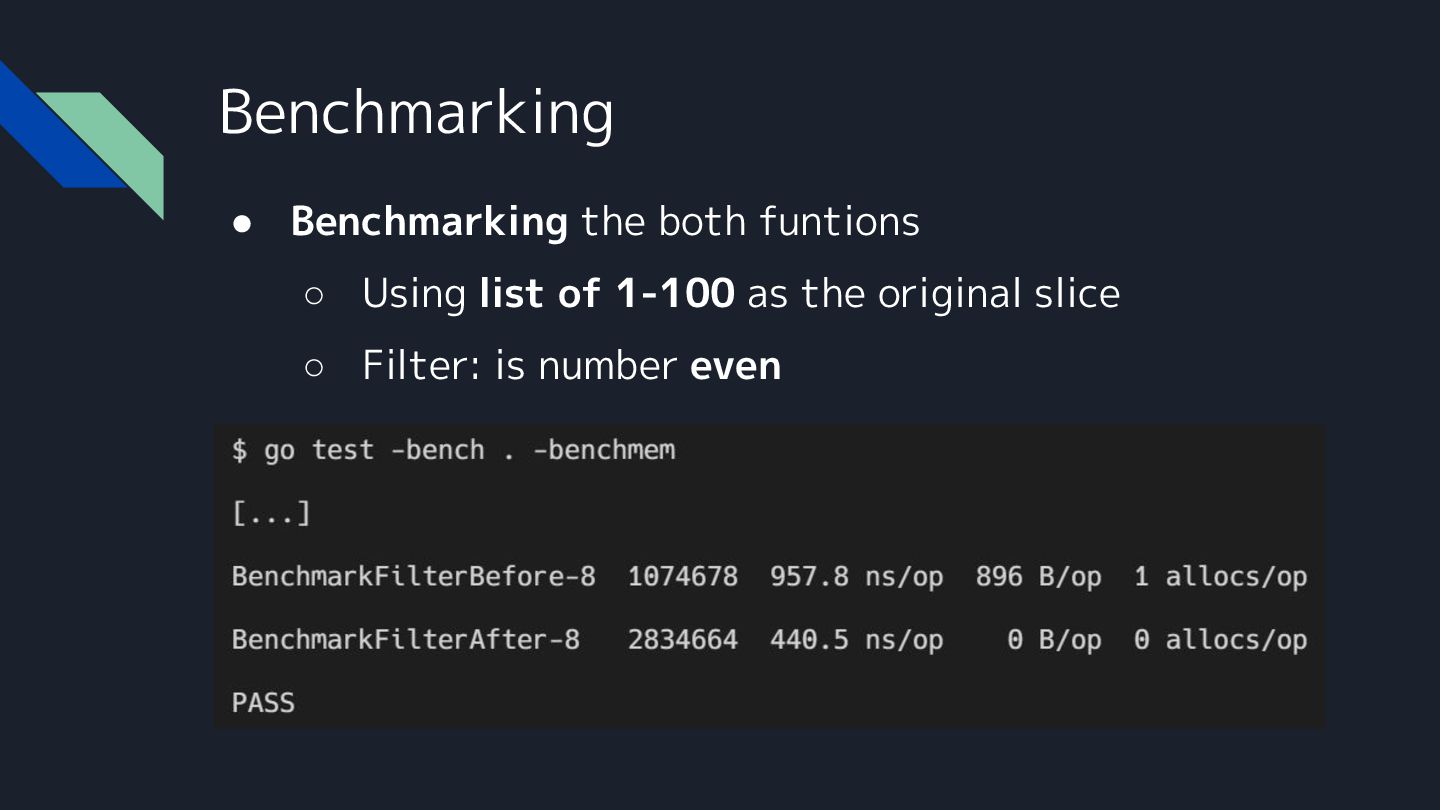

  105. Benchmarking • Benchmarking the both funtions ◦ Using list of

    1-100 as the original slice ◦ Filter: is number even

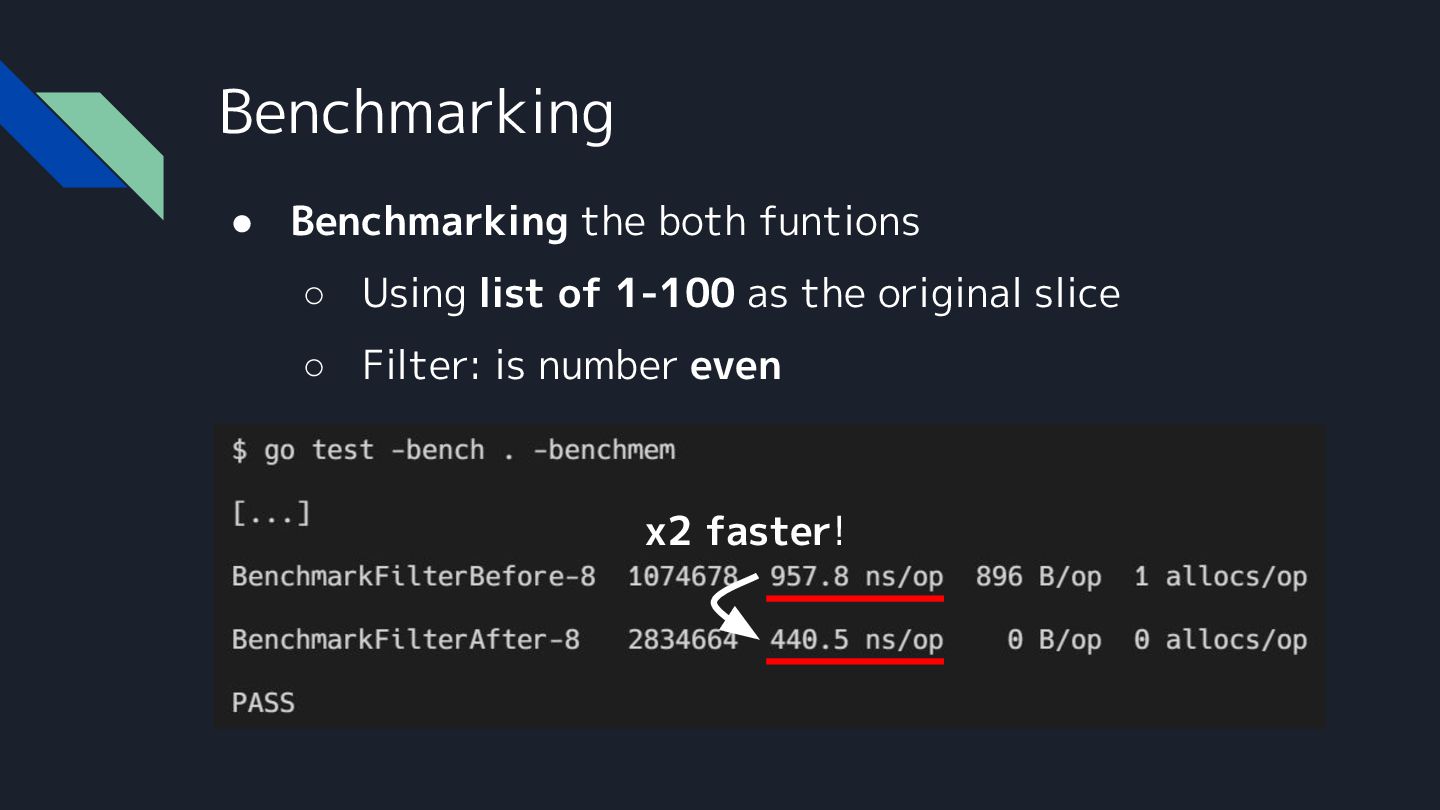

  106. x2 faster! Benchmarking • Benchmarking the both funtions ◦ Using

    list of 1-100 as the original slice ◦ Filter: is number even

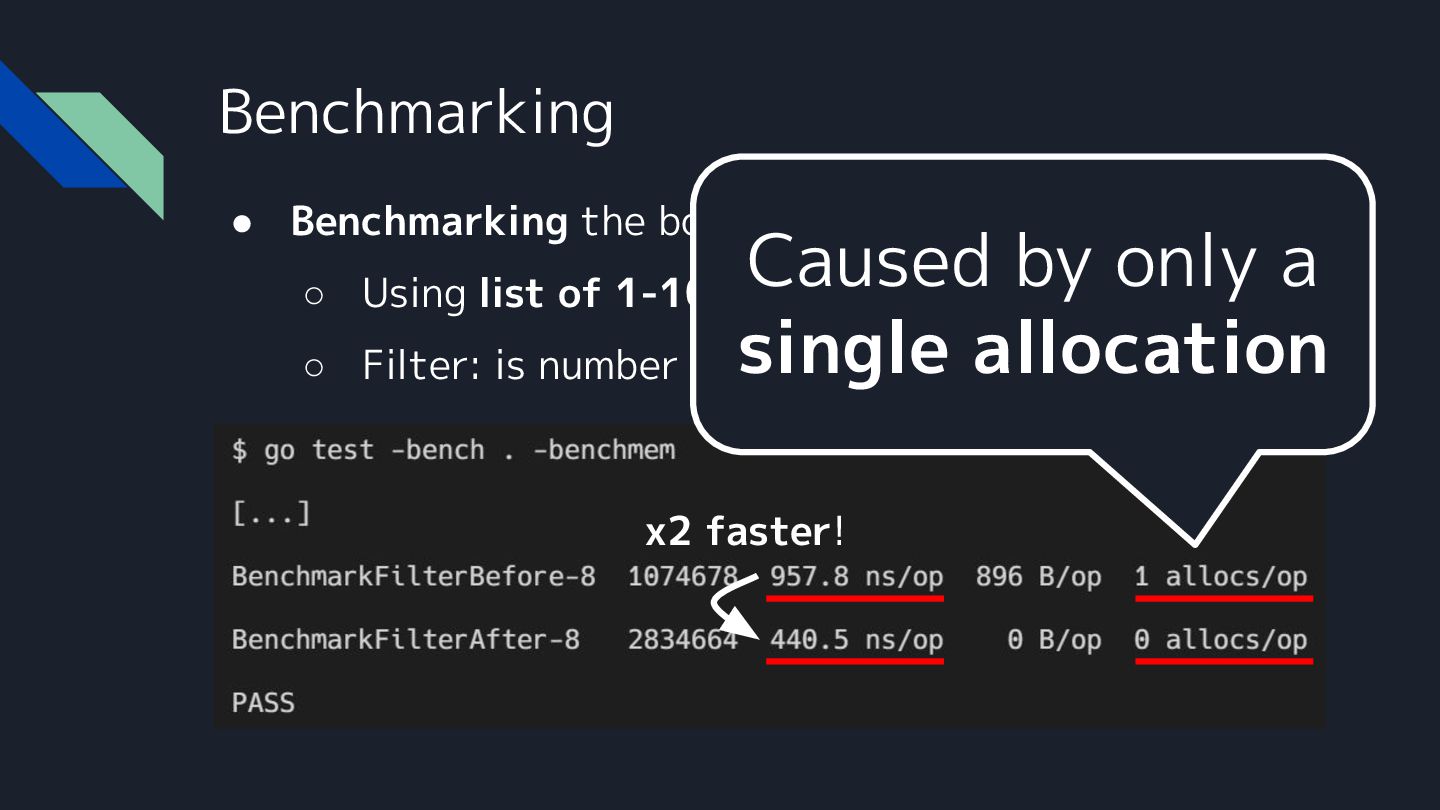

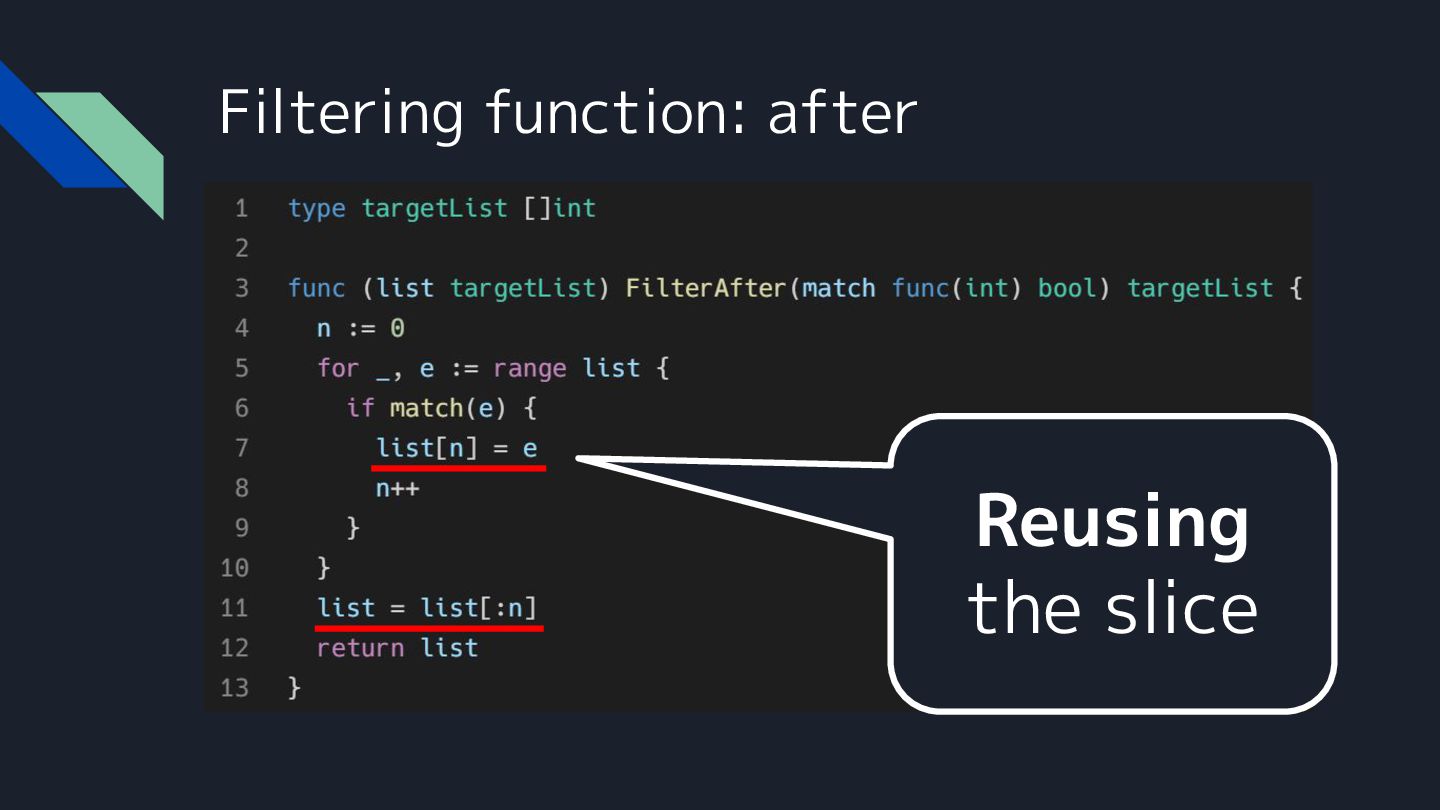

  107. x2 faster! Benchmarking • Benchmarking the both funtions ◦ Using

    list of 1-100 as the original slice ◦ Filter: is number even Caused by only a single allocation

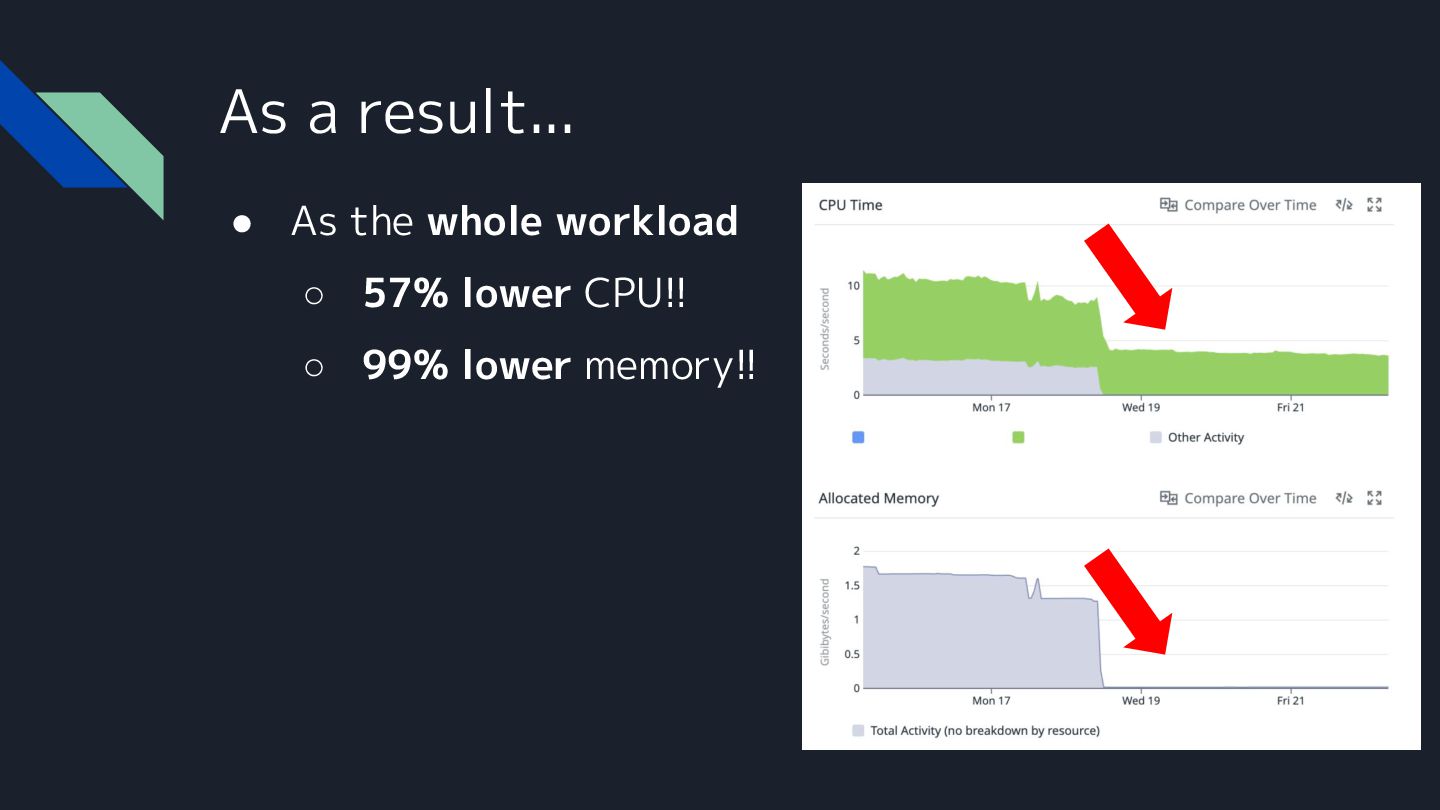

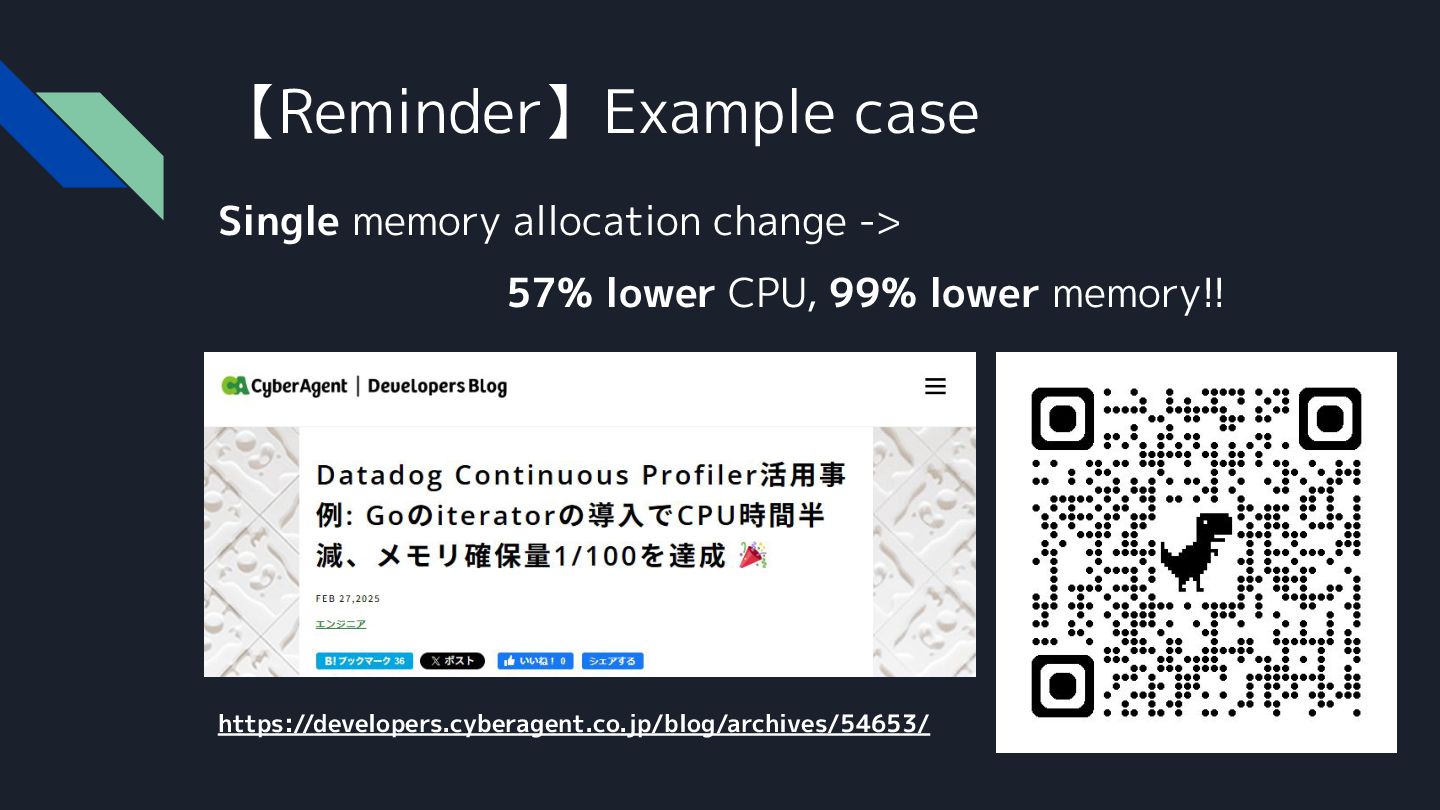

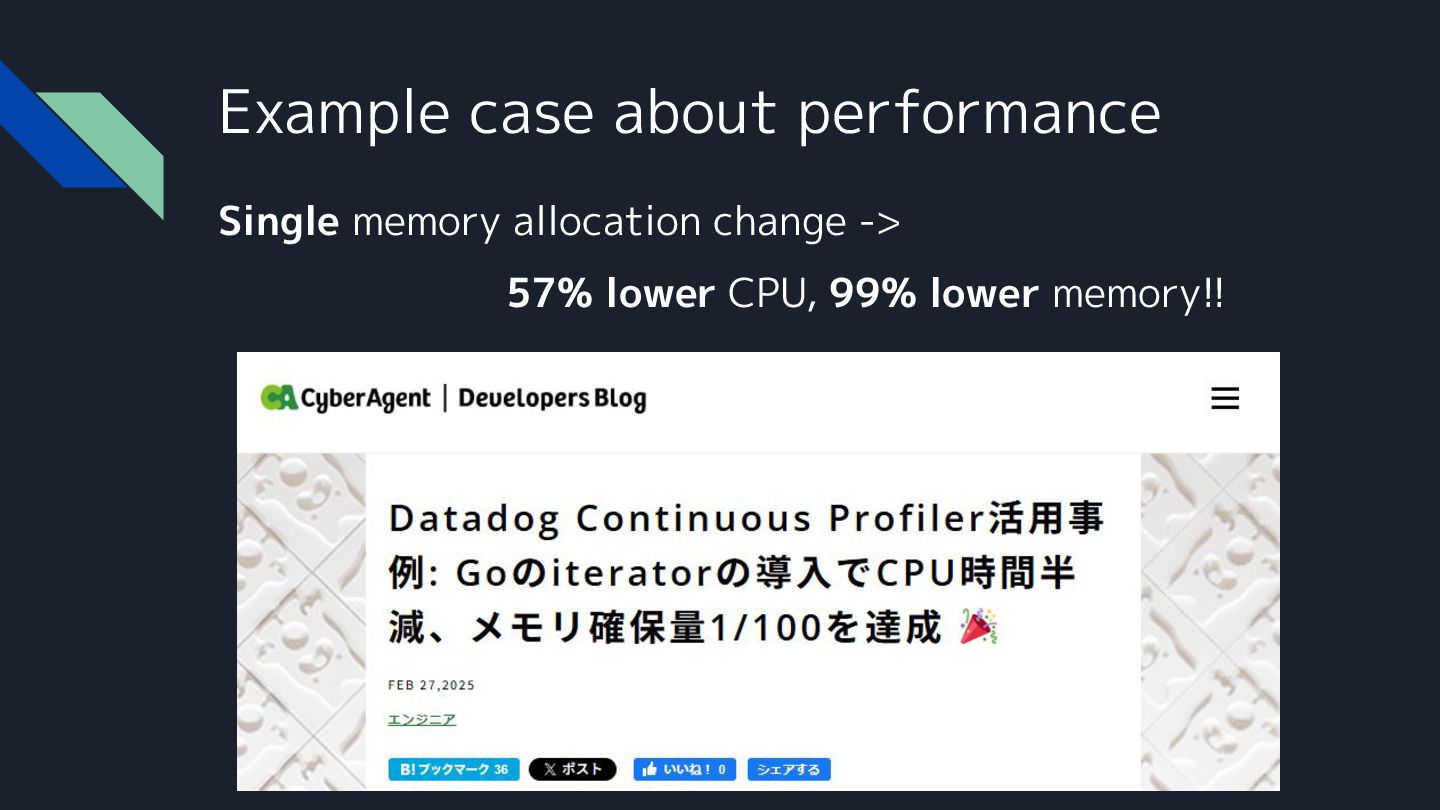

  108. As a result... • As the whole workload ◦ 57%

    lower CPU!! ◦ 99% lower memory!!
  109. Conclusion • Memory management has been developed to satisfy programmers’

    needs • Knowledge about memory management is power • This session is just a start ◦ Let’s dive deeply into each concept!
  110. Heap escape condition and analysis Escape Analysis in Go: Understanding

    and Optimizing Memory Allocation @ Go Conference 2023 Online

More Decks by Takuto Nagami

Other Decks in Technology
