  1. LY Corporation's Speech AI Vision: Towards Realtime Spoken Dialogue through

    Advanced ASR and TTS Speech and Acoustic AI Dept., Data Science Group Jumpei Miyake, Taiki Kinoshita LINEヤフーの音声AIがもたらす未来:ASR/TTSと対話技術の新たな可能性
  2. Agenda - LY Corporation’s Speech AI LINEヤフーの音声AIについて - LY Corporation’s

    ASR/TTS LINEヤフーの音声認識・音声合成の紹介 - Real-time Speech-to-Speech リアルタイムSpeech-to-Speech技術開発の取り組みについて - Future Works 今後の展望

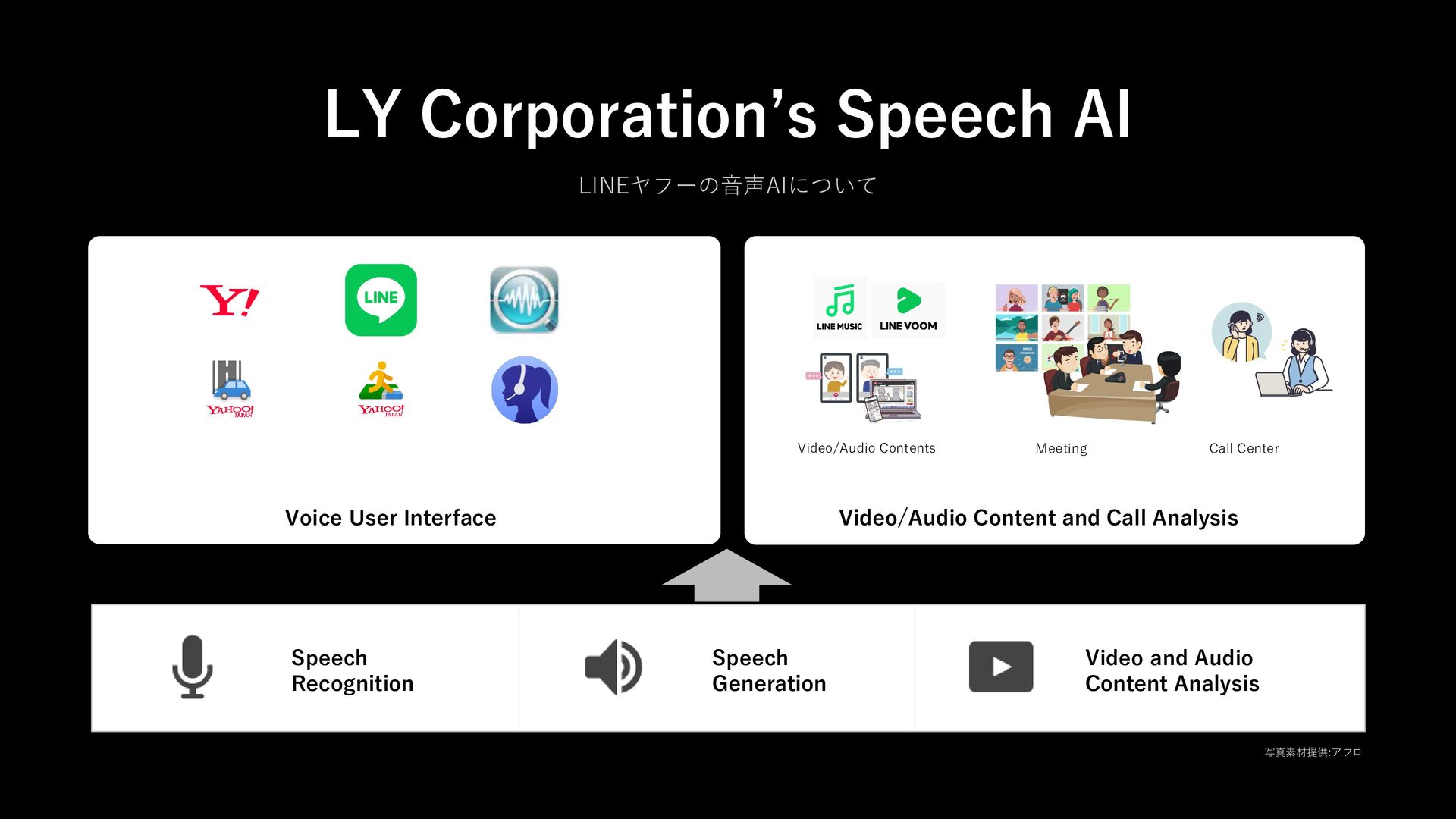

  3. LY Corporation’s Speech AI LINEヤフーの音声AIについて Video and Audio Content Analysis

    Speech Recognition Speech Generation Video/Audio Contents Call Center Meeting Voice User Interface Video/Audio Content and Call Analysis 写真素材提供:アフロ

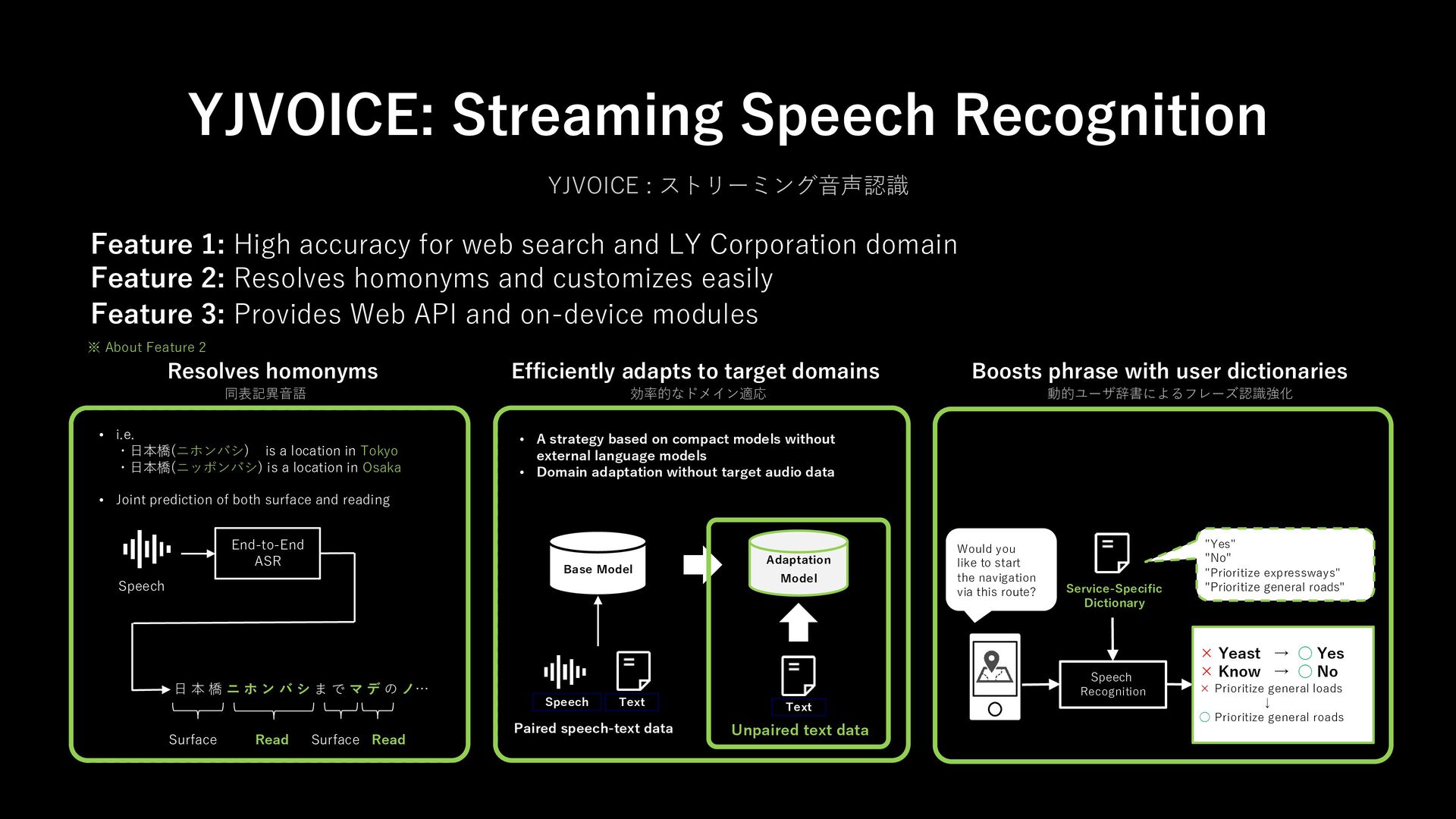

  4. YJVOICE: Streaming Speech Recognition YJVOICE : ストリーミング音声認識 Efficiently adapts to

    target domains • A strategy based on compact models without external language models • Domain adaptation without target audio data Paired speech-text data Unpaired text data Base Model Adaptation Model Speech Text Text Boosts phrase with user dictionaries Speech Recognition Would you like to start the navigation via this route? Service-Specific Dictionary "Yes" "No" "Prioritize expressways" "Prioritize general roads" × Yeast → ◦ Yes × Know → ◦ No × Prioritize general loads ↓ ◦ Prioritize general roads Resolves homonyms 日 本 橋 ニ ホ ン バ シ ま で マ デ の ノ… Surface Read Surface Read End-to-End ASR Speech • i.e. ・日本橋(ニホンバシ) is a location in Tokyo ・日本橋(ニッポンバシ) is a location in Osaka • Joint prediction of both surface and reading 同表記異音語 効率的なドメイン適応 動的ユーザ辞書によるフレーズ認識強化 ※ About Feature 2 Feature 1: High accuracy for web search and LY Corporation domain Feature 2: Resolves homonyms and customizes easily Feature 3: Provides Web API and on-device modules

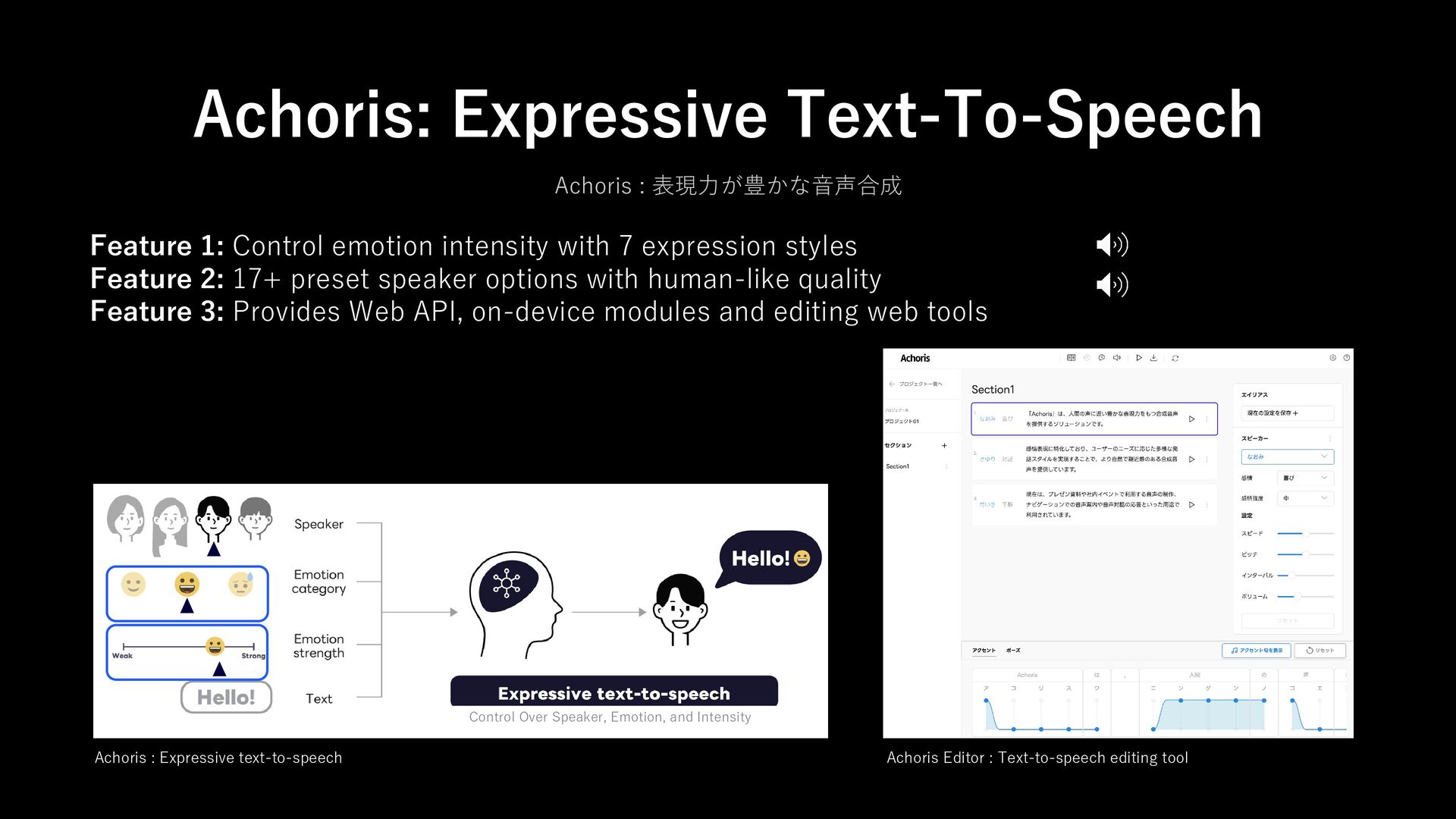

  5. Achoris: Expressive Text-To-Speech Achoris : 表現力が豊かな音声合成 Feature 1: Control emotion

    intensity with 7 expression styles Feature 2: 17+ preset speaker options with human-like quality Feature 3: Provides Web API, on-device modules and editing web tools Achoris Editor : Text-to-speech editing tool Achoris : Expressive text-to-speech Control Over Speaker, Emotion, and Intensity

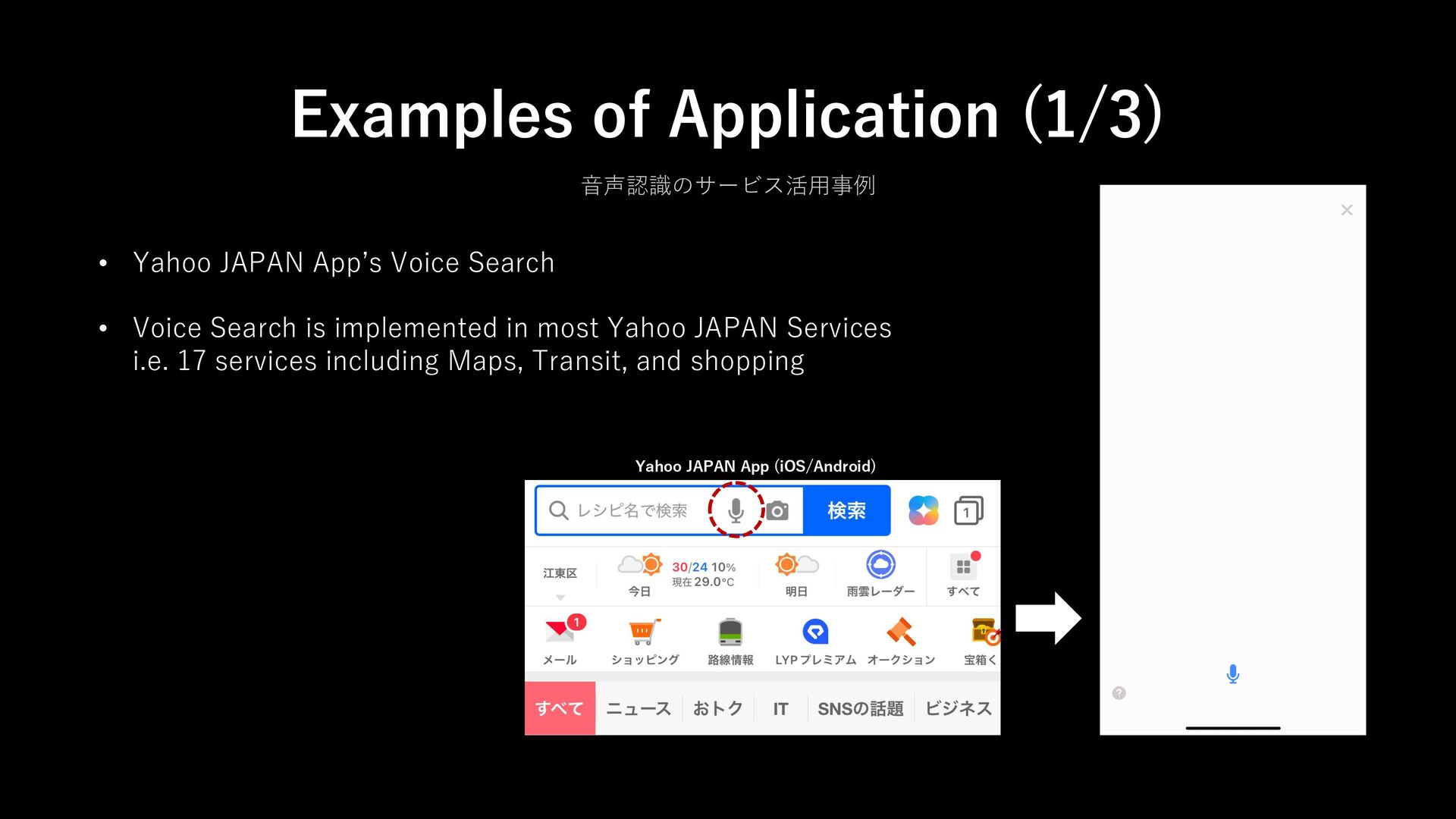

  6. 音声認識のサービス活用事例 • Yahoo JAPAN App’s Voice Search • Voice Search

    is implemented in most Yahoo JAPAN Services i.e. 17 services including Maps, Transit, and shopping Yahoo JAPAN App (iOS/Android) Examples of Application (1/3)

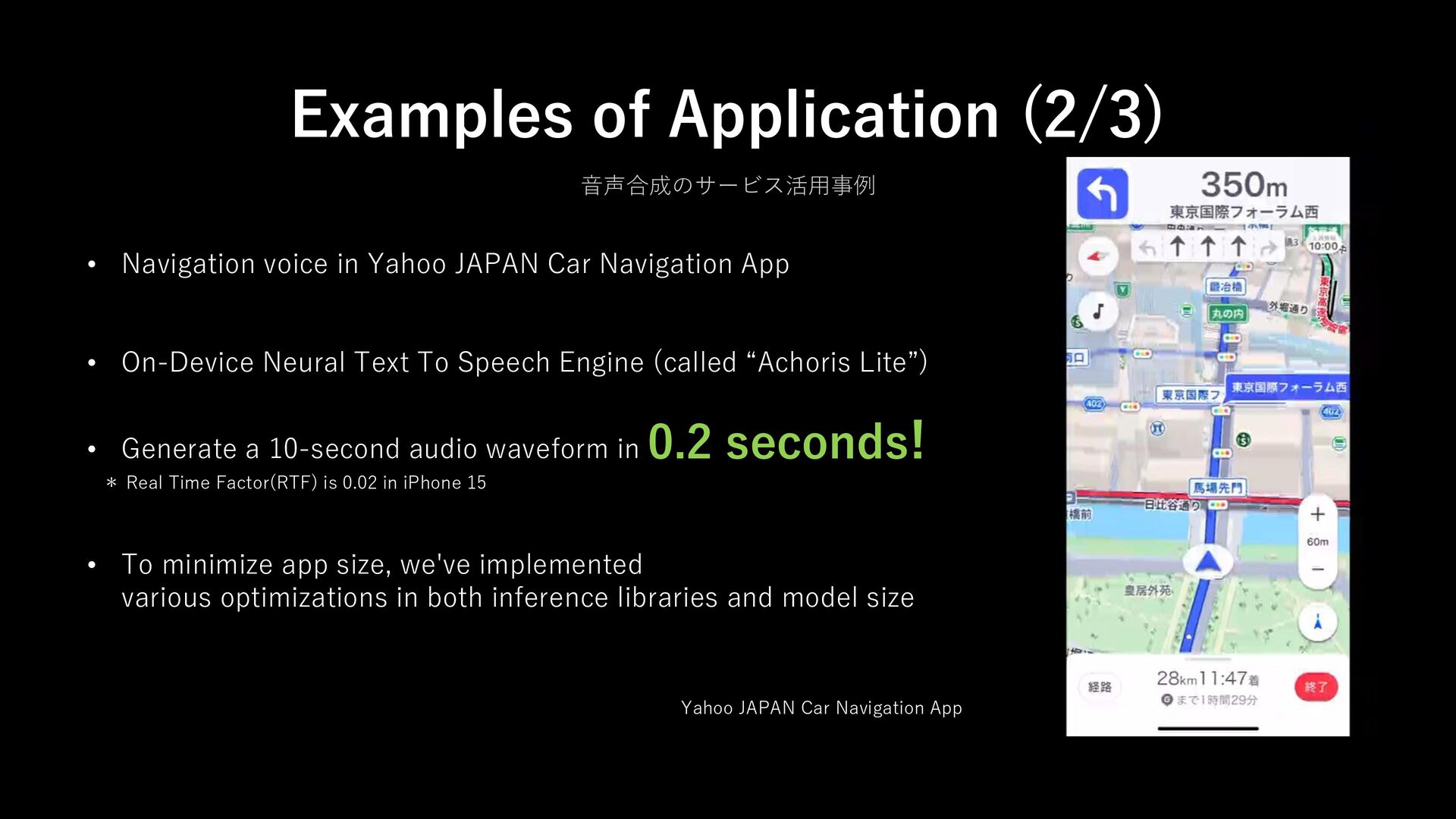

  7. 音声合成のサービス活用事例 • Navigation voice in Yahoo JAPAN Car Navigation App

    • On-Device Neural Text To Speech Engine (called “Achoris Lite”) • Generate a 10-second audio waveform in 0.2 seconds! * Real Time Factor(RTF) is 0.02 in iPhone 15 • To minimize app size, we've implemented various optimizations in both inference libraries and model size Yahoo JAPAN Car Navigation App Examples of Application (2/3)

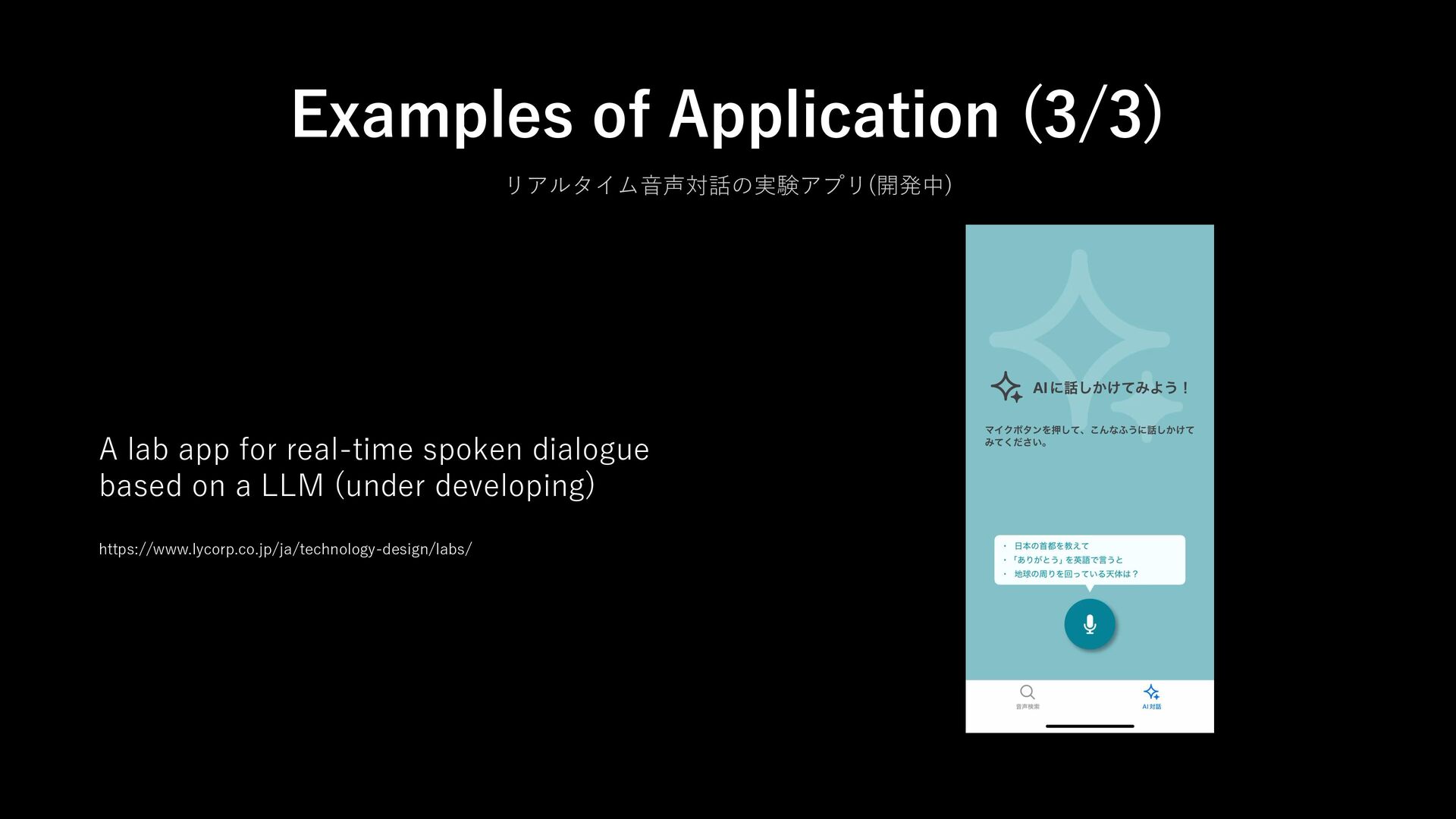

  8. A lab app for real-time spoken dialogue based on a

    LLM (under developing) https://www.lycorp.co.jp/ja/technology-design/labs/ Examples of Application (3/3) リアルタイム音声対話の実験アプリ(開発中)

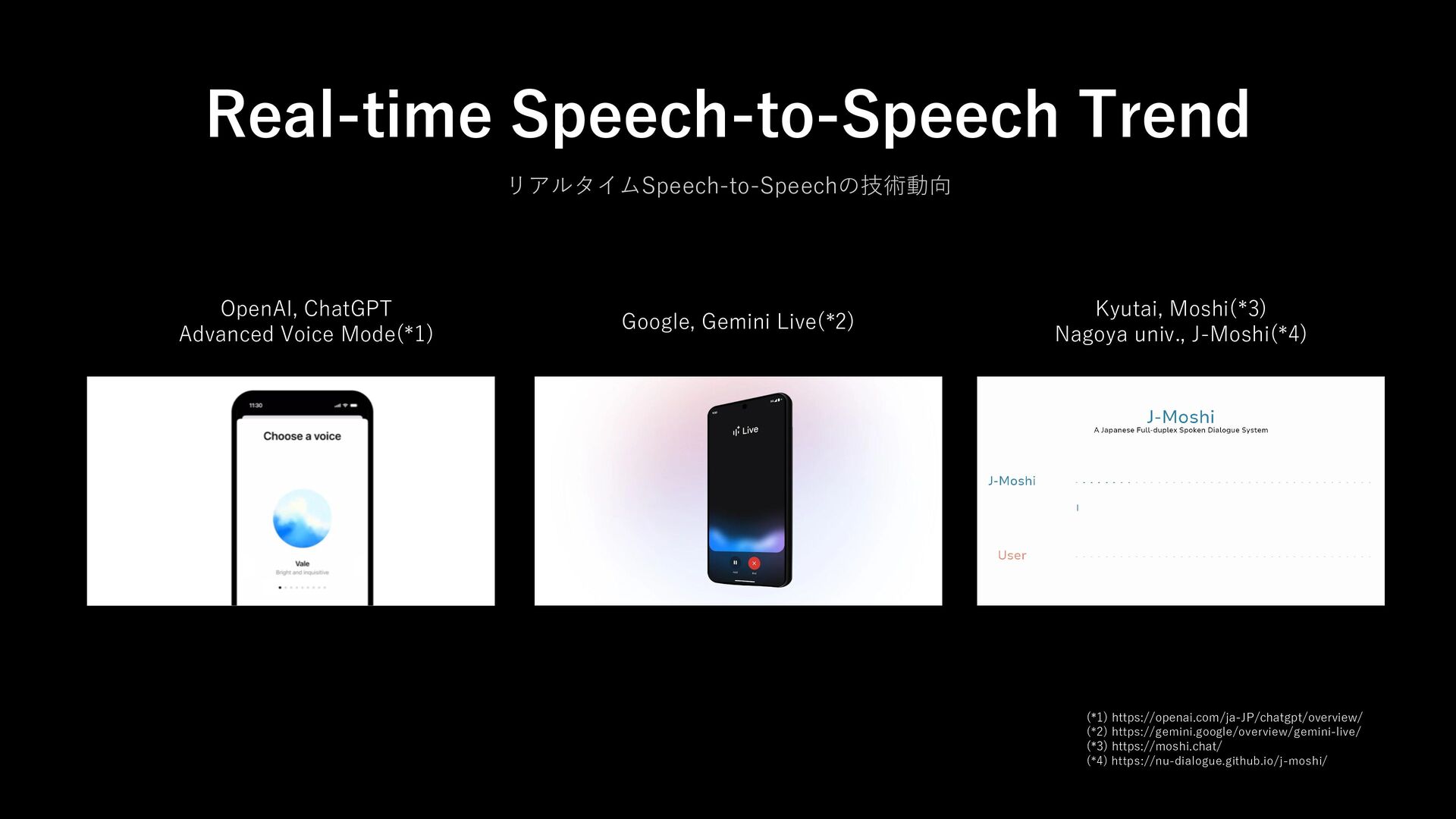

  9. Real-time Speech-to-Speech Trend リアルタイムSpeech-to-Speechの技術動向 (*1) https://openai.com/ja-JP/chatgpt/overview/ (*2) https://gemini.google/overview/gemini-live/ (*3) https://moshi.chat/

    (*4) https://nu-dialogue.github.io/j-moshi/ OpenAI, ChatGPT Advanced Voice Mode(*1) Kyutai, Moshi(*3) Nagoya univ., J-Moshi(*4) Google, Gemini Live(*2)

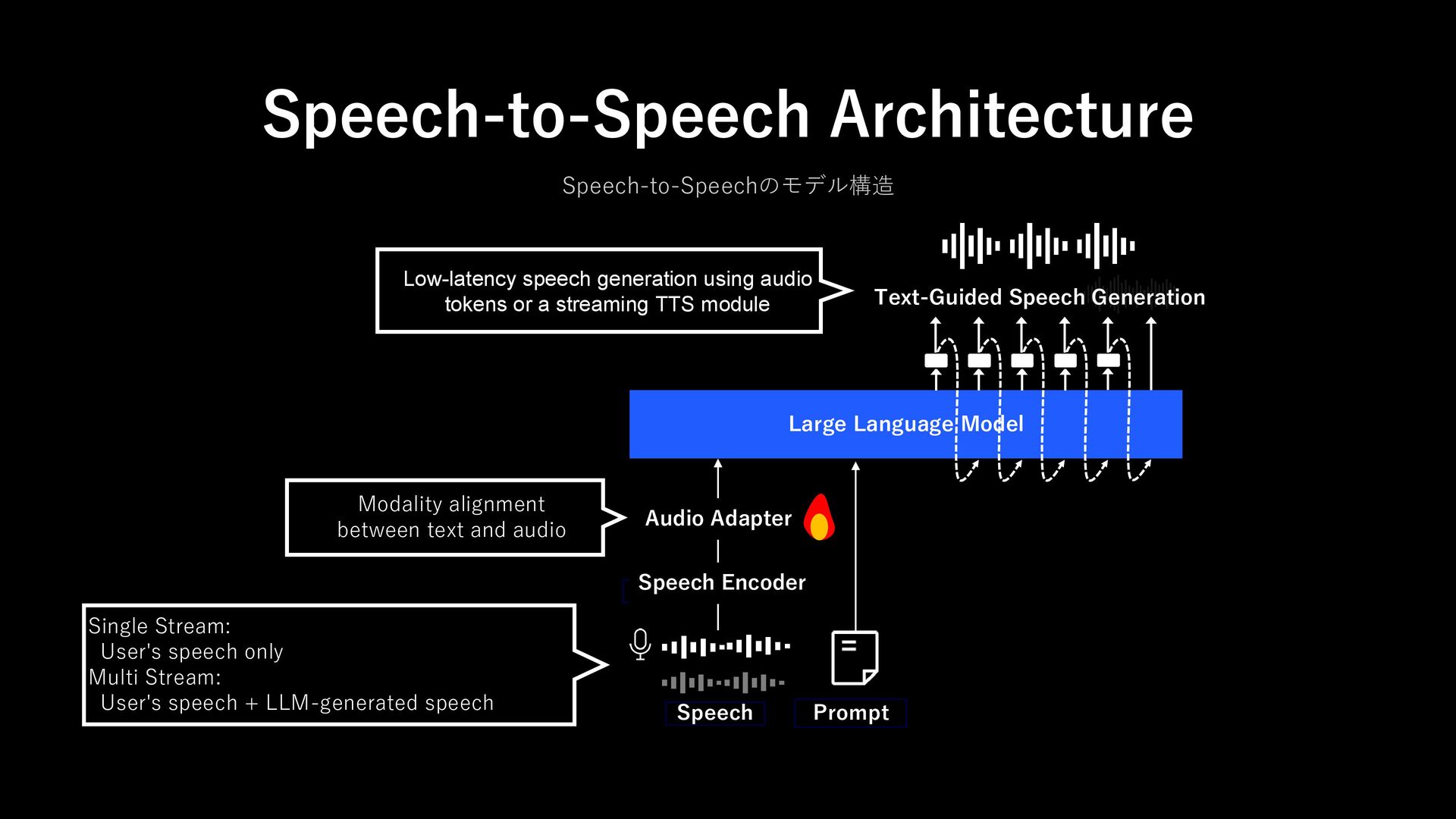

  10. Speech-to-Speech Architecture Speech-to-Speechのモデル構造 Large Language Model Text-Guided Speech Generation Low-latency

    speech generation using audio tokens or a streaming TTS module Audio Adapter Speech Encoder Modality alignment between text and audio Prompt Speech Single Stream: User's speech only Multi Stream: User's speech + LLM-generated speech

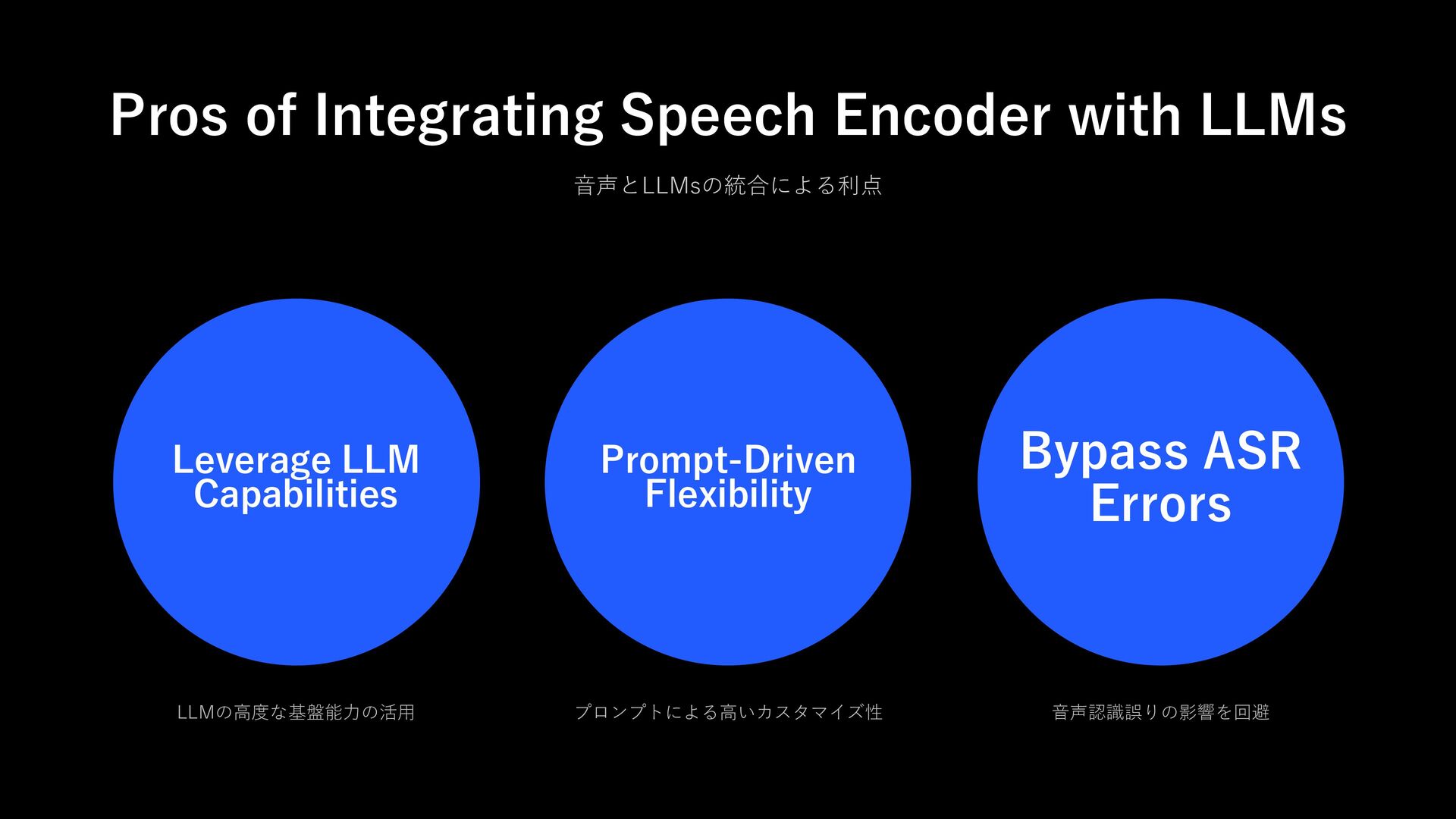

  11. Pros of Integrating Speech Encoder with LLMs 音声とLLMsの統合による利点 Leverage LLM

    Capabilities Prompt-Driven Flexibility Bypass ASR Errors LLMの高度な基盤能力の活用 プロンプトによる高いカスタマイズ性 音声認識誤りの影響を回避

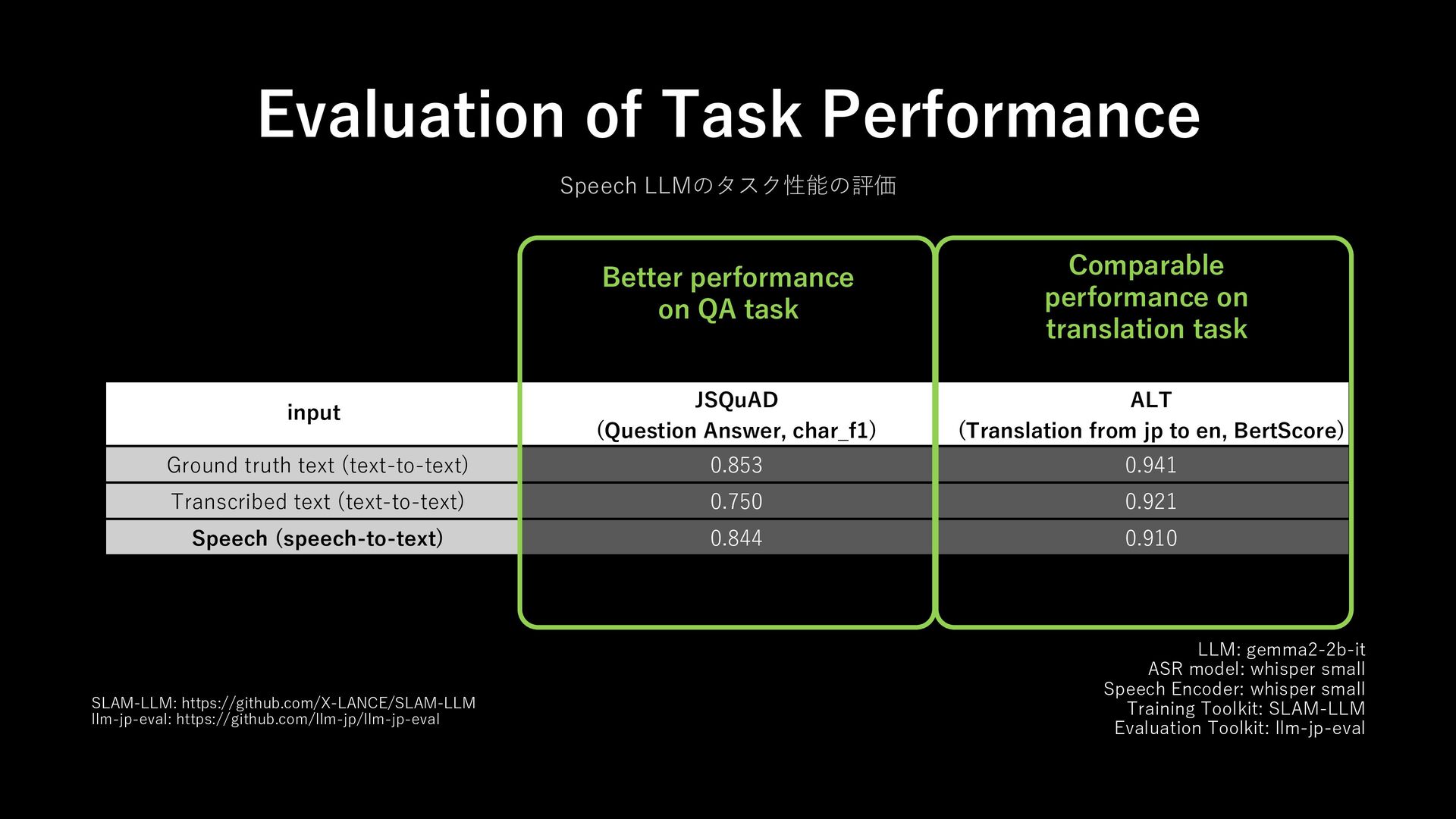

  12. Evaluation of Task Performance Speech LLMのタスク性能の評価 input JSQuAD (Question Answer,

    char_f1) ALT (Translation from jp to en, BertScore) Ground truth text (text-to-text) 0.853 0.941 Transcribed text (text-to-text) 0.750 0.921 Speech (speech-to-text) 0.844 0.910 LLM: gemma2-2b-it ASR model: whisper small Speech Encoder: whisper small Training Toolkit: SLAM-LLM Evaluation Toolkit: llm-jp-eval SLAM-LLM: https://github.com/X-LANCE/SLAM-LLM llm-jp-eval: https://github.com/llm-jp/llm-jp-eval Comparable performance on translation task Better performance on QA task

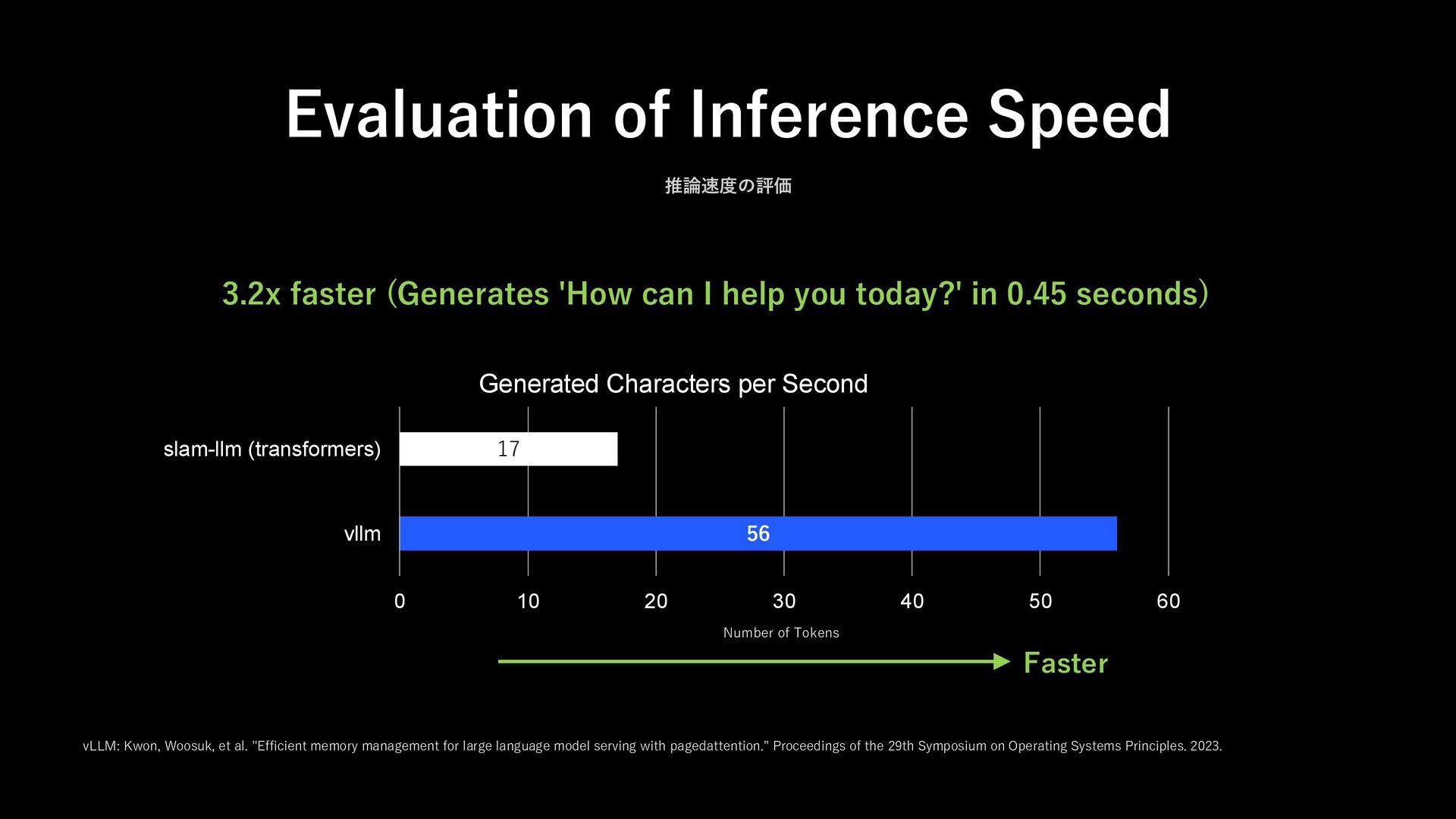

  13. Evaluation of Inference Speed 推論速度の評価 56 17 0 10 20

    30 40 50 60 vllm slam-llm (transformers) Generated Characters per Second vLLM: Kwon, Woosuk, et al. "Efficient memory management for large language model serving with pagedattention." Proceedings of the 29th Symposium on Operating Systems Principles. 2023. Faster 3.2x faster (Generates 'How can I help you today?' in 0.45 seconds) Number of Tokens

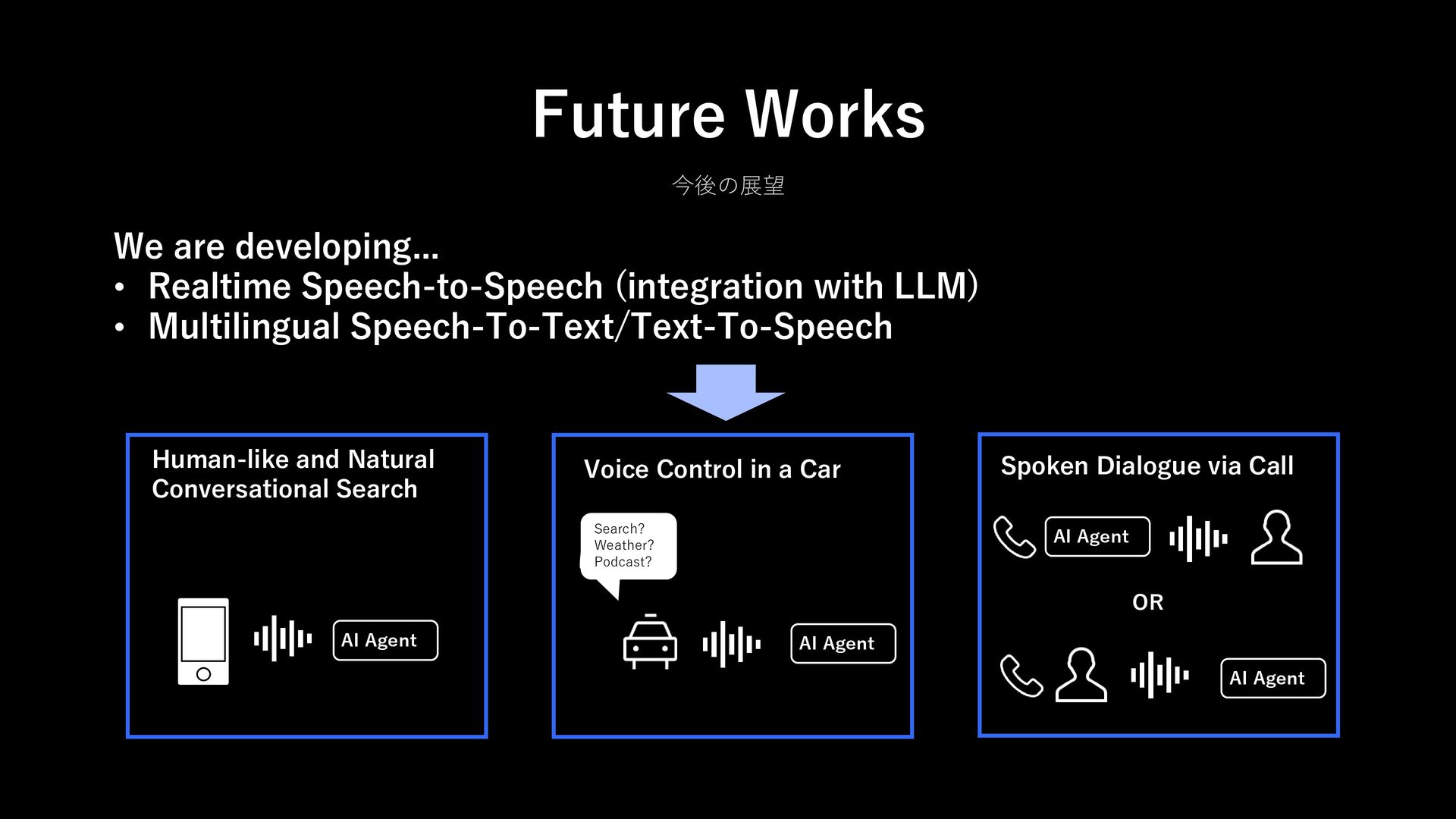

  14. Future Works 今後の展望 We are developing... • Realtime Speech-to-Speech (integration

    with LLM) • Multilingual Speech-To-Text/Text-To-Speech Voice Control in a Car Human-like and Natural Conversational Search Spoken Dialogue via Call AI Agent OR Search? Weather? Podcast? AI Agent AI Agent AI Agent
