GeoEmbeddings with PostGIS & pgVector

Slides from my talk from PostGIS Day 2025
Will add video when ready

Transcript

1. Geospatial Embeddings with PostGIS and PGVector Lessons learned and future directions Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

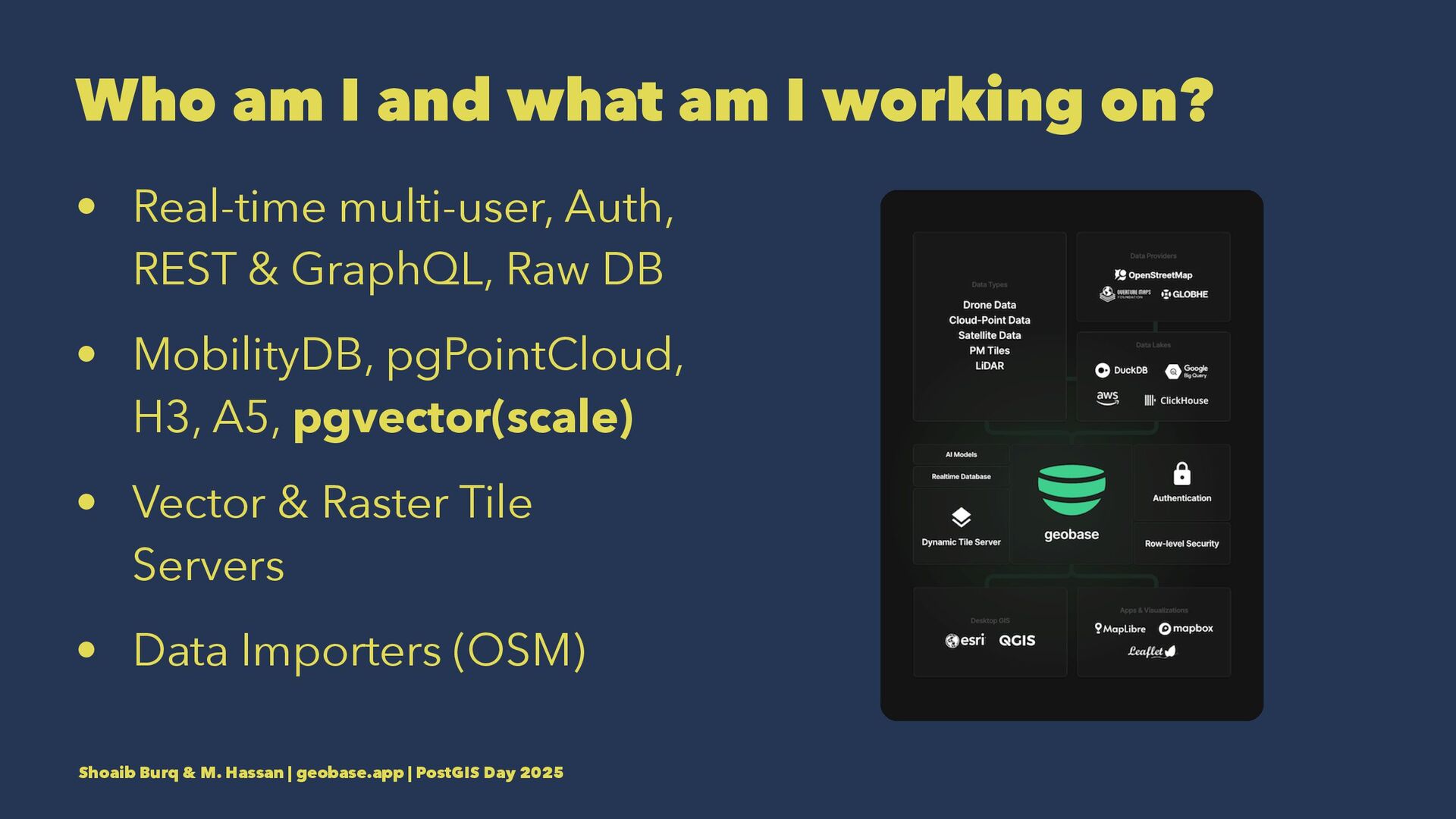

2. Who am I and what am I working on? • Real-time multi-user, Auth, REST & GraphQL, Raw DB • MobilityDB, pgPointCloud, H3, A5, pgvector(scale) • Vector & Raster Tile Servers • Data Importers (OSM) Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

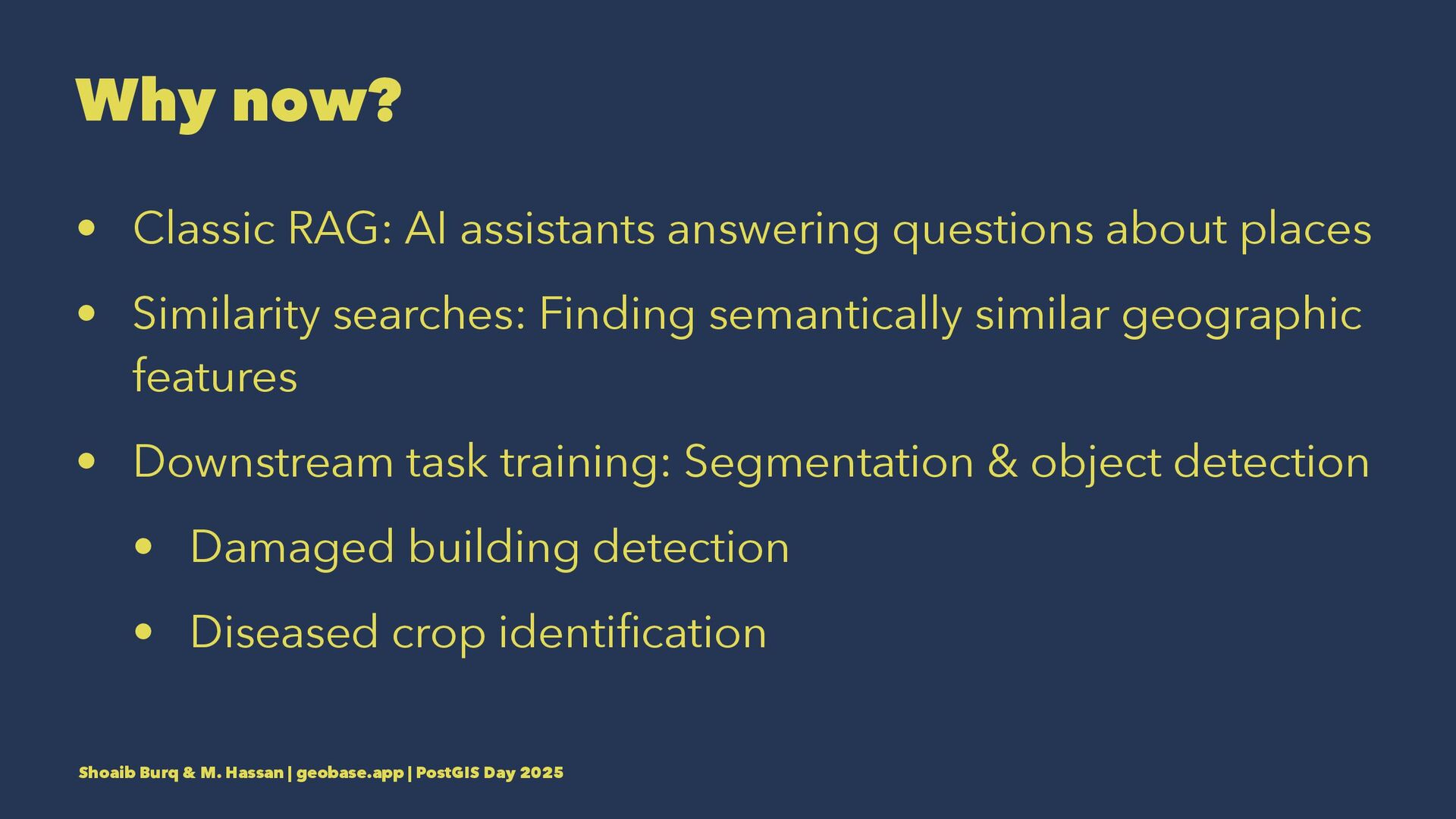

3. Why now? • Classic RAG: AI assistants answering questions about places • Similarity searches: Finding semantically similar geographic features • Downstream task training: Segmentation & object detection • Damaged building detection • Diseased crop identification Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

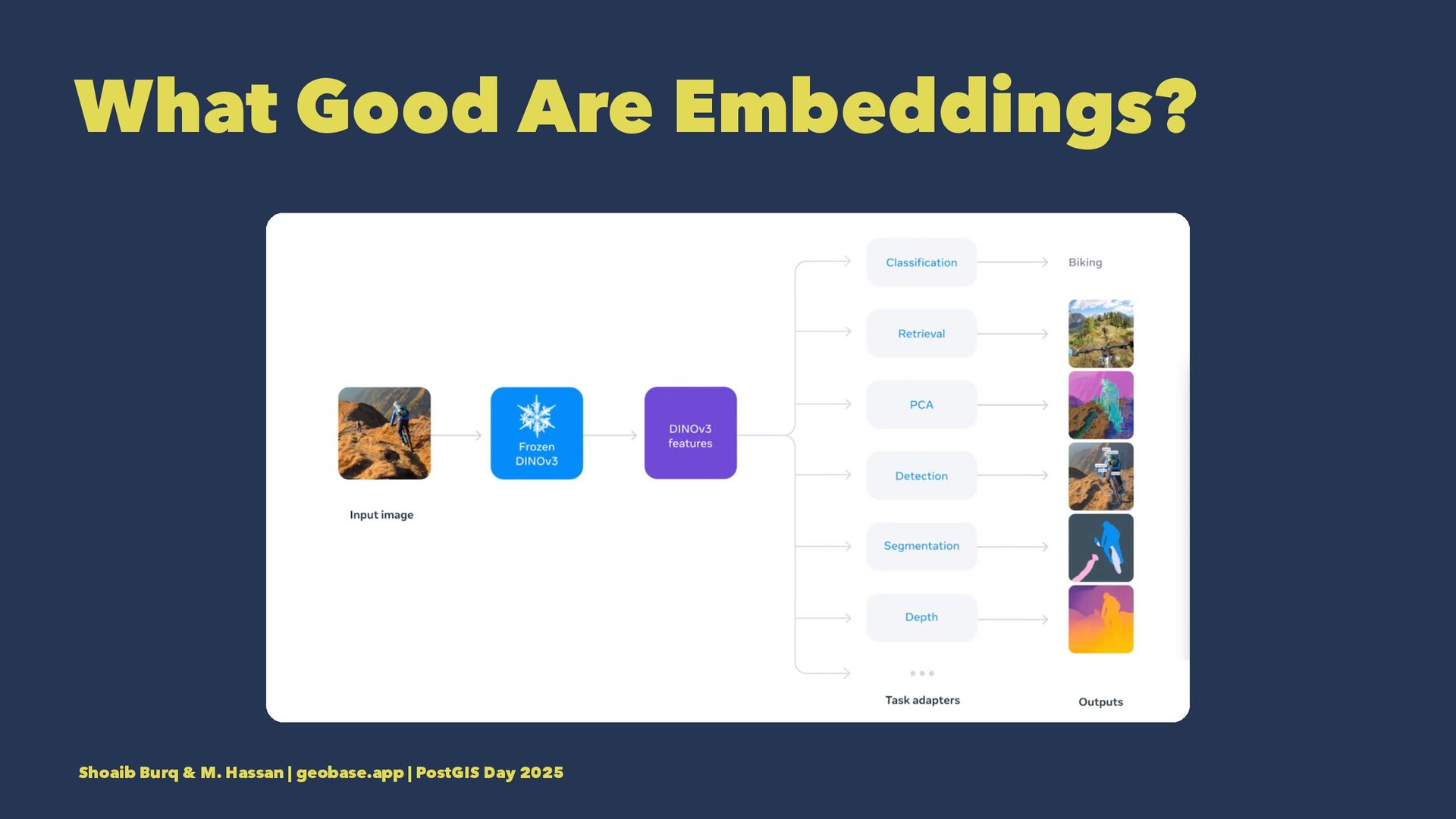

4. What Good Are Embeddings? Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025
5. Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

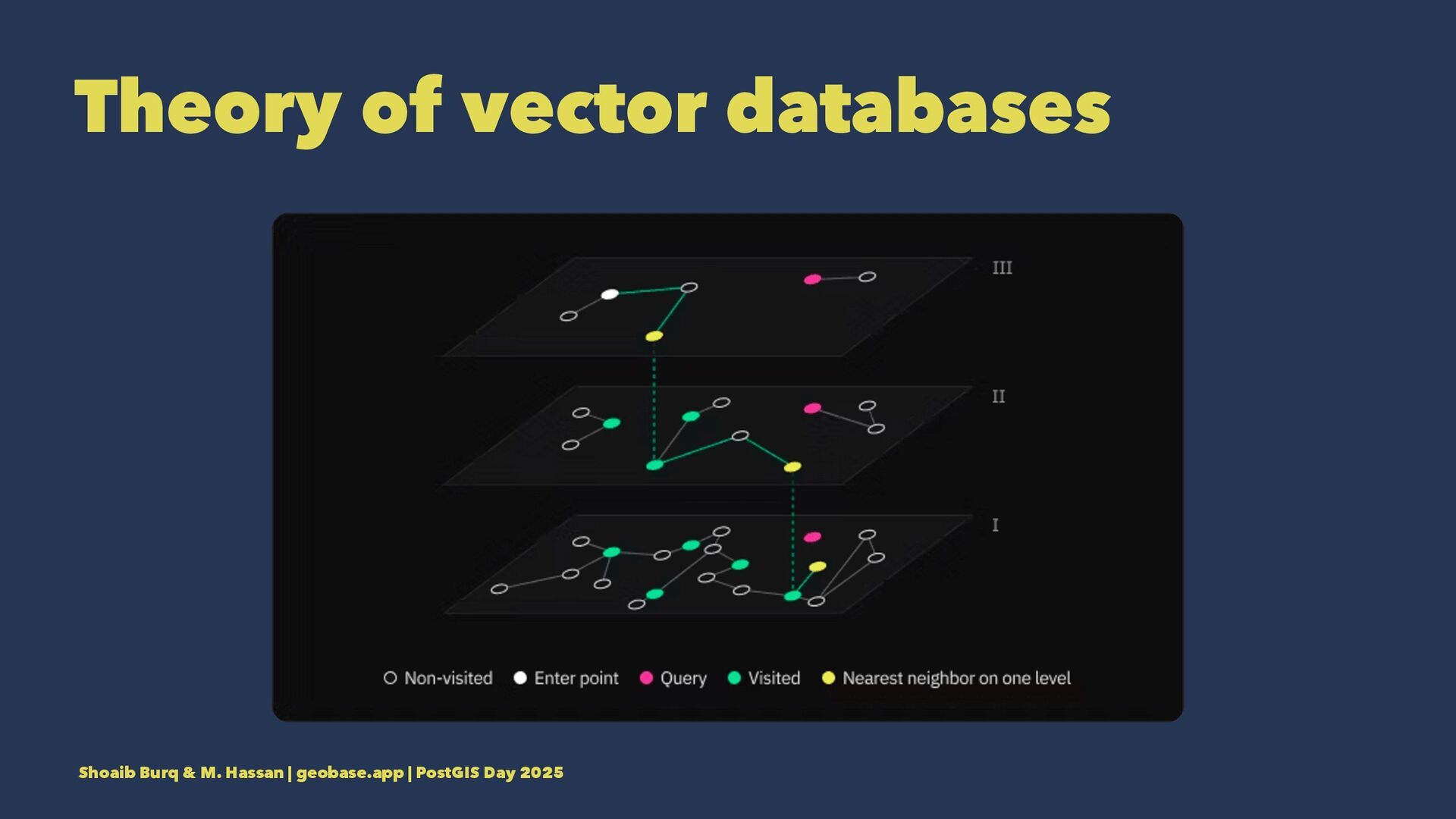

6. Theory of vector databases Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

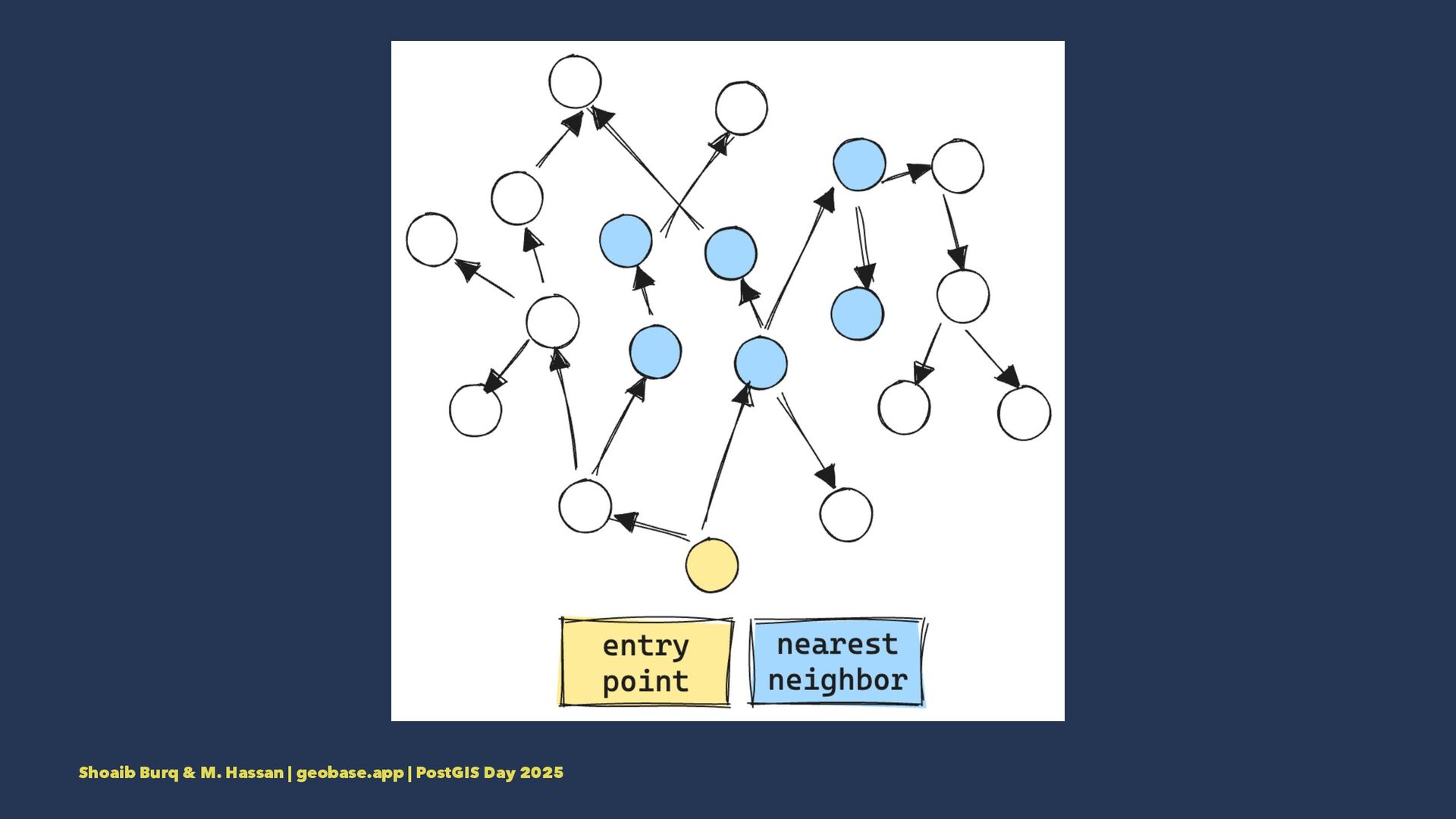

7. Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

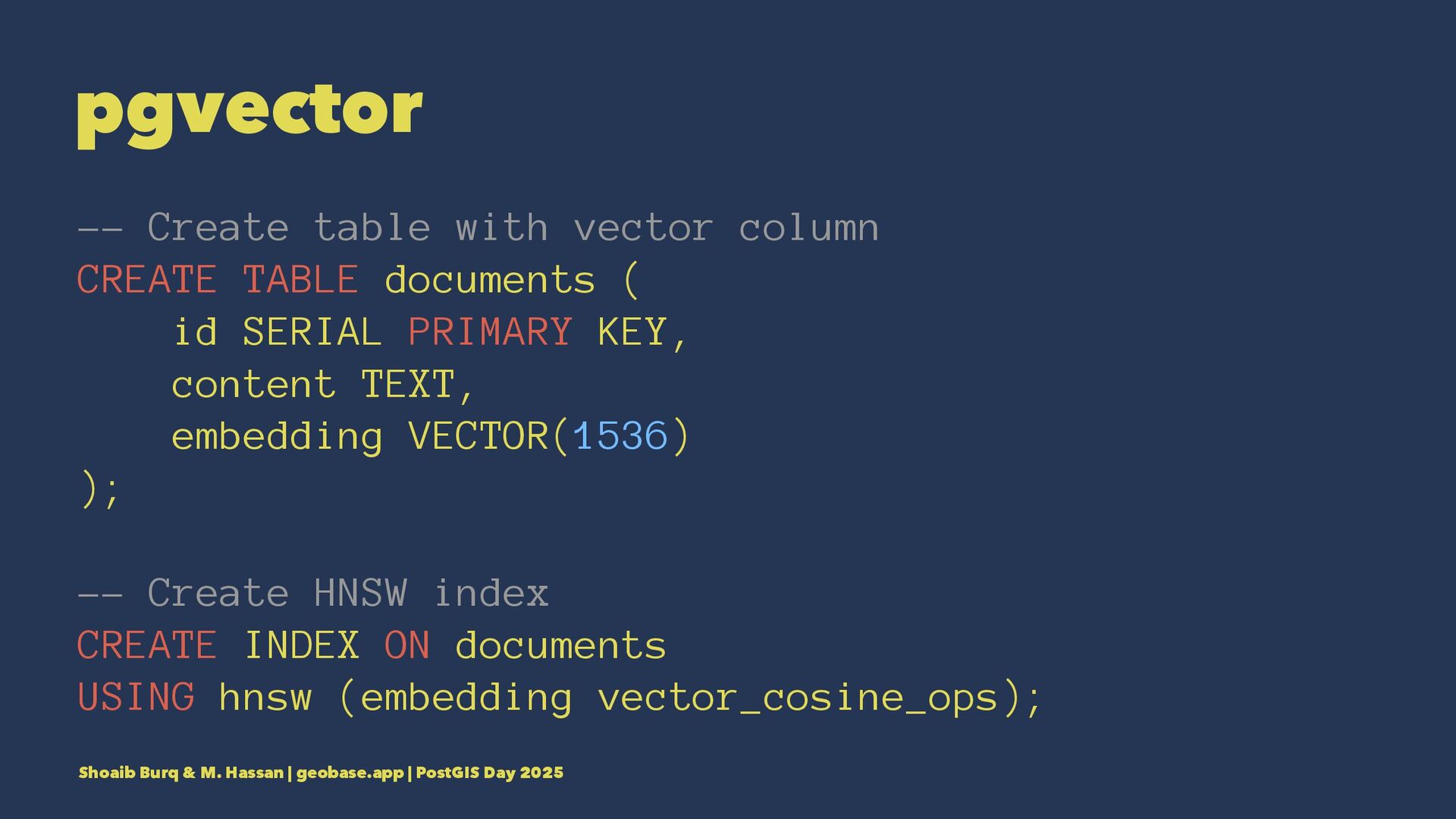

8. pgvector -- Create table with vector column CREATE TABLE documents ( id SERIAL PRIMARY KEY, content TEXT, embedding VECTOR(1536) ); -- Create HNSW index CREATE INDEX ON documents USING hnsw (embedding vector_cosine_ops); Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

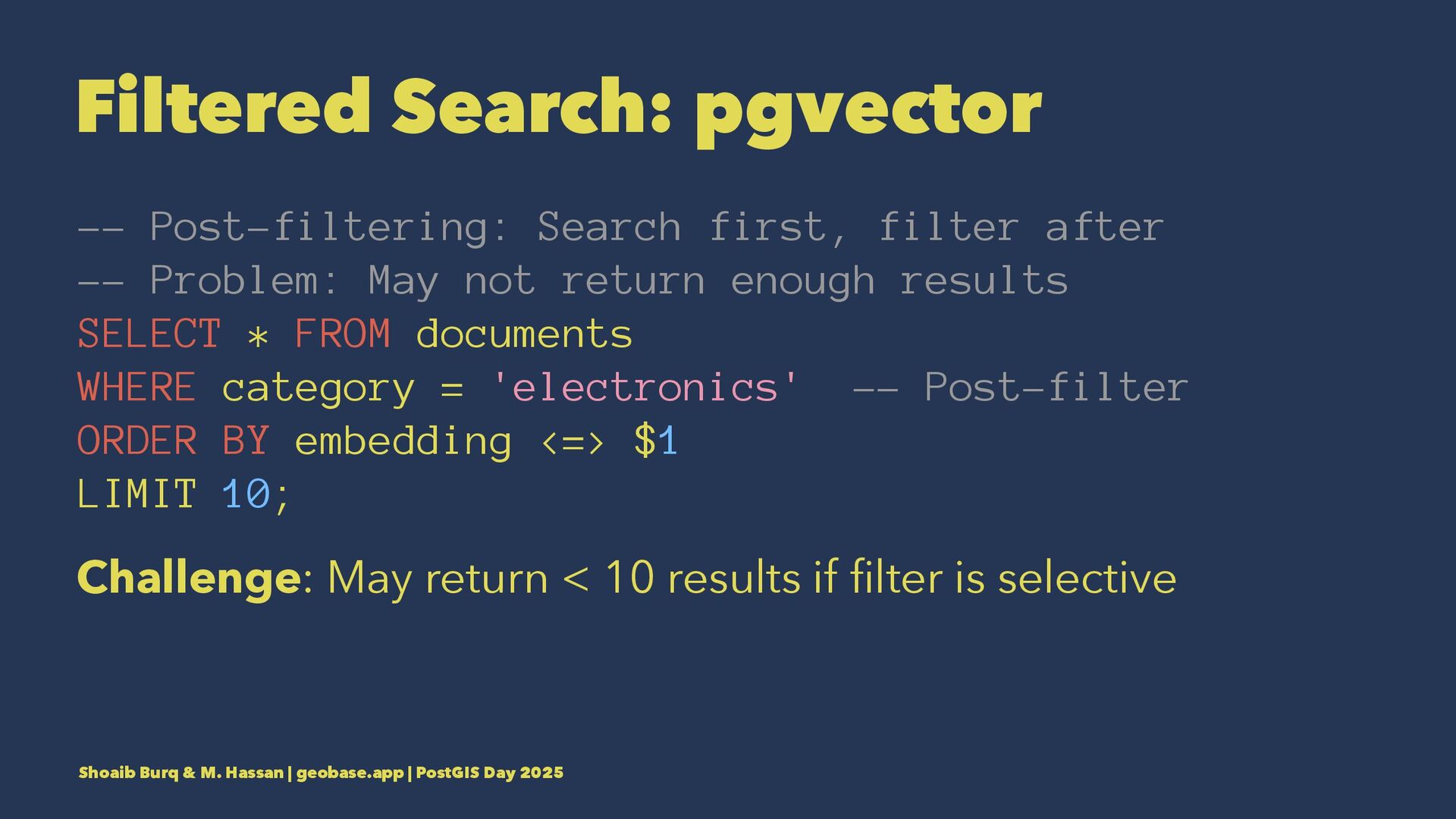

9. Filtered Search: pgvector -- Post-filtering: Search first, filter after -- Problem: May not return enough results SELECT * FROM documents WHERE category = 'electronics' -- Post-filter ORDER BY embedding <=> $1 LIMIT 10; Challenge: May return < 10 results if filter is selective Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025
10. The Filtering Problem Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

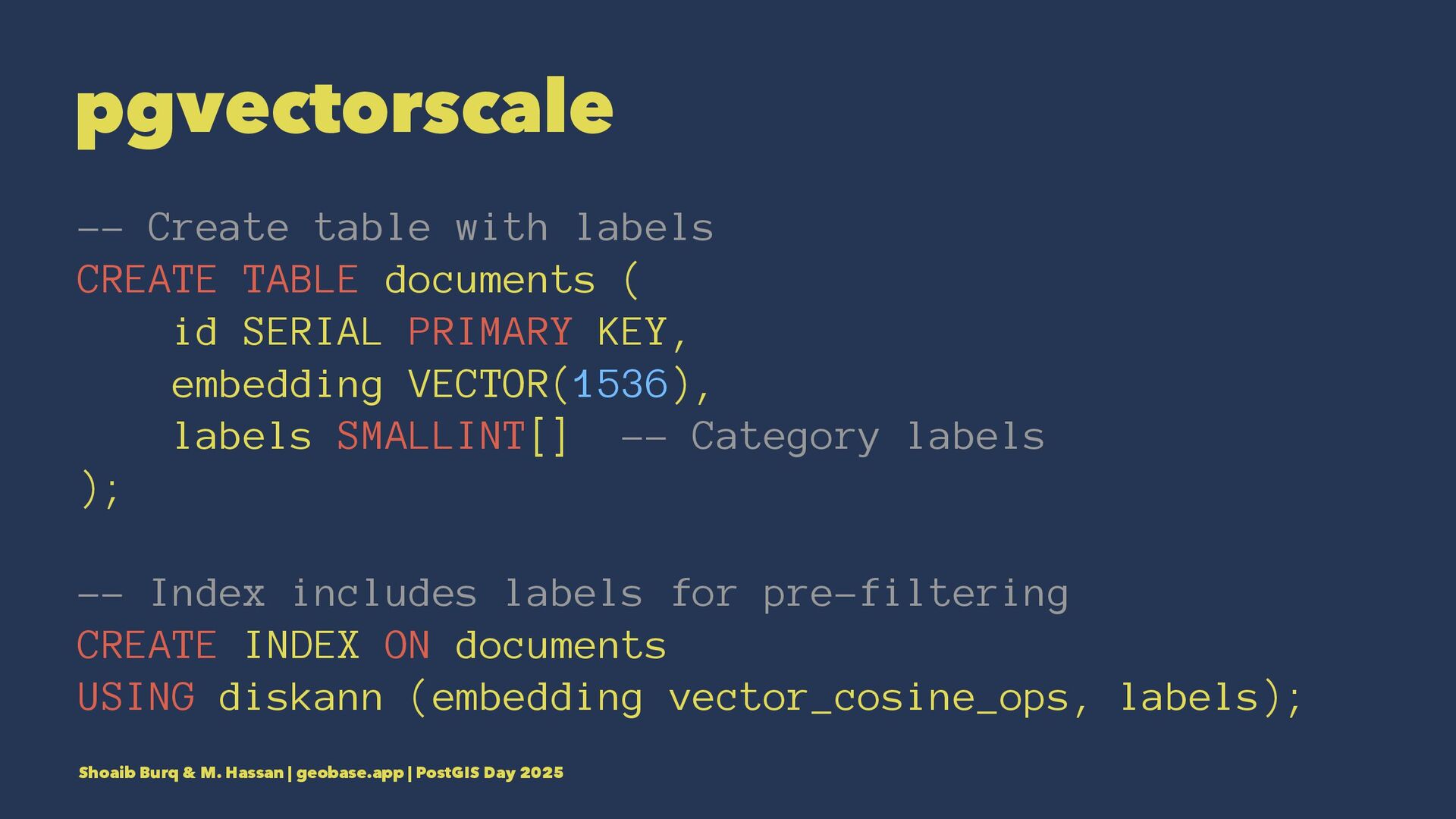

11. pgvectorscale -- Create table with labels CREATE TABLE documents ( id SERIAL PRIMARY KEY, embedding VECTOR(1536), labels SMALLINT[] -- Category labels ); -- Index includes labels for pre-filtering CREATE INDEX ON documents USING diskann (embedding vector_cosine_ops, labels); Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

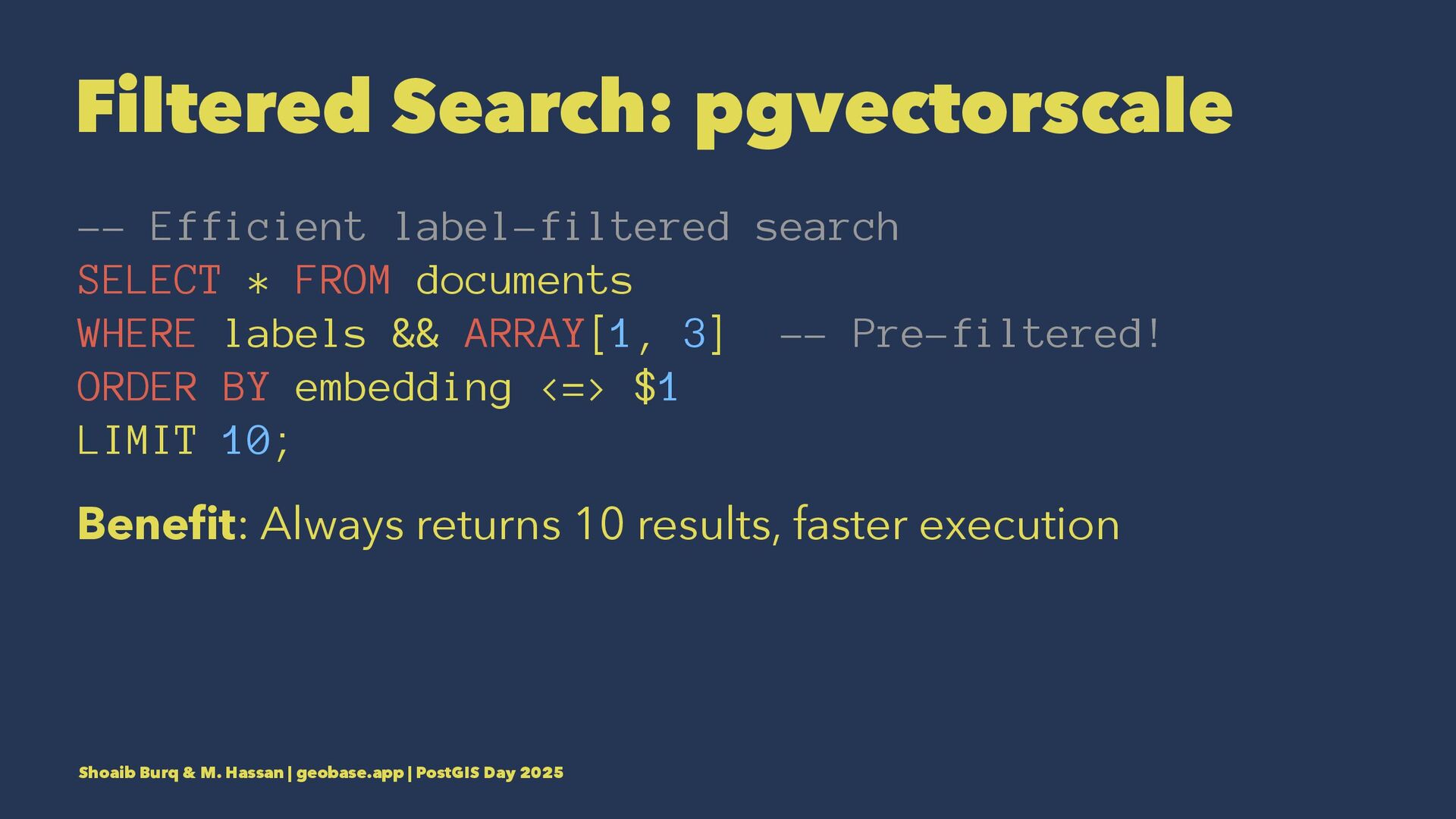

12. Filtered Search: pgvectorscale -- Efficient label-filtered search SELECT * FROM documents WHERE labels && ARRAY[1, 3] -- Pre-filtered! ORDER BY embedding <=> $1 LIMIT 10; Benefit: Always returns 10 results, faster execution Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025
13. We came here for the geospatial embeddings, not graph theory! Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

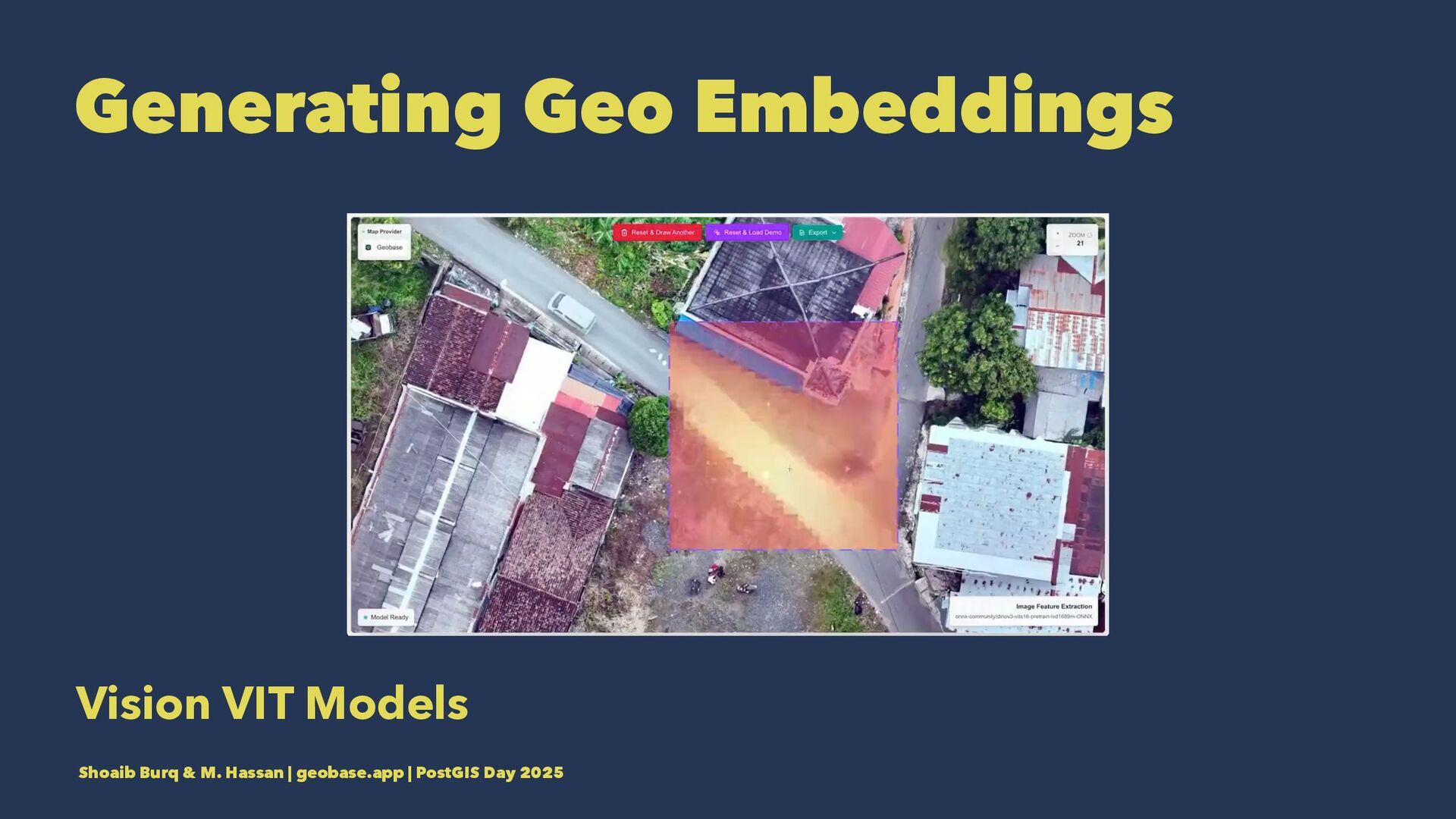

14. Generating Geo Embeddings Vision VIT Models Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

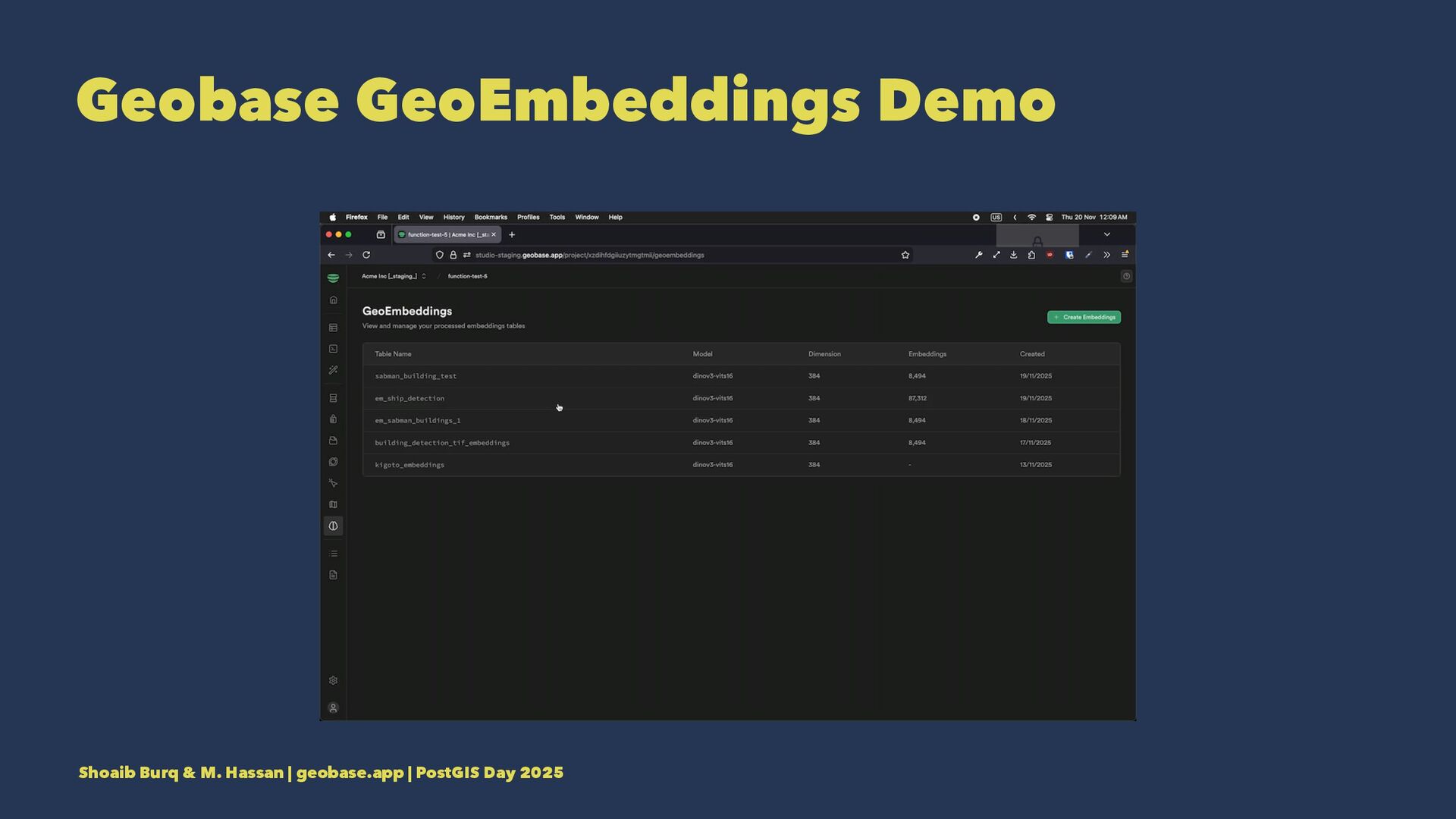

15. Geobase GeoEmbeddings Demo Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

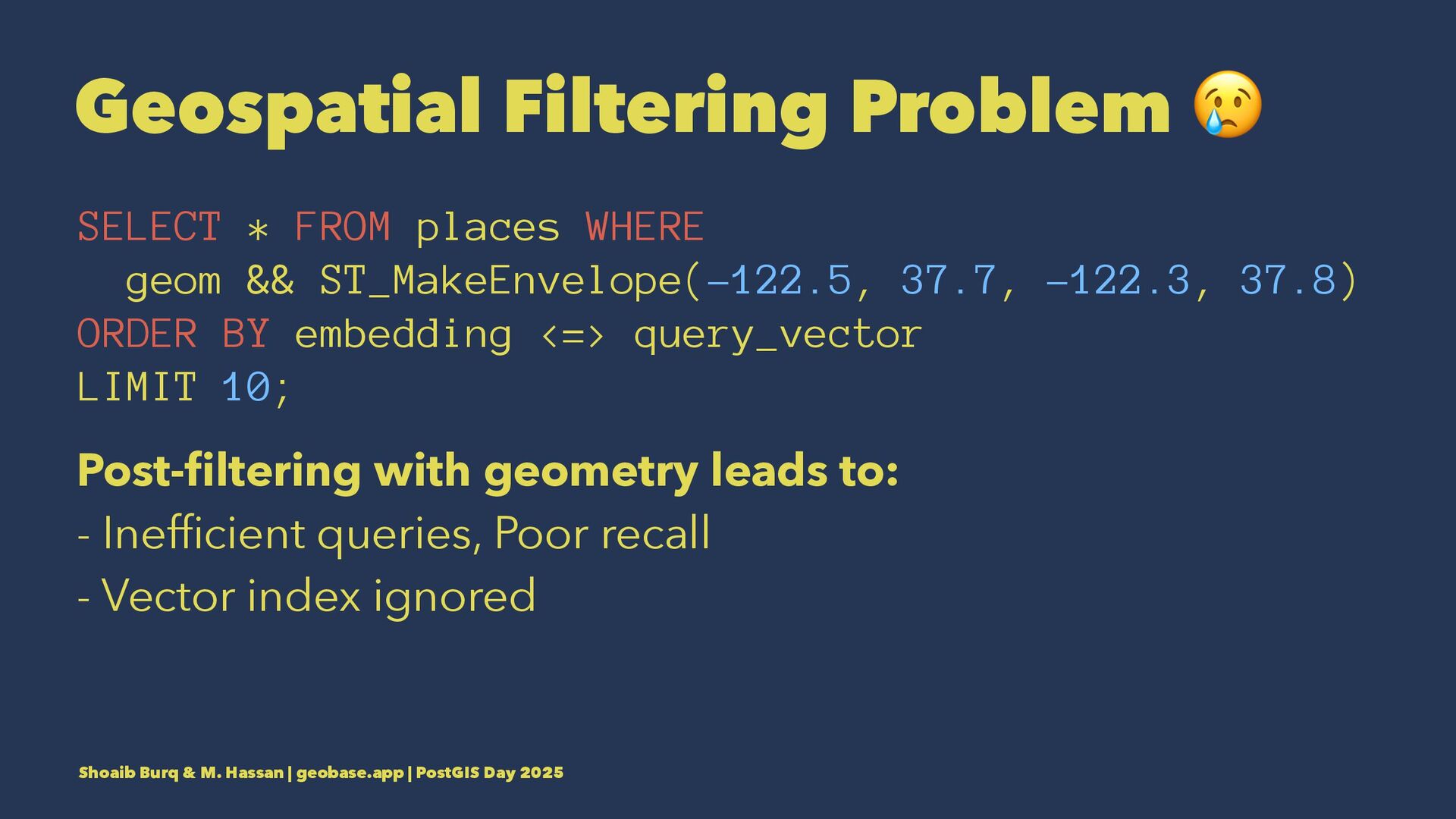

16. Geospatial Filtering Problem SELECT * FROM places WHERE geom && ST_MakeEnvelope(-122.5, 37.7, -122.3, 37.8) ORDER BY embedding <=> query_vector LIMIT 10; Post-filtering with geometry leads to: - Inefficient queries, Poor recall - Vector index ignored Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

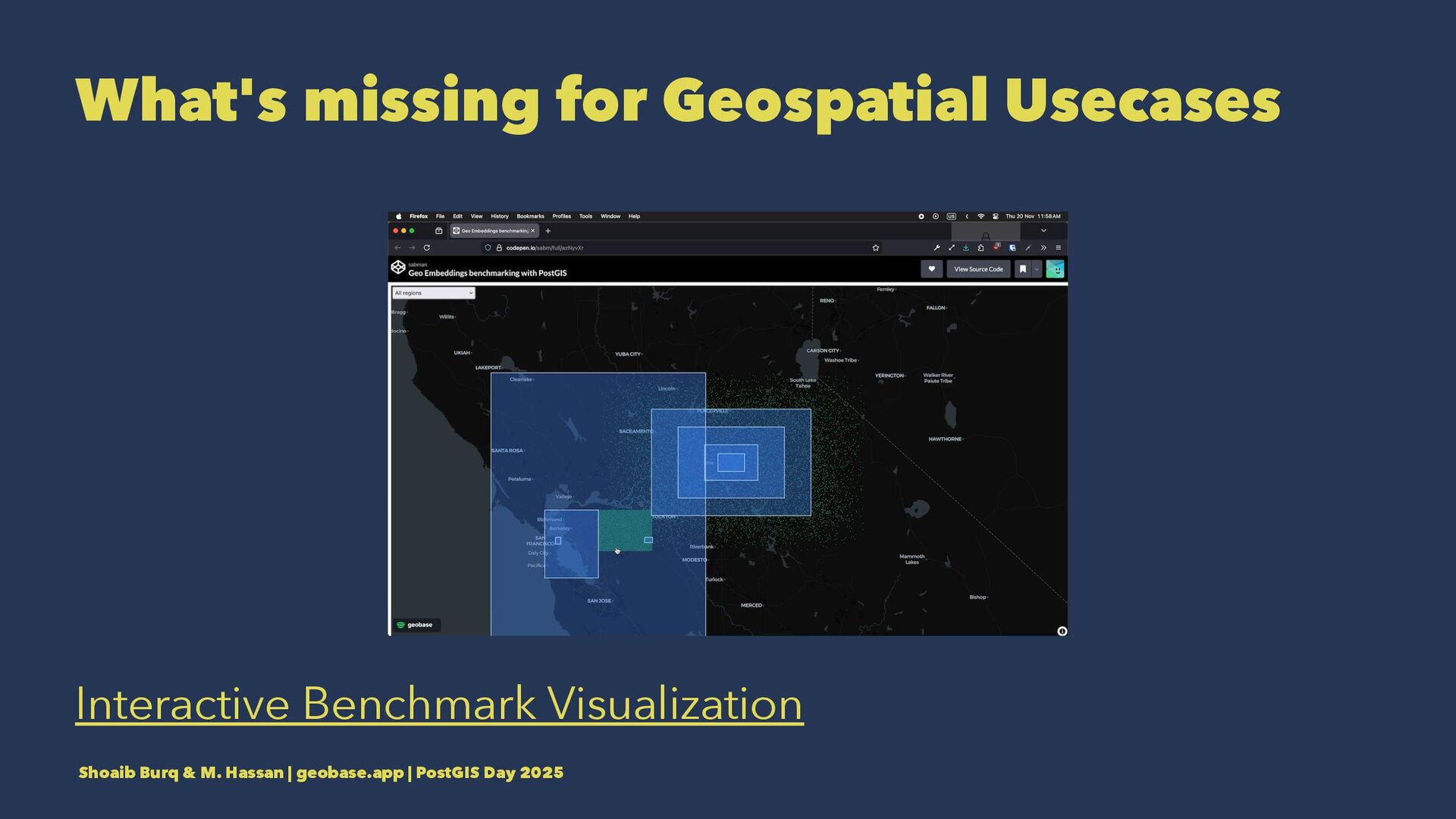

17. What's missing for Geospatial Usecases Interactive Benchmark Visualization Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

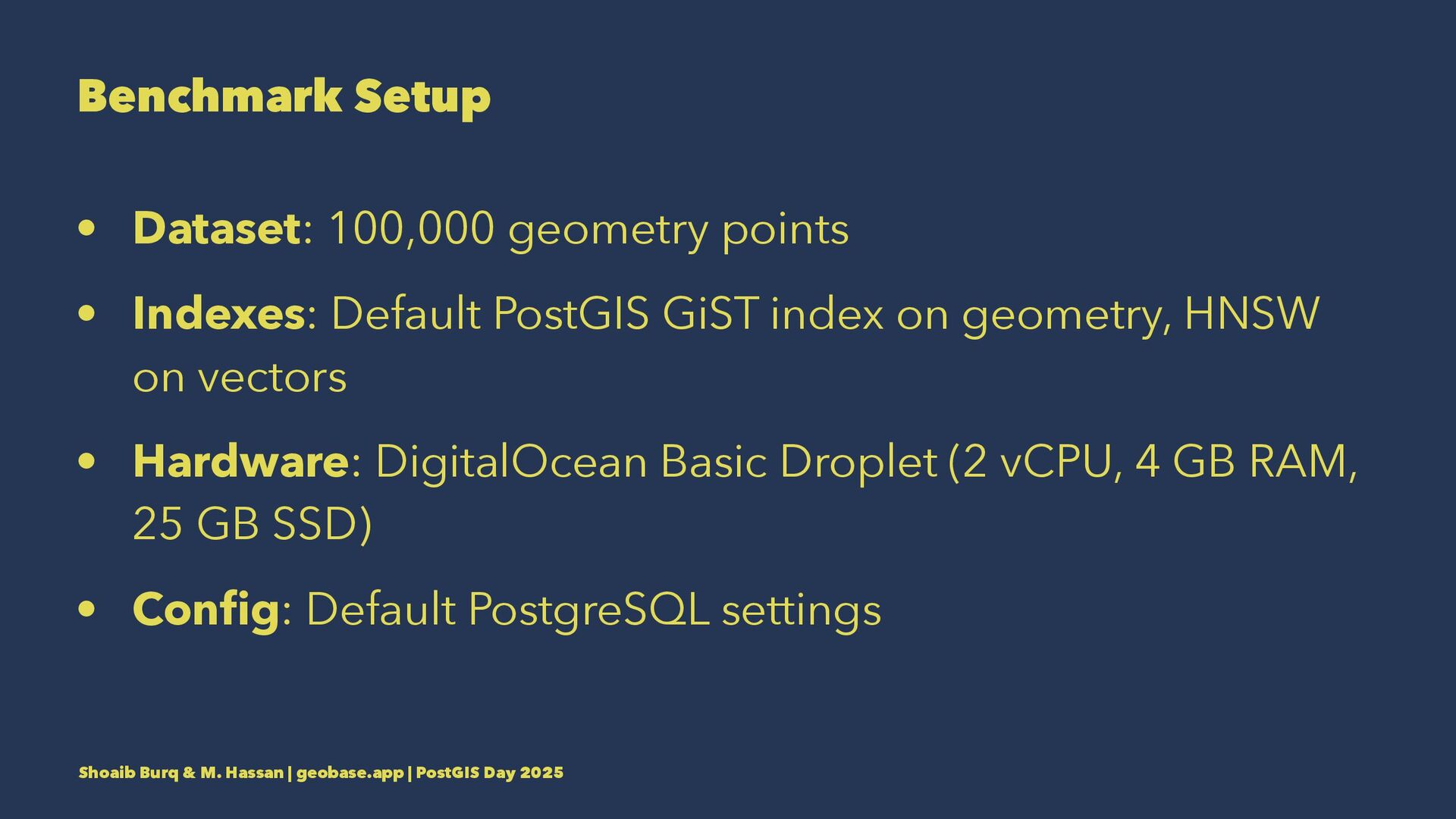

18. Benchmark Setup • Dataset: 100,000 geometry points • Indexes: Default PostGIS GiST index on geometry, HNSW on vectors • Hardware: DigitalOcean Basic Droplet (2 vCPU, 4 GB RAM, 25 GB SSD) • Config: Default PostgreSQL settings Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

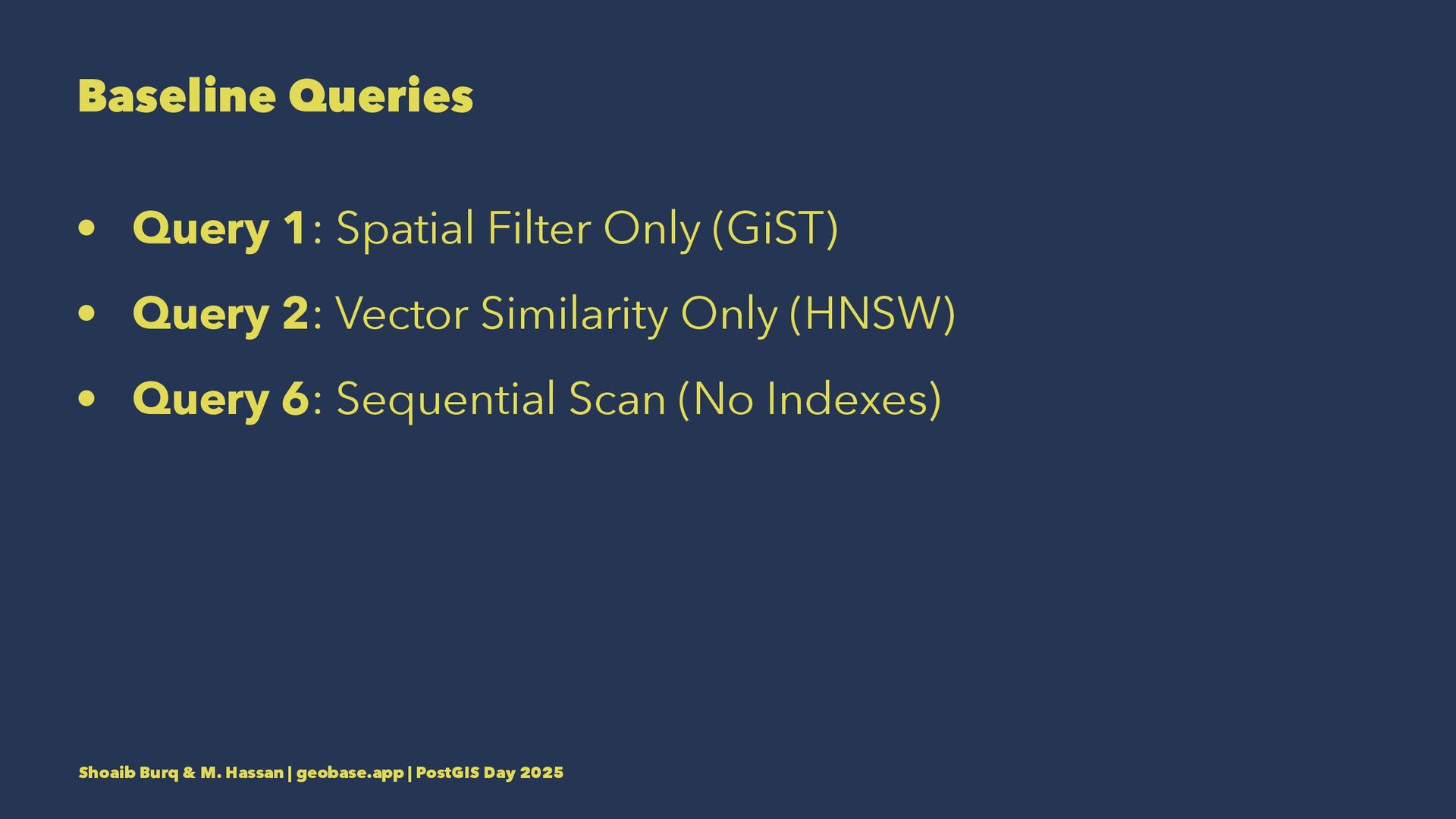

19. Baseline Queries • Query 1: Spatial Filter Only (GiST) • Query 2: Vector Similarity Only (HNSW) • Query 6: Sequential Scan (No Indexes) Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

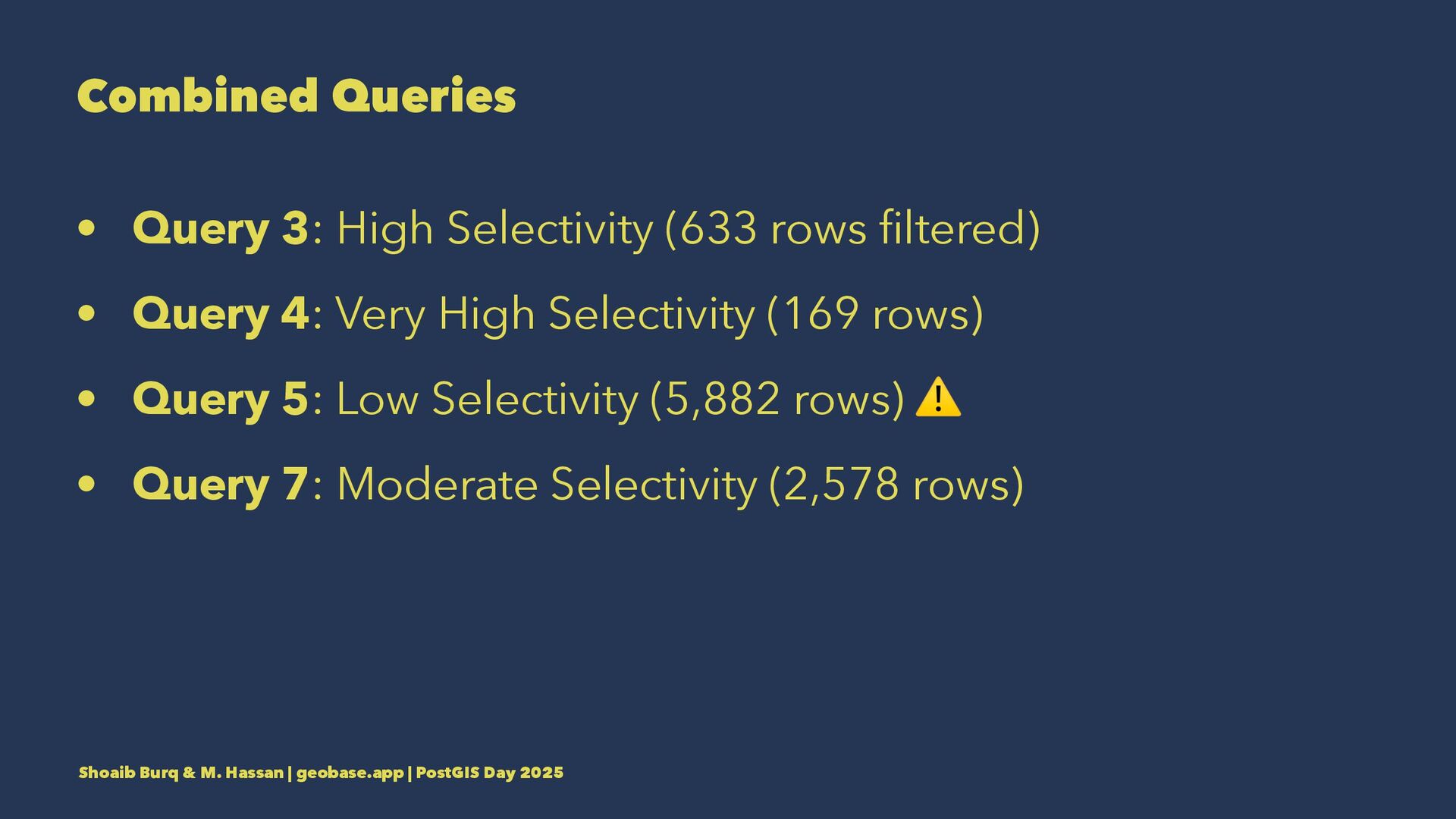

20. Combined Queries • Query 3: High Selectivity (633 rows filtered) • Query 4: Very High Selectivity (169 rows) • Query 5: Low Selectivity (5,882 rows) • Query 7: Moderate Selectivity (2,578 rows) Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

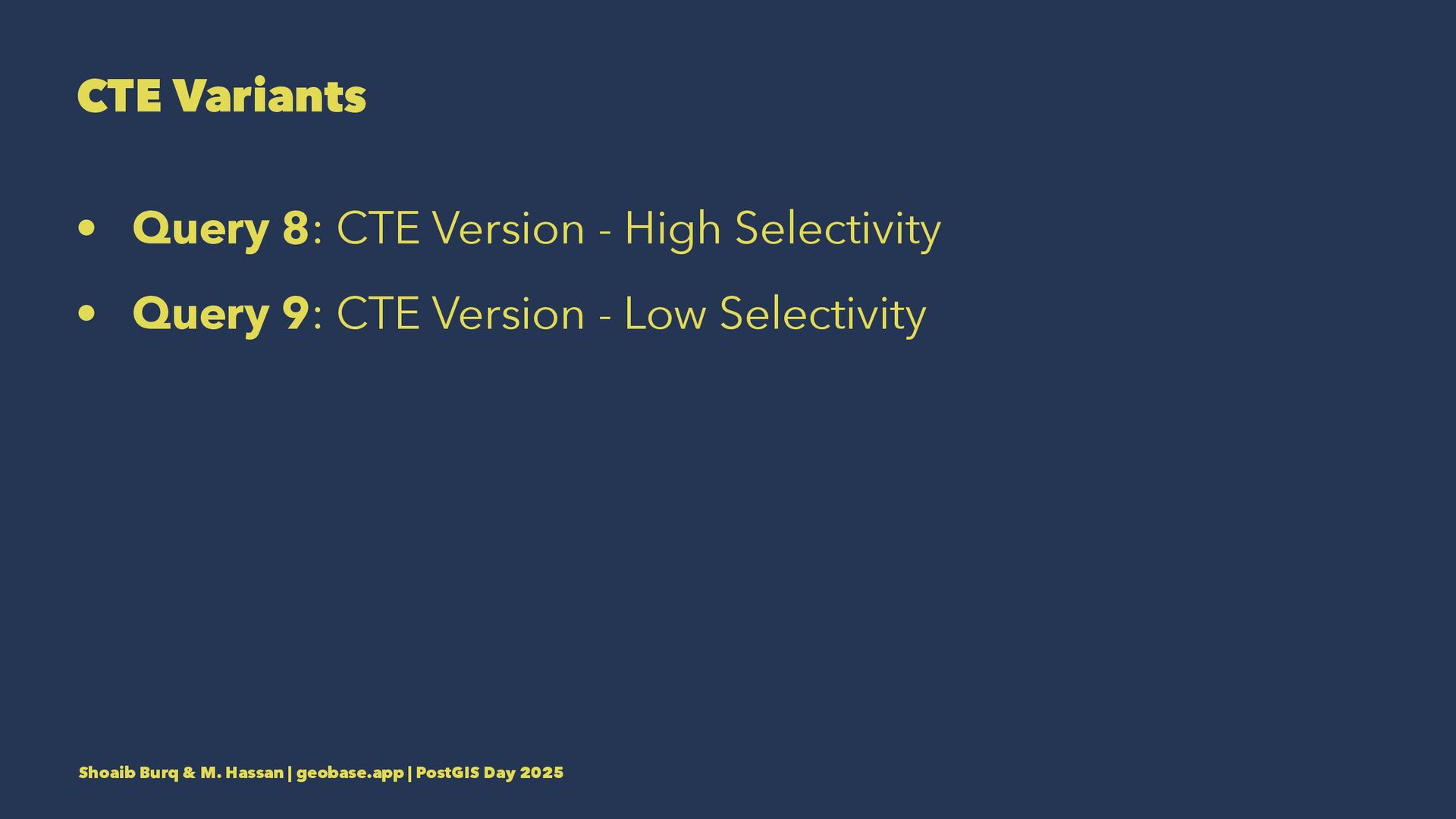

21. CTE Variants • Query 8: CTE Version - High Selectivity • Query 9: CTE Version - Low Selectivity Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

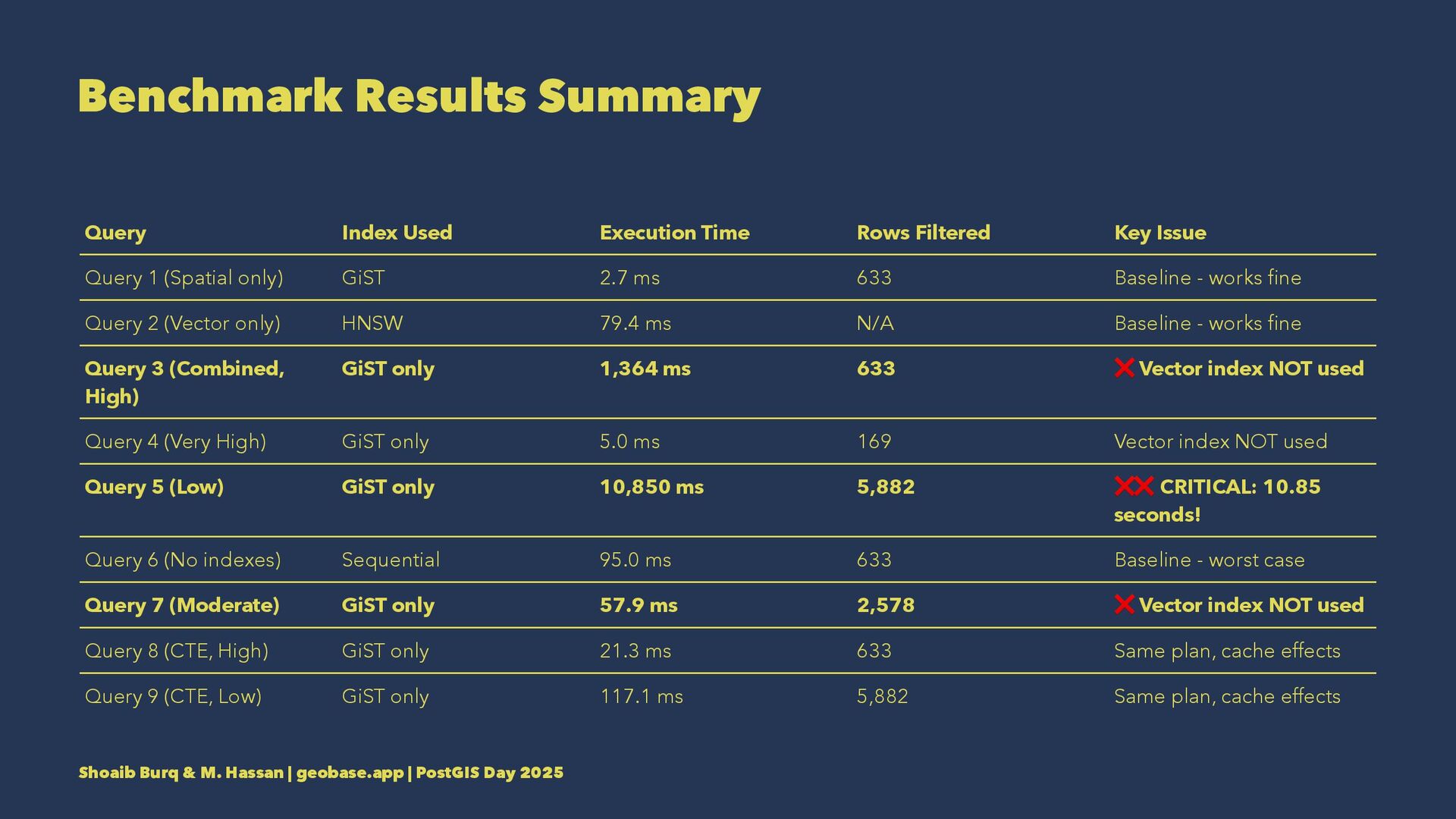

22. Benchmark Results Summary Query Index Used Execution Time Rows Filtered Key Issue Query 1 (Spatial only) GiST 2.7 ms 633 Baseline - works fine Query 2 (Vector only) HNSW 79.4 ms N/A Baseline - works fine Query 3 (Combined, High) GiST only 1,364 ms 633 ❌ Vector index NOT used Query 4 (Very High) GiST only 5.0 ms 169 Vector index NOT used Query 5 (Low) GiST only 10,850 ms 5,882 ❌❌ CRITICAL: 10.85 seconds! Query 6 (No indexes) Sequential 95.0 ms 633 Baseline - worst case Query 7 (Moderate) GiST only 57.9 ms 2,578 ❌ Vector index NOT used Query 8 (CTE, High) GiST only 21.3 ms 633 Same plan, cache effects Query 9 (CTE, Low) GiST only 117.1 ms 5,882 Same plan, cache effects Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

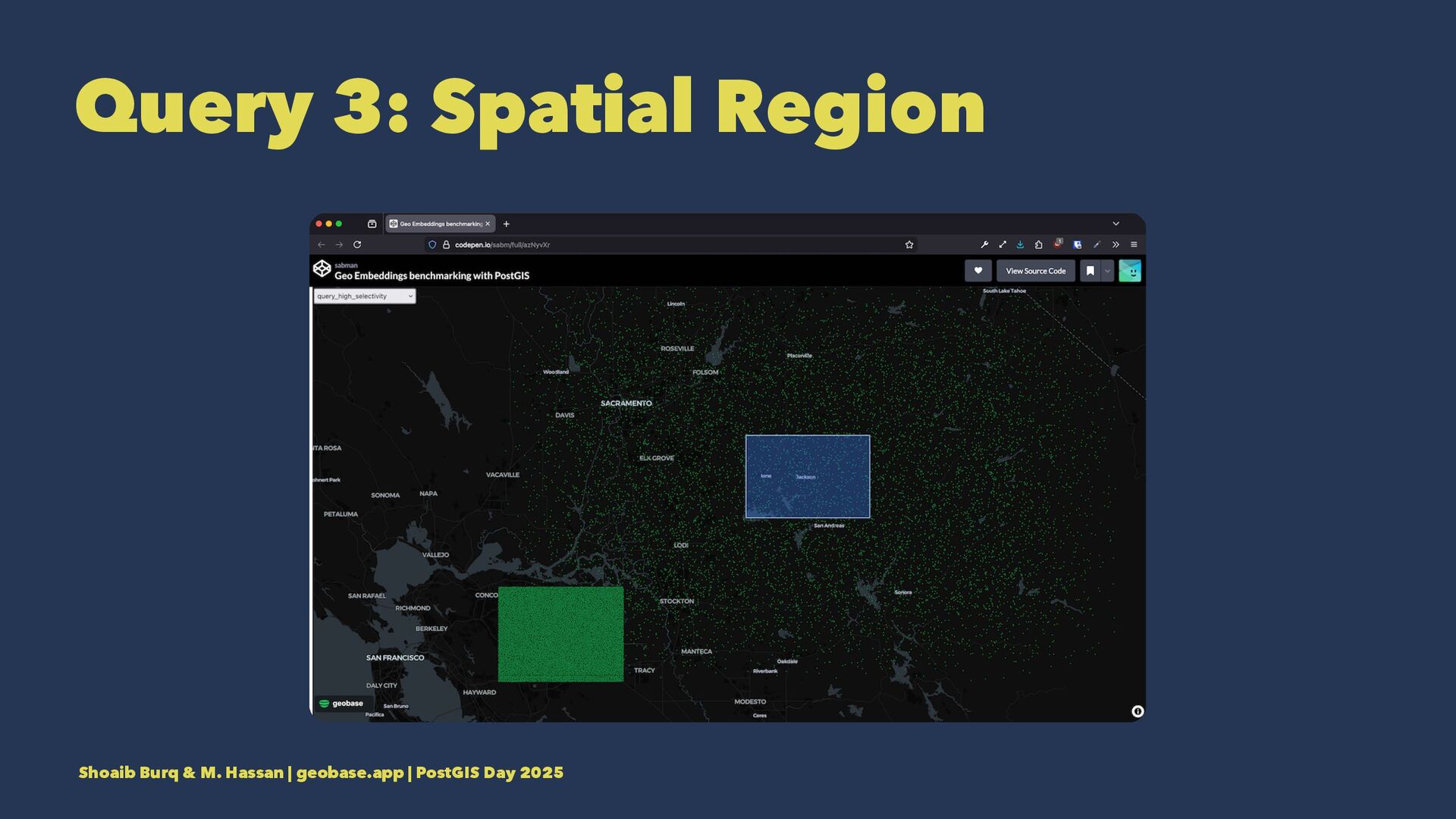

23. Query 3: Spatial Region Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

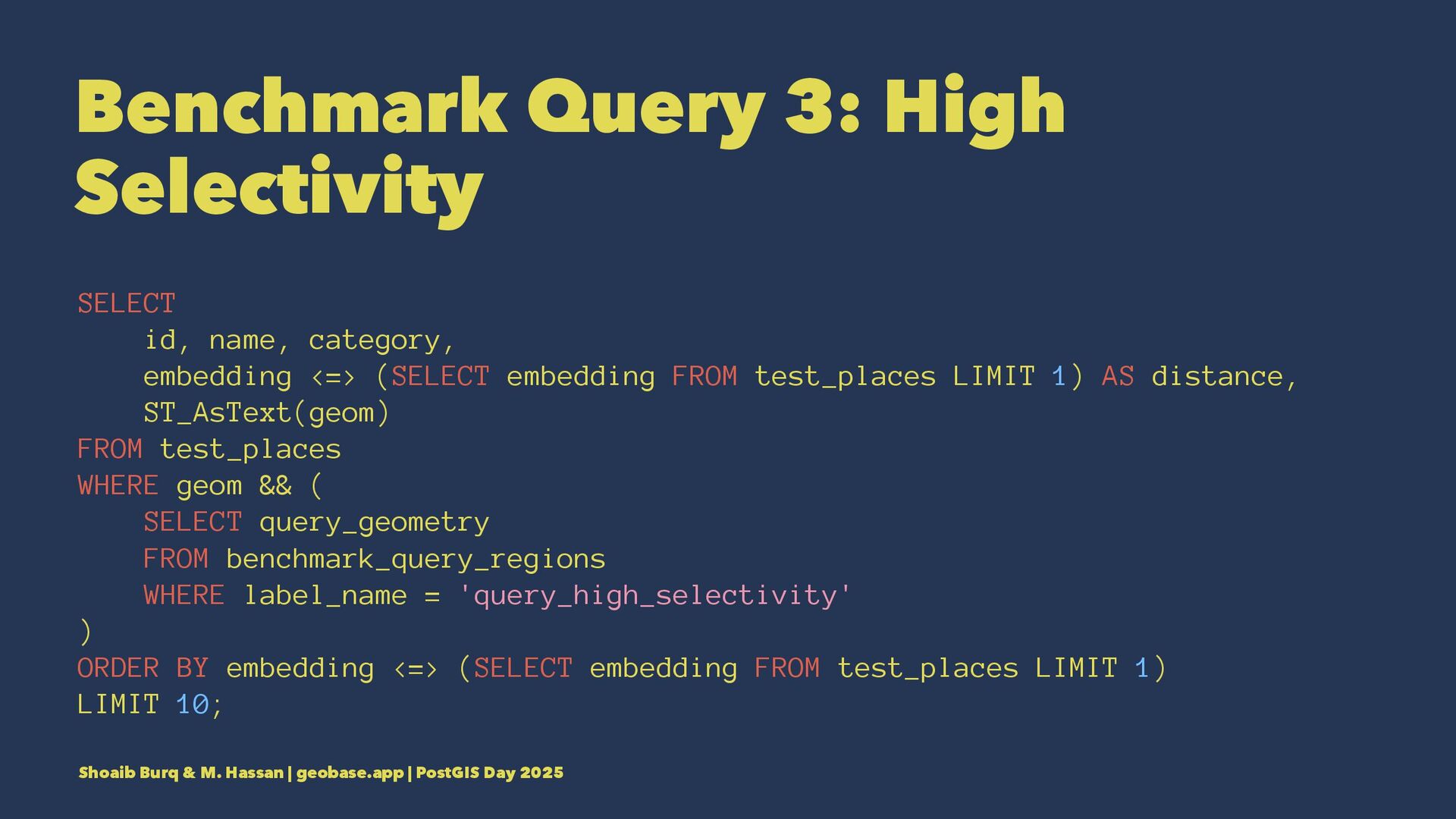

24. Benchmark Query 3: High Selectivity SELECT id, name, category, embedding <=> (SELECT embedding FROM test_places LIMIT 1) AS distance, ST_AsText(geom) FROM test_places WHERE geom && ( SELECT query_geometry FROM benchmark_query_regions WHERE label_name = 'query_high_selectivity' ) ORDER BY embedding <=> (SELECT embedding FROM test_places LIMIT 1) LIMIT 10; Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

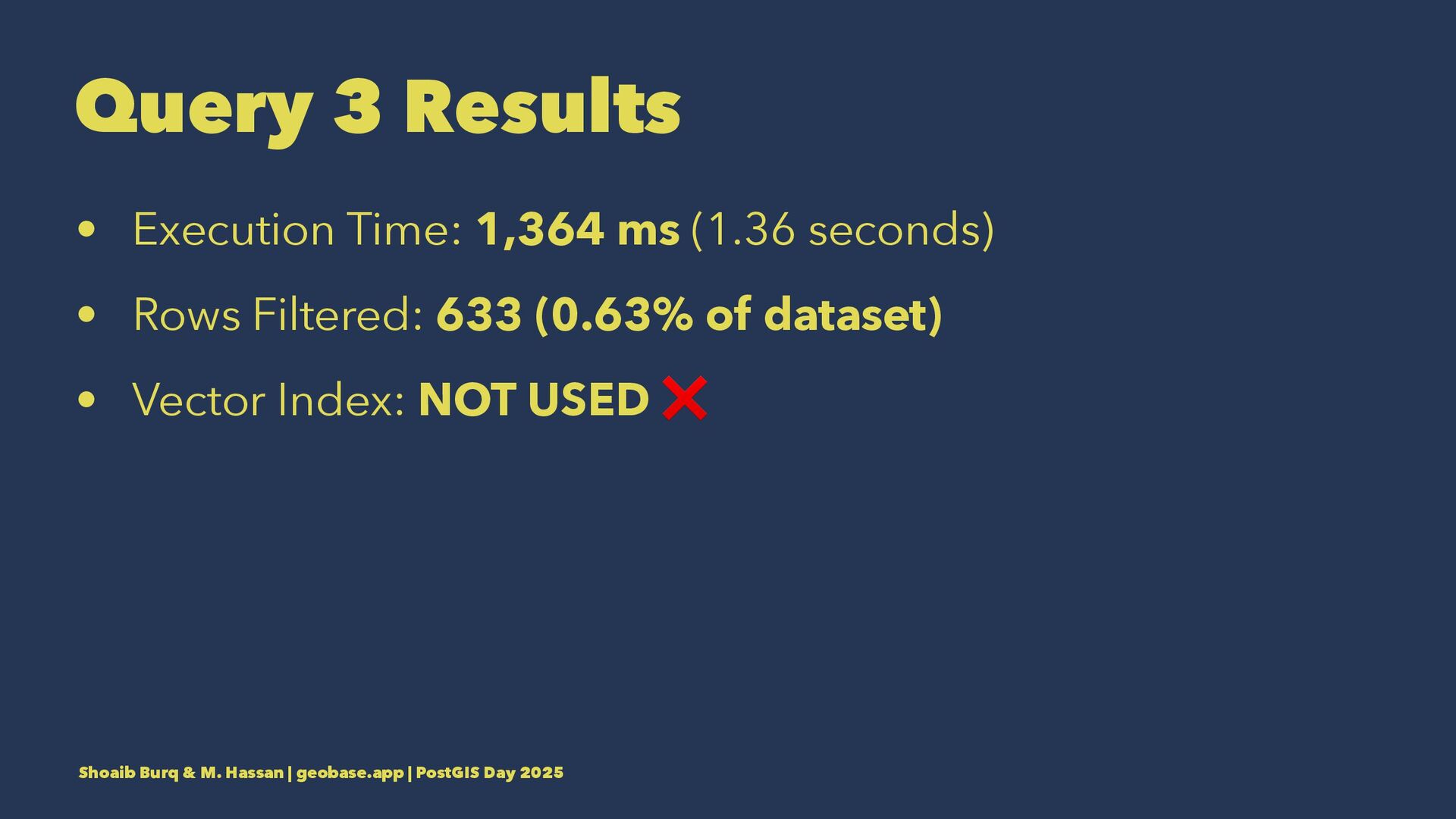

25. Query 3 Results • Execution Time: 1,364 ms (1.36 seconds) • Rows Filtered: 633 (0.63% of dataset) • Vector Index: NOT USED ❌ Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

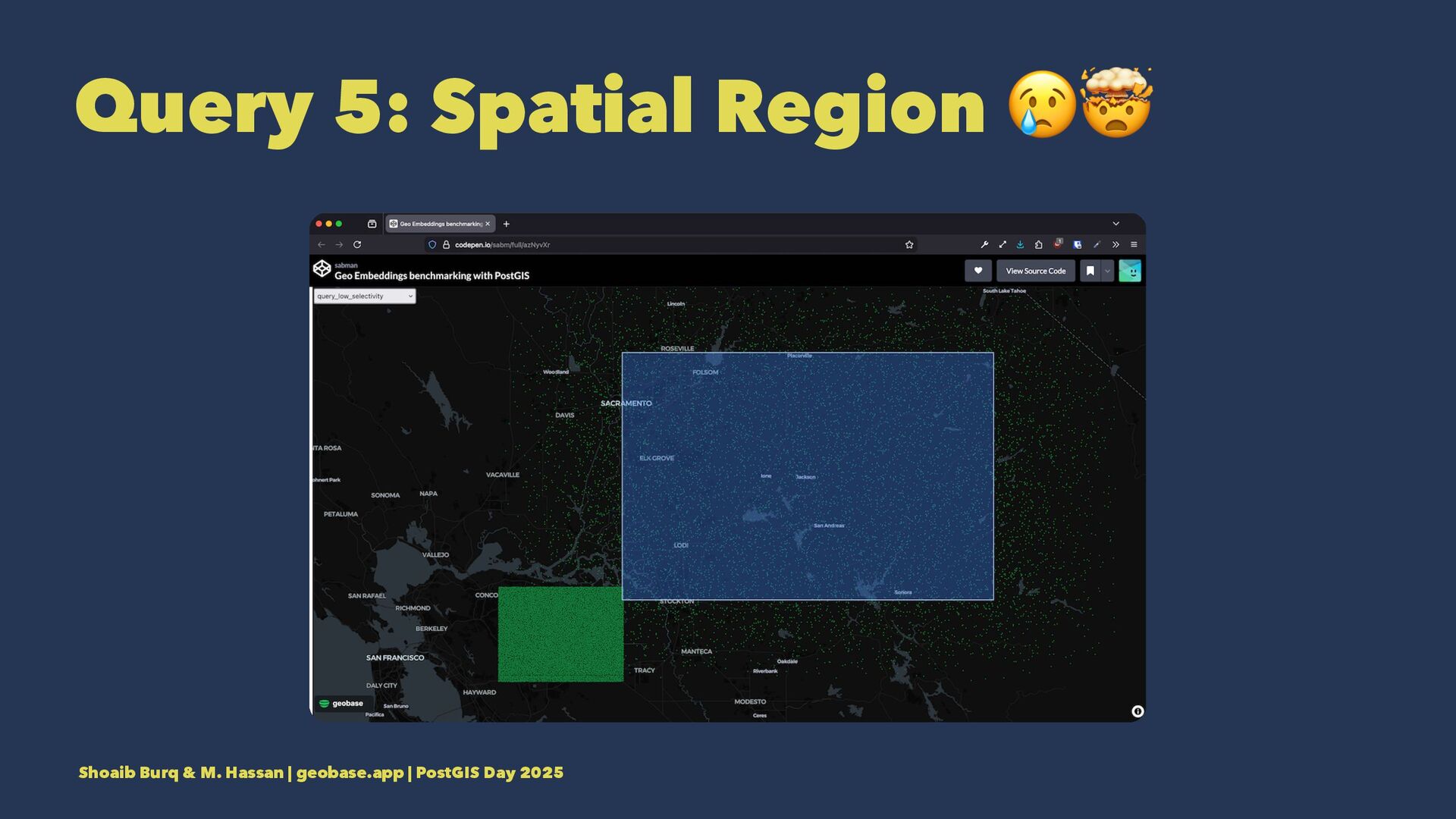

26. Query 5: Spatial Region Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

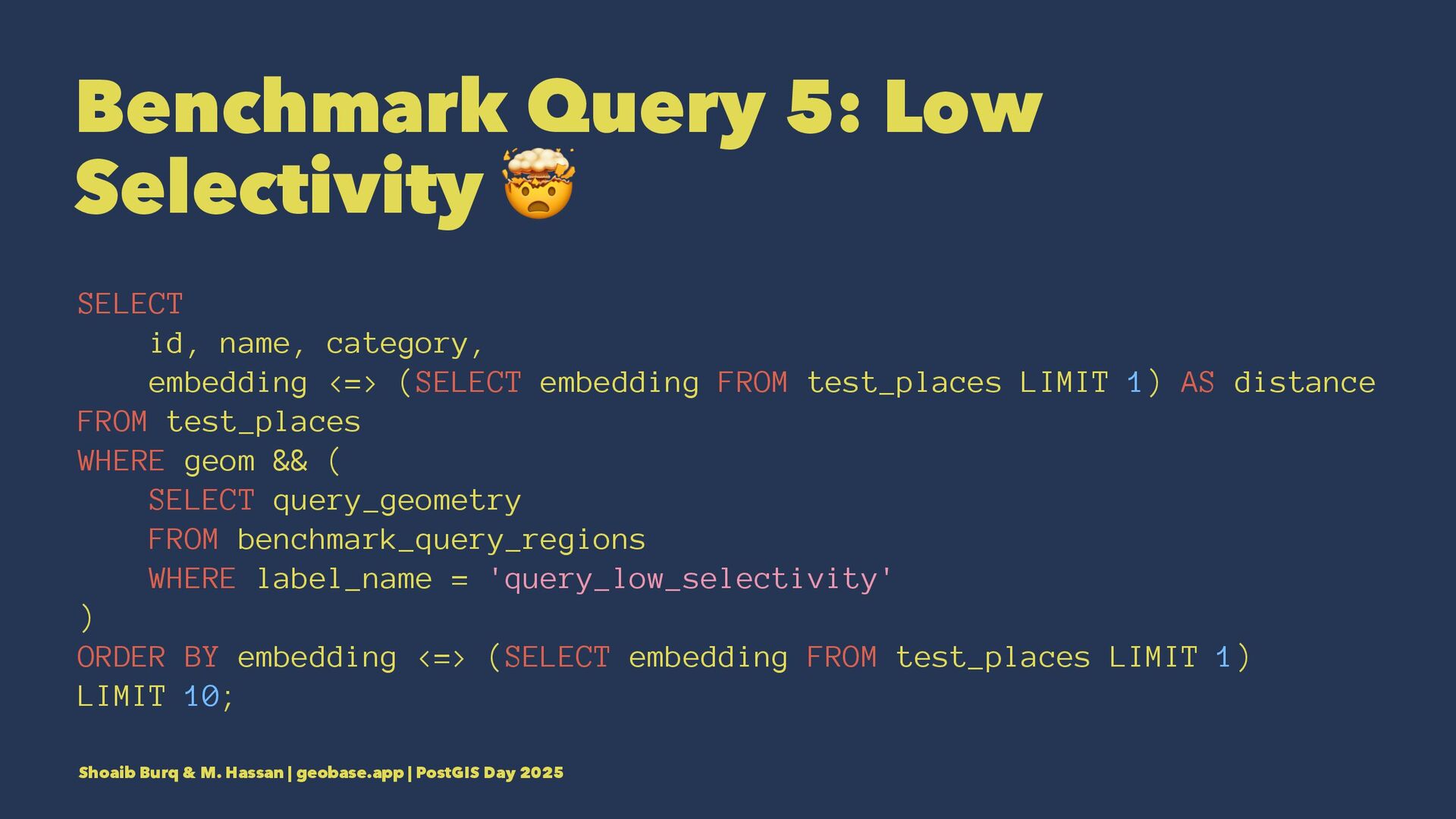

27. Benchmark Query 5: Low Selectivity ! SELECT id, name, category, embedding <=> (SELECT embedding FROM test_places LIMIT 1) AS distance FROM test_places WHERE geom && ( SELECT query_geometry FROM benchmark_query_regions WHERE label_name = 'query_low_selectivity' ) ORDER BY embedding <=> (SELECT embedding FROM test_places LIMIT 1) LIMIT 10; Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

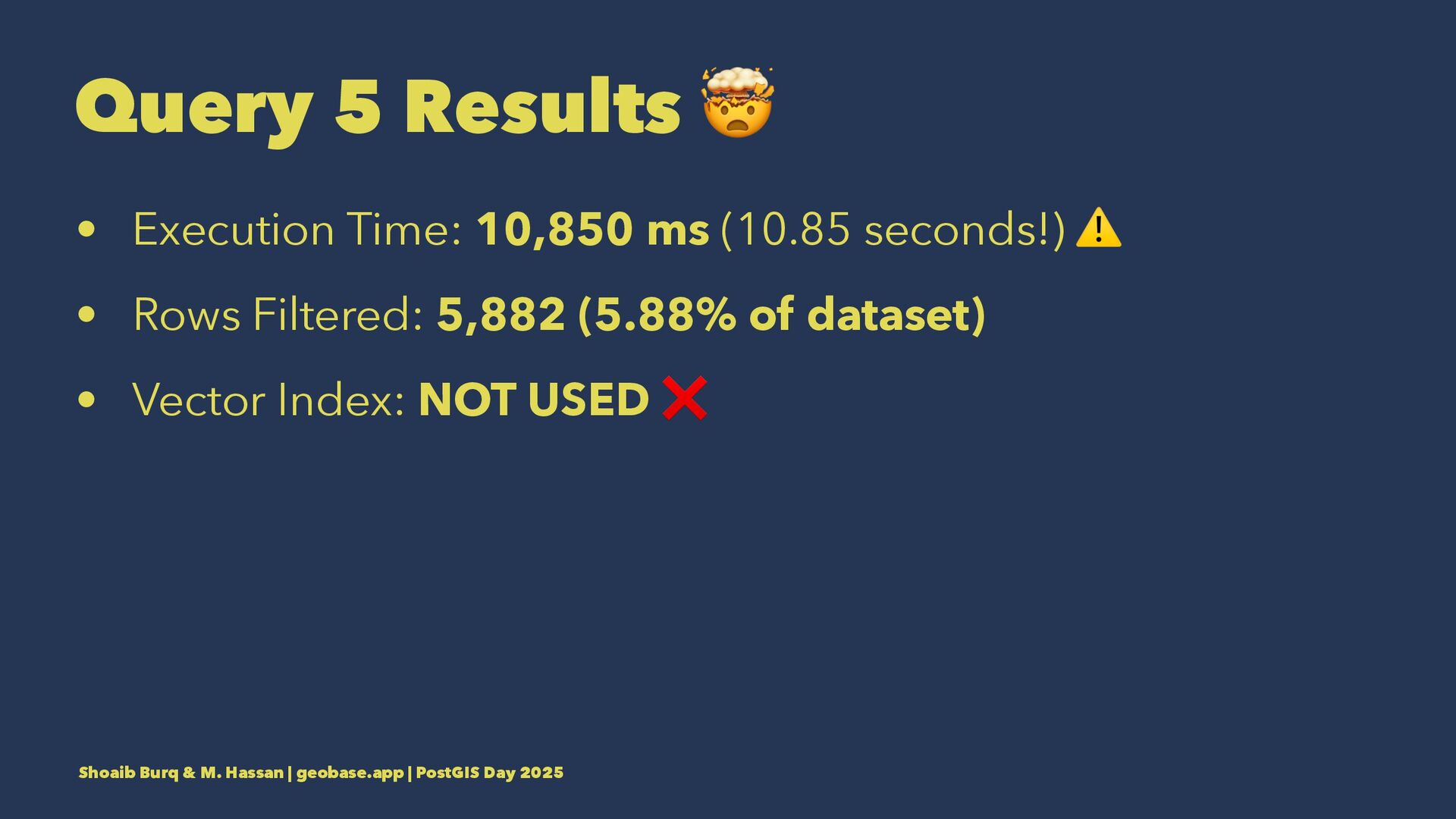

28. Query 5 Results ! • Execution Time: 10,850 ms (10.85 seconds!) • Rows Filtered: 5,882 (5.88% of dataset) • Vector Index: NOT USED ❌ Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

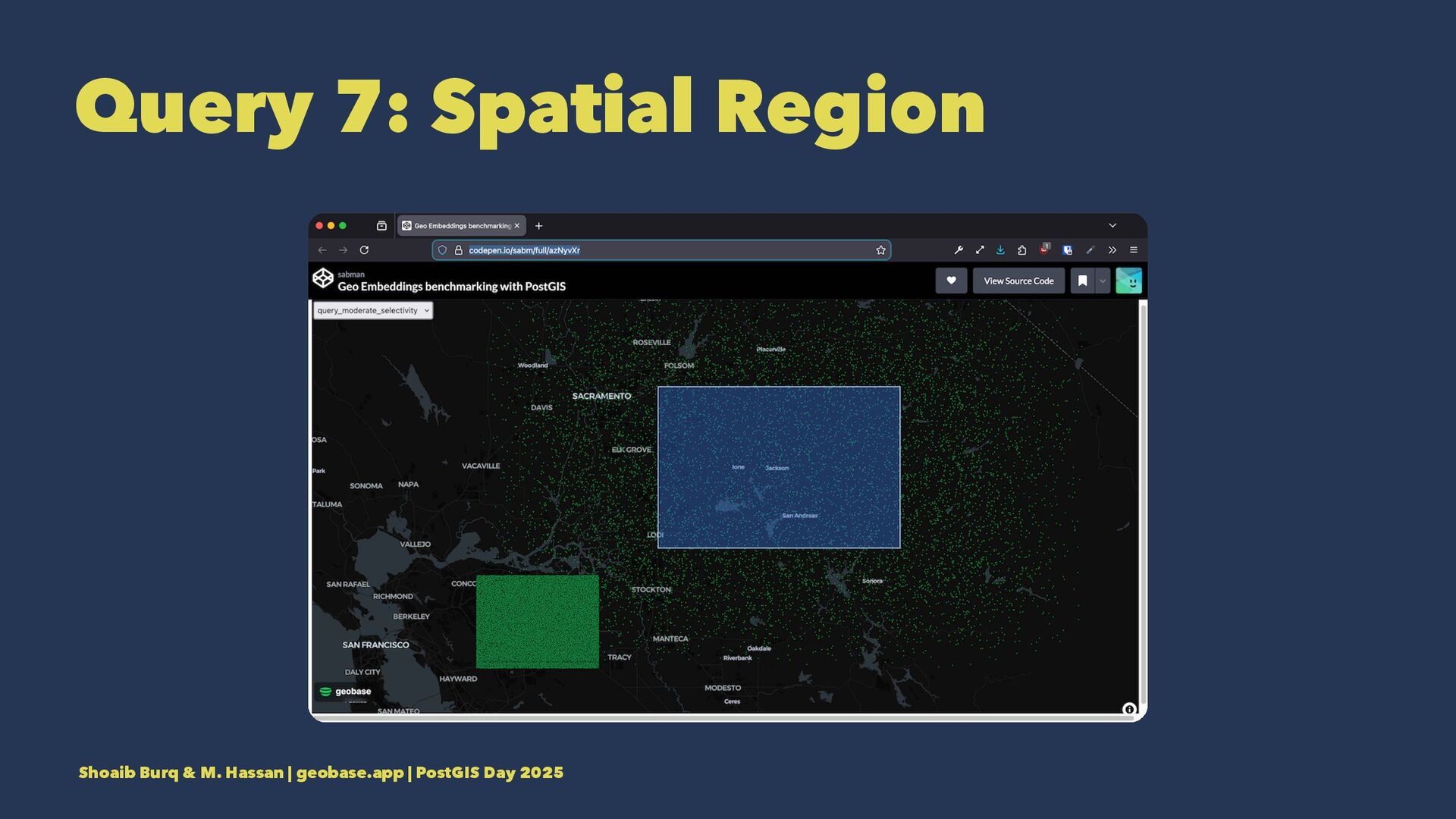

29. Query 7: Spatial Region Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

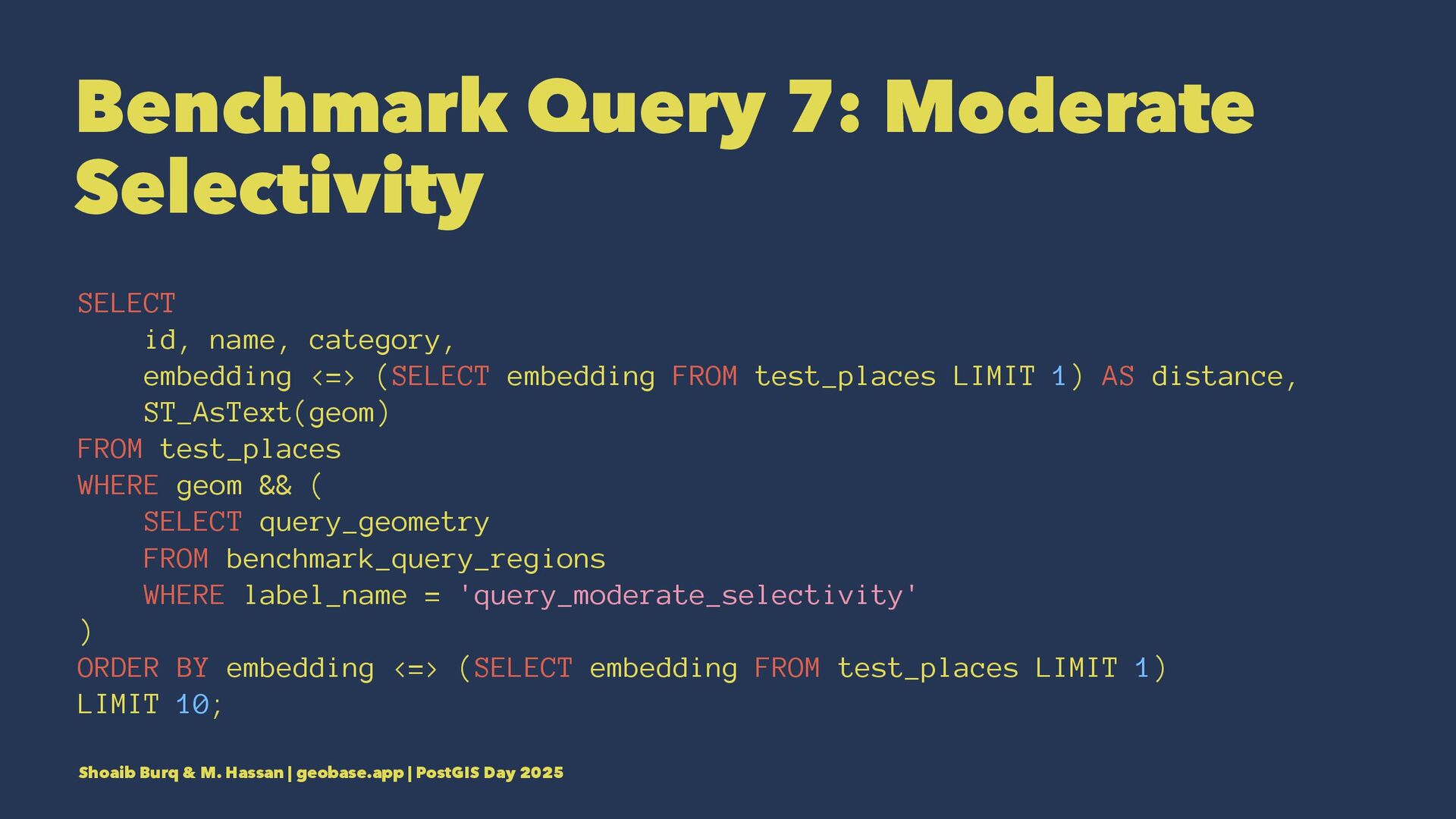

30. Benchmark Query 7: Moderate Selectivity SELECT id, name, category, embedding <=> (SELECT embedding FROM test_places LIMIT 1) AS distance, ST_AsText(geom) FROM test_places WHERE geom && ( SELECT query_geometry FROM benchmark_query_regions WHERE label_name = 'query_moderate_selectivity' ) ORDER BY embedding <=> (SELECT embedding FROM test_places LIMIT 1) LIMIT 10; Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

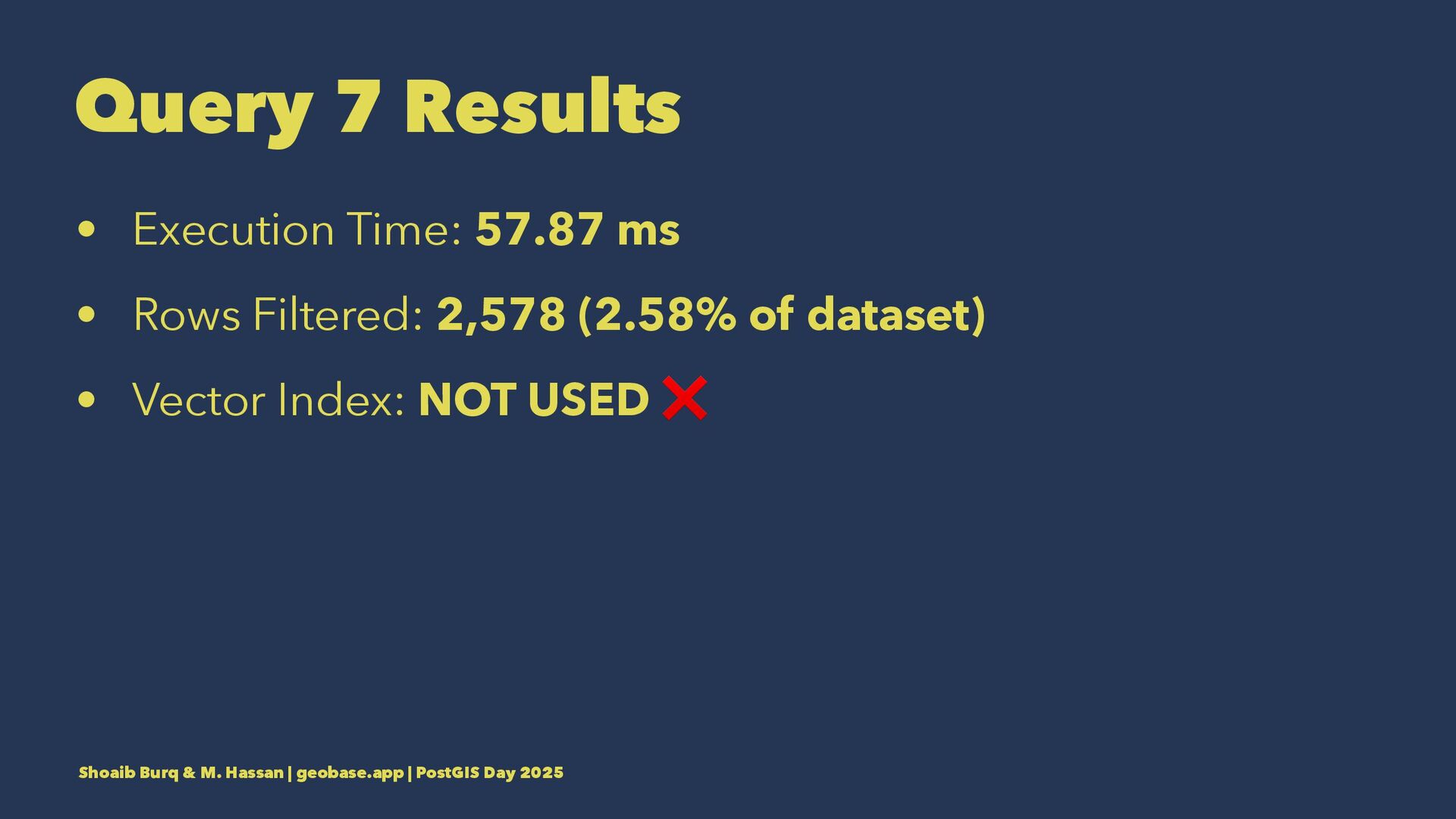

31. Query 7 Results • Execution Time: 57.87 ms • Rows Filtered: 2,578 (2.58% of dataset) • Vector Index: NOT USED ❌ Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

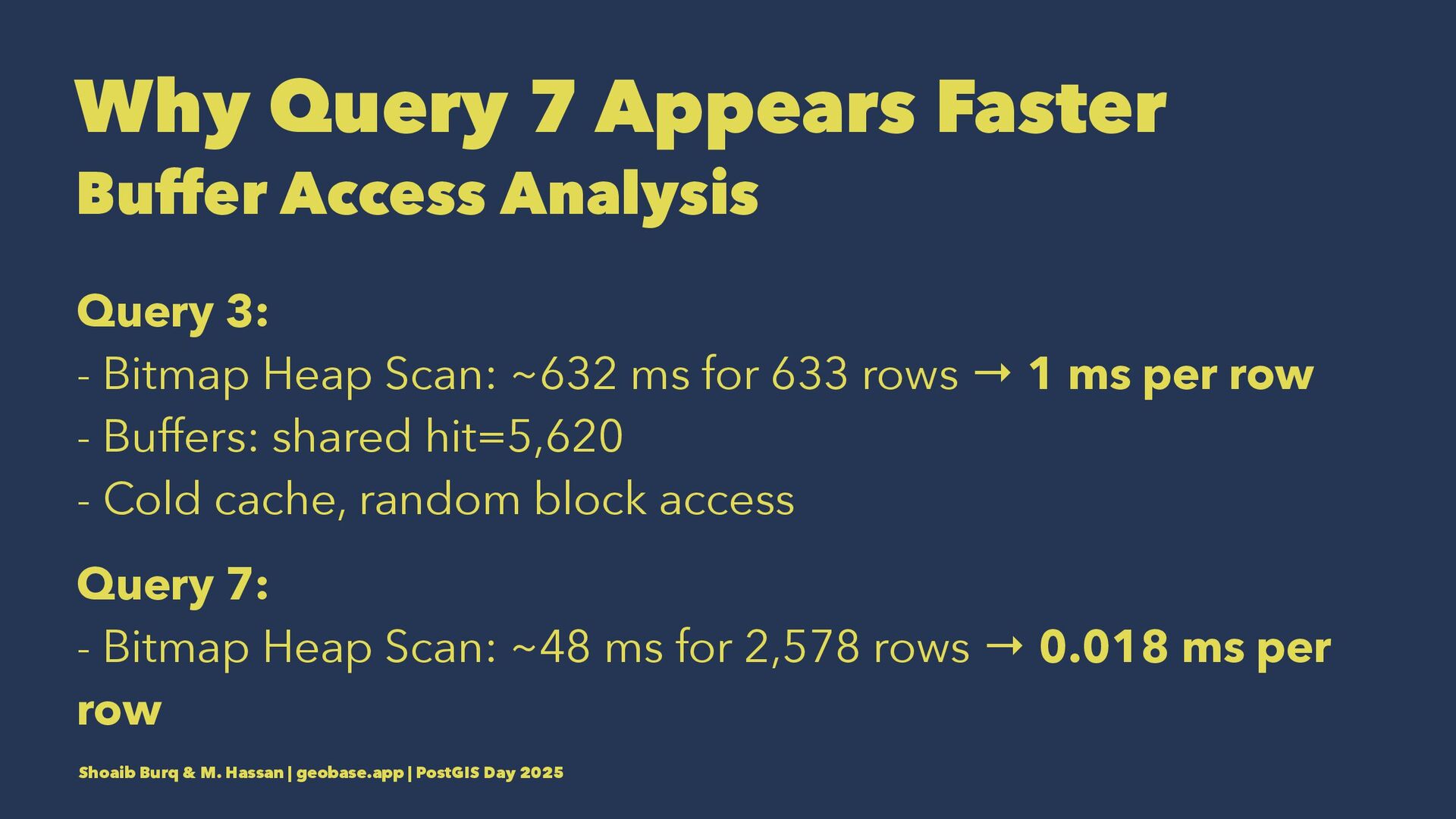

32. Why Query 7 Appears Faster Buffer Access Analysis Query 3: - Bitmap Heap Scan: ~632 ms for 633 rows → 1 ms per row - Buffers: shared hit=5,620 - Cold cache, random block access Query 7: - Bitmap Heap Scan: ~48 ms for 2,578 rows → 0.018 ms per row Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

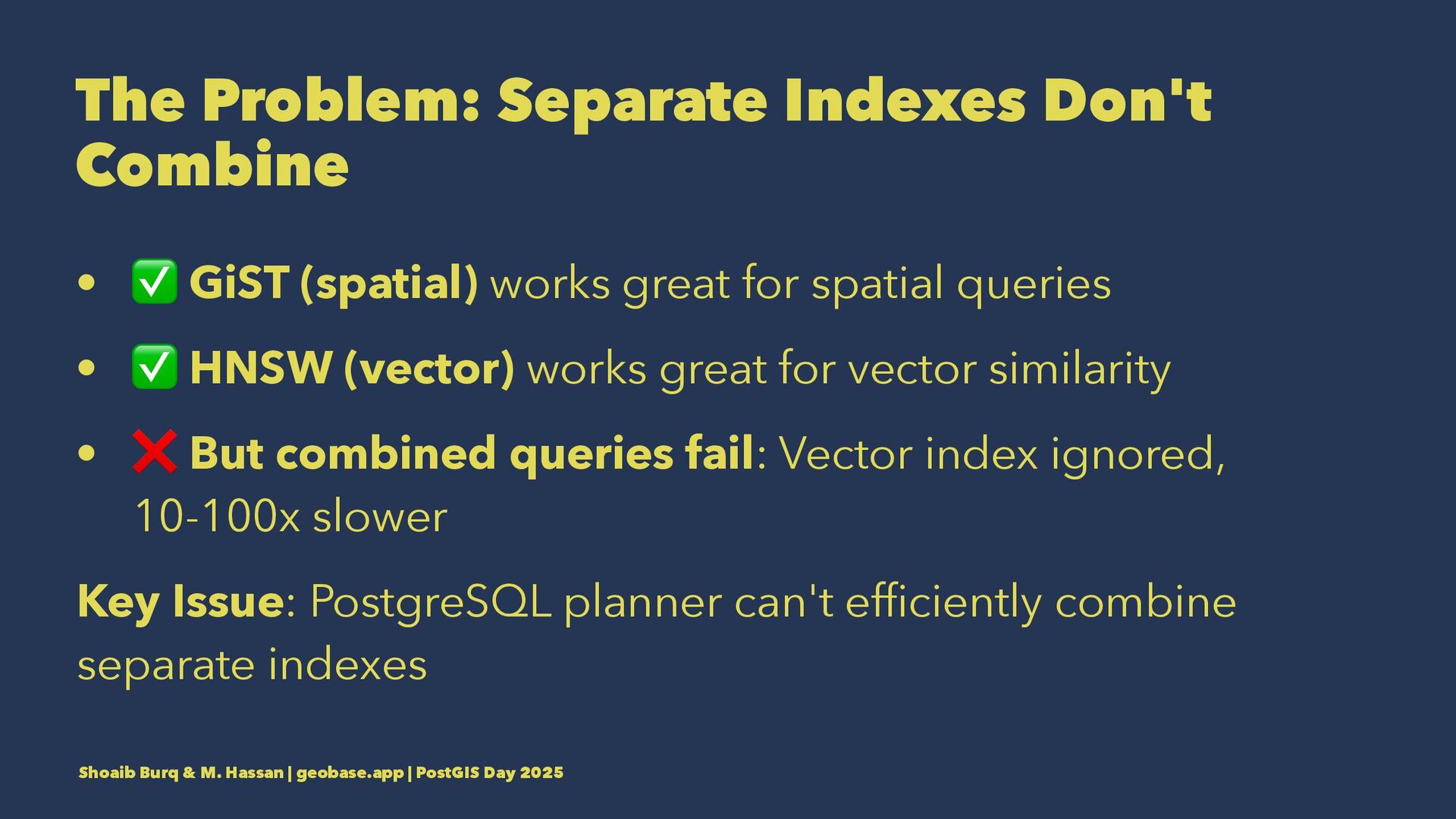

33. The Problem: Separate Indexes Don't Combine • ✅ GiST (spatial) works great for spatial queries • ✅ HNSW (vector) works great for vector similarity • ❌ But combined queries fail: Vector index ignored, 10-100x slower Key Issue: PostgreSQL planner can't efficiently combine separate indexes Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

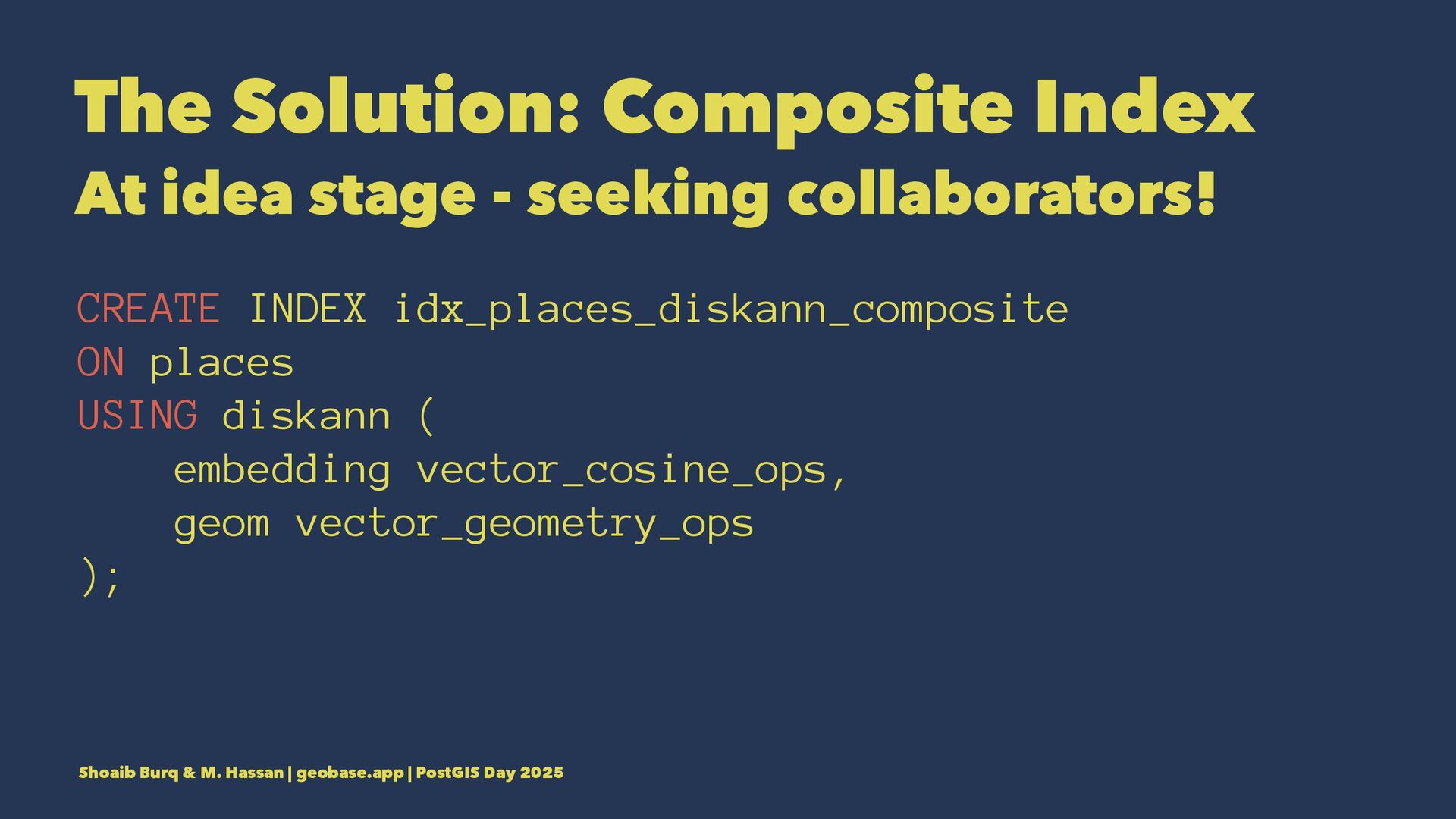

34. The Solution: Composite Index At idea stage - seeking collaborators! CREATE INDEX idx_places_diskann_composite ON places USING diskann ( embedding vector_cosine_ops, geom vector_geometry_ops ); Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

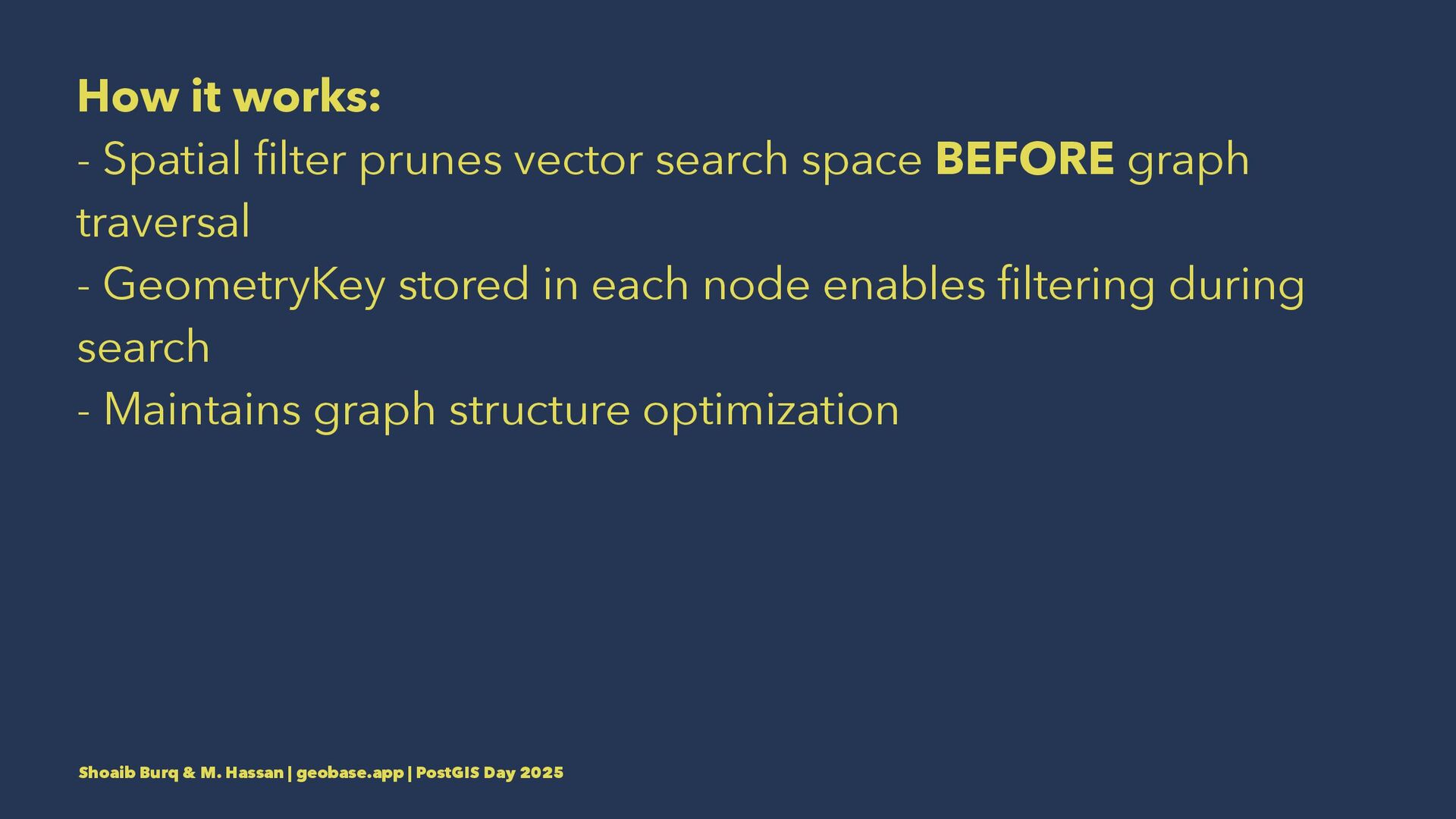

35. How it works: - Spatial filter prunes vector search space BEFORE graph traversal - GeometryKey stored in each node enables filtering during search - Maintains graph structure optimization Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

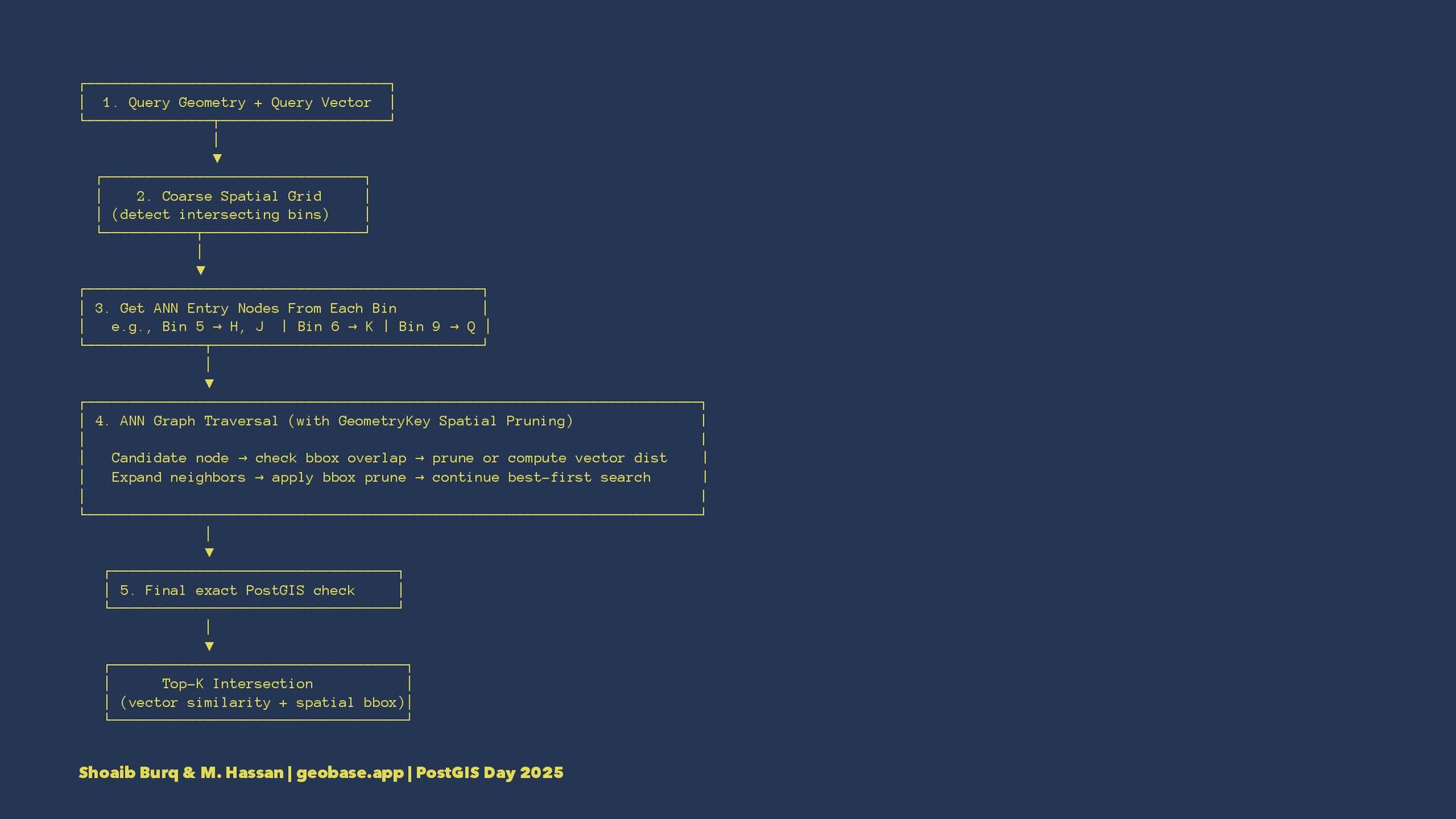

36. ┌────────────────────────────────────┐ │ 1. Query Geometry + Query Vector │ └───────────────┬────────────────────┘ │ ▼ ┌───────────────────────────────┐ │ 2. Coarse Spatial Grid │ │ (detect intersecting bins) │ └───────────┬───────────────────┘ │ ▼ ┌───────────────────────────────────────────────┐ │ 3. Get ANN Entry Nodes From Each Bin │ │ e.g., Bin 5 → H, J | Bin 6 → K | Bin 9 → Q │ └──────────────┬────────────────────────────────┘ │ ▼ ┌─────────────────────────────────────────────────────────────────────────┐ │ 4. ANN Graph Traversal (with GeometryKey Spatial Pruning) | │ | │ Candidate node → check bbox overlap → prune or compute vector dist | │ Expand neighbors → apply bbox prune → continue best-first search | │ | └─────────────────────────────────────────────────────────────────────────┘ │ ▼ ┌──────────────────────────────────┐ │ 5. Final exact PostGIS check │ └──────────────────────────────────┘ │ ▼ ┌───────────────────────────────────┐ │ Top-K Intersection │ │ (vector similarity + spatial bbox)│ └───────────────────────────────────┘ Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025
37. Demo time! Yay! Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025

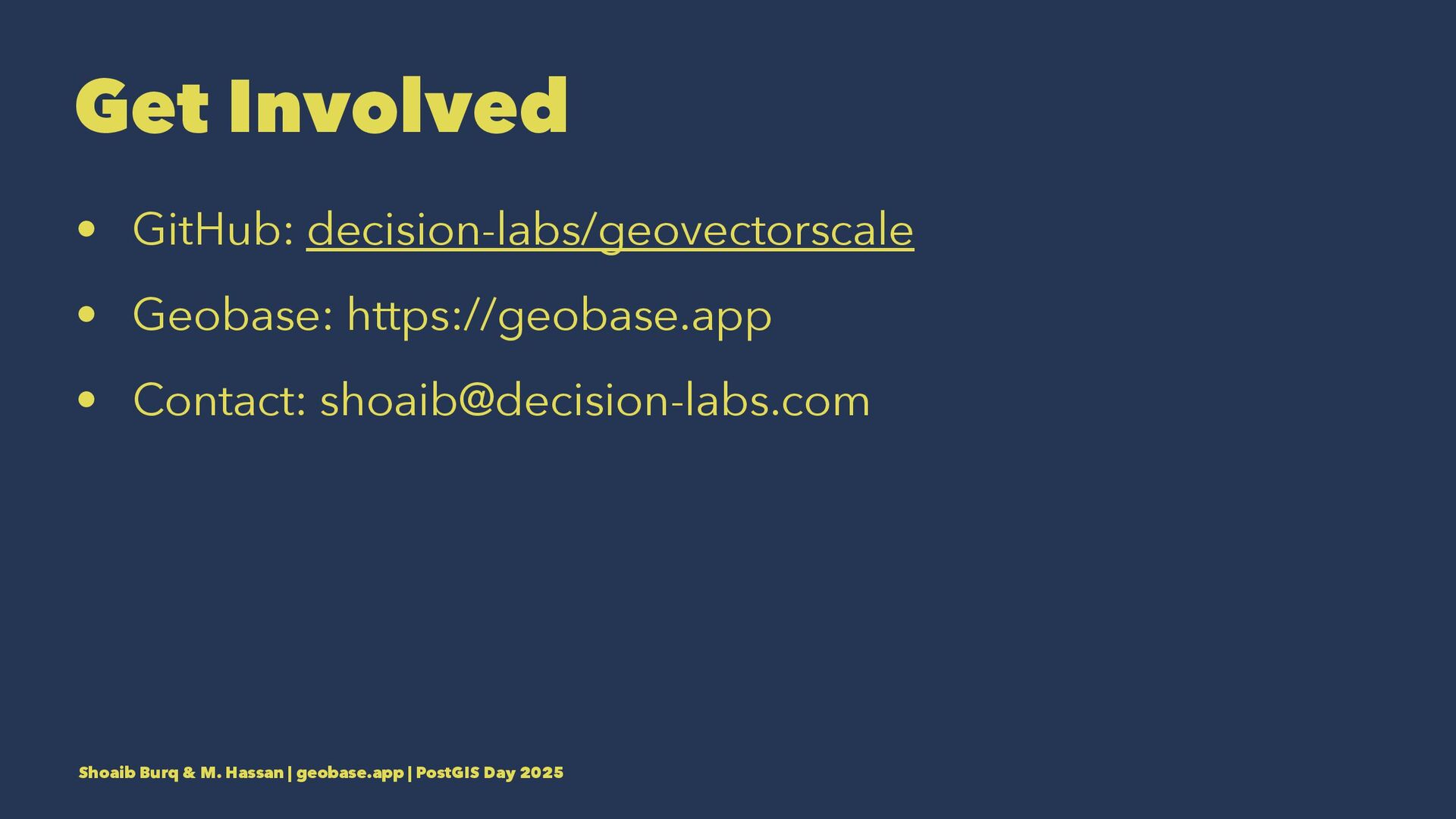

38. Get Involved • GitHub: decision-labs/geovectorscale • Geobase: https://geobase.app • Contact: shoaib@decision-labs.com Shoaib Burq & M. Hassan | geobase.app | PostGIS Day 2025
