Future Possibilities and Effectiveness of JIT from Elixir Code of Image Processing and Machine Learning into Native Code with SIMD Instructions

Nx is a multi-dimensional tensor library for Elixir with multi-staged compilation to the CPU or GPU, similar to NumPy and TensorFlow in Python. Nx is expected to be applied in image processing and machine learning. Code used by image processing and machine learning in C or C++ is often optimized for CPUs into native code with SIMD instructions. In this paper, we will show that native code with SIMD instructions is 1000x+ faster than equivalent Elixir code with Nx, to evaluate future possibilities and effectiveness of such code generation and optimization. Our future works are to implement and evaluate our proposal: a backend of Nx generating SIMD instructions by NIFs and/or BeamAsm using our compiler and/or OpenBLAS or cuBLAS.

Susumu Yamazaki (ZACKY)

November 02, 2021
Tweet

More Decks by Susumu Yamazaki (ZACKY)

Other Decks in Programming

Transcript

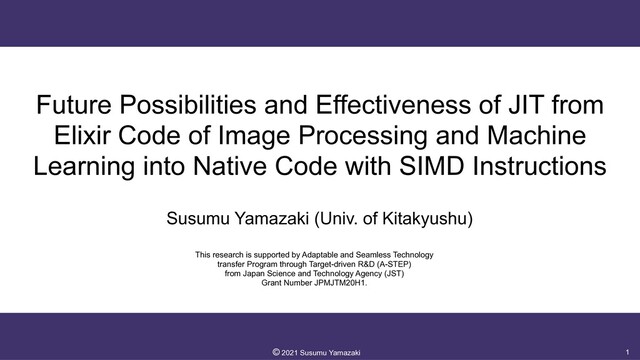

  1. Future Possibilities and Effectiveness of JIT from Elixir Code of

    Image Processing and Machine Learning into Native Code with SIMD Instructions Susumu Yamazaki (Univ. of Kitakyushu) 1 ©︎ 2021 Susumu Yamazaki This research is supported by Adaptable and Seamless Technology
 transfer Program through Target-driven R&D (A-STEP)
 from Japan Science and Technology Agency (JST)
 Grant Number JPMJTM20H1.
  2. Introduction: Nx is a New Hope • Nx is a

    multi-dimensional tensor library for Elixir with multi-staged compilation to the CPU or GPU. • Similar to NumPy and TensorFlow in Python • Nx is expected to be applied in image processing and machine learning. 2 ©︎ 2021 Susumu Yamazaki Copyright (c) 2020 Dashbit
  3. Introduction: Optimization for Image Processing and Machine Learning • Code

    used by image processing and machine learning in C or C++ is often optimized for CPUs into native code with SIMD instructions or on GPU. • Nx has such a backend, named EXLA, which calls Google XLA and generates such code just in time or ahead of time. 3 ©︎ 2021 Susumu Yamazaki Copyright (c) 2020 Sean Moriarity
  4. Introduction: Our Background • We have developed Pelemay, a native

    compiler for Elixir, which generates SIMD instructions, and PelemayFp, a Fast parallel map function for Elixir. • Especially, Pelemay can compile Elixir code into native code with SIMD instructions just in time. • So, we guess it can also be applied to Nx. 4 ©︎ 2021 Susumu Yamazaki ©2018 Susumu Yamazaki and Yuki Hisae Copyright (c) 2020 Dashbit
  5. Introduction: Our Objective • This presentation will show that native

    code with SIMD instructions written by hands is more than 1000 times, 9 times, and 1.7 times faster than equivalent Elixir code with Nx, CPU native code generated by EXLA, and GPU code keep running on it generated by EXLA, respectively, • To evaluate future possibilities and effectiveness of such code generation and optimization. 5 ©︎ 2021 Susumu Yamazaki
  6. Nx • Nx has nine functions: • Aggregates, Backend, Conversion,

    Creation, Element-wise, N-dim, Shape, Type, and others. • They are similar to NumPy and TensorFlow. • The right figure shows the sample code of Nx, which implements the Softmax function. 6 ©︎ 2021 Susumu Yamazaki
  7. Backend of Nx • EXLA is a backend of Nx.

    • It can compile numerical functions just in time or ahead of time for CPU, GPU and TPU. • Another backend is Nx.BinaryBackend. • It is an opaque backend written in pure Elixir that stores the data in Elixir’s binaries. • A programmer can define any backend of Nx. 7 ©︎ 2021 Susumu Yamazaki
  8. Proposed Approach • The right figure shows the structure of

    our approach. • Nx calls Nx.Backend, which delegates Pelemay.Backend. • Pelemay.Backend has a function to generate and optimize a series of operations of numerical functions of Nx into an integrated native code. • The native code includes SIMD instructions and/or BLAS operations, which calls OpenBLAS or cuBLAS. • Pelemay.Backend calls native code by NIFs or a new FFI between Elixir and C by BeamAsm, a JIT for Erlang. • Why?
 We found by experiments of a combination of Pelemay and PelemayFp that a CPU-bound function implemented in NIFs is often slower than Elixir code compiled into native code by BeamAsm. 8 ©︎ 2021 Susumu Yamazaki Copyright (c) 2020 Dashbit
  9. Preliminary Experiments • We conduct the preliminary experiments of our

    approach, the monochrome filter benchmarks. • https://github.com/zacky1972/monochrome_filter • The version used in them is 0.2.0. • They process 65536 RGB 8bit pixels into monochrome. • We implement it using Nx, C, hand-coded intrinsics of ARM NEON (with and without pipelining), and OpenCV. • We implement that using C and hand-coded intrinsic using NIFs with transforming between Nx.Tensor and `uint8_t`. • We also implement that using OpenCV using NIFs with transforming between Nx.Tensor and cv::Mat. • The hand-coded intrinsics have a series of processes: 1. Load multiple 3-element structures that have the 8bit RGB values to three registers 2. Extend 8bit into 16bit 3. Extend 16bit into 32bit 4. Convert an integer into a float 5. Multiply 6. Addition 7. Convert a float into an integer 8. Reduce 32bit into 16bit 9. Reduce 32bit into 8bit 10. and store multiple 3-element structures from three registers 9 ©︎ 2021 Susumu Yamazaki
  10. Preliminary Experiments • The benchmarks are implemented using Benchee. •

    It runs each kernel for a specified number of seconds after warming up, measures the iteration number, • And shows • The results of the iterations per second • Average execution time • Standard deviation • Median of the execution time • 99th percentile • And memory usage. • We evaluate it on Apple M1 Mac and NVIDIA Jetson AGX Xavier (See the right table). • We use them because their CPU is ARMv8, an architecture for which we implemented intrinsics of the benchmark. 10 ©︎ 2021 Susumu Yamazaki
  11. The Results: Nx and EXLA CPU • The difference between

    16bit and 32bit is tiny. • Why?
 The operation in the case of 16bit includes converting 16bit into 32bit, operating in 32bit, and converting 32bit into 16bit. • EXLA on M1 (Clang) on CPU (xla CPU) is 530x faster than Nx. • EXLA on Jetson (Clang) on CPU (xla CPU) 376x faster than Nx. • EXLA on Jetson (GCC) on CPU (xla CPU) is 390x faster than Nx. • The effectiveness of EXLA on Mac is 1.38 times larger than that on Jetson. • Why?
 Probably the difference in processor architecture. 12 ©︎ 2021 Susumu Yamazaki Faster
  12. Existing Approach: EXLA on CPU and GPU • EXLA on

    GPU of 16bit and 32bit is 756-793x and 846-888x faster than Nx, respectively. • EXLA on GPU with keeping the memory on the GPU of 16bit and 32bit is 3297-3380x and 3321-3391x faster than Nx, respectively. • The effectiveness of keeping is 4.08, so the key to speeding up using GPU is keeping. • EXLA on GPU with keeping is 8.68x faster than CPU, so the effectiveness of GPU is this. • These results and discussion explain the effectiveness of the existing approach. 13 ©︎ 2021 Susumu Yamazaki Faster
  13. Proposed Approach: NIF • NIF of 16bit and 32bit on

    Mac is 2690x and 2689x faster than Nx, respectively. • NIF of 16bit and 32bit on Jetson using Clang is 3652x and 3813x faster than Nx, respectively. • This effectiveness is approximately the same as GPU with keeping. • NIF of 32bit on Jetson using GCC is 1.43x faster than that using Clang. • The difference is caused by the effectiveness of the auto-vectorization of GCC. • Both Clang and GCC seem to generate SIMD instructions with auto- vectorization. • The right bottom table shows the results of the LLVM Machine Code Analyzer (llvm-mca). • Unlike the execution time, IPC of Clang is 1.3x larger than that of GCC. • Because IPC corresponds to the utilization of ALU, it may be an index of optimization by Clang. • Because the results of IPC are opposed to the actual execution time in the case of our benchmarks, Clang cannot compile them into efficient native code. 14 ©︎ 2021 Susumu Yamazaki Faster
  14. NIF Intrinsics: This is effective in case of Clang •

    NIF intrinsics of 16bit cannot run on Jetson because NVIDIA Carmel Armv8.2 does not support fp16 NEON instructions. • NIF intrinsics of 16bit and 32bit on Mac are 4693 and 4963 times faster than Nx.
 These are 1.74 and 1.85 times faster than NIF. • This is the difference between auto-vectorization by Clang and intrinsics. • Actually, NIF with auto-vectorization by GCC is approximately the same as NIF intrinsics. • NIF intrinsics of 16bit and 32bit on Mac are 8.93 and 9.17 times faster than EXLA CPU. • NIF intrinsics of 32bit compiled by Clang and GCC on Jetson are 5539 and 5445 times faster than Nx, respectively. • Though that compiled by Clang is 1.45 times faster than NIF, that compiled by GCC is as fast as NIF compiled by GCC. • NIF intrinsics of 32bit on Jetson are 13.9 times faster than EXLA CPU. • These show the potential in case that we will implement simple code generation, including SIMD instructions. • It is also 1.7 times faster than EXLA GPU keep. 15 ©︎ 2021 Susumu Yamazaki Faster
  15. Simple software pipelining is not effective • The execution time

    of this is approximately the same as that of NIF intrinsics. • These show that simple software pipelining may not be effective to M1 and Carmel Armv8.2, CPUs with out-of-order execution. 16 ©︎ 2021 Susumu Yamazaki Faster
  16. The state-of-the-art: OpenCV and OpenBLAS • OpenCV CPU on Mac

    and Jetson is 8741 and 6108 times faster than Nx, respectively. • They are 1.76 and 1.35 times faster than NIF intrinsics, respectively. • They may be the best optimization case of ARM CPU. • OpenCV uses OpenBLAS to calculate matrix operations. • Practically, an operation on Nx can be compiled into operations on OpenBLAS. • In order to estimate the best optimization case of Nx, we should evaluate such operations on OpenBLAS. This evaluation remains as future work. 17 ©︎ 2021 Susumu Yamazaki Faster
  17. OpenCV CPU and GPU • OpenCV GPU on Jetson is

    1.21 times slower than OpenCV CPU. • Why?
 The image size of this benchmark is relatively small, which is only 65536 pixels. 18 ©︎ 2021 Susumu Yamazaki Faster
  18. Summary and Future Works • We proposed implementing an Nx

    backend to compile pre-defined numerical functions into native code, including SIMD instructions. • Its compilation technology may be SIMD code generation by auto-vectorization in GCC or Clang or our compiler, or BLAS code generation calling OpenBLAS or cuBLAS. • Moreover, FFI technology may be NIFs or code generation by BeamAsm. • Our approach is expected to achieve much efficiency of operations of tensors by Nx, by optimization of native code, and by elimination of overhead of FFI. • We also showed that our approach might hopefully be competitive against EXLA by conducting the preliminary experiments. • Our future works are to implement and evaluate our proposal: a backend of Nx generating SIMD instructions by NIFs and/or BeamAsm using our compiler and/or OpenBLAS or cuBLAS. 19 ©︎ 2021 Susumu Yamazaki
