Infrastructure at the Untethered Edge
Explores why building robust and secure data center infrastructure is hard and how the unique RackN infrastructure as code and context management in Digital Rebar solves this challenge.
Video https://youtu.be/IYw_PV_CR0E
Rob Hirschfeld
March 10, 2020
Transcript
52 slides
-

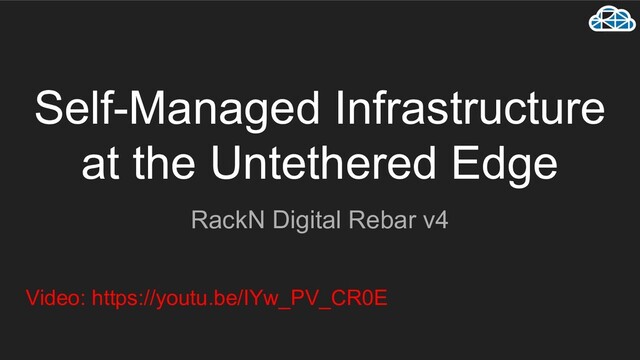

Self-Managed Infrastructure at the Untethered Edge RackN Digital Rebar v4
Video: https://youtu.be/IYw_PV_CR0E -
Why is infrastructure so hard to manage? If infrastructure is
critical to business... -
Integrated Vendor-Locked Tethered / Managed Best of Breed Commodity Do-It-Yourself
and Infrastructure v2020 We see the data center as an integrated, multi-vendor system instead of a bunch of stand alone components. RackN provides cloud-like automation and APIs without surrendering the control domains. -
Integrated Vendor-Locked Tethered / Managed Best of Breed Commodity Do-It-Yourself
and Edge v2020 We see the data center as an integrated, multi-vendor system instead of a bunch of stand alone components. RackN provides cloud-like automation and APIs without surrendering the control domains. plus Site-Autonomy -
Production Solutions DRP DRP DRP From Remote Edge Sites To
Multinational Data Centers -
At Every Scale DRP DRP DRP Or Highly Available for
10,000 Servers Can runs from a Switch or RPi -
Edge Edge Data Center Edge Edge Data Center Edge Edge
Edge Edge Edge Edge In practice, Enterprise and Edge have same management needs Cross Domain Control is not scale problem Security Zero Touch Application Mix Commodity H/W Enterprise = Edge -
Customer Managed Platform (No SaaS or MSP) Runs behind their
firewall without any RackN supervision or connection. Dedicated Infrastructure Dedicated Infrastructure Edge Site Edge Site Edge Site Edge Site Edge Site Edge Site Shared Infrastructure -
Technical Deep Dive Critical Needs 1. Easy to Use Shared
Patterns 2. Infrastructure as Code (IaC) 3. Multi-Vendor 4. Constantly Updated / Secure 5. Integration to SoR 6. Compliance & Visibility The “how” matters if we are going to dramatically improve infrastructure operations -
The Challenge: Many Control Domains Network Management Workload Network &
DMZ Systems of Record Operator Network Infrastructure is not monolithic: management must span many systems. Corporate Network (Dev & Operator Clients) Protected Systems and Assets (Trusted) Infrastructure Administration (Trusted) Internet Facing Applications (Untrusted) -
Public cloud flatten control domains Network Management Workload Network &
DMZ Systems of Record Operator Network In Public Clouds, all of these control domains are managed by public APIs! Cloud API -
Control domains are required, but hard to manage Network Management
Workload Network & DMZ Systems of Record Operator Network Instead of replacing control domains with a single API, we build workflow orchestration that coordinates activities between them. -
Starting with Bare Metal Automation DHCP Netboot (PXE, iPXE, …)
Agent (Linux, Win, ESX, … ) Network Switch / ToR REST API & UX DRP OOB / BMC (iLo, DRAC, Redfish, ...) -
Evolved to an Infrastructure Workflow Hub DHCP Netboot (PXE, iPXE,
…) Agent (Linux, Win, ESX, … ) Network Switch / ToR REST API & UX Systems of Record Configuration Mgmt DB Monitoring Systems DRP OOB / BMC (iLo, DRAC, Redfish, ...) CI/CD Pipeline -
Because Integrated Workflow Is Critical DHCP Netboot (PXE, iPXE, …)
Agent (Linux, Win, ESX, … ) Network Switch / ToR REST API & UX Systems of Record Configuration Mgmt DB Monitoring Systems DRP OOB / BMC (iLo, DRAC, Redfish, ...) CI/CD Pipeline -
Workflow must span control domains DHCP Netboot (PXE, iPXE, …)
Agent (Linux, Win, ESX, … ) Network Switch / ToR REST API & UX Systems of Record Configuration Mgmt DB Monitoring Systems DRP OOB / BMC (iLo, DRAC, Redfish, ...) CI/CD Pipeline -
Provisioning Crosses Many Control Domains DHCP Unique RackN design smoothly
integrates over many APIs OOB / BMC Netboot (PXE - TFTP) Netboot (iPXE - HTTP) Netboot (Kickstart - HTTPS) Agent (HTTPS) Inventory Power On Switch Config (API/CLI) VLAN Setup Next Server Stage 1 Stage 2 Discover O/S Firmware Reboot Next Server Stage 1 Stage 2 Target O/S Net Config App Config -
Typical Operations cross 10+ Domains Provision We work with, not
replace, existing operational systems OOB / BMC Configure Secure DRP Orchestration Network Power On Report ESXi Network TLS VLAN Setup Cert Serv Join vCenter Enable Enroll Verify Status -
Infrastructure Automation Landscape Infrastructure as Code Configuration Management Metal Provisioning
Multi-Cloud Managers API Orchestration Infrastructure Configuration Automation Chasm -
Digital Rebar Platform is the Bridge Infrastructure as Code Configuration
Management Metal Provisioning Multi-Cloud Managers API Orchestration Infrastructure Configuration DRP -
Superior Bare Metal Provisioning Infrastructure as Code Configuration Management Metal
Provisioning Multi-Cloud Managers DRP Replaces -
Configuration Management Differentiated Infrastructure as Code Infrastructure as Code Metal
Provisioning Multi-Cloud Managers DRP Replaces Extend & Replace -
Configuration Management Required State Management Infrastructure as Code Metal Provisioning
Multi-Cloud Managers DRP Replaces Extend & Replace Leverages -
Configuration Management Cloud-Like Intent-Driven APIs Infrastructure as Code Metal Provisioning
Multi-Cloud Managers DRP Replaces Extend & Replace Aligns Leverages -
Configuration Management ...Avoiding the Ghosts of Operations’ Past Infrastructure as
Code Metal Provisioning Multi-Cloud Managers DRP -
How does this matter for Edge? Edge needs multi-dimensional solutions
I’m all alone! Where are my control domains?! -
Edge must be reproducible & consistent State Management Infrastructure as
Code Intent-Driven Workflow -
Edge must work State Management Infrastructure as Code Intent-Driven Workflow
Multi-Vendor & Brownfields -
RackN combines all four dimensions IaC DRP Hardware Master Catalog
IaC IaC O/S Platform Fully Integrated Clusters Rebuilds In Minutes Zero Touch -
Plus a Multi-Site “Single-Pane-of-Glass” DRP DRP DRP Global Control DRP
Local Control DRP Regional Control Live Single Pane of Glass Distributed DC US-1 Distributed DC EU-2 Distributed DC AR-3 -
Multi-Vendor vs Managed is an Artificial Dichotomy Don’t let vendors
say “not my problem” with component silos! Don’t let CSPs determine the operating rules! -
Control Domain Demos State Management Infrastructure as Code Intent-Driven Workflow
Multi-Vendor & Brownfields -
Control Domain Demos State Management Infrastructure as Code Intent-Driven Workflow
Multi-Vendor & Brownfields -
Bootstrapping Process for Edge Lab Worker Edge Lab DRP RPi
#2+ Host Agent State Data Leader RPi #1 Bootstrap Tasks: ISOs & DHCP Tasks: NetBoot Tasks: NetBoot Tasks: Discovery Machines: RPi 1+ Tasks: Discovery -
Bootstrapping Process for Edge Lab Worker Edge Lab DRP RPi
#2+ Host Agent State Data Leader RPi #1 Bootstrap Tasks: ISOs & DHCP Tasks: NetBoot Tasks: NetBoot Tasks: Discovery Tasks: Election Cluster Profile: Leader Tasks: Election Machines: RPi 1+ Tasks: Discovery -
Bootstrapping Process for Edge Lab Worker Edge Lab DRP RPi
#2+ Host Agent State Data Leader RPi #1 Bootstrap Tasks: ISOs & DHCP Tasks: NetBoot Tasks: NetBoot Tasks: Discovery Tasks: Election Tasks: Download Cluster Profile: Leader Tasks: Election Tasks: Watch for Credentials Machines: RPi 1+ Tasks: Discovery Files: K3s Bins -
Bootstrapping Process for Edge Lab Worker Edge Lab DRP RPi
#2+ Host Agent State Data Leader RPi #1 Bootstrap Tasks: ISOs & DHCP Tasks: NetBoot Tasks: NetBoot Tasks: Discovery Tasks: Election Tasks: Download Tasks: Build K3s Cluster Profile: Leader Tasks: Election Tasks: Watch for Credentials Machines: RPi 1+ Files: K3s Bins Tasks: Discovery -
Bootstrapping Process for Edge Lab Worker Edge Lab DRP RPi
#2+ Host Agent State Data Leader RPi #1 Bootstrap Tasks: ISOs & DHCP Tasks: NetBoot Tasks: NetBoot Tasks: Discovery Tasks: Election Tasks: Download Tasks: Build K3s Tasks: Gen Creds Cluster Profile: Leader Cluster Profile: K3s Creds Tasks: Election Tasks: Watch for Credentials Machines: RPi 1+ Files: K3s Bins Tasks: Discovery -
Bootstrapping Process for Edge Lab Worker Edge Lab DRP RPi
#2+ Host Agent State Data Leader RPi #1 Bootstrap Tasks: ISOs & DHCP Tasks: NetBoot Tasks: NetBoot Tasks: Discovery Tasks: Election Tasks: Download Tasks: Build K3s Tasks: Join K3s Cluster Profile: Leader Cluster Profile: K3s Creds Tasks: Election Tasks: Watch for Credentials Machines: RPi 1+ Tasks: Discovery Files: K3s Bins Tasks: Gen Creds -
Leveraging Ansible (Create Cloud Instance) Server DRP Endpoint Default Context
Ansible Container Linode Cloud API User: Create Machine State Data -
Leveraging Ansible (Create Cloud Instance) Server DRP Endpoint Default Context
Ansible Container Linode Cloud API User: Create Machine Tasks: SSH Key-Gen Machine: SSH Keys State Data -
Leveraging Ansible (Create Cloud Instance) Server DRP Endpoint State Data
Default Context Ansible Container Linode Cloud API Cloud: Create Machine User: Create Machine Tasks: SSH Key-Gen Tasks: Create Instance Machine: SSH Keys -
Leveraging Ansible (Create Cloud Instance) Server DRP Endpoint State Data
Default Context Ansible Container Linode Cloud API Cloud: Create Machine Tasks: SSH to Join-Up User: Create Machine Tasks: SSH Key-Gen Tasks: Create Instance Machine: SSH Keys Machine: IP Addr -
Leveraging Ansible (Create Cloud Instance) Server DRP Endpoint State Data
Default Context Ansible Container Linode Cloud API Cloud: Create Machine Tasks: SSH to Join-Up User: Create Machine Tasks: SSH Key-Gen Tasks: Create Instance Tasks: Discover Machine: SSH Keys Machine: IP Addr Machine: Inventory -
Leveraging Ansible (Create Cloud Instance) Server DRP Endpoint State Data
Default Context Ansible Container Linode Cloud API Cloud: Create Machine Tasks: SSH to Join-Up User: Create Machine Tasks: SSH Key-Gen Tasks: Create Instance Tasks: Discover Tasks: Install Agent Workflow: Ready Machine: SSH Keys Machine: IP Addr Machine: Inventory
