mDevCamp Prague: Beyond the UI

Much in the same way that Coroutines revolutionized reactive architecture, Compose challenges us to rethink how we design applications. While traditionally seen as a UI toolkit, Compose — and specifically Compose Multiplatform — can play a much larger role in our applications. By leveraging its declarative and state-driven nature, we can build, model, and manage application state in a way that is consistent, scalable, and platform-agnostic.

Transcript

1. Beyond the UI Compose as a Foundation for Multiplatform Apps mDevCamp - June '25 ! Ash Davies | ashdavies.dev Android GDE Berlin
2. Jetpack Compose UI github.com/androidx/androidx/tree/ androidx-main/compose/ui ashdavies.dev

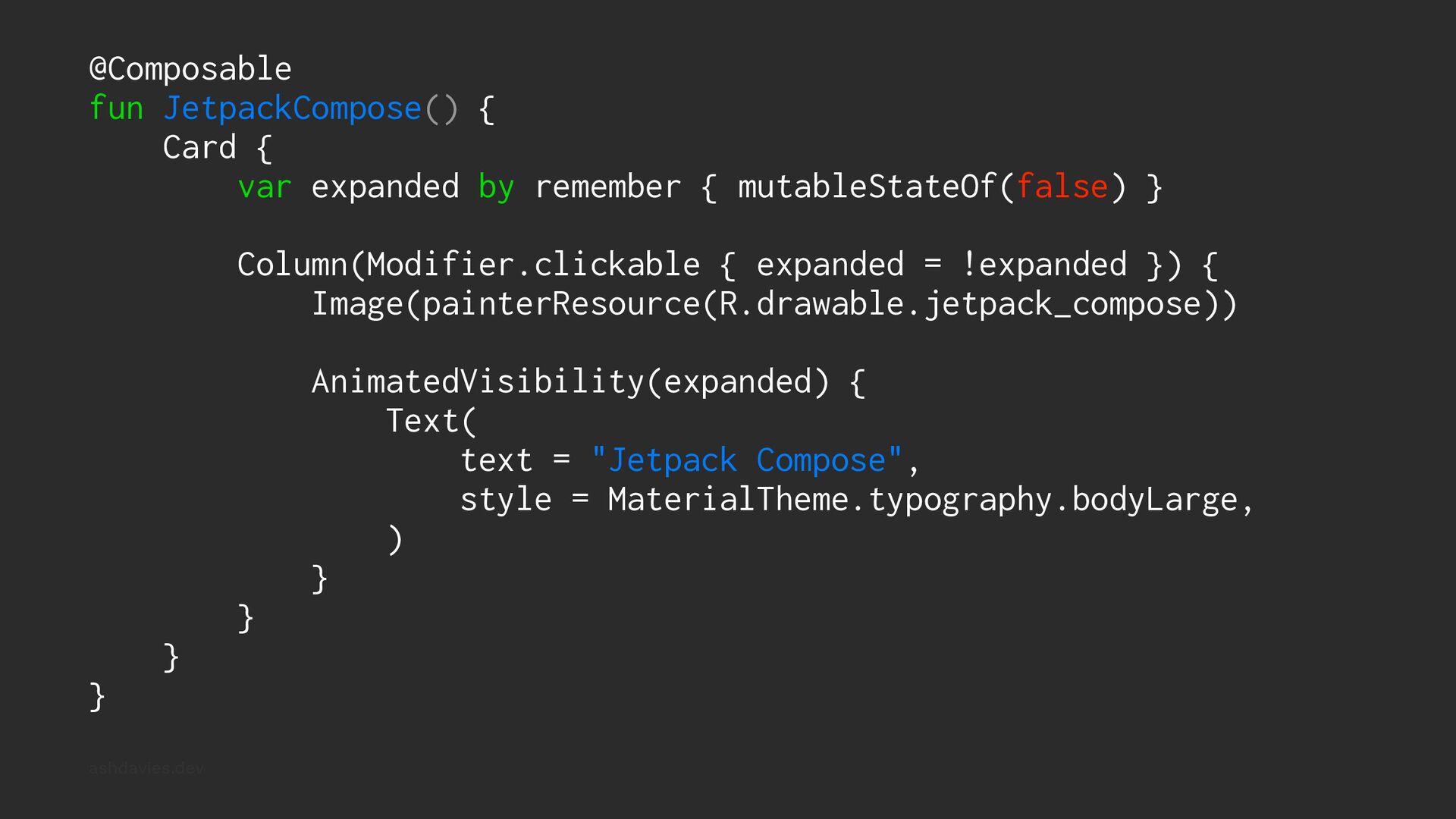

3. @Composable fun JetpackCompose() { Card { var expanded by remember { mutableStateOf(false) } Column(Modifier.clickable { expanded = !expanded }) { Image(painterResource(R.drawable.jetpack_compose)) AnimatedVisibility(expanded) { Text( text = "Jetpack Compose", style = MaterialTheme.typography.bodyLarge, ) } } } } ashdavies.dev
4. Jetpack Compose UI github.com/androidx/androidx/tree/ androidx-main/compose/ui ashdavies.dev

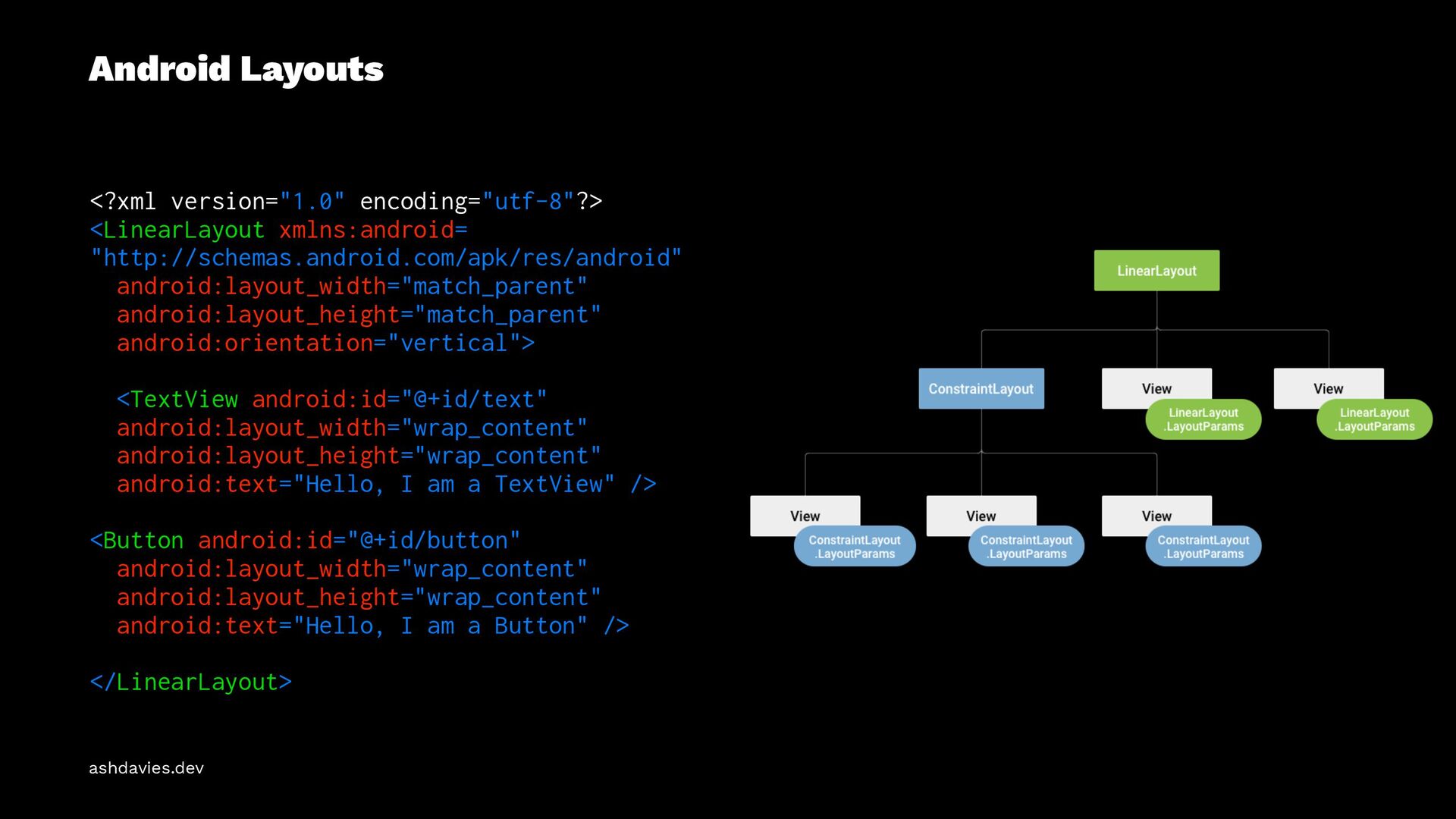

5. Android Layouts <?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android= "http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical"> <TextView android:id="@+id/text" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Hello, I am a TextView" /> <Button android:id="@+id/button" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Hello, I am a Button" /> </LinearLayout> ashdavies.dev

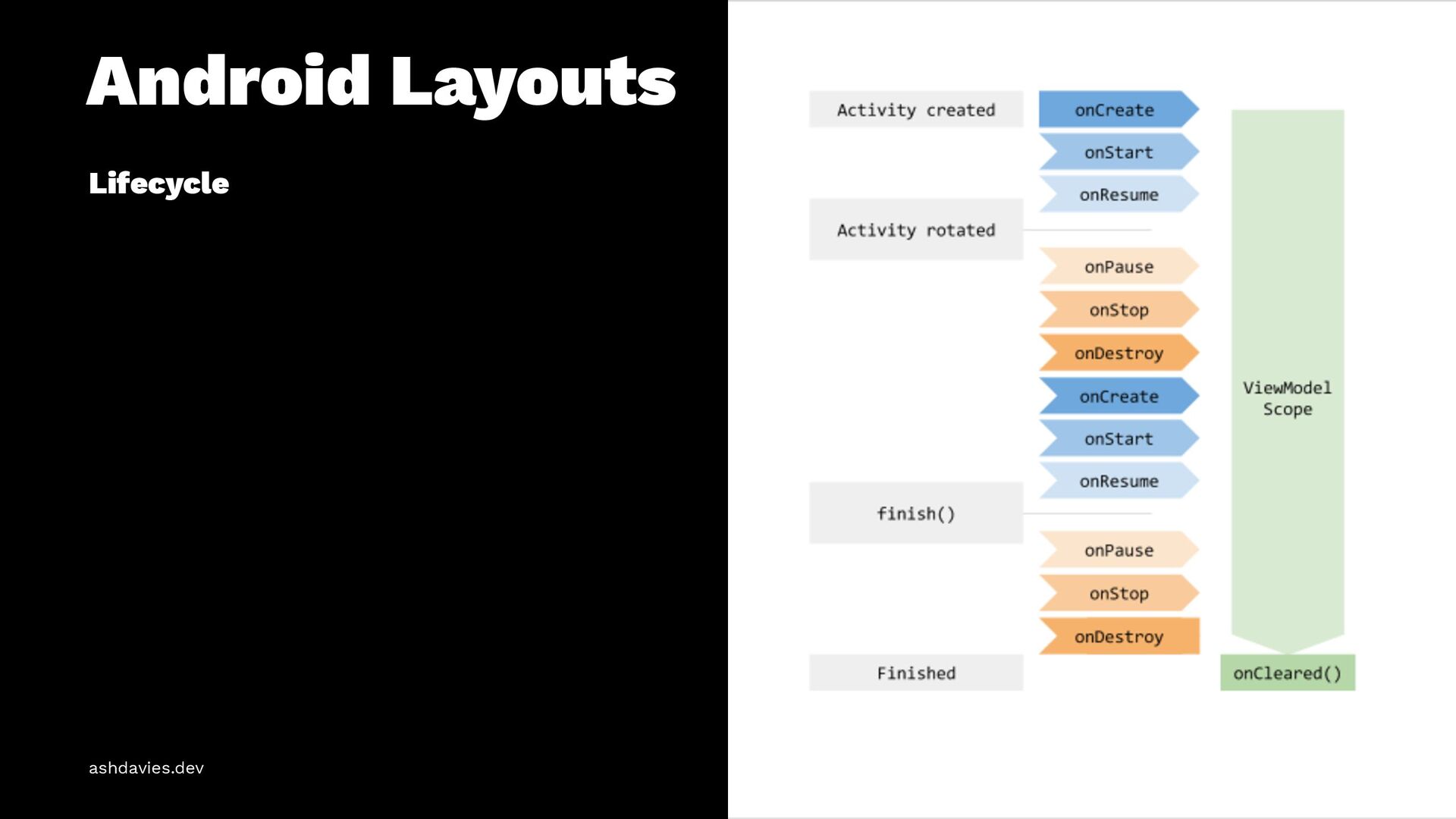

6. Android Layouts Lifecycle ashdavies.dev

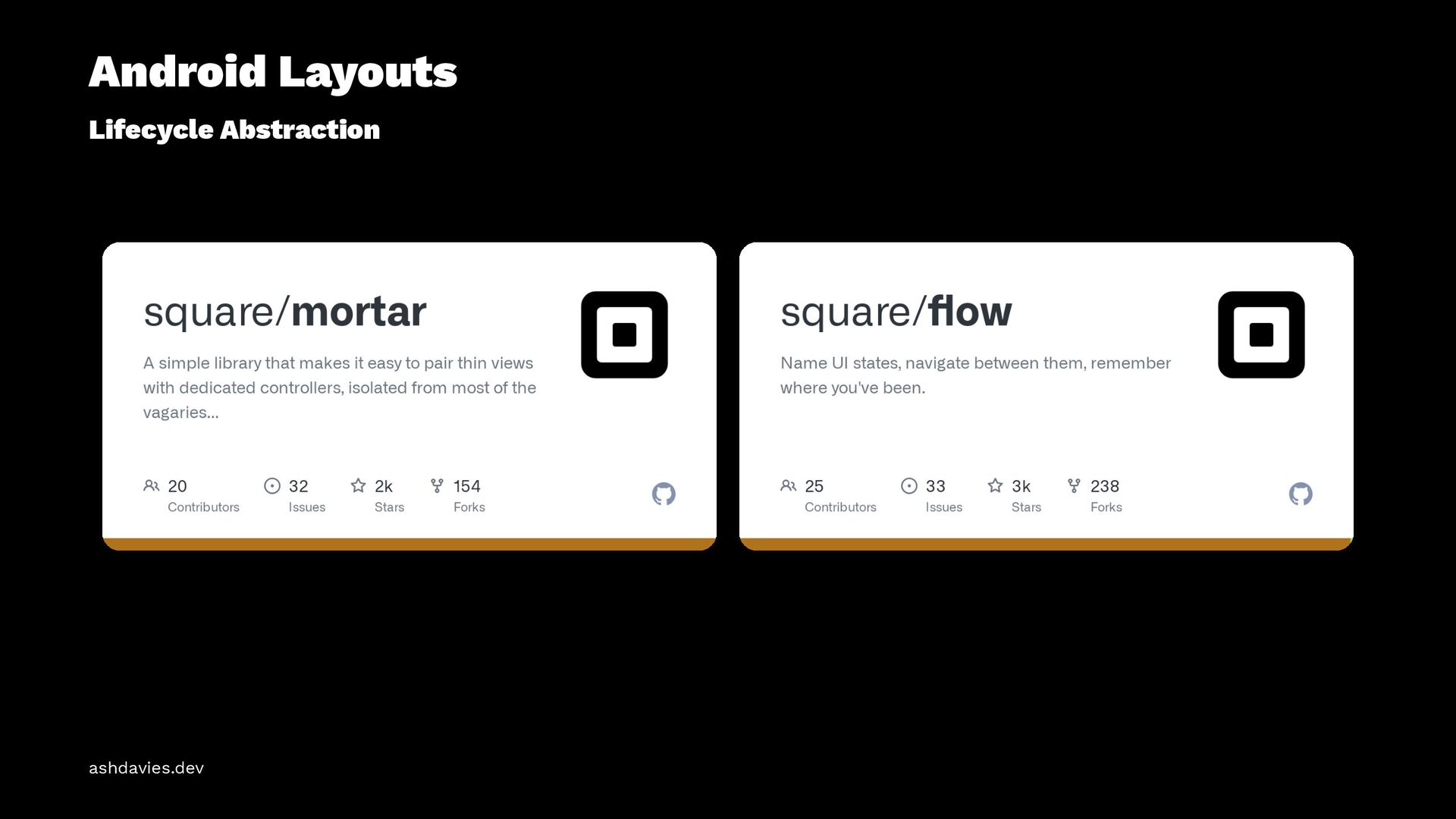

7. Android Layouts Lifecycle Abstraction ashdavies.dev

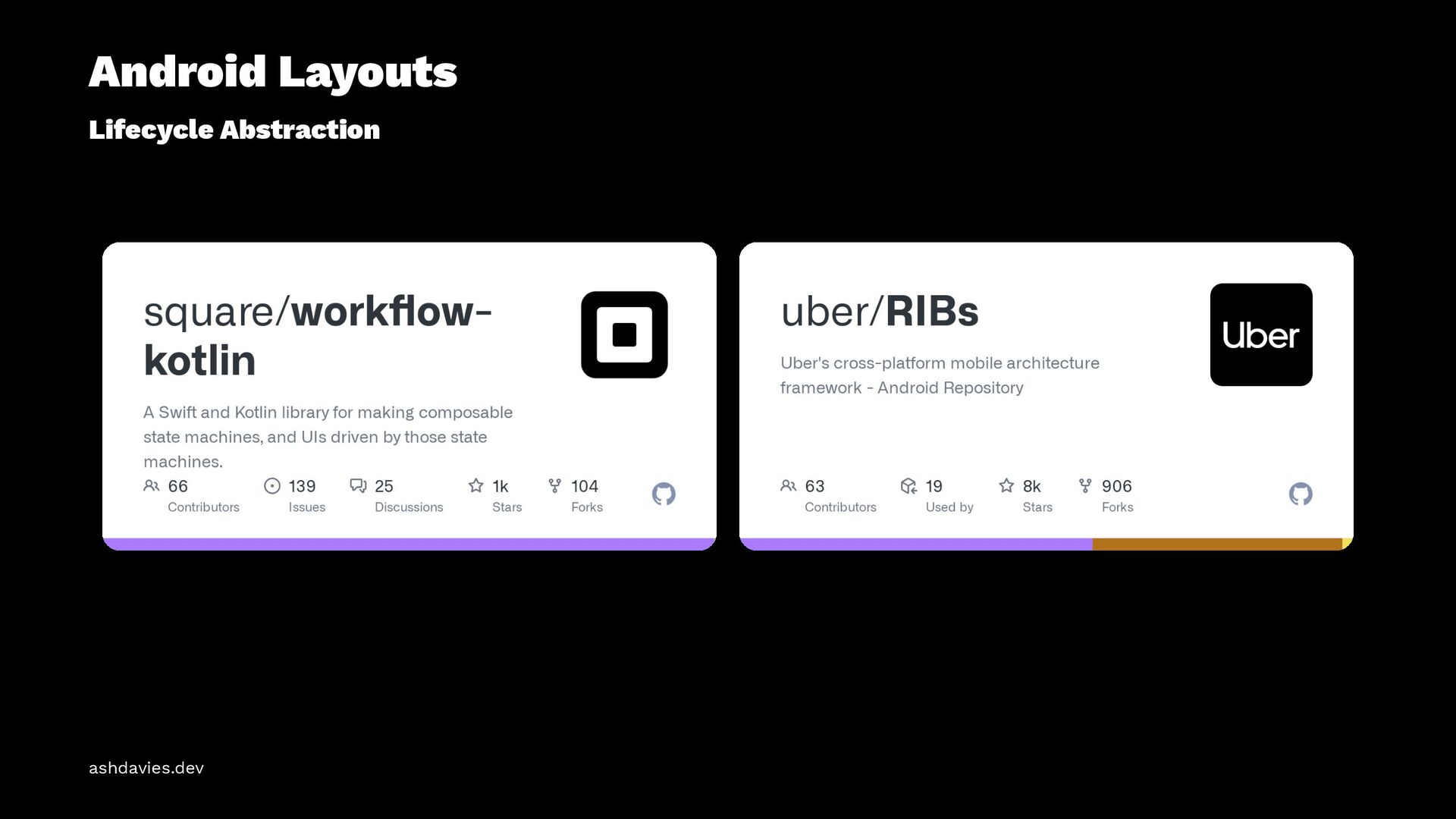

8. Android Layouts Lifecycle Abstraction ashdavies.dev

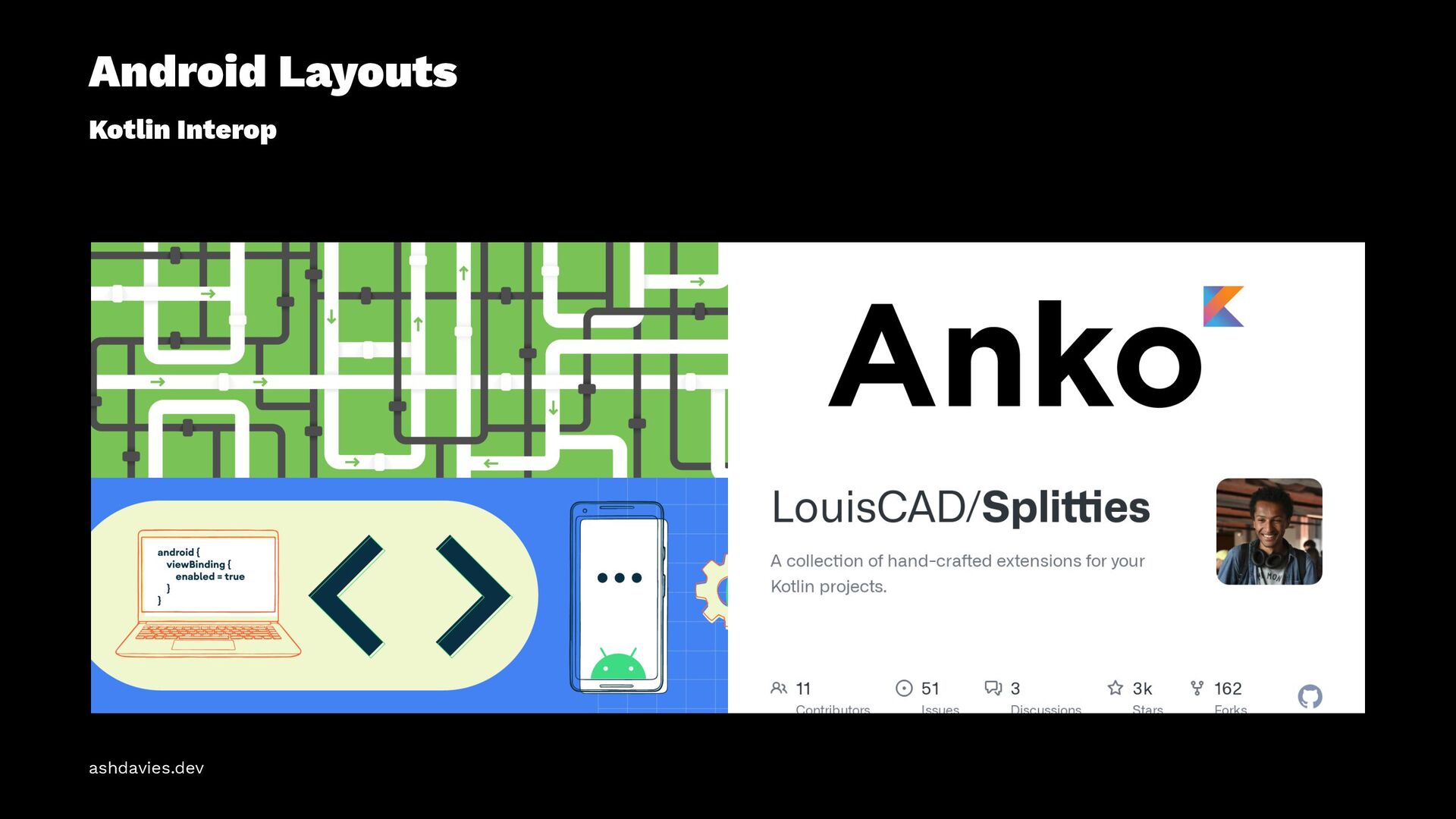

9. Android Layouts Kotlin Interop ashdavies.dev
10. XML?! ashdavies.dev
11. Jetpack Compose UI ! 1.0 (July 2021) ashdavies.dev
12. Declarative UI Framework Compose UI ashdavies.dev

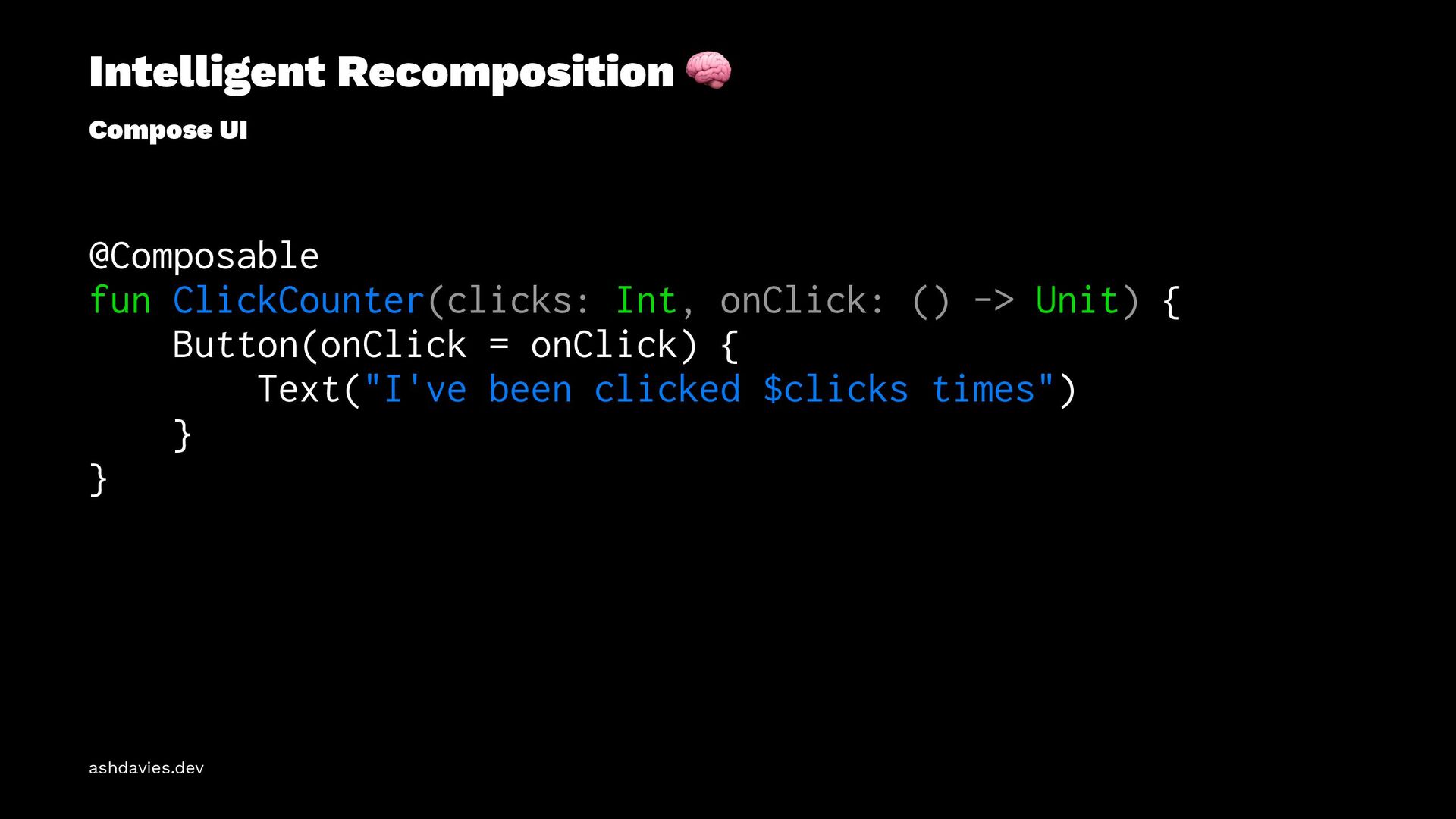

13. Intelligent Recomposition ! Compose UI @Composable fun ClickCounter(clicks: Int, onClick: () -> Unit) { Button(onClick = onClick) { Text("I've been clicked $clicks times") } } ashdavies.dev

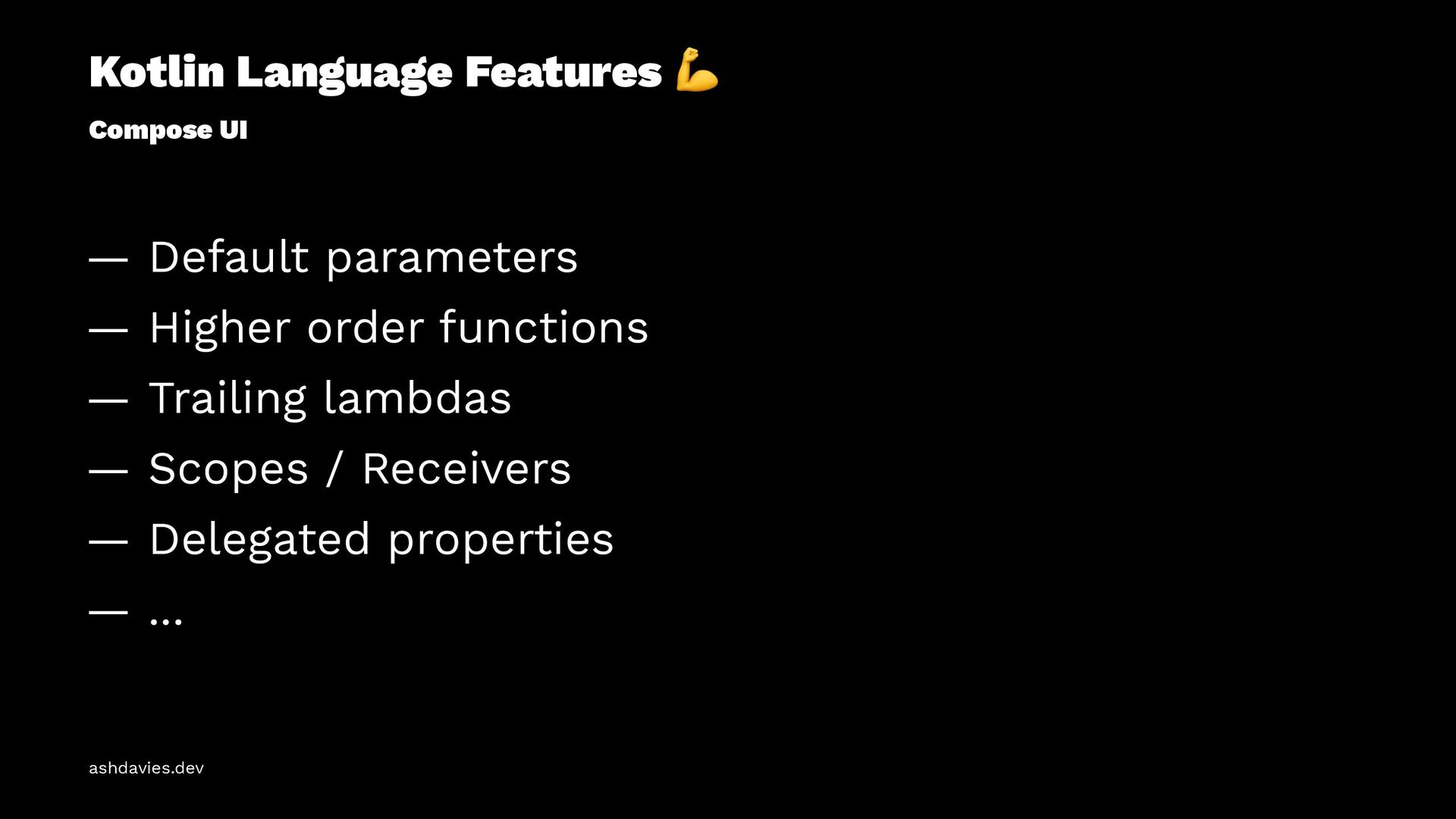

14. Kotlin Language Features ! Compose UI — Default parameters — Higher order functions — Trailing lambdas — Scopes / Receivers — Delegated properties — ... ashdavies.dev

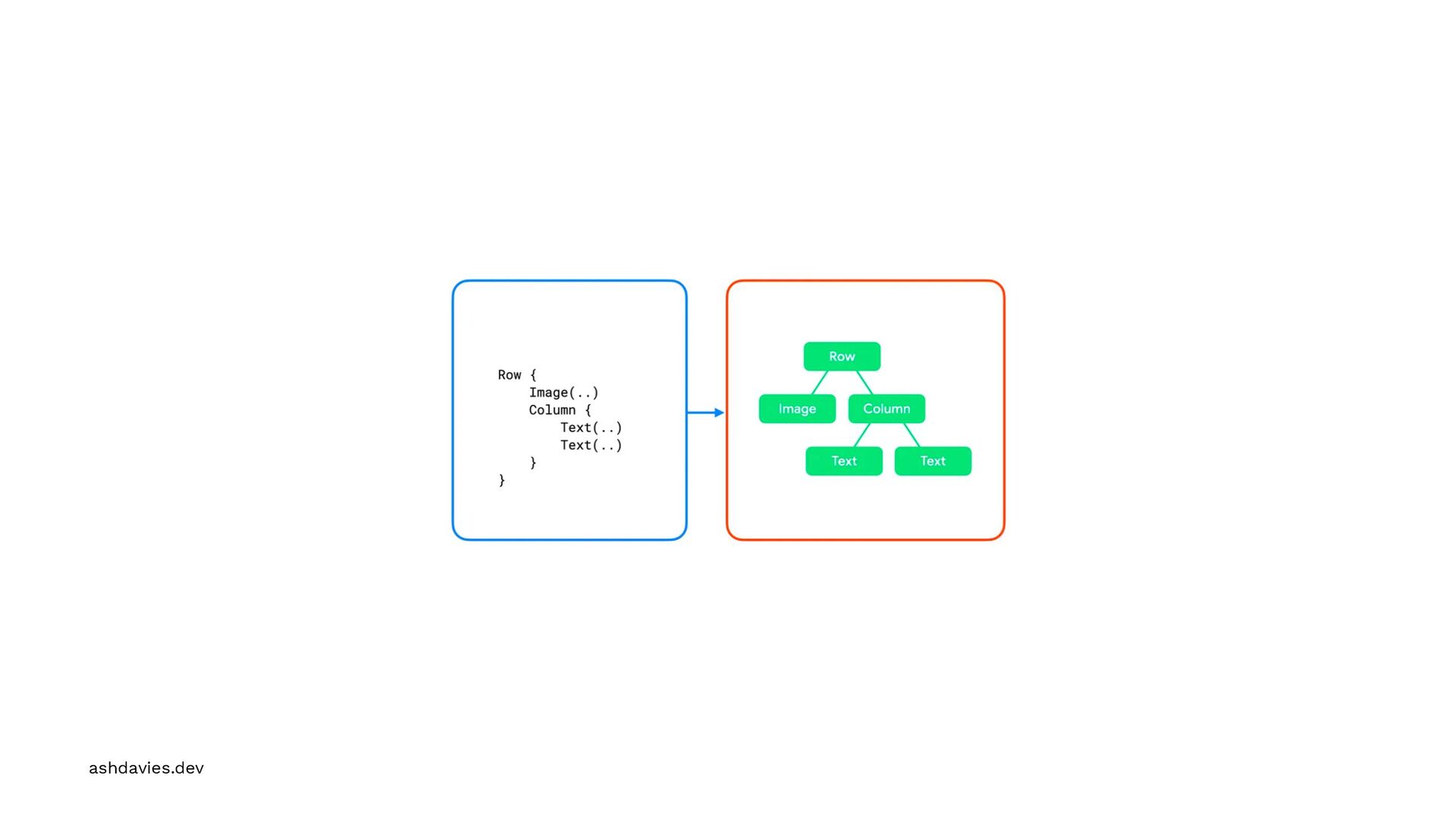

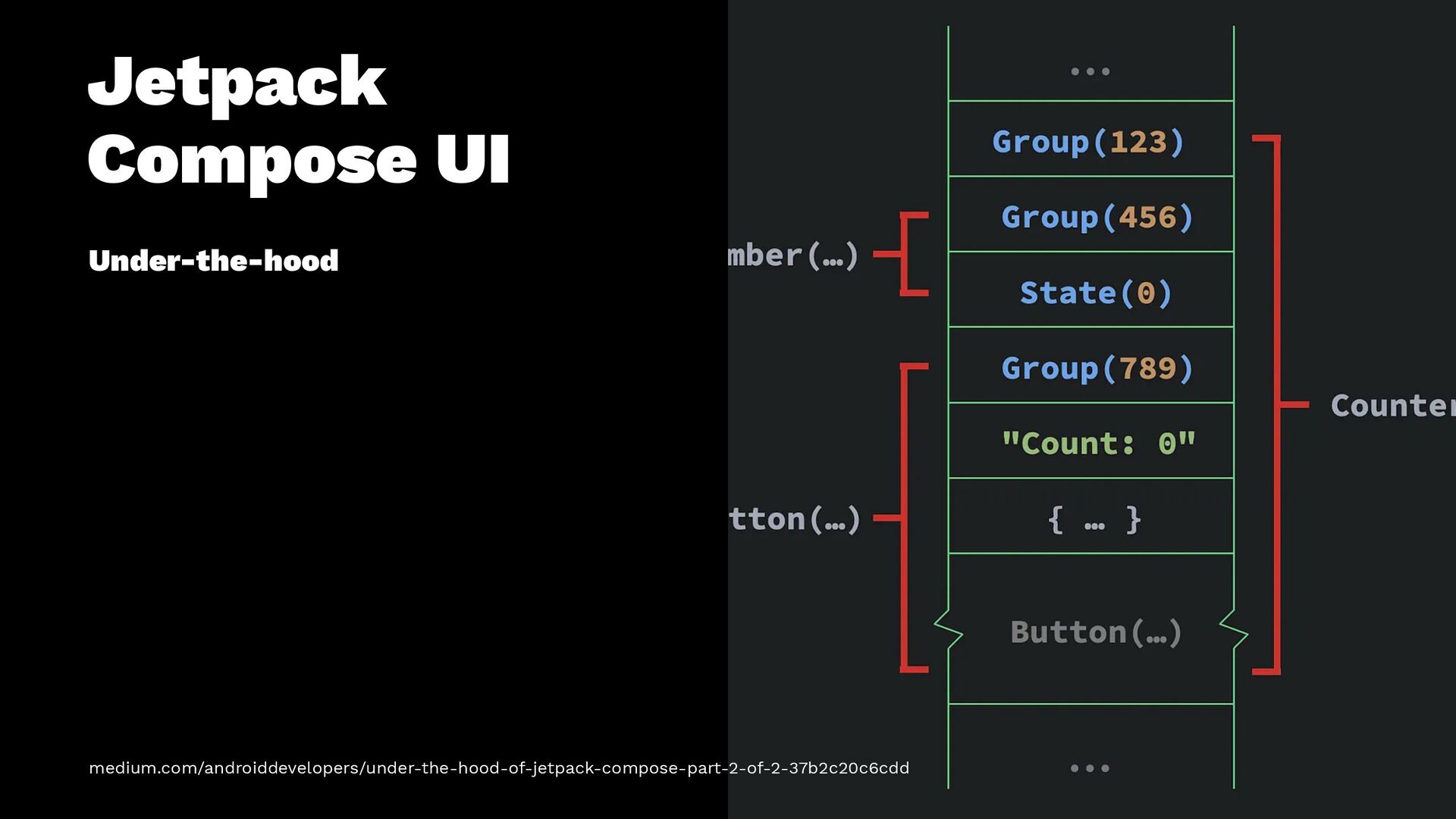

15. Jetpack Compose UI Under-the-hood medium.com/androiddevelopers/under-the-hood-of-jetpack-compose-part-2-of-2-37b2c20c6cdd
16. What tree structure does the Compose runtime output? ashdavies.dev

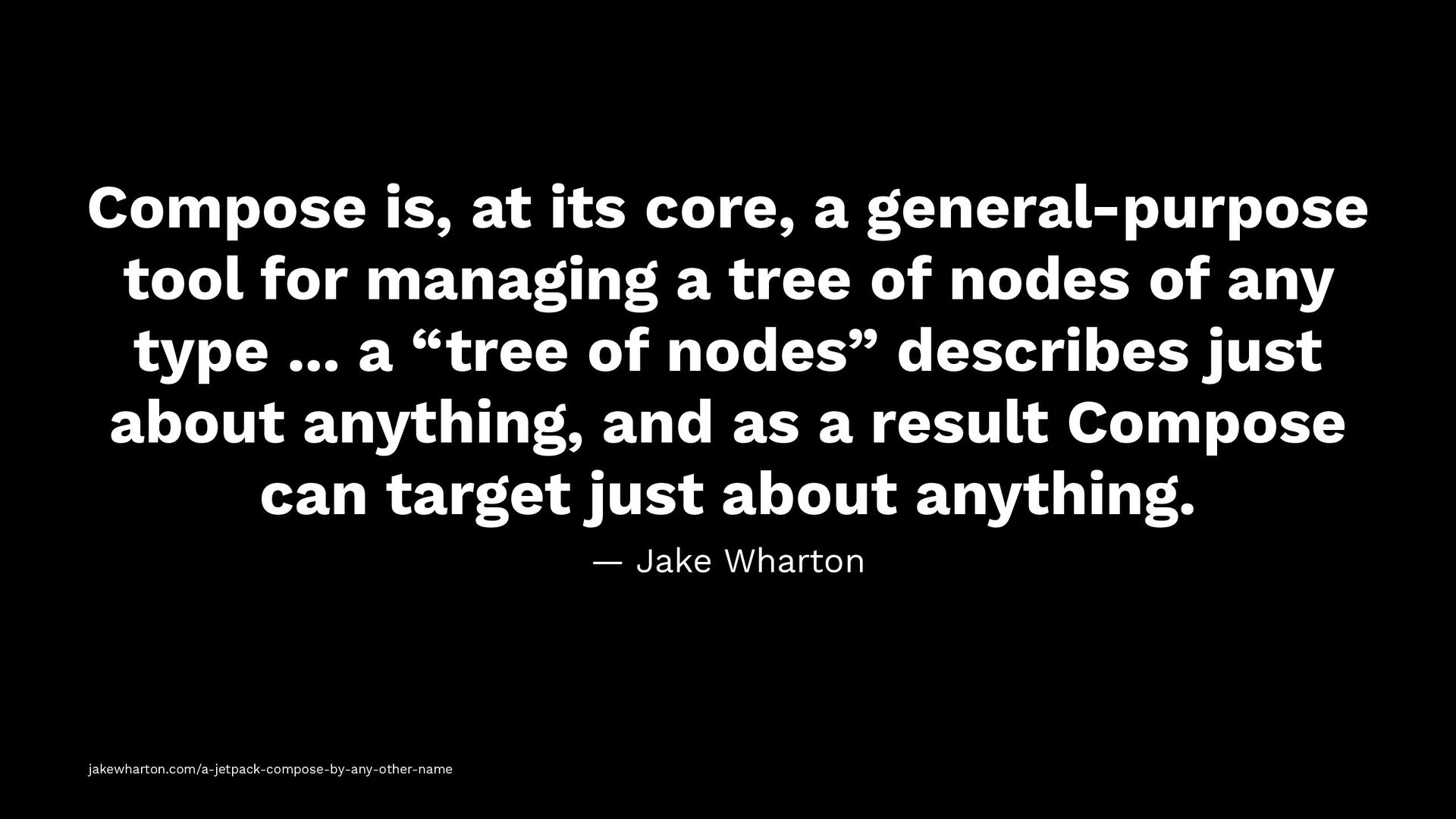

17. Compose is, at its core, a general-purpose tool for managing a tree of nodes of any type ... a “tree of nodes” describes just about anything, and as a result Compose can target just about anything. — Jake Wharton jakewharton.com/a-jetpack-compose-by-any-other-name

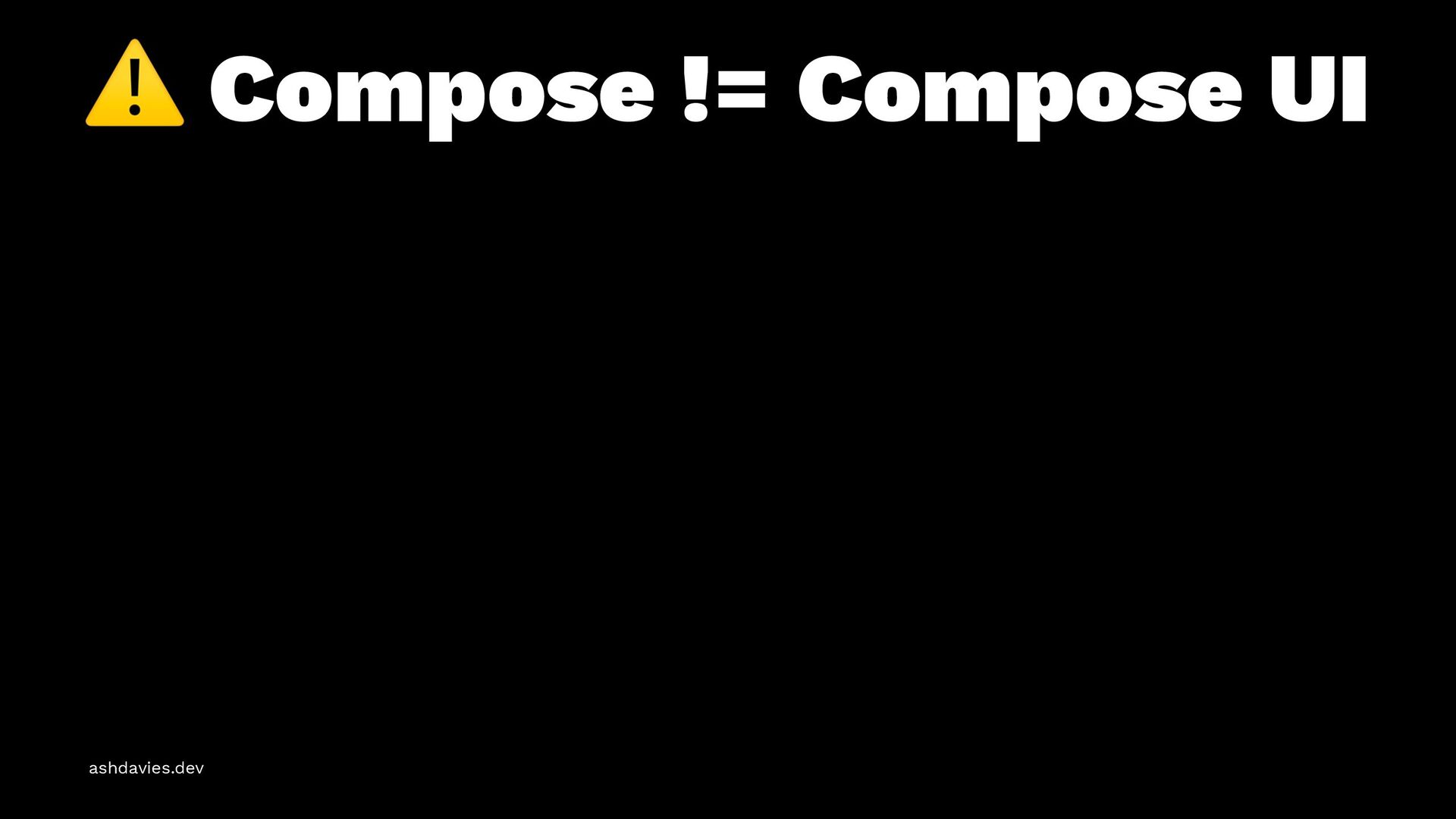

18. ⚠ Compose != Compose UI ashdavies.dev

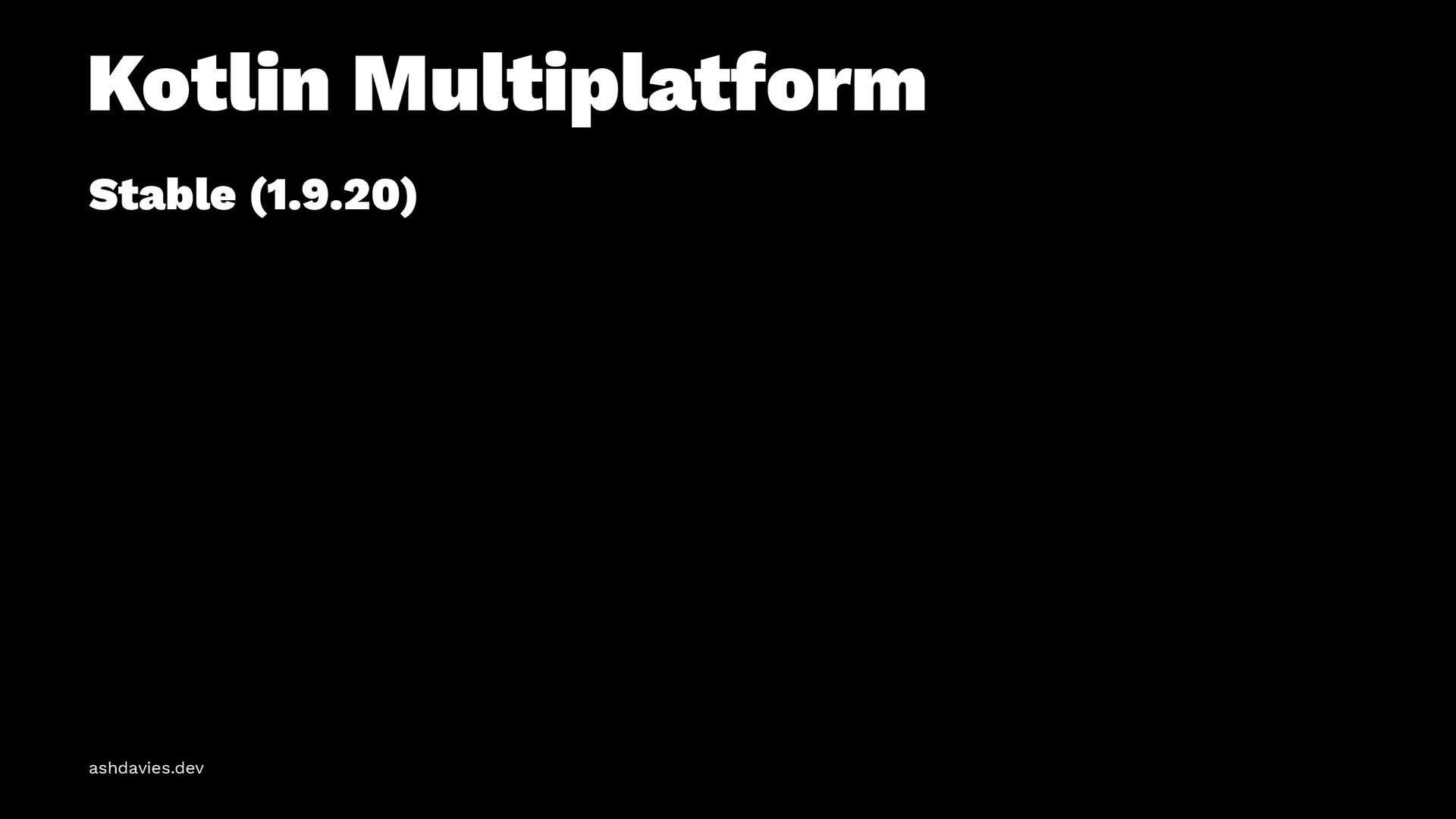

19. Kotlin Multiplatform Stable (1.9.20) ashdavies.dev

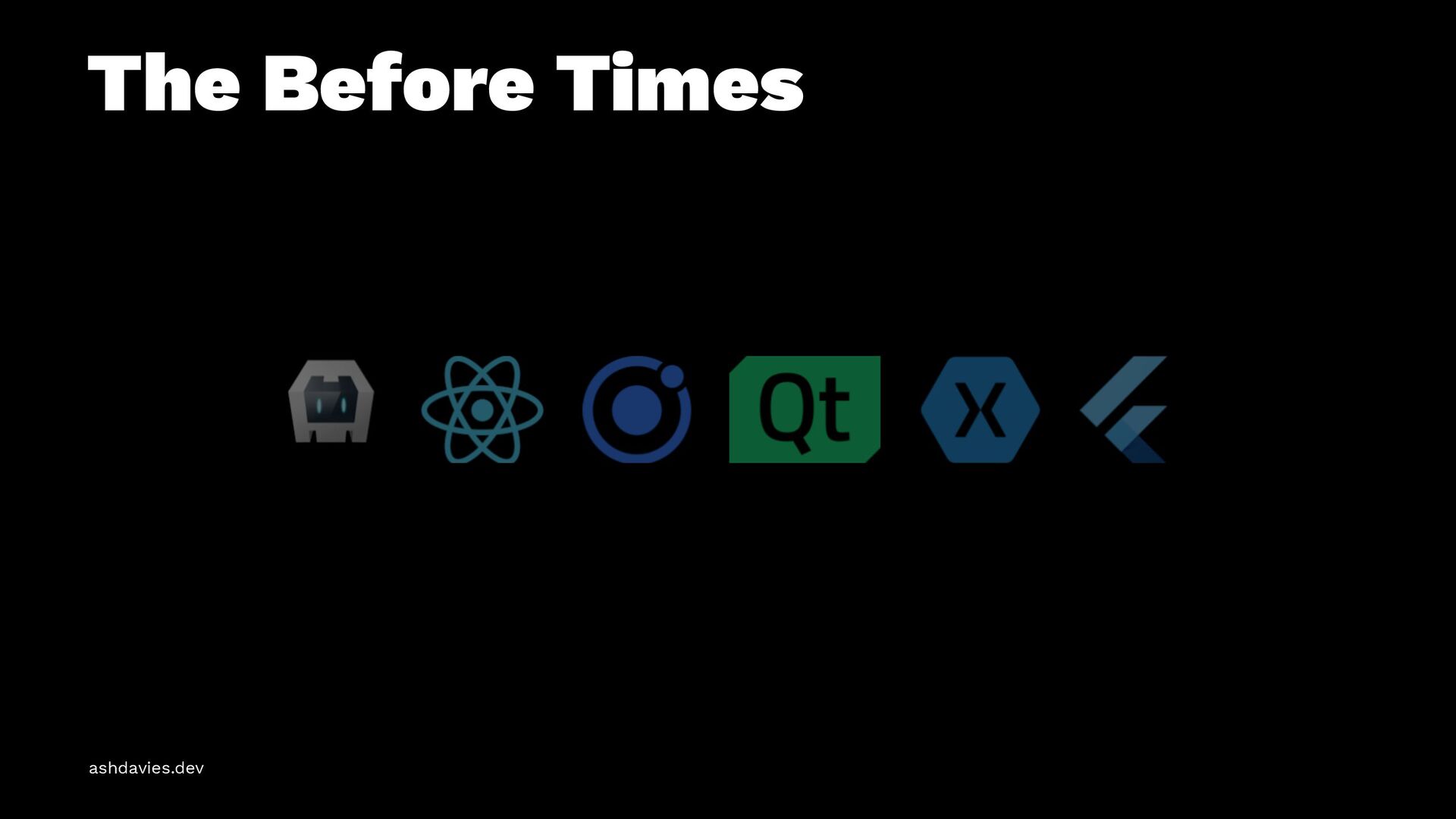

20. The Before Times ashdavies.dev

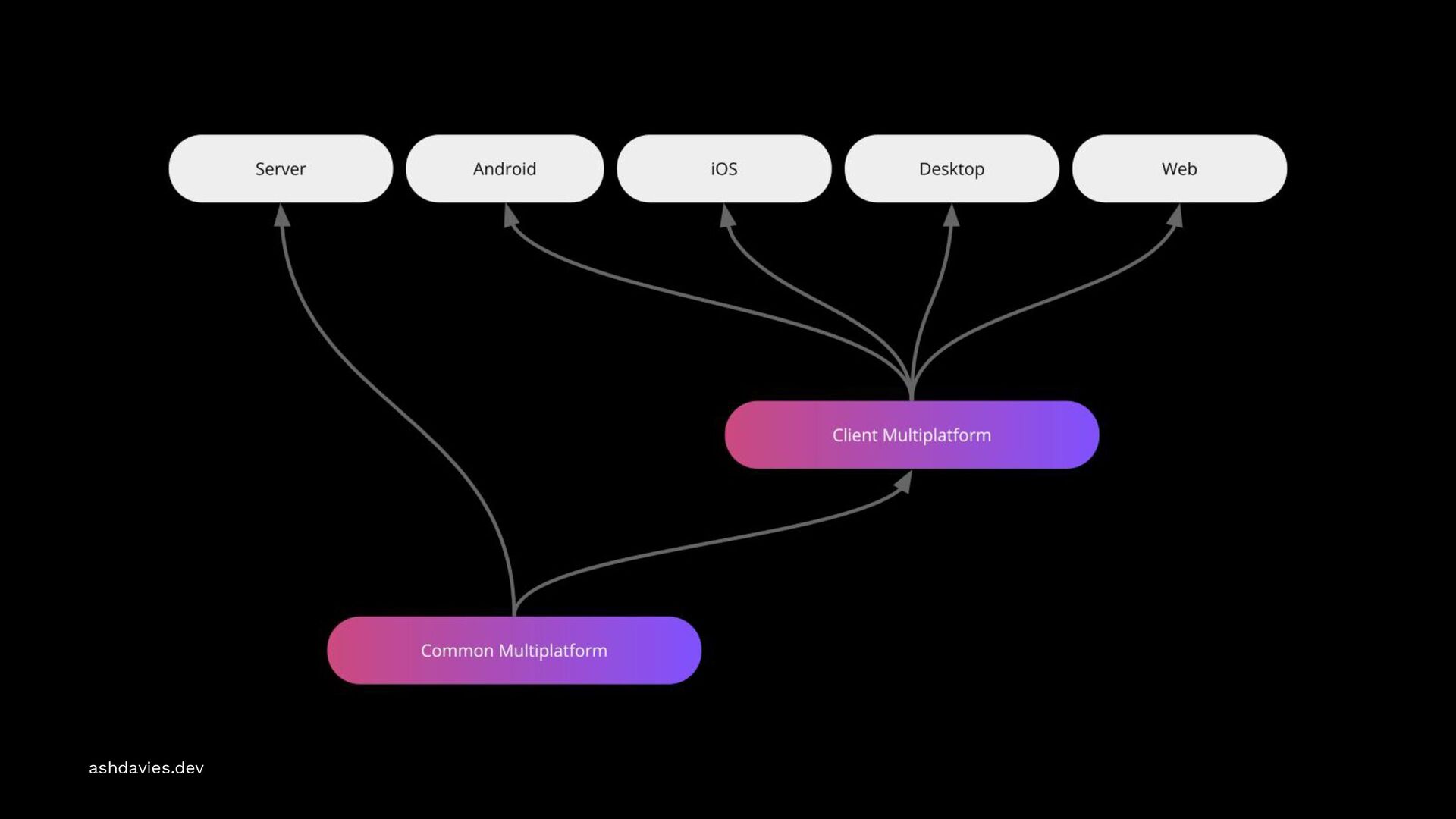

21. The Before Times ashdavies.dev
22. ashdavies.dev

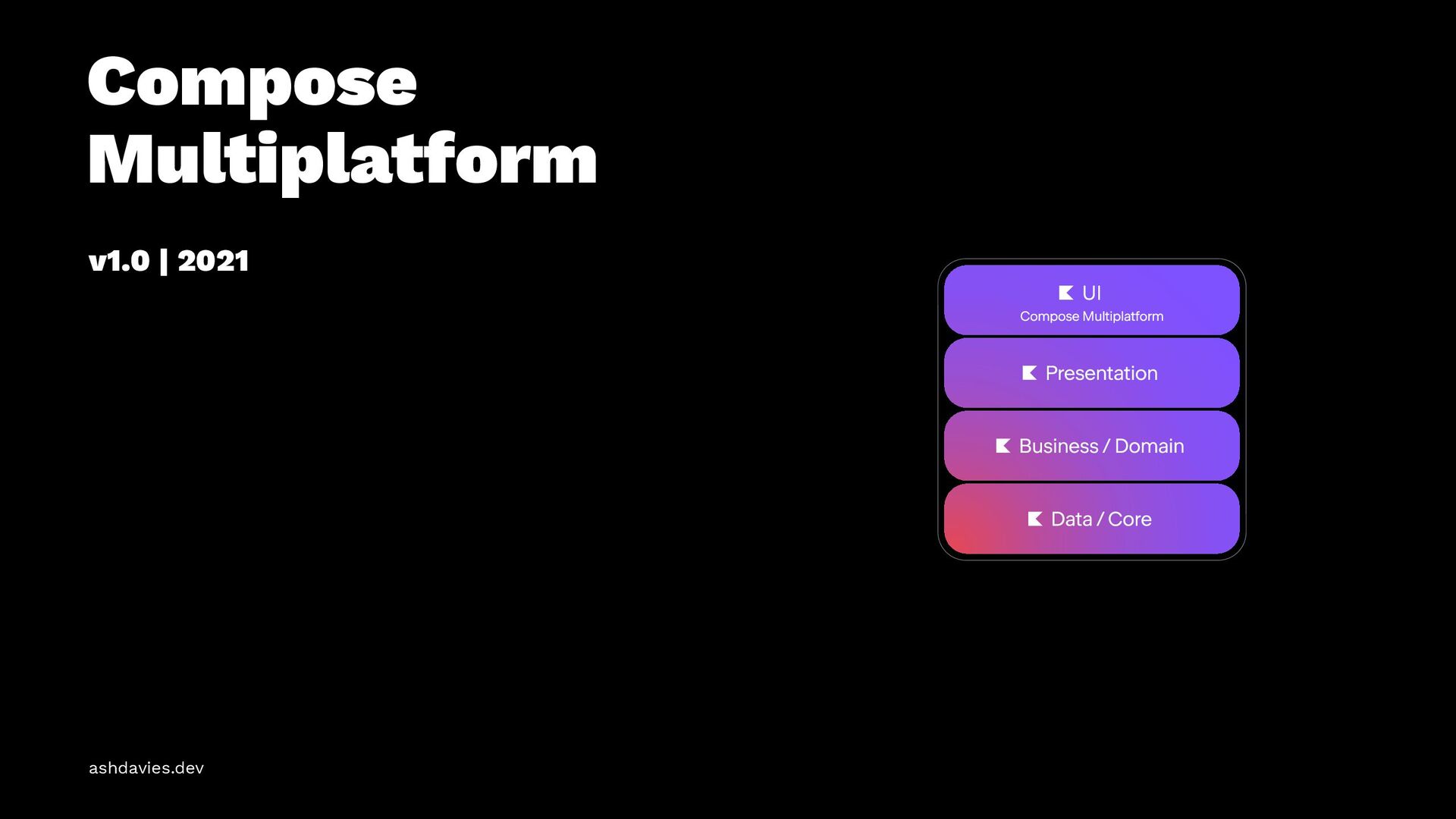

23. Compose Multiplatform v1.0 | 2021 ashdavies.dev

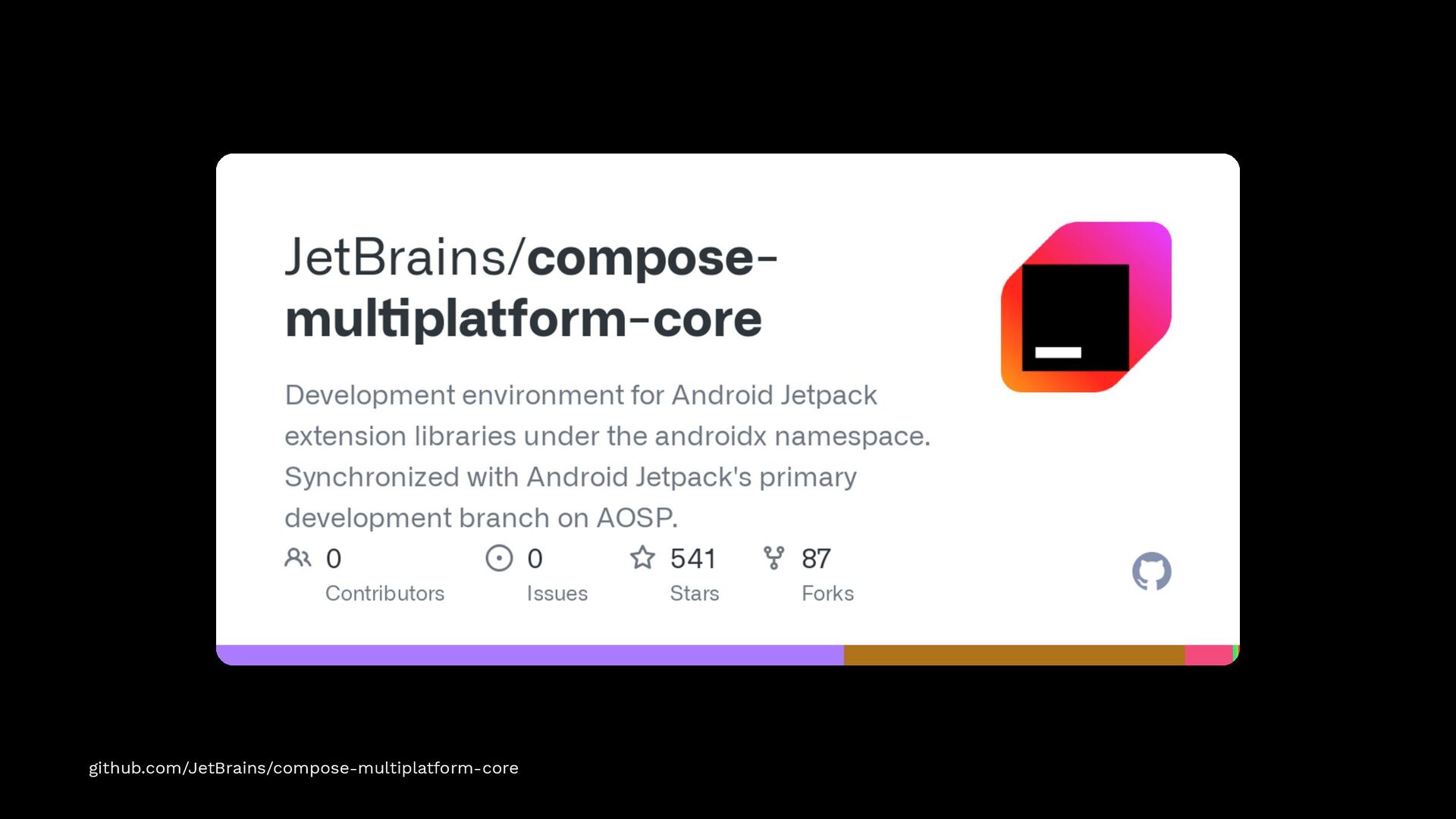

24. github.com/JetBrains/compose-multiplatform-core

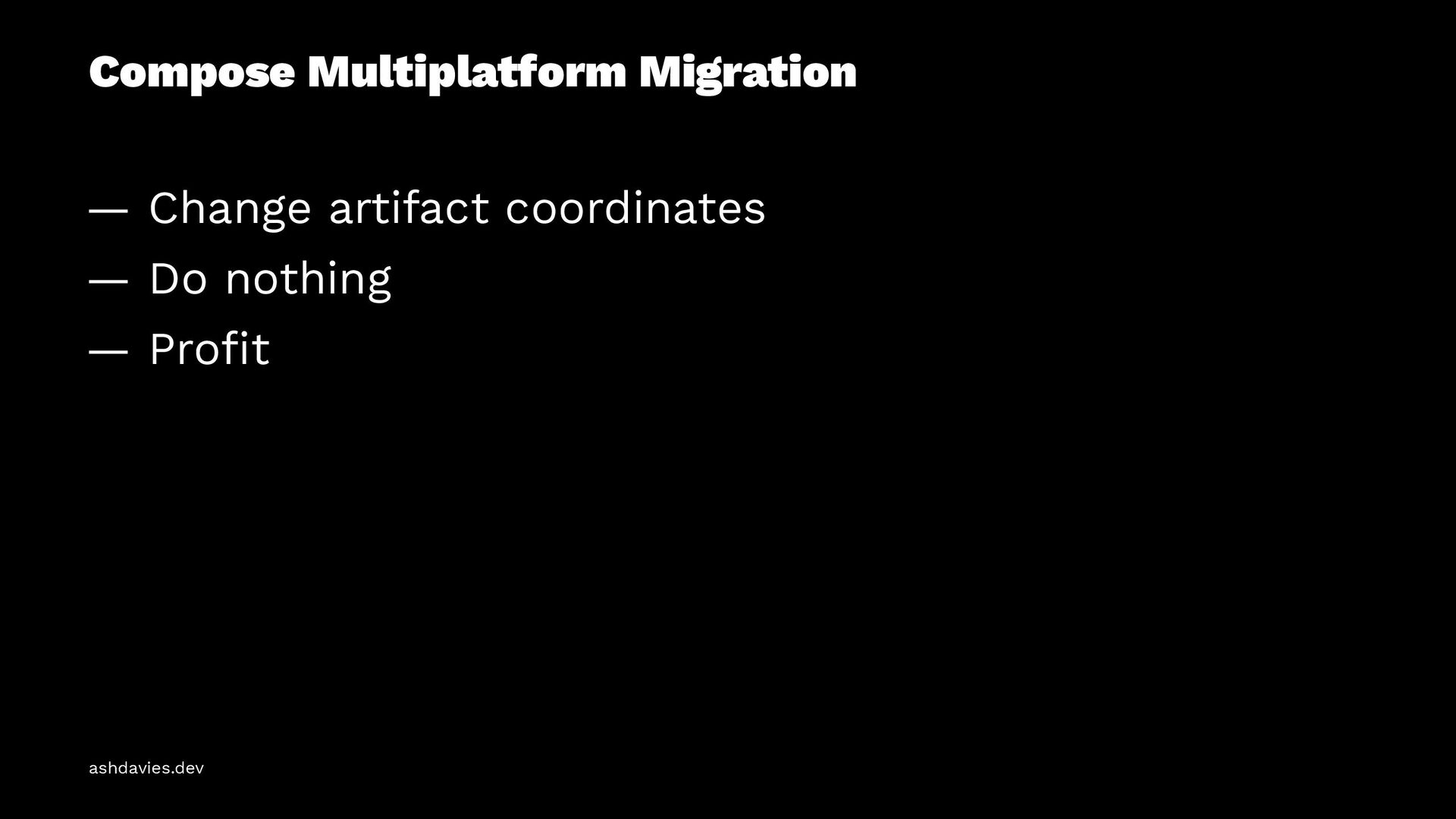

25. Compose Multiplatform Migration — Change artifact coordinates — Do nothing — Profit ashdavies.dev
26. ashdavies.dev
27. Hype Driven Development ashdavies.dev/talks/hype-driven-development-berlin-devfest/
28. “I suppose it is tempting, if the only tool you have is a hammer, to treat everything as if it were a nail.” — Abraham Maslow ashdavies.dev

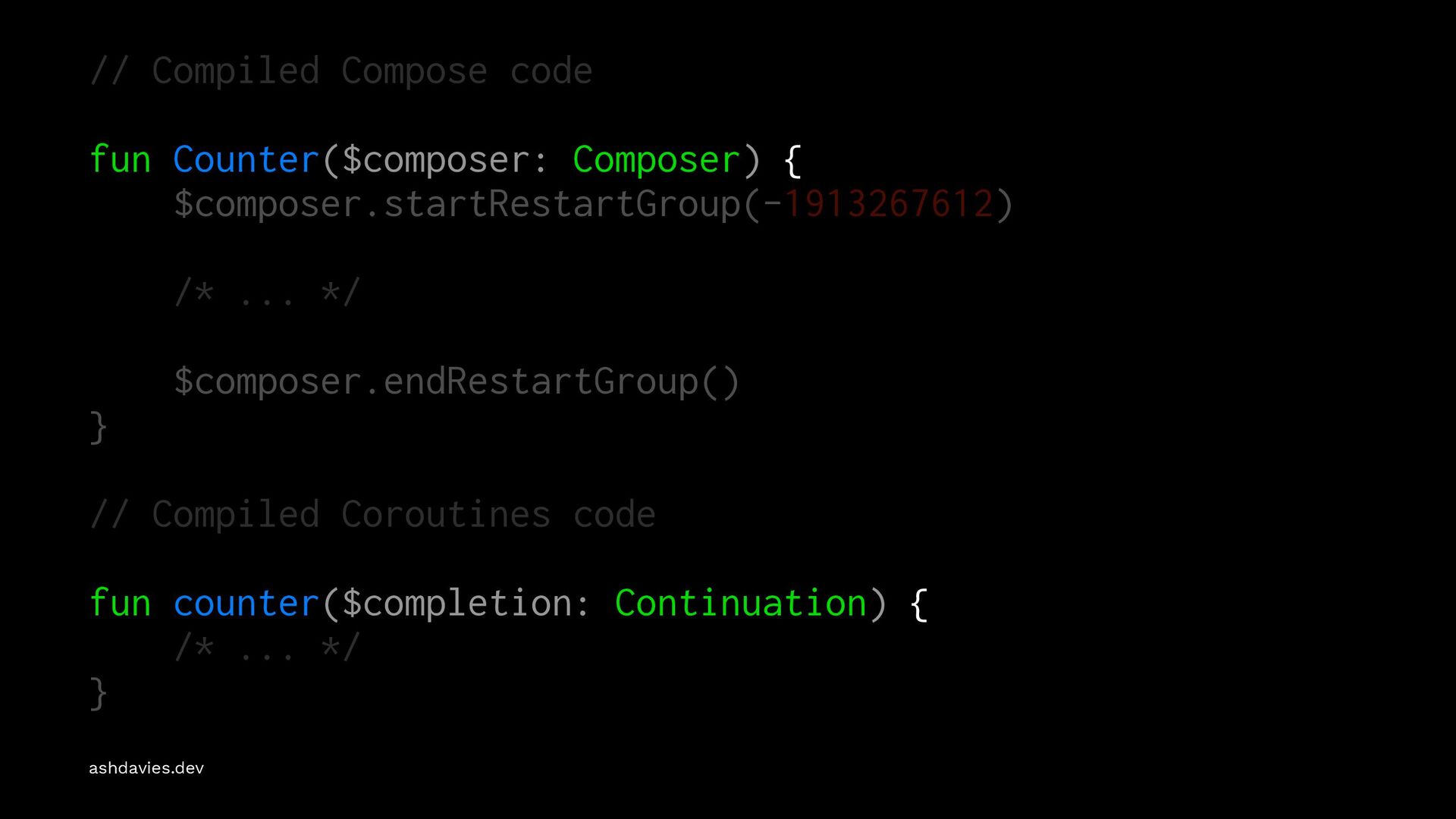

29. // Compiled Compose code fun Counter($composer: Composer) { $composer.startRestartGroup(-1913267612) /* ... */ $composer.endRestartGroup() } // Compiled Coroutines code fun counter($completion: Continuation) { /* ... */ } ashdavies.dev

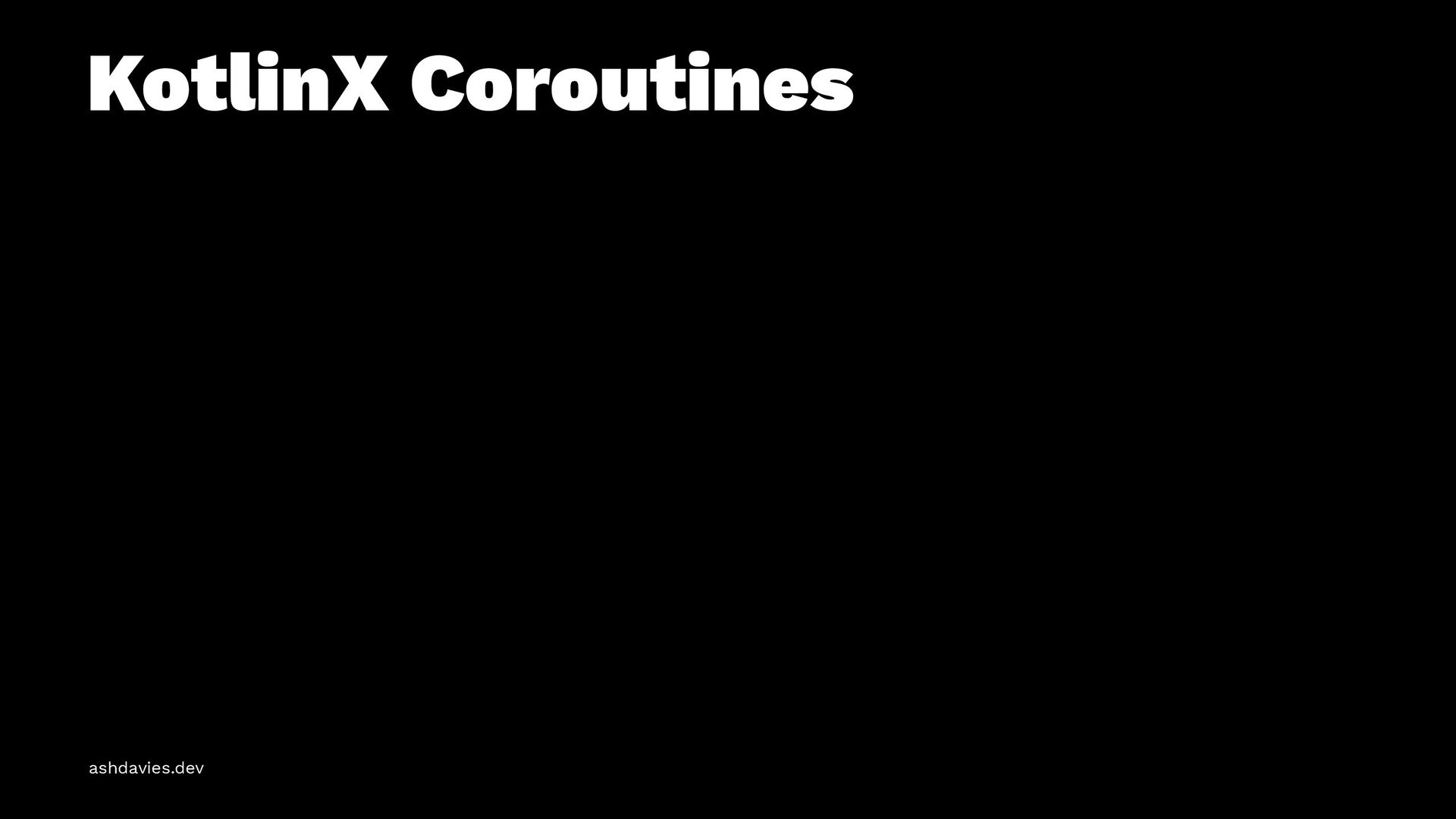

30. KotlinX Coroutines ashdavies.dev
31. @Suppress("DEPRECATION") class CallbackLoginPresenter( private val service: SessionService, private val goTo: (Screen) -> Unit, ) { /* ... */ inner class LoginAsyncTask : AsyncTask<Submit,Void,LoginResult>() { private var username: String = "" override fun doInBackground(vararg events: Submit?): LoginResult { val event = events[0]!! username = event.username return runBlocking { service.login(event.username, event.password) } } override fun onPostExecute(result: LoginResult?) { when (result) { is Success -> goTo(LoggedInScreen(username)) is Failure -> goTo(ErrorScreen(result.throwable?.message ?: "")) else -> {} } } } } speakerdeck.com/ashdavies/droidcon-nyc-demystifying-molecule?slide=27

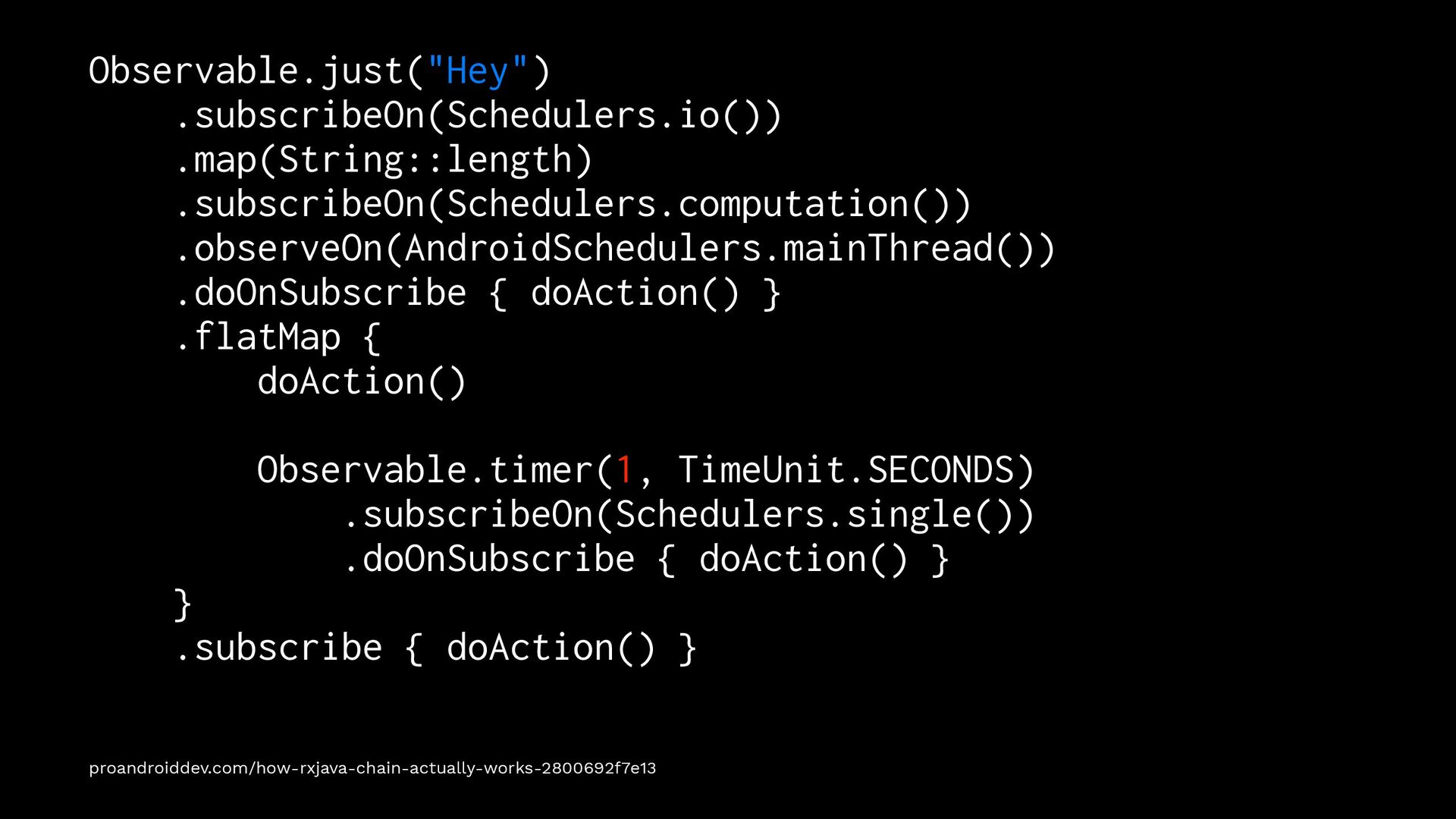

32. Observable.just("Hey") .subscribeOn(Schedulers.io()) .map(String::length) .subscribeOn(Schedulers.computation()) .observeOn(AndroidSchedulers.mainThread()) .doOnSubscribe { doAction() } .flatMap { doAction() Observable.timer(1, TimeUnit.SECONDS) .subscribeOn(Schedulers.single()) .doOnSubscribe { doAction() } } .subscribe { doAction() } proandroiddev.com/how-rxjava-chain-actually-works-2800692f7e13

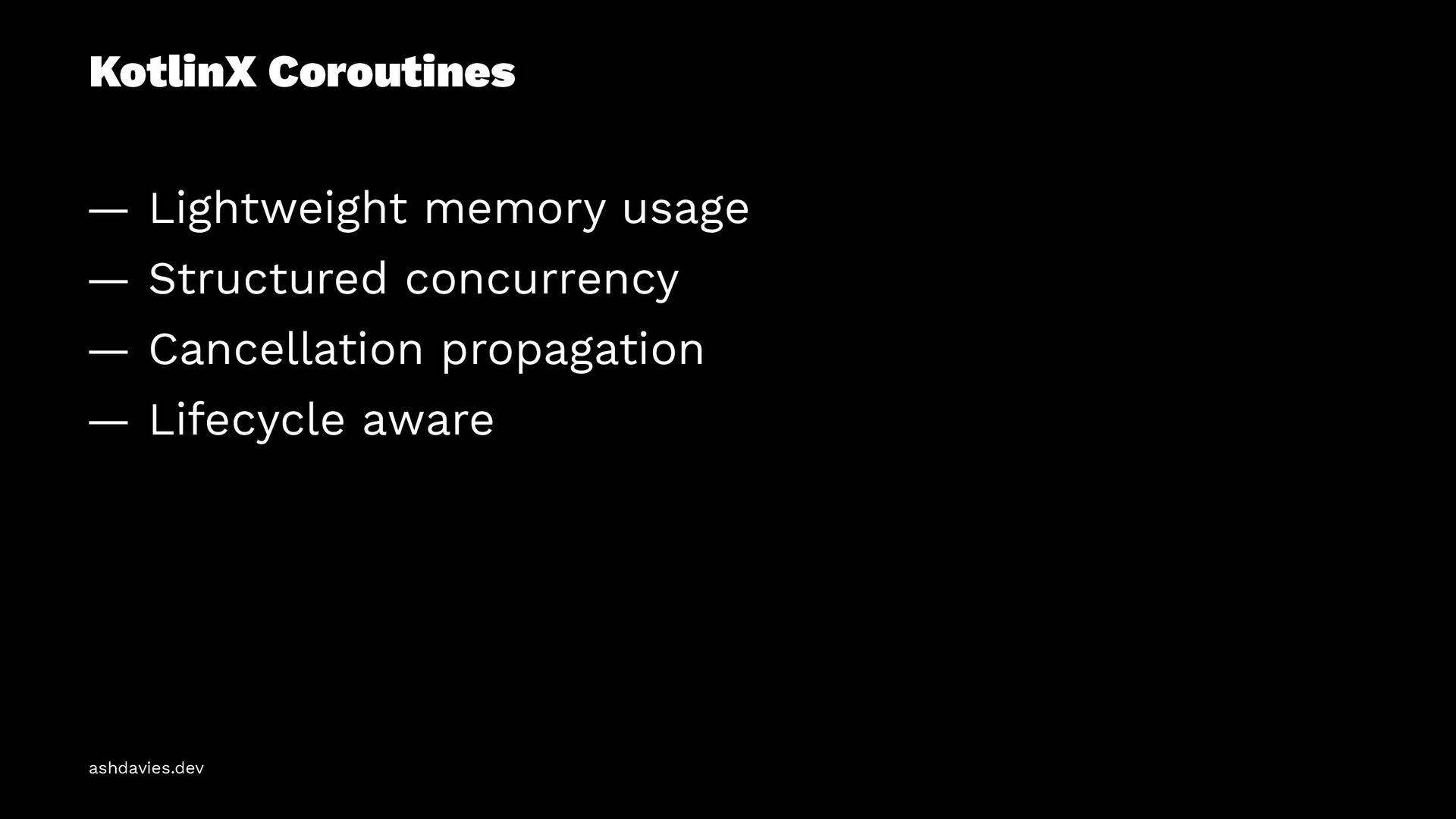

33. KotlinX Coroutines — Lightweight memory usage — Structured concurrency — Cancellation propagation — Lifecycle aware ashdavies.dev

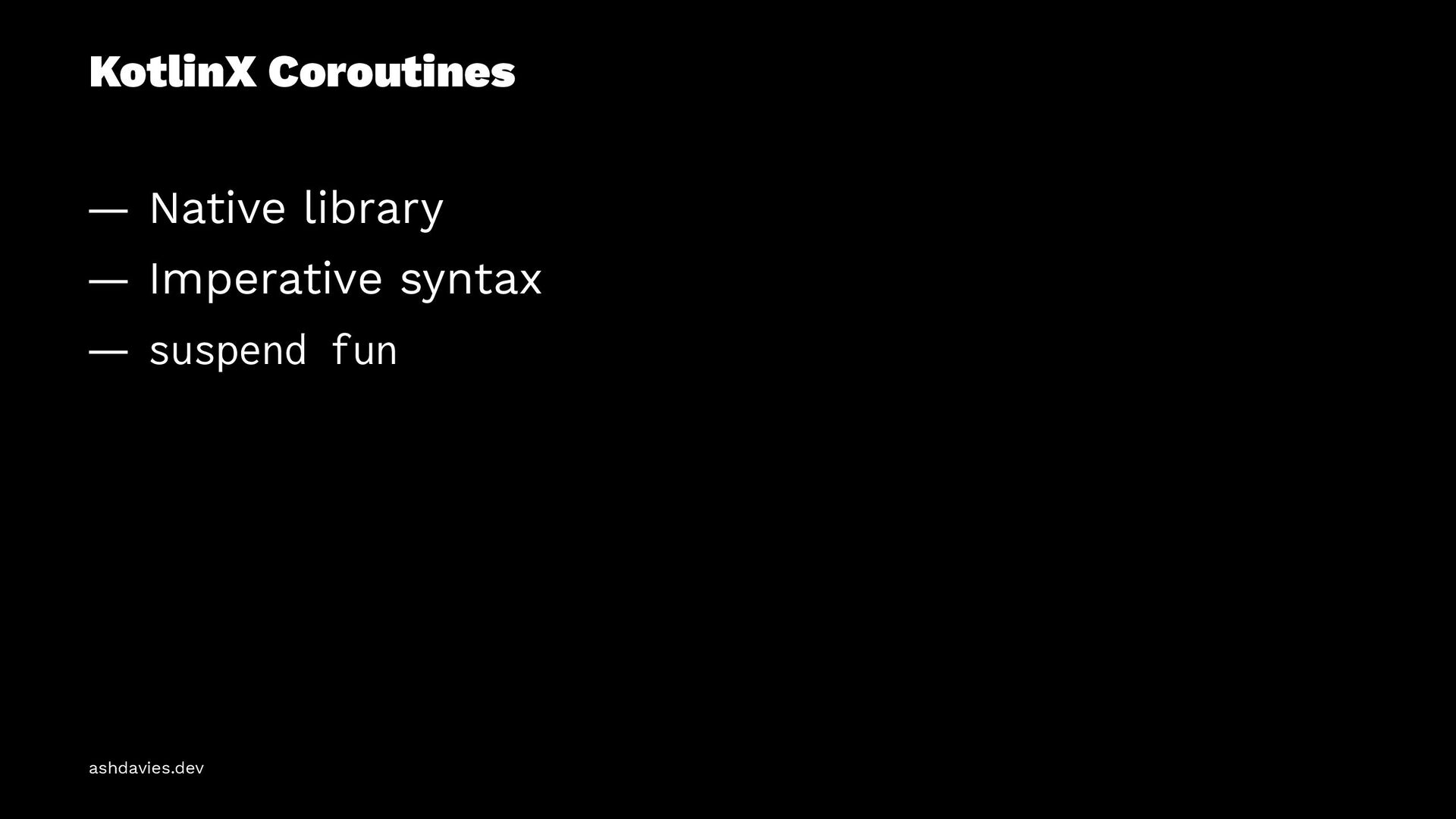

34. KotlinX Coroutines — Native library — Imperative syntax — suspend fun ashdavies.dev

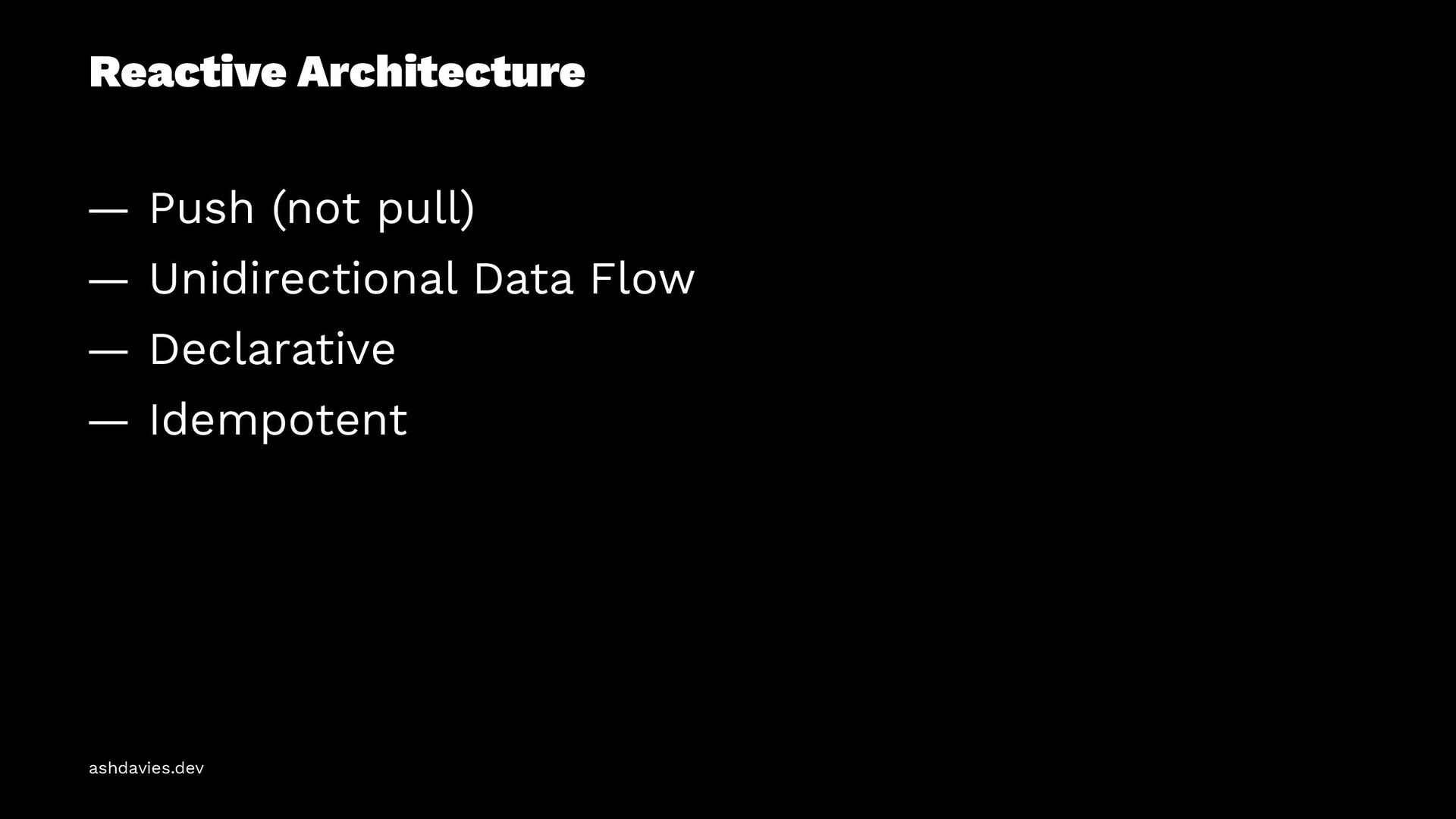

35. Reactive Architecture — Push (not pull) — Unidirectional Data Flow — Declarative — Idempotent ashdavies.dev

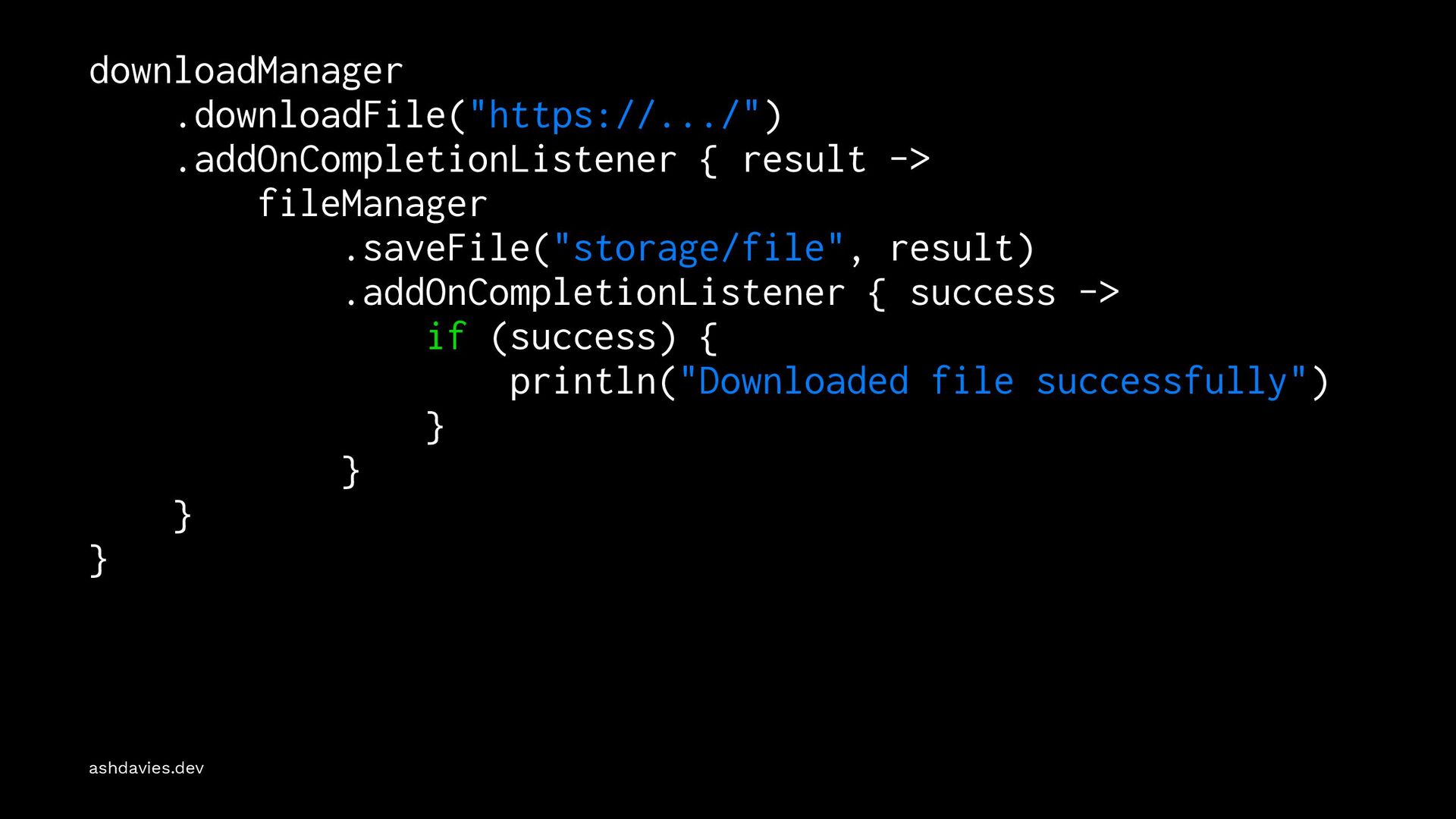

36. downloadManager .downloadFile("https://.../") .addOnCompletionListener { result -> fileManager .saveFile("storage/file", result) .addOnCompletionListener { success -> if (success) { println("Downloaded file successfully") } } } } ashdavies.dev

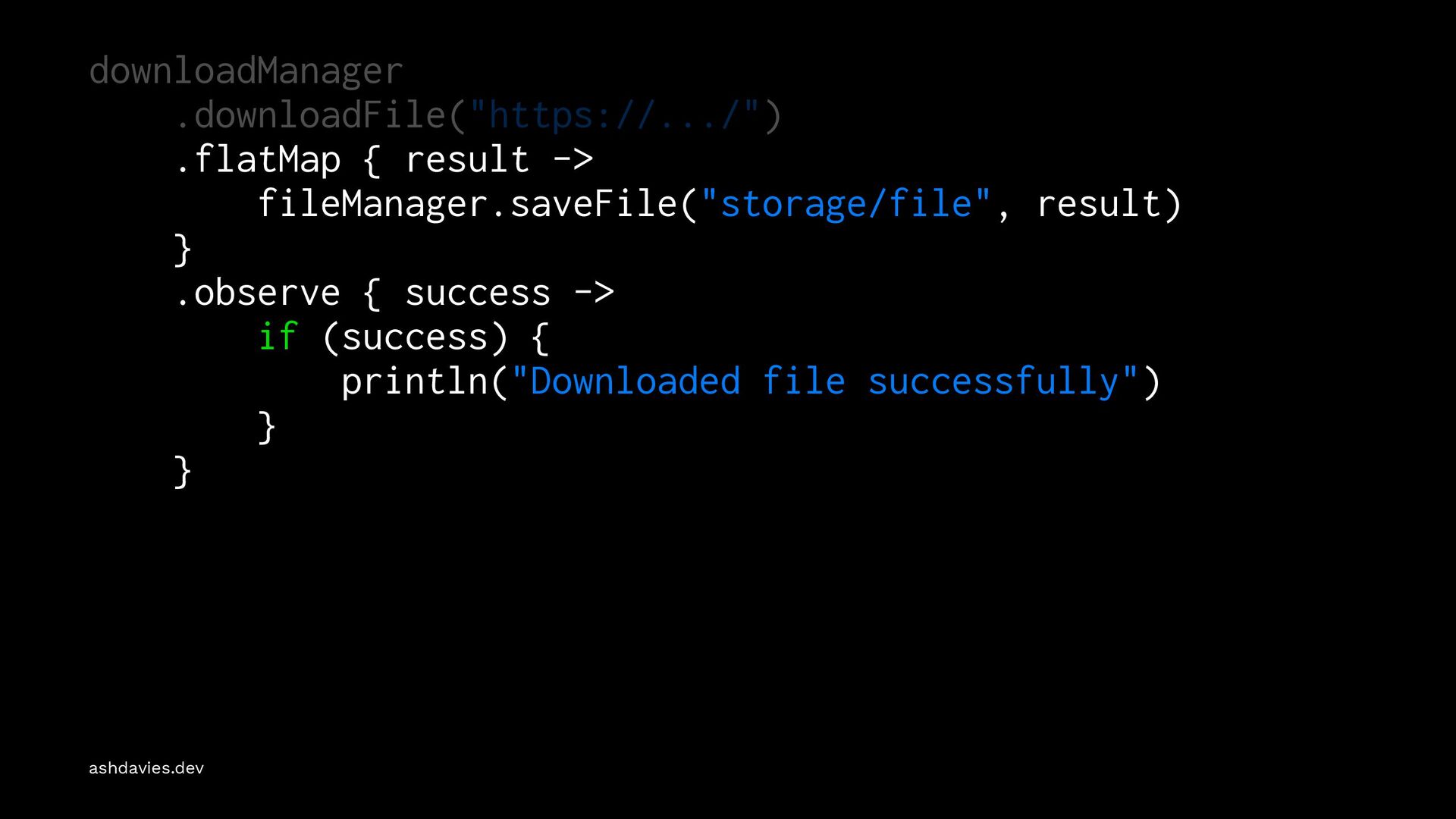

37. downloadManager .downloadFile("https://.../") .flatMap { result -> fileManager.saveFile("storage/file", result) } .observe { success -> if (success) { println("Downloaded file successfully") } } ashdavies.dev

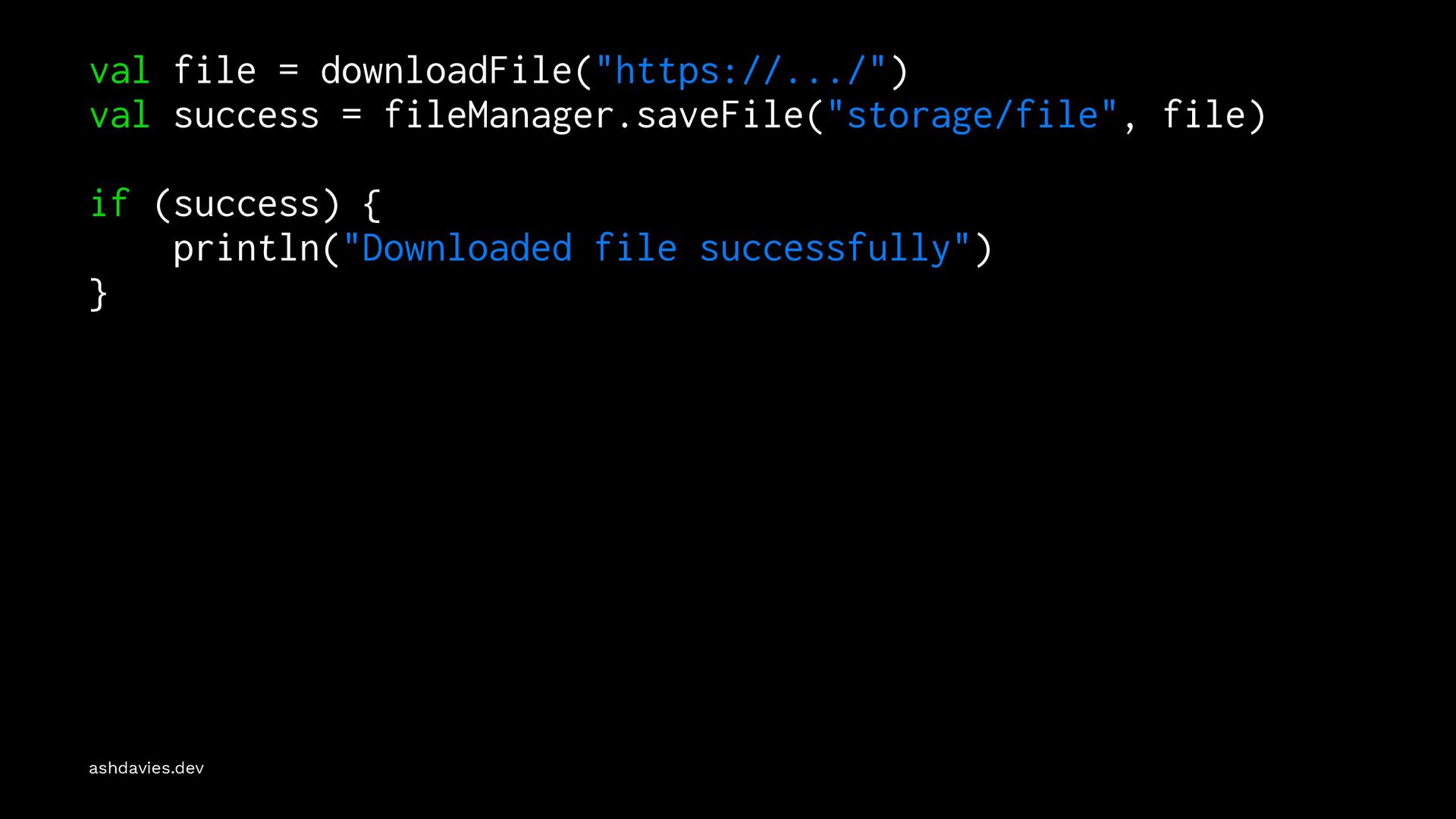

38. val file = downloadFile("https://.../") val success = fileManager.saveFile("storage/file", file) if (success) { println("Downloaded file successfully") } ashdavies.dev

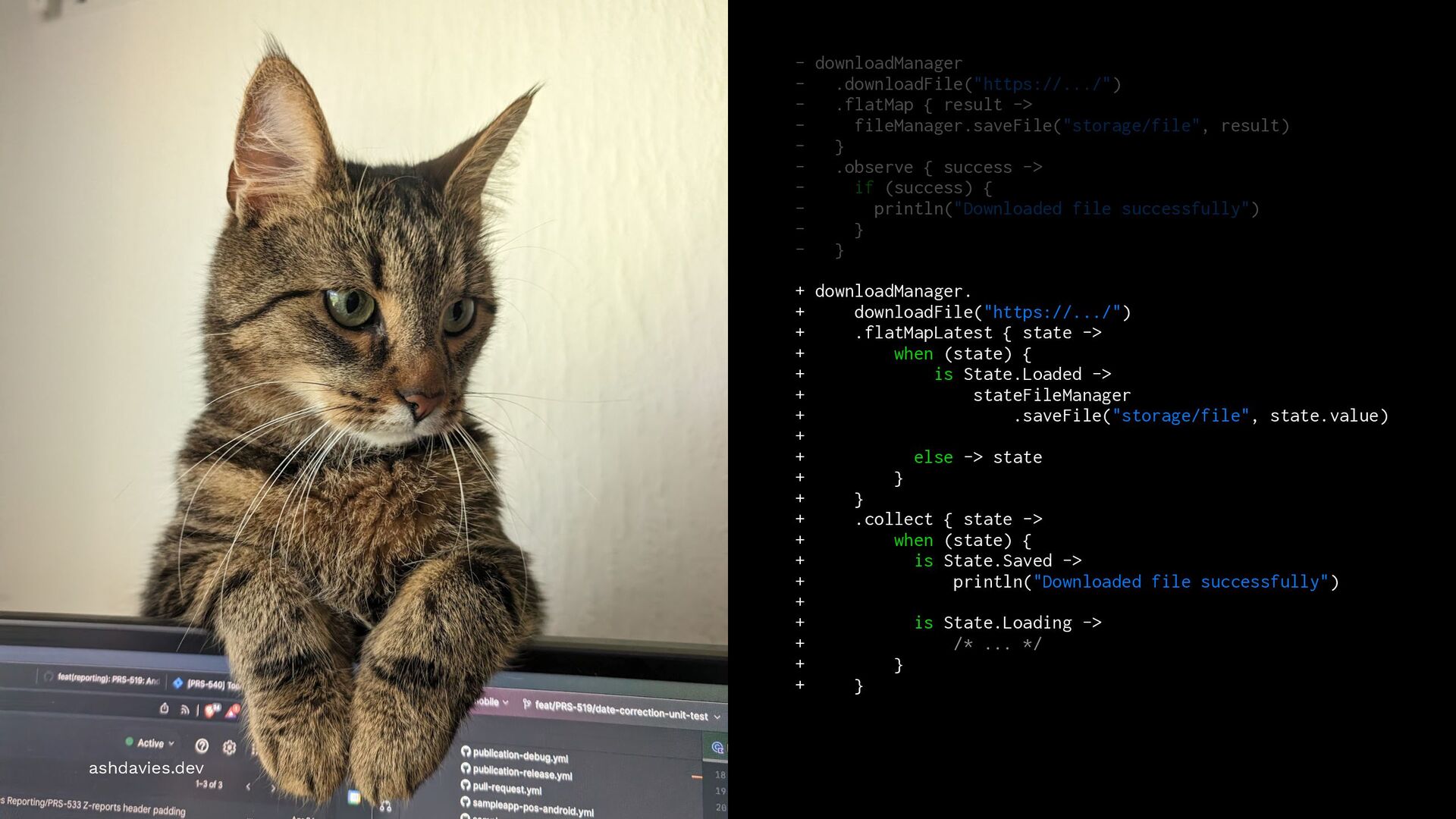

39. - downloadManager - .downloadFile("https://.../") - .flatMap { result -> - fileManager.saveFile("storage/file", result) - } - .observe { success -> - if (success) { - println("Downloaded file successfully") - } - } + downloadManager. + downloadFile("https://.../") + .flatMapLatest { state -> + when (state) { + is State.Loaded -> + stateFileManager + .saveFile("storage/file", state.value) + + else -> state + } + } + .collect { state -> + when (state) { + is State.Saved -> + println("Downloaded file successfully") + + is State.Loading -> + /* ... */ + } + } ashdavies.dev

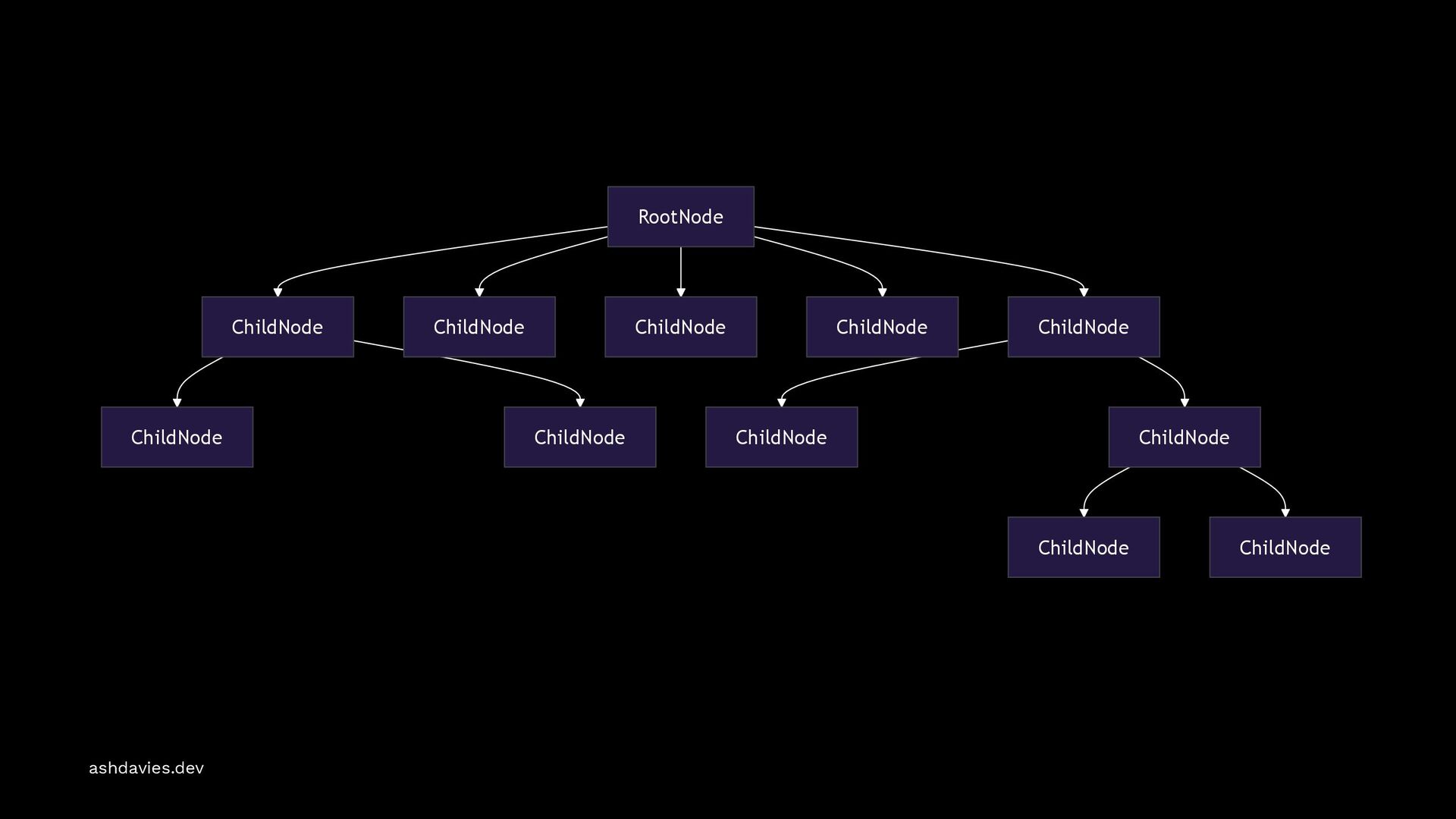

40. RootNode ChildNode ChildNode ChildNode ChildNode ChildNode ChildNode ChildNode ChildNode ChildNode ChildNode ChildNode ashdavies.dev

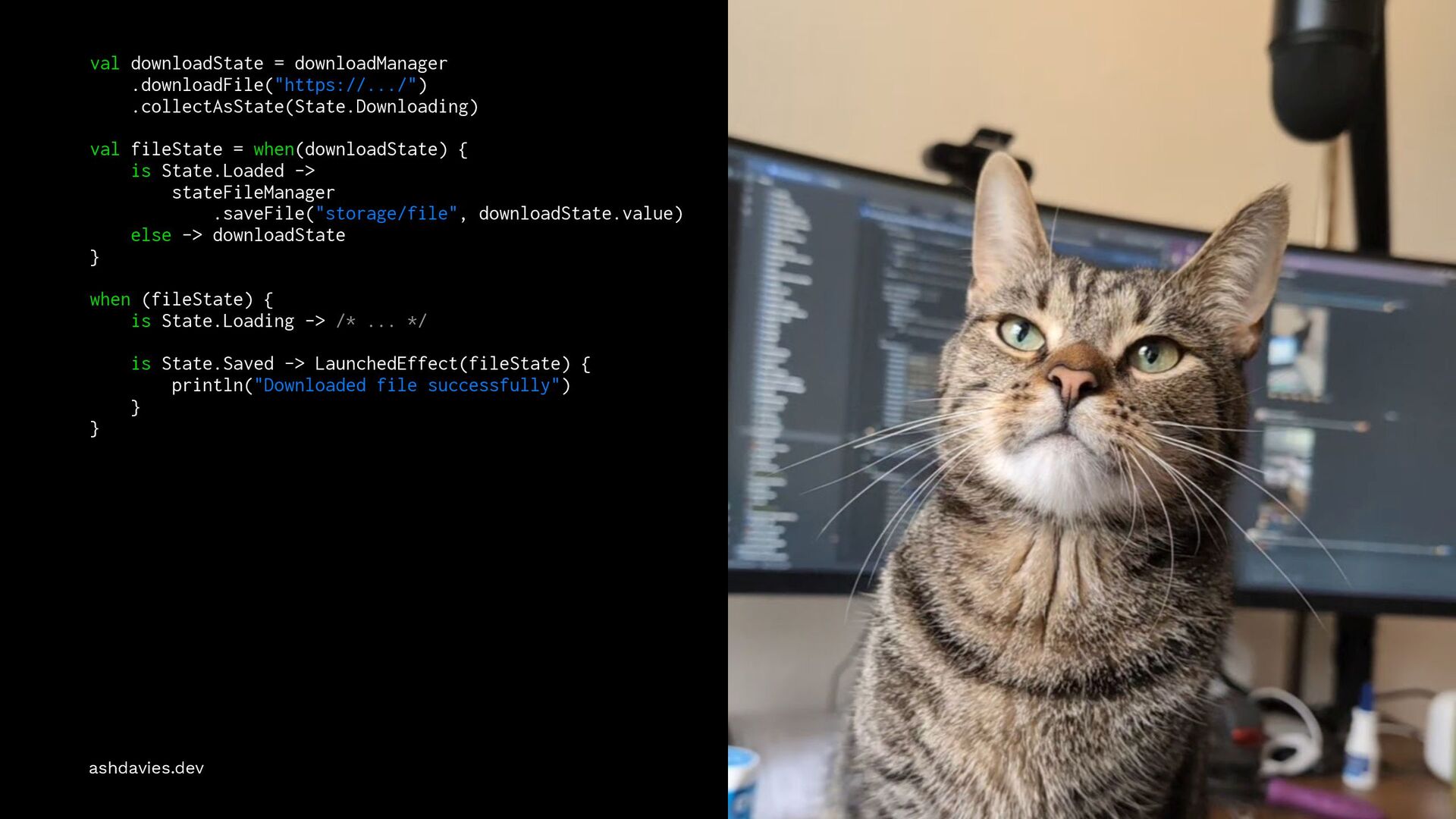

41. val downloadState = downloadManager .downloadFile("https://.../") .collectAsState(State.Downloading) val fileState = when(downloadState) { is State.Loaded -> stateFileManager .saveFile("storage/file", downloadState.value) else -> downloadState } when (fileState) { is State.Loading -> /* ... */ is State.Saved -> LaunchedEffect(fileState) { println("Downloaded file successfully") } } ashdavies.dev

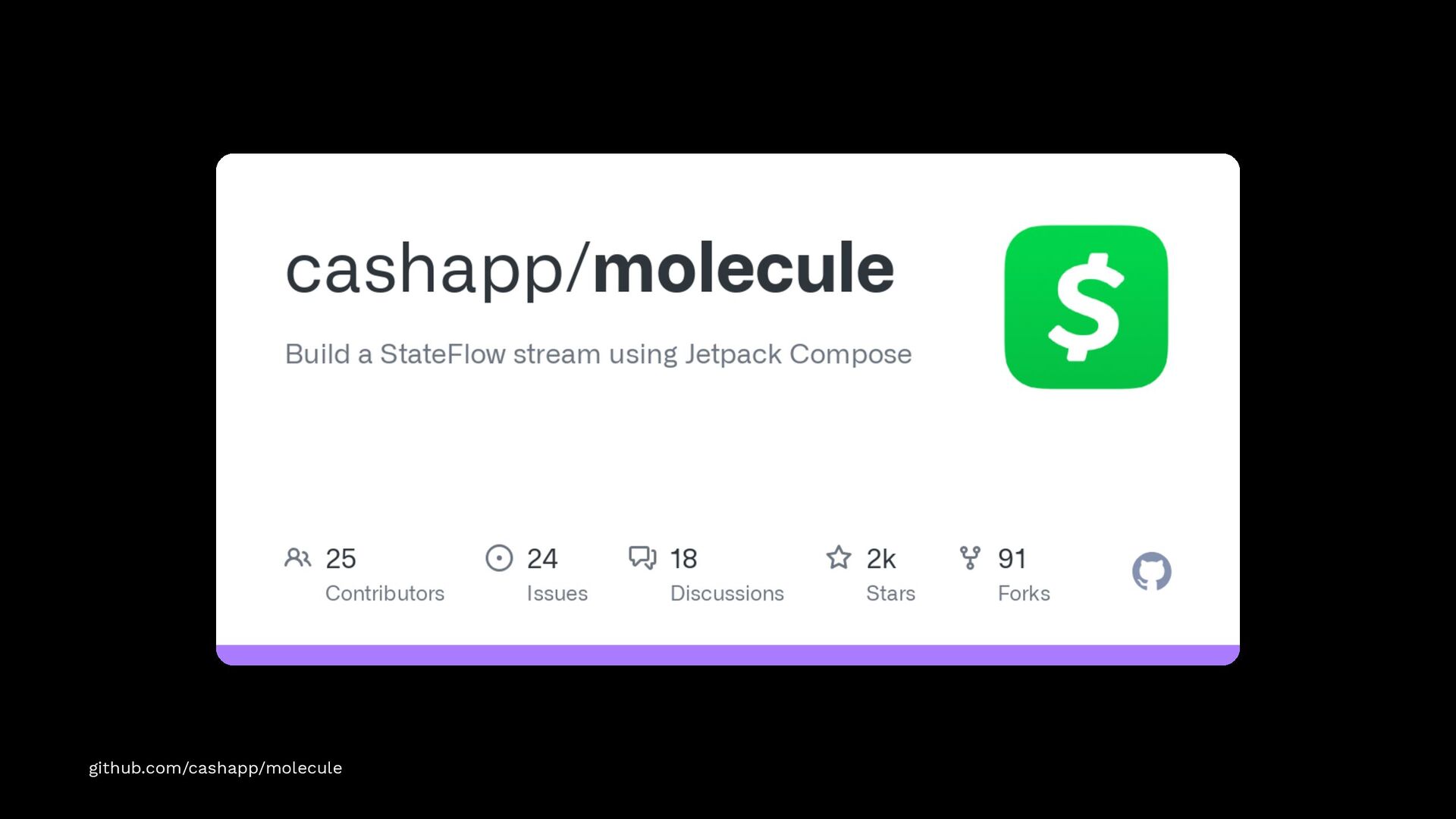

42. github.com/cashapp/molecule

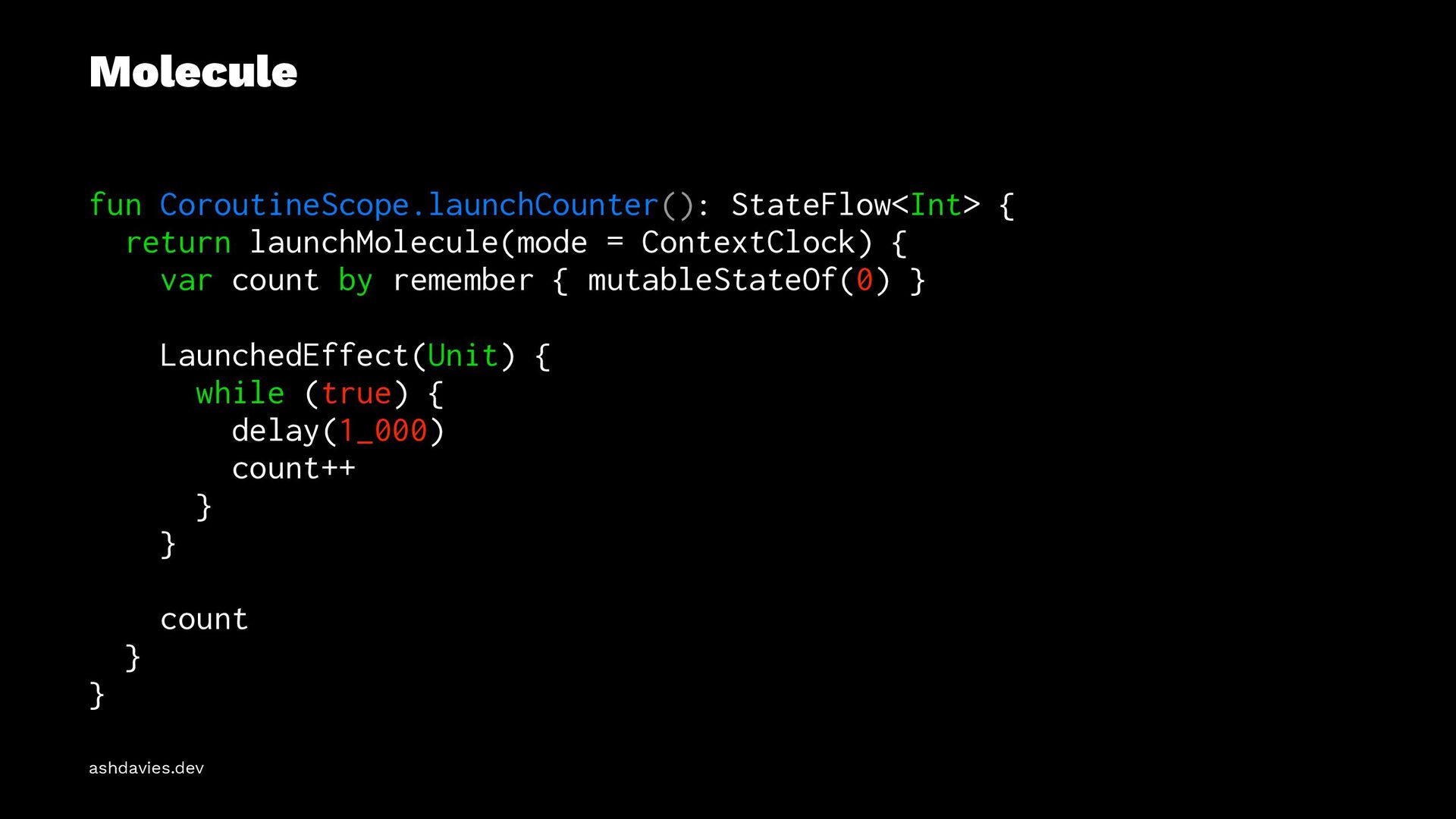

43. Molecule fun CoroutineScope.launchCounter(): StateFlow<Int> { return launchMolecule(mode = ContextClock) { var count by remember { mutableStateOf(0) } LaunchedEffect(Unit) { while (true) { delay(1_000) count++ } } count } } ashdavies.dev

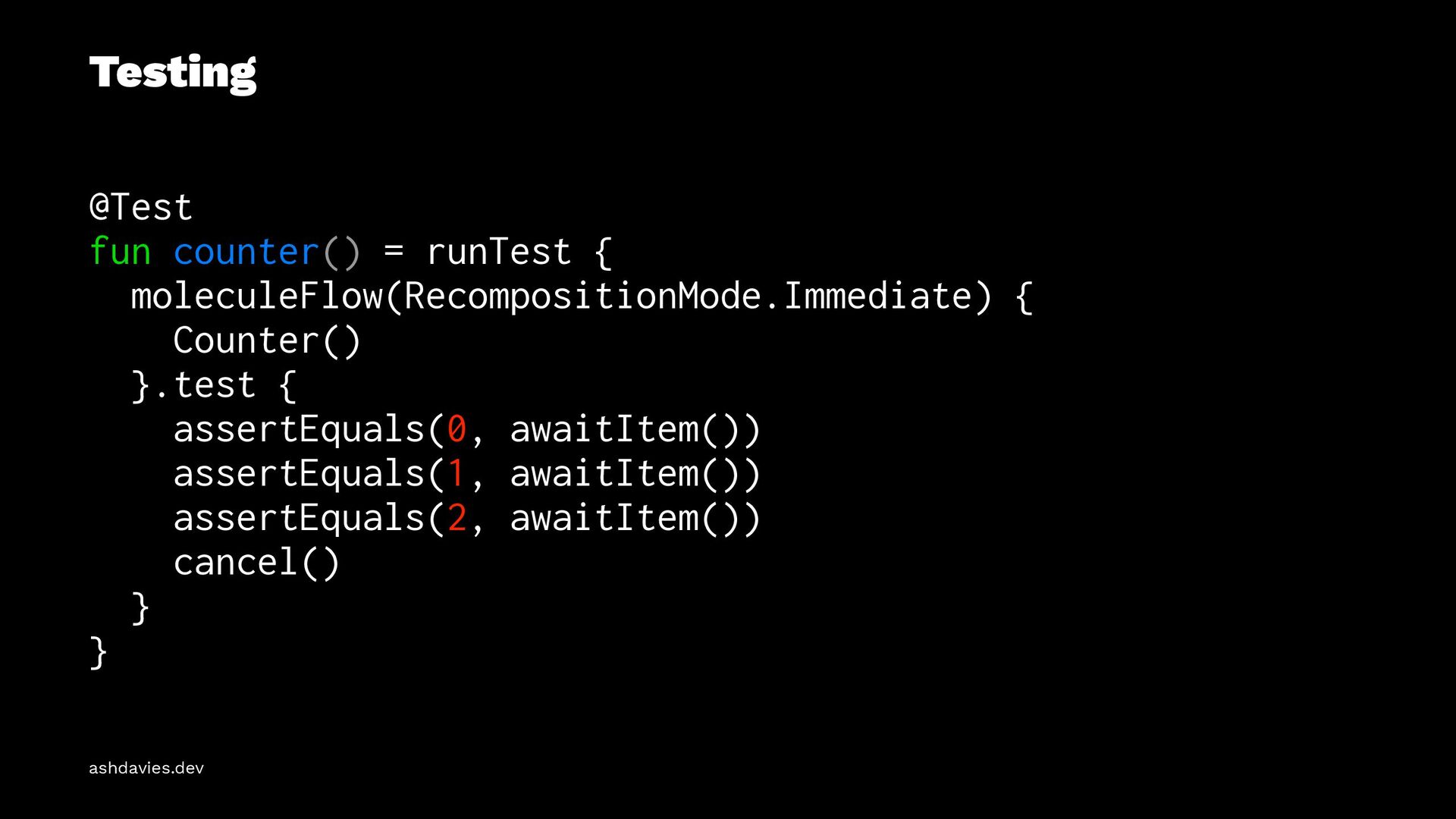

44. Testing @Test fun counter() = runTest { moleculeFlow(RecompositionMode.Immediate) { Counter() }.test { assertEquals(0, awaitItem()) assertEquals(1, awaitItem()) assertEquals(2, awaitItem()) cancel() } } ashdavies.dev
45. ashdavies.dev

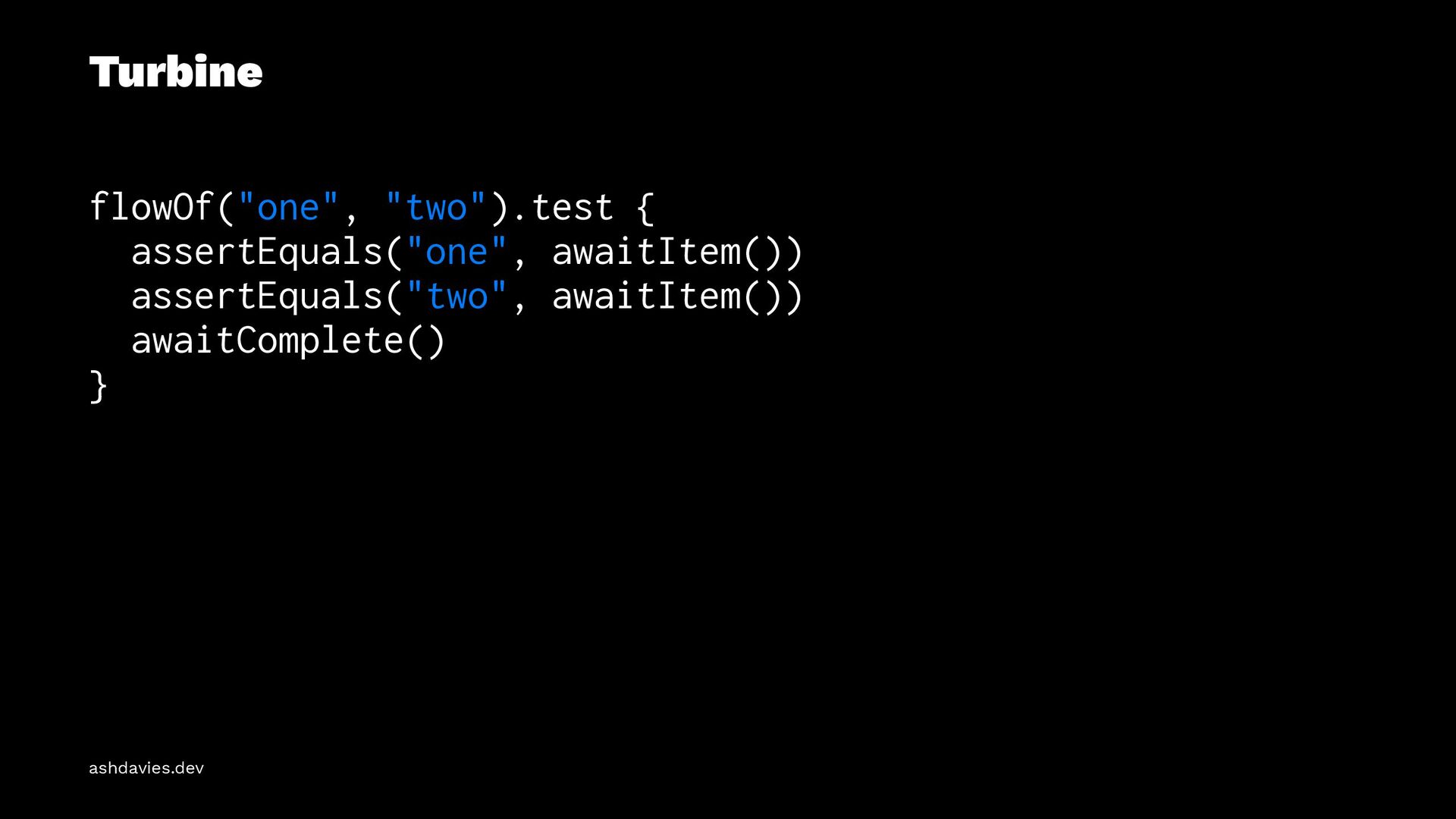

46. Turbine flowOf("one", "two").test { assertEquals("one", awaitItem()) assertEquals("two", awaitItem()) awaitComplete() } ashdavies.dev
47. Architecture ashdavies.dev

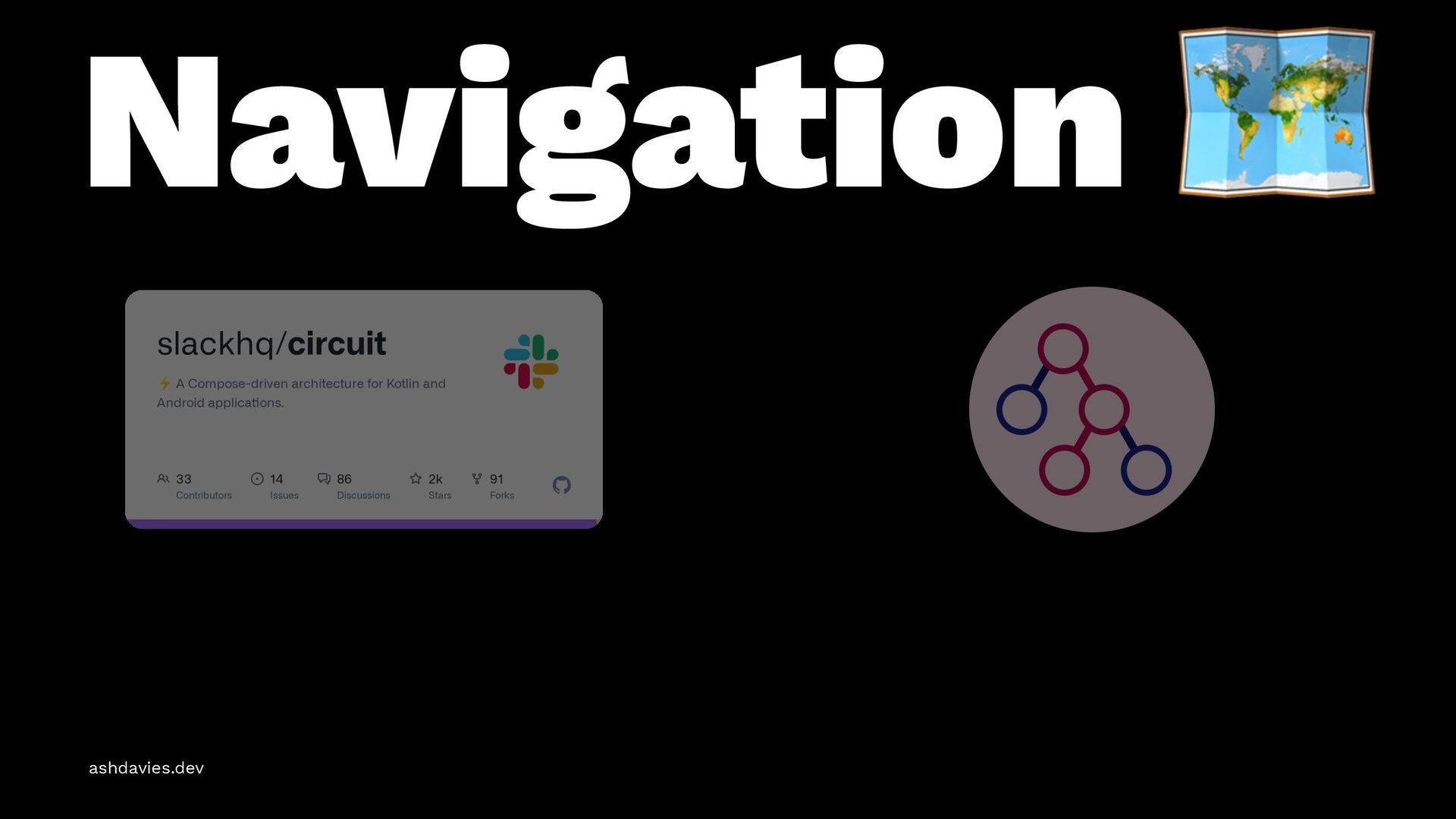

48. Navigation ashdavies.dev
49. Jetpack Navigation 3 android-developers.googleblog.com/2025/05/announcing-jetpack-navigation-3-for-compose.html
50. Pre-Compose Era ashdavies.dev

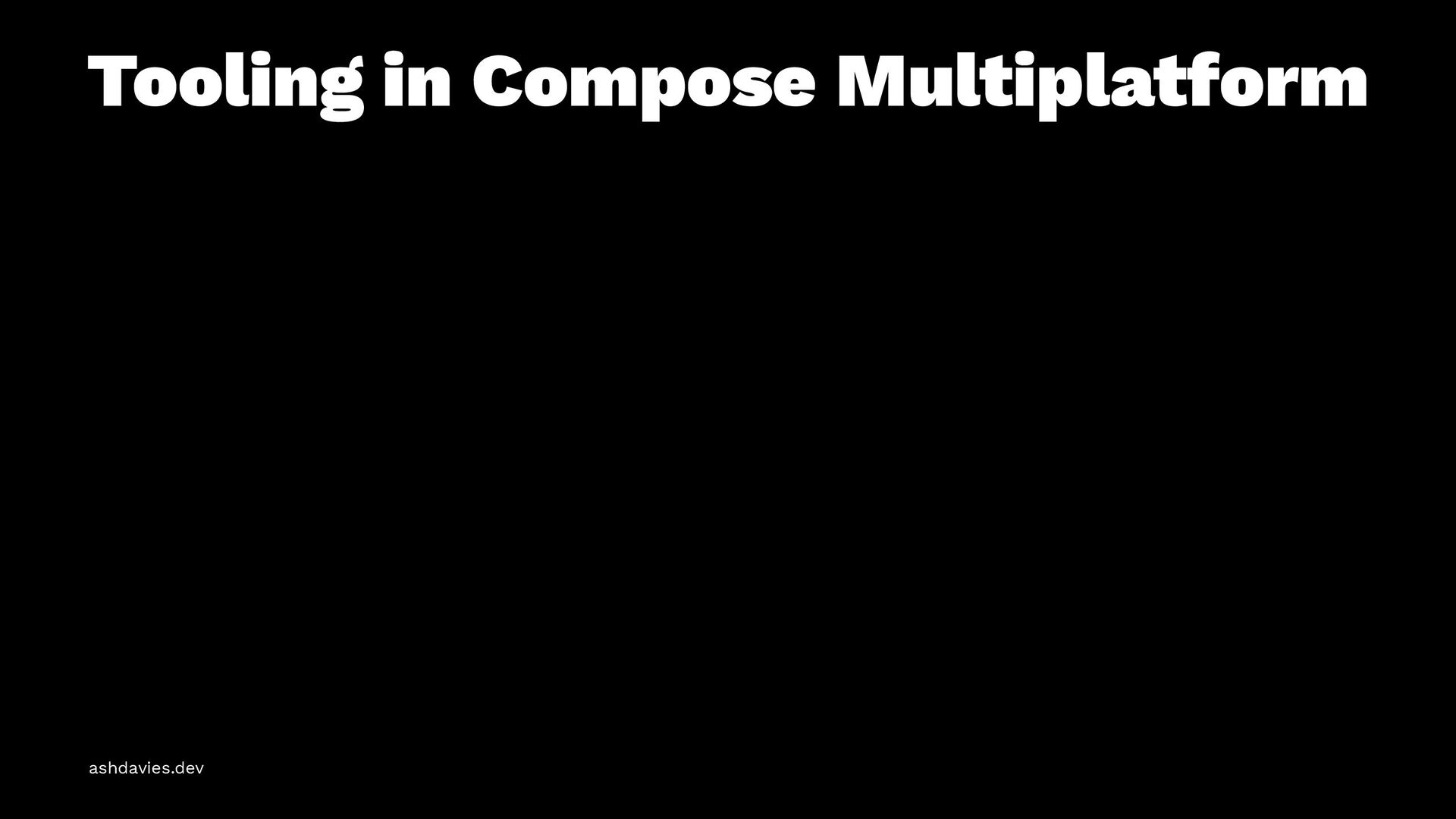

51. Tooling in Compose Multiplatform ashdavies.dev
52. Decompose & Essenty arkivanov.github.io/Decompose ashdavies.dev

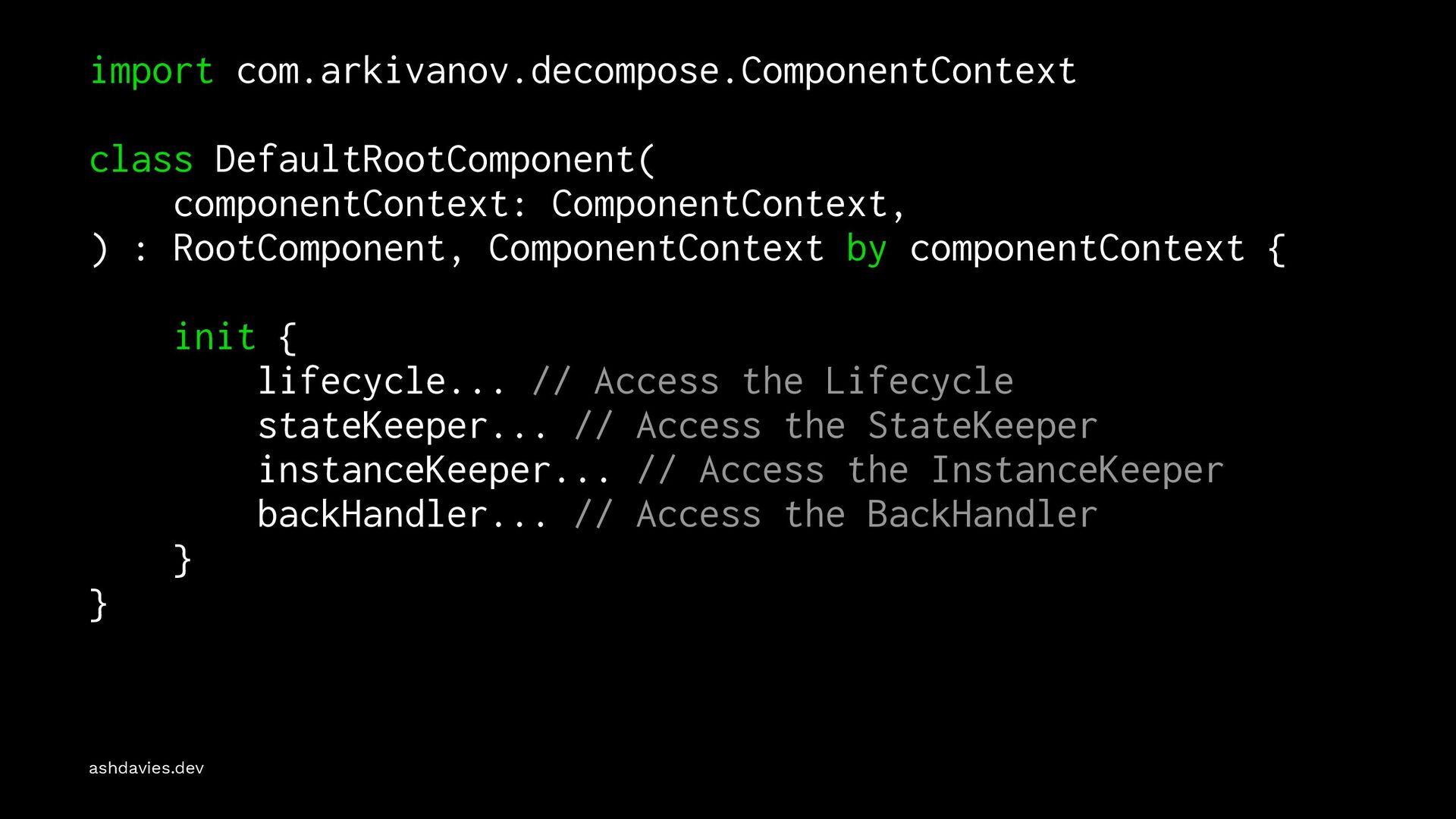

53. import com.arkivanov.decompose.ComponentContext class DefaultRootComponent( componentContext: ComponentContext, ) : RootComponent, ComponentContext by componentContext { init { lifecycle... // Access the Lifecycle stateKeeper... // Access the StateKeeper instanceKeeper... // Access the InstanceKeeper backHandler... // Access the BackHandler } } ashdavies.dev
54. adrielcafe/voyager voyager.adriel.cafe ashdavies.dev

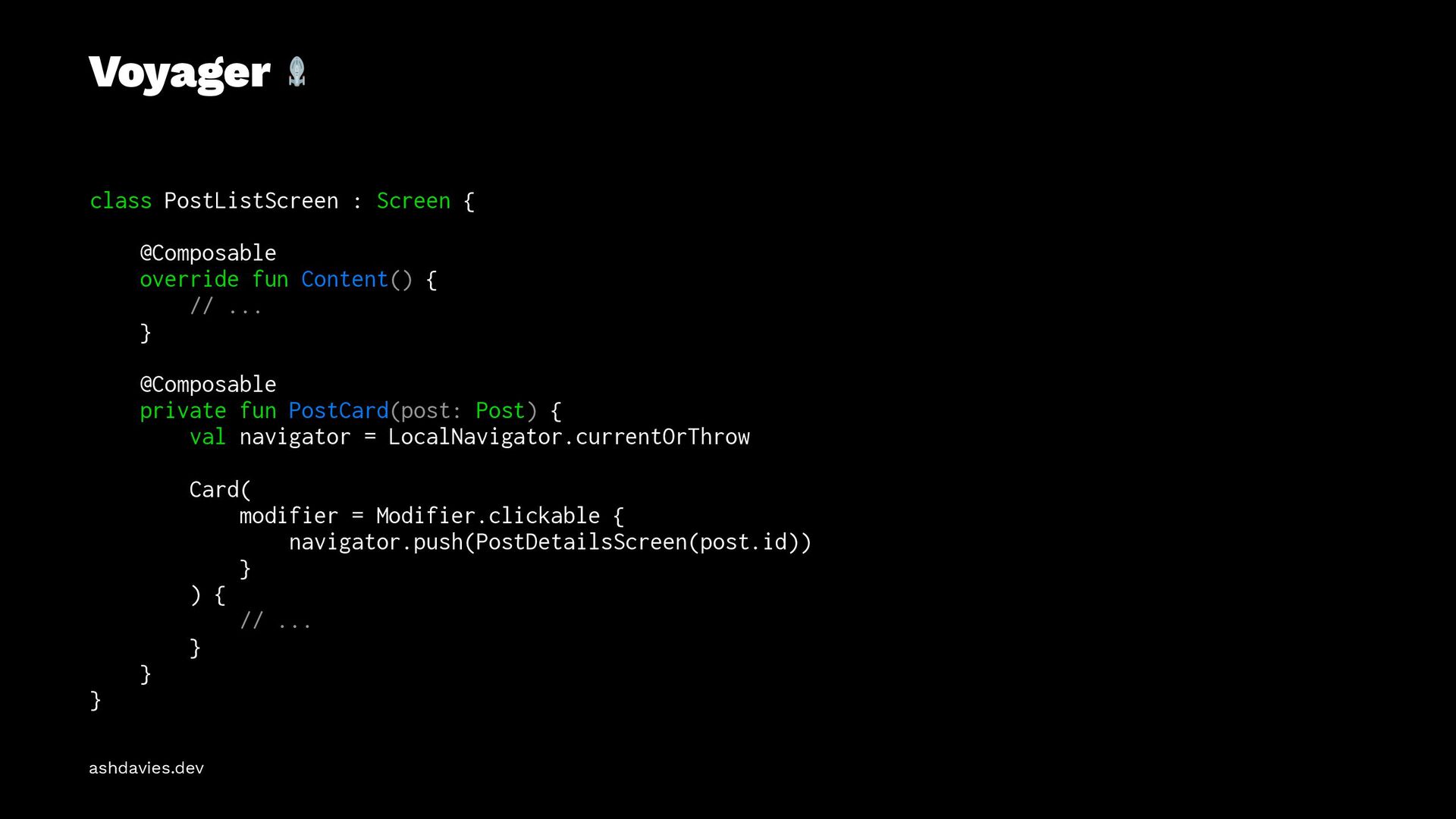

55. Voyager class PostListScreen : Screen { @Composable override fun Content() { // ... } @Composable private fun PostCard(post: Post) { val navigator = LocalNavigator.currentOrThrow Card( modifier = Modifier.clickable { navigator.push(PostDetailsScreen(post.id)) } ) { // ... } } } ashdavies.dev

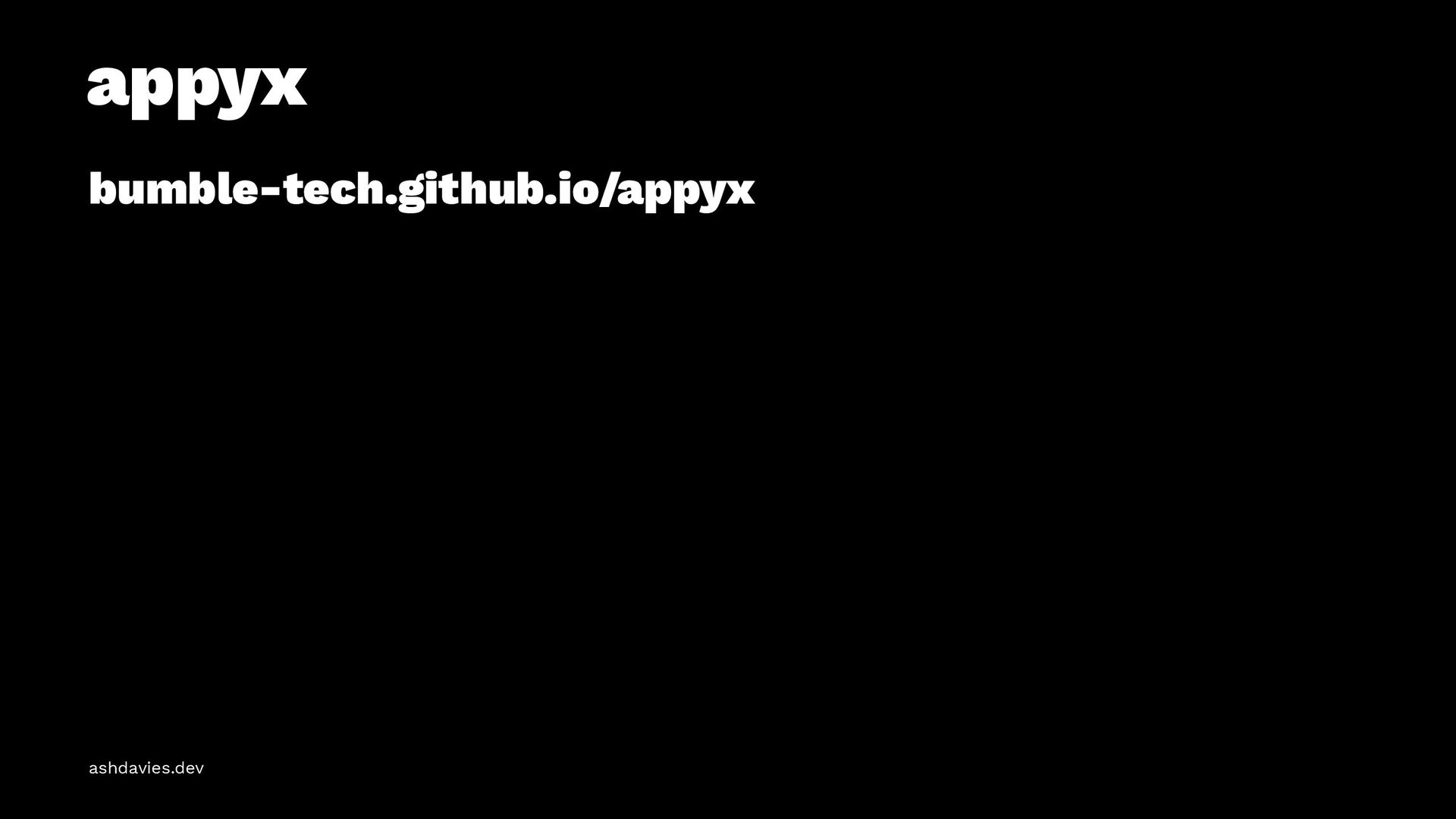

56. appyx bumble-tech.github.io/appyx ashdavies.dev

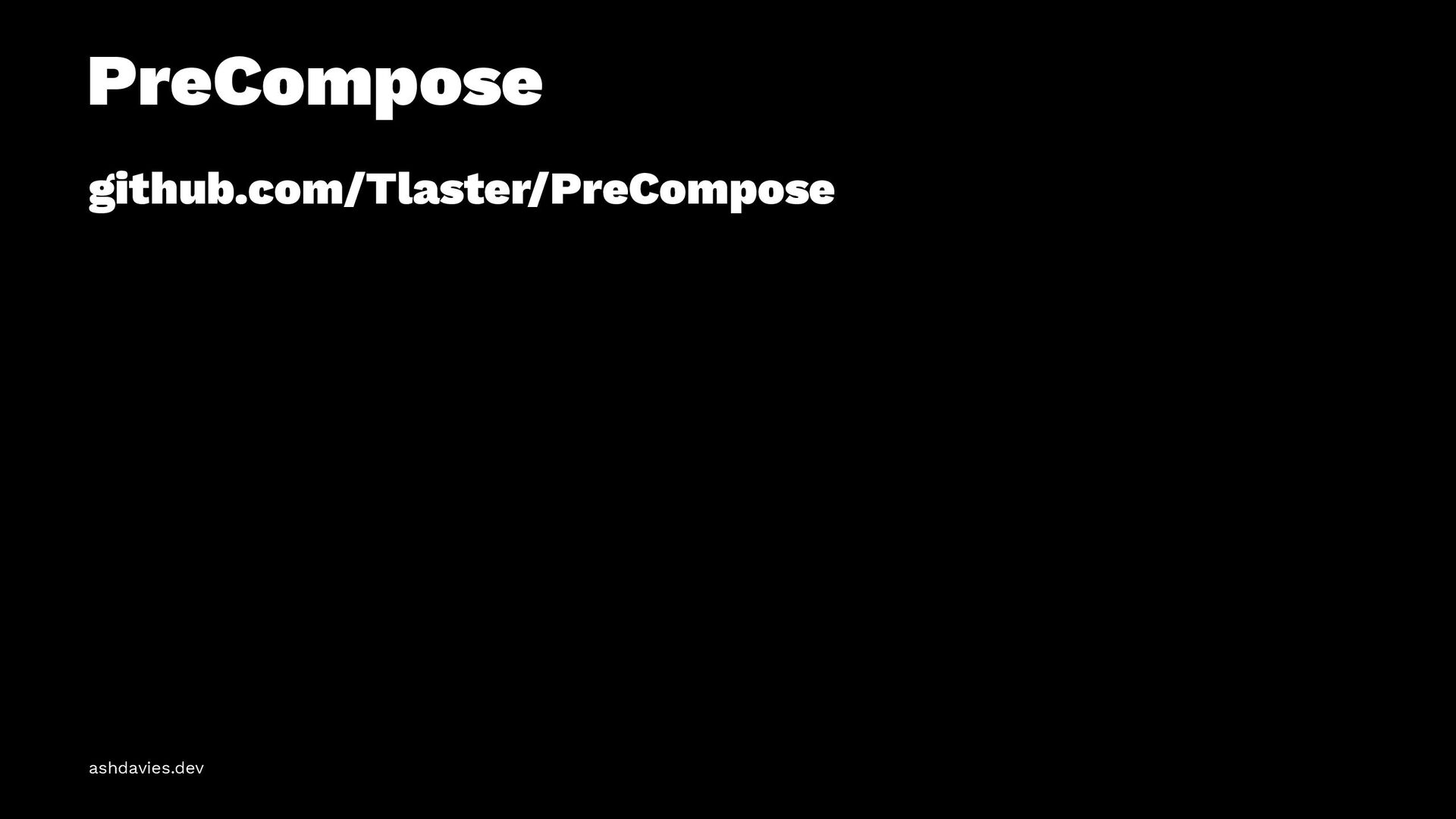

57. PreCompose github.com/Tlaster/PreCompose ashdavies.dev
58. github.com/cashapp/molecule

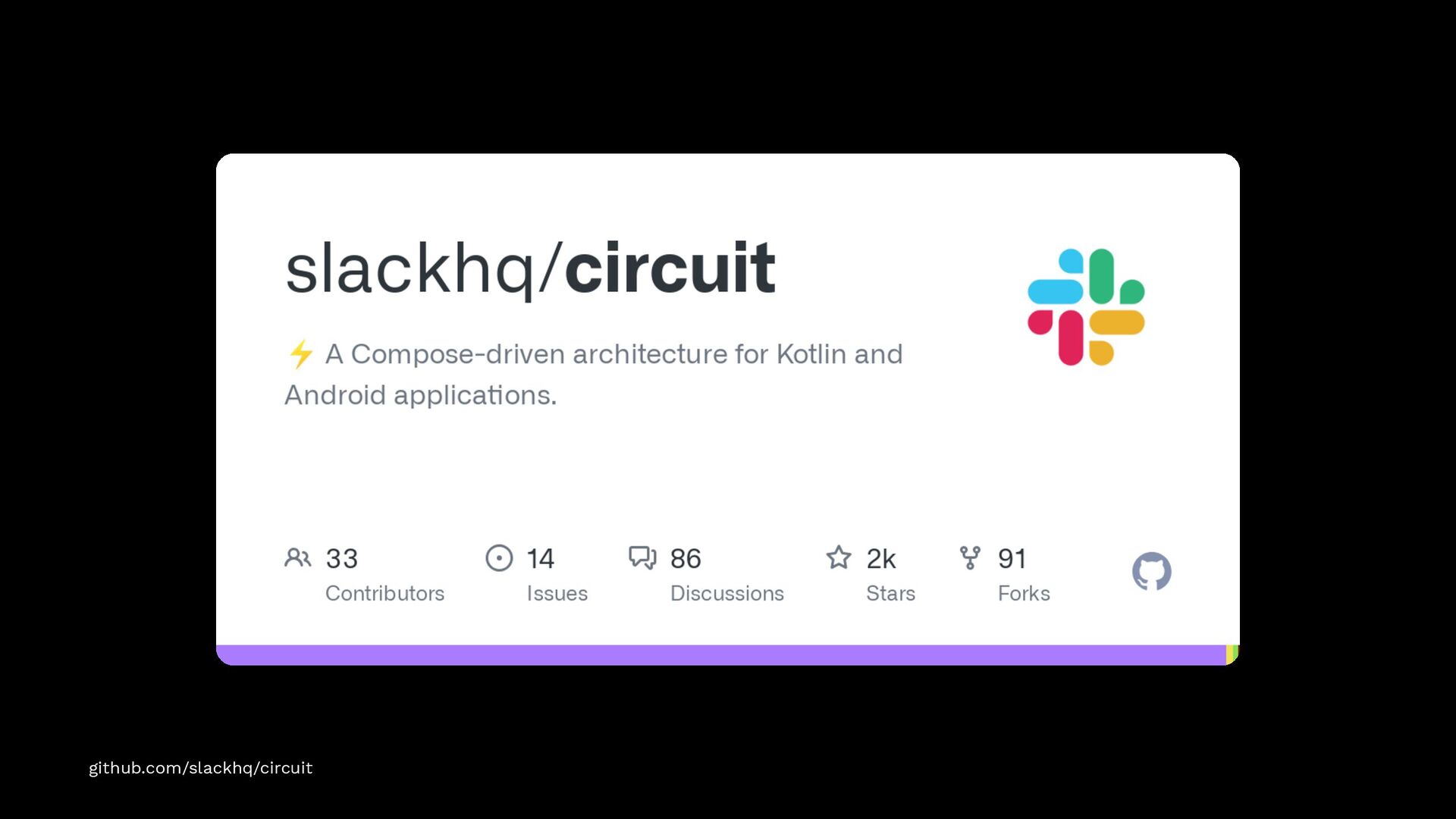

59. github.com/slackhq/circuit

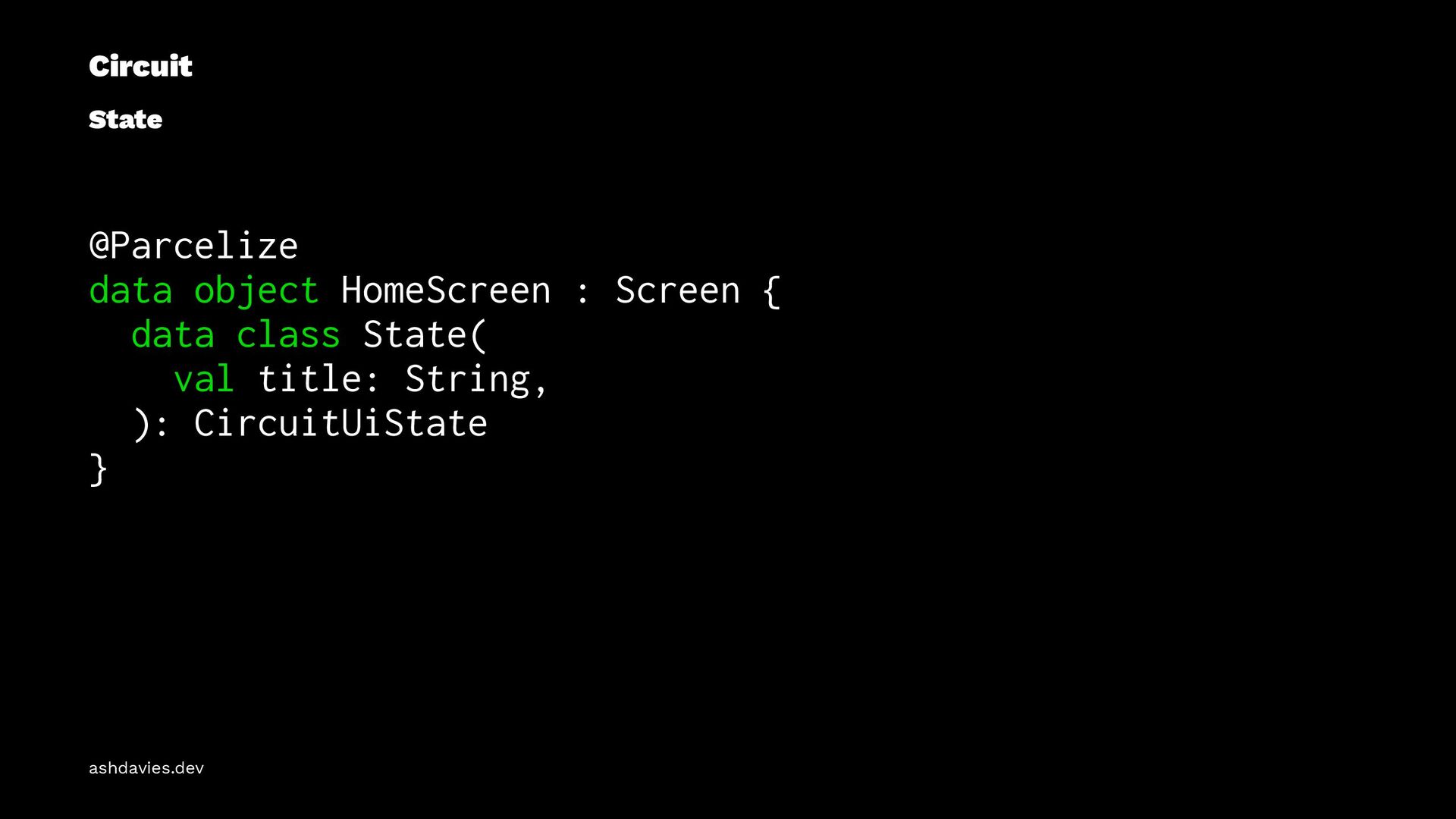

60. Circuit State @Parcelize data object HomeScreen : Screen { data class State( val title: String, ): CircuitUiState } ashdavies.dev

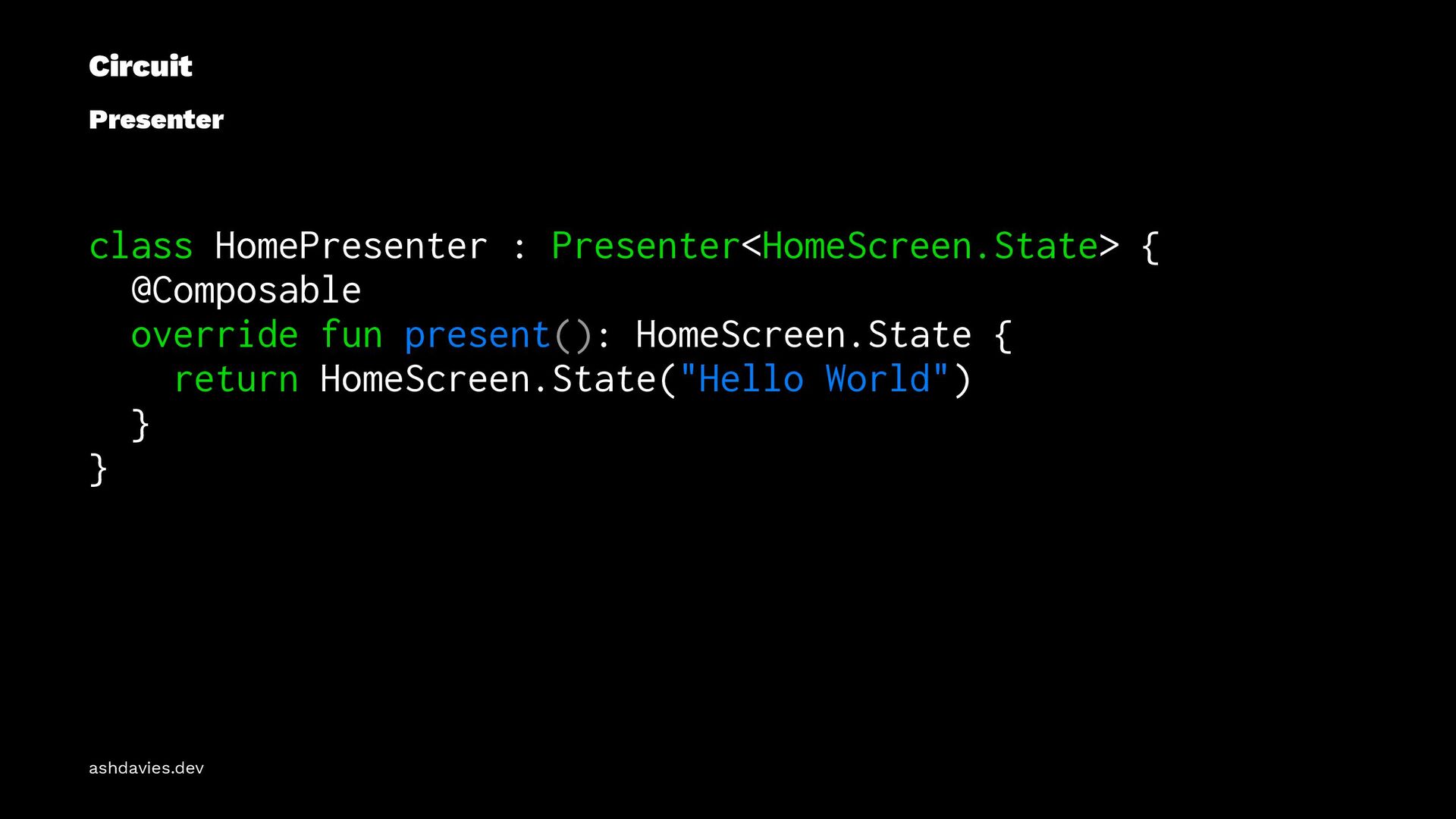

61. Circuit Presenter class HomePresenter : Presenter<HomeScreen.State> { @Composable override fun present(): HomeScreen.State { return HomeScreen.State("Hello World") } } ashdavies.dev

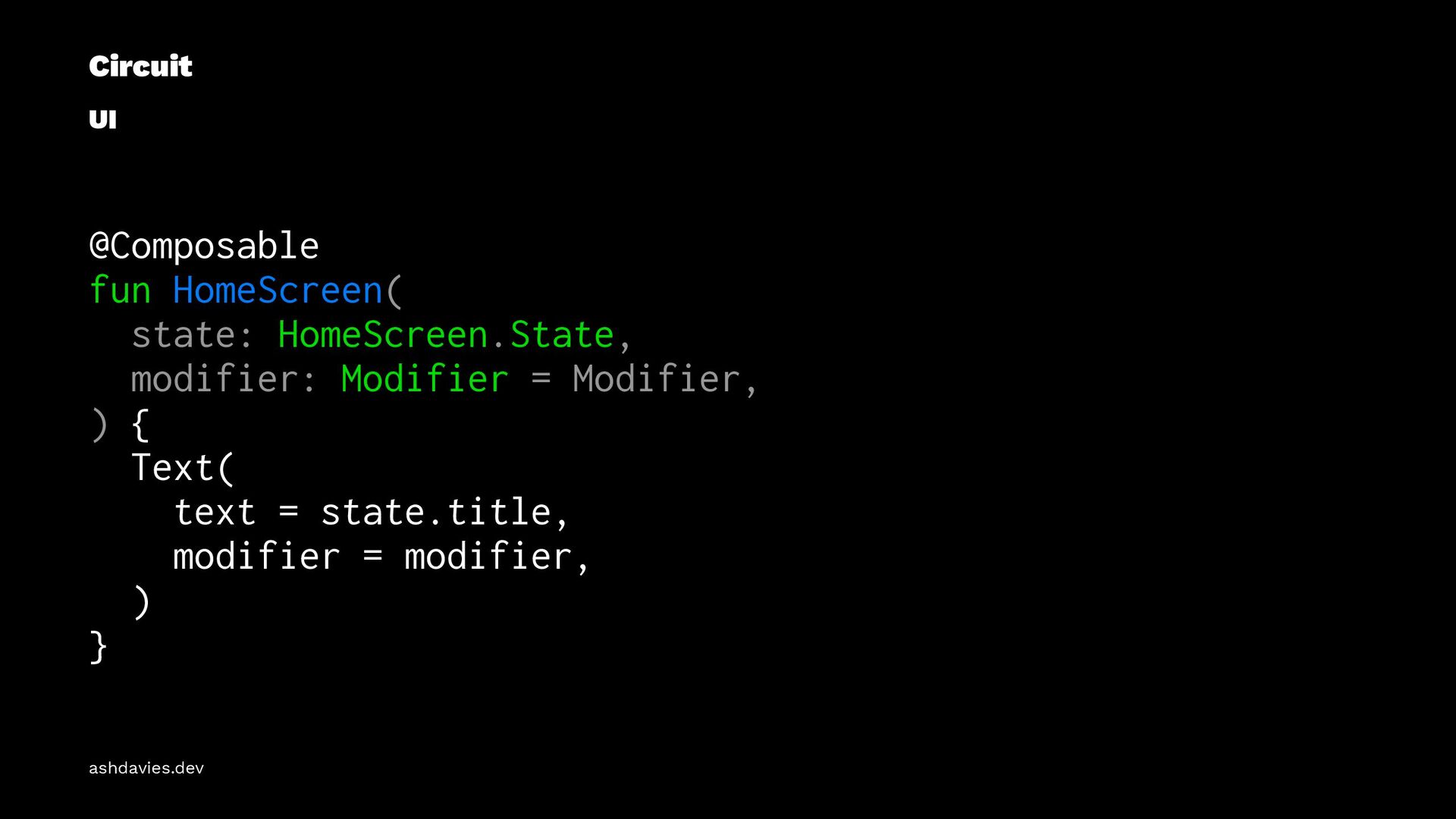

62. Circuit UI @Composable fun HomeScreen( state: HomeScreen.State, modifier: Modifier = Modifier, ) { Text( text = state.title, modifier = modifier, ) } ashdavies.dev

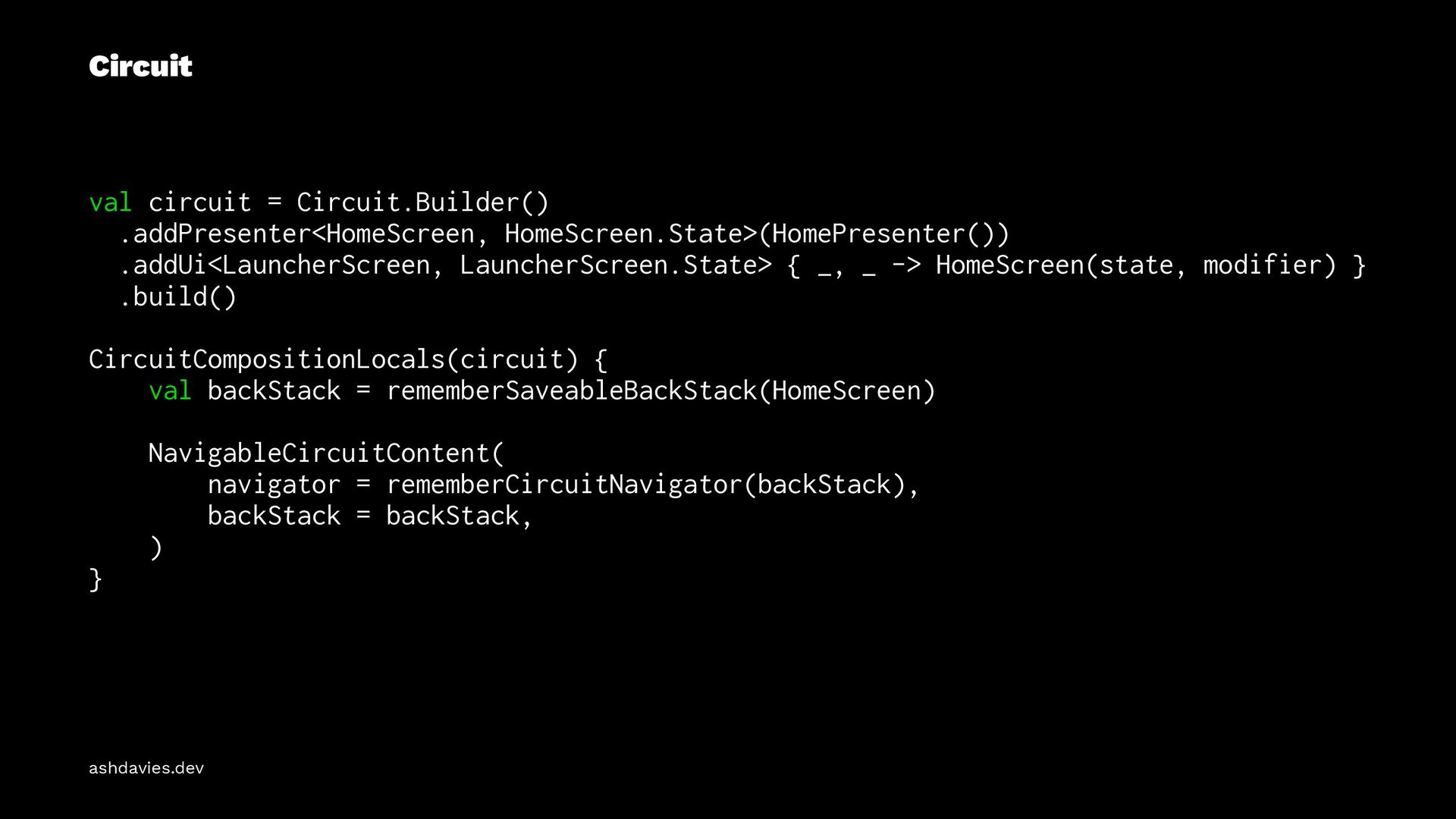

63. Circuit val circuit = Circuit.Builder() .addPresenter<HomeScreen, HomeScreen.State>(HomePresenter()) .addUi<LauncherScreen, LauncherScreen.State> { _, _ -> HomeScreen(state, modifier) } .build() CircuitCompositionLocals(circuit) { val backStack = rememberSaveableBackStack(HomeScreen) NavigableCircuitContent( navigator = rememberCircuitNavigator(backStack), backStack = backStack, ) } ashdavies.dev
64. Circuit Navigation @Parcelize data object HomeScreen : Screen { data class State( val title: String, val eventSink: (Event) -> Unit ): CircuitUiState sealed interface Event { data class DetailClicked( val id: String, ): Event } ashdavies.dev

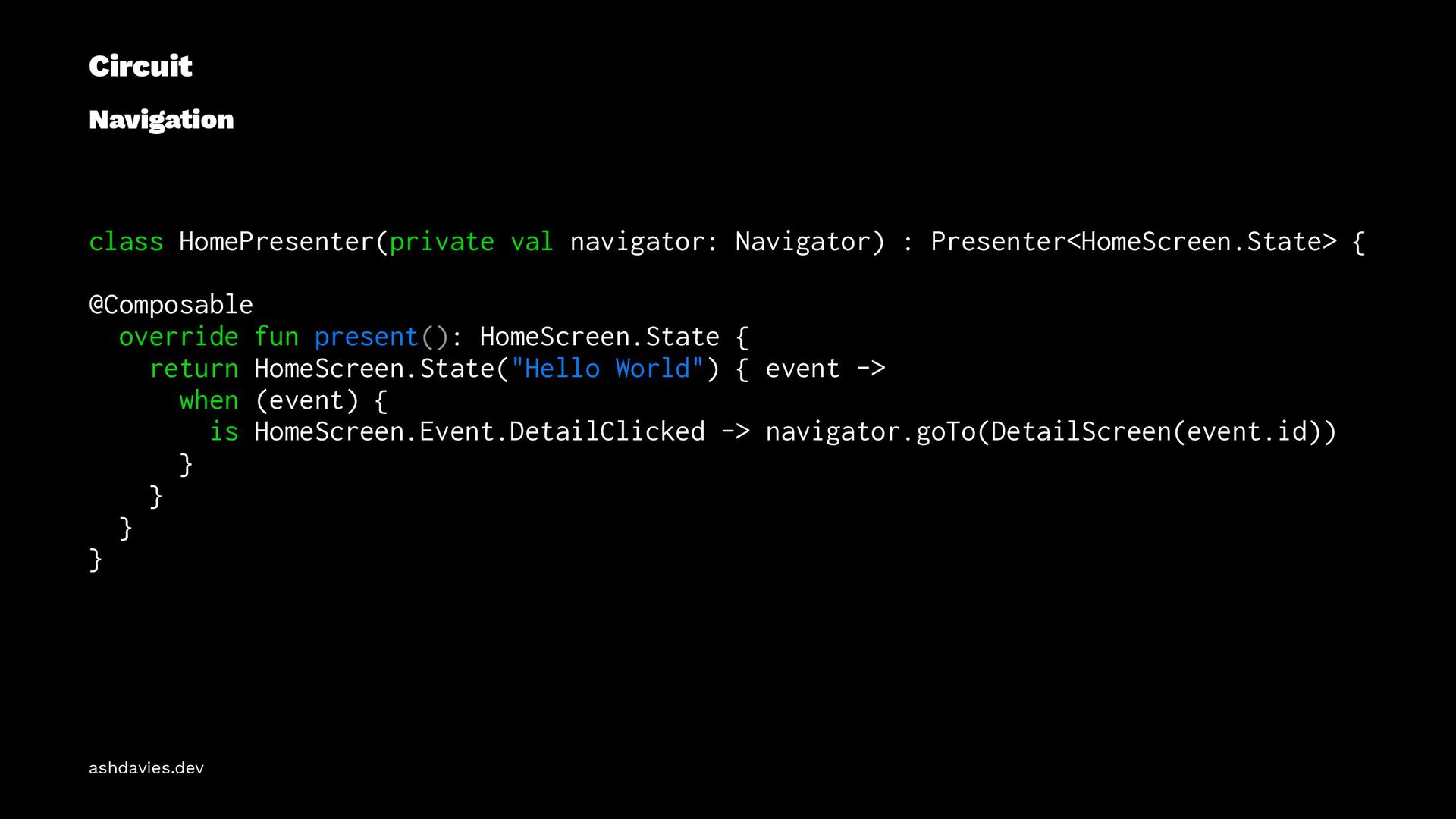

65. Circuit Navigation class HomePresenter(private val navigator: Navigator) : Presenter<HomeScreen.State> { @Composable override fun present(): HomeScreen.State { return HomeScreen.State("Hello World") { event -> when (event) { is HomeScreen.Event.DetailClicked -> navigator.goTo(DetailScreen(event.id)) } } } } ashdavies.dev
66. youtube.com/watch?v=ZIr_uuN8FEw
67. But Why? ashdavies.dev
68. ashdavies.dev
69. Prototyping ! ashdavies.dev

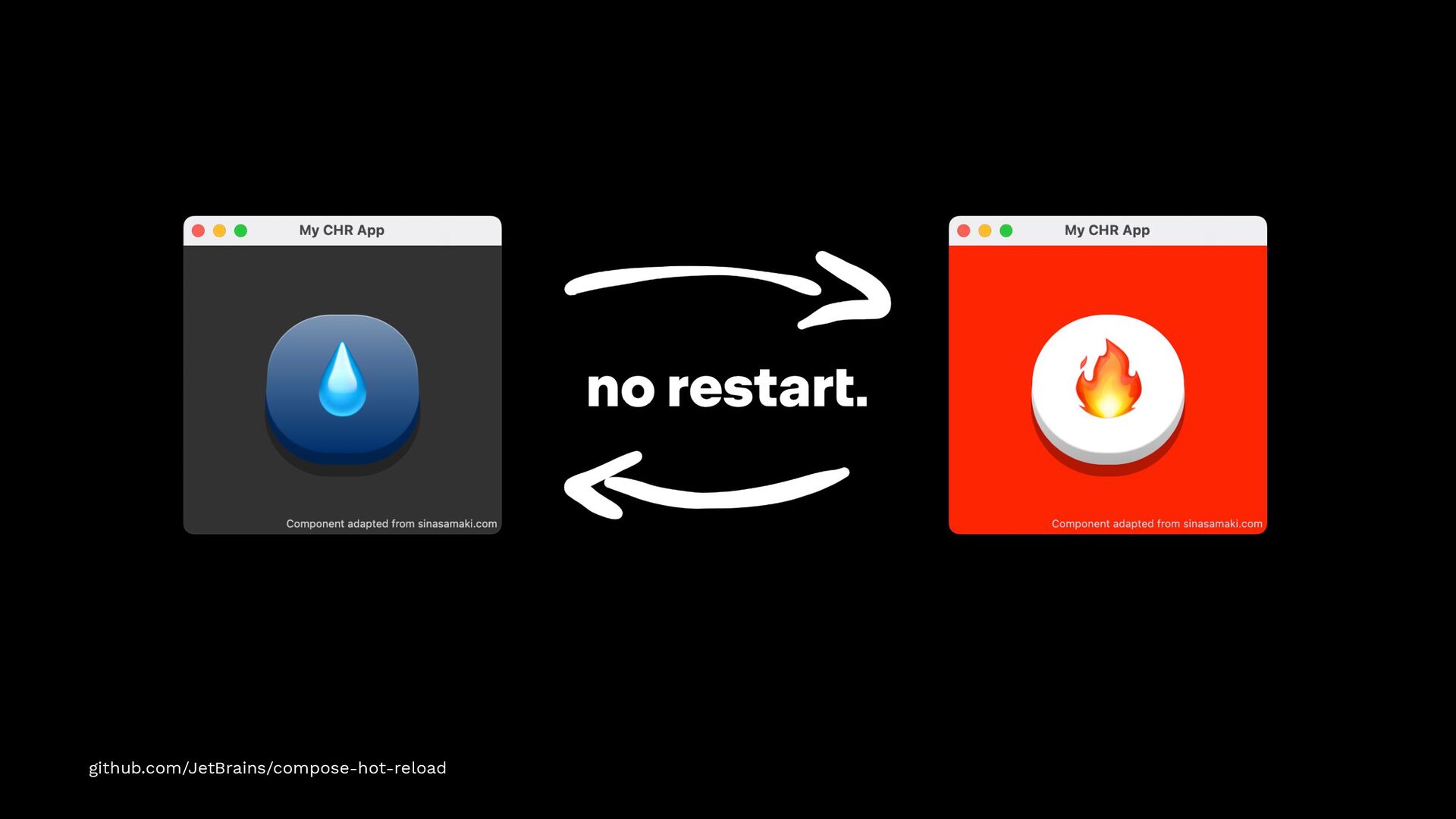

70. github.com/JetBrains/compose-hot-reload
71. Recomposition ! ashdavies.dev

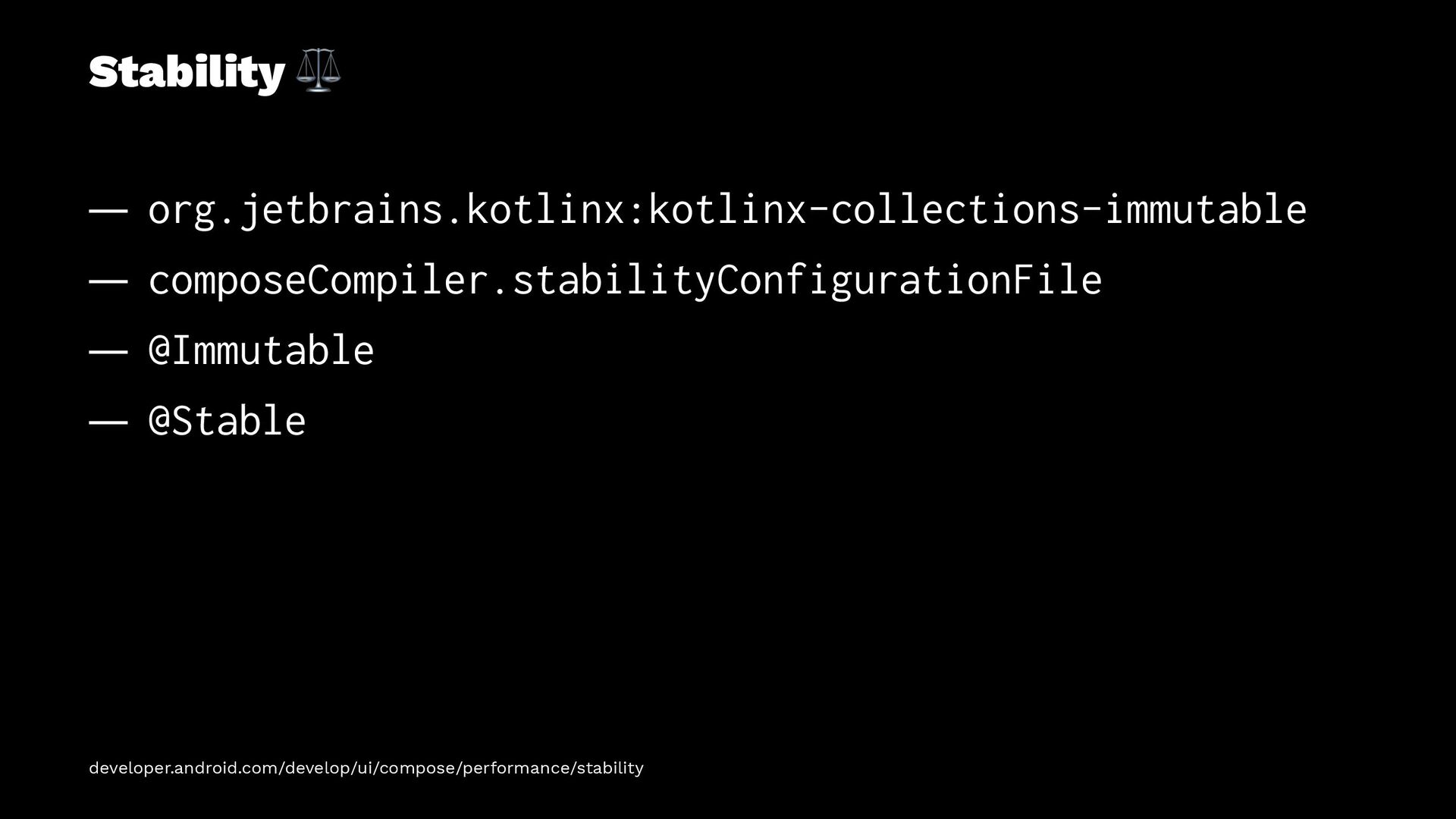

72. Stability ⚖ — org.jetbrains.kotlinx:kotlinx-collections-immutable — composeCompiler.stabilityConfigurationFile — @Immutable — @Stable developer.android.com/develop/ui/compose/performance/stability
73. Remember ! ashdavies.dev

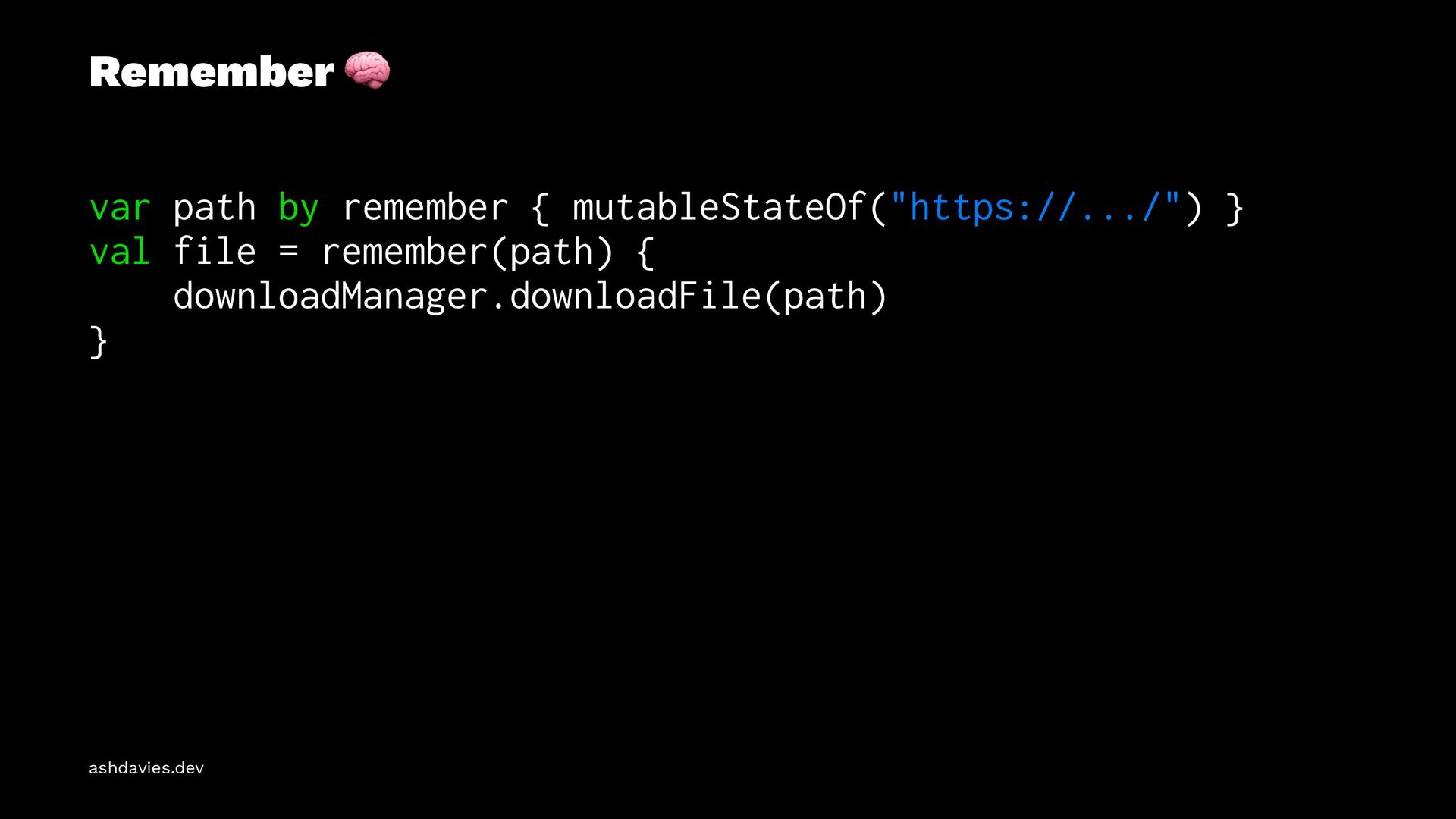

74. Remember ! var path by remember { mutableStateOf("https://.../") } val file = remember(path) { downloadManager.downloadFile(path) } ashdavies.dev

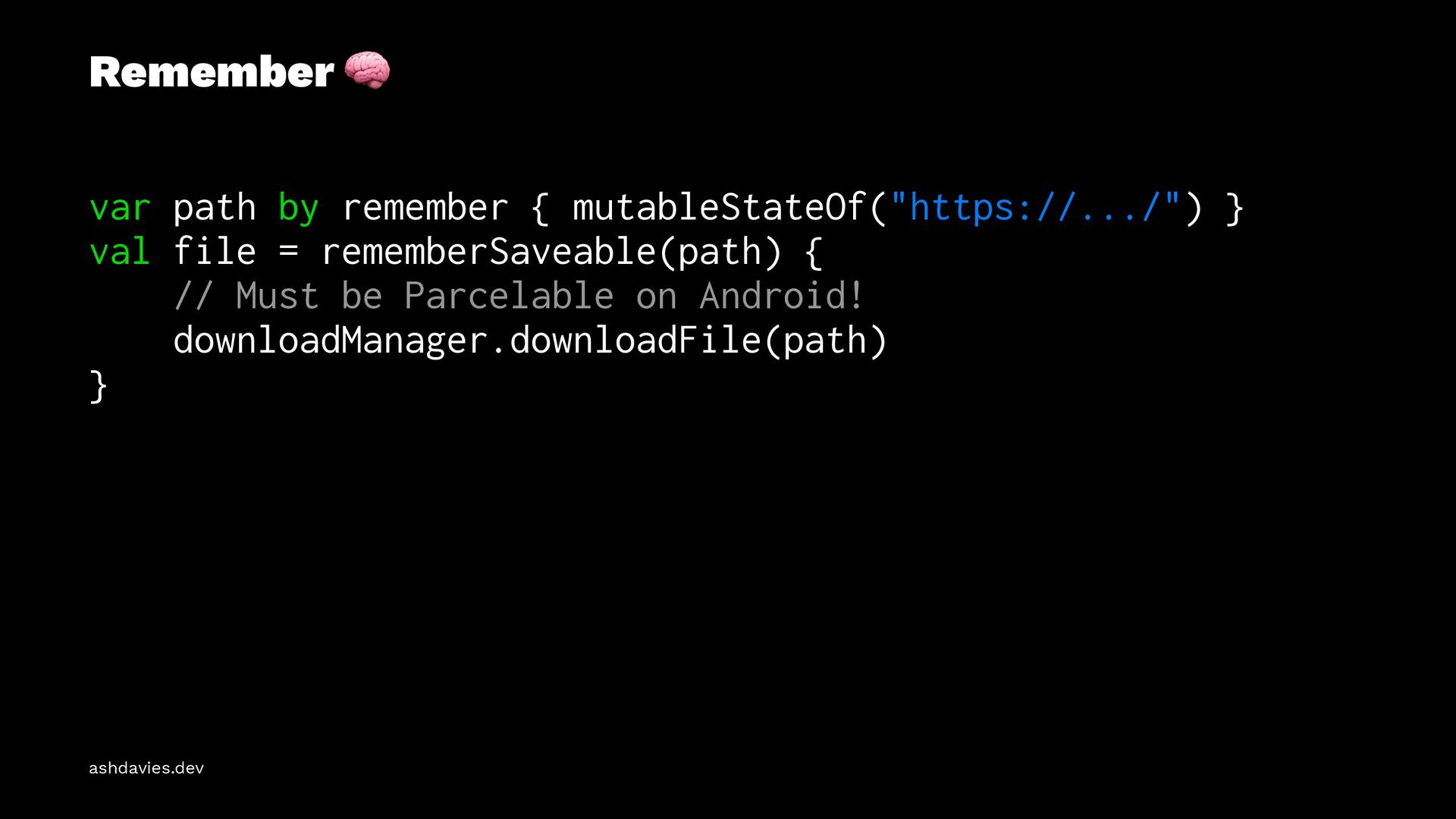

75. Remember ! var path by remember { mutableStateOf("https://.../") } val file = rememberSaveable(path) { // Must be Parcelable on Android! downloadManager.downloadFile(path) } ashdavies.dev

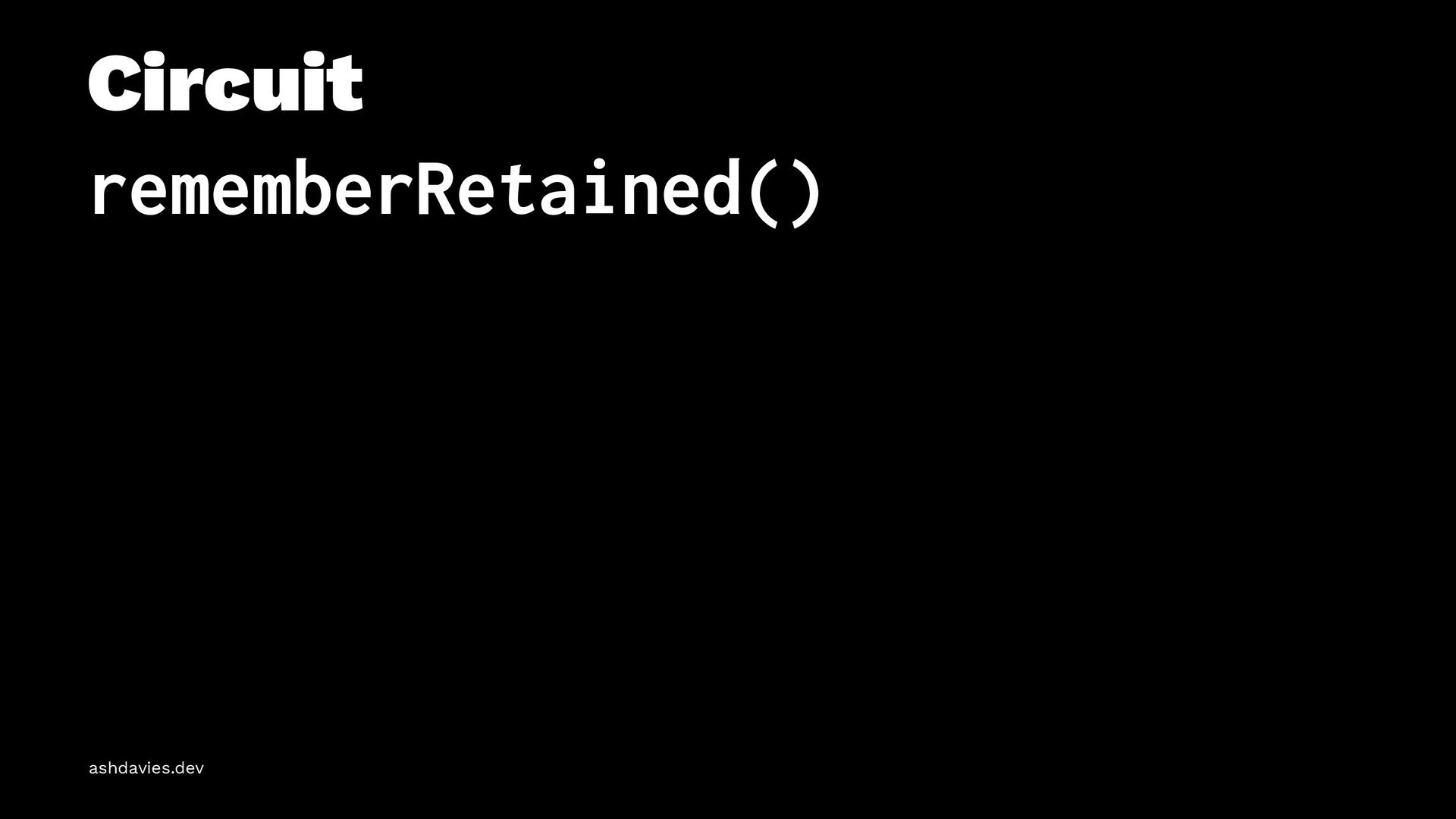

76. Circuit rememberRetained() ashdavies.dev
77. rememberRetainedCoroutineScope() Retaining Beyond ViewModels chrisbanes.me/posts/retaining-beyond-viewmodels

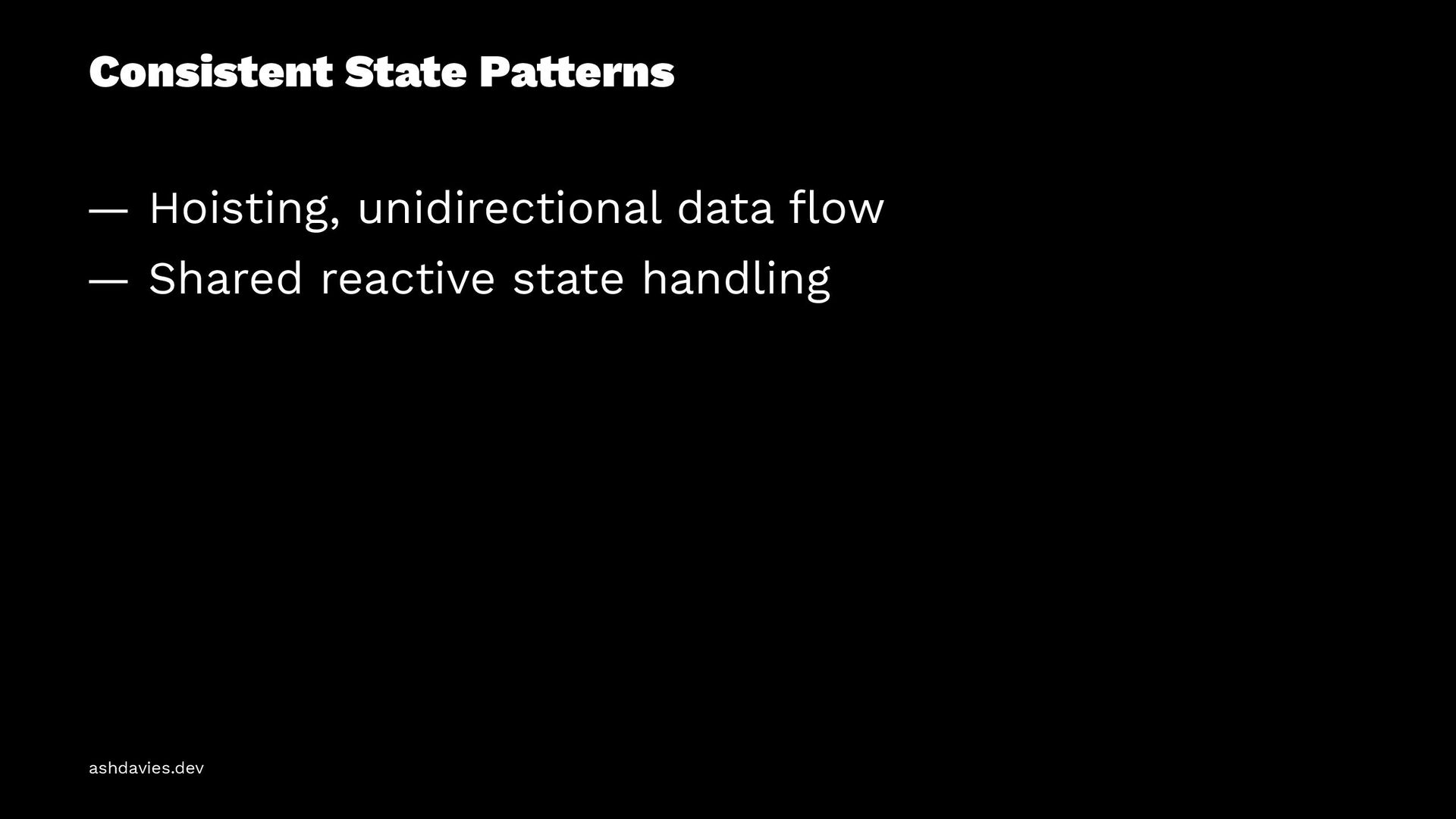

78. Consistent State Pa!erns — Hoisting, unidirectional data flow — Shared reactive state handling ashdavies.dev

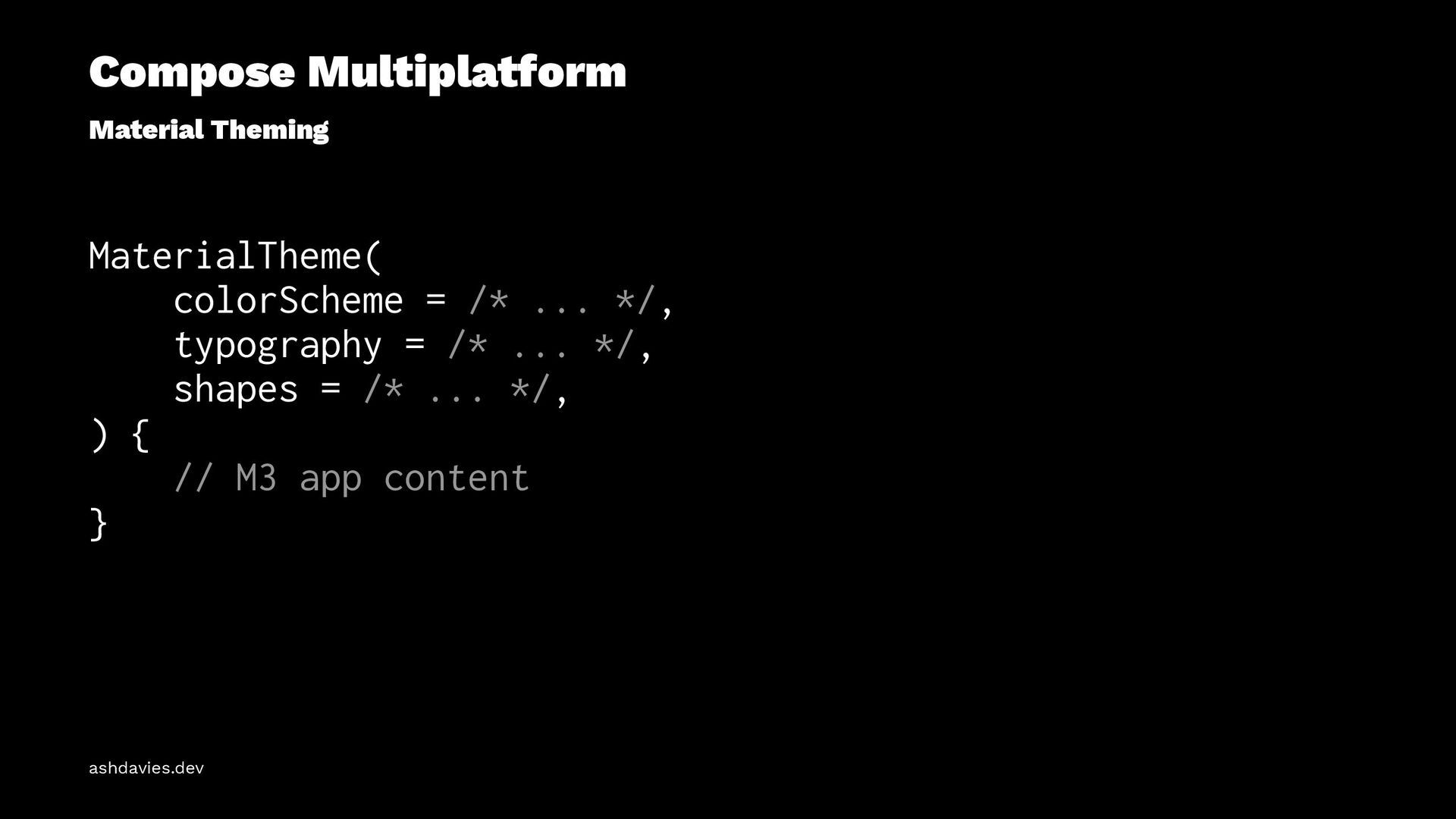

79. Compose Multiplatform Material Theming MaterialTheme( colorScheme = /* ... */, typography = /* ... */, shapes = /* ... */, ) { // M3 app content } ashdavies.dev
80. ashdavies.dev

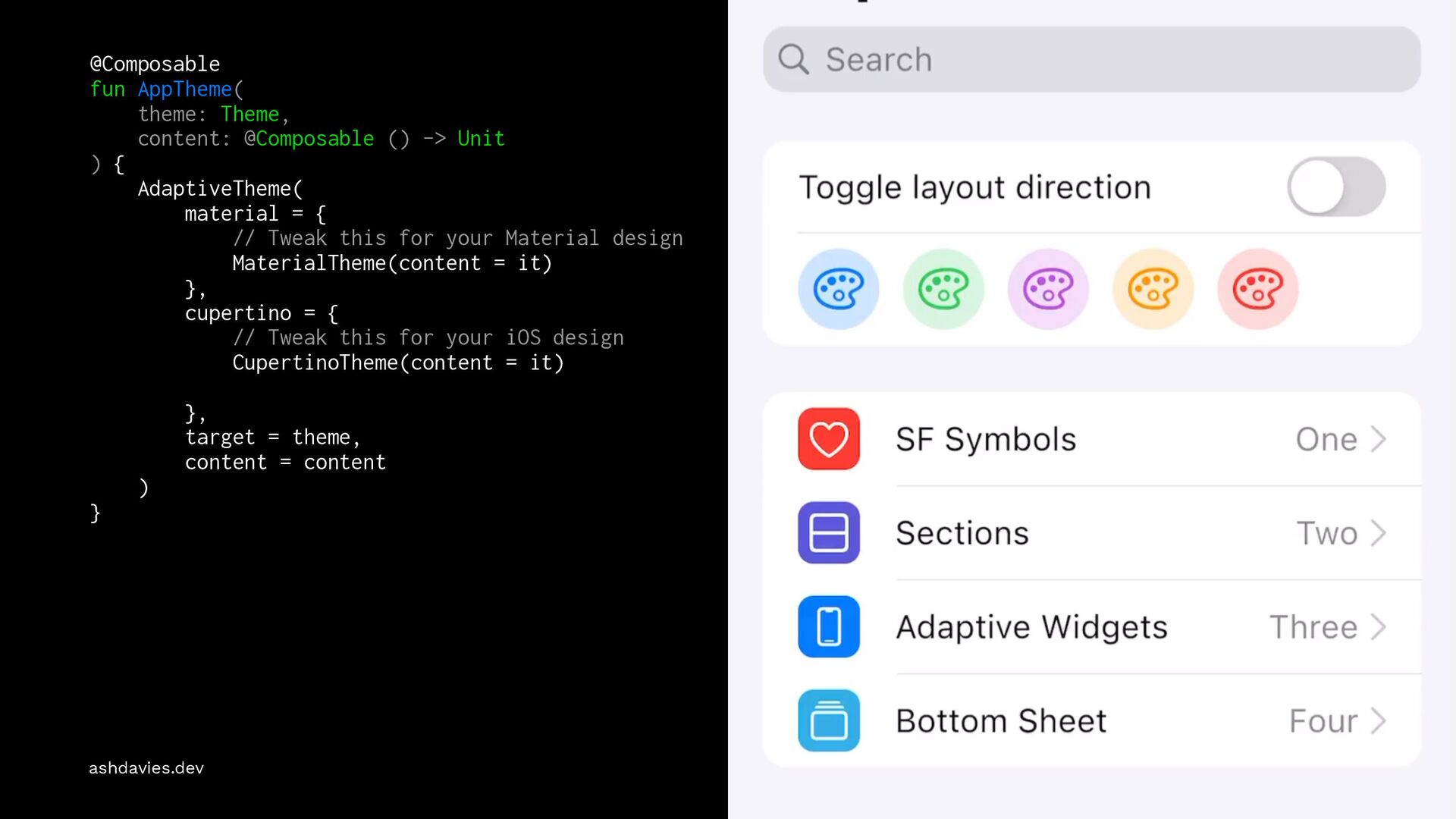

81. @Composable fun AppTheme( theme: Theme, content: @Composable () -> Unit ) { AdaptiveTheme( material = { // Tweak this for your Material design MaterialTheme(content = it) }, cupertino = { // Tweak this for your iOS design CupertinoTheme(content = it) }, target = theme, content = content ) } ashdavies.dev

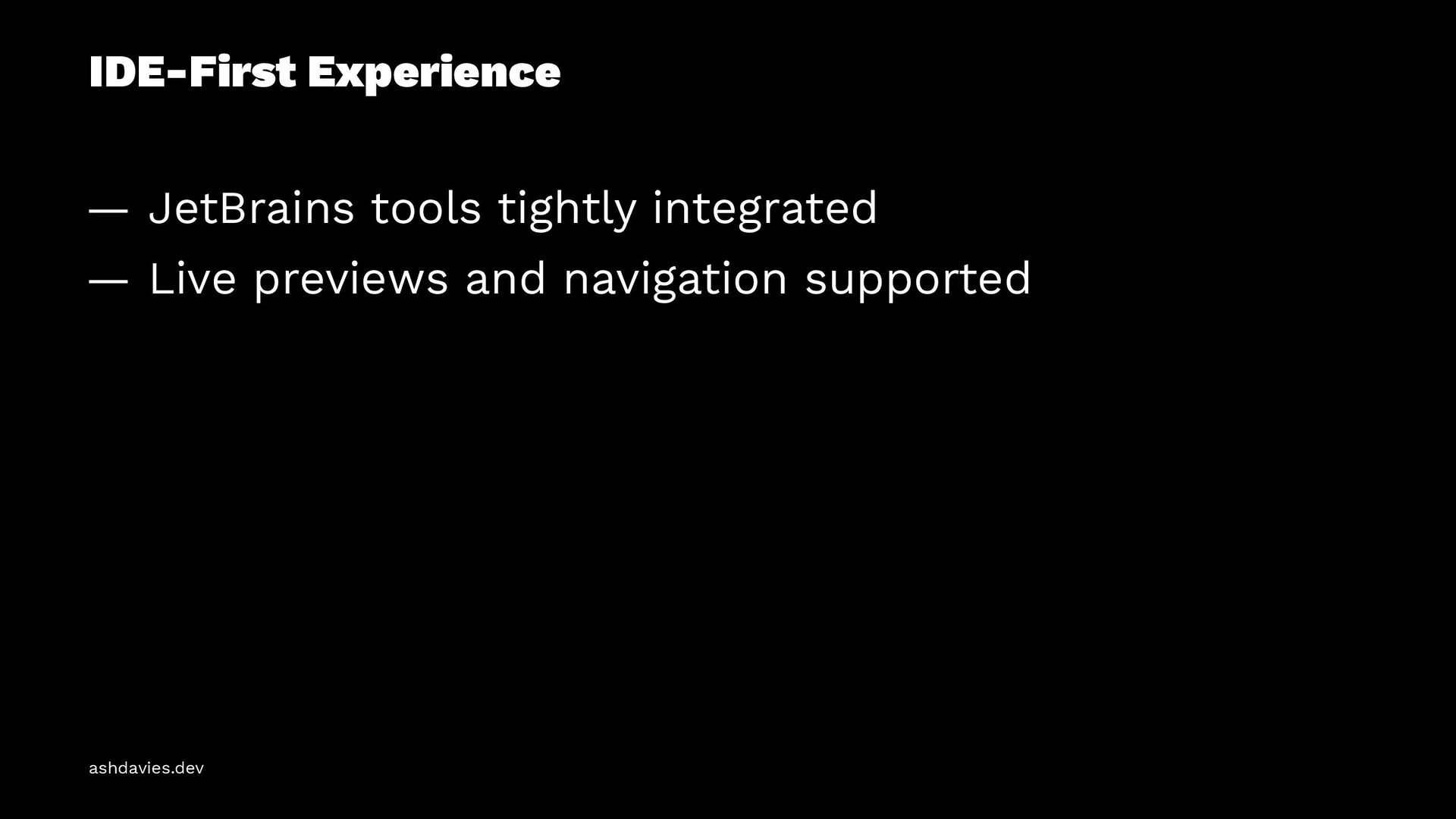

82. IDE-First Experience — JetBrains tools tightly integrated — Live previews and navigation supported ashdavies.dev

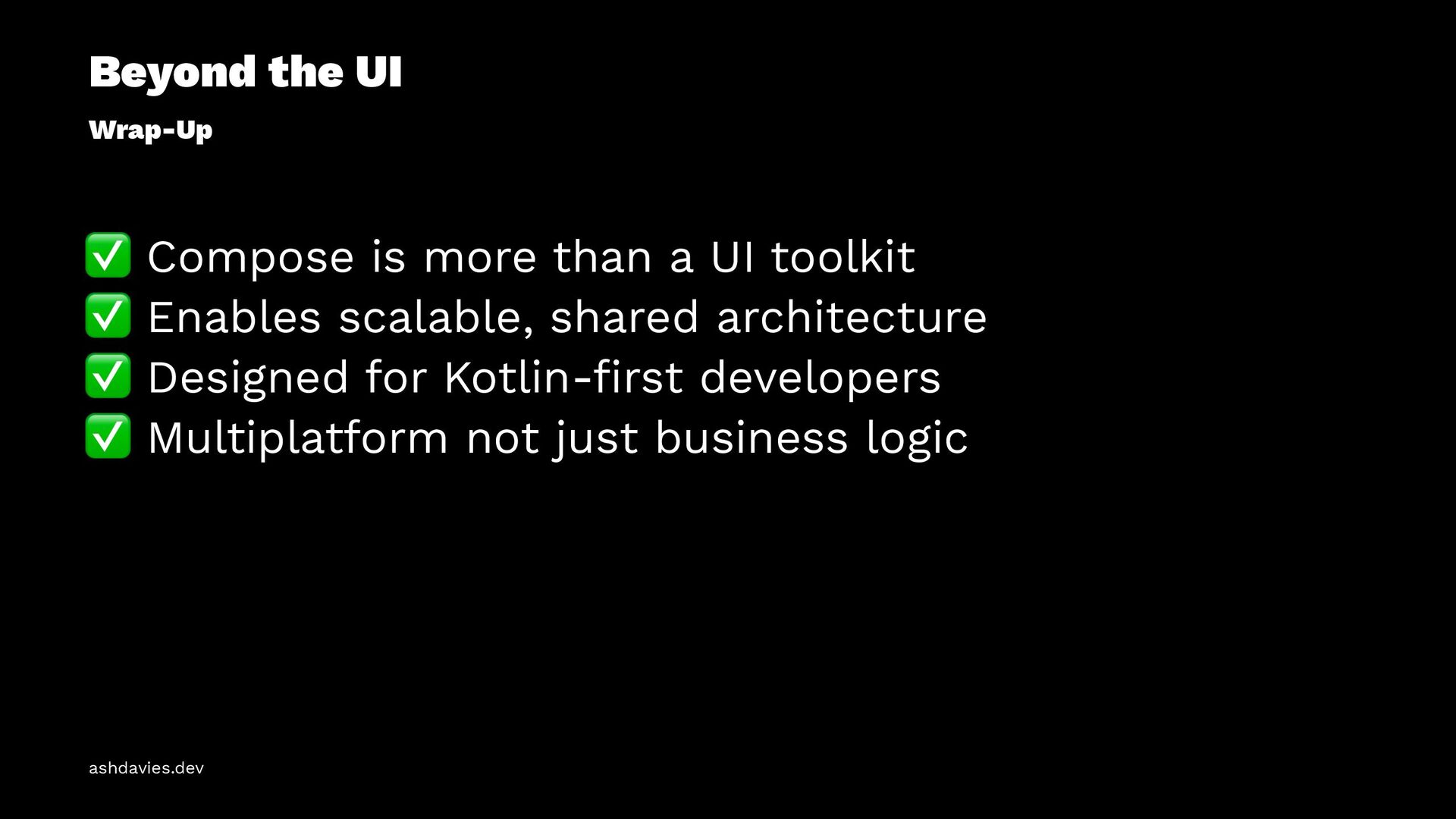

83. Beyond the UI Wrap-Up ✅ Compose is more than a UI toolkit ✅ Enables scalable, shared architecture ✅ Designed for Kotlin-first developers ✅ Multiplatform not just business logic ashdavies.dev
84. Thank You! Ash Davies | ashdavies.dev Android GDE Berlin
