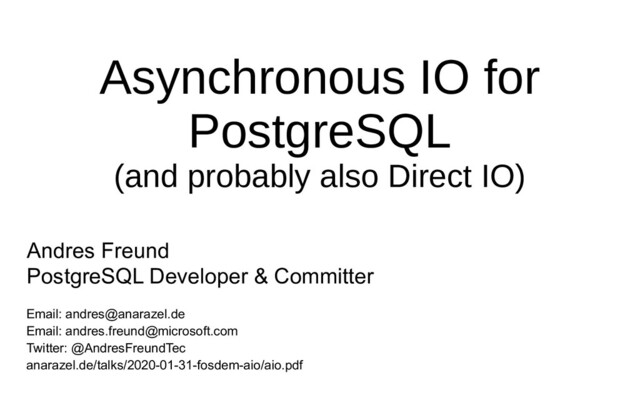

Asynchronous IO for PostgreSQL | FOSDEM PgDay 2020 | Andres Freund

For many workloads PostgresSQL currently cannot take full advantage of modern storage systems, like e.g. good SSD. One of the major reasons for that is that the majority of storage IO postgres performs is done synchronously (see e.g. slide 8fff in https://anarazel.de/talks/2019-10-16-pgconf-milan-io/io.pdf for an illustration as to why that is a problem).

This talk will discuss the outcome of a prototype to add asynchronous IO support to PostgreSQL. The talk will discuss: - How would async IO support for PG look like architecturally? - Initial performance numbers - What sub-problems exist that can be integrated separately - Currently that prototype uses linux' new io_uring asynchronous IO support - which other OSs can be supported?

Note that support for asynchronous IO is not directly the same as support for direct IO. This talk will mainly focus on asynchronicity, and direct IO only secondarily.

Citus Data

January 31, 2020
Tweet

More Decks by Citus Data

Other Decks in Technology

Transcript

  1. Postgres OS Disk Request Buffered Read Time Processing Page Allocation

    Postgres OS Disk Request Processing Page Allocation DM A m em cpy
  2. Hardware Trends: • Massive throughput increases in commonly used storage

    – PCIe attached storage (NVMe SSDs) – massive arrays of disks (cloud block devices) – >3GB/s R/W for commodity prosumer hardware • Massive parallelism increase – SSD: cannot be exploited through e.g. AHCI / SATA – cloud: actually talking to complicated storage array using many disks internally
  3. Hardware Trends • Latency: – PCIe SSDs: low microseconds (<

    1000ns for some) – cloud: ~1-5 milliseconds • Random writes: – SSDs: Noticable, but not hugely. May impacts lifetime – cloud: often basically not noticable, can be higher throughput for fast / large devices • CPU & Memory: – Many more cores – Bandwidth per core not increasing
  4. Queuing • NVMe SSDs have enough hardware queues to have

    one queue per core (no locking!) • OS level changes needed (linux: block-mq) • IO parallelism required to benefit fully is significant • NVMe: Each queue can be deep (thousand) • SATA: One queue with 32 entries • SAS / SCSI: one / few queues, with hundreds entries
  5. Why care? Postgres uses the OS, abstracting this? • Not

    utilizing hardware parallelism – not issuing enough requests in parallel – posix_fadvise(WILLNEED) has significant synchronous cost • Overhead of page cache significant – and largely synchronous – synchronous scans cannot utilize hardware • Latency highly variable – kernel does not have necessary information (nor interfaces to transport such information) – hacks with posix_fadvise(DONTNEED) make situation less bad, but not good – Checkpoints still have bad performance impact – Very hard to control better from postgres • WAL throughput is quite low
  6. Asynchronous IO • (often) multiple commands can be submitted at

    once – syscall overhead mitigated • (often) DMA directly between drive and userspace memory (no kernel) • (sometimes) commands executed via (kernel) threads
  7. Overview of AIO APIs • linux libaio: – buffered io,

    fsyncs fall back to synchronous execution → not suitable – unbuffered io: if all goes well: dma into buffers, can achieve very high speed • windows iocp: – mature – uses threads (bad for postgres) – Unclear if it does DMA for unbuffered IO? • posix aio: – emulated on at least some operating systems (linux) • freebsd aio: – kernel threads – integrated with kqueue – Unclear if it does DMA for unbuffered IO? • OSX – kernel threads, – apparently not integrated with kqueue (hat tip to Thomas Munro) • linux: io uring – very new API (5.1, early 2019) – two ring buffers, very little locking • fewer / no syscalls in hot path • no locks needed – increasing number of operations – unbuffered: DMA into buffers – buffered: kernel threads – allow interdependent operations to be queued • e.g. start following write(s) only after prior completed
  8. Shared Memory Proposed Postgres AIO Architecture Q WAL Q Read

    Ahead Q Check- Point Q IO 1-n Shared Buffers • Abstraction hiding used AIO interface • Completion Based, AIO implementation independent callbacks (e.g. to mark async read buffer as valid) • Multiple queues – WAL queue for WAL and buffer writes when dependent on WAL flush – Readahead queue to control maximum RA – Checkpoint queue • shallow, to control latency impact – Multiple IO queues for the rest • to achieve higher concurrency • APIs to asynchronously read / write buffer In Progress Requests
  9. Comparing sync/async IO execution synchronous read: – allocate shared buffer

    – mark buffer as IO in progress – synchronously pread() – mark buffer valid – continue execution using buffer asynchronous read: – allocate shared buffer – mark buffer as IO in progress – create AIO request – associate buffer with IO object – (repeat) – start multiple IOS w/ single syscall – do something else (e.g. process previously read blocks) – execute IO completions – continue execution using buffer
  10. AIO Details • AIO implementation hidden behind generic API –

    currently API exposes high level ops like read buffer, write buffer, write wal • Deadlock Danger: – p1: start reading buffer #1 – p1: do something else, block on p2 – p2: need buffer #1 – Solution: p2 can complete p1’s IO, and use the buffer • Closing File Descriptors – can’t re-issue requests (e.g. partial reads/writes) to shared queue from different process with same fd (number different)
  11. Prototype • Only supports linux’s io_uring – but most details

    hidden within aio.c • Highly experimental / unstable • Only a single queue for now
  12. Prototype Results • all recent ones with linux 5.5, Samsung

    970 EVO Plus 2TB • sequential scans: – single process, pg prewarm: – buffered sync: 1.8GB/s ~75% CPU – unbuffered sync: 600MB/s ~20% CPU – buffered async: ~2GB/s, 150% CPU - too many small requests – unbuffered async: 3.2GB/s ~50% CPU • parallel sequential scan 3 processes (2 workers): – buffered sync: 2.2 GB/s – unbuffered async: 3.1 GB/s – high latency system: not worth comparing, basically cheating, sync so bad These benchm arks are nearly lies
  13. Prototype Results • larger than memory pgbench, with async writeback

    – ~20% gain, lots more to get • WAL, open_datasync, OLTP, unbuffered (likely buggy): – ~15-20% gain from AIO in stupidest possible implementation • older version: higher gain for high latency, but definitely buggy, so ? – plenty to gain for *non* async too • split write from sync lock • stop writing so much at once, release waiters earlier These benchm arks are nearly lies
  14. Prototype Results • WAL, open_datasync, OLTP, asynchronous commit, unbuffered (likely

    buggy): – ~30% gain • WAL, parallel COPY of large files: – ~40% gain, bottleneck quickly becomes data file IO These benchm arks are nearly lies
  15. Subsystem Thoughts • eventually good defaults would probably be to

    use unbuffered IO for writes, buffered reads (except for large seqscans, vacuum etc) • checkpoints – can be sped up a good bit on busy systems, most importantly we can control latency impact (shallower queue)! Doesn't work yet in prototype • background writer / backend writeback – very substantial gains by not blocking during backend writes – get rid of bgwriter? – Issue writes from bounce buffers? • very short locking duration for writes • memcpy not free, but already needed with checksums
  16. Subsystem Thoughts • Sequential Scans need own readahead logic for

    direct IO – nontrivial to compute how much to prefetch, especially on high latency systems – a lot more robust than using OS (random cached buffers defeat) • FlushBuffer() – can issue interdependent linked IO without PG blocking – helps VACUUM massively due to ringbuffer constantly causing WAL flushes
  17. Questions • Do we need to support multiple platforms initially?

    – perhaps add io_uring and worker process based implementation? – if windows: how to deal with number of threads? • Need to start/issue pending local requests when potentially blocking – how? • How to efficiently wait for multiple Condition Variables?
