Taking DITA for a Loop — Automating XLIFF Conversions

Bryan Schnabel’s “DITA-XLIFF Roundtrip” plugins for the DITA Open Toolkit can be used to transform XML source files from the Darwin Information Typing Architecture to a single XLIFF file and back.

The presentation walks the audience through the conversion process, explaining how the plugins are used with DITA Open Toolkit to transform content from one OASIS standard to another, and shows that an open-source toolchain can be used to minimize complexity & vendor lock-in, save time & money, and ensure consistency in DITA localization projects.

Presented at the XLIFF Symposium – FEISGILTT – Localization World in Berlin on June 2, 2015.

Roger Sheen

June 02, 2015
Tweet

More Decks by Roger Sheen

Other Decks in Technology

Transcript

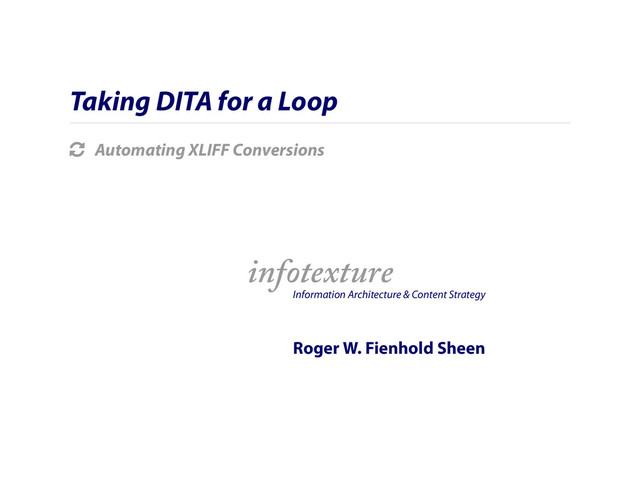

  1. Taking DITA for a Loop ! Automating XLIFF Conversions infotexture

    Information Architecture & Content Strategy Roger W. Fienhold Sheen
  2. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 " Agenda Darwin Information Typing Architecture DITA Open Toolkit DITA-XLIFF Roundtrip Plugins Installing the Plugins Exporting XLIFF from DITA Generating DITA Files from XLIFF Automating Conversions
  3. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 # Darwin Information Typing Architecture “An XML architecture for designing, writing, managing, and publishing information.” — dita.xml.org Originally developed by IBM for internal use, DITA has since become an open standard published by OASIS, the Organization for the Advancement of Structured Information Standards — like XLIFF. future-proof & interoperable, widely adopted & rapidly gaining traction well-supported via open-source toolkit & many commercial tools encourages good documentation practices provides built-in support for crucial use cases, including modular content re-use multiple output formats localization
  4. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 # DITA Open Toolkit “The DITA Open Toolkit is a set of Java-based, open source tools that provide processing for DITA maps and topic content.” The DITA Open Toolkit is primarily a publishing tool used to convert (“transform”) DITA content into various output formats, including: PDF — via XSL-FO renderers (Apache FOP, RenderX, Antenna House) XHTML — Plain HTML with class values to permit styling via CSS TocJS – HTML output with JavaScript-based navigation frames HTML Help — Microsoft Compiled HTML Help output (.chm) Eclipse Help, Java Help — HTML with navigation & index OpenDocument — Based on the ODF standard, for Open Office, etc. Rich Text Format — Basic content supported, but not complex markup The toolkit’s plug-in mechanism allows new transformation types to be added.
  5. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 $ DITA-XLIFF Roundtrip Plugins The DITA-XLIFF Roundtrip plugins for the DITA Open Toolkit convert DITA content to XML Localization Interchange File Format and create DITA topics from XLIFF files. The plugins are provided by OASIS XLIFF TC chair Bryan Schnabel. No CMS Required Users of commercial content management systems may rely on the export/import mechanisms provided by the CMS vendor. How to extract necessary content for localization and re-import translated material in file-system–based projects on limited budgets? The plugins provide a viable open-source mechanism for packaging an entire project of DITA content as a single XLIFF file that can be easily exchanged with localization service providers and translation vendors.
  6. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 Benefits Content owners retain control of the conversion process Keep conversion close to creation — content owners can use the plugins to extract the localized content from the XLIFF file and automatically generate the necessary DITA files in a separate source tree for the target language. Minimize complexity — errors are inevitable when hundreds or thousands of individual files are converted and exchanged with the vendor Avoid vendor lock-in — since the vendor doesn’t own the “black box” conversion process, it’s easier to switch vendors if necessary Ensure consistency — via automated (and thus reproducible) processes Save time & money — no more “file management” fees!
  7. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 Package Contents The distribution package includes four separate plugins: The xliff plugins extend the toolkit with new transformation types that can be used to transform an entire DITA project to a single XLIFF file The ditafromxliff plugins read an XLIFF file and re-generate the entire hierarchy of translated DITA topics from the translated XLIFF content Two versions of each conversion plugin are provided: The v12 variants generate or convert from the XLIFF version 1.2 format The v2 plugins create and read XLIFF version 2.0
  8. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 % Installing the Plugins In DITA Open Toolkit, install the plugins as follows: 1. Download the latest distribution package for the plugins from sourceforge.net/projects/ditaxliff/files/latest/download. 2. Unzip the package to the plugins directory of your DITA-OT installation. 3. From the root directory of your DITA-OT installation, run the start command for your operating system (either startcmd.bat or startcmd.sh ). 4. In the startcmd environment, run the following command to integrate the new plug-ins into your toolkit installation: ant  -­‐f  integrator.xml Before You Begin… Contact your vendor to find out which version of XLIFF they support.
  9. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 & Exporting XLIFF from DITA 1. Copy the source files for your project to a new subfolder in the plugins/xliff-­‐v*/samples folder (i.e. xliff-­‐v*/samples/my-­‐project ). 2. Edit the value of the args.input property on line 27 of the Ant build script ( xliff-­‐v*/build_dita2xliff.xml ) to point to your map. Change the line that looks like this: <property  name="args.input"  value="samples/guitars/sample.ditamap"/> to something like this: <property  name="args.input"  value="samples/my-­‐project/my-­‐map.ditamap"/> 3. In the xliff-­‐v* directory, run the Ant build script. This script generates the XLIFF file for your DITA topics: ant  -­‐f  build_dita2xliff.xml
  10. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 RESULT: The d_x.xml file is created in the xliff-­‐v*/out/samples/xliff folder. This is a valid XLIFF file that has all your maps, topics, and required structure to translate and reassemble your DITA project.
  11. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 ' ( Translation via Localization Vendor 1. You provide the generated XLIFF file to your localization vendor. magic happens… — a hitherto unknown version of your content emerges… 2. Your localization vendor returns the translated XLIFF file to you. (
  12. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 ) Generating DITA Files from XLIFF 1. Change the name of the translated file to d_x_translated.xml . 2. Place it in the plugins/ditafromxliff-­‐v*/in directory. 3. In plugins/ditafromxliff-­‐v* , run the Ant build script. This script generates the DITA topics from the XLIFF file: ant  -­‐f  build_ditafromxliff.xml 4. Switch to the ditafromxliff-­‐v*/out/samples/ditafromxliff directory. RESULT: The source tree for the target language appears in the translated subfolder.
  13. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 * Automating Conversions Continuous Integration servers communicate with a version control system to monitor source files and perform tasks when files change. If your developers use continuous integration tools to run automated tests and build software binaries whenever they update their code, you may be able to use the same solution to build DITA deliverables and convert to/from XLIFF. Jenkins, one of the most popular CI solutions, allows you to define jobs that combine various settings, including: access credentials and branches of the source code repository conditions or events that trigger a build, and actions to be performed when the conditions are fulfilled (build script & post-build actions, e-mail notifications, file transfers, etc.). ant  -­‐f  build_dita2xliff.xml
  14. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 Jenkins Dashboard The Jenkins dashboard includes an overview of jobs with information on the last build for each job, and a “weather report” icon that represents the aggregated status (stability) of recent builds: Sample Jenkins dashboard
  15. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 Jenkins Job View The dashboard links to dedicated pages for each job, with additional information on the build history, links to the workspace with the job output (build results), and recent changes (the commit log from the version control system). Sample Jenkins job view
  16. XLIFF Symposium @ FEISGILTT / Localization World — Berlin, Germany

    June 2, 2015 + Resources DITA Feature Article: “Using XLIFF to Translate DITA Projects” Updates For updates, comments and code samples, visit http://infotexture.net. Contact , E-mail [email protected] - LinkedIn @infotexture . GitHub @infotexture / Twitter @infotexture Roger Sheen
