Discover the Latest Innovations in Apache Airflow 3.0, Designed to Enhance Data Orchestration for Teams of All Sizes

目的: Airflow 3.0の主要なアップデートを紹介し、現ユーザーと新規ユーザーの両方にとっての利点を強調する。
内容:
- Airflowの紹介とデータパイプラインにおけるその役割。
- Airflow 3.0の主な機能: モダンなUI、DAGのバージョン管理、タスクの分離、複数言語のサポート。

Transcript

1. Discover the latest innovations in Apache Airflow 3.0, designed to enhance data orchestration for teams of all sizes. LINE Taiwan & EC Data Jason Lai, Echo Lee
2. - What’s Airflow? - Airflow 3.0 Architecture - Flexible Timetable - UI Modernization - DAG Versioning - Improved Backfill - Data Assets & Asset-Aware Scheduling - Event-driven scheduling - Scenario - Conclusion Agenda

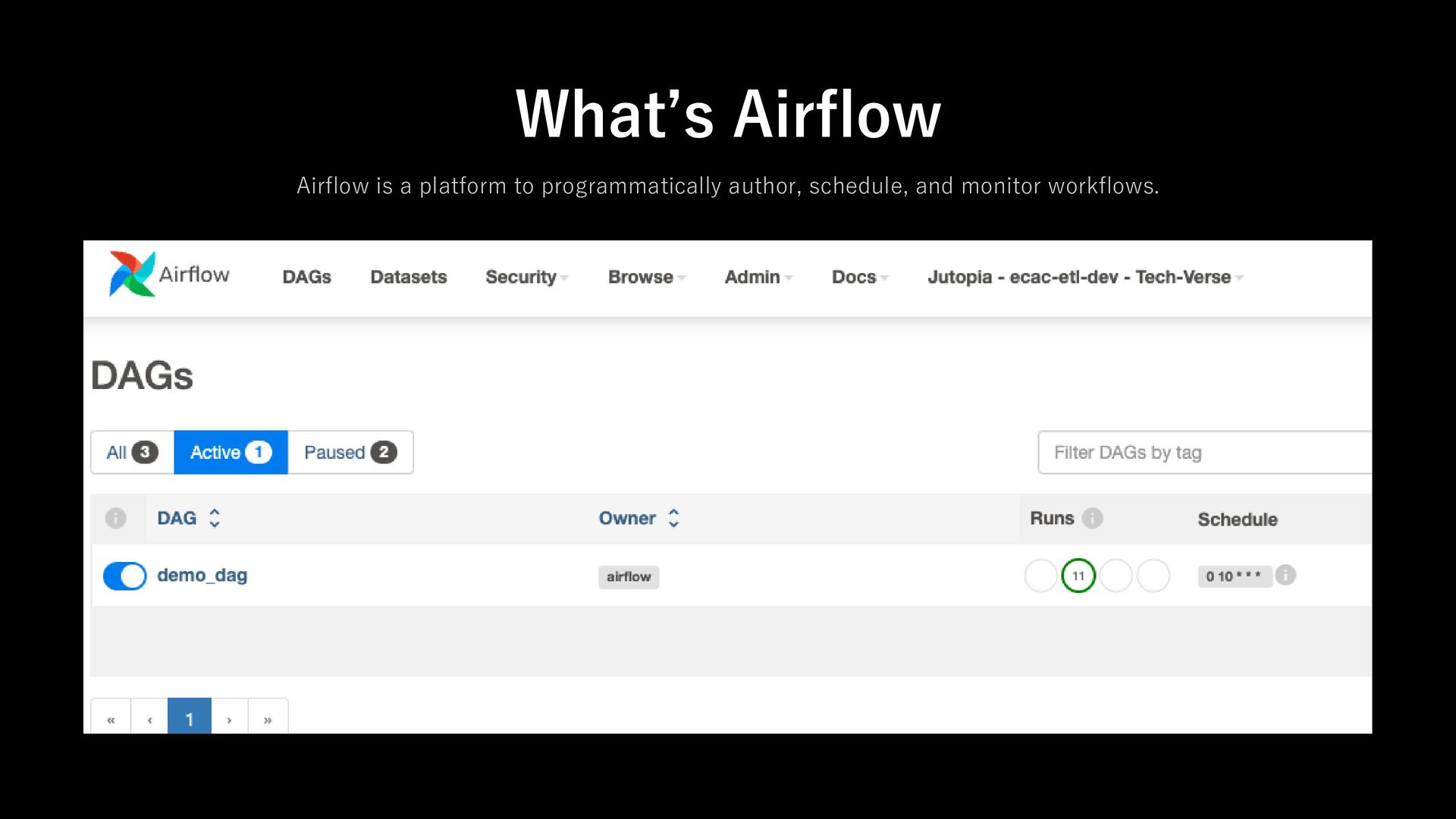

3. What’s Airflow Airflow is a platform to programmatically author, schedule, and monitor workflows.

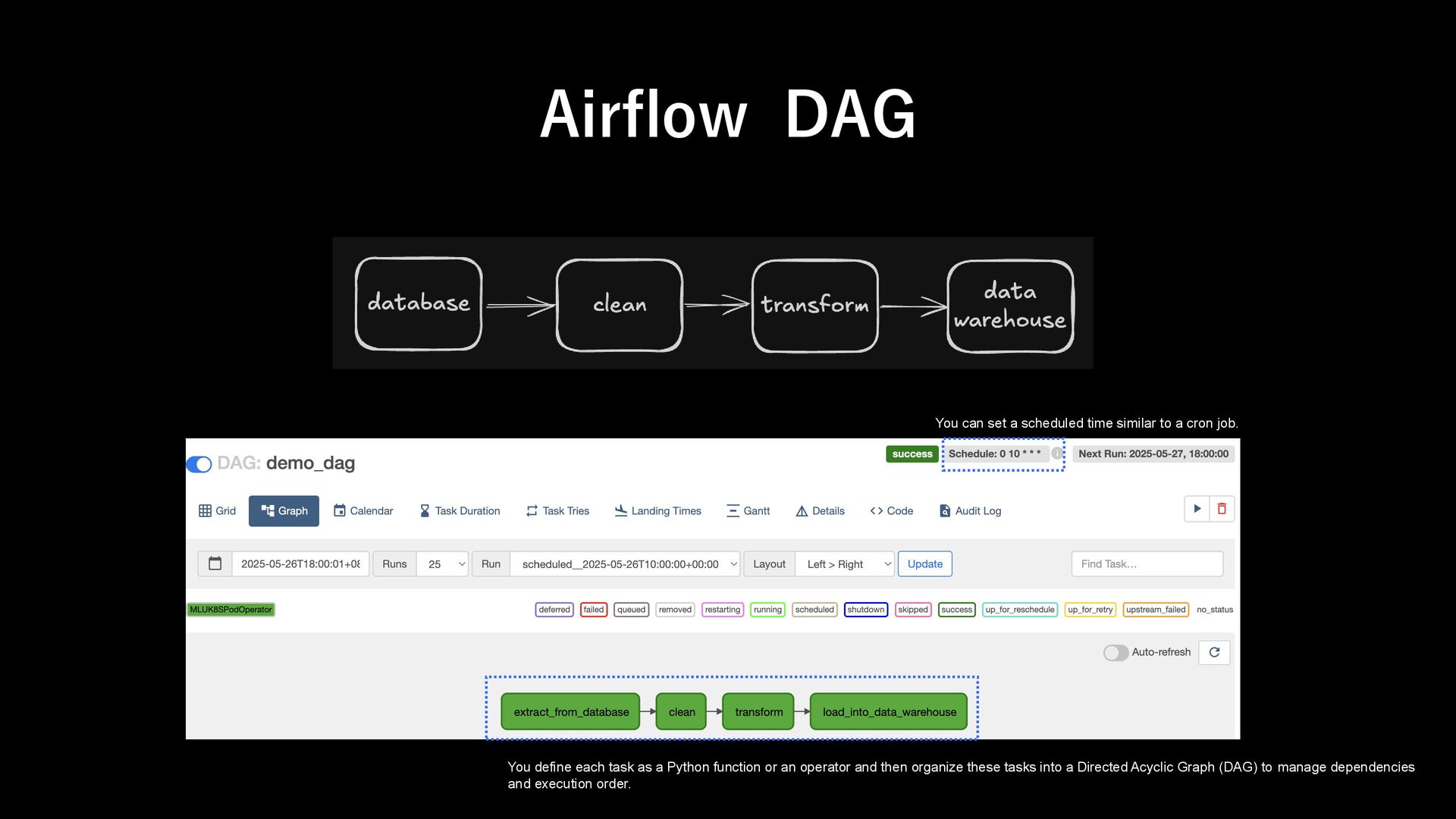

4. Airflow DAG You define each task as a Python function or an operator and then organize these tasks into a Directed Acyclic Graph (DAG) to manage dependencies and execution order. You can set a scheduled time similar to a cron job.

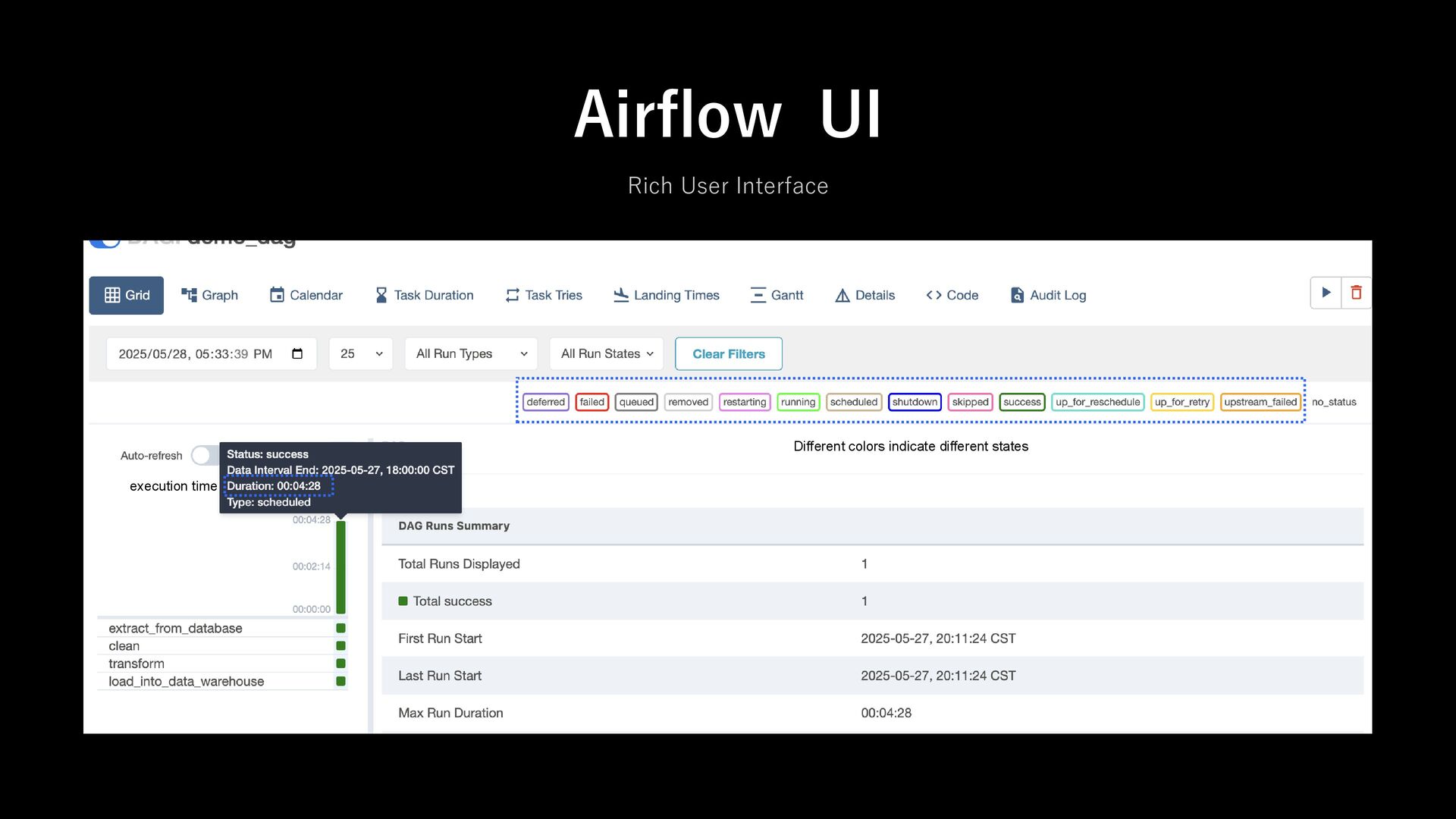

5. Airflow UI Rich User Interface Different colors indicate different states execution time

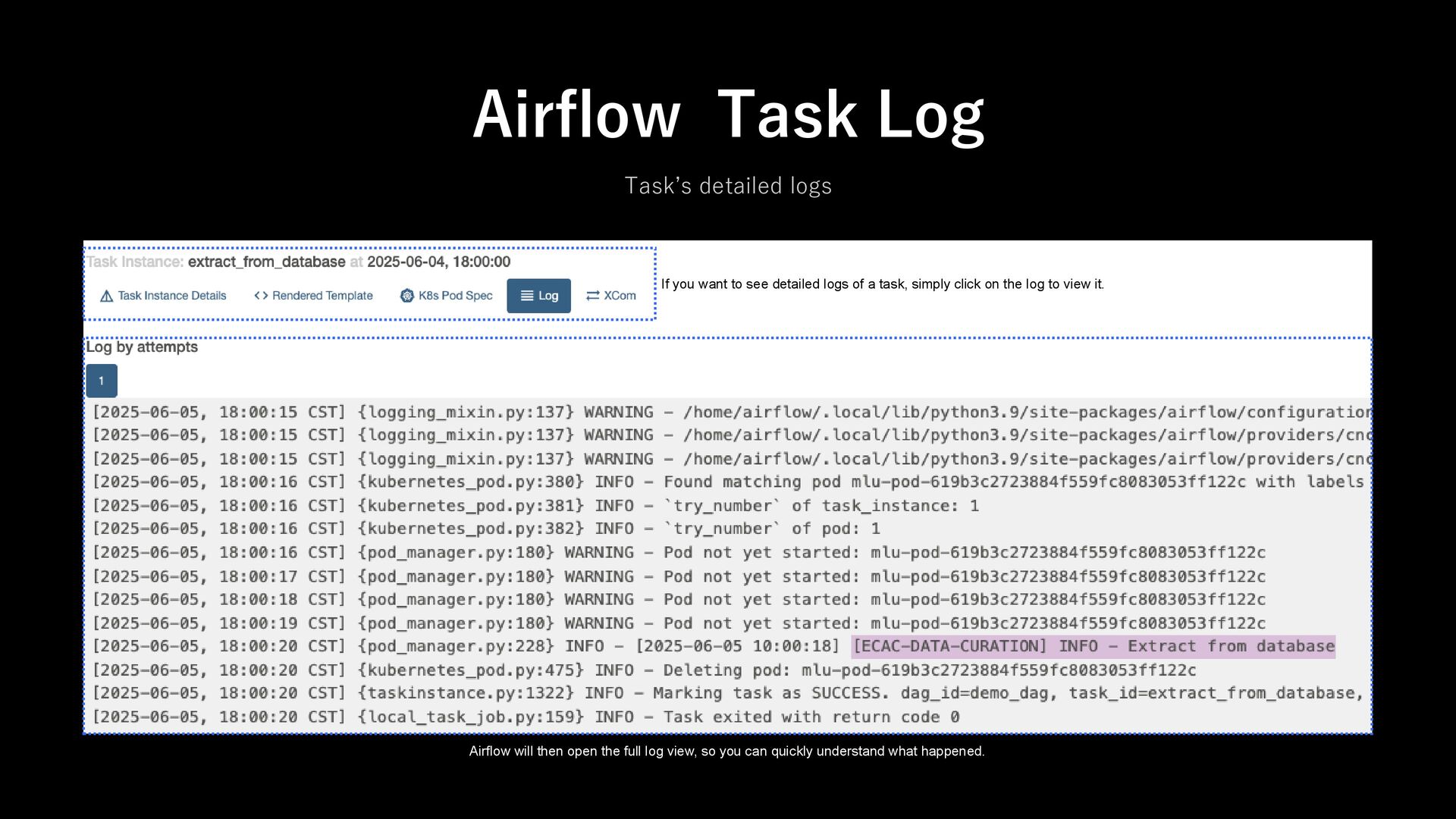

6. Airflow Task Log Task’s detailed logs If you want to see detailed logs of a task, simply click on the log to view it. Airflow will then open the full log view, so you can quickly understand what happened.

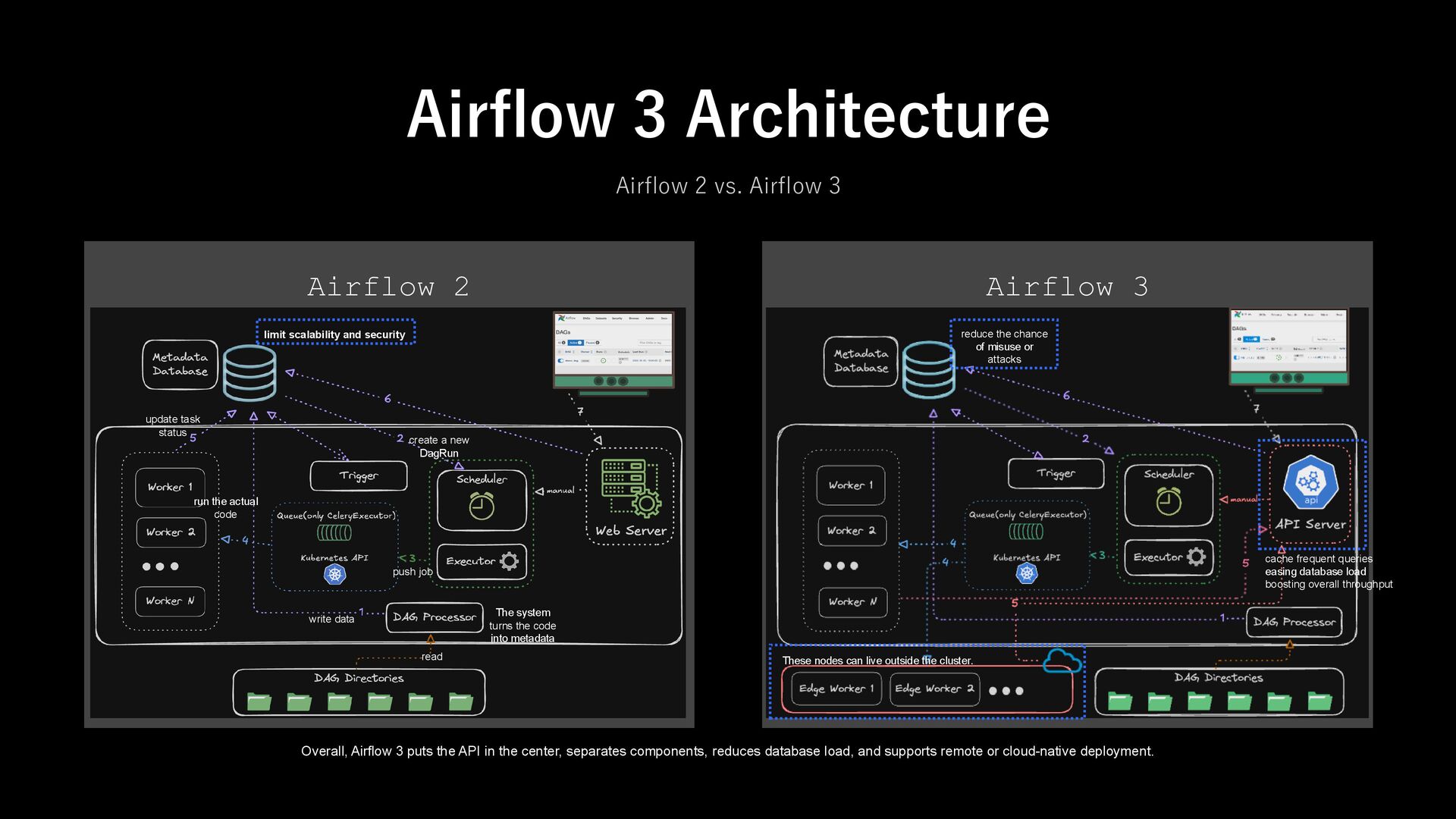

7. Airflow 3 Architecture Airflow 2 Airflow 3 Airflow 2 vs. Airflow 3 read The system turns the code into metadata write data create a new DagRun push job run the actual code limit scalability and security Overall, Airflow 3 puts the API in the center, separates components, reduces database load, and supports remote or cloud-native deployment. update task status cache frequent queries easing database load boosting overall throughput reduce the chance of misuse or attacks These nodes can live outside the cluster.

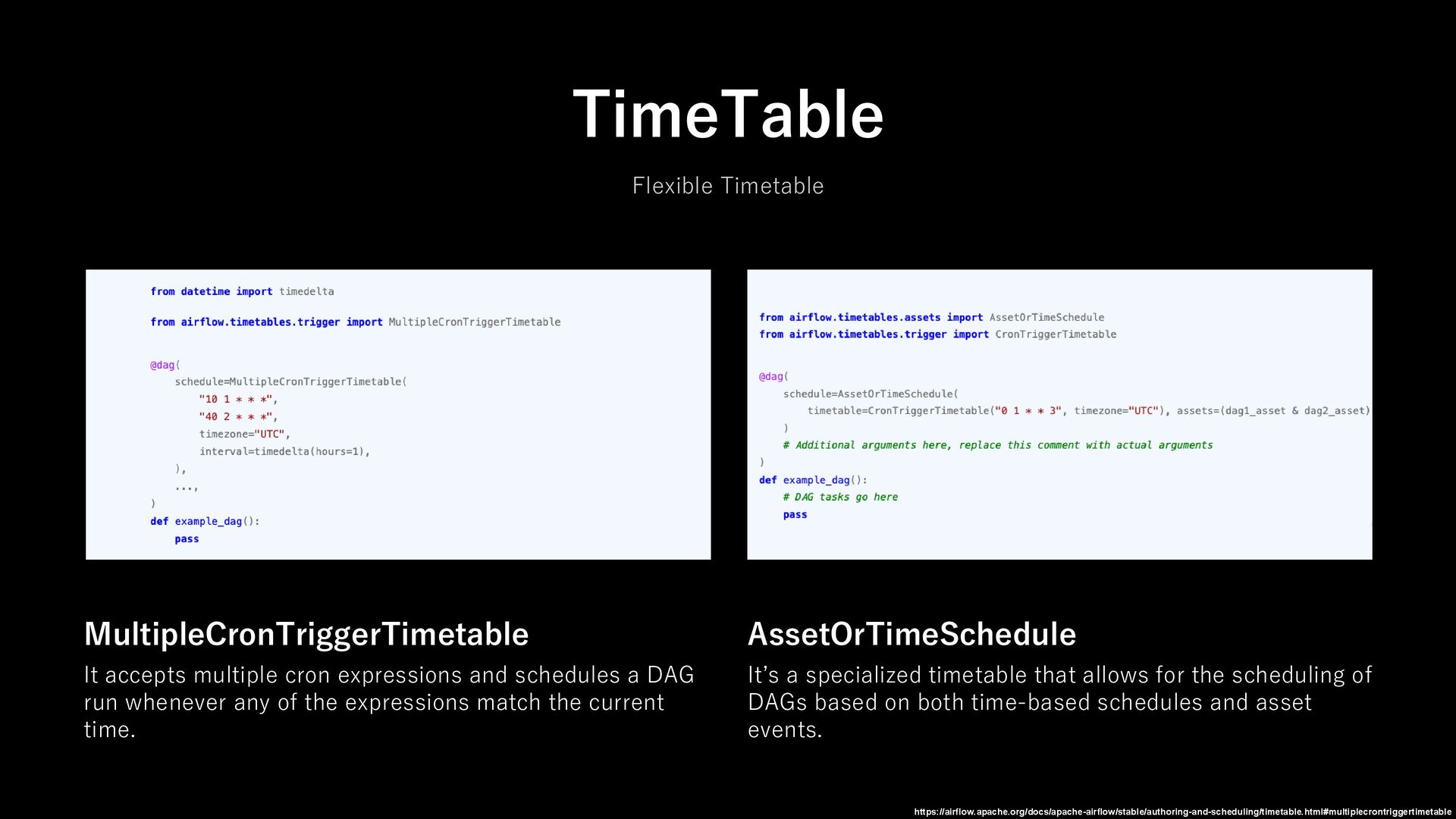

8. It accepts multiple cron expressions and schedules a DAG run whenever any of the expressions match the current time. TimeTable MultipleCronTriggerTimetable Flexible Timetable It’s a specialized timetable that allows for the scheduling of DAGs based on both time-based schedules and asset events. AssetOrTimeSchedule https://airflow.apache.org/docs/apache-airflow/stable/authoring-and-scheduling/timetable.html#multiplecrontriggertimetable https://airflow.apache.org/docs/apache-airflow/stable/authoring-and-scheduling/timetable.html#multiplecrontriggertimetable

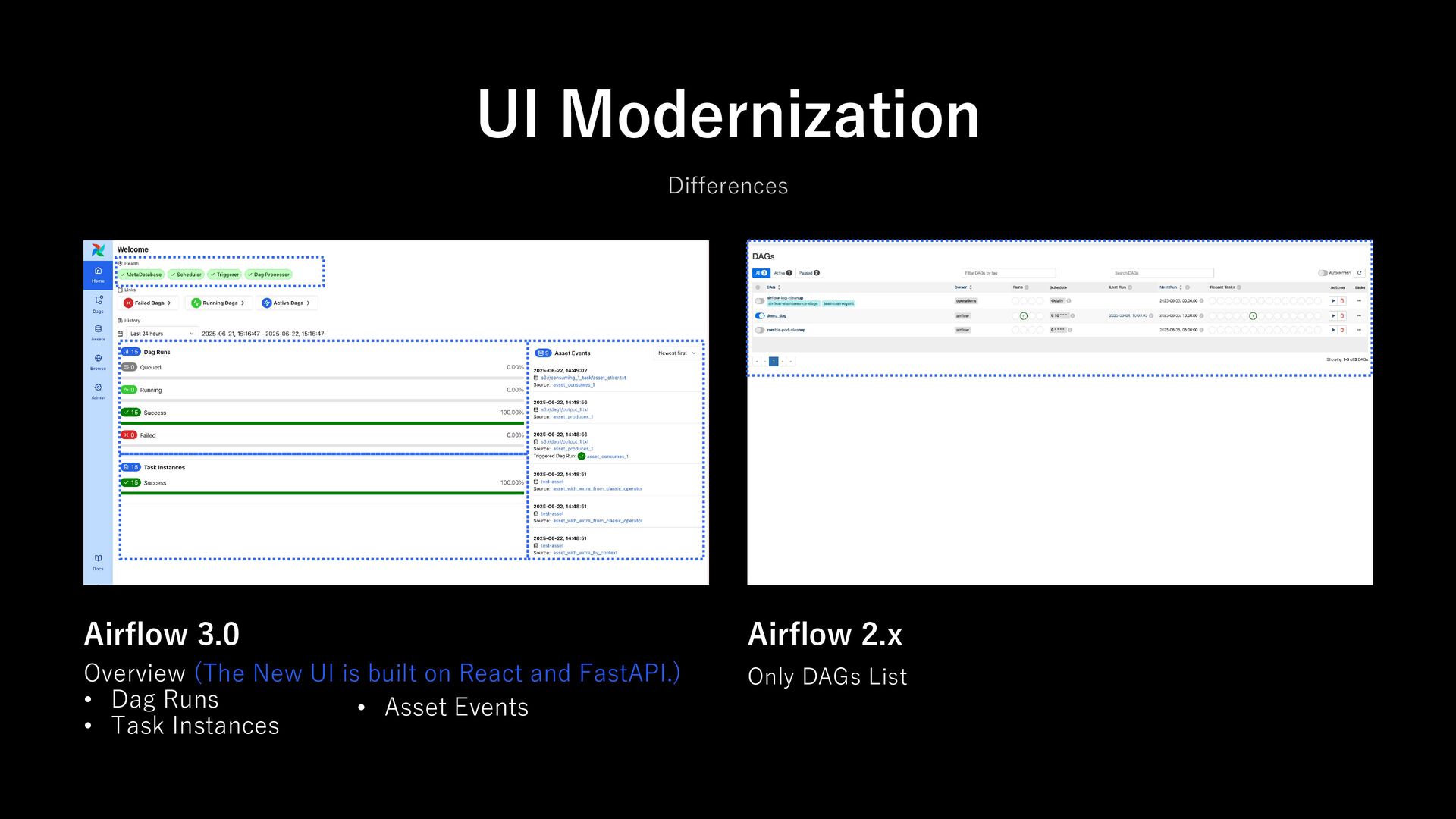

9. Overview (The New UI is built on React and FastAPI.) • Dag Runs • Task Instances Airflow 3.0 UI Modernization Differences Only DAGs List Airflow 2.x • Asset Events

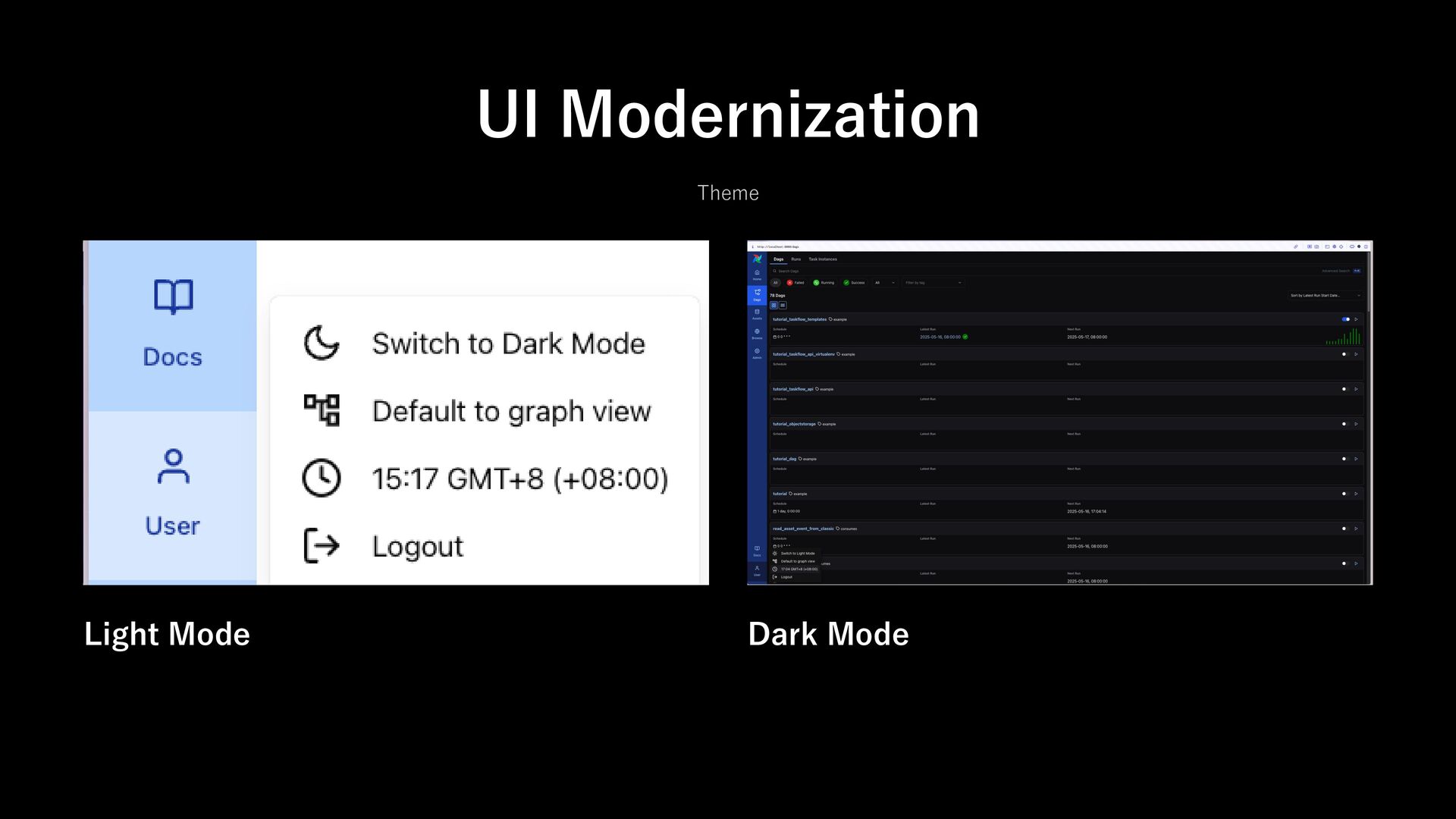

10. UI Modernization Light Mode Theme Dark Mode

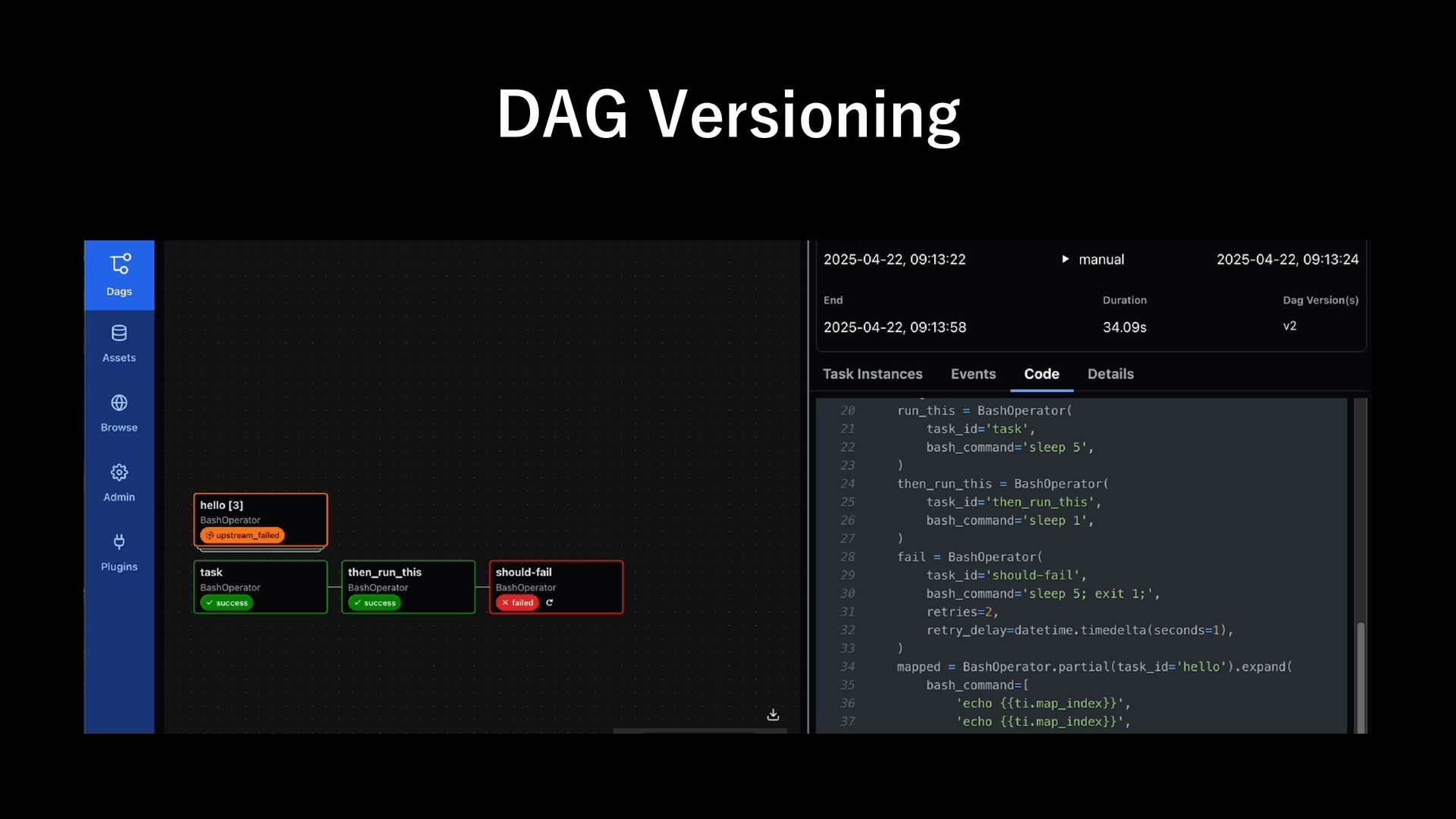

11. DAG Versioning

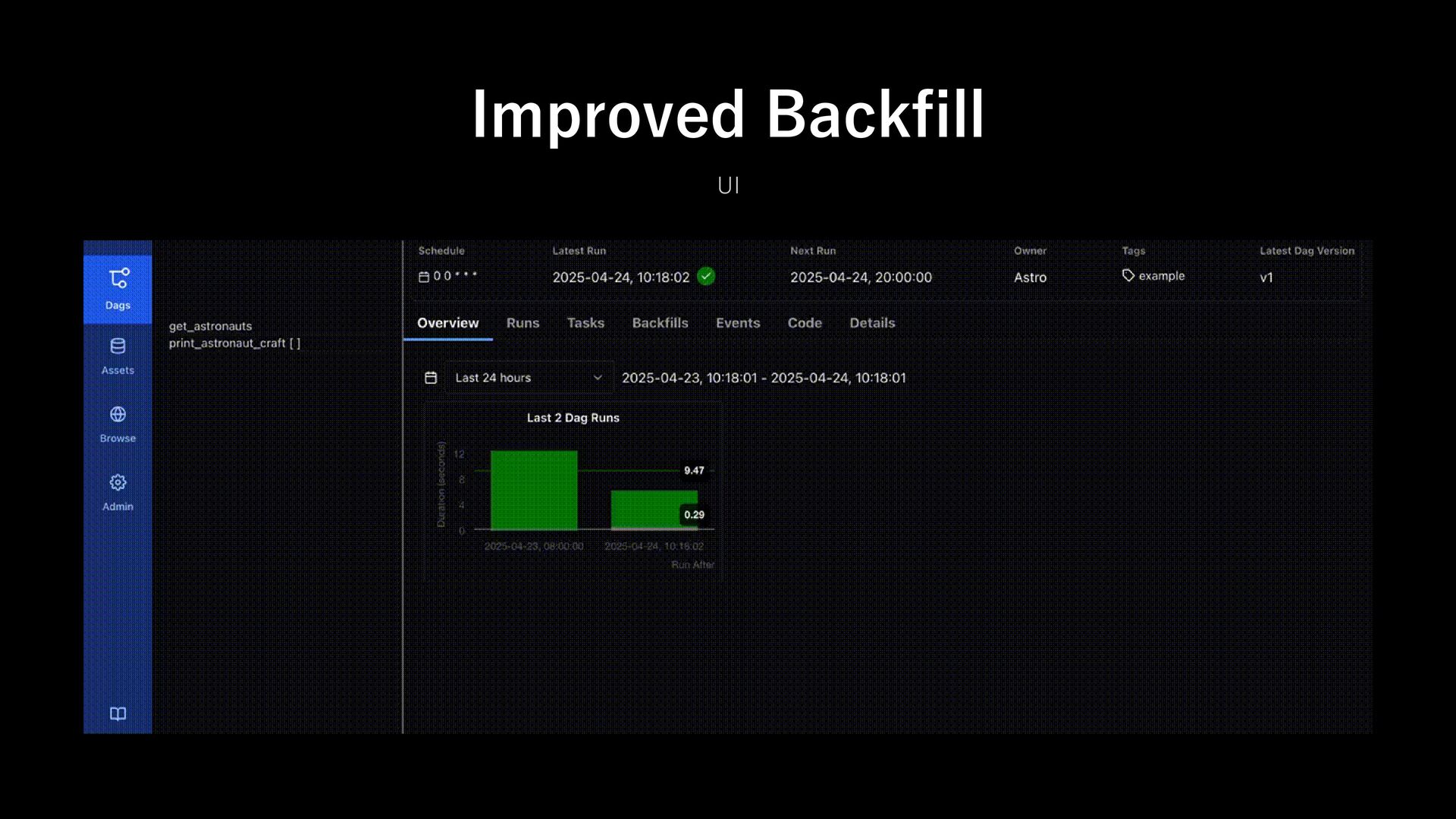

12. Improved Backfill UI

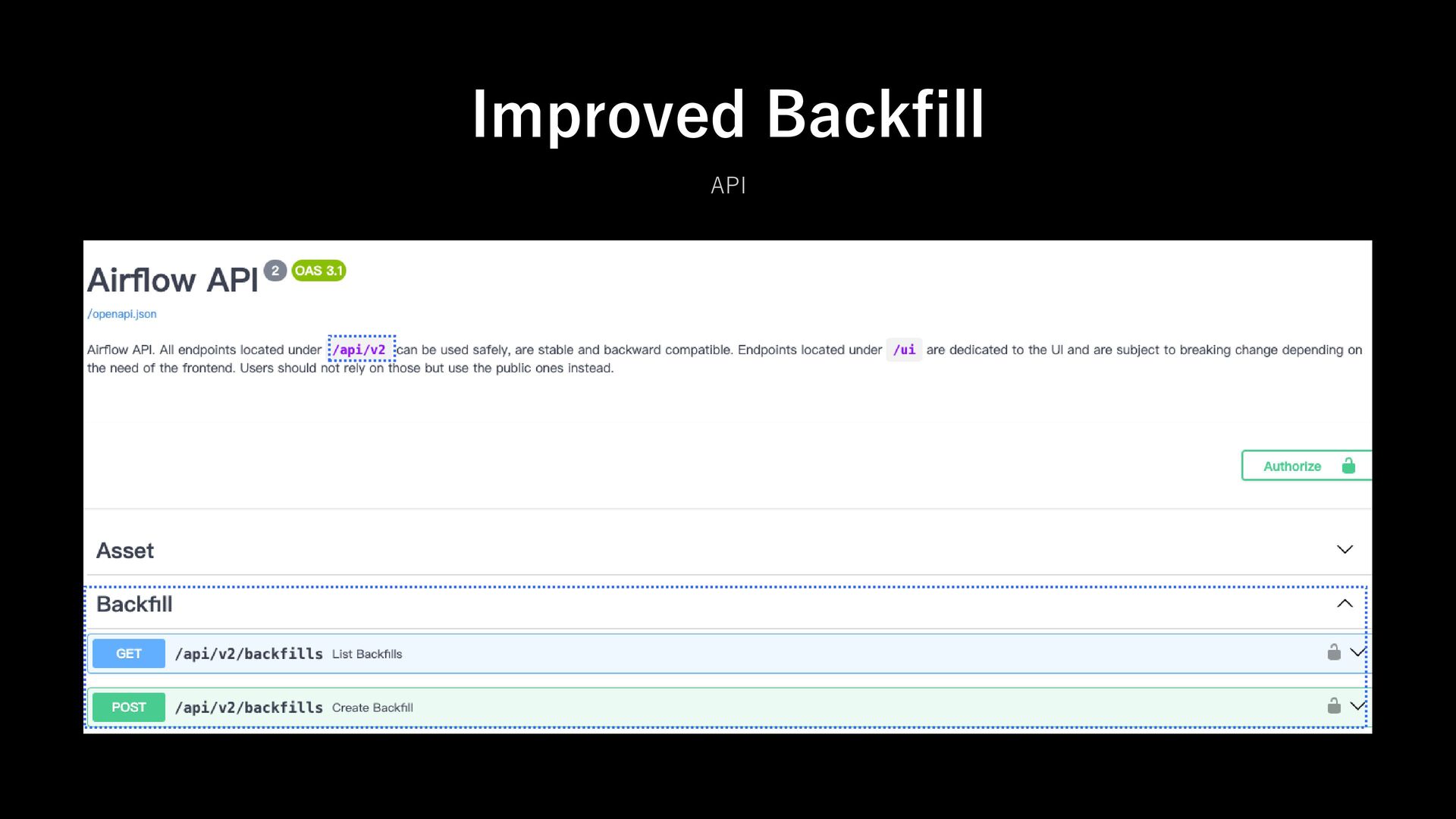

13. Improved Backfill API

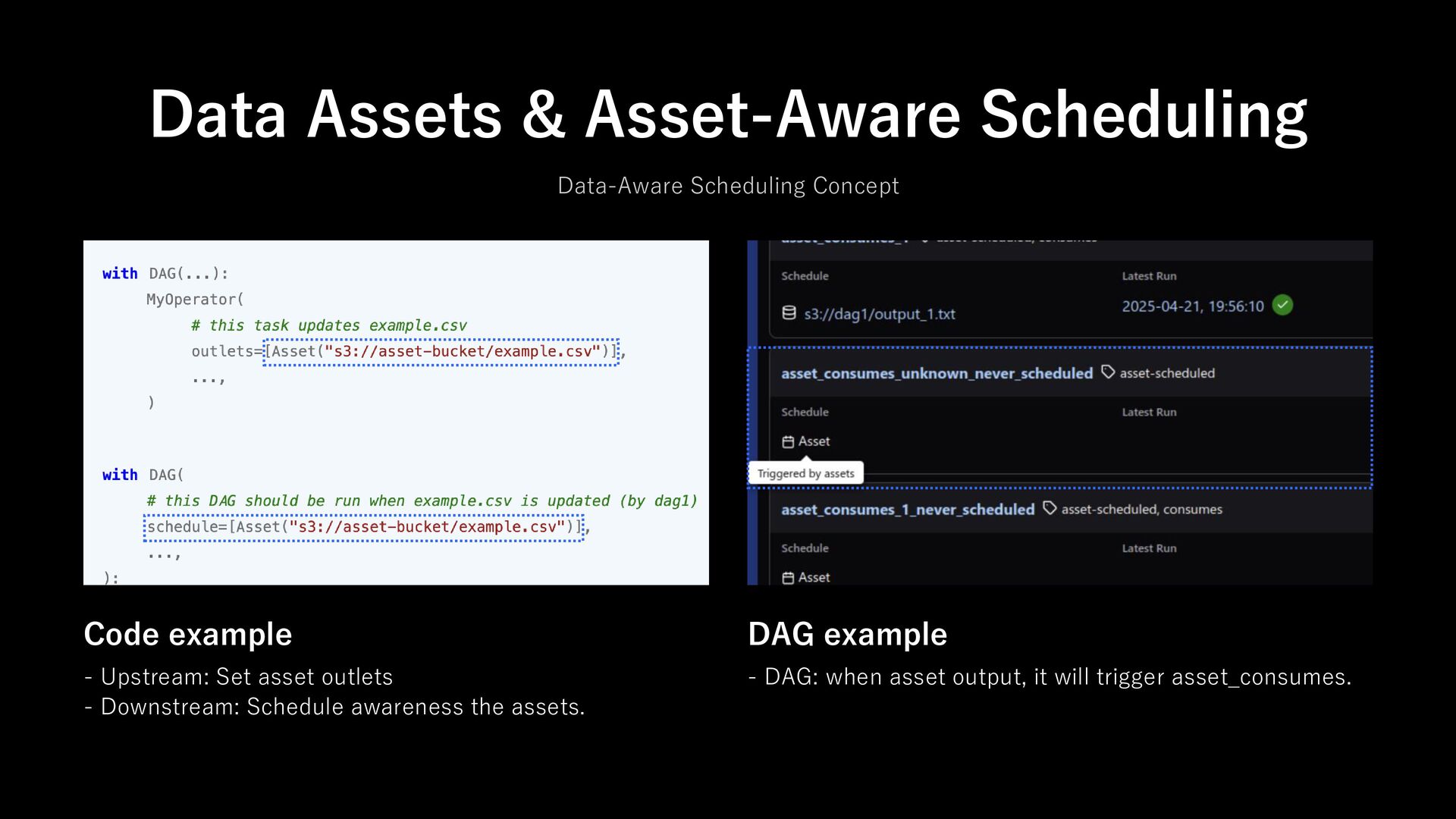

14. - Upstream: Set asset outlets - Downstream: Schedule awareness the assets. Data Assets & Asset-Aware Scheduling Code example Data-Aware Scheduling Concept - DAG: when asset output, it will trigger asset_consumes. DAG example

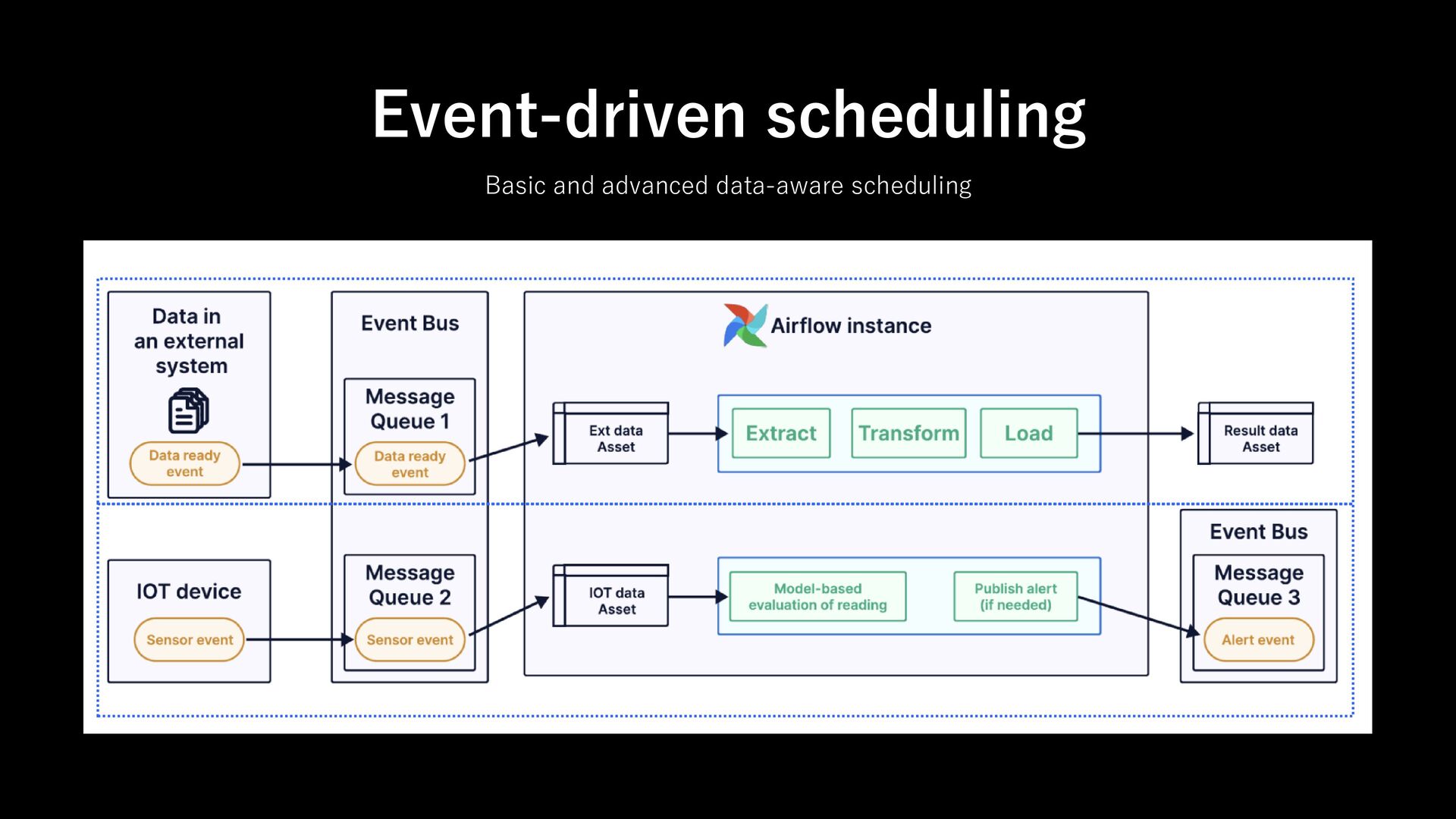

15. Event-driven scheduling Basic and advanced data-aware scheduling

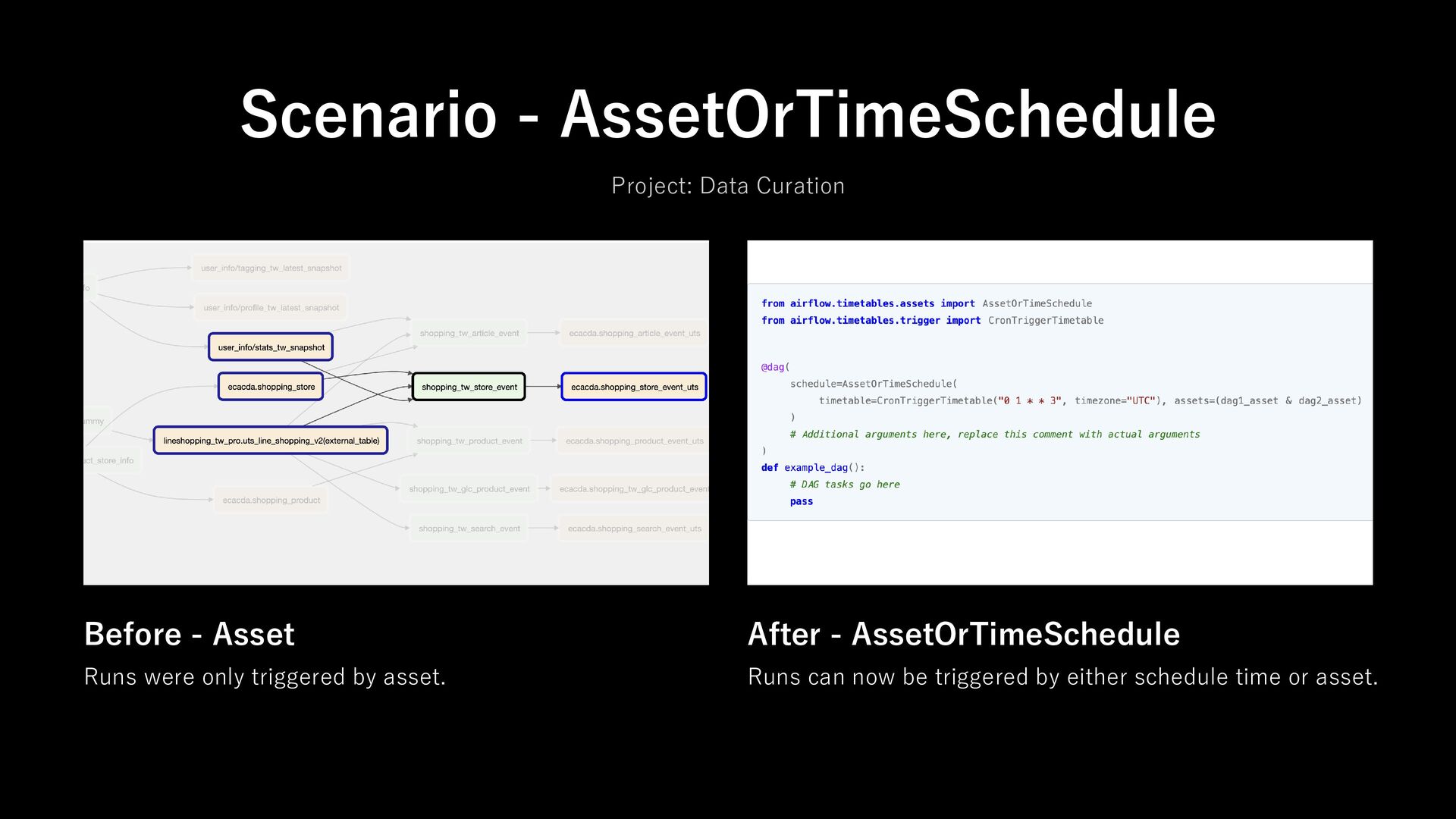

16. Runs were only triggered by asset. Scenario - AssetOrTimeSchedule Before - Asset Project: Data Curation Runs can now be triggered by either schedule time or asset. After - AssetOrTimeSchedule

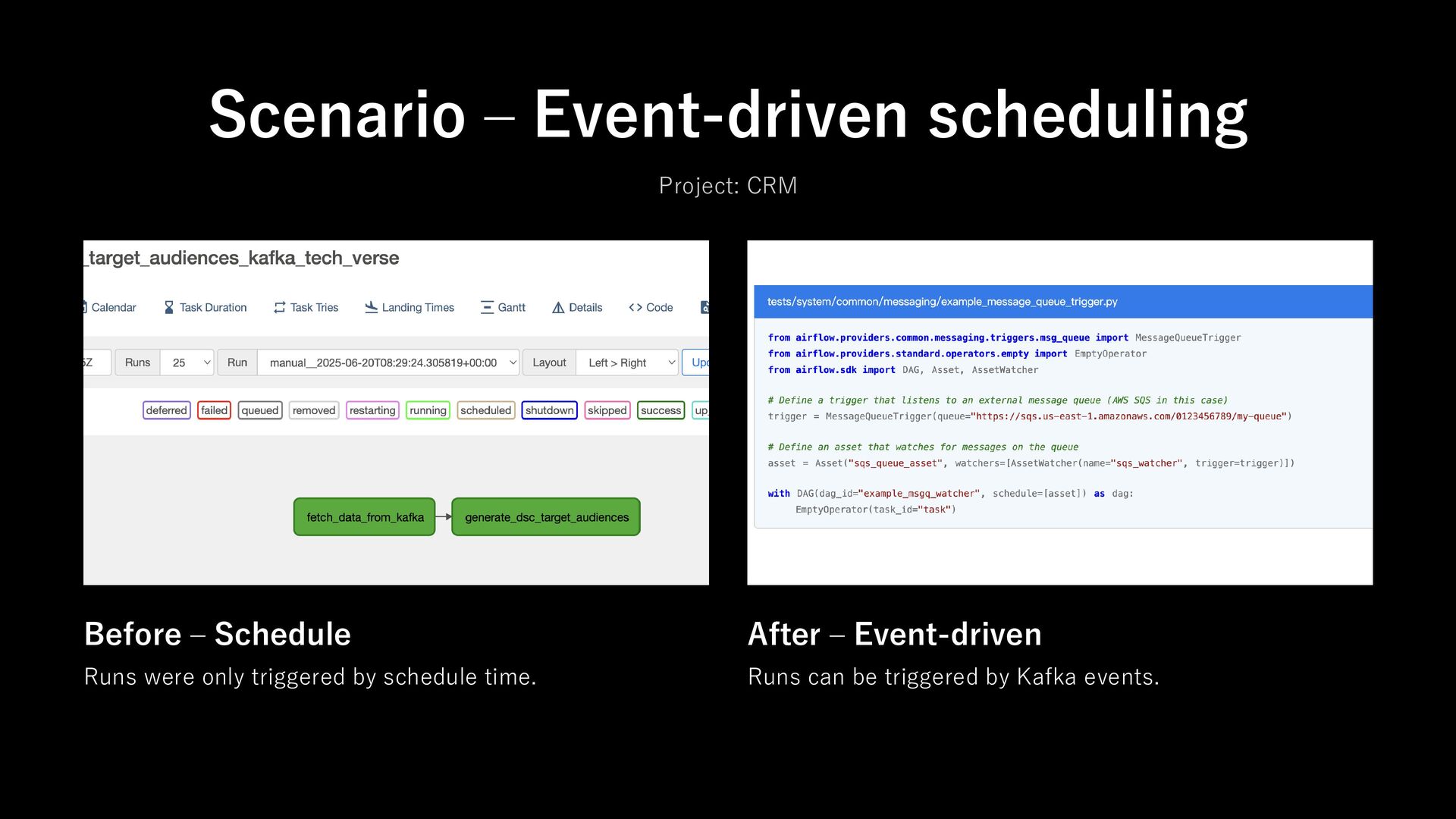

17. Runs were only triggered by schedule time. Scenario – Event-driven scheduling Before – Schedule Project: CRM Runs can be triggered by Kafka events. After – Event-driven

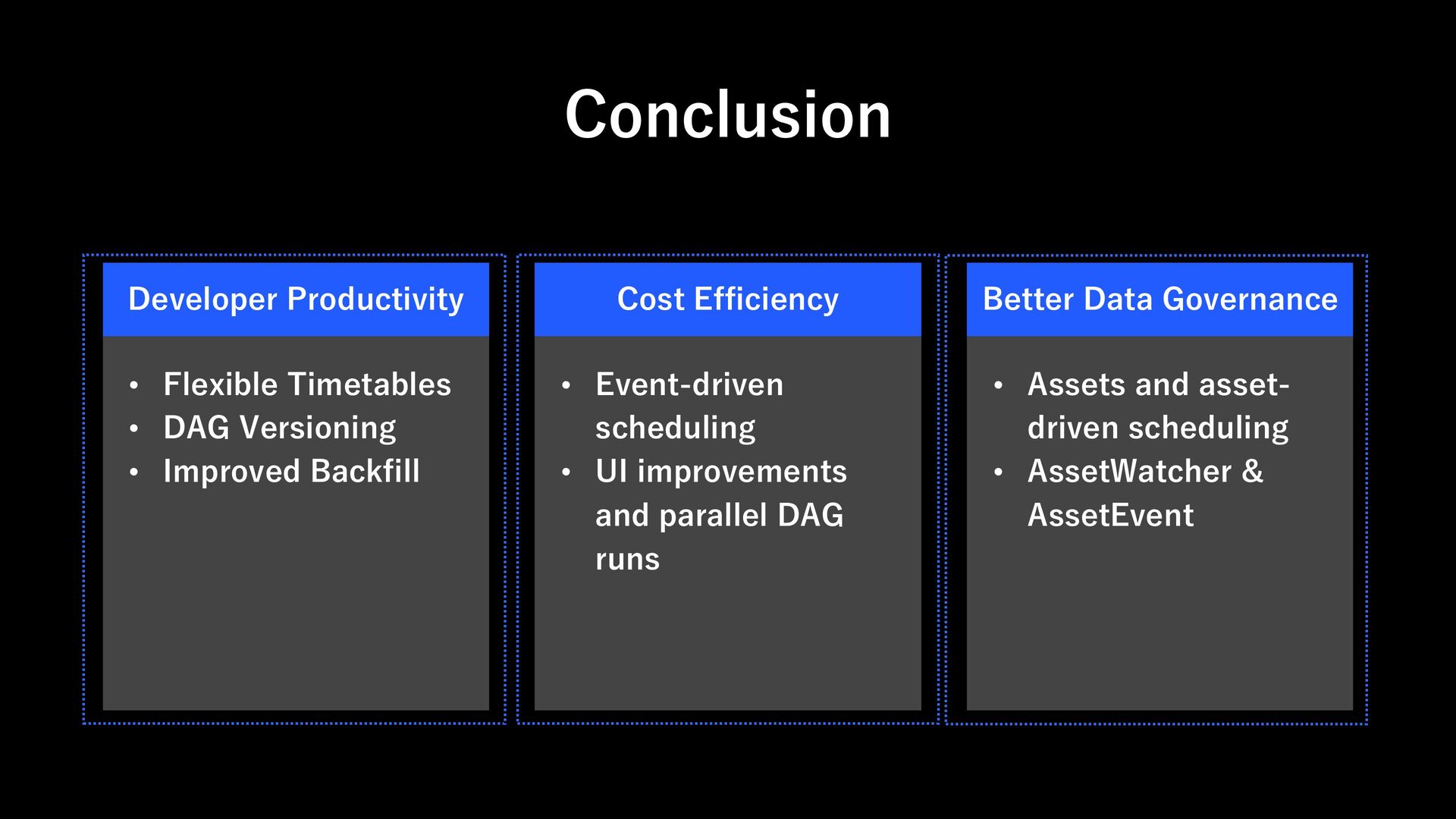

18. Developer Productivity • Flexible Timetables • DAG Versioning • Improved Backfill Cost Efficiency • Event-driven scheduling • UI improvements and parallel DAG runs Better Data Governance • Assets and asset- driven scheduling • AssetWatcher & AssetEvent Conclusion
