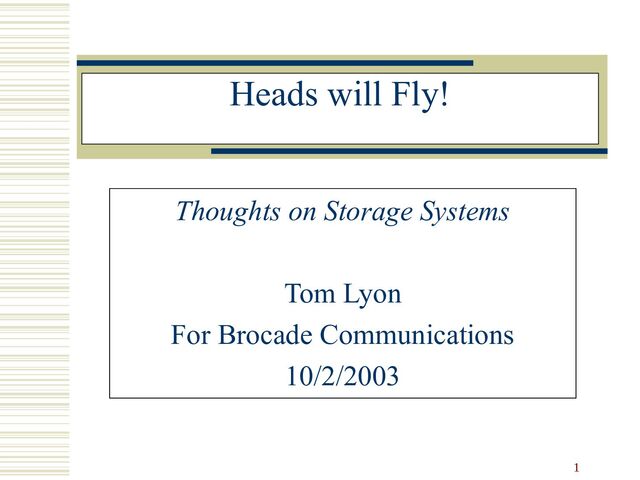

  1. 1 Heads will Fly! Thoughts on Storage Systems Tom Lyon

    For Brocade Communications 10/2/2003
  2. 3 The Backup Paradox  Old filesystems: random updates, sequential

    reads  New filesystems: sequential updates (log), random reads  Walking the filesystem to backup causes extreme overhead  Is snapshot/rollback enough?
  3. 4 Backup  Most users perform backups ‘religiously’  It’s

    a miracle if they can restore things!  Restores can be major source of un- availability  Allocity – recovery for MS Exchange
  4. 6 Storage vs Network  Individual drives approach 500 Mbps

     10Gbps “non-blocking” is only 20 drives  PCI Express 16b wide = 32Gbps  We need 40 to 100Gbps Ethernet (or FC) soon!
  5. 7 Network vs. Storage Network Megabits/Second Terabytes/Day Petabytes/Year T1 1.5

    0.02 0.01 Ethernet 10 0.11 0.04 T3 45 0.49 0.18 FastEther 100 1.08 0.39 GigEther 1000 10.80 3.94 10Gig 10000 108.00 39.42
  6. 8 Capture Applications  Gathering workload information  Network sanity

    analysis  Wire-tapping “Legal Intercept”  Intrusion detection / analysis  Forensic evidence gathering  Capture, timestamp, encrypt, …  Video capture for security cameras
  7. 10 New I/O  PCI Express – serialized PCI 

    PCI Express/Advanced Switching  Peer-Peer Host & Devices  Infiniband
  8. 11 Peer-to-Peer I/O  Most busses allow p2p I/O device

    transfers  Multibus, VME, PCI, …  Switched I/O allows p2p Host transfers  PCI Express, Infiniband, some CompactPCI  Management framework is usually insufficient  I2O attempted solution for PCI  Too complex, failed  P2P I/O never happens, P2P Host uses IP
  9. 12 RDMA  RDMA is peer-peer host & memory 

    Datapath can be optimized  But control is horribly complex  DMA never happened between hosts on a bus, why would it happen between hosts on a network?  DMA between device & host works when device is dedicated to host
  10. 14 Virtual Storage  Virtual Tapes on Drives  Virtual

    Drives with RAID  Virtual Volumes – expandable, replicated, cached in mem  Virtual filesystems, virtual filers  Virtual files - /proc/…  Virtual databases – ODBC proxy/cache/repl
  11. 15 Virtualizing Interfaces  [host] –iface1-- [drive]  [host] –iface1--

    [new logic] –iface2-- [drive]  If iface1 = iface2 then proxy  Else translator
  12. 17 HW vs SW Interfaces  ATA, SATA HBAs are

    software compatible back to the dark ages – HW interfaces  SCSI, FC, iSCSI all require vendor unique OS support – SW interfaces  Deployment of HW interface is quick & painless; SW is slow and complex
  13. 18 Low Level Interfaces Type Value-Add ATA HW low SATA

    HW low SCSI SW med iSCSI SW hi FC SW hi
  14. 19 Translations To From ATA SATA SCSI iSCSI FC ATA

    R ? x x x SATA R ? x ! ! SCSI R R R x pl iSCSI R R R ? sr FC R R R ? R
  15. 20 HyperSCSI  From SAN -> Internet (iSCSI) is a

    giant leap  SAN -> LAN (HyperSCSI) is smaller step  Non-IP (not politically correct)  Avoids TCP overhead, IP admin & security problems http://nst.dsi.a-star.edu.sg/mcsa/hyperscsi/
  16. 21 What I Want  Convert SATA front end (highly

    compatible) into FC/iSCSI back ends (high value add)  ASIC for SATA->HyperSCSI aggregation  Build blade server system to replace the typical rack of single-disk servers  Rich backend for HyperSCSI->FC or iSCSI
