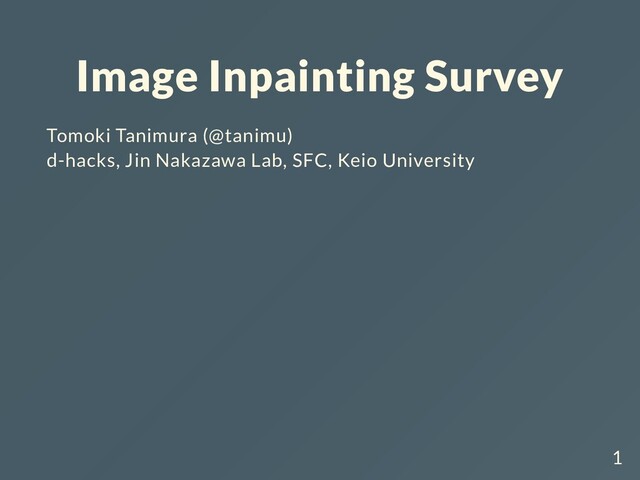

1. Image Inpainting Survey Tomoki Tanimura (@tanimu) d-hacks, Jin Nakazawa Lab, SFC, Keio University 1
2. What is Image Inpainting Image Inpainting is to fill missing parts of image. Important Point: Fill in the hole with visually reaslistic semantically plausible 2
3. Two main approach Patch Pasting Search similar patches to hole-surrounding areas PatchMatch, Scene Completion, etc. Learning based Learn how to fill the hole using large scale dataset GLCIC, Gated Conv, etc. 3
4. Patch Pasting 2006 - 2008 Search Similar Patch ! 4
5. PatchMatch 1. Search Similar patch to the hole surrounding areas in an input image 2. Paste the searched patch to the hole 3. loop (1,2) 5
9. Scene Completion Search the image similar to an input from large scale image database Search similar patch and paste it to the input's hole 9
11. Patch Pasting Good at filling in the small size hole and the hole in a stationary image (specific pattern image, scene image, etc.) Can't fill the hole with semantically prosible contents, Not good at filling the hole in a non-stationary image (city, face, etc.) 11
12. Learning based 12
13. Learning based Recent popular approach Generate the contents of the hole using Convolutional Neural Networks (CNN) Input an image with hole to a model Model predict a contents in the hole 13
14. Evolution of Learning based ImIn 1. CNN Encoder-Decoder + Reconstruction Loss + Adversarial Loss -> e.g. ContextEncoder, GLCIC 2. 1 + Additional Loss or Input -> e.g. GICA, EdgeConnect, StructureImIn 3. (1 + 2 +) Feature Gating -> e.g. PartialConv, GatedConv 14
15. 1. CNN Encoder-Decoder 2016 - 2017 Initial Deep Learning based approach Use CNN and Adversarial Loss 15
16. Context Encoder Context Encoders: Learning Features by Inpainting 1. Input the image with hole to CNN 2. CNN encode the input to feature vector, then decode to the input while predicting the hole 3. Update model parameter to minimize the difference between the decoded image and the original input 16
17. Generate the semantically prosible contents in the hole 17
18. Use ImIn as Representation Learning Use the encoder as feature extractor and test some vision tasks 18
19. GLCIC Globally and Locally Image Completion Difference from Context Encoder Add dilated convolution Evaluate generated image with globally and locally discriminator 19
20. Fill the hole with semantically prosible and visually realistic contents Effect of Globaly Discriminator Deal with high resolution image and non-stationary image 20
21. CNN Encoder-Decoder Advance CNN and Adversarail Loss enable to learn to generate the semantically prosible contents using large scale dataset 21
22. Drawback Context Encoder is not perfect GLCIC requires heavy post process (poisson blending) 22
23. 2. Additional Loss and Input 2018 - 2019 Use additional information and module to improve ImIn performance 23
24. GICA Generative Image Inpainting with Contextual Attention GLCIC + Coarse-to-Fine + Contextual Attention 24
25. Is there difference from GLCIC ? Pay attention to image structure 25
26. EdgeConnect EdgeConnect: Generative Image Inpainting with Adversarial Edge Learning Use edge information to support image inpainting model Edge image with hole -> Model -> Completed edge image Completed Edge image, Color image with hole -> Model -> Completed color image 26
27. EdgeConnect is inspired by "lines first, color next" 27
28. 3. Feature Gating 2018 - 2019 Filter invalid pixel information to improve performance Get better performance with simple and reasonable extension 28
29. Partial Convolution Image inpainting for irregular holes using partial convolutions Use pixel information other than holes Introduce Mask to filter pixel information 29
30. More effective to irregular holes because of not using hole area pixel information Achieve good performance with a simple U-Net architecture 30
31. Gated Convolution Free-form image inpainting with gated convolution Introduce soft mask feature gating with Learnable Mask Enable for user to sketch the guide to input 31
32. Use Convolution Kernel and SoftMask Kernel 32
33. Use the same architecture as GICA Introduce Spectral-Normalized Markovian Discriminator 33
34. Summary 34
35. How ImIn has evolved Patch Pasting Traditional Heuristic Approach (reasonable, but worse performance) Search patches similar to hole surroundings and paste CNN Encoder-Decoder with Adversarial Loss Appear Deep Learning! High Perfomance! CNN + GAN (discriminator) Additinal Loss or Input Attension or Some Extension Attension / Edge Information 35
36. Feature Gating Improve More Fundemental Problem Use only valid pixel information (None) (Theoretical Analysis and Improvement) 36
37. References PatchMatch: a randomized correspondence algorithm for structural image editing Scene Completion Using Millions of Photographs Context Encoders: Feature Learning by Inpainting Globally and locally consistent image completion Generative Image Inpainting with Contextual Attention EdgeConnect: Generative Image Inpainting with Adversarial Edge Learning Image Inpainting for Irregular Holes using Partial Convolution Free-form Image Inpainting with Gated Convolution 37
